Brian Bulkowski. Aerospike

© 2014 Aerospike. All rights reserved. Confidential 1
1M++ queries per second with 100TB+
How, and why, to achieve
Operational Big Data
Brian Bulkowski
CTO and co-founder
Aerospike

REQUIREMENTS FOR INTERNET ENTERPRISES

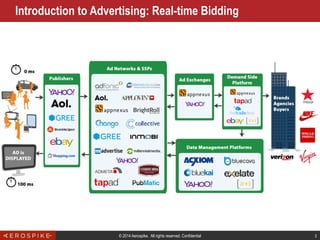

Introduction to Advertising: Real-time Bidding

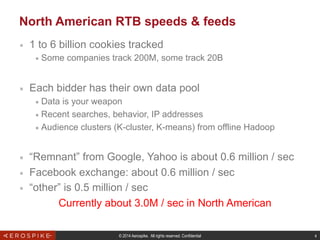

North American RTB speeds & feeds
■  1 to 6 billion cookies tracked
■  Some companies track 200M, some track 20B
■  Each bidder has their own data pool
■  Data is your weapon
■  Recent searches, behavior, IP addresses
■  Audience clusters (K-cluster, K-means) from offline Hadoop
■  “Remnant” from Google, Yahoo is about 0.6 million / sec
■  Facebook exchange: about 0.6 million / sec
■  “other” is 0.5 million / sec
Currently about 3.0M / sec in North American

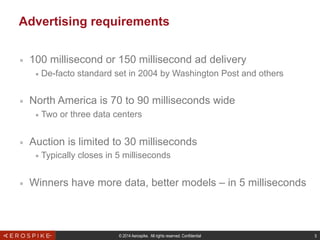

Advertising requirements
■  100 millisecond or 150 millisecond ad delivery
■  De-facto standard set in 2004 by Washington Post and others
■  North America is 70 to 90 milliseconds wide
■  Two or three data centers
■  Auction is limited to 30 milliseconds
■  Typically closes in 5 milliseconds
■  Winners have more data, better models – in 5 milliseconds

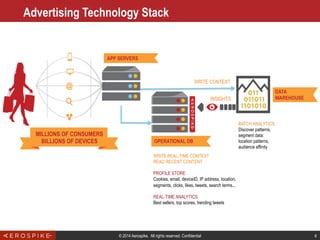

MILLIONS OF CONSUMERS
BILLIONS OF DEVICES
APP SERVERS
DATA
WAREHOUSEINSIGHTS
Advertising Technology Stack
WRITE CONTEXT
OPERATIONAL DB
WRITE REAL-TIME CONTEXT
READ RECENT CONTENT
PROFILE STORE
Cookies, email, deviceID, IP address, location,
segments, clicks, likes, tweets, search terms...
REAL-TIME ANALYTICS
Best sellers, top scores, trending tweets
BATCH ANALYTICS
Discover patterns,
segment data:
location patterns,
audience affinity

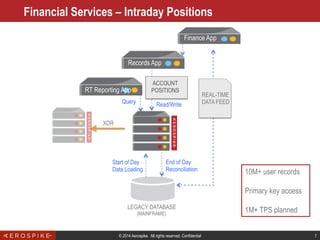

Financial Services – Intraday Positions
LEGACY DATABASE
(MAINFRAME)
Read/Write
Start of Day
Data Loading
End of Day
Reconciliation
Query
REAL-TIME
DATA FEED
ACCOUNT
POSITIONS
XDR
10M+ user records
Primary key access
1M+ TPS planned
Finance App
Records App
RT Reporting App

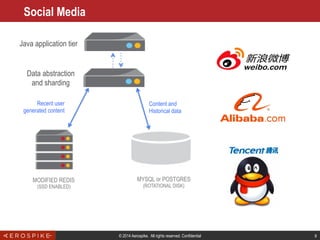

Social Media
MYSQL or POSTGRES
(ROTATIONAL DISK)
Recent user
generated content
Java application tier
Data abstraction
and sharding
MODIFIED REDIS
(SSD ENABLED)
Content and
Historical data

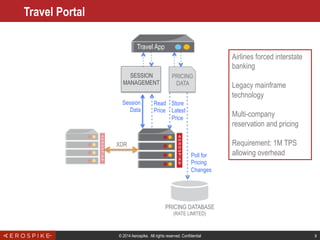

Travel Portal
PRICING DATABASE
(RATE LIMITED)
Poll for
Pricing
Changes
PRICING
DATA
Store
Latest
Price
SESSION
MANAGEMENT
Session
Data
Read
Price
XDR
Airlines forced interstate
banking
Legacy mainframe
technology
Multi-company
reservation and pricing
Requirement: 1M TPS
allowing overhead
Travel App

SOURCE
DEVICE/ USER

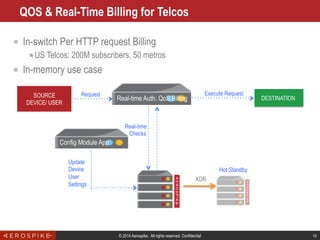

QOS & Real-Time Billing for Telcos
■  In-switch Per HTTP request Billing
■ US Telcos: 200M subscribers, 50 metros
■  In-memory use case
Hot Standby
Execute Request
Real-time
Checks
DESTINATION
Update
Device
User
Settings
Request
XDR
Real-time Auth. QoS Billing
Config Module App

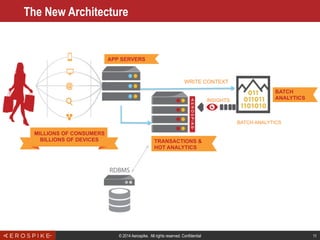

MILLIONS OF CONSUMERS
BILLIONS OF DEVICES
APP SERVERS
BATCH
ANALYTICSINSIGHTS
BATCH ANALYTICS
The New Architecture
WRITE CONTEXT
TRANSACTIONS &
HOT ANALYTICS

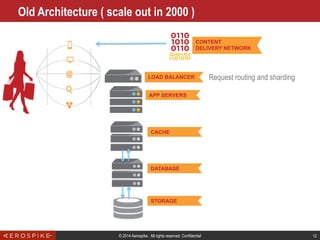

Old Architecture ( scale out in 2000 )
Request routing and sharding
APP SERVERS
CACHE
DATABASE
STORAGE
CONTENT
DELIVERY NETWORK
LOAD BALANCER

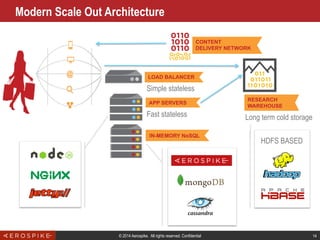

Modern Scale Out Architecture
Load balancer
Simple stateless
APP SERVERS
IN-MEMORY NoSQL
RESEARCH
WAREHOUSE
CONTENT
DELIVERY NETWORK
LOAD BALANCER
Long term cold storageFast stateless

Modern Scale Out Architecture
Load balancer
Simple stateless
APP SERVERS
IN-MEMORY NoSQL
RESEARCH
WAREHOUSE
CONTENT
DELIVERY NETWORK
LOAD BALANCER
Long term cold storageFast stateless
HDFS BASED

Build a data layer
Use open source
Focus on Key Value
Use In-memory NoSQL
Use Flash

How fast can you go
How to do it

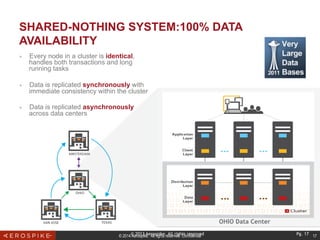

SHARED-NOTHING SYSTEM:100% DATA
AVAILABILITY
■  Every node in a cluster is identical,
handles both transactions and long
running tasks
■  Data is replicated synchronously with
immediate consistency within the cluster
■  Data is replicated asynchronously
across data centers
OHIO Data Center
© 2013 Aerospike. All rights reserved Pg. 17

LESSONS
1.  Optimize key-value code paths
■  No hot spots (e.g., robust DHT)
■  Scales up easily (e.g., easy to size)
■  Avoids points of failure (e.g., single node type)
■  Binary protocol
2.  Code in C
■  Read() / Write() / Linux AIO ( don’t trust a library )
■  Multithread !
■  Direct device
■  C++ could work, leads to structural complexity
3.  Memory allocation matters
■  Stack based allocators
■  Own stack allocator
■  JEMalloc for pools

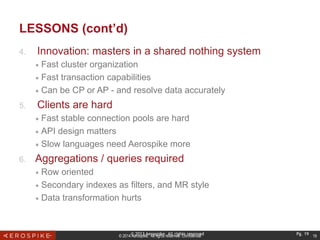

LESSONS (cont’d)
4.  Innovation: masters in a shared nothing system
■  Fast cluster organization
■  Fast transaction capabilities
■  Can be CP or AP - and resolve data accurately
5.  Clients are hard
■  Fast stable connection pools are hard
■  API design matters
■  Slow languages need Aerospike more
6.  Aggregations / queries required
■  Row oriented
■  Secondary indexes as filters, and MR style
■  Data transformation hurts

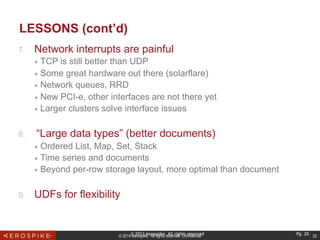

LESSONS (cont’d)
7.  Network interrupts are painful
■  TCP is still better than UDP
■  Some great hardware out there (solarflare)
■  Network queues, RRD
■  New PCI-e, other interfaces are not there yet
■  Larger clusters solve interface issues
8.  “Large data types” (better documents)
■  Ordered List, Map, Set, Stack
■  Time series and documents
■  Beyond per-row storage layout, more optimal than document
9.  UDFs for flexibility

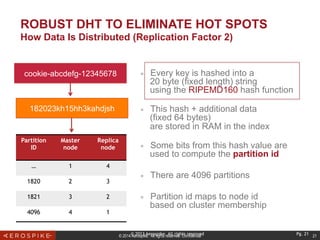

ROBUST DHT TO ELIMINATE HOT SPOTS
How Data Is Distributed (Replication Factor 2)
■  Every key is hashed into a
20 byte (fixed length) string
using the RIPEMD160 hash function
■  This hash + additional data
(fixed 64 bytes)
are stored in RAM in the index
■  Some bits from this hash value are
used to compute the partition id
■  There are 4096 partitions
■  Partition id maps to node id
based on cluster membership
cookie-abcdefg-12345678
182023kh15hh3kahdjsh
Partition
ID
Master
node
Replica
node
… 1 4
1820 2 3
1821 3 2
4096 4 1

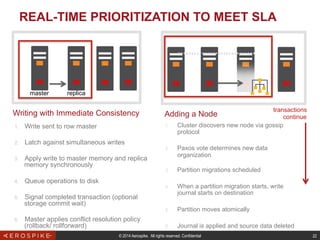

REAL-TIME PRIORITIZATION TO MEET SLA
1.  Write sent to row master
2.  Latch against simultaneous writes
3.  Apply write to master memory and replica
memory synchronously
4.  Queue operations to disk
5.  Signal completed transaction (optional
storage commit wait)
6.  Master applies conflict resolution policy
(rollback/ rollforward)
master replica
1.  Cluster discovers new node via gossip
protocol
2.  Paxos vote determines new data
organization
3.  Partition migrations scheduled
4.  When a partition migration starts, write
journal starts on destination
5.  Partition moves atomically
6.  Journal is applied and source data deleted
transactions
continue
Writing with Immediate Consistency Adding a Node

SQL & NoSQL
➤ Secondary index
§  Equality, Range, IN (,,,), Compound
§  e.g. WHERE group_id = 1234,
WHERE last_activity > 1349293398, WHERE
branch_id IN (5,6,7,8)
➤ Filters
§  SQL: Where clause with non-indexed “AND”s
(e.g. “AND gender=‘M’ ”)
§  NOSQL: Map step
➤ Aggregation
§  SQL: GROUP BY, ORDER BY, LIMIT, OFFSET
§  NOSQL: Reduce step
Secondary Key
Primary Key
Record
Filter Map
Aggregate
DRAM
SSD
Aggregate
Client
Client
Server
Reduce
Aggregate
Query

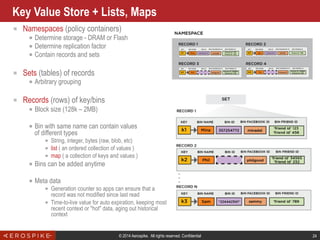

Key Value Store + Lists, Maps
■  Namespaces (policy containers)
■  Determine storage - DRAM or Flash
■  Determine replication factor
■  Contain records and sets
■  Sets (tables) of records
■  Arbitrary grouping
■  Records (rows) of key/bins
■  Block size (128k – 2MB)
■  Bin with same name can contain values
of different types
■  String, integer, bytes (raw, blob, etc)
■  list ( an ordered collection of values )
■  map ( a collection of keys and values )
■  Bins can be added anytime
■  Meta data
■  Generation counter so apps can ensure that a
record was not modified since last read
■  Time-to-live value for auto expiration, keeping most
recent context or "hot" data, aging out historical
context

Flash storage
The Power of Flash Storage

DATABASE
OS FILE SYSTEM
PAGE CACHE
BLOCK INTERFACE
SSD HDD
BLOCK INTERFACE
SSD SSD
OPEN NVM
SSD
Ask me and I’ll tell you the answer.Ask me. I’ll look up the answer and then tell it to
you.
DATABASE
HYBRID MEMORY SYSTEM™
•  Direct device access
•  Large Block Writes
•  Indexes in DRAM
•  Highly Parallelized
•  Log-structured FS “copy-on-write”
•  Fast restart with shared memory
FLASH OPTIMIZED HIGH
PERFORMANCE

© 2014 Aerospike. All rights reserved. Confidential 27© 2012 Aerospike. All rights reserved. Pg. 27

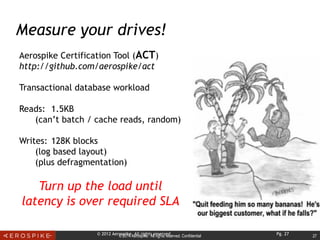

Measure your drives!
Aerospike Certification Tool (ACT)
http://github.com/aerospike/act
Transactional database workload
Reads: 1.5KB
(can’t batch / cache reads, random)
Writes: 128K blocks
(log based layout)
(plus defragmentation)
Turn up the load until
latency is over required SLA

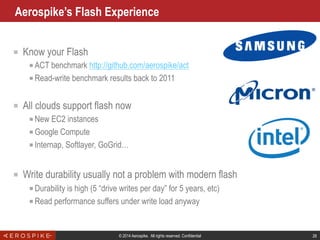

Aerospike’s Flash Experience
■  Know your Flash
■ ACT benchmark http://github.com/aerospike/act
■ Read-write benchmark results back to 2011
■  All clouds support flash now
■ New EC2 instances
■ Google Compute
■ Internap, Softlayer, GoGrid…
■  Write durability usually not a problem with modern flash
■ Durability is high (5 “drive writes per day” for 5 years, etc)
■ Read performance suffers under write load anyway

Aerospike’s Flash Experience
■  Densities increasing
■ 100G 2 years ago à 800G today
■ SATA vs PCI-E
■ Appliances: 50T per 1U this year
■  Prices still dropping: perhaps $1/G next year
■  Intel P3700 results
■ 250K per device @ $2.5 / G
■ Old standard: Micron P320h 500K @ $8 / G
■  “Wide SATA”
■ 20 SATA drives
■ LSI “pass through mode”
■ 250K+ per server

Use key-value with In-memory NoSQL
■  Primary key access has always been the path to database performance
■  Creates sanitized application logic
■  De-normalize your data, or “join” in the application layer
■  Largest scale systems built on sharded key-value operations
■  Use developer-friendly features: native lists, maps, documents

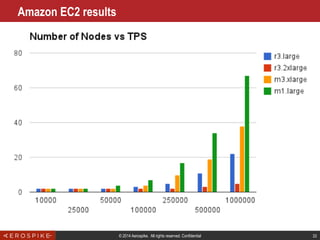

Amazon EC2 performance with Aerospike

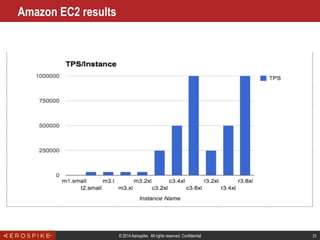

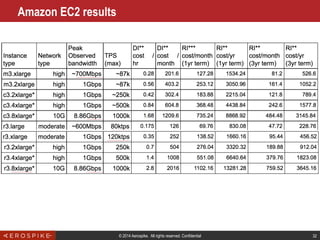

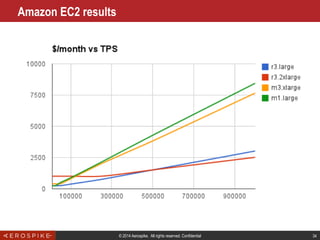

Amazon EC2 results

Use Open Source

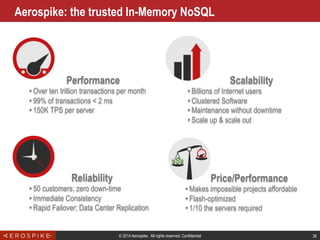

Aerospike: the trusted In-Memory NoSQL
Performance
• Over ten trillion transactions per month
• 99% of transactions < 2 ms
• 150K TPS per server
Scalability
• Billions of Internet users
• Clustered Software
• Maintenance without downtime
• Scale up & scale out
Reliability
• 50 customers; zero down-time
• Immediate Consistency
• Rapid Failover; Data Center Replication
Price/Performance
• Makes impossible projects affordable
• Flash-optimized
• 1/10 the servers required
