1. Rapid Application Design
Patterns for Financial Services
Applications
—
Brian Bulkowski, CTO and Founder
September 13, 2016

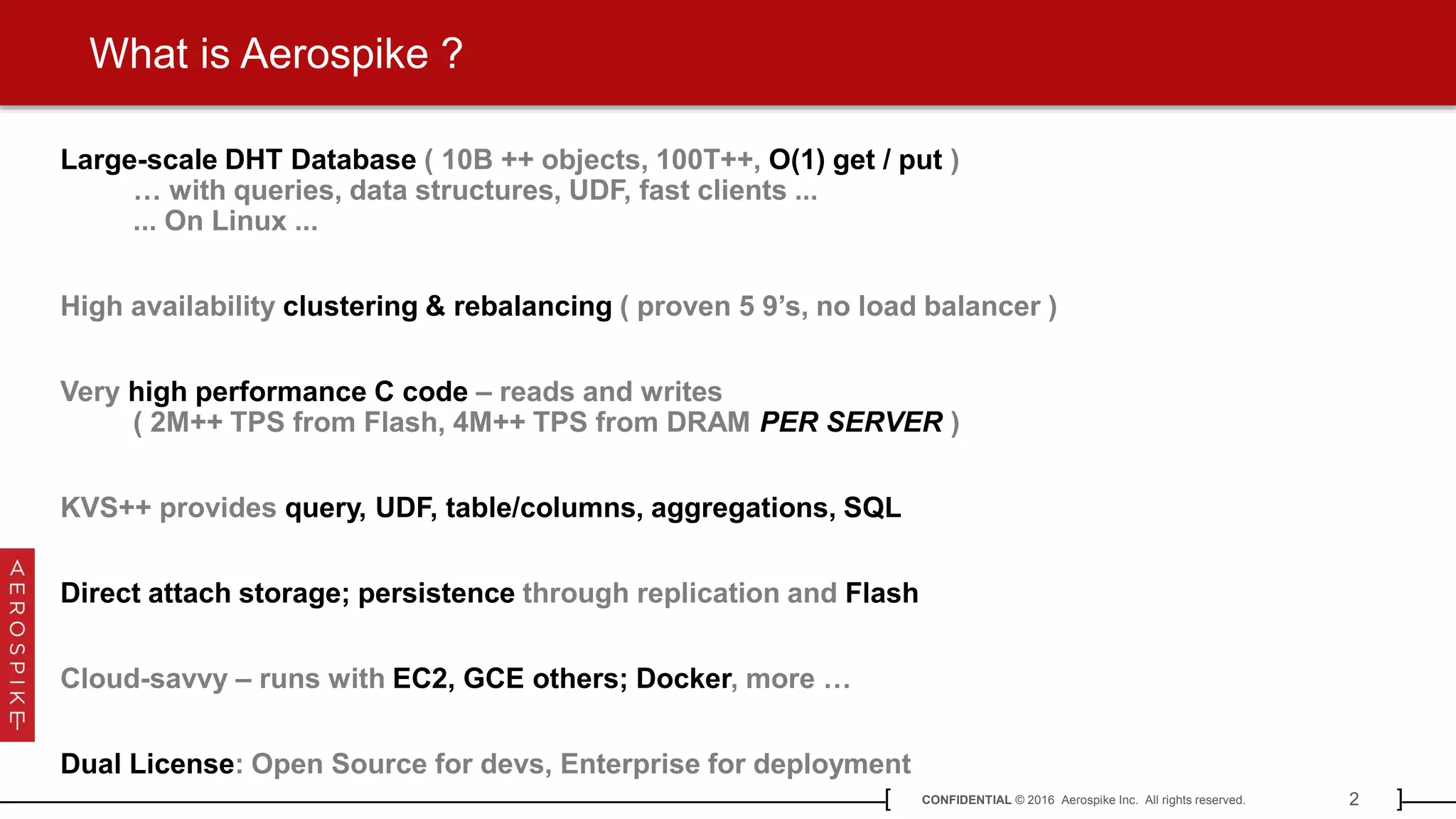

2. 2CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
What is Aerospike ?
Large-scale DHT Database ( 10B ++ objects, 100T++, O(1) get / put )
… with queries, data structures, UDF, fast clients ...
... On Linux ...
High availability clustering & rebalancing ( proven 5 9’s, no load balancer )
Very high performance C code – reads and writes
( 2M++ TPS from Flash, 4M++ TPS from DRAM PER SERVER )
KVS++ provides query, UDF, table/columns, aggregations, SQL
Direct attach storage; persistence through replication and Flash
Cloud-savvy – runs with EC2, GCE others; Docker, more …
Dual License: Open Source for devs, Enterprise for deployment

3. Who needs a fast
operational database?

4. 4CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Identified where
scale is mission
critical – the AdTech
Industry
1
Expanding into other
use cases
in BFSI, Telco,
Retail, IoT
4
Built database that can scale for RTB use
case for these customers and more….
2
The Scalable Operational Database Problem
3
Deployed @ Digital
Enterprises that
need consumer scale
databases

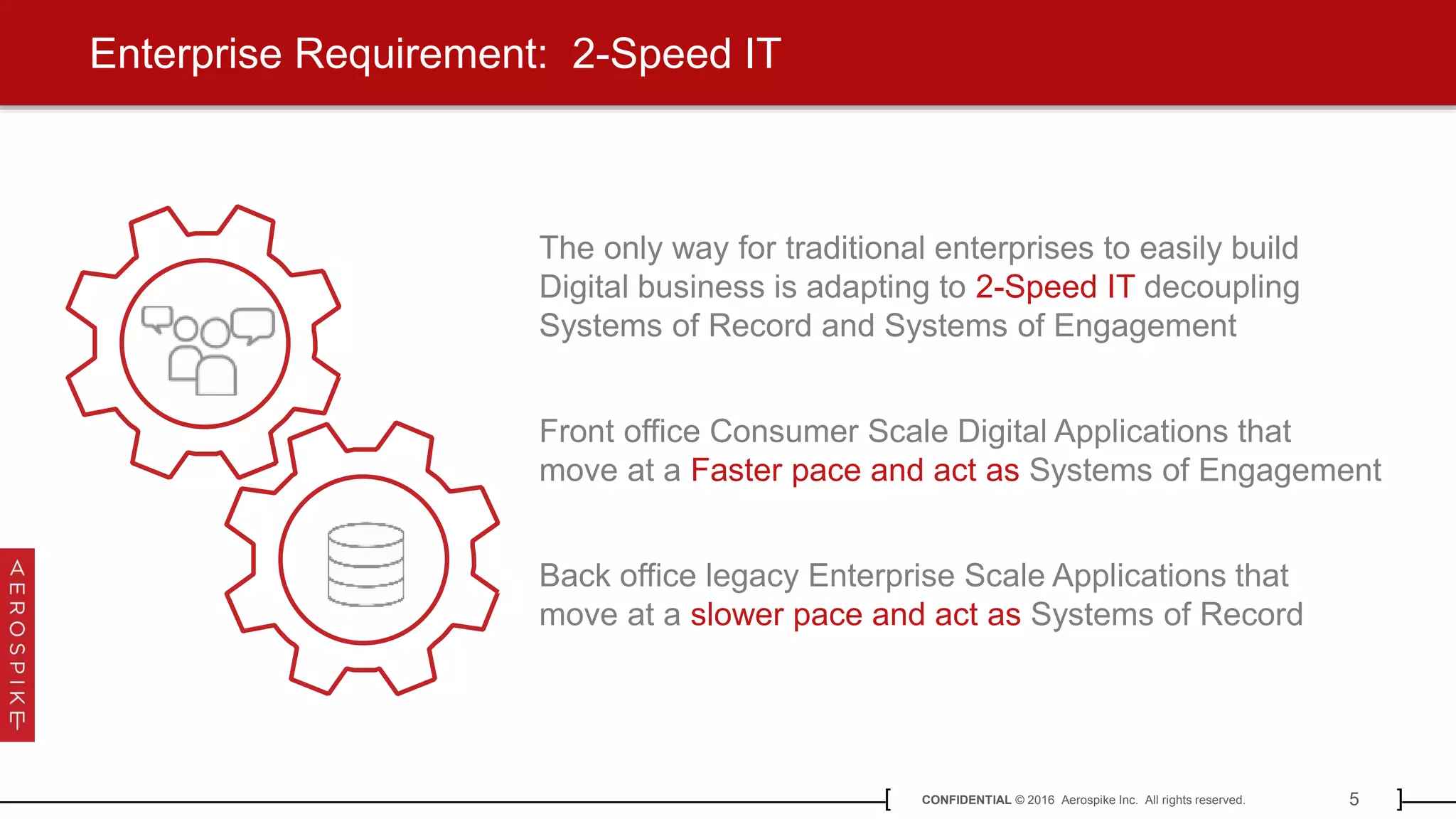

5. 5CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
The only way for traditional enterprises to easily build
Digital business is adapting to 2-Speed IT decoupling
Systems of Record and Systems of Engagement
Back office legacy Enterprise Scale Applications that
move at a slower pace and act as Systems of Record
Front office Consumer Scale Digital Applications that
move at a Faster pace and act as Systems of Engagement
Enterprise Requirement: 2-Speed IT

6. 6CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Architecture Overview
LEGACY DATABASE
(Mainframe)
XDR
DATA WAREHOUSE/
DATA LAKE
LEGACY RDBMS
HDFS BASED
BUSINESS
TRANSACTIONS
Web views
( Payments )
( Mobile Queries ) (
Recommendation )
( And More )
High Performance NoSQL
“REAL-TIME BIG DATA”
“DECISIONING”
YY
YOUR
APPLICATION
FRAMEWORK
YY
Decisioning Engine

7. 7CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Architecture Overview
LEGACY DATABASE
(Mainframe)
XDR
Decisioning Engine
DATA WAREHOUSE/
DATA LAKE
LEGACY RDBMS
HDFS BASED
BUSINESS
TRANSACTIONS
Web views
( Payments )
( Mobile Queries ) (
Recommendation )
( And More )
High Performance NoSQL
“REAL-TIME BIG DATA”
“DECISIONING”
500
Business Trans per sec
5000
Calculations per sec
X = 2.5 M
Database Transactions per sec

8. 8CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
■ Retail brokerage: risk recalculation in minutes, not hours
■ Internet cache replacement / session management
■ Telecom integrated real-time billing and routing
■ Account status determines routing, traffic shaping
■ Retail predictive analytics
■ Machine learning
■ Online learning, Spark accesses / updates shared models
■ Gaming and gambling
■ Social messaging
Similar use cases

9. 9CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Architecture
1) No Hotspots
– Distributed Hash Table simplifies data partitioning
2) Smart Client – 1 hop to data, no load balancers
3) Shared Nothing Architecture,
– every node is identical
4) Smart Cluster, Zero Touch
– auto-failover, rebalancing, rack aware, rolling upgrades
5) Transactions and long-running tasks prioritized in real-time
6) XDR – sync replication across data centers ensures
– Zero Downtime

10. 10CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
OTHER DATABASE
OS FILE SYSTEM
PAGE CACHE
BLOCK INTERFACE
SSD HDD
BLOCK INTERFACE
SSD SSD
OPEN NVM
SSD
OTHER
DATABASES
AEROSPIKE FLASH
OPTIMIZED DATABASE
AEROSPIKE
HYBRID MEMORY SYSTEM™
• Direct device access
• Large Block Writes
• Indexes in DRAM
• Highly Parallelized
• Log-structured FS “copy-on-write”
• Fast restart with shared memory
Flash Optimized High Performance

11. Benchmarks

12. 12CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
■ 3 node cluster, Intel S3700 SSDs
■ Followed religiously all DataStax recommendations
■ Standard YCSB, includes instructions to reproduce for your workload
■ http://www.aerospike.com/blog/comparing-nosql-databases-aerospike-and-
cassandra/
Aerospike vs Cassandra ( 2016 )

13. 13CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Aerospike vs Cassandra ( 2016 )

14. 14CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Aerospike vs Cassandra ( 2016 )

15. 15CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
■ Redis 154K TPS, Aerospike 1.15M TPS ( non persistent, DRAM )
■ Redis 138K TPS, Aerospike 1.11M TPS ( persistent, DRAM )
Redis is single core
Redis requires client sharding or RedisCluster
■ PowerEdge R730xd, Xeon E5-2695 2.3Ghz, 256GB memory, 10GB net
■ Redis 3.2.1 , Aerospike 3.8.4 , Centos 7.2.1 ( RHEL 7 compatible ).
■ 50 / 50 read write. 100B object size. 1 hour test. 100M objects.
Redis vs Aerospike : YCSB ( 2016 )
PRELIMINARY RESULTS NOT PUBLISHED

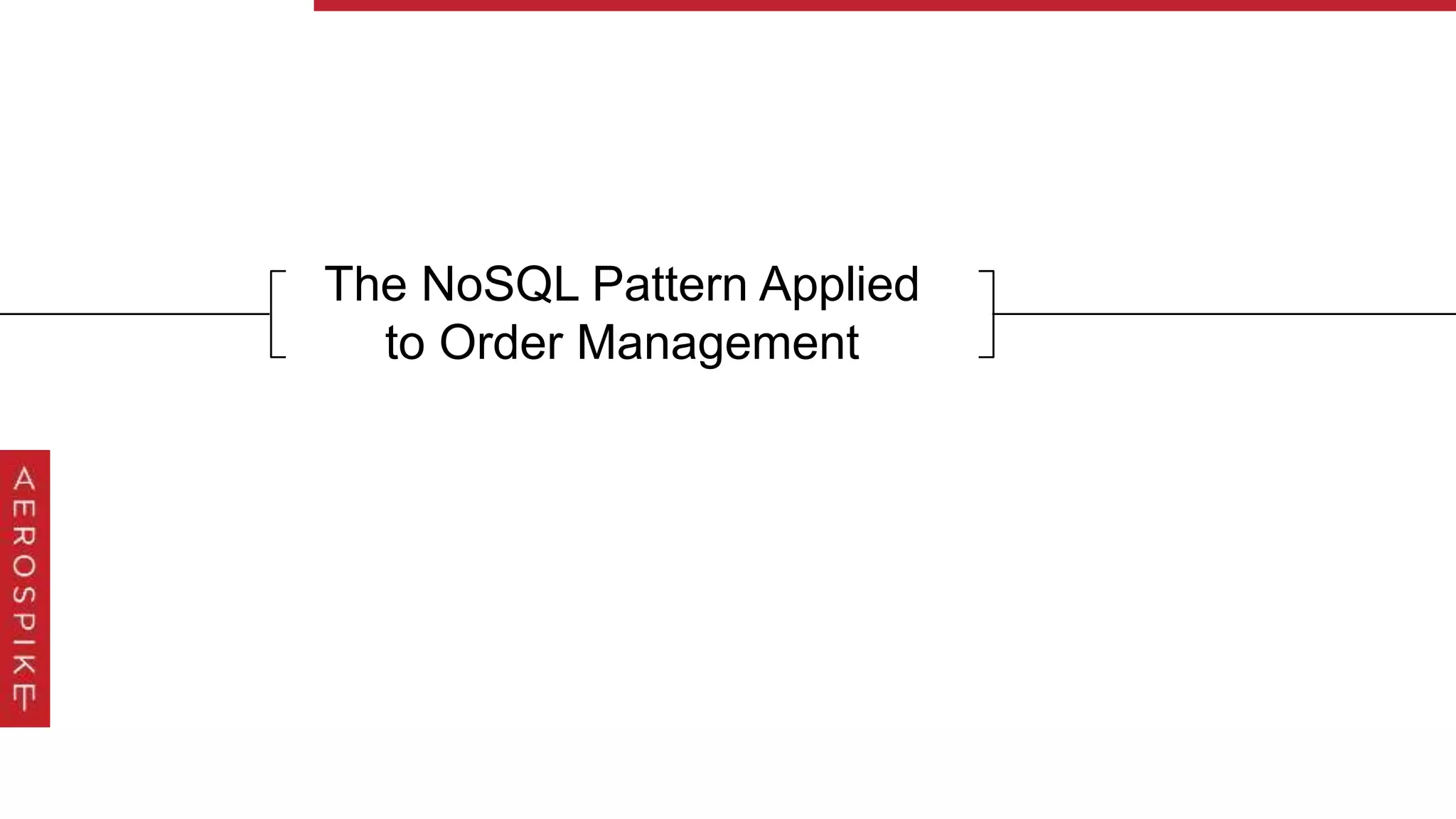

16. The NoSQL Pattern Applied
to Order Management

17. 17Proprietary & Confidential | © 2015 Aerospike Inc. All rights reserved.[ ]
Challenge
■ DB2 stores positions for 10 Million customers
■ Must show balances on 300 positions,
process 250M transactions, 2 M updates/day
■ Application design with true current
transaction status
■ Support new applications ( fraud, risk )
Need to scale reliably
■ 3  13 TB
■ 100  400 Million objects
■ 200k  I Million TPS
Selected NoSQL
■ Predictable Low latency at High Throughput
■ Immediate consistency, no data loss
■ Hot standby replication ( XDR )
■ 10 Server Cluster
IBM DB2
(MAINFRAME)
Read/Write
Start of Day
Data Loading
End of Day
Reconciliation
Query
REAL-TIME
DATA FEED
ACCOUNT
POSITIONS
XDR
Fin Serv – Positions System of Record

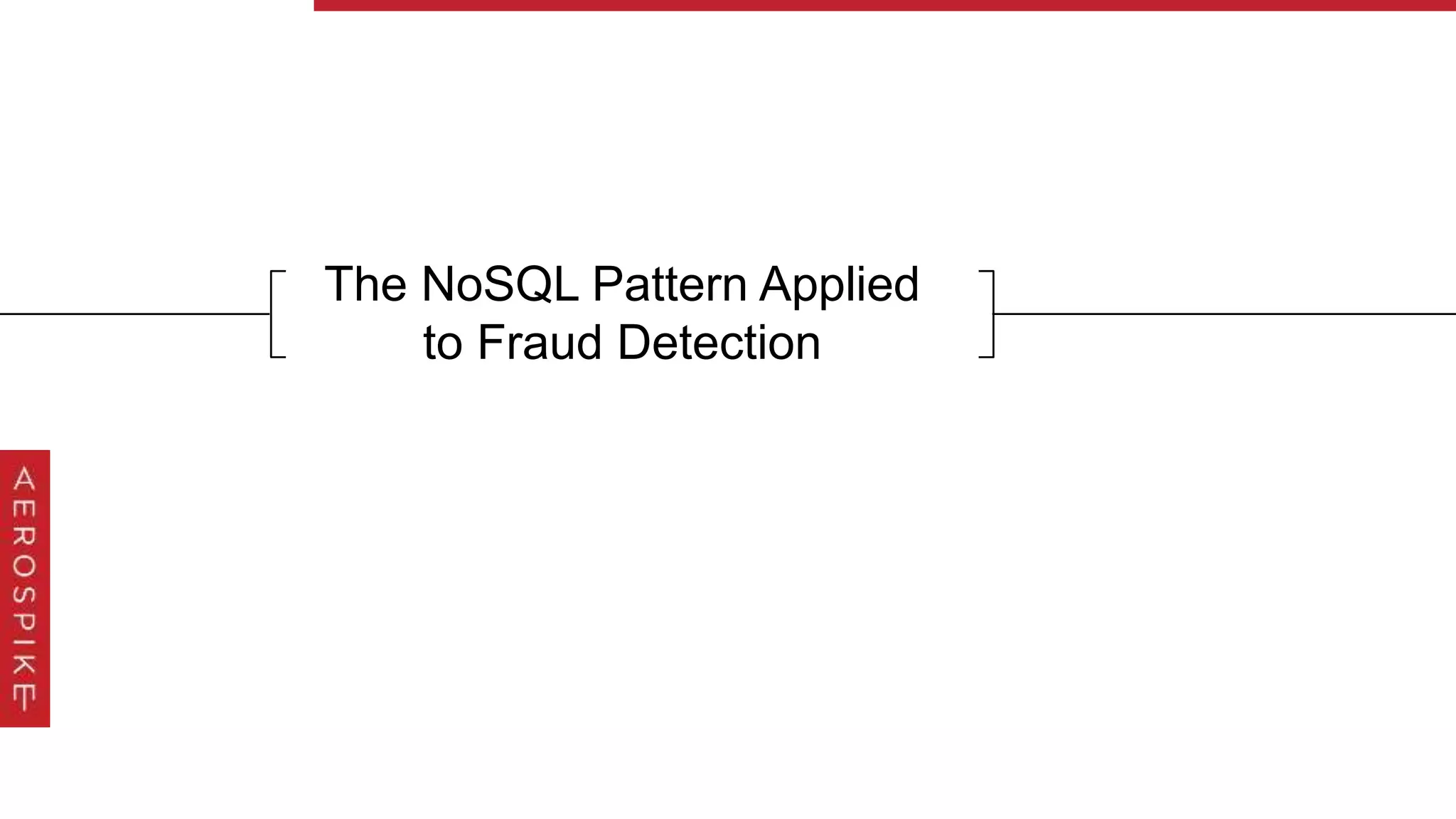

18. The NoSQL Pattern Applied
to Fraud Detection

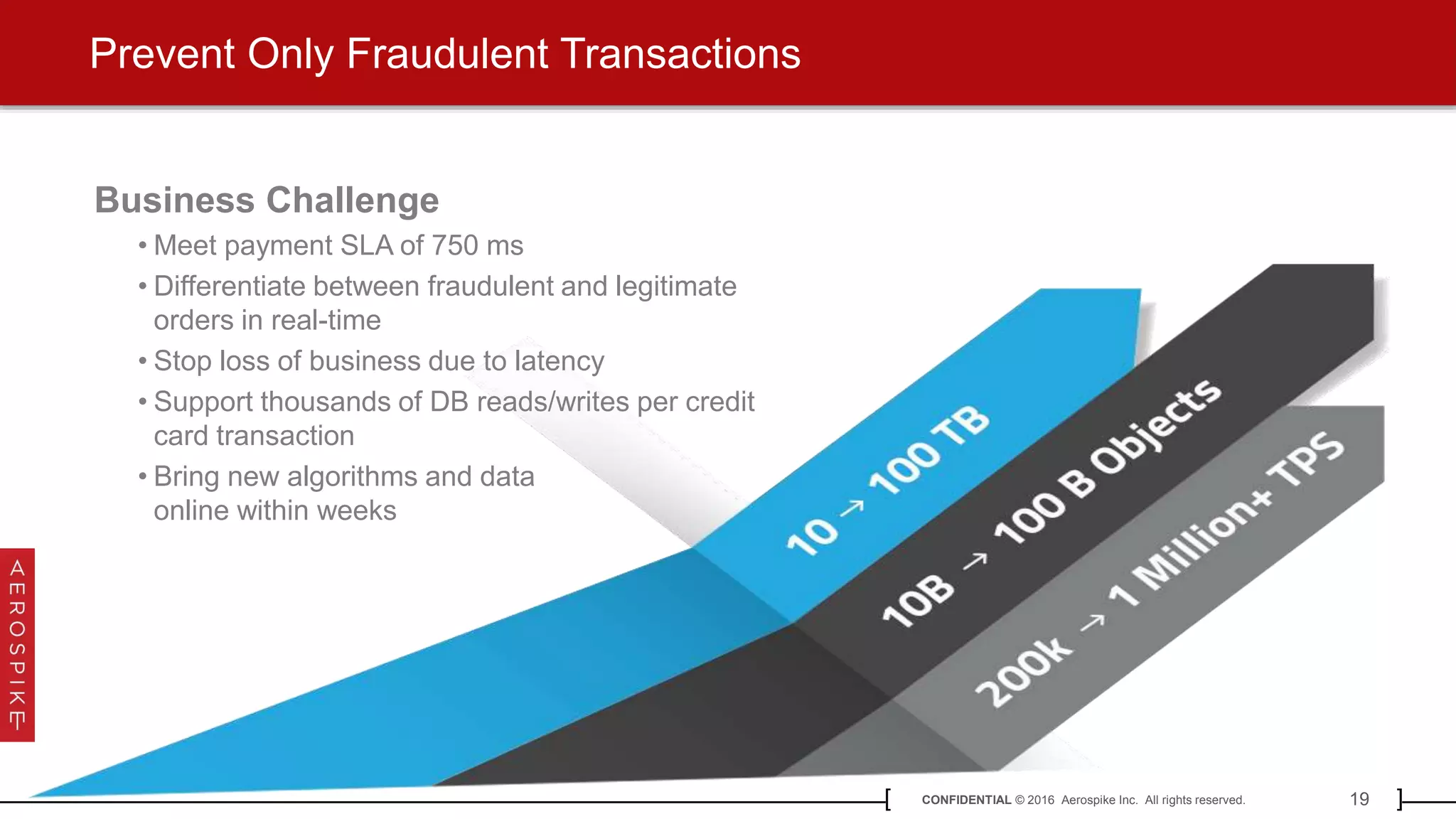

19. 19CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Business Challenge
• Meet payment SLA of 750 ms
• Differentiate between fraudulent and legitimate
orders in real-time
• Stop loss of business due to latency
• Support thousands of DB reads/writes per credit
card transaction
• Bring new algorithms and data
online within weeks
Prevent Only Fraudulent Transactions

20. 20CONFIDENTIAL © 2016 Aerospike Inc. All rights reserved.[ ]
Bespoke Algorithms
• Track every IP address
• Recent fraudulent cart items
• Machine learning generated filters
• Flexibly add new “features”
Not business process modeling
Easier to code and validate
than SQL queries
Credit Card Processing System
Fraud Detection & Protection App
Rules
Rule 1
Rule 2
Rule 3
Historical Data
Rule 1-Passed
Rule 2-Passed
Rule 3-Failed
Account Behavior
Static Data
Account
Statistics
Prevent Only Fraudulent Transactions
10TB and 1M TPS per server means
10’s of servers, not 1000’s

21. © 2016 Aerospike. All rights reserved. 21
Fraud with machine learning – “features”
■ Anything can be a “feature”
■POS type, item sold, price of item, time of day for given items
■Browser type, screen resolution, item + browser
■ But you’ll need recent data
■ And cutting edge libraries
( Aerospike-sponsored
car accident prediction
in real time using Dato )

22. © 2016 Aerospike. All rights reserved. 22
Example – IP addresses
■ 2B to 4B addresses
■ Unknown number of networks
■ Different risk models for different
network ranges
■ Recent behavior required

23. © 2016 Aerospike. All rights reserved. 23
Example – IP based scoring
ID START_IP END_IP Score
1 192.168.4.1 192.168.4.26 20
2 192.168.4.7 192.168.17.0 2
SELECT id, score WHERE START_IP >= this_ip AND END_IP <= this_ip
Not so bad!
Too slow,
and
too simple

24. © 2016 Aerospike. All rights reserved. 24
Using SQL
ID IP TIMESTAMP BEHAVIOR
1 192.168.4.1 2015-06-02 12:00 transaction
2 192.168.4.7 2015-06-02 12:01 tweet
Add the most recent 5 minutes of traffic for each IP address
and lookup by previous network
INSERT ip, time, behavior
FOR ( network )
SELECT behavior WHERE ip <= network.start_id AND
ip >= network.end_id AND
timestamp > now - 600
You can do it in
SQL ! Too slow.
Call the DBAs.

25. © 2016 Aerospike. All rights reserved. 25
With a NoSQL KVS
key Network list
192.168.4.0 [ net1, net2, net3 ]
192.168.5.0 null
Key on Class C address
 List of networks
Batch lookup networks
 filter on client
That’s messy !
Two network
roundtrips,
it’ll go fast
ID START_IP END_IP Score
net1 192.168.4.1 192.168.4.26 20
net2 192.168.4.7 192.168.17.0 2

26. © 2016 Aerospike. All rights reserved. 26
With a NoSQL KVS – add behavior
key Network list
192.168.4.0 [ net1, net2, net3 ]
192.168.5.0 null
Already have filtered list of networks
For each network,
insert into capped or time limited collection
That’s really
messy
It’s fast and
easy to
explain
ID START_IP END_IP Score behavior
net1 192.168.4.1 192.168.4.26 20 { collection }
net2 192.168.4.7 192.168.17.0 2 { collection }

27. © 2016 Aerospike. All rights reserved. 27
Use your favorite environment
Use cutting edge libraries
in your favorite app environment

28. What does a Fraud
Detection System cost?

29. © 2016 Aerospike. All rights reserved. 29
Multiple engagements
■ 10B to 50B objects
■ 300 T before HA replication
■ 2 M TPS
■ 50 milliseconds per 5,000 queries
■ Local and remote DR
What’s an Exadata license cost ?

30. © 2016 Aerospike. All rights reserved. 30
1 Million TPS on 1 Aerospike Server (in Flash)
Options for storage on a database before Aerospike:
 RAM, which was fast, but allowed very limited storage
 Disk, which allowed for a lot of storage, but was limited in speed
Intel achieved 1M TPS using 4 Intel P3700 SDs with 1.6 TB
capacity on a single Aerospike server. The cost per GB is a
fraction of the cost of RAM, while still having very high
performance.

31. © 2016 Aerospike. All rights reserved. 31
TCO Analysis – Fraud Detection

32. © 2016 Aerospike. All rights reserved. 32
■ Linux, Windows drivers achieve performance
■ U.2 and M.2 form factors available
■ Intel P3700, P3600, P3500 available –
■ 250k IOPs per card
■ Samsung PM1735 available –
■ 120k IOPs per card
■ Micron 9100
■ HGST, Toshiba – 30k to 50k per card
■ SAS / SATA lingers
■ Samsung SM1635, PM1633; Intel S3700; Micron S600 still shipping
NVMe Arrives – 2015 to present

33. © 2016 Aerospike. All rights reserved. 33
■ High, predictable performance
■High transfer speed reduces jitter
■ 2.8uS NVMe vs 5.0uS SATA
■Better controllers
■Mature and tuned Linux driver
■U.2 front panel hot swap available ( and 24-wide )
■ NVMe arrays available
■Apeiron ADS1000 “direct scale-out flash”
■EMC D5, Mangstore NX63020
■ All new Aerospike deployments on NVMe
NVMe’s crushing superiority

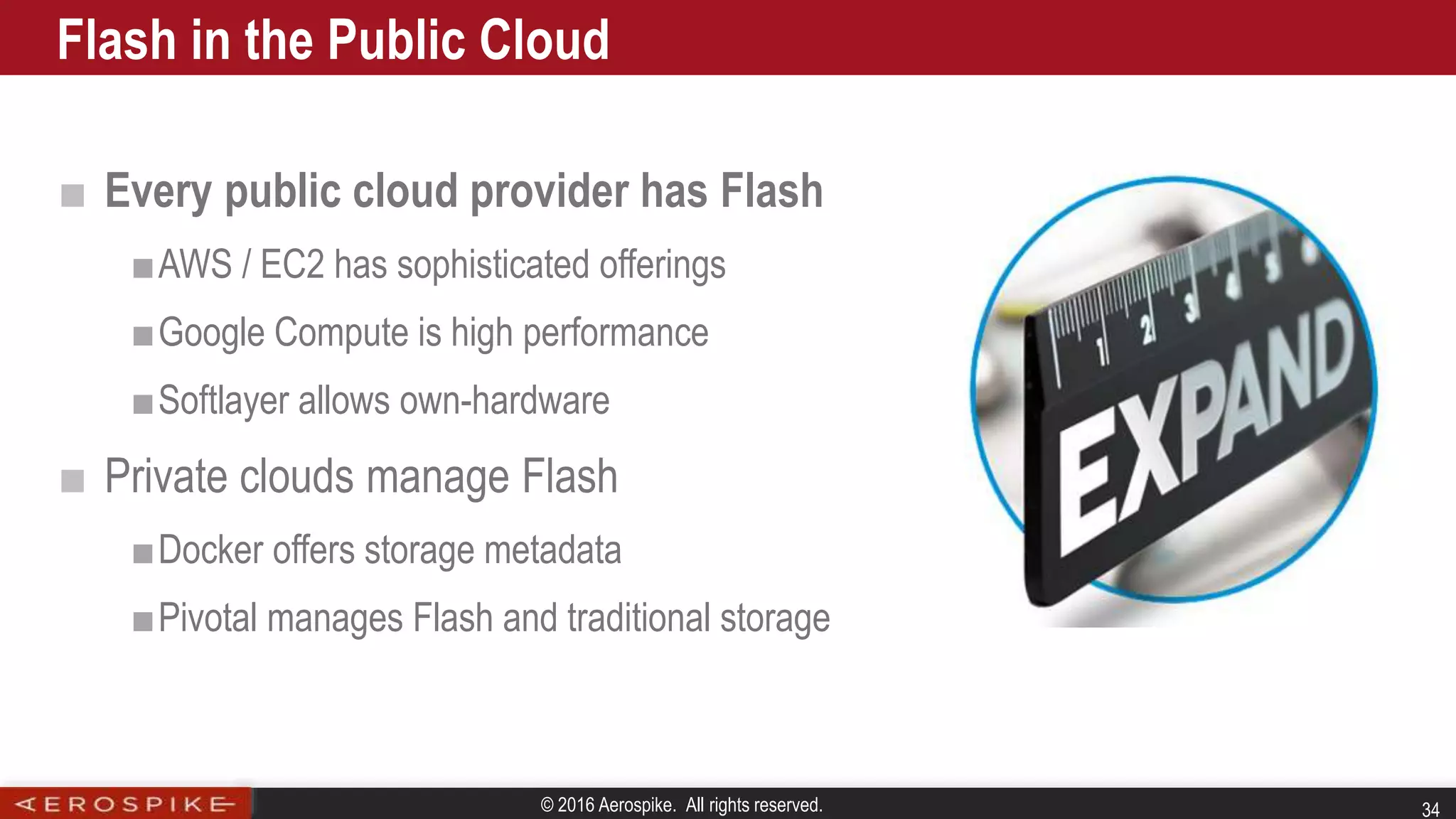

34. © 2016 Aerospike. All rights reserved. 34
■ Every public cloud provider has Flash
■AWS / EC2 has sophisticated offerings
■Google Compute is high performance
■Softlayer allows own-hardware
■ Private clouds manage Flash
■Docker offers storage metadata
■Pivotal manages Flash and traditional storage
Flash in the Public Cloud

35. © 2016 Aerospike. All rights reserved. 35
■ Database knows best, not storage
■ Database should manage
consistency vs availability
■ Database should manage views and snapshots
■ Array vendors have started making “databases”
■ “Object stores”
■ High Density “flash aggregation”
■ Sandisk Infiniflash – SATA
■ High-read, or write-once, applications
■ Apeiron ASD1000 – NVMe
■ Read and write applications
■ Vexata, others
“All Flash arrays”

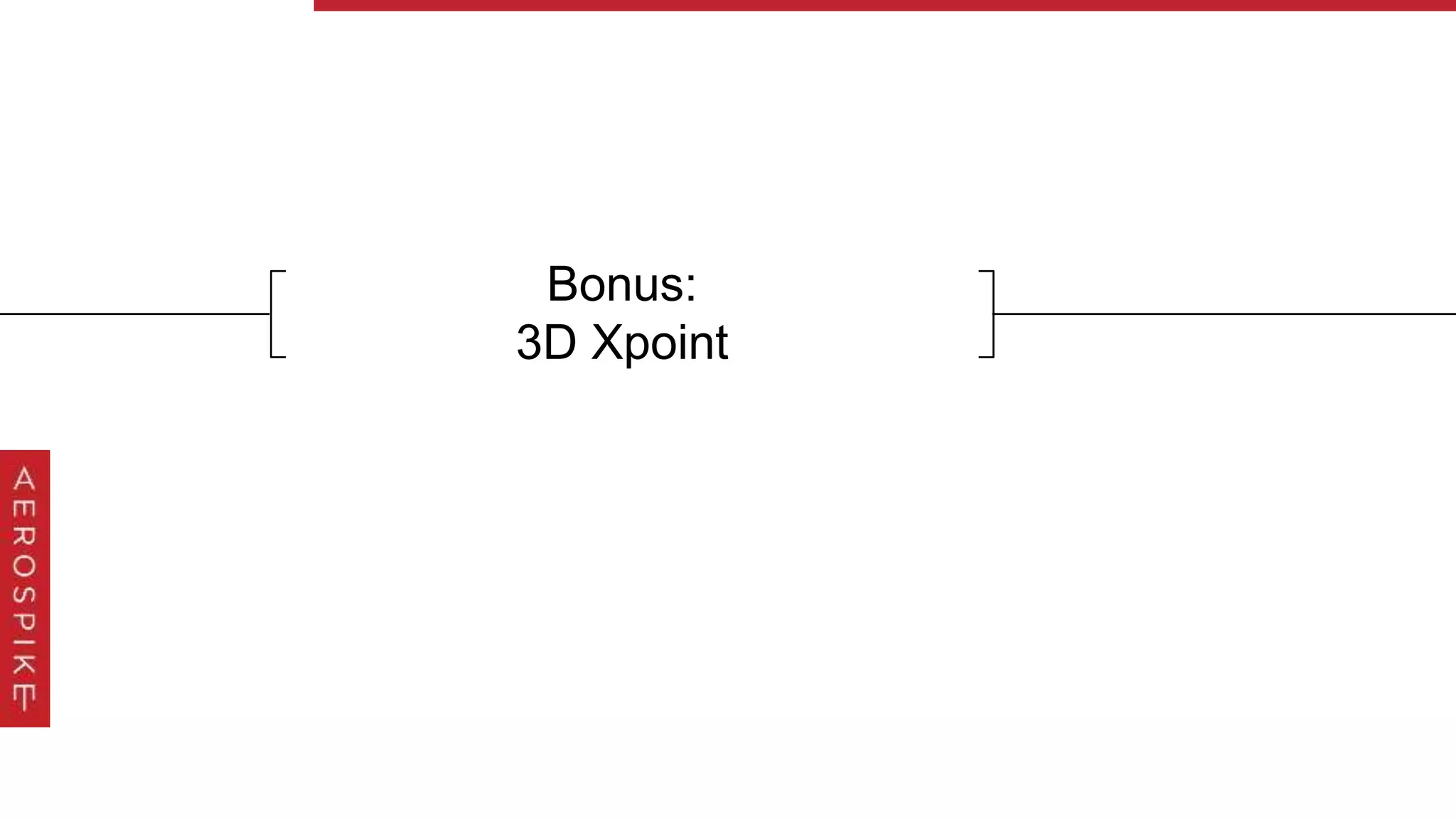

36. Bonus:
3D Xpoint

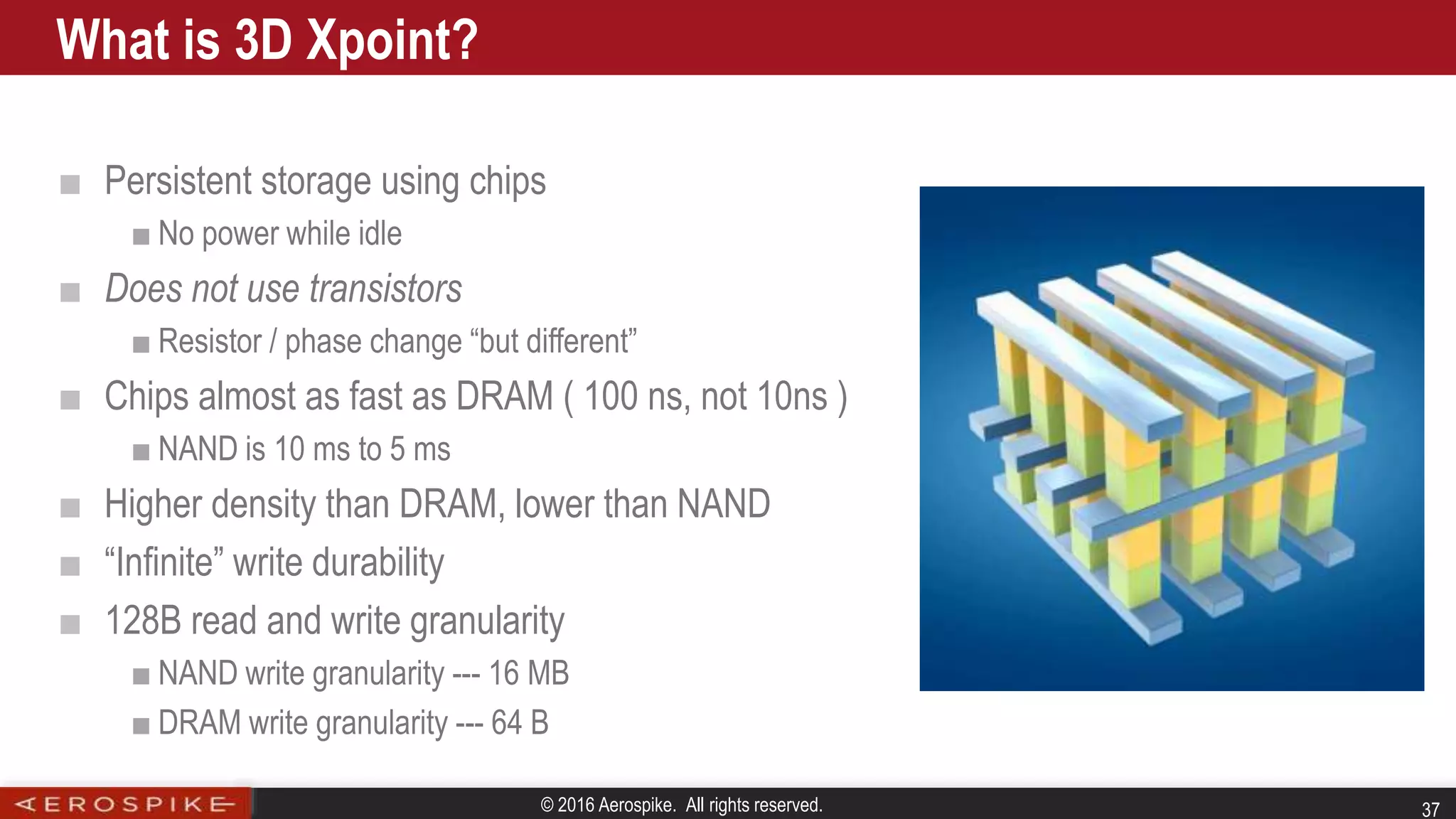

37. © 2016 Aerospike. All rights reserved. 37
■ Persistent storage using chips
■ No power while idle
■ Does not use transistors
■ Resistor / phase change “but different”
■ Chips almost as fast as DRAM ( 100 ns, not 10ns )
■ NAND is 10 ms to 5 ms
■ Higher density than DRAM, lower than NAND
■ “Infinite” write durability
■ 128B read and write granularity
■ NAND write granularity --- 16 MB
■ DRAM write granularity --- 64 B
What is 3D Xpoint?

38. © 2016 Aerospike. All rights reserved. 38
■ Optane this year
■ 3D Xpoint in 2.5” NVMe package
■ “7x faster” – limited by NVMe !
■ Very high write durability
■ Replaces SLC for some use cases
■ Unknown pricing
■ NVDIMM ( on memory bus )
■ Removes NVMe limit
■ Intel cagy on delivery – “uncommitted”
■ Competes with DRAM
■ Hard to program to
■ Really changes the world
Intel’s 3D Xpoint roadmap ( public info )

39. © 2016 Aerospike. All rights reserved. 39
Aerospike has the experience
■ Flash optimized from the start
■ 5 9’s reliability
( longest running cluster:
5 minutes of outage in 4.5 years )
■ Multi-million TPS clusters
in production today
■ Enterprise support of your POC
■ Used in financial services, telecom, gaming
( and adtech of course )

40. Questions?
Aerospike open source at
https://github.com/aerospike/aerospike-server
Please tweet #aerospike #nosql if you liked this talk
