Short range wireless communications technology
Personal Area Networking “PAN”
Applications
Cable replacement
Voice & Data access points
Ad-hoc networking
Key features
Robustness
Low power
Low cost
Bluetooth Intro
5. Bluetooth Intro: History
1998:
BT SIG formed:: Ericsson, Toshiba, Intel,
Nokia, IBM
Name “Bluetooth” officially adopted
1999:
Core spec 1.0 released
First BT unplug fest
BT technology “Best of show technology
award” at COMDEX
2000:
First BT enabled mobile phone
First BT “single chip”
2001:
First BT enabled printer
First hands free car kit
BT SIG is formed as non profit, non stock
corporation
2002:
>500 BT qualifed products
First BT keyboard & mouse combo
2003:
Adoption of core spec 1.2
2004: Adoption of core spec 2.0 + EDR
2005: shipment of 5M BT chipsets per week
2006:
First BT enabled watch, > 1B BT devices
shipped
SIG announces integration of BT and WiMedia
UWB
2007: First BT enabled TV shipped
2008: > 2B BT devices shipped in 10 years
2009: BT Core spec 3.0 HS
2010:
BT4.0 core spec adopted (BLE)
PTS 4.1 launched incl BLE test suites
2011: “BT Smart” & “BT Smart” ready brands
29 new BT 4.0 profiles
2012: new profiles running & cycling data
monitoring
2013:
BT 4.1: IoT
Native BT support in Android
2014
BT 4.2: IP connectivity
Core spec 2.772 pages
6. Bluetooth Intro: Flavors
Flavor Subset name(s) Core spec
version
Max Data rate Voice Spec
Bluetooth
“Classic”
Basic Rate (BR) 1.x 721.2 kbps V 1999
Enhance Data Rate (EDR) 2.x + EDR 2.1 Mbps V 2004
Bluetooth
“High Speed”
High Speed (HS)
Alternate Mac PHY (AMP)
3.x + HS 54 Mbps
(802.11 AMP)
V 2009
Bluetooth
“Low Energy”
Ultra Low Power (ULP)
Bluetooth Low Energy (BLE)
BT Smart
BT Smart Ready
(Wibree)
4.x 1 Mbps X 2010
7. Bluetooth Intro: “Bluetooth”?
The idea for the Bluetooth name came from
Jim Kardach of Intel, who was reading a
historical novel about Vikings and King Harald
Blåtand at the time.
The name is the link to the distant past.
“Bluetooth” is derived from the nickname of
King Harald Blåtand a Dane who (somewhat
violently) brought together people in what
are now Denmark, Norway, and Sweden into
a single kingdom.
King Harald reigned from 958 to 986 and got
his nickname from his penchant for eating
blueberries.
9. Personal Area
Bluetooth
Local Area
Wi-Fi 802.11
Wide Area
Mobile 3G-4G LTE
Short range communications such
as mobile / PC accessories
CABLE REPLACEMENT
The center of the connected
home / enterprise
For applications that demand
ubiquitous coverage and high reliability
Bluetooth Market
Positioning
10. 10.000+ new BT enabled products listed in 2014
24% up from 2013
3B devices shipped in 2014
90% penetration in all mobile phones
Huge growth
Smart home
Consumer electronics
Bluetooth Market
Basic Figures
Source: Bluetooth SIG 2014 annual report
16. Intro
Bluetooth Market
Tech Side
Basic Rate (BR) & Extended Data Rate (EDR)
Bluetooth Low Energy
Future
Q&A

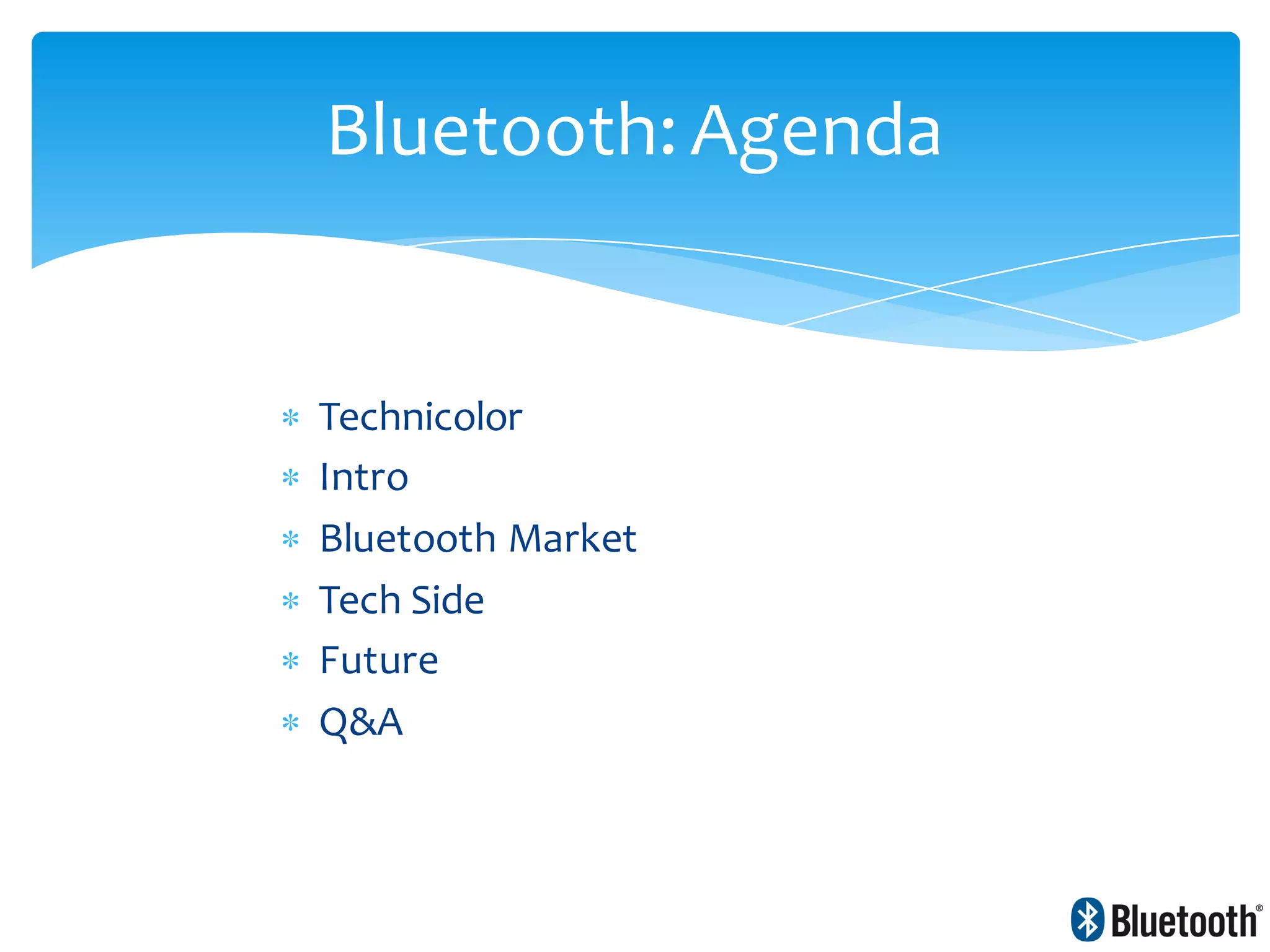

Bluetooth: Agenda
17. Universal Wireless Standard
Small & Cheap Low Power Wireless (<0.1W active power)
2.4GHz ISM band
Spread Spectrum Frequency Hopping
Avoid interference in ISM
1600 hops/s (625µs time slots)
Pseudo random sequence based on master BD address
TDD for send / receive
Modulation
BR: GFSK-Gaussian Frequency Shift Keying
EDR: PSK-Phase Shift Keying
BLE: GSFK
1 – 100mW
Range: up to 100m
Voice & Data
Secure
BD address: 48 bit IEEE registered
Bluetooth: Tech Side
18. BT SIG documents
Core Specification
How the tech works
Bluetooth protocols
Profiles
How the tech is used
How different parts of the spec shall be used to fulfill a
desired function
Bluetooth: Tech Side
19. Bluetooth Core Specification
BR/EDR Piconet
Piconet:
• Set of devices connected in ad hoc fashion
• 1 Master, 1..7 Slaves
• Master determining hopping pattern
• Slaves have to synchronize
• Each piconet has a unique hopping sequence
• Participation in piconet = synchronization to hopping
sequence
• >200 can be parkedM=Master
S=Slave
P=Parked (deepest sleep)
SB=Standby
Source: Free University Berlin
20. Bluetooth Core Specification
BR/EDR Forming a Piconet
• Master gives slaves its clock and BD addr.
• Hopping pattern:
• Determined by master BD (48bit)
• Hopping phase determined by clock
• Addressing
• AMA 3 bit
• PMA 8 bit
M=Master
S=Slave
P=Parked (deepest sleep)
SB=Standby
Source: Free University Berlin
22. Bluetooth Core Specification
BR/EDR Scatternet
• Linking of multiple co-located piconets through
sharing of common master or slave devices
• Communication between piconets
• Devices jumping back and forth between
piconets
M=Master
S=Slave
P=Parked (deepest sleep)
SB=Standby
Source: Free University Berlin
31. Profiles represent default solutions for a certain usage model
Vertical slice through the protocol stack
Basis for interoperability
Examples
Serial Port Profile
Headset Profile
Dial-up Networking Profile
Synchronization Profile
…
Bluetooth Core Specification
BR/EDR Profiles
Source: Bluetooth Specification version 4.2
32. Bluetooth Core Specification
BR/EDR Profiles Example: Headset
Source: Bluetooth Developer Portal & Bluetooth Headset Profile Specification V12
33. Bluetooth Core Specification
BR/EDR Profiles Example: Headset
Source: Bluetooth Developer Portal & Bluetooth Headset Profile Specification V12
Example headset scenario:
Incoming audio connection
In-band ring tone
35. Intro
Bluetooth Market
Tech Side
Basic Rate (BR) & Extended Data Rate (EDR)
Bluetooth Low Energy (BLE)
Future
Q&A
Bluetooth: Agenda
36. BLE targets even more:
Ultra-low peak, average and idle mode power
consumption (1/2 to 1/100 of BR)
Lower memory requirements
Ability to run for year(s) on coin cell batteries
Lower cost
Enhanced Range
Drawbacks
No voice
Lower data rates
Bluetooth Core Specification
Bluetooth Low Energy - Intro
Source: BLE Developers Handbook – Robin Heydon
37. BLE – how to reach the cost advantage
Low cost
... needs high volume
... needs very successful products
... largest volume consumer electronics is cell phone / smart phone
... reason of success of BT classic
…BLE will build on attach rate of BT classic
> 1B devices in a couple of years
Roll out already ongoing
Opens new markets
Phone accessories
Other devices such as Home Automation, TV, PC, BT classic upgrades
Bluetooth Core Specification
Bluetooth Low Energy - Intro
Source: BLE Developers Handbook – Robin Heydon
39. Bluetooth Core Specification
Bluetooth Low Energy - Intro
Source: BLE Developers Handbook – Robin Heydon
Low Energy: how low is “low”?
“Few years on button-cell battery”
~ 230 mAh at 3 V
Power a human being for 20s
40. BLE Asymmetric Design
Central “Bluetooth Smart Ready” – Peripheral
“Bluetooth Smart”
Advertiser – Scanner
Slave – Master
Server – Client (Attribute protocol)
Advertisers / Slaves / Servers
Low memory / processing power / ultra low power
consumption / Low cost
Bluetooth Core Specification
Bluetooth Low Energy - Intro
Source: BLE Developers Handbook – Robin Heydon
41. BLE – PHY Internals
GFSK
Clock period = 1𝛍s
40 Channels
-20dBm < Tx power < 10dBm
Rx sensitivity: -70dBm or better
Distance: 2.5m … 40m ... 250m
Bluetooth Core Specification
Bluetooth Low Energy - PHY
Source: BLE Developers Handbook – Robin Heydon
42. BLE – Link Layer
Standby: Inactive
Advertising: Transmit
Advertising packets
Broadcast packets
Scanning:
Receive advertising packets
Initiating:
Initiate a connection
Connected:
Sub-states: Master or Slave
Bluetooth Core Specification
Bluetooth Low Energy - LC
Source: BLE Developers Handbook – Robin Heydon
44. BLE – Adaptive Frequency Hopping
37 channels
Next Frequency:
hop = 5…16
Bluetooth Core Specification
Bluetooth Low Energy - AFH
Source: BLE Developers Handbook – Robin Heydon
Hop = 13
45. BLE – AFH
Adaptive
Frequency
Hopping
Bluetooth Core Specification
Bluetooth Low Energy - AFH
Source: BLE Developers Handbook – Robin Heydon
AFH enabled AFH disabled
46. BLE – Connection Setup
Connection request packet includes (among others):
Access Address to be used in the connection
CRC initialization value
Transmit window size
Transmit window offset
Connection interval
Slave latency
Supervision timeout
Adaptive frequency-hopping channel map
Frequency-hop algorithm increment
Sleep clock accuracy
Bluetooth Core Specification
Bluetooth Low Energy
Source: BLE Developers Handbook – Robin Heydon
47. Connectionless model
No cable replacement anymore
Transient connections
Quickly create connection
Do something & Disconnect
E.g. State notification every 5 minutes
Only requires radio activity < 1s per day
Radio OFF 99.999% of the time
Single connect / data / disconnect in about 3ms
Bluetooth Core Specification
Bluetooth Low Energy
Source: BLE Developers Handbook – Robin Heydon
48. Bluetooth Core Specification
Bluetooth Low Energy: Architecture
Source: BLE Developers Handbook – Robin Heydon
Characteristics (UUID) & Services
Discovery, connection, bonding, privacy
Types of profiles and how they are used
Rules for accessing data (att=labeled bits of
data)
Mux, Flow control
HCI
Advertising, Scanning, conn mgt, CRC
GFSK / 1 bit = 1 us
59. Bluetooth Future:
Bluetooth “Smart Ready”
Source: Bluetooth SIG: Bluetooth Smart Ready devices
….
39 devices
• Apple iPad, iPhone, MacBook, Mac mini
• Google OnHub
• …
61. Bluetooth “Mesh” networking
Extend range
Control up to 64k BLE devices 100m .. Several km
Device grouping
Proposed by CSR (now Qualcomm)
Expected release: 2016
Bluetooth Future:
Bluetooth “Mesh”
Source: Bluetooth SIG: Bluetooth Smart devices
63. BT core specification: TODO
SIG Annual report 2014: https://www.bluetooth.org/en-us/Documents/Annual_Report_2014.pdf
SIG history: http://www.bluetooth.com/Pages/History-of-Bluetooth.aspx
ABI research: https://www.abiresearch.com/press/more-than-30-billion-devices-will-wirelessly-conne/
ABI research: https://www.abiresearch.com/market-research/service/internet-of-everything/
Bluetooth Security: https://courses.cs.washington.edu/courses/cse466/01au/Projects/BluetoothSecurity.ppt
Bluetooth Low Energy: The Developer’s Handbook – Robin Heydon
http://www.amazon.com/Bluetooth-Low-Energy-Developers-Handbook/dp/013288836X
Android BLE development API
http://developer.android.com/guide/topics/connectivity/bluetooth-le.html
iOS BLE development API
https://developer.apple.com/library/ios/documentation/NetworkingInternetWeb/Conceptual/CoreBluetooth_concepts
References
Editor's Notes
Q&A
Who owns 1 or more BT devices?
What do you use it for?
Yes, 3B devices in 2014 alone
Membership:
Adopter = free (free license tech & trademarks, license PTS)
Associate = drive and influence spec through participation in working groups intelligence reports + discount on listing fees
Universal: France & Japan adapted their rules
Secure: topic on its own
From the lowest layers, security is embedded
Up to 128 bit encryption keys
Inadequate for serious security (money transfers), need additional security in higher layers
Good enough for non security critical interactions
PAN distance reduces risks
COST: Low Cost (original target <5$)
Park;
No AM address anymore
only listens to beacons (up to 41s) & L2CAP broadcast
Must be un-parked
Max 4096 parked devices
Some interop issues
AMA = Active member address
PMA = parked member address
Here: ACL BR only
Others: SCO, eSCO, ID, NULL, POLL, FHS, some mixed data/voice
Next frequency calculated based on (BD addr master, current clock, AFH parameters, sequence selection)
3 ways to enter AFH
Self assessment
Host controlled
Peer controlled
Note:
HID (now aldo in ULP)
A2DP
HFP
HSP
Very short packages (8 – 27 bytes)
1 Mbps
Advanced sniff sub-rating to achieve ultra low duty cycles
AFH (common with BR)
Host control: more responsibility to the host
Latency: 6ms (conn setup, data transfer)
Range: increased modulation index => range > 100m
Robustness: CRC 24 bit on all packets
Security: AES-128 bit encryption using CCM (encryption & authentication)
Topology: 32 bit member address > 4 billion devices
BLE is SLOW!
Reasons:
Low cost (extreme high volumes for devices that are not wireless today)
ISM band (bad propagation characteristics – water… / body absorption …) but FREE and available
No IP licensing cost (FRAND = Fair Reasonable and non discriminatory terms)
Ultra low power
BLE is SLOW!
Reasons:
Low cost (extreme high volumes for devices that are not wireless today)
ISM band (bad propagation characteristics – water… / body absorption …) but FREE and available
No IP licensing cost (FRAND = Fair Reasonable and non discriminatory terms)
Ultra low power
Central “Mothership”: Smartphone, notebook, tablet
Peripheral: Heart monitor, thermometer
LC layer
LC layer
Channels 0..8 are marked BAD
HOP = 13
Note the AFH algo increment
Controller = Physical device
PHY
GFSK (freq shift keying)
1bit = 1 micro-second
Link Layer
Advertising, scanning
Create & maintain connections
CRC
HOST = SW Stack
L2CAP
Multiplexing layer
Flow control
SAR (not used for BLE)
Attribute Protocol
Set of rules for accessing data on a peer device
Attribute = labeled bits of data (ID, type, value) + permissions
Attributes can be READ/WRITTEN
Both client & server can initiate communication with acked or unacked message
Security Manager
Security manager protocol
Pairing (trust another device) & key distribution (for use when they later reconnect)
Generic Attribute Profile
Defines the types of profiles and how they are used
Generic Access Profile:
Defines how devices discover, connect & present useful information to the users
How to create a permanent relationship called “bonding”
Concept of “privacy” (random addresses in time)
Application layer
Defines characteristics, service, profile (each built on top of Generic Attributes Profile)
Characteristic = a bit of data that has a known format labeled with a UUID (computer readable format)
Service = human readable specification of a set of characteristics and their behavior
Apps = Applications using the stack
Single chip:
Lowest cost
But SW in ROM… so need huge volumes
2 Chip:
Cell phones
PCs
3 Chip:
Development setups
Note:
HID (now aldo in ULP)
A2DP
HFP
HSP
SMART READY = Backwards compatible with Classic Bluetooth:
“Dual mode” radio: BLE + BR/EDR
SMART: BLE ONLY
“Drones around the mother ship” – peripherals
Data collectors
Sensors
Can remain paired with Smart Ready devices even when not used for hours or days
Can remain in sleep indefinitely
Can wake from sleep in an instant to share data
E.g. heart rate monitor can be worn for hours yet send only data when heart rate reaches certain threshold
