2. Bluetooth
• What is Bluetooth
• History of Bluetooth
• Bluetooth Architecture
• Bluetooth profiles
• Pairing Process
• Bluetooth network configuration
• Security concerns
• Profiles in detail
• Bluetooth-WinCE architecture
• Host Controller
• Catalog items and Sysgen Variables
• Bluetooth vs WiFi
• Advantages and Disadvantages of Bluetooth
Why you are here !
3. Bluetooth
• Bluetooth is a short-range and low power cable-replacement technology originally developed for
exchanging data over short distances from fixed and mobile devices, creating personal area networks
(PANs).
• The word "Bluetooth" is taken from the 10th century Danish King Harald Blatand, he had been
influential in uniting Scandinavian tribes(Denmark, southern Sweeden and southern Norway) into a
single kingdom.
• The Bluetooth logo is a bind rune merging the Younger Futhark runes Runic letter ior.svg (Hagall) (ᚼ)
and Runic letter berkanan.svg (Bjarkan) (ᚼ), Harald's initials.
• The Bluetooth specification was first developed in 1994 by Sven Mattison and Jaap Haartsen, who were
working for Ericsson Mobile Platforms in Sweden.
• 5 companies (Ericsson, Nokia, IBM, Intel & Toshiba) joined to form the Bluetooth Special Interest Group
(SIG) in 1998(now SIG has more than 25,000 member companies).
• The IEEE standardized Bluetooth as IEEE 802.15.1, but no longer maintains the standard
• Uses the short-wavelength radio waves from 2.4 to 2.485 GHz
• It uses 79 designated Bluetooth channels(each channel has a bandwidth of 1 MHz).
• Bluetooth 4.0 uses 2 MHz spacing, which accommodates 40 channels
4. Bluetooth v1.0 and v1.0B:
• It had many problems and manufacturers had difficulty making their products interoperable.
• It also included mandatory Bluetooth hardware device address (BD_ADDR) transmission in the
Connecting process, which was a major setback for certain services planned for use in Bluetooth
environments.
Bluetooth v1.1:
• Ratified as IEEE Standard 802.15.1-2001
• Many errors found in the v1.0B specifications were fixed.
• Received Signal Strength Indicator (RSSI).
Bluetooth v1.2:
• Ratified as IEEE Standard 802.15.1–2005
• Improved resistance to radio frequency interference by avoiding the use of crowded frequencies in the
hopping sequence.
• Higher transmission speeds in practice, up to 721 kbit/s.
• Host Controller Interface (HCI) operation with three-wire UART.
• Introduced Flow Control and Retransmission Modes for L2CAP.
Bluetooth Version History
5. Bluetooth v2.0 + EDR:
• This was released in 2004,for an Enhanced Data Rate (EDR) upto 3 Mbit/s, although the practical data
transfer rate is 2.1 Mbit/s.
• EDR can provide a lower power consumption through a reduced duty cycle.
• Aside from EDR, the v2.0 specification contains other minor improvements.
Bluetooth v2.1 + EDR:
• This was adopted by the Bluetooth SIG on 26 July 2007.
• The headline feature of v2.1 is secure simple pairing (SSP).
• Version 2.1 allows various other improvements, including "Extended inquiry response" (EIR), which
provides more information during the inquiry procedure to allow better filtering of devices before
connection; and sniff subrating, which reduces the power consumption in low-power mode.
Bluetooth v3.0 + HS:
• This was adopted by the Bluetooth SIG on 21 April 2009.
• Bluetooth v3.0 + HS provides theoretical data transfer speeds of up to 24 Mbit/s, though not over the
Bluetooth link itself. Instead, the Bluetooth link is used for negotiation and establishment, and the high
data rate traffic is carried over a colocated 802.11 link.
• The main new feature is AMP (Alternative MAC/PHY), the addition of 802.11 as a high speed transport.
Bluetooth Version History
6. Bluetooth v4.0:
• This version 4.0 (called Bluetooth Smart) has been adopted on 30 June 2010.
• It includes Classic Bluetooth, Bluetooth high speed and Bluetooth low energy protocols. It provides
more security in data transmission than the earlier version.
Bluetooth v4.1:
• The Bluetooth SIG announced formal adoption of the Bluetooth v4.1 specification on 4 December 2013.
• This specification is an incremental software update to Bluetooth Specification v4.0, and not a hardware
update.
• These include increased co-existence support for LTE, bulk data exchange rates.
Bluetooth v4.2:
• Bluetooth v4.2 was released on December 2, 2014.
• It Introduces some key features for IoT. Some features, such as Data Length Extension, require a
hardware update.
Bluetooth Version History

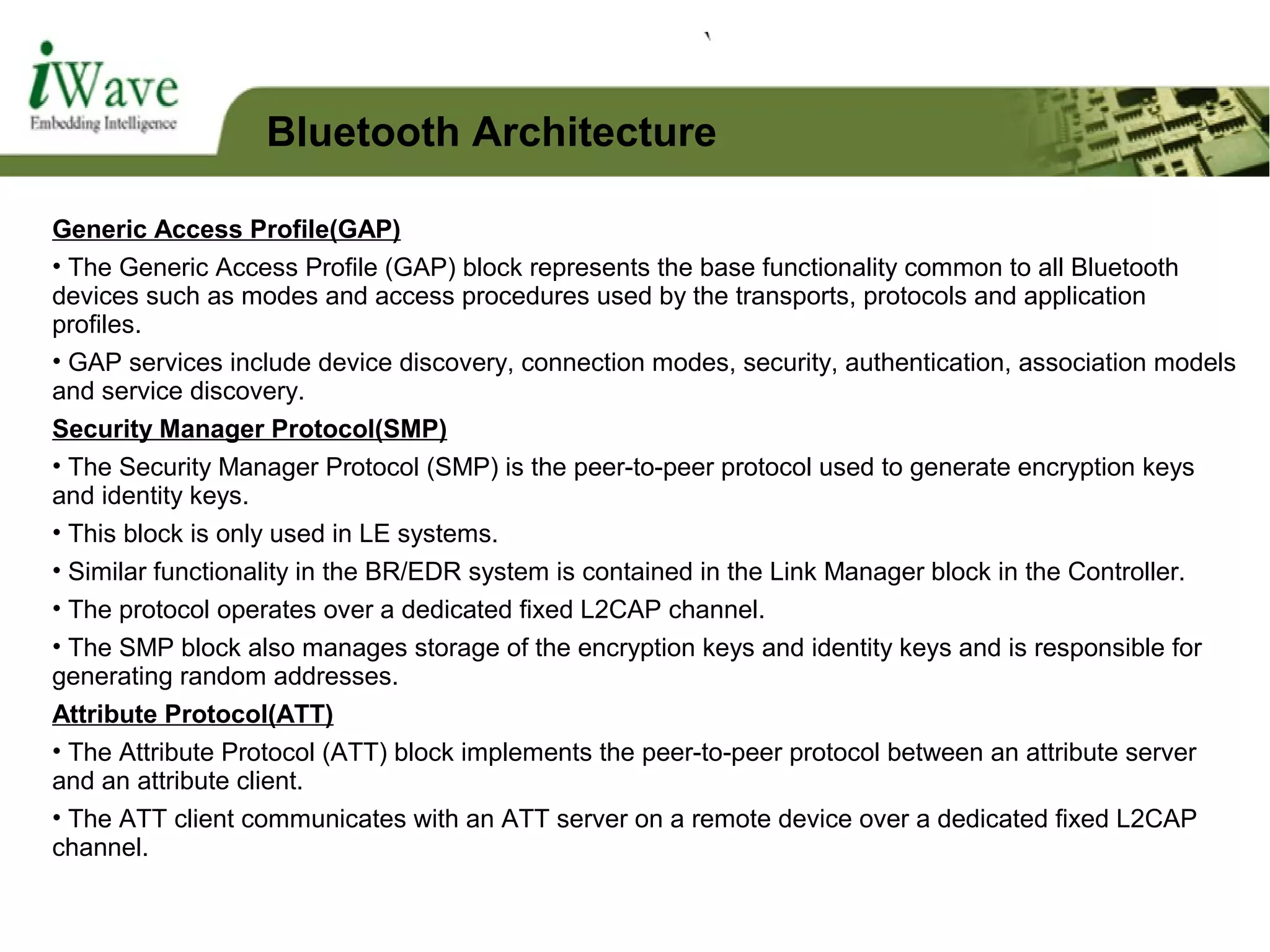

8. Generic Access Profile(GAP)
• The Generic Access Profile (GAP) block represents the base functionality common to all Bluetooth
devices such as modes and access procedures used by the transports, protocols and application
profiles.
• GAP services include device discovery, connection modes, security, authentication, association models
and service discovery.
Security Manager Protocol(SMP)
• The Security Manager Protocol (SMP) is the peer-to-peer protocol used to generate encryption keys
and identity keys.
• This block is only used in LE systems.
• Similar functionality in the BR/EDR system is contained in the Link Manager block in the Controller.
• The protocol operates over a dedicated fixed L2CAP channel.
• The SMP block also manages storage of the encryption keys and identity keys and is responsible for
generating random addresses.
Attribute Protocol(ATT)
• The Attribute Protocol (ATT) block implements the peer-to-peer protocol between an attribute server
and an attribute client.
• The ATT client communicates with an ATT server on a remote device over a dedicated fixed L2CAP
channel.
Bluetooth Architecture

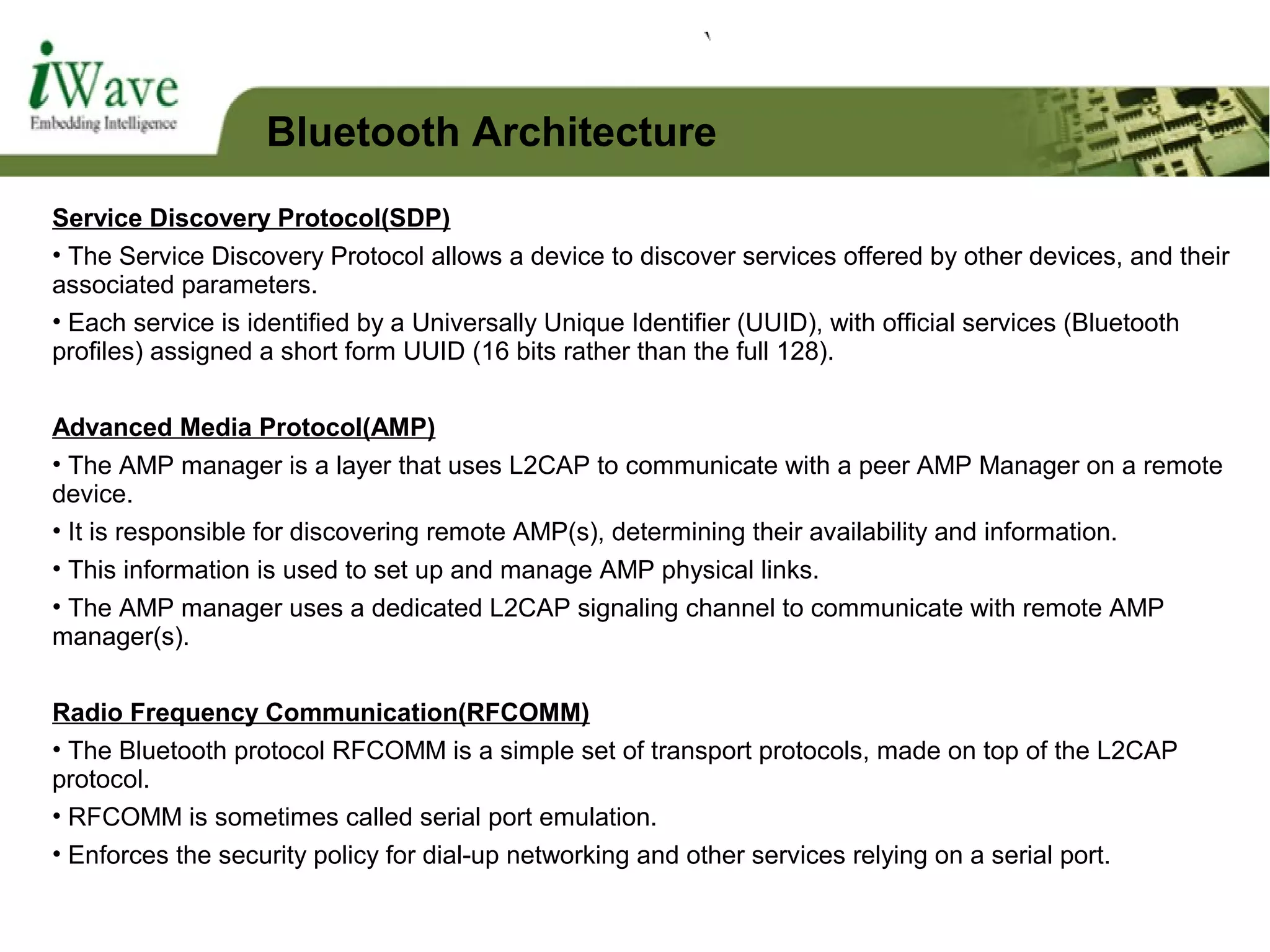

9. Service Discovery Protocol(SDP)
• The Service Discovery Protocol allows a device to discover services offered by other devices, and their
associated parameters.
• Each service is identified by a Universally Unique Identifier (UUID), with official services (Bluetooth
profiles) assigned a short form UUID (16 bits rather than the full 128).
Advanced Media Protocol(AMP)
• The AMP manager is a layer that uses L2CAP to communicate with a peer AMP Manager on a remote
device.
• It is responsible for discovering remote AMP(s), determining their availability and information.
• This information is used to set up and manage AMP physical links.
• The AMP manager uses a dedicated L2CAP signaling channel to communicate with remote AMP
manager(s).
Radio Frequency Communication(RFCOMM)
• The Bluetooth protocol RFCOMM is a simple set of transport protocols, made on top of the L2CAP
protocol.
• RFCOMM is sometimes called serial port emulation.
• Enforces the security policy for dial-up networking and other services relying on a serial port.
Bluetooth Architecture
10. Logical Link Control and Adaptation Protocol(L2CAP)
• Manages the creation and termination of virtual connections called channels with other devices.
• Negotiates and dictates security parameters for channel establishment.
• The Logical Link Control and Adaptation Protocol used to multiplex multiple logical connections
between two devices. Provides segmentation and reassembly of on-air packets.
• In Retransmission and Flow Control modes, L2CAP can be configured either for isochronous data or
reliable data per channel by performing retransmissions and CRC checks.
• There are two modes which effectively deprecate original Retransmission and Flow Control modes:
• Enhanced Retransmission Mode (ERTM): This mode is an improved version of the original
retransmission mode. This mode provides a reliable L2CAP channel.
• Streaming Mode (SM): This is a very simple mode, with no retransmission or flow control. This mode
provides an unreliable L2CAP channel.
Adopted Protocols:
Adopted protocols are defined by other standards-making organizations and incorporated into
Bluetooth’s protocol stack, allowing Bluetooth to code protocols only when necessary.
Point-to-Point Protocol (PPP): Internet standard protocol for transporting IP datagrams over a point-to-
point link.
TCP/IP/UDP: Foundation Protocols for TCP/IP protocol suite.
Object Exchange Protocol (OBEX): Session-layer protocol for the exchange of objects, providing a
model for object and operation representation.
Wireless Application Environment/Wireless Application Protocol (WAE/WAP): WAE specifies an
application framework for wireless devices and WAP is an open standard to provide mobile users access
to telephony and information services.
Bluetooth Architecture

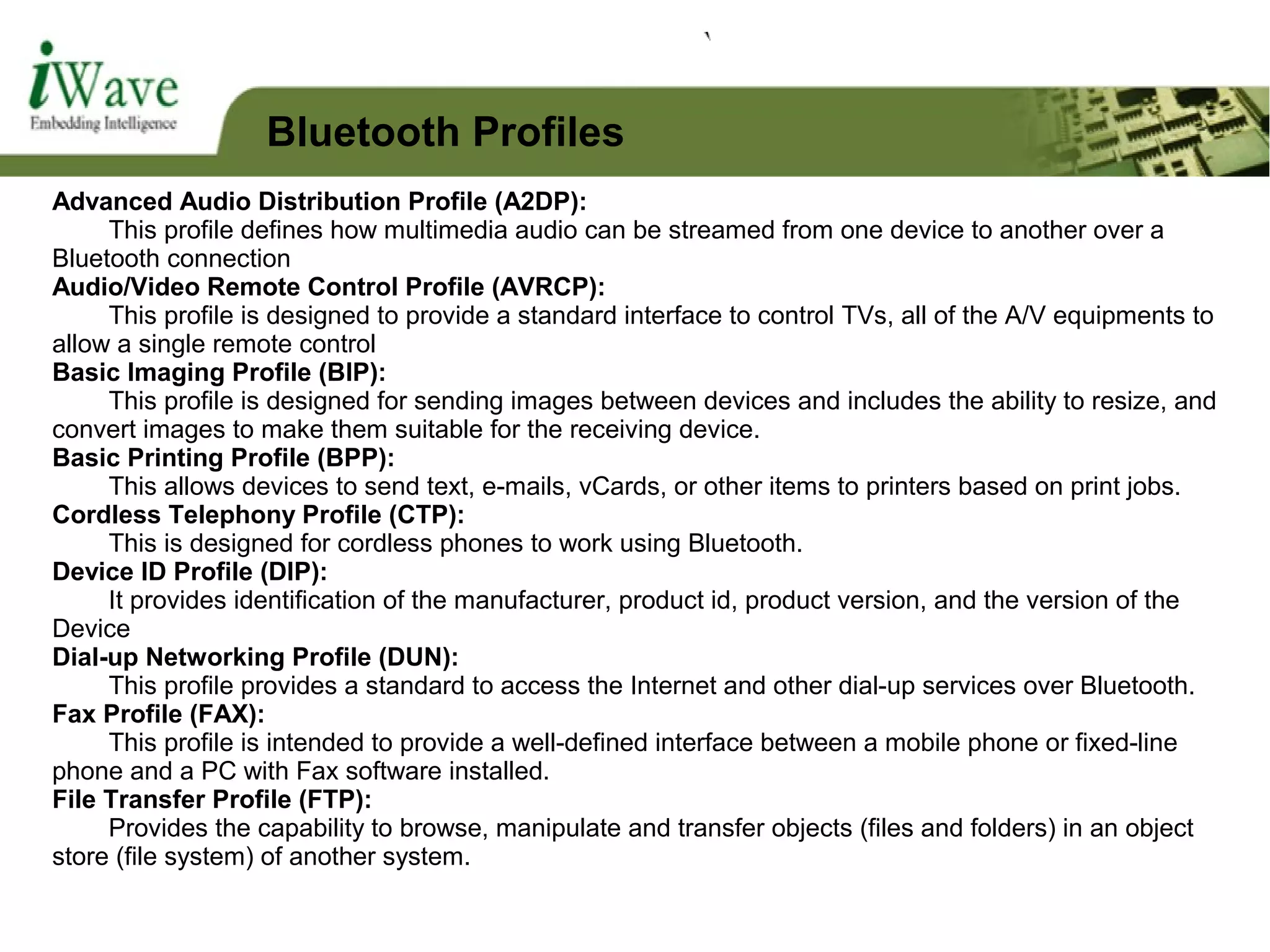

11. Advanced Audio Distribution Profile (A2DP):
This profile defines how multimedia audio can be streamed from one device to another over a
Bluetooth connection
Audio/Video Remote Control Profile (AVRCP):
This profile is designed to provide a standard interface to control TVs, all of the A/V equipments to
allow a single remote control
Basic Imaging Profile (BIP):
This profile is designed for sending images between devices and includes the ability to resize, and
convert images to make them suitable for the receiving device.
Basic Printing Profile (BPP):
This allows devices to send text, e-mails, vCards, or other items to printers based on print jobs.
Cordless Telephony Profile (CTP):
This is designed for cordless phones to work using Bluetooth.
Device ID Profile (DIP):
It provides identification of the manufacturer, product id, product version, and the version of the
Device
Dial-up Networking Profile (DUN):
This profile provides a standard to access the Internet and other dial-up services over Bluetooth.
Fax Profile (FAX):
This profile is intended to provide a well-defined interface between a mobile phone or fixed-line
phone and a PC with Fax software installed.
File Transfer Profile (FTP):
Provides the capability to browse, manipulate and transfer objects (files and folders) in an object
store (file system) of another system.
Bluetooth Profiles
12. Generic Audio/Video Distribution Profile (GAVDP):
GAVDP provides the basis for A2DP and VDP, the basis of the systems designed for distributing
video and audio streams using Bluetooth technology.
Generic Access Profile (GAP):
Provides the basis for all other profiles. GAP defines how two Bluetooth units discover and establish
a connection with each other.
Health Device Profile (HDP):
Health Thermometer profile (HTP) and Heart Rate Profile (HRP) fall under this category as well.
Hands-Free Profile (HFP):
This allow car hands-free kits to communicate with mobile phones in the car. It commonly uses
Synchronous Connection Oriented link (SCO).
Human Interface Device Profile (HID):
Provides support for devices such as mice, joysticks, keyboards, as well as sometimes providing
support for simple buttons and indicators on other types of devices.
Headset Profile (HSP):
This is the most commonly used profile, providing support for the popular Bluetooth headsets to be
used with mobile phones.
LAN Access Profile (LAP):
LAN Access profile makes it possible for a Bluetooth device to access LAN, WAN or Internet via
another device that has a physical connection to the network.
Message Access Profile (MAP):
Message Access Profile (MAP) specification allows exchange of messages between devices.
Bluetooth Profiles

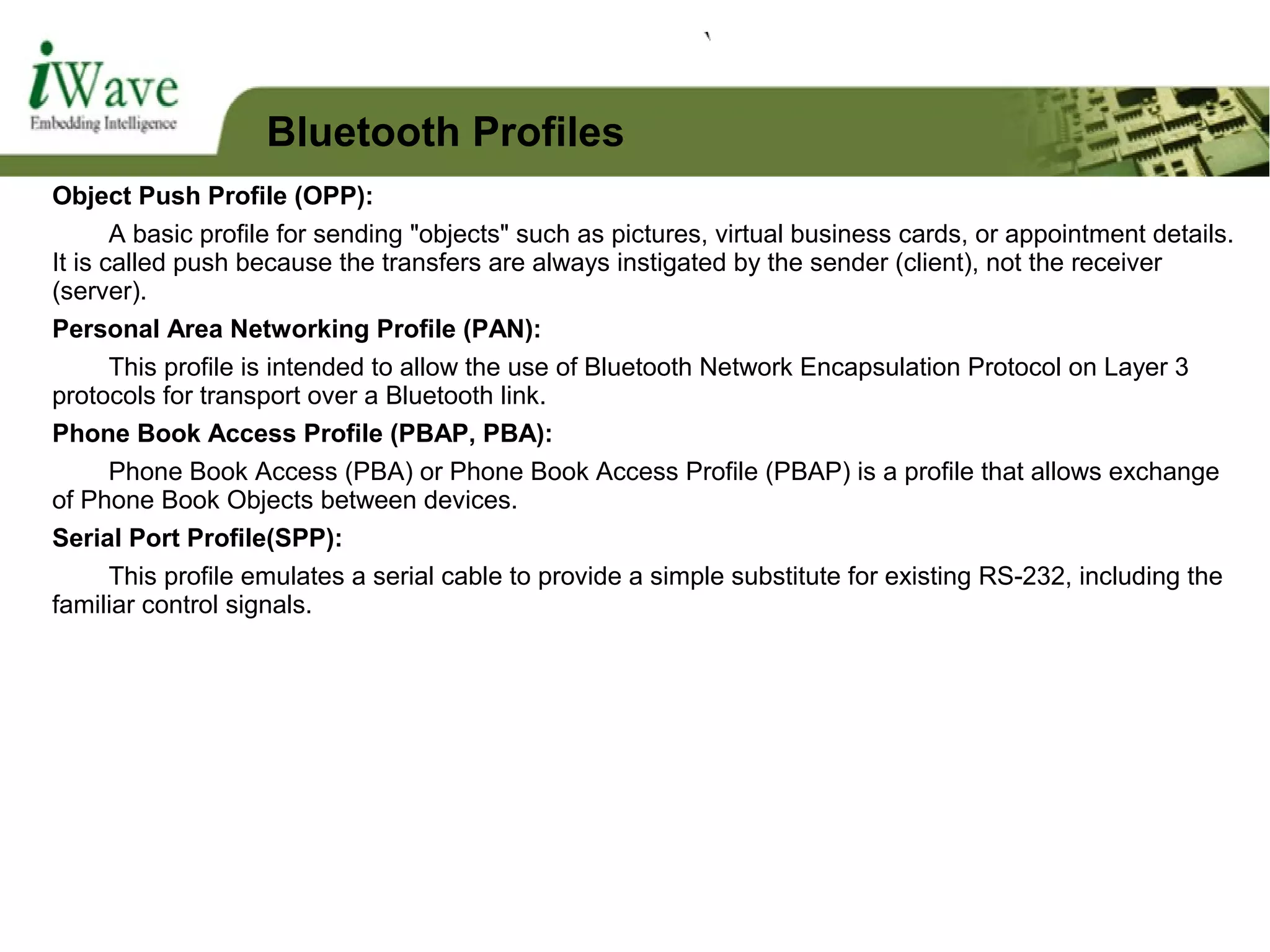

13. Object Push Profile (OPP):
A basic profile for sending "objects" such as pictures, virtual business cards, or appointment details.
It is called push because the transfers are always instigated by the sender (client), not the receiver
(server).

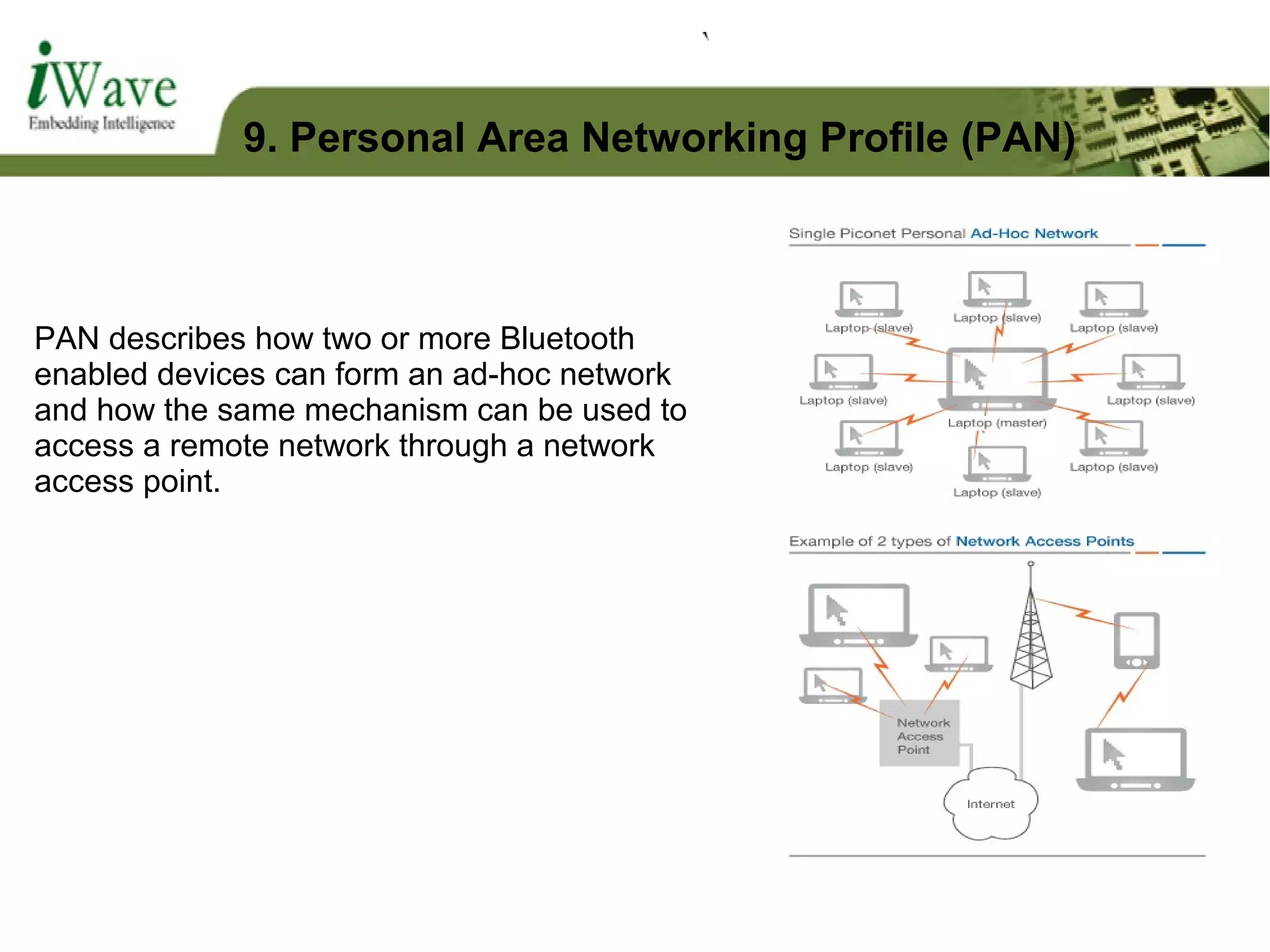

Personal Area Networking Profile (PAN):
This profile is intended to allow the use of Bluetooth Network Encapsulation Protocol on Layer 3
protocols for transport over a Bluetooth link.
Phone Book Access Profile (PBAP, PBA):
Phone Book Access (PBA) or Phone Book Access Profile (PBAP) is a profile that allows exchange
of Phone Book Objects between devices.
Serial Port Profile(SPP):
This profile emulates a serial cable to provide a simple substitute for existing RS-232, including the
familiar control signals.
Bluetooth Profiles

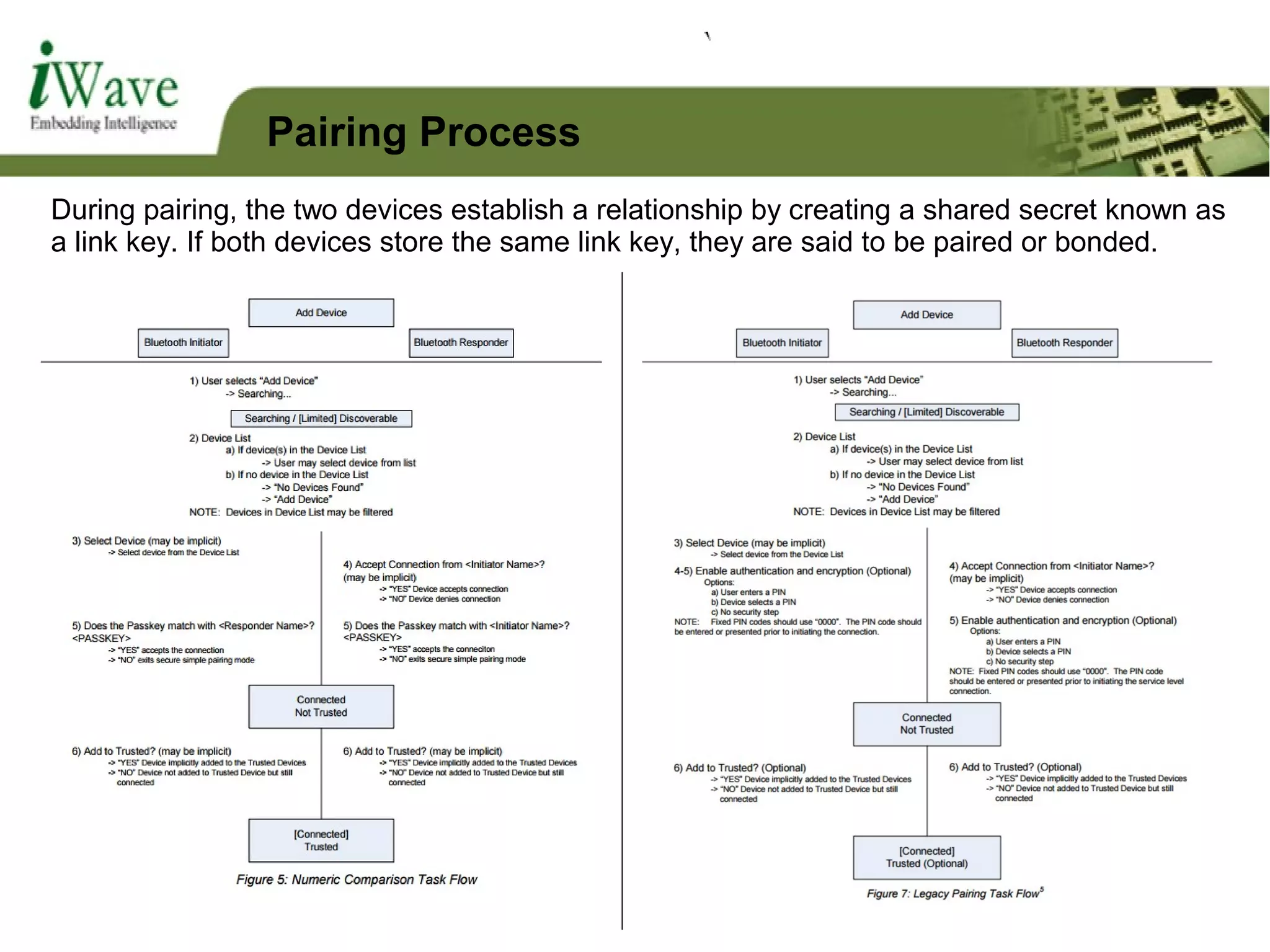

14. During pairing, the two devices establish a relationship by creating a shared secret known as
a link key. If both devices store the same link key, they are said to be paired or bonded.
Pairing Process
15. Legacy pairing:
This is available in Bluetooth v2.0 and before. Each device must enter a PIN code;
pairing is only successful if both devices enter the same PIN code. Any 16-byte
UTF-8 string may be used as a PIN code; however, not all devices may be capable
of entering all possible PIN codes.
Secure Simple Pairing (SSP):
This is required by Bluetooth v2.1, although a Bluetooth v2.1 device may only use
legacy pairing to interoperate with a v2.0 or earlier device. Secure Simple Pairing
uses a form of public key cryptography, and some types can help protect against
man in the middle, or MITM attacks.
Pairing Process
16. Piconets:
• Two or more Bluetooth units sharing the same channel.
• One device acts as a master and the devices connected to it act as slaves.
• Slaves can not directly send data to each other.
• In effect, the master acts as a switch for the piconet and all traffic must pass through the master.
• There can be up to 7 active slaves in a piconet but only one master.
Scatternets:
• A set of two or more interconnected piconets form scatternets
• A Bluetooth unit can be a slave in two or more piconets, but it can be a master in only one.
• Bluetooth units can only transmit and receive data in one piconet at a time.
• Piconets may be identified by the master's identity and clock.
Bluetooth Network Configuration
17. Bluejacking is the sending of unsolicited messages over Bluetooth to Bluetooth-enabled
devices such as mobile phones, PDAs or laptop computers, sending a vCard which typically
contains a message in the name field to another Bluetooth-enabled device via the OBEX
protocol.
Bluesnarfing is the unauthorized access of information from a wireless device through a
Bluetooth connection.This allows access to a calendar, contact list, emails and text
messages, and on some phones, users can copy pictures and private videos. While
Bluejacking is essentially harmless as it only transmits data to the target device, Bluesnarfing
is the theft of information from the target device.
Bluebugging is a form of Bluetooth attack often caused by a lack of awareness,it allows
hackers to remotely access a user's phone and use its features, including placing calls and
sending text messages, and the user doesn't realize it's happening.
Security Concerns
18. 1. Generic Access Profile (GAP)
Defines the generic requirements for detecting and establishing a connection to a
Bluetooth device. All other profiles are based on GAP.
2. Object Exchange Profile (OBEX)
Defines procedures for the support of the Object Exchange Protocol (OBEX) usage
models.
3. Serial Port Profile (SPP)
Defines procedures required for configuring serial cable connections between peer
Bluetooth devices using RFCOMM.
4. Other profiles:
Dial-up Networking (DUN) Profile, File Transfer Profile (FTP), Hands-Free Profile
(HFP), Headset Profile (HSP), Human Interface Device (HID) Profile, LAN Access
Profile (LAP), Object Push Profile (OPP), Personal Area Networking (PAN) Profile.
Bluetooth Profiles

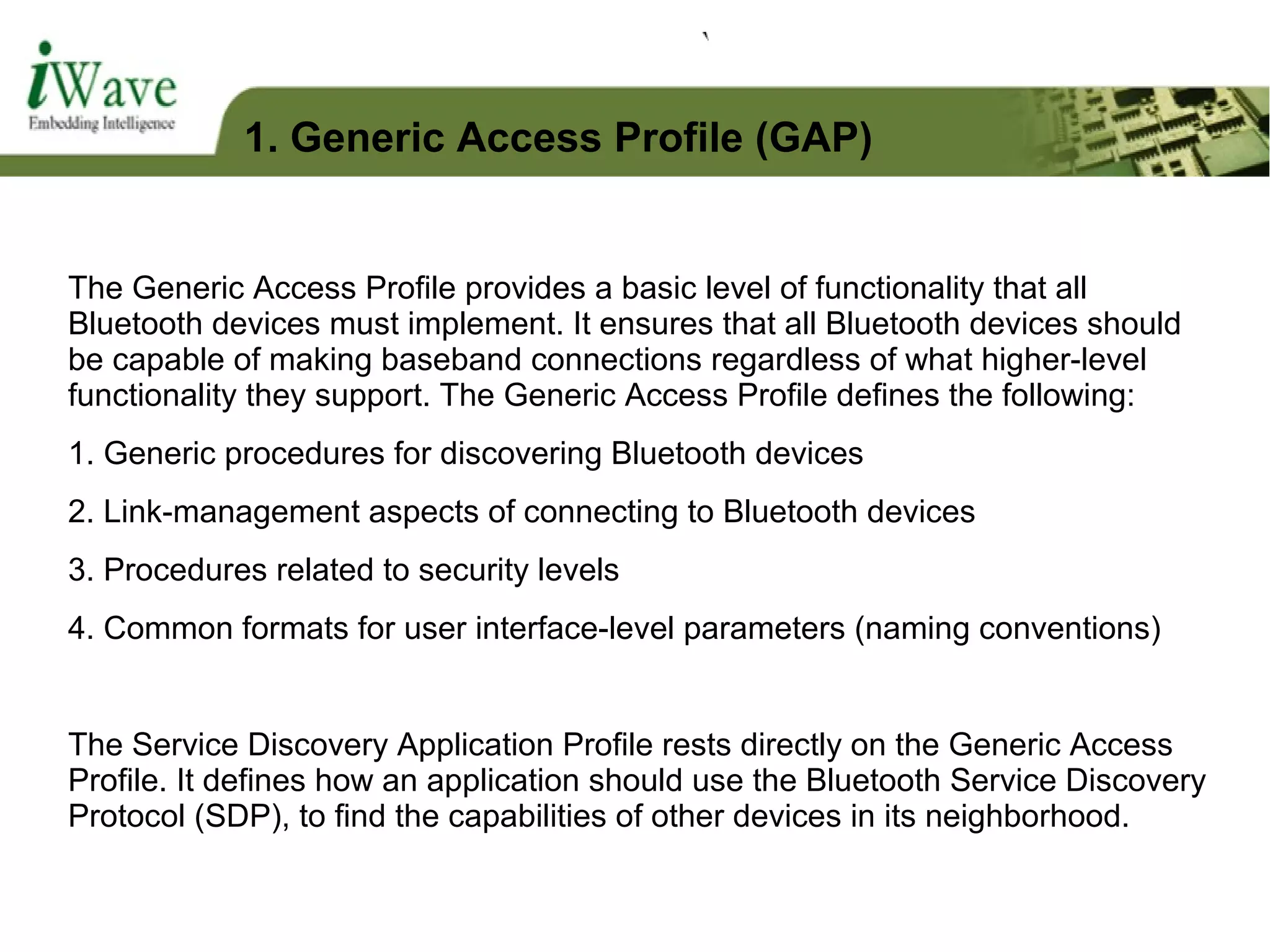

19. The Generic Access Profile provides a basic level of functionality that all
Bluetooth devices must implement. It ensures that all Bluetooth devices should
be capable of making baseband connections regardless of what higher-level
functionality they support. The Generic Access Profile defines the following:
1. Generic procedures for discovering Bluetooth devices
2. Link-management aspects of connecting to Bluetooth devices
3. Procedures related to security levels
4. Common formats for user interface-level parameters (naming conventions)
The Service Discovery Application Profile rests directly on the Generic Access
Profile. It defines how an application should use the Bluetooth Service Discovery
Protocol (SDP), to find the capabilities of other devices in its neighborhood.
1. Generic Access Profile (GAP)
20. Obex is used to transfer an object from one device to another.
A scenario would be using Bluetooth technology to send information like files,
vCards, vCalendars and images between your mobile phone or PDA and a
PC.
Few examples of the types of devices that you might find using the OBEX:
Laptop
PC
Mobile phone
Server and a Client:
Server – This is the device that provides an object exchange server to and from
which data objects can be pushed and pulled, respectively.
Client – This is the device that can push or/and pull data object(s) to and from
the Server.
2. Object Exchange Profile (OBEX)

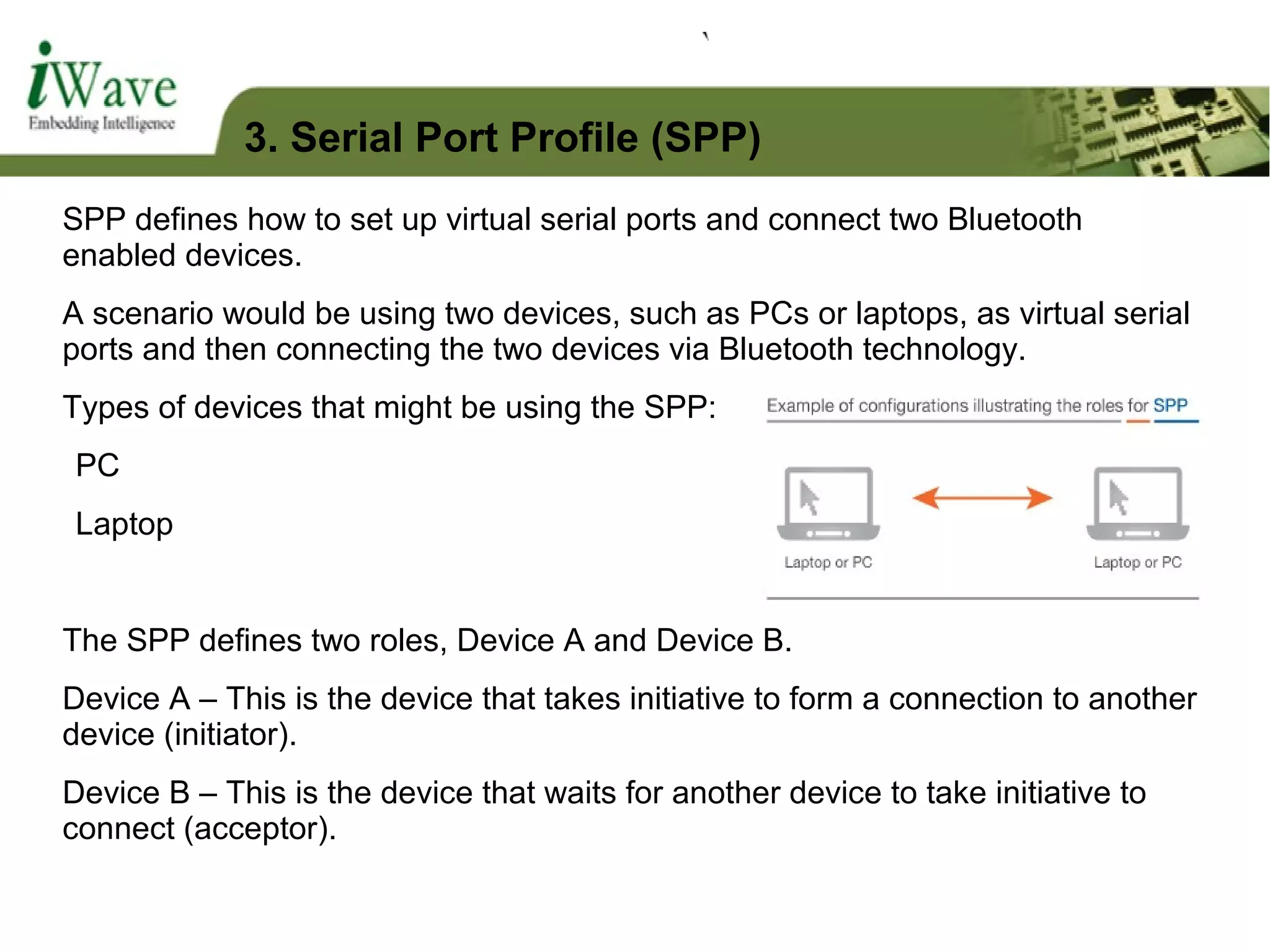

21. SPP defines how to set up virtual serial ports and connect two Bluetooth
enabled devices.
A scenario would be using two devices, such as PCs or laptops, as virtual serial
ports and then connecting the two devices via Bluetooth technology.
Types of devices that might be using the SPP:
PC
Laptop
The SPP defines two roles, Device A and Device B.
Device A – This is the device that takes initiative to form a connection to another
device (initiator).
Device B – This is the device that waits for another device to take initiative to
connect (acceptor).
3. Serial Port Profile (SPP)

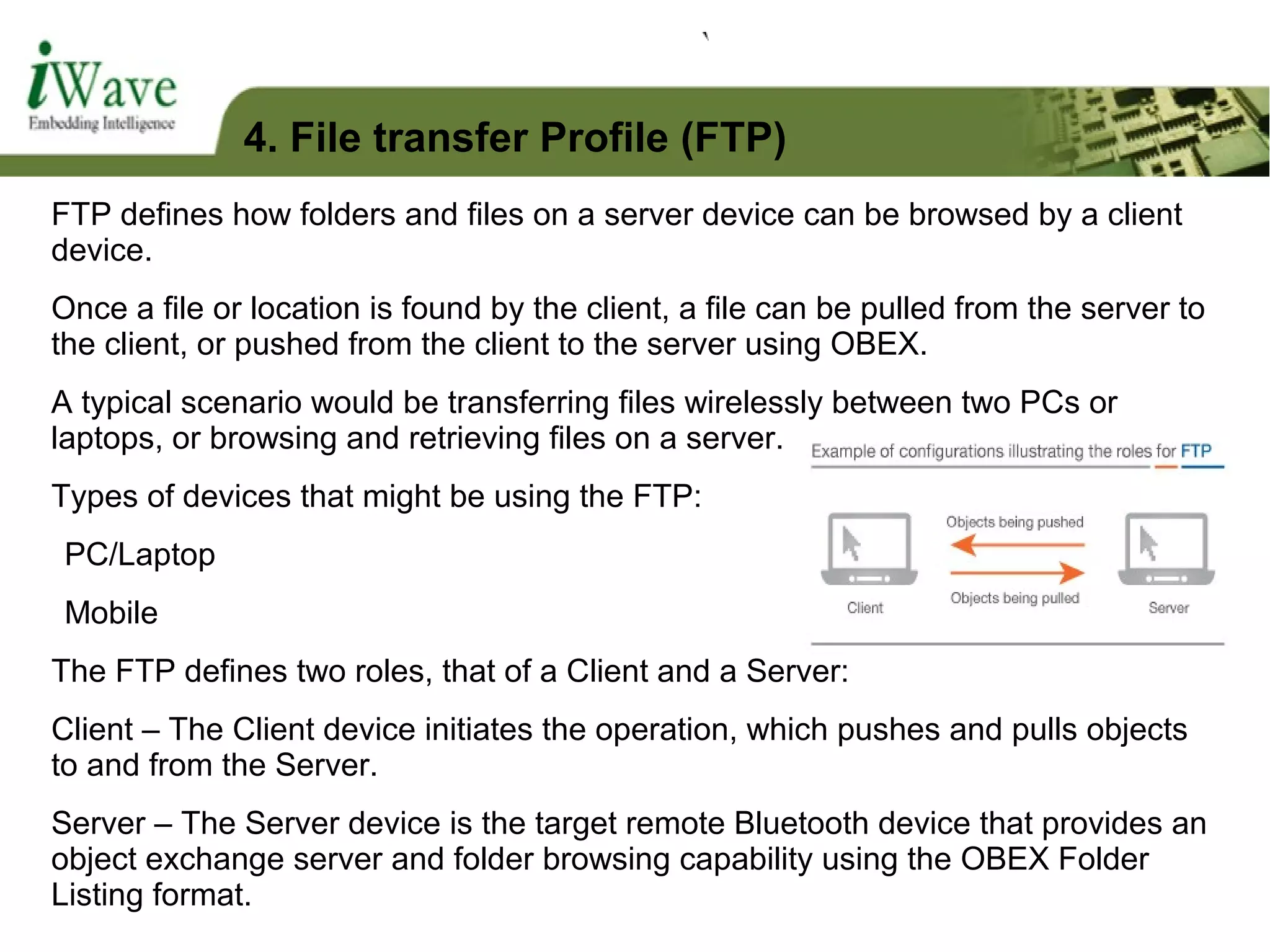

22. FTP defines how folders and files on a server device can be browsed by a client
device.
Once a file or location is found by the client, a file can be pulled from the server to
the client, or pushed from the client to the server using OBEX.
A typical scenario would be transferring files wirelessly between two PCs or
laptops, or browsing and retrieving files on a server.
Types of devices that might be using the FTP:
PC/Laptop
Mobile
The FTP defines two roles, that of a Client and a Server:
Client – The Client device initiates the operation, which pushes and pulls objects
to and from the Server.
Server – The Server device is the target remote Bluetooth device that provides an
object exchange server and folder browsing capability using the OBEX Folder
Listing format.
4. File transfer Profile (FTP)

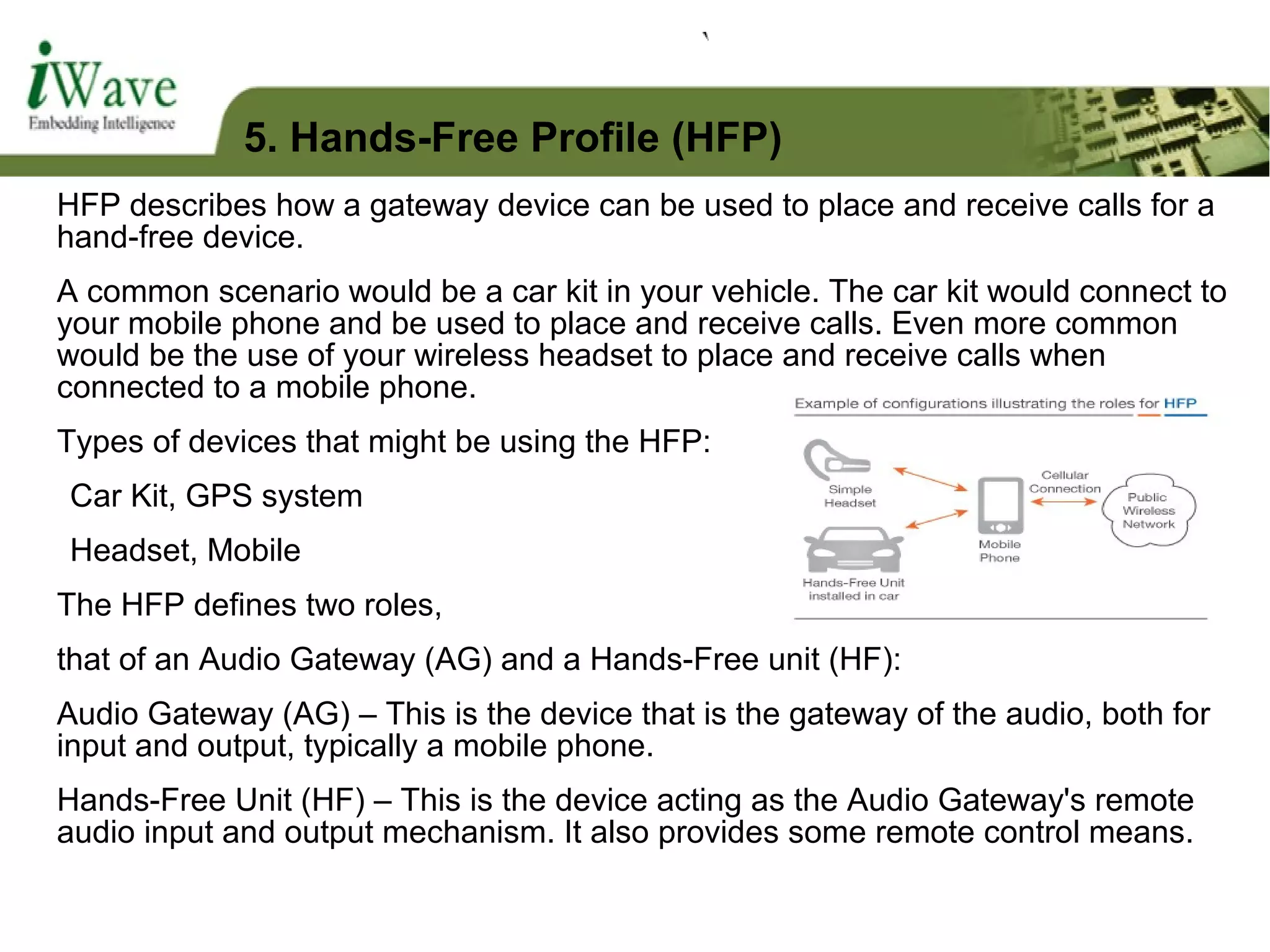

23. HFP describes how a gateway device can be used to place and receive calls for a
hand-free device.
A common scenario would be a car kit in your vehicle. The car kit would connect to
your mobile phone and be used to place and receive calls. Even more common
would be the use of your wireless headset to place and receive calls when
connected to a mobile phone.
Types of devices that might be using the HFP:
Car Kit, GPS system
Headset, Mobile
The HFP defines two roles,
that of an Audio Gateway (AG) and a Hands-Free unit (HF):
Audio Gateway (AG) – This is the device that is the gateway of the audio, both for
input and output, typically a mobile phone.
Hands-Free Unit (HF) – This is the device acting as the Audio Gateway's remote
audio input and output mechanism. It also provides some remote control means.
5. Hands-Free Profile (HFP)

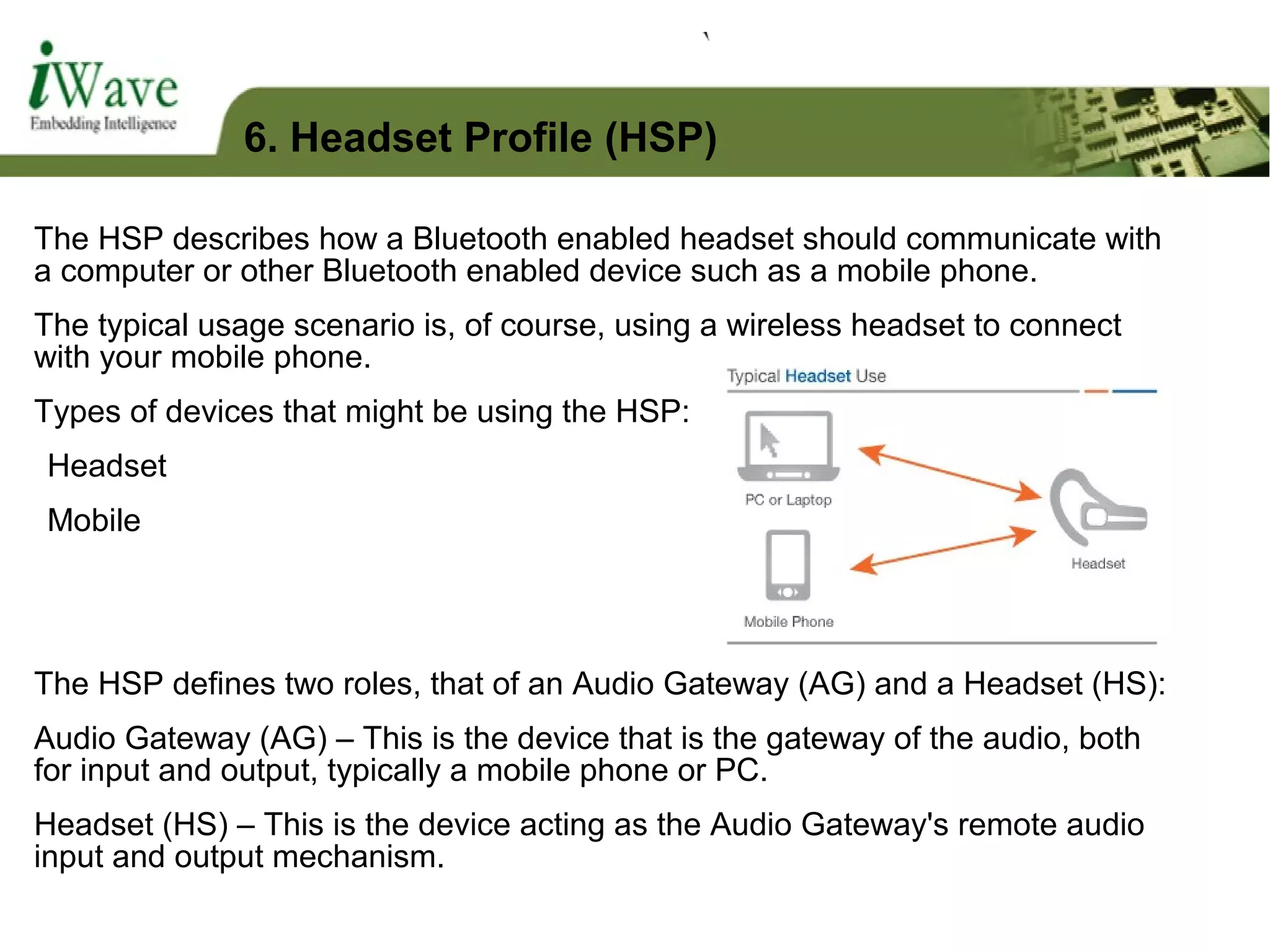

24. The HSP describes how a Bluetooth enabled headset should communicate with
a computer or other Bluetooth enabled device such as a mobile phone.
The typical usage scenario is, of course, using a wireless headset to connect
with your mobile phone.
Types of devices that might be using the HSP:
Headset
Mobile
The HSP defines two roles, that of an Audio Gateway (AG) and a Headset (HS):
Audio Gateway (AG) – This is the device that is the gateway of the audio, both
for input and output, typically a mobile phone or PC.
Headset (HS) – This is the device acting as the Audio Gateway's remote audio
input and output mechanism.
6. Headset Profile (HSP)
25. The HID profile defines the protocols, procedures and features to be used by
Bluetooth HID such as keyboards, pointing devices, gaming devices and remote
monitoring devices.
The most common usage would be your wireless desktop, keyboard, mouse,
etc.
Types of devices that might be using the HID:
PC/Laptop
Keyboard
Mouse
The HID defines two roles, that of a Human Interface Device (HID) and a Host:
Human Interface Device (HID) – The device providing the service of human data
input and output to and from the host.
Host – The device using or requesting the services of a Human Interface
Device.
7. Human Interface Device Profile (HID)
26. OPP defines the roles of push server and push client. These roles are
analogous to and must interoperate with the server and client device roles that
GOEP defines.
An example scenario would be the exchange of a contact or appointment
between two mobile phones, or a mobile phone and a PC.
Types of devices that might be using the OPP:
PC/Laptop
Mobile
The OPP defines two roles, that of a Push Server and a Push Client:
Push Server – This is the device that provides an object exchange server.
Push Client – This is the device that pushes and pulls objects to and from the
Push Server.
8. Object Push Profile (OPP)
27. PAN describes how two or more Bluetooth
enabled devices can form an ad-hoc network
and how the same mechanism can be used to
access a remote network through a network
access point.
9. Personal Area Networking Profile (PAN)
28. DUN provides a standard to access the Internet and other dial-up services over
Bluetooth technology.
The most common scenario is accessing the Internet from a laptop by using
your mobile phone as a wireless dial-up modem.
Types of devices that might be using the DUN:
PC/Laptop/Mobile
The DUN defines two roles, that of a Gateway (GW) and a Data Terminal (DT):
Gateway (GW) – This is the device that provides access to the public network.
Data Terminal (DT) – This is the device that uses the dial-up services of the
gateway.
10. Dial-Up Network Profile (DUN)
30. WinCE Bluetooth Host:
Includes implementations of the core Bluetooth protocols: the Bluetooth stack
and the high-level layers of the Bluetooth architecture, such as APIs and
profiles.
L2CAP:
The Bluetooth logical link control and adaptation protocol (L2CAP) supports
higher-level protocol multiplexing, packet segmentation and reassembly,
and the conveying of quality of service information.
WinCE Registry key :
HKEY_LOCAL_MACHINESoftwareMicrosoftBluetoothl2cap can be
configured for Response Timout eXpired (RTX) timer value, default link
policy, default packet type on the L2CAP connection etc
SDP:
Service discovery protocol allows the devices to discover what services
each other support, and what parameters to use to connect to them.
Each service is identified by a Universally Unique Identifier (UUID), with
official services (Bluetooth profiles) assigned a short form UUID

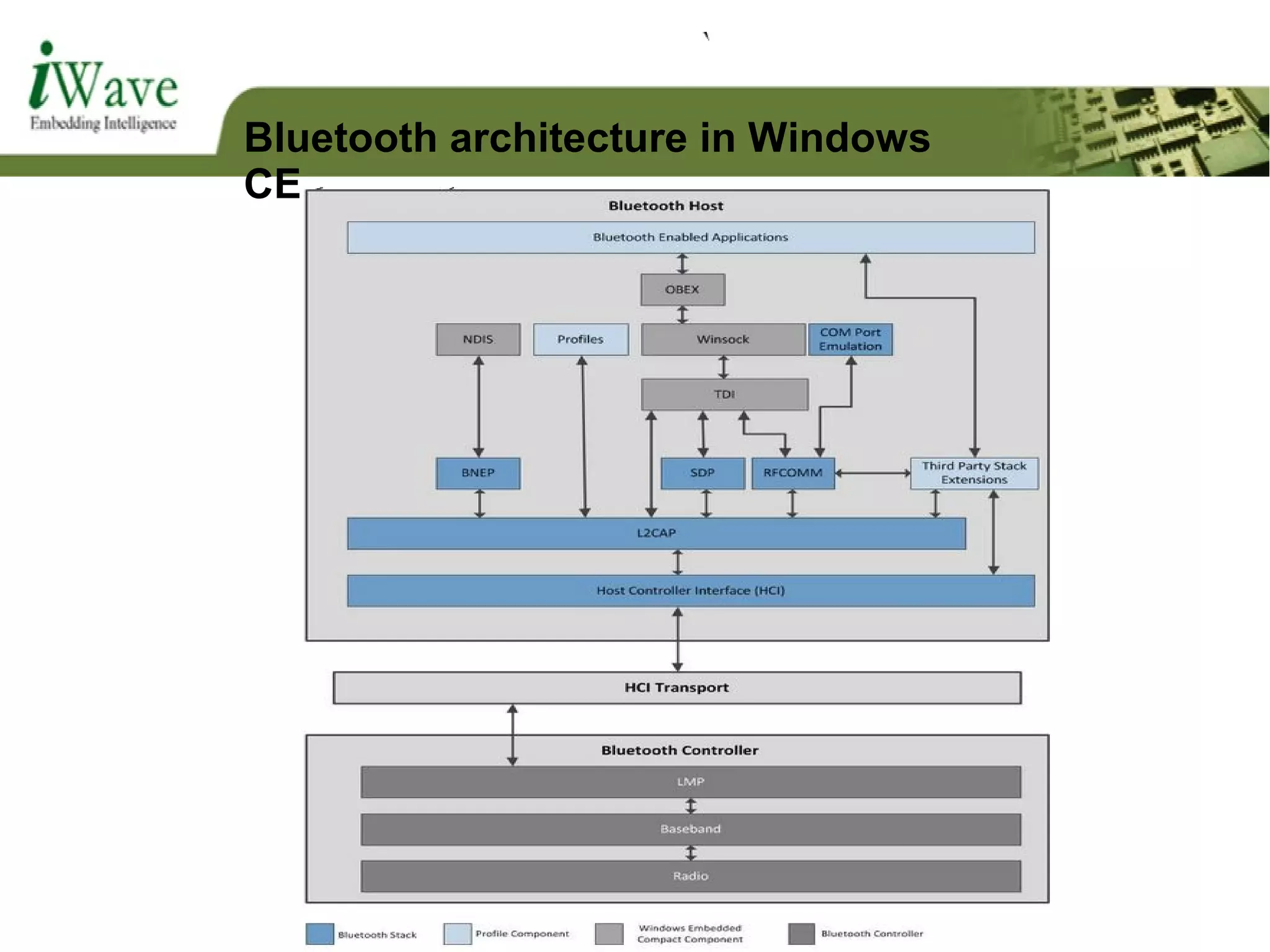

Bluetooth architecture in Windows
CE
31. OBEX:
Object exchange (OBEX) is a communications protocol that facilitates the
exchange of binary objects between devices.
OBEX is used for many profiles that require simple data exchange (e.g.,
object push, file transfer, basic imaging, basic printing, phonebook
access, etc.)
RFCOMM:
The Bluetooth protocol RFCOMM is a simple set of transport protocols,
made on top of the L2CAP protocol, providing emulated RS-232 serial
ports.
RFCOMM is sometimes called serial port emulation. The Bluetooth serial
port profile is based on this protocol.
BNEP:
BNEP is used for delivering network packets on top of L2CAP. This protocol
is used by the personal area networking (PAN) profile.
PAN:
PAN describes how two or more Bluetooth enabled devices can form an ad-
hoc network and how the same mechanism can be used to access a
remote network through a network access point.
Bluetooth architecture in Windows
CE

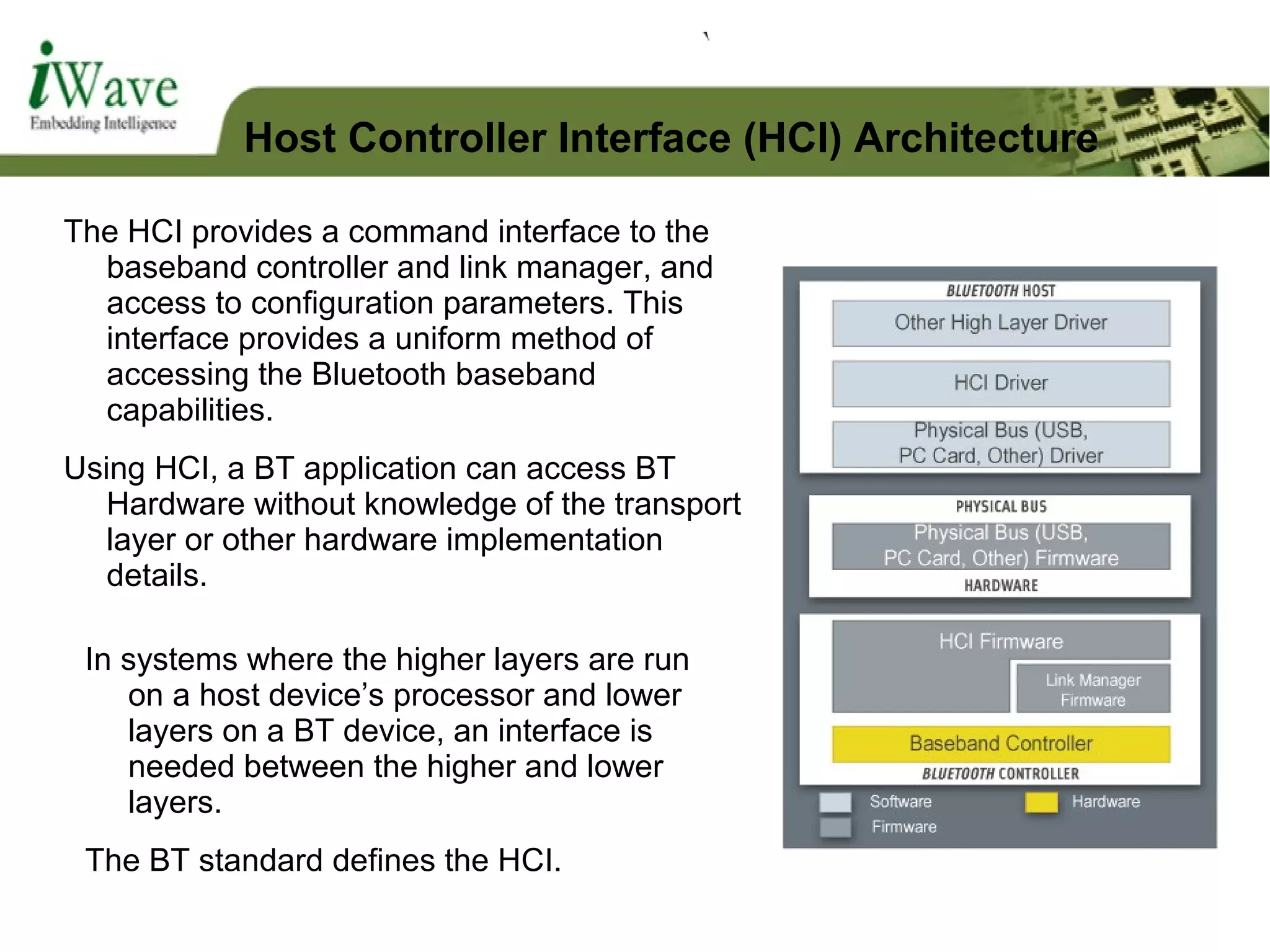

32. The HCI provides a command interface to the
baseband controller and link manager, and
access to configuration parameters. This
interface provides a uniform method of
accessing the Bluetooth baseband
capabilities.
Using HCI, a BT application can access BT
Hardware without knowledge of the transport
layer or other hardware implementation
details.
In systems where the higher layers are run
on a host device’s processor and lower
layers on a BT device, an interface is
needed between the higher and lower
layers.
The BT standard defines the HCI.
Host Controller Interface (HCI) Architecture

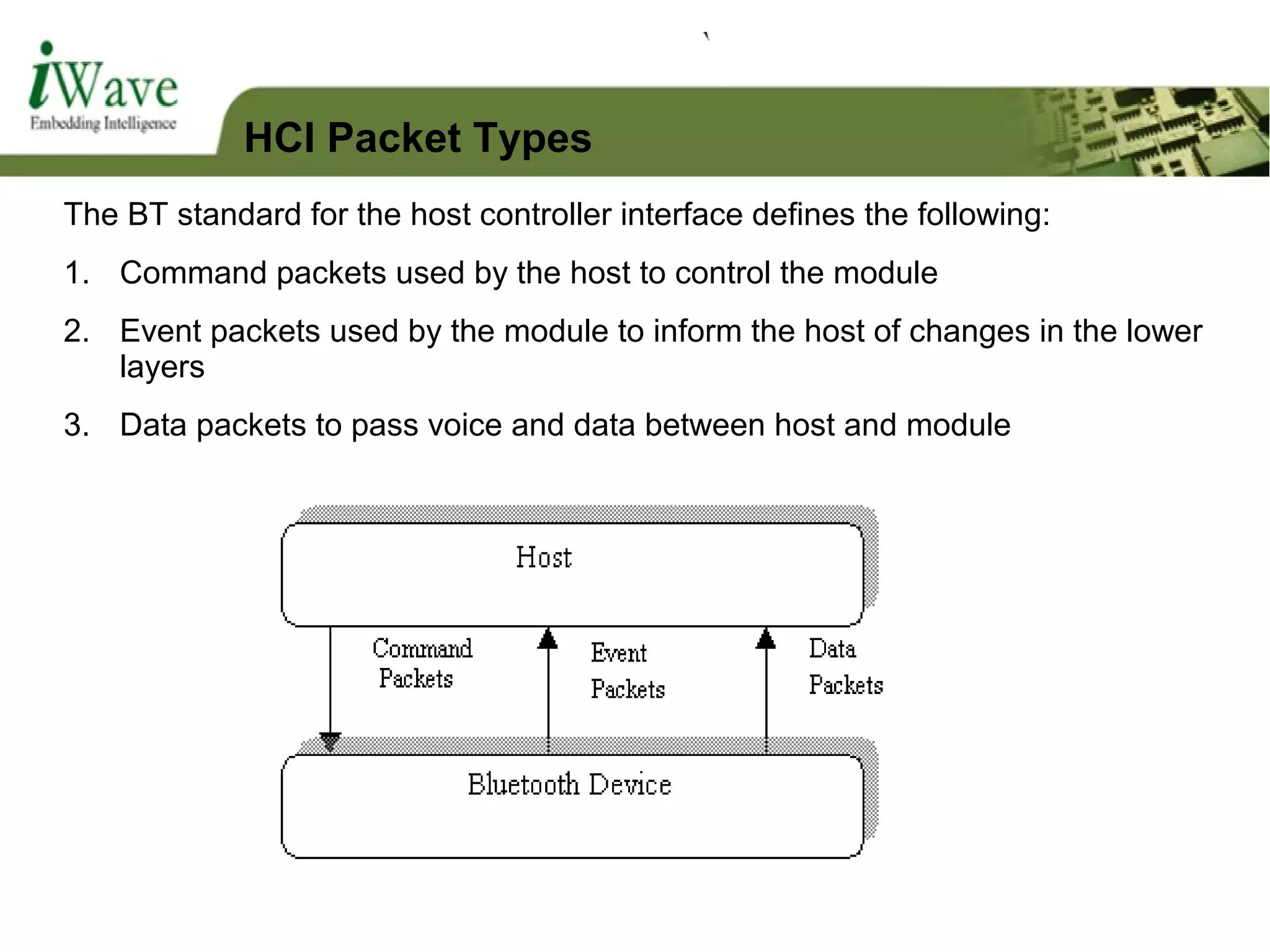

33. The BT standard for the host controller interface defines the following:
1. Command packets used by the host to control the module
2. Event packets used by the module to inform the host of changes in the lower
layers
3. Data packets to pass voice and data between host and module
HCI Packet Types

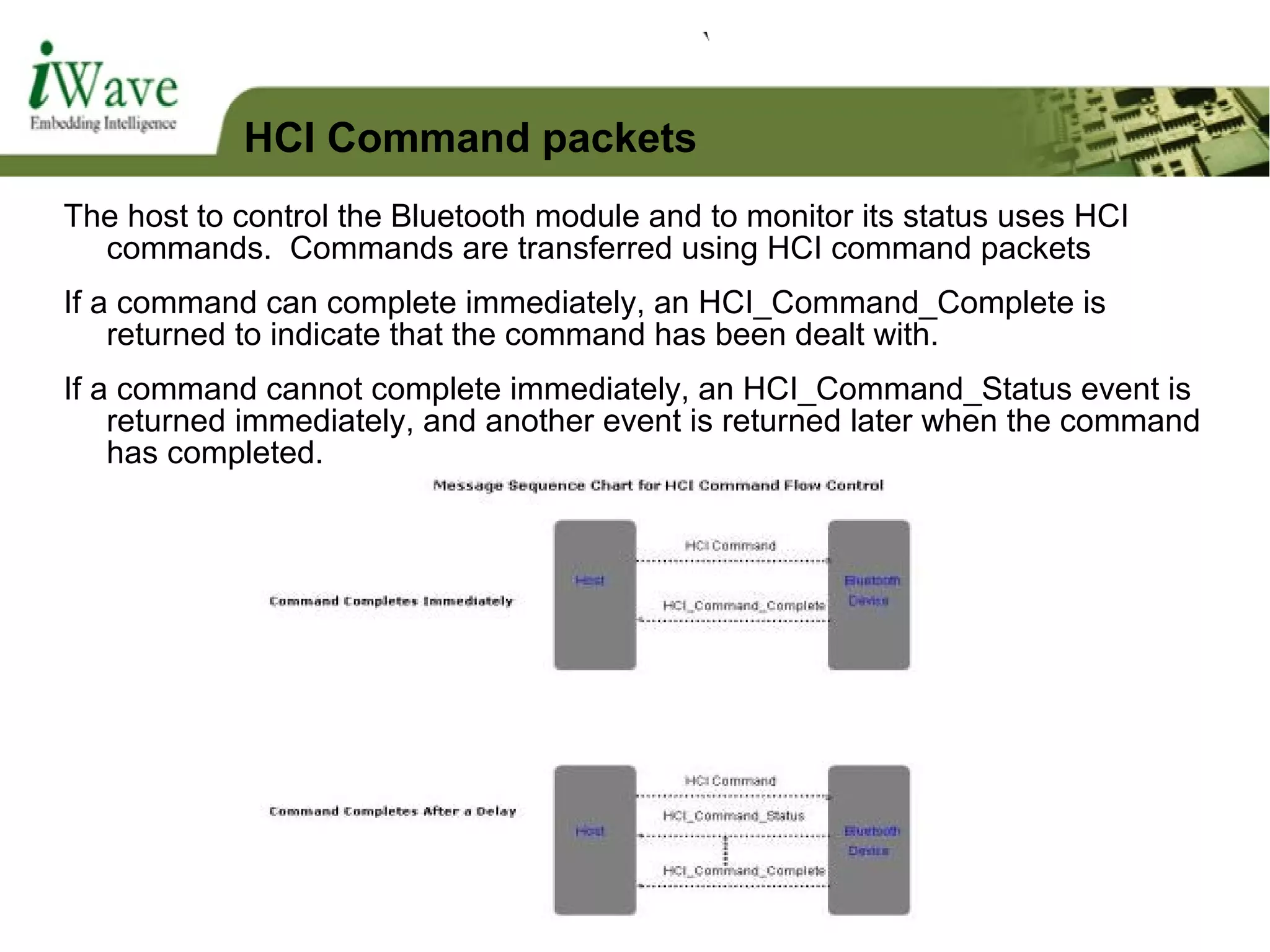

34. The host to control the Bluetooth module and to monitor its status uses HCI
commands. Commands are transferred using HCI command packets
If a command can complete immediately, an HCI_Command_Complete is
returned to indicate that the command has been dealt with.
If a command cannot complete immediately, an HCI_Command_Status event is
returned immediately, and another event is returned later when the command
has completed.
HCI Command packets
35. The Opcode parameter
is divided into two
fields, called the
OpCode Group Field
(OGF) and OpCode
Command Field (OCF).
The OGF occupies the
upper 6 bits of the
Opcode, while the OCF
occupies the remaining
10 bits.
HCI Command packets
36. HCI ACL Data Packets
HCI ACL Data Packets are used to exchange data between the Host and Controller.
HCI Synchronous Data Packets
HCI synchronous (SCO and eSCO) Data Packets are used to exchange
synchronous data between the Host and Controller.
HCI Data packets
37. The HCI Event Packet is used by the Controller to notify the Host when
events occur. The Host must be able to accept HCI Event Packets with up to
255 octets of data excluding the HCI Event Packet header.
HCI Event Packets
39. WEC7 Initialization sequence
The first command that is sent from stack to HCI transport layer is 0x0C03
(Reset).
OGF OCF Op-code
It will be followed by following sequence of commands
HCI Command : Read buffer size (0x1005)
HCI Event : Command Status (0x0E)
HCI Command : Read BD address (0x1009)
HCI Event : Command Status (0x0E)
HCI Command : Write local name (0x0C13)
HCI Event : Command Status (0x0E)
HCI Command : Write scan enable (0x0C1A)
HCI Event : Command Status (0x0E)
HCI Command : Write class of device (0x0C24)
HCI Event : Command Status (0x0E)
HCI Command : Read Local Version Information (0x1001)
HCI Event : Command Status (0x0E)
HCI Command : Read Local Supported Commands (0x1003)
HCI Event : Command Status (0x0E)
...
...

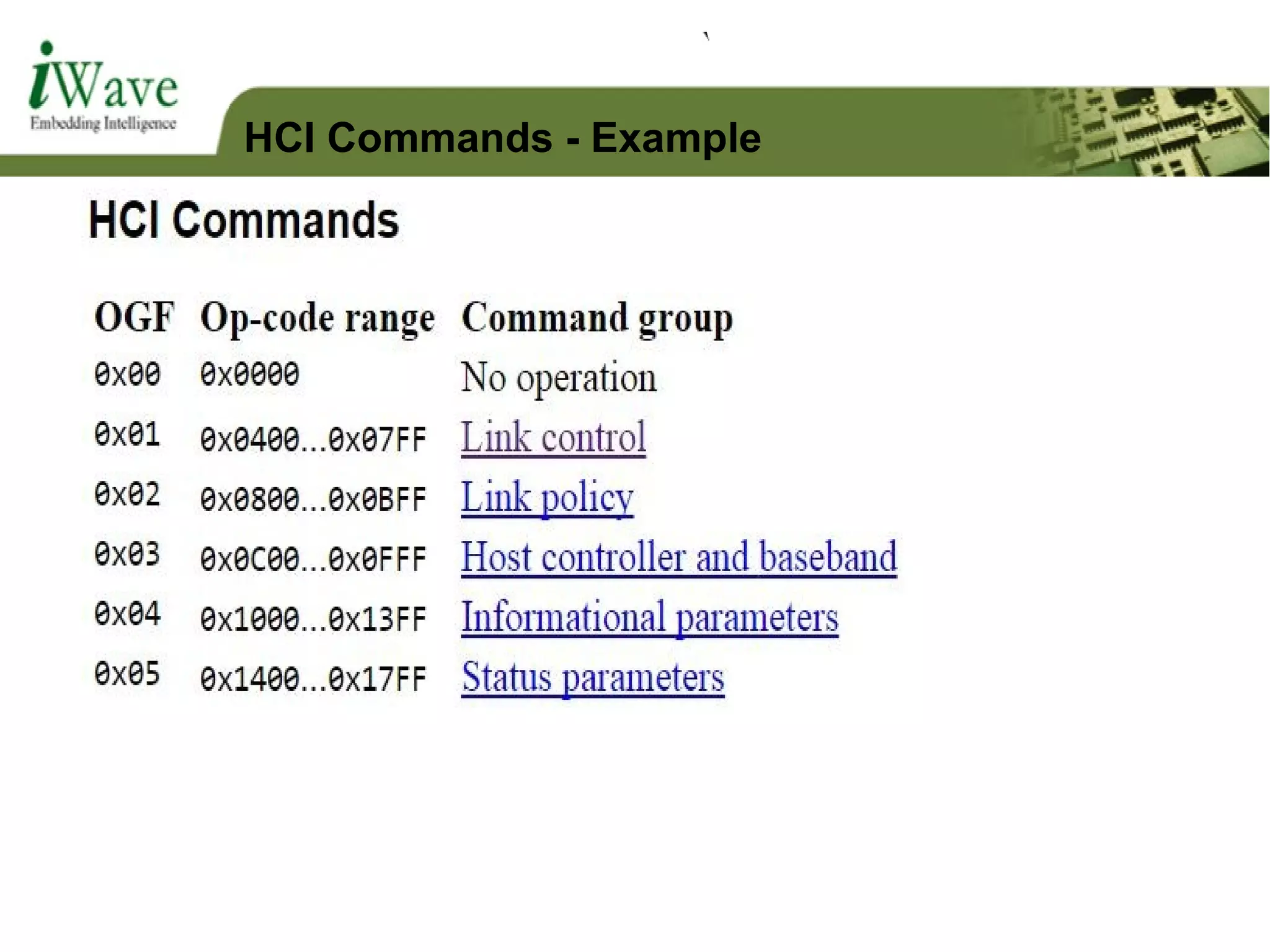

HCI Commands - Example
40. Scanning sequence
HCI Command : Inquiry (0x0401)
HCI Event : Command Status (0x0F)
HCI Event : Inquiry Result (0x02) or Extended Inquiry Result(0x2F)
and/or Inquiry Result with RSSI (0x22)
HCI Event : Inquiry Complete (0x01)
HCI Command : Remote Name Request (0x0419)
HCI Event : Command Status (0x0F)
HCI Event : Remote Name Request Complete (0x07)
HCI Commands - Example

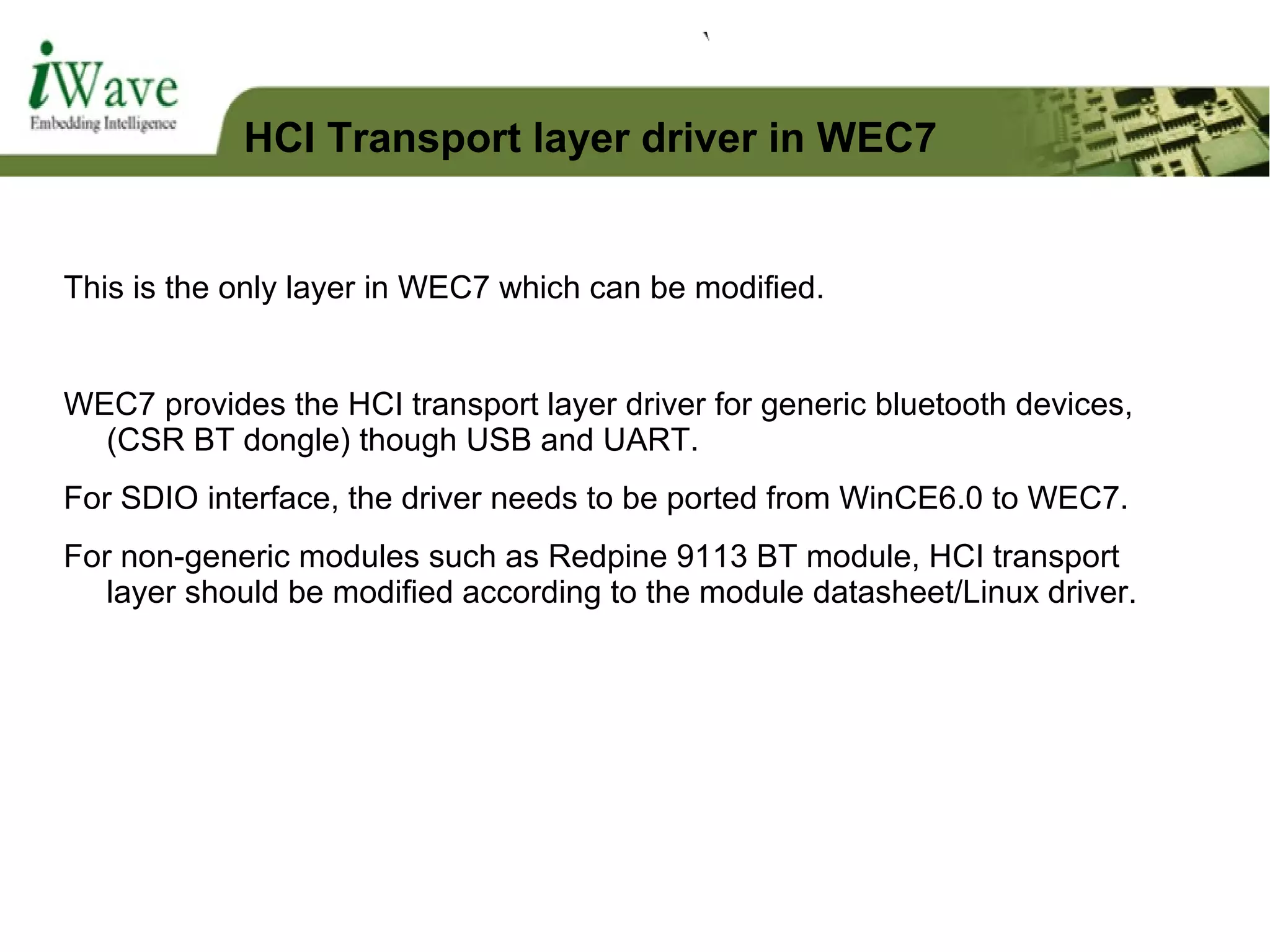

42. This is the only layer in WEC7 which can be modified.
WEC7 provides the HCI transport layer driver for generic bluetooth devices,
(CSR BT dongle) though USB and UART.
For SDIO interface, the driver needs to be ported from WinCE6.0 to WEC7.
For non-generic modules such as Redpine 9113 BT module, HCI transport
layer should be modified according to the module datasheet/Linux driver.
HCI Transport layer driver in WEC7
44. Bluetooth Stack with Universal Loadable Driver SYSGEN_BTH
Bluetooth Settings SYSGEN_BTH_SETTINGS
Bluetooth HID – Keyboard SYSGEN_BTH_HID_KEYBOARD
Bluetooth HID – Mouse SYSGEN_BTH_HID_MOUSE
Bluetooth HS/HF and Audio Gateway Service SYSGEN_BTH_AG
Bluetooth PAN SYSGEN_BTH_PAN
Bluetooth Profile Management APIs SYSGEN_BTH_BTHUTIL
Bluetooth services SYSGEN_BTH_BTHSSVC
OBEX Client SYSGEN_OBEX_CLIENT
OBEX Server SYSGEN_OBEX_SERVER
OBEX File Browser SYSGEN_OBEX_FILEBROWSER
OBEX Inbox SYSGEN_OBEX_INBOX
Bluetooth utilities SYSGEN_BTH_UTILS
Bluetooth audio SYSGEN_BTH_AUDIO
Bluetooth modem SYSGEN_BTH_MODEM
WEC7 Catalog items and SYSGEN variables
45. •Bluetooth works at 2.4GHz frequency while Wi-Fi based networks work at 2.4, 3.6 and 5 GHz .
•Wi-Fi is intended as a replacement for high speed cabling for general local area network access in work
areas(wireless local area networks (WLAN)).
•Bluetooth was intended for portable equipment and its applications(wireless personal area network
(WPAN)).
•Wi-Fi is usually access point-centered, with an asymmetrical client-server connection with all traffic
routed through the access point, while Bluetooth is usually symmetrical, between two Bluetooth devices.
•Wi-Fi Direct was recently developed to add a more Bluetooth-like ad-hoc functionality to Wi-Fi.
Bluetooth vs. Wi-Fi:
46. The Advantages of Bluetooth:
• Widely Used: Companies are taking the benefit by using this in their new and future products to make
life much easier for everyone.
• Feature Simplicity: You do not need to know much about technology in order to run Bluetooth. Anyone
that doesn't have no knowledge about the new technology can still be able to use the Bluetooth feature
due to its simplicity and the ease of use.
• Go Wireless!: It allows you to stay cord free and do not have to worry about finding the correct place to
connect that extra long cord.
The Disadvantages of Bluetooth:
• Though the transfer speeds are impressive at around 25 Mbps, certain other technologies like Wi-Fi
Direct can offer speeds up to 250 Mbps.
• Even though the security is good, it is even better on Wi-Fi Direct.
• The battery usage during a single transfer is negligible, but if the device is switched on for long, it will
drain the battery.
• Shorter range when compared to WiFi
Advantages and Disadvantages
