- 1. Prepared by, JOHN JOSE, S7ME, 11436030. Guided by, EDIN MICHAEL, Asst. Professor, Dept. of Mechanical Engg.

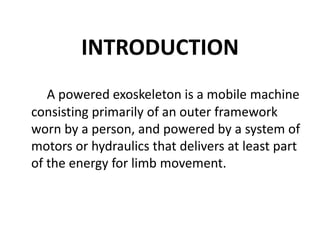

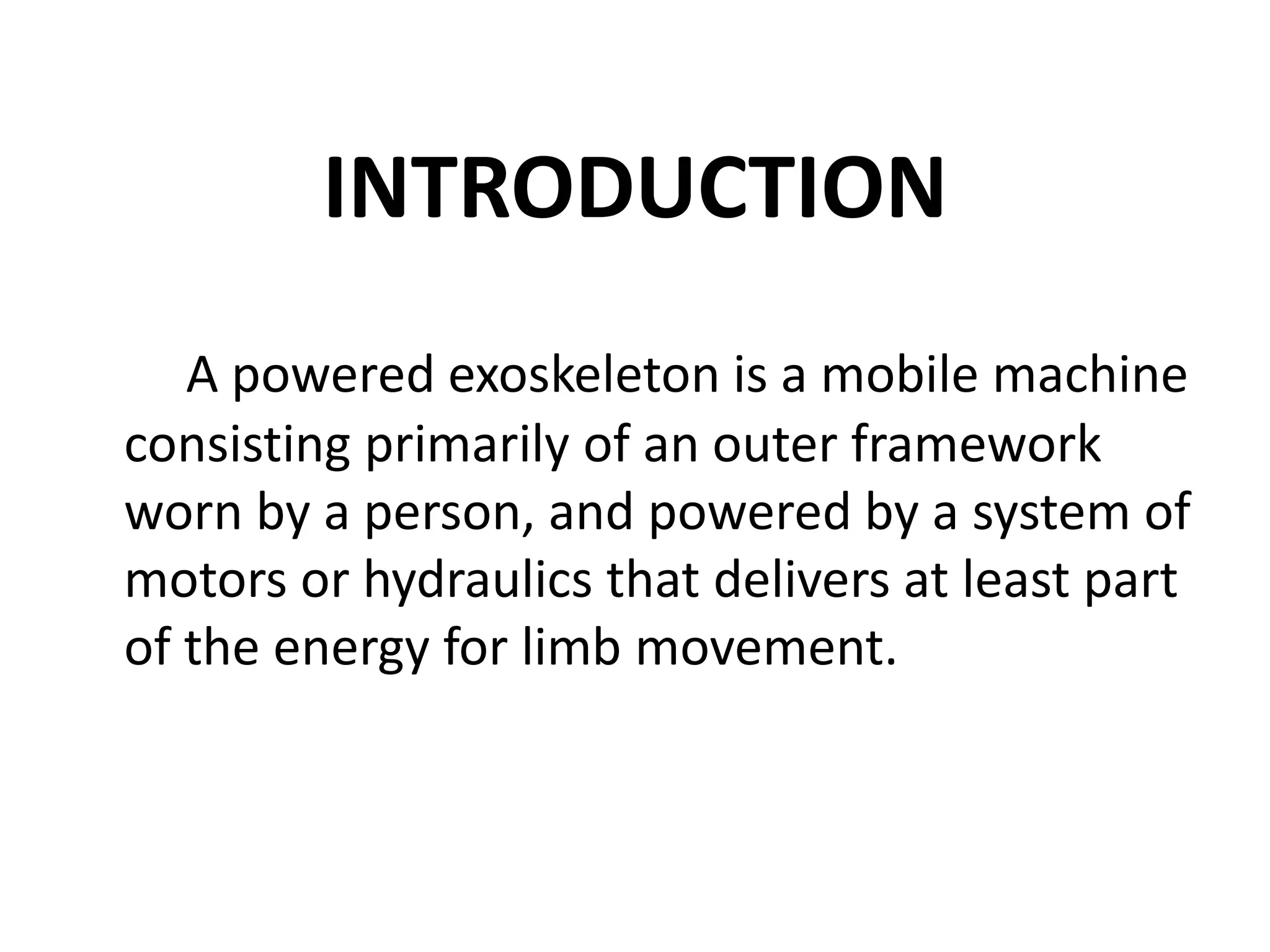

- 2. INTRODUCTION A powered exoskeletonis a mobile machine consisting primarily of an outer framework worn by a person, and powered by a system of motors or hydraulics that delivers at least part of the energy for limb movement.

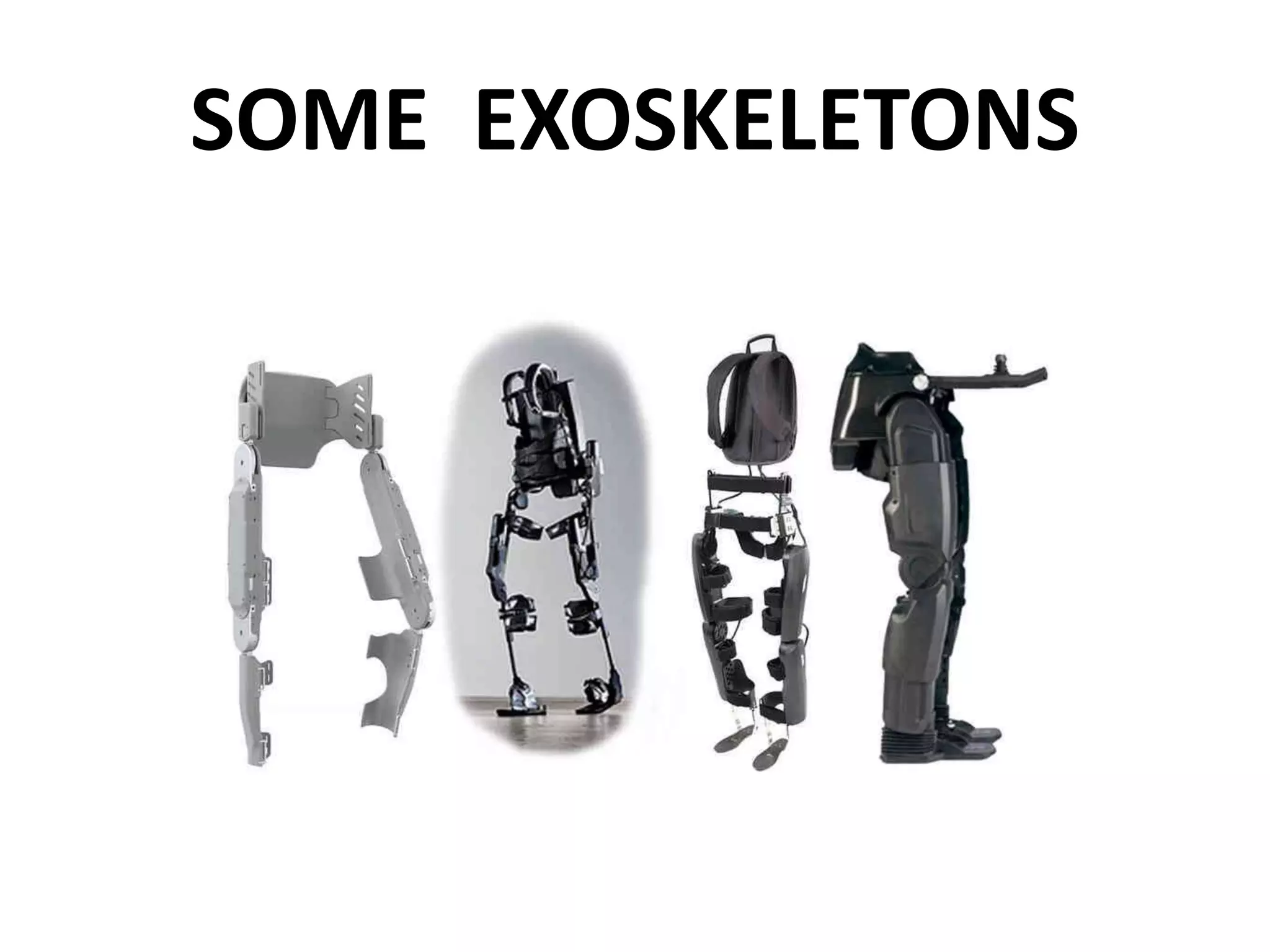

- 3.

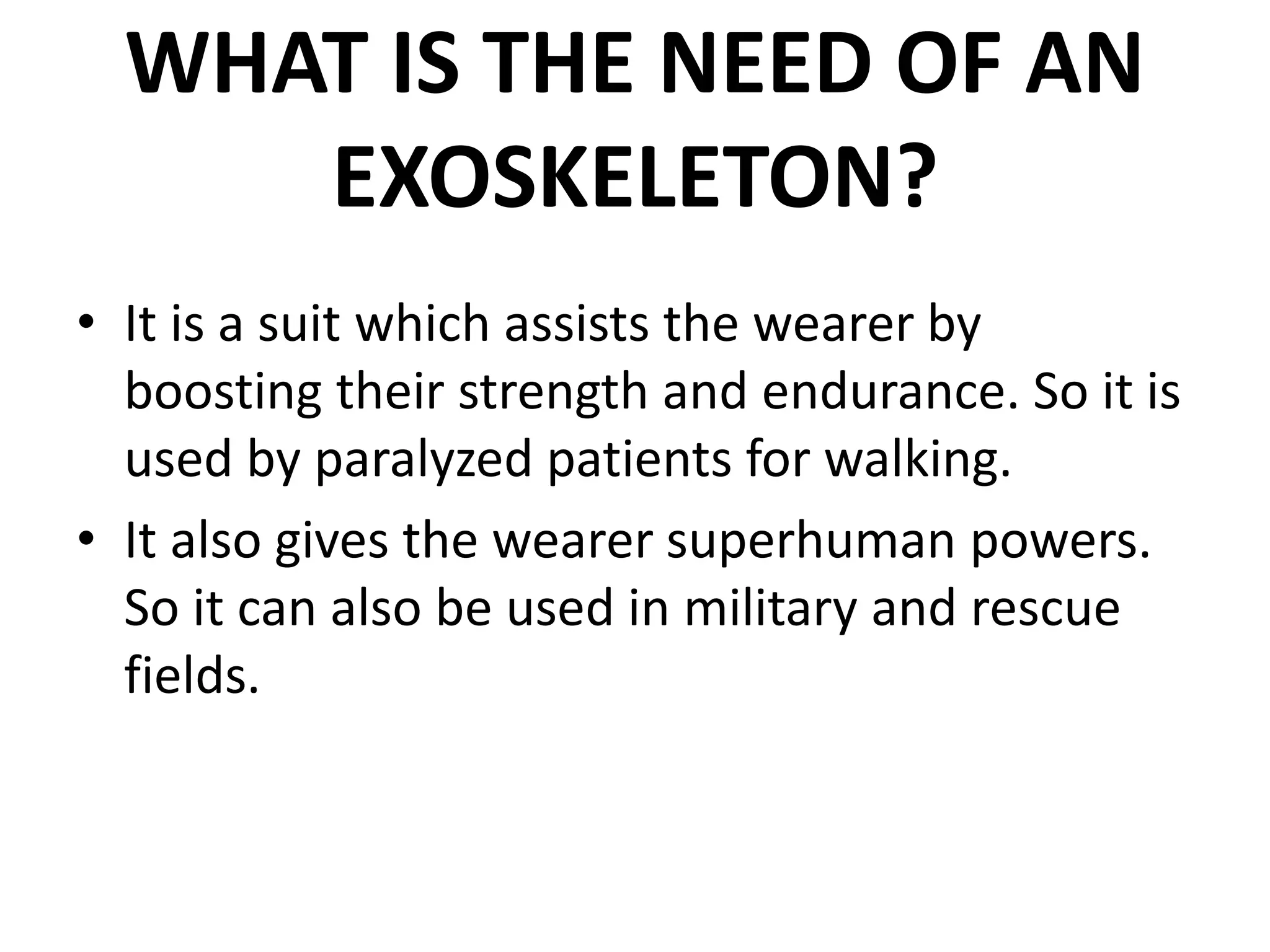

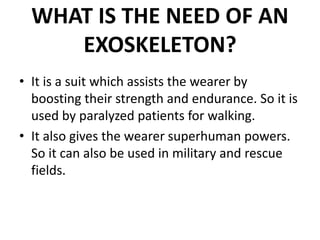

- 4. WHAT IS THENEED OF AN EXOSKELETON? • It is a suit which assists the wearer by boosting their strength and endurance. So it is used by paralyzed patients for walking. • It also gives the wearer superhuman powers. So it can also be used in military and rescue fields.

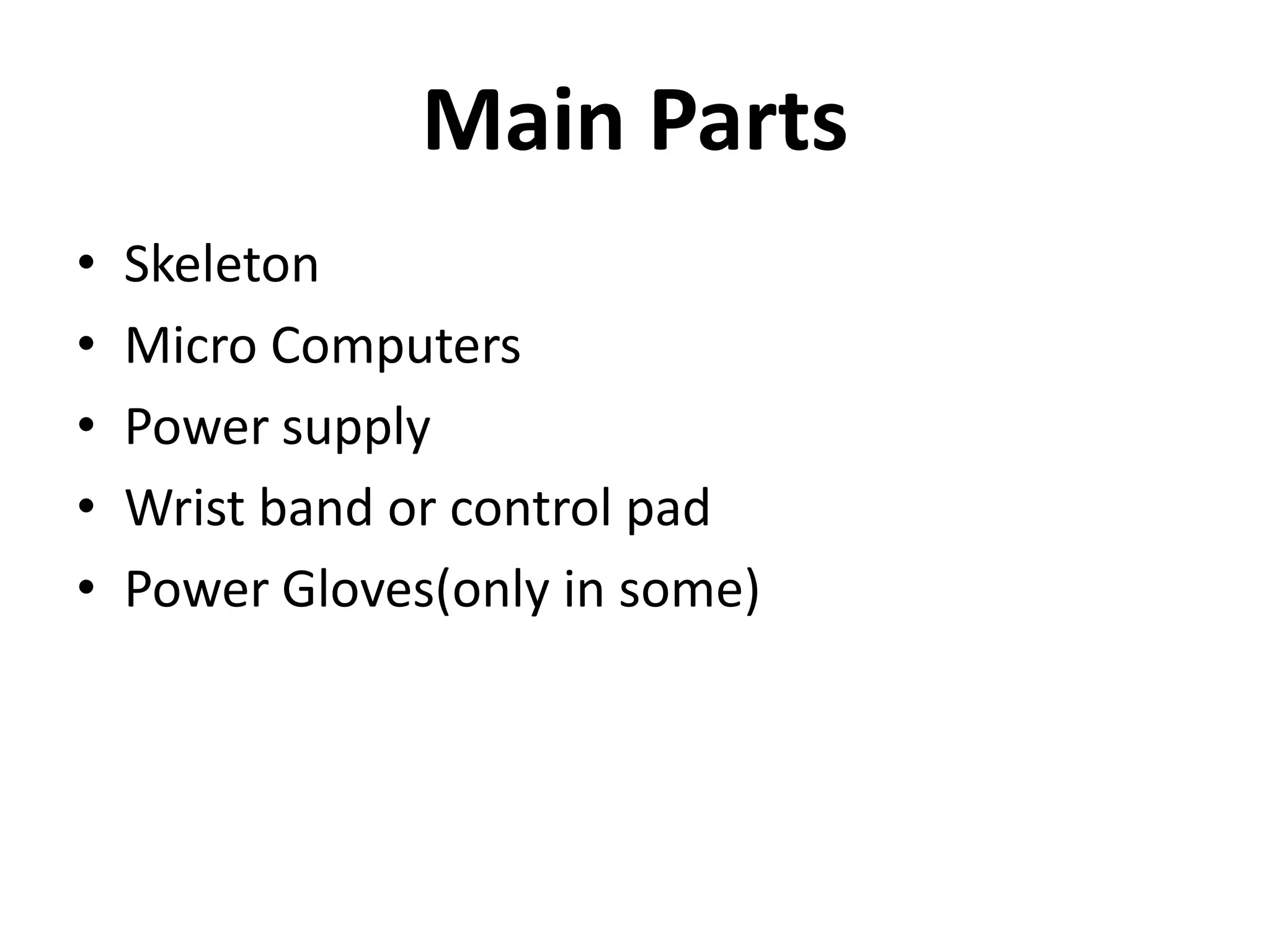

- 5. Main Parts • Skeleton •Micro Computers • Power supply • Wrist band or control pad • Power Gloves(only in some)

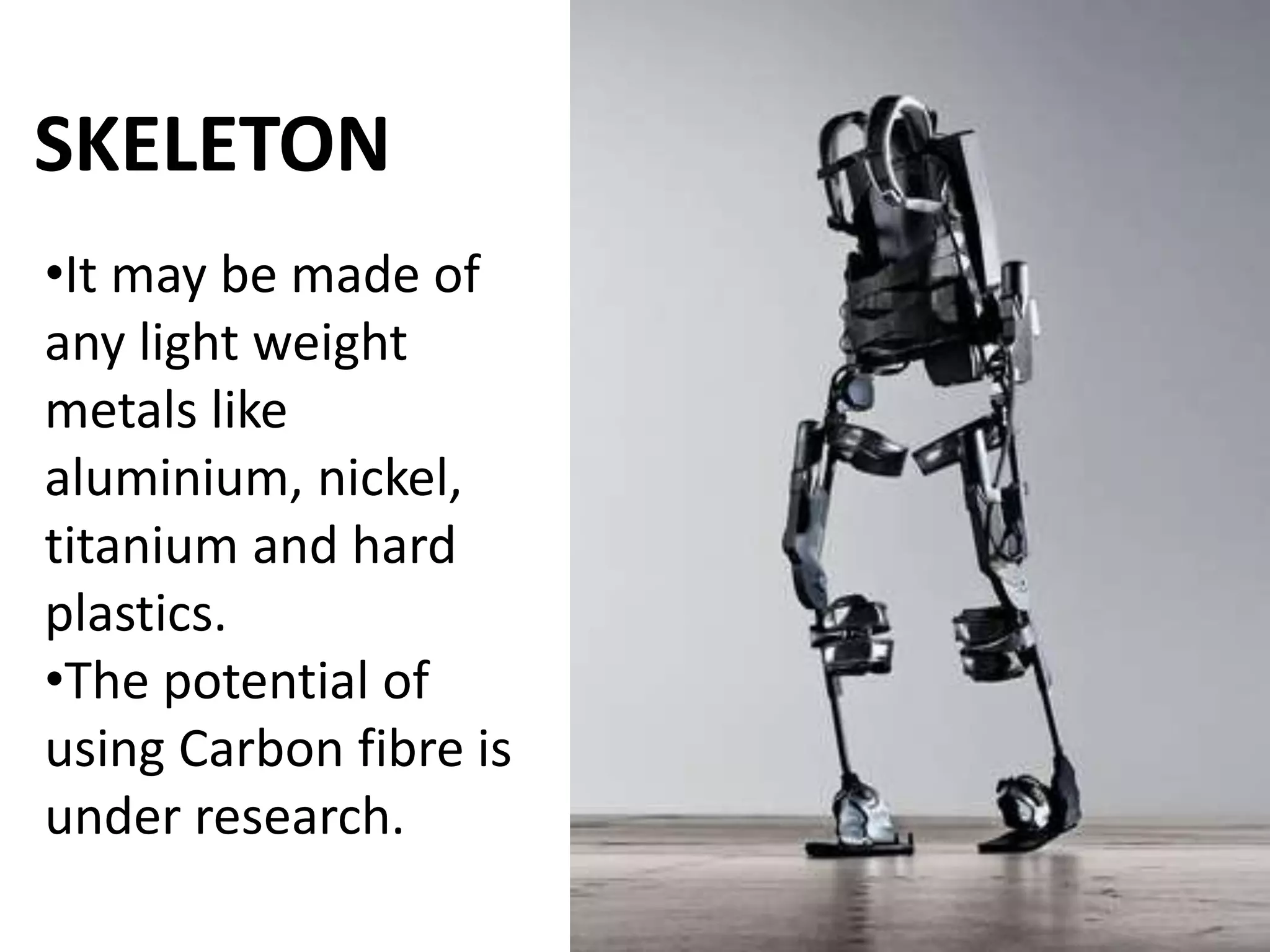

- 6. SKELETON •It may bemade of any light weight metals like aluminium, nickel, titanium and hard plastics. •The potential of using Carbon fibre is under research.

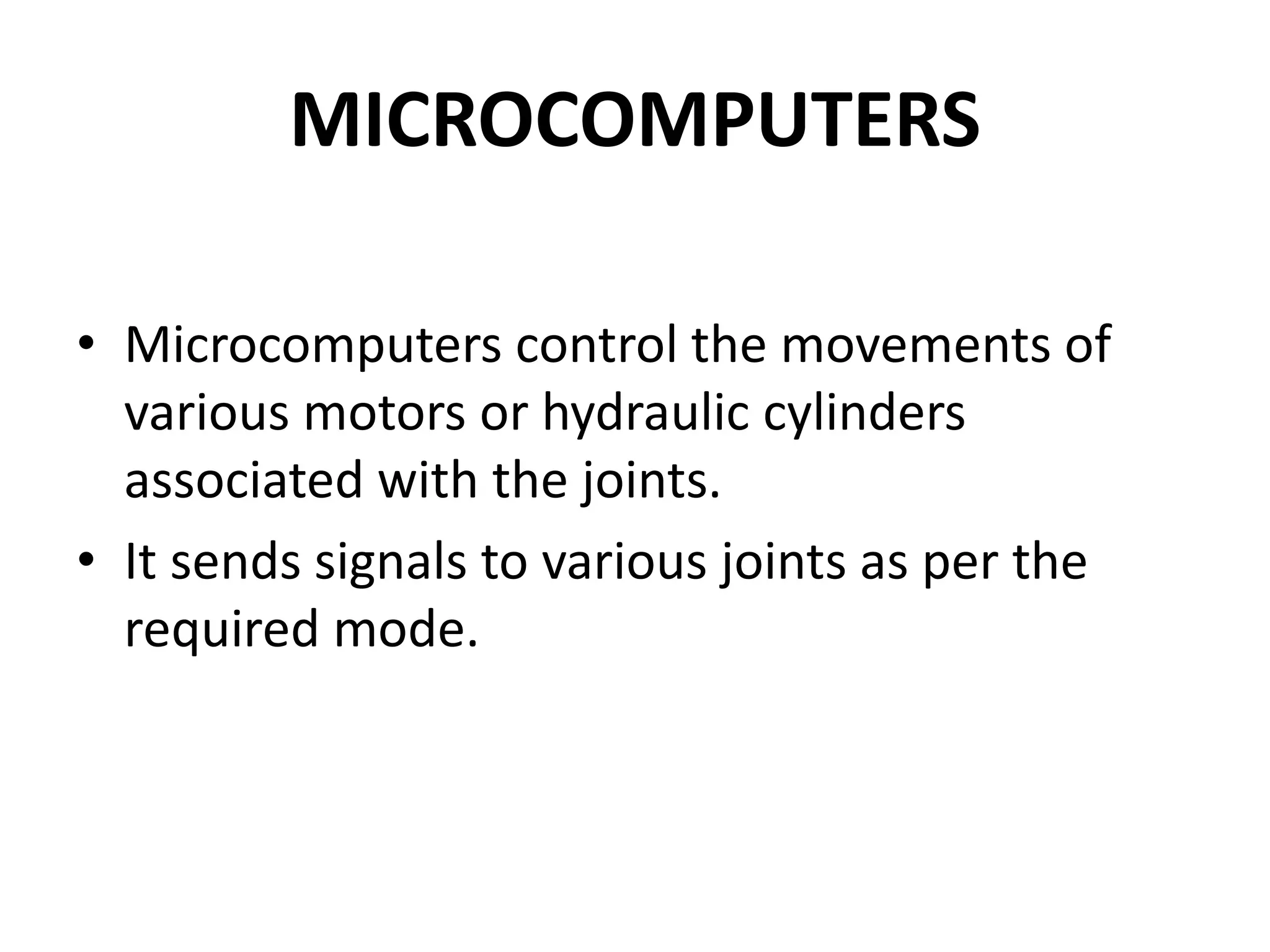

- 7. MICROCOMPUTERS • Microcomputers controlthe movements of various motors or hydraulic cylinders associated with the joints. • It sends signals to various joints as per the required mode.

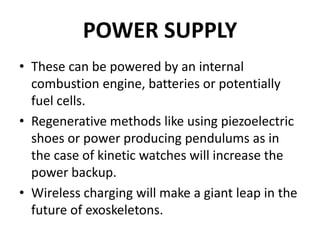

- 8. POWER SUPPLY • Thesecan be powered by an internal combustion engine, batteries or potentially fuel cells. • Regenerative methods like using piezoelectric shoes or power producing pendulums as in the case of kinetic watches will increase the power backup. • Wireless charging will make a giant leap in the future of exoskeletons.

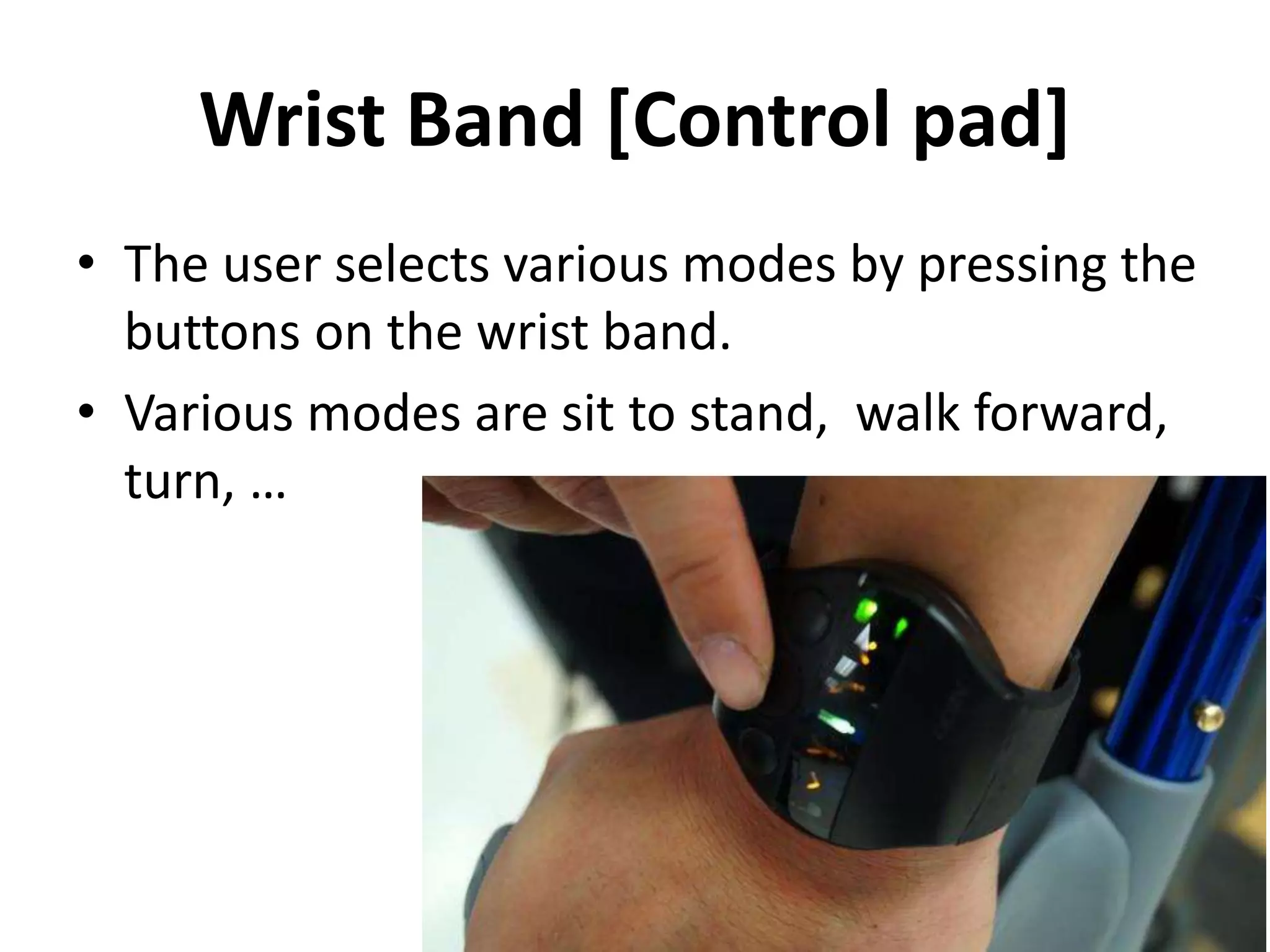

- 9. Wrist Band [Controlpad] • The user selects various modes by pressing the buttons on the wrist band. • Various modes are sit to stand, walk forward, turn, …

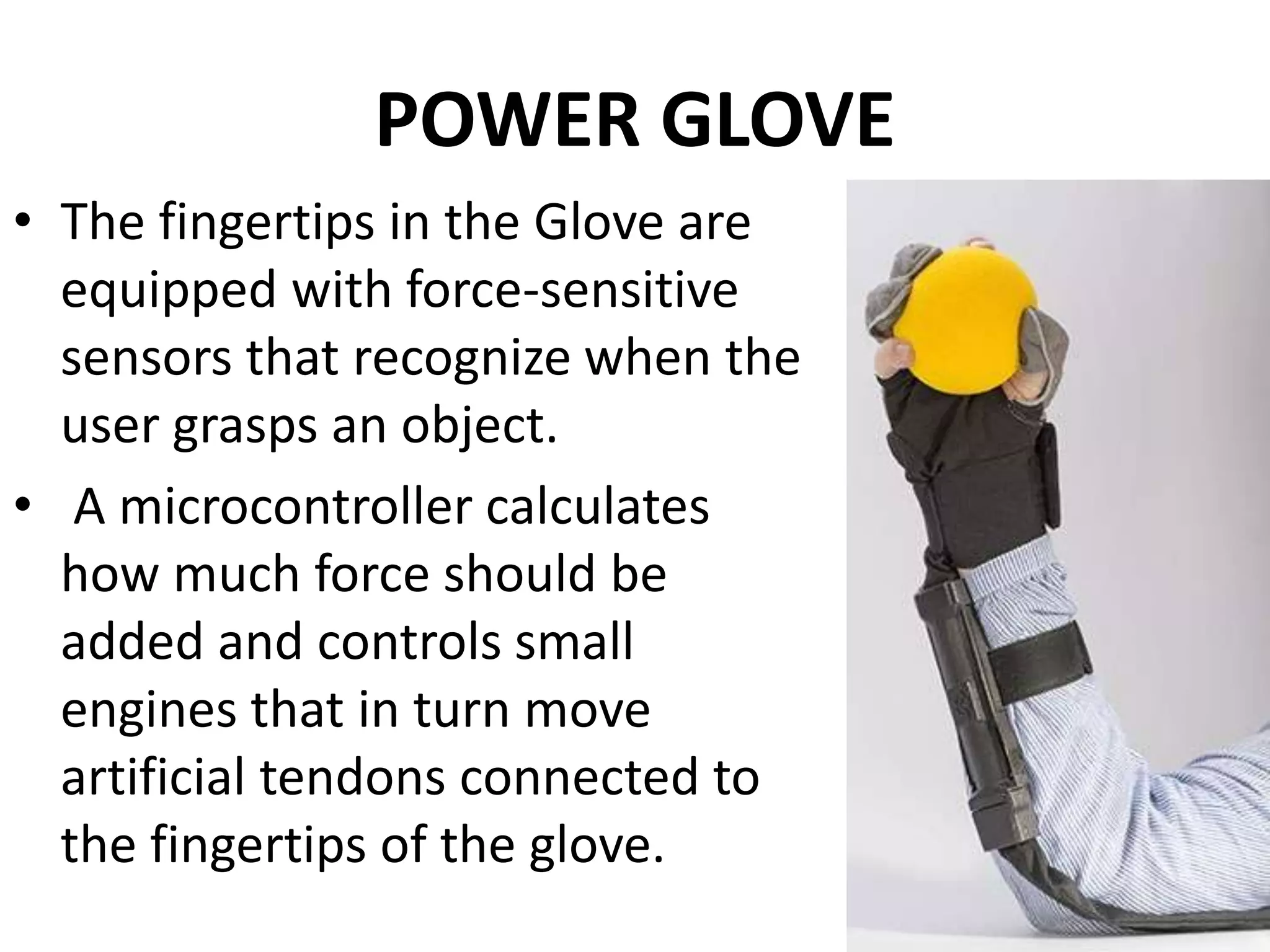

- 10. POWER GLOVE • Thefingertips in the Glove are equipped with force-sensitive sensors that recognize when the user grasps an object. • A microcontroller calculates how much force should be added and controls small engines that in turn move artificial tendons connected to the fingertips of the glove.

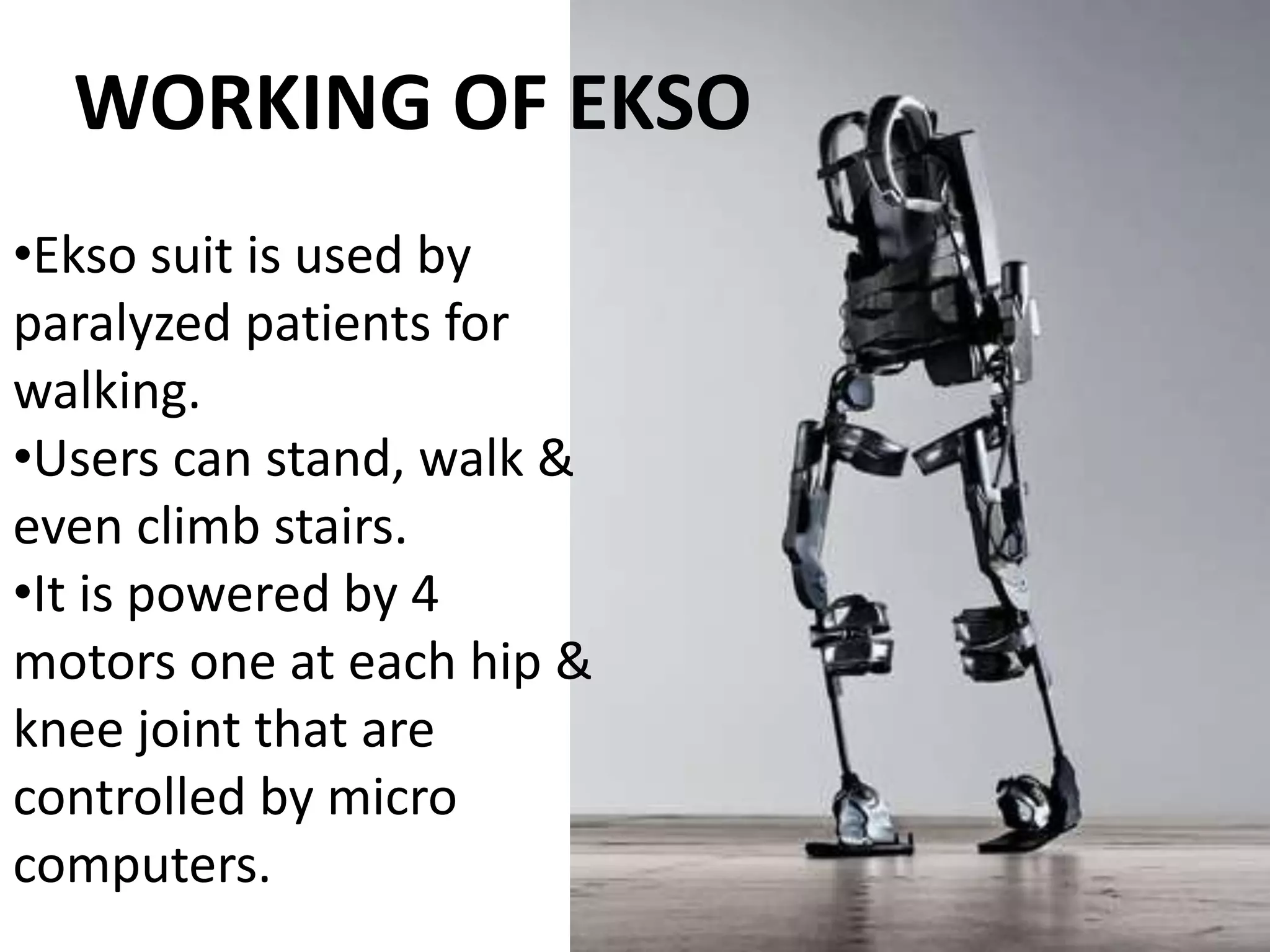

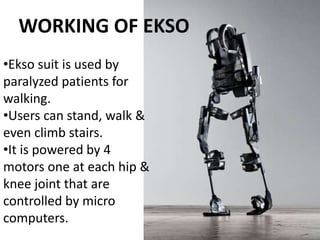

- 11. •Ekso suit isused by paralyzed patients for walking. •Users can stand, walk & even climb stairs. •It is powered by 4 motors one at each hip & knee joint that are controlled by micro computers. WORKING OF EKSO

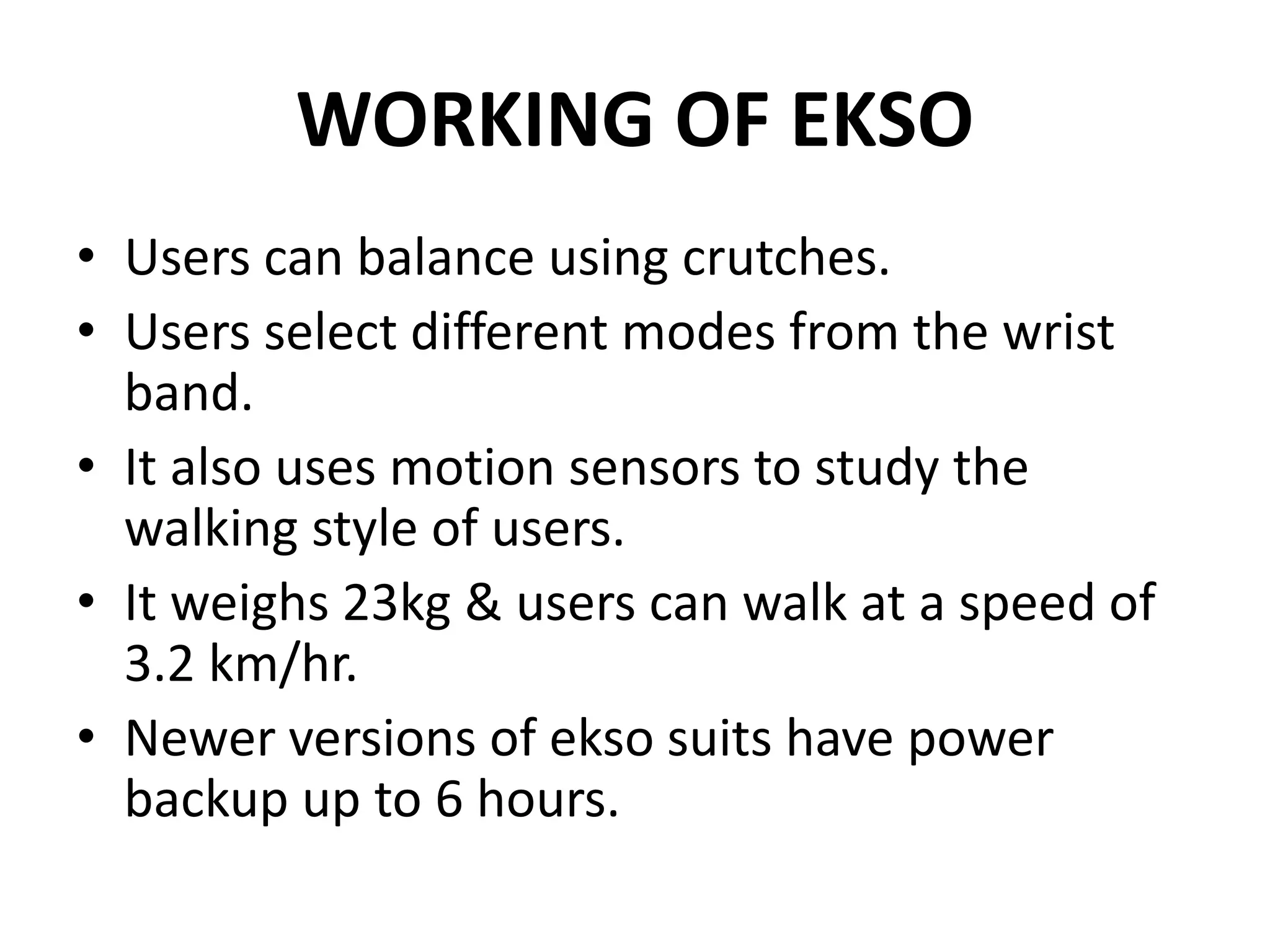

- 12. WORKING OF EKSO •Users can balance using crutches. • Users select different modes from the wrist band. • It also uses motion sensors to study the walking style of users. • It weighs 23kg & users can walk at a speed of 3.2 km/hr. • Newer versions of ekso suits have power backup up to 6 hours.

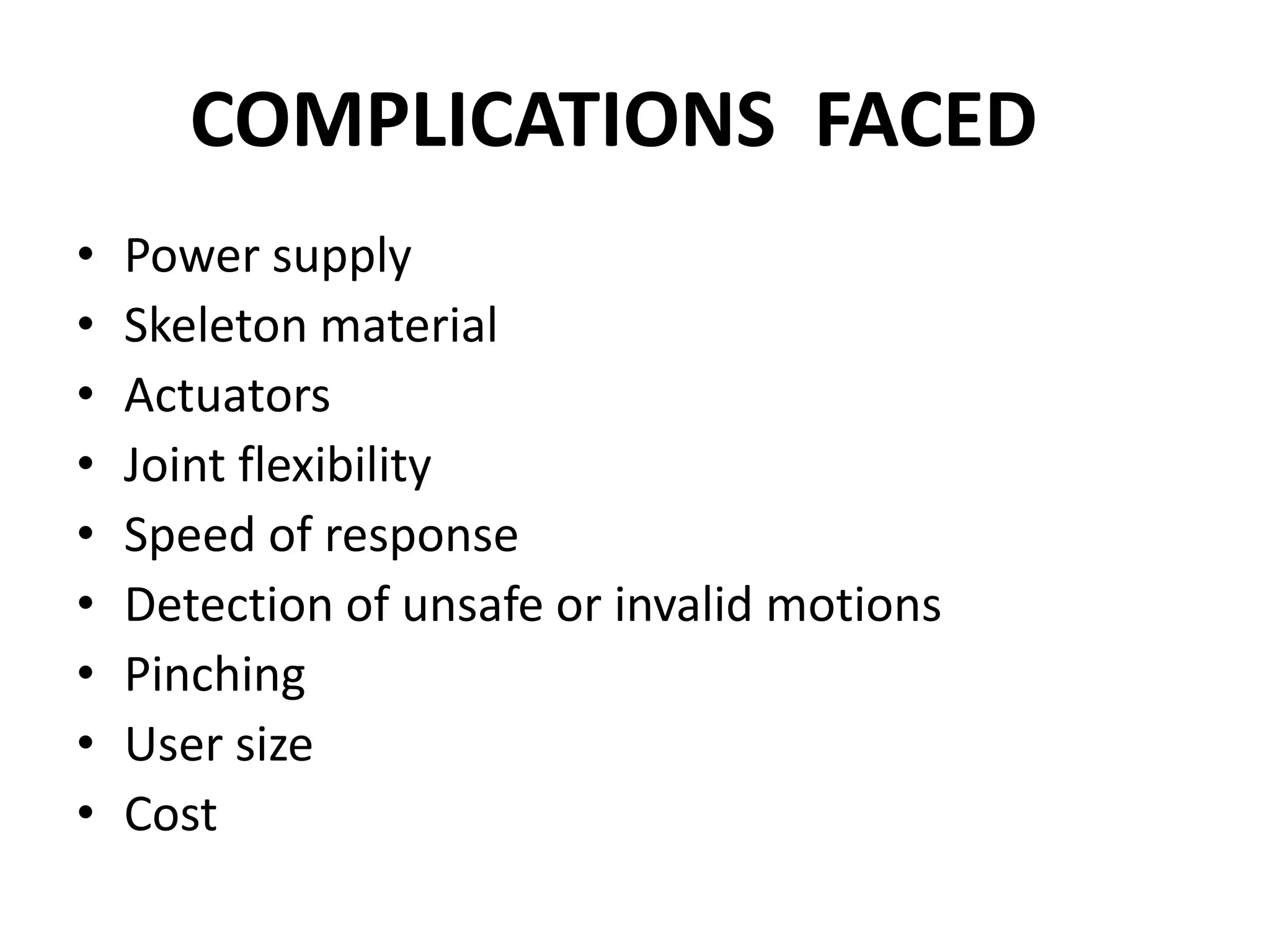

- 13. COMPLICATIONS FACED • Powersupply • Skeleton material • Actuators • Joint flexibility • Speed of response • Detection of unsafe or invalid motions • Pinching • User size • Cost

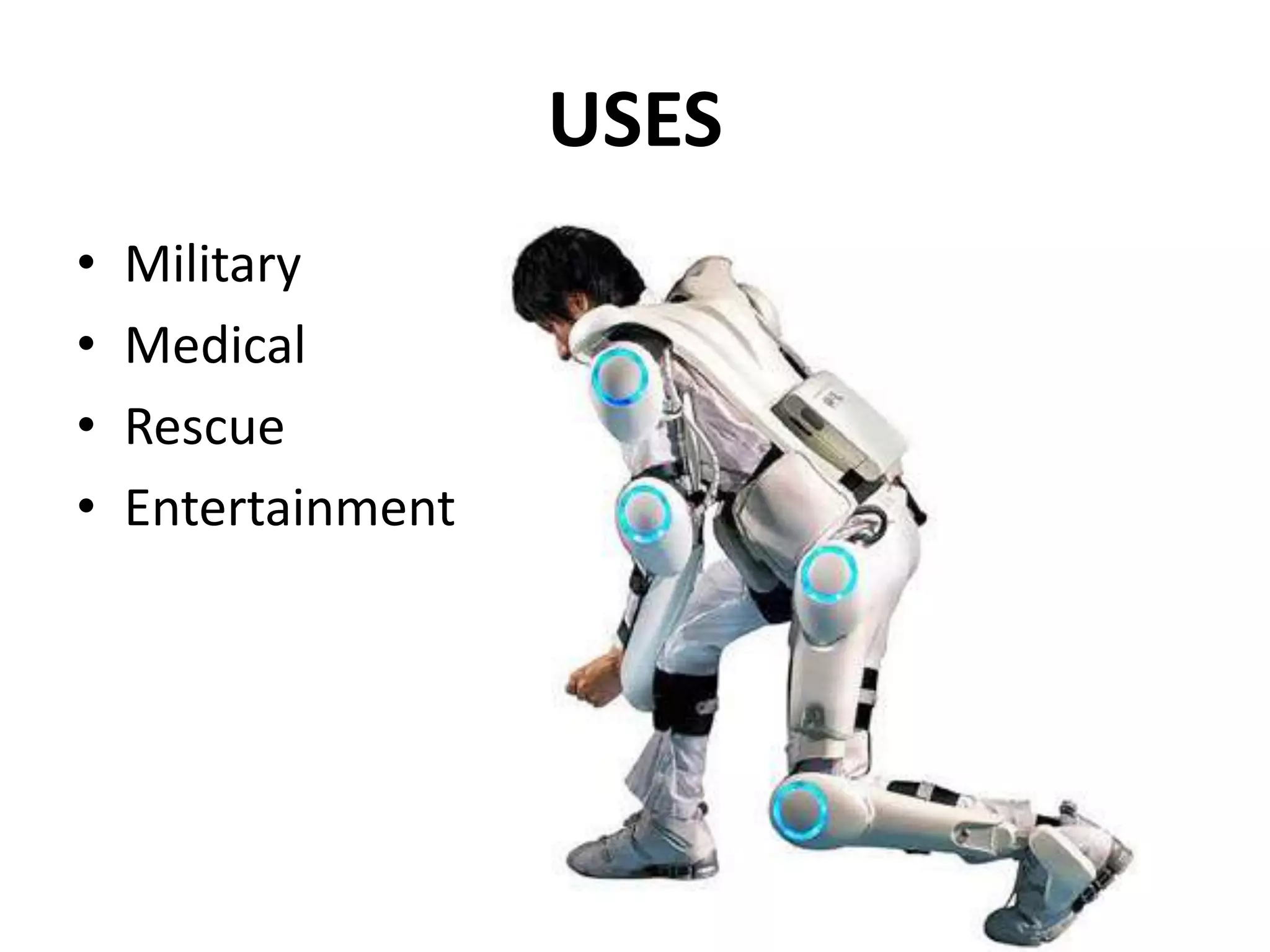

- 14. USES • Military • Medical •Rescue • Entertainment

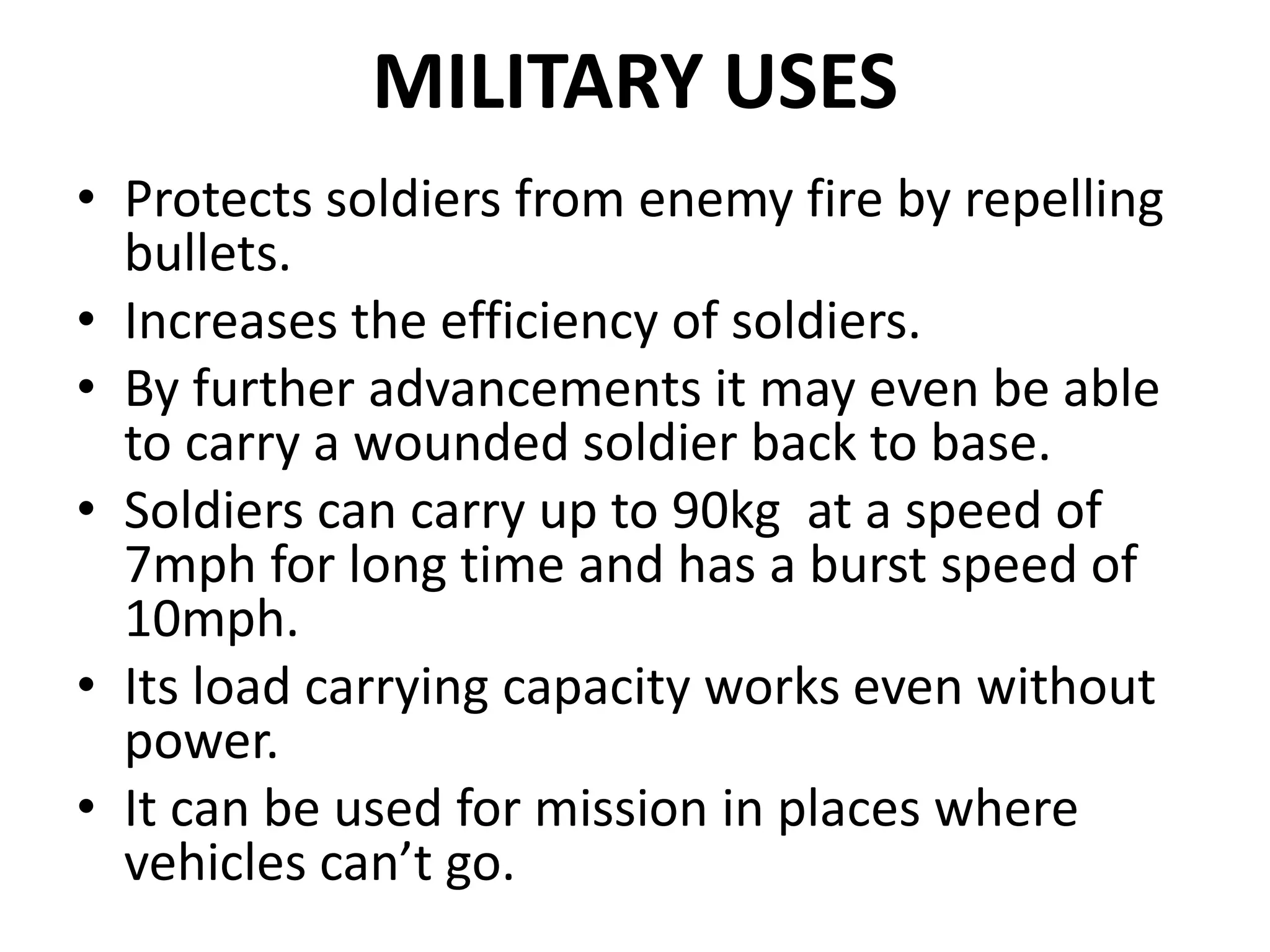

- 15. MILITARY USES • Protectssoldiers from enemy fire by repelling bullets. • Increases the efficiency of soldiers. • By further advancements it may even be able to carry a wounded soldier back to base. • Soldiers can carry up to 90kg at a speed of 7mph for long time and has a burst speed of 10mph. • Its load carrying capacity works even without power. • It can be used for mission in places where vehicles can’t go.

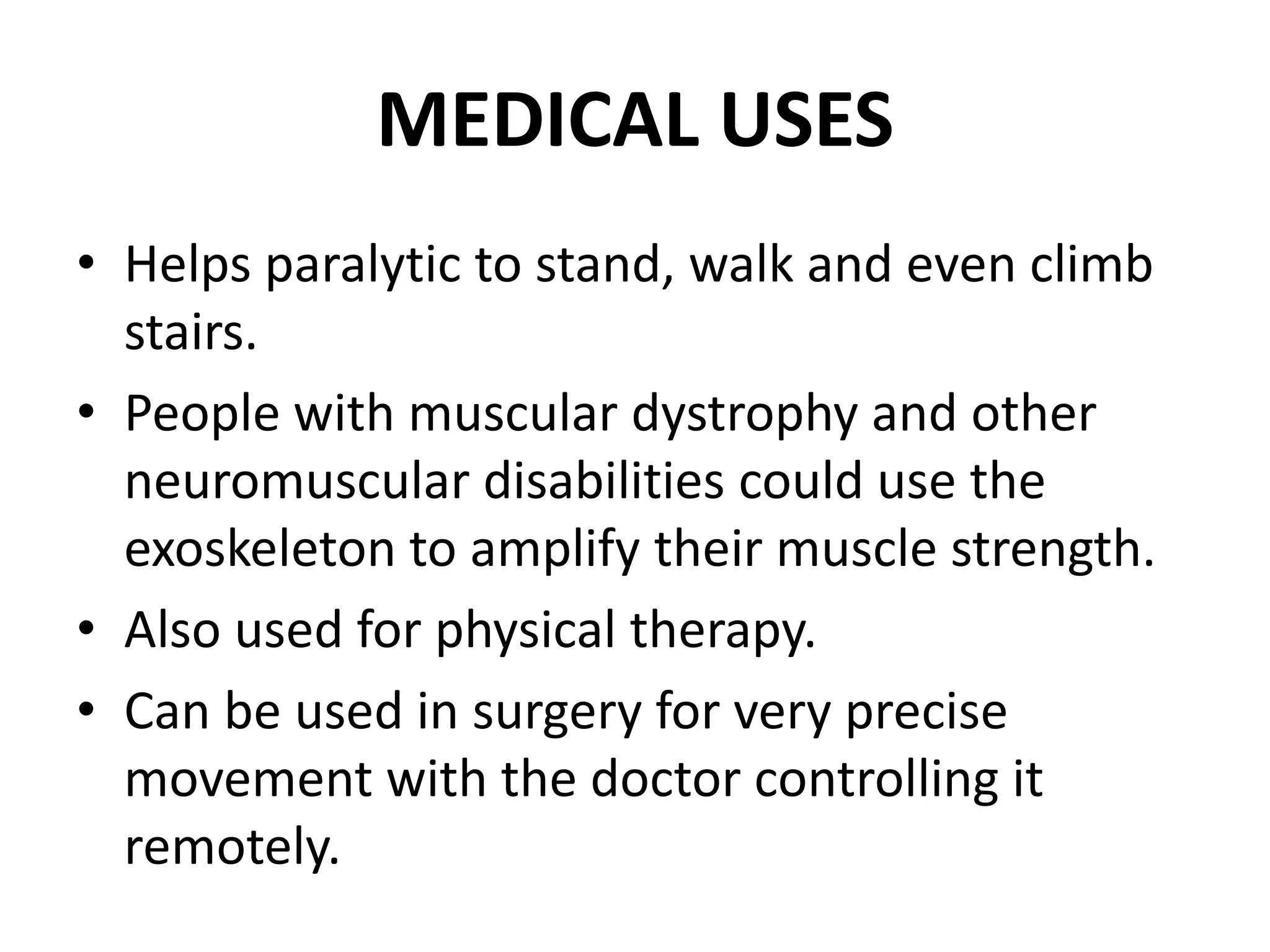

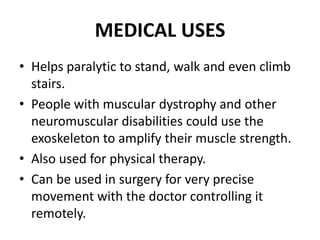

- 16. MEDICAL USES • Helpsparalytic to stand, walk and even climb stairs. • People with muscular dystrophy and other neuromuscular disabilities could use the exoskeleton to amplify their muscle strength. • Also used for physical therapy. • Can be used in surgery for very precise movement with the doctor controlling it remotely.

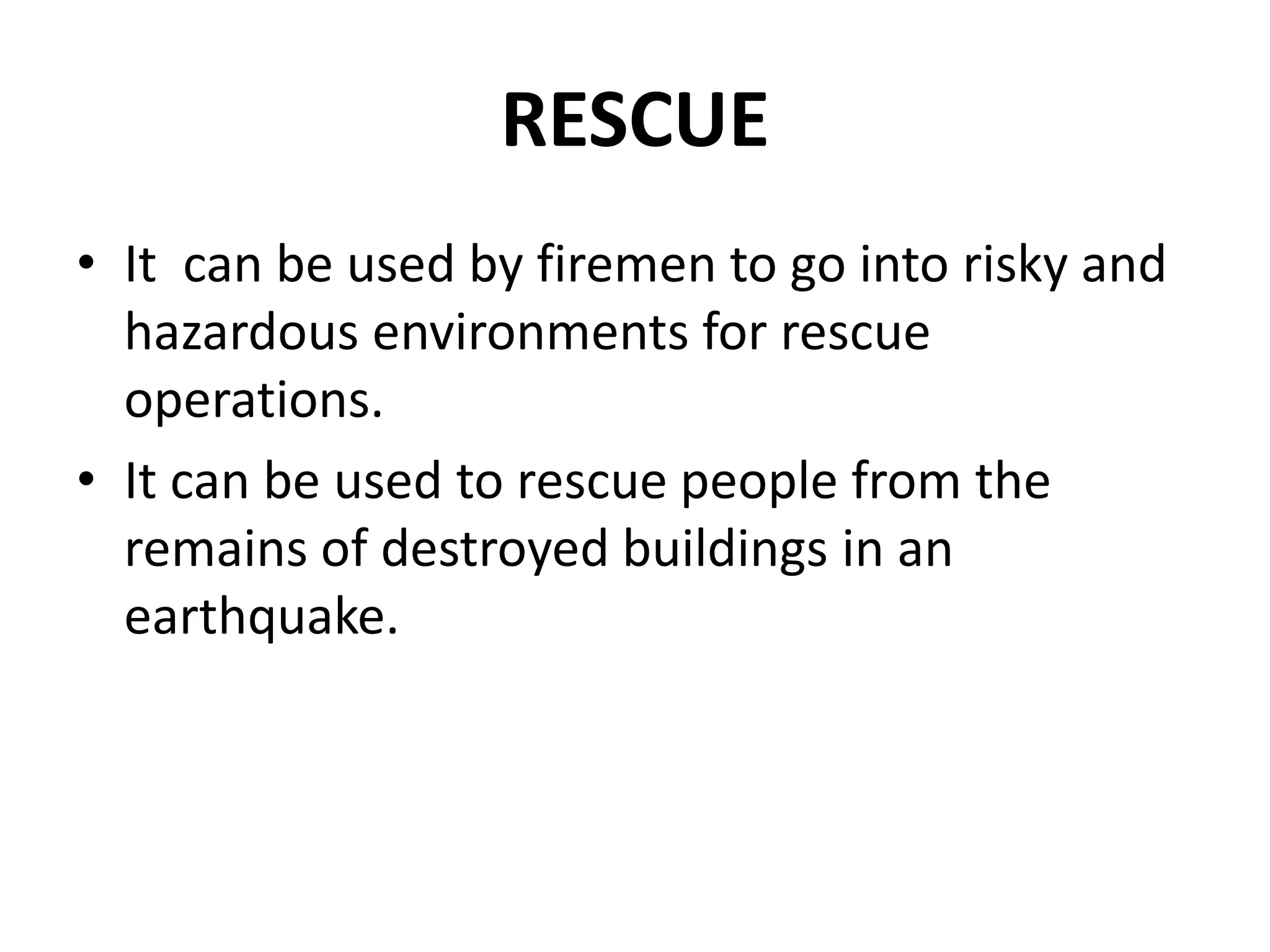

- 17. RESCUE • It canbe used by firemen to go into risky and hazardous environments for rescue operations. • It can be used to rescue people from the remains of destroyed buildings in an earthquake.

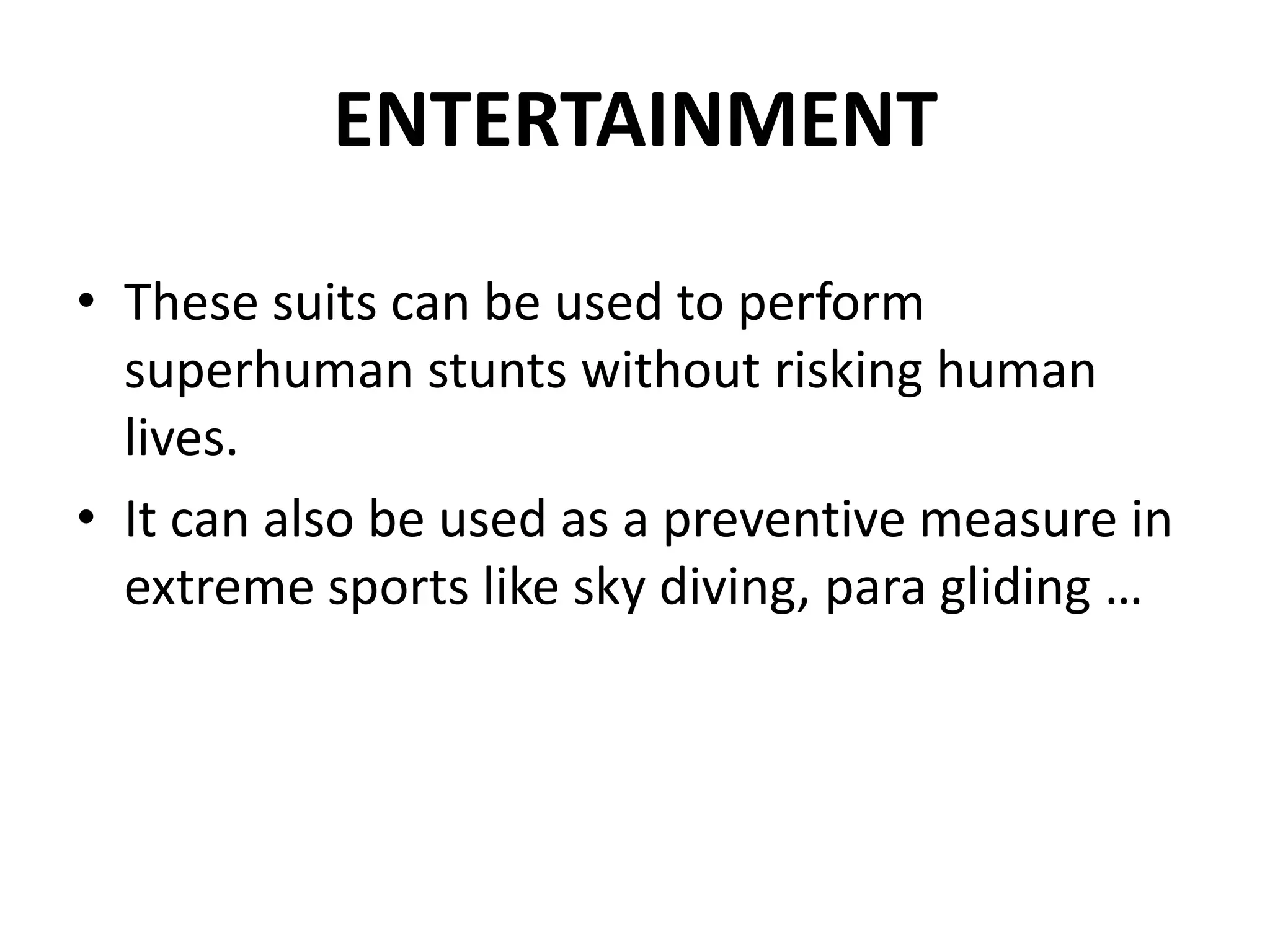

- 18. ENTERTAINMENT • These suitscan be used to perform superhuman stunts without risking human lives. • It can also be used as a preventive measure in extreme sports like sky diving, para gliding …

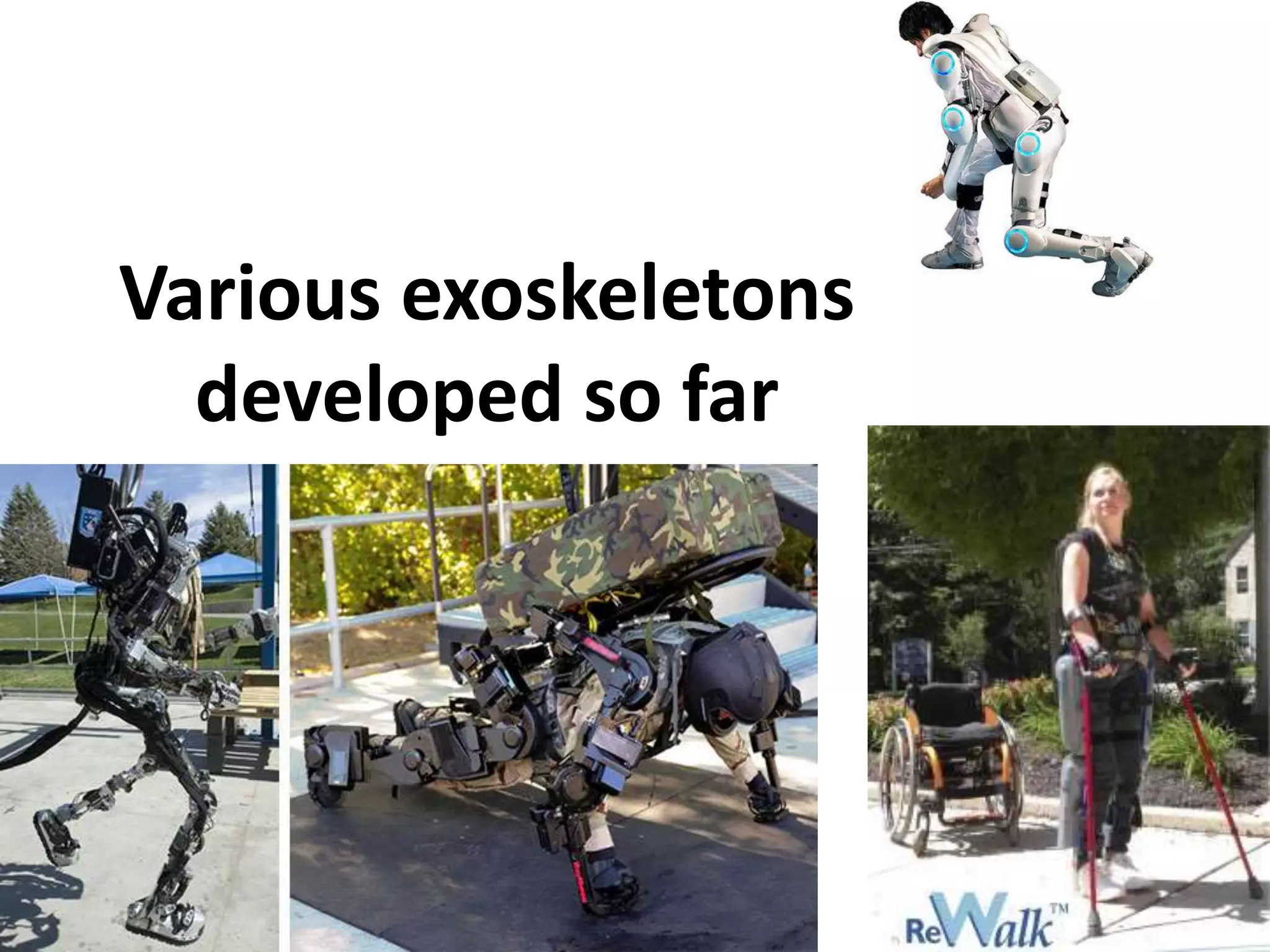

- 19.

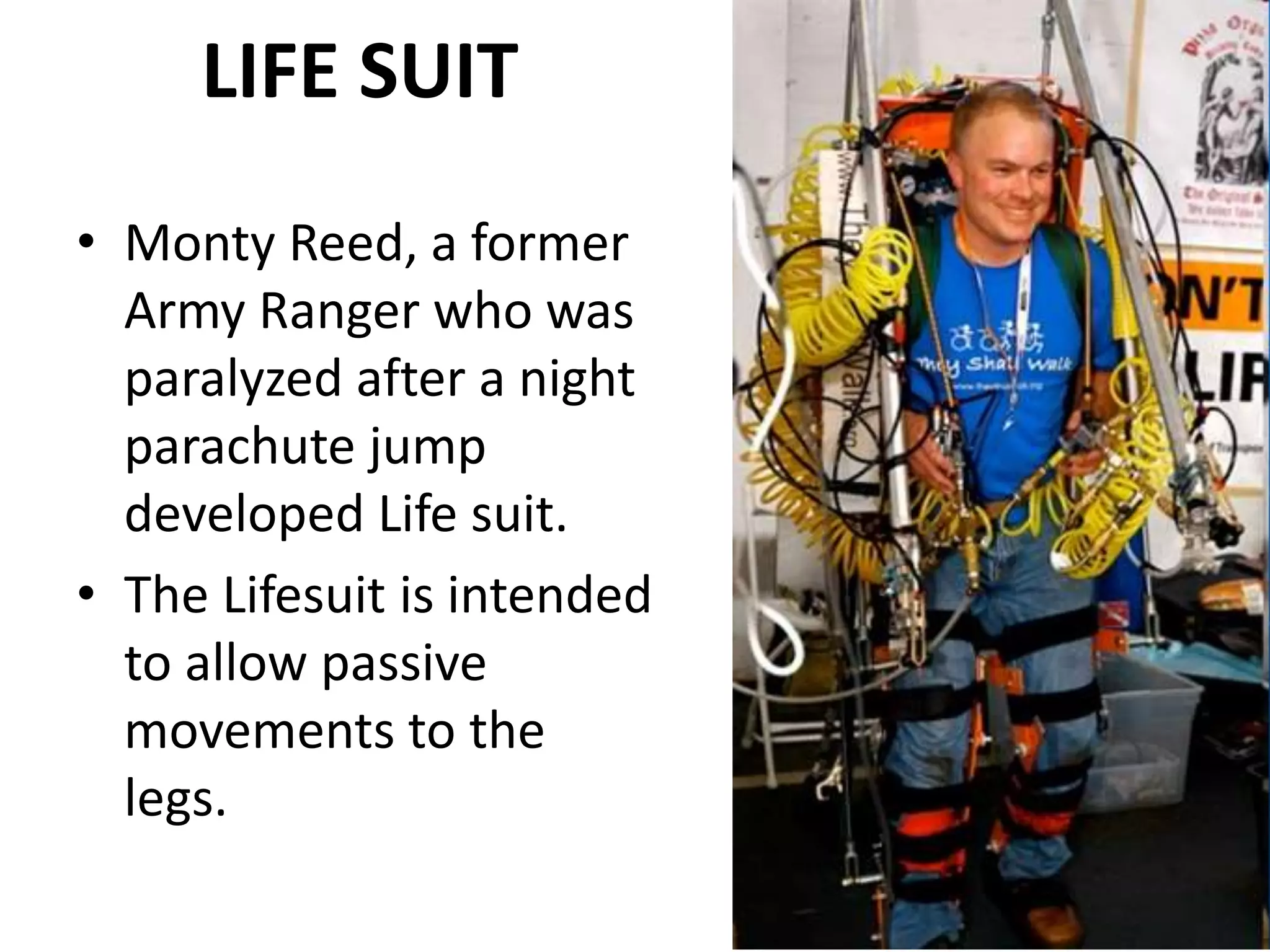

- 20. LIFE SUIT • MontyReed, a former Army Ranger who was paralyzed after a night parachute jump developed Life suit. • The Lifesuit is intended to allow passive movements to the legs.

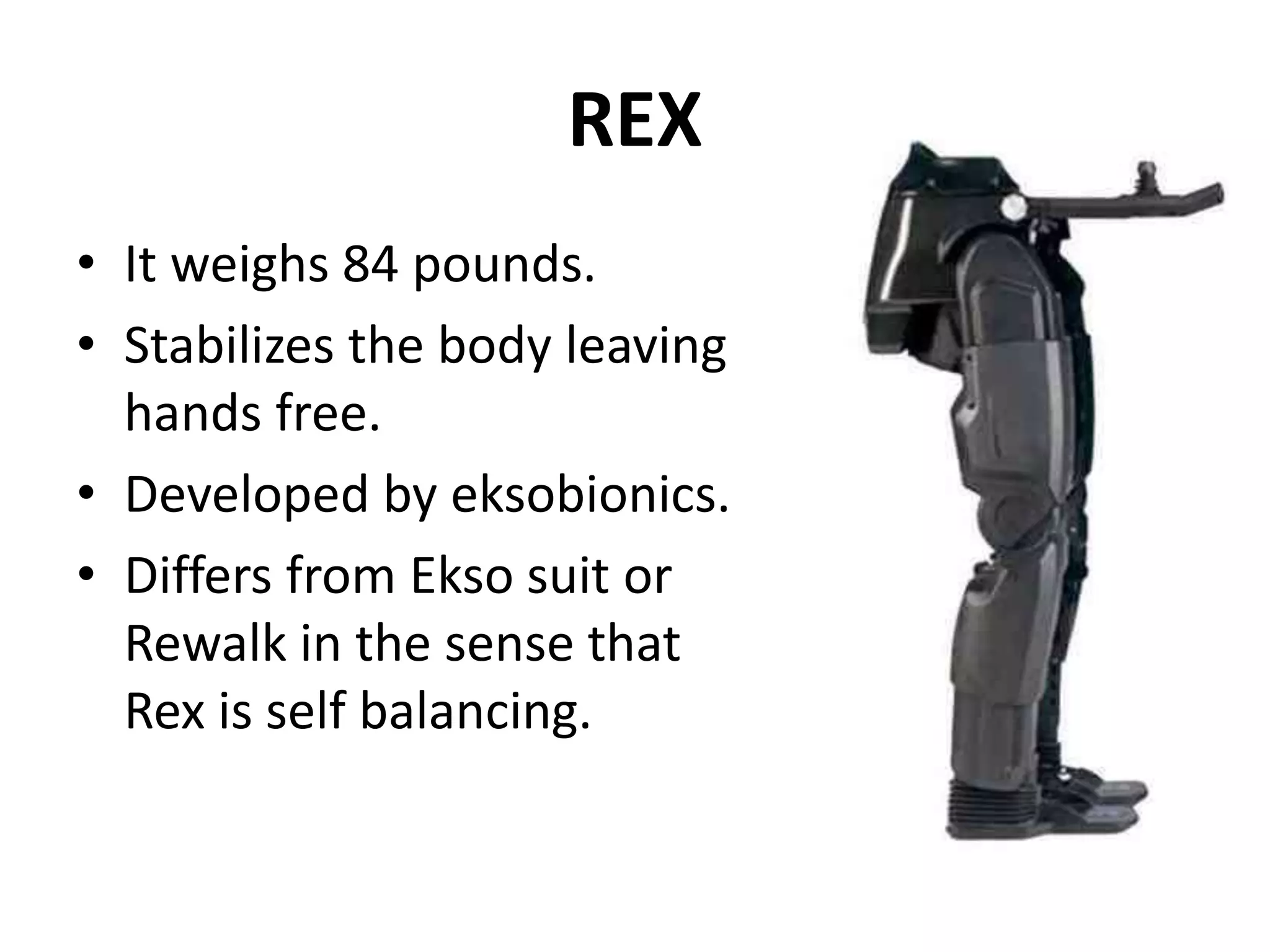

- 21. REX • It weighs84 pounds. • Stabilizes the body leaving hands free. • Developed by eksobionics. • Differs from Ekso suit or Rewalk in the sense that Rex is self balancing.

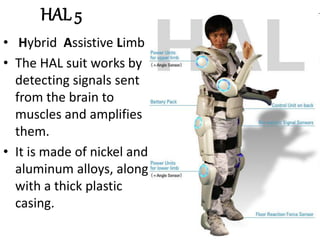

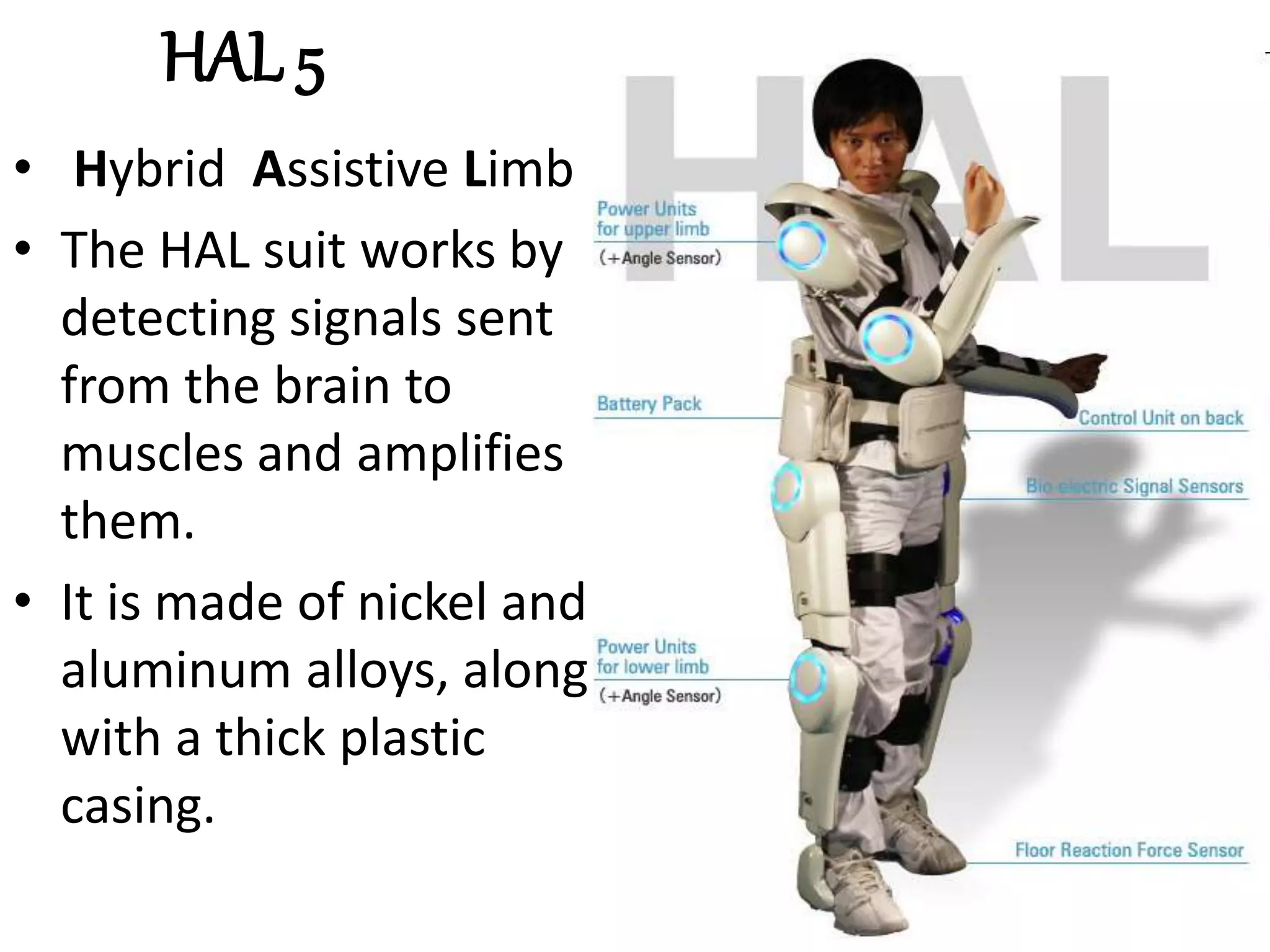

- 22. HAL 5 • HybridAssistive Limb • The HAL suit works by detecting signals sent from the brain to muscles and amplifies them. • It is made of nickel and aluminum alloys, along with a thick plastic casing.

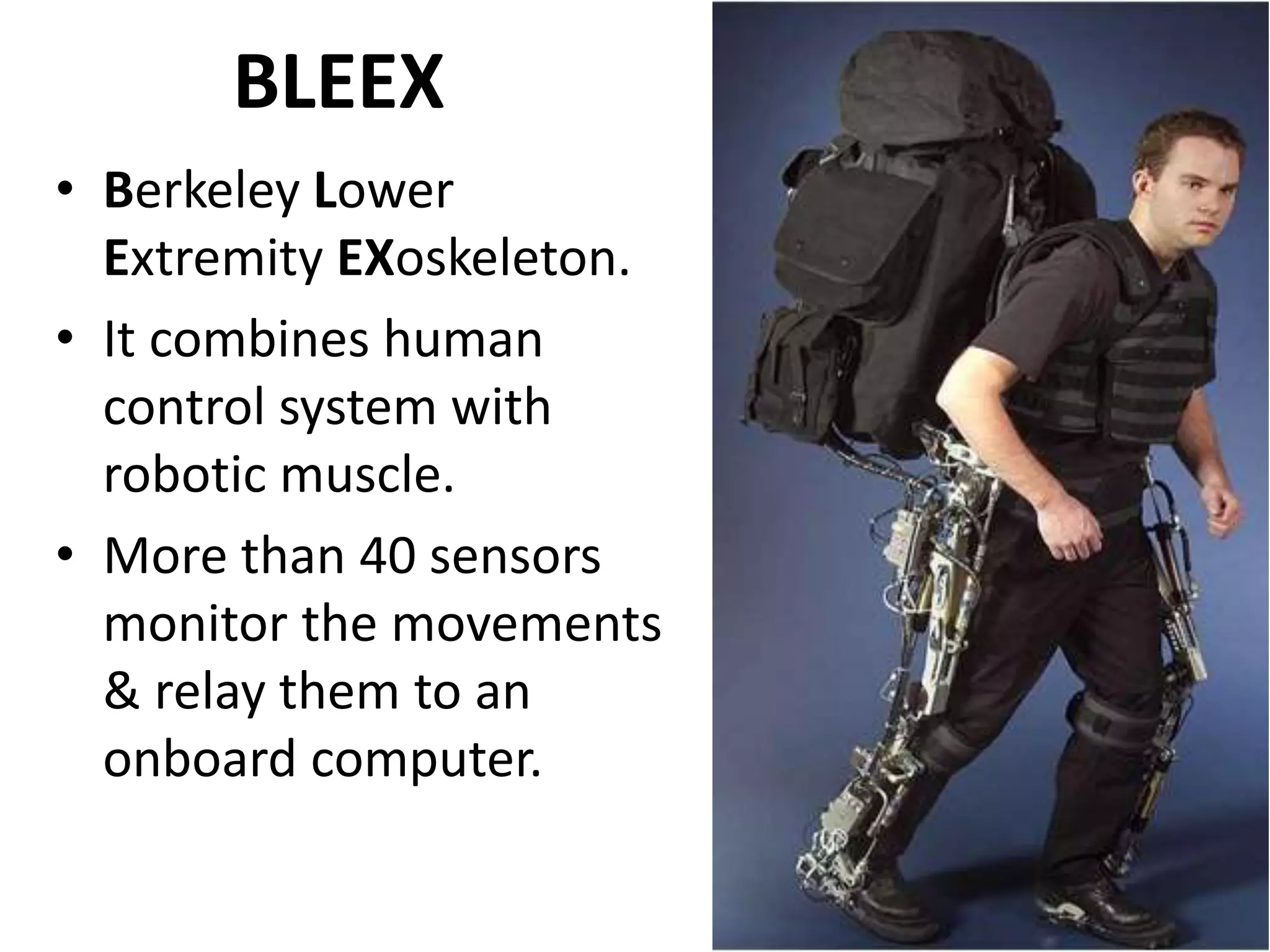

- 23. BLEEX • Berkeley Lower ExtremityEXoskeleton. • It combines human control system with robotic muscle. • More than 40 sensors monitor the movements & relay them to an onboard computer.

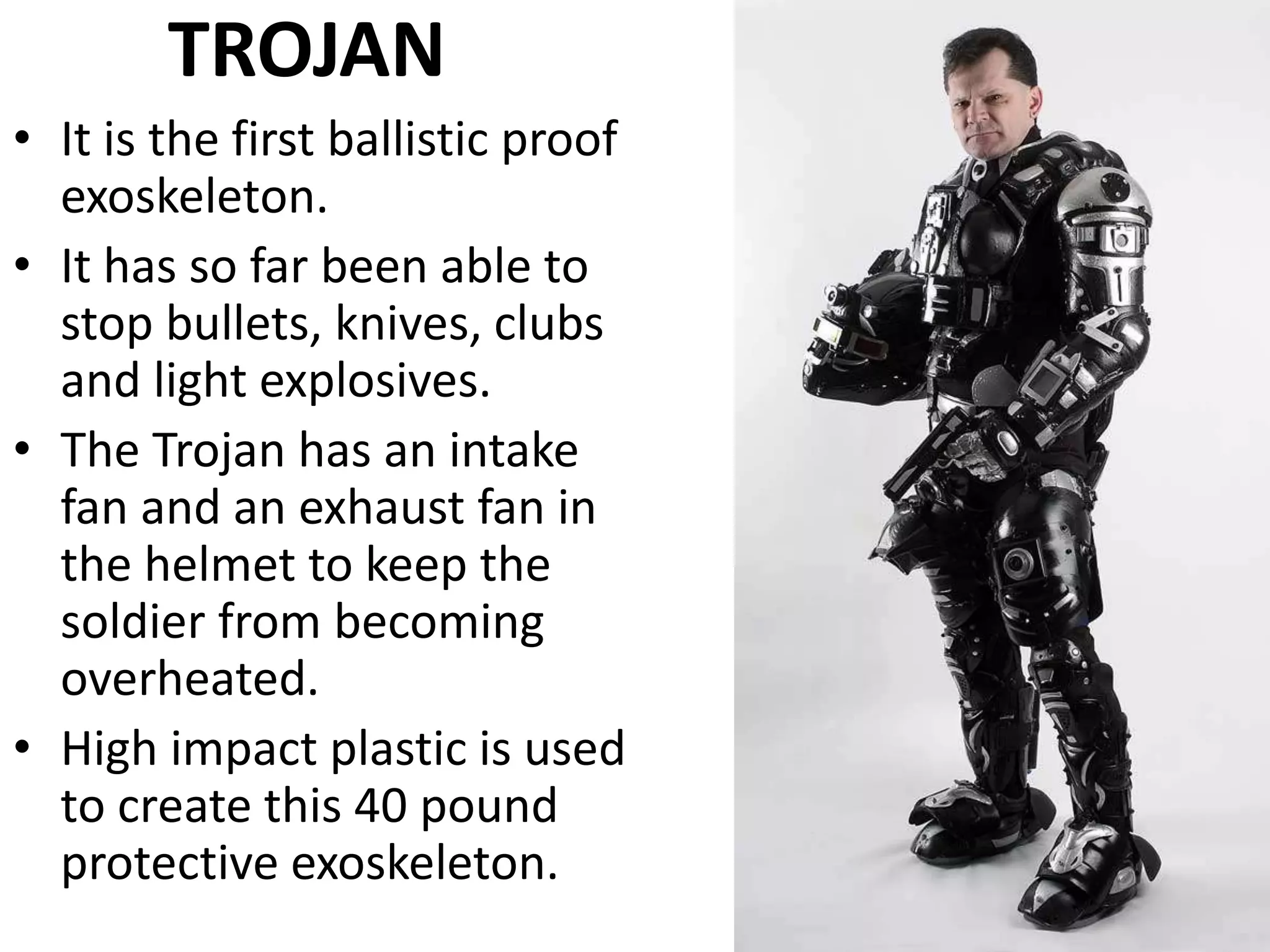

- 24. TROJAN • It isthe first ballistic proof exoskeleton. • It has so far been able to stop bullets, knives, clubs and light explosives. • The Trojan has an intake fan and an exhaust fan in the helmet to keep the soldier from becoming overheated. • High impact plastic is used to create this 40 pound protective exoskeleton.

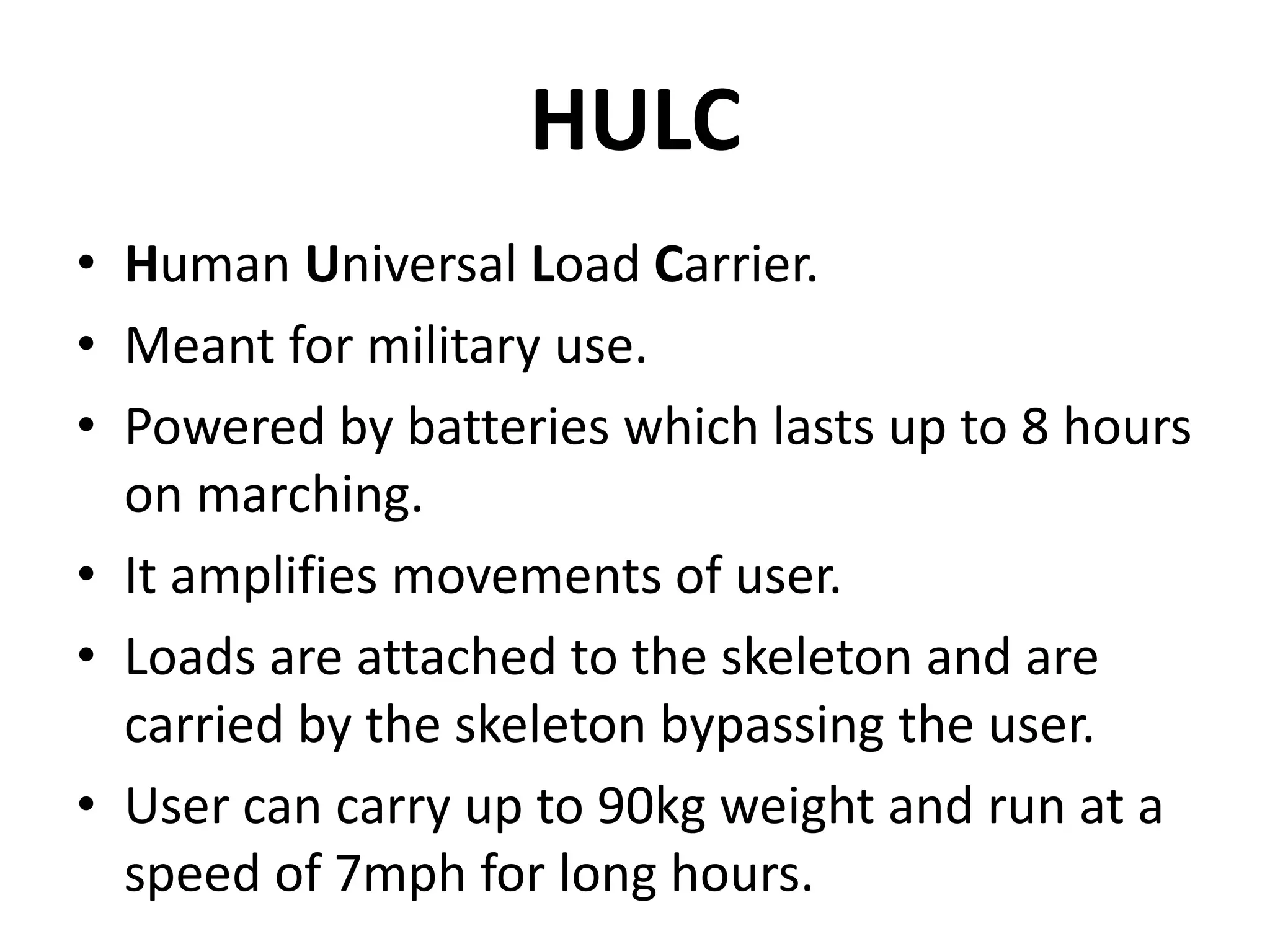

- 25. HULC • Human UniversalLoad Carrier. • Meant for military use. • Powered by batteries which lasts up to 8 hours on marching. • It amplifies movements of user. • Loads are attached to the skeleton and are carried by the skeleton bypassing the user. • User can carry up to 90kg weight and run at a speed of 7mph for long hours.

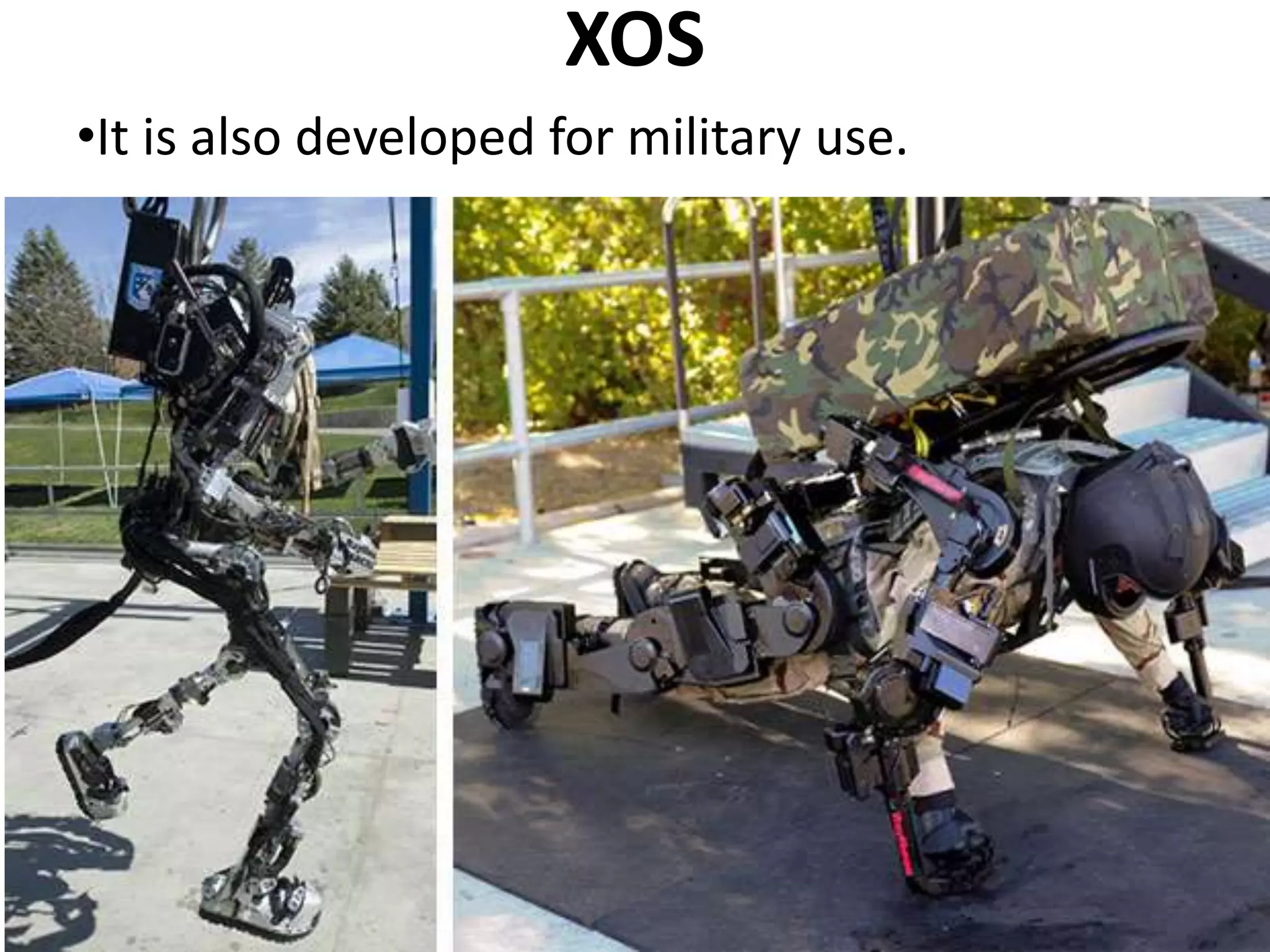

- 26. XOS •It is alsodeveloped for military use.

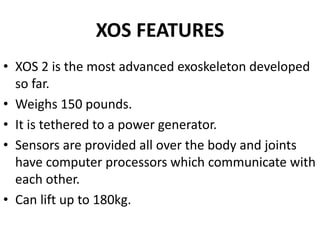

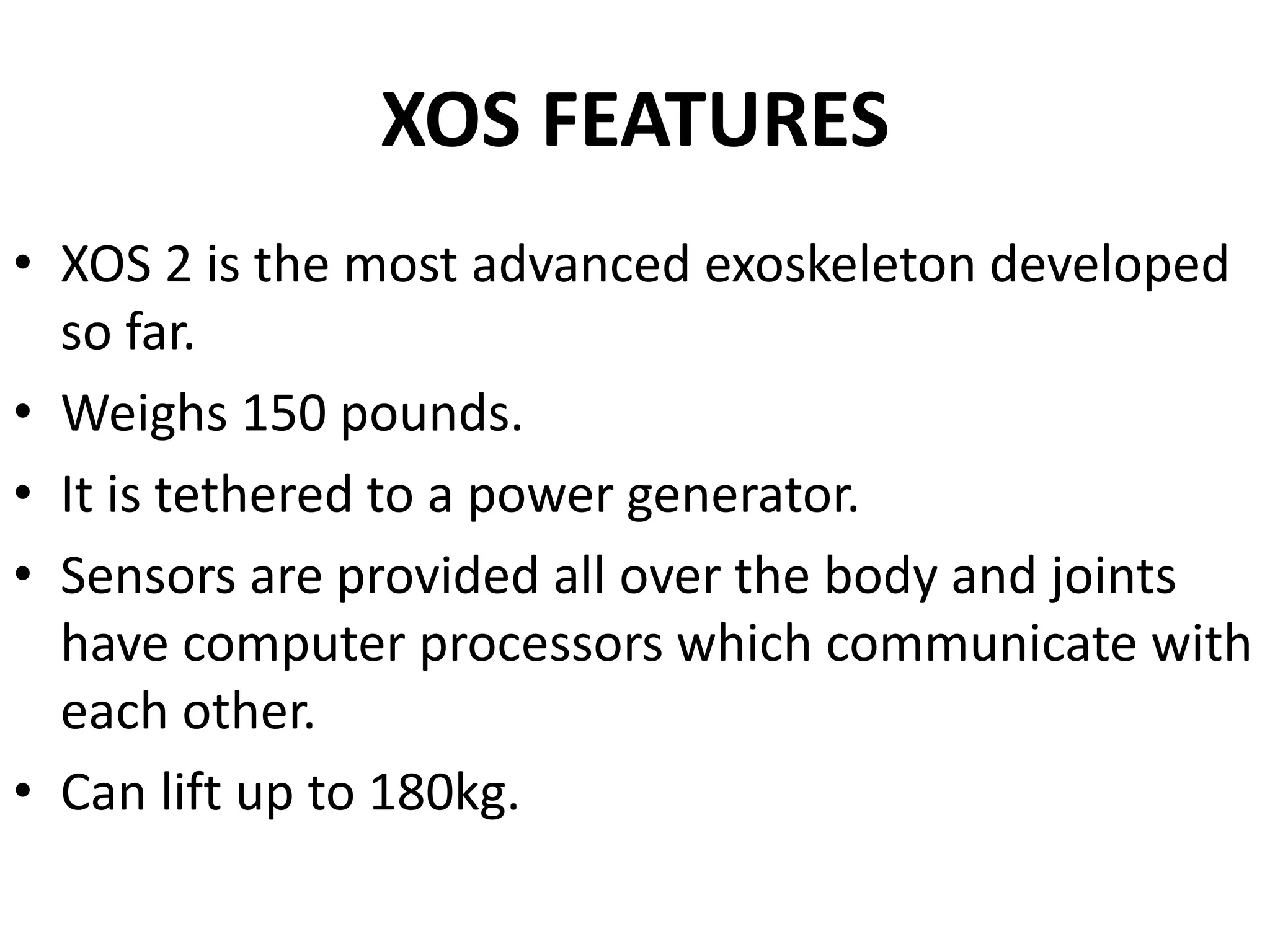

- 27. XOS FEATURES • XOS2 is the most advanced exoskeleton developed so far. • Weighs 150 pounds. • It is tethered to a power generator. • Sensors are provided all over the body and joints have computer processors which communicate with each other. • Can lift up to 180kg.

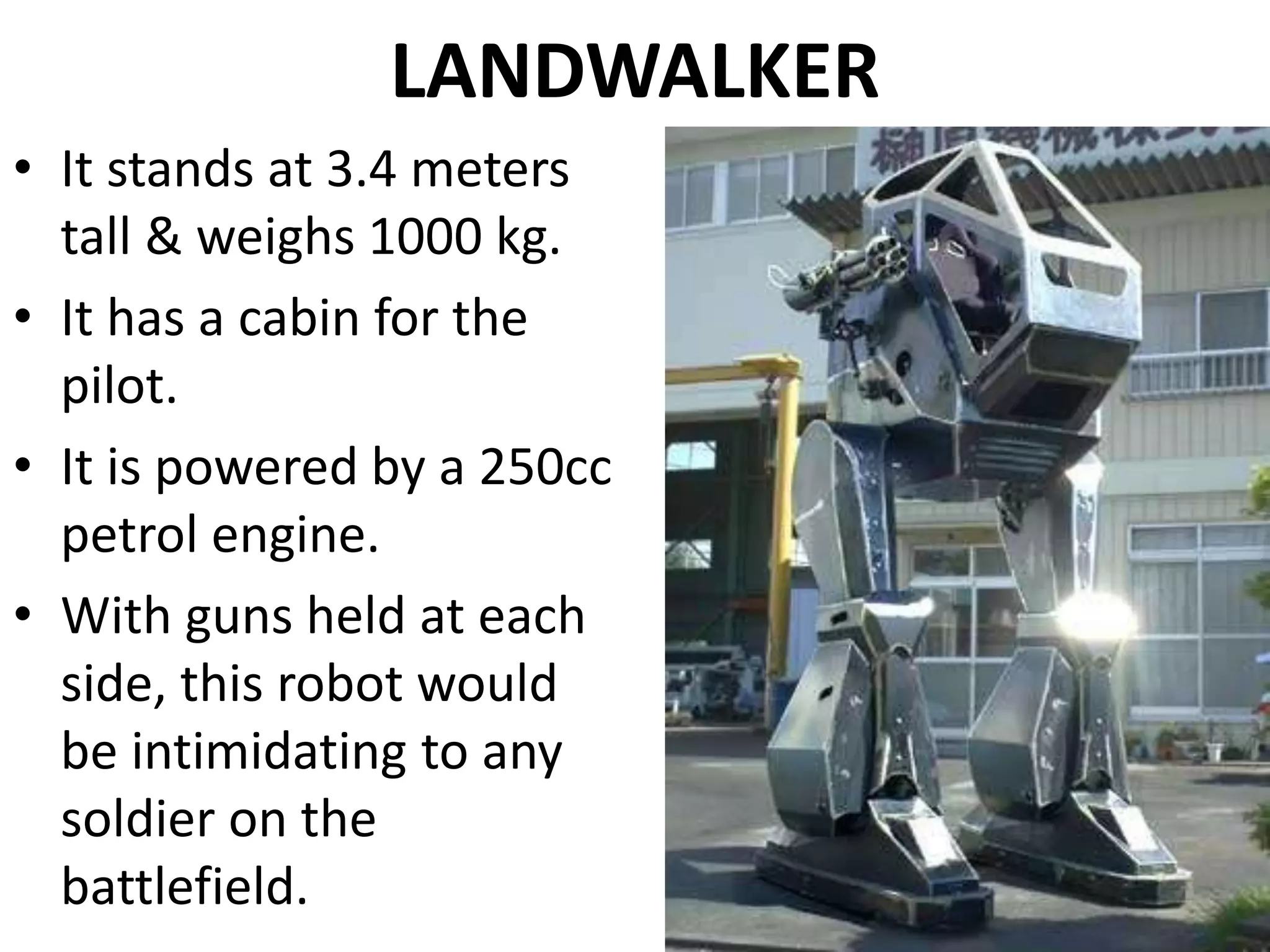

- 28. LANDWALKER • It standsat 3.4 meters tall & weighs 1000 kg. • It has a cabin for the pilot. • It is powered by a 250cc petrol engine. • With guns held at each side, this robot would be intimidating to any soldier on the battlefield.
- 29. ACHIEVEMENTS • Claire Lomas,a paralyzed woman finished the London Marathon in the Rewalk bionic suit.
- 30. The 2014 FIFAWorld Cup made history when it opened in Sao Paolo this week when a 29-year-old paralytic man named Juliano Pinto kicked a soccer ball with the aid of a robotic exoskeleton.

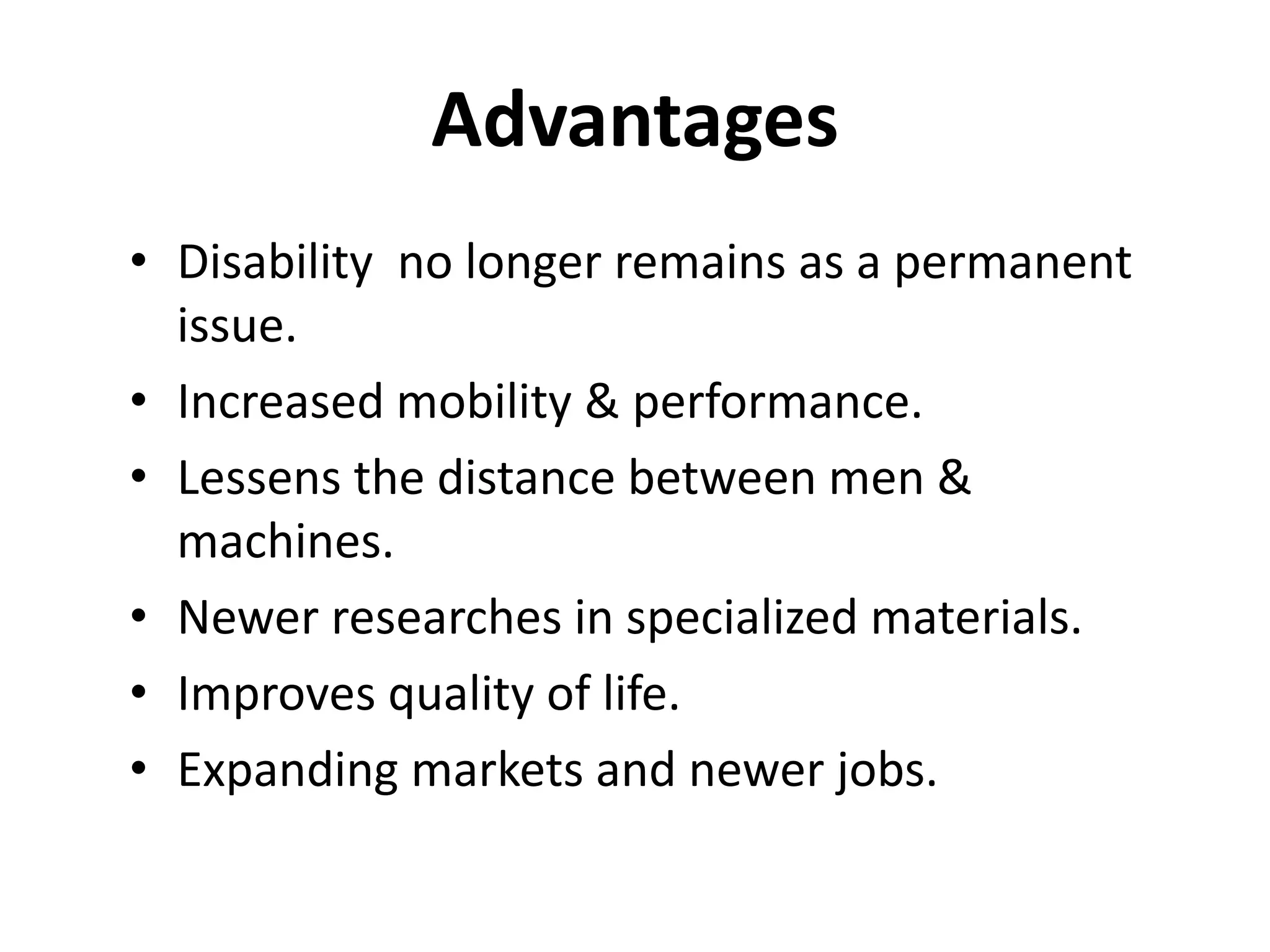

- 31. Advantages • Disability nolonger remains as a permanent issue. • Increased mobility & performance. • Lessens the distance between men & machines. • Newer researches in specialized materials. • Improves quality of life. • Expanding markets and newer jobs.

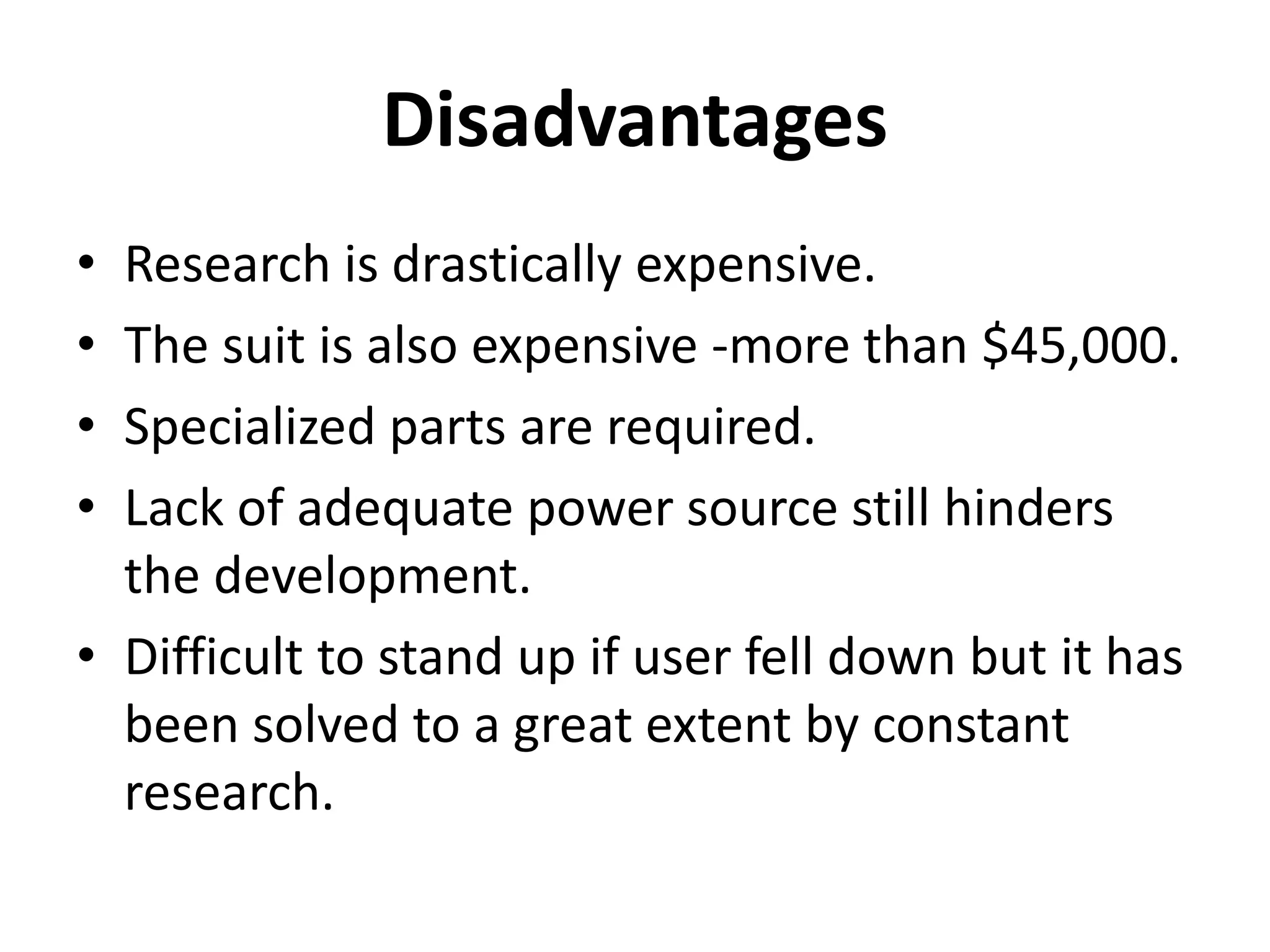

- 32. Disadvantages • Research isdrastically expensive. • The suit is also expensive -more than $45,000. • Specialized parts are required. • Lack of adequate power source still hinders the development. • Difficult to stand up if user fell down but it has been solved to a great extent by constant research.

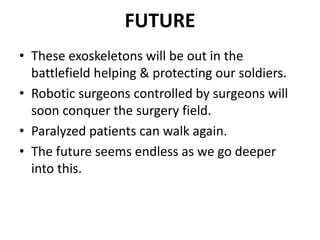

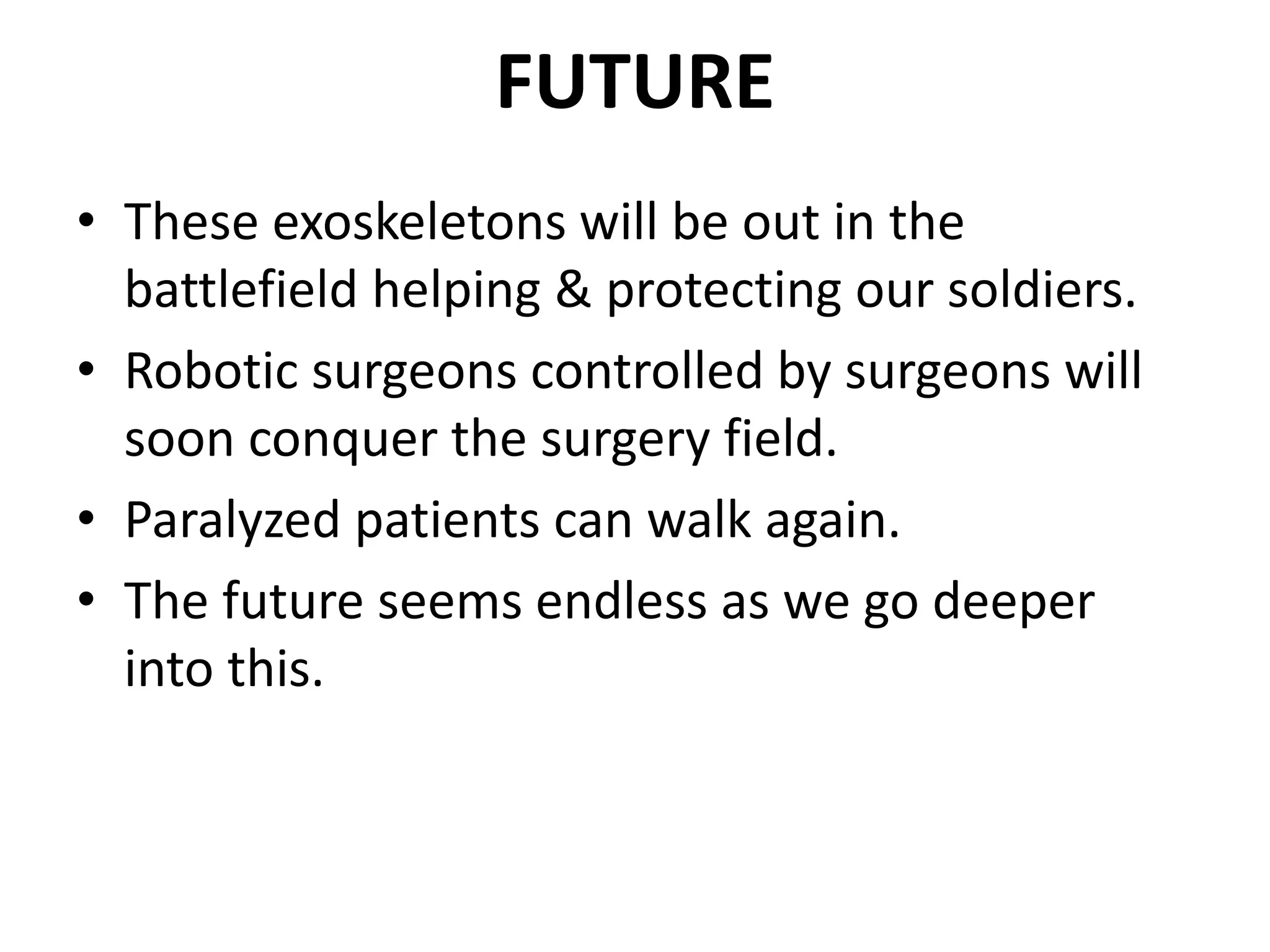

- 33. FUTURE • These exoskeletonswill be out in the battlefield helping & protecting our soldiers. • Robotic surgeons controlled by surgeons will soon conquer the surgery field. • Paralyzed patients can walk again. • The future seems endless as we go deeper into this.

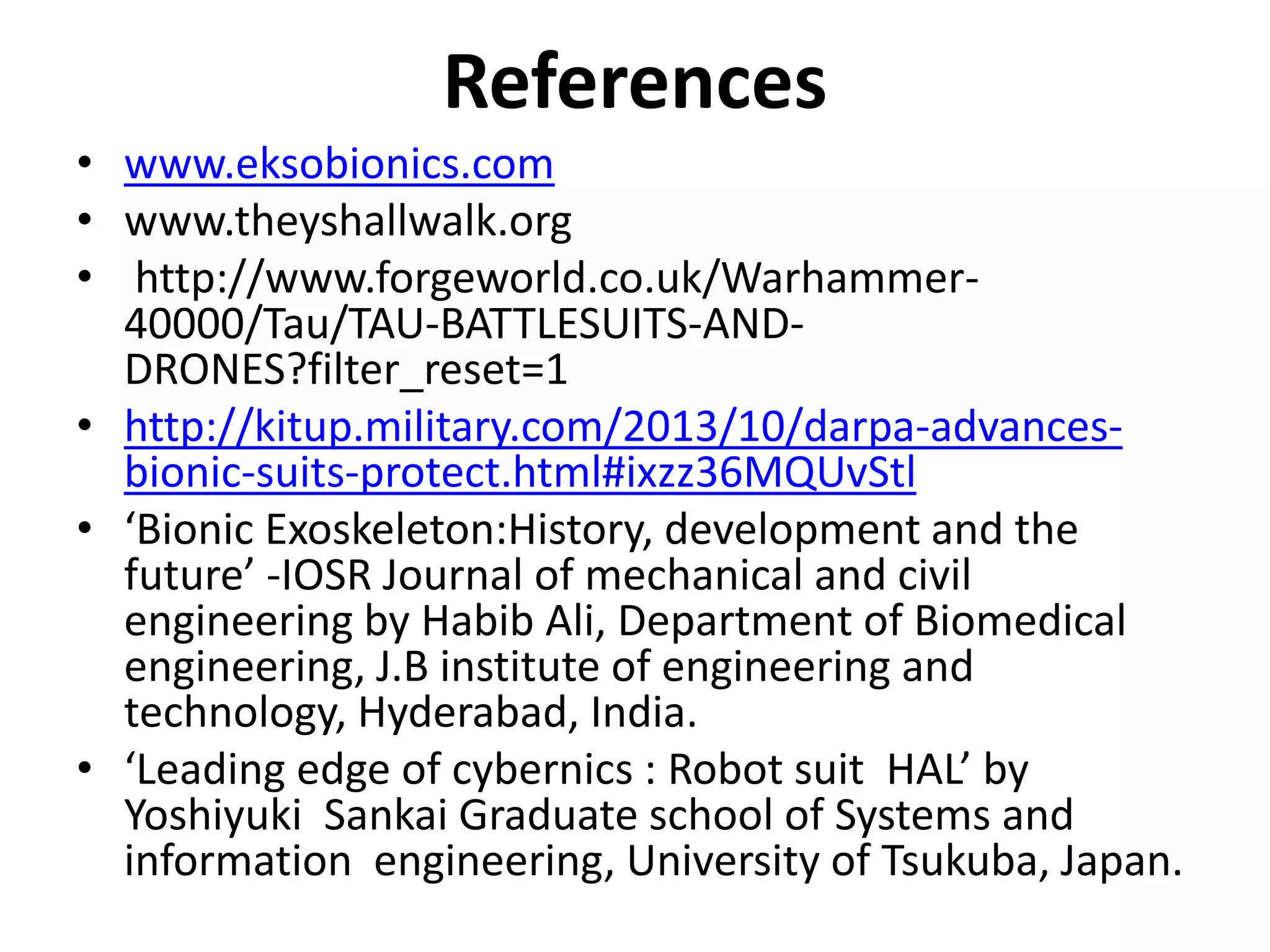

- 34. References • www.eksobionics.com • www.theyshallwalk.org •http://www.forgeworld.co.uk/Warhammer- 40000/Tau/TAU-BATTLESUITS-AND- DRONES?filter_reset=1 • http://kitup.military.com/2013/10/darpa-advances- bionic-suits-protect.html#ixzz36MQUvStl • ‘Bionic Exoskeleton:History, development and the future’ -IOSR Journal of mechanical and civil engineering by Habib Ali, Department of Biomedical engineering, J.B institute of engineering and technology, Hyderabad, India. • ‘Leading edge of cybernics : Robot suit HAL’ by Yoshiyuki Sankai Graduate school of Systems and information engineering, University of Tsukuba, Japan.
- 35.
