The document summarizes key concepts about DNA, RNA, and protein synthesis. It discusses: 1) The structure of DNA as a double helix with nucleotides containing nitrogen bases that allow the strands to replicate. 2) Chromosomes contain DNA and package it tightly for storage in eukaryotic cells. DNA replication results in two DNA molecules each with one original and one new strand. 3) RNA acts as a messenger to transfer DNA instructions to the cell. Transcription and translation lead to protein synthesis on ribosomes according to the genetic code. 4) Mutations can occur through changes to nucleotides and can impact protein function, though most do not affect the organism.

1. Chapter 12 DNA & RNA

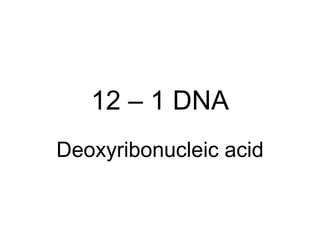

2. 12 – 1 DNA Deoxyribonucleic acid

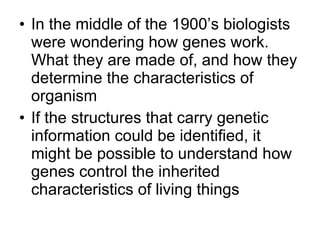

3. In the middle of the 1900’s biologists were wondering how genes work. What they are made of, and how they determine the characteristics of organism If the structures that carry genetic information could be identified, it might be possible to understand how genes control the inherited characteristics of living things

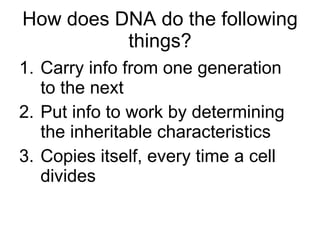

4. How does DNA do the following things? Carry info from one generation to the next Put info to work by determining the inheritable characteristics Copies itself, every time a cell divides

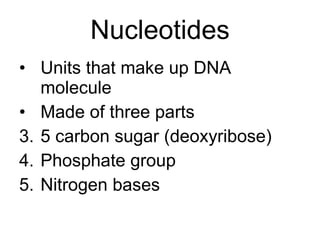

5. Nucleotides Units that make up DNA molecule Made of three parts 5 carbon sugar (deoxyribose) Phosphate group Nitrogen bases

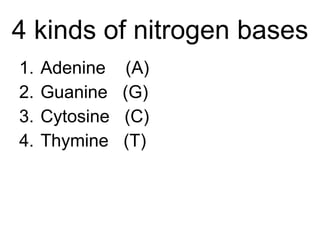

6. 4 kinds of nitrogen bases Adenine (A) Guanine (G) Cytosine (C) Thymine (T)

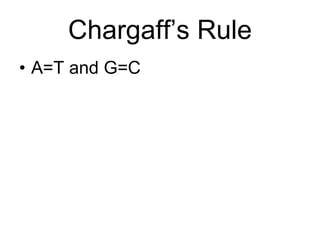

7. Chargaff’s Rule A=T and G=C

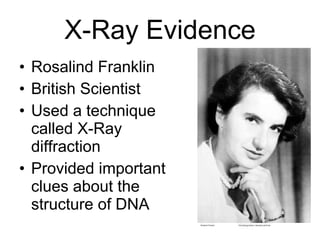

8. X-Ray Evidence Rosalind Franklin British Scientist Used a technique called X-Ray diffraction Provided important clues about the structure of DNA

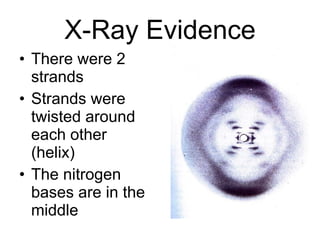

9. X-Ray Evidence There were 2 strands Strands were twisted around each other (helix) The nitrogen bases are in the middle

10. Watson & Crick

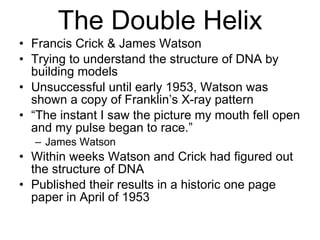

11. The Double Helix Francis Crick & James Watson Trying to understand the structure of DNA by building models Unsuccessful until early 1953, Watson was shown a copy of Franklin’s X-ray pattern “ The instant I saw the picture my mouth fell open and my pulse began to race.” James Watson Within weeks Watson and Crick had figured out the structure of DNA Published their results in a historic one page paper in April of 1953

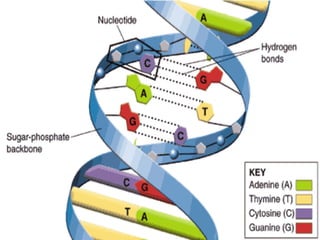

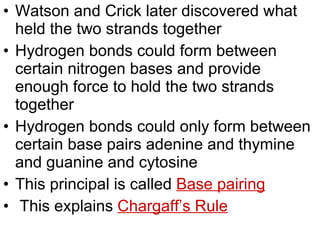

13. Watson and Crick later discovered what held the two strands together Hydrogen bonds could form between certain nitrogen bases and provide enough force to hold the two strands together Hydrogen bonds could only form between certain base pairs adenine and thymine and guanine and cytosine This principal is called Base pairing This explains Chargaff’s Rule

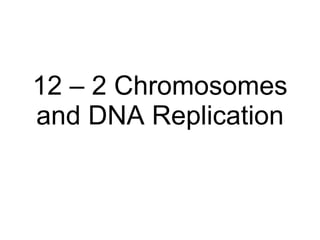

15. 12 – 2 Chromosomes and DNA Replication

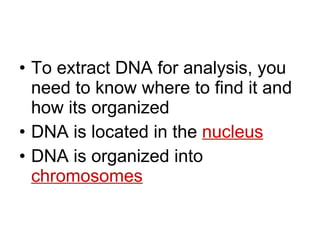

16. To extract DNA for analysis, you need to know where to find it and how its organized DNA is located in the nucleus DNA is organized into chromosomes

17. Prokaryotic Cells Prokaryotic cells have a single circular DNA molecule that contains nearly all of its genetic information Located in the cytoplasm

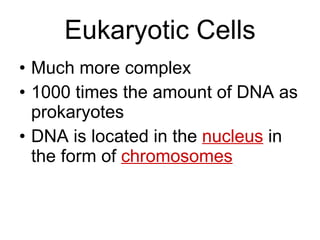

18. Eukaryotic Cells Much more complex 1000 times the amount of DNA as prokaryotes DNA is located in the nucleus in the form of chromosomes

19. Chromosome Structure Q: If eukaryotic DNA can contain a meter or more of DNA, how does it get packed in so tight into chromosomes? A: Eukaryotic chromosomes contain both DNA and protein that form a substance called chromatin

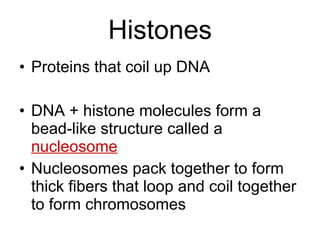

20. Histones Proteins that coil up DNA DNA + histone molecules form a bead-like structure called a nucleosome Nucleosomes pack together to form thick fibers that loop and coil together to form chromosomes

22. DNA Replication When Watson and Crick discovered the double helix structure of DNA they recognized immediately how DNA could copy itself The strands are complementary If you could separate the two strands, the rules of base pairing would allow you to reconstruct the base sequence of the other strand

23. Replication When the DNA splits into 2 strands, then produces 2 new strands following the rules of base pairing

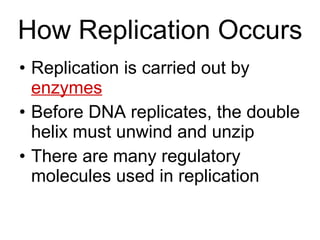

24. How Replication Occurs Replication is carried out by enzymes Before DNA replicates, the double helix must unwind and unzip There are many regulatory molecules used in replication

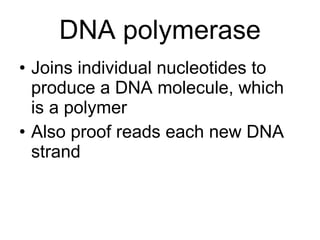

25. DNA polymerase Joins individual nucleotides to produce a DNA molecule, which is a polymer Also proof reads each new DNA strand

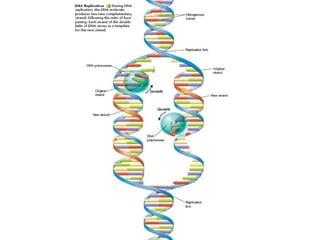

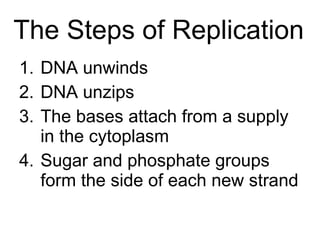

26. The Steps of Replication DNA unwinds DNA unzips The bases attach from a supply in the cytoplasm Sugar and phosphate groups form the side of each new strand

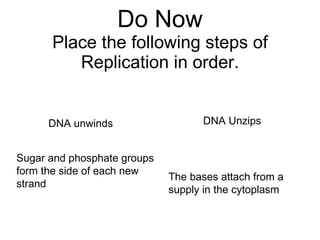

29. Do Now Place the following steps of Replication in order. DNA unwinds DNA Unzips The bases attach from a supply in the cytoplasm Sugar and phosphate groups form the side of each new strand

30. Do Now Place the following steps of Replication in order. DNA unwinds DNA Unzips The bases attach from a supply in the cytoplasm Sugar and phosphate groups form the side of each new strand 1. 2. 3. 4. DNA replication results in 2 DNA molecules Each with two new strands One with two new strands and the other with two original strands Each with one new strand and one original strand Each with two original strands

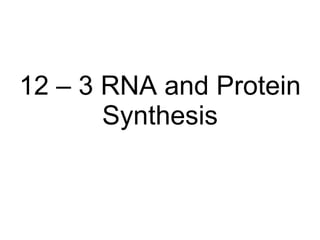

31. 12 – 3 RNA and Protein Synthesis

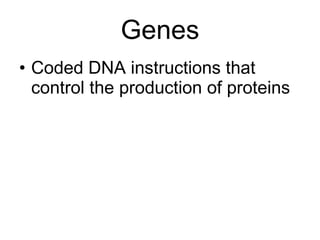

32. Genes Coded DNA instructions that control the production of proteins

33. DNA never leaves the nucleus, therefore the code must be copied into RNA, or ribonucleic acid There are 3 main differences between RNA and DNA It has the sugar ribose, instead of deoxyribose RNA is single stranded RNA contains uracil in place of thymine

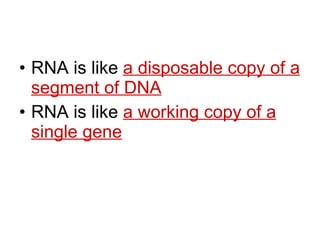

34. RNA is like a disposable copy of a segment of DNA RNA is like a working copy of a single gene

35. Types of RNA Messanger RNA (mRNA) Serve as messangers from DNA to the rest of the cell 2. Ribosomal RNA (rRNA) Type of RNA that makes up parts of ribosomes 3. Transfer RNA (tRNA) Transfers each amino acid to the ribosome as it is specified by the mRNA

36. Types of RNA

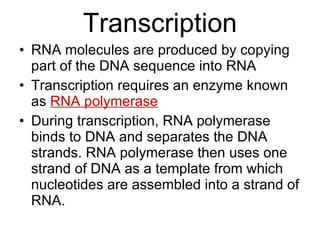

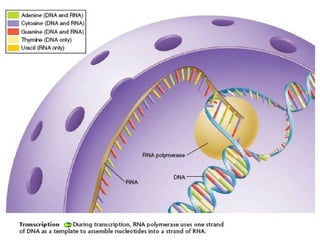

37. Transcription RNA molecules are produced by copying part of the DNA sequence into RNA Transcription requires an enzyme known as RNA polymerase During transcription, RNA polymerase binds to DNA and separates the DNA strands. RNA polymerase then uses one strand of DNA as a template from which nucleotides are assembled into a strand of RNA.

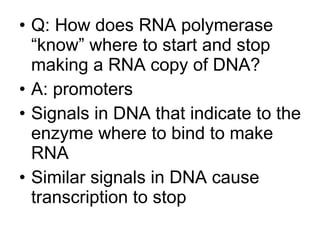

38. Q: How does RNA polymerase “know” where to start and stop making a RNA copy of DNA? A: promoters Signals in DNA that indicate to the enzyme where to bind to make RNA Similar signals in DNA cause transcription to stop

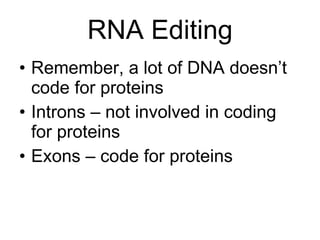

41. RNA Editing Remember, a lot of DNA doesn’t code for proteins Introns – not involved in coding for proteins Exons – code for proteins

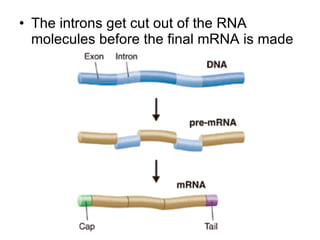

42. The introns get cut out of the RNA molecules before the final mRNA is made

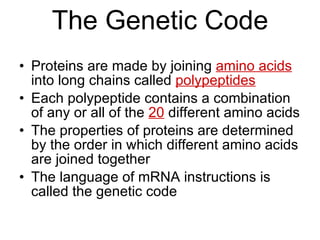

43. The Genetic Code Proteins are made by joining amino acids into long chains called polypeptides Each polypeptide contains a combination of any or all of the 20 different amino acids The properties of proteins are determined by the order in which different amino acids are joined together The language of mRNA instructions is called the genetic code

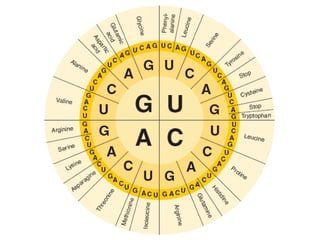

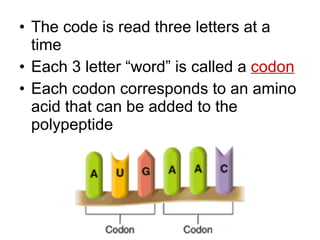

44. The code is read three letters at a time Each 3 letter “word” is called a codon Each codon corresponds to an amino acid that can be added to the polypeptide

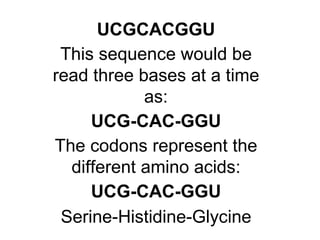

46. Serine-Histidine-Glycine UCG-CAC-GGU The codons represent the different amino acids: UCG-CAC-GGU This sequence would be read three bases at a time as: UCGCACGGU

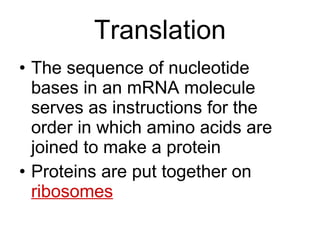

47. Translation The sequence of nucleotide bases in an mRNA molecule serves as instructions for the order in which amino acids are joined to make a protein Proteins are put together on ribosomes

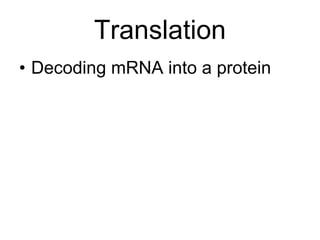

48. Translation Decoding mRNA into a protein

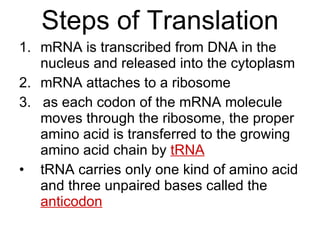

49. Steps of Translation mRNA is transcribed from DNA in the nucleus and released into the cytoplasm mRNA attaches to a ribosome 3. as each codon of the mRNA molecule moves through the ribosome, the proper amino acid is transferred to the growing amino acid chain by tRNA tRNA carries only one kind of amino acid and three unpaired bases called the anticodon

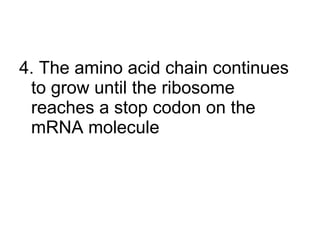

50. 4. The amino acid chain continues to grow until the ribosome reaches a stop codon on the mRNA molecule

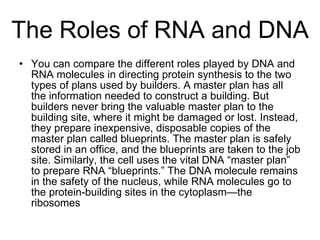

52. The Roles of RNA and DNA You can compare the different roles played by DNA and RNA molecules in directing protein synthesis to the two types of plans used by builders. A master plan has all the information needed to construct a building. But builders never bring the valuable master plan to the building site, where it might be damaged or lost. Instead, they prepare inexpensive, disposable copies of the master plan called blueprints. The master plan is safely stored in an office, and the blueprints are taken to the job site. Similarly, the cell uses the vital DNA “master plan” to prepare RNA “blueprints.” The DNA molecule remains in the safety of the nucleus, while RNA molecules go to the protein-building sites in the cytoplasm—the ribosomes

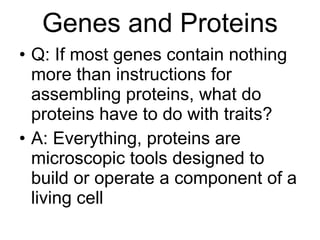

53. Genes and Proteins Q: If most genes contain nothing more than instructions for assembling proteins, what do proteins have to do with traits? A: Everything, proteins are microscopic tools designed to build or operate a component of a living cell

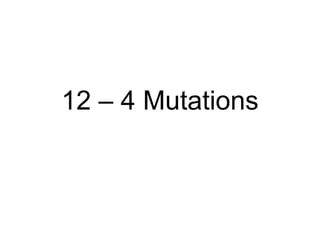

54. 12 – 4 Mutations

55. Mutations Changes in the genetic material

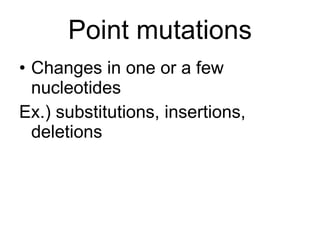

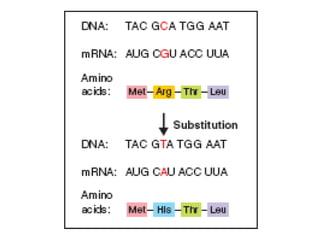

56. Point mutations Changes in one or a few nucleotides Ex.) substitutions, insertions, deletions

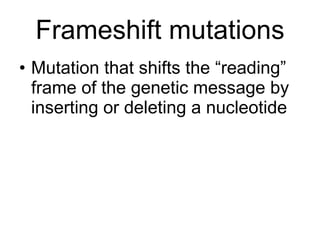

60. Frameshift mutations Mutation that shifts the “reading” frame of the genetic message by inserting or deleting a nucleotide

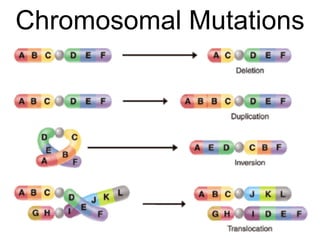

61. Chromosomal Mutations

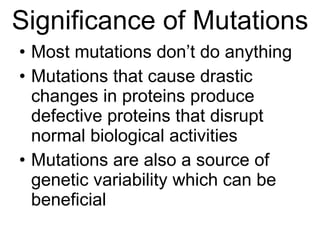

65. Significance of Mutations Most mutations don’t do anything Mutations that cause drastic changes in proteins produce defective proteins that disrupt normal biological activities Mutations are also a source of genetic variability which can be beneficial

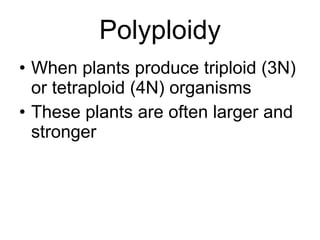

66. Polyploidy When plants produce triploid (3N) or tetraploid (4N) organisms These plants are often larger and stronger

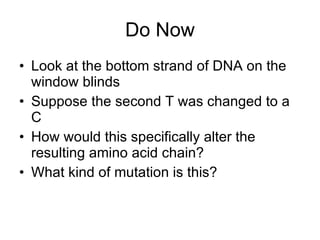

68. Do Now Look at the bottom strand of DNA on the window blinds Suppose the second T was changed to a C How would this specifically alter the resulting amino acid chain? What kind of mutation is this?

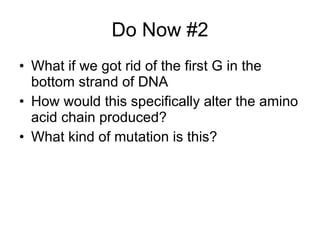

69. Do Now #2 What if we got rid of the first G in the bottom strand of DNA How would this specifically alter the amino acid chain produced? What kind of mutation is this?

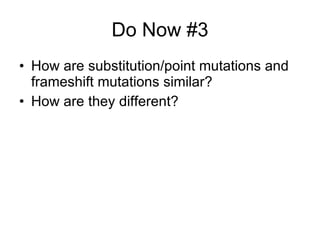

70. Do Now #3 How are substitution/point mutations and frameshift mutations similar? How are they different?
