BIM Protocol
Best Strategies for
Effective Project Control
‫المحاضر‬
:
‫أ‬
.
‫إياد‬
‫ال‬
‫حاج‬

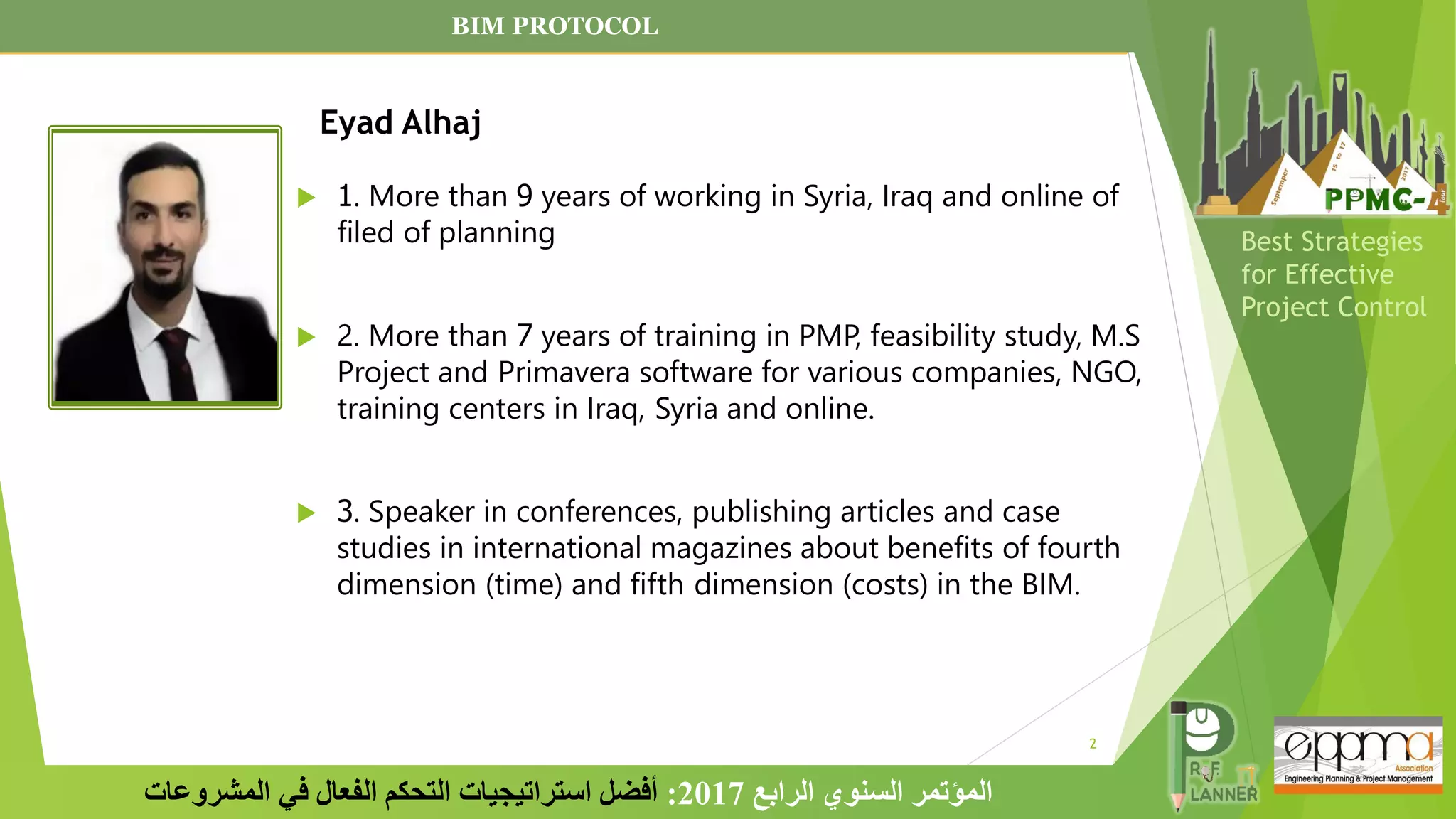

2.  1. More than 9 years of working in Syria, Iraq and online of
filed of planning
 2. More than 7 years of training in PMP, feasibility study, M.S
Project and Primavera software for various companies, NGO,
training centers in Iraq, Syria and online.
 3. Speaker in conferences, publishing articles and case
studies in international magazines about benefits of fourth
dimension (time) and fifth dimension (costs) in the BIM.
2
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
BIM PROTOCOL
Eyad Alhaj

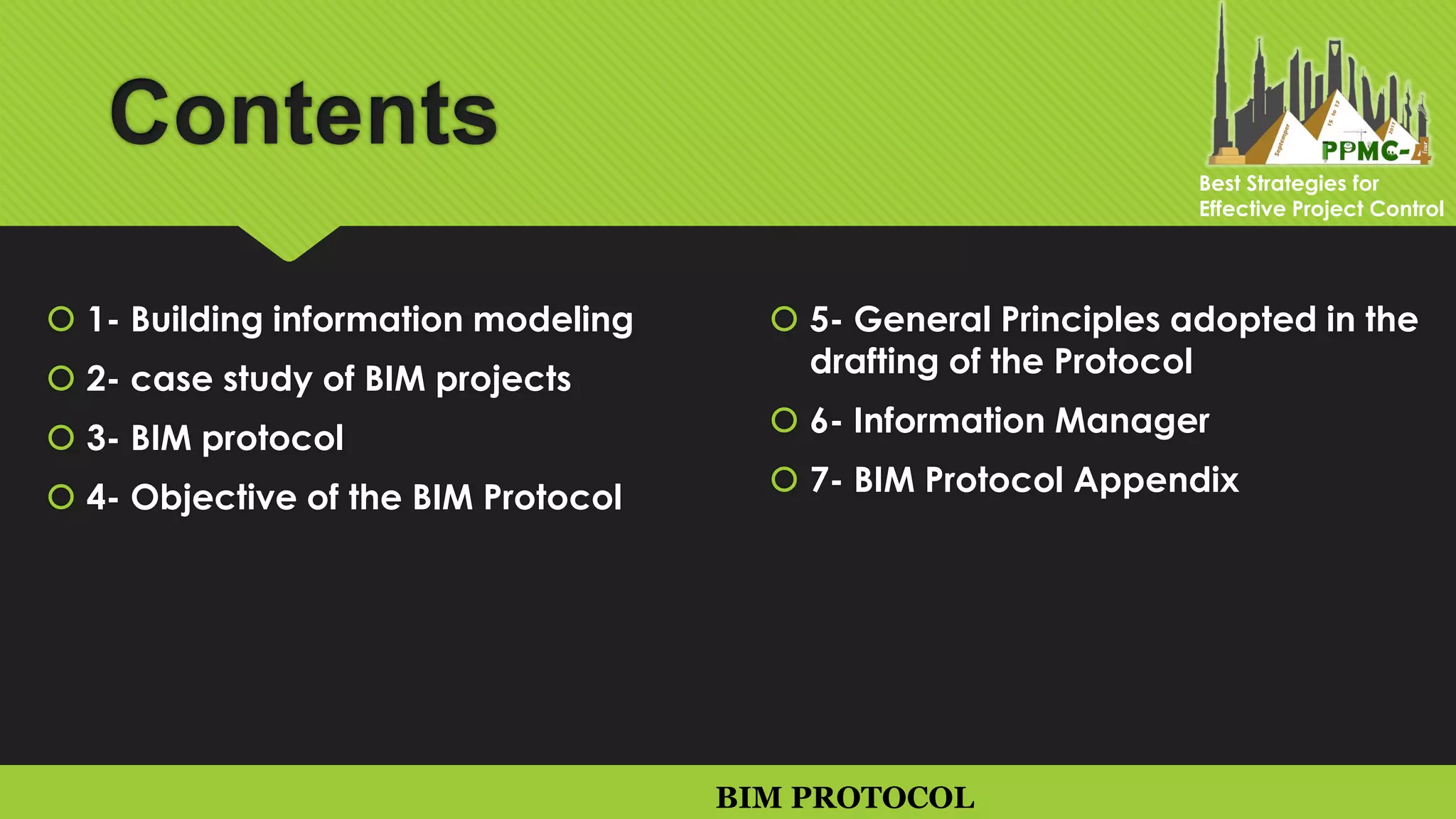

3. Contents
 1- Building information modeling
 2- case study of BIM projects
 3- BIM protocol
 4- Objective of the BIM Protocol
 5- General Principles adopted in the
drafting of the Protocol
 6- Information Manager
 7- BIM Protocol Appendix
BIM PROTOCOL
Best Strategies for
Effective Project Control

4. 4
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Building
Information
Modeling
BIM PROTOCOL
Topic 01:Building information modeling

5. 5
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Building
Information
Modeling
BIM PROTOCOL

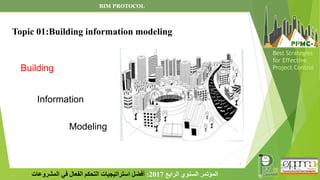

Topic 01:Building information modeling

6. 6
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Building
Information
Modeling
BIM PROTOCOL

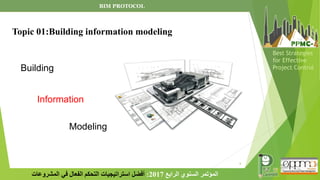

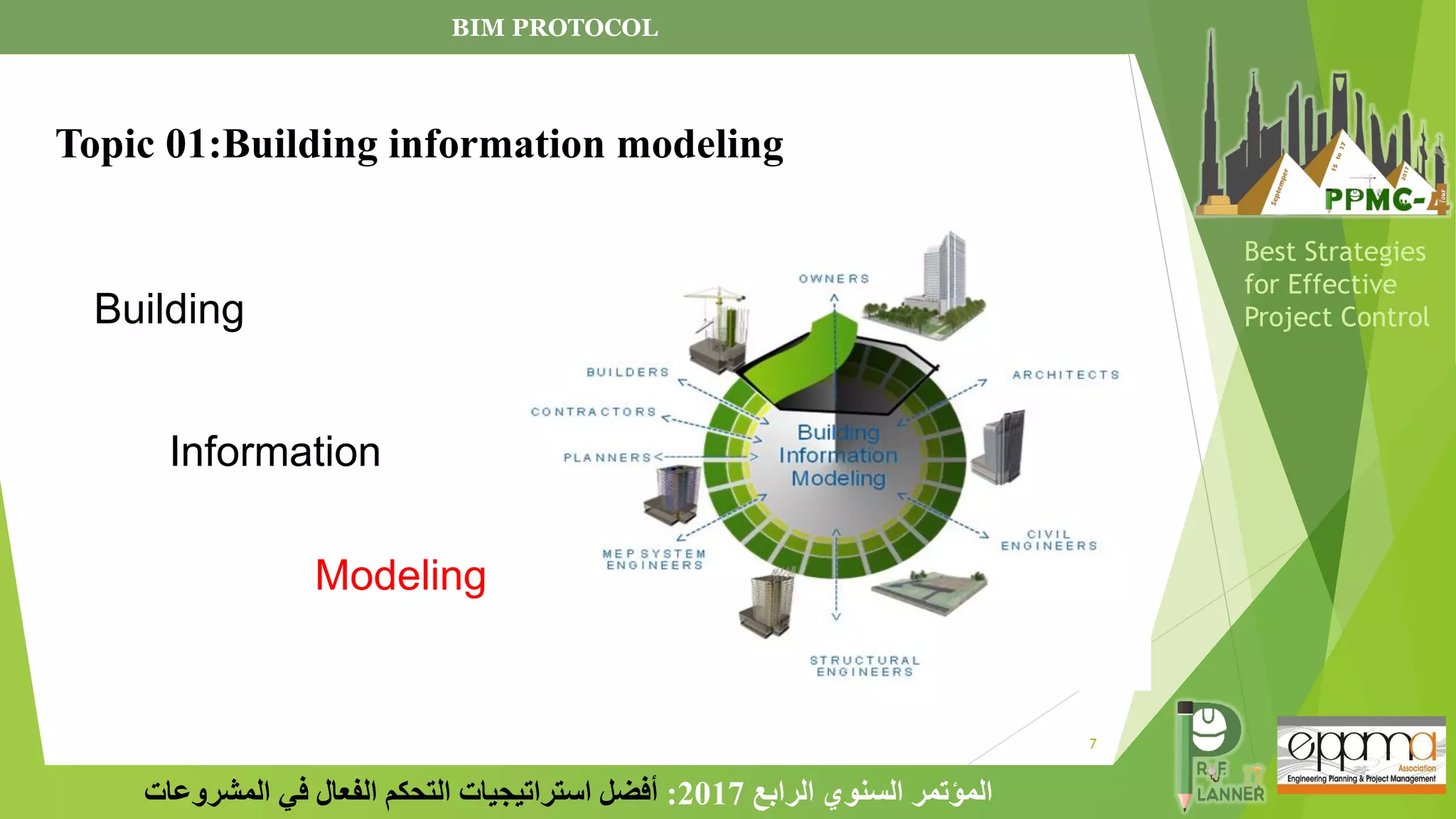

Topic 01:Building information modeling

7. 7
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Building
Information
Modeling
BIM PROTOCOL
Topic 01:Building information modeling

8. 8
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

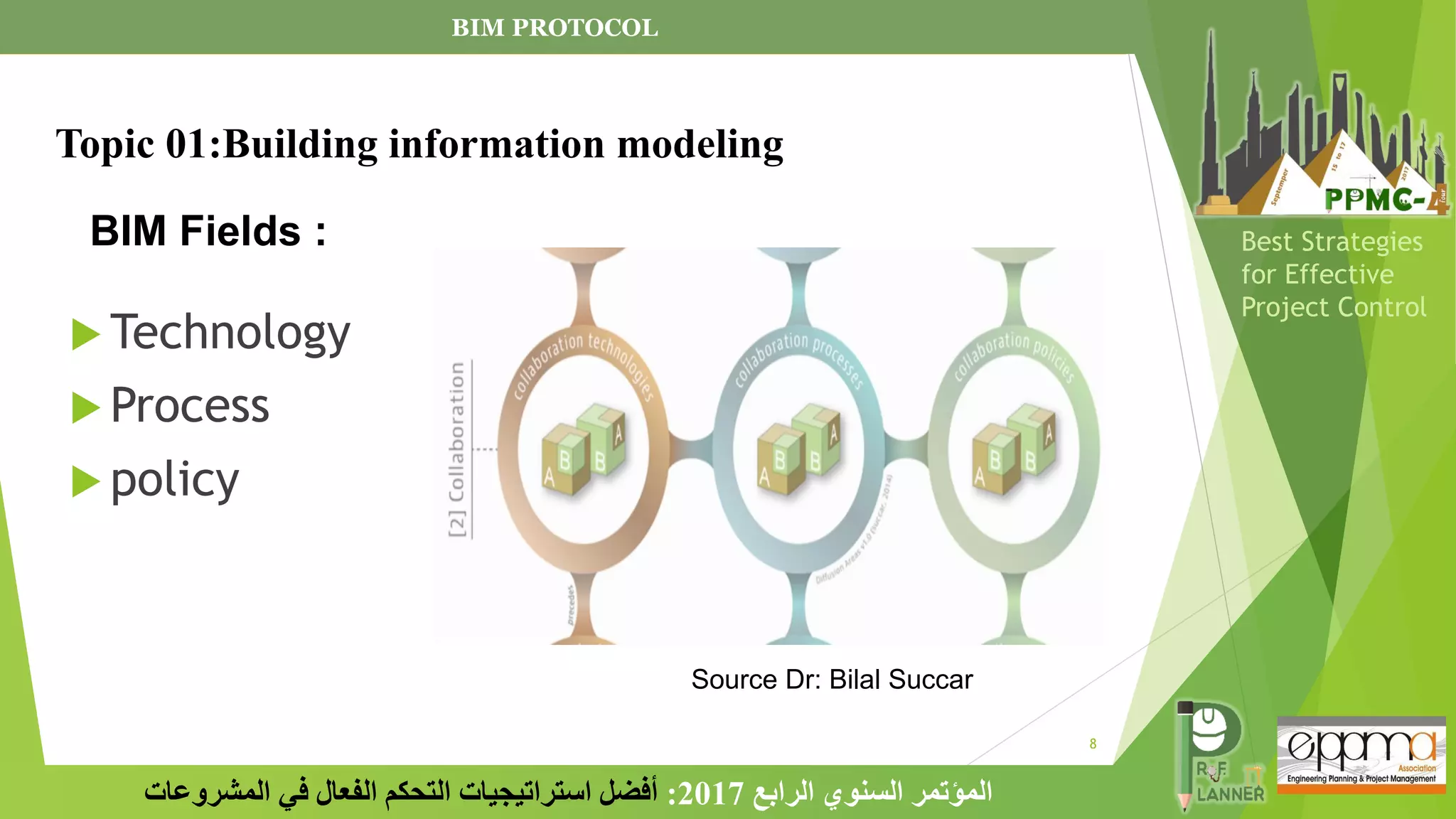

BIM Fields :
 Technology
 Process
 policy
Source Dr: Bilal Succar
BIM PROTOCOL
Topic 01:Building information modeling

9. 9
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

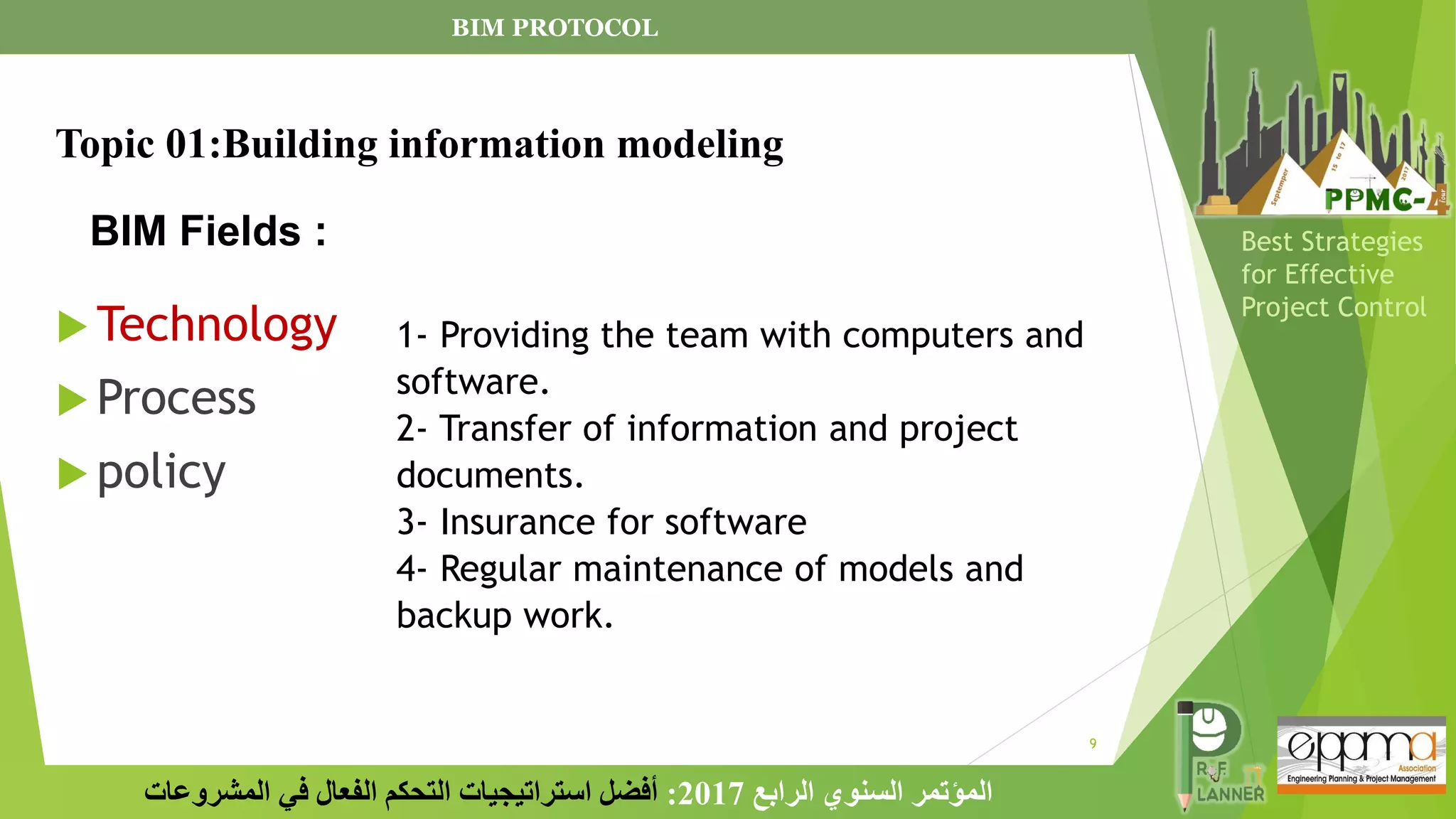

BIM Fields :
 Technology
 Process
 policy
1- Providing the team with computers and
software.
2- Transfer of information and project
documents.
3- Insurance for software
4- Regular maintenance of models and
backup work.
BIM PROTOCOL
Topic 01:Building information modeling

10. 10
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
BIM Fields :
 Technology
 Process
 policy
- Providing
the team
with
computers
and
software.
14%
- Transfer
of
information
and project
documents.
29%
- Insurance
for
software
problems
43%
- Regular
maintenanc
e of models
and backup
work.
14%
BIM PROTOCOL
Topic 01:Building information modeling

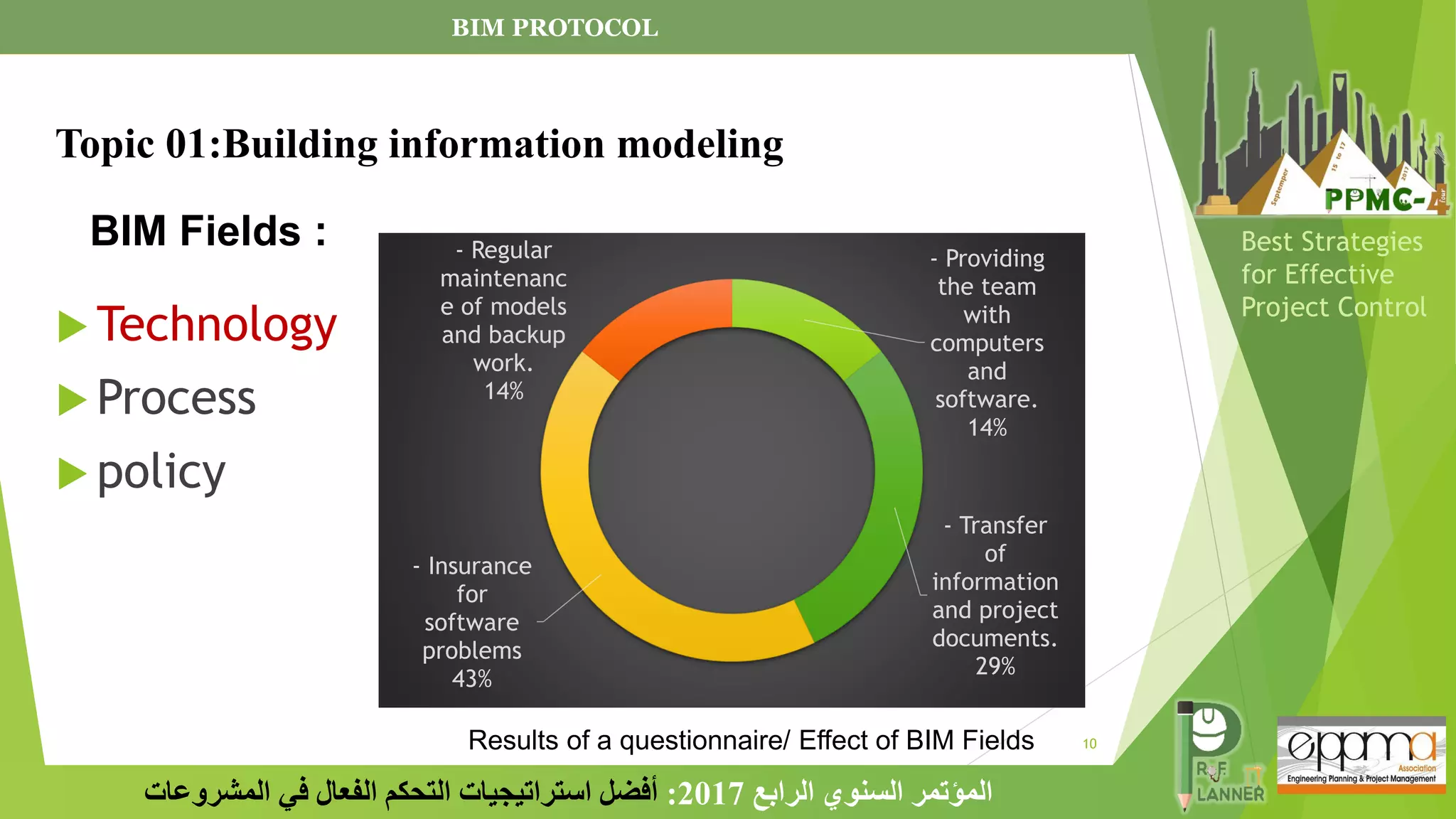

Results of a questionnaire/ Effect of BIM Fields

11. 11
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
BIM Fields :
 Technology
 Process
 policy

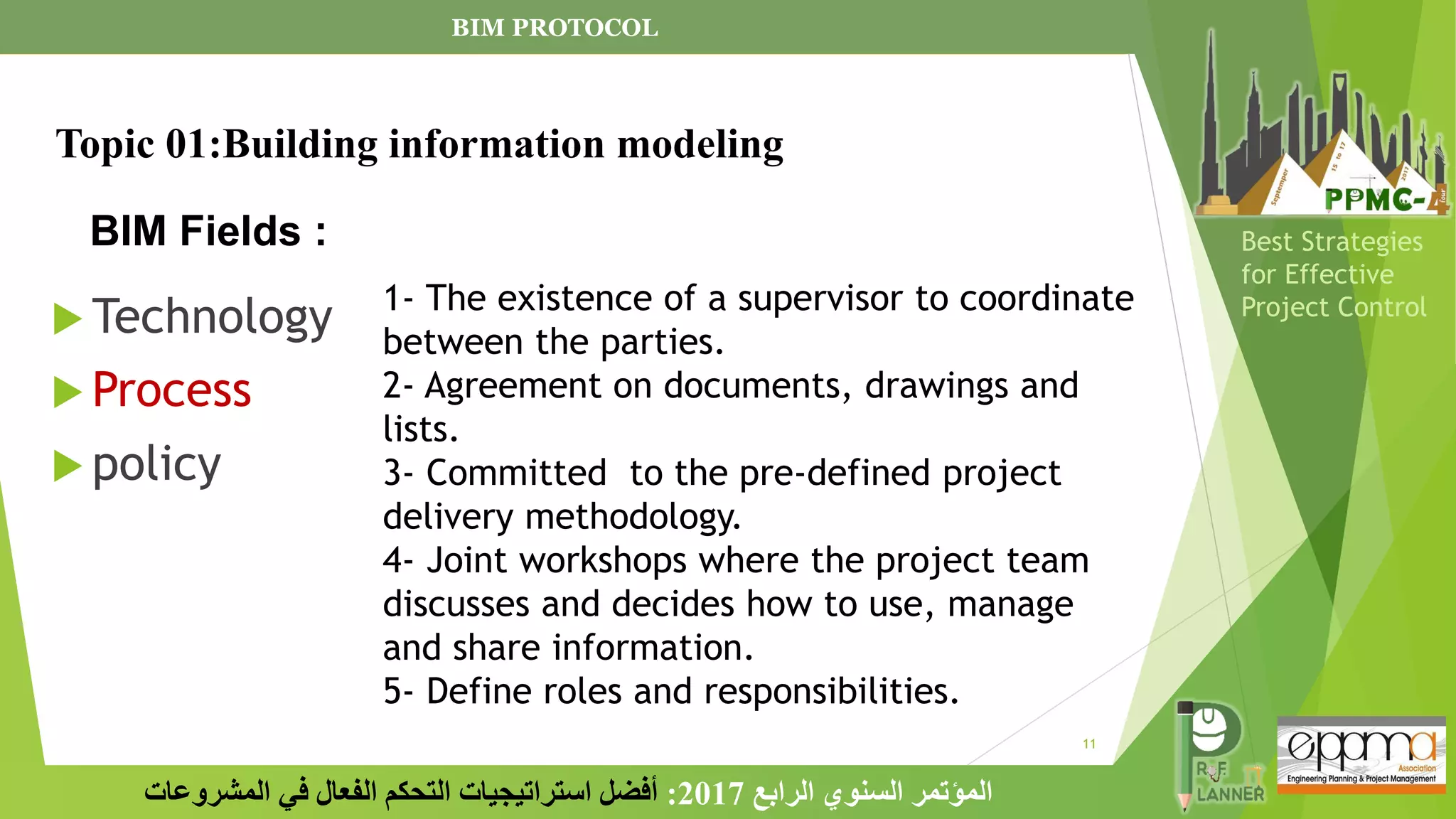

Topic 01:Building information modeling

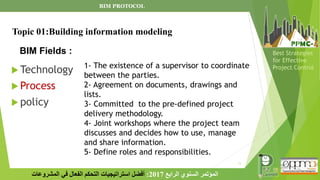

1- The existence of a supervisor to coordinate
between the parties.
2- Agreement on documents, drawings and
lists.
3- Committed to the pre-defined project
delivery methodology.
4- Joint workshops where the project team
discusses and decides how to use, manage
and share information.
5- Define roles and responsibilities.
BIM PROTOCOL

12. 12
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

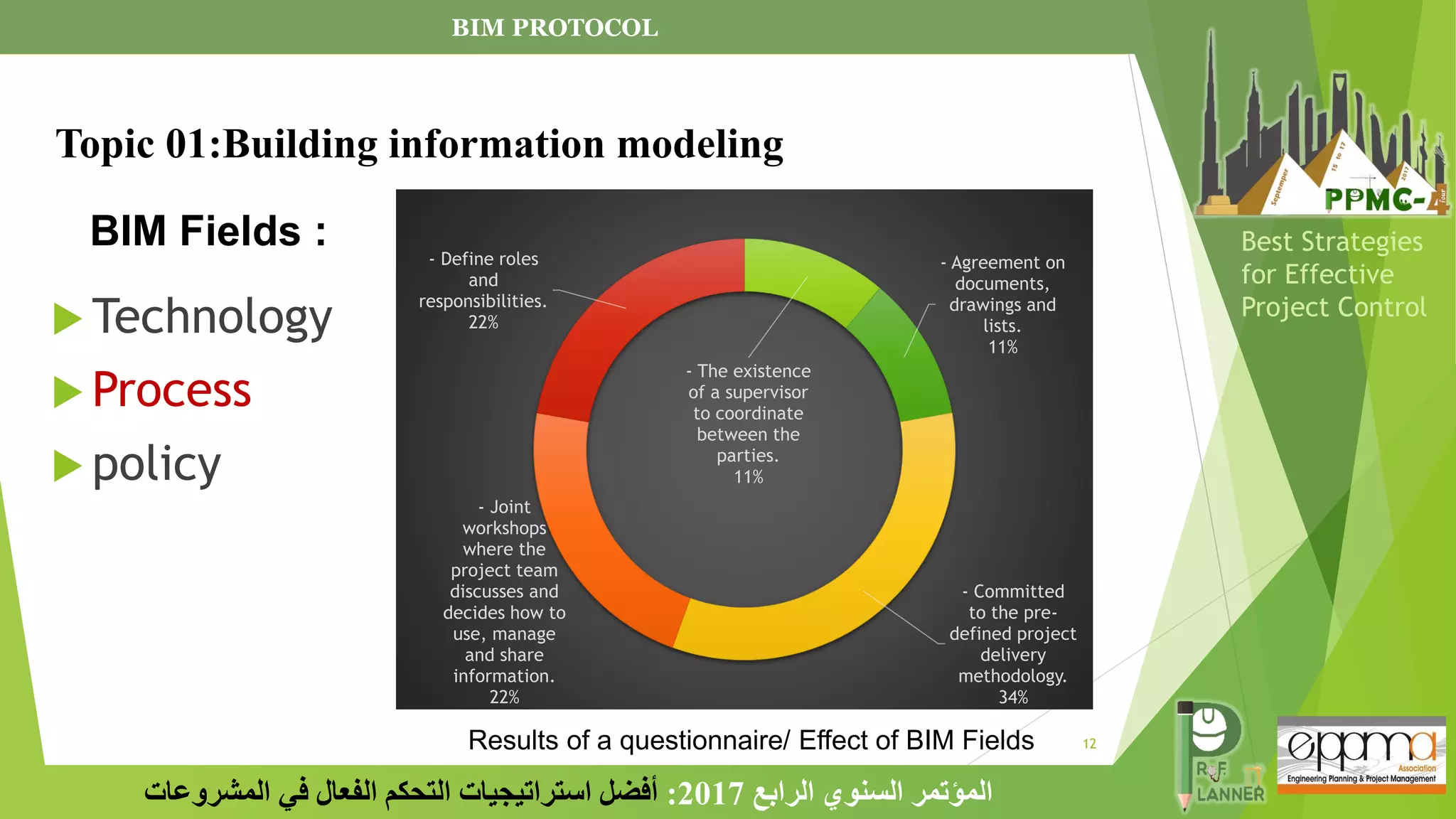

BIM Fields :
 Technology
 Process
 policy
Topic 01:Building information modeling
- The existence
of a supervisor
to coordinate
between the
parties.
11%
- Agreement on
documents,
drawings and
lists.
11%
- Committed
to the pre-
defined project
delivery
methodology.
34%
- Joint
workshops
where the
project team
discusses and
decides how to
use, manage
and share
information.
22%
- Define roles
and
responsibilities.
22%
BIM PROTOCOL
Results of a questionnaire/ Effect of BIM Fields

13. 13
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

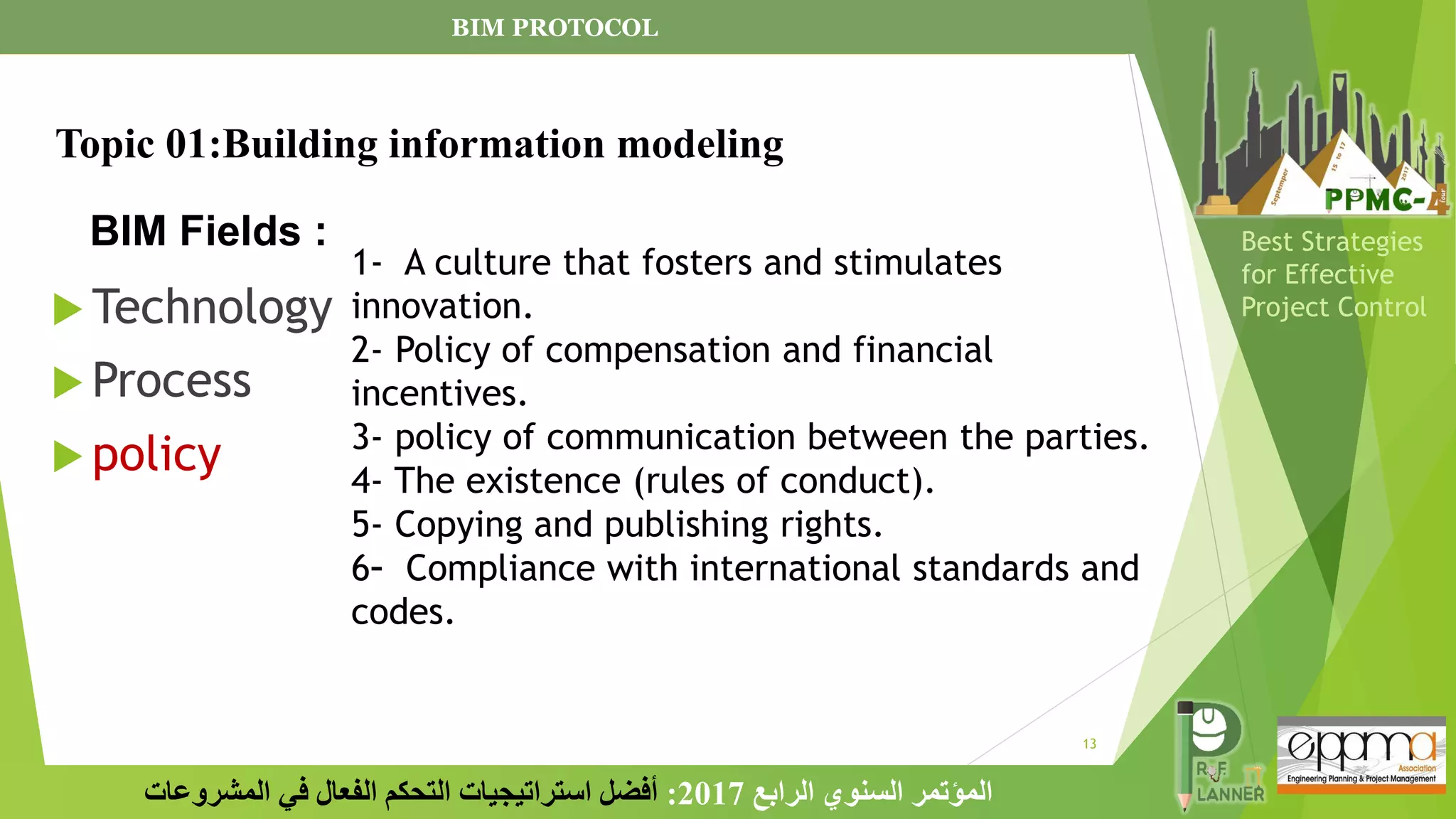

BIM Fields :
 Technology
 Process
 policy
Topic 01:Building information modeling
1- A culture that fosters and stimulates
innovation.
2- Policy of compensation and financial
incentives.
3- policy of communication between the parties.
4- The existence (rules of conduct).
5- Copying and publishing rights.
6- Compliance with international standards and
codes.
BIM PROTOCOL

14. 14
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

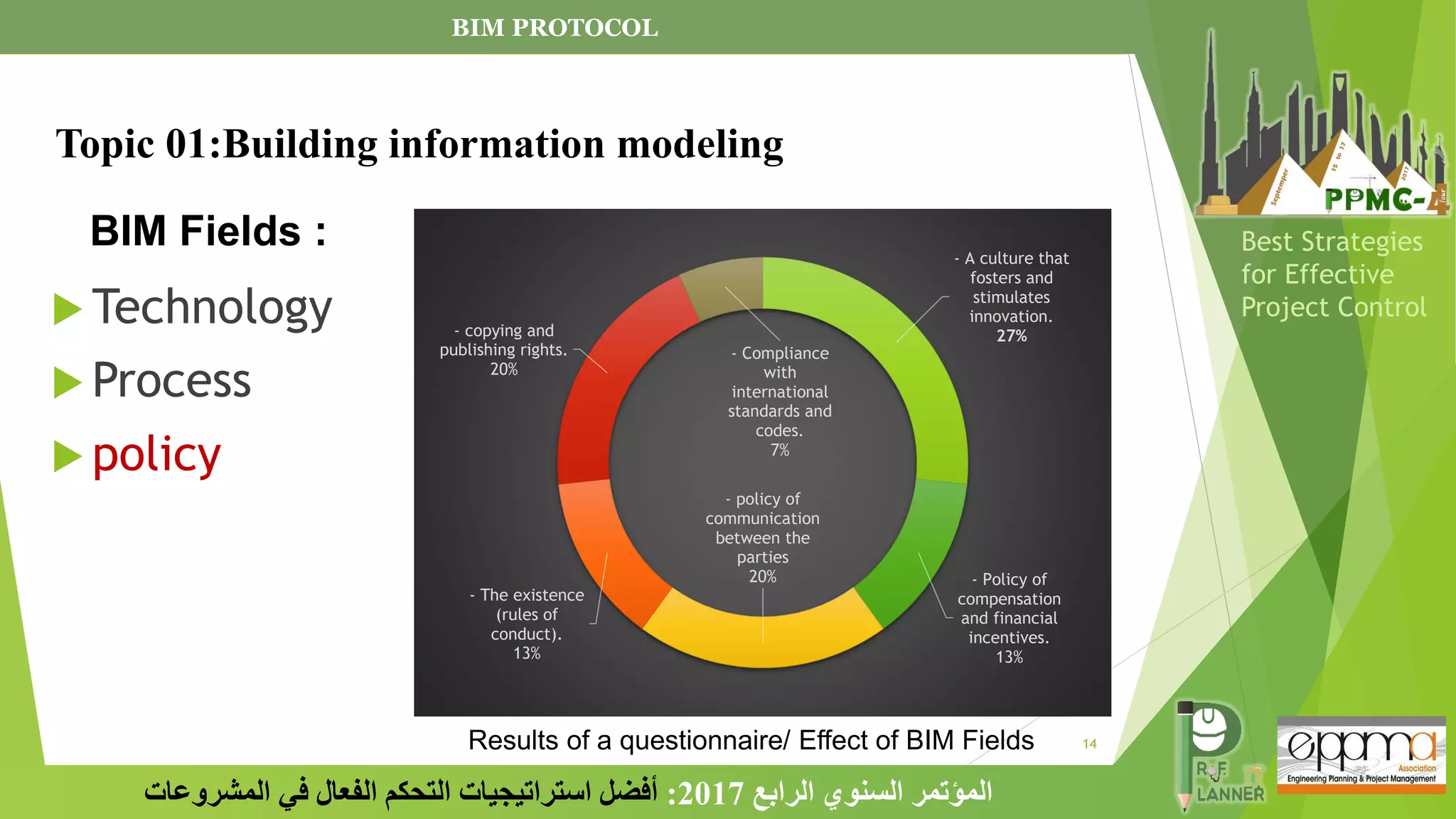

BIM Fields :
 Technology
 Process
 policy
Topic 01:Building information modeling
- A culture that
fosters and
stimulates
innovation.
27%
- Policy of
compensation
and financial
incentives.
13%
- policy of
communication
between the
parties
20%
- The existence
(rules of
conduct).
13%
- copying and
publishing rights.
20%
- Compliance
with
international
standards and
codes.
7%
BIM PROTOCOL
Results of a questionnaire/ Effect of BIM Fields

15. 15

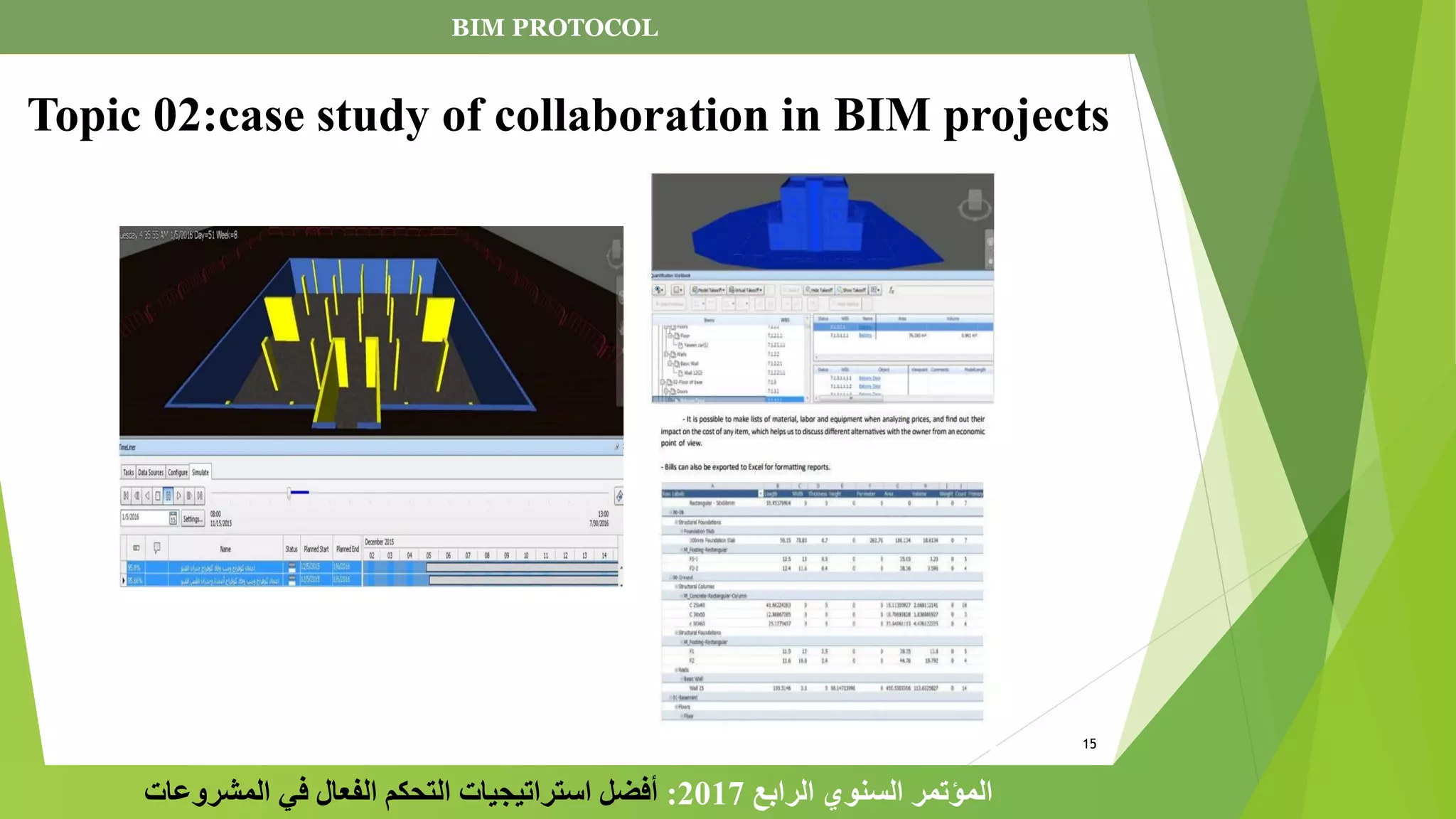

Topic 02:case study of collaboration in BIM projects
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
BIM PROTOCOL

16. 16
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

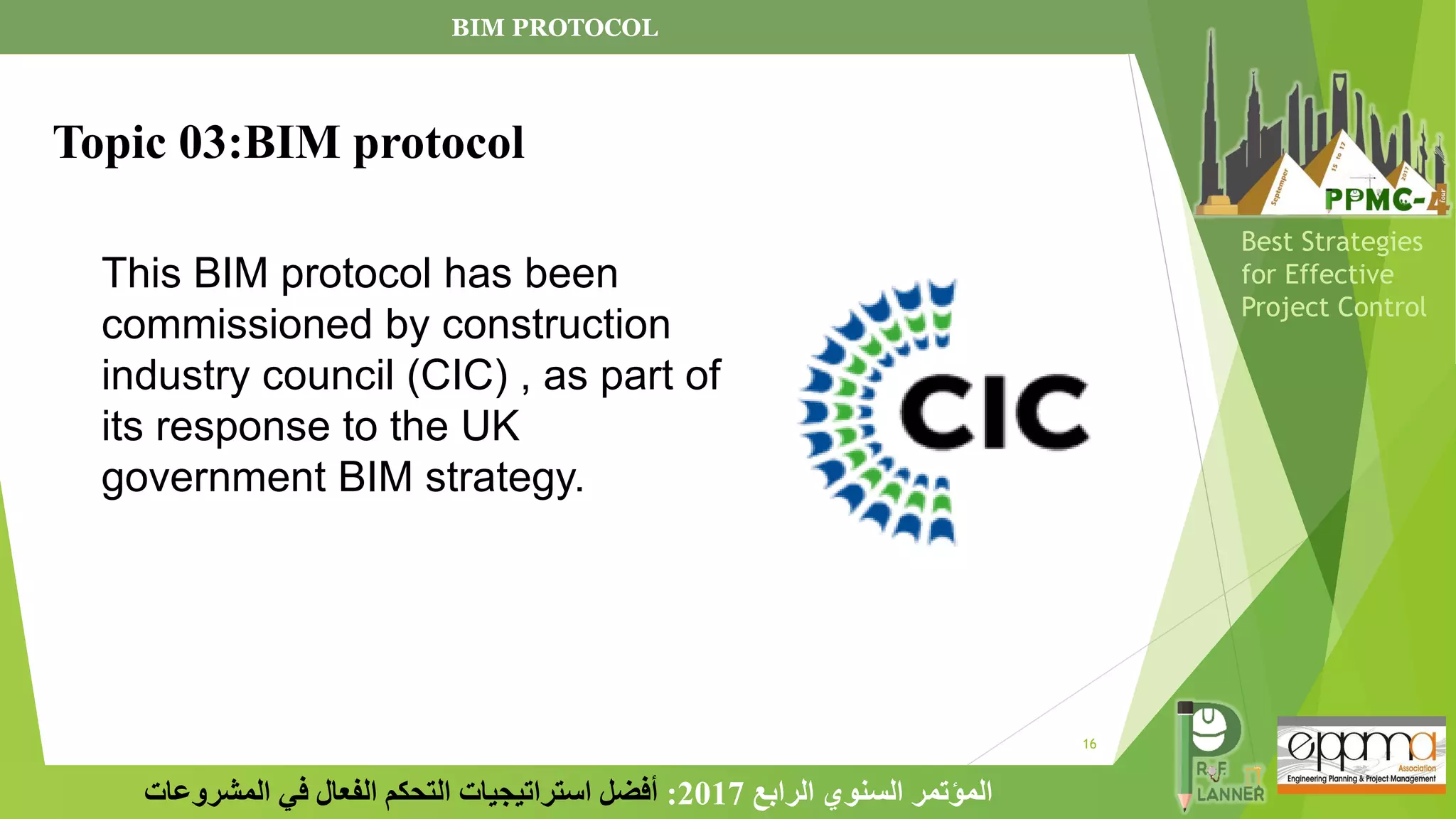

This BIM protocol has been
commissioned by construction
industry council (CIC) , as part of
its response to the UK
government BIM strategy.
Topic 03:BIM protocol
BIM PROTOCOL

17. 17
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

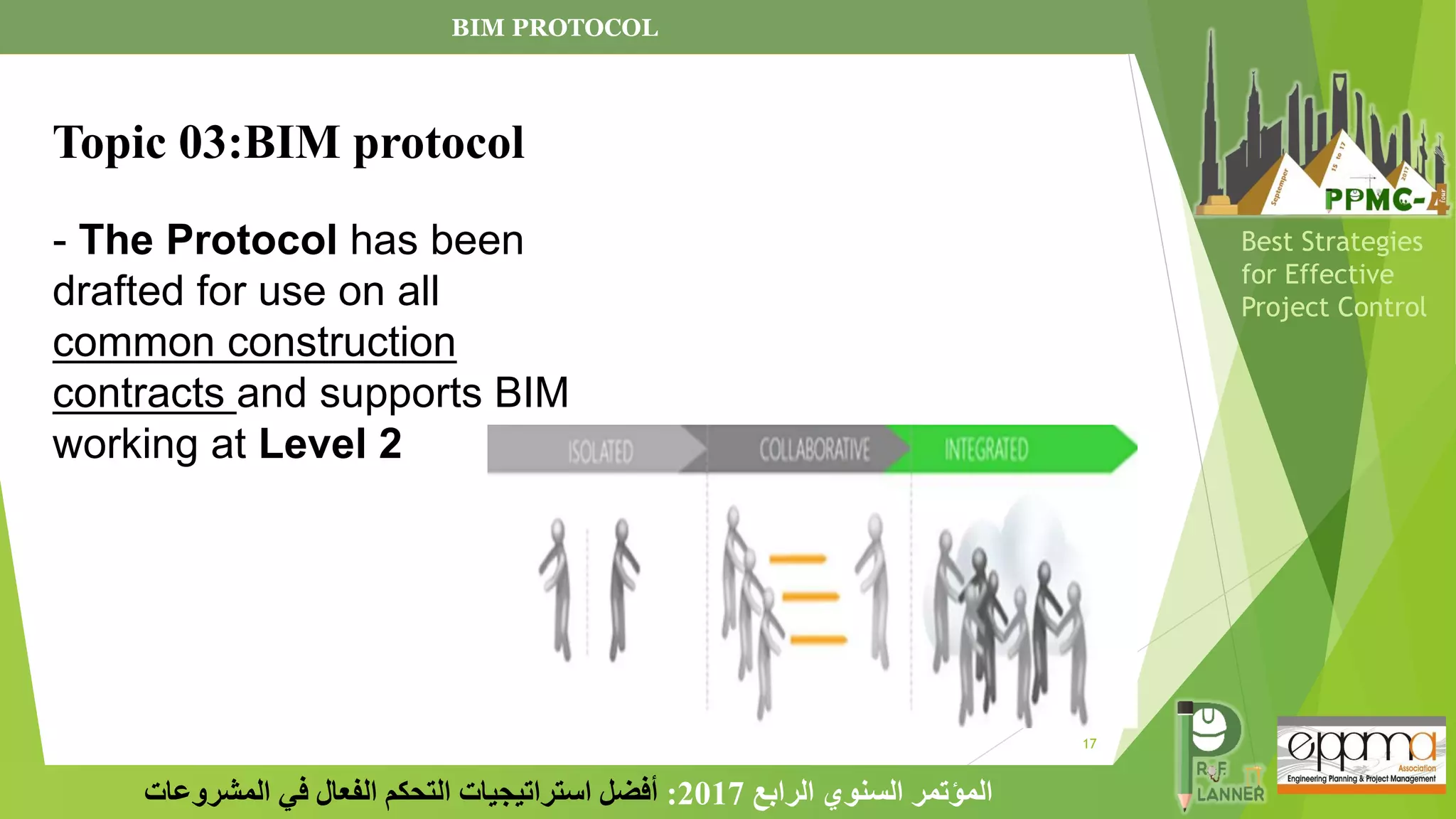

- The Protocol has been
drafted for use on all
common construction
contracts and supports BIM
working at Level 2
BIM PROTOCOL
Topic 03:BIM protocol

18. 18
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

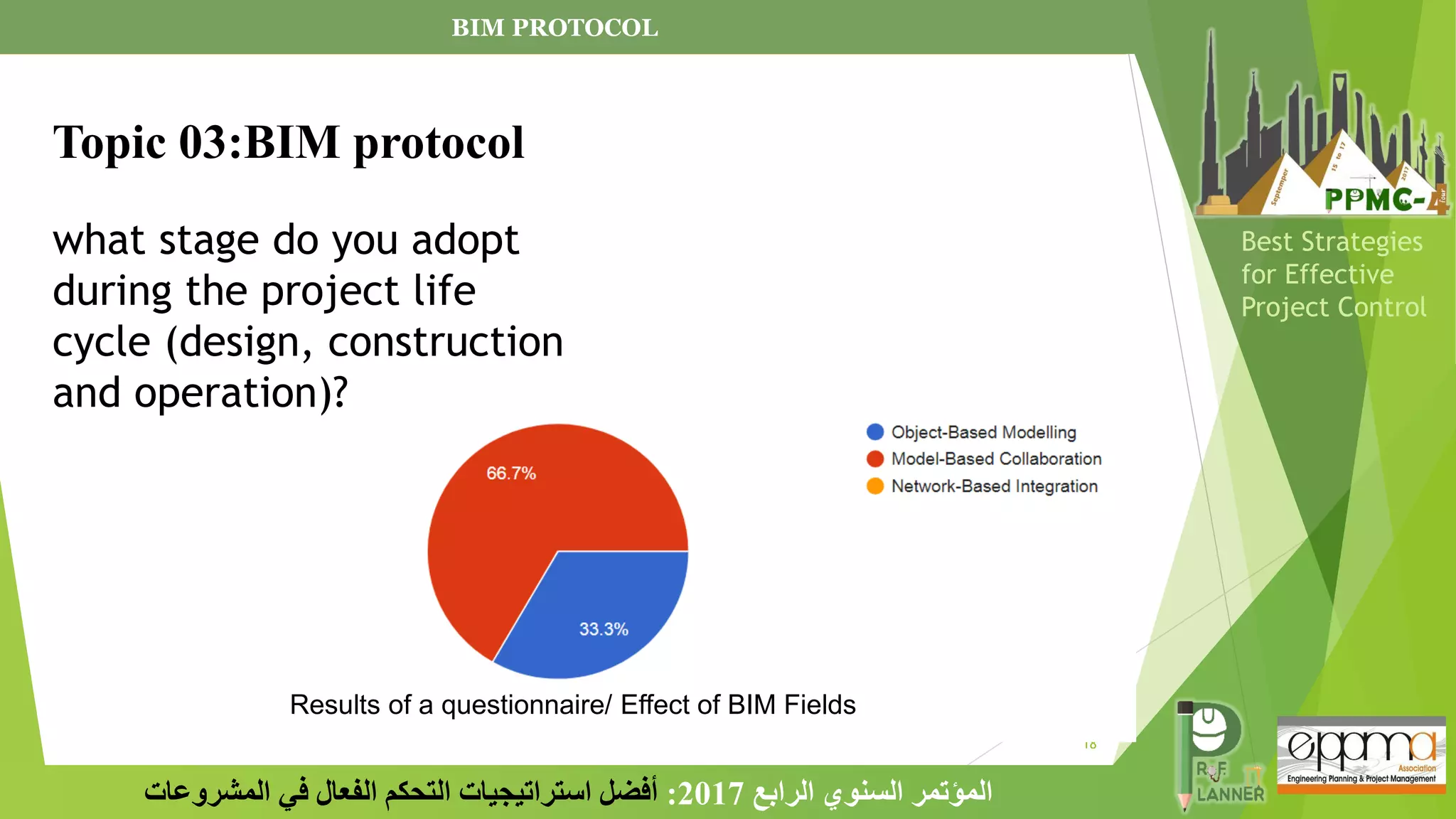

what stage do you adopt
during the project life
cycle (design, construction
and operation)?
BIM PROTOCOL
Topic 03:BIM protocol
Results of a questionnaire/ Effect of BIM Fields

19. 19
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Source Dr: Bilal Succar

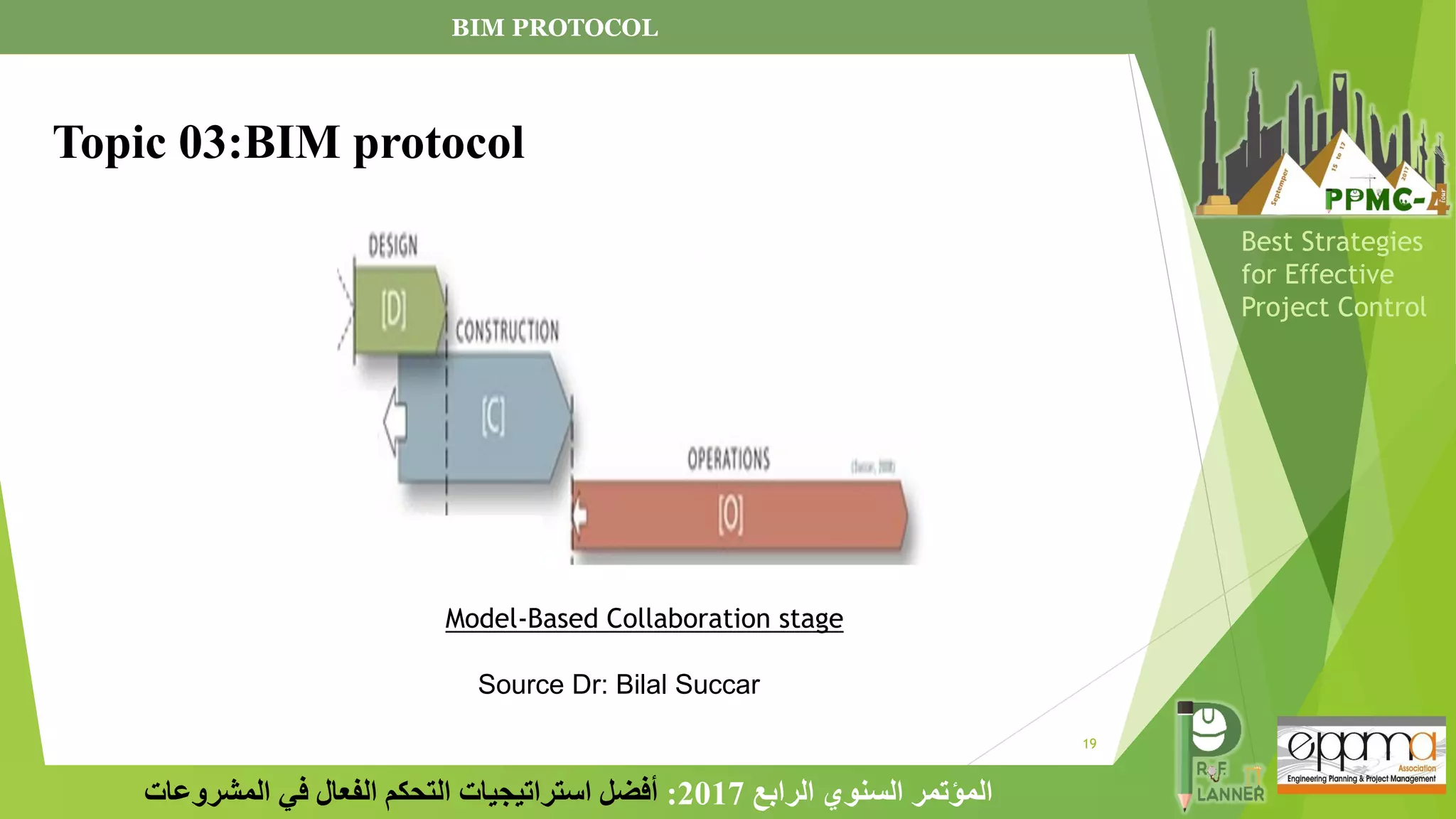

Model-Based Collaboration stage
BIM PROTOCOL
Topic 03:BIM protocol

20. 20
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

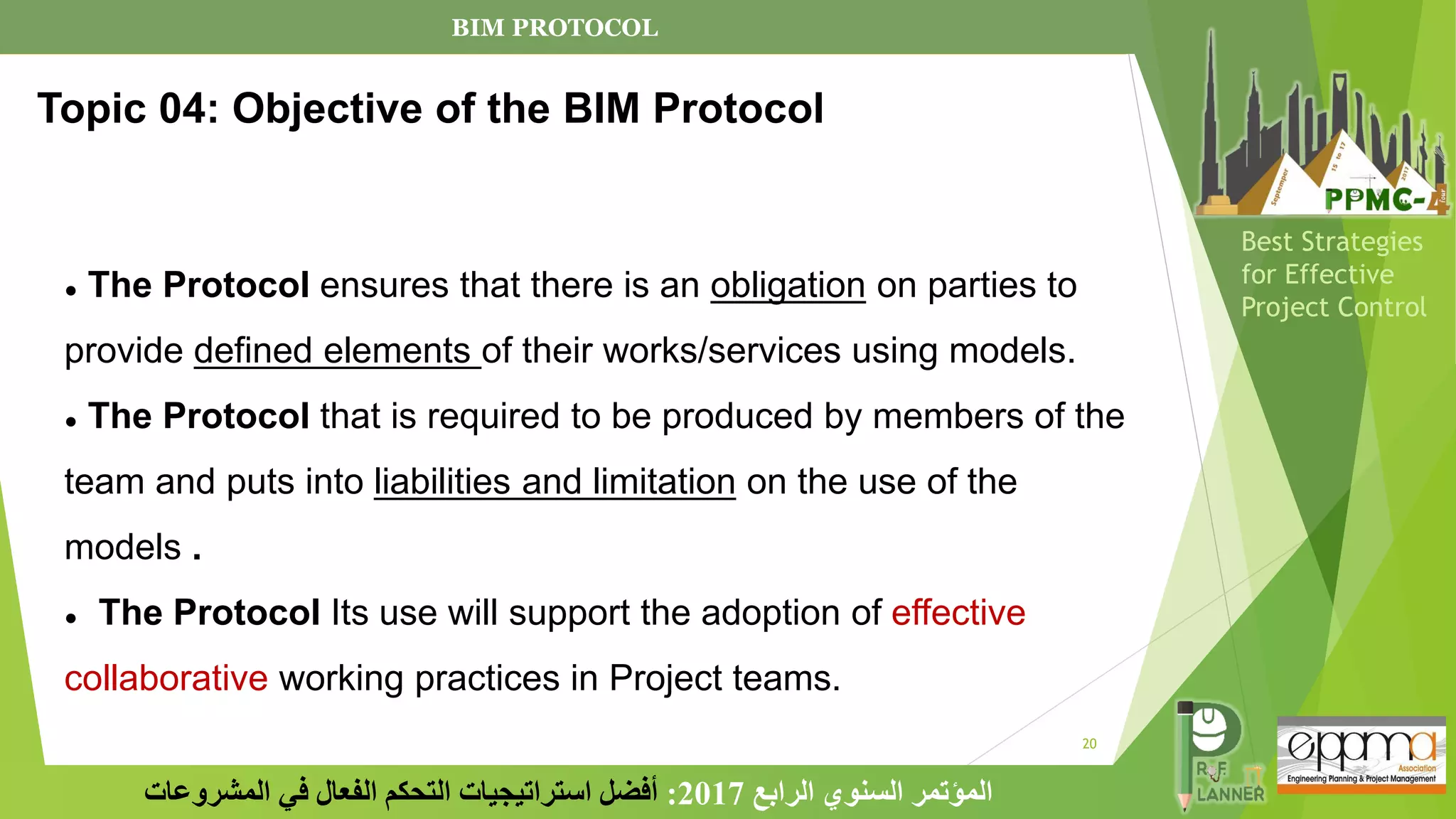

● The Protocol ensures that there is an obligation on parties to
provide defined elements of their works/services using models.
● The Protocol that is required to be produced by members of the
team and puts into liabilities and limitation on the use of the
models .
● The Protocol Its use will support the adoption of effective
collaborative working practices in Project teams.
Topic 04: Objective of the BIM Protocol
BIM PROTOCOL

21. 21
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

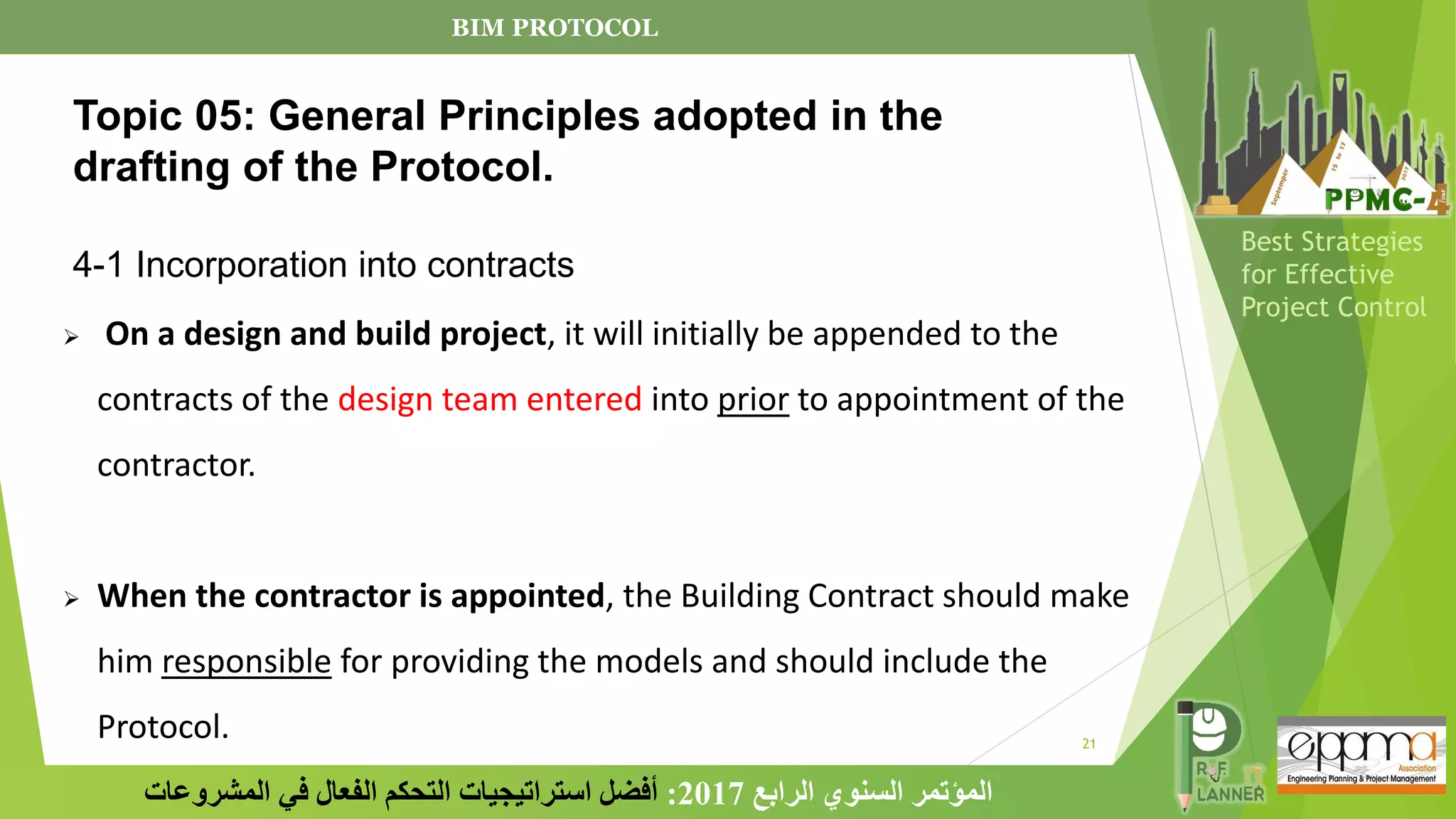

➢ On a design and build project, it will initially be appended to the
contracts of the design team entered into prior to appointment of the
contractor.
➢ When the contractor is appointed, the Building Contract should make
him responsible for providing the models and should include the
Protocol.
Topic 05: General Principles adopted in the
drafting of the Protocol.
4-1 Incorporation into contracts
BIM PROTOCOL

22. 22
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

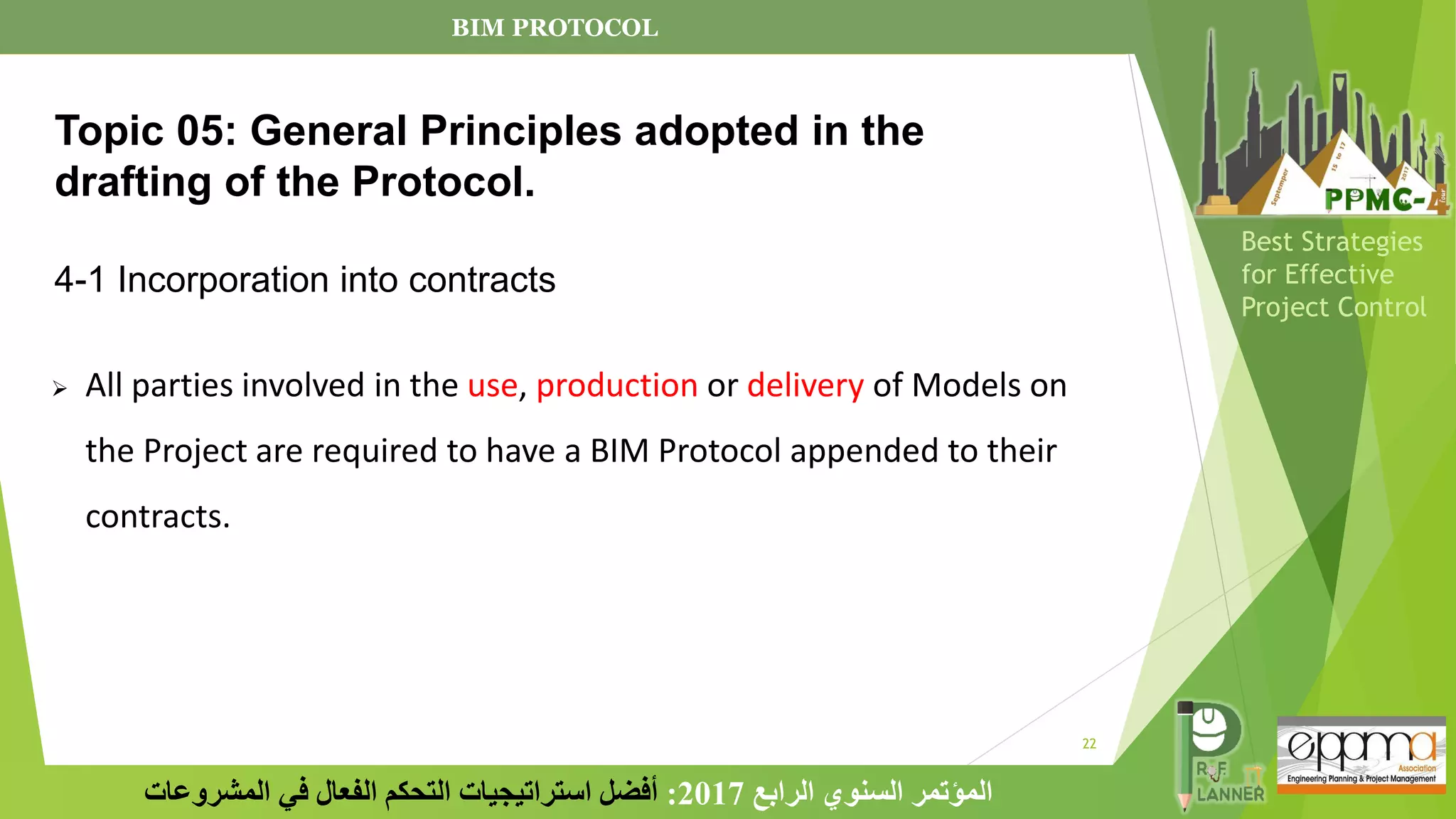

➢ All parties involved in the use, production or delivery of Models on
the Project are required to have a BIM Protocol appended to their
contracts.
Topic 05: General Principles adopted in the
drafting of the Protocol.
4-1 Incorporation into contracts
BIM PROTOCOL

23. 23
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

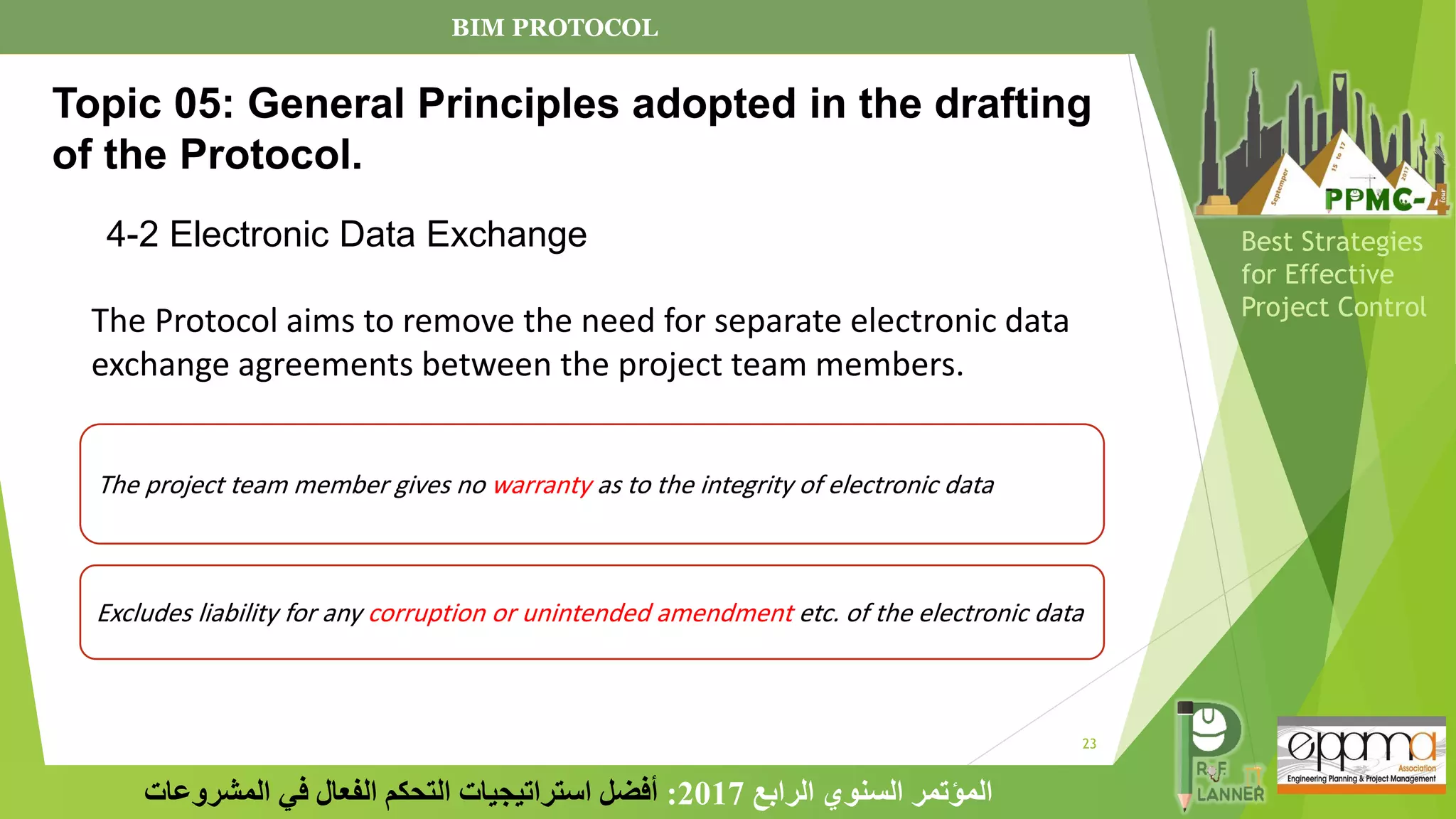

The Protocol aims to remove the need for separate electronic data
exchange agreements between the project team members.
The project team member gives no warranty as to the integrity of electronic data
Excludes liability for any corruption or unintended amendment etc. of the electronic data
Topic 05: General Principles adopted in the drafting
of the Protocol.
4-2 Electronic Data Exchange
BIM PROTOCOL

24. 24
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

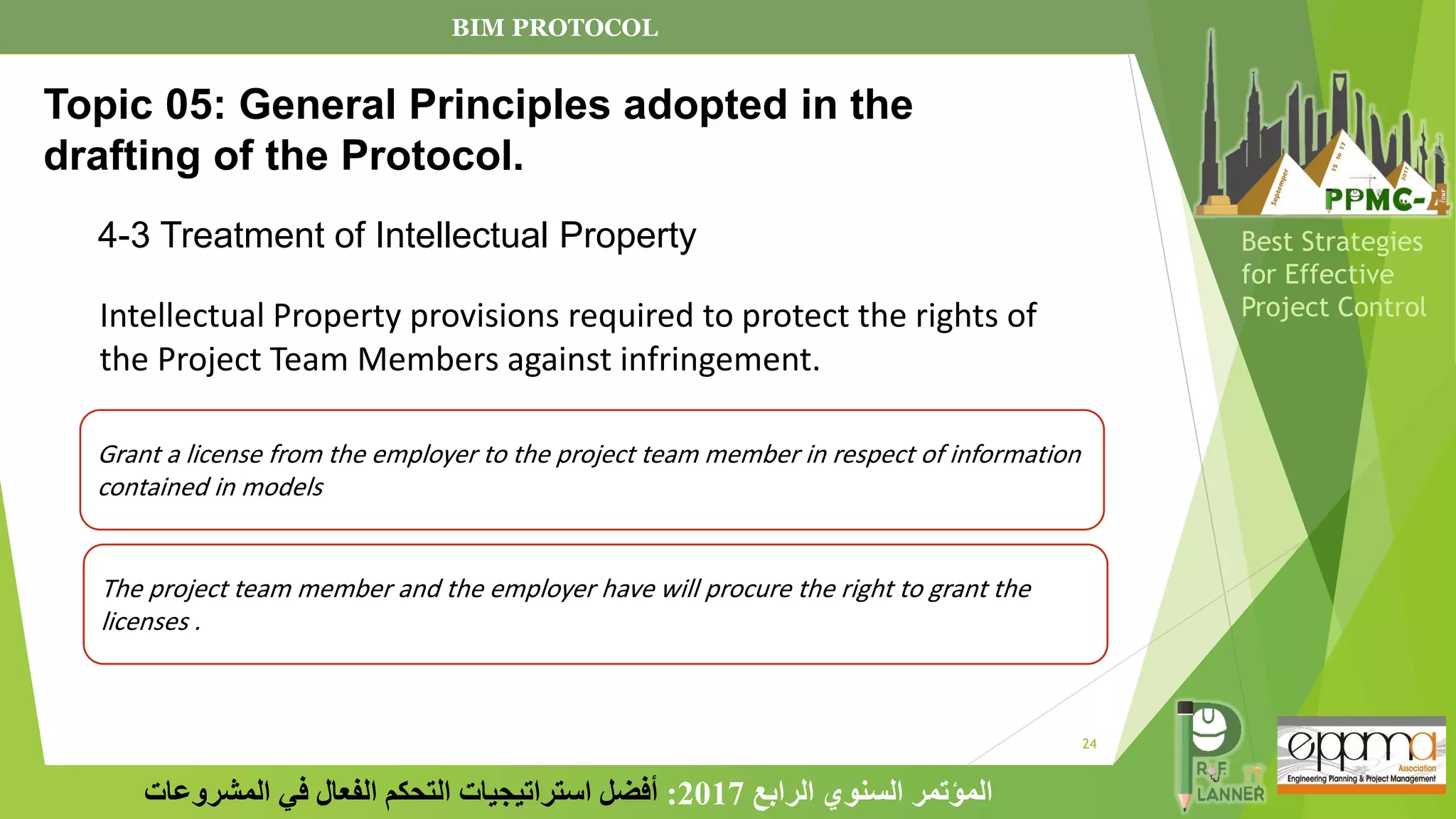

Intellectual Property provisions required to protect the rights of
the Project Team Members against infringement.
Grant a license from the employer to the project team member in respect of information
contained in models
The project team member and the employer have will procure the right to grant the
licenses .
Topic 05: General Principles adopted in the
drafting of the Protocol.
4-3 Treatment of Intellectual Property
BIM PROTOCOL

25. 25
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Topic 05: General Principles adopted in the drafting
of the Protocol.

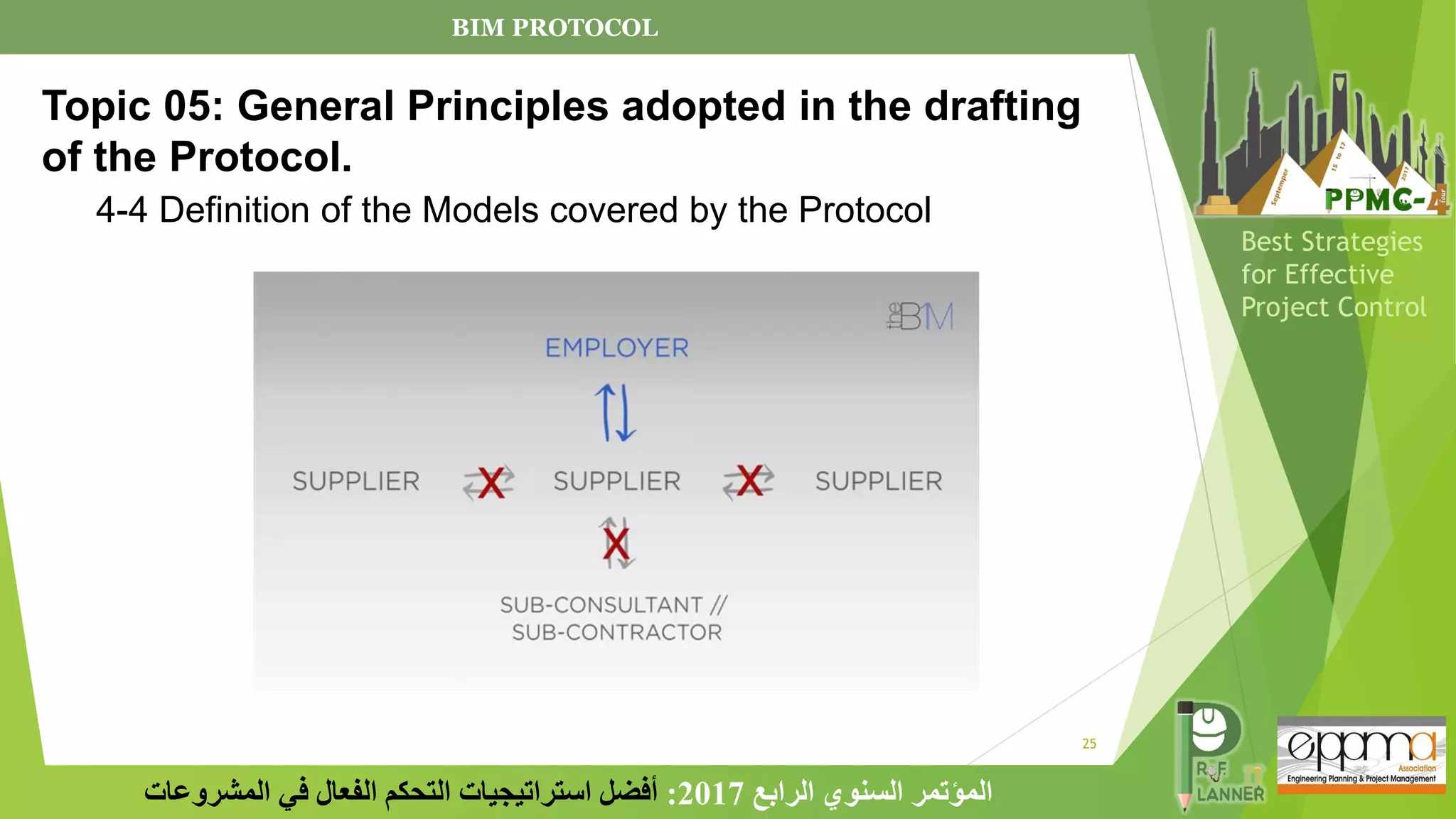

4-4 Definition of the Models covered by the Protocol
BIM PROTOCOL

26. 26
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

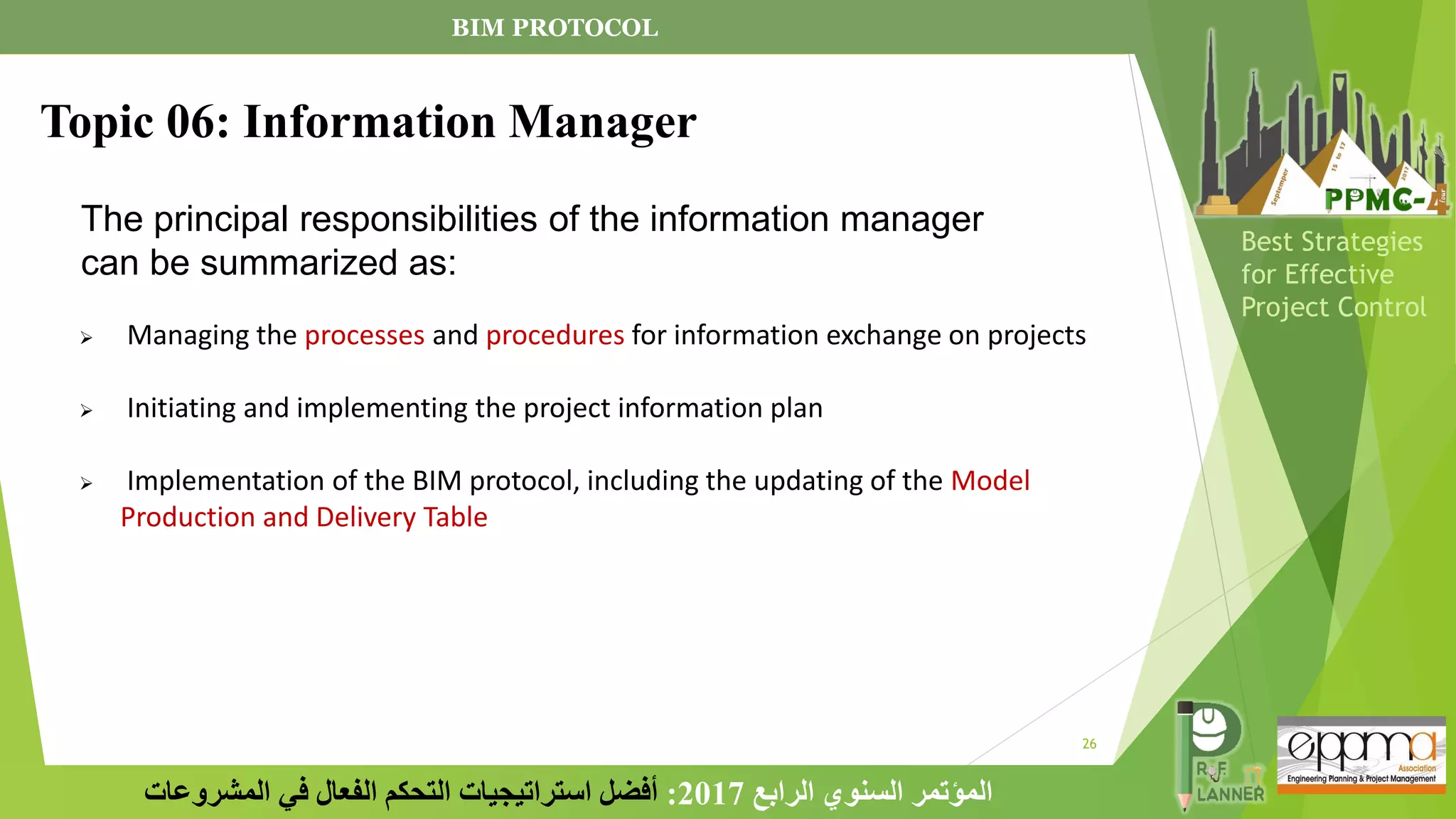

The principal responsibilities of the information manager
can be summarized as:
➢ Managing the processes and procedures for information exchange on projects
➢ Initiating and implementing the project information plan
➢ Implementation of the BIM protocol, including the updating of the Model
Production and Delivery Table
Topic 06: Information Manager
BIM PROTOCOL

27. 27
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

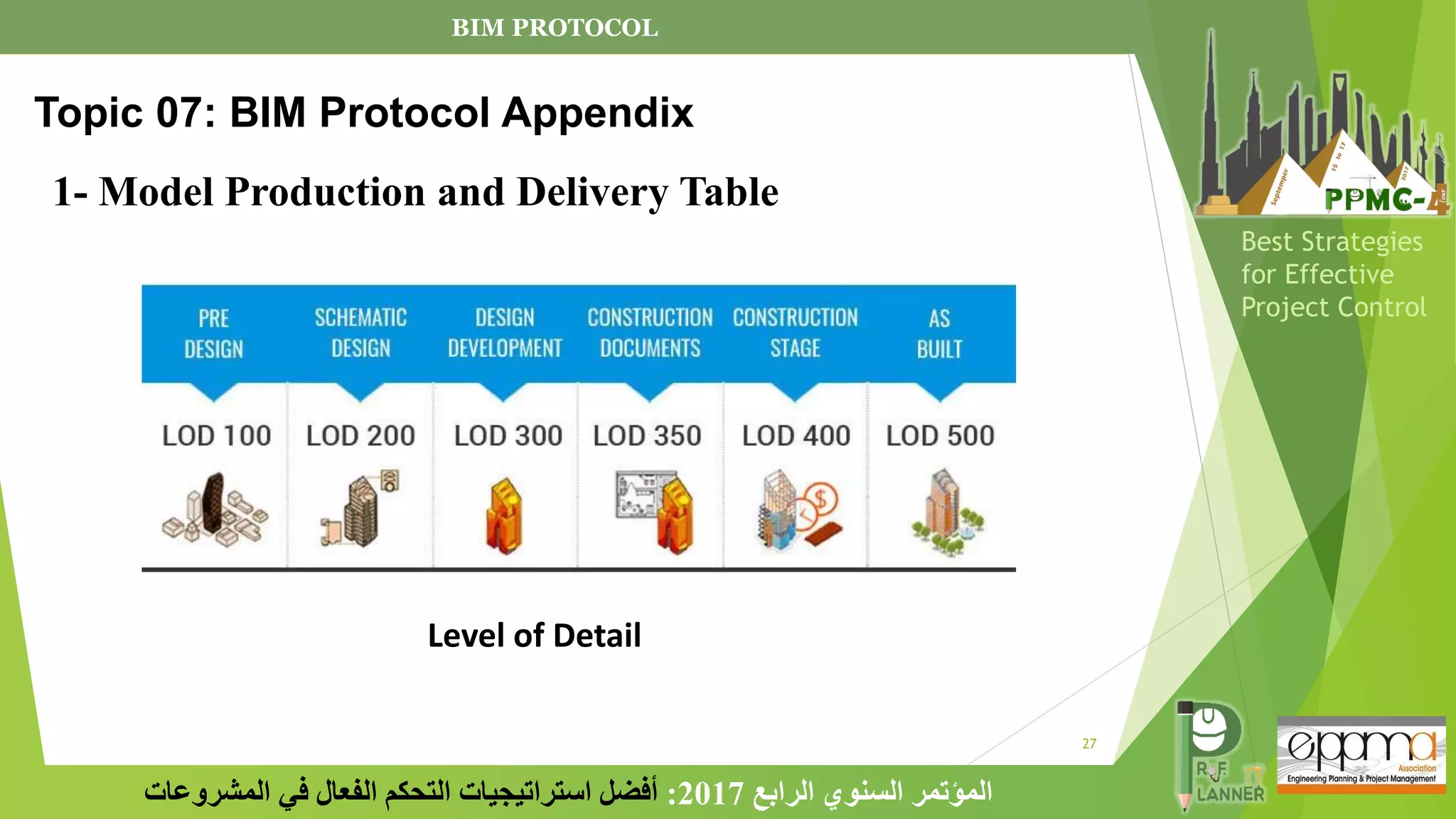

Level of Detail
1- Model Production and Delivery Table
Topic 07: BIM Protocol Appendix
BIM PROTOCOL

28. 28
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control

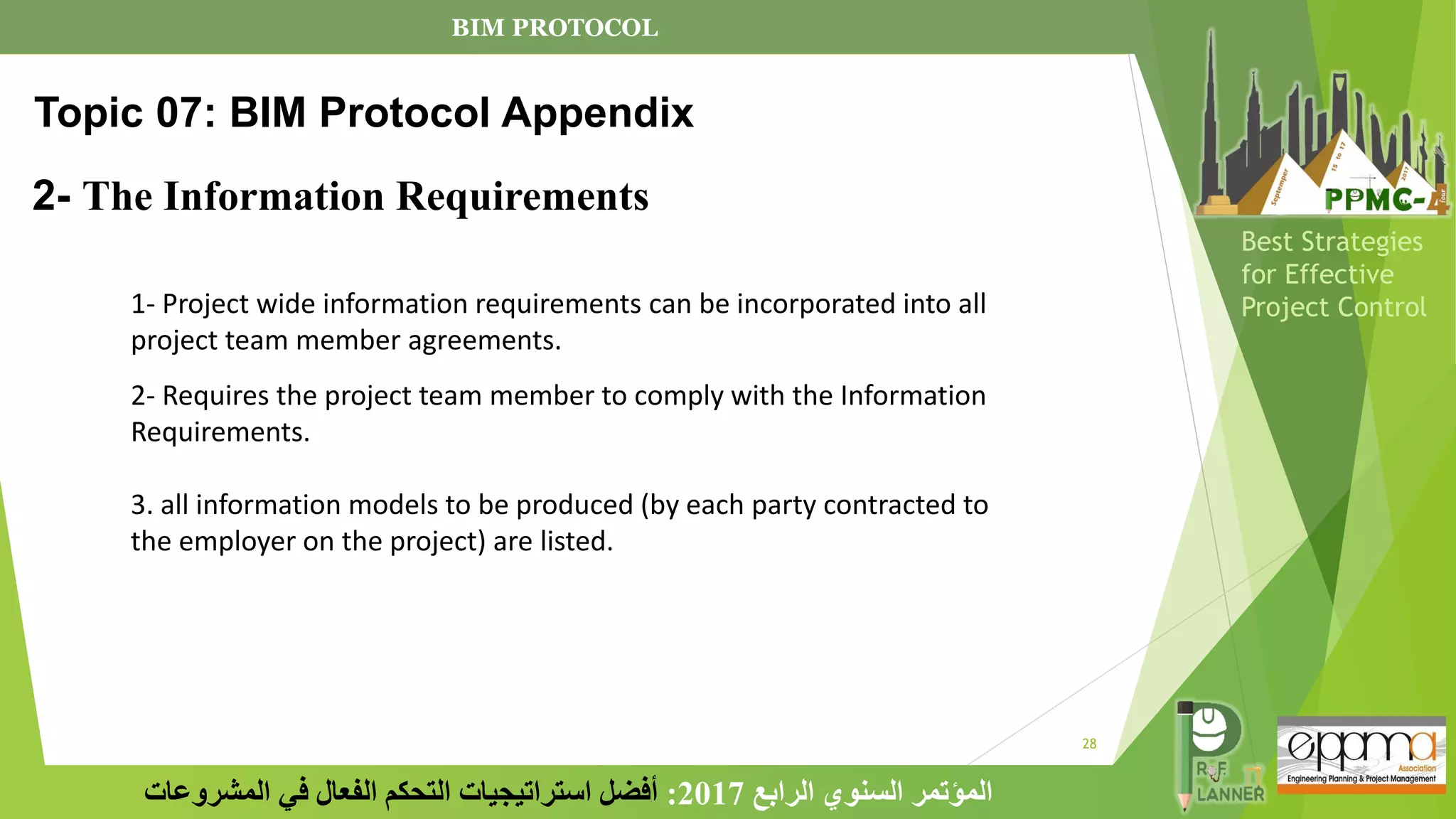

2- The Information Requirements
Topic 07: BIM Protocol Appendix
1- Project wide information requirements can be incorporated into all
project team member agreements.
2- Requires the project team member to comply with the Information
Requirements.
3. all information models to be produced (by each party contracted to
the employer on the project) are listed.
BIM PROTOCOL

29. 29
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
Topic 08: Conclusion
BIM PROTOCOL

30. 30
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
References :
1- Building information model (BIM) protocol -CIC/ BIM
first edition 2013
2- The guide to Building Information Modelling
BIM PROTOCOL

31. 31
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
Best Strategies
for Effective
Project Control
BIM PROTOCOL
 Email : Eyad.hajsa@gmail.com
 Mobile & WhatsApp : 00963992023399
https://www.facebook.com/EyadAlhaj1/
1- To follow the latest events and posts:
2- You can communicate with us:
https://www.linkedin.com/in/eyadalhaj/

32. ‫المتابعة‬ ‫لحسن‬ ً‫ا‬‫شكر‬
‫إلى‬ ‫االسال‬ ‫يمكنكم‬ ‫التواصل‬ ‫أجل‬ ‫من‬
:
conference@eppma.org
______________
‫المؤتمر‬ ‫إعداد‬ ‫فريق‬
32
‫الرابع‬ ‫السنوي‬ ‫المؤتمر‬
2017
:
‫المشروعات‬ ‫في‬ ‫الفعال‬ ‫التحكم‬ ‫استراتيجيات‬ ‫أفضل‬
‫السنوي‬ ‫المؤتمر‬
‫المشروعات‬ ‫وإدارة‬ ‫للتخطيط‬
-
‫الرابع‬
2017
Best Strategies
for Effective
Project Control
