Alluxio is an open-source, memory-speed, virtual distributed storage system designed to bridge the gap between storage and computing by providing a unified namespace and enabling fast access to data across different storage systems. It was developed at UC Berkeley and has grown rapidly since its inception, offering flexibility, agility, and performance while managing tiered storage configurations. Common use cases include accelerating access to remote storage, sharing data at memory speed, and simplifying the integration of different storage systems.

1. Alluxio (formerly Tachyon)
Open Source Memory Speed
Virtual Distributed Storage System
Gene Pang @ Alluxio, Inc.
July 9, 2016 @ Big Data Day LA

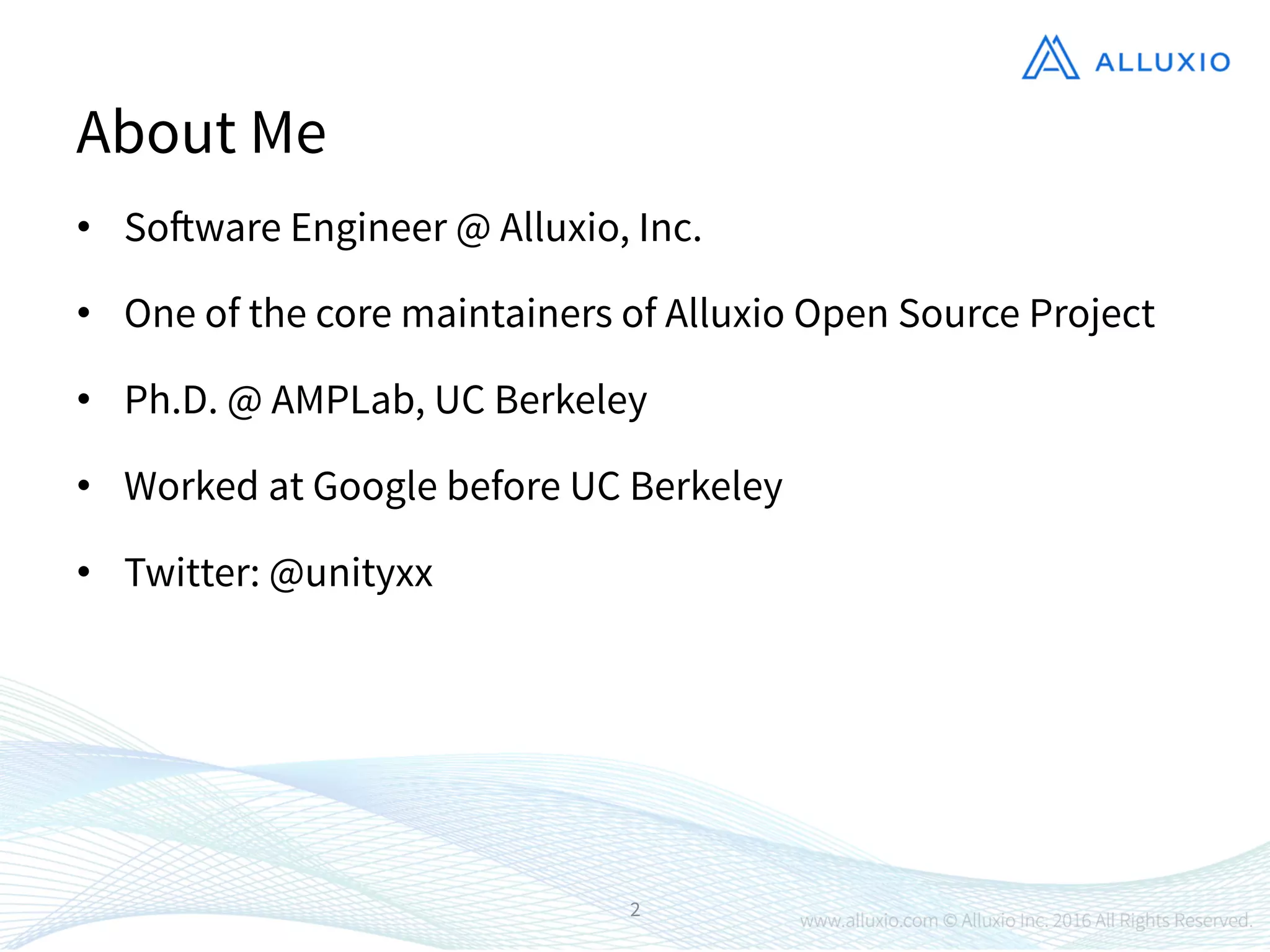

2. About Me
• Software Engineer @ Alluxio, Inc.
• One of the core maintainers of Alluxio Open Source Project
• Ph.D. @ AMPLab, UC Berkeley
• Worked at Google before UC Berkeley
• Twitter: @unityxx
2

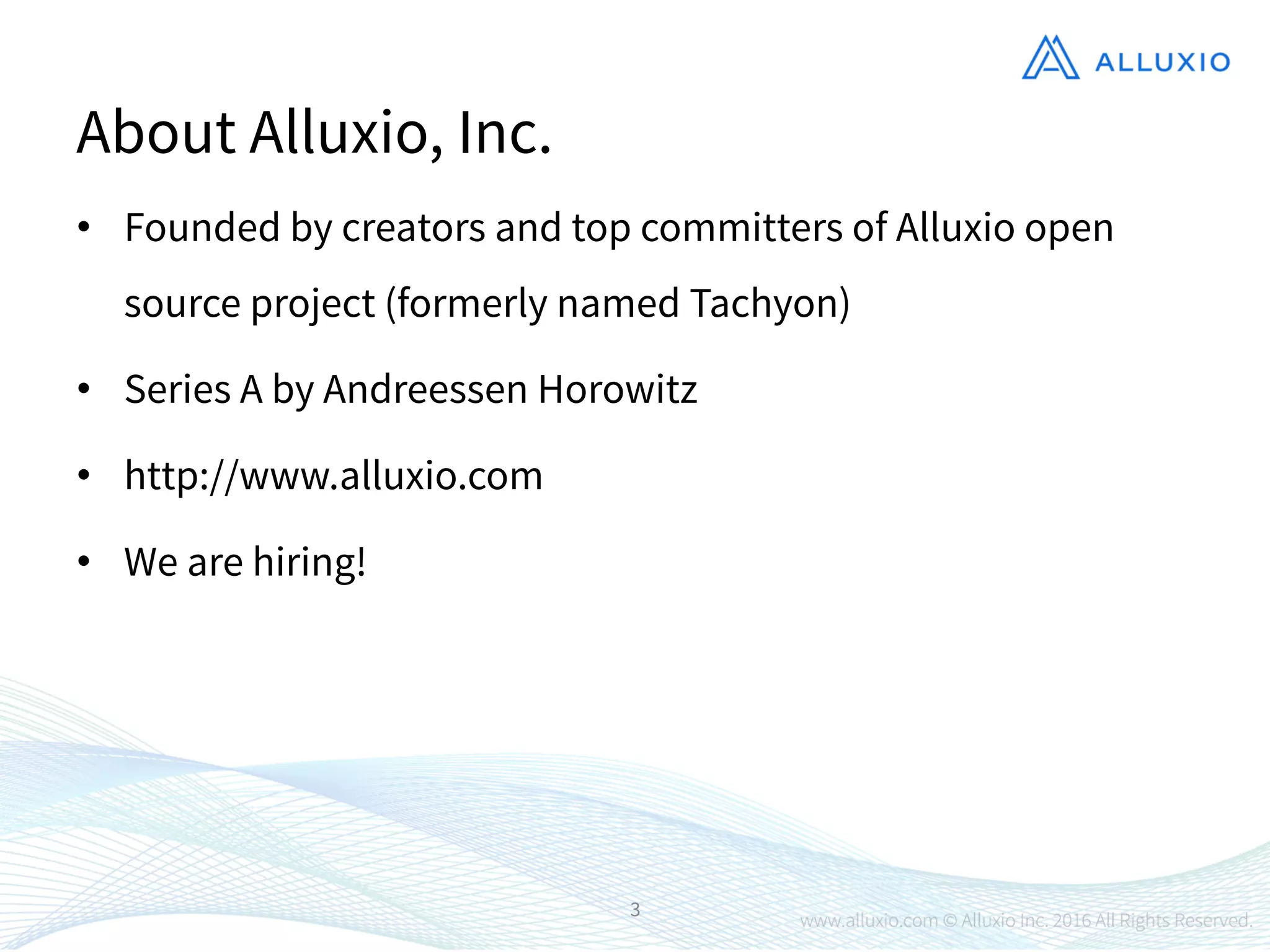

3. About Alluxio, Inc.
• Founded by creators and top committers of Alluxio open
source project (formerly named Tachyon)
• Series A by Andreessen Horowitz
• http://www.alluxio.com
• We are hiring!
3

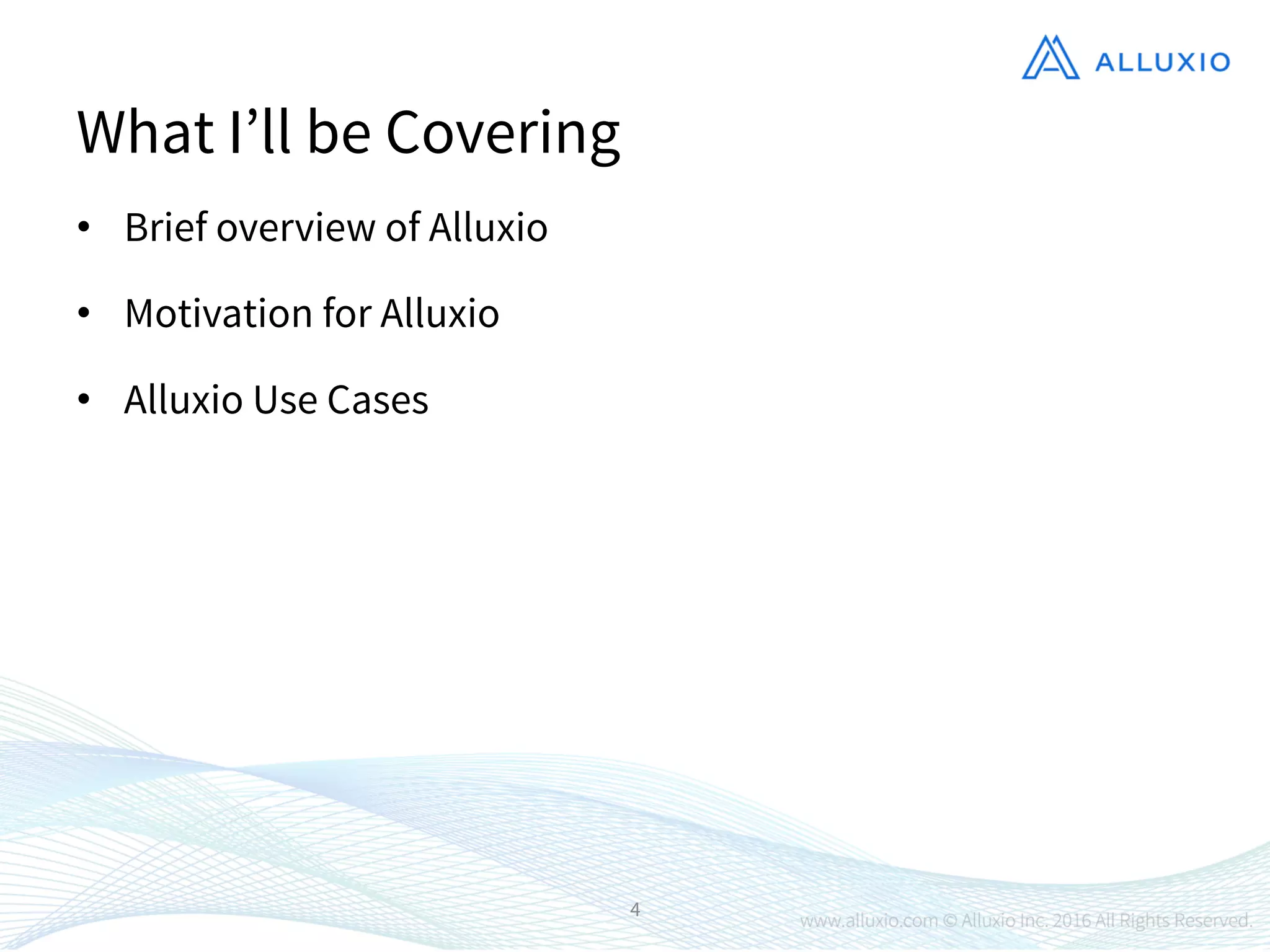

4. What I’ll be Covering
• Brief overview of Alluxio
• Motivation for Alluxio
• Alluxio Use Cases
4

5. 5
What Is Alluxio?

6. 6
Alluxio
Open Source
Memory Speed
Virtual
Distributed Storage System

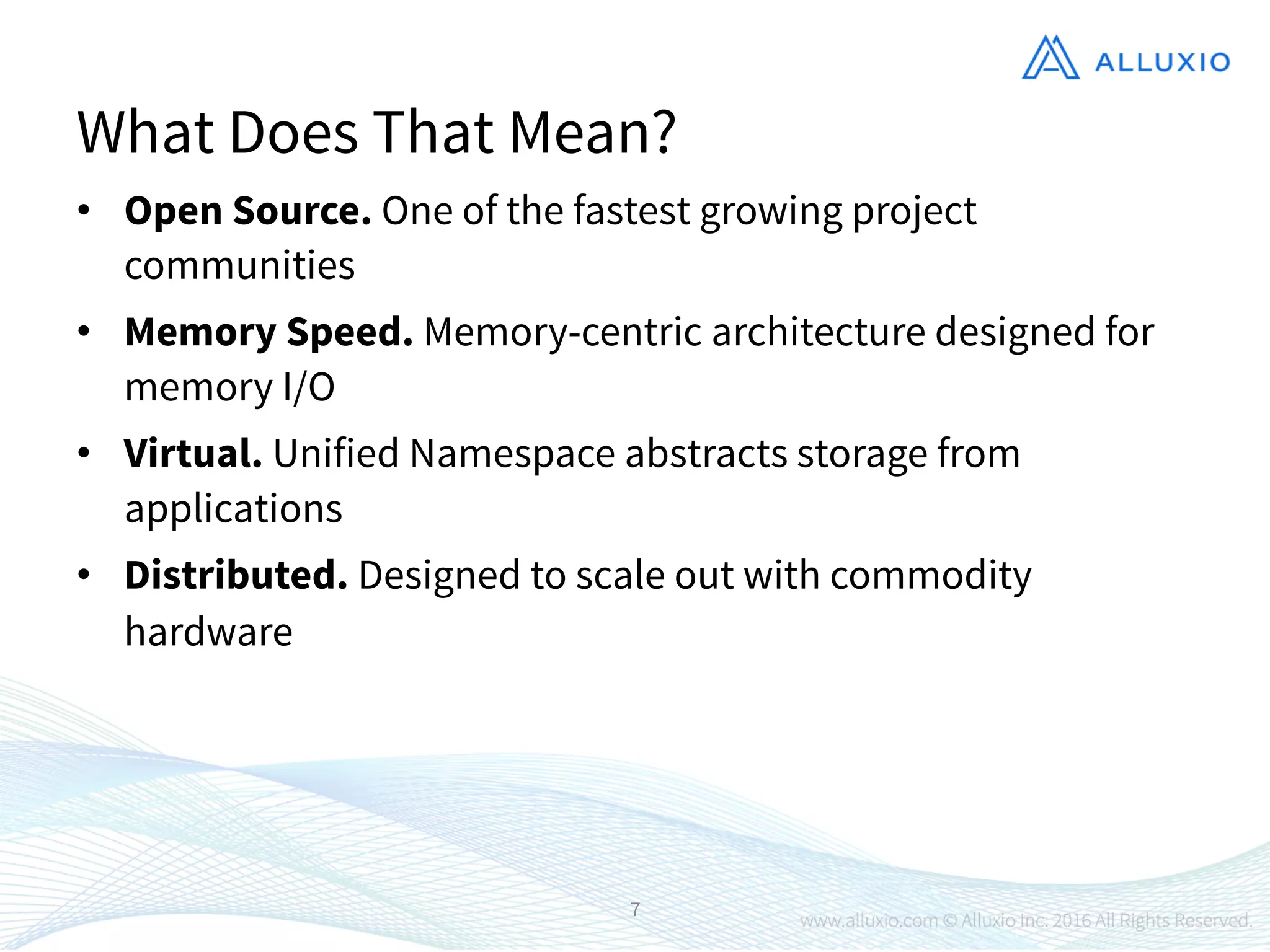

7. • Open Source. One of the fastest growing project
communities
• Memory Speed. Memory-centric architecture designed for
memory I/O
• Virtual. Unified Namespace abstracts storage from
applications
• Distributed. Designed to scale out with commodity
hardware
7
What Does That Mean?

8. 8

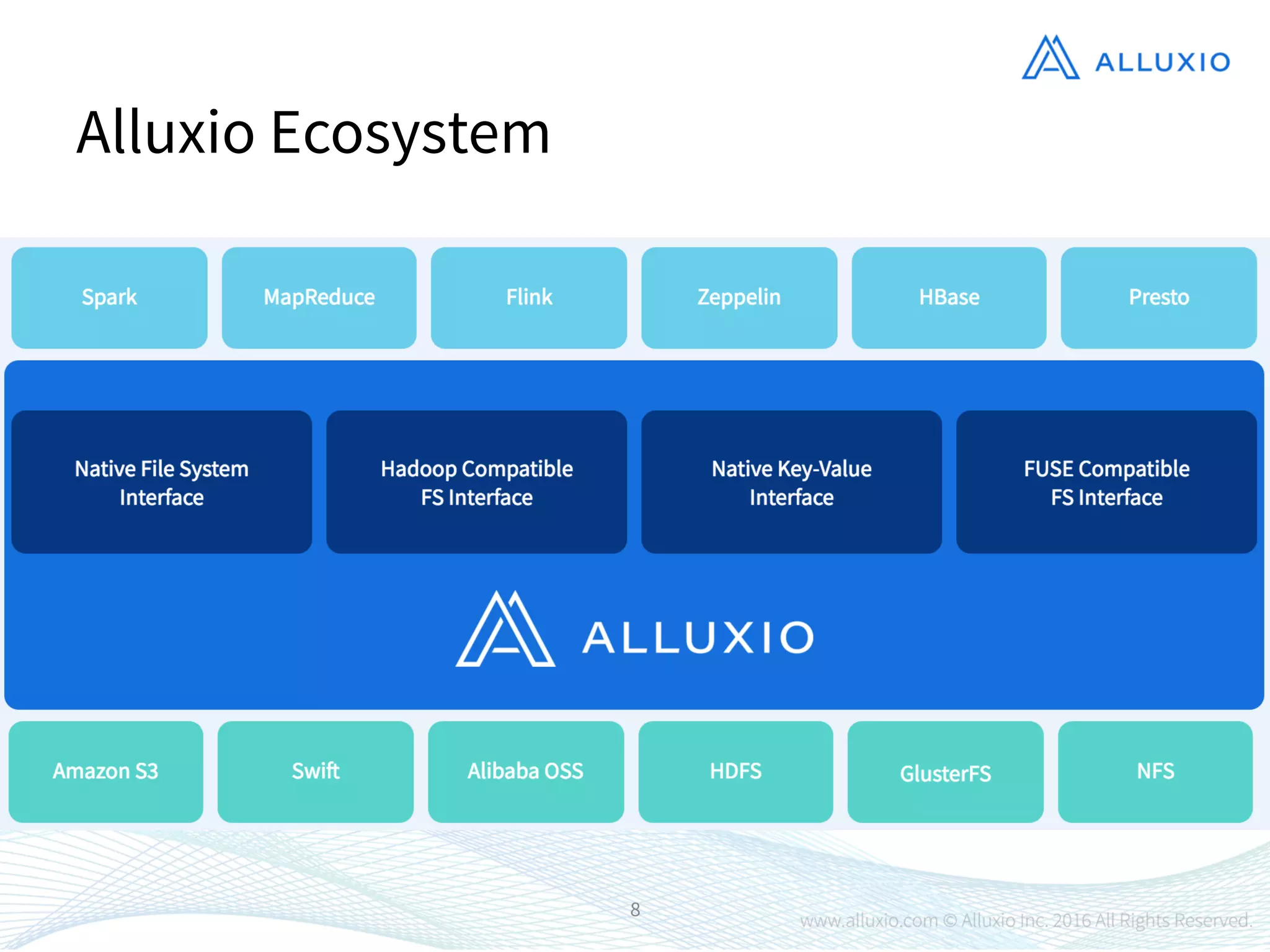

Alluxio Ecosystem

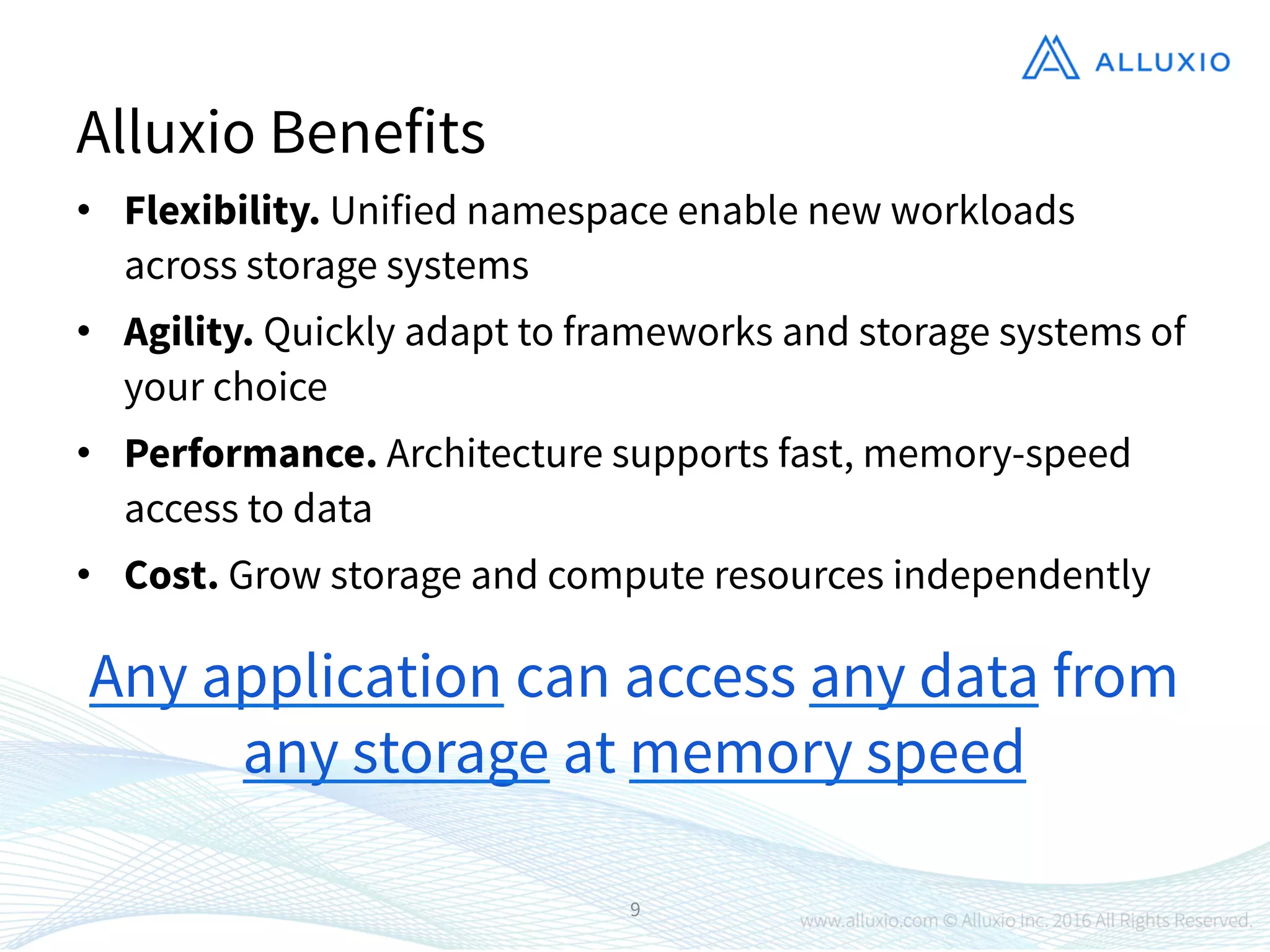

9. • Flexibility. Unified namespace enable new workloads
across storage systems
• Agility. Quickly adapt to frameworks and storage systems of
your choice
• Performance. Architecture supports fast, memory-speed
access to data
• Cost. Grow storage and compute resources independently
9
Alluxio Benefits
Any application can access any data from
any storage at memory speed

10. 10
Alluxio is Open Source

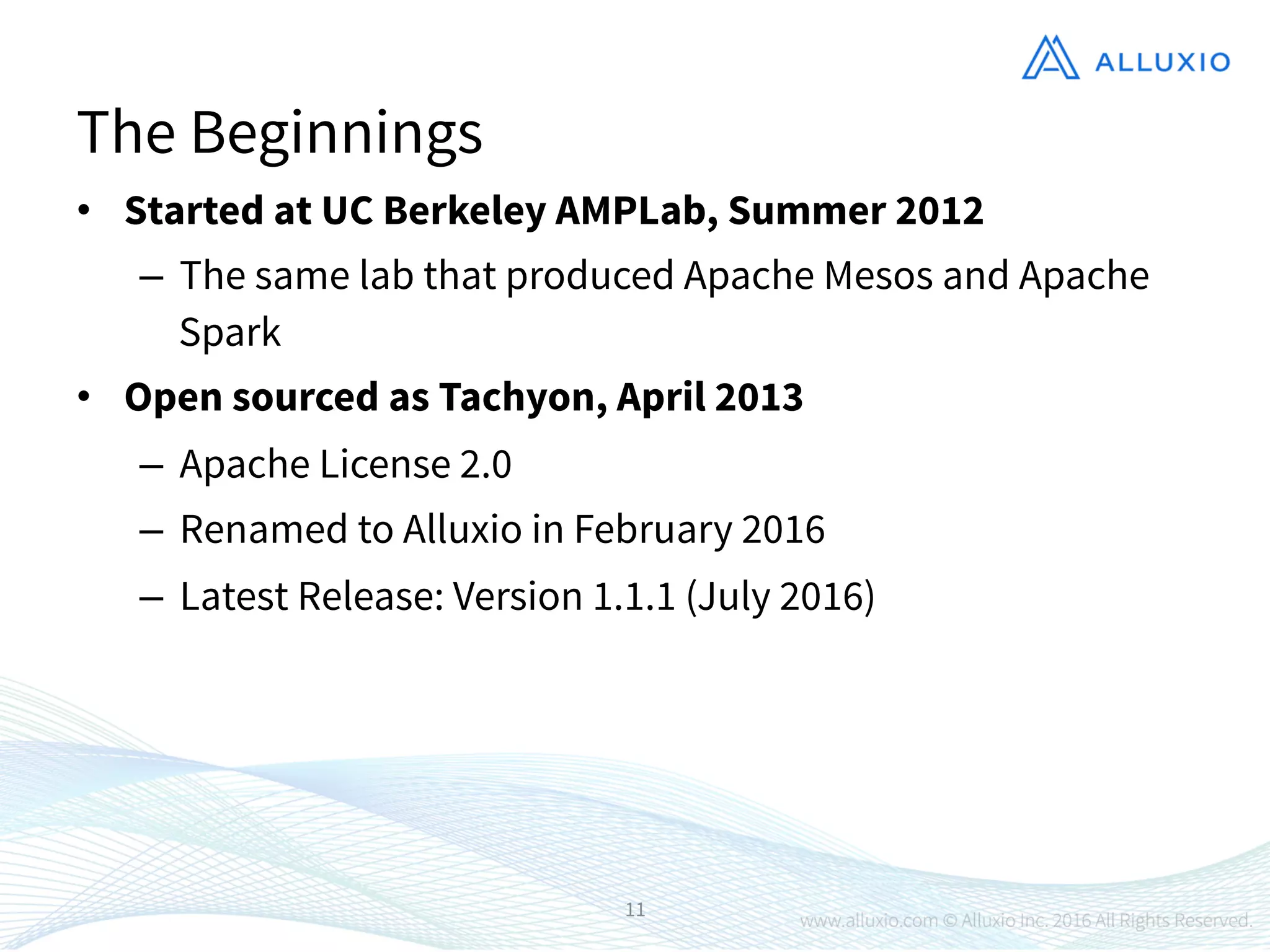

11. • Started at UC Berkeley AMPLab, Summer 2012
– The same lab that produced Apache Mesos and Apache
Spark
• Open sourced as Tachyon, April 2013
– Apache License 2.0
– Renamed to Alluxio in February 2016
– Latest Release: Version 1.1.1 (July 2016)
11
The Beginnings

12. • Over 250 Contributors
• 3x growth over the last year
12
Contributor Growth

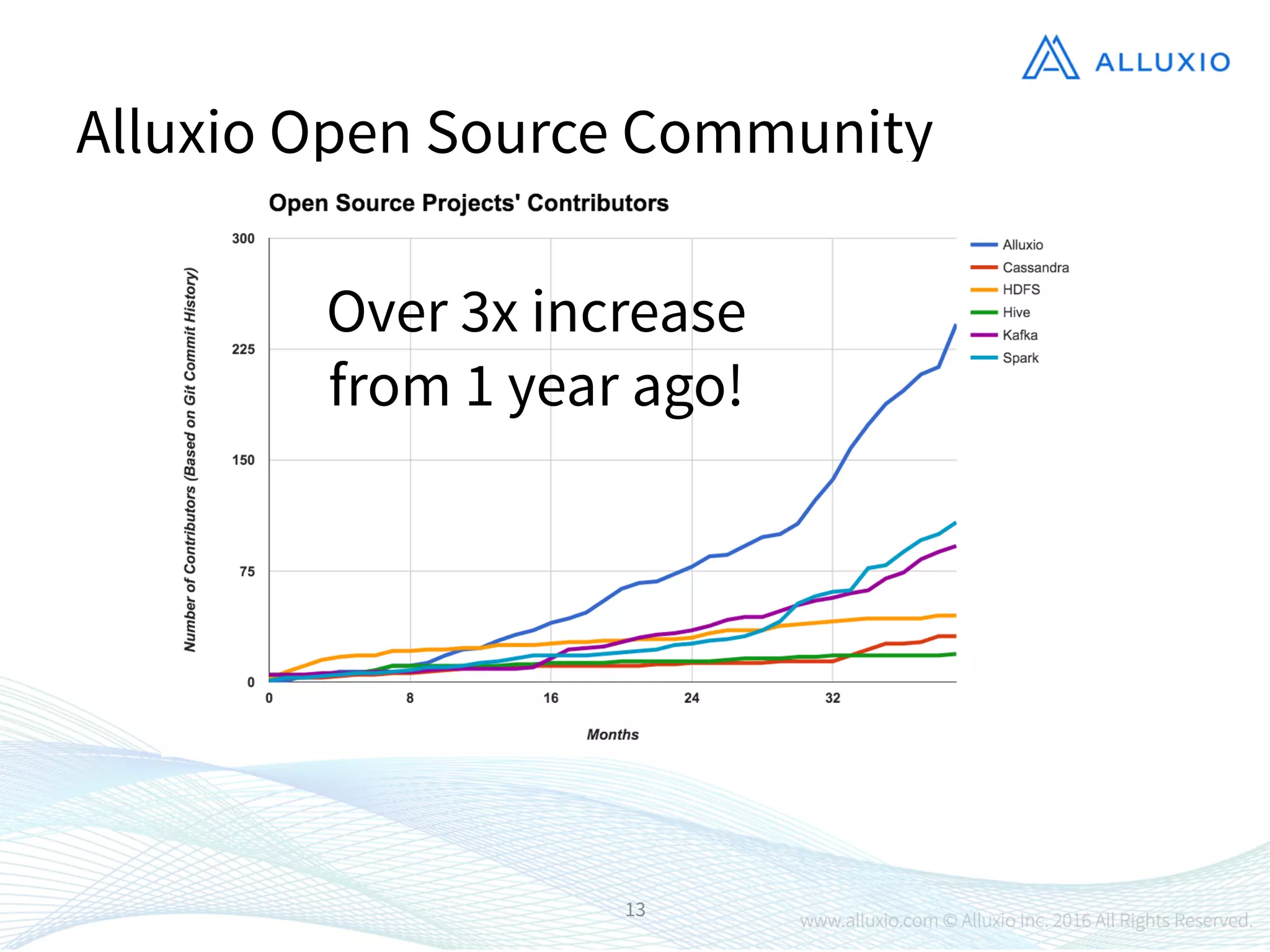

13. Alluxio Open Source Community
13
Over 3x increase
from 1 year ago!

14. Contributors and Users
14

15. 15
Alluxio is Memory Speed

16. 16

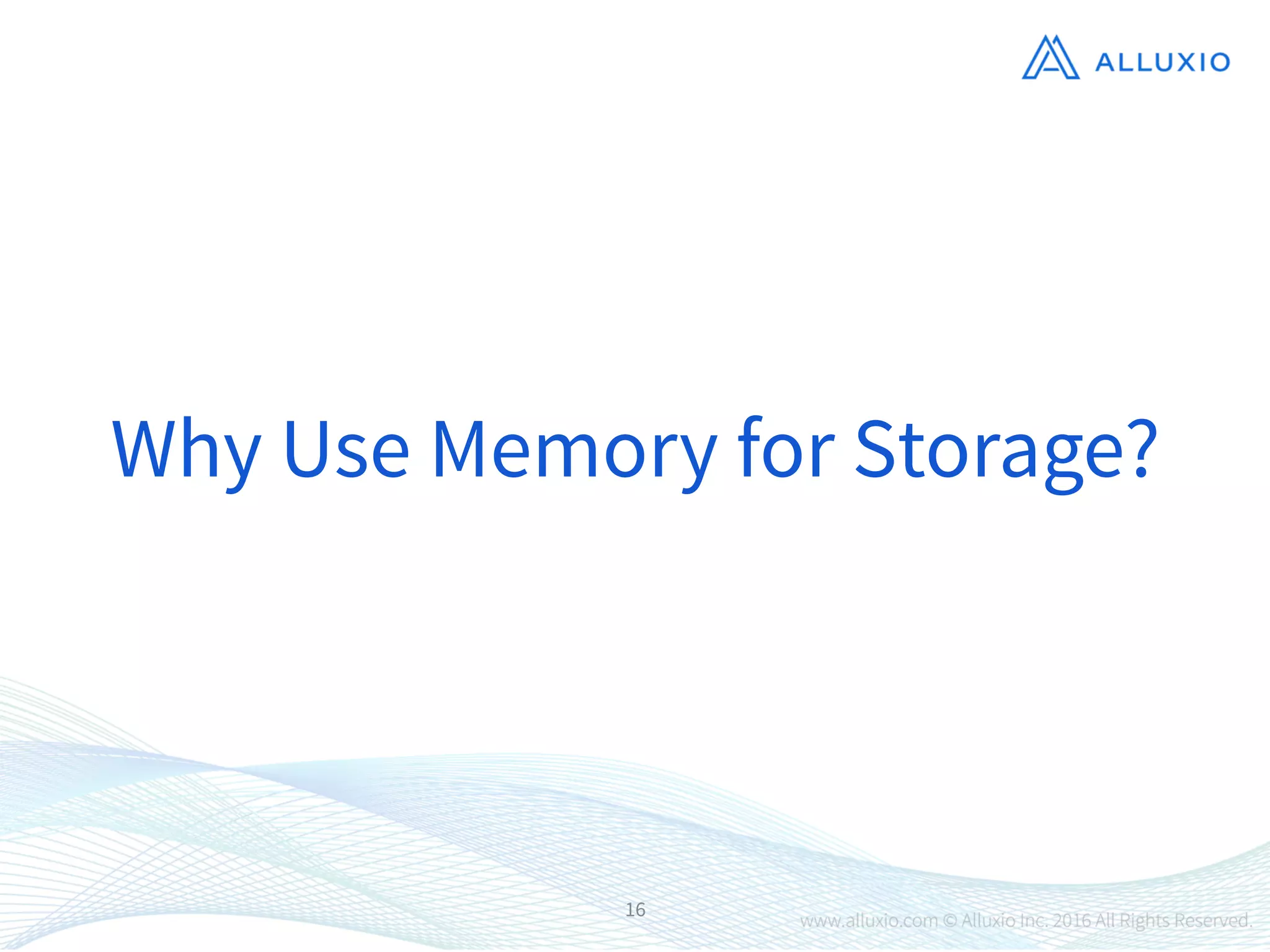

Why Use Memory for Storage?

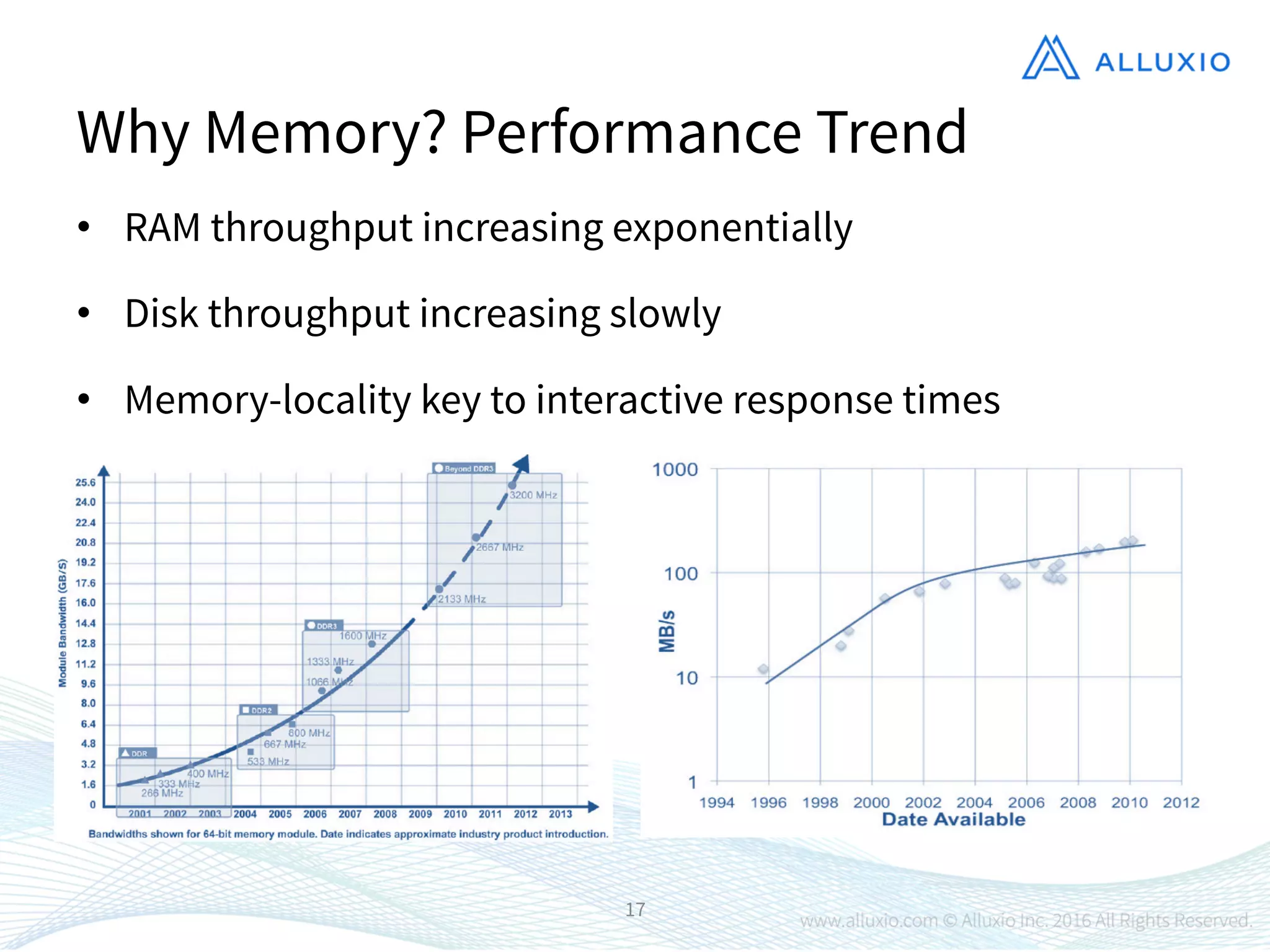

17. • RAM throughput increasing exponentially
• Disk throughput increasing slowly
• Memory-locality key to interactive response times
17
Why Memory? Performance Trend

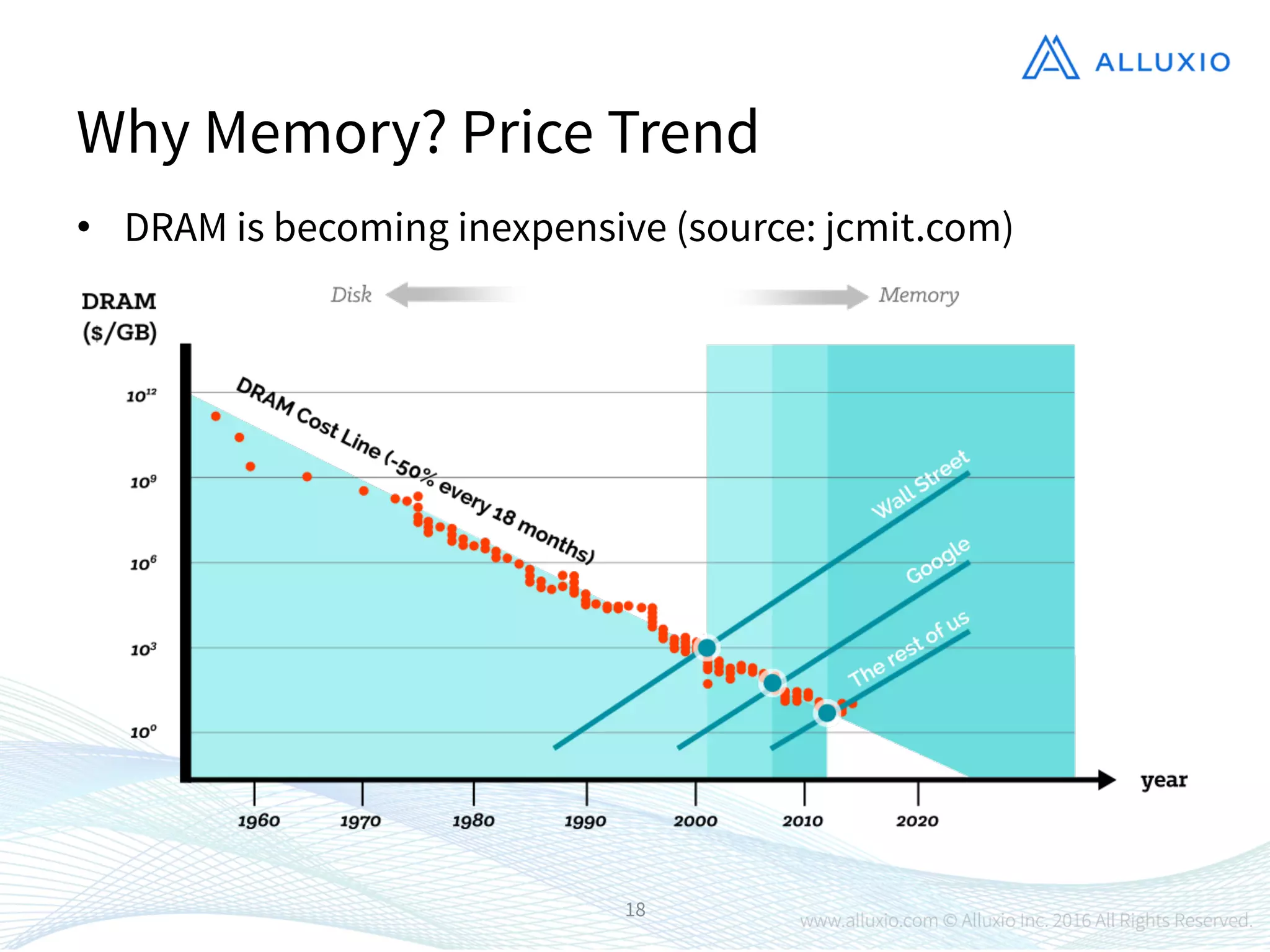

18. • DRAM is becoming inexpensive (source: jcmit.com)
18
Why Memory? Price Trend

19. 19
What if memory capacity is
still not enough?

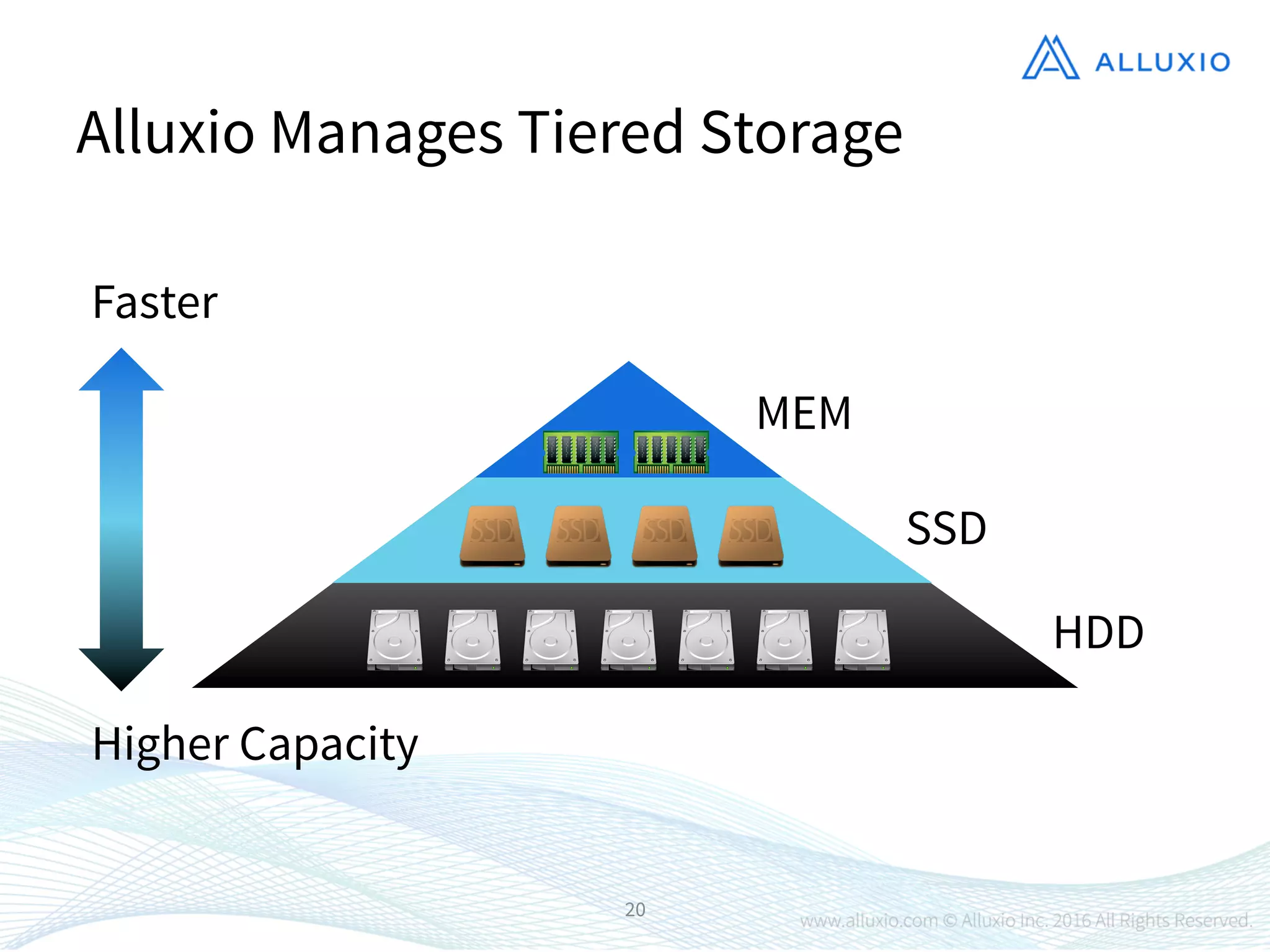

20. Alluxio Manages Tiered Storage
20
MEM
SSD
HDD
Faster
Higher Capacity

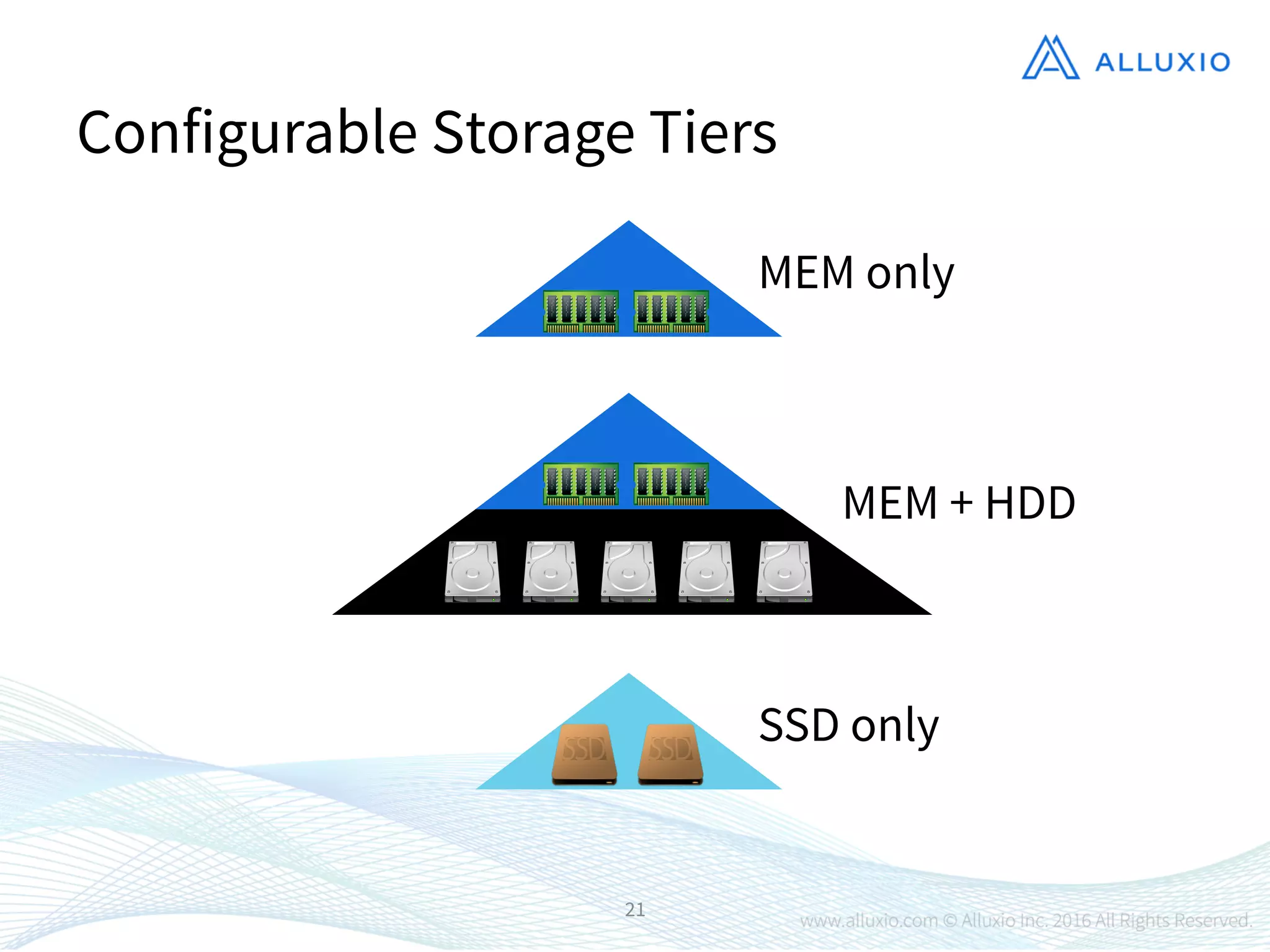

21. Configurable Storage Tiers
21
MEM only
MEM + HDD
SSD only

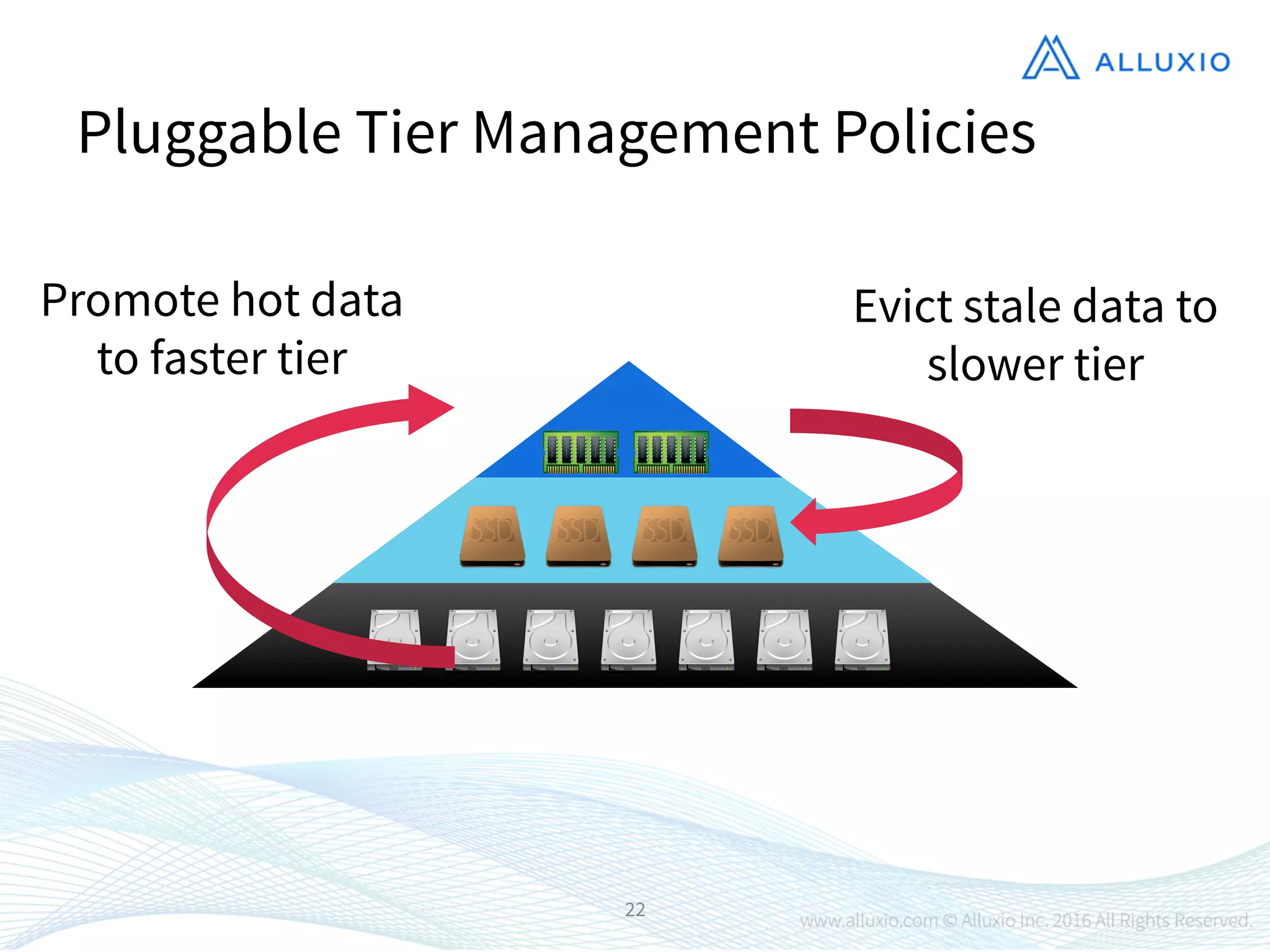

22. Pluggable Tier Management Policies
22
Evict stale data to
slower tier
Promote hot data
to faster tier

23. 23
Alluxio is a
Virtual Distributed Storage
System

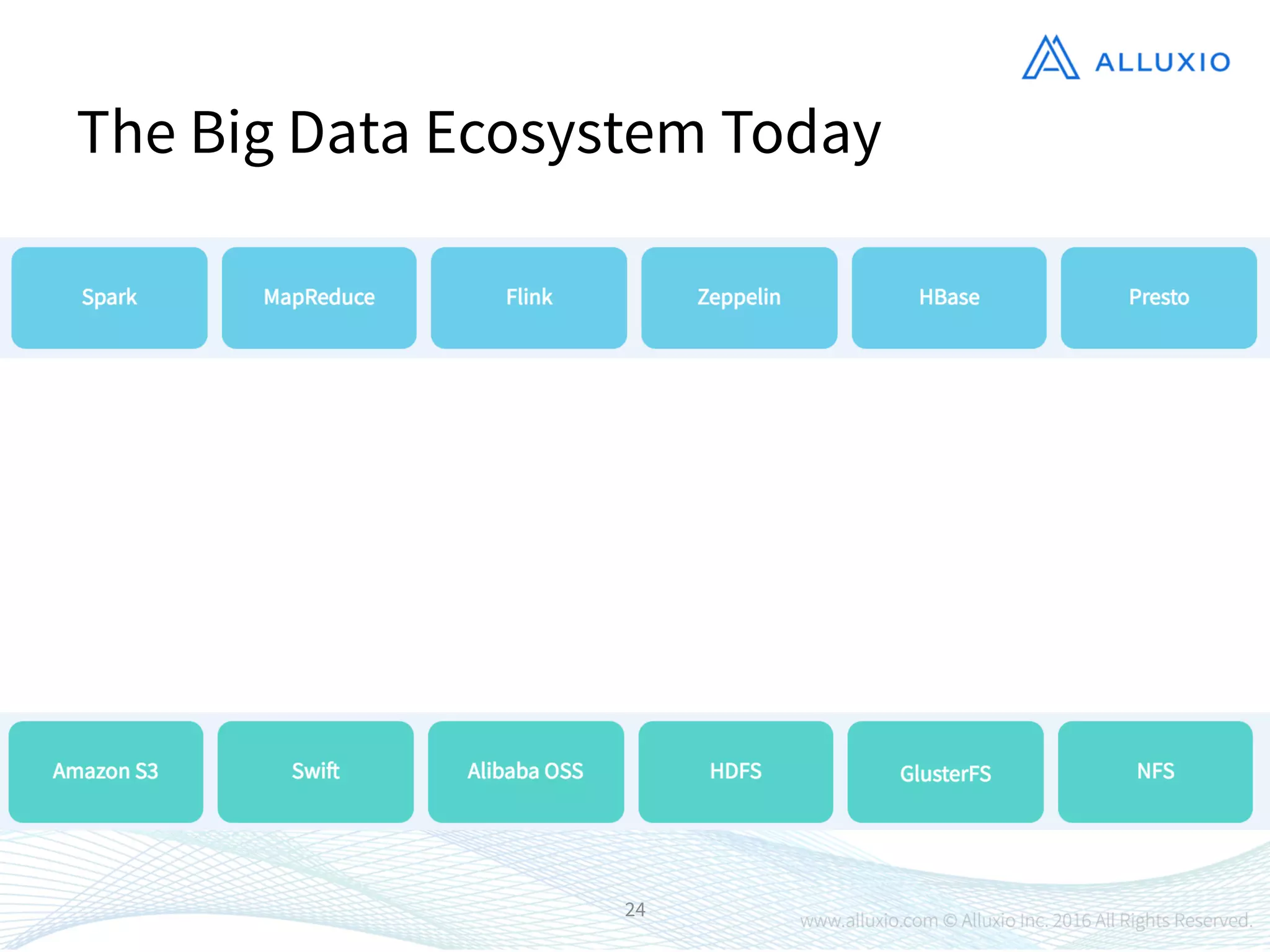

24. 24
The Big Data Ecosystem Today

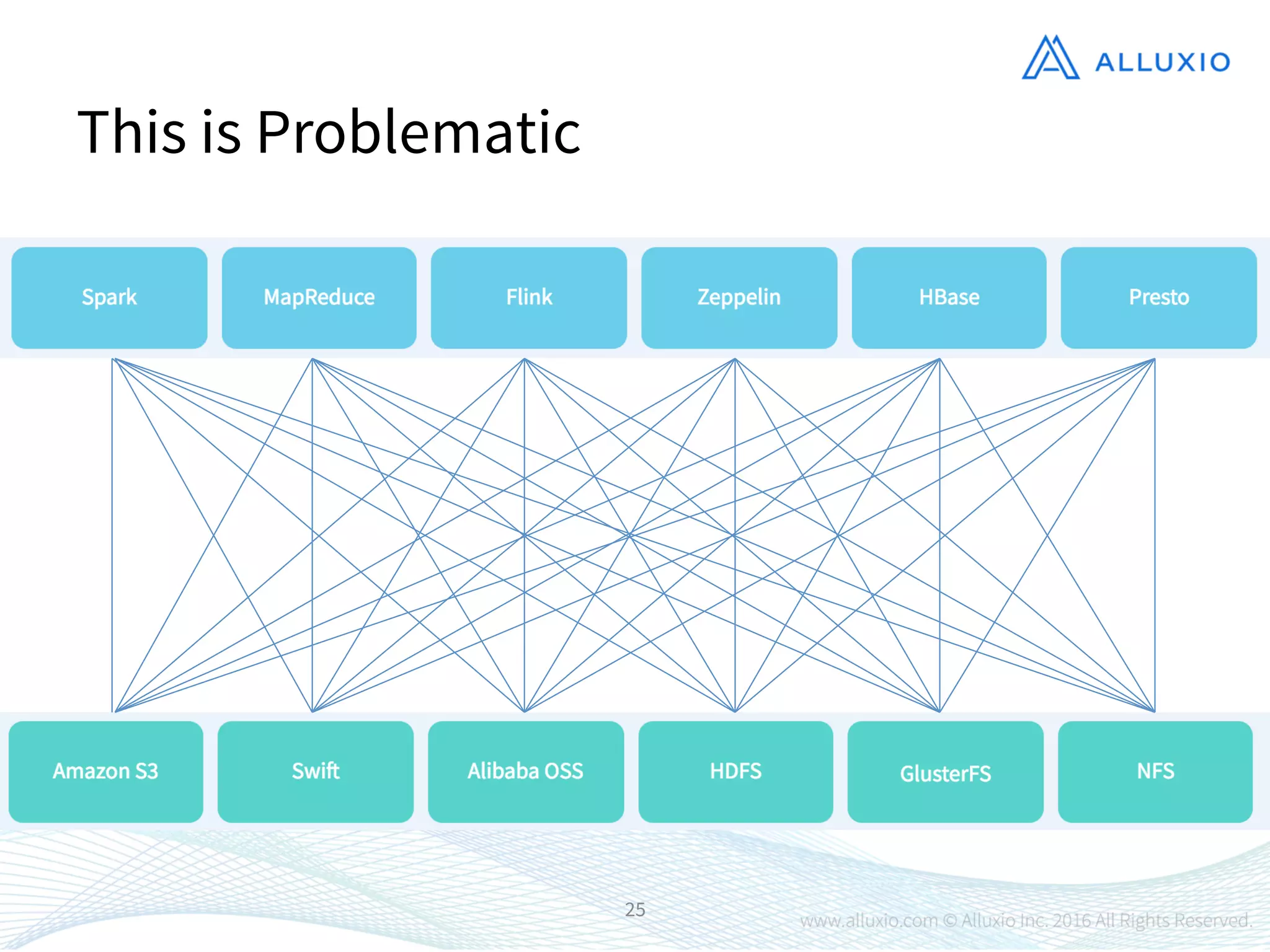

25. 25
This is Problematic

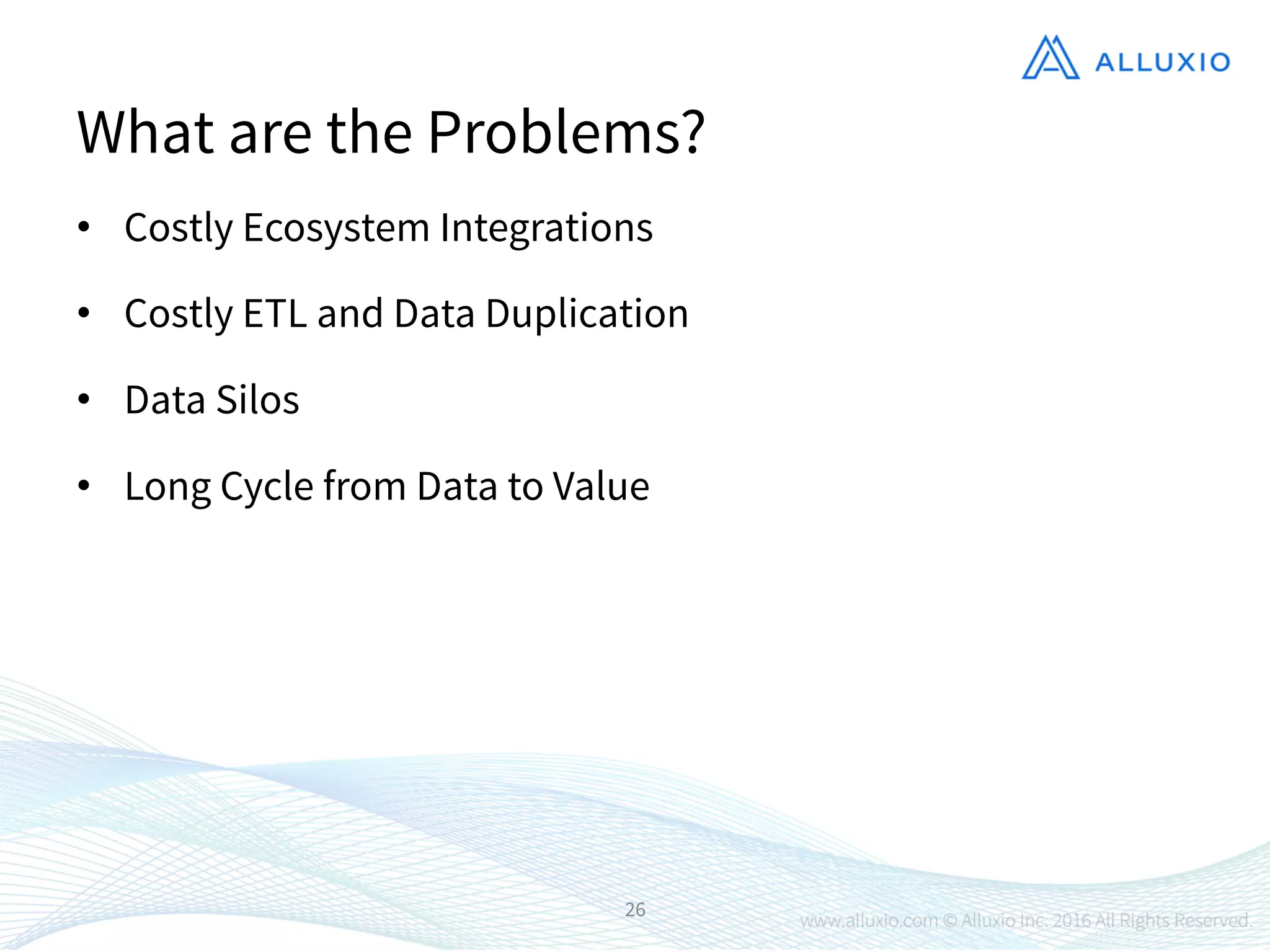

26. • Costly Ecosystem Integrations
• Costly ETL and Data Duplication
• Data Silos
• Long Cycle from Data to Value
26
What are the Problems?

27. 27

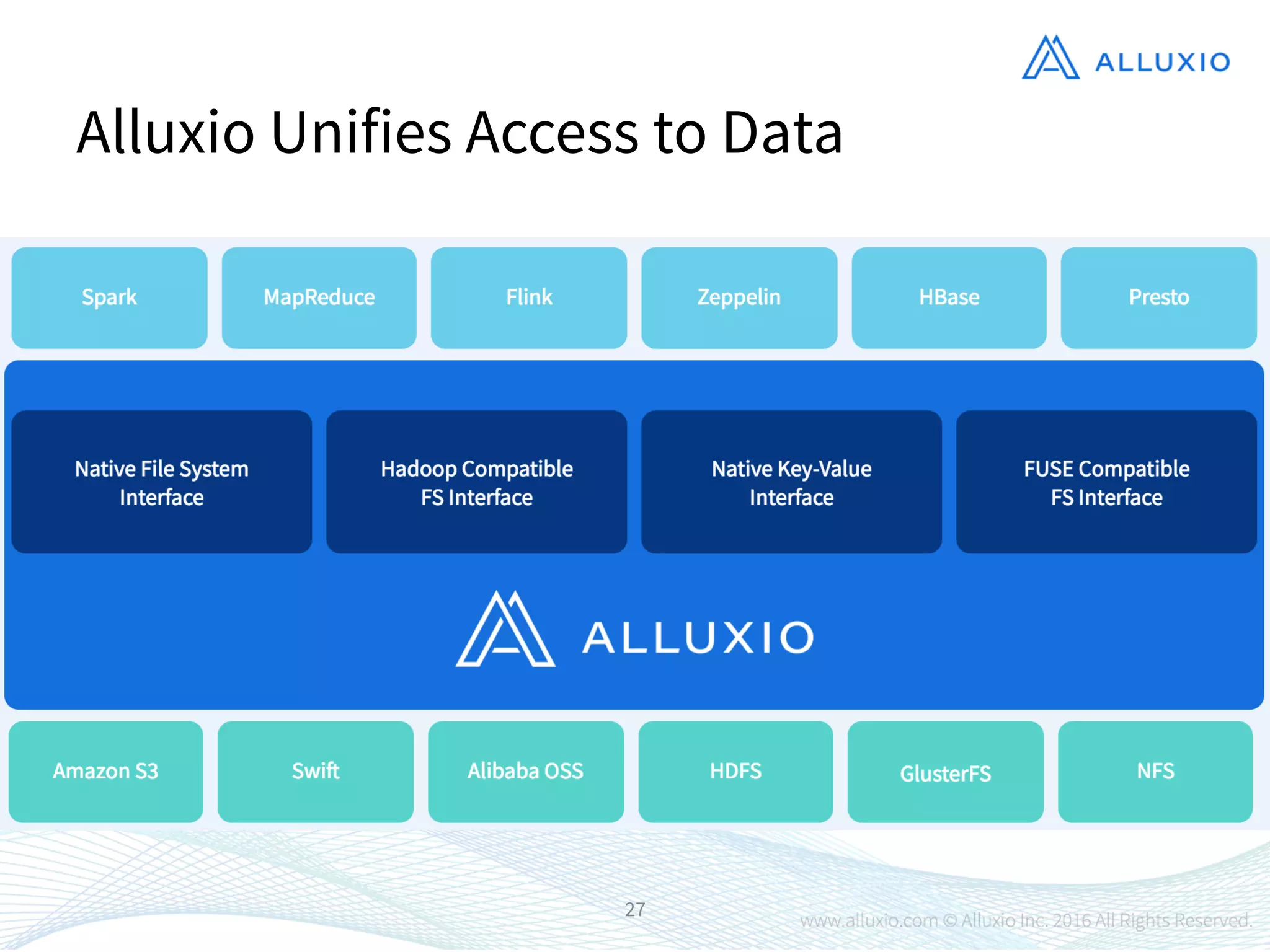

Alluxio Unifies Access to Data

28. 28
How to use Alluxio?

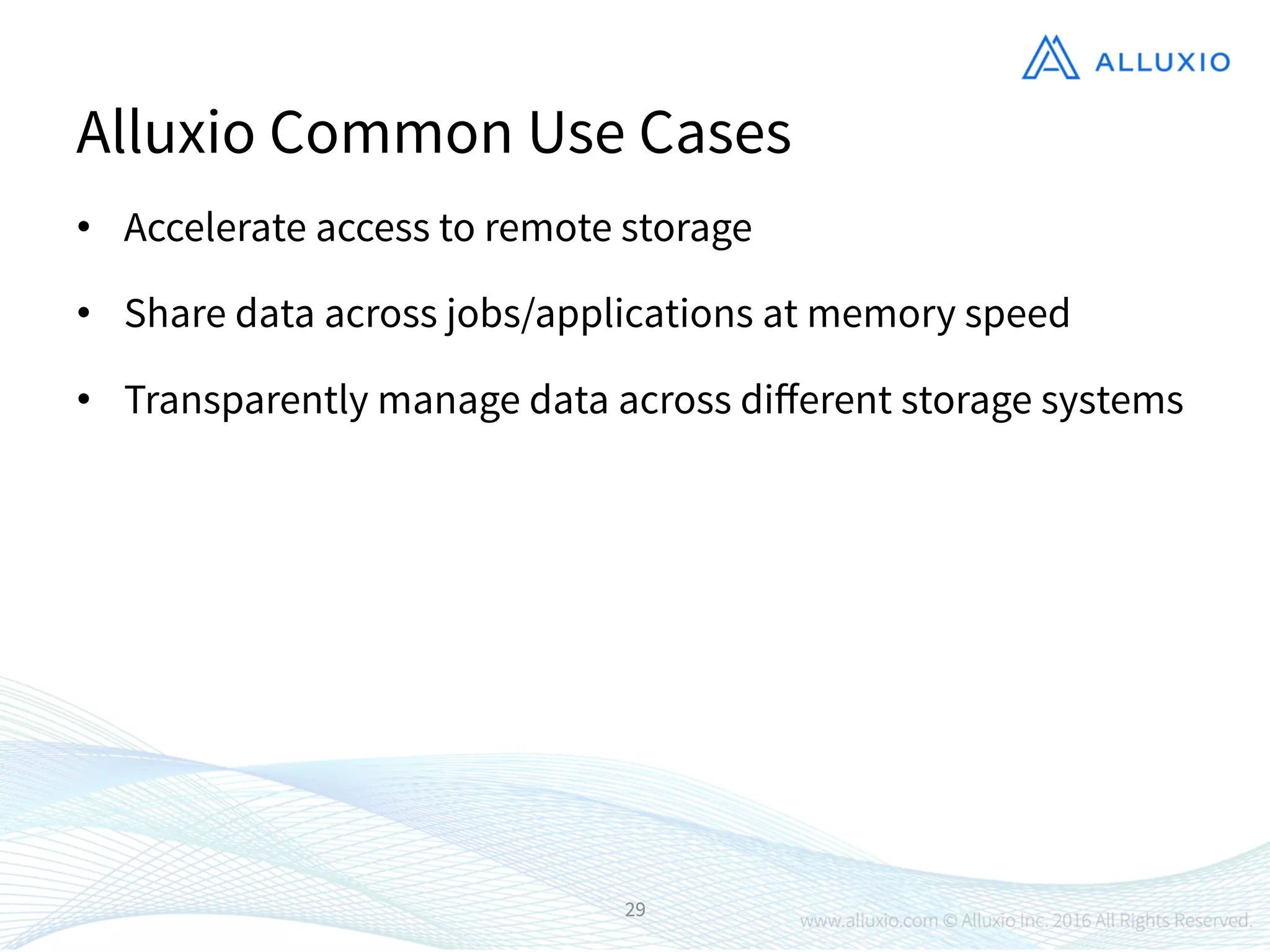

29. • Accelerate access to remote storage
• Share data across jobs/applications at memory speed
• Transparently manage data across different storage systems
29
Alluxio Common Use Cases

30. 30
Accelerating Access to
Remote Storage

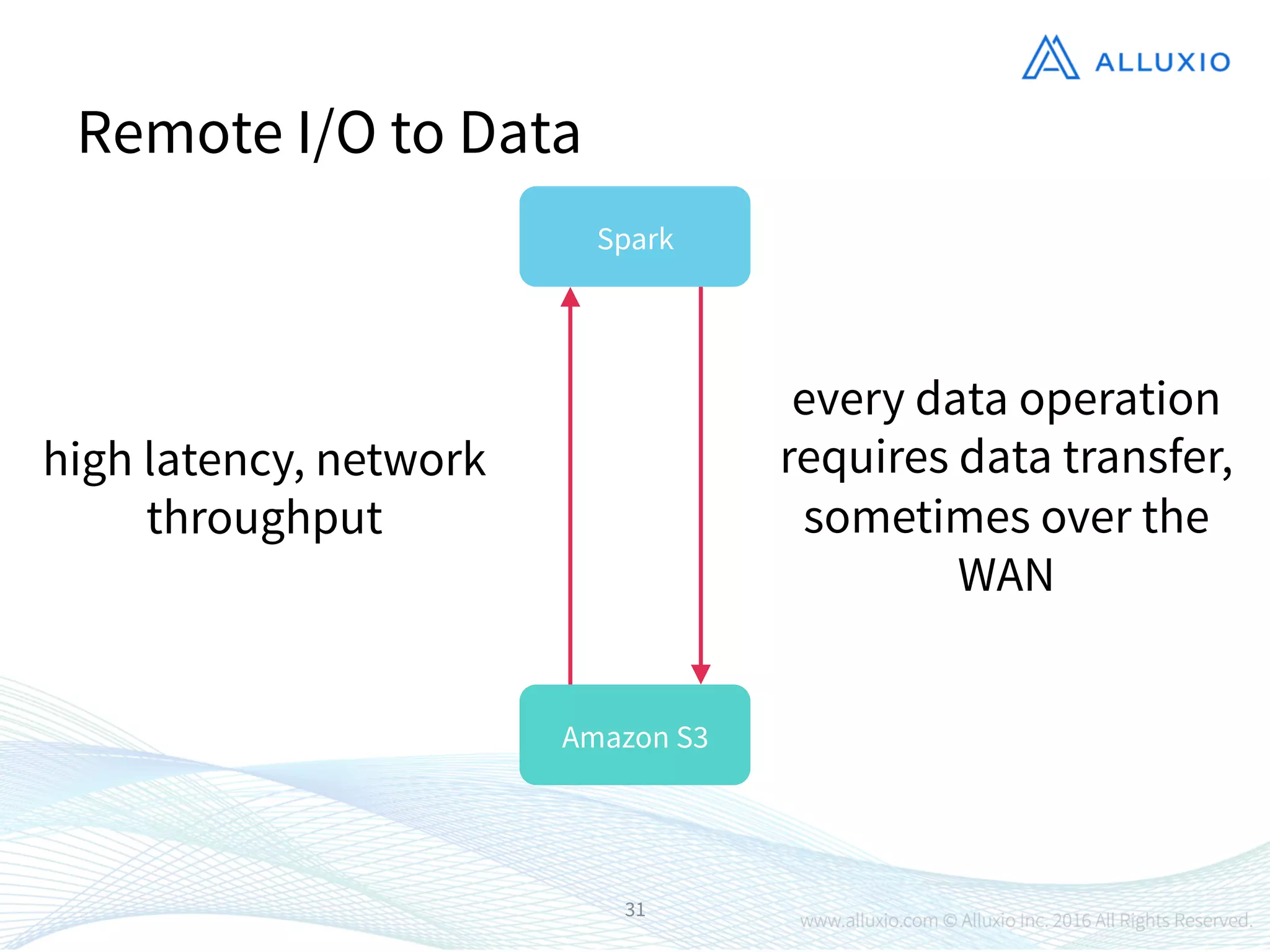

31. 31
Remote I/O to Data
Spark
Amazon S3
every data operation
requires data transfer,
sometimes over the
WAN
high latency, network
throughput

32. 32

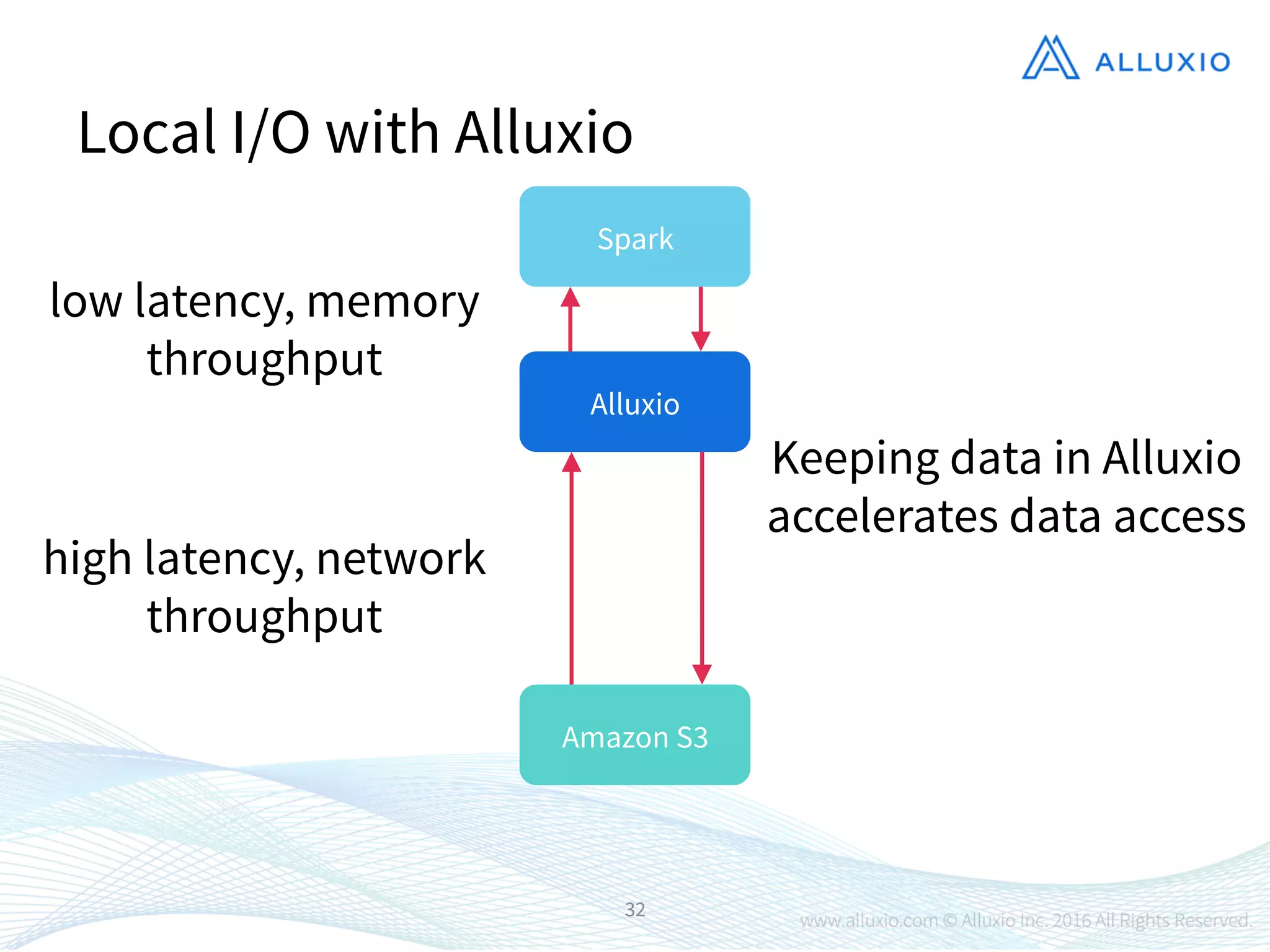

Local I/O with Alluxio
Spark
Amazon S3
Alluxio
low latency, memory
throughput
high latency, network
throughput
Keeping data in Alluxio
accelerates data access

33. 33
Sharing Data at
Memory Speed

34. 34

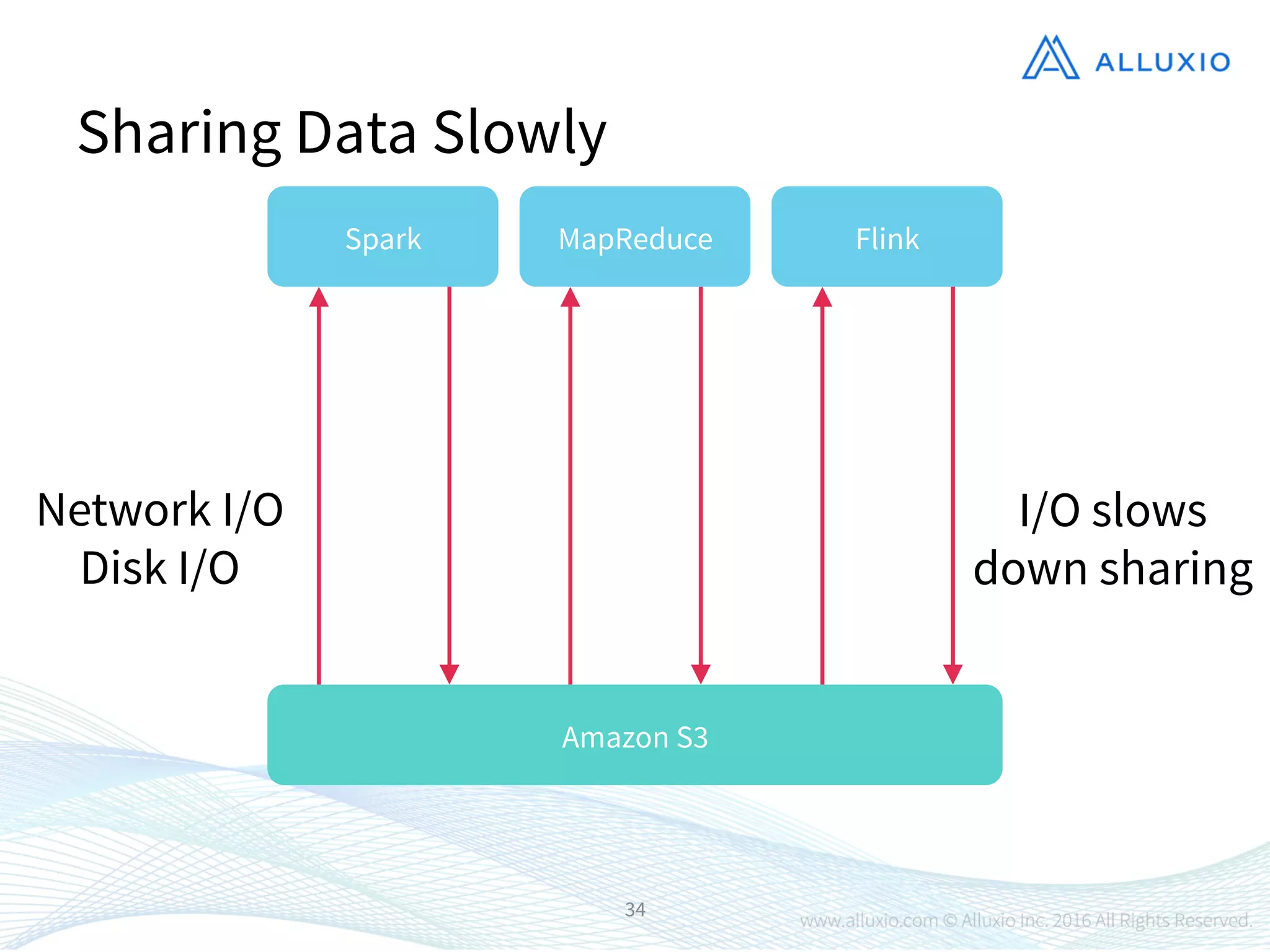

Sharing Data Slowly
Spark
Amazon S3
MapReduce
Flink
Network I/O
Disk I/O
I/O slows
down sharing

35. 35

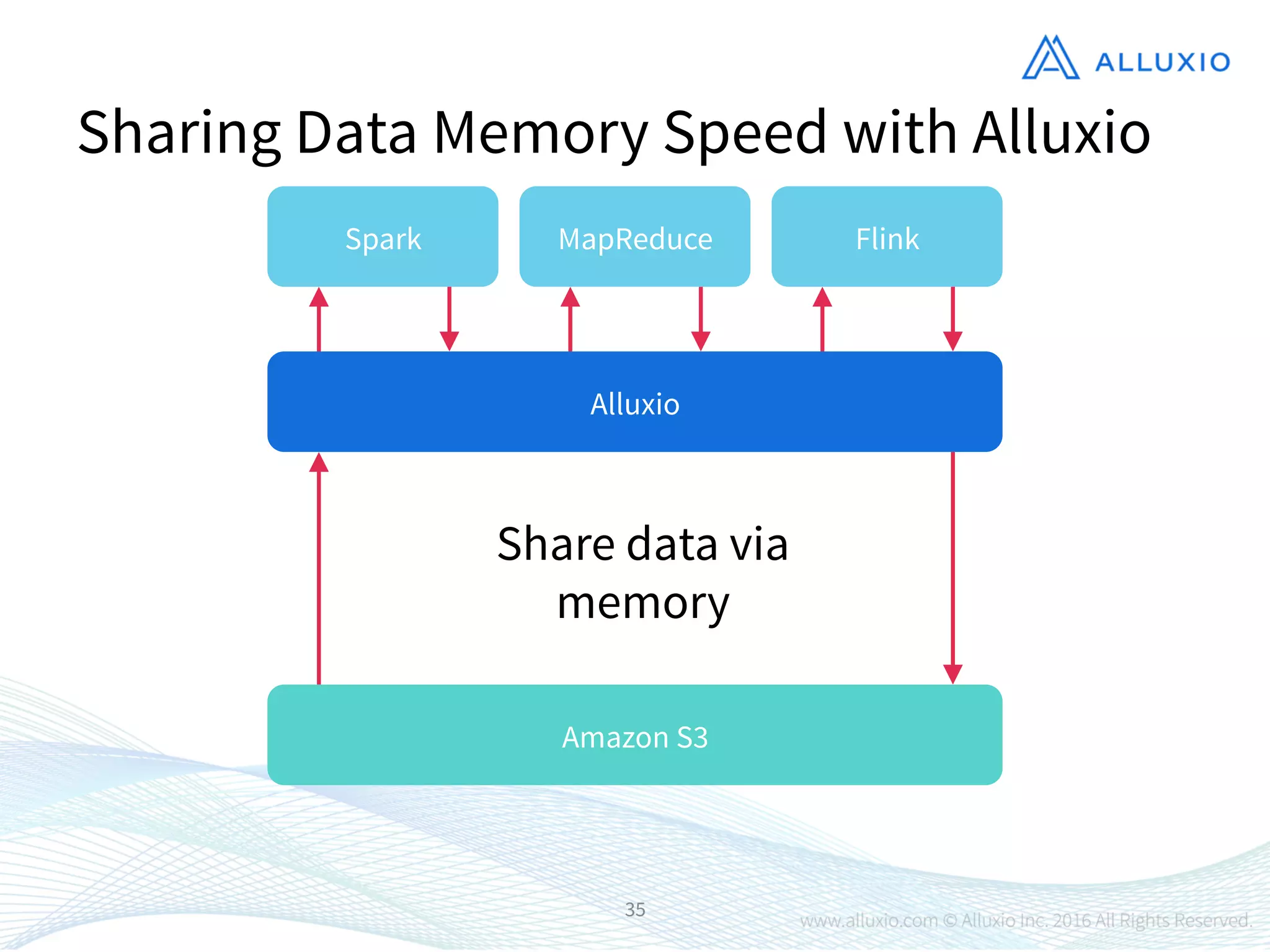

Sharing Data Memory Speed with Alluxio
Spark
Amazon S3
MapReduce
Flink
Alluxio
Share data via
memory

36. 36
Managing Data Across
Different Storage Systems

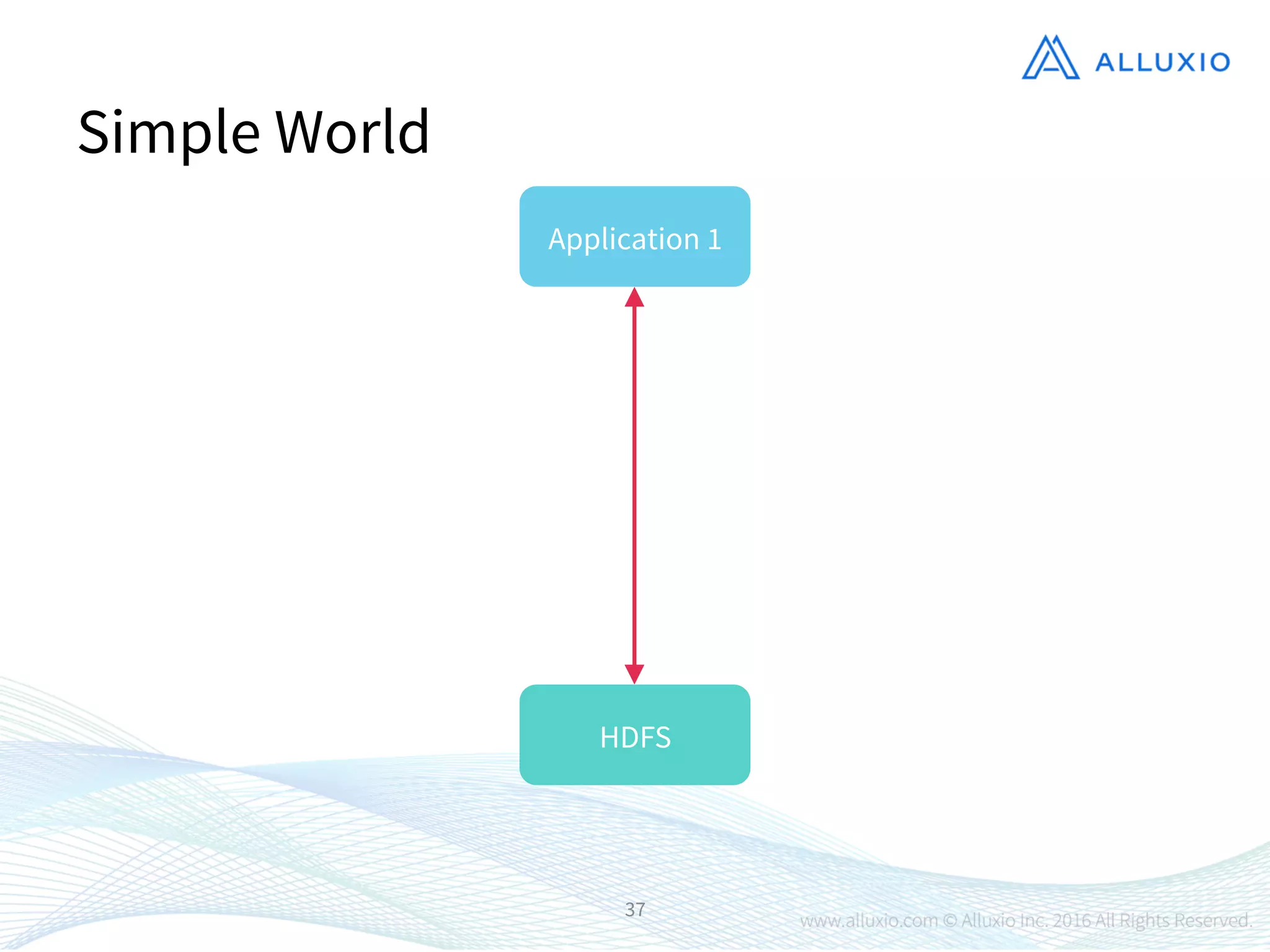

37. 37
Simple World
Application 1
HDFS

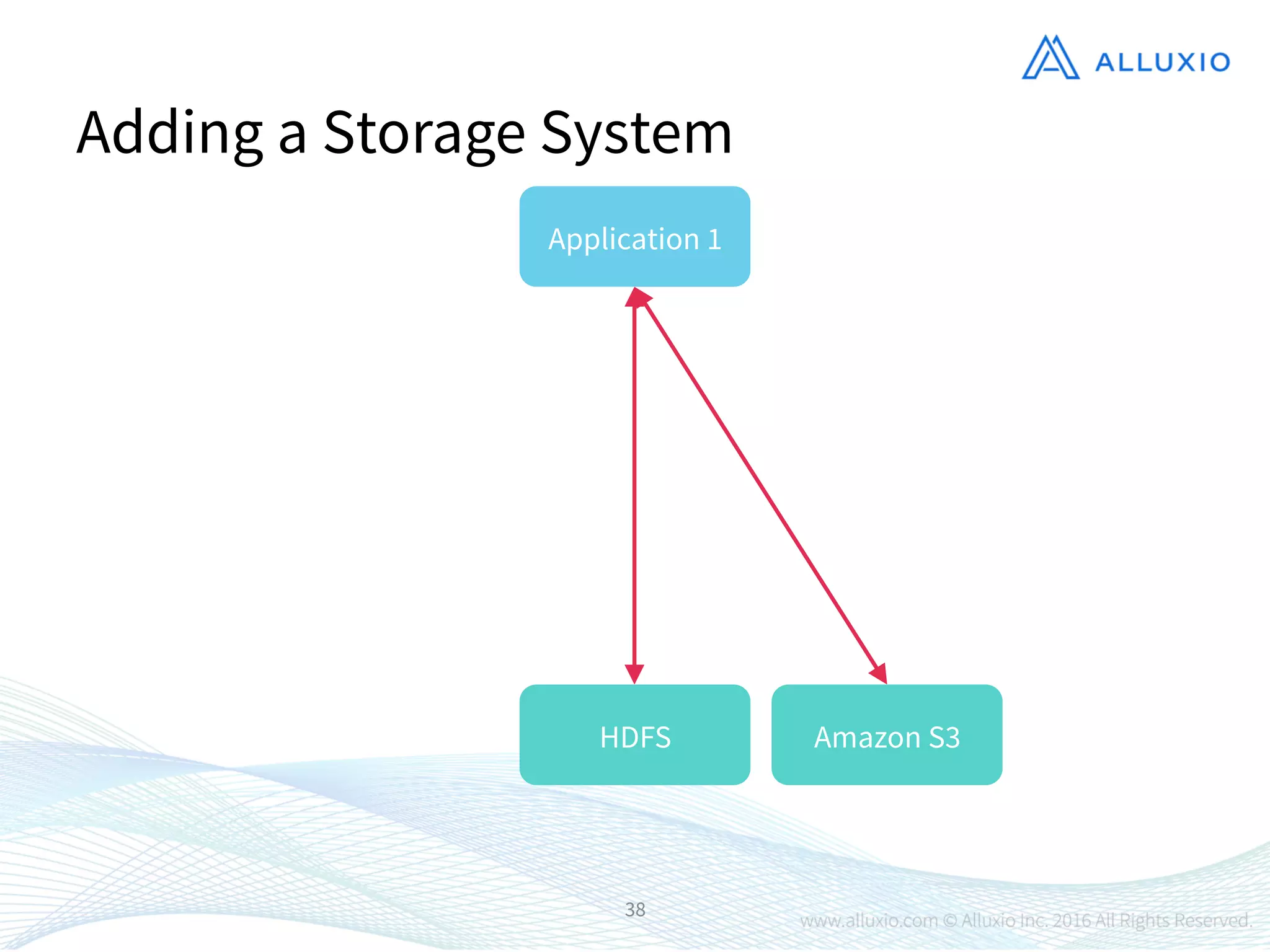

38. 38
Adding a Storage System
Application 1
HDFS
Amazon S3

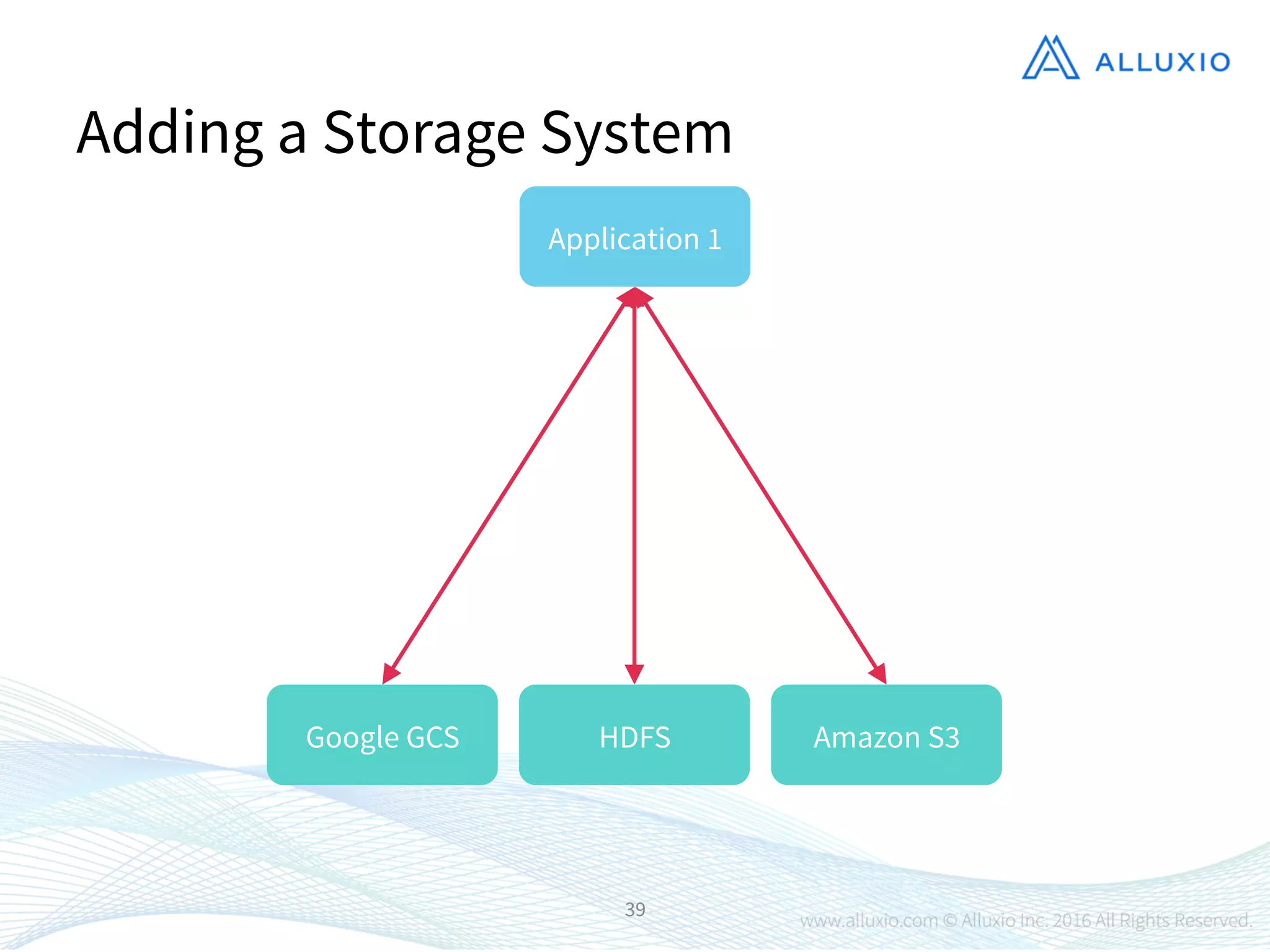

39. 39
Adding a Storage System
Application 1
Google GCS
HDFS
Amazon S3

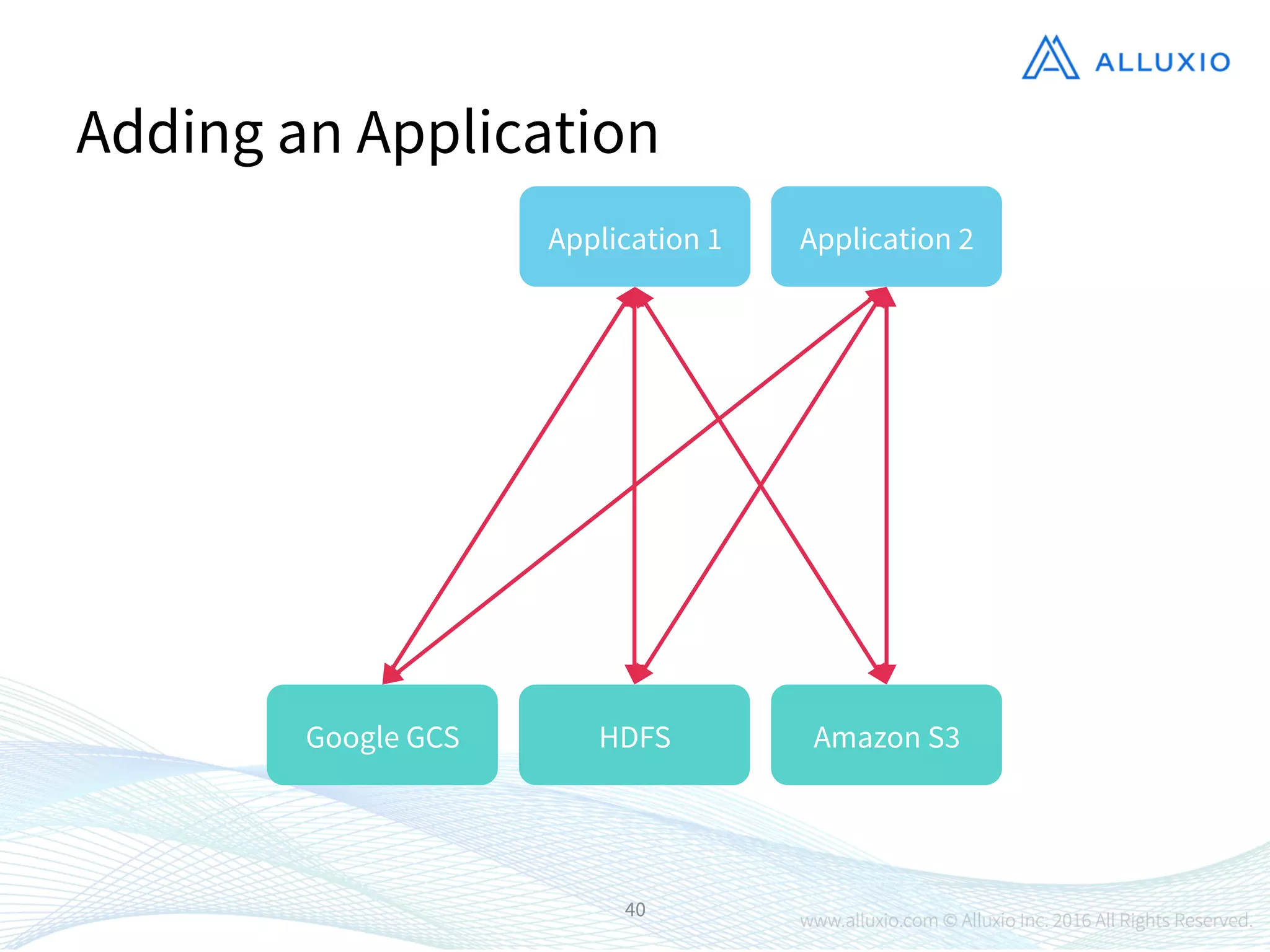

40. 40
Adding an Application
Application 1
Google GCS
HDFS
Amazon S3
Application 2

41. 41

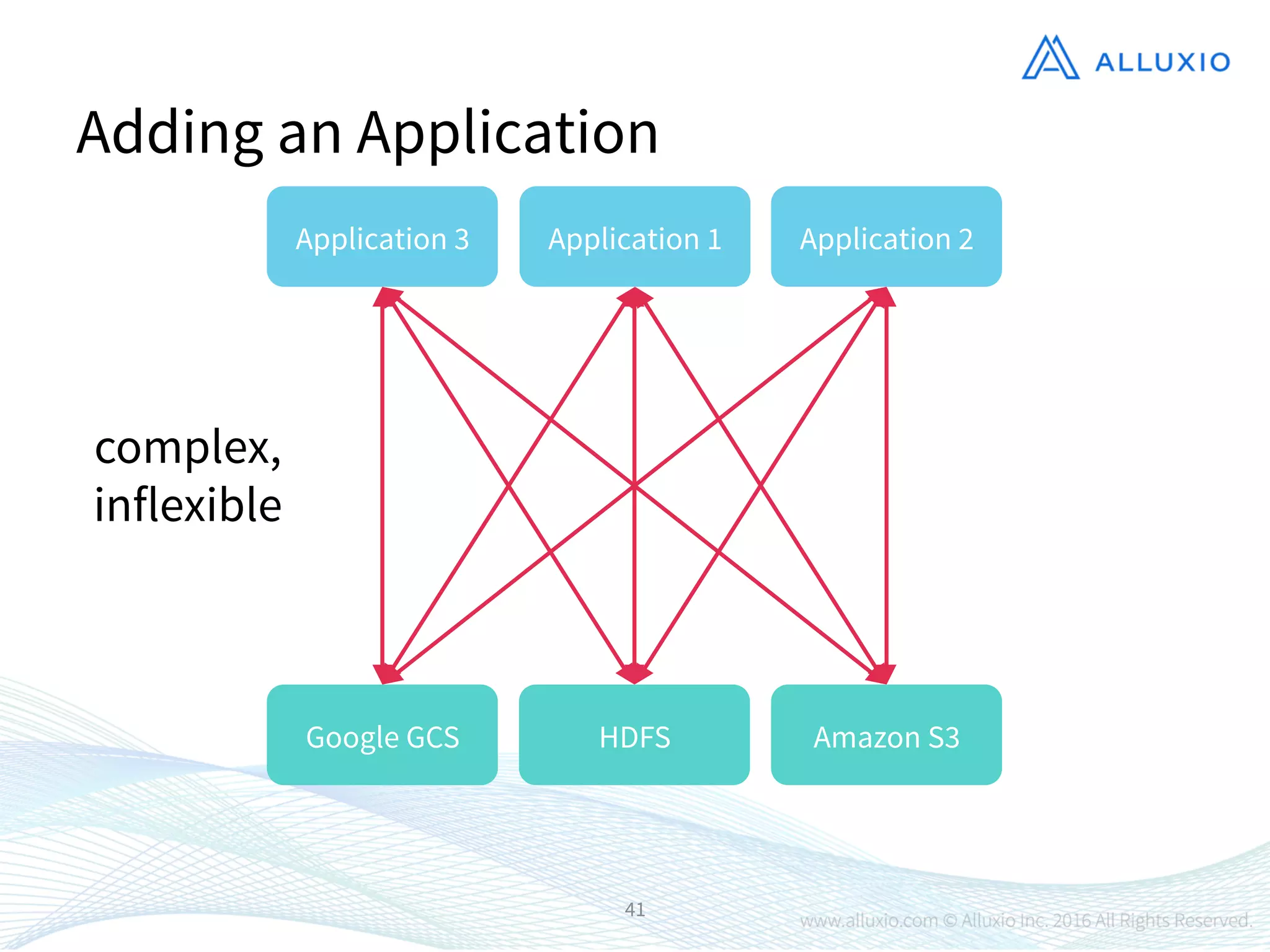

Adding an Application
Application 1
Google GCS
HDFS
Amazon S3
Application 2
Application 3
complex,
inflexible

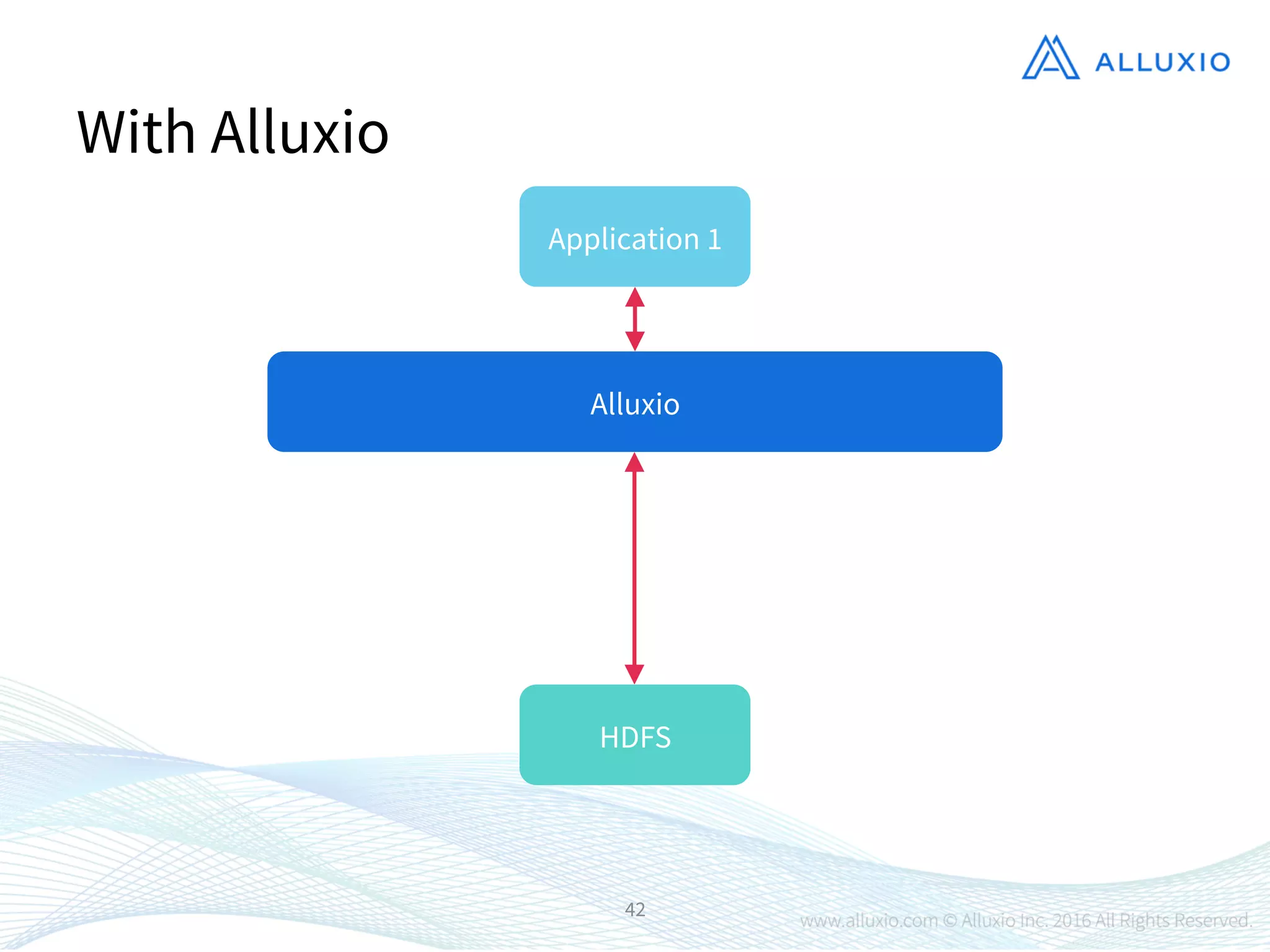

42. 42
With Alluxio
Application 1
HDFS
Alluxio

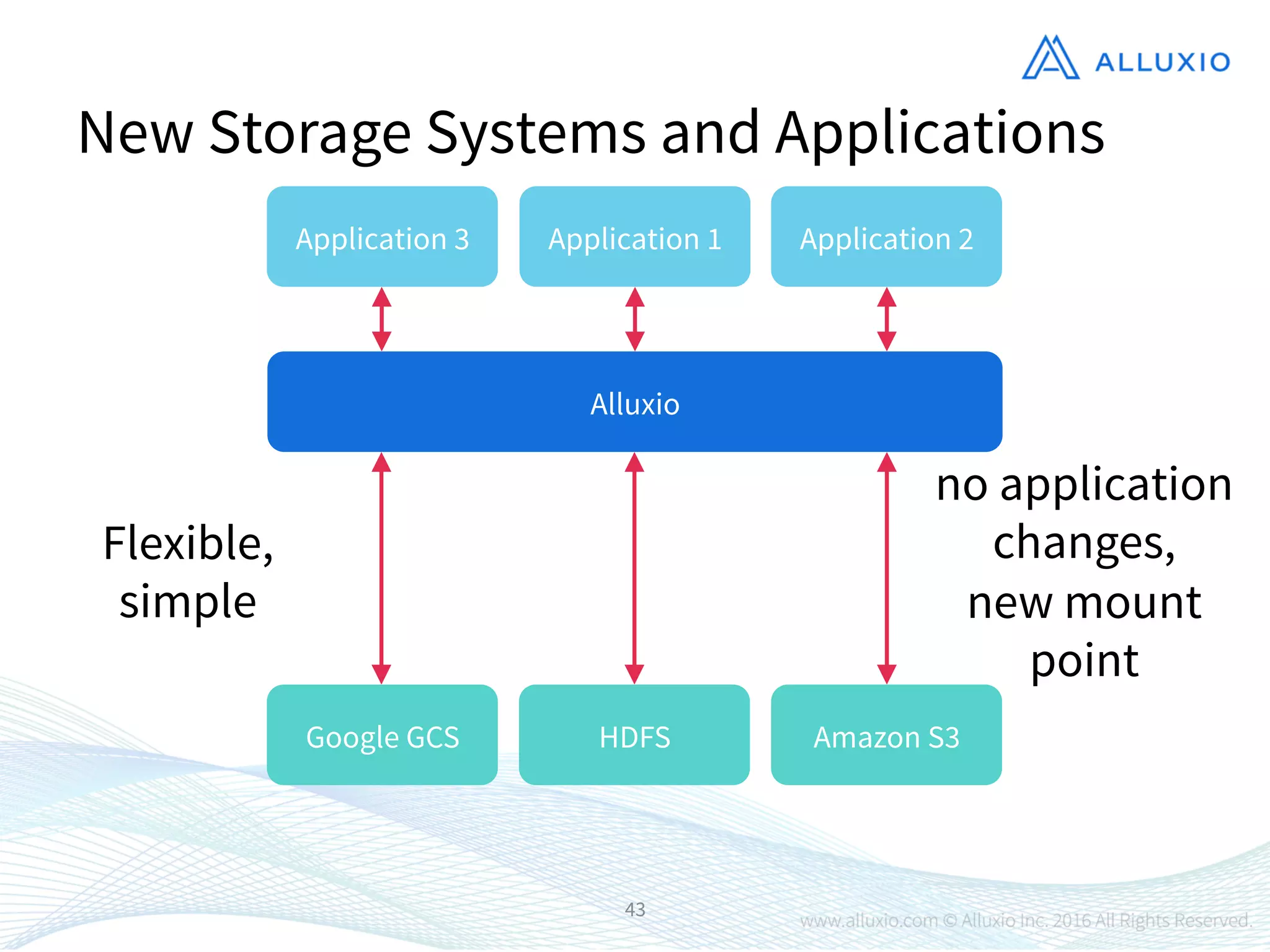

43. 43
New Storage Systems and Applications
Application 1
Google GCS
HDFS
Amazon S3
Application 2
Application 3
Alluxio
Flexible,
simple
no application
changes,
new mount
point

44. 44
Alluxio in the Wild!

45. 45
Use Case

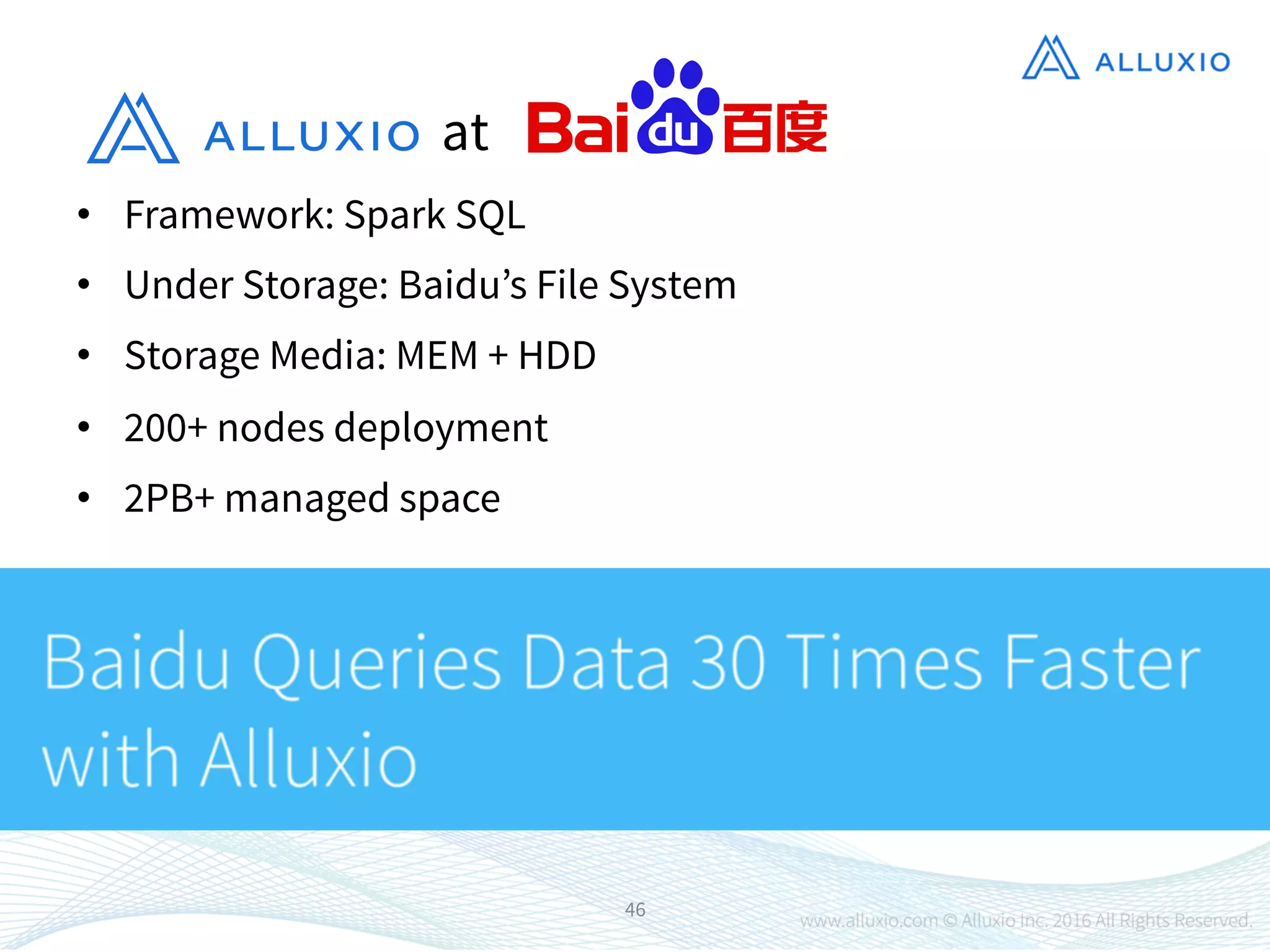

46. • Framework: Spark SQL
• Under Storage: Baidu’s File System
• Storage Media: MEM + HDD
• 200+ nodes deployment
• 2PB+ managed space
46
at

47. 47
Use Case

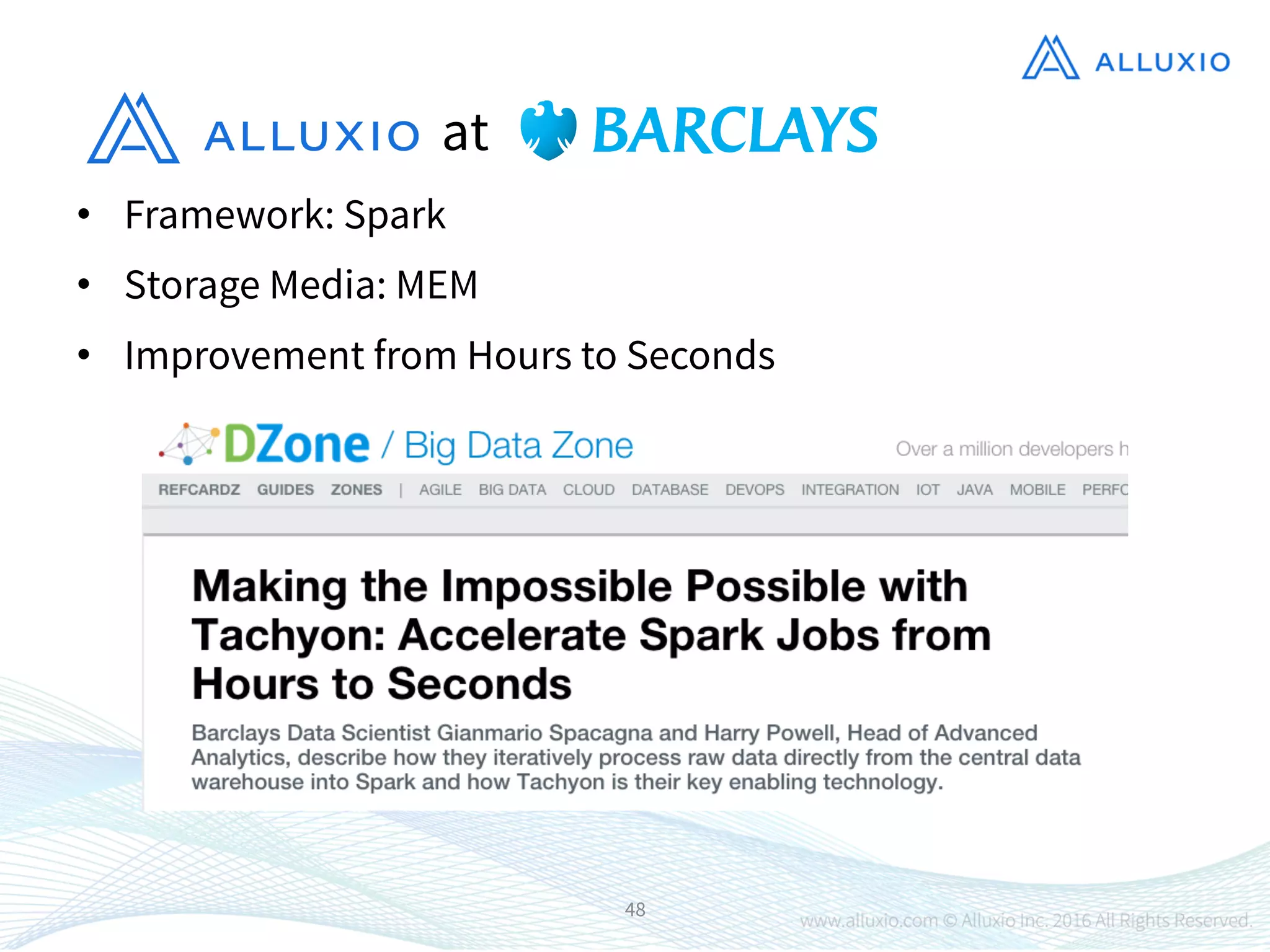

48. • Framework: Spark
• Storage Media: MEM
• Improvement from Hours to Seconds
48
at

49. 49
Use Case

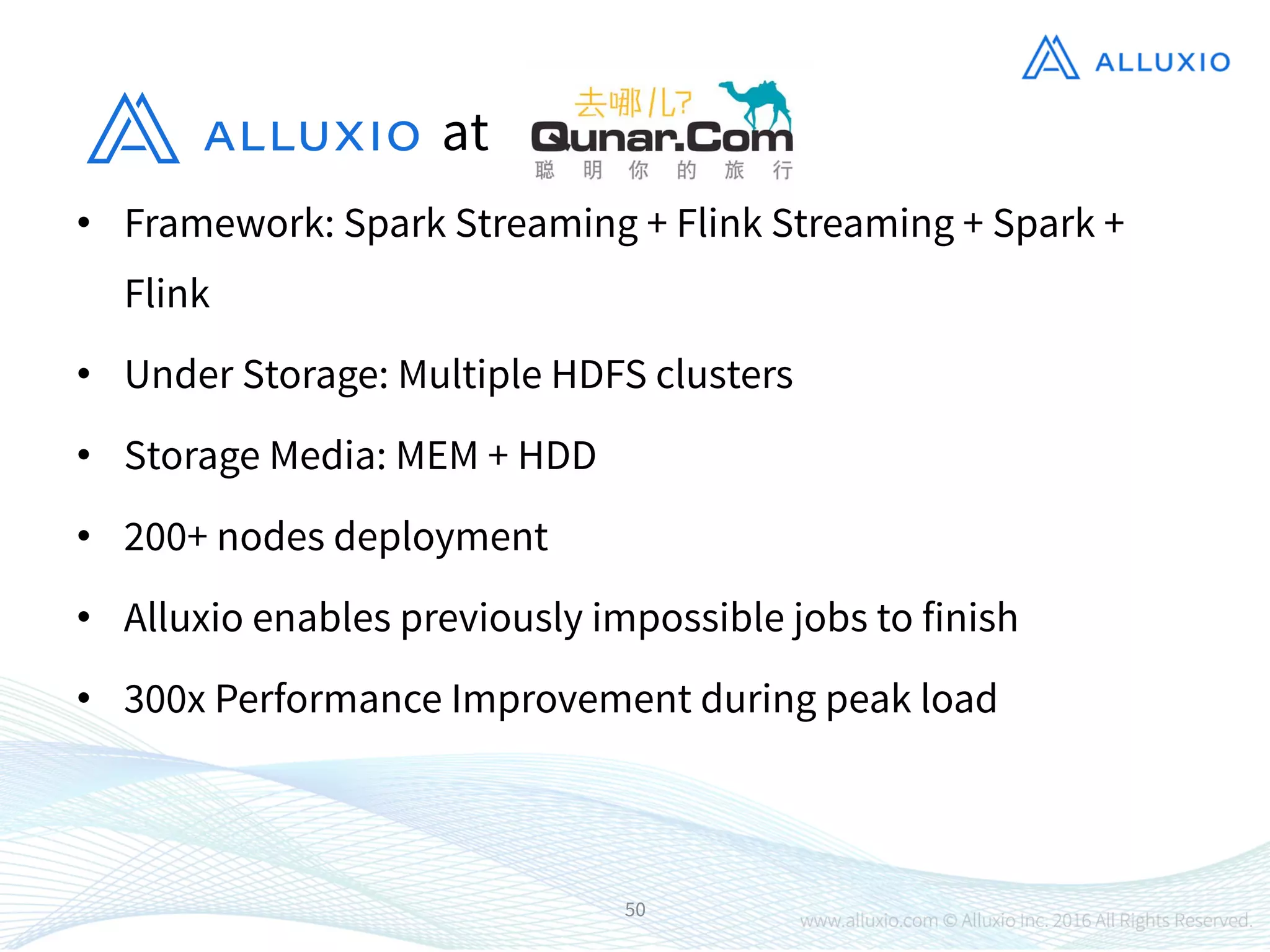

50. • Framework: Spark Streaming + Flink Streaming + Spark +
Flink
• Under Storage: Multiple HDFS clusters
• Storage Media: MEM + HDD
• 200+ nodes deployment
• Alluxio enables previously impossible jobs to finish
• 300x Performance Improvement during peak load
50
at

51. 51

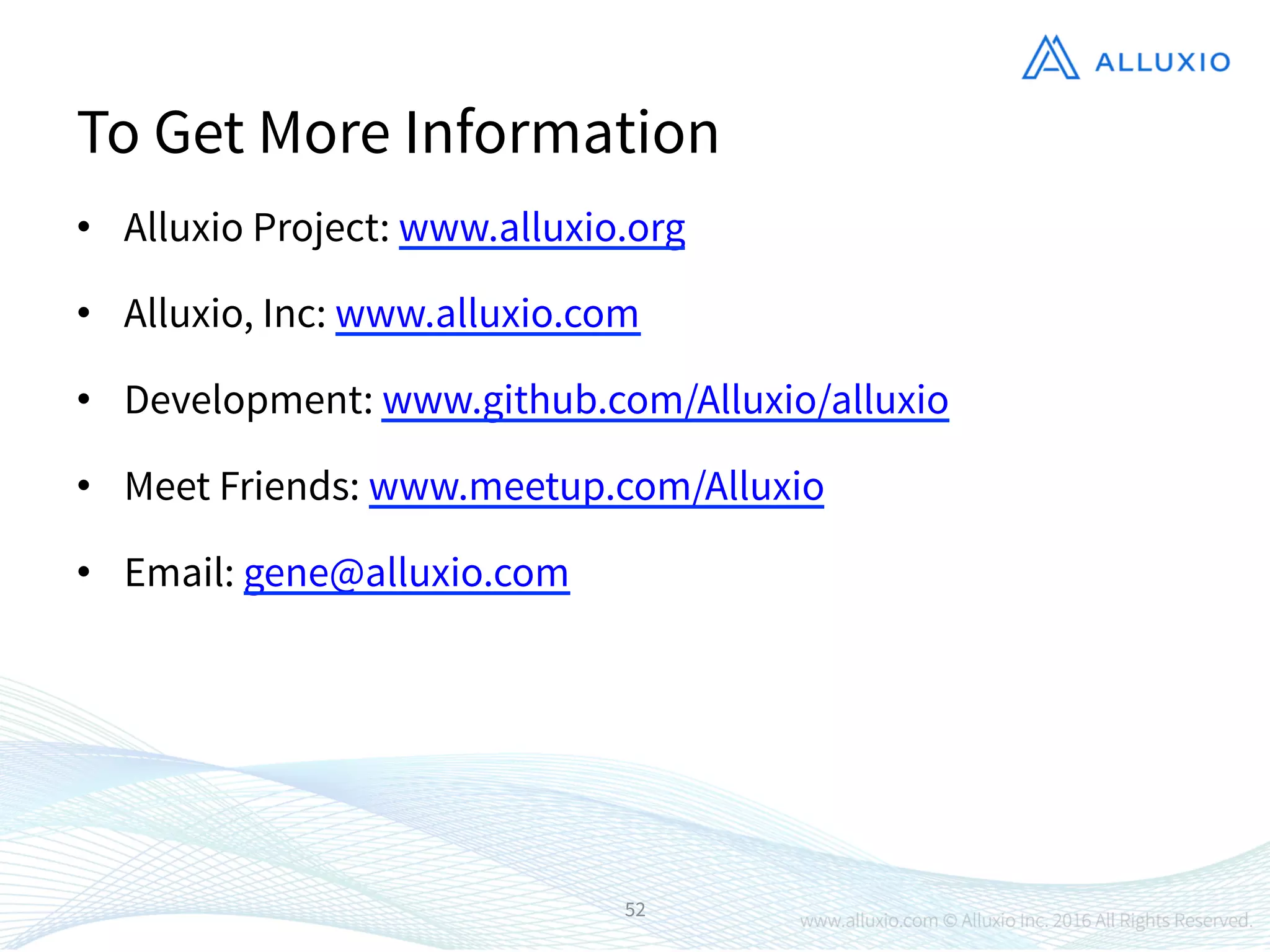

52. • Alluxio Project: www.alluxio.org
• Alluxio, Inc: www.alluxio.com
• Development: www.github.com/Alluxio/alluxio
• Meet Friends: www.meetup.com/Alluxio
• Email: gene@alluxio.com
52
To Get More Information
