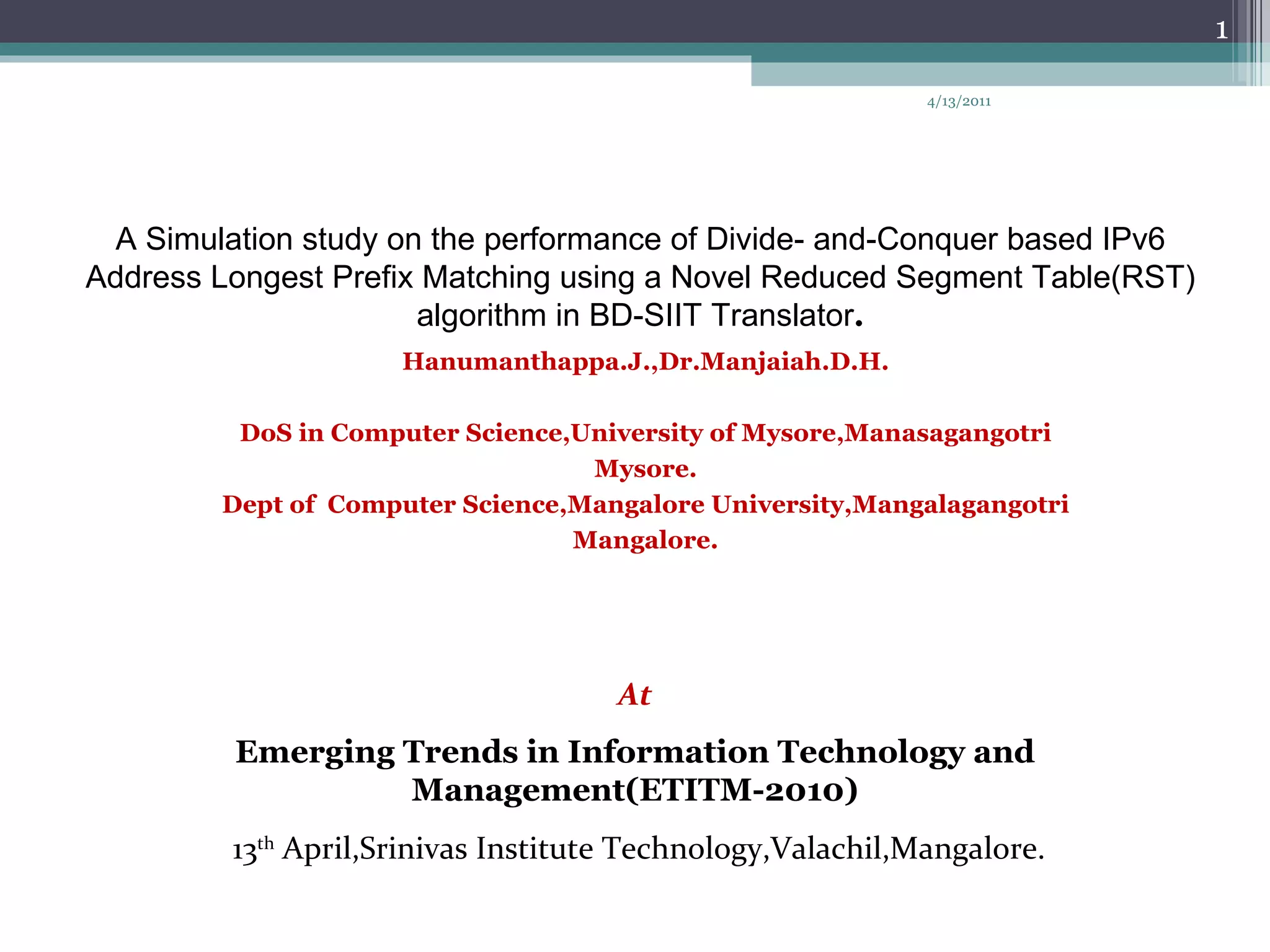

A Simulation study on the performance of Divide- and-Conquer based IPv6 Address Longest Prefix Matching using a Novel Reduced Segment Table(RST) algorithm in BD-SIIT Translator . Hanumanthappa.J.,Dr.Manjaiah.D.H. DoS in Computer Science,University of Mysore,Manasagangotri Mysore. Dept of Computer Science,Mangalore University,Mangalagangotri Mangalore. At Emerging Trends in Information Technology and Management(ETITM-2010) 13 th April,Srinivas Institute Technology,Valachil,Mangalore. 4/13/2011

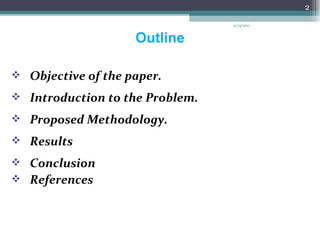

Outline Objective of the paper. Introduction to the Problem. Proposed Methodology. Results Conclusion References 4/13/2011

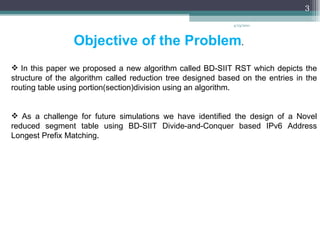

Objective of the Problem . In this paper we proposed a new algorithm called BD-SIIT RST which depicts the structure of the algorithm called reduction tree designed based on the entries in the routing table using portion(section)division using an algorithm . As a challenge for future simulations we have identified the design of a Novel reduced segment table using BD-SIIT Divide-and-Conquer based IPv6 Address Longest Prefix Matching . 4/13/2011

4/13/2011 Definition of IPv6 . IPv6 is the Internet’s next-generation Protocol. The First name of IPv6 is IPng . The IETF developed the basic Specification’s during the 1990’s to support a migration to a new development . IPv6 is defined in RFC 2460 Internet Protocol version 6 Specification by S. Deering and R.Hinden(December 1998).

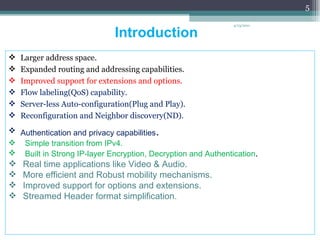

Introduction Larger address space. Expanded routing and addressing capabilities. Improved support for extensions and options. Flow labeling(QoS) capability. Server-less Auto-configuration(Plug and Play). Reconfiguration and Neighbor discovery(ND). Authentication and privacy capabilities . Simple transition from IPv4. Built in Strong IP-layer Encryption, Decryption and Authentication . Real time applications like Video & Audio. More efficient and Robust mobility mechanisms. Improved support for options and extensions. Streamed Header format simplification. 4/13/2011

IPv6 Header Format Traffic Class Flow Label Vers Payload Length Next Header Hop Limit Source Address Destination Address 0 4 12 16 24 31 4/13/2011

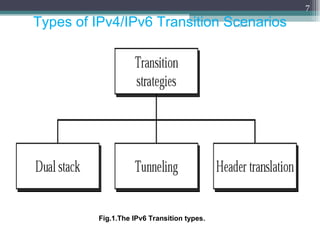

Types of IPv4/IPv6 Transition Scenarios Fig.1.The IPv6 Transition types . 4/13/2011

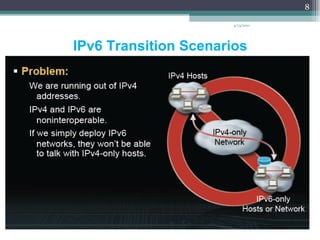

4/13/2011 IPv6 Transition Scenarios

4/13/2011 Proposed Methodology . Fig.1.BD-SIIT Translator.

4/13/2011 Fig.2.Translation of IPv6 to IPv4 Header .

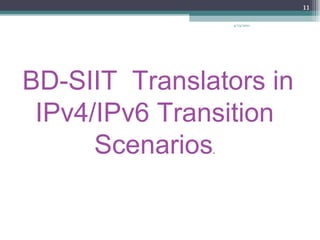

4/13/2011 BD-SIIT Translators in IPv4/IPv6 Transition Scenarios .

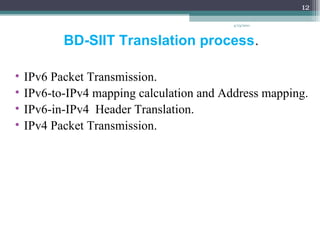

4/13/2011 BD-SIIT Translation process . IPv6 Packet Transmission. IPv6-to-IPv4 mapping calculation and Address mapping. IPv6-in-IPv4 Header Translation. IPv4 Packet Transmission.

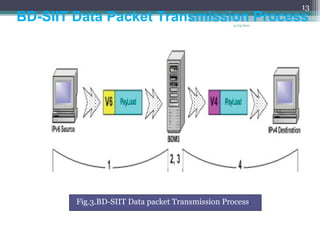

4/13/2011 BD-SIIT Data Packet Transmission Process Fig.3.BD-SIIT Data packet Transmission Process .

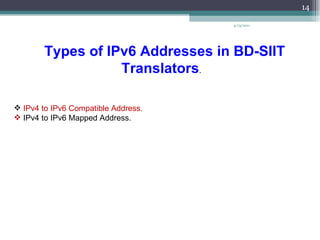

4/13/2011 Types of IPv6 Addresses in BD-SIIT Translators . IPv4 to IPv6 Compatible Address. IPv4 to IPv6 Mapped Address.

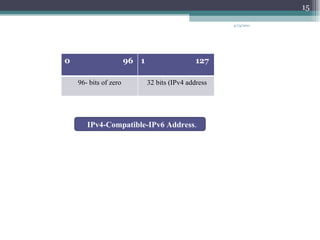

4/13/2011 IPv4-Compatible-IPv6 Address . 0 96 127 96- bits of zero 32 bits (IPv4 address

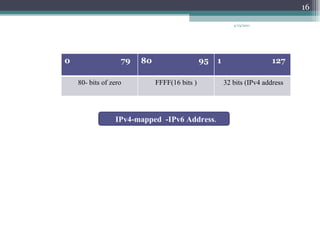

4/13/2011 IPv4-mapped -IPv6 Address . 0 79 80 95 127 80- bits of zero FFFF(16 bits ) 32 bits (IPv4 address

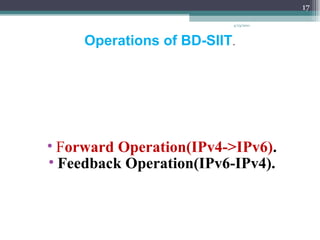

4/13/2011 Operations of BD-SIIT . F orward Operation(IPv4->IPv6) . Feedback Operation(IPv6-IPv4).

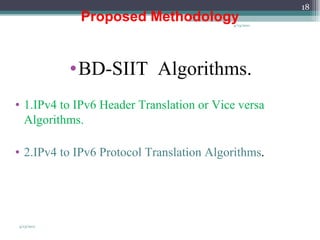

4/13/2011 Proposed Methodology BD-SIIT Algorithms. 1.IPv4 to IPv6 Header Translation or Vice versa Algorithms. 2.IPv4 to IPv6 Protocol Translation Algorithms . 4/13/2011

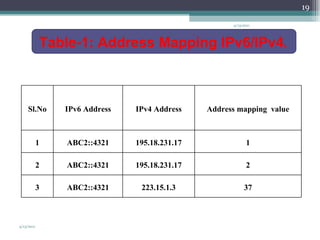

4/13/2011 4/13/2011 Table-1: Address Mapping IPv6/IPv4 . Sl.No IPv6 Address IPv4 Address Address mapping value 1 ABC2::4321 195.18.231.17 1 2 ABC2::4321 195.18.231.17 2 3 ABC2::4321 223.15.1.3 37

4/13/2011 Table-2: DNS46 corresponding to IPv4 and IPv6 . 4/13/2011 Sl.No IPv4 Address IPv6 Address DNS Address mapping value 1 212.17.1.5 ---- B 4 2` 223.15.1.3. 1C::DACF Y 37

4/13/2011 Table-3: Address mapping IPv4/IPv6 . 4/13/2011 Sl.No IPv4 Address IPv6 Address Address mapping value 1 195.18.231.17 ABC2::4321 1 2 210.154.76.91 ABC2::4321 2 3 223.15.1.3. ABC2::4321 37

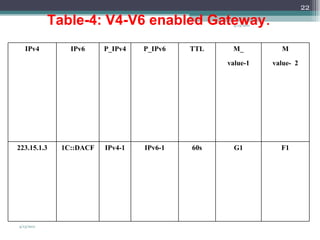

4/13/2011 Table-4: V4-V6 enabled Gateway . 4/13/2011 IPv4 IPv6 P_IPv4 P_IPv6 TTL M_ value-1 M value- 2 223.15.1.3 1C::DACF IPv4-1 IPv6-1 60s G1 F1

4/13/2011 Table-5: IPv4 mapped IPv6 Address . 4/13/2011 Sl.No IPv4 Address IPv6 Address Address mapping value 1 195.18.231.17 ABC2::4321 1 2 210.154.76.91 ABC2::4321 2 3 223.15.1.3. ABC2::4321 37

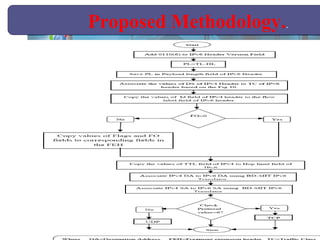

4/13/2011 4/13/2011 Proposed Methodology. .

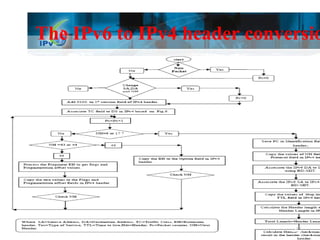

4/13/2011 4/13/2011 The IPv6 to IPv4 header conversion.

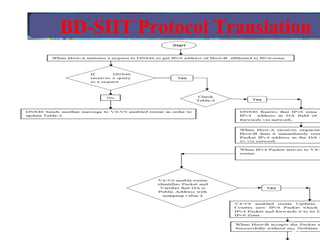

4/13/2011 4/13/2011 BD-SIIT Protocol Translation . 1: Forward address mapping Flowchart .

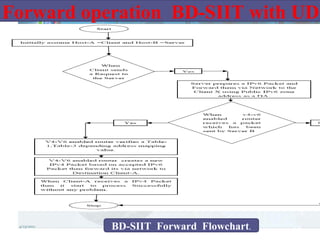

4/13/2011 4/13/2011 Forward operation BD-SIIT with UDP . BD-SIIT Forward Flowchart .

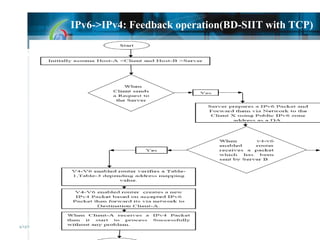

4/13/2011 4/13/2011 IPv6->IPv4: Feedback operation(BD-SIIT with TCP)

4/13/2011 4/13/2011 4/13/2011 NS-2 Simulation parameters . Simulation Parameters Value 1.Buffer Size 500 Packets 2. Propogation Delay 10ms 3.payload size 200 Bytes 4.Very traffic Load 6~240 Nodes. 5.Queue Management Scheme Drop tail.

4/13/2011 4/13/2011 Emerging Trends in Information Technology and Management,Valachil,Mangalore.

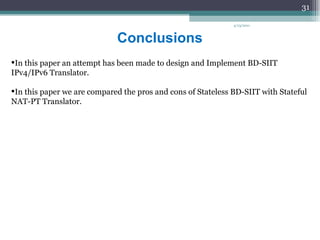

Conclusions In this paper an attempt has been made to design and Implement BD-SIIT IPv4/IPv6 Translator. In this paper we are compared the pros and cons of Stateless BD-SIIT with Stateful NAT-PT Translator. 4/13/2011

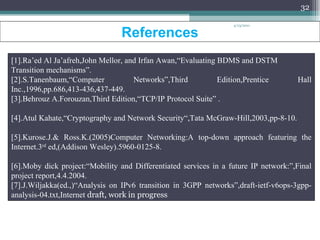

References [1].Ra’ed Al Ja’afreh,John Mellor, and Irfan Awan,“Evaluating BDMS and DSTM Transition mechanisms”. [2].S.Tanenbaum,“Computer Networks”,Third Edition,Prentice Hall Inc.,1996,pp.686,413-436,437-449. [3].Behrouz A.Forouzan,Third Edition,“TCP/IP Protocol Suite” . [4].Atul Kahate,“Cryptography and Network Security“,Tata McGraw-Hill,2003,pp-8-10. [5].Kurose.J.& Ross.K.(2005)Computer Networking:A top-down approach featuring the Internet.3 rd ed,(Addison Wesley).5960-0125-8. [6].Moby dick project:“Mobility and Differentiated services in a future IP network:”,Final project report,4.4.2004. [7].J.Wiljakka(ed.,)“Analysis on IPv6 transition in 3GPP networks”,draft-ietf-v6ops-3gpp-analysis-04.txt,Internet draft, work in progress 4/13/2011

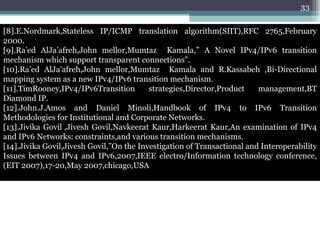

[8].E.Nordmark,Stateless IP/ICMP translation algorithm(SIIT),RFC 2765,February 2000. [9].Ra’ed AlJa’afreh,John mellor,Mumtaz Kamala,” A Novel IPv4/IPv6 transition mechanism which support transparent connections”. [10].Ra’ed AlJa’afreh,John mellor,Mumtaz Kamala and R.Kassabeh ,Bi-Directional mapping system as a new IPv4/IPv6 transition mechanism. [11].TimRooney,IPv4/IPv6Transition strategies,Director,Product management,BT Diamond IP. [12].John.J.Amos and Daniel Minoli,Handbook of IPv4 to IPv6 Transition Methodologies for Institutional and Corporate Networks. [13].Jivika Govil ,Jivesh Govil,Navkeerat Kaur,Harkeerat Kaur,An examination of IPv4 and IPv6 Networks: constraints,and various transition mechanisms. [14].Jivika Govil,Jivesh Govil,”On the Investigation of Transactional and Interoperability Issues between IPv4 and IPv6,2007,IEEE electro/Information technology conference,(EIT 2007),17-20,May 2007,chicago,USA 4/13/2011
