The document discusses the distribution system which distributes electric power from substations to consumers. It has three main components: feeders which connect substations to distribution areas, distributors which supply power to consumers with tappings, and service mains which connect distributors to consumer terminals. Distribution systems can be AC or DC, overhead or underground, and configured radially, in a ring main, or interconnected for reliability. Design considerations for feeders include current capacity, conductor type, distance from substation, and cost.

1. Prepared By:
007- PatelVaishnavee K.

2. Distribution system:
 That part of power system which distributes electric
power for local use is known as distribution system.
 In general, the distribution system is the electrical
system between the sub-station fed by the
transmission system and the consumers meters.
 It generally consists of feeders, distributors and the
service mains.

3. Components of distribution
system:

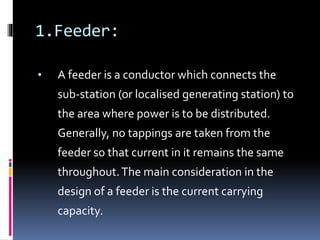

4. 1.Feeder:
• A feeder is a conductor which connects the
sub-station (or localised generating station) to
the area where power is to be distributed.
Generally, no tappings are taken from the
feeder so that current in it remains the same
throughout.The main consideration in the
design of a feeder is the current carrying
capacity.

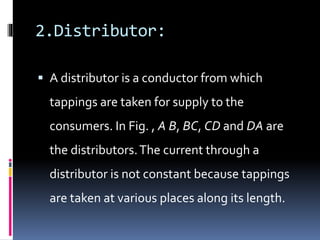

5. 2.Distributor:
 A distributor is a conductor from which
tappings are taken for supply to the
consumers. In Fig. , A B, BC, CD and DA are
the distributors.The current through a
distributor is not constant because tappings
are taken at various places along its length.

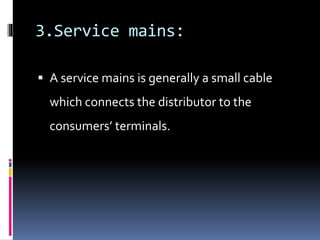

6. 3.Service mains:
 A service mains is generally a small cable
which connects the distributor to the
consumers’ terminals.

7. Classification of distribution
system:
 A distribution system may be classified
according to ;
 1. Nature of current:
 According to nature of current, distribution system
may be classified as,
• (A) d.c. distribution system
• (B) a.c. distribution system.

8. 2. Type of construction:
• According to type of construction,
distribution system may be classified as,
• (a) overhead sys- tem
• (b) underground system

9. 3. Scheme of connection:
• According to scheme of connec- tion, the
distribution system may be classified as,
• (a) radial system
• (b) ring main system
• (c) inter-connected system.

10. A.C Distribution system:
 Now-a-days electrical energy is generated,
transmitted and distributed in the form of
alternating current.
 A.C voltage can be step up or step down easily with
the help of transformer.
 The a.c. distribution system is classified into
 (i) primary distribution system and
 (ii) secondary distribution system.

11. 1.Primary distribution system
(3 phase 3 wire system):
 When the distribution is some what higher
then utilization level then the system is called
primary distribution.
 The most commonly used primary
distribution voltages are 11 kV, 6·6 kV and 3·3
kV.

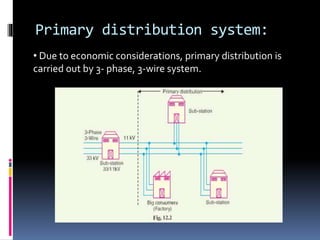

12. Primary distribution system:
• Due to economic considerations, primary distribution is
carried out by 3- phase, 3-wire system.

13.  Electric power from the generating station is
transmitted at high voltage to the substation
located in or near the city.
 At this substation, voltage is stepped down to 11
kV with the help of step-down transformer.
 Power is supplied to various substations for
distribution or to big consumers at this voltage.
 This forms the high voltage distribution or
primary distribution.

14. 2.Secondary distribution
system(3 phase 4 wire system):
 When the distribution voltage is at utilization
level then it is called secondary distribution.
 The secondary distribution employs 400/230
V, 3-phase, 4-wire system.

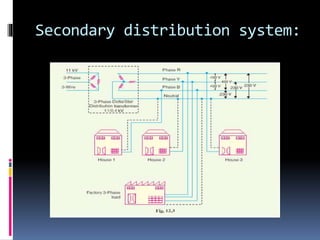

15. Secondary distribution system:

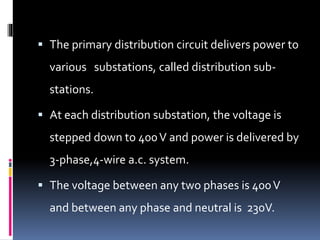

16.  The primary distribution circuit delivers power to
various substations, called distribution sub-
stations.
 At each distribution substation, the voltage is
stepped down to 400V and power is delivered by
3-phase,4-wire a.c. system.
 The voltage between any two phases is 400V
and between any phase and neutral is 230V.

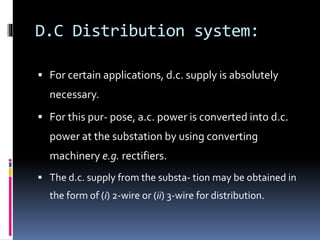

17. D.C Distribution system:
 For certain applications, d.c. supply is absolutely
necessary.
 For this pur- pose, a.c. power is converted into d.c.
power at the substation by using converting
machinery e.g. rectifiers.
 The d.c. supply from the substa- tion may be obtained in
the form of (i) 2-wire or (ii) 3-wire for distribution.

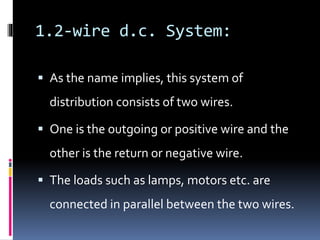

18. 1.2-wire d.c. System:
 As the name implies, this system of
distribution consists of two wires.
 One is the outgoing or positive wire and the
other is the return or negative wire.
 The loads such as lamps, motors etc. are
connected in parallel between the two wires.

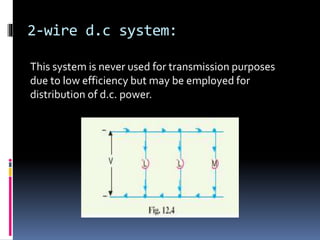

19. 2-wire d.c system:
This system is never used for transmission purposes
due to low efficiency but may be employed for
distribution of d.c. power.

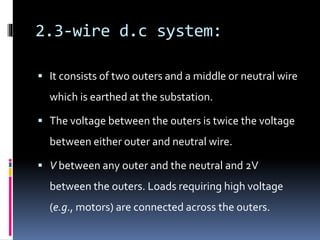

20. 2.3-wire d.c system:
 It consists of two outers and a middle or neutral wire
which is earthed at the substation.
 The voltage between the outers is twice the voltage
between either outer and neutral wire.
 V between any outer and the neutral and 2V
between the outers. Loads requiring high voltage
(e.g., motors) are connected across the outers.

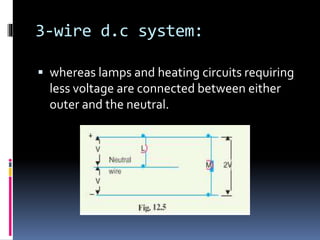

21. 3-wire d.c system:
 whereas lamps and heating circuits requiring
less voltage are connected between either
outer and the neutral.

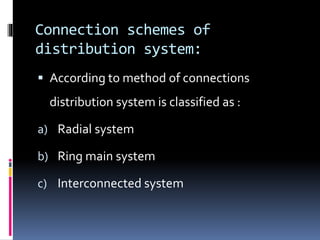

22. Connection schemes of
distribution system:
 According to method of connections
distribution system is classified as :
a) Radial system
b) Ring main system
c) Interconnected system

23. (a) Radial system:

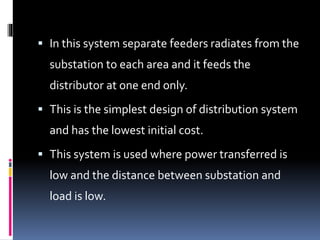

24.  In this system separate feeders radiates from the
substation to each area and it feeds the
distributor at one end only.
 This is the simplest design of distribution system
and has the lowest initial cost.
 This system is used where power transferred is
low and the distance between substation and
load is low.

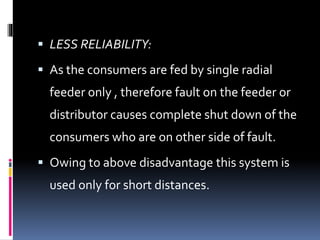

25.  LESS RELIABILITY:
 As the consumers are fed by single radial
feeder only , therefore fault on the feeder or
distributor causes complete shut down of the
consumers who are on other side of fault.
 Owing to above disadvantage this system is
used only for short distances.

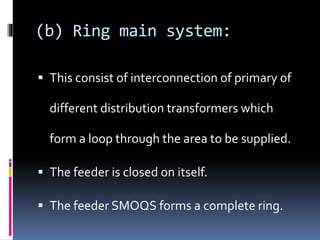

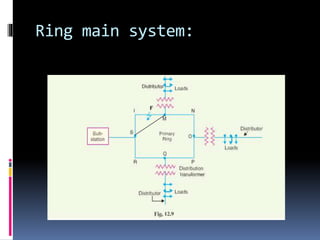

26. (b) Ring main system:
 This consist of interconnection of primary of
different distribution transformers which
form a loop through the area to be supplied.
 The feeder is closed on itself.
 The feeder SMOQS forms a complete ring.

27. Ring main system:

28.  The advantages of such arrangement is that:
 It offers a greater reliability of supply.
 In the event of a fault on any section of the
feeder, say at “F” the supply to all consumers can
continue to be available by isolating the faulty
section between ‘S’ & ‘M’.
 There are less voltage fluctuations at consumer’s
terminal.

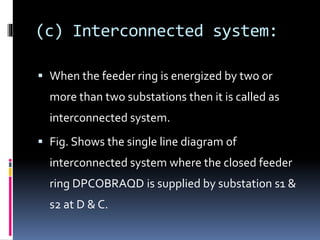

29. (c) Interconnected system:
 When the feeder ring is energized by two or
more than two substations then it is called as
interconnected system.
 Fig. Shows the single line diagram of
interconnected system where the closed feeder
ring DPCOBRAQD is supplied by substation s1 &
s2 at D & C.

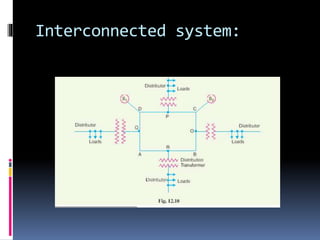

30. Interconnected system:

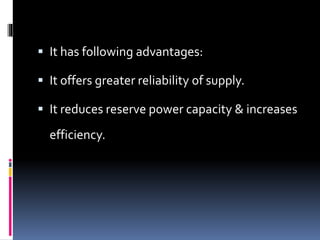

31.  It has following advantages:
 It offers greater reliability of supply.
 It reduces reserve power capacity & increases
efficiency.

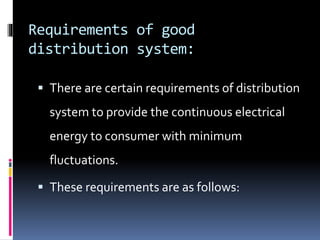

32. Requirements of good
distribution system:
 There are certain requirements of distribution
system to provide the continuous electrical
energy to consumer with minimum
fluctuations.
 These requirements are as follows:

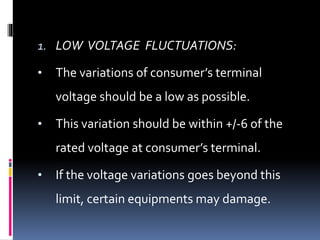

33. 1. LOW VOLTAGE FLUCTUATIONS:
• The variations of consumer’s terminal
voltage should be a low as possible.
• This variation should be within +/-6 of the
rated voltage at consumer’s terminal.
• If the voltage variations goes beyond this
limit, certain equipments may damage.

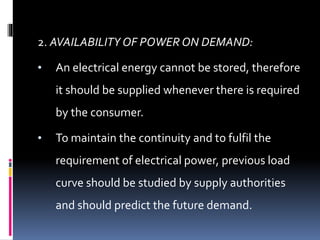

34. 2. AVAILABILITY OF POWER ON DEMAND:
• An electrical energy cannot be stored, therefore
it should be supplied whenever there is required
by the consumer.
• To maintain the continuity and to fulfil the
requirement of electrical power, previous load
curve should be studied by supply authorities
and should predict the future demand.

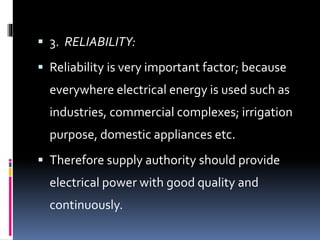

35.  3. RELIABILITY:
 Reliability is very important factor; because
everywhere electrical energy is used such as
industries, commercial complexes; irrigation
purpose, domestic appliances etc.
 Therefore supply authority should provide
electrical power with good quality and
continuously.

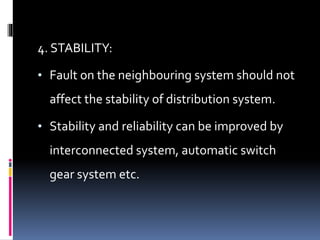

36. 4. STABILITY:
• Fault on the neighbouring system should not
affect the stability of distribution system.
• Stability and reliability can be improved by
interconnected system, automatic switch
gear system etc.

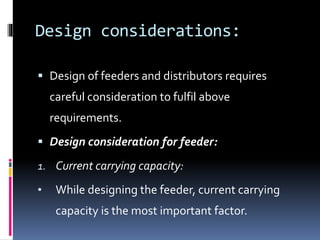

37. Design considerations:
 Design of feeders and distributors requires
careful consideration to fulfil above
requirements.
 Design consideration for feeder:
1. Current carrying capacity:
• While designing the feeder, current carrying
capacity is the most important factor.

38.  The current carrying capacity indicates the
cross sectional area required by the
conductor.
2.Type of conductor:
• The type of material depends on the service
provided.
• Generally in urban & suburban areas, A.C.S.R
conductor is used as a feeder.

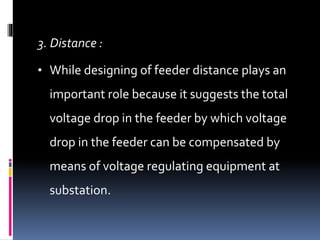

39. 3. Distance :
• While designing of feeder distance plays an
important role because it suggests the total
voltage drop in the feeder by which voltage
drop in the feeder can be compensated by
means of voltage regulating equipment at
substation.

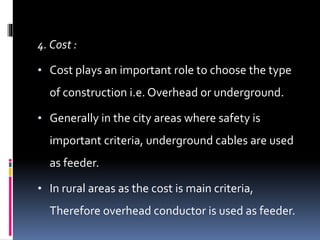

40. 4. Cost :
• Cost plays an important role to choose the type
of construction i.e. Overhead or underground.
• Generally in the city areas where safety is
important criteria, underground cables are used
as feeder.
• In rural areas as the cost is main criteria,
Therefore overhead conductor is used as feeder.
