1. Bare Metal Provisioning for Big Data
Vol.01 2016/12/1
Woosuk, Choi
EC Core Technology Department
http://www.rakuten.co.jp/

2. 2

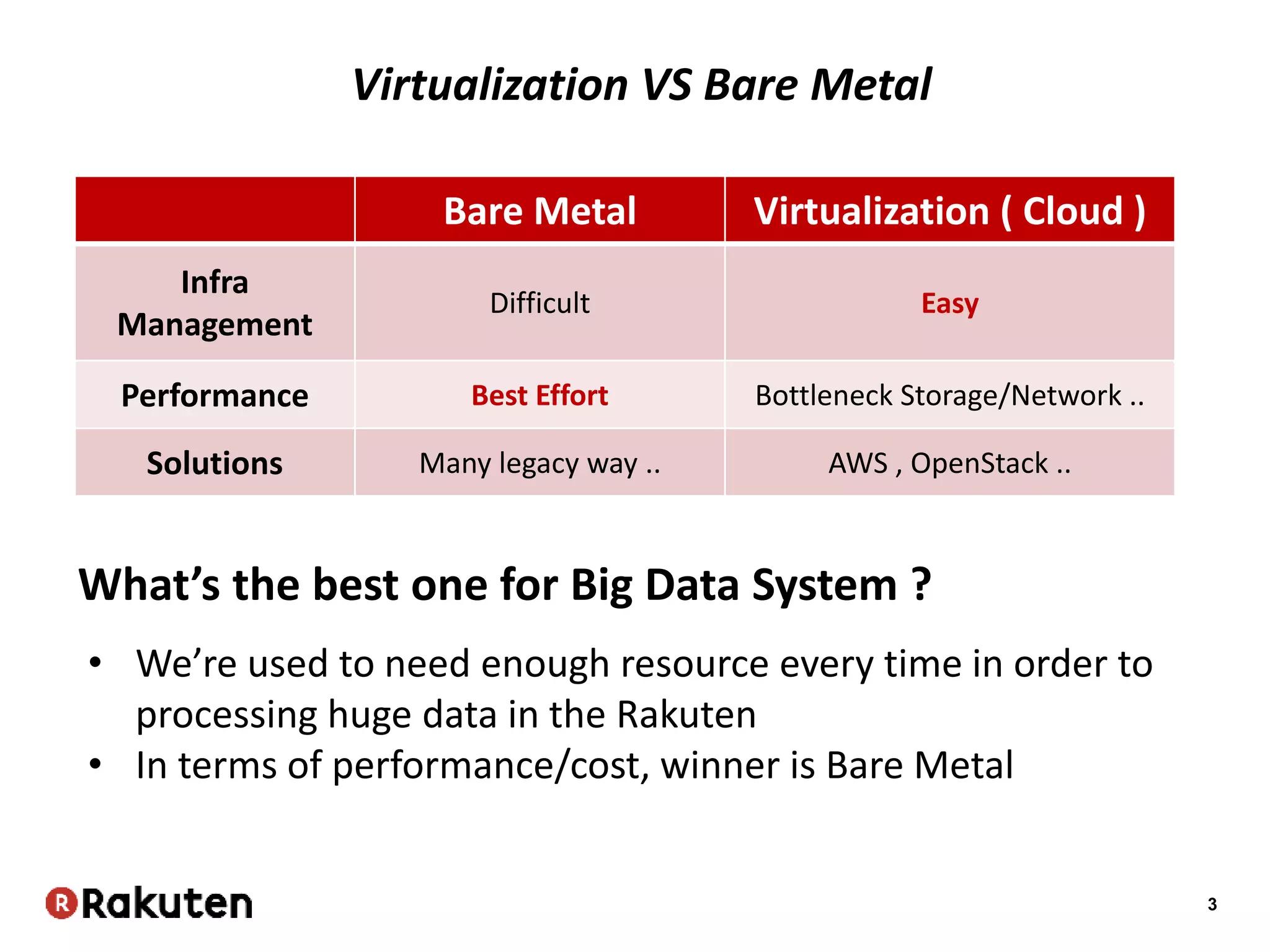

At first, Simple Comparison
Virtualization VS Bare Metal

3. 3
What’s the best one for Big Data System ?
• We’re used to need enough resource every time in order to
processing huge data in the Rakuten
• In terms of performance/cost, winner is Bare Metal
Bare Metal Virtualization ( Cloud )
Infra
Management
Difficult Easy
Performance Best Effort Bottleneck Storage/Network ..
Solutions Many legacy way .. AWS , OpenStack ..
Virtualization VS Bare Metal

4. 4

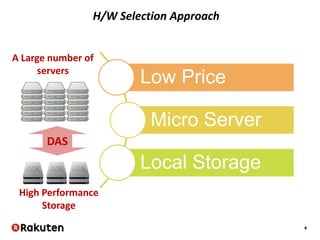

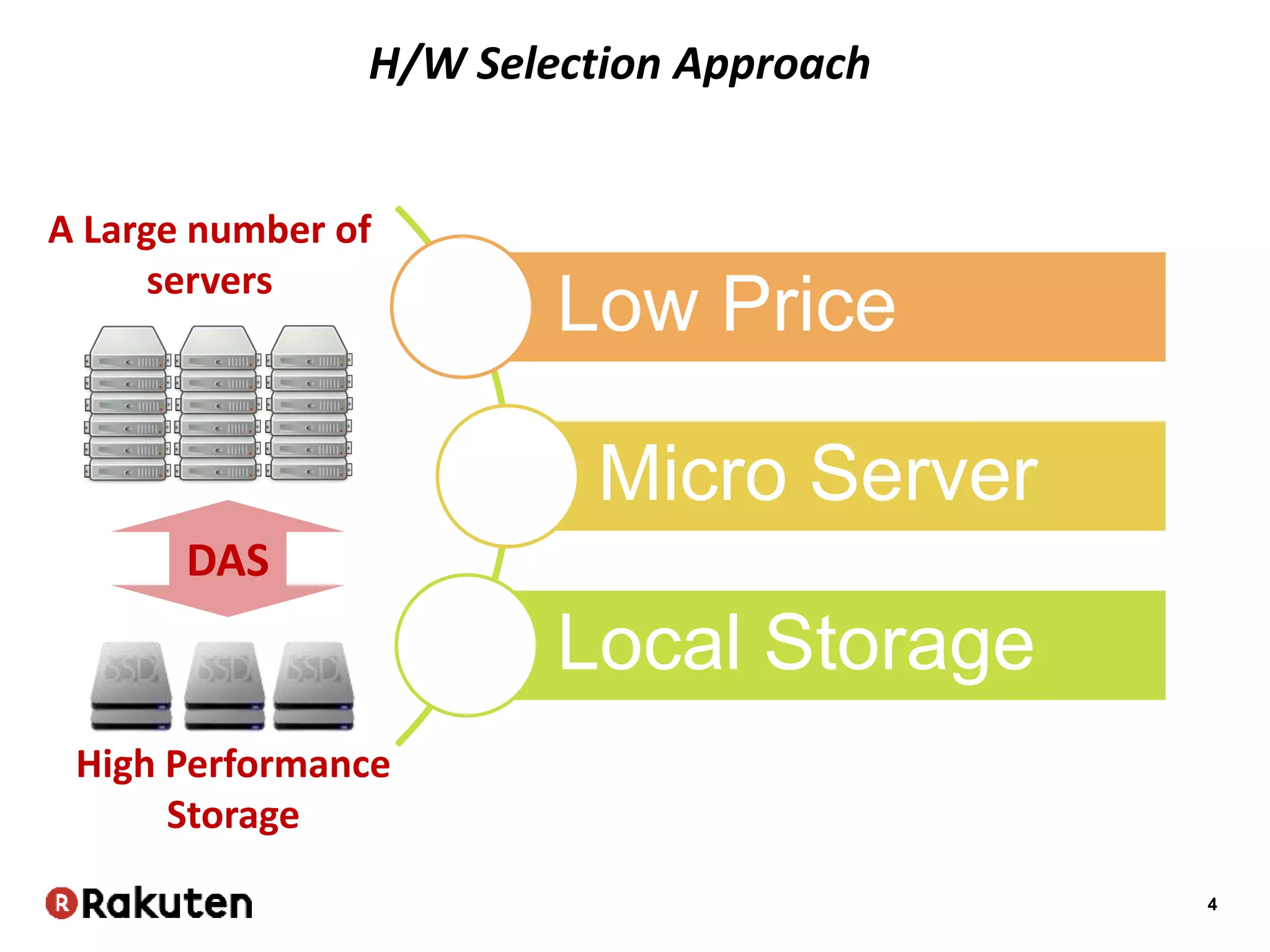

H/W Selection Approach
Low Price
Micro Server
Local Storage
A Large number of
servers
DAS
High Performance
Storage

5. 5

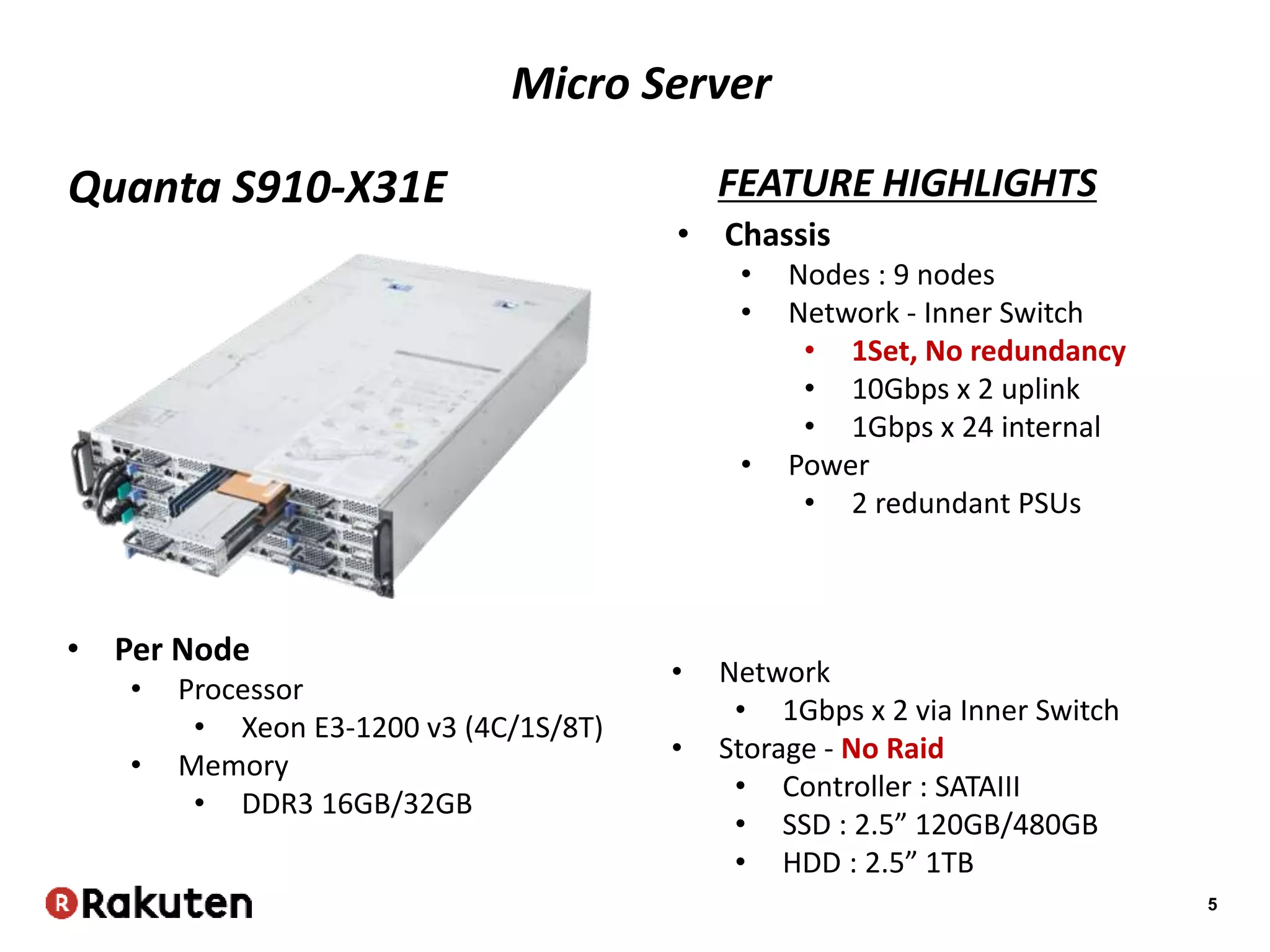

Quanta S910-X31E
Micro Server
FEATURE HIGHLIGHTS
• Chassis
• Nodes : 9 nodes
• Network - Inner Switch
• 1Set, No redundancy
• 10Gbps x 2 uplink
• 1Gbps x 24 internal
• Power
• 2 redundant PSUs
• Per Node
• Processor
• Xeon E3-1200 v3 (4C/1S/8T)
• Memory
• DDR3 16GB/32GB
• Network
• 1Gbps x 2 via Inner Switch
• Storage - No Raid
• Controller : SATAIII
• SSD : 2.5” 120GB/480GB
• HDD : 2.5” 1TB

6. 6

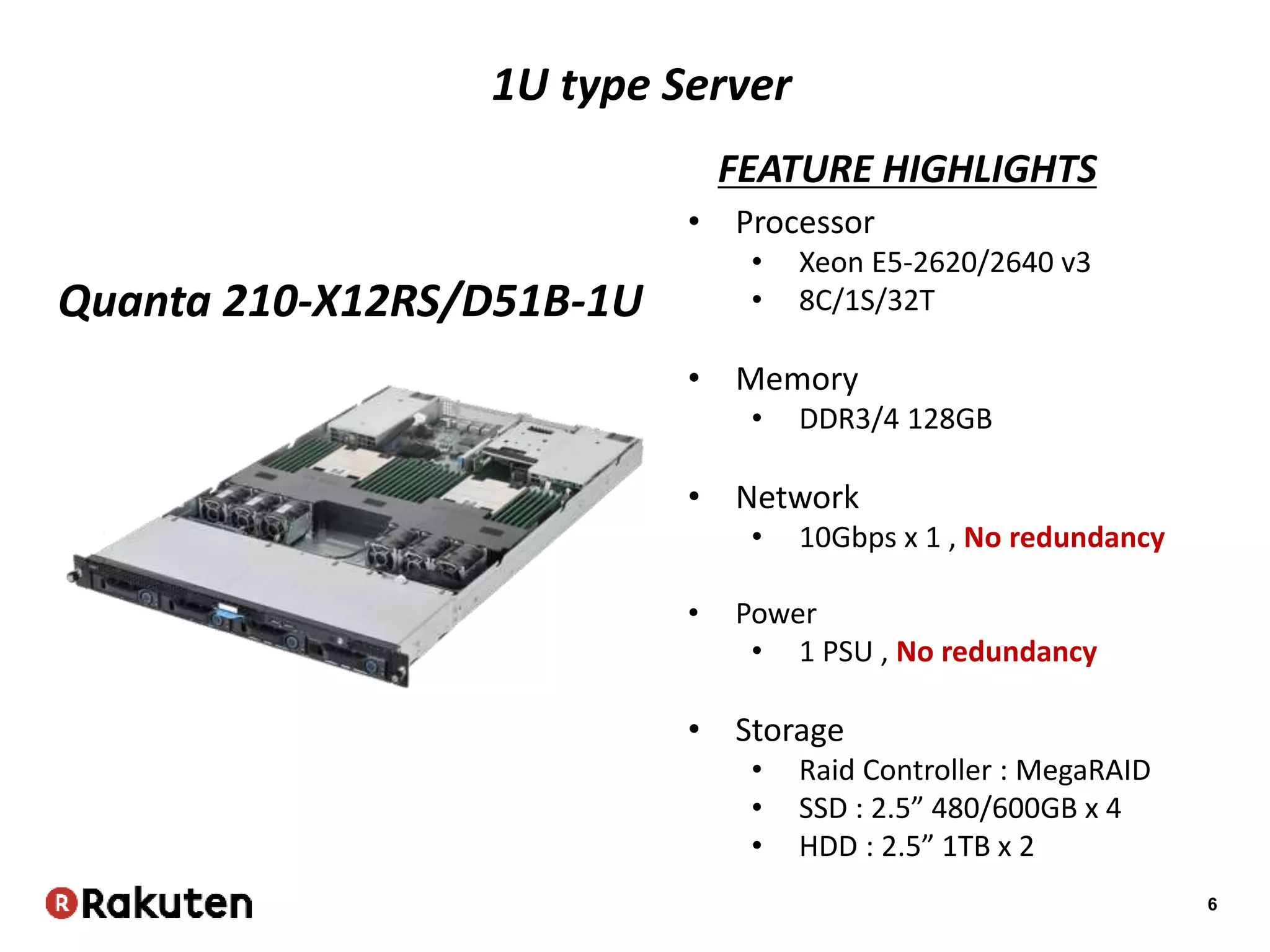

Quanta 210-X12RS/D51B-1U
1U type Server
FEATURE HIGHLIGHTS
• Processor
• Xeon E5-2620/2640 v3
• 8C/1S/32T
• Memory
• DDR3/4 128GB
• Network
• 10Gbps x 1 , No redundancy
• Power
• 1 PSU , No redundancy
• Storage
• Raid Controller : MegaRAID
• SSD : 2.5” 480/600GB x 4
• HDD : 2.5” 1TB x 2

7. 7

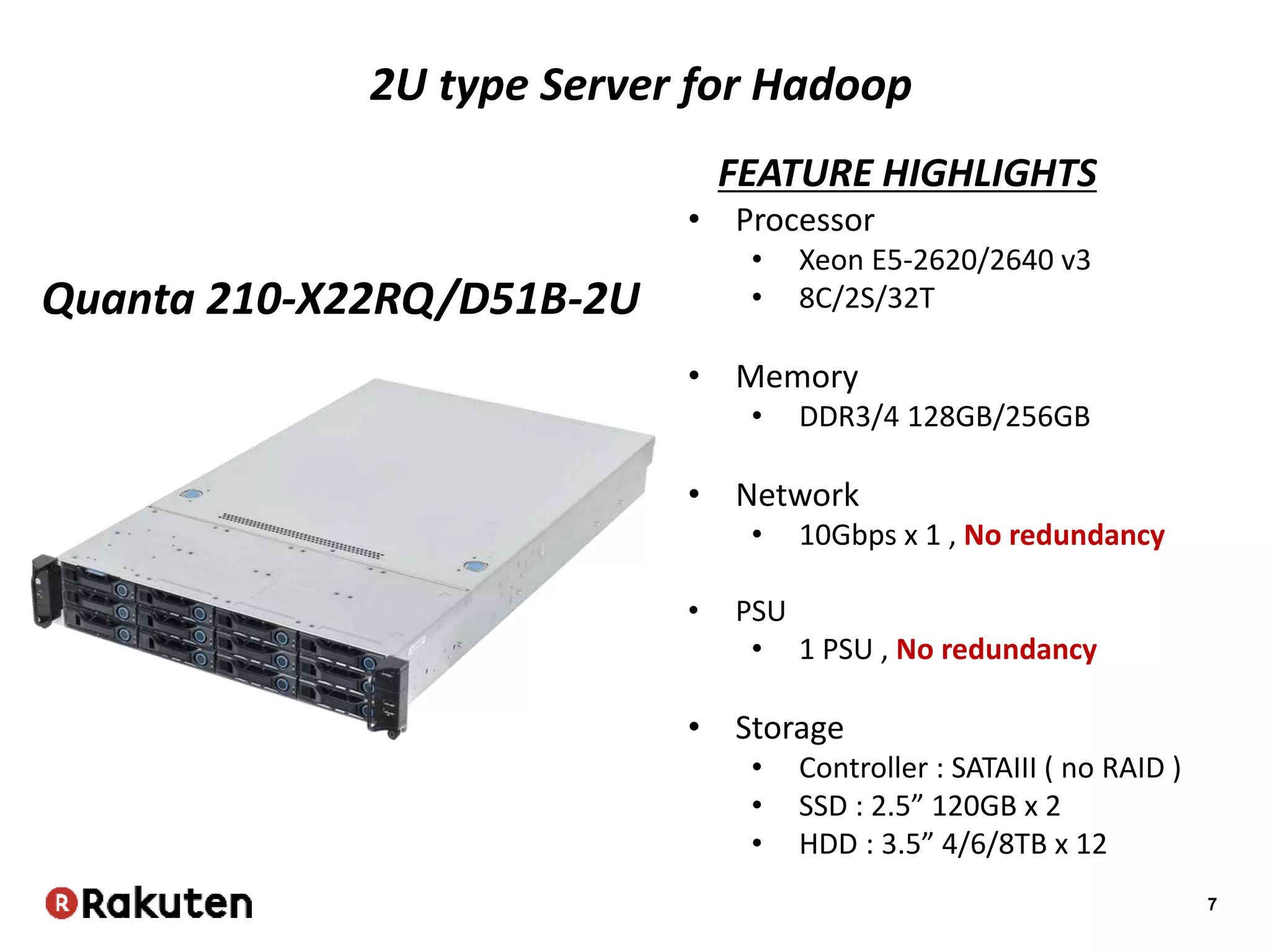

Quanta 210-X22RQ/D51B-2U
2U type Server for Hadoop
FEATURE HIGHLIGHTS
• Processor
• Xeon E5-2620/2640 v3
• 8C/2S/32T
• Memory
• DDR3/4 128GB/256GB
• Network
• 10Gbps x 1 , No redundancy
• PSU
• 1 PSU , No redundancy
• Storage
• Controller : SATAIII ( no RAID )
• SSD : 2.5” 120GB x 2
• HDD : 3.5” 4/6/8TB x 12

8. 8

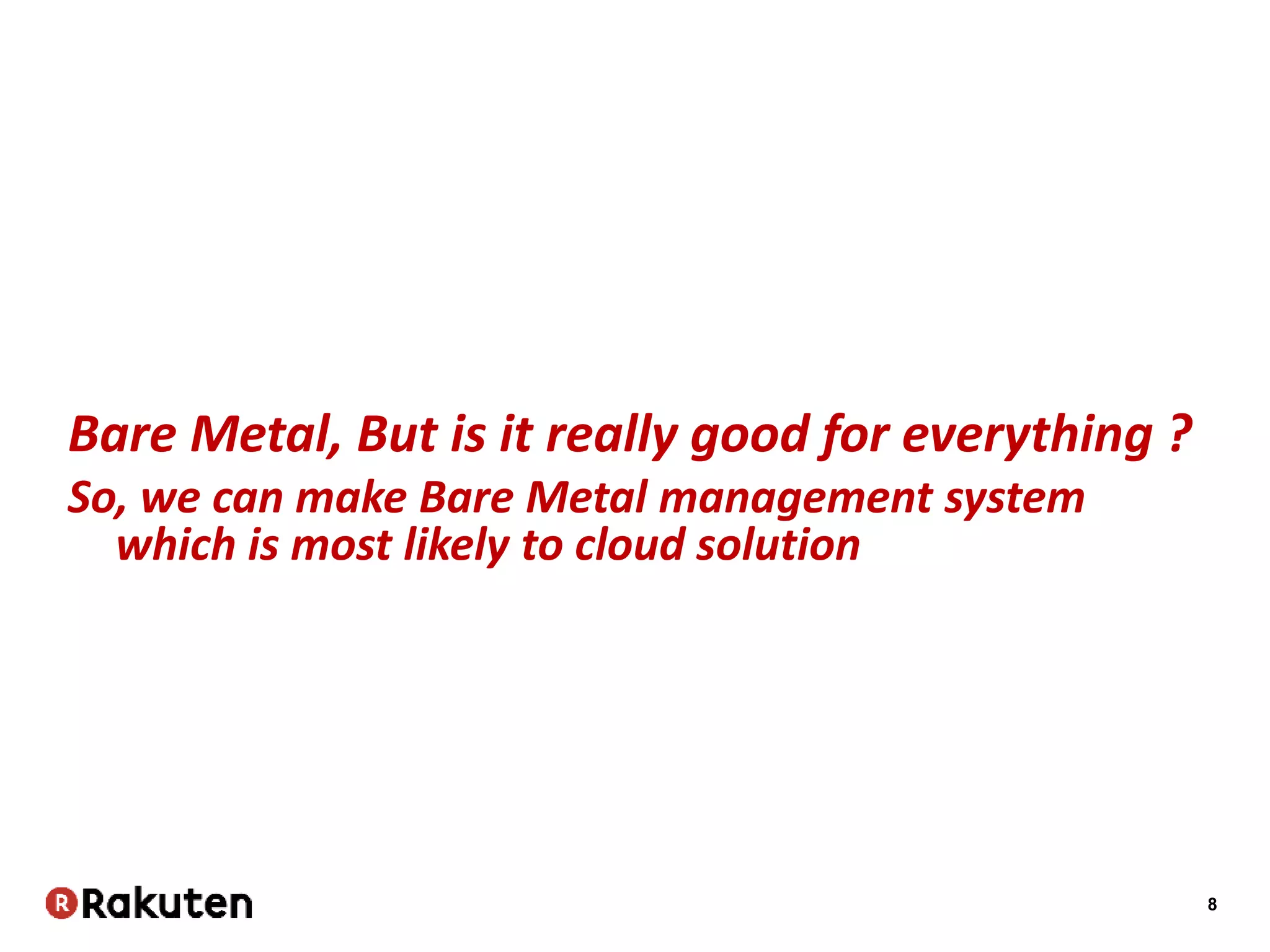

Bare Metal, But is it really good for everything ?
So, we can make Bare Metal management system
which is most likely to cloud solution

9. 9

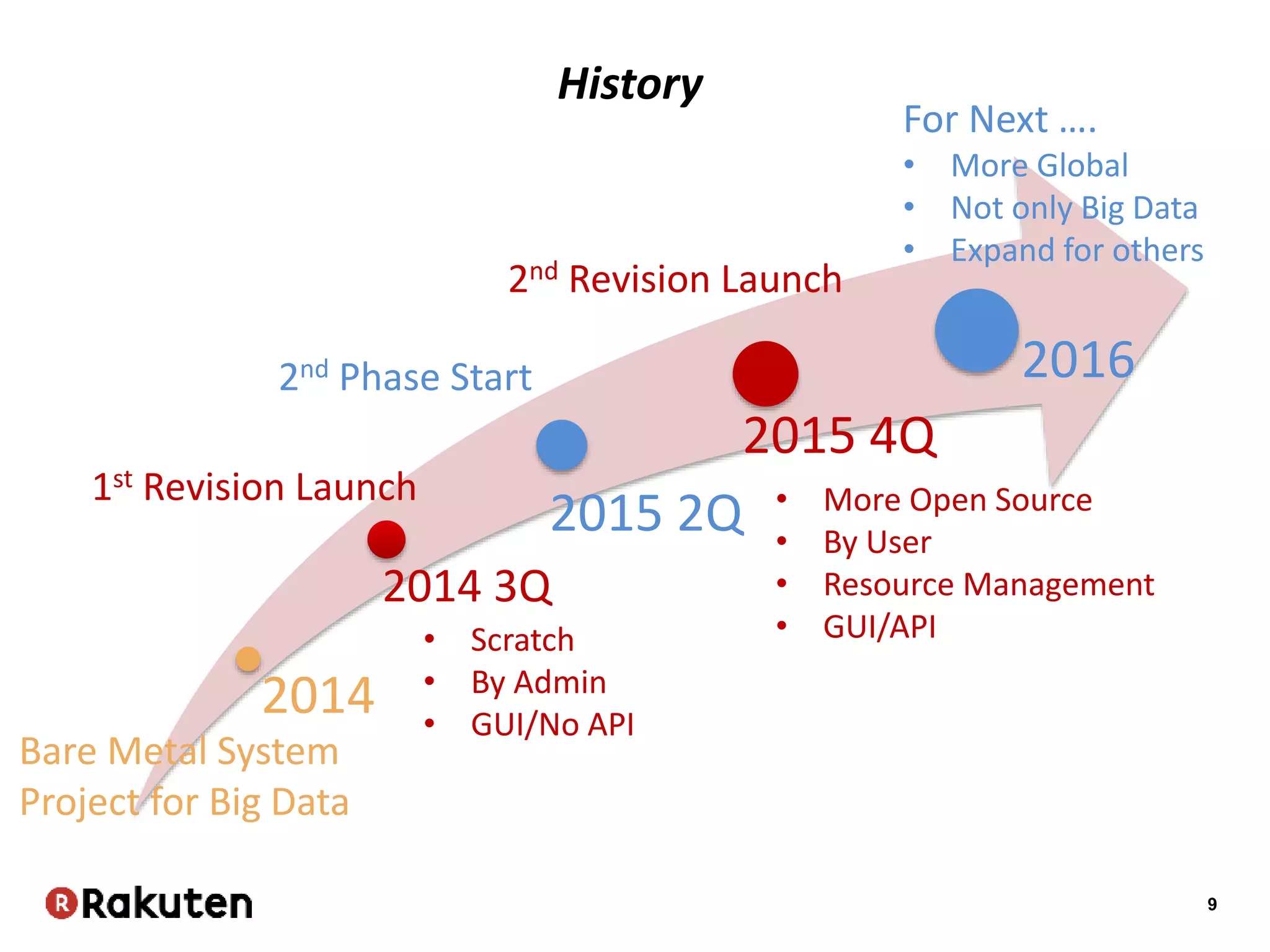

2014
2014 3Q
2015 2Q
2015 4Q
2016
Bare Metal System
Project for Big Data
1st Revision Launch
2nd Phase Start
2nd Revision Launch
History
For Next ….
• More Global
• Not only Big Data
• Expand for others
• Scratch
• By Admin
• GUI/No API
• More Open Source
• By User
• Resource Management
• GUI/API

10. 10
US Data Center
200 servers
Boston Office
EU Data Center
300 Servers
Paris Office
JP Data Center
5000 Physical Servers
India Operation Center
24x7 Trouble Tier1 Support
US Data Center
500 servers
Tokyo Office
Where are we ?

11. 11

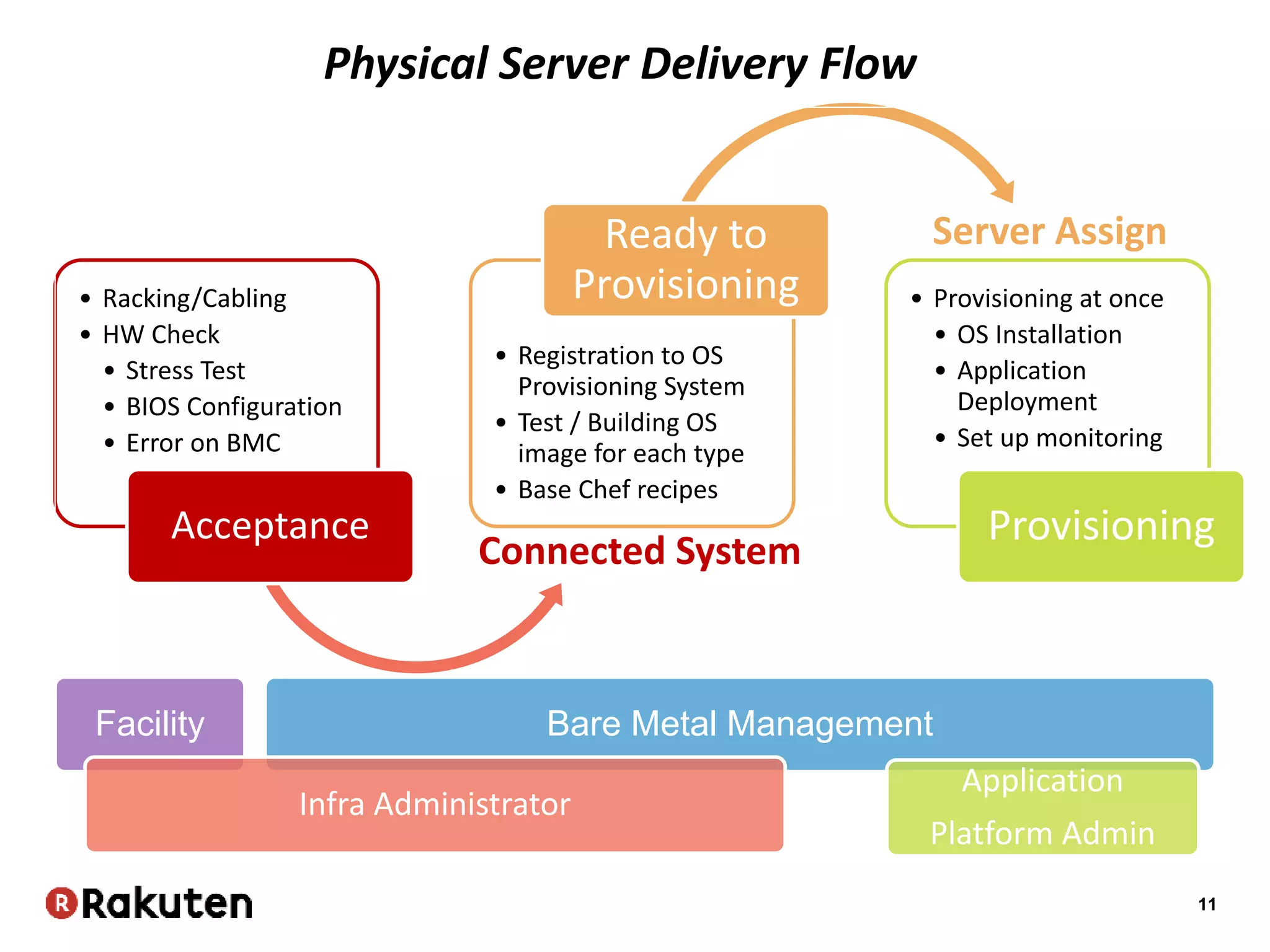

• Racking/Cabling
• HW Check
• Stress Test
• BIOS Configuration
• Error on BMC
Acceptance
• Registration to OS
Provisioning System
• Test / Building OS
image for each type
• Base Chef recipes
Ready to
Provisioning • Provisioning at once
• OS Installation
• Application
Deployment
• Set up monitoring
Provisioning
Connected System
Server Assign
Physical Server Delivery Flow
Bare Metal ManagementFacility
Infra Administrator
Application
Platform Admin

12. 12

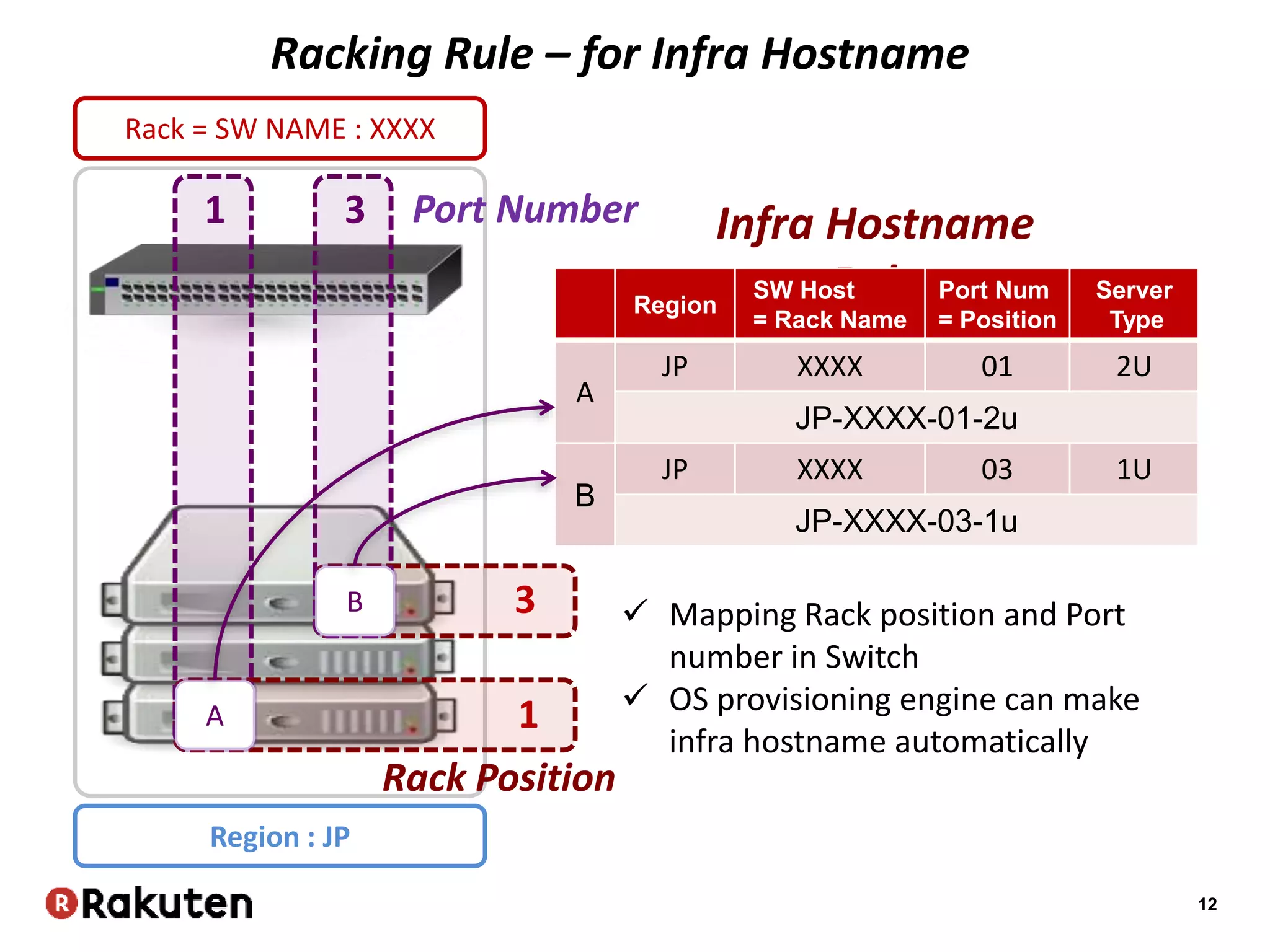

Rack = SW NAME : XXXX
3
3
1
1
Racking Rule – for Infra Hostname
Infra Hostname
RuleRegion
SW Host
= Rack Name
Port Num
= Position
Server
Type
A
JP XXXX 01 2U
JP-XXXX-01-2u
B
JP XXXX 03 1U
JP-XXXX-03-1u
B
A
Region : JP
 Mapping Rack position and Port
number in Switch
 OS provisioning engine can make
infra hostname automatically
Rack Position
Port Number

13. 13
OCP Server
DHCPTFTPSCP BDD Servers
1.Get IP address and boot loader file name
2.Get boot loader file(pxelinux.0)
3.Get boot option configuration(pxelinux.cfg/default)
4.Start kernel5.Get boot image
7.Perform
BDD OCP Scripts
8.Scp logs file
8.Analyze logs and get certificate result
Certificate the whole rack servers as new delivery
6.Start boot image

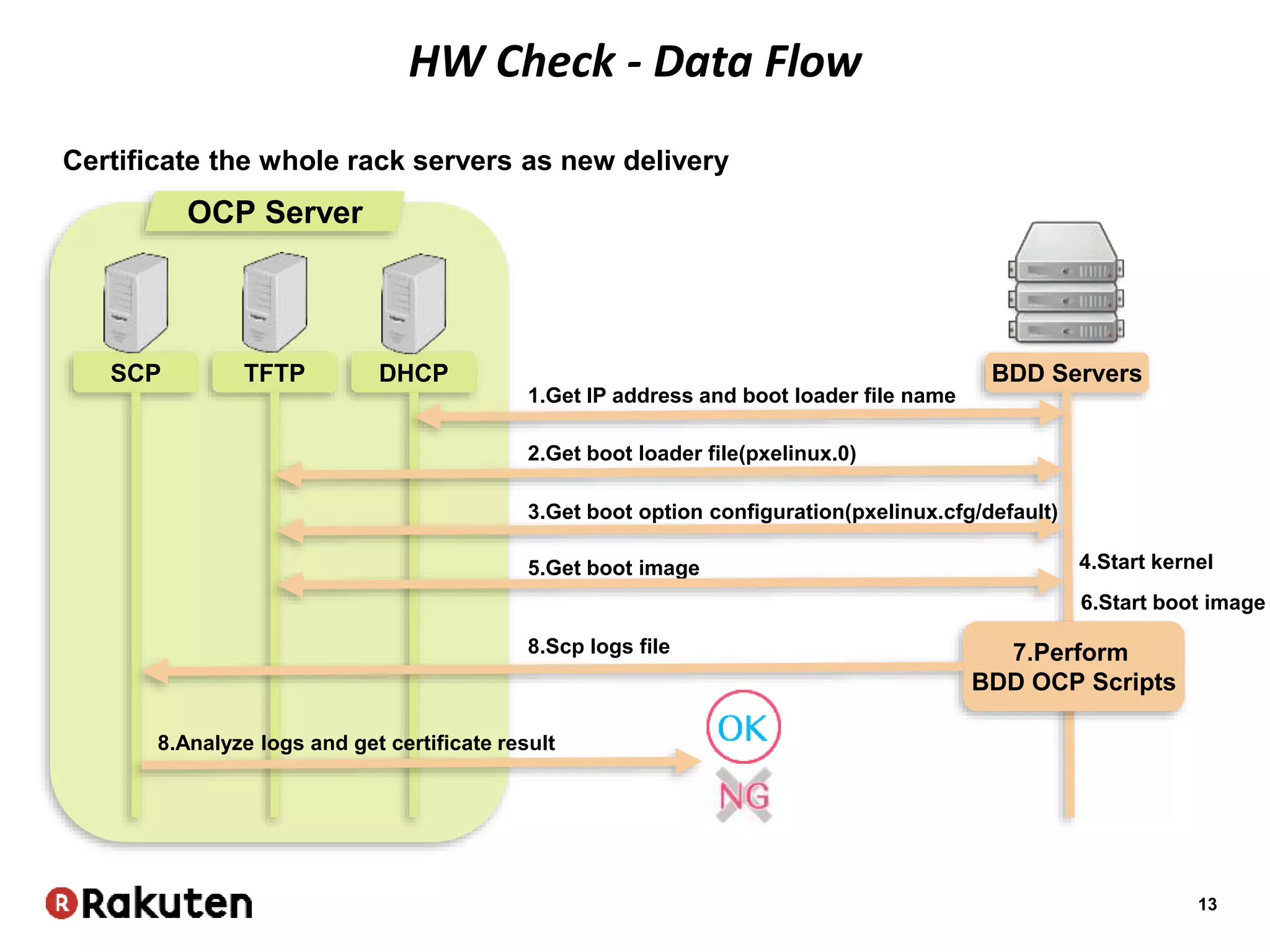

HW Check - Data Flow

14. 14

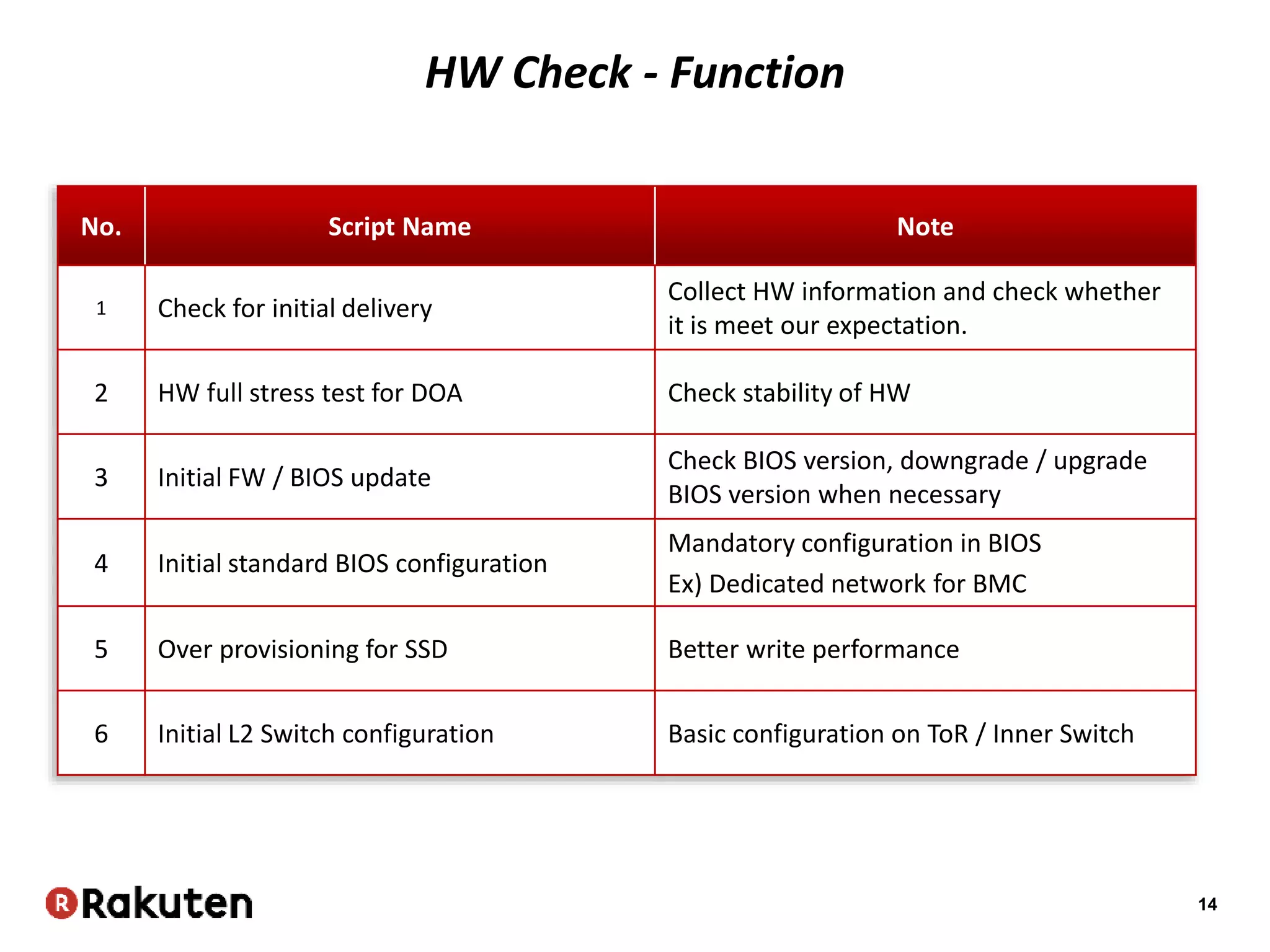

No. Script Name Note
1 Check for initial delivery
Collect HW information and check whether
it is meet our expectation.
2 HW full stress test for DOA Check stability of HW
3 Initial FW / BIOS update
Check BIOS version, downgrade / upgrade
BIOS version when necessary
4 Initial standard BIOS configuration
Mandatory configuration in BIOS
Ex) Dedicated network for BMC
5 Over provisioning for SSD Better write performance
6 Initial L2 Switch configuration Basic configuration on ToR / Inner Switch
HW Check - Function

15. 15

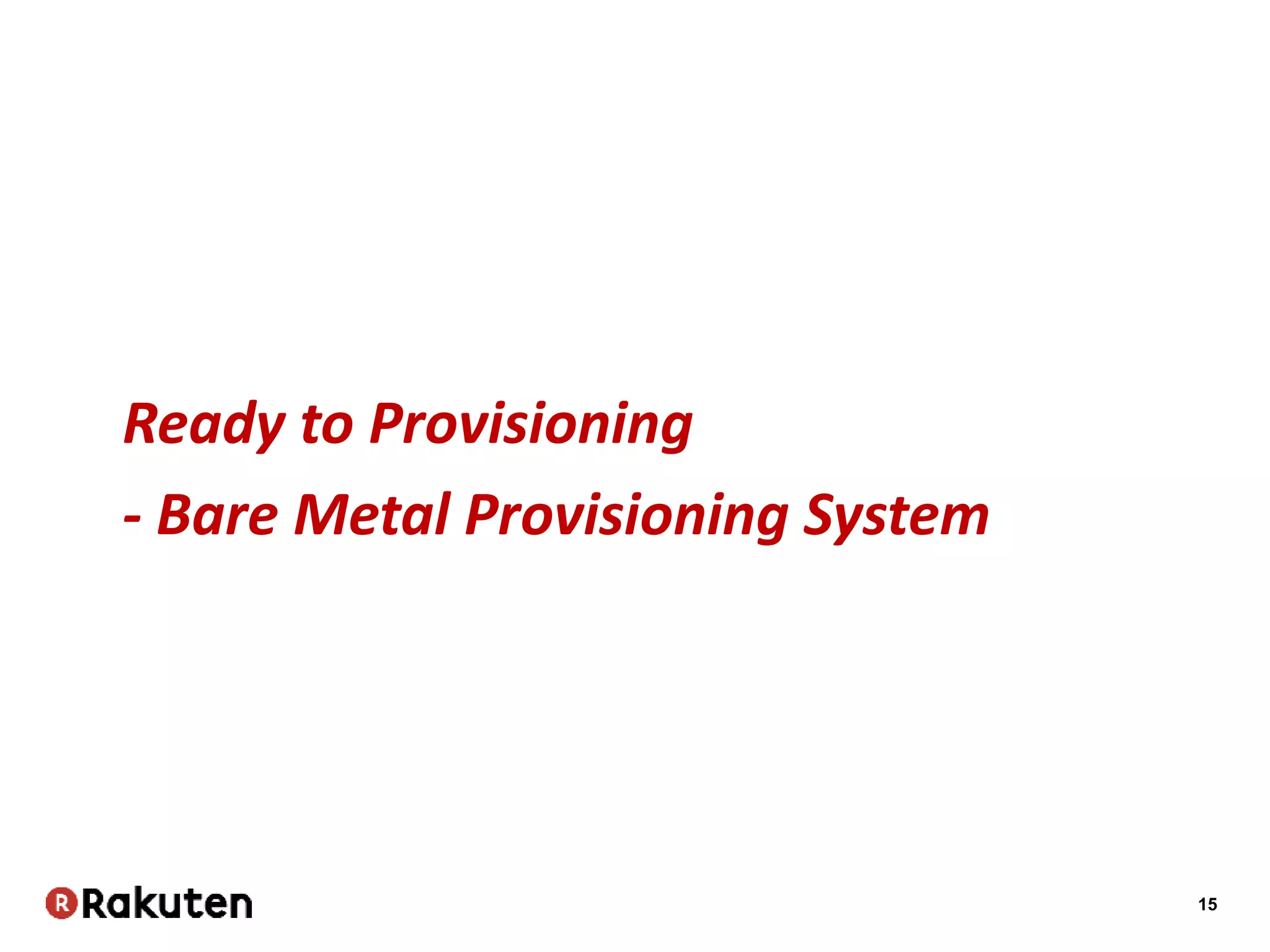

Ready to Provisioning
- Bare Metal Provisioning System

16. 16

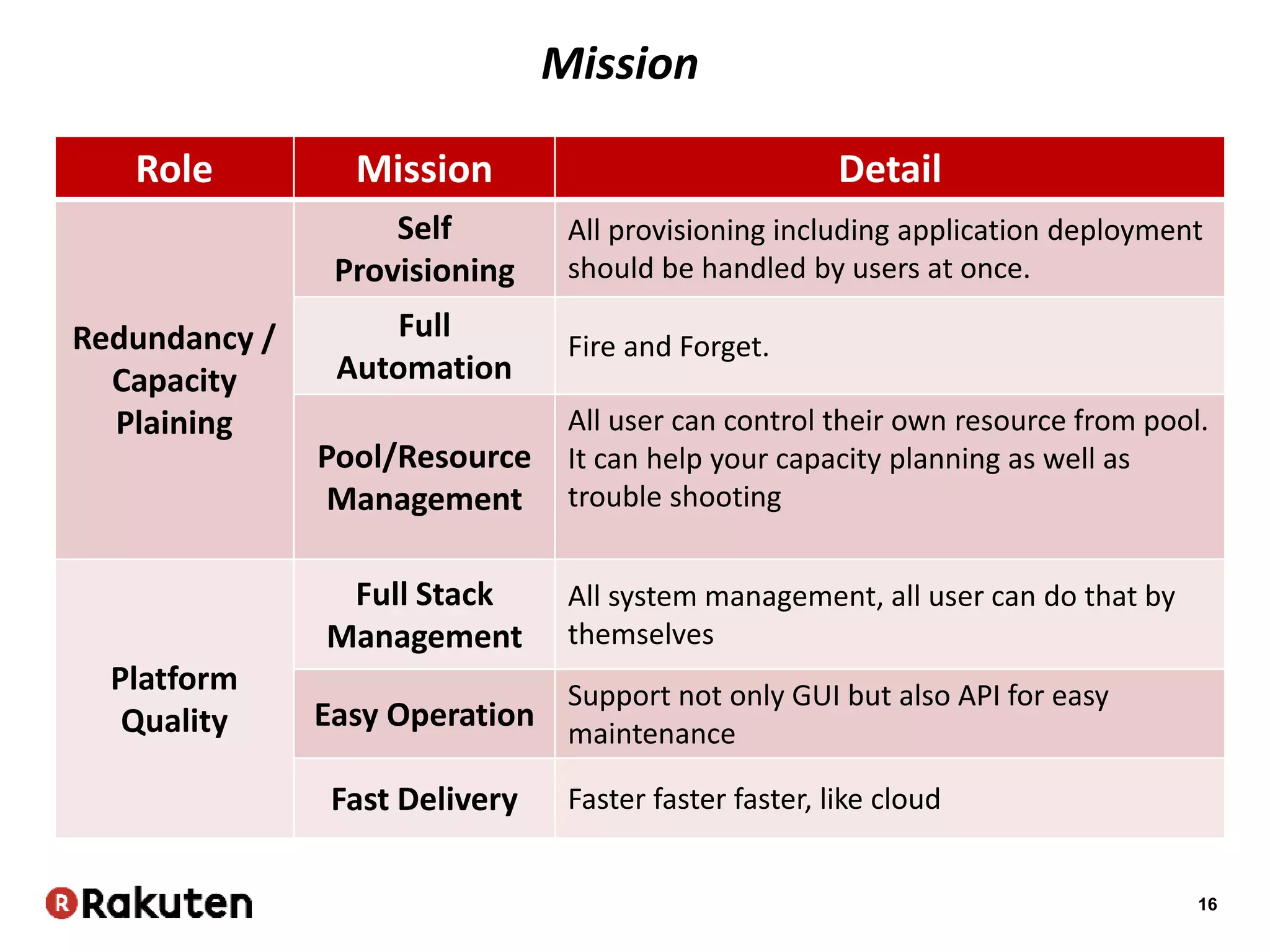

Role Mission Detail
Redundancy /
Capacity
Plaining
Self
Provisioning
All provisioning including application deployment
should be handled by users at once.
Full
Automation
Fire and Forget.
Pool/Resource
Management
All user can control their own resource from pool.
It can help your capacity planning as well as
trouble shooting
Platform
Quality
Full Stack
Management
All system management, all user can do that by
themselves
Easy Operation
Support not only GUI but also API for easy
maintenance
Fast Delivery Faster faster faster, like cloud
Mission

17. 17

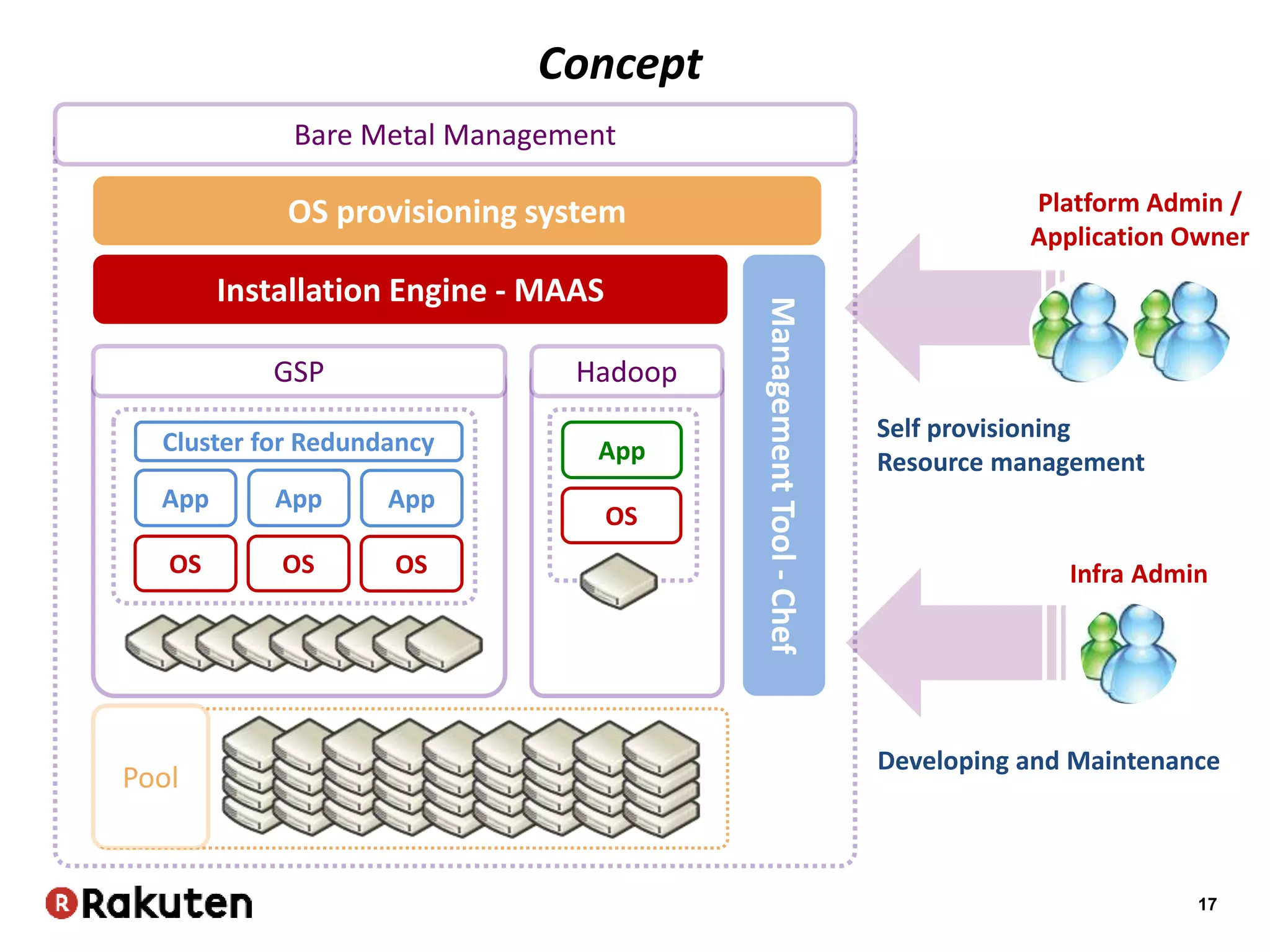

Installation Engine - MAAS
ManagementTool-Chef
OS provisioning system
App
OS
App
OS
GSP Hadoop
Bare Metal Management
App
OS
App
OS
Cluster for Redundancy
Pool
Platform Admin /
Application Owner
Infra Admin
Self provisioning
Resource management
Developing and Maintenance
Concept

18. 18

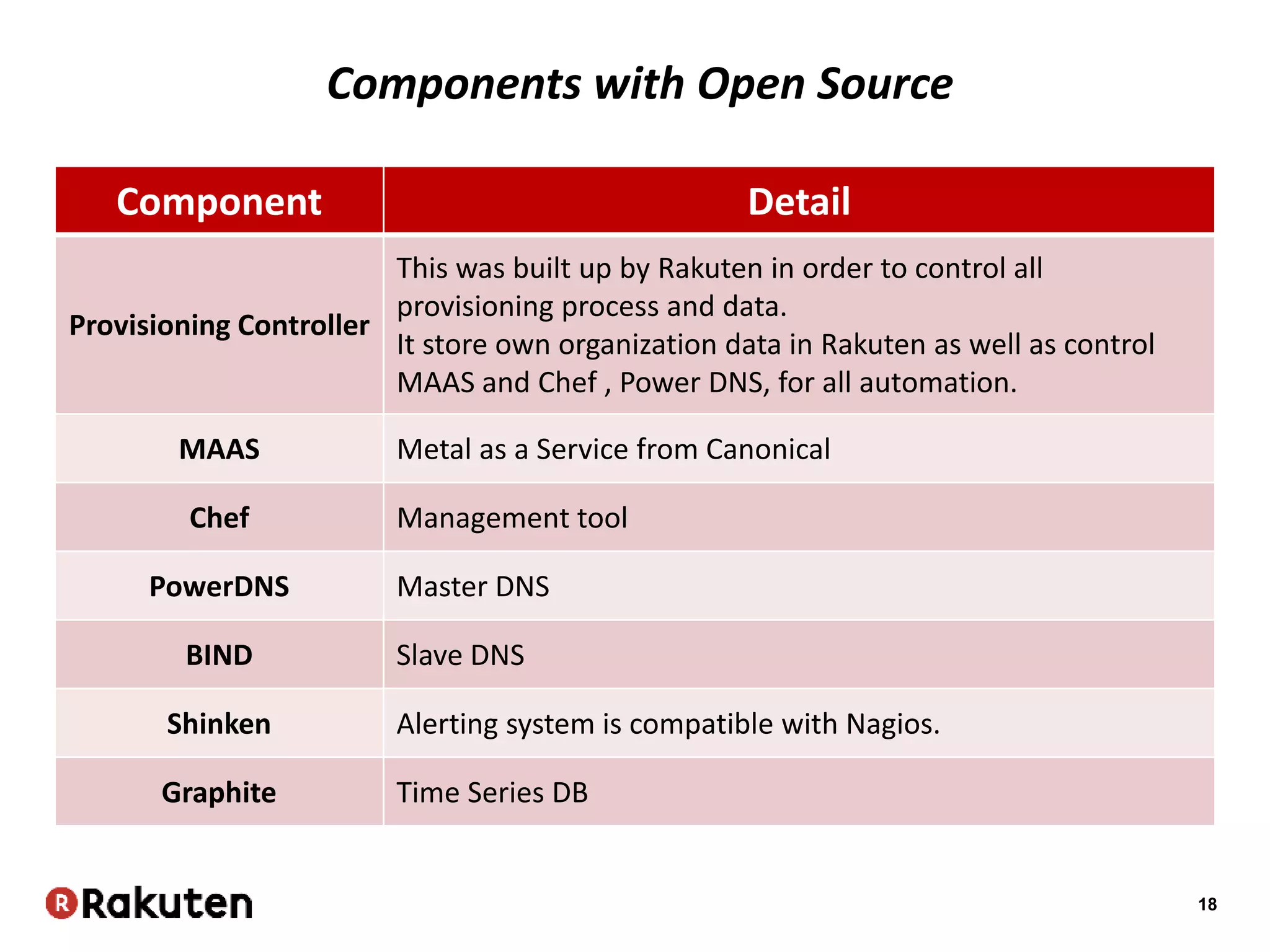

Component Detail
Provisioning Controller
This was built up by Rakuten in order to control all
provisioning process and data.
It store own organization data in Rakuten as well as control
MAAS and Chef , Power DNS, for all automation.
MAAS Metal as a Service from Canonical
Chef Management tool
PowerDNS Master DNS
BIND Slave DNS
Shinken Alerting system is compatible with Nagios.
Graphite Time Series DB
Components with Open Source

19. 19

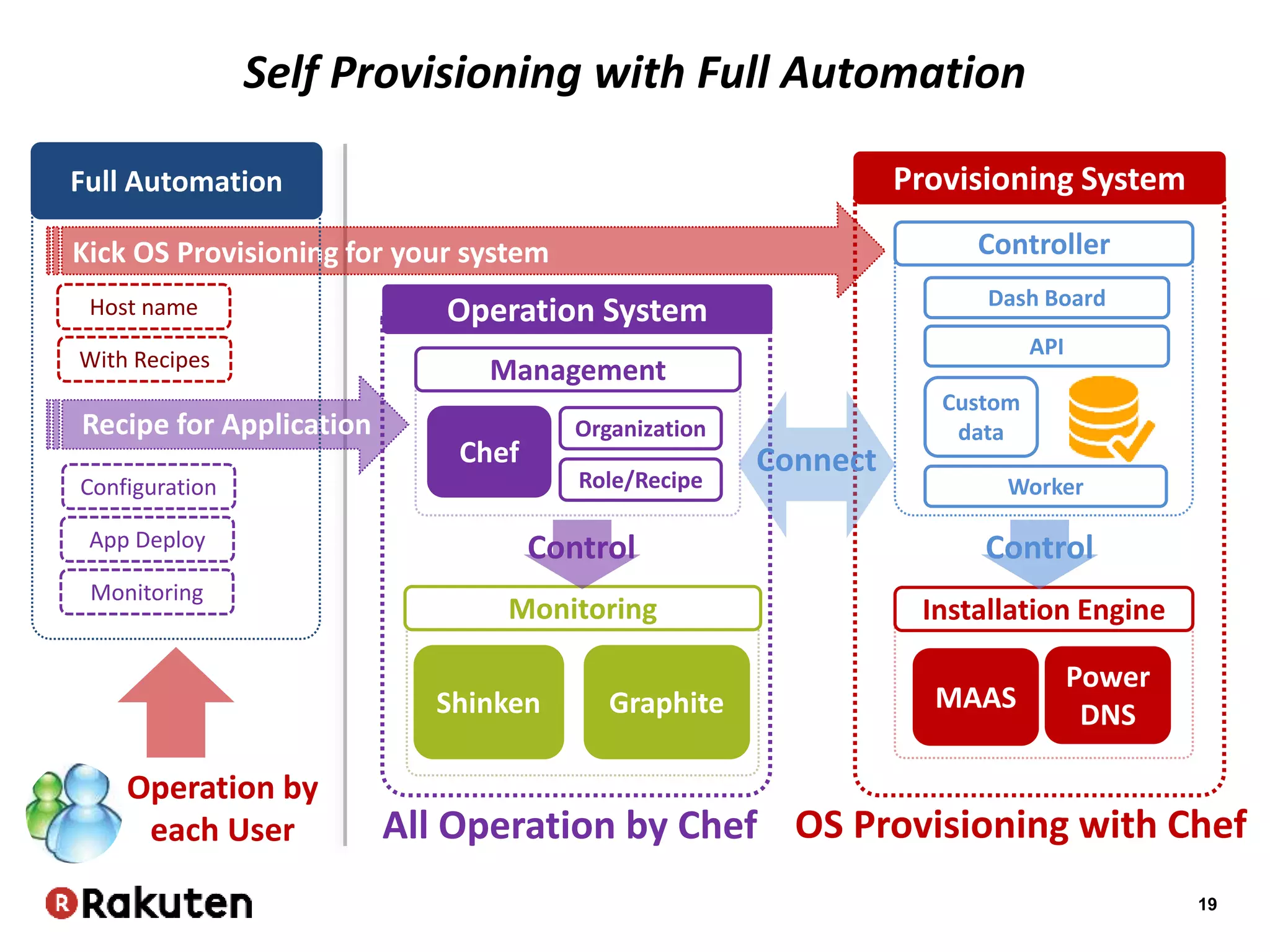

Self Provisioning with Full Automation
Dash Board
Organization
Role/Recipe
Host name
Custom
data
Provisioning System
OS Provisioning with Chef
API
Worker
Controller
Installation Engine
Management
Monitoring
Operation System
Configuration
All Operation by Chef
App Deploy
Monitoring
Kick OS Provisioning for your system
With Recipes
Recipe for Application
Full Automation
Control Control
ConnectChef
MAAS
Power
DNSShinken Graphite
Operation by
each User

20. 20
Pool
APP 1
Deployed
Pool
APP 2
Deployed
After
Commissioning
Assignment
Provisioning
Destroy OK
Take over
OK
OK OK
OK
NG
OK
OK

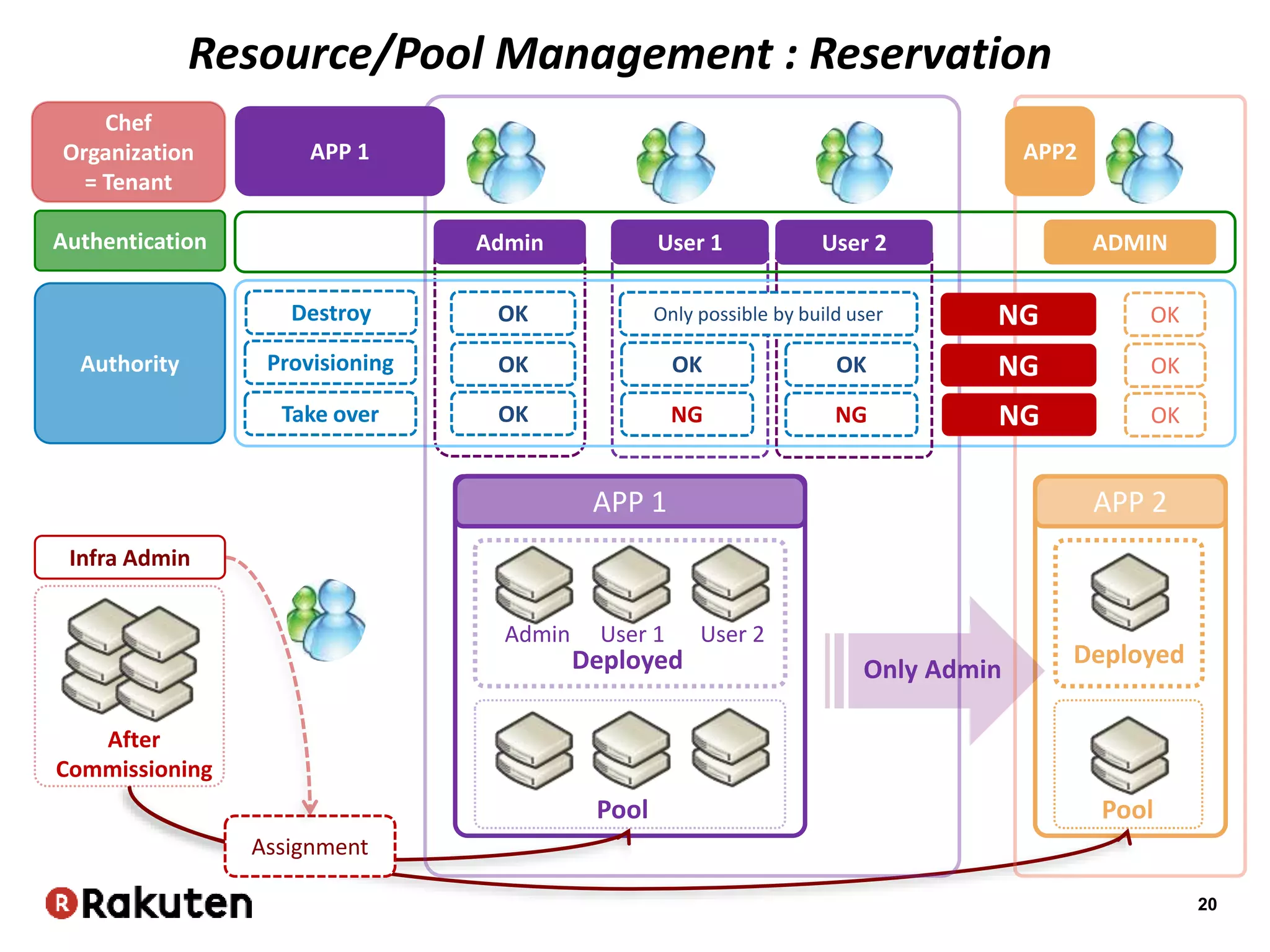

Resource/Pool Management : Reservation
Infra Admin
Admin User 1 ADMIN
Authority
Authentication
Chef
Organization
= Tenant
APP 1 APP2
Admin User 1 User 2
Only Admin
NG
NG
NG
OK
NG
User 2
Only possible by build user

21. 21

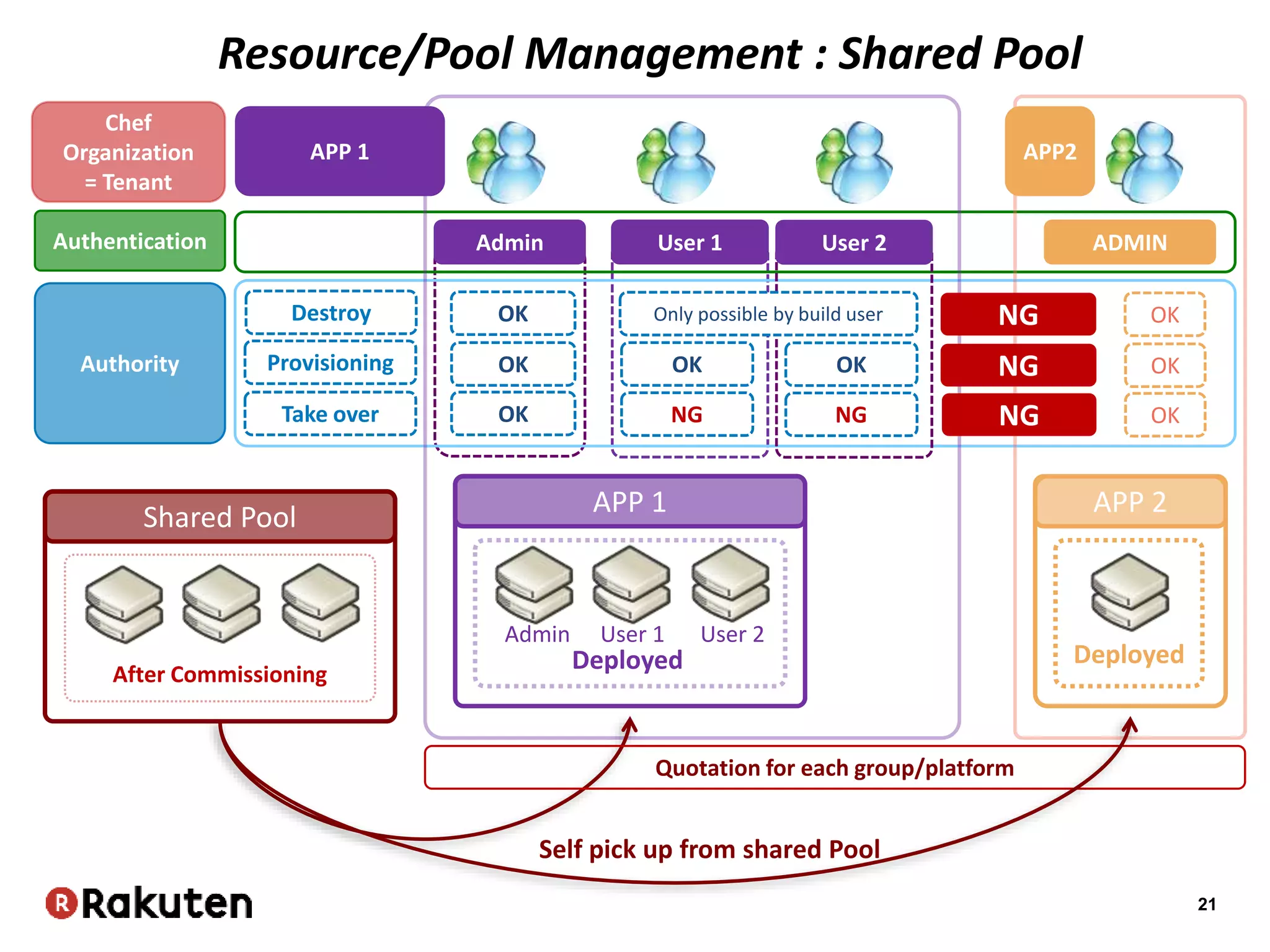

APP 1
Deployed
APP 2
Deployed
Provisioning
Destroy OK
Take over
OK
OK OK
OK
NG
OK
OK
Admin User 1 ADMIN
Authority
Authentication
Chef
Organization
= Tenant
APP 1 APP2
Admin User 1 User 2
NG
NG
NG
OK
NG
User 2
Only possible by build user
After Commissioning
Shared Pool
Quotation for each group/platform
Self pick up from shared Pool
Resource/Pool Management : Shared Pool

22. 22
• Designed by ApplicationApp Monitoring
• Designed by Application
• Custom Package by ApplicationApp Deployment
• Custom Configuration on OS by Application
• Server Account based on Chef OrganizationOS Configuration
• Default OS monitoringInfra Monitoring
• Default Configuration on OS
• Basic PackagesOS Configuration
• Simple image
• Pattern base Partitioning / Raid configurationOS Installation
• Detail H/W Spec
• Custom Information for BDDInventory Data

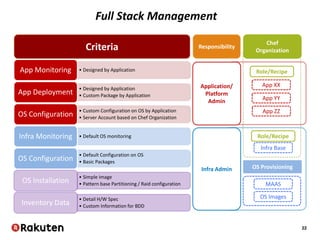

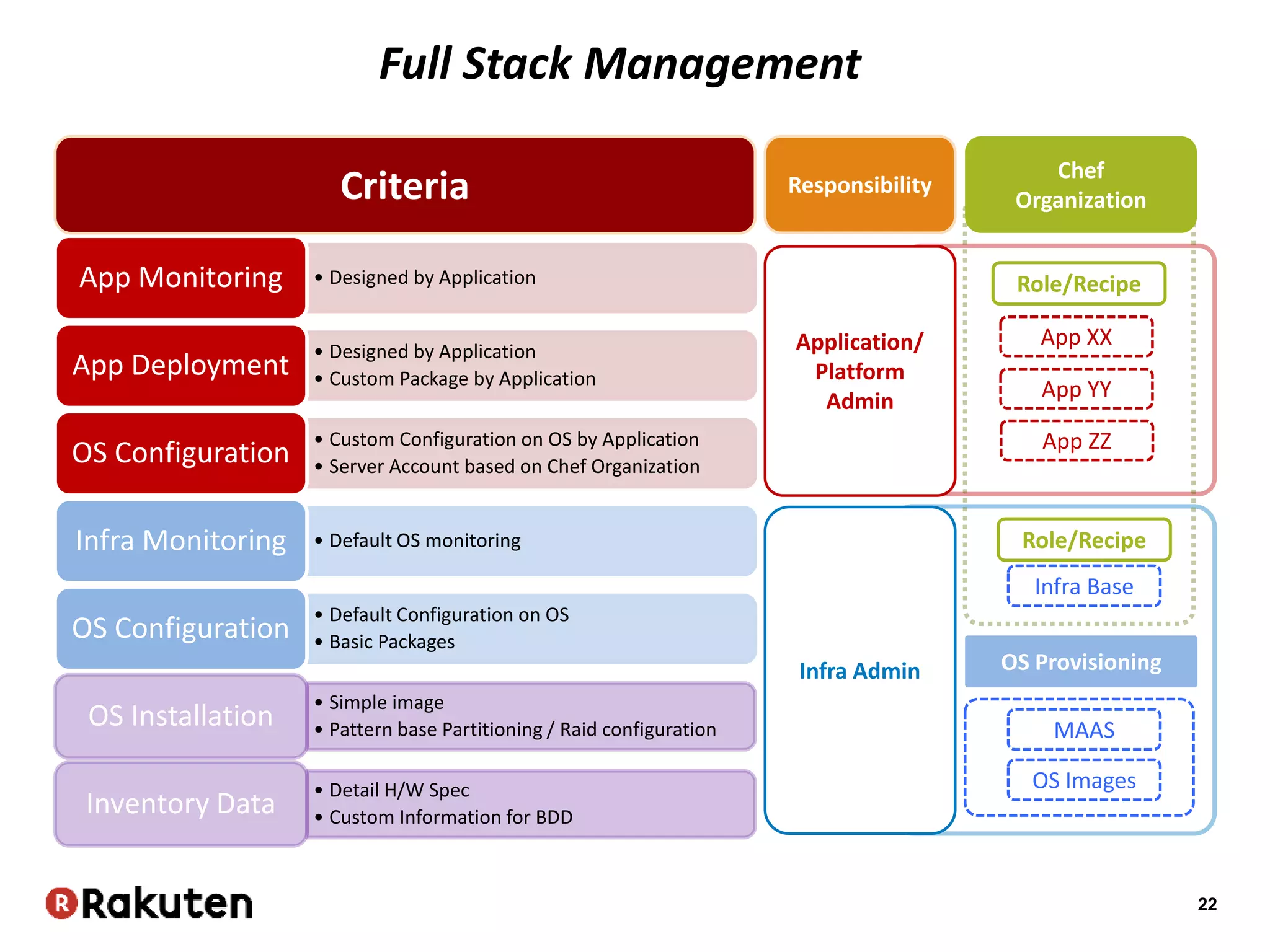

Full Stack Management
Role/Recipe
Infra Base
App XXApplication/
Platform
Admin
Infra Admin
Responsibility
Chef
Organization
OS Provisioning
Criteria
App YY
Role/Recipe
App ZZ
MAAS
OS Images

23. 23

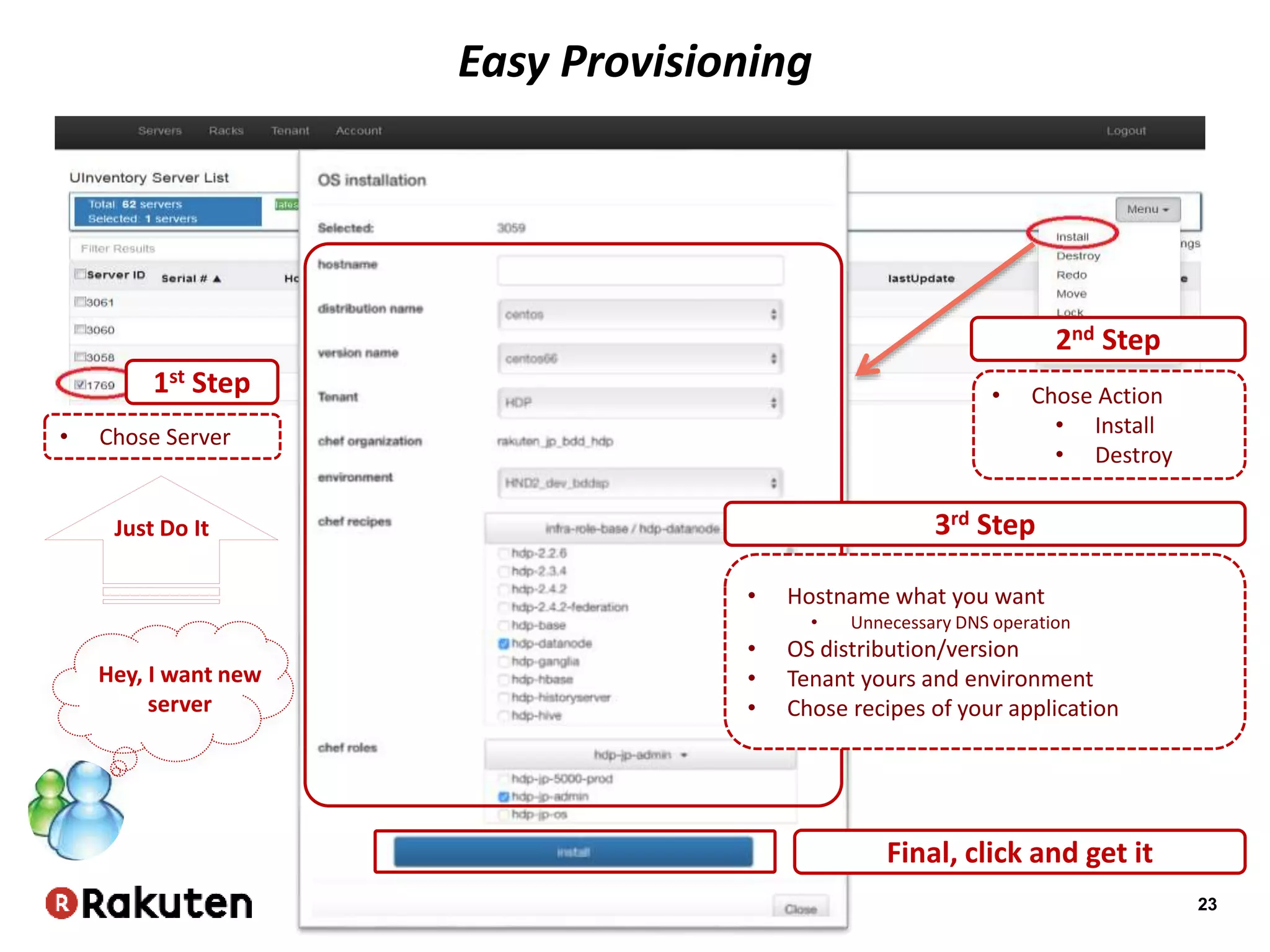

Easy Provisioning
1st Step
• Chose Server
2nd Step
• Chose Action
• Install
• Destroy
3rd Step
• Hostname what you want
• Unnecessary DNS operation
• OS distribution/version
• Tenant yours and environment
• Chose recipes of your application
Final, click and get it
Hey, I want new
server
Just Do It

24. 24
InstallOS SetupOS SetupEnv

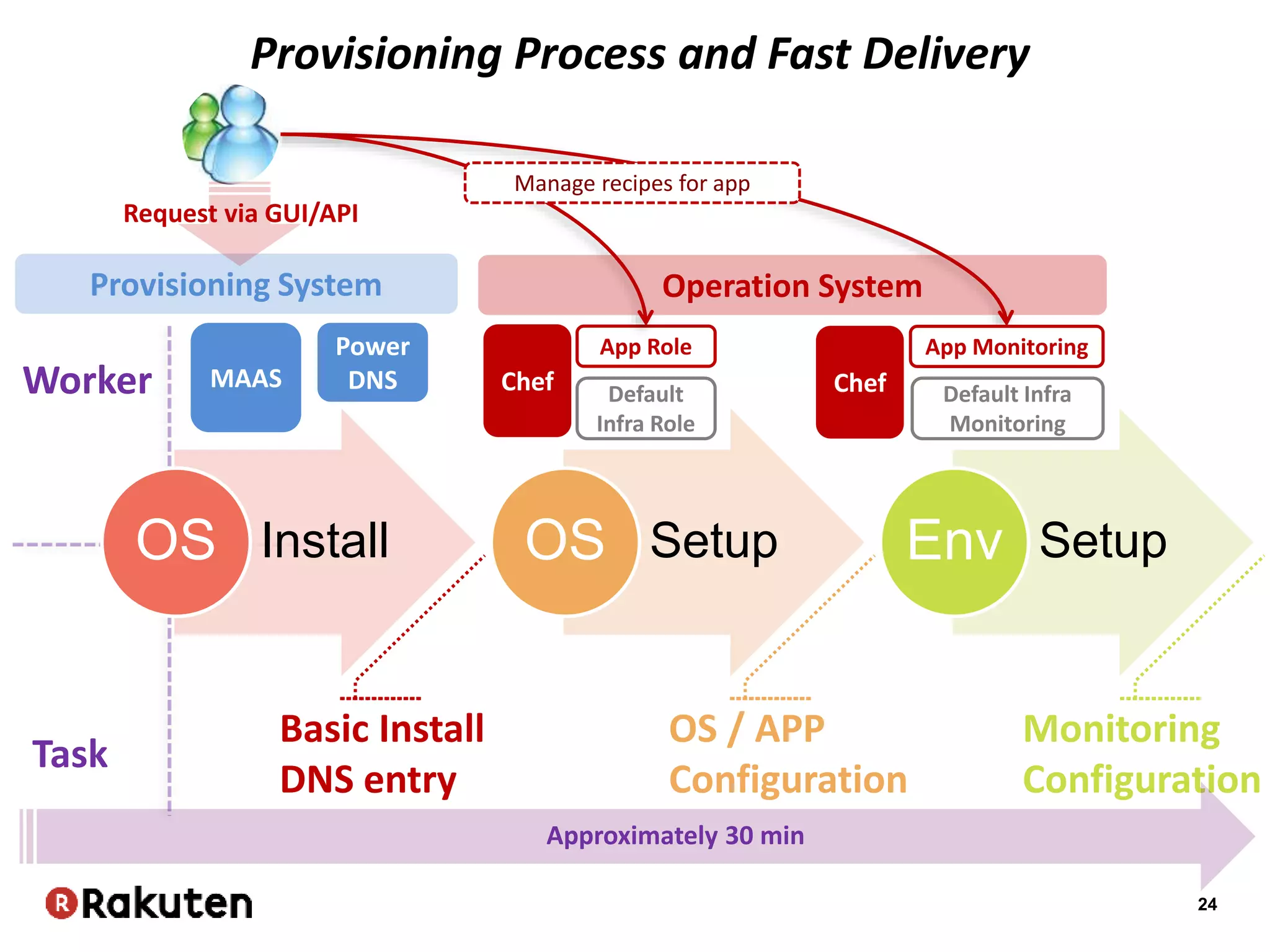

Provisioning Process and Fast Delivery
Provisioning System
Default
Infra Role
App Role
Manage recipes for app
Default Infra
Monitoring
App Monitoring
Basic Install
DNS entry
OS / APP
Configuration
Monitoring
Configuration
Task
Worker
Approximately 30 min
Request via GUI/API
Operation System
Chef ChefMAAS
Power
DNS

25. 25
Chef-Client
Collected
Yum
Nrpe
Collector
Graphite
Graphite Web
TimeSeriseDB
Inventory DB
OCS Inventory
Inventory
GLPI agent
Shiken
Thruk
Monitoring
Config files
Docker
Pager
DutyAlert
Repository
Package
JIRA
Issue
Tracking
Chef Enterprise
Configuration
DataBag
Account
Organization
Cookbook
Cookbook
Cookbook
Elastic Search
Graylog2
Log Analysis
GIT
Source
Management
Jenkins
Graylog Web
Graphana
Dash Board
Core Engine
OS Provisioning
MAAS
PowerDNS
DNS
MySQL
OS Install
Entry

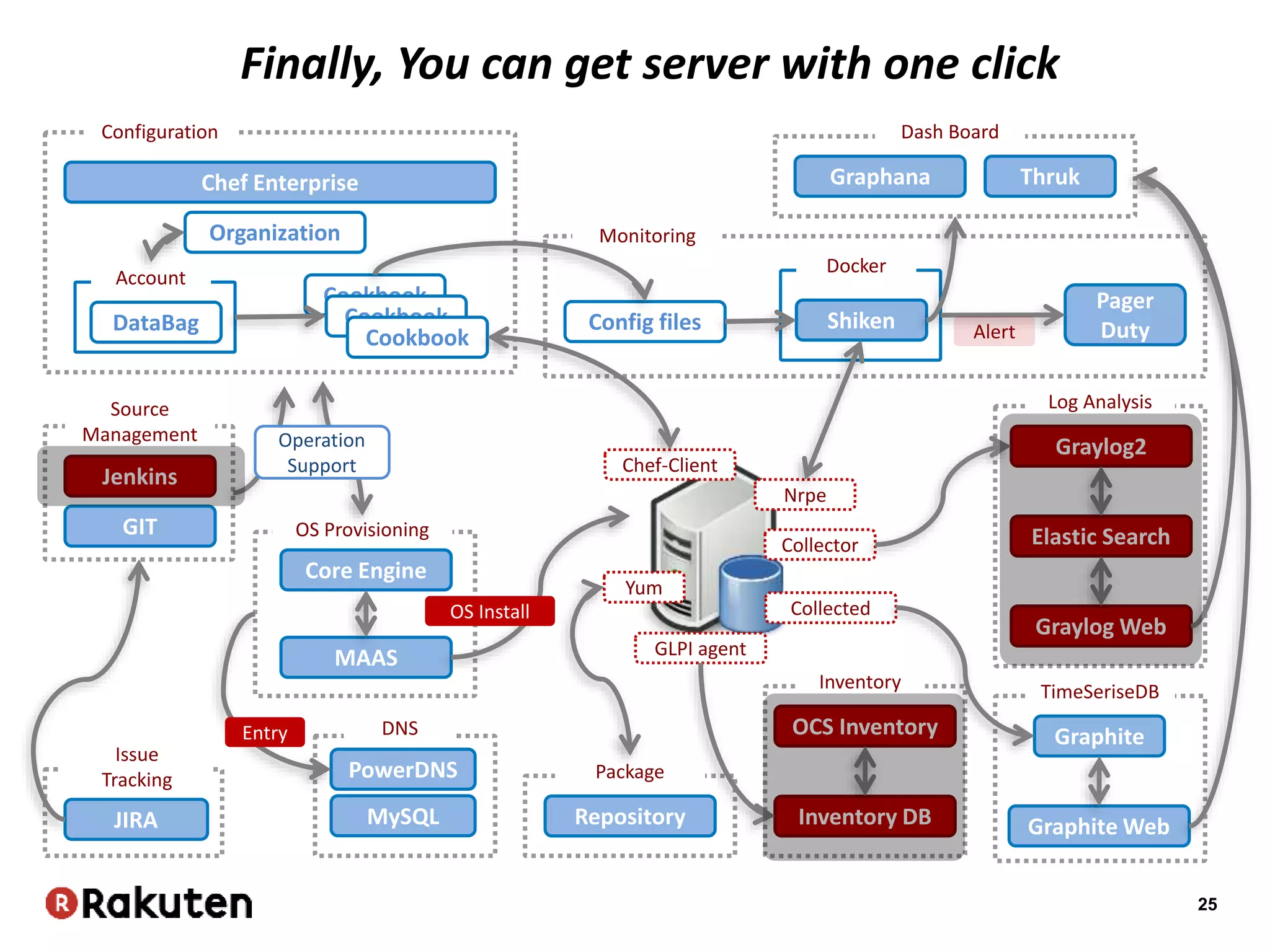

Finally, You can get server with one click
Operation
Support

26. 26

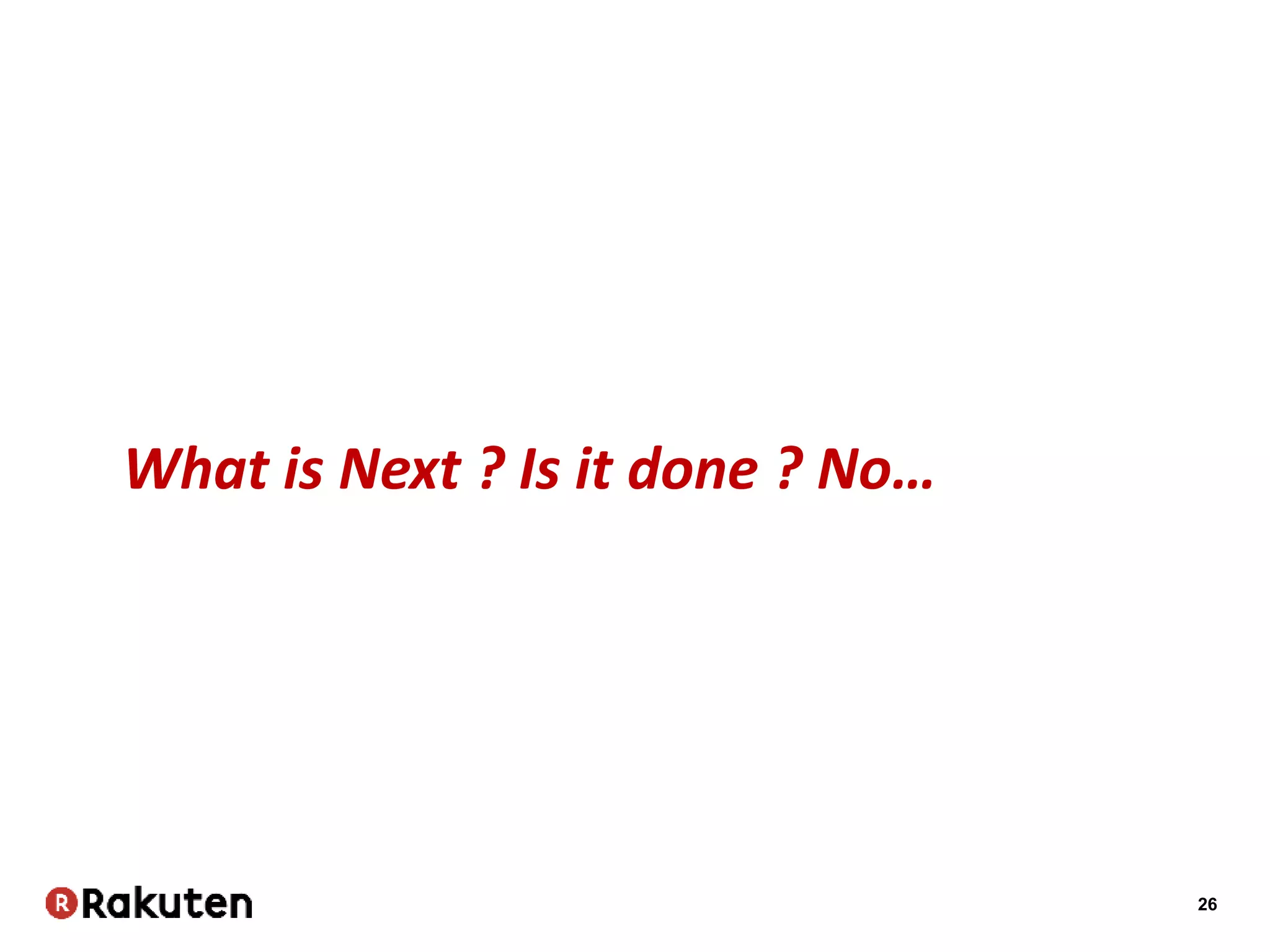

What is Next ? Is it done ? No…

27. 27

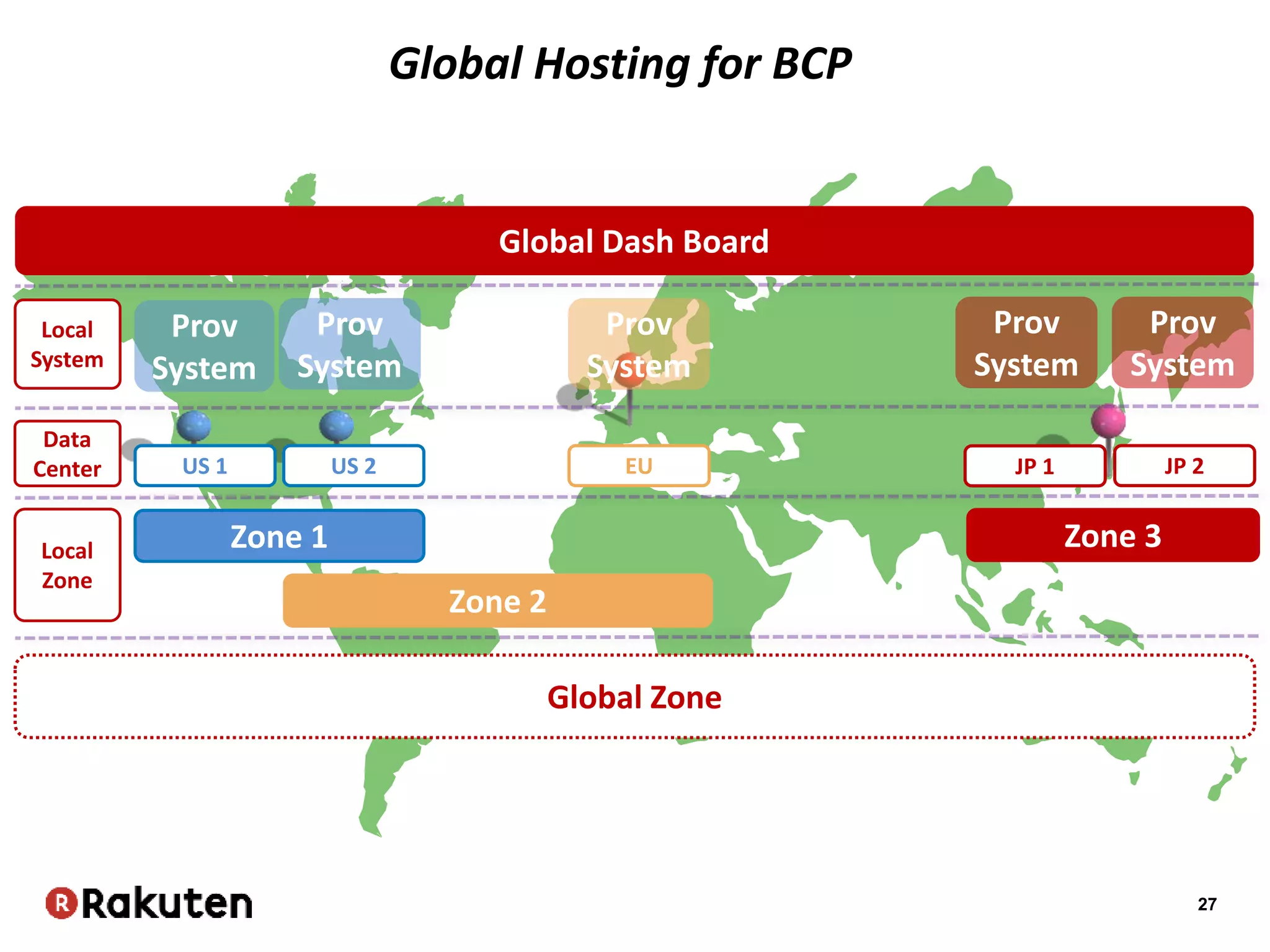

Global Hosting for BCP
US 1 US 2 EU JP 1 JP 2
Zone 1
Zone 2
Zone 3
Global Zone
Prov
System
Global Dash Board
Prov
System
Prov
System
Prov
System
Prov
System
Local
System
Data
Center
Local
Zone

28. 28

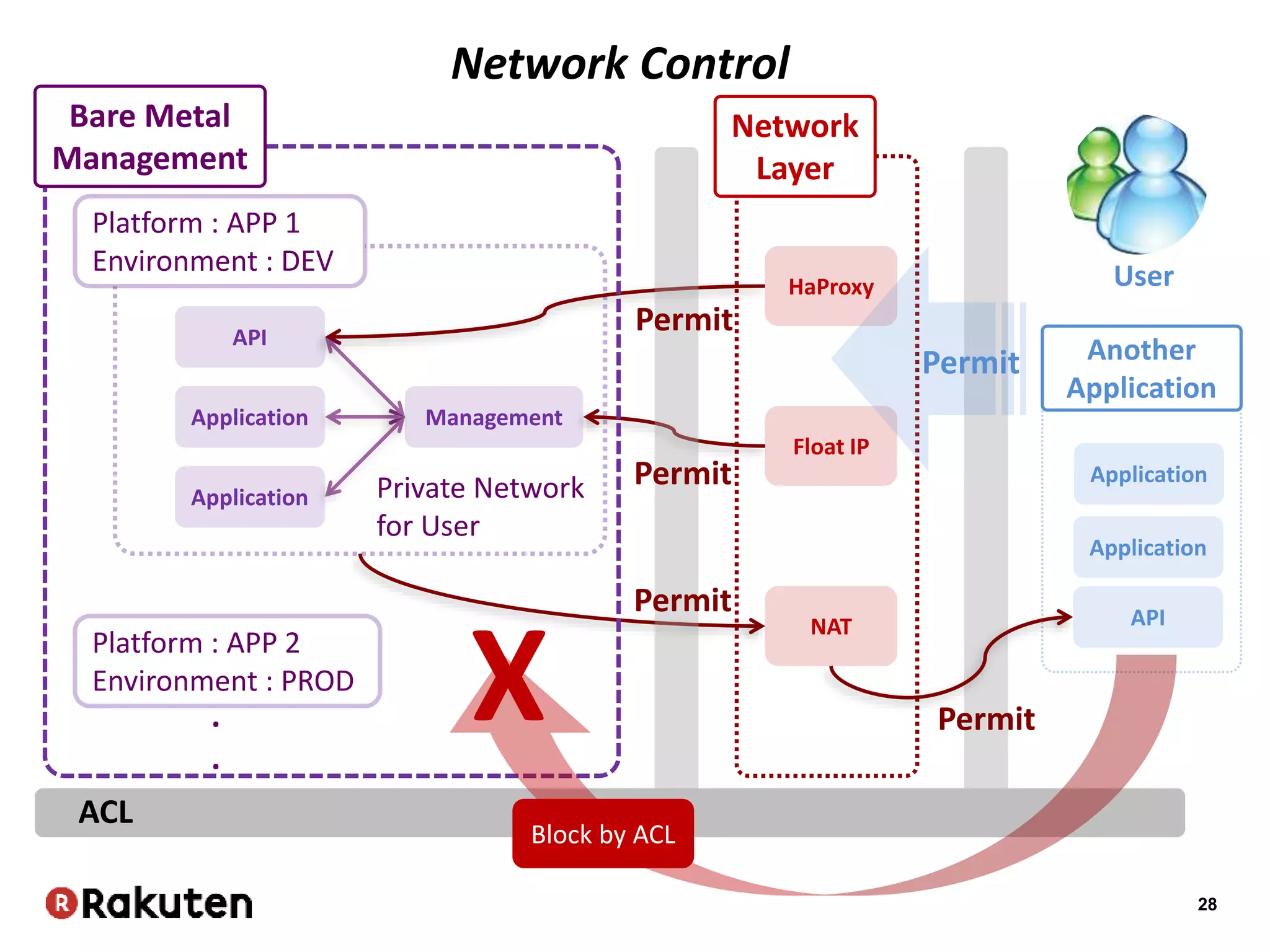

Platform : APP 1
Environment : DEV
Management
API
Application
Application
HaProxy
Network
Layer
Float IP
NAT
Private Network
for User
Platform : APP 2
Environment : PROD
.
.
Network Control
Bare Metal
Management
Another
Application
ACL
Block by ACL
Permit
Permit
Permit
Permit
X
User
API
Application
Application
Permit

29. 29

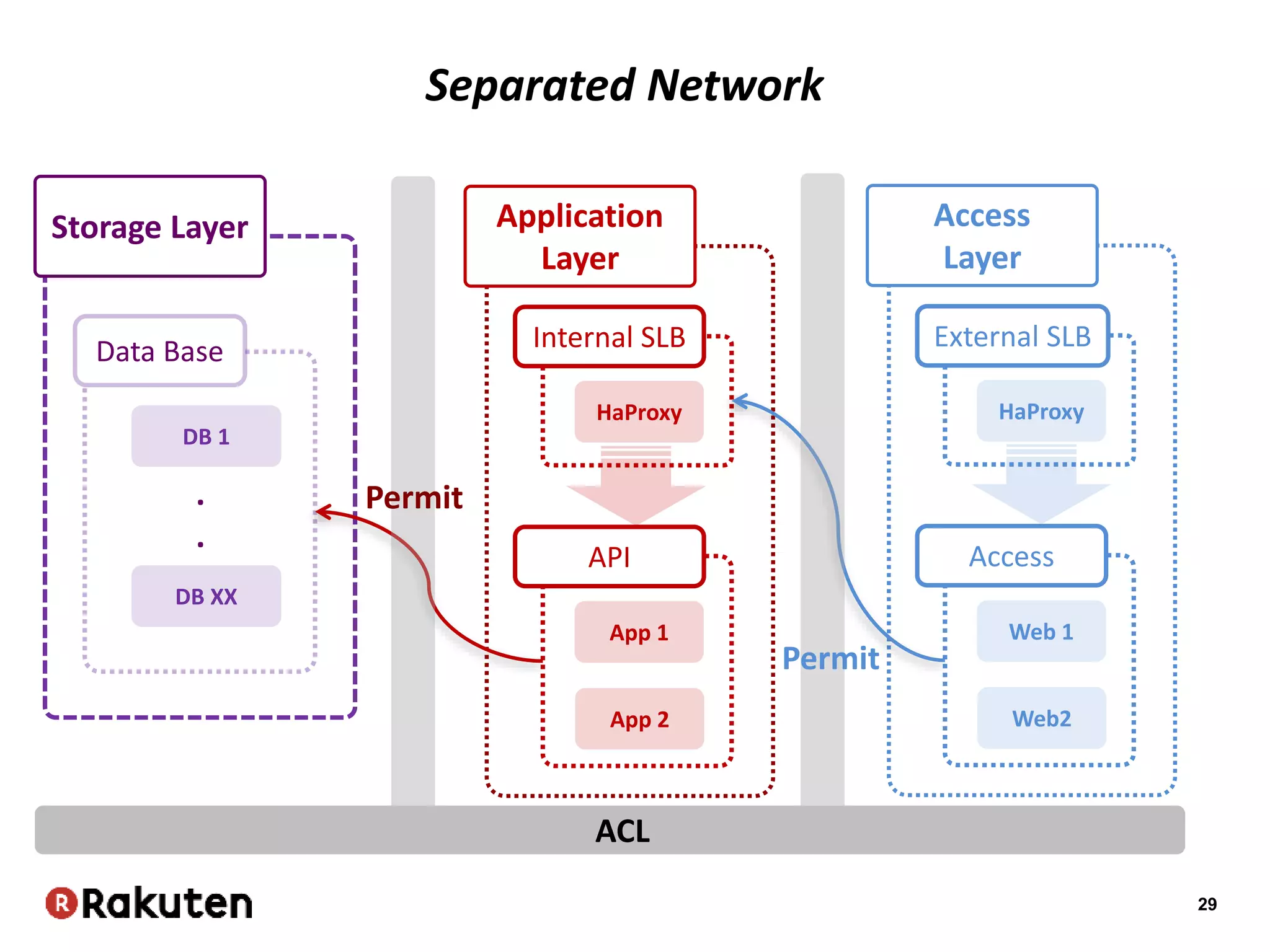

Data Base
DB 1
DB XX
Application
Layer
.
.
Storage Layer
API
App 1
App 2
Internal SLB
HaProxy
Access
Layer
Access
Web 1
Web2
External SLB
HaProxy
Permit
Permit
ACL
Separated Network

30. 30

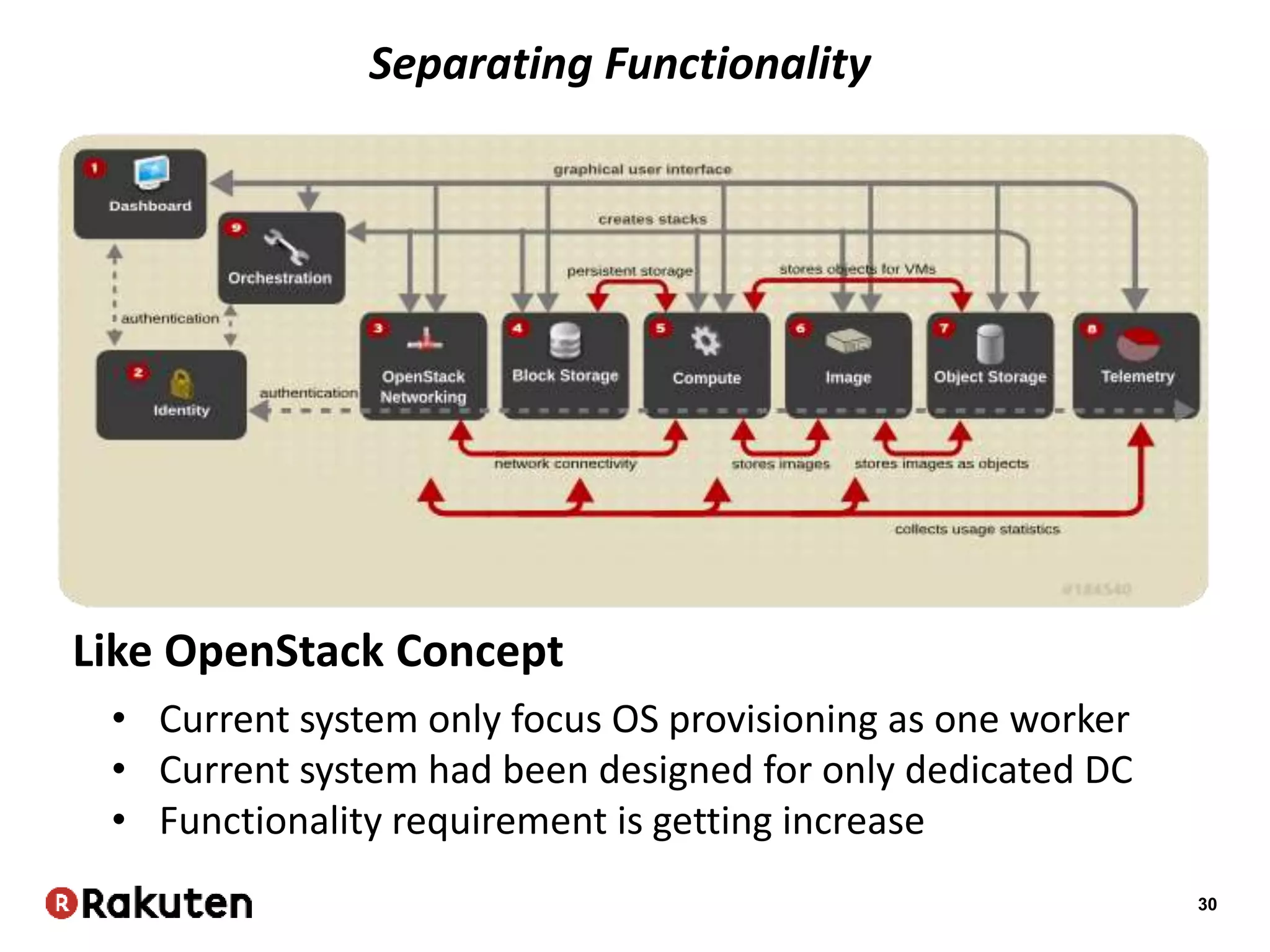

Separating Functionality
Like OpenStack Concept
• Current system only focus OS provisioning as one worker
• Current system had been designed for only dedicated DC
• Functionality requirement is getting increase

31. 31

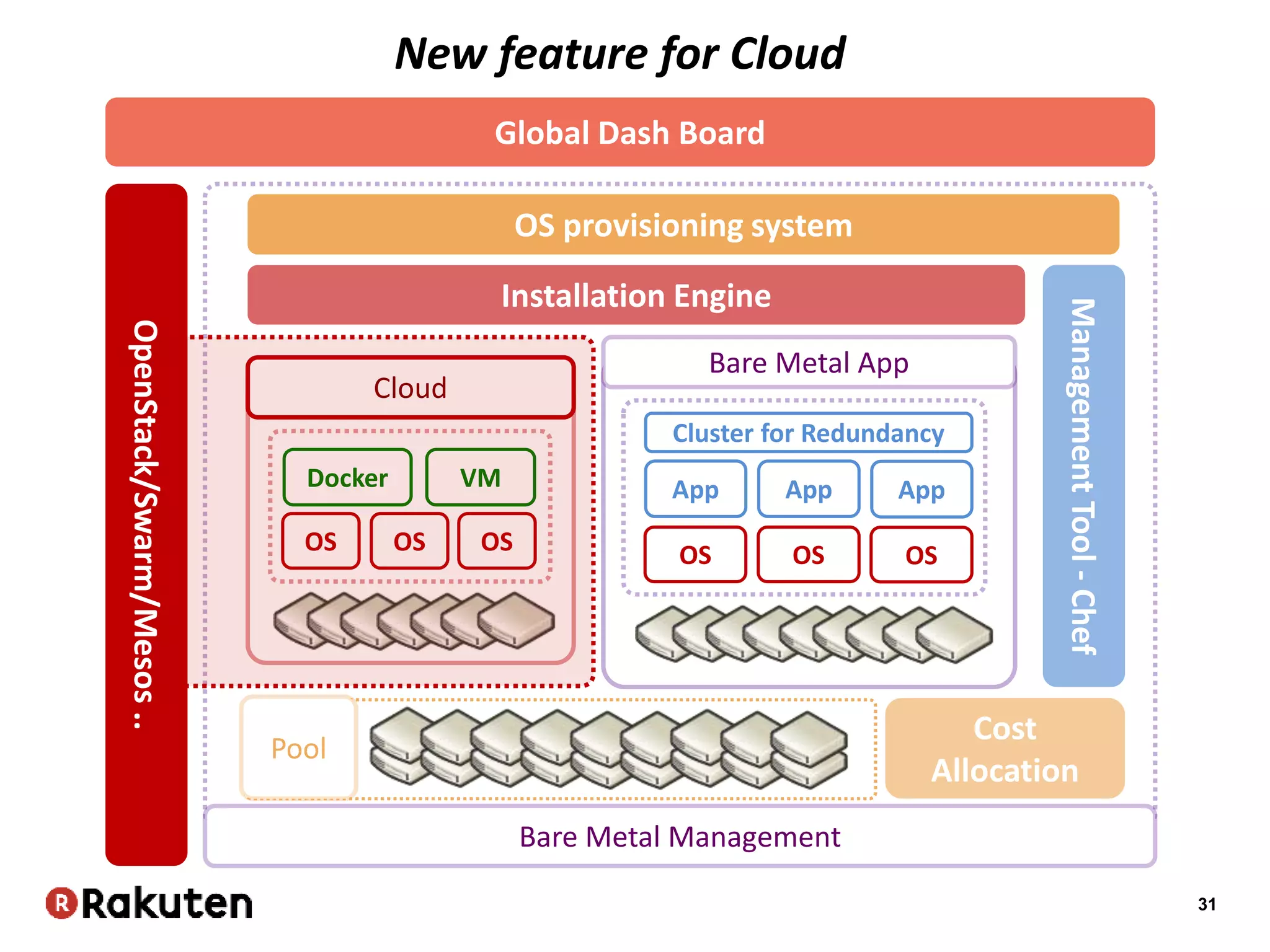

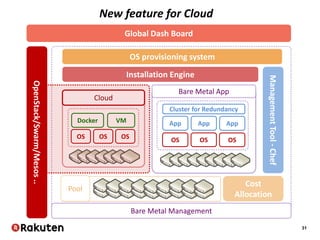

Installation Engine
ManagementTool-Chef
OS provisioning system
App
OS
Bare Metal App
Bare Metal Management
App
OS
App
OS
Cluster for Redundancy
Pool
New feature for Cloud
Docker
OS OS OS
VM
Cloud
OpenStack/Swarm/Mesos.. Global Dash Board
Cost
Allocation

32. 32
Thank you

33. 33
We are hiring!
Let’s join us for Building the core part of Rakuten
Just mail to me, I can help you for your application
Woosuk.choi@rakuten.com
http://global.rakuten.com/corp/careers/
