Azure Sentinel is a cloud-native security information and event management (SIEM) tool that collects, stores, and analyzes security-related data. It uses machine learning and behavioral analytics to detect threats and automate responses. Azure Sentinel collects log data from various sources through connectors and analyzes the data using built-in queries, notebooks, and workbooks. It leverages the MITRE ATT&CK framework for threat hunting and generates incidents for investigation and remediation of threats.

1. Little About Azure Sentinel
Azure Sentinel
It Analyzes Log Data It Automates Threat
Response
It Leverages AI and ML
● Built-in machine learning
Behavioral analytics helps you
detect, investigate, and remediate
cybersecurity threats
It’s Customizable
Azure Sentinel is a cloud-native SIEM used to collect, store,
and analyze Security-related data.
This is done by connecting your Data Sources to Azure Sentinel. This makes finding threats and anolomies both faster and easier
● Azure Sentinel uses Analytic
Rules to generate alerts via
Log Analytics
● Automation Runbooks can be used to
automatically respond to and send
alerts to adminstrators when threats
are detected.
● You can create, edit, and customize
your own Analytics Rues to detect
threats specific to your environment.

2. Azure Sentinel Data Sources
Connect your data to Azure Sentinel. SC-200
Azure
Sentinel
AWS/GCP
via Cloud-Trail
Azure Active
Directory
audit logs and sign-in logs.
Web App
Firewall
Firewall and connection
logs..
SQL Database
Logs
database and audit logs .
Kubernetes
Service
Office 365
audit logs and sign-in logs.
You can see the full list of data sources
HERE.

3. Azure Sentinel Workbooks
SC-200
Azure Sentinel provides several ready-to-use templates that you can use to
create your own Workbooks and then modify them as needed.
Visit the Azure Sentinel Github Repository for out-of-the-box detections, exploration queries, hunting queries, workbooks,
playbooks and more to improve the security of your environment.
● Most of the Data connectors in Azure Sentinel come with their own pre-built
workbooks.
● You can get better insight into the data being ingested, by using Tables and
Visualizations. They offer better insights into your data using bar and pie charts.
● You can also create your own workbooks from scratch, instead of using the predefined
templates.
From the Workbooks page in Sentinel, you can:
● Add a New workbook
● Review your saved workbooks
● Download workbook templates

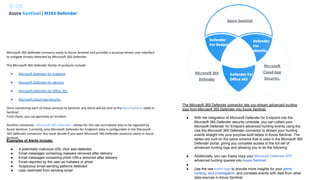

4. SC-200




Defender
For Endpoint
Defender
For
Identity
Defender For
Office 365
Azure Sentinel
Microsoft
Cloud App
Security.
Azure Sentinel / M365 Defender
Microsoft 365 Defender connects easily to Azure Sentinel and provides a purpose-driven user interface
to mitigate threats detected by Microsoft 365 Defender.
The Microsoft 365 Defender family of products include:
● Microsoft Defender for Endpoint
● Microsoft Defender for Identity
● Microsoft Defender for Office 365
● Microsoft Cloud App Security
Once connecting each of these services to Sentinel, any alerts will be sent to the SecurityAlerts table in
Sentinel.
From there, you can generate an Incident.
Another connector - Microsoft 365 Defender - allows for the raw normalized data to be ingested by
Azure Sentinel. Currently, only Microsoft Defender for Endpoint data is configurable in the Microsoft
365 Defender connector. You must decide if you want Microsoft 365 Defender products alerts in Azure
Sentinel.
Examples of Alerts include:
● A potentially malicious URL click was detected
● Email messages containing malware removed after delivery
● Email messages containing phish URLs removed after delivery
● Email reported by the user as malware or phish
● Suspicious email sending patterns detected
● User restricted from sending email
The Microsoft 365 Defender connector lets you stream advanced hunting
logs from Microsoft 365 Defender into Azure Sentinel.
● With the integration of Microsoft Defender for Endpoint into the
Microsoft 365 Defender security umbrella, you can collect your
Microsoft Defender for Endpoint advanced hunting events using the
Use the Microsoft 365 Defender connector to stream your hunting
events straight into your purpose-built tables in Azure Sentinel. The
tables are built on the same schema that is used in the Microsoft 365
Defender portal, giving you complete access to the full set of
advanced hunting logs and allowing you to do the following:
● Additionally, you can Easily copy your Microsoft Defender ATP
advanced hunting queries into Azure Sentinel.
●
● Use the raw event logs to provide more insights for your alerts,
hunting, and investigation, and correlate events with data from other
data sources in Azure Sentinel.
Microsoft 365
Defender

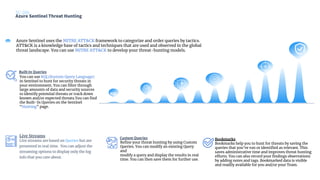

5. Azure Sentinel Threat Hunting
SC-200
KQL
Built-In Queries
Custom Queries
Live streams are based on Queries but are
presented in real time. You can adjust the
streaming options to display only the log
info that you care about.
Live Streams
You can use KQL(Kustom Query Language)
in Sentinel to hunt for security threats in
your environment. You can filter through
large amounts of data and security sources
to identify potential threats or track down
known and/or expected threats.You can find
the Built-In Queries on the Sentinel
“Hunting” page.
Azure Sentinel uses the MITRE ATT&CK framework to categorize and order queries by tactics.
ATT&CK is a knowledge base of tactics and techniques that are used and observed in the global
threat landscape. You can use MITRE ATT&CK to develop your threat-hunting models.
Refine your threat hunting by using Custom
Queries. You can modify an existing Query
and
modify a query and display the results in real
time. You can then save them for further use.
Bookmarks
Bookmarks help you to hunt for threats by saving the
queries that you’ve run or identified as relevant. This
saves administrative time and improves threat hunting
efforts. You can also record your findings observations
by adding notes and tags. Bookmarked data is visible
and readily available for you and/or your Team.

6. Azure Sentinel Notebooks
SC-200
Visualization/Graphic
s
Data
Processing/Analysis
Stats & Numerical
Computing
Machine/Deep Learning
Notebooks come packaged with Azure Sentinel. Some of these notebooks are built for a specific scenario and can be used
as-is.
Others are samples that are meant to illustrate the techniques and features of Sentinel Notebooks.
You can also import/deploy Notebooks from the Azure Sentinel Community GitHub.
Notebooks have two components:
1. The browser-based interface where you enter and run queries and code and where the execution results are
displayed.
2. The kernel, which is responsible for parsing and executing the code itself.
The Azure Sentinel notebooks make use of many security-focused Python libraries, Including:

7. Azure Sentinel
Playbooks 1
2
3
4
5
● You can create security playbooks in Sentinel to automatically respond to
alerts.
● You create them by using Logic Apps, which run in response to a
pre-configured alert.
● You can run these security playbooks manually in response to your
investigation of an incident or you can configure an alert to run them
automatically(automation playbook).
A trigger is an event that occurs when a specific set of conditions is satisfied.
Triggers activate automatically when conditions are met. For example, a
security incident occurs in Azure Sentinel, which is a trigger for an automated
action.
Playbooks need to be attached to an analytics rule to automate incedent
responses.
You can use the Automated Response section in the analytics rule to select a
playbook to run automatically when the alert is generated.
For more information on how to create analytics rule, see the
"Threat detection with Azure Sentinel analytics" module.
Check out a list of sample Azure Sentinel Playbooks
HERE.
An action is an operation that performs a task in the Logic Apps workflow.
Actions run when a trigger activates, another action completes, or a
condition is met.
SC-200

8. Azure Sentinel Incident Management
SC-200 Find and Remediate Security Threats
For Example:
You recently noticed that a significant number of VMs were deleted from your Azure
subscription. Due to a recent alert, you decide to implement an analytics rule to
create an incident when someone deletes an existing VM. You can then investigate the
incident to determine the details, and close the incident when you're finished.
-Incident Management is the process of incident investigation.
-This includes creation, in-depth investigation, and then resolution.
-You can use Sentinel to review detailed incident information, assign an incident owner, set and maintain
incident severity, and manage incident status.
Most incidents are generated because of an analytics rule ALERT.
Examples of Alerts include:
● Detection of suspicious files.
● Detection of suspicious user activities.
● Attempted elevation of privilege.
● Analytics rules generate alerts, based on either KQL queries or direct connection to Microsoft Security solutions
such as Azure Security Center or Microsoft Defender 365. If you enable alert grouping, Azure Sentinel includes
any related alert evidence for the incident.riv

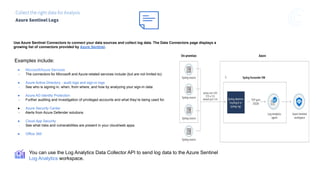

9. Azure Sentinel Logs
Collect the right data for Analysis
Use Azure Sentinel Connectors to connect your data sources and collect log data. The Data Connectors page displays a
growing list of connectors provided by Azure Sentinel.
Examples include:
● Microsoft/Azure Services
- The connectors for Microsoft and Azure-related services include (but are not limited to):
● Azure Active Directory - audit logs and sign-in logs
- See who is signing in, when, from where, and how by analyzing your sign-in data.
● Azure AD Identity Protection
- Further auditing and investigation of privileged accounts and what they’re being used for.
● Azure Security Center
- Alerts from Azure Defender solutions
● Cloud App Security
- See what risks and vulnerabilities are present in your cloud/web apps.
● Office 365
You can use the Log Analytics Data Collector API to send log data to the Azure Sentinel
Log Analytics workspace.
