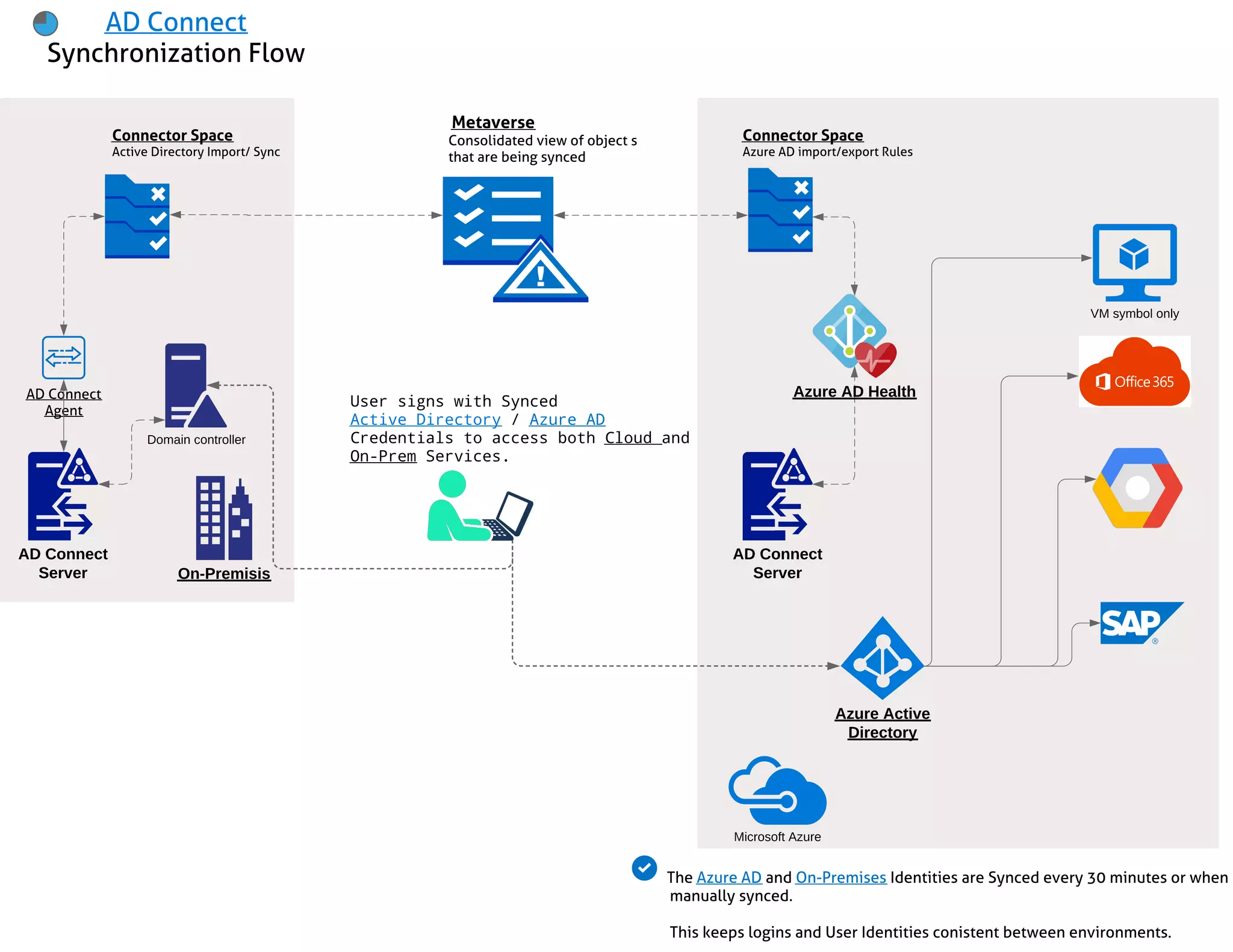

The document outlines the synchronization process between Azure Active Directory and on-premises identities using Azure AD Connect. Syncing occurs every 30 minutes or manually, ensuring consistency of user logins and identities across both cloud and on-premises services. It highlights the components involved, including the connector space and various servers involved in the synchronization flow.

1. 1
Metaverse
Consolidated view of object s
that are being synced
Connector Space
Azure AD import/export Rules
AD Connect
Synchronization Flow
Connector Space
On-Prem Sync Rules
User si gns wi t h Synced
Act i ve Di r ect or y / Azur e AD
Cr edent i al s t o access bot h Cl oud and
On- Pr em Ser vi ces.
The Azure AD and On-Premises Identities are Synced every 30 minutes or when
manually synced.
This keeps logins and User Identities conistent between environments.
VM symbol only
Domain controller
Azure Active
Directory
AD Connect
Server
On-Premisis
AD Connect
Agent
Azure AD Health
AD Connect
Server
Connector Space
Active Directory Import/ Sync
Microsoft Azure
