1. Automatizzare la creazione
di risorse con ARM
Template e Powershell
Marco Obinu - @OmegaMadLab

2. Thanks to

3. Who am I?
Marco Obinu
@OmegaMadLab
marco.obinu@omegamadlab.com
http://www.omegamadlab.com
https://github.com/OmegaMadLab
https://www.linkedin.com/in/marco-obinu-omegamadlab/
https://www.youtube.com/channel/UCpkBeQSscC1iBvpNP4VNTKQ
• Geek to the bone 
• Azure Solution Architect Expert
Advisory Engineer
SoftJam S.p.A.

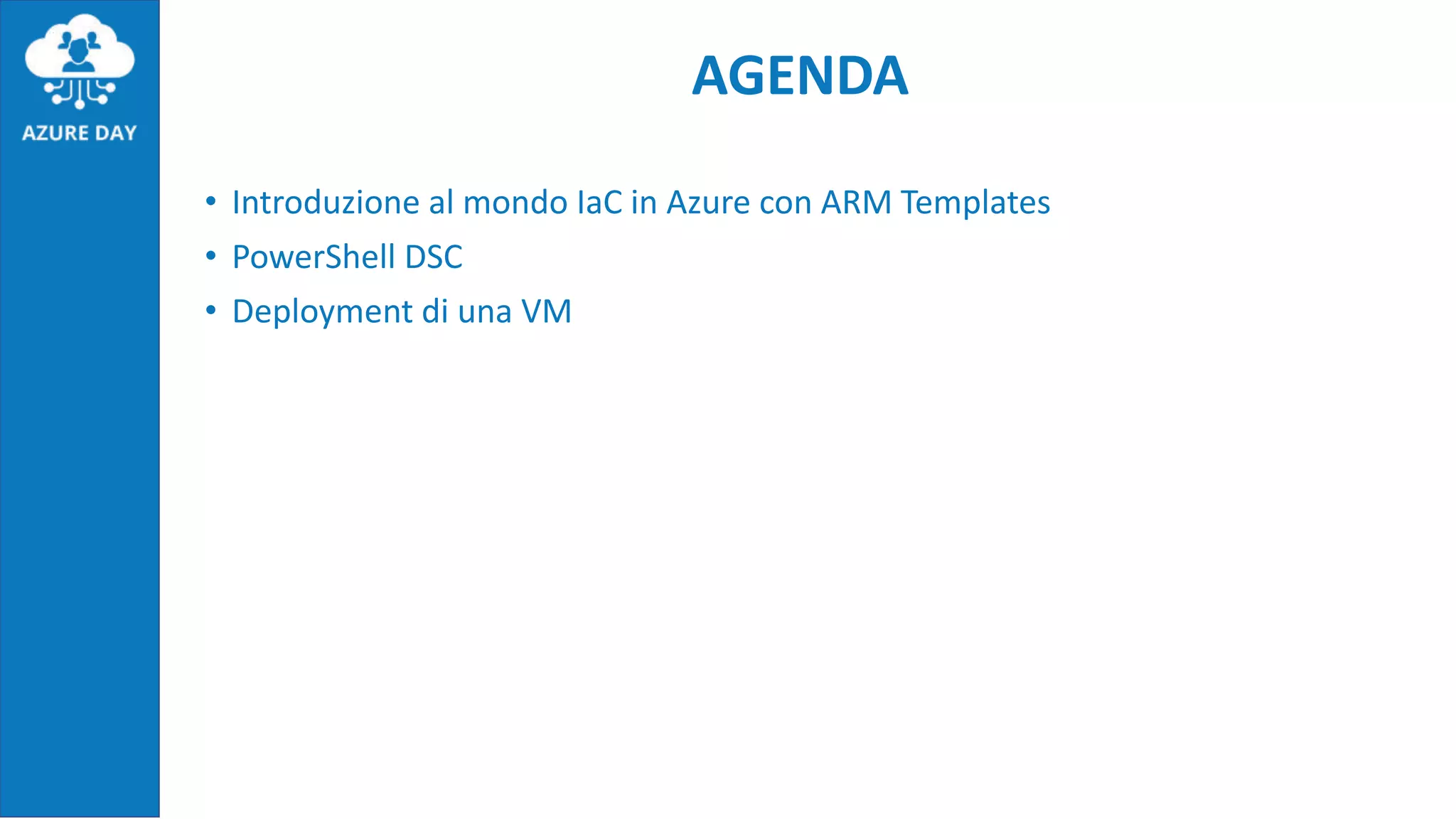

4. AGENDA
• Introduzione al mondo IaC in Azure con ARM Templates
• PowerShell DSC
• Deployment di una VM

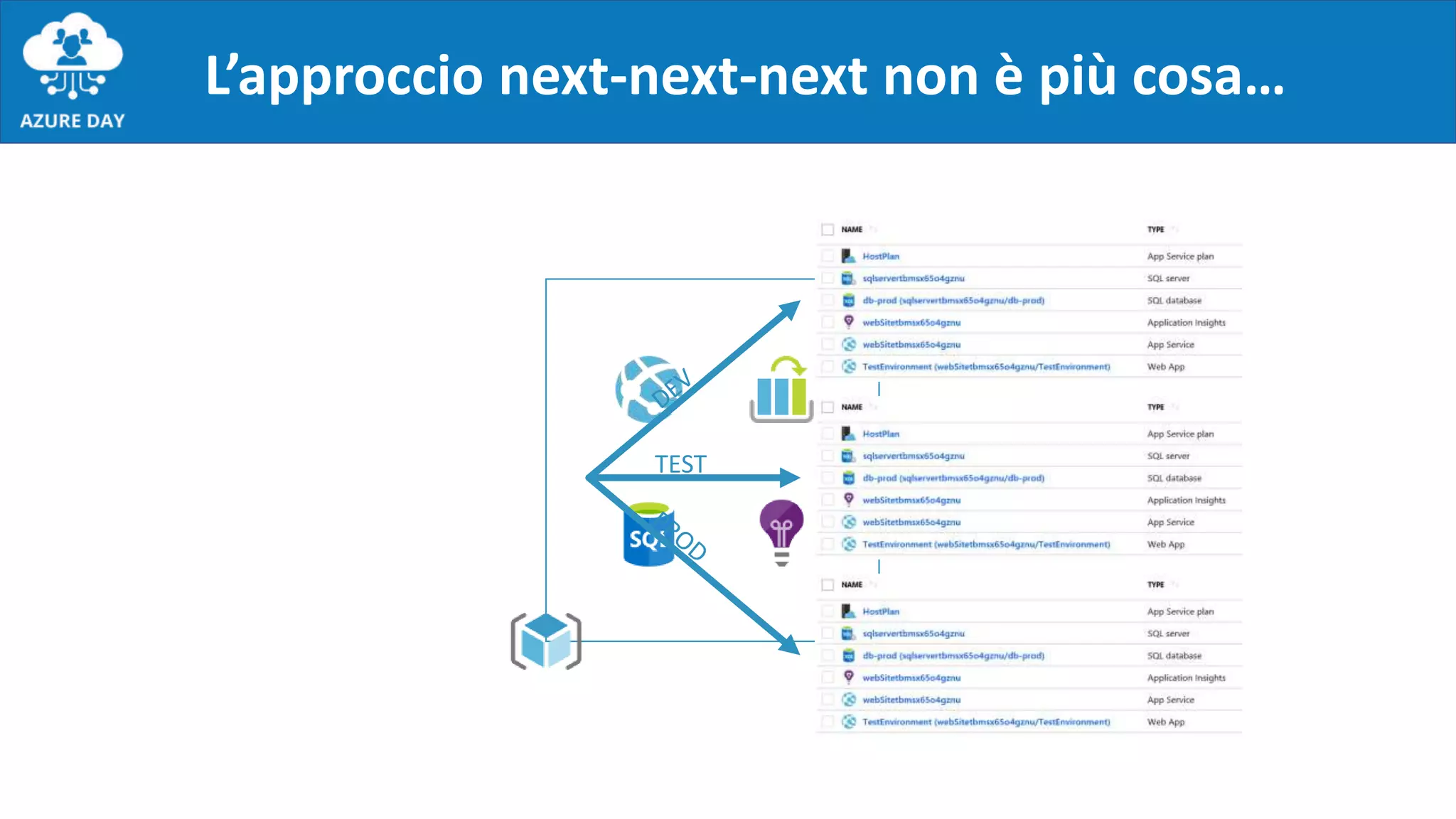

5. L’approccio next-next-next non è più cosa…
TEST

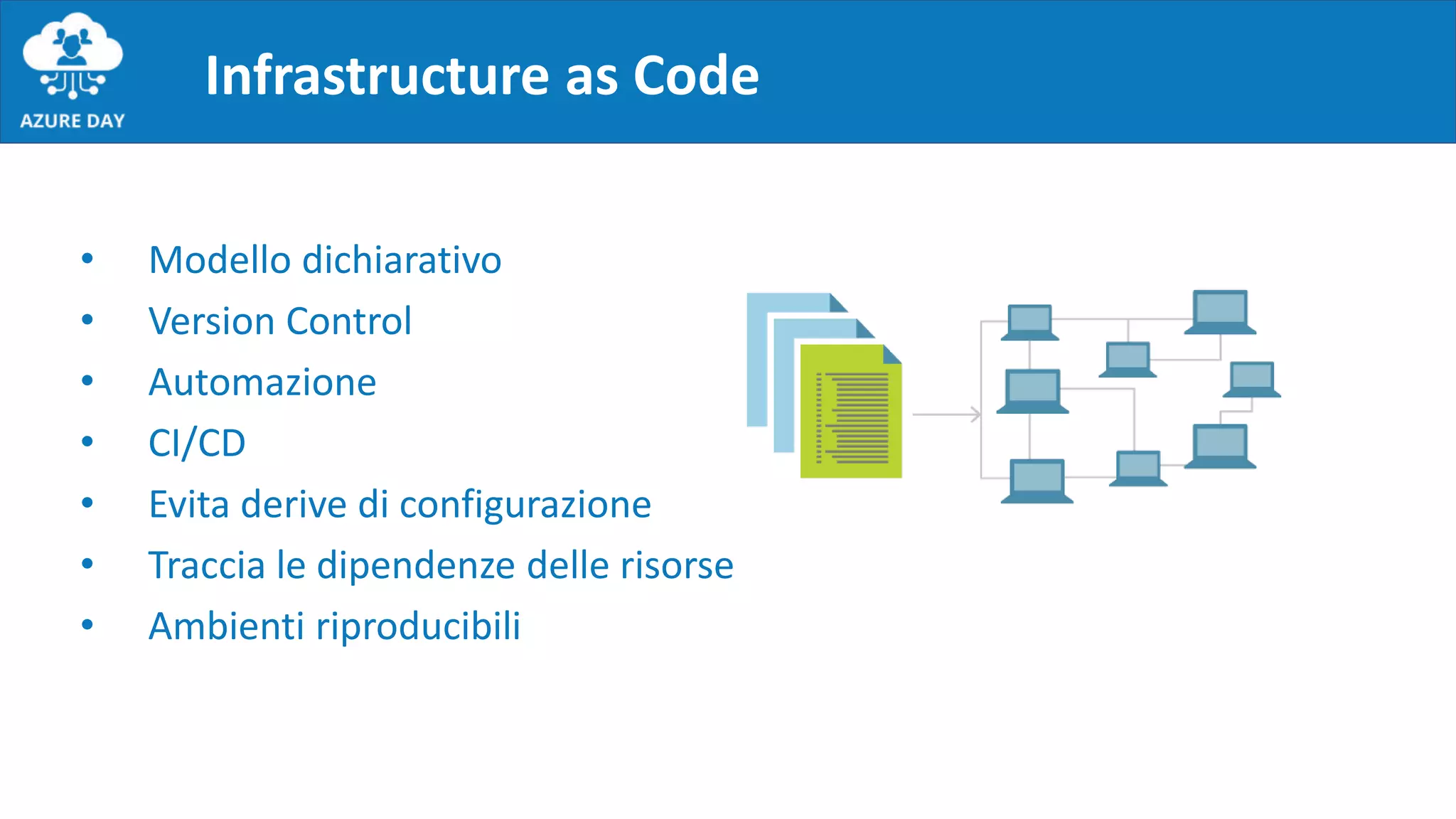

6. Infrastructure as Code
• Modello dichiarativo
• Version Control
• Automazione
• CI/CD
• Evita derive di configurazione
• Traccia le dipendenze delle risorse
• Ambienti riproducibili

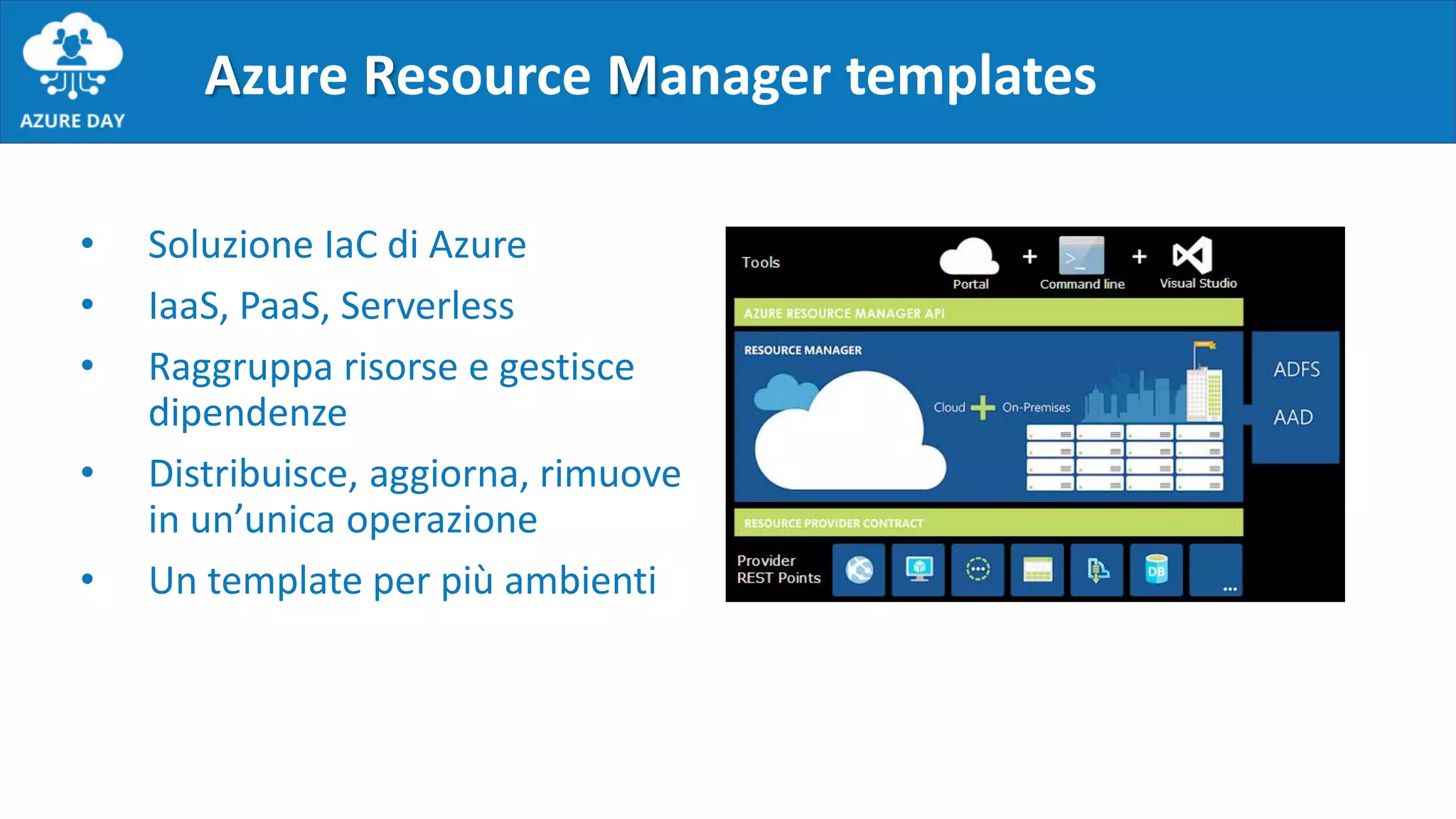

7. • Soluzione IaC di Azure
• IaaS, PaaS, Serverless
• Raggruppa risorse e gestisce
dipendenze
• Distribuisce, aggiorna, rimuove
in un’unica operazione
• Un template per più ambienti
Azure Resource Manager templates

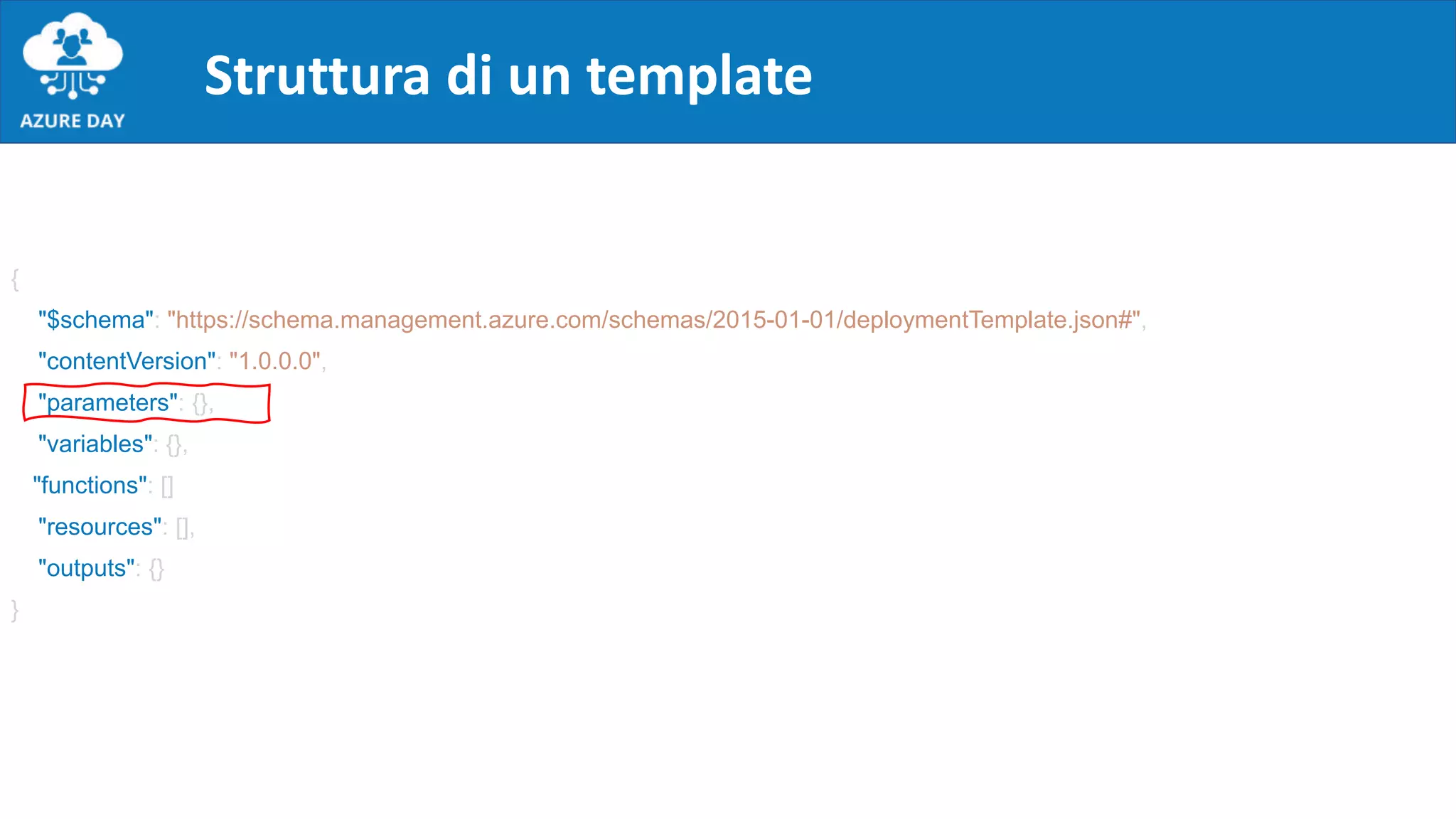

8. {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"functions": []
"resources": [],
"outputs": {}
}
Struttura di un template

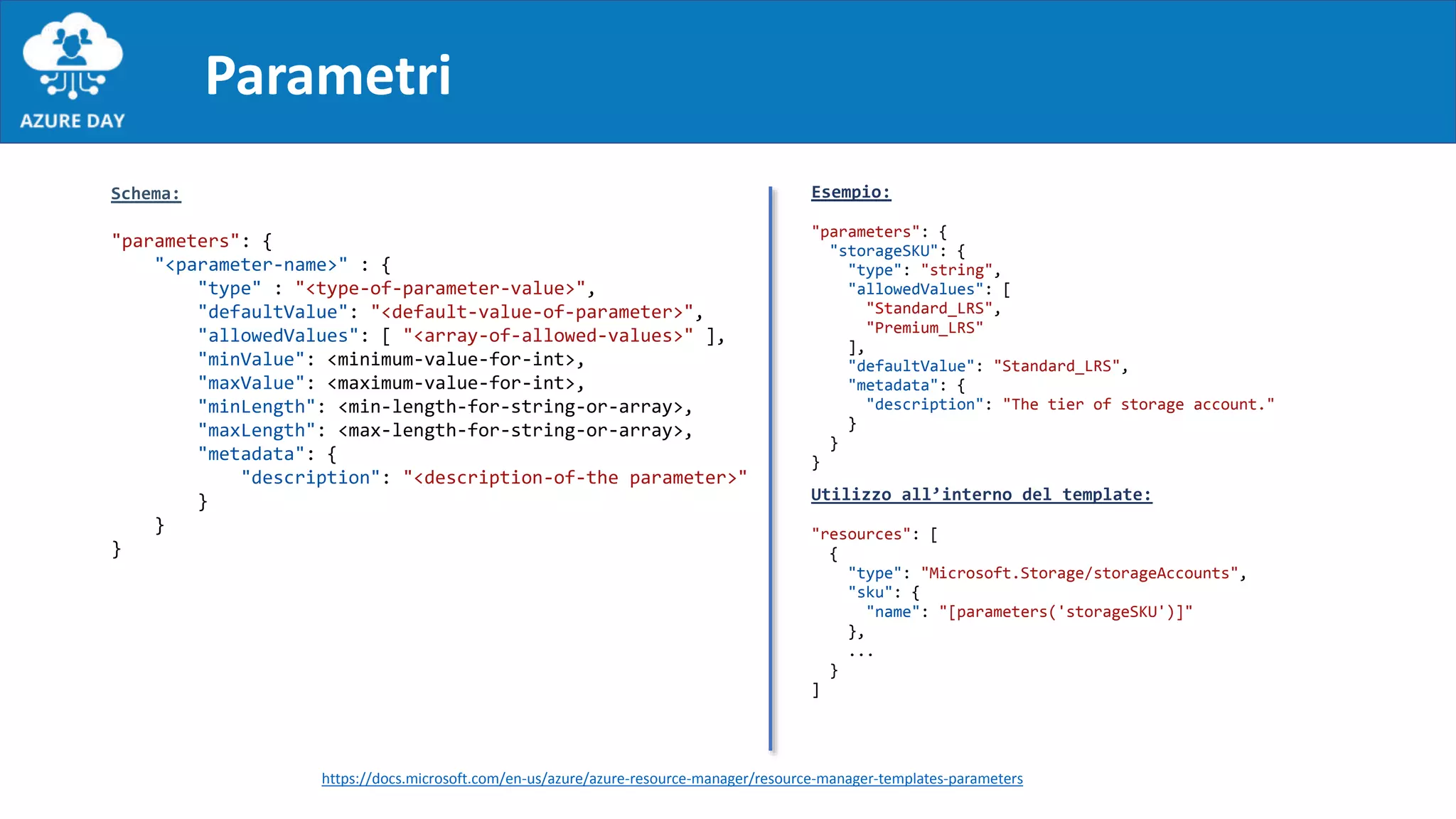

9. Parametri
Schema:
"parameters": {
"<parameter-name>" : {
"type" : "<type-of-parameter-value>",
"defaultValue": "<default-value-of-parameter>",
"allowedValues": [ "<array-of-allowed-values>" ],
"minValue": <minimum-value-for-int>,
"maxValue": <maximum-value-for-int>,
"minLength": <min-length-for-string-or-array>,
"maxLength": <max-length-for-string-or-array>,
"metadata": {
"description": "<description-of-the parameter>"
}
}
}
Esempio:
"parameters": {
"storageSKU": {
"type": "string",
"allowedValues": [
"Standard_LRS",
"Premium_LRS"
],
"defaultValue": "Standard_LRS",
"metadata": {
"description": "The tier of storage account."
}
}
}
Utilizzo all’interno del template:
"resources": [
{
"type": "Microsoft.Storage/storageAccounts",
"sku": {
"name": "[parameters('storageSKU')]"
},
...
}
]
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-templates-parameters

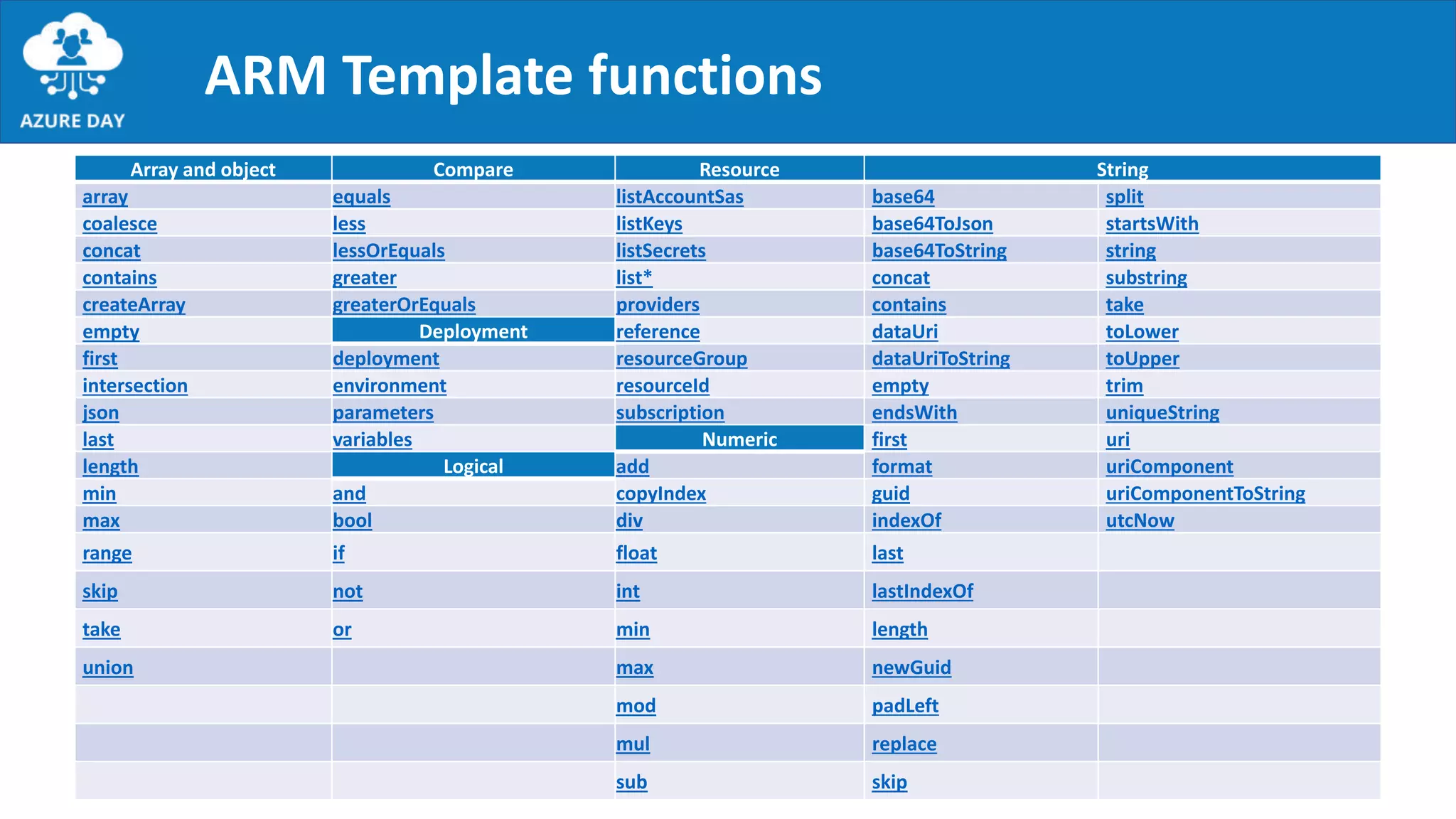

10. Array and object Compare Resource String
array equals listAccountSas base64 split
coalesce less listKeys base64ToJson startsWith
concat lessOrEquals listSecrets base64ToString string
contains greater list* concat substring
createArray greaterOrEquals providers contains take
empty Deployment reference dataUri toLower
first deployment resourceGroup dataUriToString toUpper
intersection environment resourceId empty trim
json parameters subscription endsWith uniqueString
last variables Numeric first uri
length Logical add format uriComponent
min and copyIndex guid uriComponentToString
max bool div indexOf utcNow
range if float last
skip not int lastIndexOf
take or min length
union max newGuid
mod padLeft
mul replace
sub skip
ARM Template functions

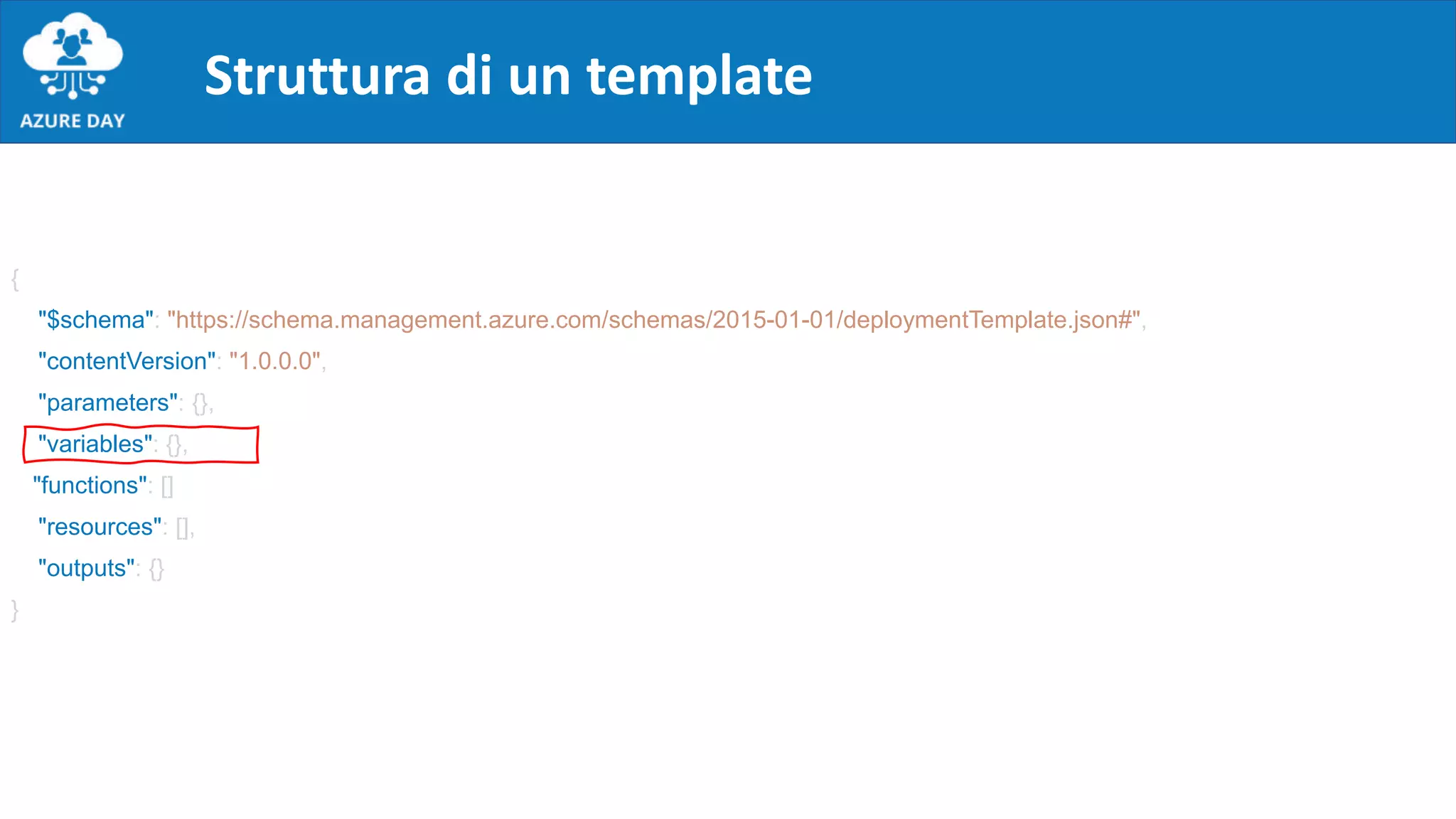

11. {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"functions": []
"resources": [],
"outputs": {}
}
Struttura di un template

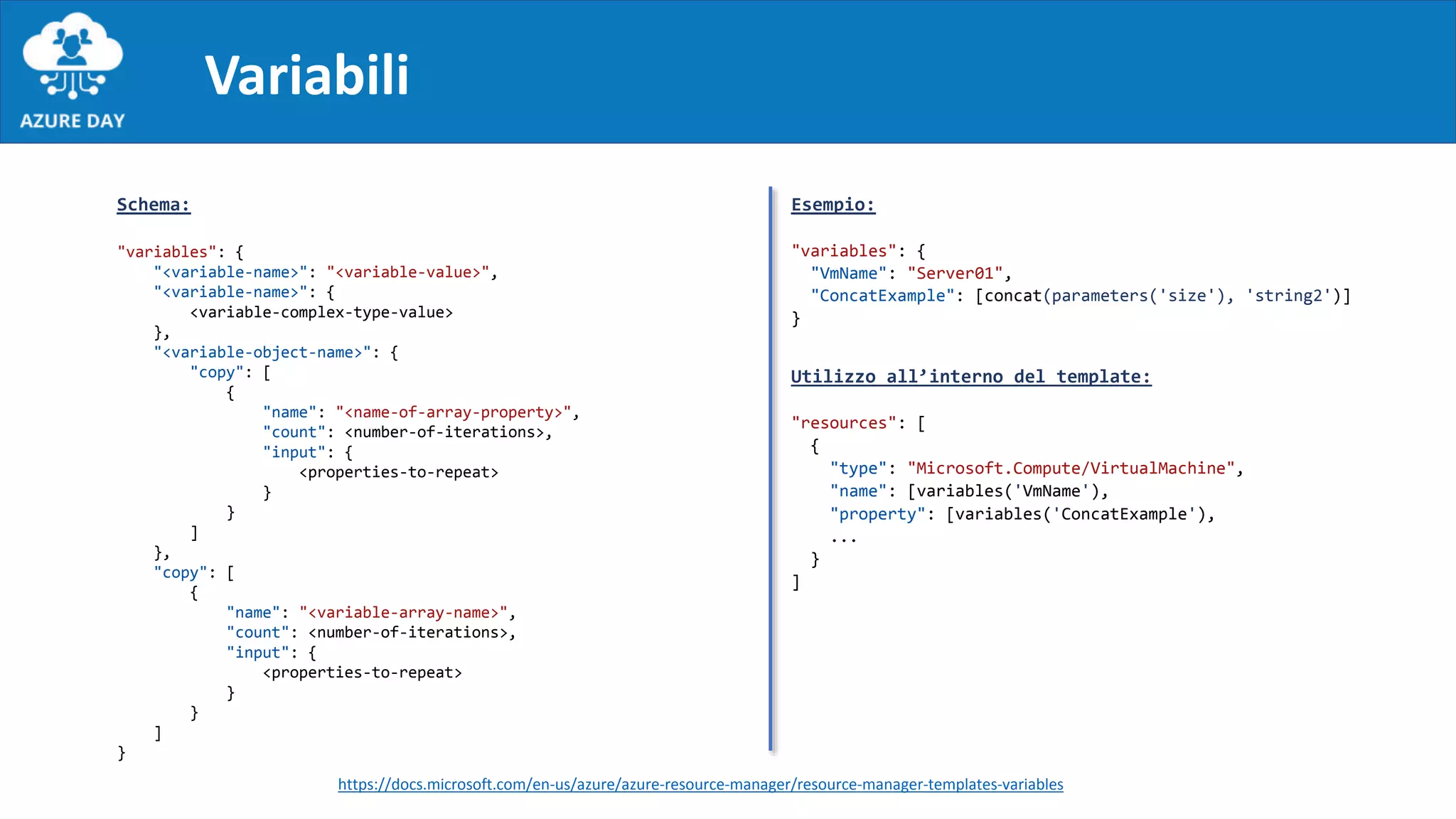

12. Variabili
Schema:
"variables": {
"<variable-name>": "<variable-value>",
"<variable-name>": {
<variable-complex-type-value>
},
"<variable-object-name>": {
"copy": [
{
"name": "<name-of-array-property>",
"count": <number-of-iterations>,
"input": {
<properties-to-repeat>
}
}
]
},
"copy": [
{
"name": "<variable-array-name>",
"count": <number-of-iterations>,
"input": {
<properties-to-repeat>
}
}
]
}
Esempio:
"variables": {
"VmName": "Server01",
"ConcatExample": [concat(parameters('size'), 'string2')]
}
Utilizzo all’interno del template:
"resources": [
{
"type": "Microsoft.Compute/VirtualMachine",
"name": [variables('VmName'),
"property": [variables('ConcatExample'),
...
}
]
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-templates-variables

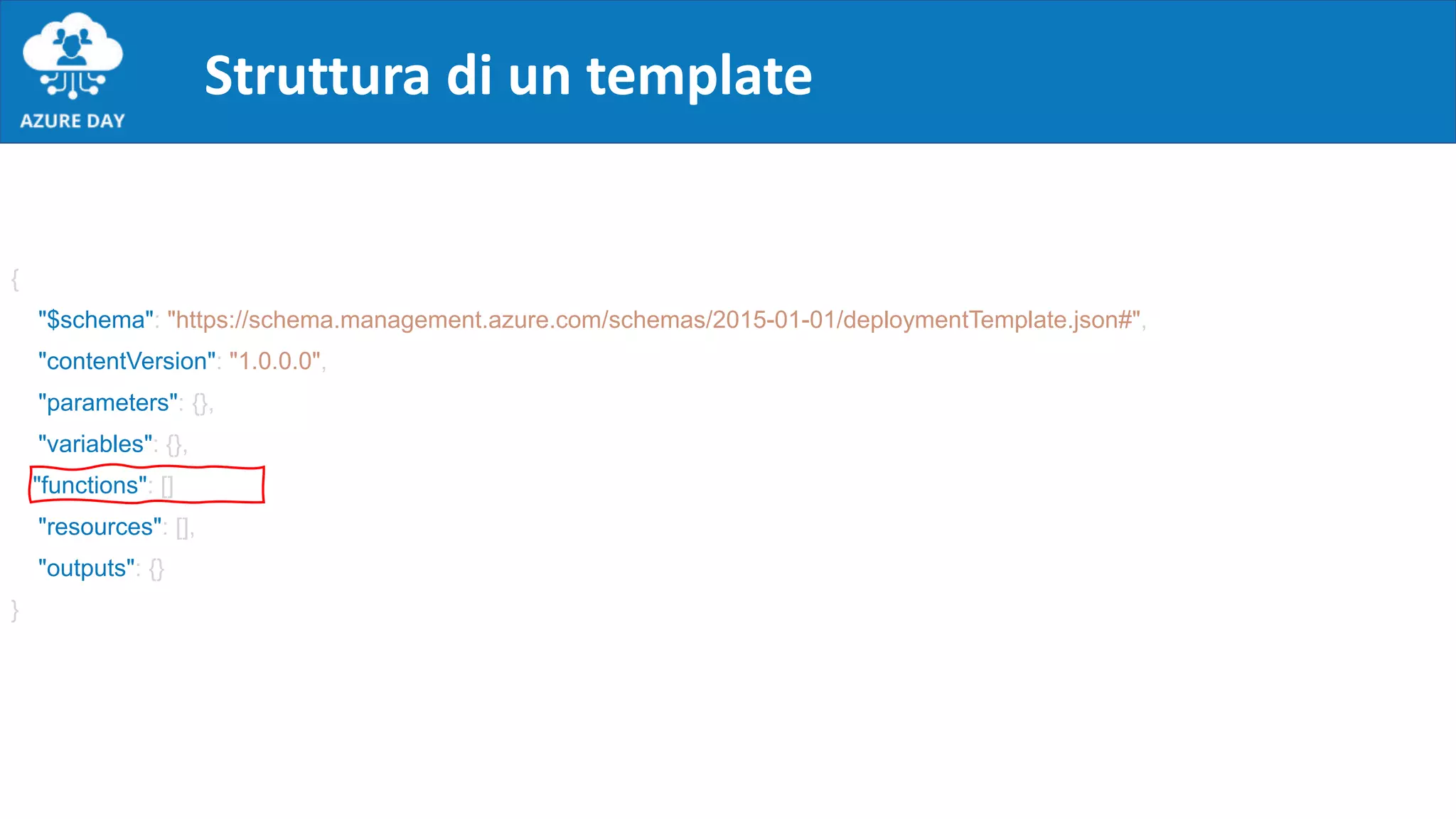

13. {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"functions": []
"resources": [],
"outputs": {}
}
Struttura di un template

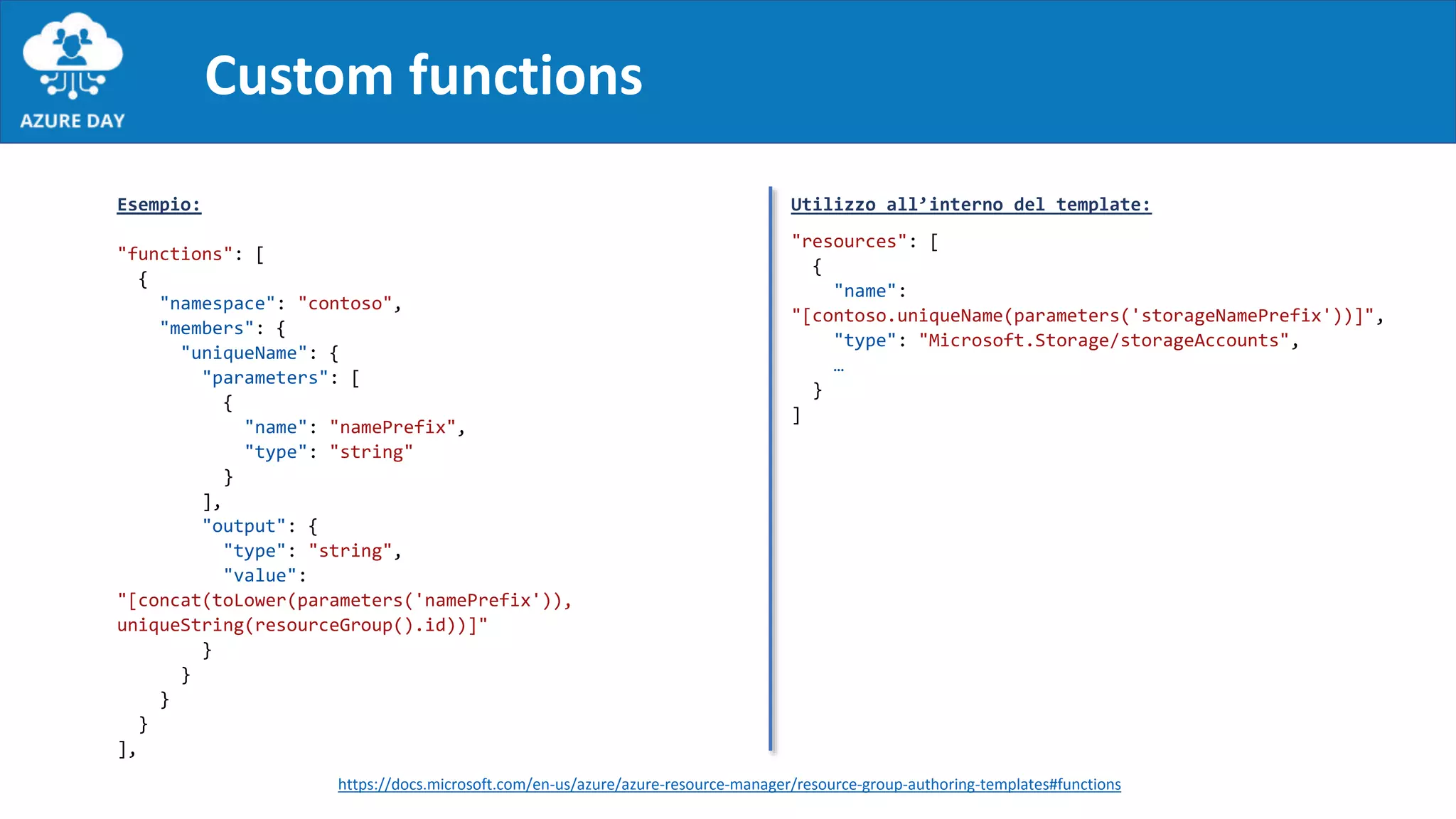

14. Custom functions
Utilizzo all’interno del template:
"resources": [
{
"name":
"[contoso.uniqueName(parameters('storageNamePrefix'))]",
"type": "Microsoft.Storage/storageAccounts",
…
}
]
Esempio:
"functions": [
{
"namespace": "contoso",
"members": {
"uniqueName": {
"parameters": [
{
"name": "namePrefix",
"type": "string"
}
],
"output": {
"type": "string",
"value":
"[concat(toLower(parameters('namePrefix')),
uniqueString(resourceGroup().id))]"
}
}
}
}
],
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-group-authoring-templates#functions

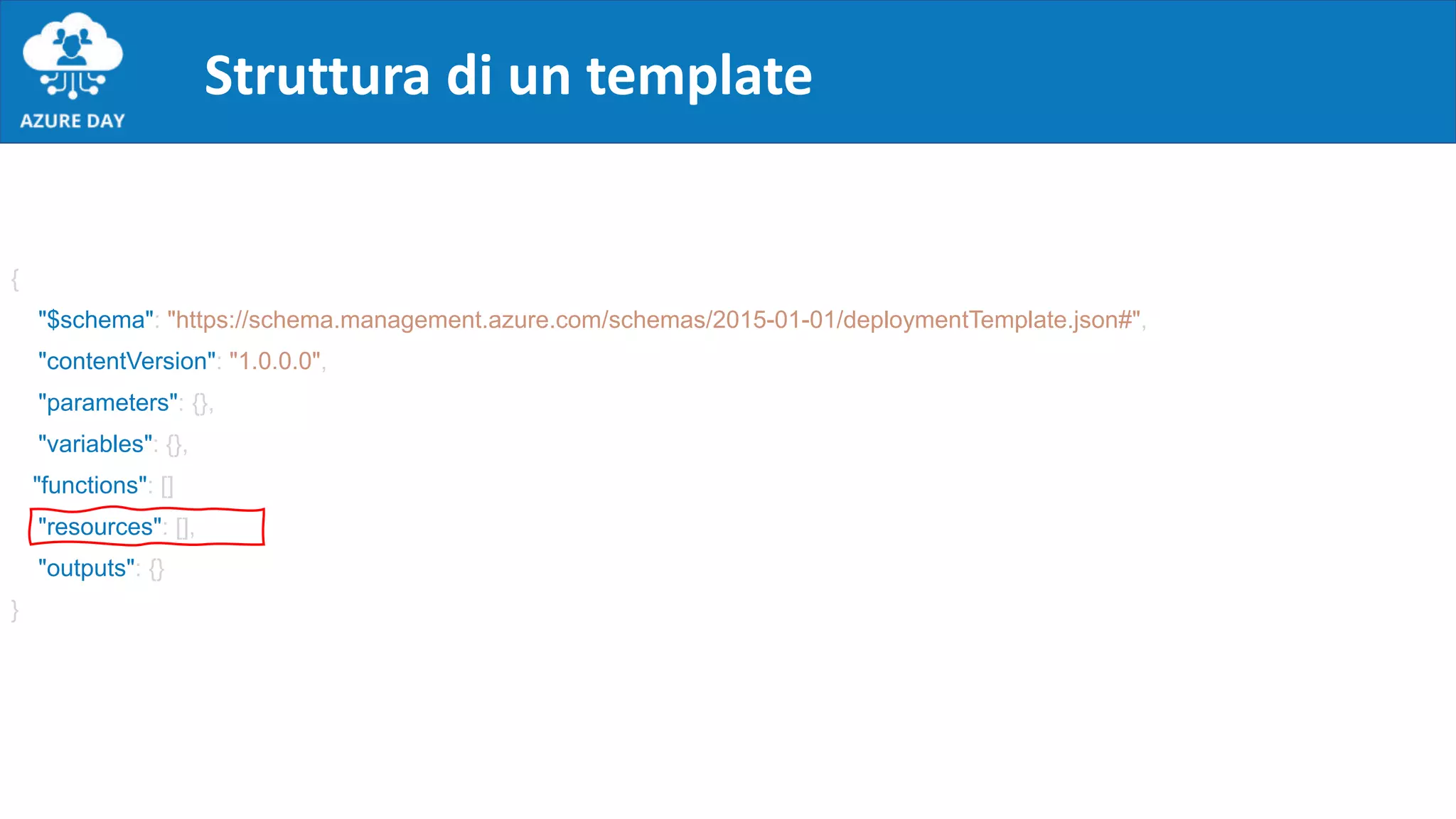

15. {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"functions": []
"resources": [],
"outputs": {}
}
Struttura di un template

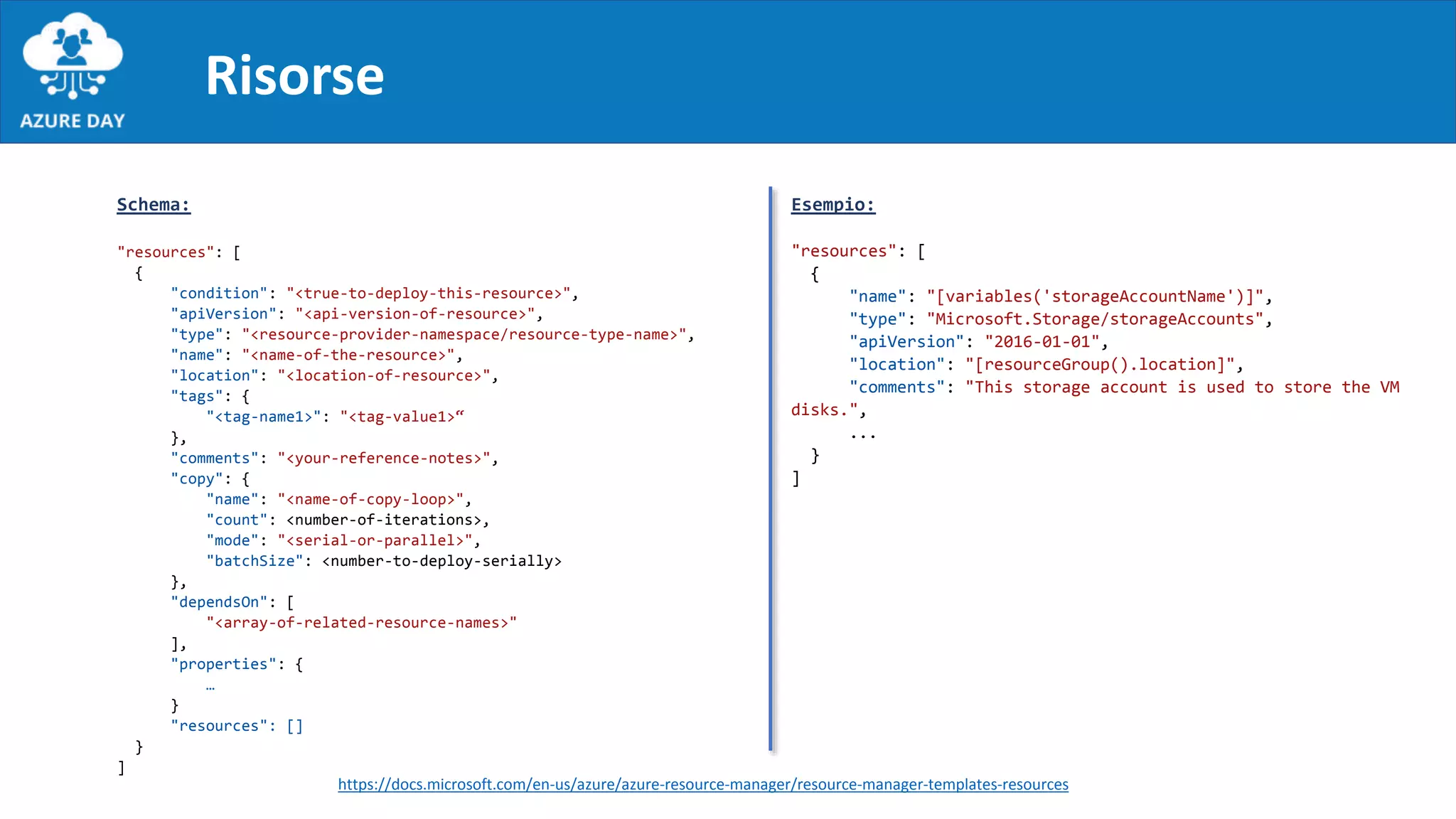

16. Risorse
Schema:
"resources": [
{
"condition": "<true-to-deploy-this-resource>",
"apiVersion": "<api-version-of-resource>",
"type": "<resource-provider-namespace/resource-type-name>",
"name": "<name-of-the-resource>",
"location": "<location-of-resource>",
"tags": {
"<tag-name1>": "<tag-value1>“
},
"comments": "<your-reference-notes>",
"copy": {
"name": "<name-of-copy-loop>",
"count": <number-of-iterations>,
"mode": "<serial-or-parallel>",
"batchSize": <number-to-deploy-serially>
},
"dependsOn": [
"<array-of-related-resource-names>"
],
"properties": {
…
}
"resources": []
}
]
Esempio:
"resources": [
{
"name": "[variables('storageAccountName')]",
"type": "Microsoft.Storage/storageAccounts",
"apiVersion": "2016-01-01",
"location": "[resourceGroup().location]",
"comments": "This storage account is used to store the VM
disks.",
...
}
]
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-templates-resources

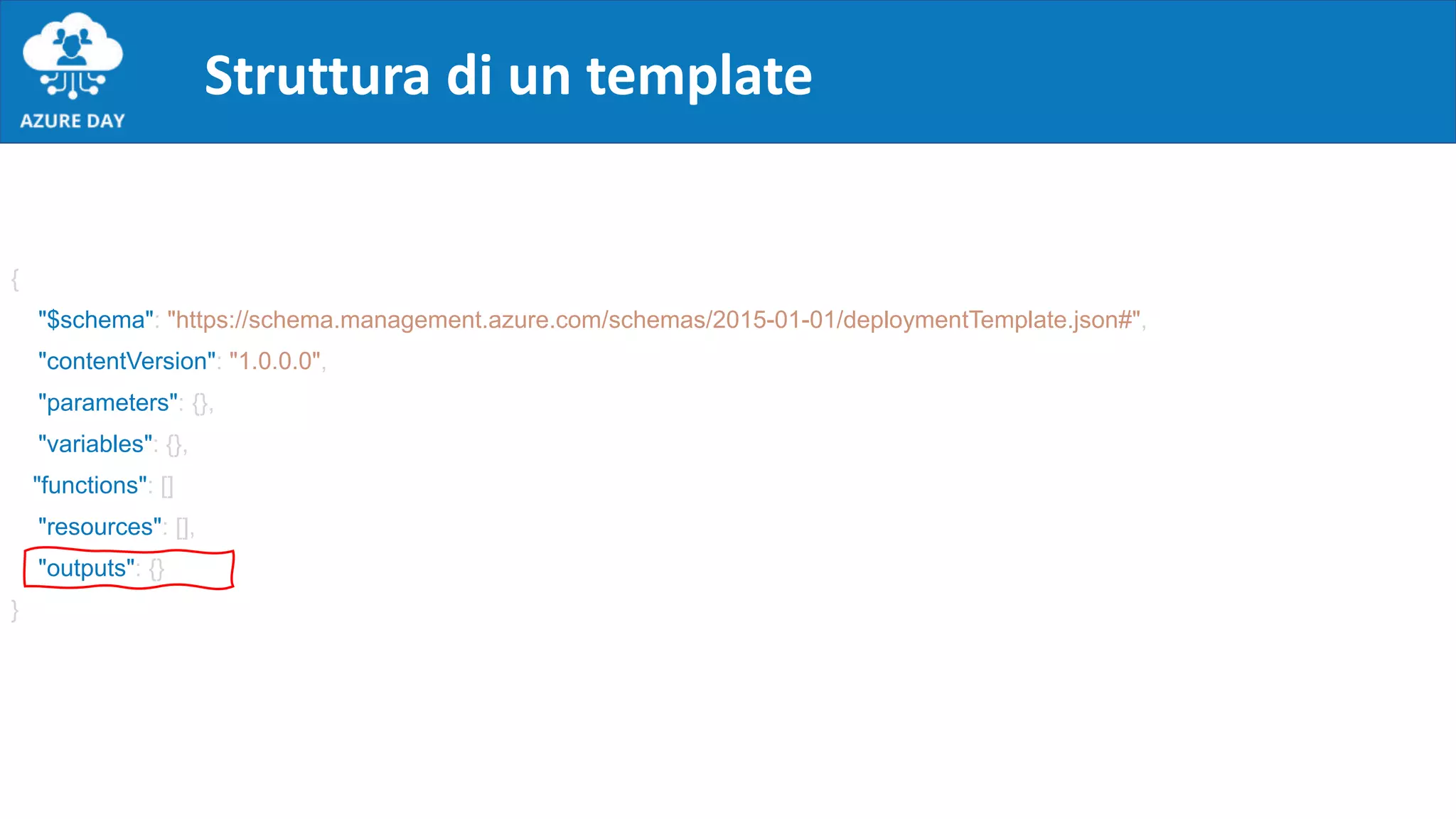

17. {
"$schema": "https://schema.management.azure.com/schemas/2015-01-01/deploymentTemplate.json#",
"contentVersion": "1.0.0.0",
"parameters": {},
"variables": {},
"functions": []
"resources": [],
"outputs": {}
}
Struttura di un template

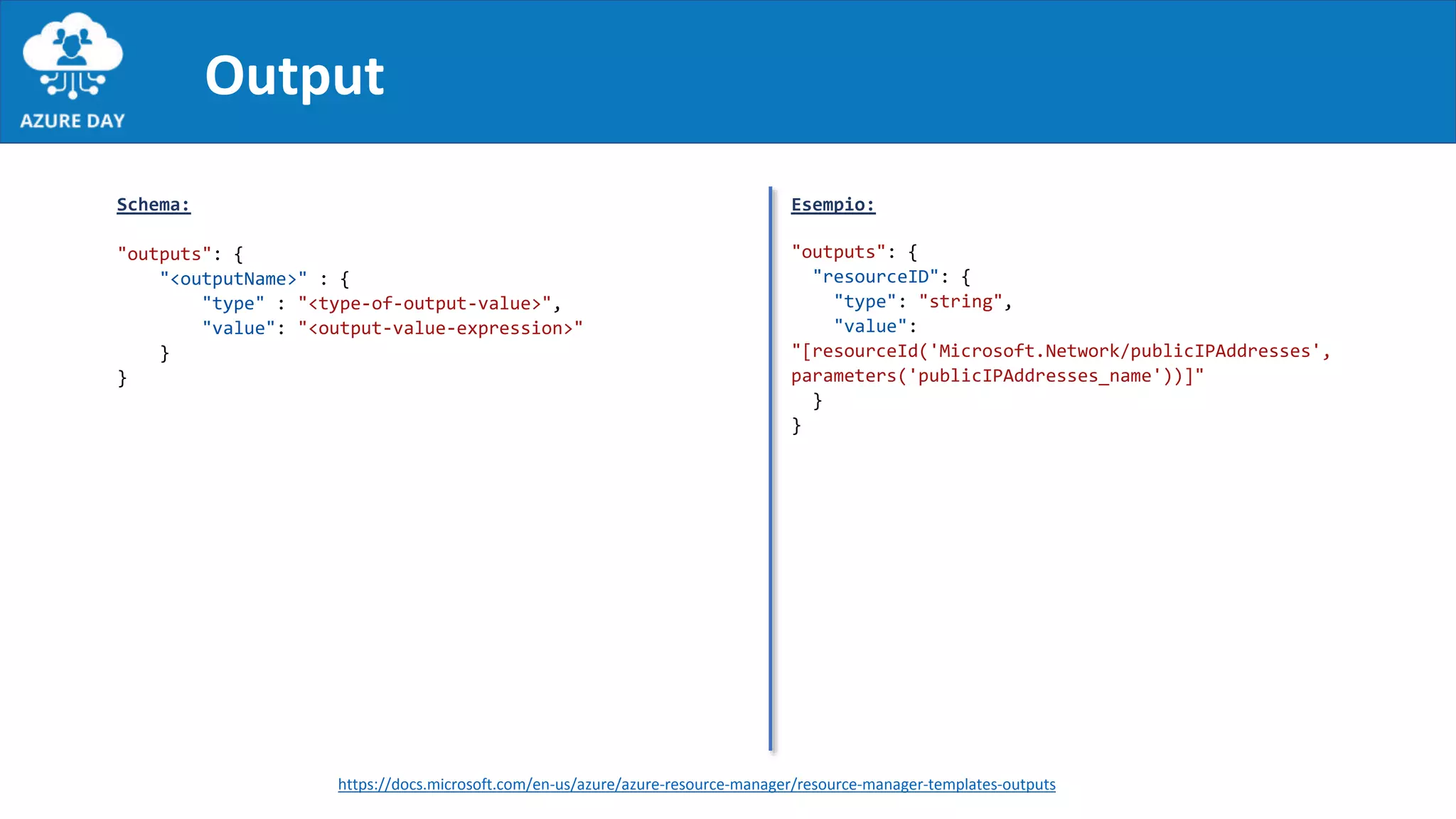

18. Output
Schema:
"outputs": {
"<outputName>" : {
"type" : "<type-of-output-value>",
"value": "<output-value-expression>"
}
}
Esempio:
"outputs": {
"resourceID": {
"type": "string",
"value":
"[resourceId('Microsoft.Network/publicIPAddresses',
parameters('publicIPAddresses_name'))]"
}
}
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-manager-templates-outputs

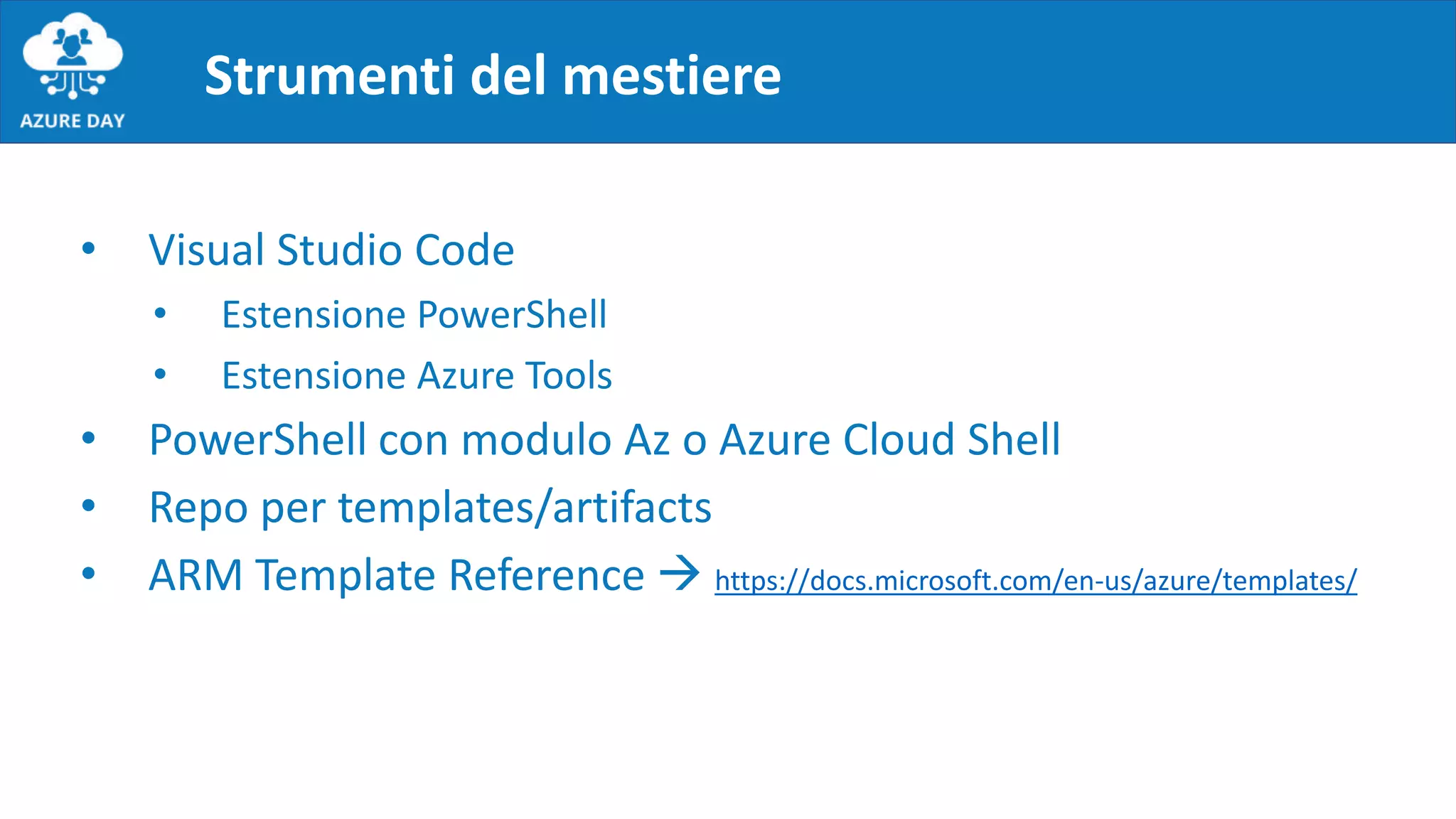

19. Strumenti del mestiere
• Visual Studio Code
• Estensione PowerShell
• Estensione Azure Tools
• PowerShell con modulo Az o Azure Cloud Shell
• Repo per templates/artifacts
• ARM Template Reference  https://docs.microsoft.com/en-us/azure/templates/

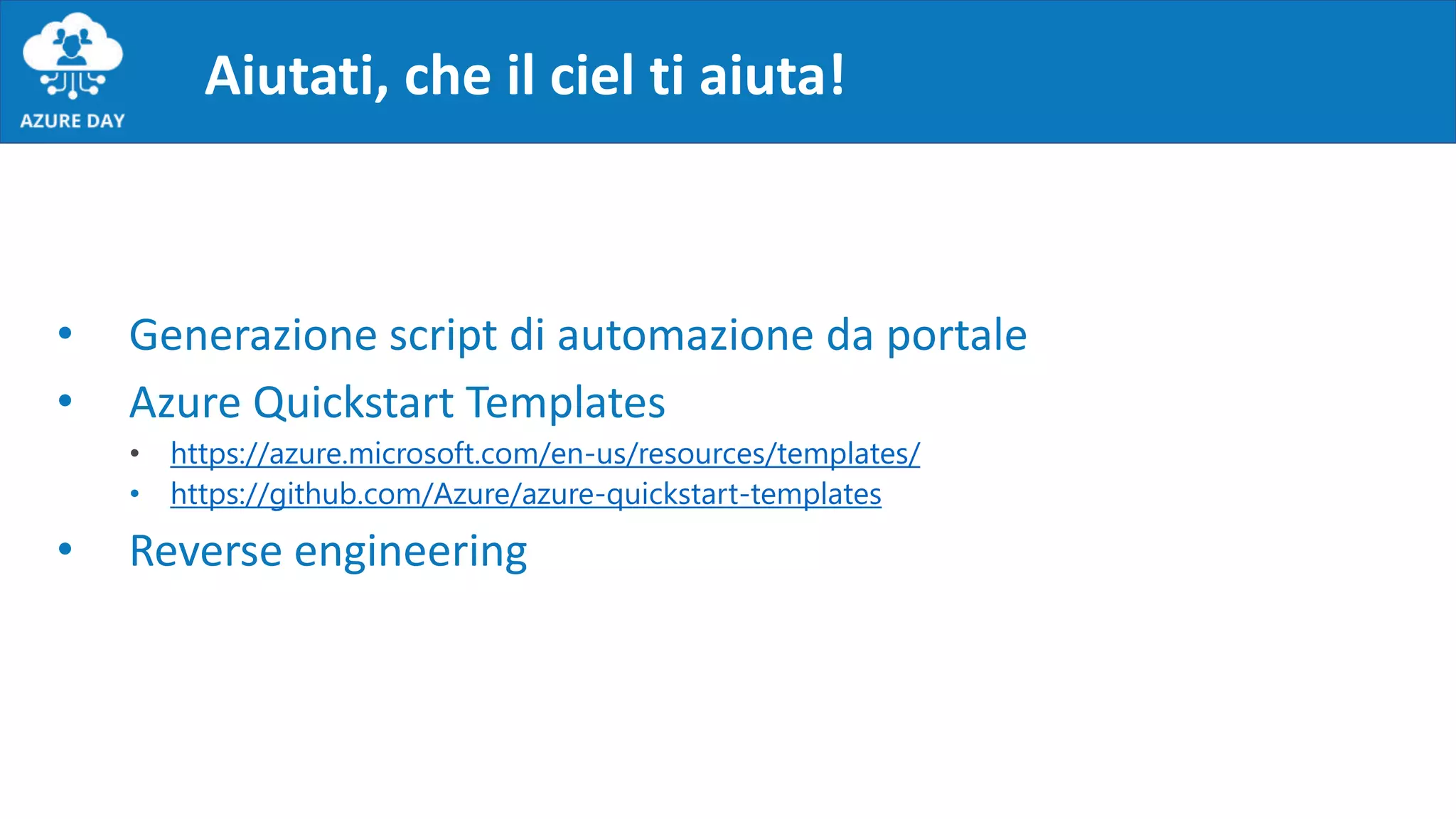

20. Aiutati, che il ciel ti aiuta!
• Generazione script di automazione da portale
• Azure Quickstart Templates
• https://azure.microsoft.com/en-us/resources/templates/
• https://github.com/Azure/azure-quickstart-templates
• Reverse engineering

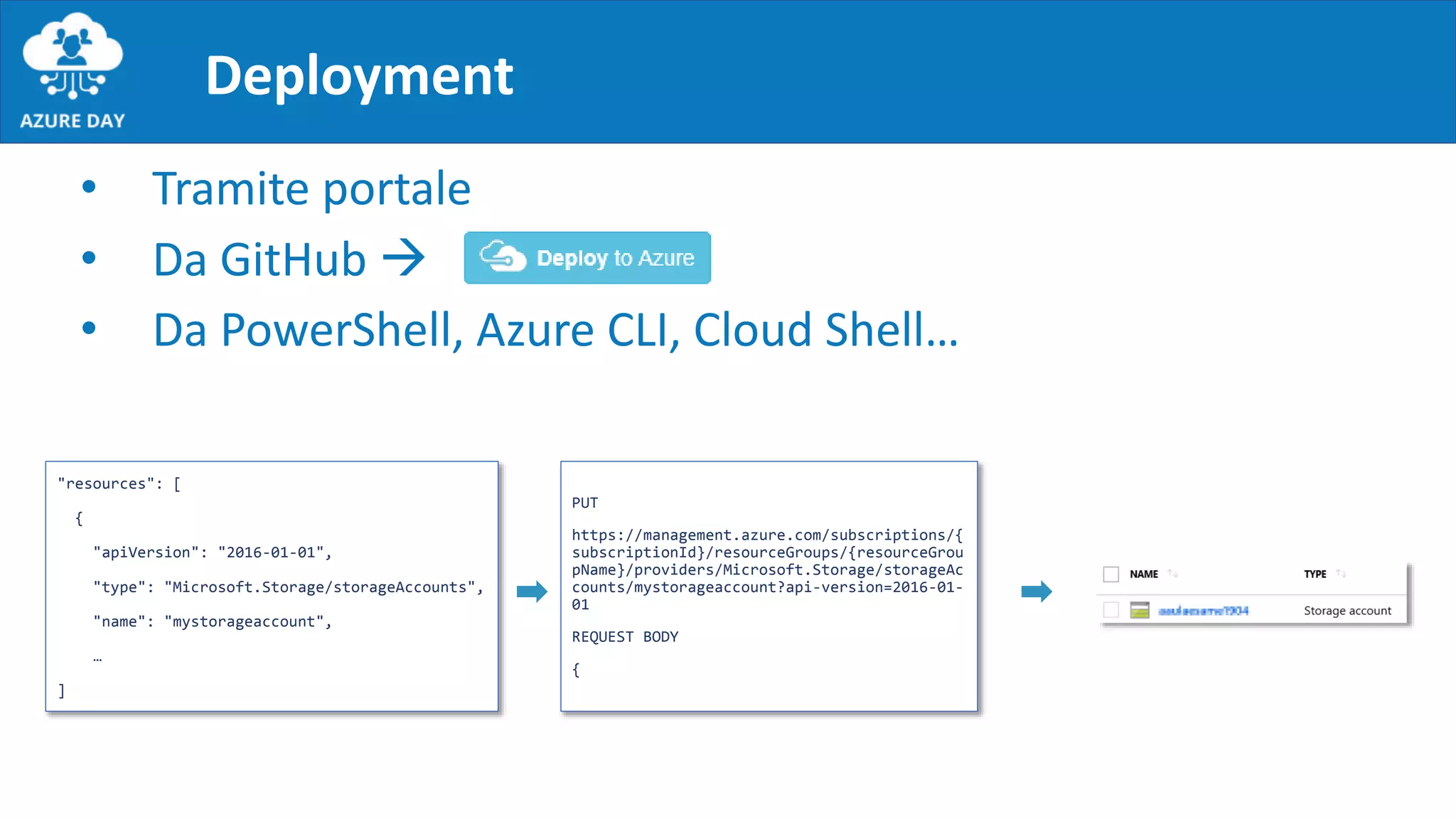

21. Deployment
• Tramite portale
• Da GitHub 
• Da PowerShell, Azure CLI, Cloud Shell…
"resources": [
{
"apiVersion": "2016-01-01",
"type": "Microsoft.Storage/storageAccounts",
"name": "mystorageaccount",
…
]
PUT
https://management.azure.com/subscriptions/{
subscriptionId}/resourceGroups/{resourceGrou
pName}/providers/Microsoft.Storage/storageAc
counts/mystorageaccount?api-version=2016-01-
01
REQUEST BODY
{

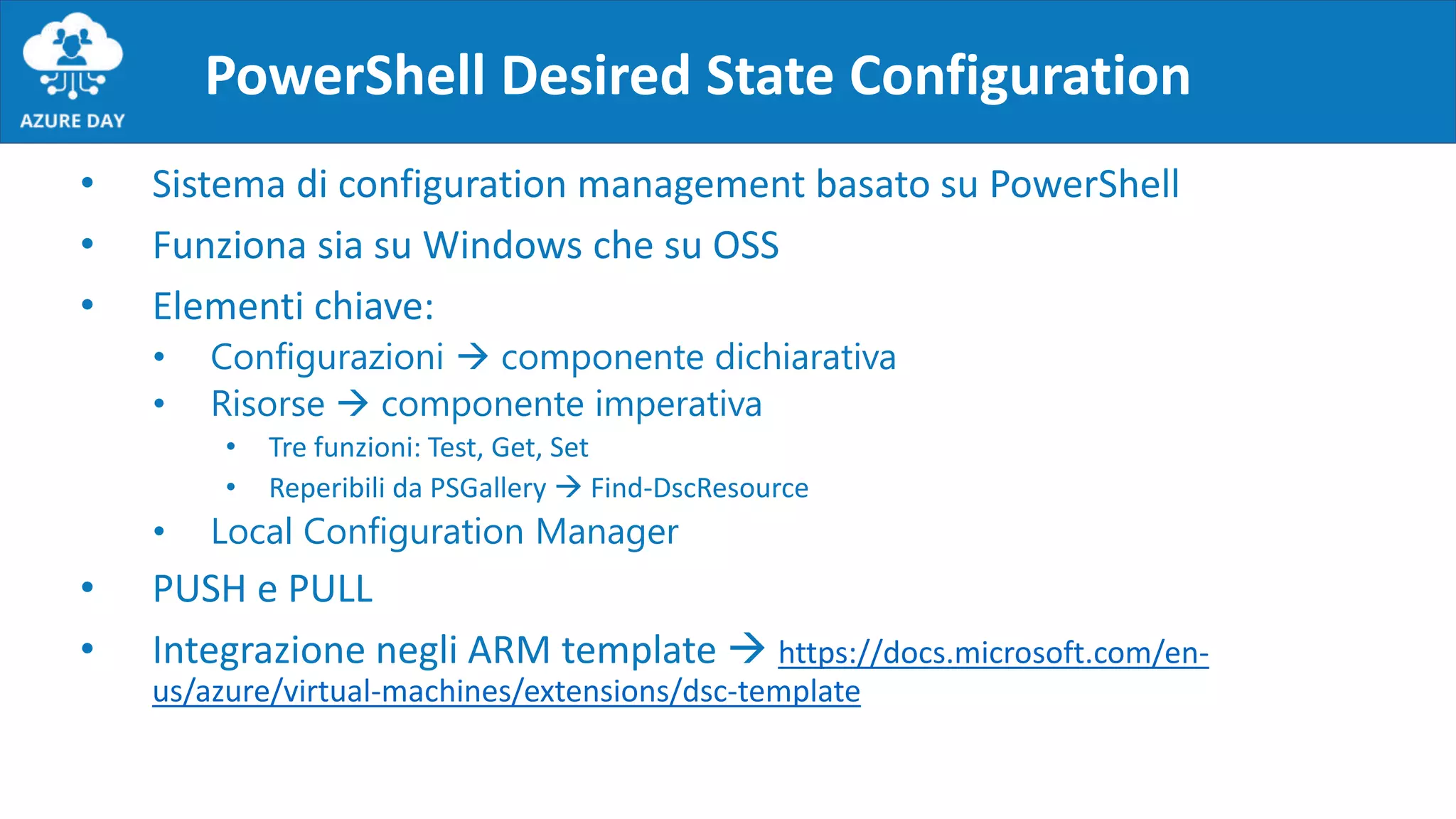

22. PowerShell Desired State Configuration
• Sistema di configuration management basato su PowerShell
• Funziona sia su Windows che su OSS
• Elementi chiave:
• Configurazioni  componente dichiarativa
• Risorse  componente imperativa
• Tre funzioni: Test, Get, Set
• Reperibili da PSGallery  Find-DscResource
• Local Configuration Manager
• PUSH e PULL
• Integrazione negli ARM template  https://docs.microsoft.com/en-
us/azure/virtual-machines/extensions/dsc-template

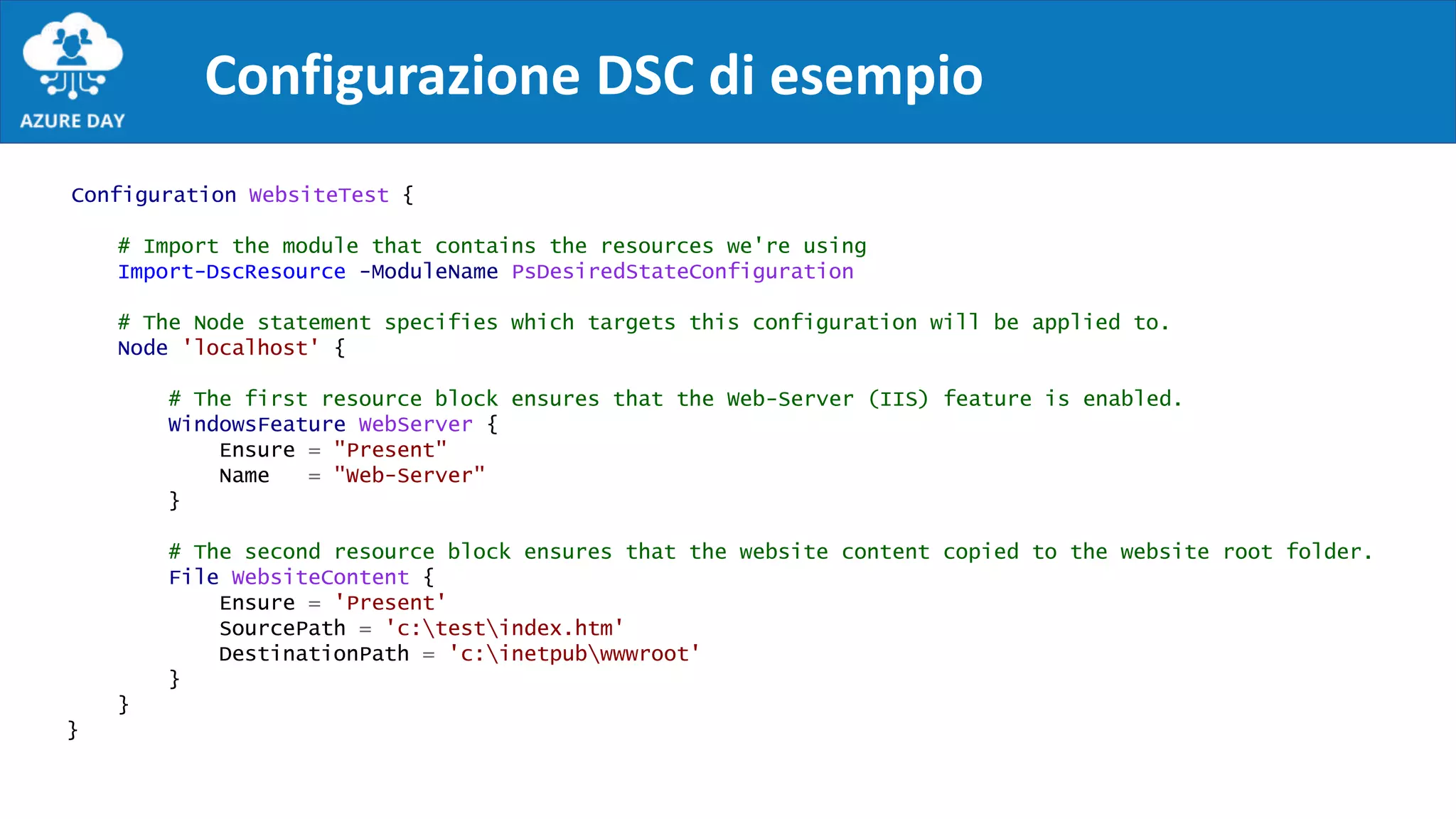

23. Configurazione DSC di esempio
Configuration WebsiteTest {
# Import the module that contains the resources we're using
Import-DscResource -ModuleName PsDesiredStateConfiguration
# The Node statement specifies which targets this configuration will be applied to.
Node 'localhost' {
# The first resource block ensures that the Web-Server (IIS) feature is enabled.
WindowsFeature WebServer {
Ensure = "Present"
Name = "Web-Server"
}
# The second resource block ensures that the website content copied to the website root folder.
File WebsiteContent {
Ensure = 'Present'
SourcePath = 'c:testindex.htm'
DestinationPath = 'c:inetpubwwwroot'
}
}
}

24. Procedura di integrazione in ARM template
Creare
configurazione DSC
Creare uno ZIP
contenente
configurazione e
risorse
Caricare lo ZIP su un
repository
Inserire estensione
nell’ARM Template

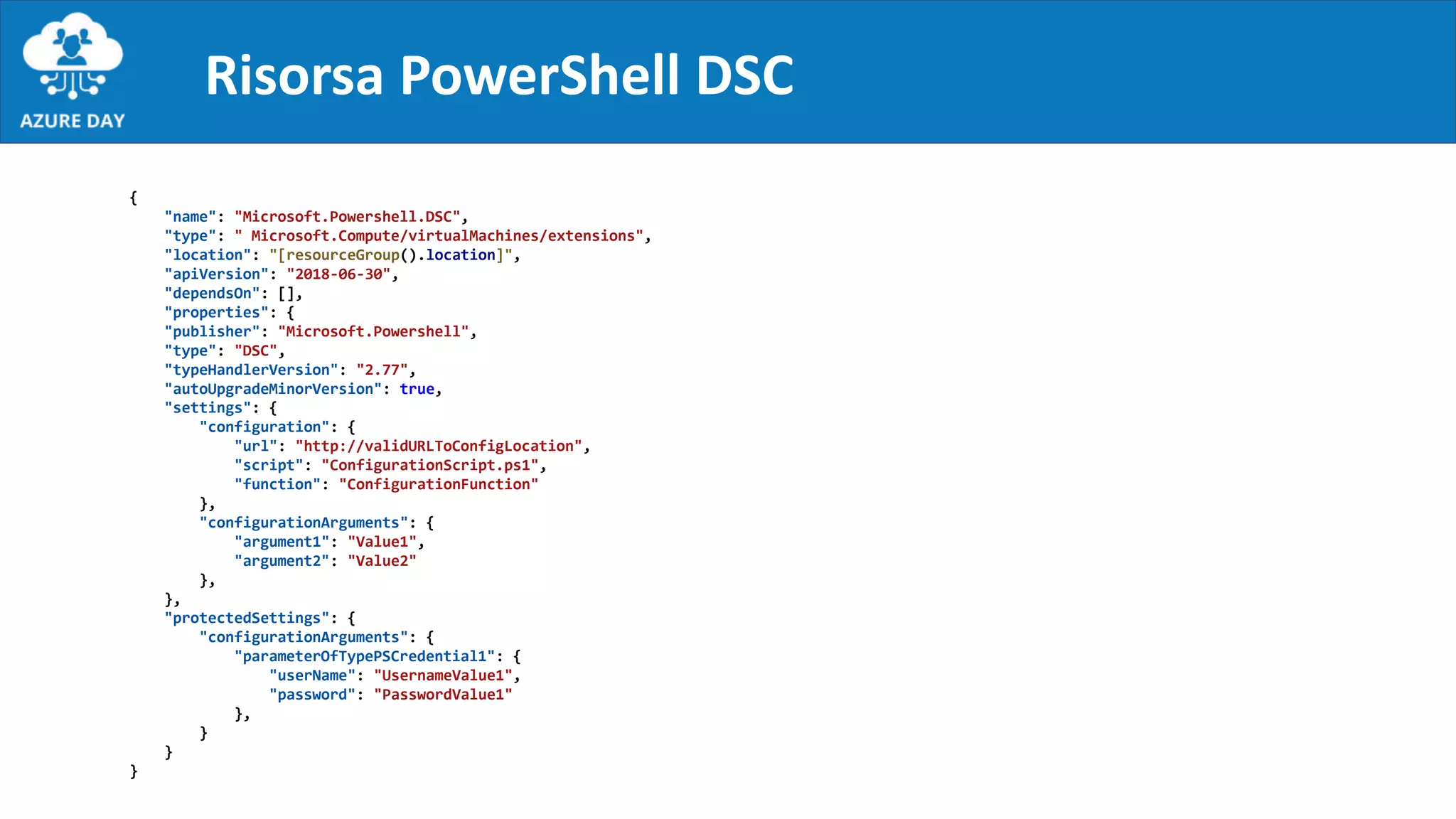

25. Risorsa PowerShell DSC
{
"name": "Microsoft.Powershell.DSC",
"type": " Microsoft.Compute/virtualMachines/extensions",
"location": "[resourceGroup().location]",
"apiVersion": "2018-06-30",
"dependsOn": [],
"properties": {
"publisher": "Microsoft.Powershell",
"type": "DSC",
"typeHandlerVersion": "2.77",
"autoUpgradeMinorVersion": true,
"settings": {
"configuration": {
"url": "http://validURLToConfigLocation",
"script": "ConfigurationScript.ps1",
"function": "ConfigurationFunction"
},
"configurationArguments": {
"argument1": "Value1",
"argument2": "Value2"
},
},
"protectedSettings": {
"configurationArguments": {
"parameterOfTypePSCredential1": {
"userName": "UsernameValue1",
"password": "PasswordValue1"
},
}
}
}

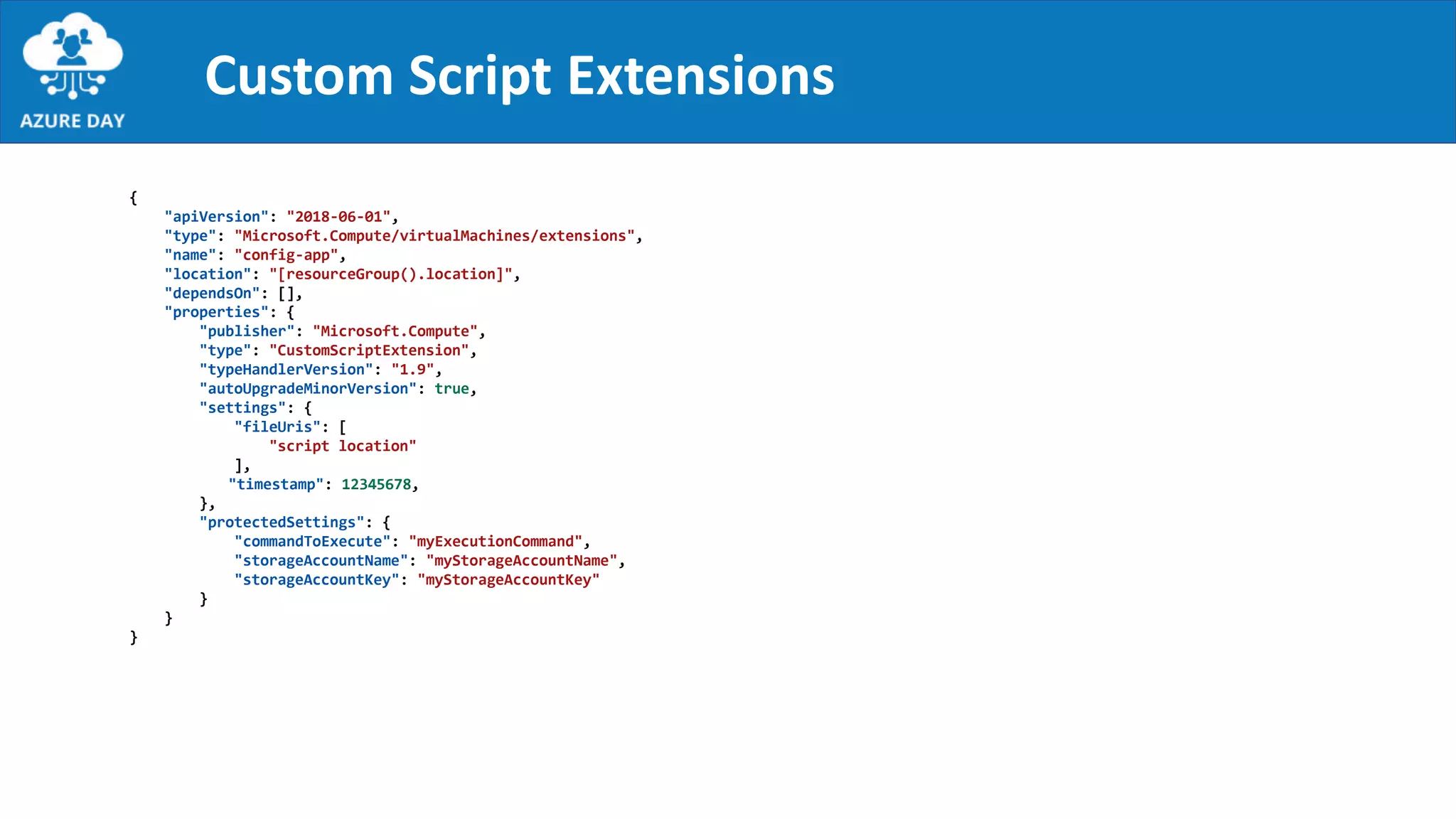

26. Custom Script Extensions
{
"apiVersion": "2018-06-01",
"type": "Microsoft.Compute/virtualMachines/extensions",
"name": "config-app",
"location": "[resourceGroup().location]",
"dependsOn": [],
"properties": {
"publisher": "Microsoft.Compute",
"type": "CustomScriptExtension",
"typeHandlerVersion": "1.9",
"autoUpgradeMinorVersion": true,
"settings": {
"fileUris": [
"script location"
],
"timestamp": 12345678,
},
"protectedSettings": {
"commandToExecute": "myExecutionCommand",
"storageAccountName": "myStorageAccountName",
"storageAccountKey": "myStorageAccountKey"
}
}
}

28. Compiti a casa 
• Demo di questa sessione
• https://github.com/OmegaMadLab/AzDayReloaded-ArmTemplateWorkshop
• StartingWithArmTemplates
• https://github.com/OmegaMadLab/StartingWithArmTemplates
• Azure Quickstart Template gallery su GitHub
• https://github.com/Azure/azure-quickstart-templates
• ARM template SQL IaaS complesso (DSC + CSE con autenticazione di dominio)
• https://github.com/OmegaMadLab/OptimizedSqlVm
• Esempi PowerShell DSC:
• https://github.com/OmegaMadLab/DSCDemo
• PowerShell DSC su Microsoft Virtual Academy
• Base: https://channel9.msdn.com/Series/Getting-Started-with-PowerShell-DSC
• Advanced: https://channel9.msdn.com/Series/Advanced-PowerShell-DSC-and-Custom-Resources?l=3DnsS2H1_1504984382
• Sessione BRK 4026 Ignite 2018 – Tips, Tricks, and real world example to build and manage ARM templates
• Video: https://www.youtube.com/watch?v=cdkDhR3HFiI
• Demo: https://github.com/vladimirjoanovic/ignite2018/tree/master/BRK4026
• Sessione BRK3233 Ignite 2019 - What’s new with Azure Resource Manager (ARM) templates for your deployments
• Video: https://medius.studios.ms/video/asset/HIGHMP4/IG19-BRK3233
