1. WEBPACK ENCORE
Asset management for the rest of us

2. 2
Stefan Adolf
Developer Ambassador
#javascript #mongodb #serverless
#blockchain #codingberlin #elastic
#aws #php #symfony2 #react
#digitalization #agile #b2b #marketplaces
#spryker #php #k8s #largescale
#turbinejetzt #iot #ux #vuejs
@stadolf
elmariachi111

3. 3

4. 4
•Many flavors
•ECMAScript 5-8 / 2009-2018,
TypeScript, CoffeeScript, Flow
•Many frameworks
•JQuery, Backbone, Ember
•React/JSX, Angular, Vue.js
•importing dependencies solved lately.
•it’s a moving target.

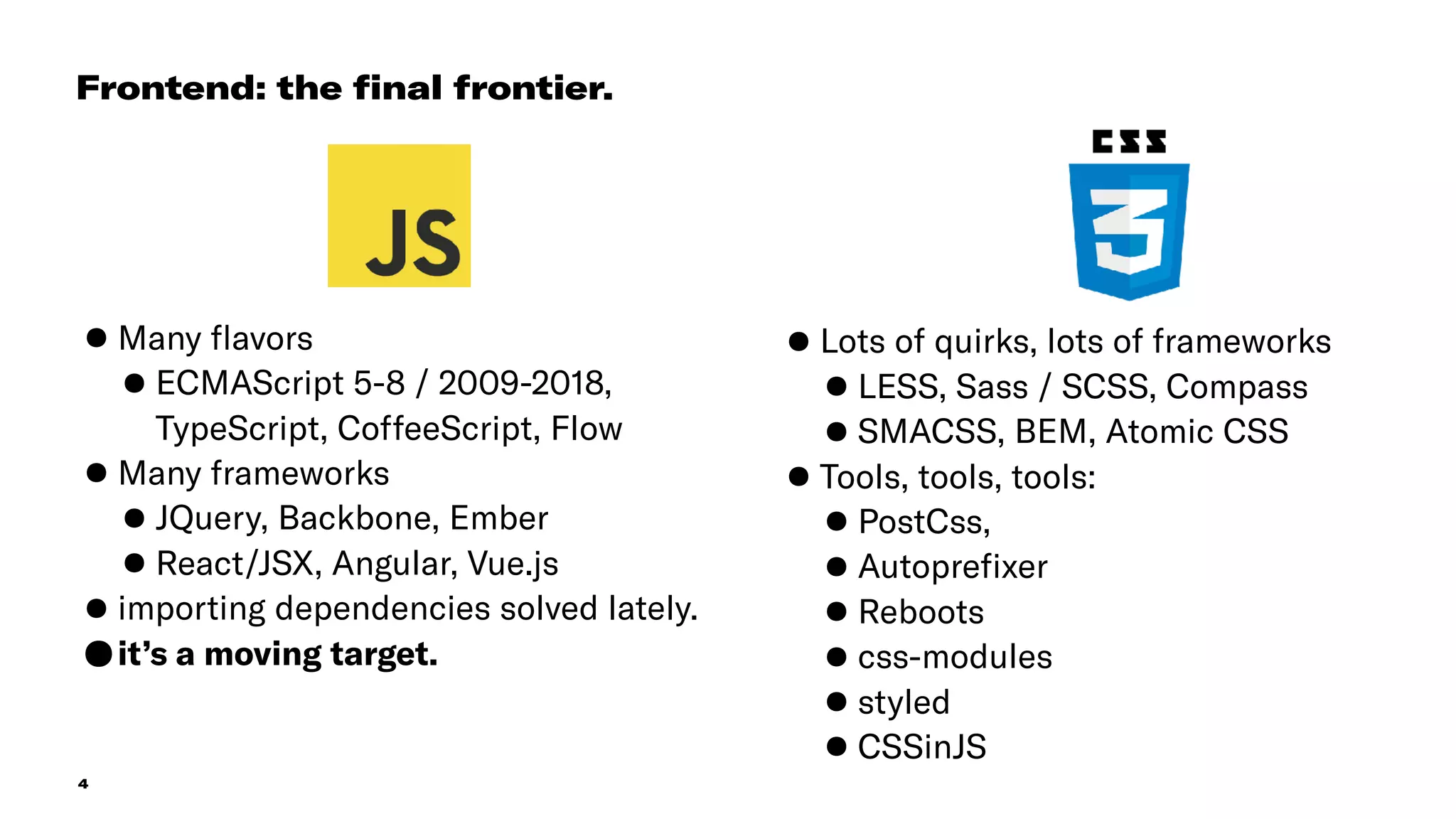

Frontend: the final frontier.
•Lots of quirks, lots of frameworks
•LESS, Sass / SCSS, Compass
•SMACSS, BEM, Atomic CSS
•Tools, tools, tools:
•PostCss,
•Autoprefixer
•Reboots
•css-modules
•styled
•CSSinJS

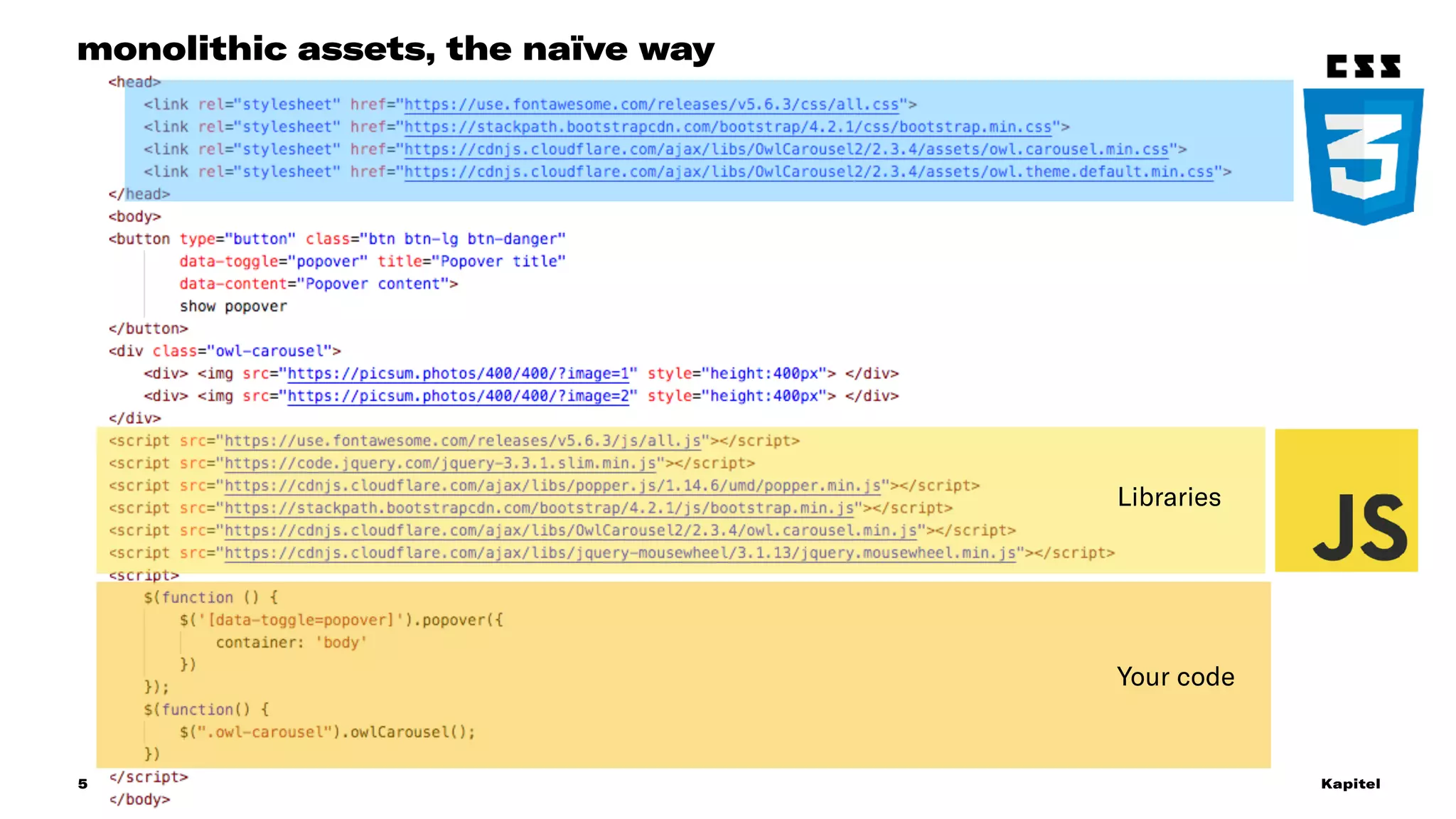

5. Projekttitel 30. Juni 2017 Kapitel5
monolithic assets, the naïve way
Your code
Libraries

6. 6
BEEN THERE, DONE THAT.

7. Projekttitel 30. Juni 2017 Kapitel7

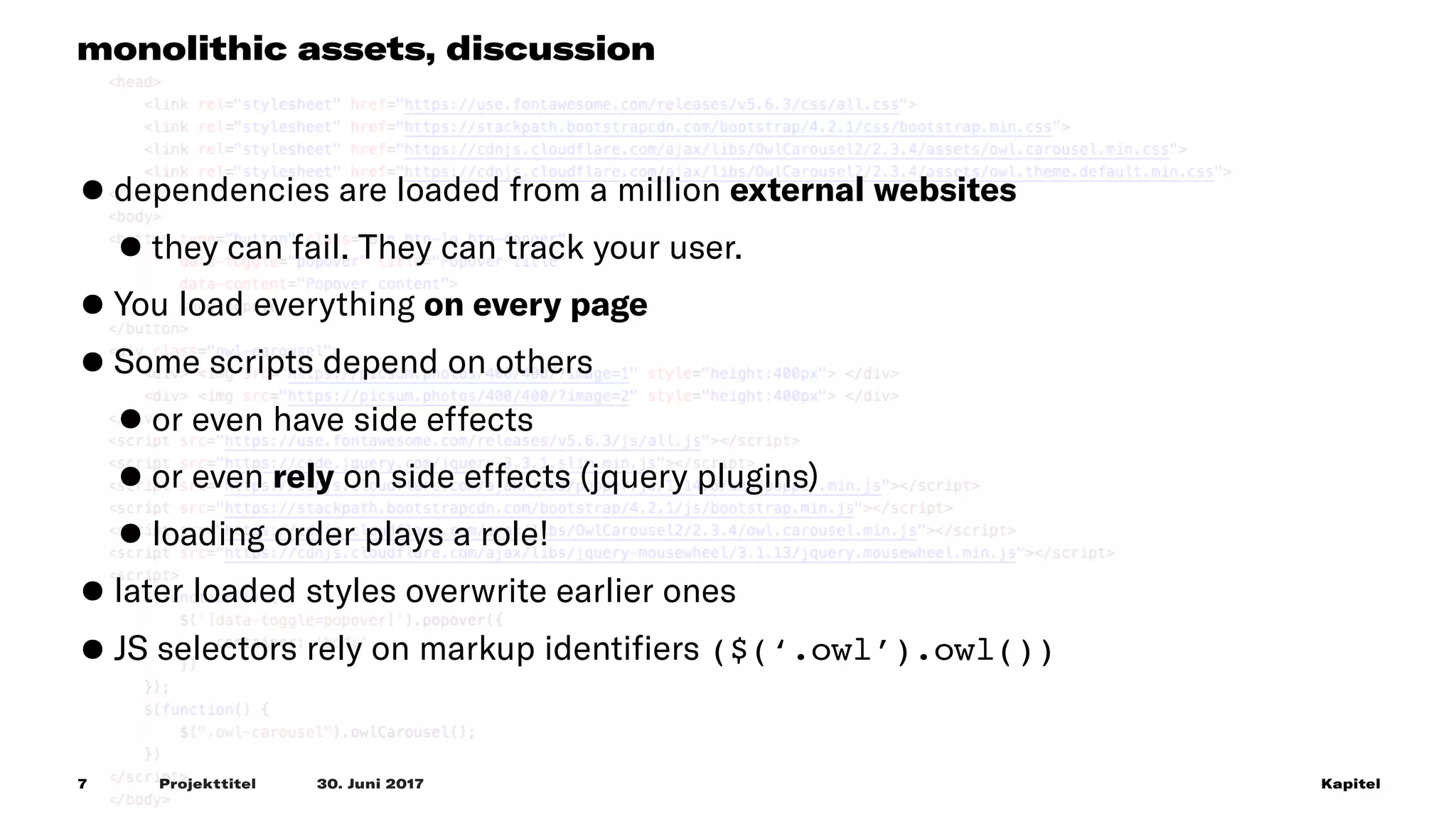

monolithic assets, discussion
•dependencies are loaded from a million external websites
•they can fail. They can track your user.
•You load everything on every page
•Some scripts depend on others
•or even have side effects
•or even rely on side effects (jquery plugins)
•loading order plays a role!
•later loaded styles overwrite earlier ones
•JS selectors rely on markup identifiers ($(‘.owl’).owl())

8. 8

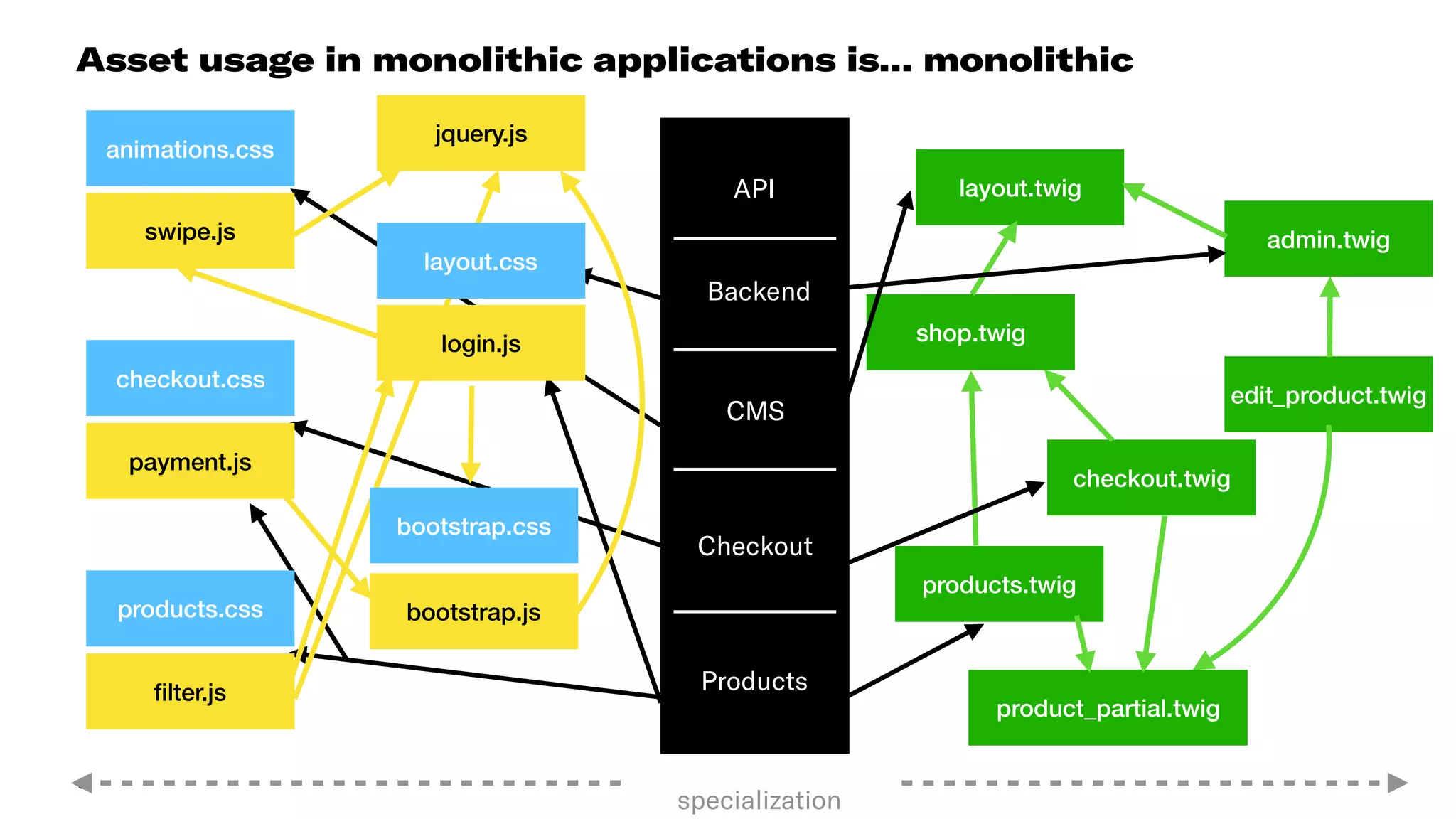

Asset usage in monolithic applications is… monolithic
Products
Checkout
CMS
Backend
API
specialization
shop.twig
products.twig
checkout.twig
layout.twig
admin.twig
product_partial.twig
edit_product.twig
layout.css
login.js
bootstrap.css
bootstrap.js
checkout.css
payment.js
products.css
filter.js
animations.css
swipe.js
jquery.js

9. Boot
strap
scssscss scss scss
$ lodashmoment Vue
Boot
strap.js
JS JS JS
JS
JS
JS
JS JS JS
JS
JS
JS
product.css product.js checkout.jscheckout.css

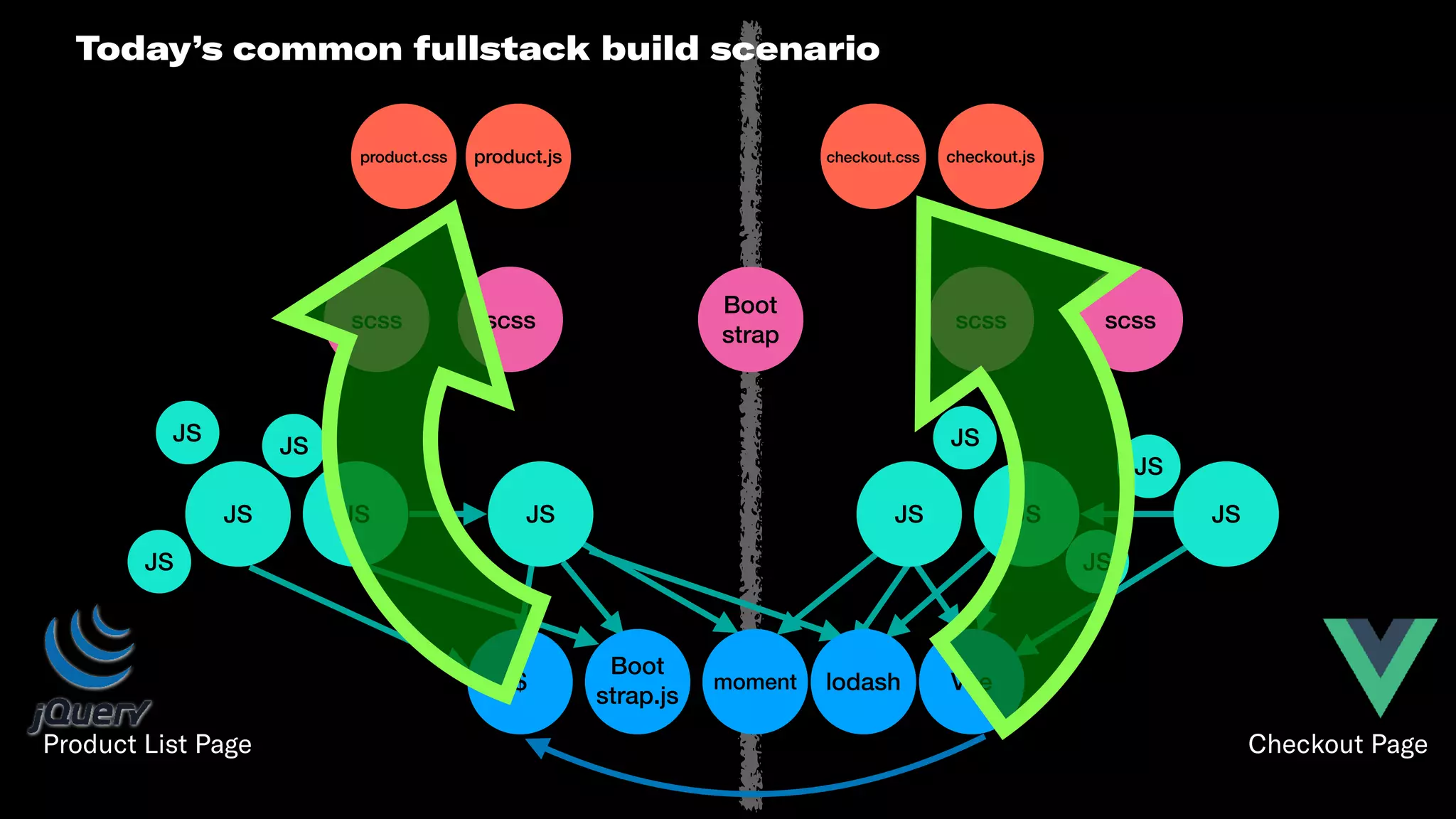

Today’s common fullstack build scenario
Checkout PageProduct List Page

10. 10
What we expect from a modern
fullstack asset workflow
•latest Javascript language features
•dependency management
•SCSS compilation
•live browser reloading
•debugging in the browser
•support for legacy libraries
•support for state-of-the-art libraries
•automatic support for old browsers
•fast loading times on production
•fast build times
•instant onboarding of new team devs

11. 11

12. 12

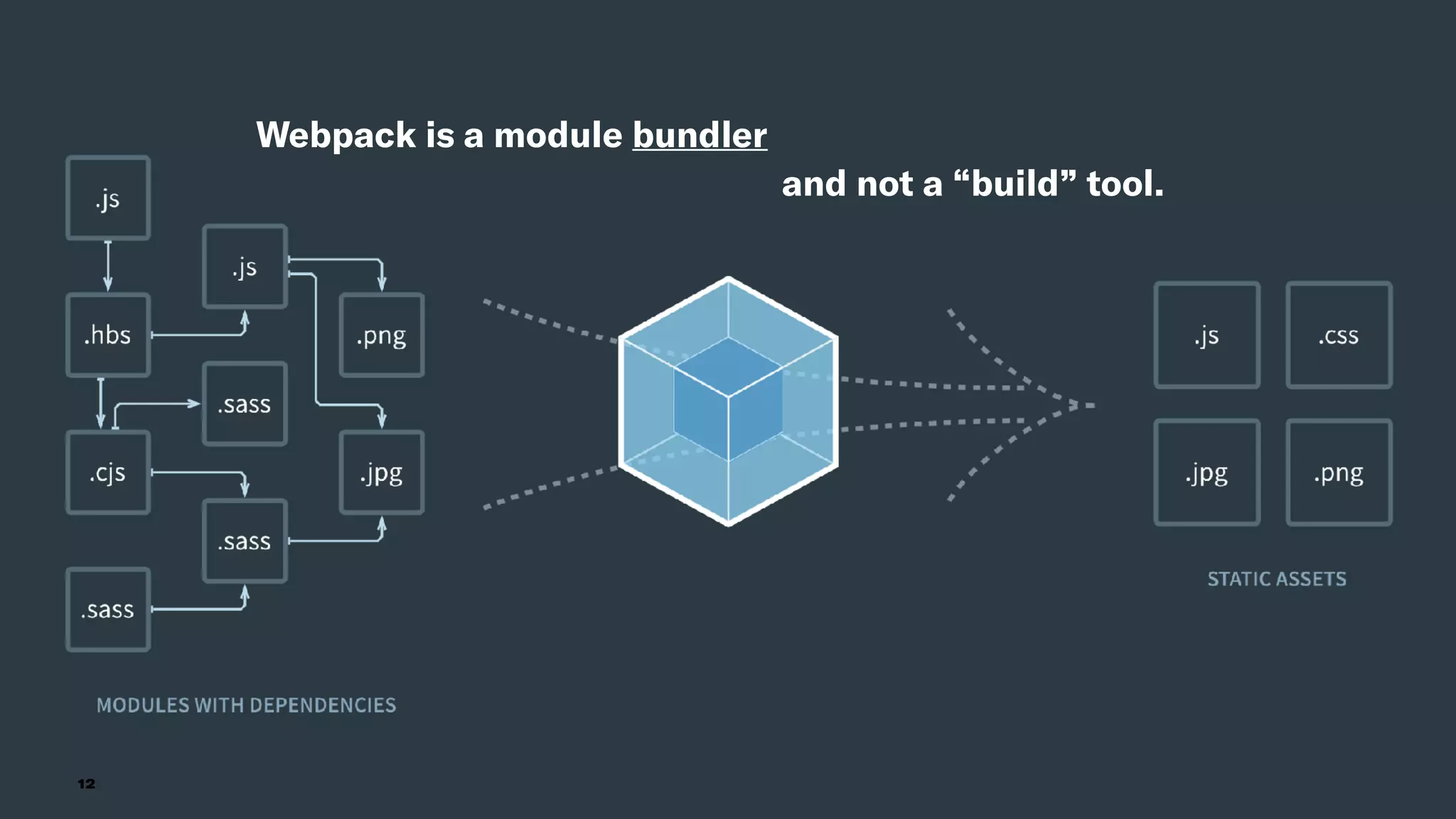

Webpack is a module bundler
and not a “build” tool.

13. 13
THEY ALL TRUST WEBPACK.
BECAUSE IT’S SO GREAT.

14. 14

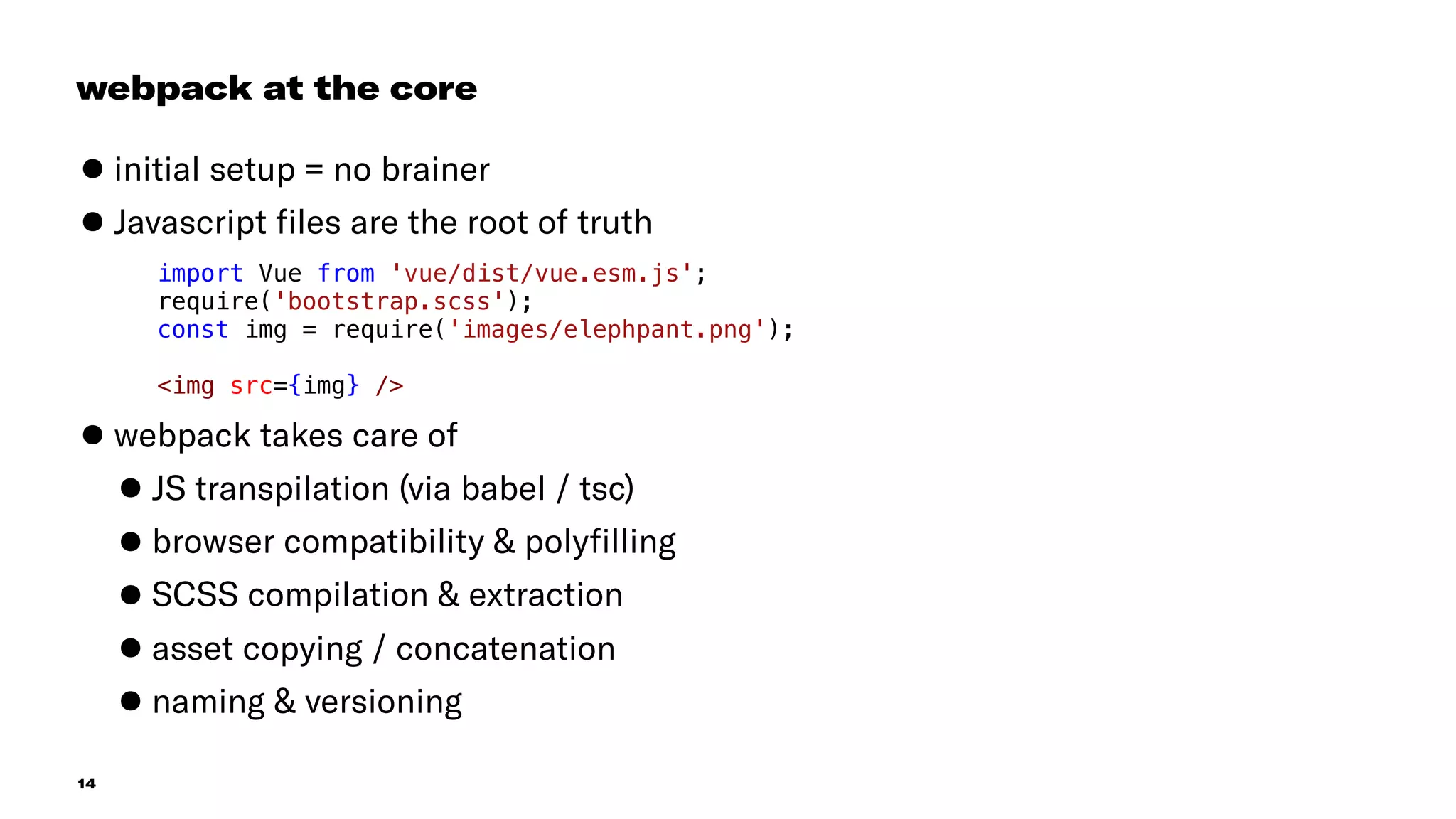

•initial setup = no brainer
•Javascript files are the root of truth
•webpack takes care of
•JS transpilation (via babel / tsc)
•browser compatibility & polyfilling
•SCSS compilation & extraction
•asset copying / concatenation
•naming & versioning
webpack at the core
import Vue from 'vue/dist/vue.esm.js';
require('bootstrap.scss');
const img = require('images/elephpant.png');
<img src={img} />

15. 15

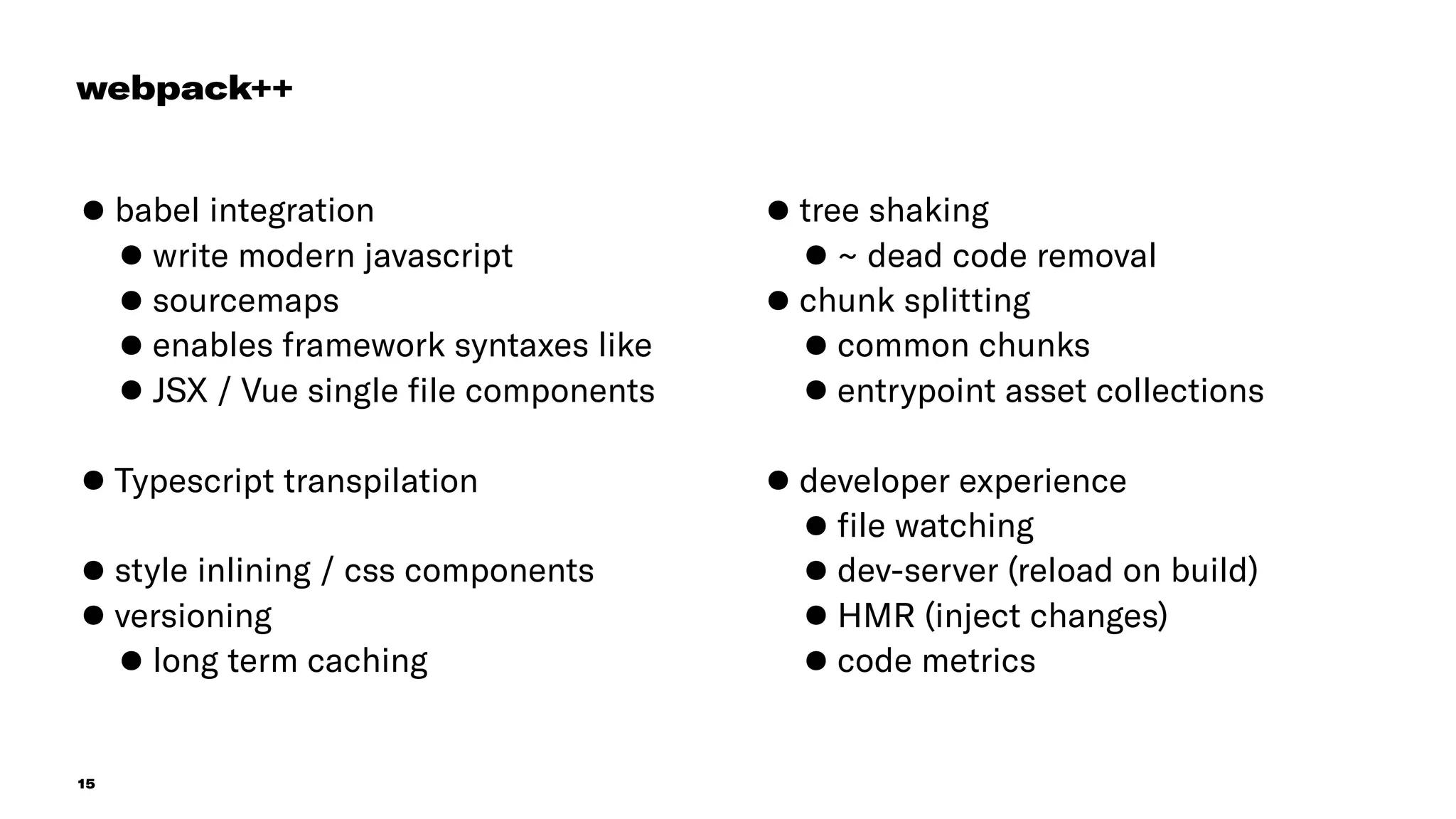

•babel integration
•write modern javascript
•sourcemaps
•enables framework syntaxes like
•JSX / Vue single file components
•Typescript transpilation
•style inlining / css components
•versioning
•long term caching
•tree shaking
•~ dead code removal
•chunk splitting
•common chunks
•entrypoint asset collections
•developer experience
•file watching
•dev-server (reload on build)
•HMR (inject changes)
•code metrics
webpack++

16. 16
FINALLY WE CAN WRITE NICE JAVASCRIPT
Demo

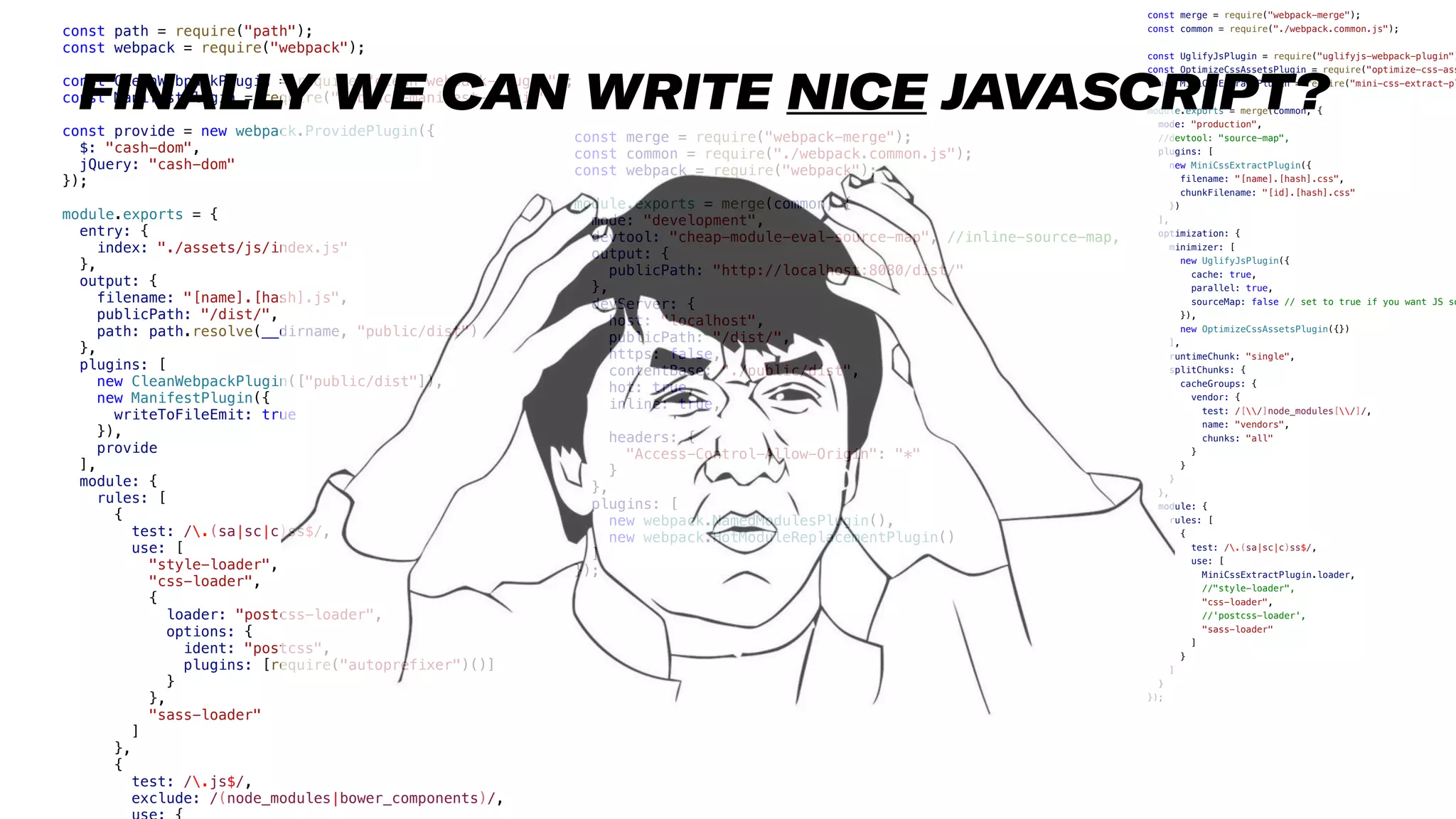

17. 17
const path = require("path");
const webpack = require("webpack");
const CleanWebpackPlugin = require("clean-webpack-plugin");
const ManifestPlugin = require("webpack-manifest-plugin");
const provide = new webpack.ProvidePlugin({
$: "cash-dom",
jQuery: "cash-dom"
});
module.exports = {
entry: {
index: "./assets/js/index.js"
},
output: {
filename: "[name].[hash].js",
publicPath: "/dist/",
path: path.resolve(__dirname, "public/dist")
},
plugins: [
new CleanWebpackPlugin(["public/dist"]),
new ManifestPlugin({
writeToFileEmit: true
}),
provide
],
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
"style-loader",
"css-loader",
{
loader: "postcss-loader",
options: {
ident: "postcss",
plugins: [require("autoprefixer")()]
}
},
"sass-loader"
]
},
{
test: /.js$/,
exclude: /(node_modules|bower_components)/,
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const webpack = require("webpack");
module.exports = merge(common, {
mode: "development",
devtool: "cheap-module-eval-source-map", //inline-source-map,
output: {
publicPath: "http://localhost:8080/dist/"
},
devServer: {
host: "localhost",
publicPath: "/dist/",
https: false,
contentBase: "./public/dist",
hot: true,
inline: true,
headers: {
"Access-Control-Allow-Origin": "*"
}
},
plugins: [
new webpack.NamedModulesPlugin(),
new webpack.HotModuleReplacementPlugin()
]
});
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const UglifyJsPlugin = require("uglifyjs-webpack-plugin")
const OptimizeCssAssetsPlugin = require("optimize-css-ass
const MiniCssExtractPlugin = require("mini-css-extract-pl
module.exports = merge(common, {
mode: "production",
//devtool: "source-map",
plugins: [
new MiniCssExtractPlugin({
filename: "[name].[hash].css",
chunkFilename: "[id].[hash].css"
})
],
optimization: {
minimizer: [
new UglifyJsPlugin({
cache: true,
parallel: true,
sourceMap: false // set to true if you want JS so
}),
new OptimizeCssAssetsPlugin({})
],
runtimeChunk: "single",
splitChunks: {
cacheGroups: {
vendor: {
test: /[/]node_modules[/]/,
name: "vendors",
chunks: "all"
}
}
}
},
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
MiniCssExtractPlugin.loader,
//"style-loader",
"css-loader",
//'postcss-loader',
"sass-loader"
]
}
]
}
});
FINALLY WE CAN WRITE NICE JAVASCRIPT?

18. encore
is a webpack configuration generator

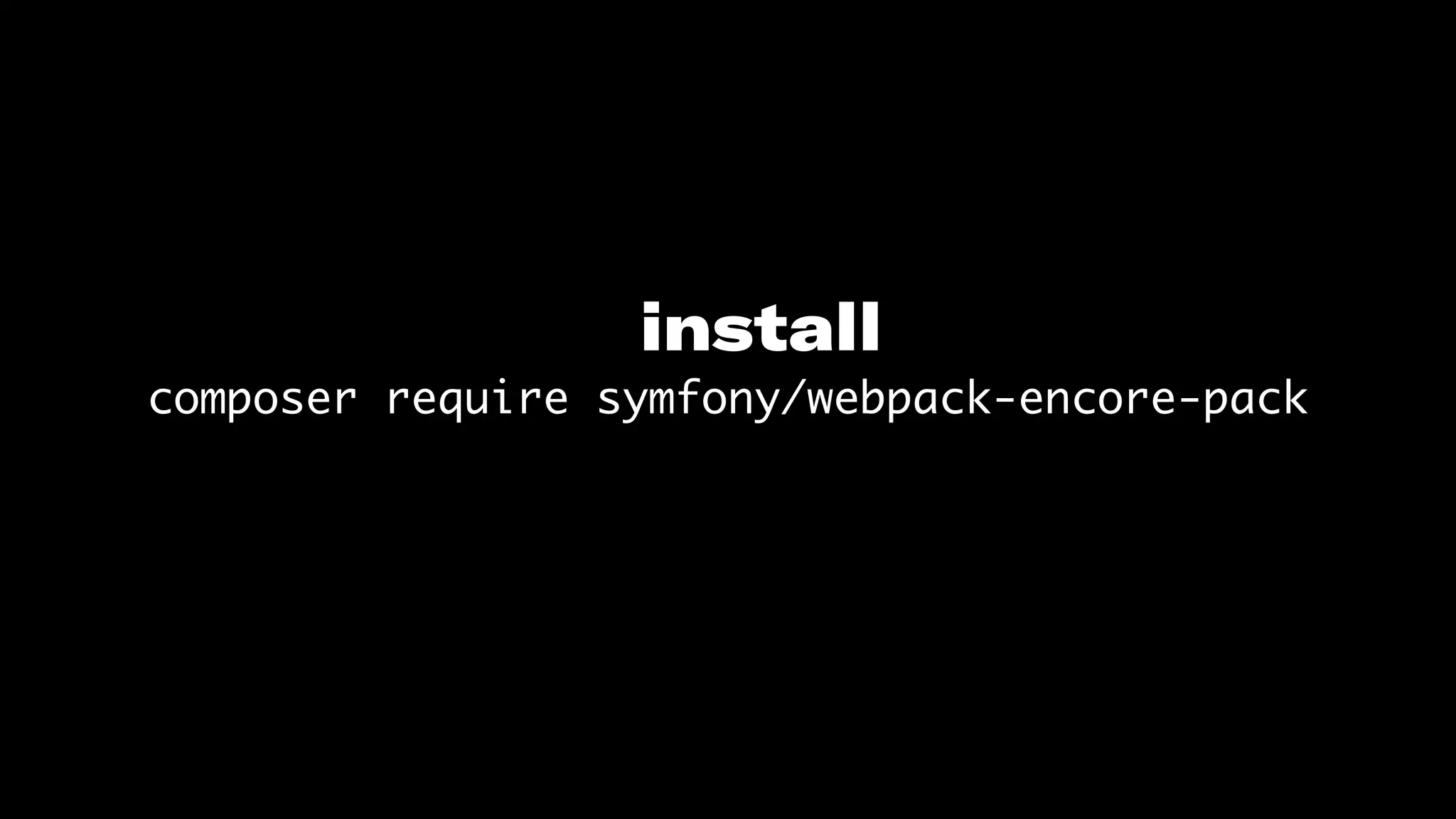

19. composer require symfony/webpack-encore-pack
install

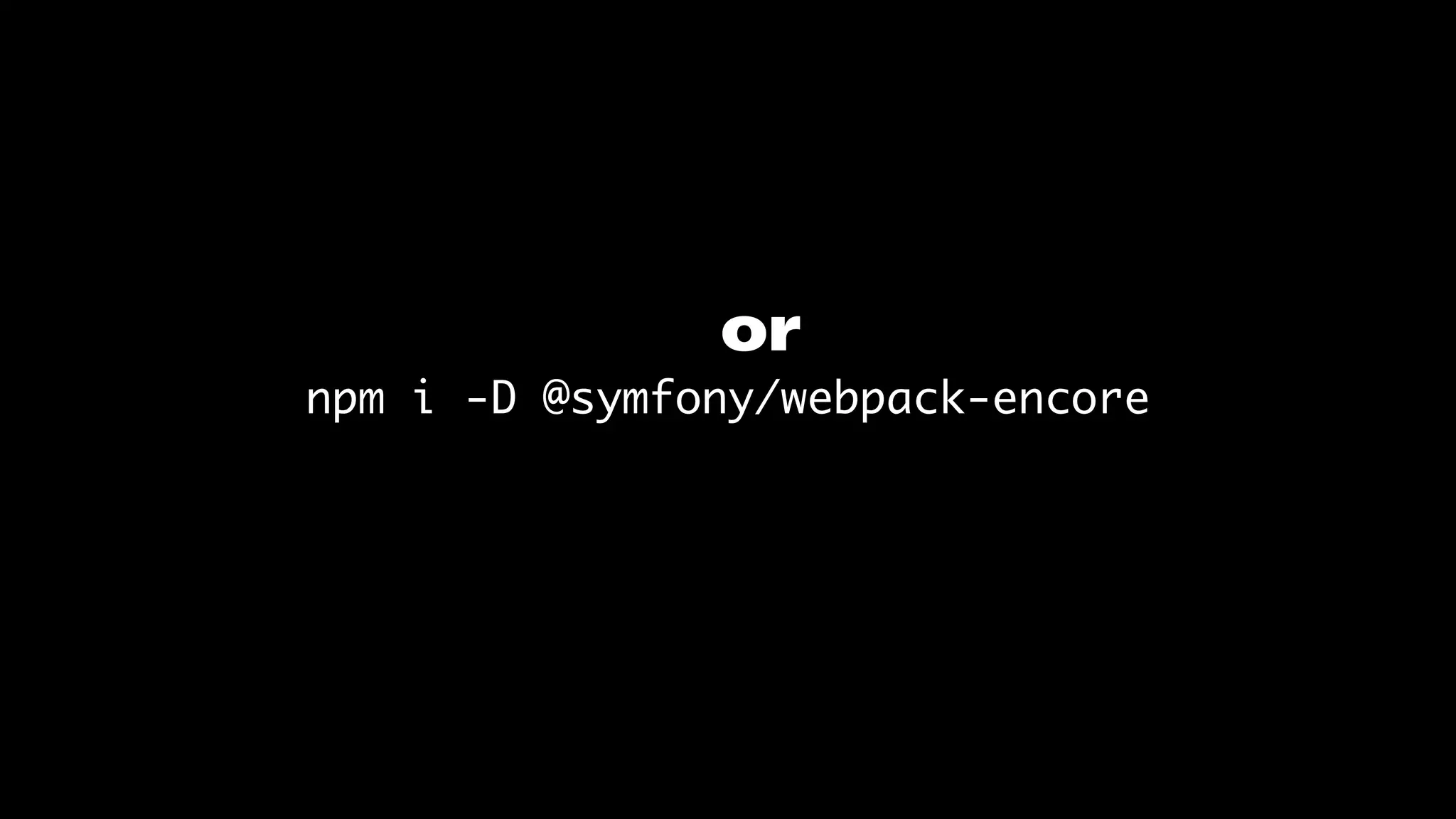

20. npm i -D @symfony/webpack-encore
or

21. 21

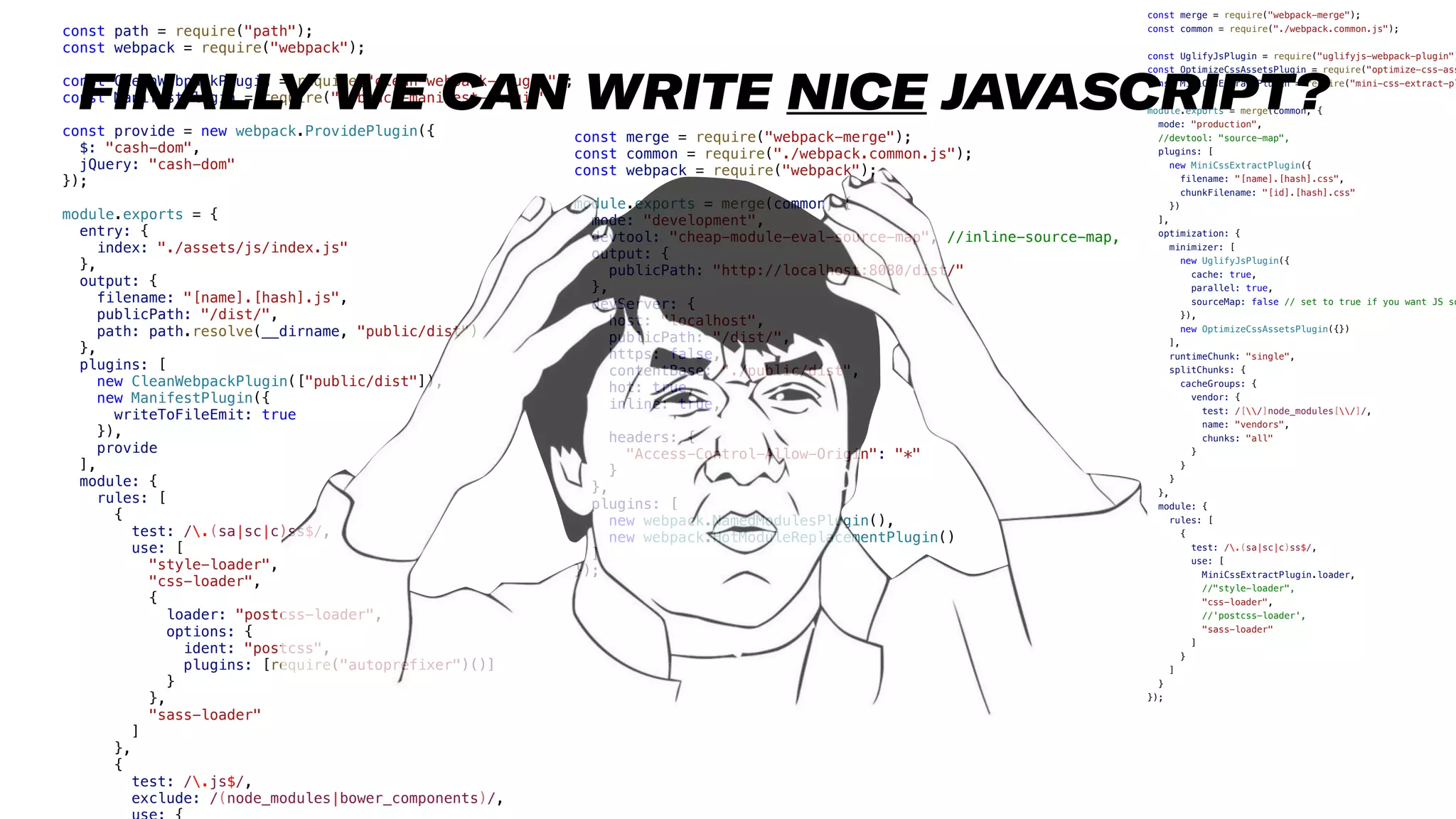

const path = require("path");
const webpack = require("webpack");
const CleanWebpackPlugin = require("clean-webpack-plugin");
const ManifestPlugin = require("webpack-manifest-plugin");
const provide = new webpack.ProvidePlugin({
$: "cash-dom",
jQuery: "cash-dom"
});
module.exports = {
entry: {
index: "./assets/js/index.js"
},
output: {
filename: "[name].[hash].js",
publicPath: "/dist/",
path: path.resolve(__dirname, "public/dist")
},
plugins: [
new CleanWebpackPlugin(["public/dist"]),
new ManifestPlugin({
writeToFileEmit: true
}),
provide
],
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
"style-loader",
"css-loader",
{
loader: "postcss-loader",
options: {
ident: "postcss",
plugins: [require("autoprefixer")()]
}
},
"sass-loader"
]
},
{
test: /.js$/,
exclude: /(node_modules|bower_components)/,
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const webpack = require("webpack");
module.exports = merge(common, {
mode: "development",
devtool: "cheap-module-eval-source-map", //inline-source-map,
output: {
publicPath: "http://localhost:8080/dist/"
},
devServer: {
host: "localhost",
publicPath: "/dist/",
https: false,
contentBase: "./public/dist",
hot: true,
inline: true,
headers: {
"Access-Control-Allow-Origin": "*"
}
},
plugins: [
new webpack.NamedModulesPlugin(),
new webpack.HotModuleReplacementPlugin()
]
});
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const UglifyJsPlugin = require("uglifyjs-webpack-plugin")
const OptimizeCssAssetsPlugin = require("optimize-css-ass
const MiniCssExtractPlugin = require("mini-css-extract-pl
module.exports = merge(common, {
mode: "production",
//devtool: "source-map",
plugins: [
new MiniCssExtractPlugin({
filename: "[name].[hash].css",
chunkFilename: "[id].[hash].css"
})
],
optimization: {
minimizer: [
new UglifyJsPlugin({
cache: true,
parallel: true,
sourceMap: false // set to true if you want JS so
}),
new OptimizeCssAssetsPlugin({})
],
runtimeChunk: "single",
splitChunks: {
cacheGroups: {
vendor: {
test: /[/]node_modules[/]/,
name: "vendors",
chunks: "all"
}
}
}
},
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
MiniCssExtractPlugin.loader,
//"style-loader",
"css-loader",
//'postcss-loader',
"sass-loader"
]
}
]
}
});
FINALLY WE CAN WRITE NICE JAVASCRIPT?

22. const path = require("path");
const webpack = require("webpack");
const CleanWebpackPlugin = require("clean-webpack-plugin");
const ManifestPlugin = require("webpack-manifest-plugin");
const provide = new webpack.ProvidePlugin({
$: "cash-dom",
jQuery: "cash-dom"
});
module.exports = {
entry: {
index: "./assets/js/index.js"
},
output: {
filename: "[name].[hash].js",
publicPath: "/dist/",
path: path.resolve(__dirname, "public/dist")
},
plugins: [
new CleanWebpackPlugin(["public/dist"]),
new ManifestPlugin({
writeToFileEmit: true
}),
provide
],
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
"style-loader",
"css-loader",
{
loader: "postcss-loader",
options: {
ident: "postcss",
plugins: [require("autoprefixer")()]
}
},
"sass-loader"
]
},
{
test: /.js$/,
exclude: /(node_modules|bower_components)/,
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const webpack = require("webpack");
module.exports = merge(common, {
mode: "development",
devtool: "cheap-module-eval-source-map", //inline-source-map,
output: {
publicPath: "http://localhost:8080/dist/"
},
devServer: {
host: "localhost",
publicPath: "/dist/",
https: false,
contentBase: "./public/dist",
hot: true,
inline: true,
headers: {
"Access-Control-Allow-Origin": "*"
}
},
plugins: [
new webpack.NamedModulesPlugin(),
new webpack.HotModuleReplacementPlugin()
]
});
const merge = require("webpack-merge");
const common = require("./webpack.common.js");
const UglifyJsPlugin = require("uglifyjs-webpack-plugin")
const OptimizeCssAssetsPlugin = require("optimize-css-ass
const MiniCssExtractPlugin = require("mini-css-extract-pl
module.exports = merge(common, {
mode: "production",
//devtool: "source-map",
plugins: [
new MiniCssExtractPlugin({
filename: "[name].[hash].css",
chunkFilename: "[id].[hash].css"
})
],
optimization: {
minimizer: [
new UglifyJsPlugin({
cache: true,
parallel: true,
sourceMap: false // set to true if you want JS so
}),
new OptimizeCssAssetsPlugin({})
],
runtimeChunk: "single",
splitChunks: {
cacheGroups: {
vendor: {
test: /[/]node_modules[/]/,
name: "vendors",
chunks: "all"
}
}
}
},
module: {
rules: [
{
test: /.(sa|sc|c)ss$/,
use: [
MiniCssExtractPlugin.loader,
//"style-loader",
"css-loader",
//'postcss-loader',
"sass-loader"
]
}
]
}
});
22

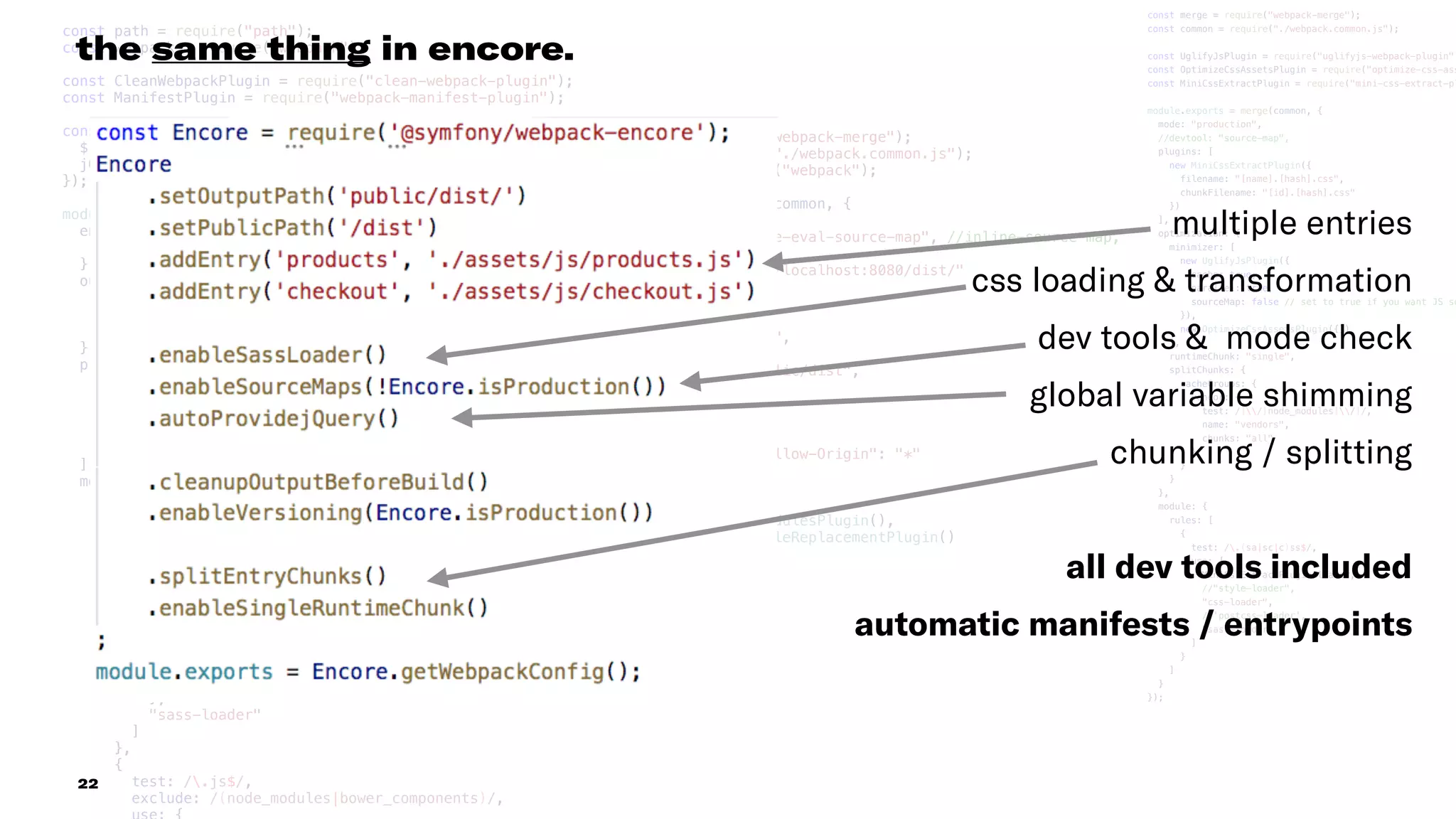

the same thing in encore.
multiple entries
css loading & transformation
dev tools & mode check
global variable shimming
chunking / splitting
all dev tools included
automatic manifests / entrypoints

23. 23

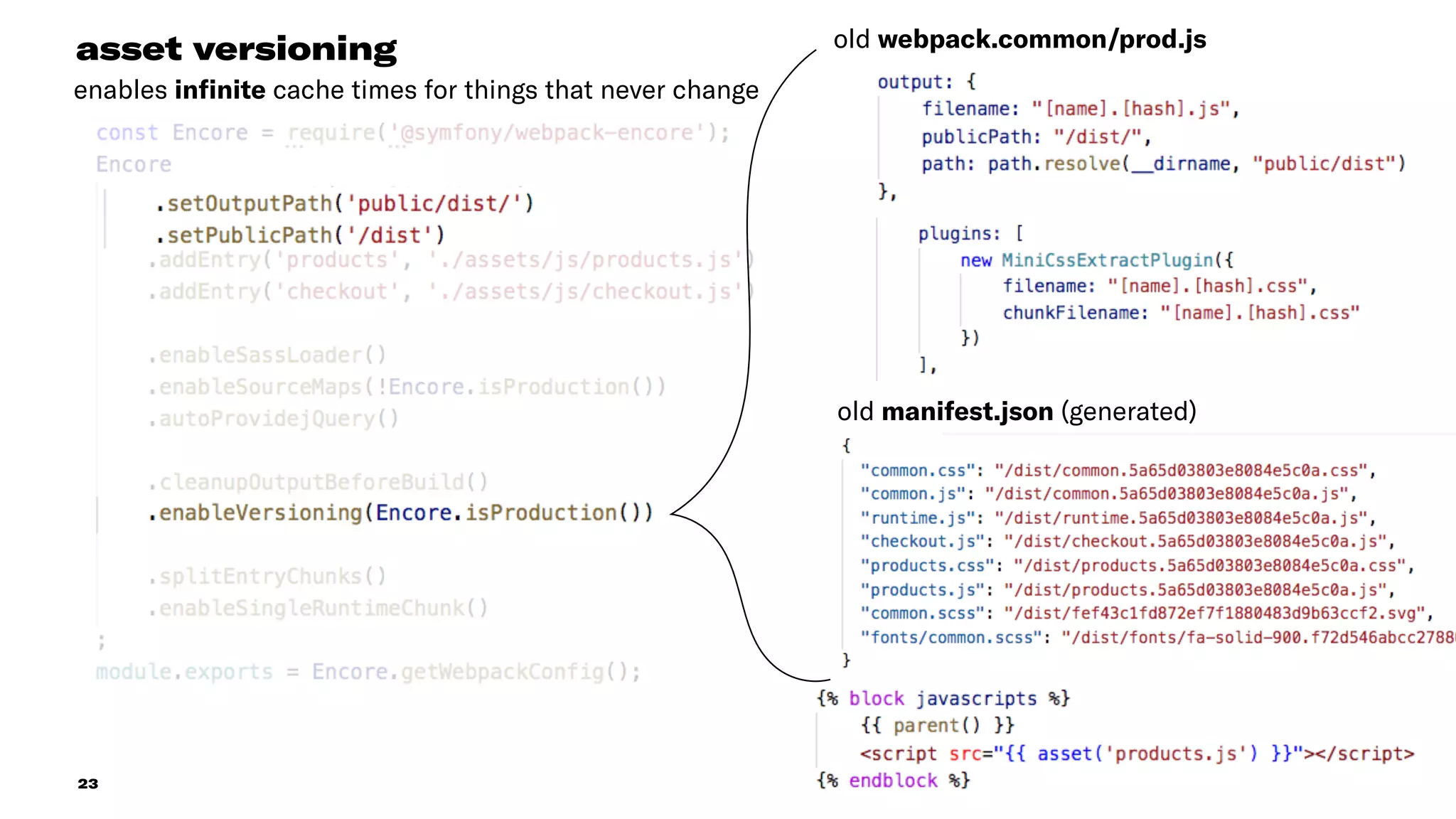

asset versioning old webpack.common/prod.js
old manifest.json (generated)
enables infinite cache times for things that never change

24. 24

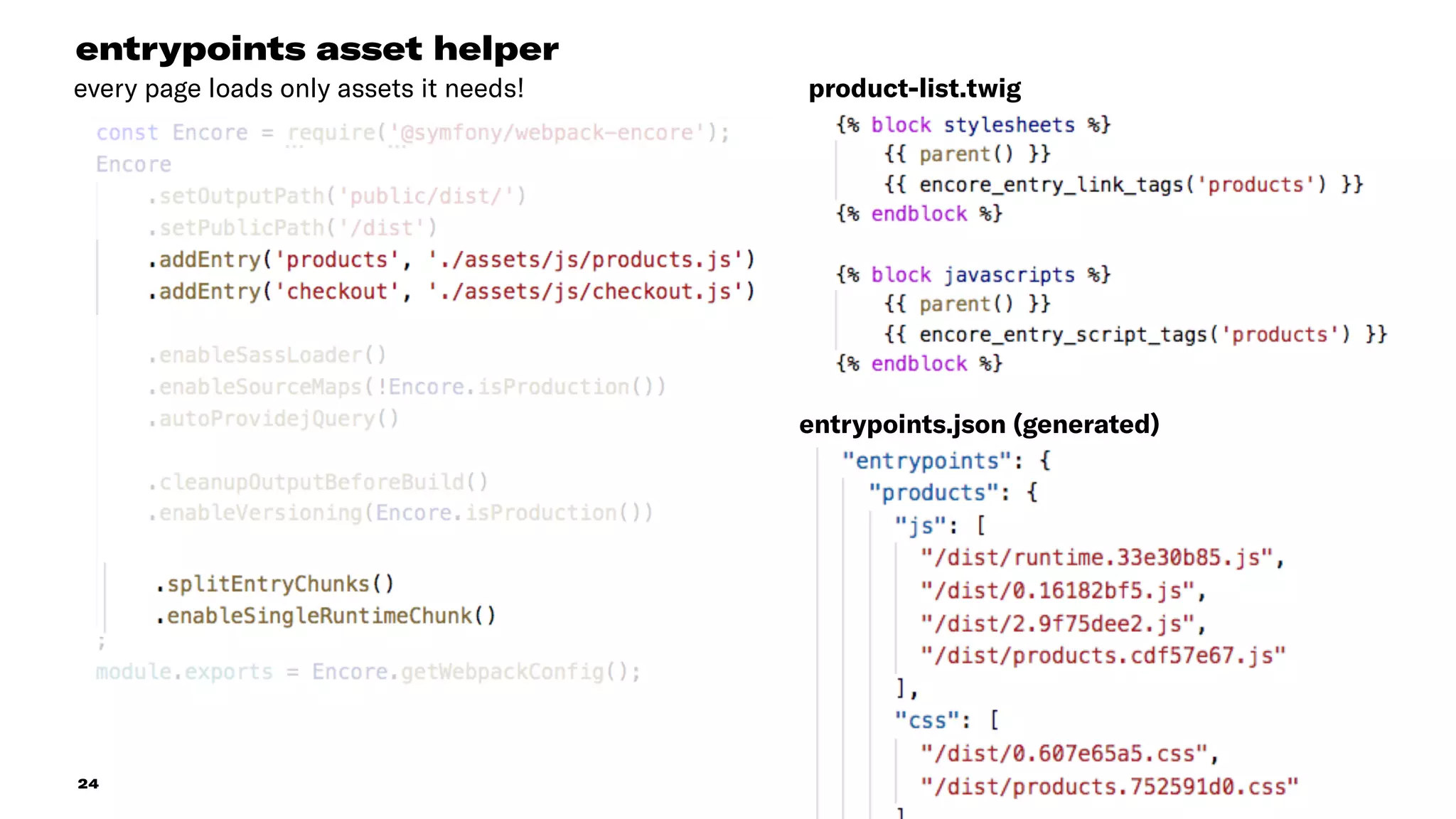

entrypoints asset helper
product-list.twig
entrypoints.json (generated)
every page loads only assets it needs!

25. 25
tree shaking
only used modules are exported!

26. 26
tree shaking
only used modules are exported!

27. Demo

28. 28

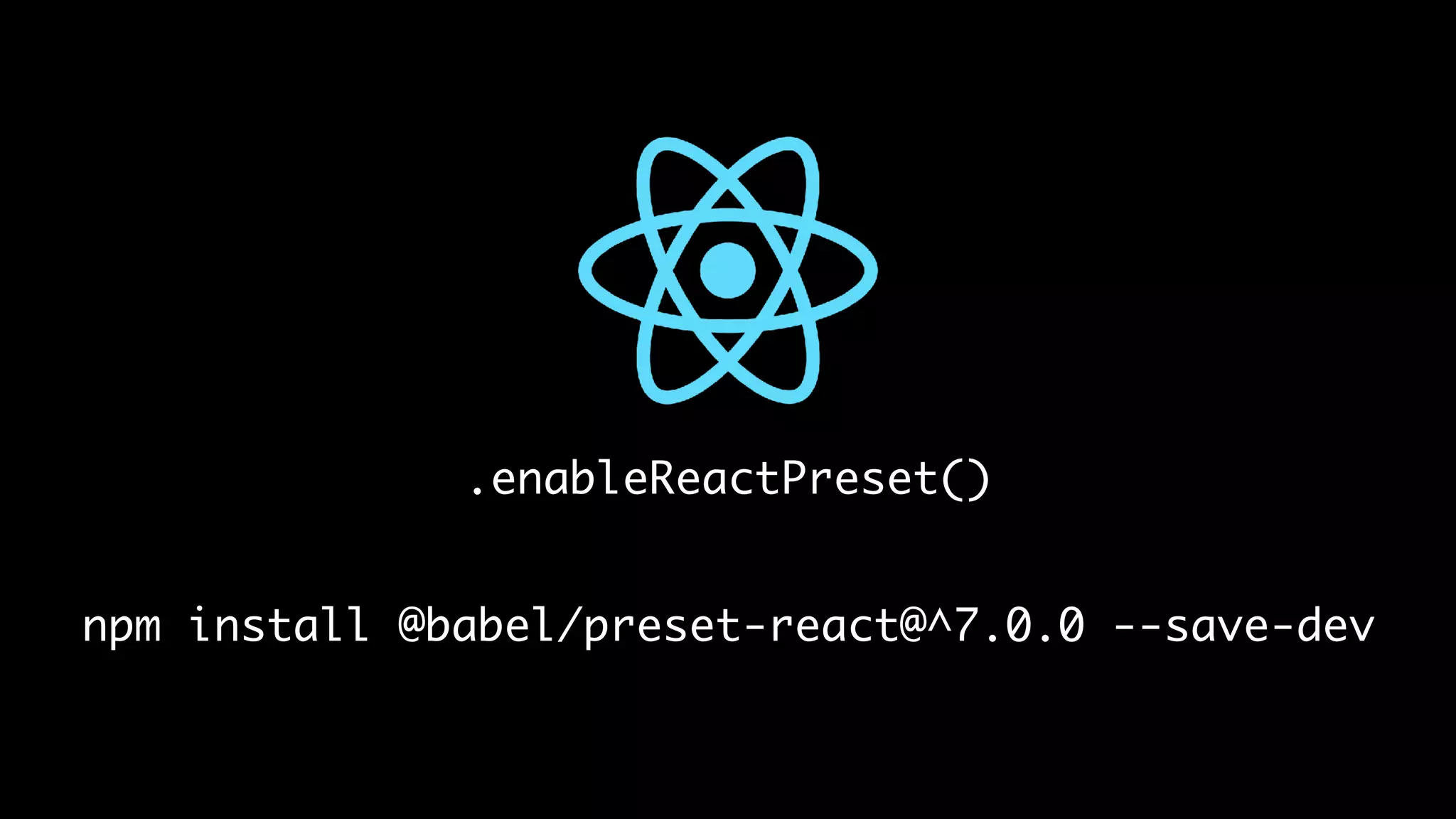

29. .enableReactPreset()
npm install @babel/preset-react@^7.0.0 --save-dev

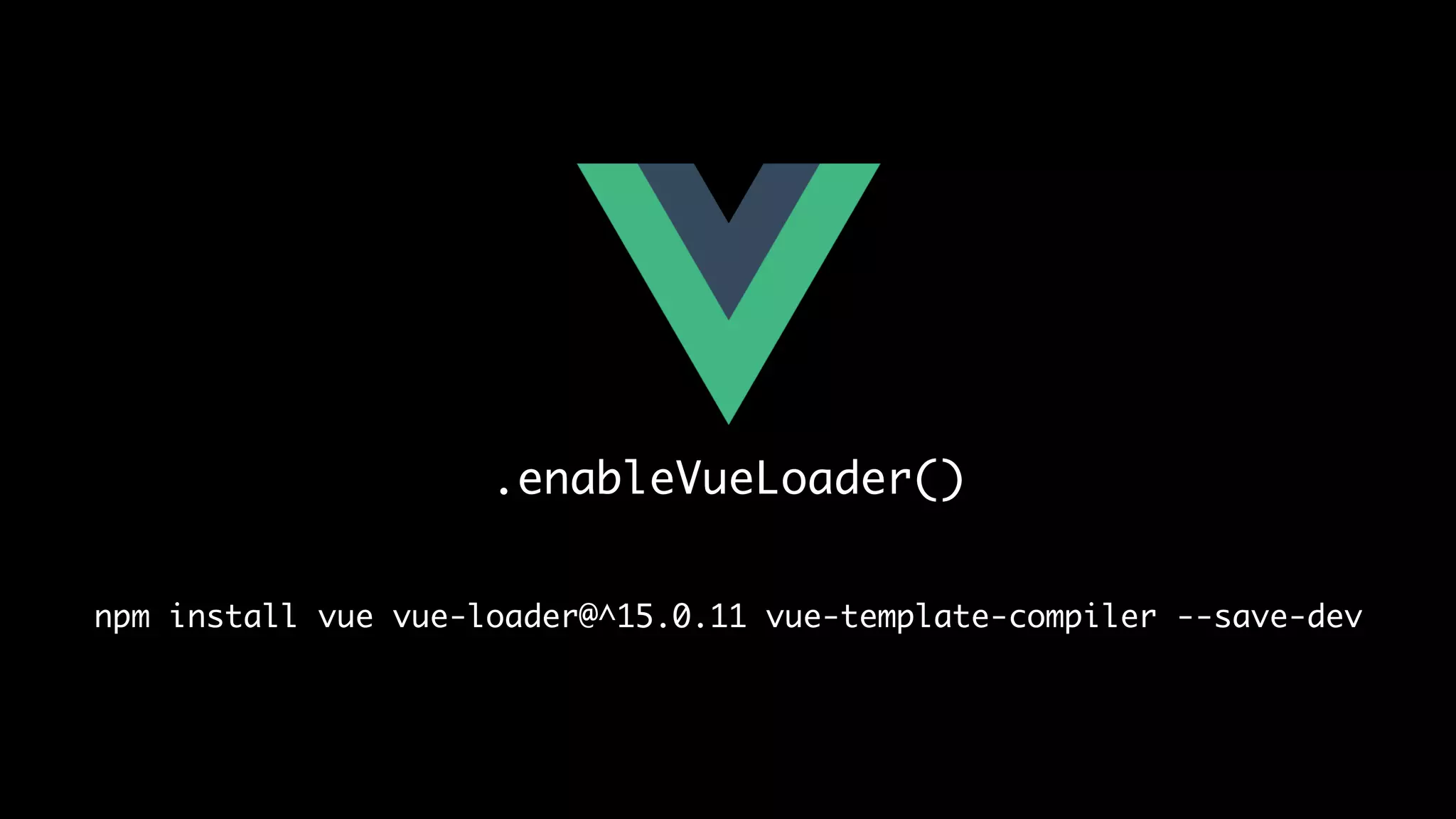

30. .enableVueLoader()
npm install vue vue-loader@^15.0.11 vue-template-compiler --save-dev

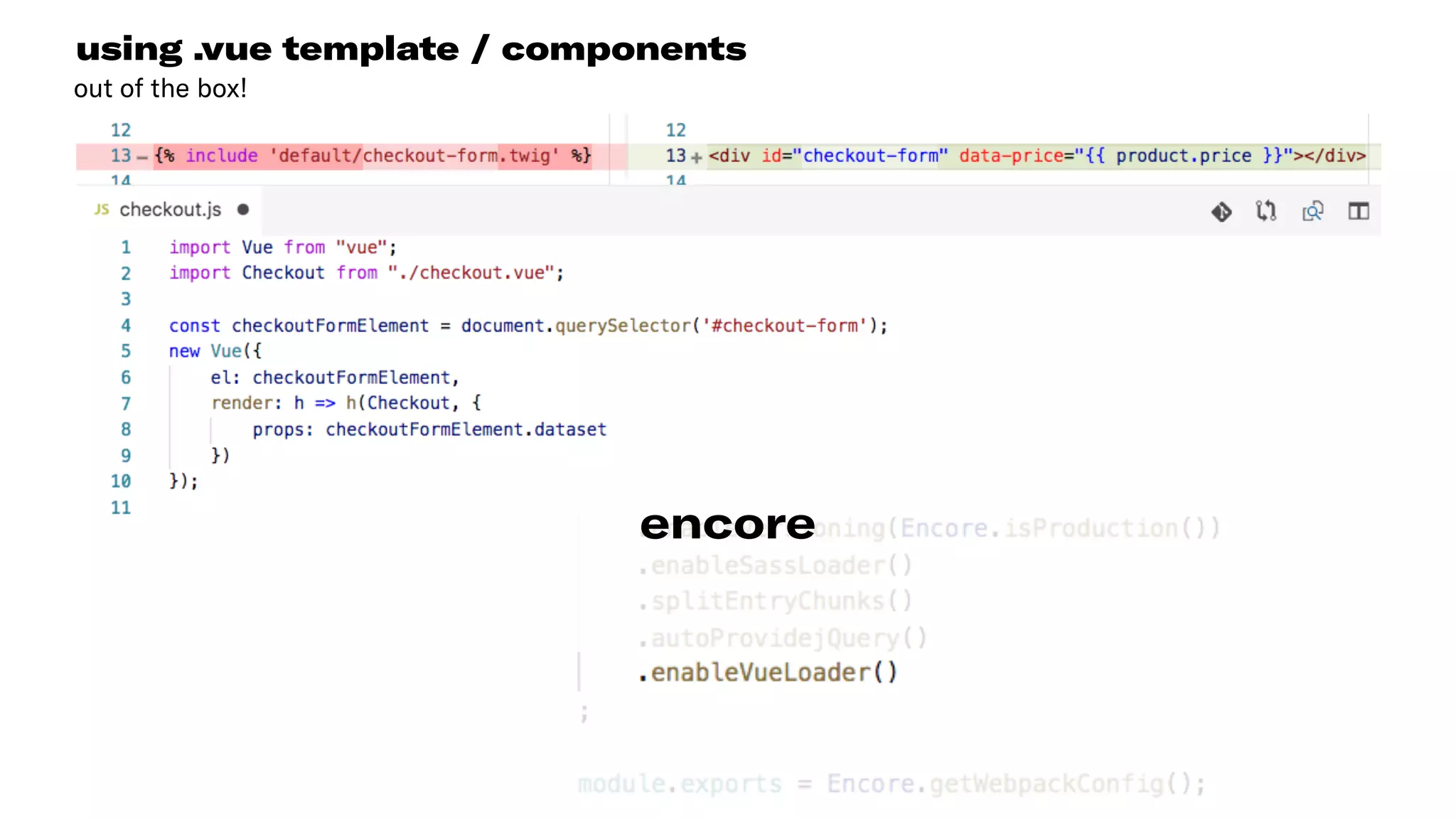

31. using .vue template / components
out of the box!
encore

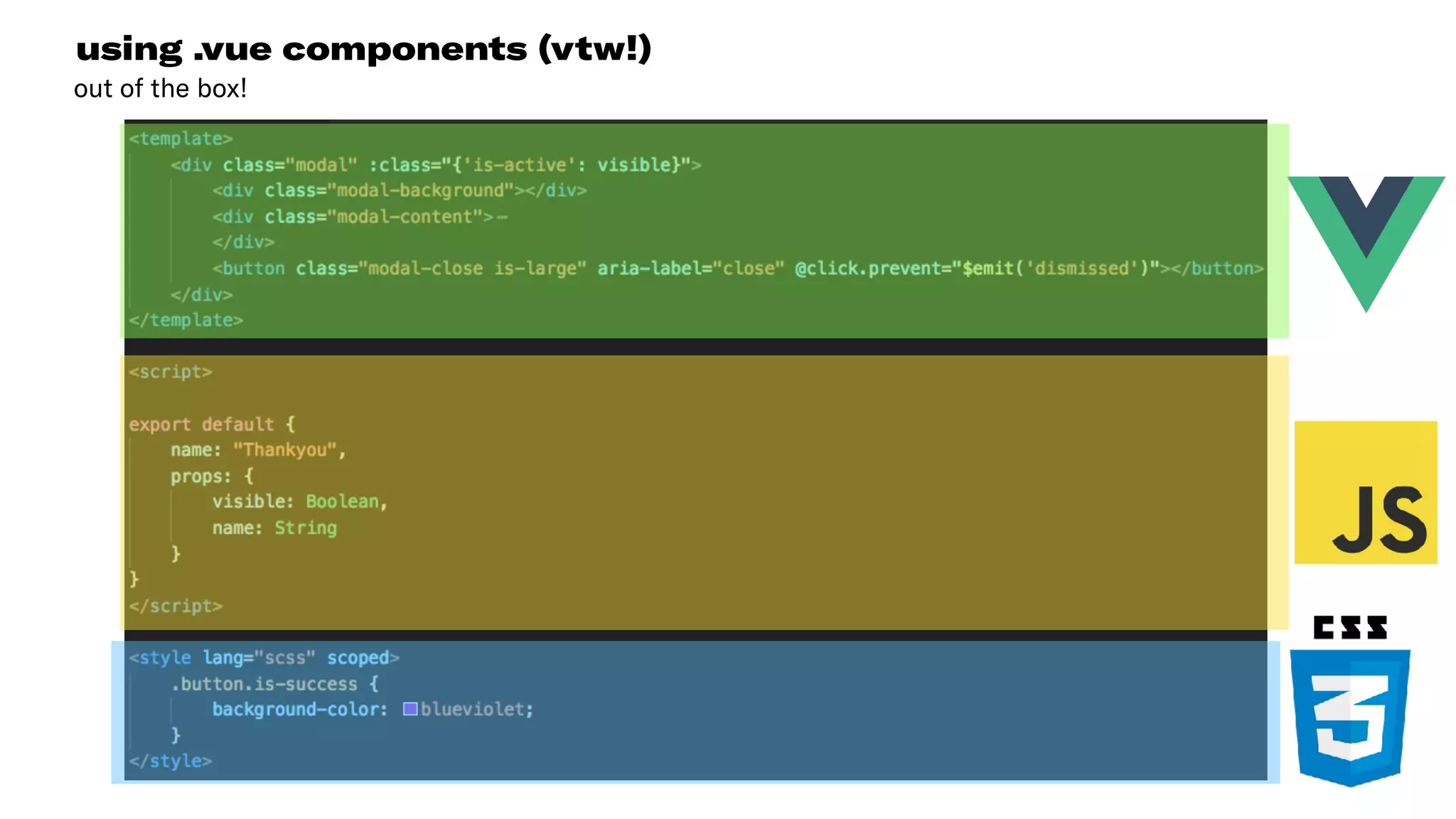

32. using .vue components (vtw!)
out of the box!

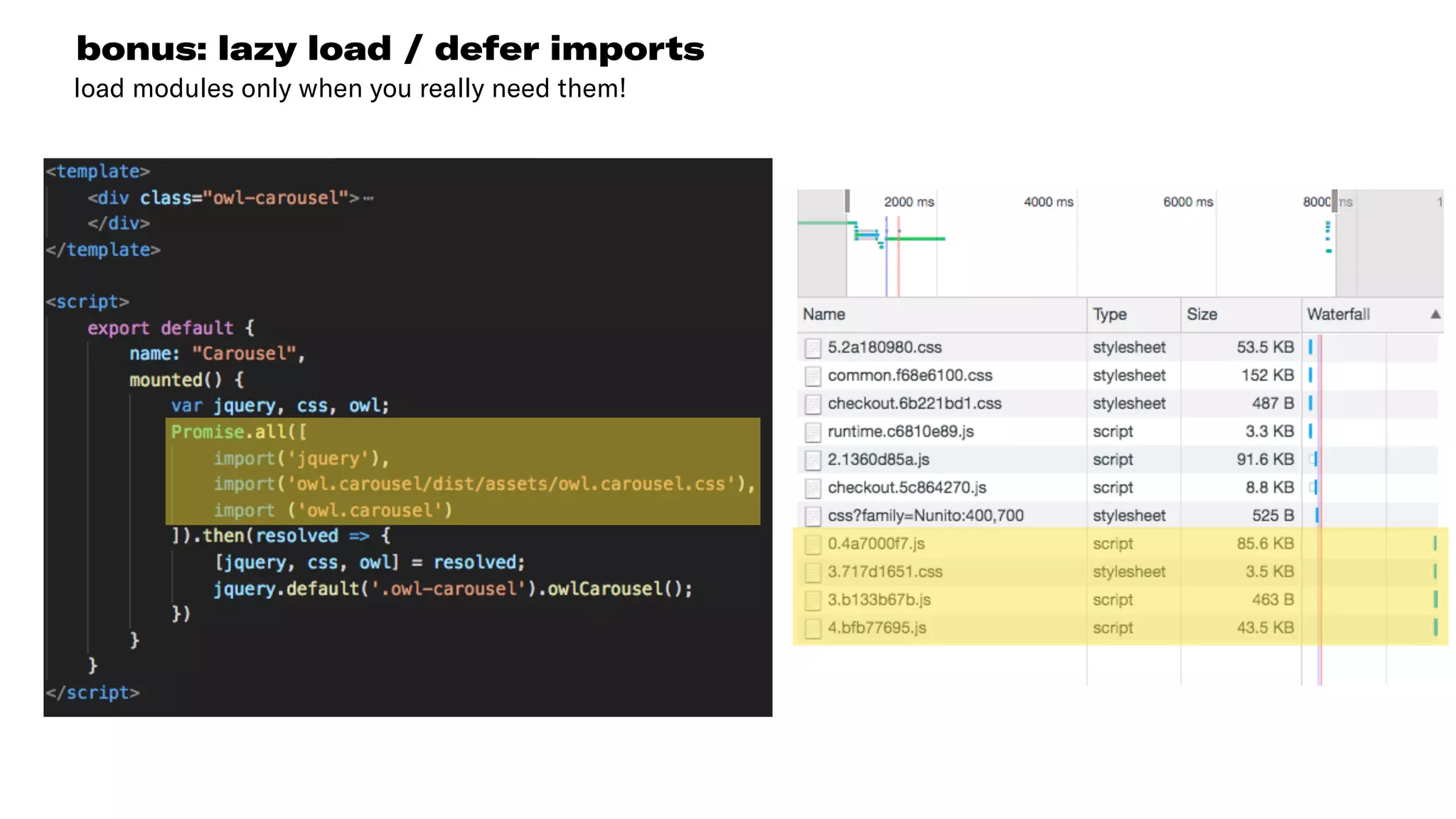

33. bonus: lazy load / defer imports
load modules only when you really need them!

34. 34
Demo

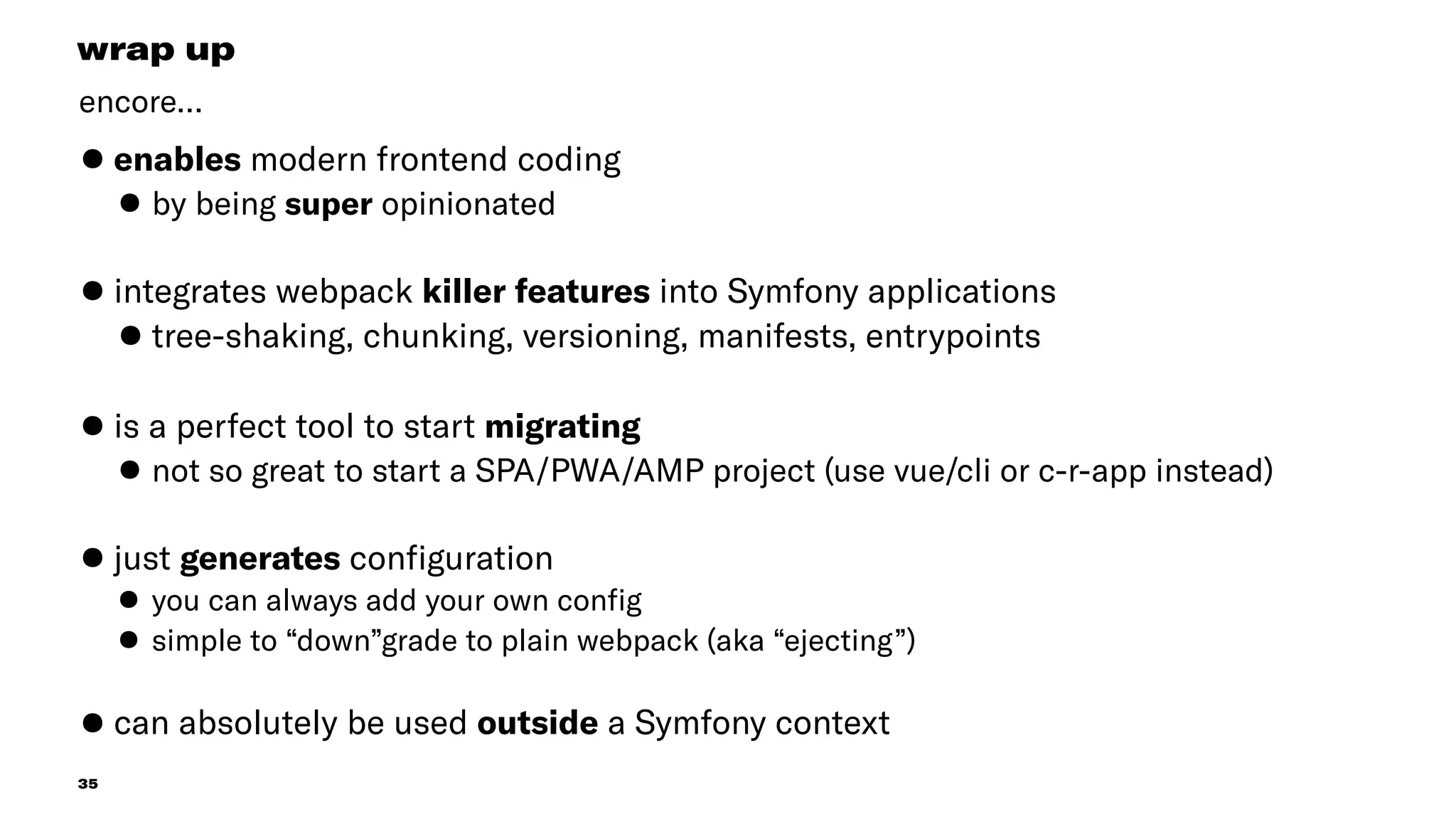

35. 35
•enables modern frontend coding
•by being super opinionated
•integrates webpack killer features into Symfony applications
•tree-shaking, chunking, versioning, manifests, entrypoints
•is a perfect tool to start migrating
•not so great to start a SPA/PWA/AMP project (use vue/cli or c-r-app instead)
•just generates configuration
•you can always add your own config
•simple to “down”grade to plain webpack (aka “ejecting”)
•can absolutely be used outside a Symfony context
wrap up
encore…

36. Turbine Kreuzberg GmbH
Ohlauer Straße 43
10999 Berlin
ASSET MANAGEMENT
FOR THE REST OF US.
@stadolf
#turbinejetzt
hello@turbinekreuzberg.com
https://github.com/elmariachi111/encore-demo
