Automazione serverless con Azure Functions e PowerShell - Marco Obinu - DevOps Heroes 2019
The document discusses the use of Azure Functions with PowerShell for serverless automation, emphasizing event-driven architecture and various service plans. It covers triggers, bindings, and integration with services like SendGrid and Azure SQL Database, along with details on networking and security features. Additionally, it provides links to useful resources, session videos, and documentation for further exploration of Azure Functions.
More Related Content
![[Kotlin Serverless 工作坊] 單元 1 - 開發環境建置](https://cdn.slidesharecdn.com/ss_thumbnails/kotlin-serverless-ep1-dev-env-210423105244-thumbnail.jpg?width=640&height=640&fit=bounds)
![[English] Create Mobile LBS Application Using Maps API](https://cdn.slidesharecdn.com/ss_thumbnails/createmobilelbsapplicationusingmapsapi-googleonemobileeventen-150422202736-conversion-gate01-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Automazione serverless con Azure Functions e PowerShell - Marco Obinu - DevOps Heroes 2019
Automazione serverless con Azure Functions e PowerShell - Marco Obinu - DevOps Heroes 2019
- 1.
- 2. 2 Automazione serverless conAzure Function e PowerShell Marco Obinu @OmegaMadLab
- 3. #DOH19 3 Organizer &sponsors GetLatestVersion.it
- 4. #DOH19 • Advisory Engineer@ Softjam S.p.A. • Geek fino al midollo @OmegaMadLab marco.obinu@omegamadlab.com http://www.omegamadlab.com https://github.com/OmegaMadLab https://www.linkedin.com/in/marco-obinu-omegamadlab/ https://www.youtube.com/channel/UCpkBeQSscC1iBvpNP4VNTKQ 4 Marco Obinu
- 5. #DOH19 6 Azure Functionse PowerShell: perché? • Piattoforma serverless event-driven • Complementare ad Azure Automation Completa astrazione dal layer hardware Scabilità guidata dagli eventi Paghi per l’effettivo utilizzo

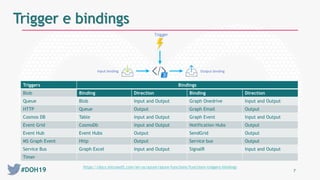

- 6. #DOH19 7 Trigger ebindings Triggers Bindings Blob Binding Direction Binding Direction Queue Blob Input and Output Graph Onedrive Input and Output HTTP Queue Output Graph Email Output Cosmos DB Table Input and Output Graph Event Input and Output Event Grid CosmoDb Input and Output Notification Hubs Output Event Hub Event Hubs Output SendGrid Output MS Graph Event Http Output Service bus Output Service Bus Graph Excel Input and Output SignalR Input and Output Timer https://docs.microsoft.com/en-us/azure/azure-functions/functions-triggers-bindings Trigger Input binding Output binding
- 7. 8 Anatomia di unaPowerShell function
- 8. #DOH19 9 Piani diservizio Resource Consumption plan Premium plan (preview) App Service plan Scale out Event driven Event driven Manual/autoscale Max instances 200 20 10-20 Cold start ✅Yes ❌No ❌No Default time out duration (min) 5 30 30 Max time out duration (min) 10 unbounded unbounded ACU per instance 100 210-840 100-840 Max memory (GB per instance) 1.5 3.5-14 1.75-14 Function apps per plan 100 100 unbounded App Service plans 100 per region 100 per resource group 100 per resource group Storage 1 GB 250 GB 50-1000 GB Vnet integration ❌No ✅Yes ✅Yes https://docs.microsoft.com/en-us/azure/azure-functions/functions-scale

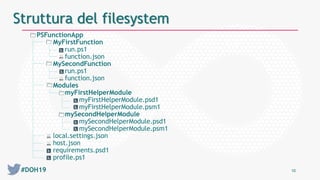

- 9. #DOH19 10 Struttura delfilesystem PSFunctionApp MyFirstFunction run.ps1 function.json MySecondFunction run.ps1 function.json Modules myFirstHelperModule myFirstHelperModule.psd1 myFirstHelperModule.psm1 mySecondHelperModule mySecondHelperModule.psd1 mySecondHelperModule.psm1 local.settings.json host.json requirements.psd1 profile.ps1

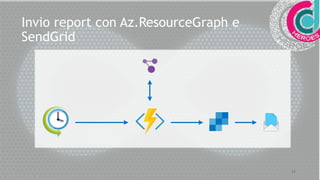

- 10. 11 Invio report conAz.ResourceGraph e SendGrid

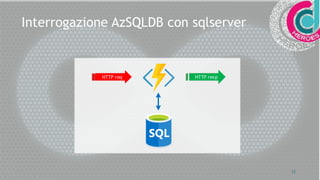

- 11. 12 Interrogazione AzSQLDB consqlserver HTTP req HTTP resp
- 12.

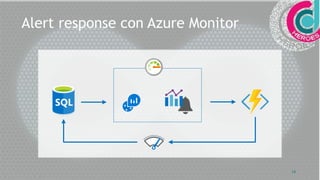

- 13. 14 Alert response conAzure Monitor

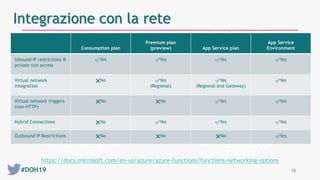

- 14. #DOH19 15 Integrazione conla rete Consumption plan Premium plan (preview) App Service plan App Service Environment Inbound IP restrictions & private site access ✅Yes ✅Yes ✅Yes ✅Yes Virtual network integration ❌No ✅Yes (Regional) ✅Yes (Regional and Gateway) ✅Yes Virtual network triggers (non-HTTP) ❌No ❌No ✅Yes ✅Yes Hybrid Connections ❌No ✅Yes ✅Yes ✅Yes Outbound IP Restrictions ❌No ❌No ❌No ✅Yes https://docs.microsoft.com/en-us/azure/azure-functions/functions-networking-options

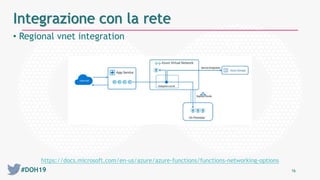

- 15. #DOH19 • Regional vnetintegration 16 Integrazione con la rete https://docs.microsoft.com/en-us/azure/azure-functions/functions-networking-options
- 16. #DOH19 • GW vnetintegration 17 Integrazione con la rete https://docs.microsoft.com/en-us/azure/azure-functions/functions-networking-options

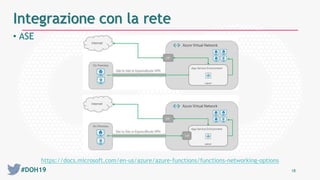

- 17. #DOH19 18 Integrazione conla rete https://docs.microsoft.com/en-us/azure/azure-functions/functions-networking-options • ASE

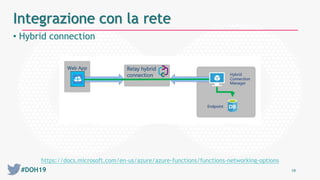

- 18. #DOH19 • Hybrid connection 19 Integrazionecon la rete https://docs.microsoft.com/en-us/azure/azure-functions/functions-networking-options

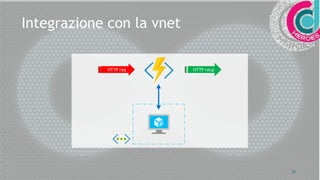

- 19. 20 Integrazione con lavnet HTTP req HTTP resp

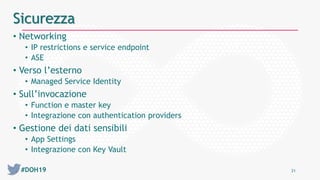

- 20. #DOH19 21 Sicurezza • Networking •IP restrictions e service endpoint • ASE • Verso l’esterno • Managed Service Identity • Sull’invocazione • Function e master key • Integrazione con authentication providers • Gestione dei dati sensibili • App Settings • Integrazione con Key Vault

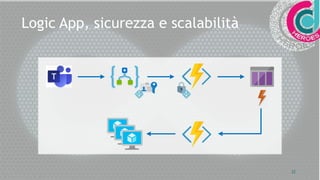

- 21. 22 Logic App, sicurezzae scalabilità

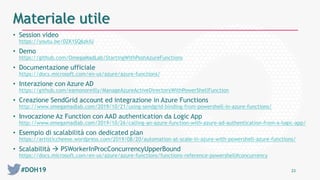

- 22. #DOH19 23 Materiale utile •Session video https://youtu.be/0ZK1SQ6zkiU • Demo https://github.com/OmegaMadLab/StartingWithPoshAzureFunctions • Documentazione ufficiale https://docs.microsoft.com/en-us/azure/azure-functions/ • Interazione con Azure AD https://github.com/eamonoreilly/ManageAzureActiveDirectoryWithPowerShellFunction • Creazione SendGrid account ed integrazione in Azure Functions http://www.omegamadlab.com/2019/10/21/using-sendgrid-binding-from-powershell-in-azure-functions/ • Invocazione Az Function con AAD authentication da Logic App http://www.omegamadlab.com/2019/10/26/calling-an-azure-function-with-azure-ad-authentication-from-a-logic-app/ • Esempio di scalabilità con dedicated plan https://artisticcheese.wordpress.com/2019/08/20/automation-at-scale-in-azure-with-powershell-azure-functions/ • Scalabilità PSWorkerInProcConcurrencyUpperBound https://docs.microsoft.com/en-us/azure/azure-functions/functions-reference-powershell#concurrency
- 23.
