GitBucket: The perfect Github clone by Scala
- 1. GitBucket: The perfect Github clone by Scala Naoki Takezoe @takezoen BizReach, Inc

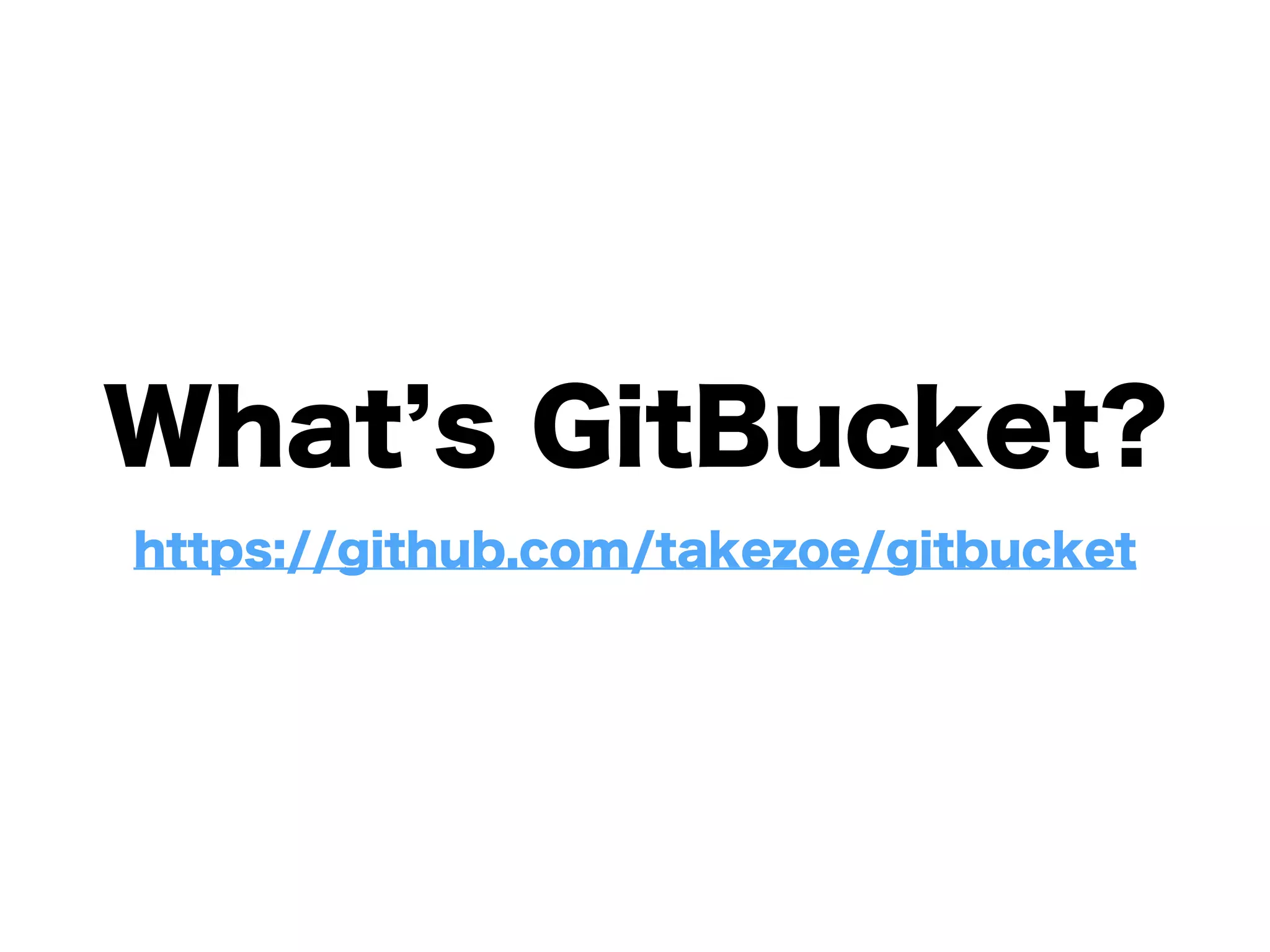

- 3. What’s GitBucket? • Open-Source Github clone based on Scala and JGit • Easy installation by pure JVM based solution • Main target is intranet users who can’t use Github by political reason
- 4. Demo Demo site (Thanks to @xuwei_k) http://gitbucket.herokuapp.com/
- 5. Over 3000 Stars, Thanks!! 3197stars!! at 18 Aug 2014
- 6. Over 3000 Stars, Thanks!! Product Stars Scala 2785 Slick 952 Scalatra 1428 sbt 1921 Play2 5103 at 18 Aug 2014 Play is Great!!
- 7. Features • Public / Private Git repository (http and ssh access) • Repository viewer and online file editing • Repository search (Code and Issues) • Wiki • Issues • Fork / Pull request • Mail notification • Activity timeline • User management (for Administrators) • Group (like Organization in Github) • LDAP integration • Gravatar support
- 8. Easy Installation $ wget https://github.com/takezoe/gitbucket/ releases/download/2.3/gitbucket.war !$ java -jar gitbucket.war
- 9. Showcase • docker-gitbucket https://github.com/f99aq8ove/docker-gitbucket • Jenkins GitBucket Plugin https://wiki.jenkins-ci.org/display/JENKINS/ GitBucket+Plugin • Amiage http://amiage.com/apps/gitbucket/
- 10. About development of GitBucket
- 11. GitBucket Team
- 13. and 36 Contributors but our resource is not enough...
- 14. We need max development speed by the minimum cost
- 16. Technologies • Scalatra • Twirl • Slick • JGit • H2 • Jetty • Apache MINA (Server-side)
- 17. Technologies (Front-end) • jQuery + Plugins • Bootstrap2 • jsdifflib • google-code-prettify • AceEditor • DropZone • ZeroClipboard
- 18. Architecture Git Client Web Browser SSH HTTP GitServlet Scalatra / Twirl Git Repository (Source code, Wiki) H2 Jetty (Account, Issues etc) MINA SSHD JGit Slick
- 19. Technologies • Type safety supports our aggressive development • Based on existing Java resources • Pure JVM based solution makes easy installation
- 20. Scalatra • Simple and powerful servlet based web framework inspired by Sinatra • More dynamic than Play2, but high extendibility class MyServlet extends ScalatraServlet with ScalateSupport {! get("/") {! <html>! <body>! <h1>Hello, world!</h1>! Say <a href="hello-scalate">hello to Scalate</a>.! </body>! </html>! }! }
- 21. scalatra-forms • Extension library for Scalatra • Server side and client side validation at once case class SignInForm(userName: String, password: String)! ! val form = mapping(! "userName" -> trim(label("Username", text(required))),! "password" -> trim(label("Password", text(required)))! )(SignInForm.apply)! !! post("/signin", form){ form =>! authenticate(context.settings, form.userName, form.password) match {! case Some(account) => signin(account)! case None => redirect("/signin")! }! }
- 22. scalatra-forms Send form data to /signin/validate by Ajax Validation result as JSON Web Browser Server Send form data to /signin if validation passed Response Added by scalatra-forms automatically Display errors if validation failed Validate again System error if validation failed
- 23. Twirl • Scala syntax template compiler • Also used in Play2 @(systemSettings: service.SystemSettingsService.SystemSettings)(implicit context: app.Context)! @import context._! <div class="signin-form">! <div class="header-metal">! @if(systemSettings.allowAccountRegistration){! <div class="pull-right">! <a href="@path/register" class="btn btn-mini">Create new account</a>! </div>! }! Sign in! </div>! <div class="form-body">! <form action="@path/signin" method="POST" validate="true">! <label for="userName">Username:</label>! <span id="error-userName" class="error"></span>! <input type="text" name="userName" id="userName" style="width: 95%"/>! <label for="password">Password:</label>! <span id="error-password" class="error"></span>! <input type="password" name="password" id="password" style="width: 95%"/>! <div><input type="submit" class="btn btn-success" value="Sign in"/></div>! </form>! </div>! </div>
- 24. Slick • Typesafe database query library • GitBucket does not use native SQL Issues filter { t1 =>! condition.repo! .map { _.split('/') match { case array => Seq(array(0) -> array(1)) } }! .getOrElse (repos)! .map { case (owner, repository) => t1.byRepository(owner, repository) }! .foldLeft[Column[Boolean]](false) ( _ || _ ) &&! (t1.closed === (condition.state == "closed").bind) &&! (t1.milestoneId === condition.milestoneId.get.get.bind, condition.milestoneId.flatten.isDefined) &&! (t1.milestoneId.? isEmpty, condition.milestoneId == Some(None)) &&! (t1.assignedUserName === filterUser("assigned").bind, filterUser.get("assigned").isDefined) &&! (t1.openedUserName === filterUser("created_by").bind, filterUser.get("created_by").isDefined) &&! (t1.openedUserName =!= filterUser("not_created_by").bind, filterUser.get("not_created_by").isDefined) &&! (t1.pullRequest === true.bind, onlyPullRequest) &&! (IssueLabels filter { t2 =>! (t2.byIssue(t1.userName, t1.repositoryName, t1.issueId)) &&! (t2.labelId in! (Labels filter { t3 =>! (t3.byRepository(t1.userName, t1.repositoryName)) &&! (t3.labelName inSetBind condition.labels)! } map(_.labelId)))! } exists, condition.labels.nonEmpty)
- 25. JGit • Git implementation in Java • Includes GitServlet which provides Git server // Clone repository! Git.cloneRepository()! .setURI("https://github.com/takezoe/solr-scala-client.git")! .setDirectory(new File("git"))! .call()! ! // Show logs! val logs = Git.open(new java.io.File("git")).log().call()! logs.asScala.foreach { rev =>! println(rev.getCommitterIdent().getEmailAddress() + " - " + rev.getCommitTime())! println(rev.getFullMessage())! }
- 26. H2 • Embeddable pure Java RDBMS • GitBucket has automatic migration system on H2 Differences of these SQLs are run in order.
- 27. Apache MINA • Apache MINA is a framework for NIO based network applications • GitBucket uses MINA SSHD which is an sshd implementation based on MINA
- 28. Apache MINA import org.apache.sshd.SshServer;! import org.apache.sshd.server.keyprovider.SimpleGeneratorHostKeyProvider;! import org.apache.sshd.server.shell.ProcessShellFactory;! import java.util.EnumSet;! ! public class Main {! ! public static void main(String[] args) throws Exception {! SshServer server = SshServer.setUpDefaultServer();! server.setPort(8080);! server.setKeyPairProvider(new SimpleGeneratorHostKeyProvider("key.ser"));! server.setPasswordAuthenticator((userName, password, serverSession) -> true);! server.setPublickeyAuthenticator((userName, publicKey, serverSession) -> true);! ! server.setShellFactory(new ProcessShellFactory(new String[]{"cmd.exe"},! EnumSet.of(! ProcessShellFactory.TtyOptions.Echo,! ProcessShellFactory.TtyOptions.ONlCr,! ProcessShellFactory.TtyOptions.ICrNl)));! ! server.start();! }! }
- 29. Development Tools • Github • IntelliJ IDEA • Gitter • ZenHub
- 30. Github • The greatest source code hosting service and social coding platform • We are always watching Github to catch up new features or changes
- 31. IntelliJ IDEA • The best IDE for Scala • Not perfect, but practical enough • GitBucket project has OpenSource license
- 32. Gitter • Chat service which has high affinity with Github • Sign-in by Github account • Chat room which corresponds to Github repository • Displays users who saw the message
- 33. ZenHub • Provides “Kanban” to Github Issues by Chrome Extension • Visualizes issue status and priority
- 34. Roadmap • Scala based plug-in system • Features for code review • Mobile support • Performance Improvement
- 35. Gist Plugin Perfect Gist clone built on GitBucket
- 36. Write plugin using Scala
- 37. Thanks! All feedback and contributions are always welcome. https://github.com/takezoe/gitbucket
