1. OVERVIEW
SHOWCASE
ROADMAP
KPI LIST
AZENQOS PORTFOLIO
ANDROID
DASHBOARD
REPLAY
1

2. SERVER DASHBOARD
ANDROID
TEST
REPORT
ANALYZE
Drive Test Engineer
Static Box Nationwide
Automatic Unit in Vehicles
Central Log Dashboard
Central Unit Control
Root Cause Analysis
Export to ACTIX & Gladiator

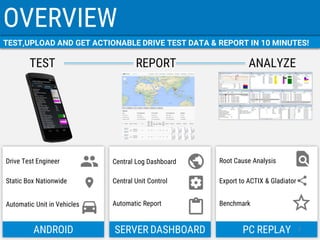

TEST,UPLOAD AND GET ACTIONABLE DRIVE TEST DATA & REPORT IN 10 MINUTES!
OVERVIEW
Automatic Report
PC REPLAY
Benchmark
2

3. TEST
REPORT
ANALYZE
OVERVIEW

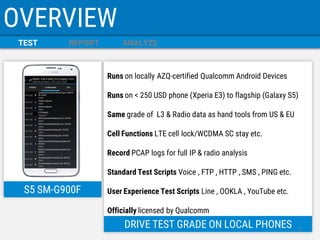

S5 SM-G900F
DRIVE TEST GRADE ON LOCAL PHONES
Runs on locally AZQ-certified Qualcomm Android Devices Runs on < 250 USD phone (Xperia E3) to flagship (Galaxy S5) Same grade of L3 & Radio data as hand tools from US & EU Cell Functions LTE cell lock/WCDMA SC stay etc. Record PCAP logs for full IP & radio analysis Standard Test Scripts Voice , FTP , HTTP , SMS , PING etc. User Experience Test Scripts Line , OOKLA , YouTube etc. Officially licensed by Qualcomm
3

4. TEST
REPORT
ANALYZE
OVERVIEW

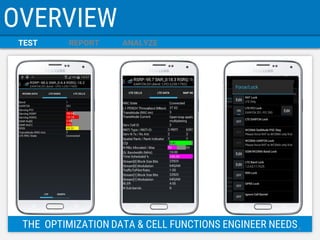

THE OPTIMIZATION DATA & CELL FUNCTIONS ENGINEER NEEDS
4

5. TEST
REPORT
ANALYZE
OVERVIEW

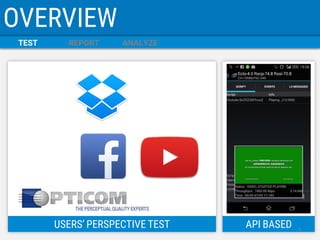

API BASED
USERS’ PERSPECTIVE TEST
5

6. TEST
REPORT
ANALYZE
OVERVIEW

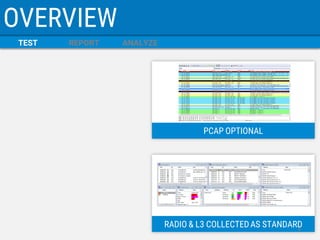

RADIO & L3 COLLECTED AS STANDARD
PCAP OPTIONAL
6

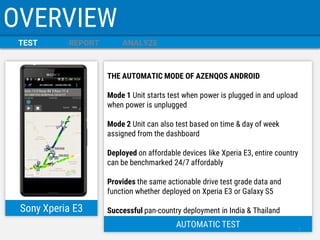

7. TEST
REPORT
ANALYZE
OVERVIEW
Sony Xperia E3
AUTOMATIC TEST
THE AUTOMATIC MODE OF AZENQOS ANDROID Mode 1 Unit starts test when power is plugged in and upload when power is unplugged Mode 2 Unit can also test based on time & day of week assigned from the dashboard Deployed on affordable devices like Xperia E3, entire country can be benchmarked 24/7 affordably Provides the same actionable drive test grade data and function whether deployed on Xperia E3 or Galaxy S5 Successful pan-country deployment in India & Thailand
7

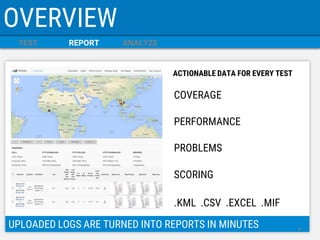

8. TEST
REPORT
ANALYZE
OVERVIEW
UPLOADED LOGS ARE TURNED INTO REPORTS IN MINUTES
COVERAGE
PERFORMANCE
PROBLEMS
SCORING
.KML .CSV .EXCEL .MIF
ACTIONABLE DATA FOR EVERY TEST
8

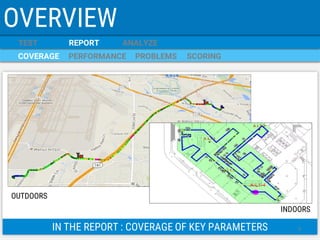

9. TEST
REPORT
ANALYZE
OVERVIEW
IN THE REPORT : COVERAGE OF KEY PARAMETERS
COVERAGE
PERFORMANCE
PROBLEMS
SCORING
OUTDOORS
INDOORS
9

10. COVERAGE
PERFORMANCE
PROBLEMS
SCORING
TEST
REPORT
ANALYZE
OVERVIEW

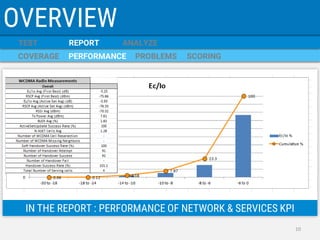

IN THE REPORT : PERFORMANCE OF NETWORK & SERVICES KPI
10

11. COVERAGE
PERFORMANCE
PROBLEMS
SCORING
TEST
REPORT
ANALYZE
OVERVIEW

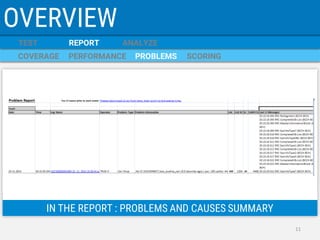

IN THE REPORT : PROBLEMS AND CAUSES SUMMARY
11

12. COVERAGE
PERFORMANCE
PROBLEMS
SCORING
TEST
REPORT
ANALYZE
OVERVIEW

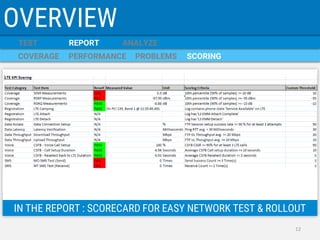

IN THE REPORT : SCORECARD FOR EASY NETWORK TEST & ROLLOUT
12

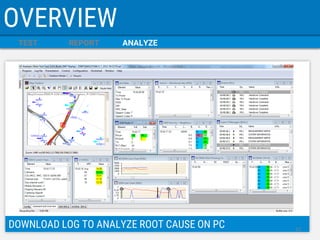

13. TEST
REPORT
ANALYZE
OVERVIEW
DOWNLOAD LOG TO ANALYZE ROOT CAUSE ON PC
13

14. TEST
REPORT
ANALYZE
OVERVIEW

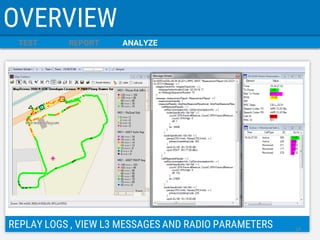

REPLAY LOGS , VIEW L3 MESSAGES AND RADIO PARAMETERS
14

15. TEST
REPORT
ANALYZE
OVERVIEW

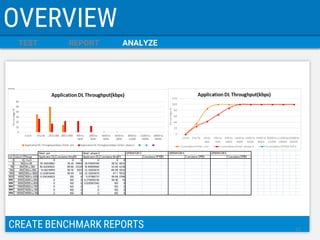

CREATE BENCHMARK REPORTS
15

16. TEST
REPORT
ANALYZE
OVERVIEW

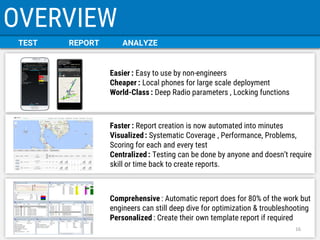

Easier : Easy to use by non-engineers
Cheaper : Local phones for large scale deployment
World-Class : Deep Radio parameters , Locking functions
Faster : Report creation is now automated into minutes Visualized : Systematic Coverage , Performance, Problems, Scoring for each and every test Centralized : Testing can be done by anyone and doesn’t require skill or time back to create reports.
Comprehensive : Automatic report does for 80% of the work but engineers can still deep dive for optimization & troubleshooting
Personalized : Create their own template report if required
16

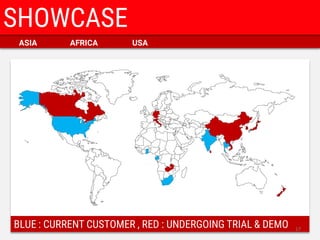

17. ASIA
AFRICA
USA
SHOWCASE
BLUE : CURRENT CUSTOMER , RED : UNDERGOING TRIAL & DEMO
17

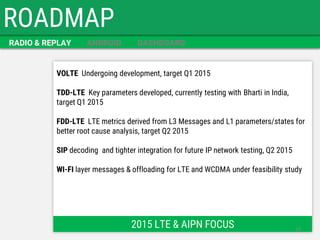

18. ROADMAP
VOLTE Undergoing development, target Q1 2015 TDD-LTE Key parameters developed, currently testing with Bharti in India, target Q1 2015 FDD-LTE LTE metrics derived from L3 Messages and L1 parameters/states for better root cause analysis, target Q2 2015 SIP decoding and tighter integration for future IP network testing, Q2 2015 WI-FI layer messages & offloading for LTE and WCDMA under feasibility study
2015 LTE & AIPN FOCUS
RADIO & REPLAY
ANDROID
DASHBOARD
18

19. ROADMAP
CUSTOMER CENTRIC TEST Email undergoing development, other tests (Facebook, whatsapp, VDO streaming etc) TABLET Integration with test devices for benchmark testing NEW DEVICES SAMSUNG GALAXY NOTE 4 and NEXUS 6 on current roadmap NO ROOTING method of installation for selected newer devices (currently support S5,Nexus 5, E3) NON-RADIO & NON-QUALCOMM DEVICES Can execute SIP, PCAP and other service testing without L3 and radio messages.
2015 SERVICE TESTING,NEW DEVICES SUPPORT
RADIO & REPLAY
ANDROID
DASHBOARD
19

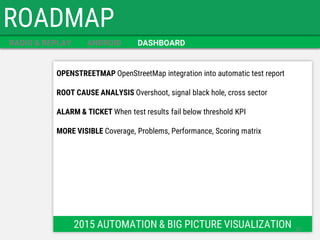

20. ROADMAP
OPENSTREETMAP OpenStreetMap integration into automatic test report ROOT CAUSE ANALYSIS Overshoot, signal black hole, cross sector ALARM & TICKET When test results fail below threshold KPI MORE VISIBLE Coverage, Problems, Performance, Scoring matrix
2015 AUTOMATION & BIG PICTURE VISUALIZATION
RADIO & REPLAY
ANDROID
DASHBOARD
20

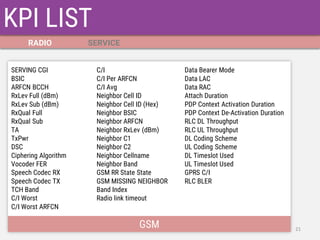

21. KPI LIST
GSM
RADIO
SERVICE
21
SERVING CGI BSIC ARFCN BCCH RxLev Full (dBm) RxLev Sub (dBm) RxQual Full RxQual Sub TA TxPwr DSC Ciphering Algorithm Vocoder FER Speech Codec RX Speech Codec TX TCH Band C/I Worst C/I Worst ARFCN
C/I
C/I Per ARFCN
C/I Avg
Neighbor Cell ID
Neighbor Cell ID (Hex)
Neighbor BSIC
Neighbor ARFCN
Neighbor RxLev (dBm)
Neighbor C1
Neighbor C2
Neighbor Cellname
Neighbor Band
GSM RR State State
GSM MISSING NEIGHBOR
Band Index
Radio link timeout
Data Bearer Mode Data LAC Data RAC Attach Duration PDP Context Activation Duration PDP Context De-Activation Duration RLC DL Throughput RLC UL Throughput DL Coding Scheme UL Coding Scheme DL Timeslot Used UL Timeslot Used GPRS C/I RLC BLER

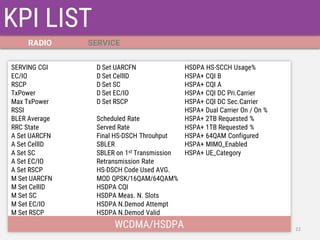

22. KPI LIST
WCDMA/HSDPA
RADIO
SERVICE
22
SERVING CGI EC/IO RSCP TxPower Max TxPower RSSI BLER Average RRC State A Set UARCFN A Set CellID A Set SC A Set EC/IO A Set RSCP M Set UARCFN M Set CellID M Set SC M Set EC/IO M Set RSCP
D Set UARCFN
D Set CellID
D Set SC
D Set EC/IO
D Set RSCP
Scheduled Rate
Served Rate
Final HS-DSCH Throuhput
SBLER
SBLER on 1st Transmission
Retransmission Rate
HS-DSCH Code Used AVG.
MOD QPSK/16QAM/64QAM%
HSDPA CQI
HSDPA Meas. N. Slots
HSDPA N.Demod Attempt
HSDPA N.Demod Valid
HSDPA HS-SCCH Usage%
HSPA+ CQI B
HSPA+ CQI A
HSPA+ CQI DC Pri.Carrier
HSPA+ CQI DC Sec.Carrier
HSPA+ Dual Carrier On / On %
HSPA+ 2TB Requested %
HSPA+ 1TB Requested %
HSPA+ 64QAM Configured
HSPA+ MIMO_Enabled
HSPA+ UE_Category

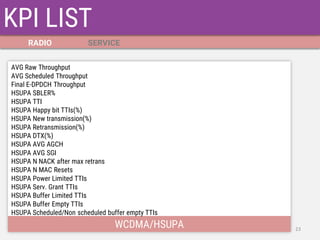

23. KPI LIST
WCDMA/HSUPA
RADIO
SERVICE
23
AVG Raw Throughput AVG Scheduled Throughput Final E-DPDCH Throughput HSUPA SBLER% HSUPA TTI HSUPA Happy bit TTIs(%) HSUPA New transmission(%) HSUPA Retransmission(%) HSUPA DTX(%) HSUPA AVG AGCH HSUPA AVG SGI HSUPA N NACK after max retrans HSUPA N MAC Resets HSUPA Power Limited TTIs HSUPA Serv. Grant TTIs HSUPA Buffer Limited TTIs HSUPA Buffer Empty TTIs HSUPA Scheduled/Non scheduled buffer empty TTIs

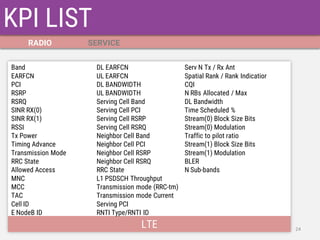

24. KPI LIST
LTE
RADIO
SERVICE
24
Band EARFCN PCI RSRP RSRQ SINR RX(0) SINR RX(1) RSSI Tx Power Timing Advance Transmission Mode RRC State Allowed Access MNC MCC TAC Cell ID E NodeB ID
DL EARFCN
UL EARFCN
DL BANDWIDTH
UL BANDWIDTH
Serving Cell Band
Serving Cell PCI
Serving Cell RSRP
Serving Cell RSRQ
Neighbor Cell Band
Neighbor Cell PCI
Neighbor Cell RSRP
Neighbor Cell RSRQ
RRC State
L1 PSDSCH Throughput
Transmission mode (RRC-tm)
Transmission mode Current
Serving PCI
RNTI Type/RNTI ID
Serv N Tx / Rx Ant Spatial Rank / Rank Indicatior CQI N RBs Allocated / Max DL Bandwidth Time Scheduled % Stream(0) Block Size Bits Stream(0) Modulation Traffic to pilot ratio Stream(1) Block Size Bits Stream(1) Modulation BLER N Sub-bands

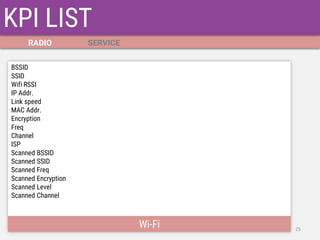

25. KPI LIST
Wi-Fi
RADIO
SERVICE
25
BSSID
SSID
Wifi RSSI
IP Addr.
Link speed
MAC Addr.
Encryption
Freq
Channel
ISP
Scanned BSSID
Scanned SSID
Scanned Freq
Scanned Encryption
Scanned Level
Scanned Channel

26. OVERVIEW
SHOWCASE
ROADMAP
KPI LIST

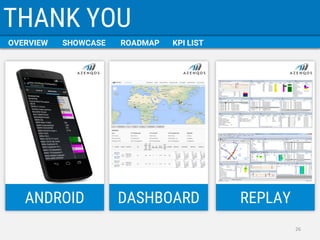

THANK YOU
ANDROID
DASHBOARD
REPLAY
26
