Automotive electronics have become increasingly complex, with around 40 computers controlling various systems in modern vehicles. Networks like CAN, LIN, and FlexRay connect electronic control units (ECUs) to control things like the engine, brakes, entertainment systems and more. However, the widespread use of wireless technologies and lack of strong security measures leave these systems vulnerable to attacks. Researchers have demonstrated exploits like manipulating the braking system or engine via the CAN bus. Automakers need to implement better security practices like encryption, authentication and isolating critical networks to prevent potential harm from attacks on in-vehicle networks.

1. Automotive Electronics
Internals and Security Implications
Aanjhan Ranganathan

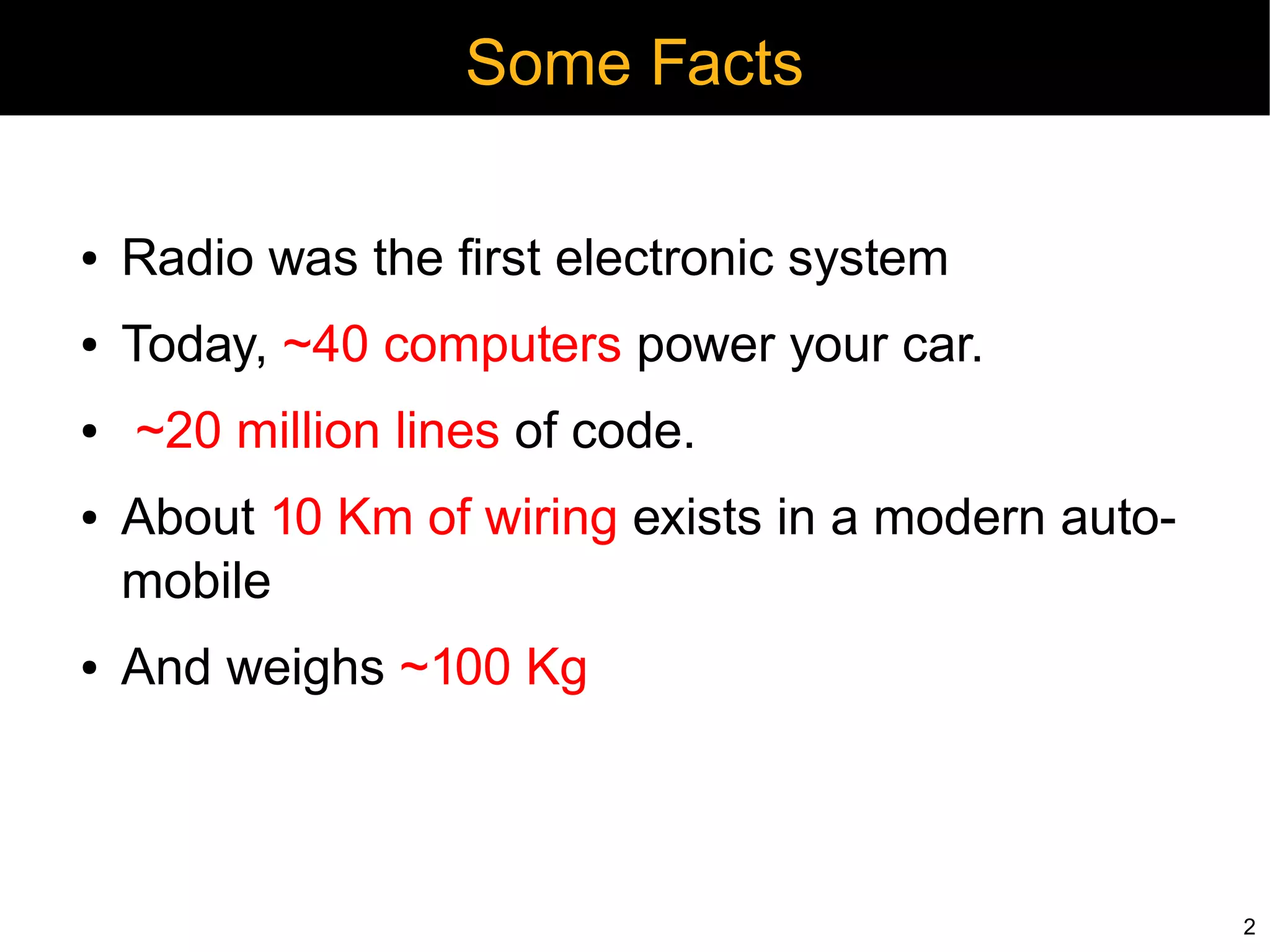

2. Some Facts
● Radio was the first electronic system
● Today, ~40 computers power your car.
● ~20 million lines of code.
● About 10 Km of wiring exists in a modern auto-
mobile
● And weighs ~100 Kg
2

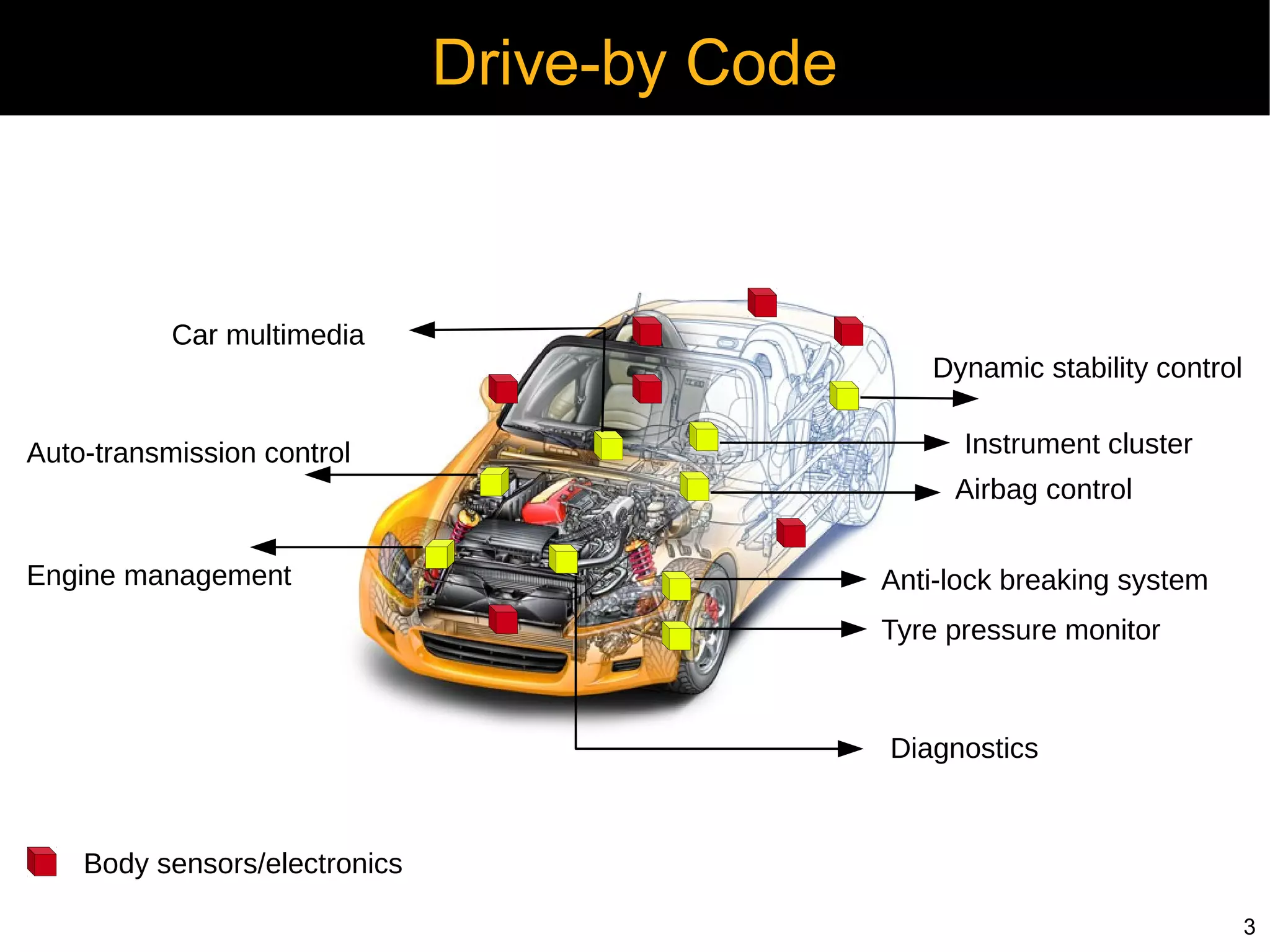

3. Drive-by Code
Car multimedia
Dynamic stability control
Auto-transmission control Instrument cluster
Airbag control
Engine management Anti-lock breaking system
Tyre pressure monitor
Diagnostics
Body sensors/electronics
3

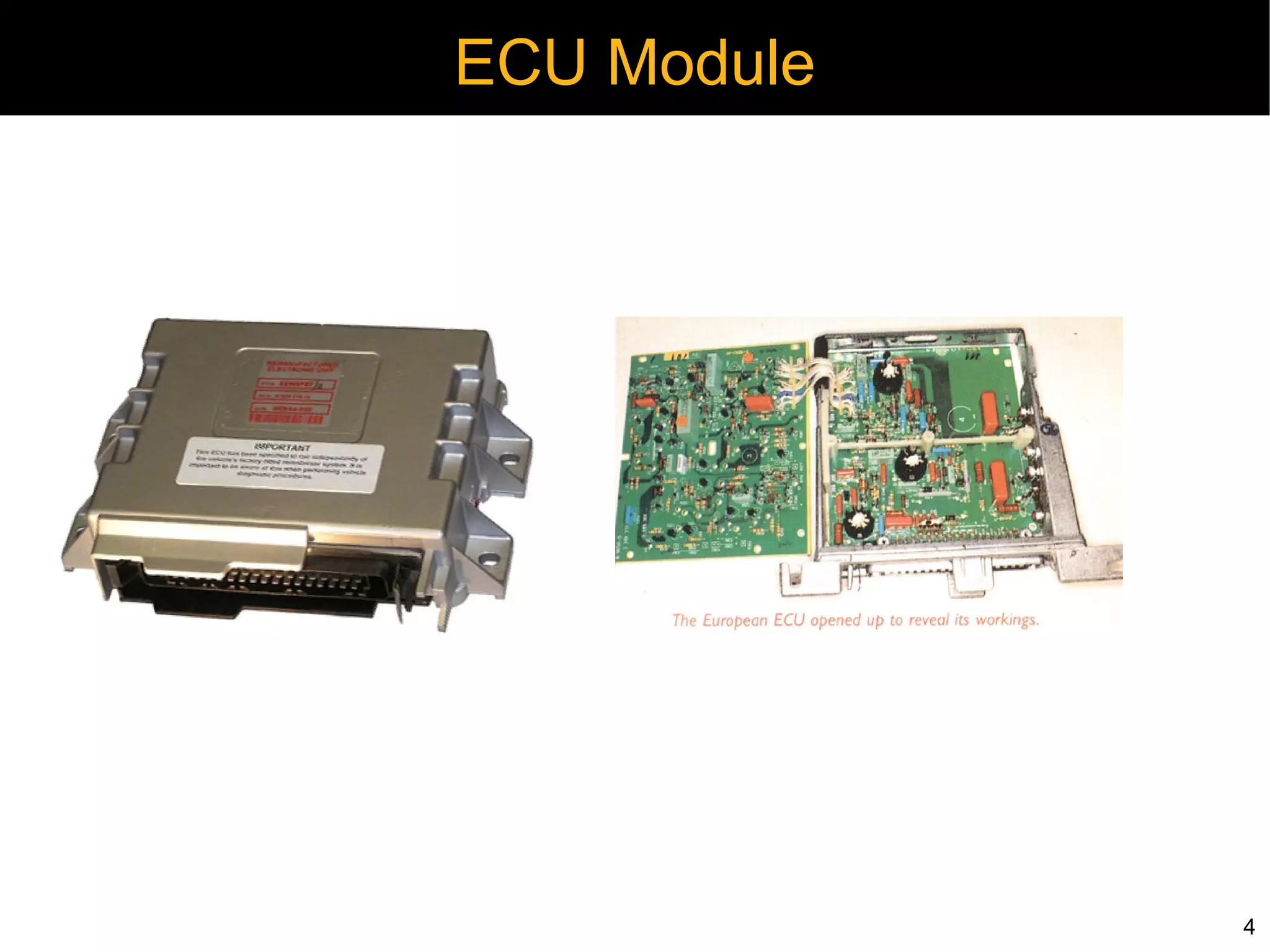

4. ECU Module
4

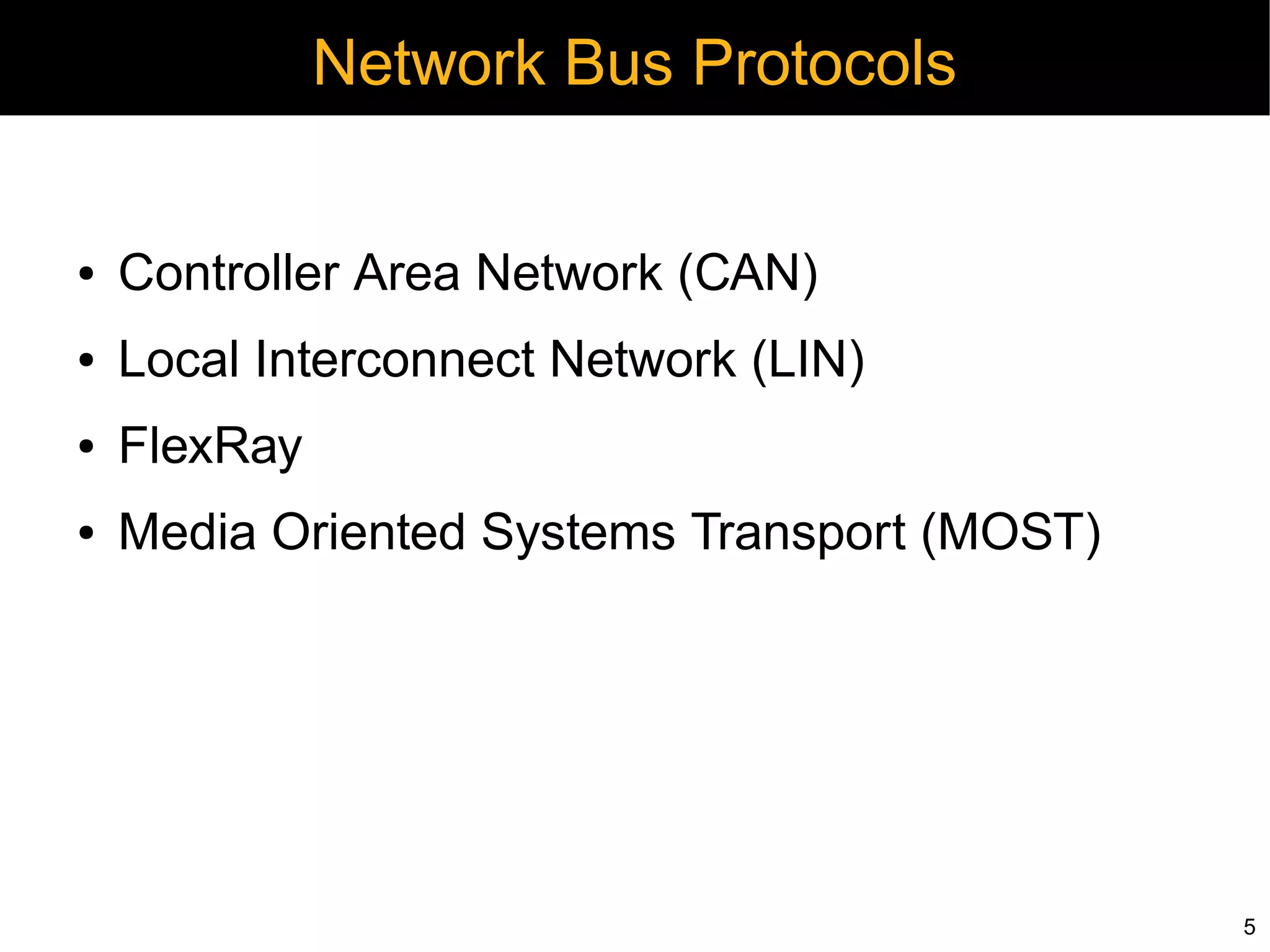

5. Network Bus Protocols
● Controller Area Network (CAN)
● Local Interconnect Network (LIN)
● FlexRay
● Media Oriented Systems Transport (MOST)
5

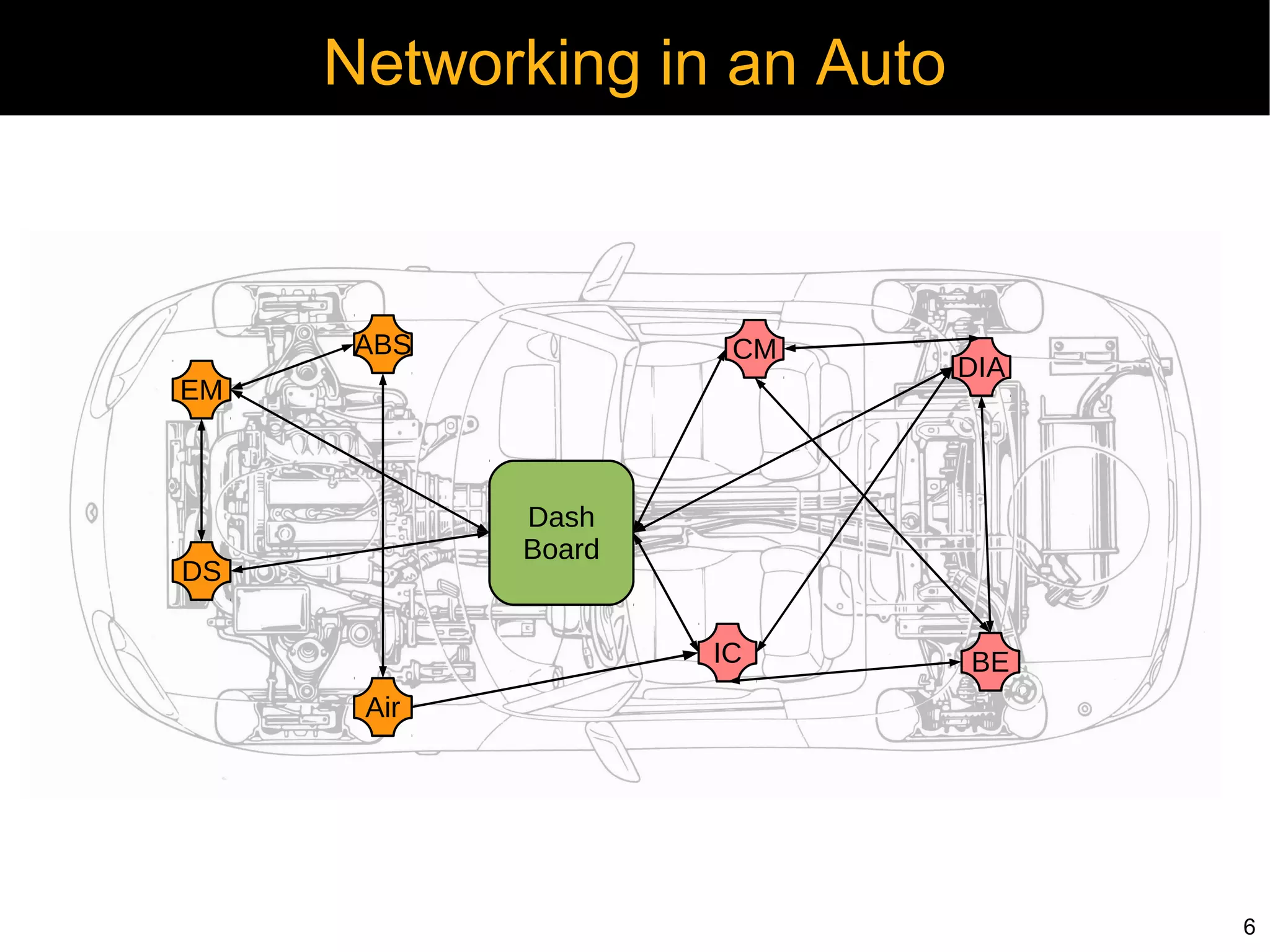

6. Networking in an Auto
ABS CM
DIA
EM
Dash
Board
DS
IC BE
Air
6

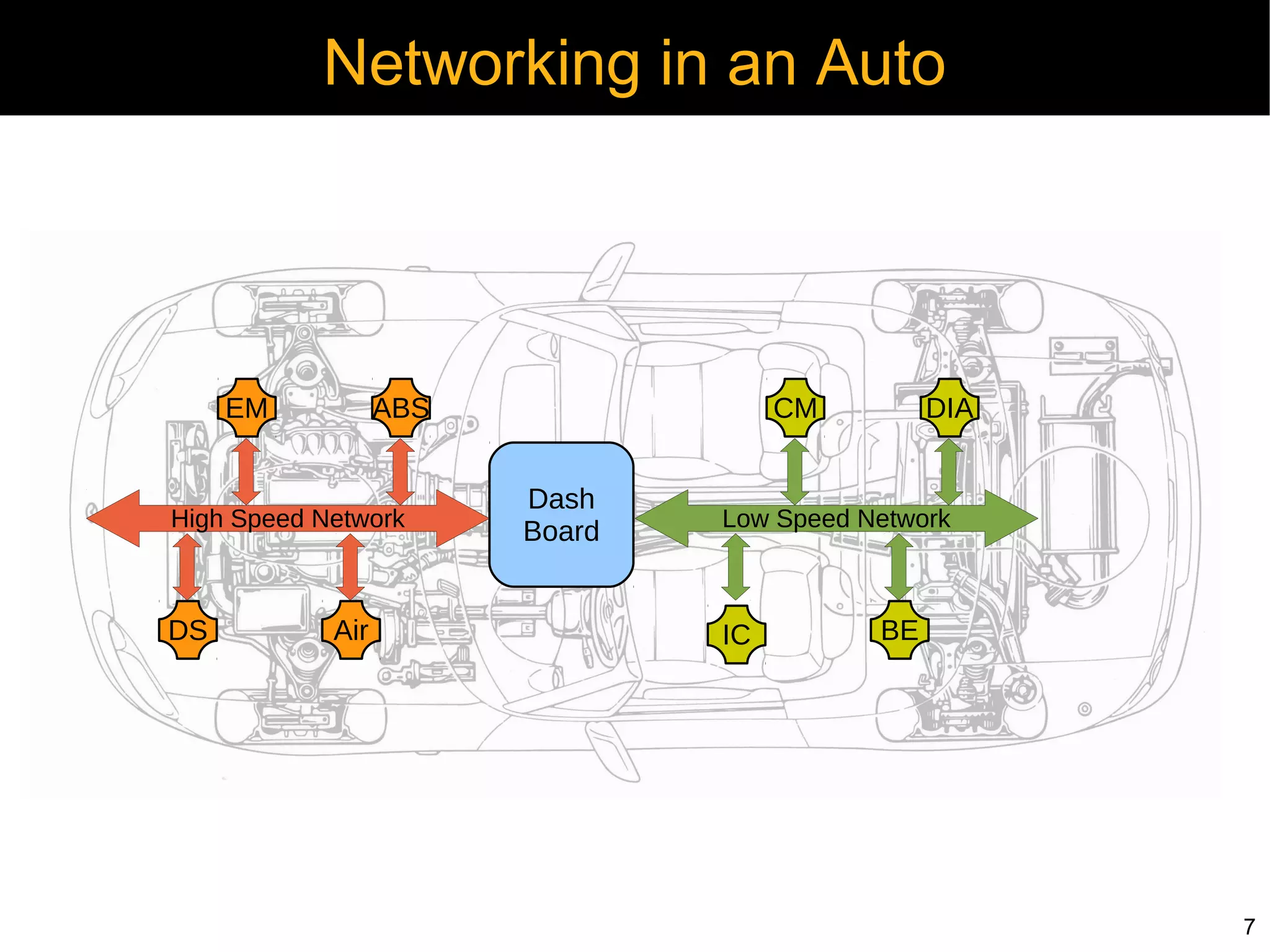

7. Networking in an Auto
EM ABS CM DIA
Dash
High Speed Network Low Speed Network
Board
DS Air IC BE
7

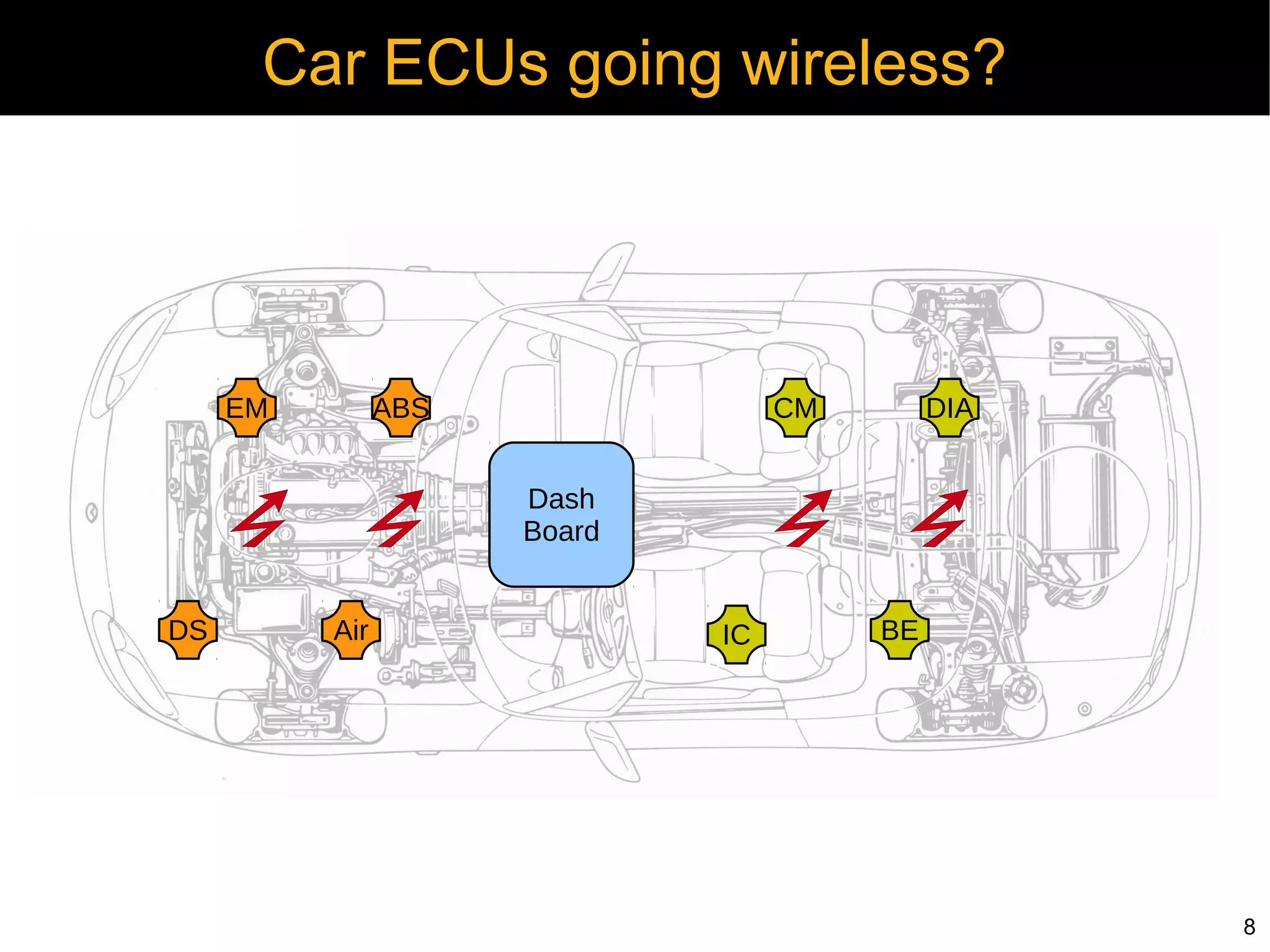

8. Car ECUs going wireless?
EM ABS CM DIA
Dash
Board
DS Air IC BE
8

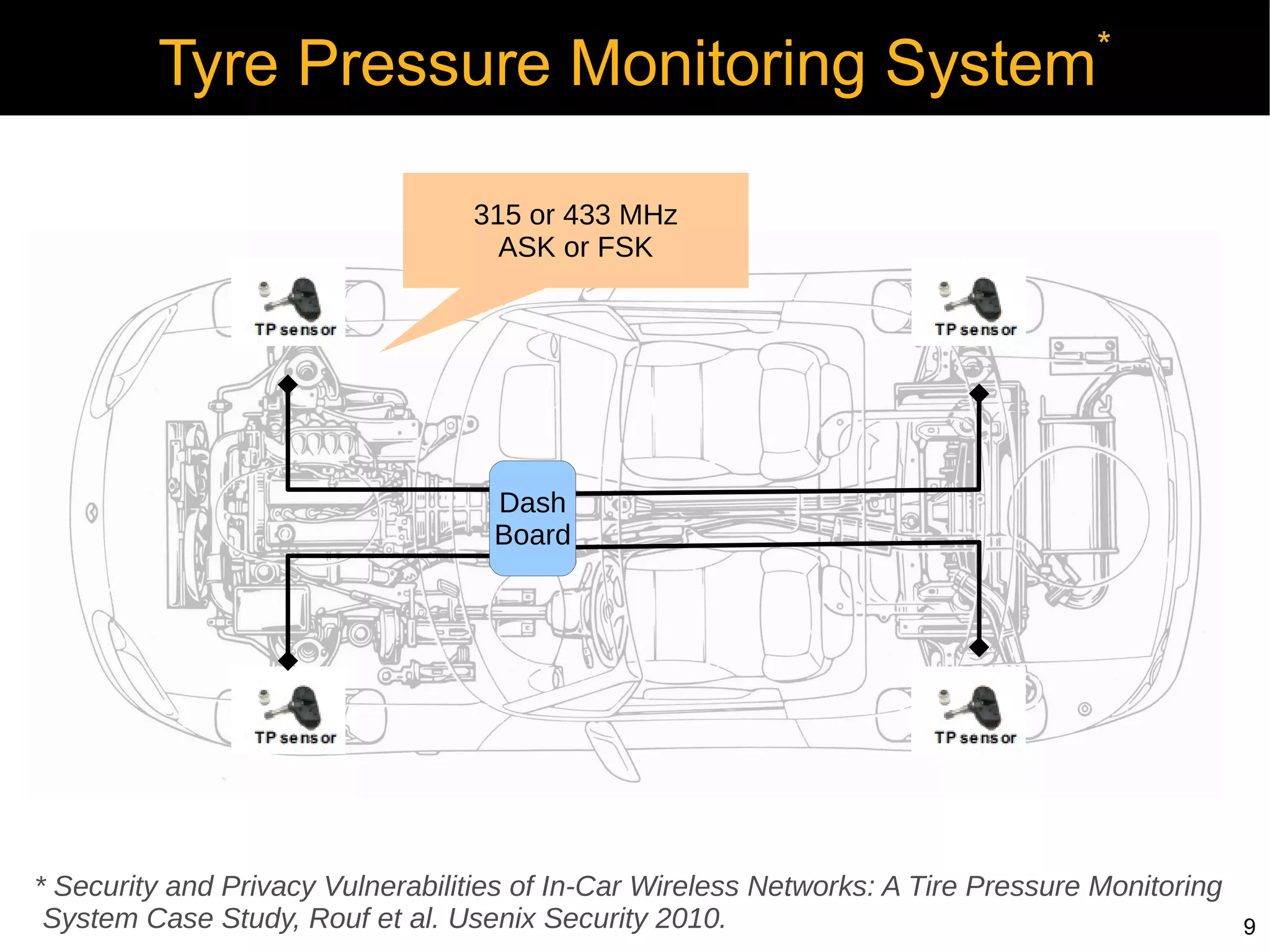

9. *
Tyre Pressure Monitoring System
315 or 433 MHz
ASK or FSK
Dash
Board
* Security and Privacy Vulnerabilities of In-Car Wireless Networks: A Tire Pressure Monitoring
System Case Study, Rouf et al. Usenix Security 2010. 9

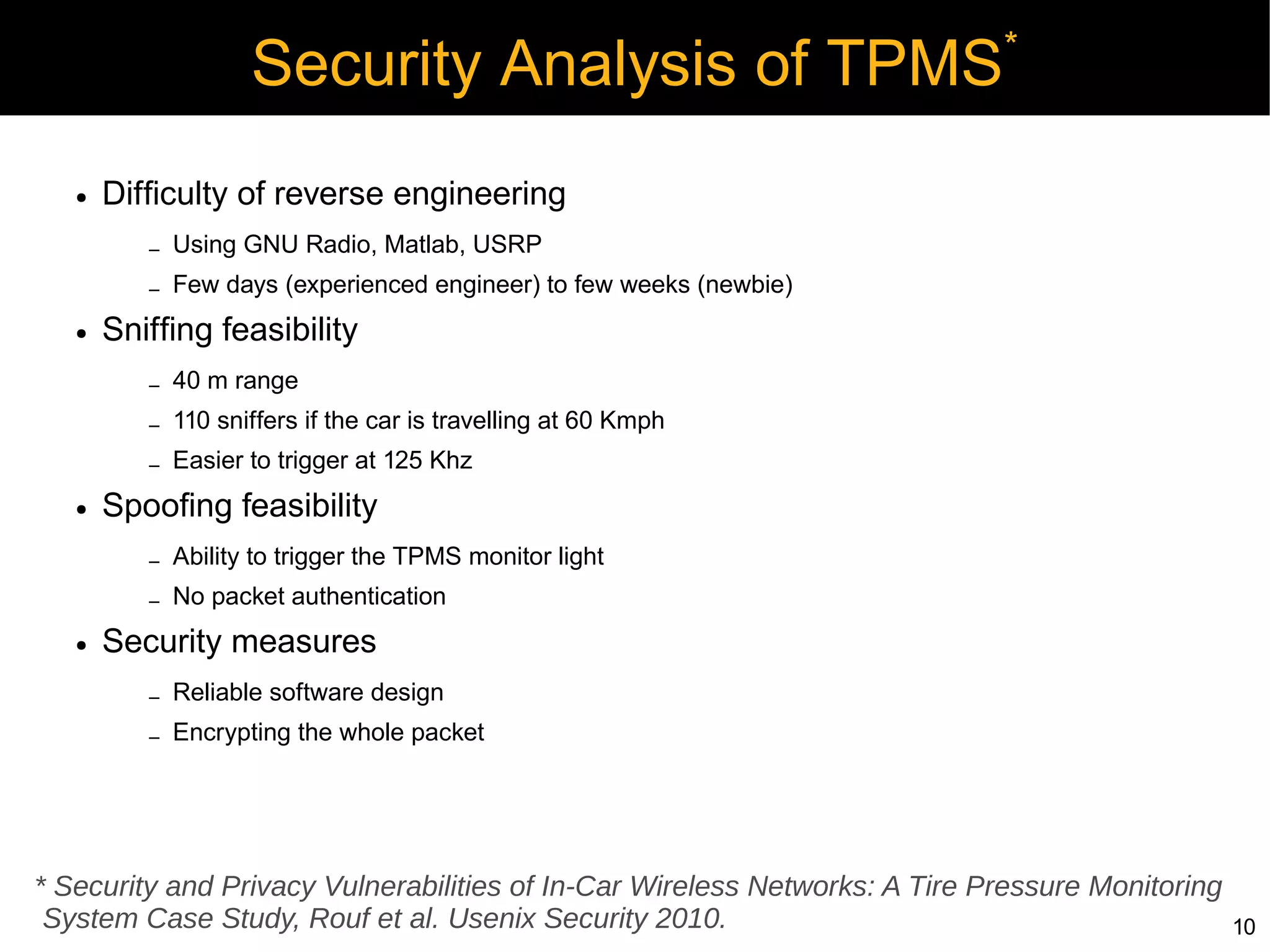

10. *
Security Analysis of TPMS
● Difficulty of reverse engineering
– Using GNU Radio, Matlab, USRP
– Few days (experienced engineer) to few weeks (newbie)
● Sniffing feasibility
– 40 m range
– 110 sniffers if the car is travelling at 60 Kmph
– Easier to trigger at 125 Khz
● Spoofing feasibility
– Ability to trigger the TPMS monitor light
– No packet authentication
● Security measures
– Reliable software design
– Encrypting the whole packet
* Security and Privacy Vulnerabilities of In-Car Wireless Networks: A Tire Pressure Monitoring
System Case Study, Rouf et al. Usenix Security 2010. 10

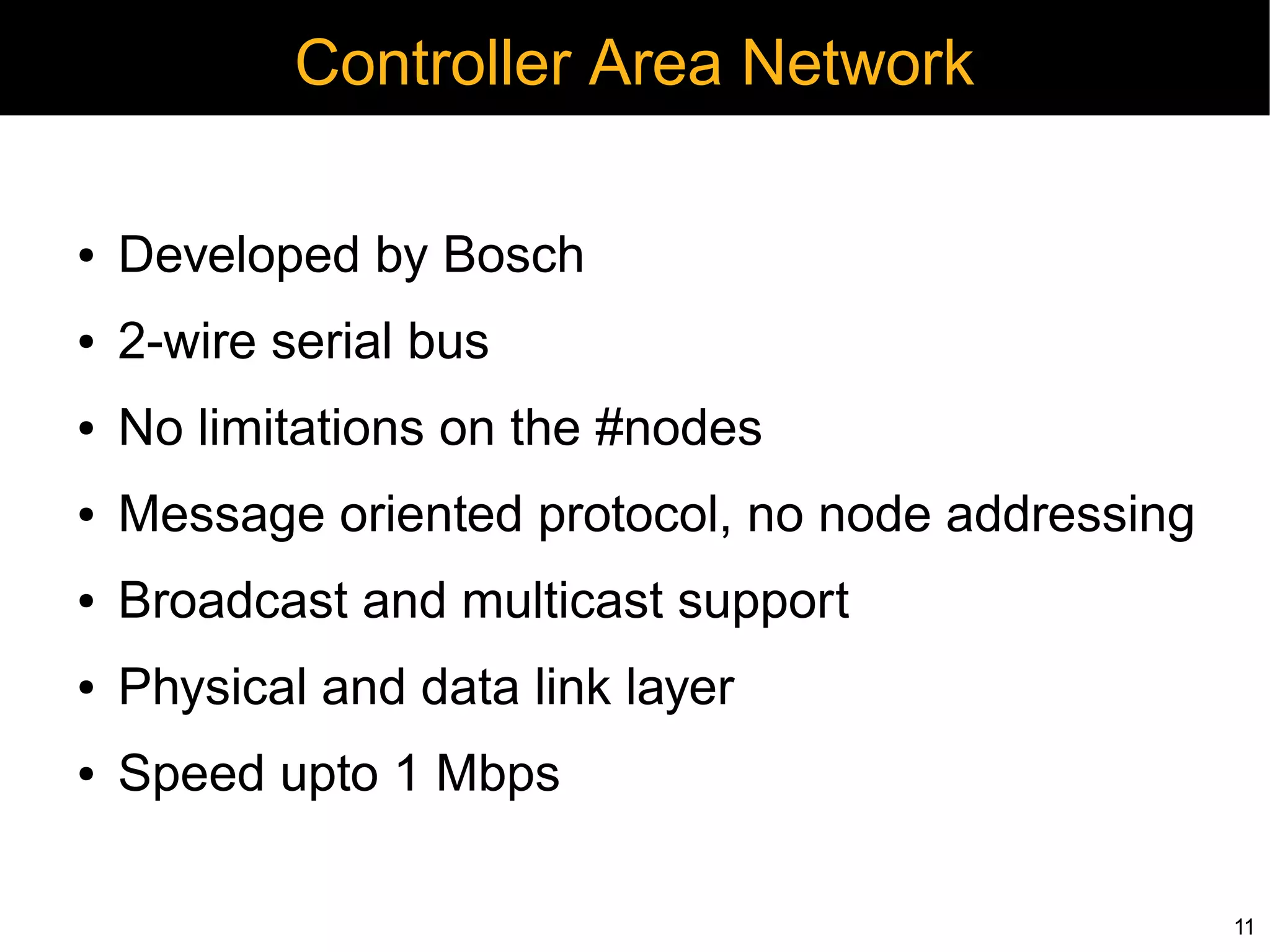

11. Controller Area Network
● Developed by Bosch
● 2-wire serial bus
● No limitations on the #nodes
● Message oriented protocol, no node addressing
● Broadcast and multicast support
● Physical and data link layer
● Speed upto 1 Mbps
11

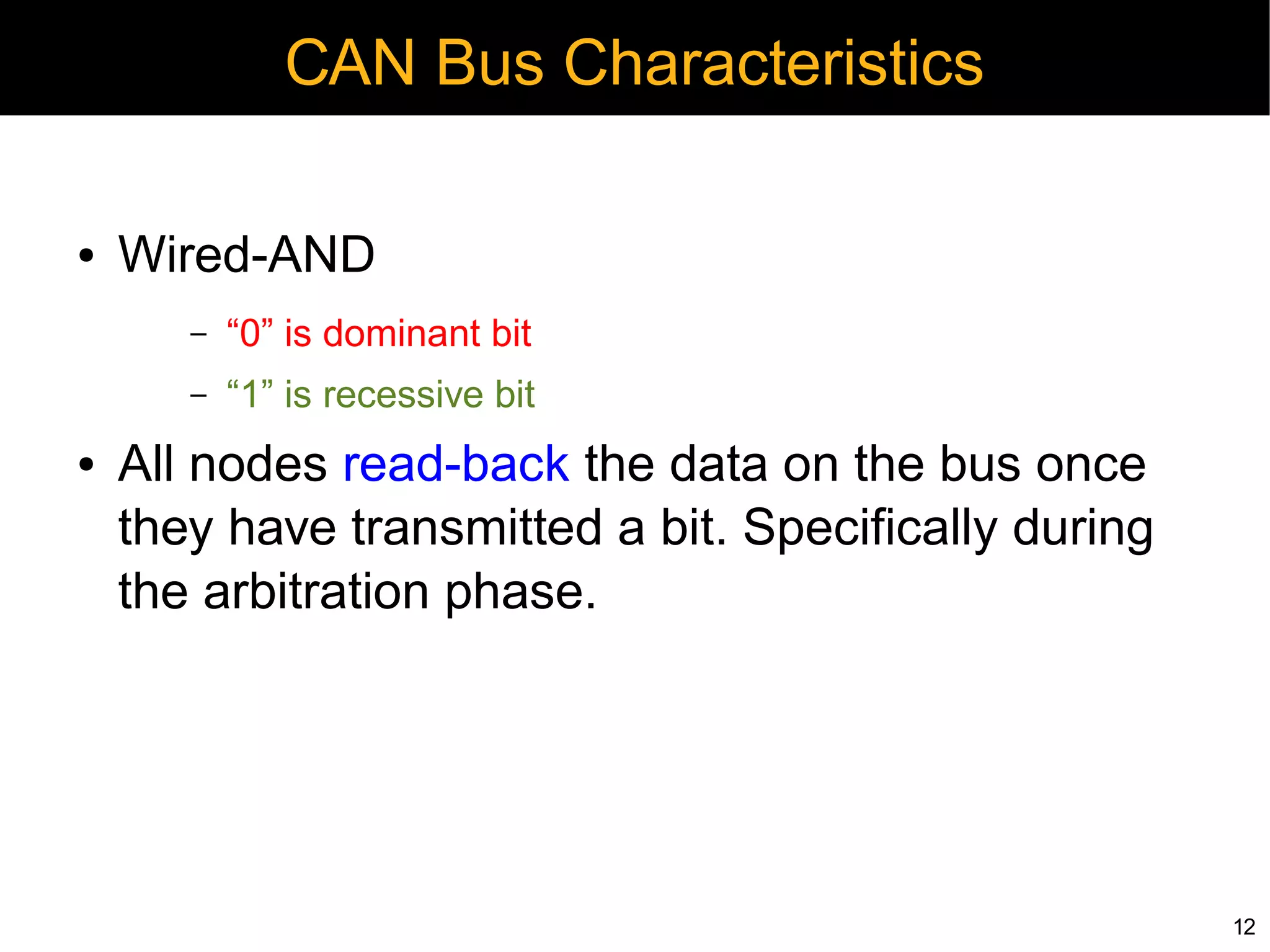

12. CAN Bus Characteristics
● Wired-AND
– “0” is dominant bit
– “1” is recessive bit
● All nodes read-back the data on the bus once
they have transmitted a bit. Specifically during
the arbitration phase.
12

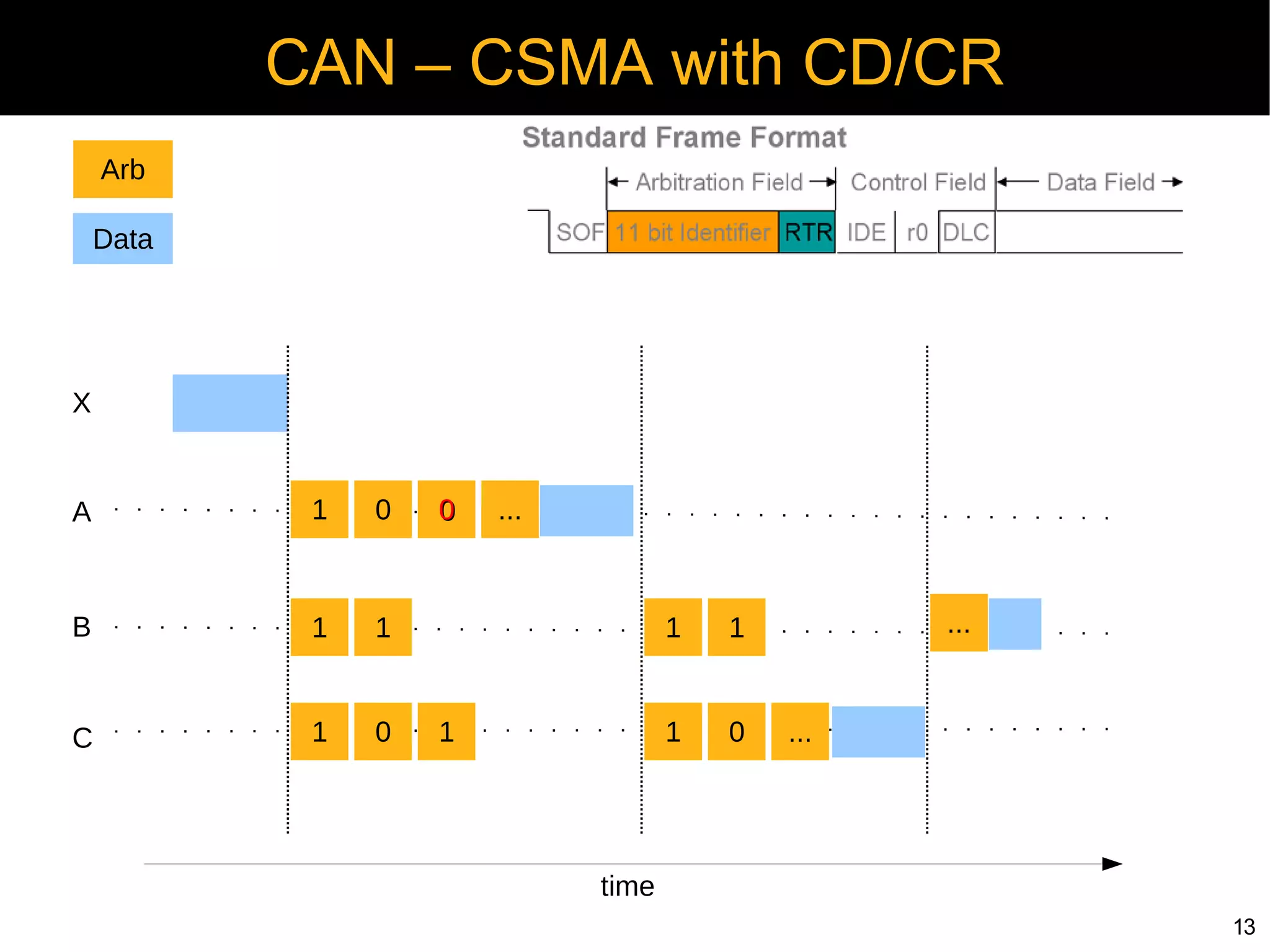

13. CAN – CSMA with CD/CR
Arb
Data
X
A 1 0 0 ...
B 1 1 1 1 ...
C 1 0 1 1 0 ...
time
13

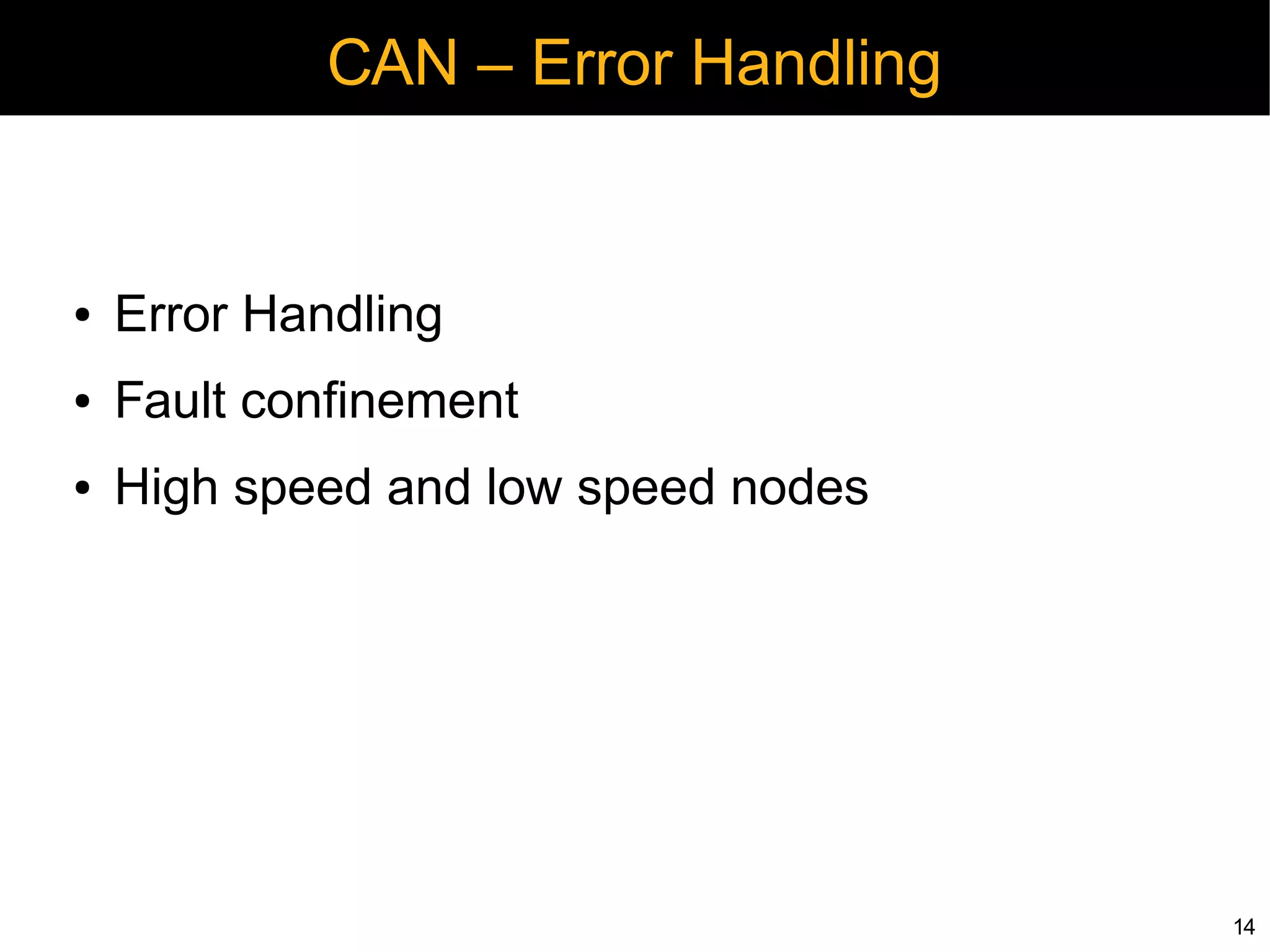

14. CAN – Error Handling
● Error Handling
● Fault confinement
● High speed and low speed nodes
14

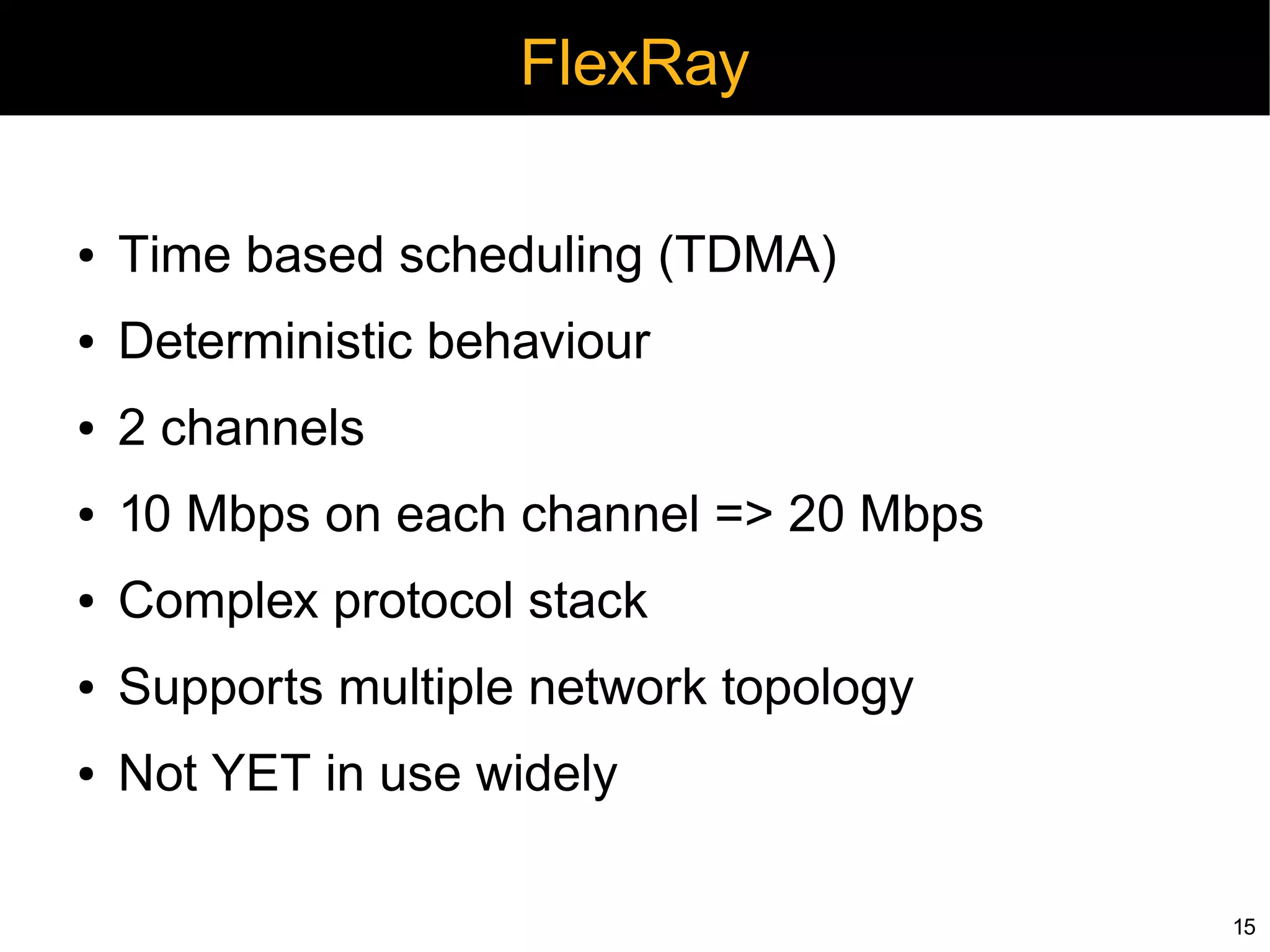

15. FlexRay
● Time based scheduling (TDMA)
● Deterministic behaviour
● 2 channels
● 10 Mbps on each channel => 20 Mbps
● Complex protocol stack
● Supports multiple network topology
● Not YET in use widely
15

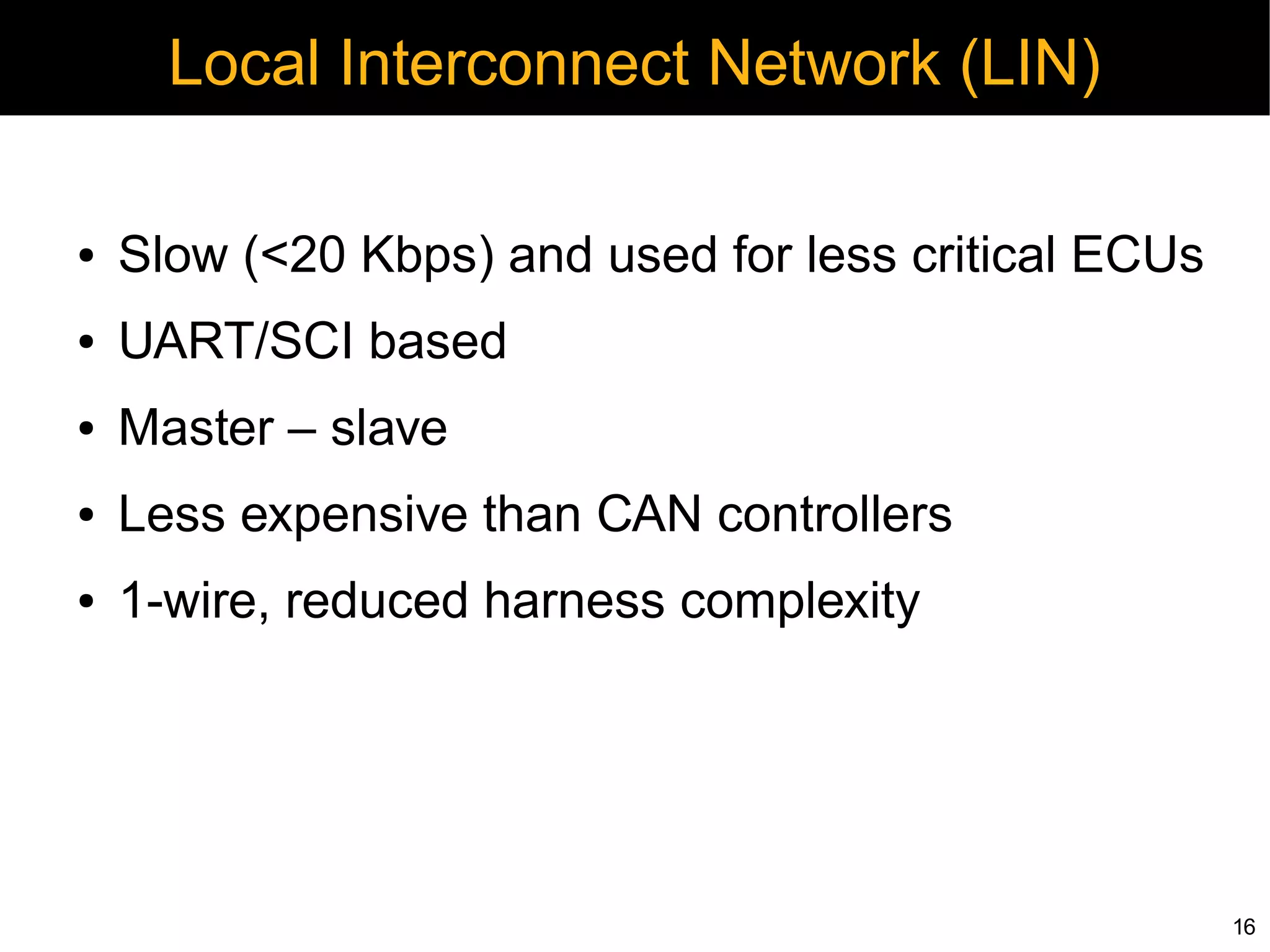

16. Local Interconnect Network (LIN)
● Slow (<20 Kbps) and used for less critical ECUs
● UART/SCI based
● Master – slave
● Less expensive than CAN controllers
● 1-wire, reduced harness complexity
16

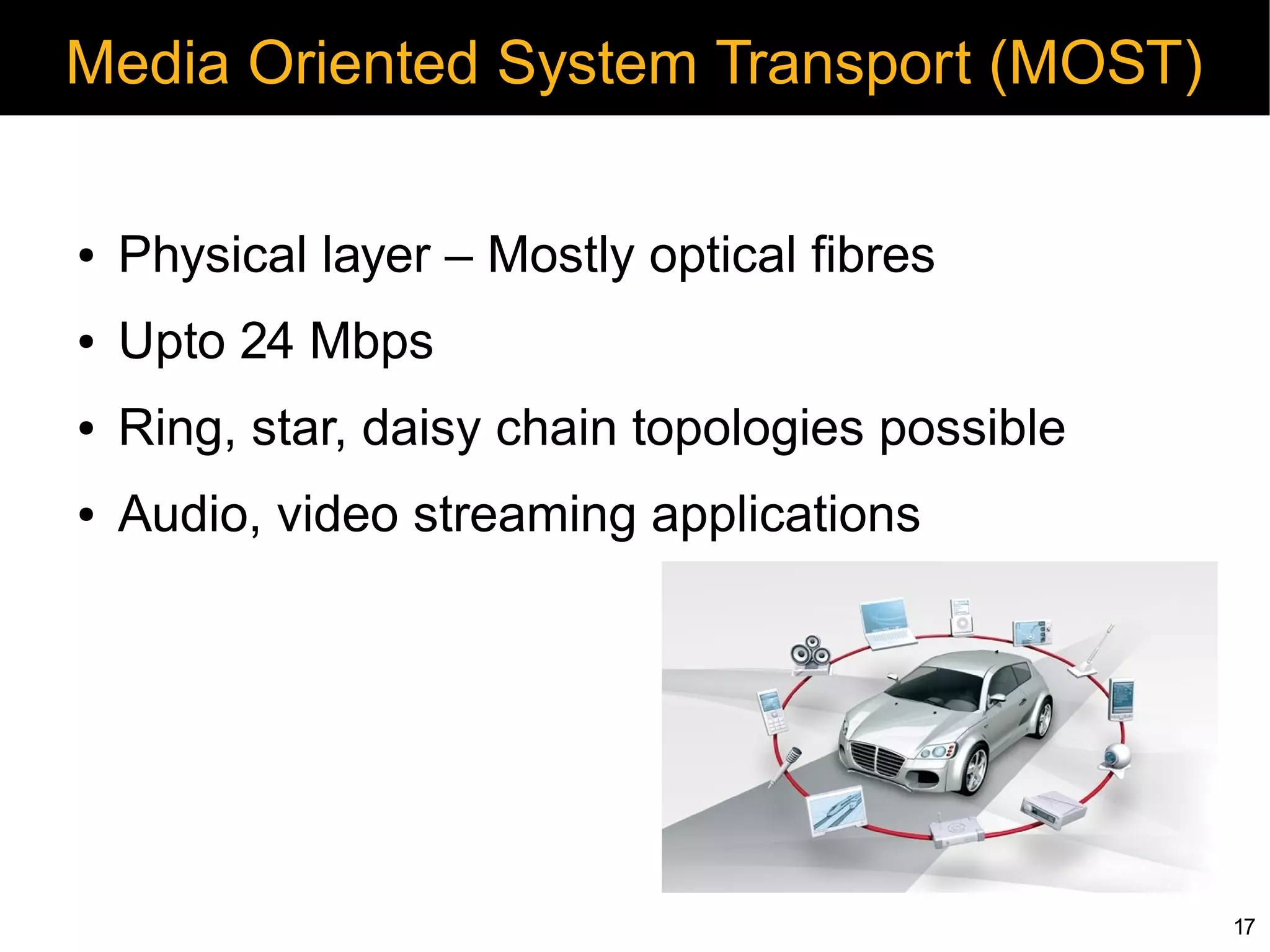

17. Media Oriented System Transport (MOST)
● Physical layer – Mostly optical fibres
● Upto 24 Mbps
● Ring, star, daisy chain topologies possible
● Audio, video streaming applications
17

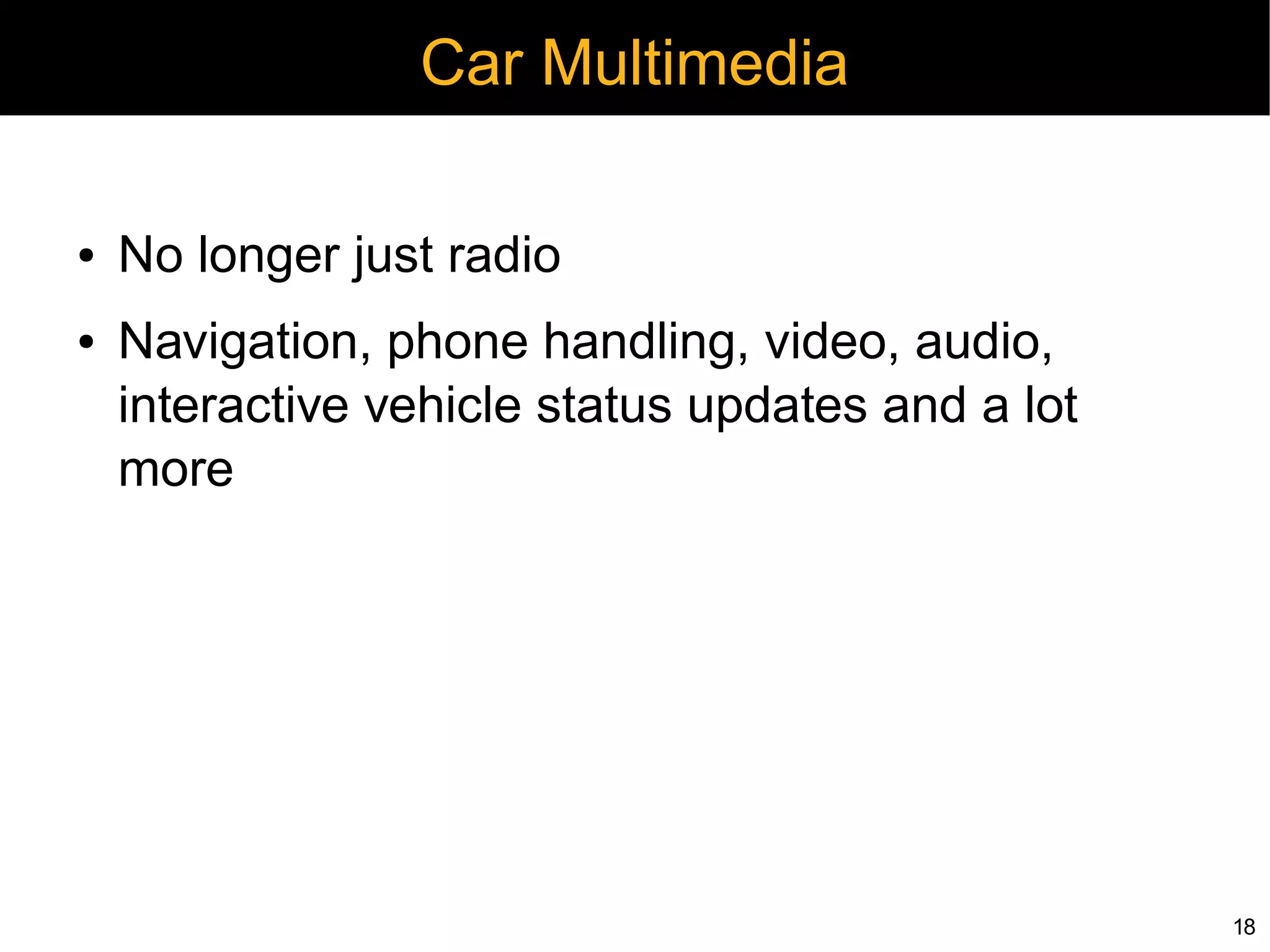

18. Car Multimedia
● No longer just radio
● Navigation, phone handling, video, audio,
interactive vehicle status updates and a lot
more
18

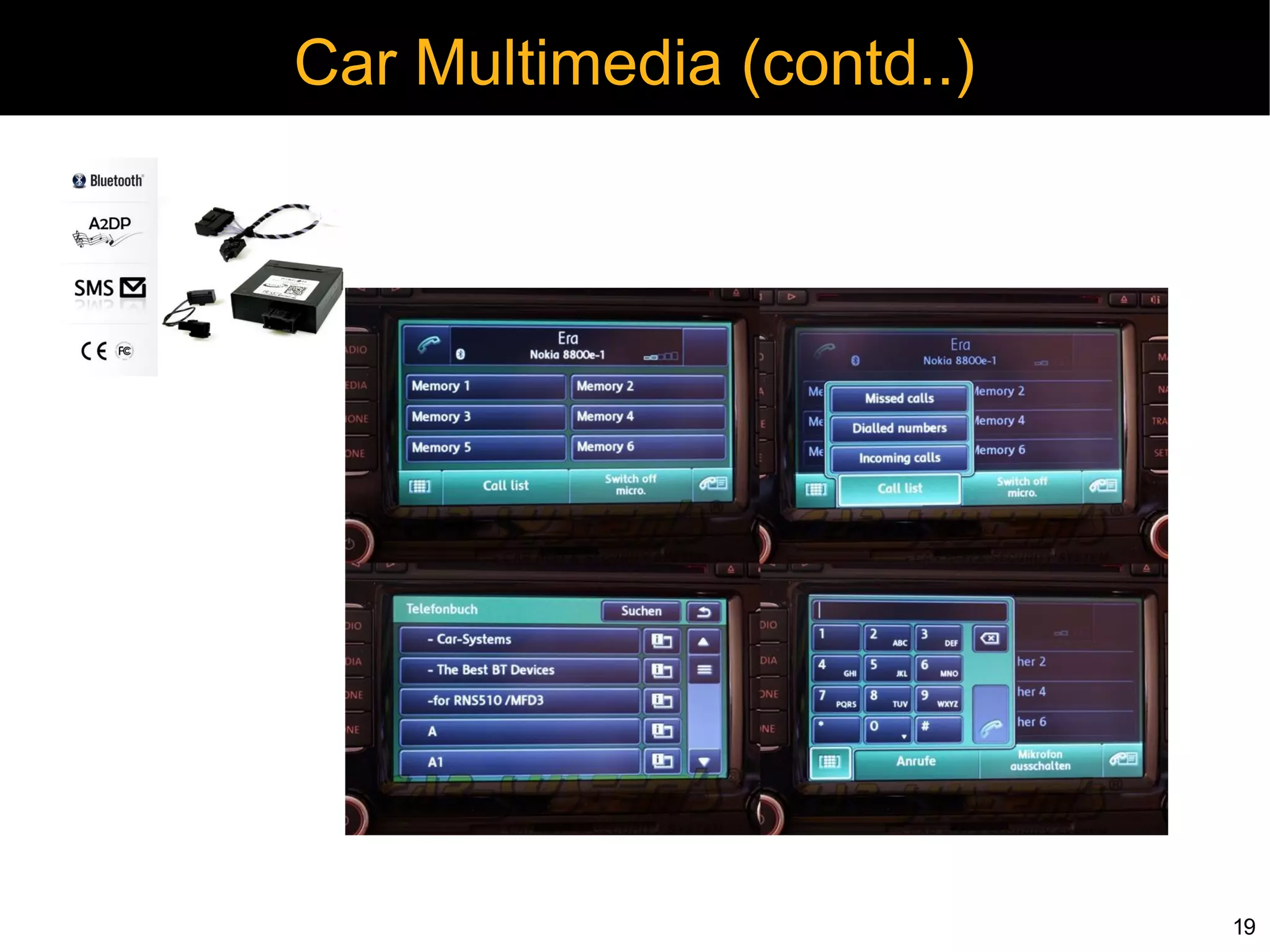

19. Car Multimedia (contd..)
19

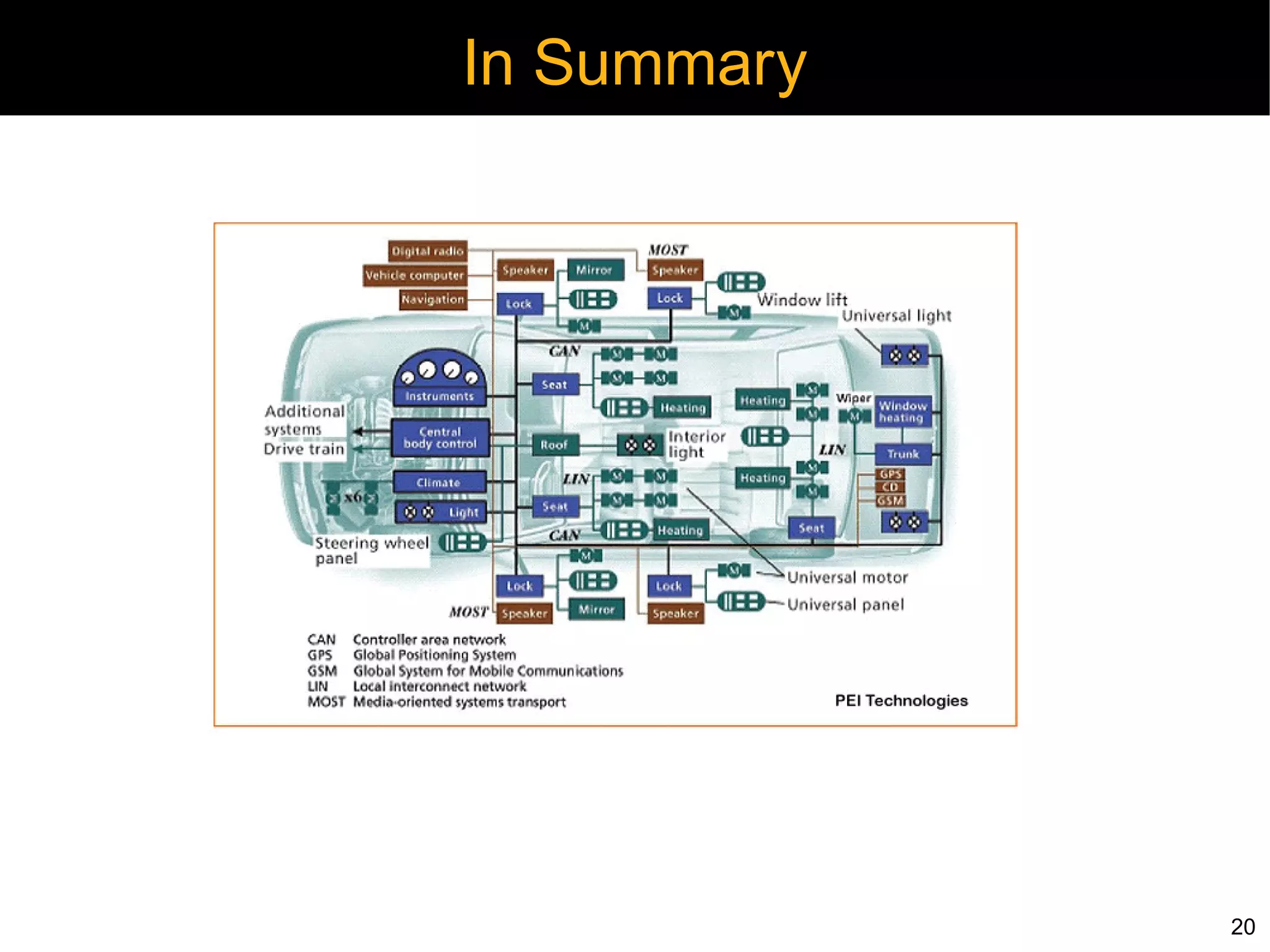

20. In Summary
20

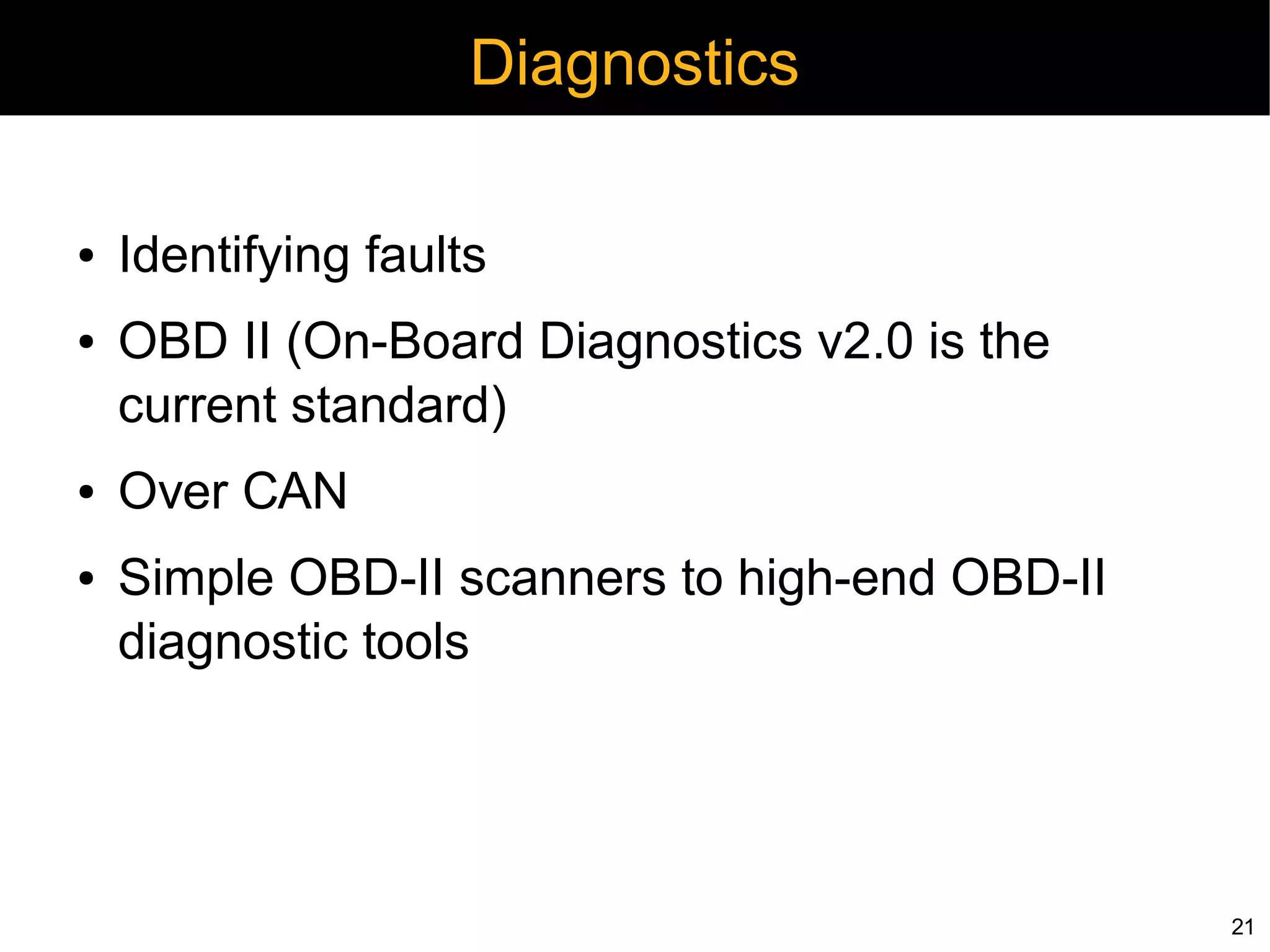

21. Diagnostics
● Identifying faults
● OBD II (On-Board Diagnostics v2.0 is the
current standard)
● Over CAN
● Simple OBD-II scanners to high-end OBD-II
diagnostic tools
21

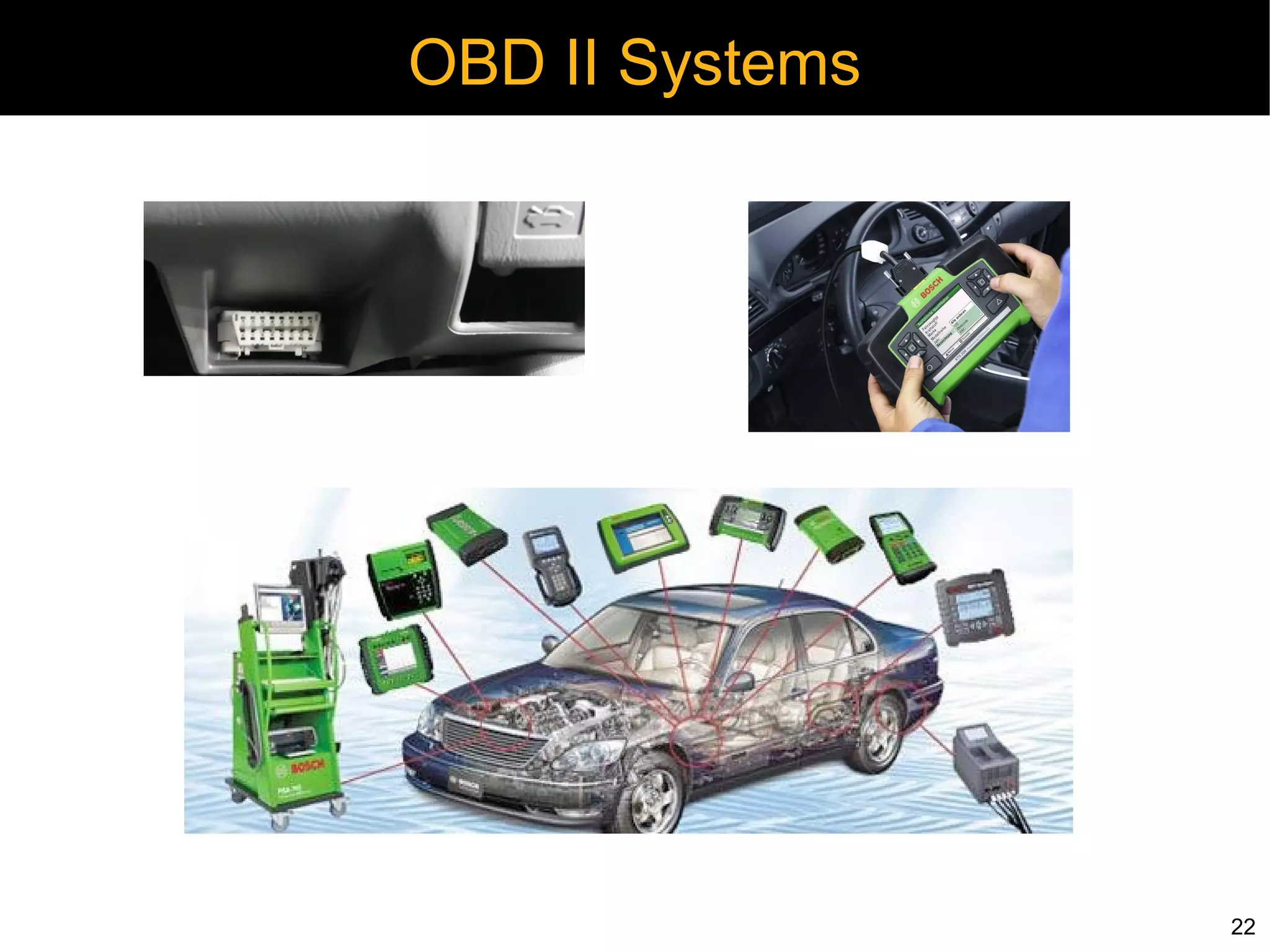

22. OBD II Systems
22

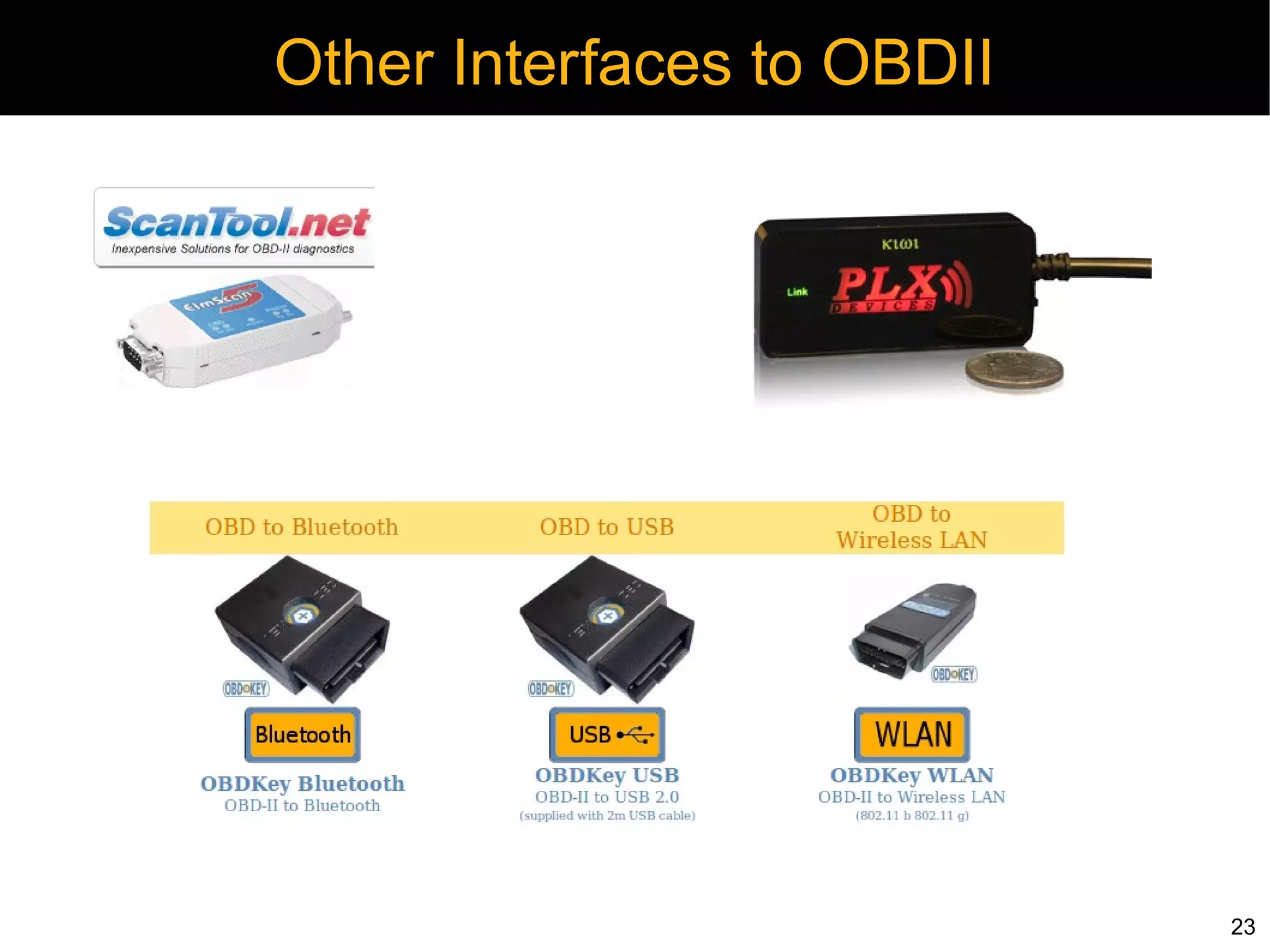

23. Other Interfaces to OBDII
23

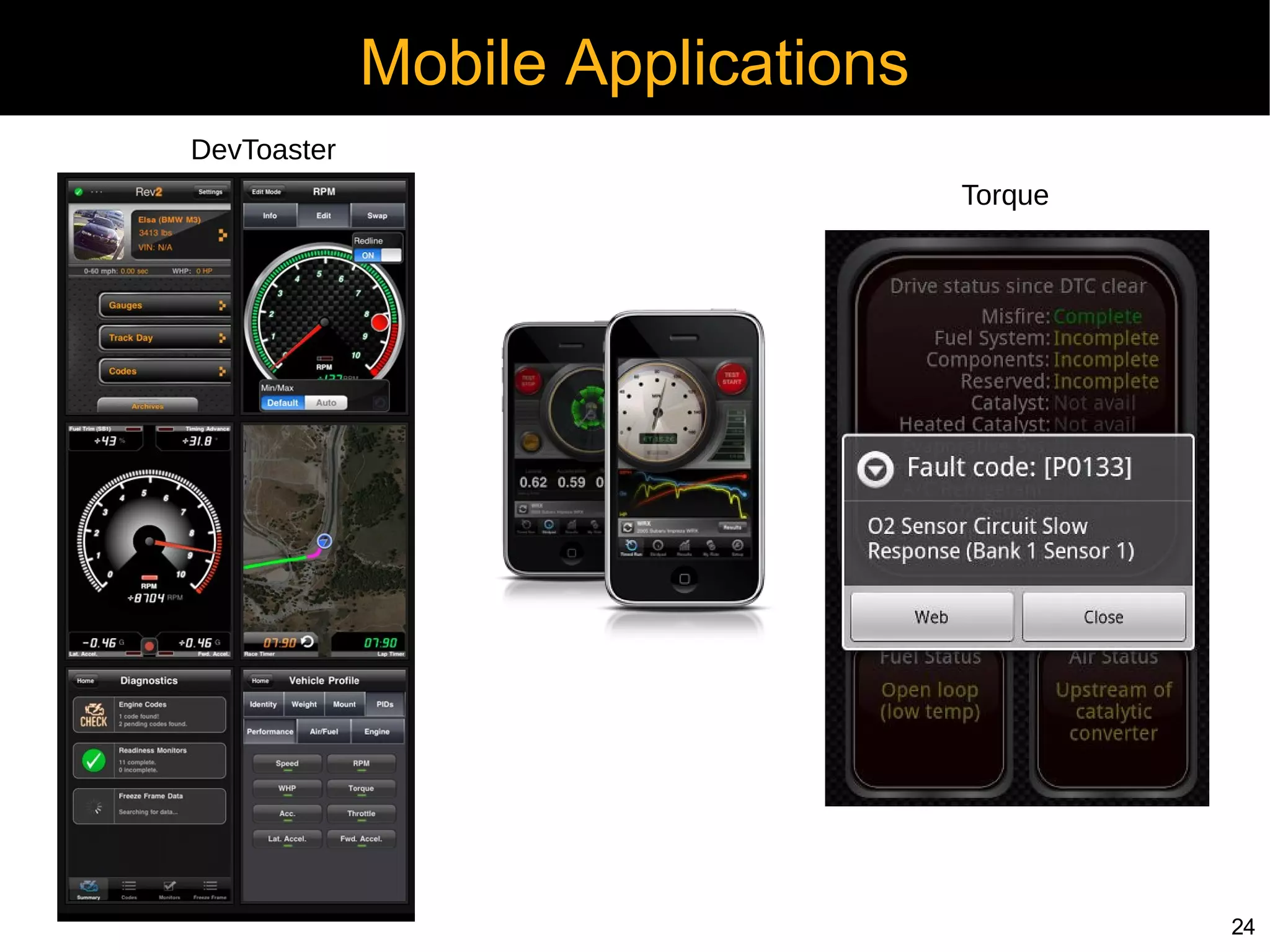

24. Mobile Applications
DevToaster
Torque
24

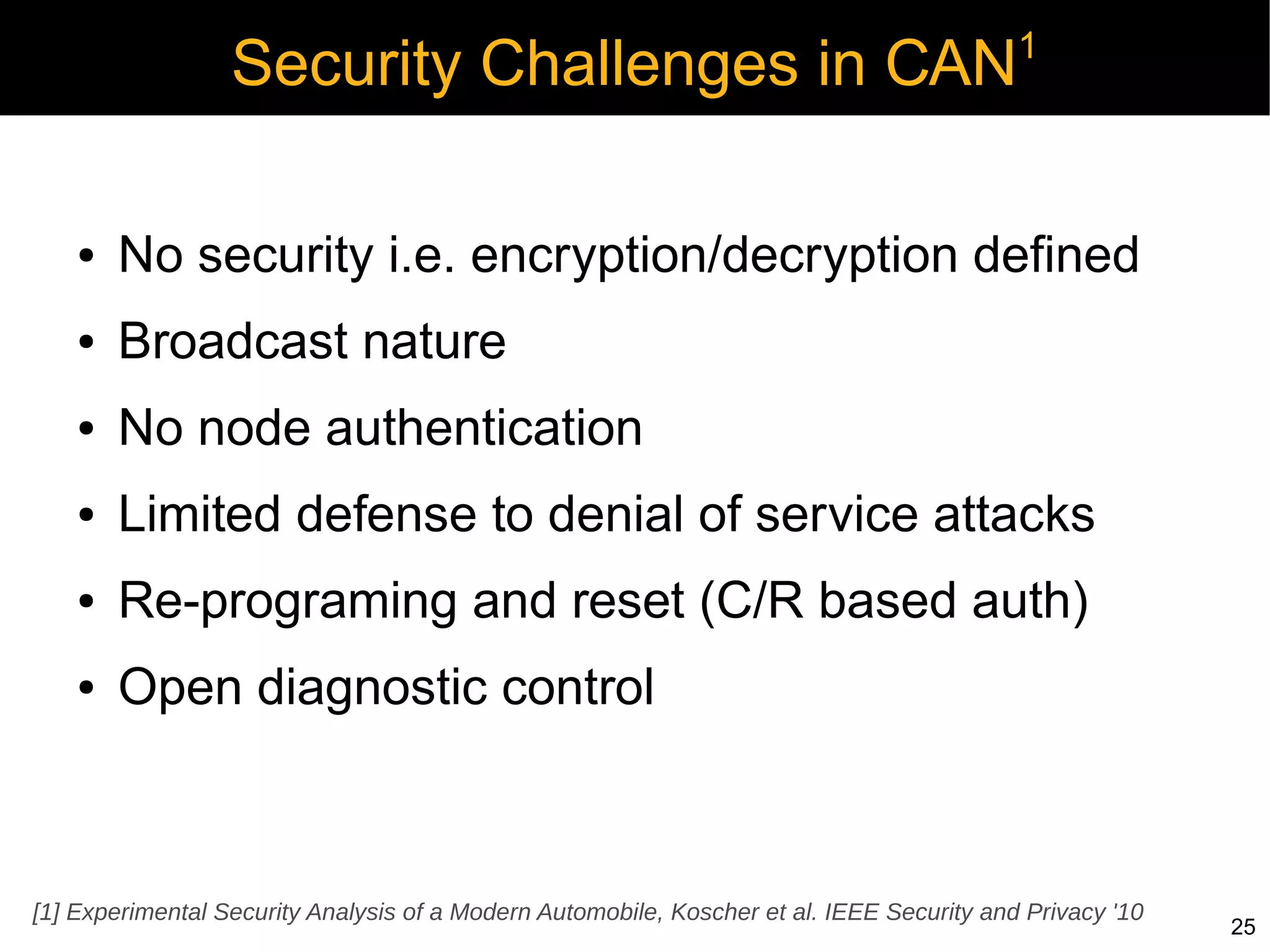

25. 1
Security Challenges in CAN
● No security i.e. encryption/decryption defined
● Broadcast nature
● No node authentication
● Limited defense to denial of service attacks
● Re-programing and reset (C/R based auth)
● Open diagnostic control
[1] Experimental Security Analysis of a Modern Automobile, Koscher et al. IEEE Security and Privacy '10
25

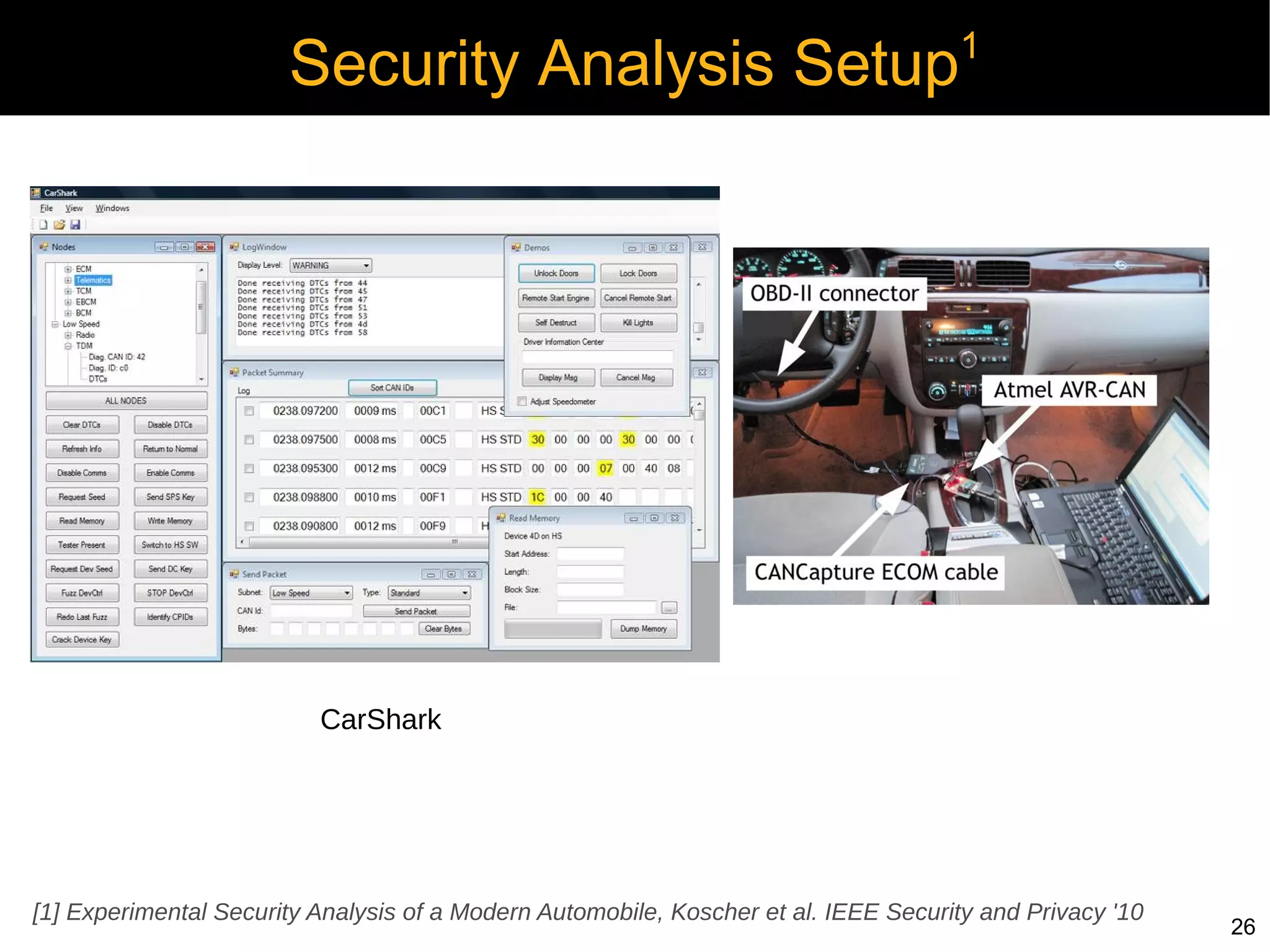

26. 1
Security Analysis Setup
CarShark
[1] Experimental Security Analysis of a Modern Automobile, Koscher et al. IEEE Security and Privacy '10
26

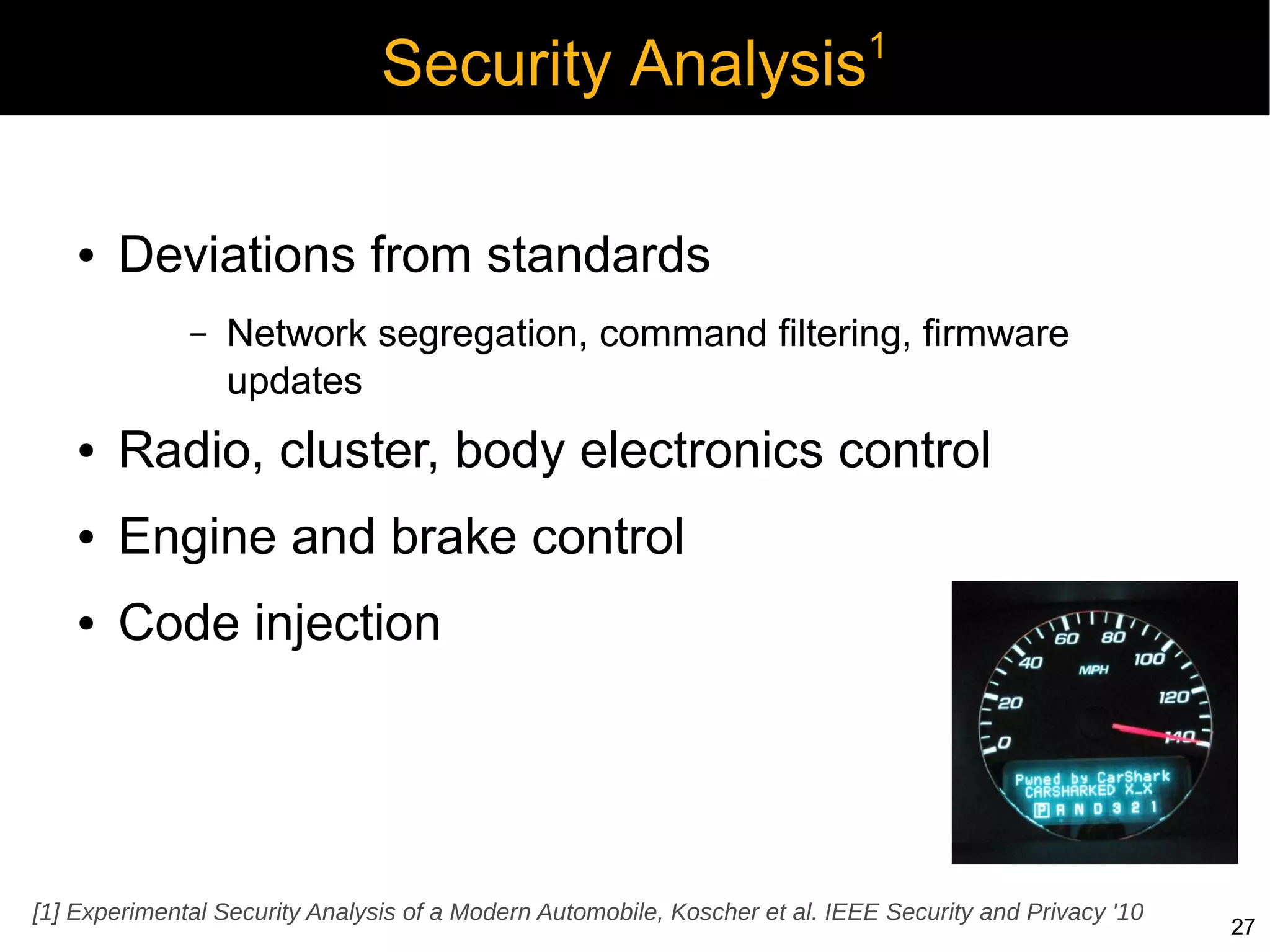

27. 1
Security Analysis
● Deviations from standards
– Network segregation, command filtering, firmware
updates
● Radio, cluster, body electronics control
● Engine and brake control
● Code injection
[1] Experimental Security Analysis of a Modern Automobile, Koscher et al. IEEE Security and Privacy '10
27

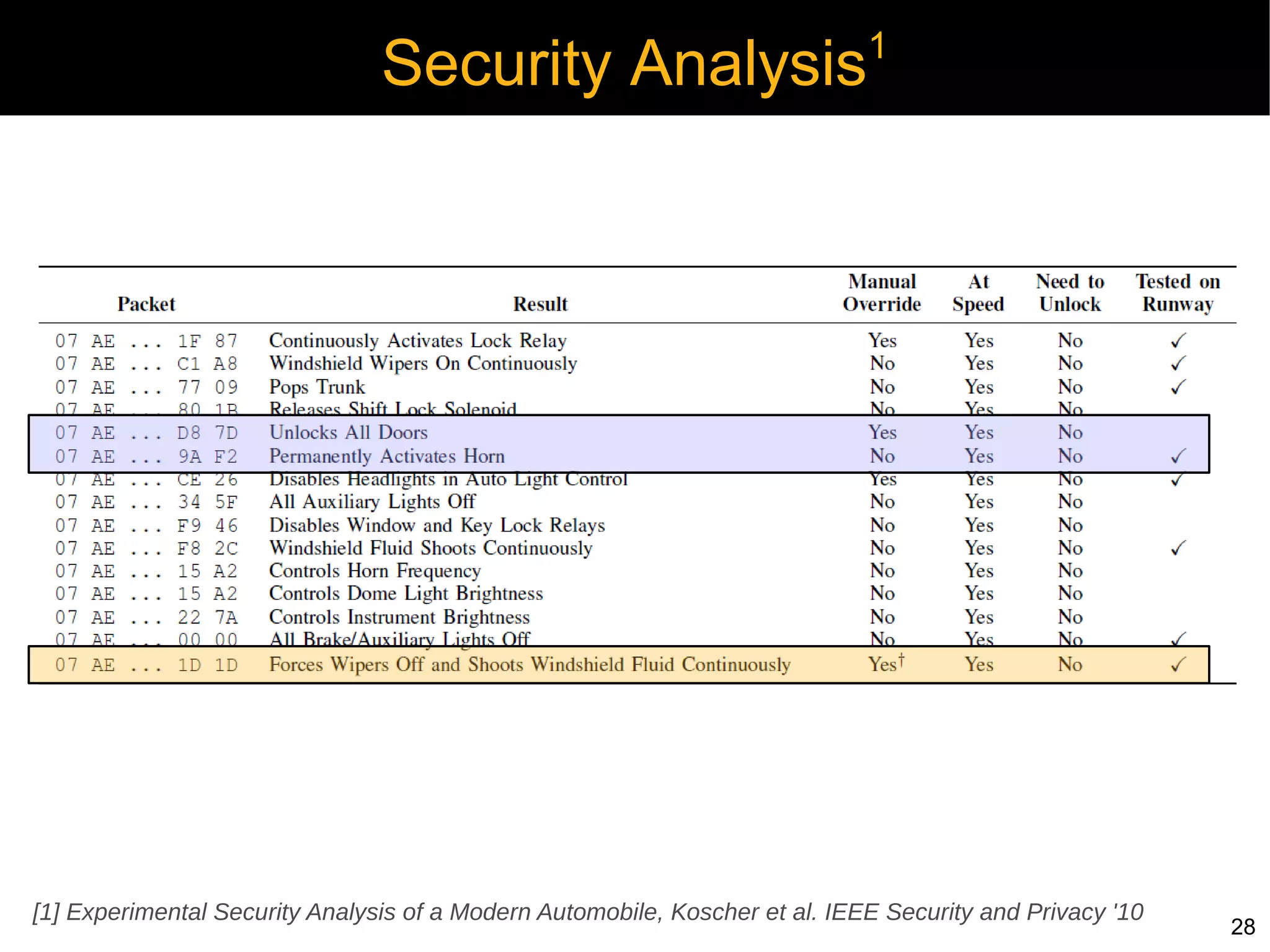

28. 1
Security Analysis
[1] Experimental Security Analysis of a Modern Automobile, Koscher et al. IEEE Security and Privacy '10
28

29. 1
Security Analysis
[1] Experimental Security Analysis of a Modern Automobile, Koscher et al. IEEE Security and Privacy '10
29

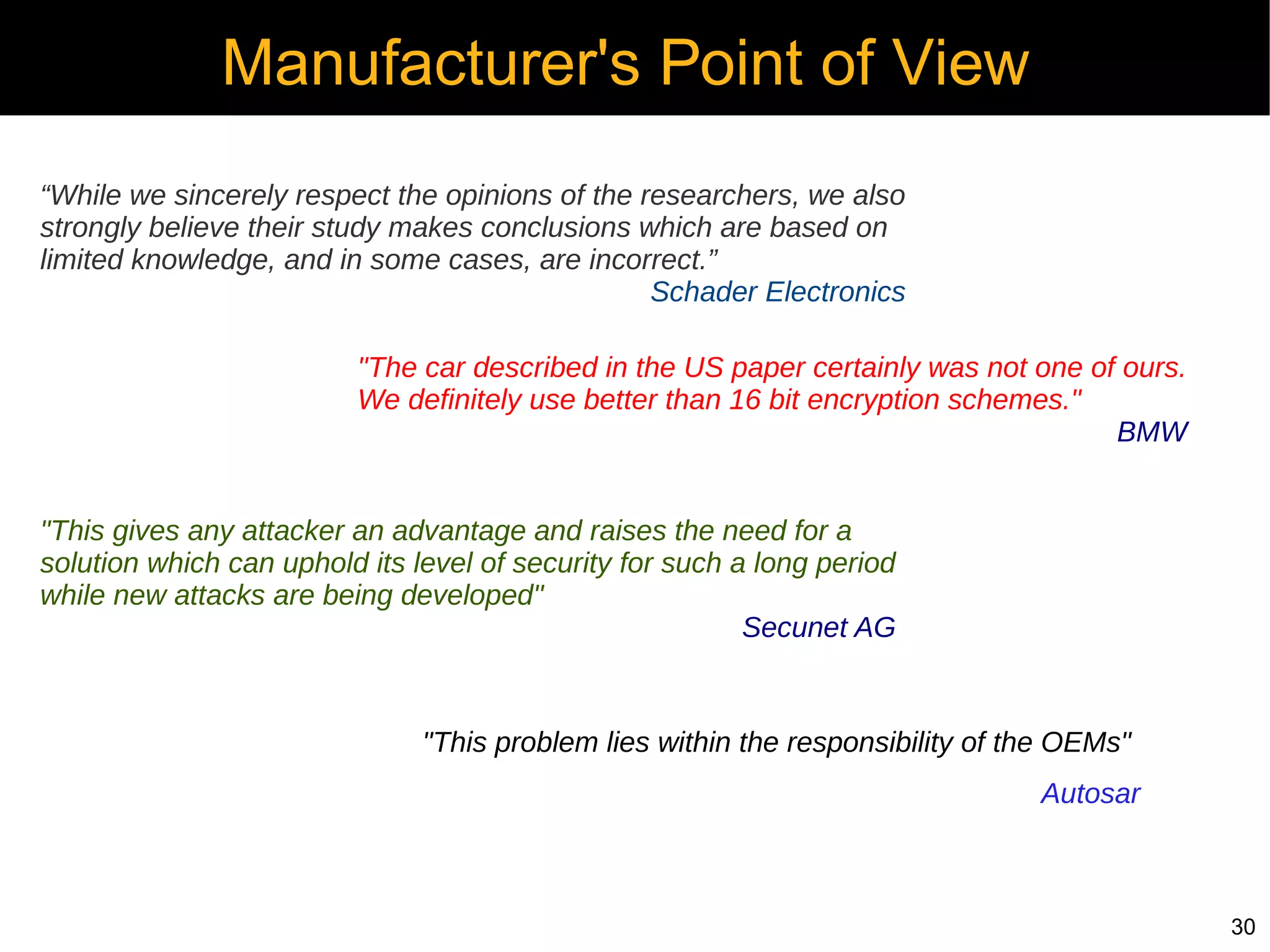

30. Manufacturer's Point of View
“While we sincerely respect the opinions of the researchers, we also
strongly believe their study makes conclusions which are based on
limited knowledge, and in some cases, are incorrect.”
Schader Electronics
"The car described in the US paper certainly was not one of ours.
We definitely use better than 16 bit encryption schemes."
BMW
"This gives any attacker an advantage and raises the need for a
solution which can uphold its level of security for such a long period
while new attacks are being developed"
Secunet AG
"This problem lies within the responsibility of the OEMs"
Autosar
30

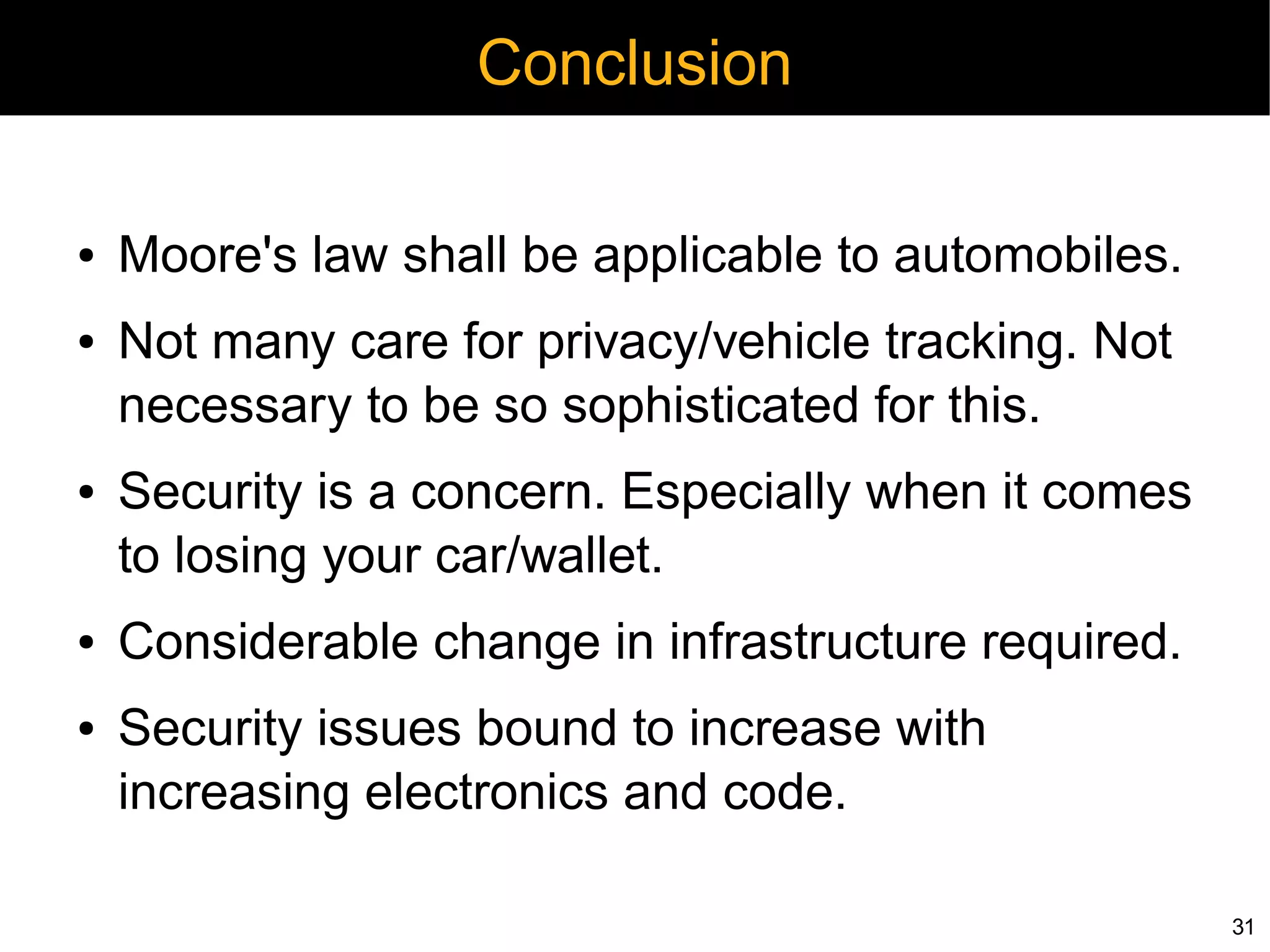

31. Conclusion
● Moore's law shall be applicable to automobiles.
● Not many care for privacy/vehicle tracking. Not
necessary to be so sophisticated for this.
● Security is a concern. Especially when it comes
to losing your car/wallet.
● Considerable change in infrastructure required.
● Security issues bound to increase with
increasing electronics and code.
31

32. Thank You
32
