Mobile Witness a division of SAY Security Group USA LLC Proudly presents:H.264 Series Mobile DVR
OverviewThe MDVRs are digital video recorders specifically designed for use in vehiclesAn MDVR allows to observe the vehicle, the driver, and/or the passengers, both in real time and via playbackThis presentation will cover SAY Security Group USA’s Mobile Witness line of MDVRs and the features they offer
Mobile DVR BackgroundNeed for CCTV in Mobile EnvironmentRoad AccidentsProperty DamagePayment DisputesMobile DVRs provideSafetySecurityReliable Record KeepingReturn on Investment

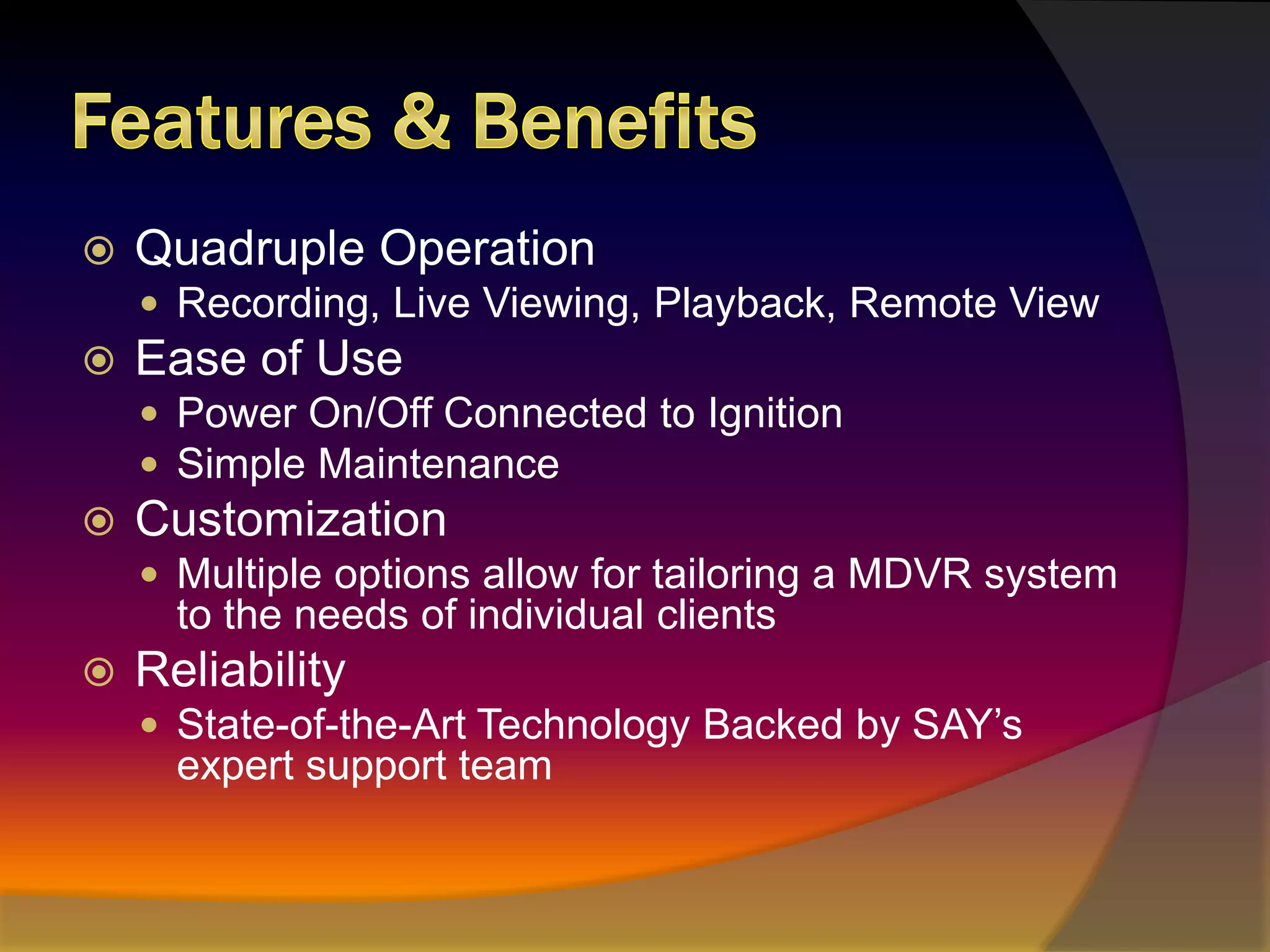

Features & BenefitsQuadruple OperationRecording, Live Viewing, Playback, Remote ViewEase of UsePower On/Off Connected to IgnitionSimple MaintenanceCustomizationMultiple options allow for tailoring a MDVR system to the needs of individual clientsReliabilityState-of-the-Art Technology Backed by SAY’s expert support team

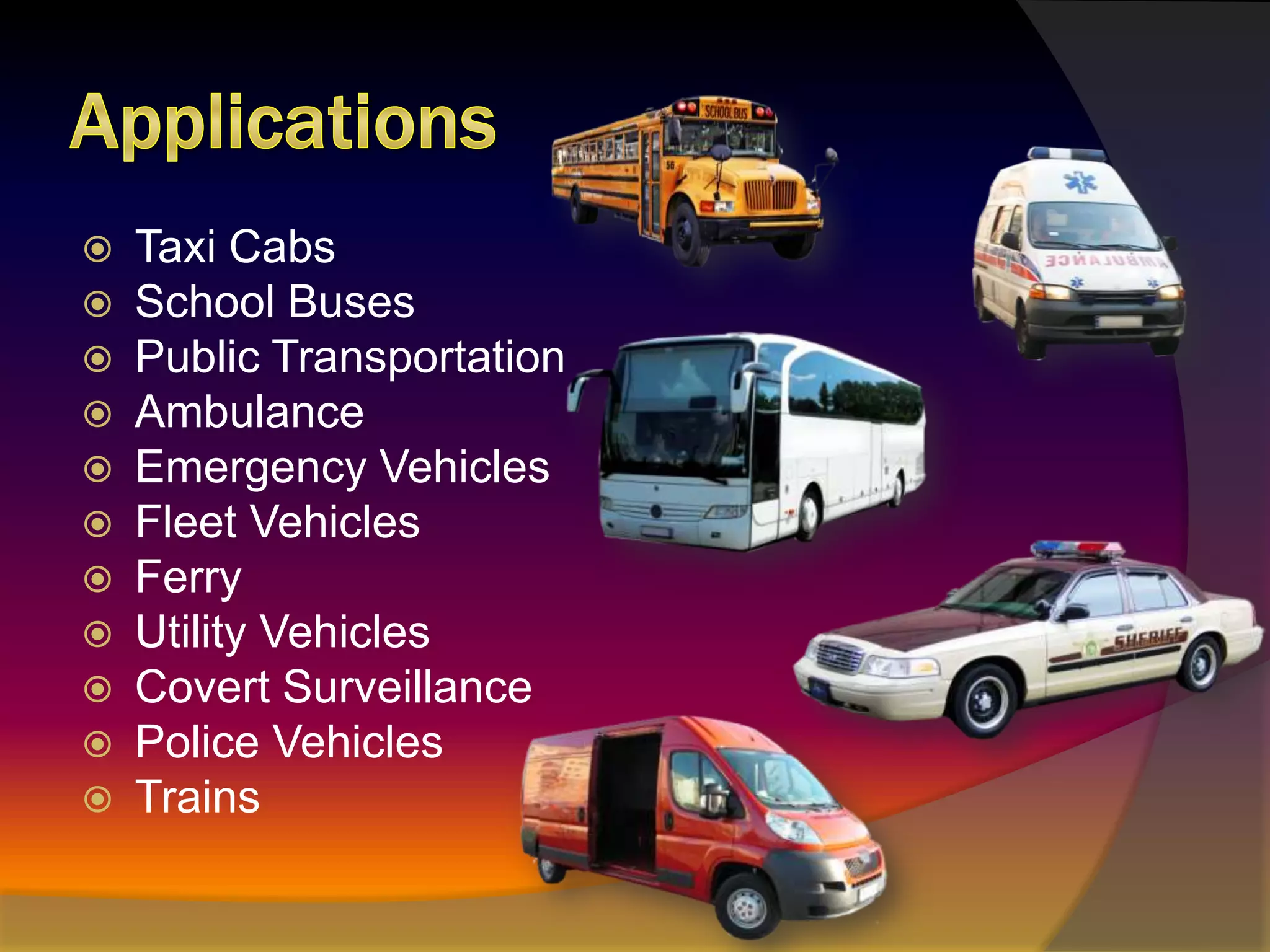

ApplicationsTaxi CabsSchool BusesPublic TransportationAmbulanceEmergency VehiclesFleet VehiclesFerryUtility VehiclesCovert SurveillancePolice VehiclesTrains

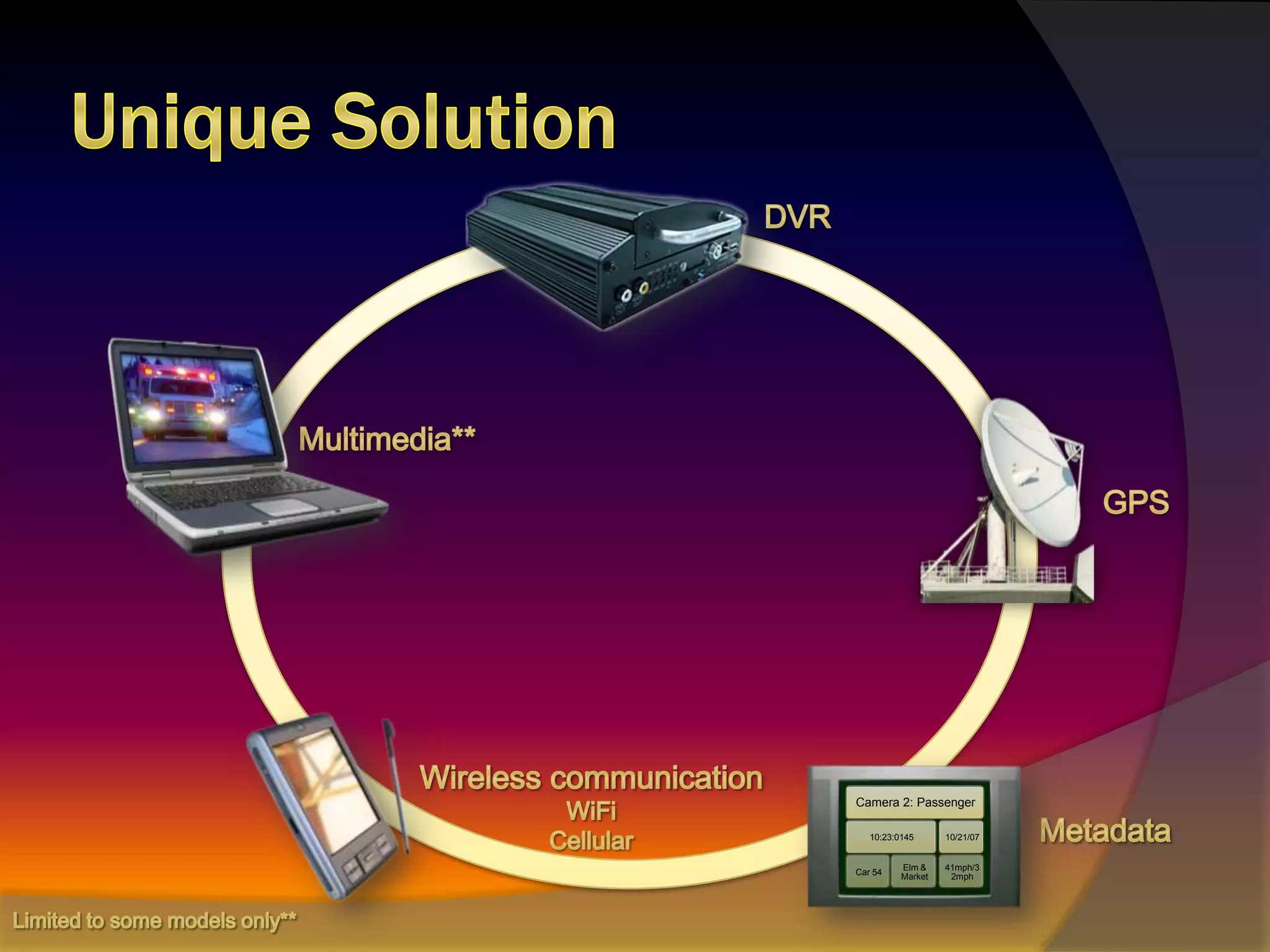

Unique Solution		DVRMultimedia**GPSWireless communicationWiFiCellularMetadataLimited to some models only**

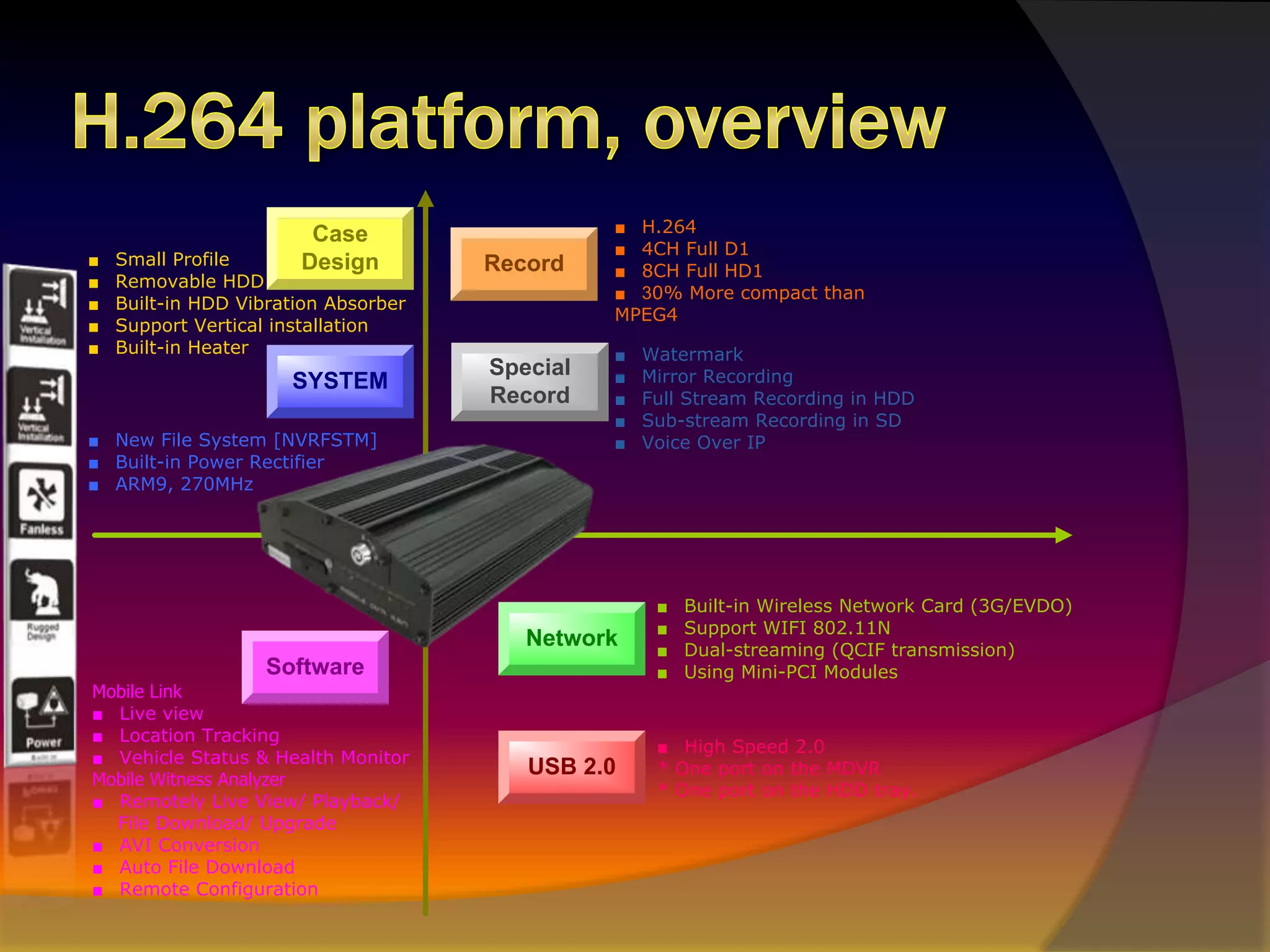

H.264 platform, overview

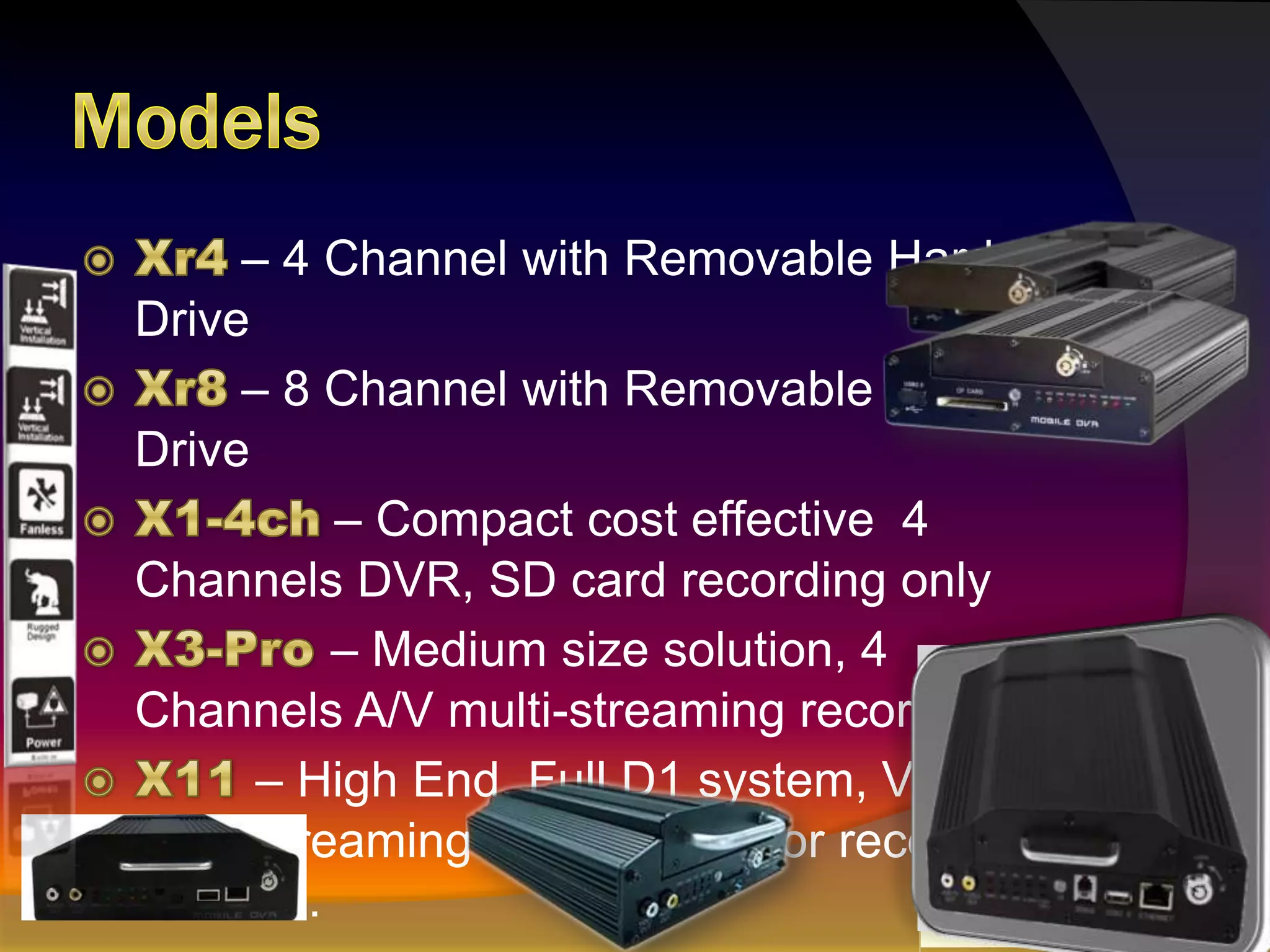

ModelsXr4– 4 Channel with Removable Hard DriveXr8– 8 Channel with Removable Hard DriveX1-4ch– Compact cost effective  4 Channels DVR, SD card recording onlyX3-Pro – Medium size solution, 4 Channels A/V multi-streaming recording.X11– High End, Full D1 system, VOIP, Multi-streaming recorder, mirror recording function.

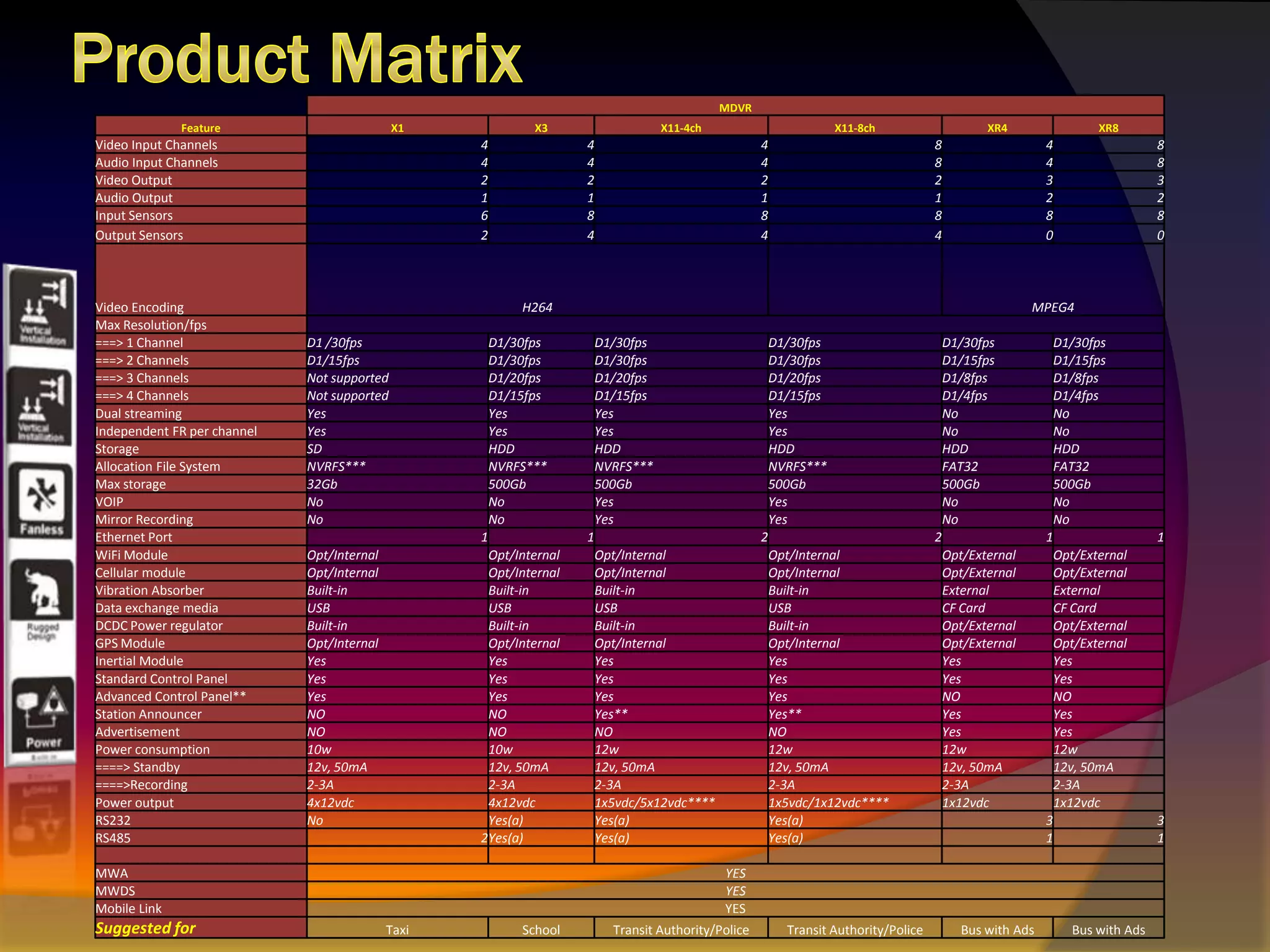

Product Matrix

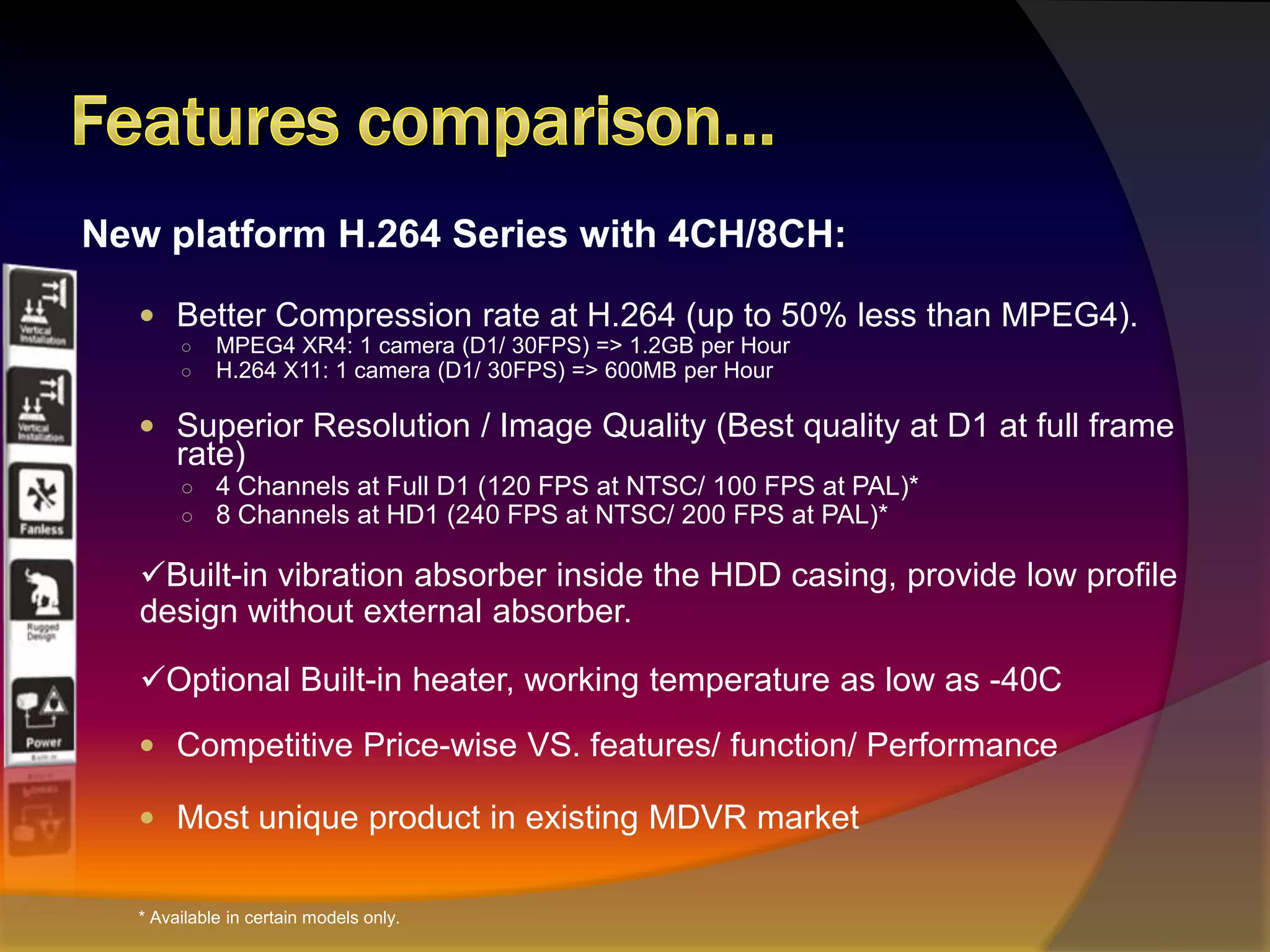

Features comparison…New platform H.264 Series with 4CH/8CH:Better Compression rate at H.264 (up to 50% less than MPEG4).
MPEG4 XR4: 1 camera (D1/ 30FPS) => 1.2GB per Hour
H.264 X11: 1 camera (D1/ 30FPS) => 600MB per Hour
Superior Resolution / Image Quality (Best quality at D1 at full frame rate)
4 Channels at Full D1 (120 FPS at NTSC/ 100 FPS at PAL)*
8 Channels at HD1 (240 FPS at NTSC/ 200 FPS at PAL)*
Built-in vibration absorber inside the HDD casing, provide low profile design without external absorber.
Optional Built-in heater, working temperature as low as -40C
Competitive Price-wise VS. features/ function/ Performance
Most unique product in existing MDVR market  * Available in certain models only.

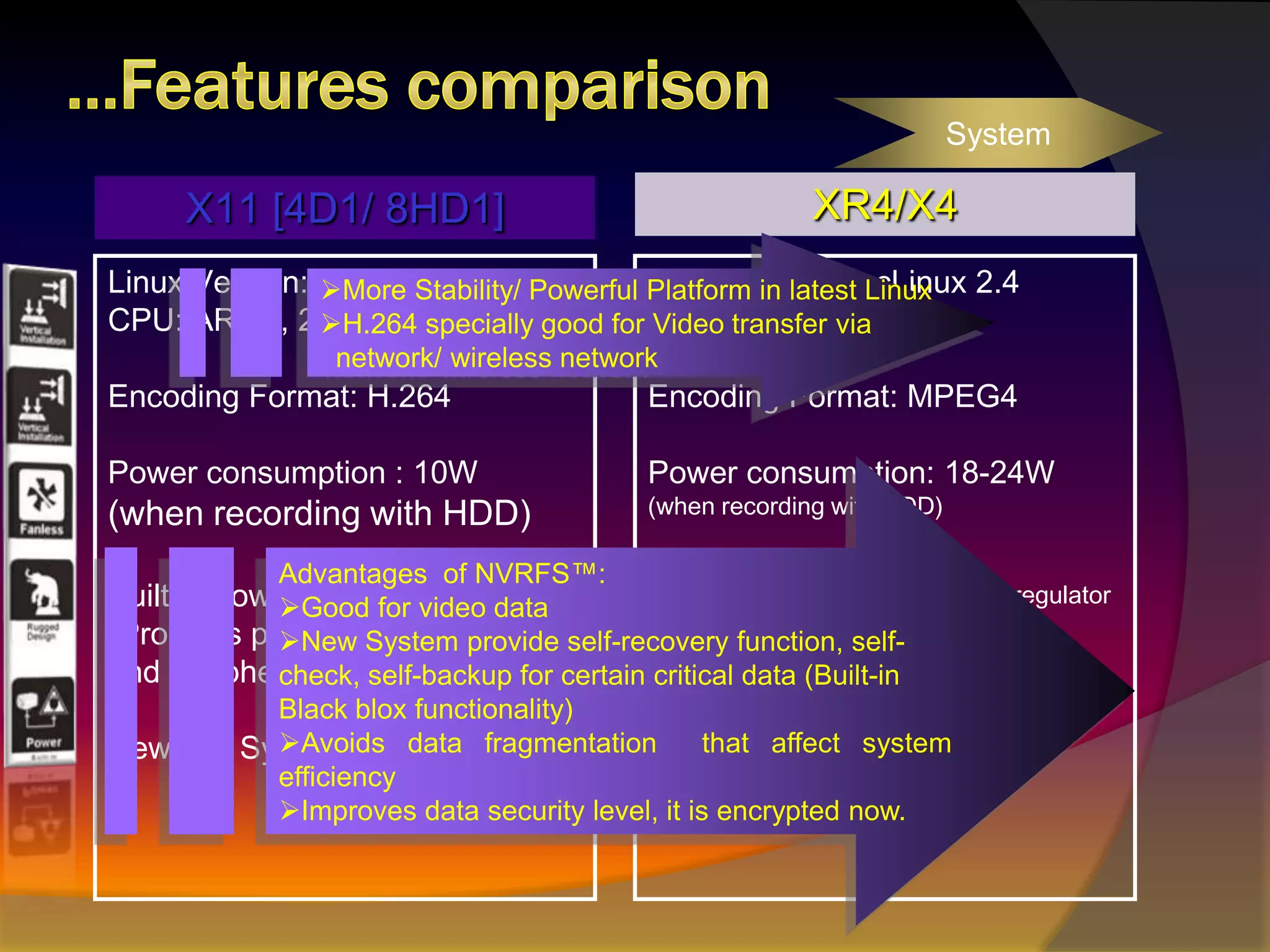

…Features comparisonSystemXR4/X4X11 [4D1/ 8HD1]More Stability/ Powerful Platform in latest Linux
H.264 specially good for Video transfer via   network/ wireless networkLinux Version: 2.6CPU: ARM9, 270MHzEncoding Format: H.264Power consumption : 10W(when recording with HDD)Built-in power rectifier  Provides power for your cameras and peripheral accessoriesNew File System [NVRFSTM] Linux Version: ucLinux 2.4CPU: ARM7, 150MHzEncoding Format: MPEG4Power consumption: 18-24W(when recording with HDD)Requieres external DCDC power regulatorUsing Microsoft’s FAT32Advantages  of NVRFS™: Good for video data
New System provide self-recovery function, self-check, self-backup for certain critical data (Built-in Black blox functionality)
Avoids data fragmentation  that affect system efficiency

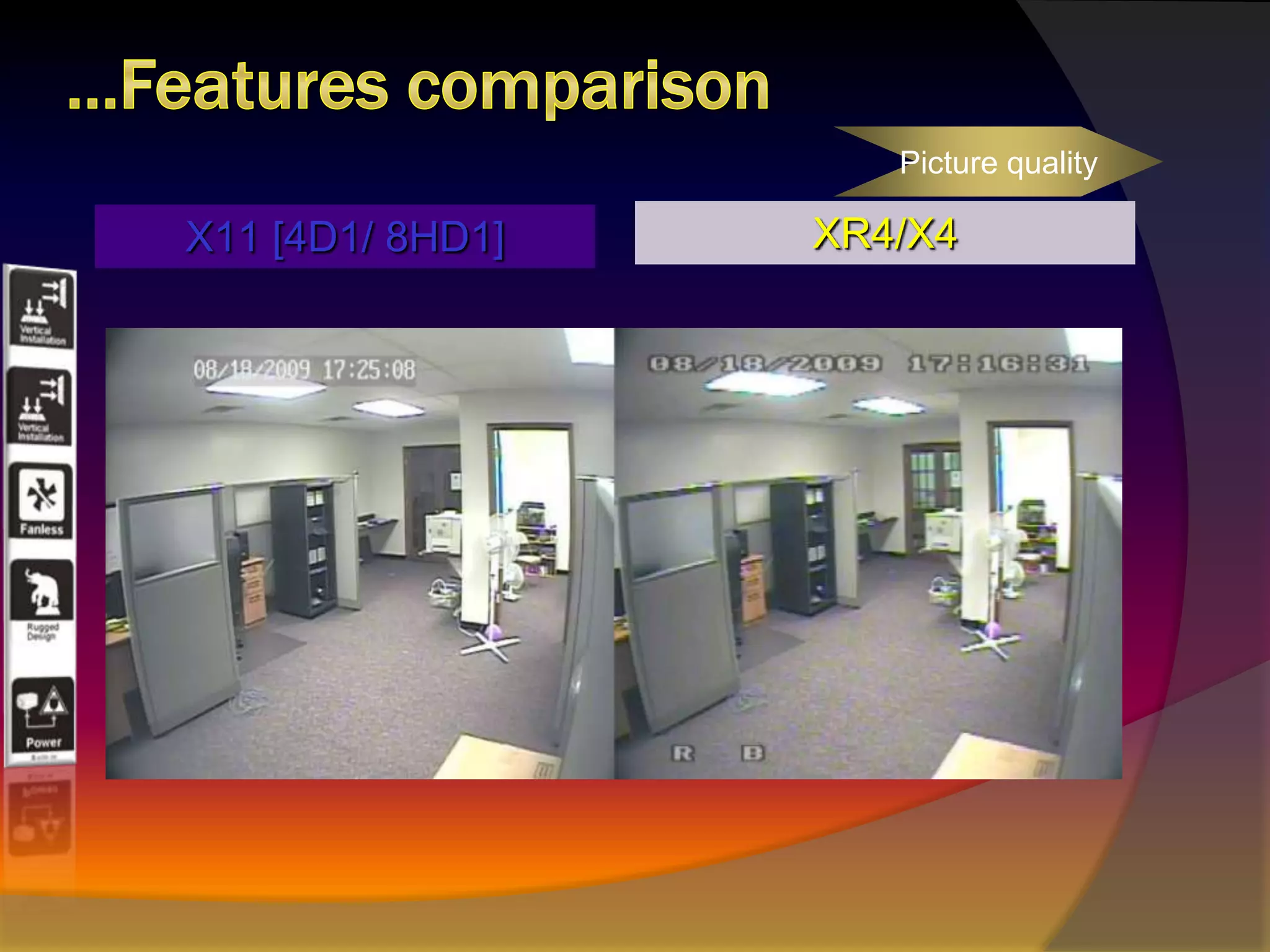

Improves data security level, it is encrypted now.…Features comparisonPicture qualityXR4/X4X11 [4D1/ 8HD1]

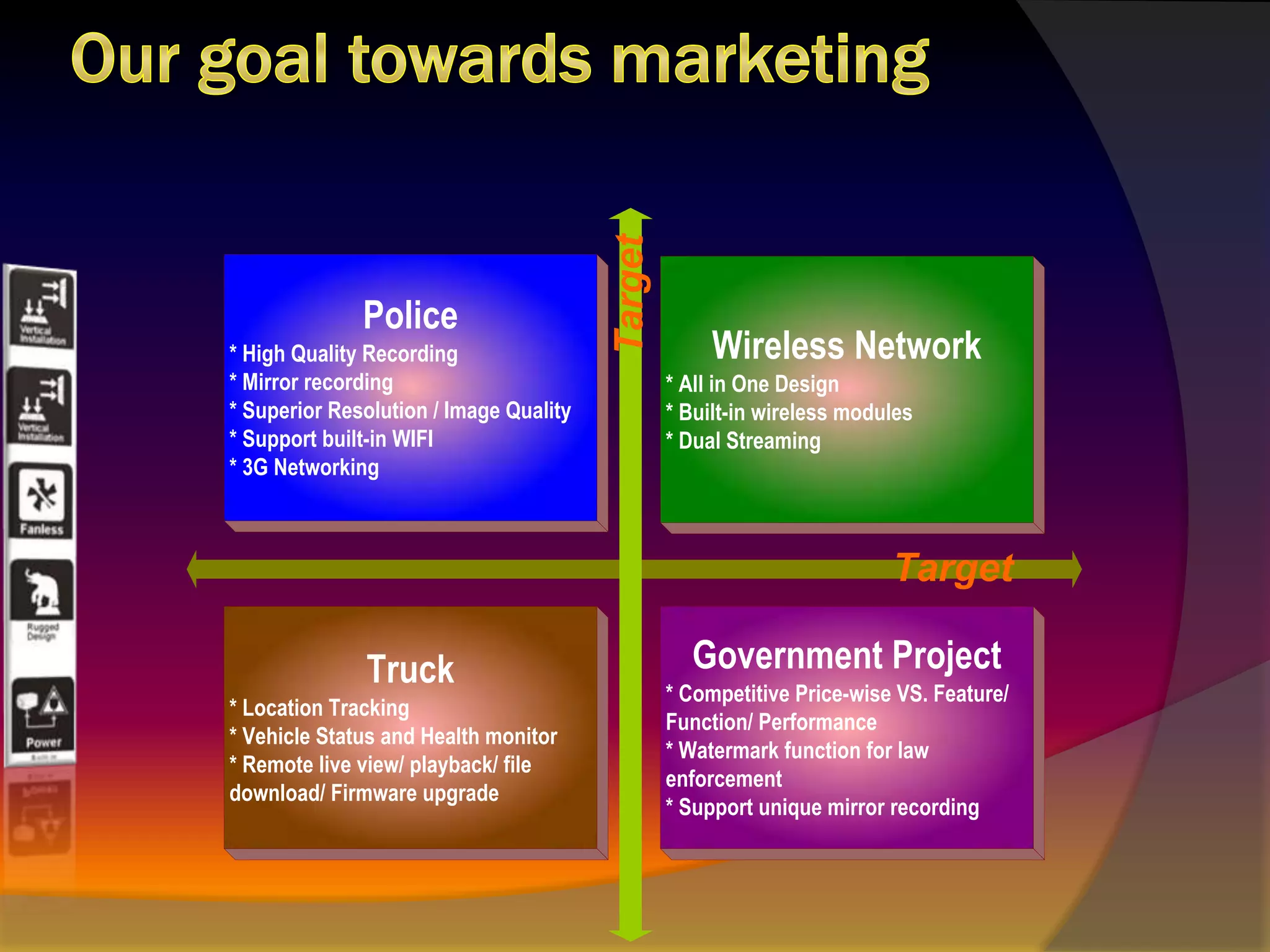

Our goal towards marketing
General Specifications H.264Linux Operating SystemUSB 2.0 Ethernet port RJ45D1 (720x480/704x576)12 or 24 VDC Power InputOperates in a range of 7 – 36vDC12VDC Power OutputMulti-streaming functionMirror recording functionVoice Over IP functionNTSC / PAL
PTZ Operation
12W average Power Consumption
CIF, HD1 and D1

Mdvr H264

  • 1.
    Mobile Witness adivision of SAY Security Group USA LLC Proudly presents:H.264 Series Mobile DVR
  • 2.
    OverviewThe MDVRs aredigital video recorders specifically designed for use in vehiclesAn MDVR allows to observe the vehicle, the driver, and/or the passengers, both in real time and via playbackThis presentation will cover SAY Security Group USA’s Mobile Witness line of MDVRs and the features they offer
  • 3.
    Mobile DVR BackgroundNeedfor CCTV in Mobile EnvironmentRoad AccidentsProperty DamagePayment DisputesMobile DVRs provideSafetySecurityReliable Record KeepingReturn on Investment
  • 4.
    Features & BenefitsQuadrupleOperationRecording, Live Viewing, Playback, Remote ViewEase of UsePower On/Off Connected to IgnitionSimple MaintenanceCustomizationMultiple options allow for tailoring a MDVR system to the needs of individual clientsReliabilityState-of-the-Art Technology Backed by SAY’s expert support team
  • 5.
    ApplicationsTaxi CabsSchool BusesPublicTransportationAmbulanceEmergency VehiclesFleet VehiclesFerryUtility VehiclesCovert SurveillancePolice VehiclesTrains
  • 6.
  • 7.
  • 8.
    ModelsXr4– 4 Channelwith Removable Hard DriveXr8– 8 Channel with Removable Hard DriveX1-4ch– Compact cost effective 4 Channels DVR, SD card recording onlyX3-Pro – Medium size solution, 4 Channels A/V multi-streaming recording.X11– High End, Full D1 system, VOIP, Multi-streaming recorder, mirror recording function.
  • 9.
  • 10.
    Features comparison…New platformH.264 Series with 4CH/8CH:Better Compression rate at H.264 (up to 50% less than MPEG4).
  • 11.
    MPEG4 XR4: 1camera (D1/ 30FPS) => 1.2GB per Hour
  • 12.
    H.264 X11: 1camera (D1/ 30FPS) => 600MB per Hour
  • 13.
    Superior Resolution /Image Quality (Best quality at D1 at full frame rate)
  • 14.
    4 Channels atFull D1 (120 FPS at NTSC/ 100 FPS at PAL)*
  • 15.
    8 Channels atHD1 (240 FPS at NTSC/ 200 FPS at PAL)*
  • 16.
    Built-in vibration absorberinside the HDD casing, provide low profile design without external absorber.
  • 17.
    Optional Built-in heater,working temperature as low as -40C
  • 18.
    Competitive Price-wise VS.features/ function/ Performance
  • 19.
    Most unique productin existing MDVR market * Available in certain models only.
  • 20.
    …Features comparisonSystemXR4/X4X11 [4D1/8HD1]More Stability/ Powerful Platform in latest Linux
  • 21.
    H.264 specially goodfor Video transfer via network/ wireless networkLinux Version: 2.6CPU: ARM9, 270MHzEncoding Format: H.264Power consumption : 10W(when recording with HDD)Built-in power rectifier Provides power for your cameras and peripheral accessoriesNew File System [NVRFSTM] Linux Version: ucLinux 2.4CPU: ARM7, 150MHzEncoding Format: MPEG4Power consumption: 18-24W(when recording with HDD)Requieres external DCDC power regulatorUsing Microsoft’s FAT32Advantages of NVRFS™: Good for video data
  • 22.
    New System provideself-recovery function, self-check, self-backup for certain critical data (Built-in Black blox functionality)
  • 23.
    Avoids data fragmentation that affect system efficiency
  • 24.
    Improves data securitylevel, it is encrypted now.…Features comparisonPicture qualityXR4/X4X11 [4D1/ 8HD1]
  • 25.
  • 26.
    General Specifications H.264LinuxOperating SystemUSB 2.0 Ethernet port RJ45D1 (720x480/704x576)12 or 24 VDC Power InputOperates in a range of 7 – 36vDC12VDC Power OutputMulti-streaming functionMirror recording functionVoice Over IP functionNTSC / PAL
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
    Fan-less casingThis aregeneral specifications; values might change agree on the specific model number.MPEG4 applies to Xr4 and Xr8,H.264 applies to X1, X3 and X11.
  • 35.
    Software FeaturesAutomatic ShutdownDelay (for AD program)Automatic Timed StartGPS time SyncNTP time SyncProgrammable Alarm inputsBrake, LT & RT turn signal, reverse, speed sensor, hazard, temperature, oil levelEvent Locking – won’t overwrite alarm flagged videoSynchronized Audio and Video
  • 36.

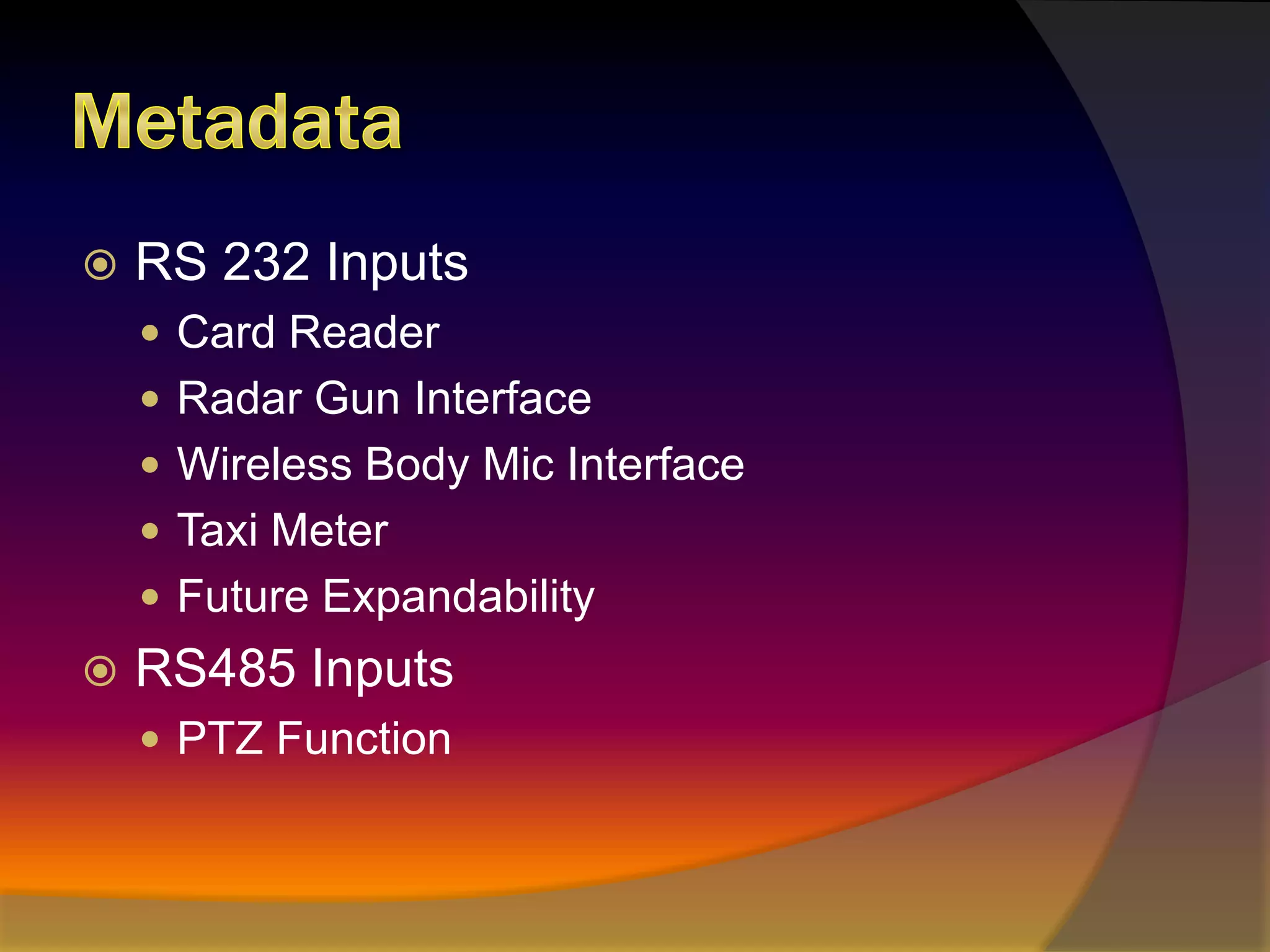

    MetadataRS 232 InputsCardReaderRadar Gun InterfaceWireless Body Mic InterfaceTaxi MeterFuture ExpandabilityRS485 InputsPTZ Function
  • 37.
    Vibration Concerns AddressedFloatingHard Drive Design*Utilize 2.5” Mobile Hard Drive designed for mobile environments.Military Certifications for Vibration and HeatMIL-STD-810FA Solid State Disc is and option for extreme environmentsUp to 5 years warranty applied to HDDs.* Except for X1 which records only on SD Card
  • 38.

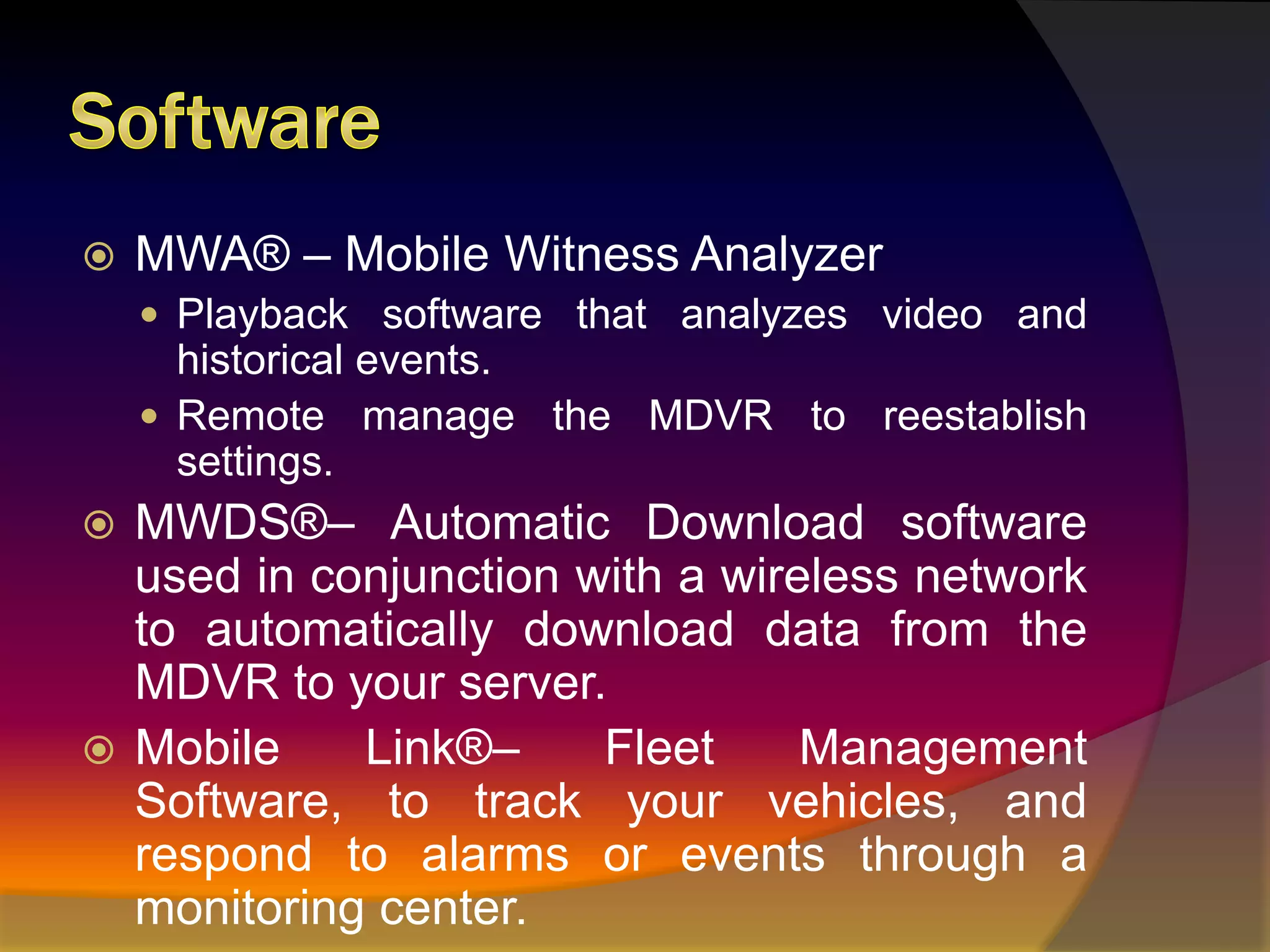

    Software MWA® –Mobile Witness AnalyzerPlayback software that analyzes video and historical events.Remote manage the MDVR to reestablish settings.MWDS®– Automatic Download software used in conjunction with a wireless network to automatically download data from the MDVR to your server.Mobile Link®– Fleet Management Software, to track your vehicles, and respond to alarms or events through a monitoring center.
  • 39.

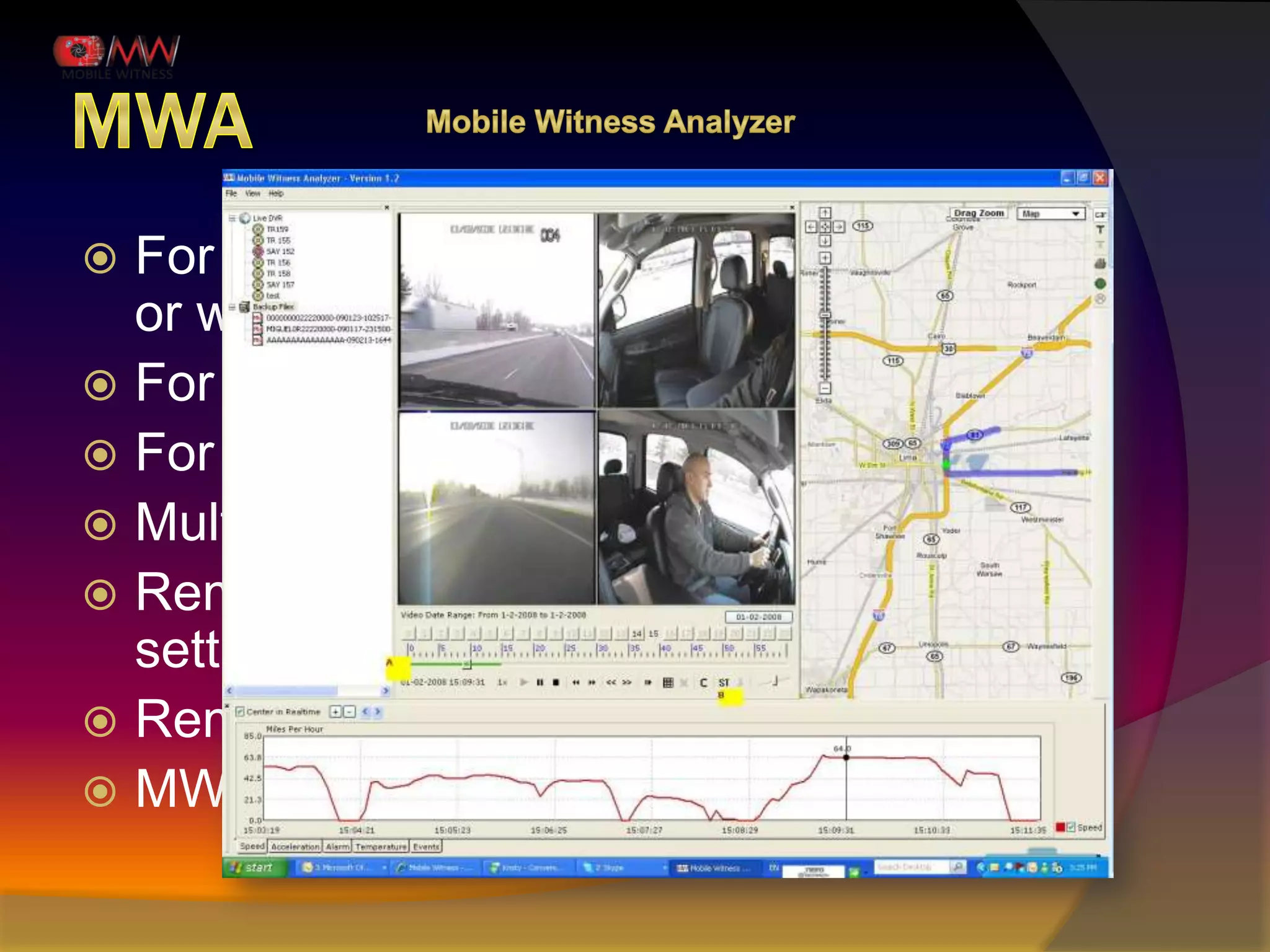

    MWAFor use overdirect Ethernet connection, or wireless network connectionFor Playback of Video and AudioFor Live Video and AudioMultiple unit connectionRemote Programming of Mobile DVR settingsRemotely format MDVR’s HDDMWA comes free with each MDVRMobile Witness Analyzer
  • 40.

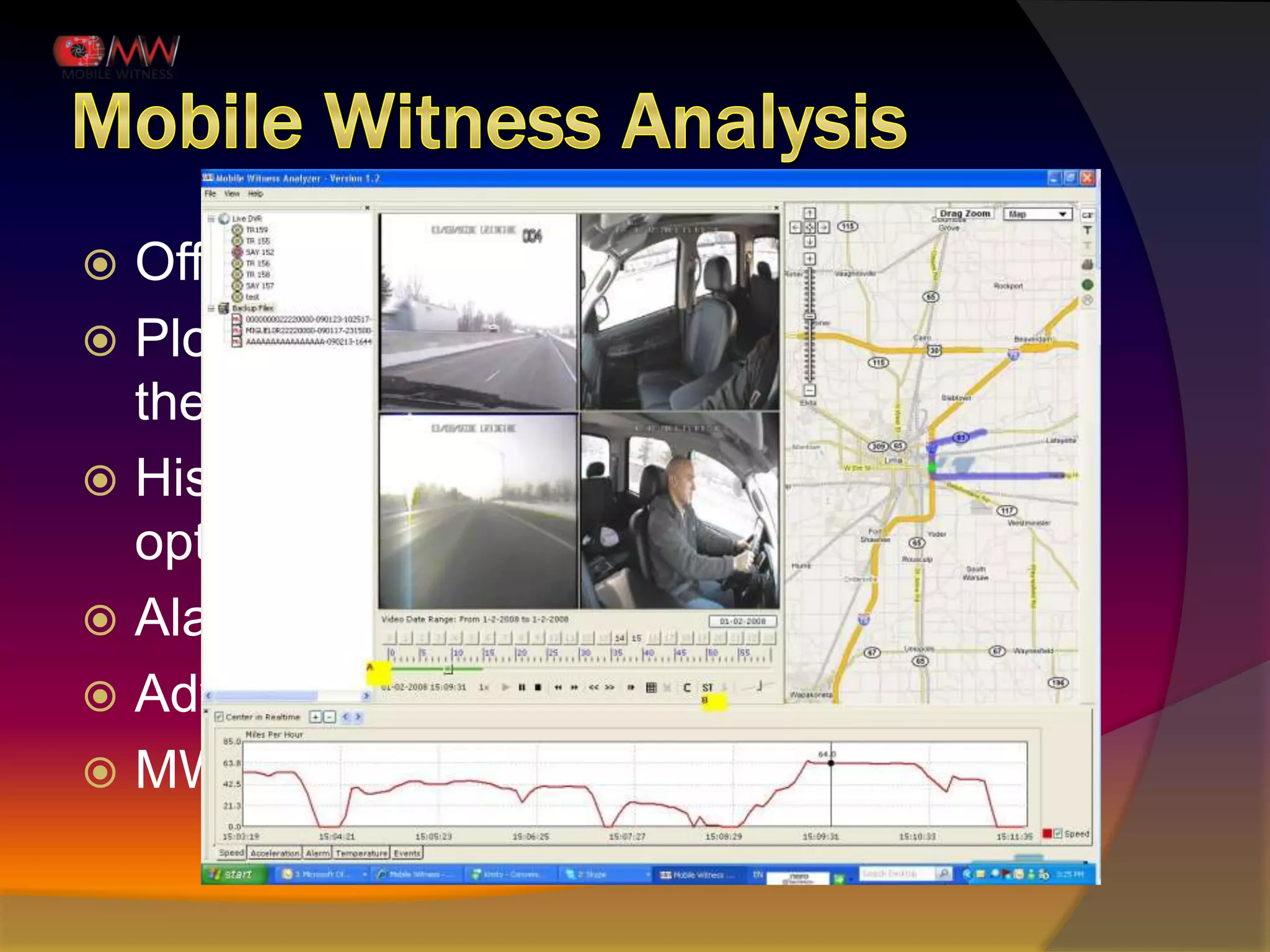

    Offline analysis ofrecorded videoPlots Vehicle’s Location on map and then plays associated videoHistorically Track a vehicle’s route (GPS option applies)Alarm Event BarAdvance Search SystemMWA comes free with each MDVRMobile Witness Analysis
  • 41.
    AD – AutomaticDownload Transmits video via Wireless Network – Wi-FiProgrammable ScheduleBy Alarm Events or all recorded videoDownload begins when the vehicle's ignition is turned offData Interrupt function – picks up last download if interrupted or stoppedBuilt on MS SQL Server 2008AD priced via requested storage size
  • 42.

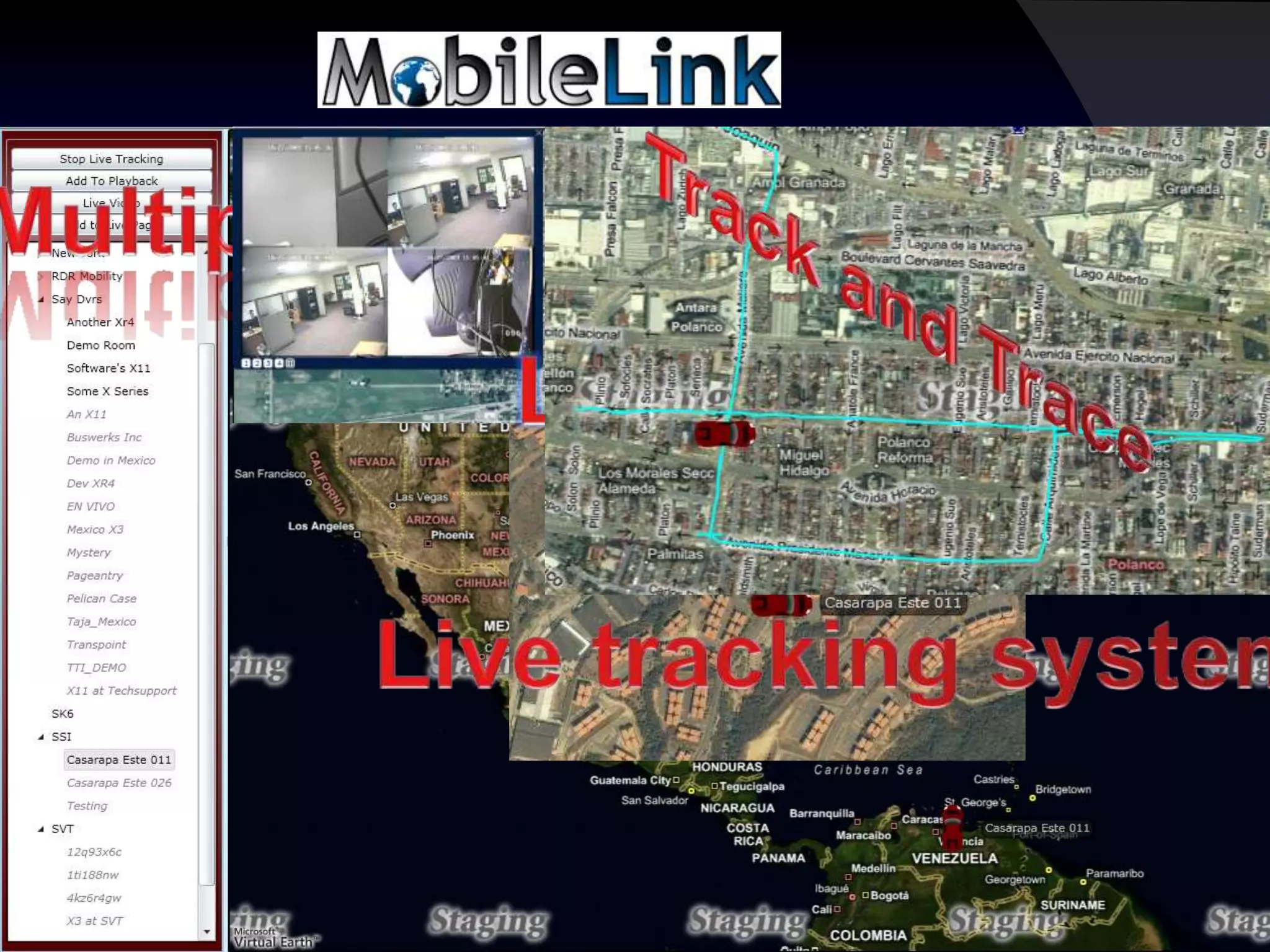

    Mobile LinkMobile Linkis our Premium software designed for fleet management, allowing to:Monitor Driver’s BehaviorTrack Entire Fleet’s LocationRoute Deviation AlarmsMultiplegeo-fences (Secure, Warning, Hazardous)Live Video over Wireless Network (3g recommended)Health monitor (knowingthe status of each MDVR)Live Vehicle Data such asSpeedEngine Temperature… AND MUCH MORESold separately, ask your vendor.Live tracking systemLive videoMultiple vehicles on the mapTrack and Trace
  • 43.

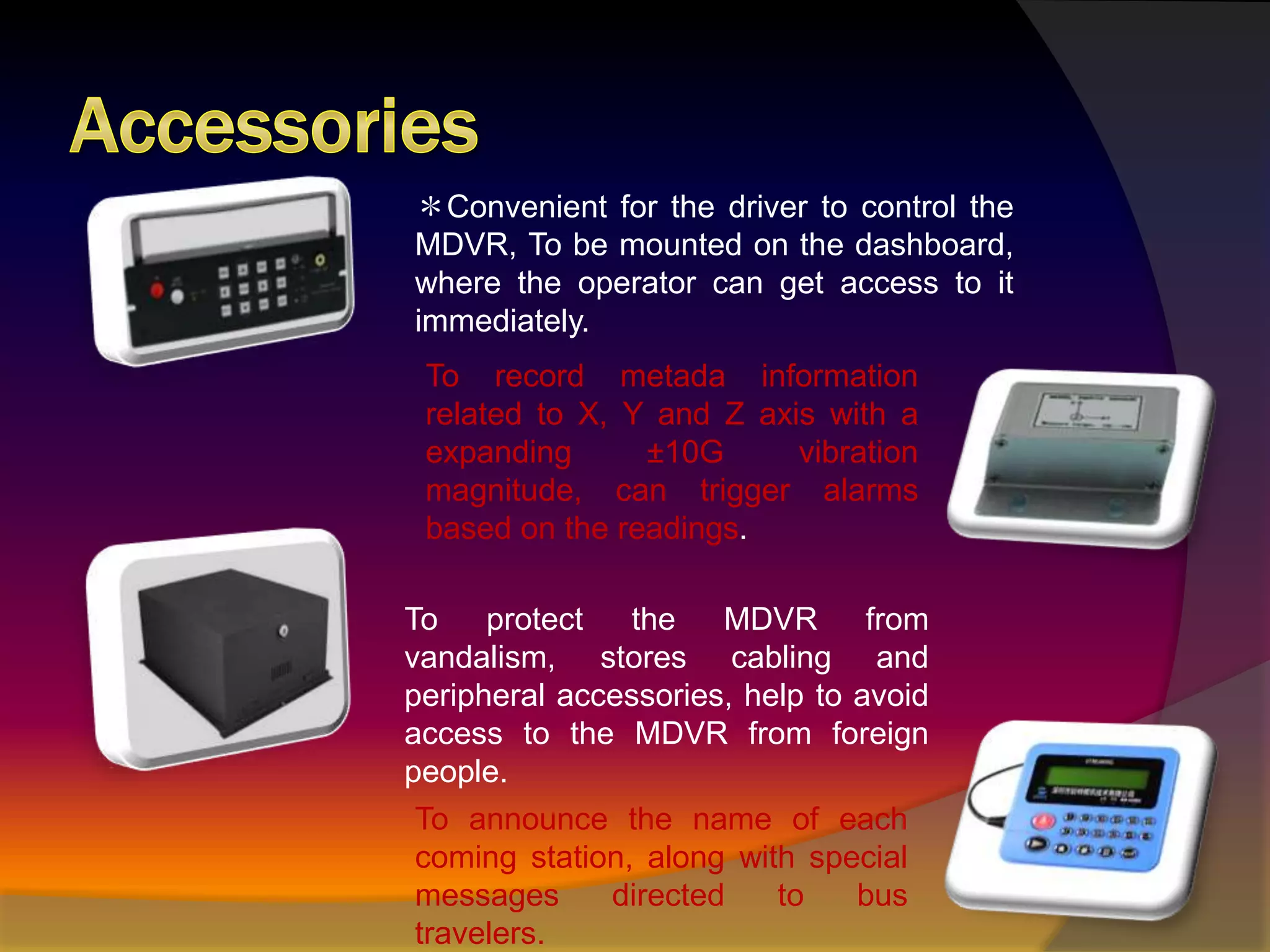

    Accessories*Convenient for thedriver to control the MDVR, To be mounted on the dashboard, where the operator can get access to it immediately.To record metada information related to X, Y and Z axis with a expanding ±10G vibration magnitude, can trigger alarms based on the readings.To protect the MDVR from vandalism, stores cabling and peripheral accessories, help to avoid access to the MDVR from foreign people.To announce the name of each coming station, along with special messages directed to bus travelers.
  • 44.

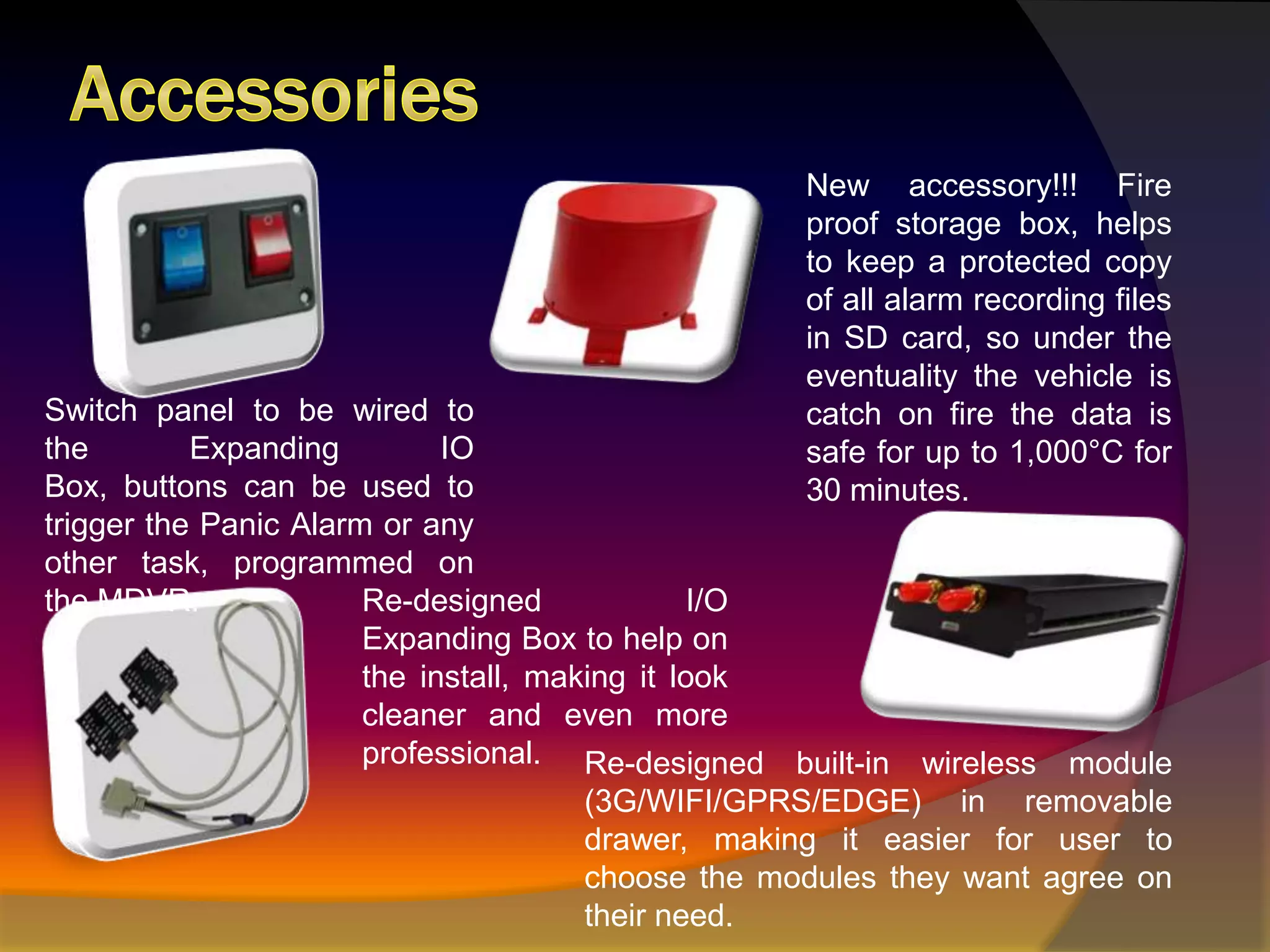

    AccessoriesNew accessory!!! Fireproof storage box, helps to keep a protected copy of all alarm recording files in SD card, so under the eventuality the vehicle is catch on fire the data is safe for up to 1,000°C for 30 minutes.Switch panel to be wired to the Expanding IO Box, buttons can be used to trigger the Panic Alarm or any other task, programmed on the MDVR.Re-designed I/O Expanding Box to help on the install, making it look cleaner and even more professional.Re-designed built-in wireless module (3G/WIFI/GPRS/EDGE) in removable drawer, making it easier for user to choose the modules they want agree on their need.
  • 45.
    Additional Options GPS –Passive module, No Monthly CostProvides Latitude and LongitudeCalculates Vehicle SpeedTime SynchronizationRadius Gateway An excellent choice to allow Xr4 and Xr8 connect to the network wirelessly, it provides a bridge and cellular connectivity through its USB port.802.11B/G/NInternal Wi-Fi & 3G modules.Designed specifically for our new H.264 MDVRs, allow the MDVR to connect via WiFi when close to the APs and Cellular while on the road.
  • 46.

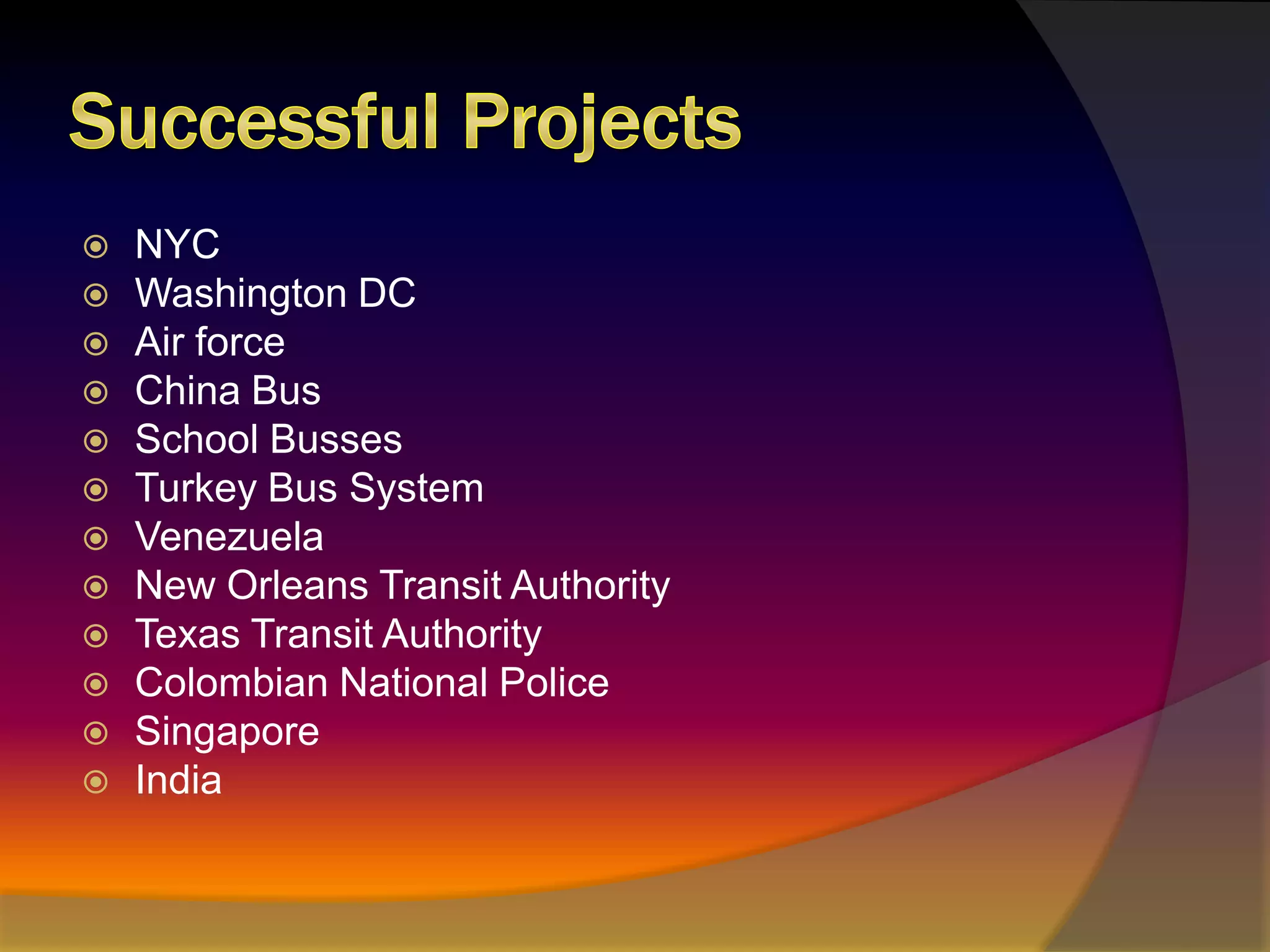

    Successful ProjectsNYCWashington DCAirforceChina BusSchool BussesTurkey Bus SystemVenezuelaNew Orleans Transit AuthorityTexas Transit AuthorityColombian National PoliceSingaporeIndia
  • 47.
  • 48.
  • 49.
    Sales : sales@saysecurity.comMoreinformation at:www.mobilewitness.comwww.saysecurity.comGet into our discussion forum for help: http://www.saysecurity.com/forum/index.phpContact us : +1-419-634-5788Español: miguel@saysecurity.com
