1. Automation Tool - QTP

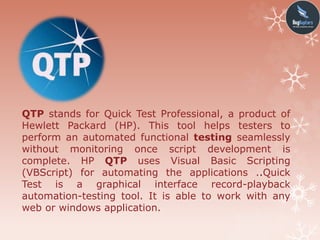

2. QTP stands for Quick Test Professional, a product of
Hewlett Packard (HP). This tool helps testers to
perform an automated functional testing seamlessly
without monitoring once script development is
complete. HP QTP uses Visual Basic Scripting
(VBScript) for automating the applications ..Quick
Test is a graphical interface record-playback
automation-testing tool. It is able to work with any
web or windows application.

3. QTP Testing Process
Creating test plan
Recording a session on application
Enhancing the test by inserting checkpoints, parameterization
statements, or inserting logical statements in the test
Running a session of the test
Analyzing the test results from test fusion report
Reporting defects if any by connecting with quality center.

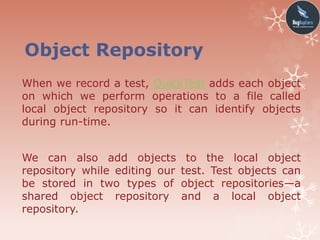

4. Object Repository
When we record a test, QuickTest adds each object
on which we perform operations to a file called
local object repository so it can identify objects
during run-time.
We can also add objects to the local object
repository while editing our test. Test objects can
be stored in two types of object repositories—a
shared object repository and a local object
repository.

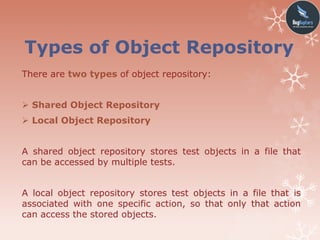

5. Types of Object Repository
There are two types of object repository:
 Shared Object Repository
 Local Object Repository
A shared object repository stores test objects in a file that
can be accessed by multiple tests.
A local object repository stores test objects in a file that is
associated with one specific action, so that only that action
can access the stored objects.

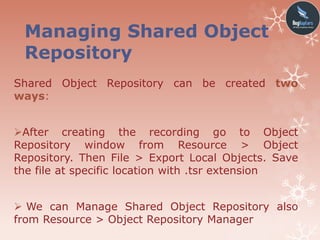

6. Managing Shared Object
Repository
Shared Object Repository can be created two
ways:
After creating the recording go to Object
Repository window from Resource > Object
Repository. Then File > Export Local Objects. Save
the file at specific location with .tsr extension
 We can Manage Shared Object Repository also
from Resource > Object Repository Manager

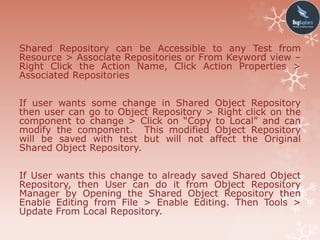

7. Shared Repository can be Accessible to any Test from
Resource > Associate Repositories or From Keyword view –
Right Click the Action Name, Click Action Properties >
Associated Repositories
If user wants some change in Shared Object Repository
then user can go to Object Repository > Right click on the
component to change > Click on “Copy to Local” and can
modify the component. This modified Object Repository
will be saved with test but will not affect the Original
Shared Object Repository.
If User wants this change to already saved Shared Object
Repository, then User can do it from Object Repository
Manager by Opening the Shared Object Repository then
Enable Editing from File > Enable Editing. Then Tools >
Update From Local Repository.

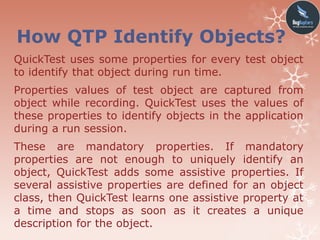

8. How QTP Identify Objects?
QuickTest uses some properties for every test object
to identify that object during run time.
Properties values of test object are captured from
object while recording. QuickTest uses the values of
these properties to identify objects in the application
during a run session.
These are mandatory properties. If mandatory
properties are not enough to uniquely identify an
object, QuickTest adds some assistive properties. If
several assistive properties are defined for an object
class, then QuickTest learns one assistive property at
a time and stops as soon as it creates a unique
description for the object.

9. If QTP is unsuccessful to identify an object uniquely
with both mandatory and assistive properties it use
smart identification mechanism (Base Filter
Properties & Optional Filter Properties). If both the
learned description and smart identification fails,
QTP uses ordinal identifier (Index, Location, and
Creation Time properties).
In order to configure the mandatory, assistive, and
ordinal identifier properties and to enable and
configure the Smart Identification mechanism, you
can use Object Identification dialog box (Tools >
Object Identification).

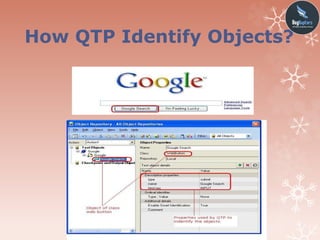

10. How QTP Identify Objects?

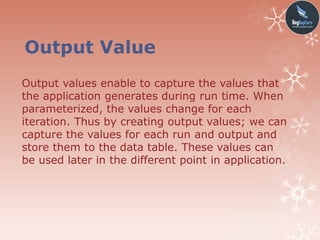

11. Output Value
Output values enable to capture the values that
the application generates during run time. When
parameterized, the values change for each
iteration. Thus by creating output values; we can
capture the values for each run and output and
store them to the data table. These values can
be used later in the different point in application.

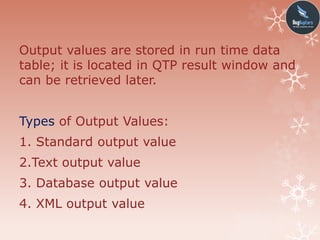

12. Output values are stored in run time data
table; it is located in QTP result window and
can be retrieved later.
Types of Output Values:
1. Standard output value
2.Text output value
3. Database output value
4. XML output value

13. Output Value Types
1) Standard output value:
We can use standard output values to output the
properties values of most objects.
We can use Standard Output value under
Recording mode from Insert menu >output value>
standard output value.
2) Text output value:
We can use Text output values to output text
strings displayed in an application. When creating
a text output value we can output a part of the
objects text and we can also specify text before
and after options.

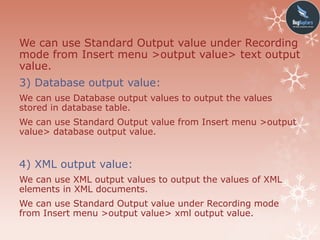

14. We can use Standard Output value under Recording
mode from Insert menu >output value> text output
value.
3) Database output value:
We can use Database output values to output the values
stored in database table.
We can use Standard Output value from Insert menu >output
value> database output value.
4) XML output value:
We can use XML output values to output the values of XML
elements in XML documents.
We can use Standard Output value under Recording mode
from Insert menu >output value> xml output value.

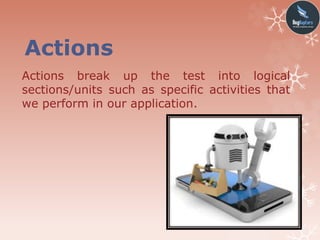

15. Actions
Actions break up the test into logical
sections/units such as specific activities that
we perform in our application.

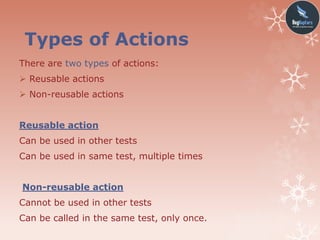

16. Types of Actions
There are two types of actions:
 Reusable actions
 Non-reusable actions
Reusable action
Can be used in other tests
Can be used in same test, multiple times
Non-reusable action
Cannot be used in other tests
Can be called in the same test, only once.

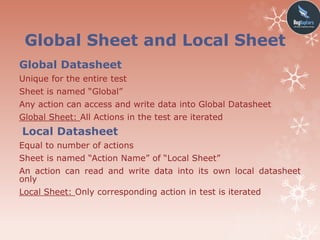

17. Global Sheet and Local Sheet
Global Datasheet
Unique for the entire test
Sheet is named “Global”
Any action can access and write data into Global Datasheet
Global Sheet: All Actions in the test are iterated
Local Datasheet
Equal to number of actions
Sheet is named “Action Name” of “Local Sheet”
An action can read and write data into its own local datasheet
only
Local Sheet: Only corresponding action in test is iterated

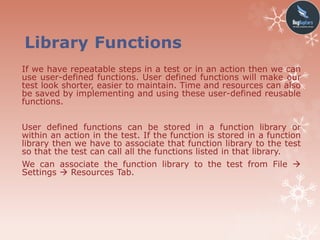

18. Library Functions
If we have repeatable steps in a test or in an action then we can
use user-defined functions. User defined functions will make our
test look shorter, easier to maintain. Time and resources can also
be saved by implementing and using these user-defined reusable
functions.
User defined functions can be stored in a function library or
within an action in the test. If the function is stored in a function
library then we have to associate that function library to the test
so that the test can call all the functions listed in that library.
We can associate the function library to the test from File 
Settings  Resources Tab.

19. Functions in an associated function library can be
accessible:
From Step Generator, From Operation column in
keyword view, or by manually entering the function
name in the expert view.
We can create new function library by selecting File
>> New >> Function Library. Functions in library
file can be created manually or by using Function
Definition Generators. We can save this file at a
specified location with .qlf (by default) or .vbs or
.txt extension

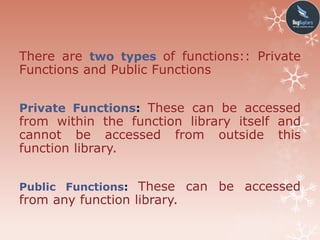

20. There are two types of functions:: Private
Functions and Public Functions
Private Functions: These can be accessed
from within the function library itself and
cannot be accessed from outside this
function library.
Public Functions: These can be accessed
from any function library.

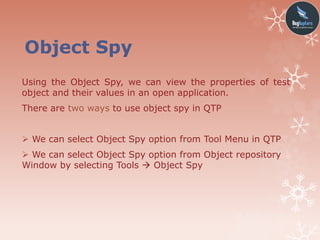

21. Object Spy
Using the Object Spy, we can view the properties of test
object and their values in an open application.
There are two ways to use object spy in QTP
 We can select Object Spy option from Tool Menu in QTP
 We can select Object Spy option from Object repository
Window by selecting Tools  Object Spy

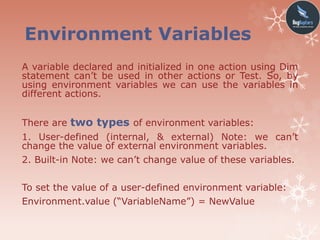

22. Environment Variables
A variable declared and initialized in one action using Dim
statement can’t be used in other actions or Test. So, by
using environment variables we can use the variables in
different actions.
There are two types of environment variables:
1. User-defined (internal, & external) Note: we can’t
change the value of external environment variables.
2. Built-in Note: we can’t change value of these variables.
To set the value of a user-defined environment variable:
Environment.value (“VariableName”) = NewValue

23. Analog & Low-Level
Recording
Low-level recording: It is used in case qtp is
unable to recognize some objects and its
properties. It is based on mouse clicks and the x, y
co-ordinates that is instead of taking that object,
will take the x, y co-ordinates of that object.
Analog recording: This mode records every
moment of mouse as we drag the mouse around
the screen or application window.
Useful for recording operations that cannot be
recorded at the level of an object. E.g., A signature
produced by dragging the mouse will be recorded
in analog.

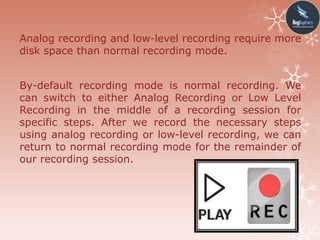

24. Analog recording and low-level recording require more
disk space than normal recording mode.
By-default recording mode is normal recording. We
can switch to either Analog Recording or Low Level
Recording in the middle of a recording session for
specific steps. After we record the necessary steps
using analog recording or low-level recording, we can
return to normal recording mode for the remainder of
our recording session.

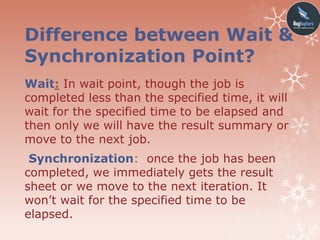

25. Difference between Wait &
Synchronization Point?
Wait: In wait point, though the job is
completed less than the specified time, it will
wait for the specified time to be elapsed and
then only we will have the result summary or
move to the next job.
Synchronization: once the job has been
completed, we immediately gets the result
sheet or we move to the next iteration. It
won’t wait for the specified time to be
elapsed.

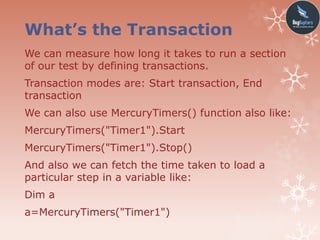

26. What’s the Transaction
We can measure how long it takes to run a section
of our test by defining transactions.
Transaction modes are: Start transaction, End
transaction
We can also use MercuryTimers() function also like:
MercuryTimers("Timer1").Start
MercuryTimers("Timer1").Stop()
And also we can fetch the time taken to load a
particular step in a variable like:
Dim a
a=MercuryTimers("Timer1")

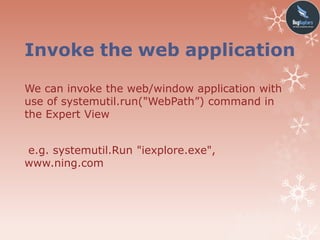

27. Invoke the web application
We can invoke the web/window application with
use of systemutil.run("WebPath”) command in
the Expert View
e.g. systemutil.Run "iexplore.exe",
www.ning.com

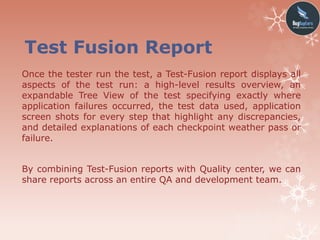

28. Test Fusion Report
Once the tester run the test, a Test-Fusion report displays all
aspects of the test run: a high-level results overview, an
expandable Tree View of the test specifying exactly where
application failures occurred, the test data used, application
screen shots for every step that highlight any discrepancies,
and detailed explanations of each checkpoint weather pass or
failure.
By combining Test-Fusion reports with Quality center, we can
share reports across an entire QA and development team.

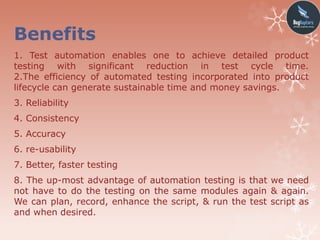

29. Benefits
1. Test automation enables one to achieve detailed product
testing with significant reduction in test cycle time.
2.The efficiency of automated testing incorporated into product
lifecycle can generate sustainable time and money savings.
3. Reliability
4. Consistency
5. Accuracy
6. re-usability
7. Better, faster testing
8. The up-most advantage of automation testing is that we need
not have to do the testing on the same modules again & again.
We can plan, record, enhance the script, & run the test script as
and when desired.
