1. Advanced Rational Robot [email_address] www.itest.co.nr

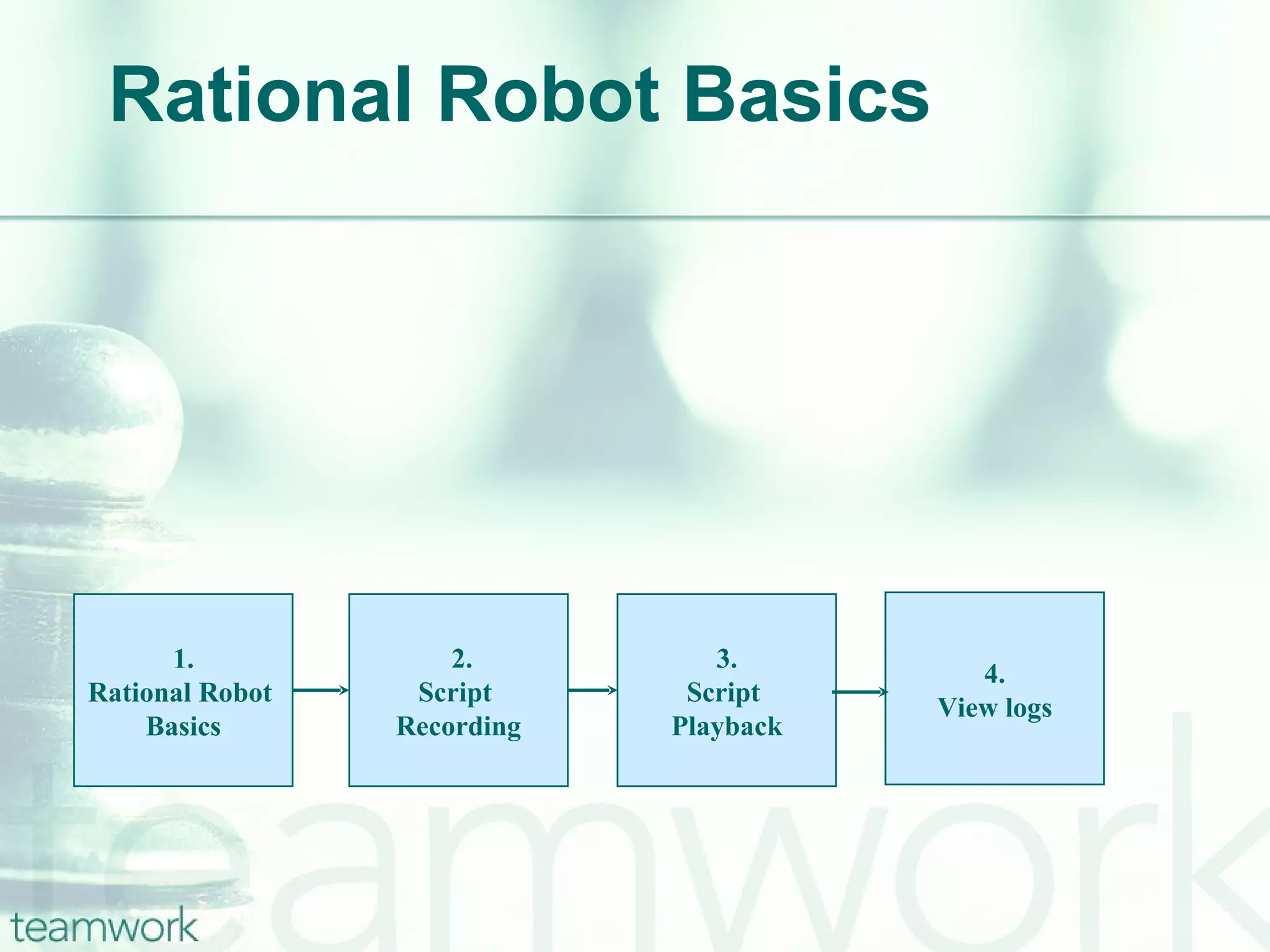

3. Rational Robot Basics 4. View logs 2. Script Recording 3. Script Playback 1. Rational Robot Basics

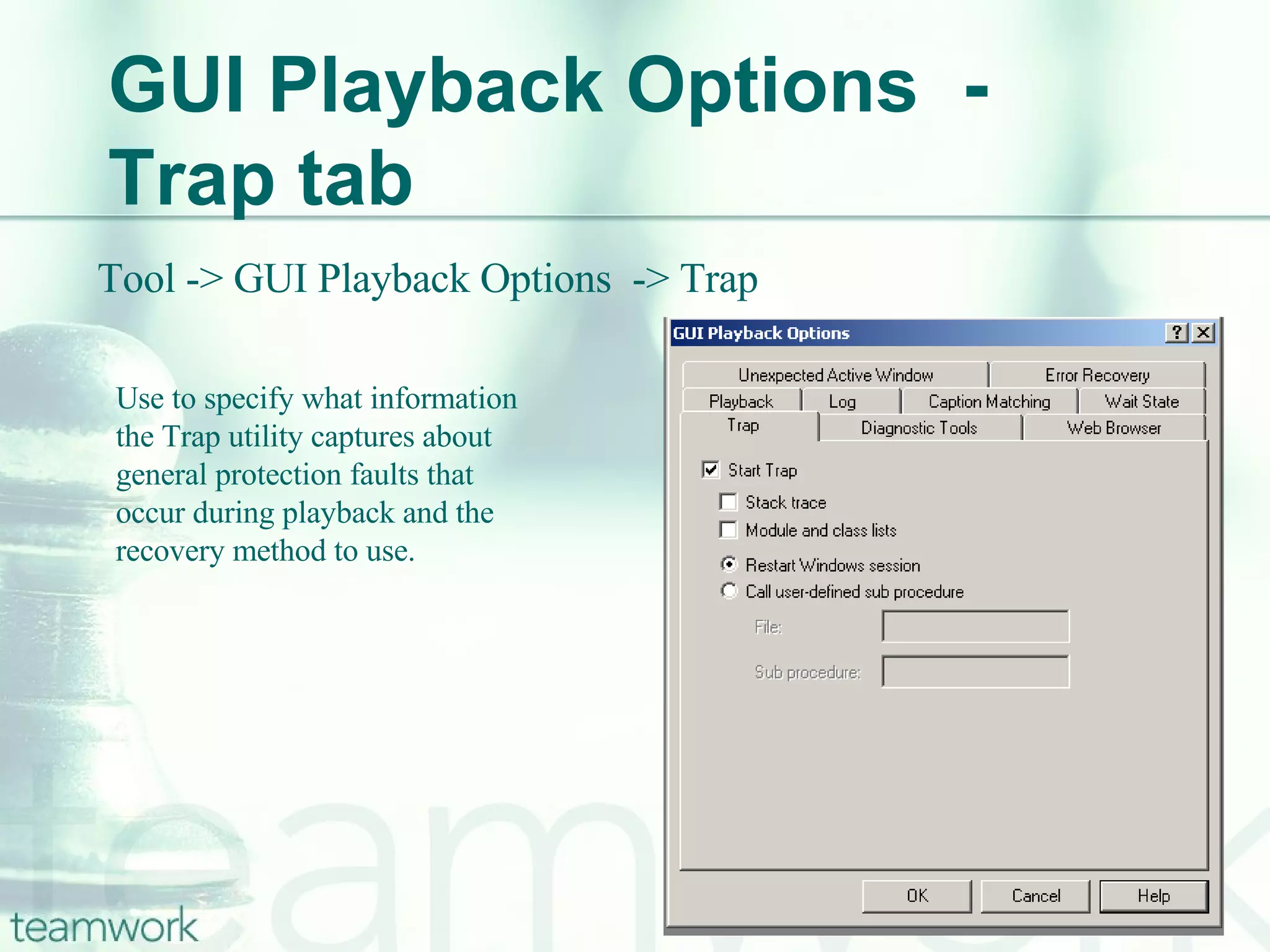

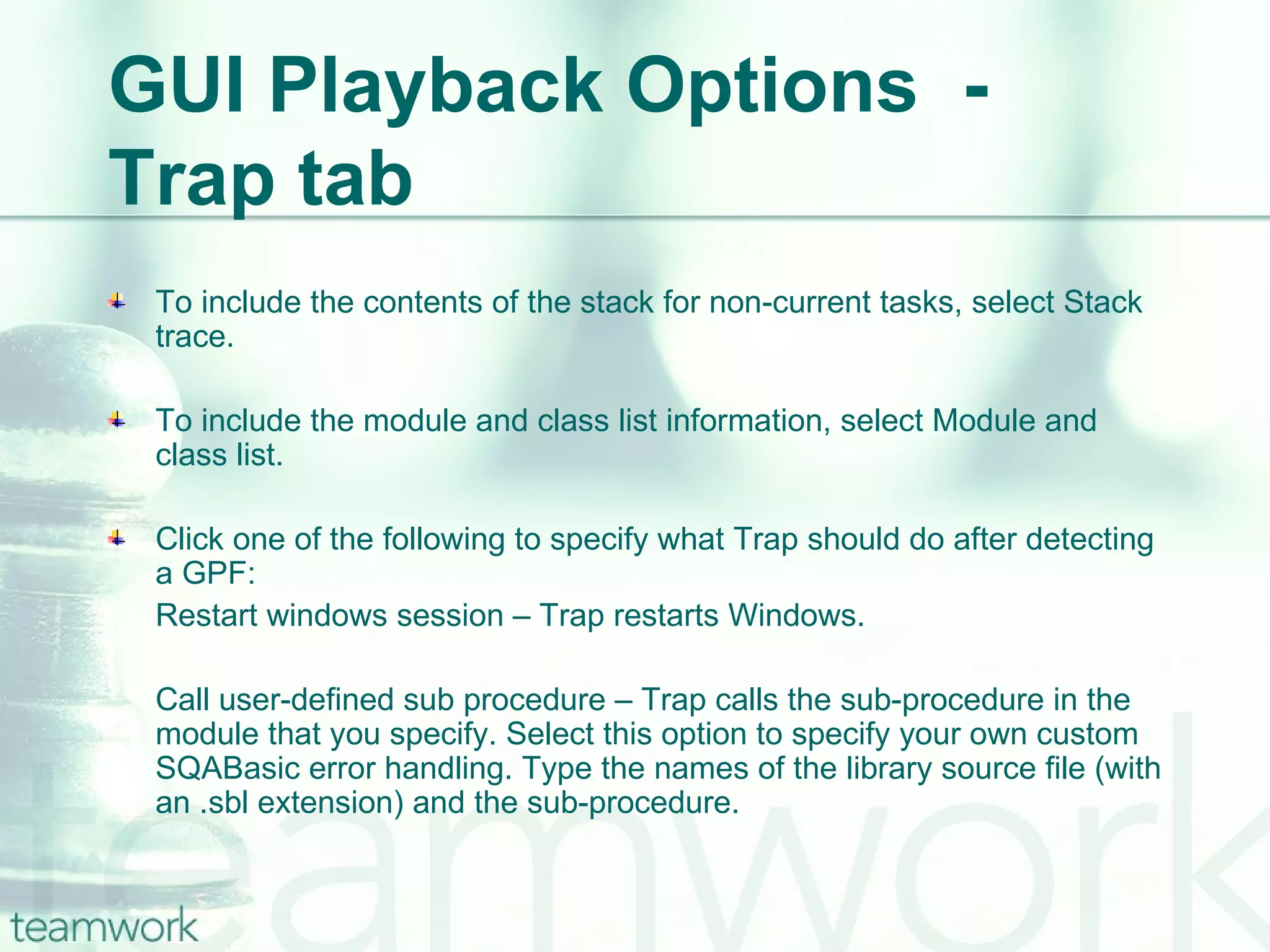

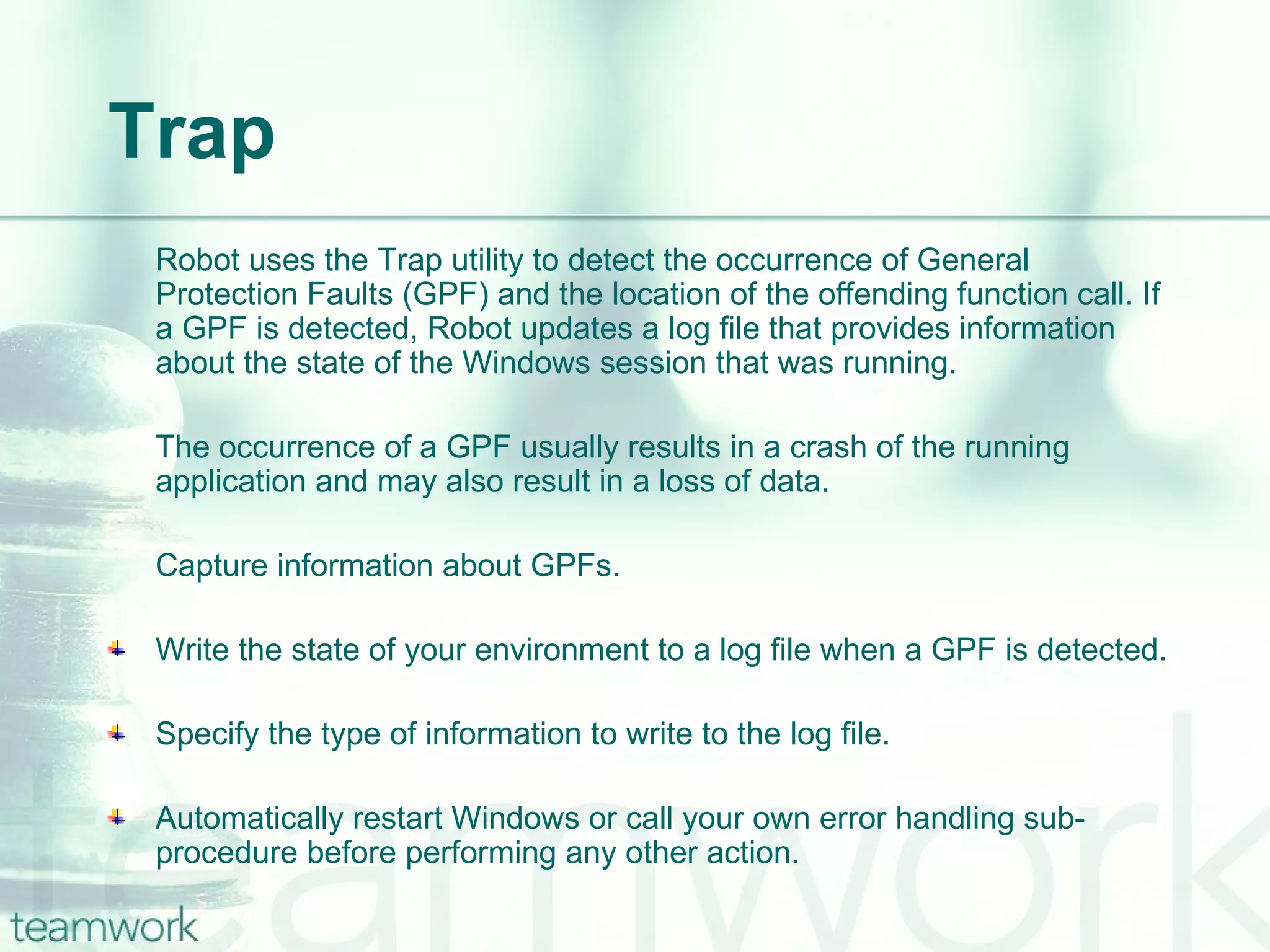

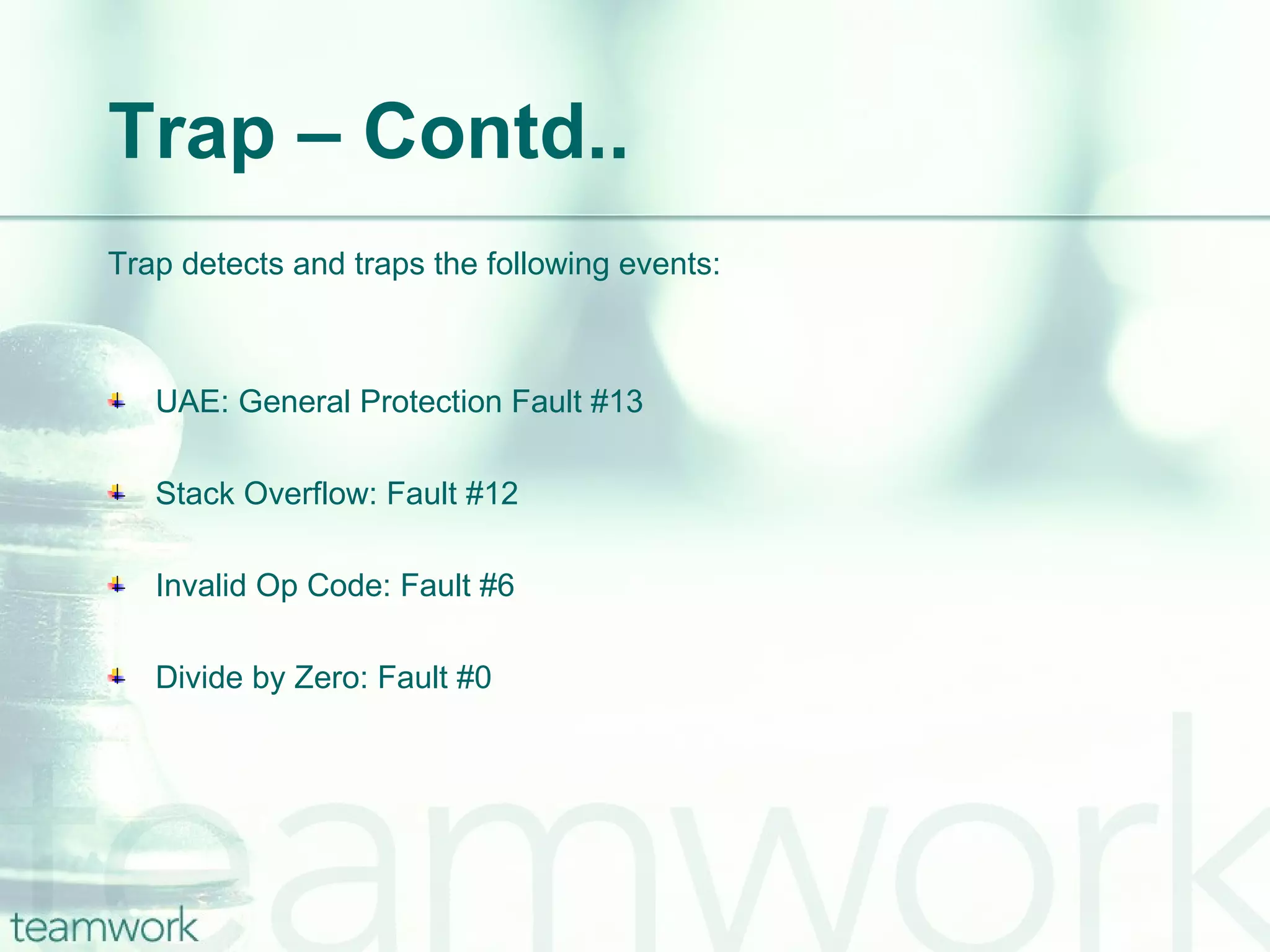

31. GUI Playback Options - Trap tab Tool -> GUI Playback Options -> Trap Use to specify what information the Trap utility captures about general protection faults that occur during playback and the recovery method to use.

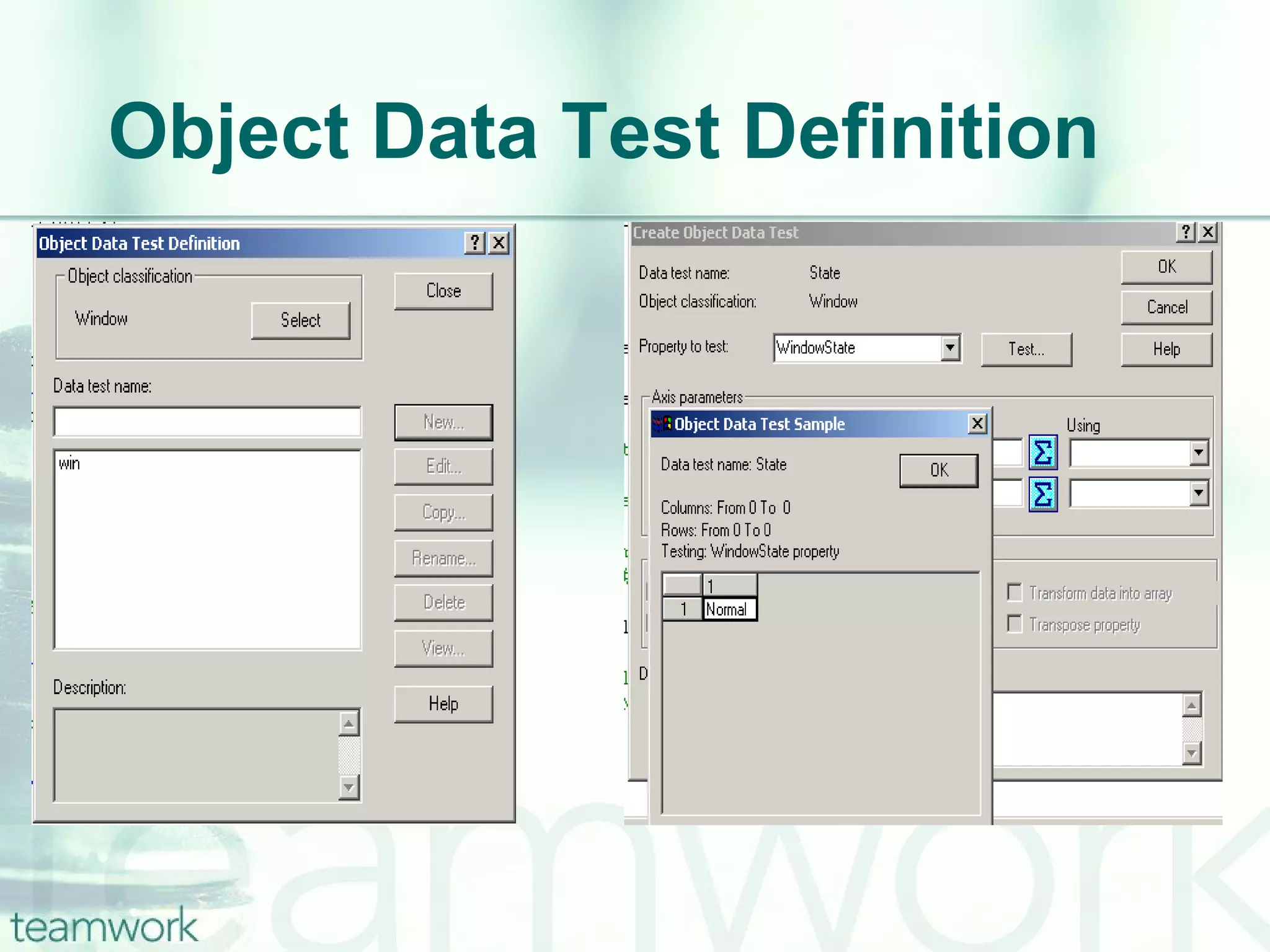

39. Object Data Test Definition

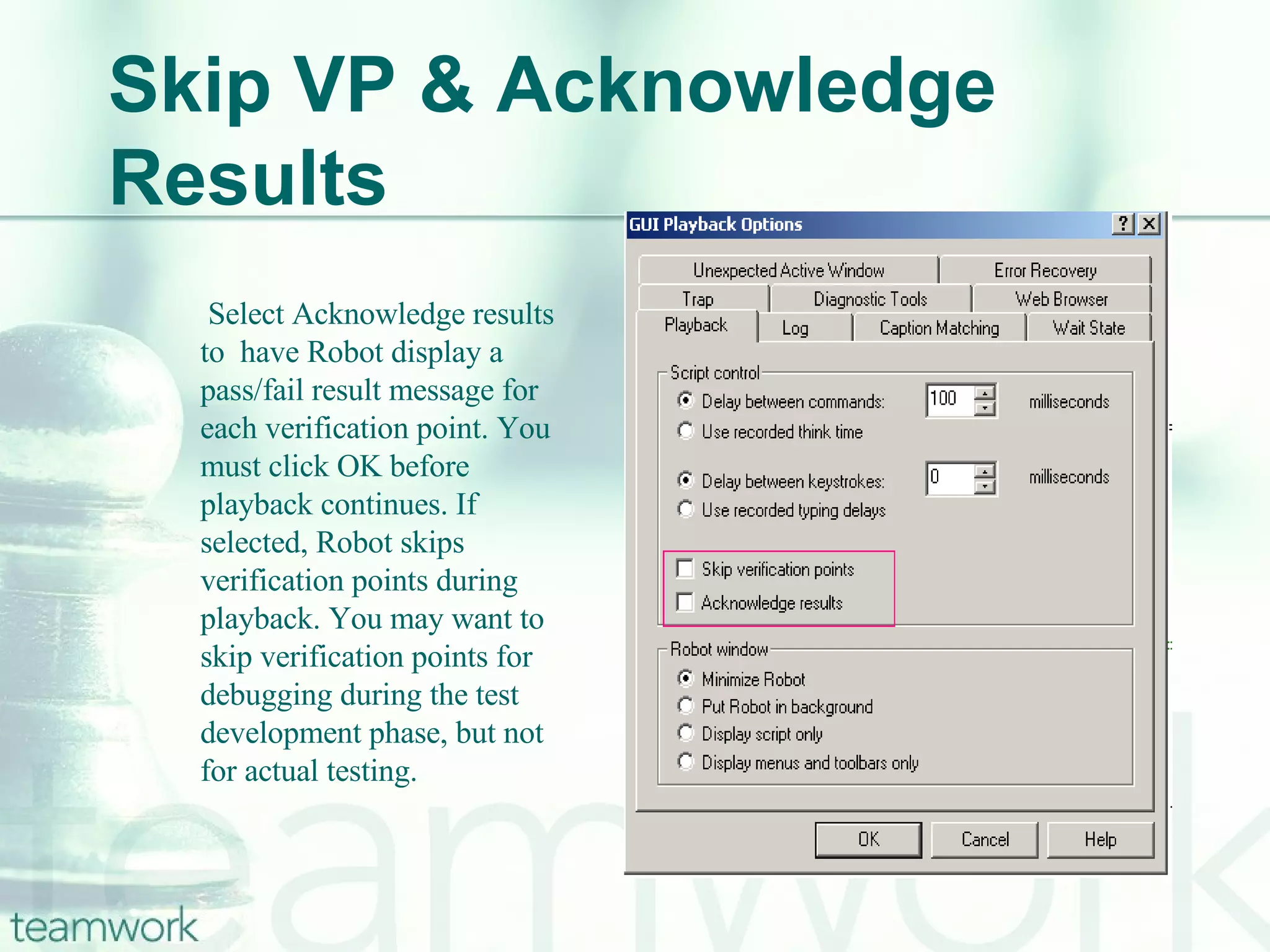

42. Skip VP & Acknowledge Results Select Acknowledge results to have Robot display a pass/fail result message for each verification point. You must click OK before playback continues. If selected, Robot skips verification points during playback. You may want to skip verification points for debugging during the test development phase, but not for actual testing.

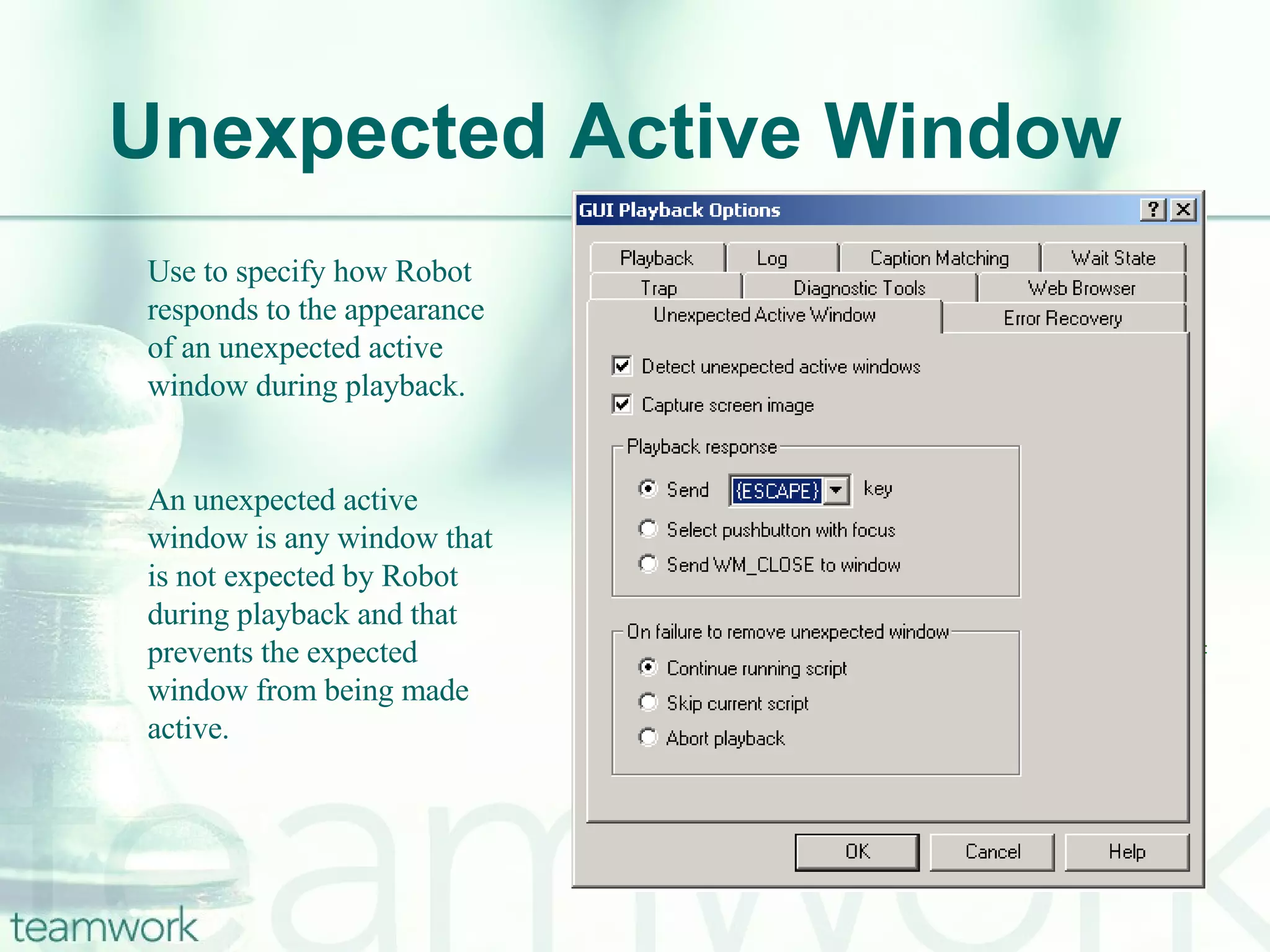

43. Unexpected Active Window Use to specify how Robot responds to the appearance of an unexpected active window during playback. An unexpected active window is any window that is not expected by Robot during playback and that prevents the expected window from being made active.

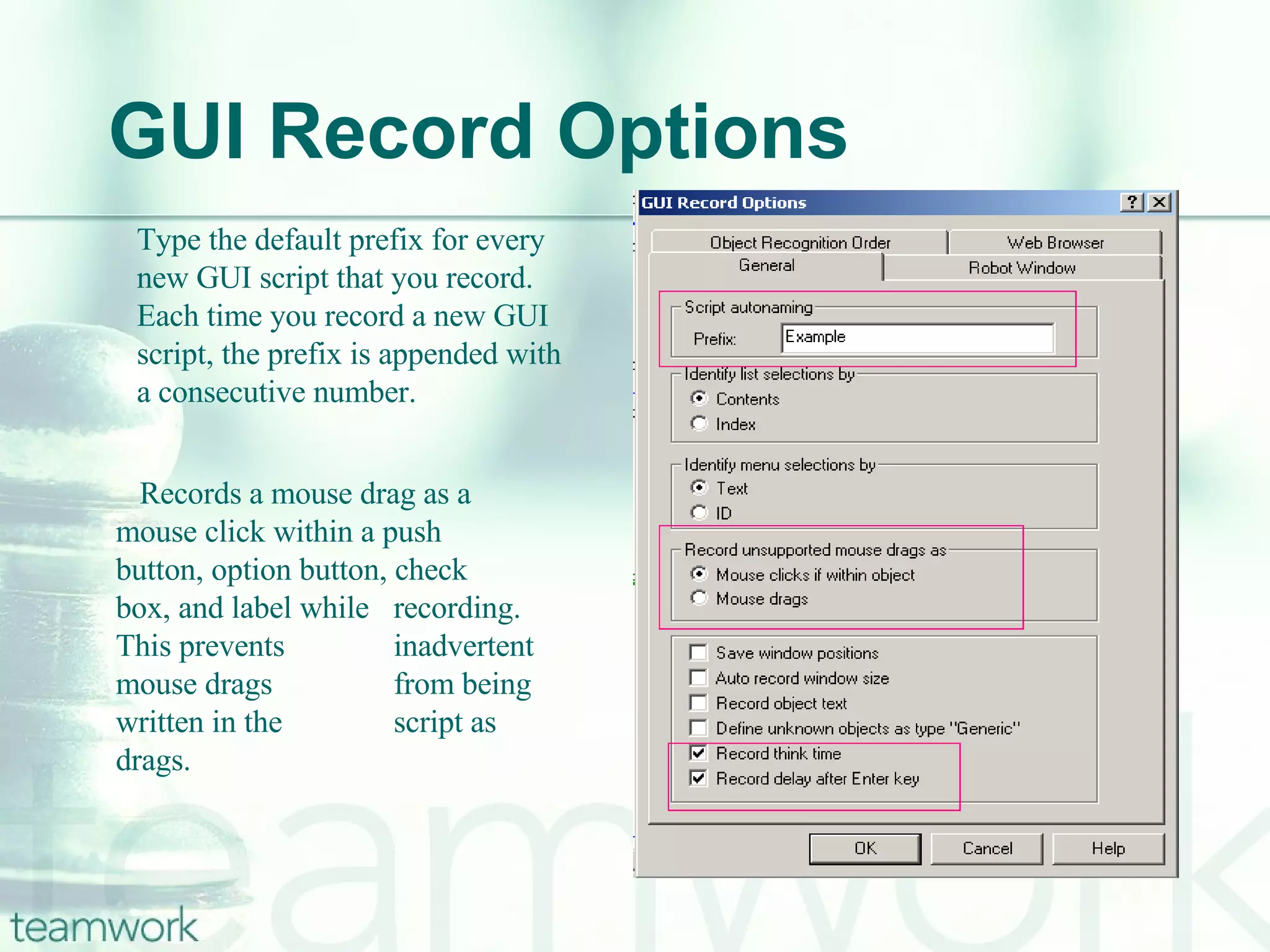

44. GUI Record Options Type the default prefix for every new GUI script that you record. Each time you record a new GUI script, the prefix is appended with a consecutive number. Records a mouse drag as a mouse click within a push button, option button, check box, and label while recording. This prevents inadvertent mouse drags from being written in the script as drags.

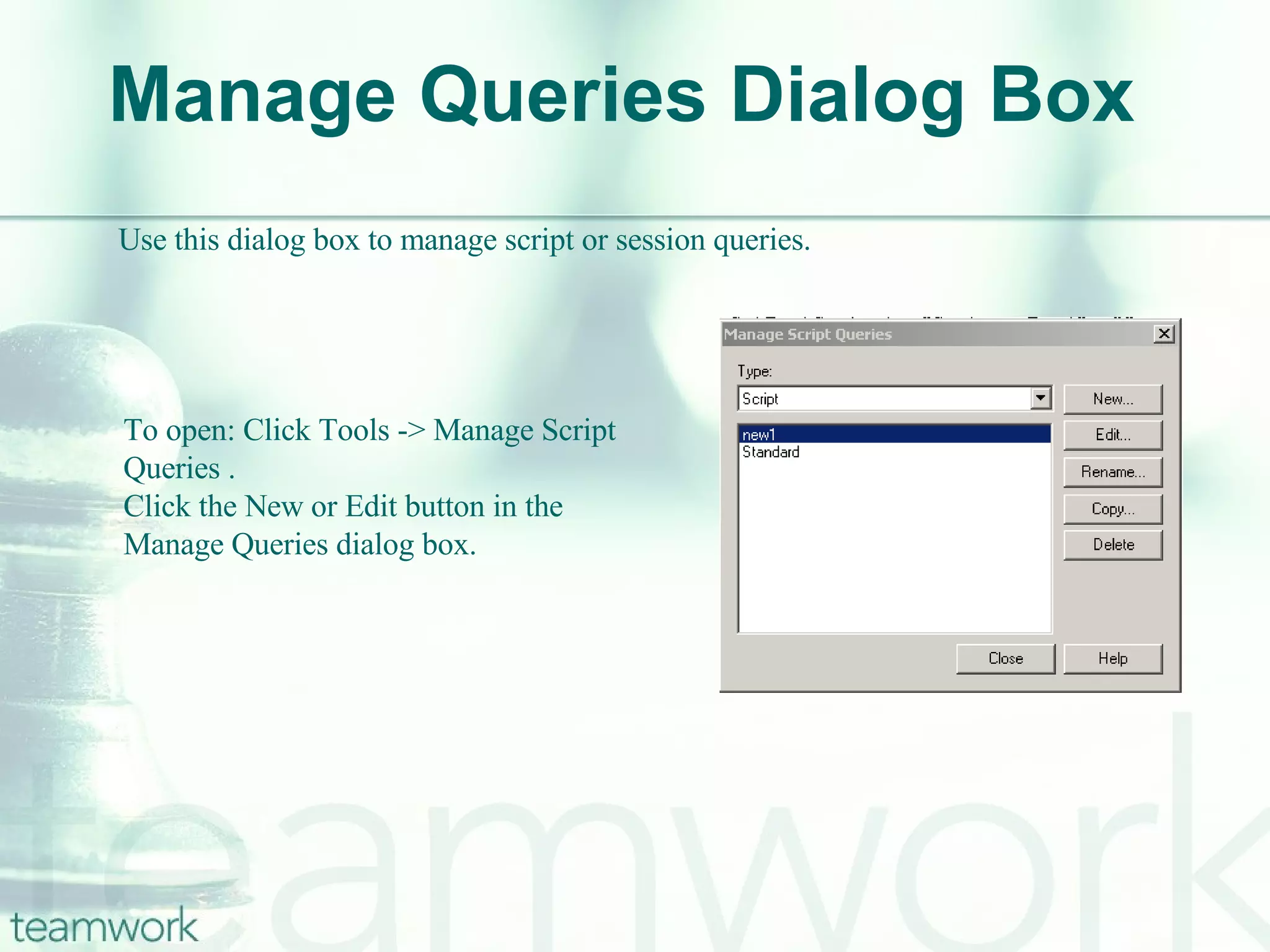

45. Manage Queries Dialog Box Use this dialog box to manage script or session queries. To open: Click Tools -> Manage Script Queries . Click the New or Edit button in the Manage Queries dialog box.

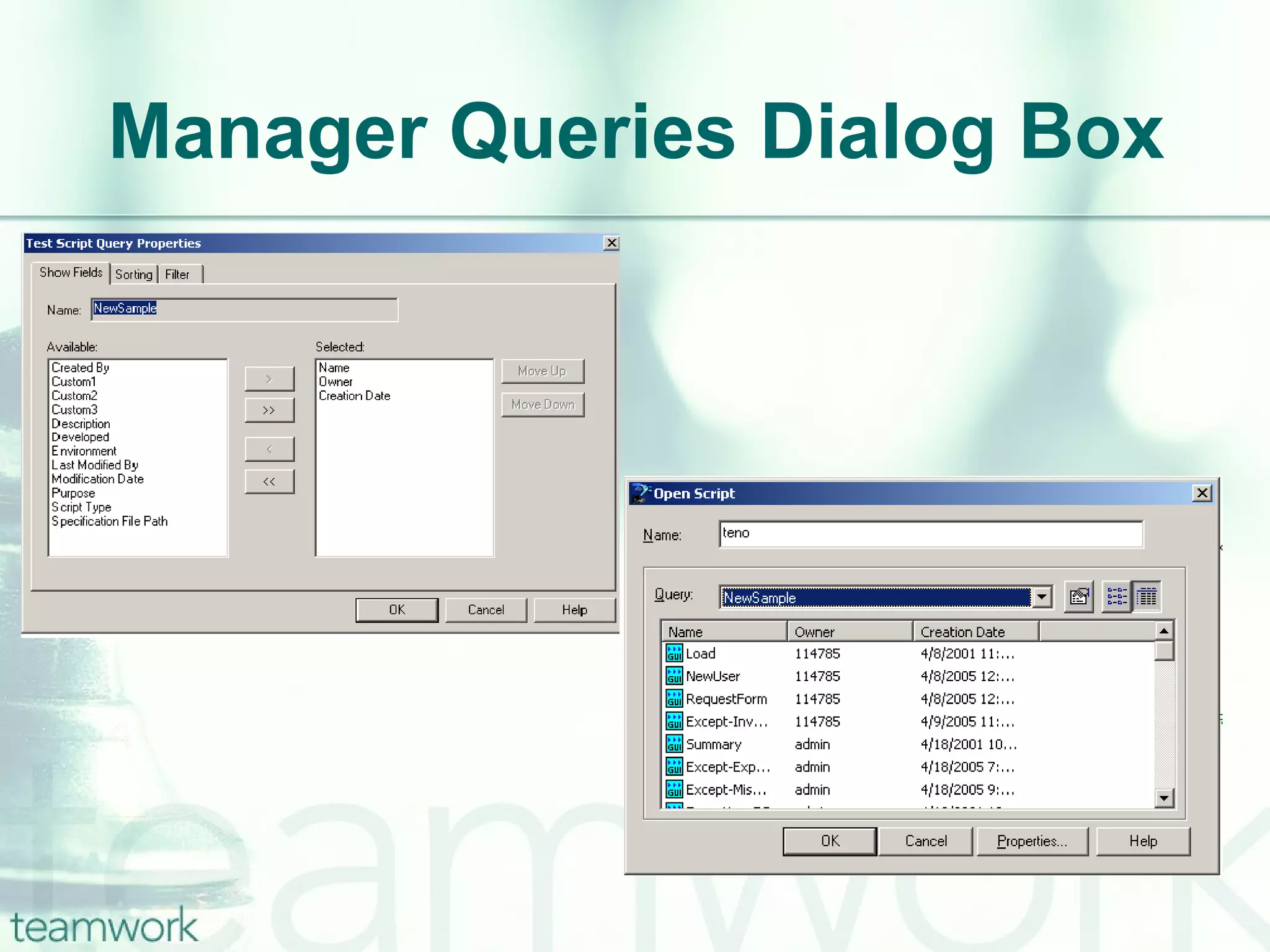

46. Manager Queries Dialog Box

57. Questions
