1. Copyright 2015 IT Professional Academy 1
Automation (QTP) Testing
Course
DAY - 5

2. Copyright 2015 IT Professional Academy 2

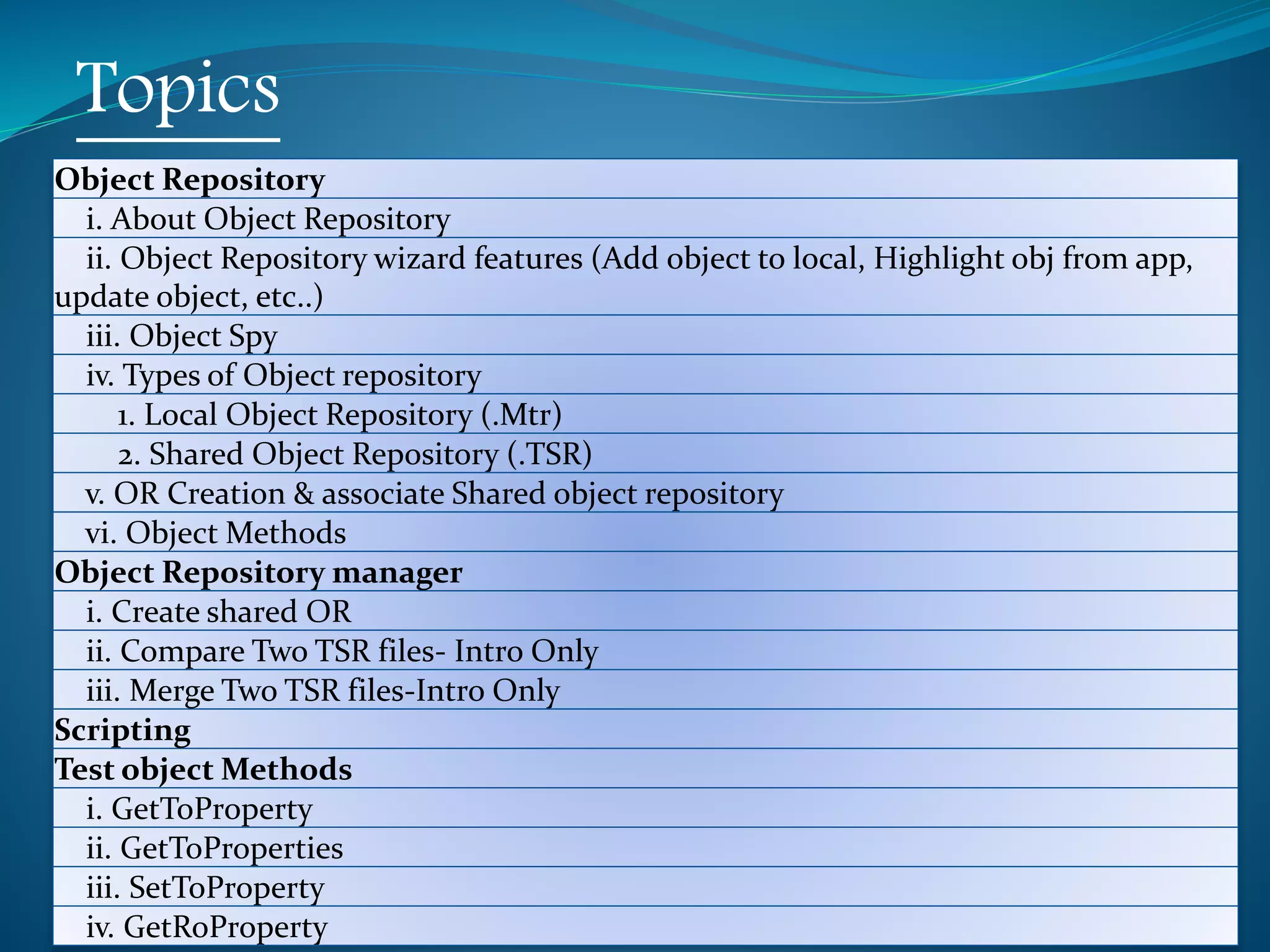

Topics
Object Repository
i. About Object Repository
ii. Object Repository wizard features (Add object to local, Highlight obj from app,
update object, etc..)
iii. Object Spy
iv. Types of Object repository
1. Local Object Repository (.Mtr)
2. Shared Object Repository (.TSR)
v. OR Creation & associate Shared object repository
vi. Object Methods
Object Repository manager
i. Create shared OR
ii. Compare Two TSR files- Intro Only
iii. Merge Two TSR files-Intro Only
Scripting
Test object Methods
i. GetToProperty
ii. GetToProperties
iii. SetToProperty
iv. GetRoProperty

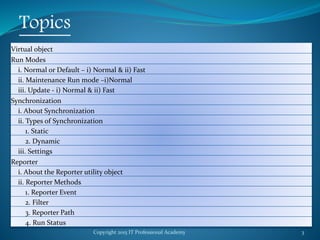

3. Copyright 2015 IT Professional Academy 3
Topics
Virtual object
Run Modes
i. Normal or Default – i) Normal & ii) Fast
ii. Maintenance Run mode –i)Normal
iii. Update - i) Normal & ii) Fast
Synchronization
i. About Synchronization
ii. Types of Synchronization
1. Static
2. Dynamic
iii. Settings
Reporter
i. About the Reporter utility object
ii. Reporter Methods
1. Reporter Event
2. Filter
3. Reporter Path
4. Run Status

4. Copyright 2015 IT Professional Academy 4
Object Repository
Object Repository
Local OR
Every Action has a
default OR called
as Local OR
Shared OR
Separate Entity.
Can be used across
multiple actions.

5. Copyright 2015 IT Professional Academy 5

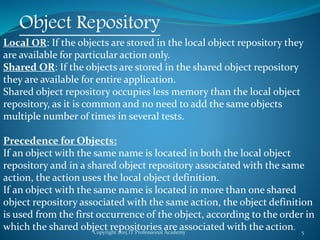

Object Repository
Local OR: If the objects are stored in the local object repository they
are available for particular action only.
Shared OR: If the objects are stored in the shared object repository
they are available for entire application.
Shared object repository occupies less memory than the local object
repository, as it is common and no need to add the same objects
multiple number of times in several tests.
Precedence for Objects:
If an object with the same name is located in both the local object
repository and in a shared object repository associated with the same
action, the action uses the local object definition.
If an object with the same name is located in more than one shared
object repository associated with the same action, the object definition
is used from the first occurrence of the object, according to the order in
which the shared object repositories are associated with the action.

6. Copyright 2015 IT Professional Academy 6
Compare and Merge OR
•Invoked from Object Manager
•Used for Comparison and Merging of Shared OR.
•Local OR can not be Compared and Merged.

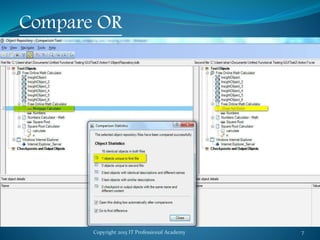

7. Copyright 2015 IT Professional Academy 7
Compare OR

8. Copyright 2015 IT Professional Academy 8

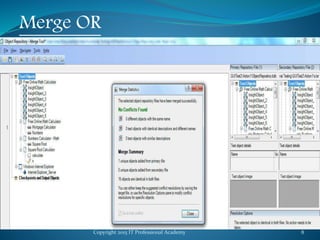

Merge OR

9. Copyright 2015 IT Professional Academy 9

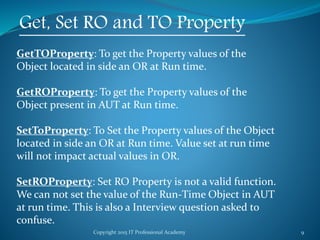

Get, Set RO and TO Property
GetTOProperty: To get the Property values of the
Object located in side an OR at Run time.
GetROProperty: To get the Property values of the
Object present in AUT at Run time.
SetToProperty: To Set the Property values of the Object
located in side an OR at Run time. Value set at run time
will not impact actual values in OR.
SetROProperty: Set RO Property is not a valid function.
We can not set the value of the Run-Time Object in AUT
at run time. This is also a Interview question asked to
confuse.

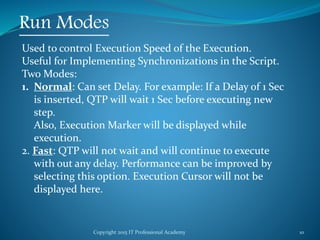

10. Copyright 2015 IT Professional Academy 10
Run Modes
Used to control Execution Speed of the Execution.
Useful for Implementing Synchronizations in the Script.
Two Modes:
1. Normal: Can set Delay. For example: If a Delay of 1 Sec
is inserted, QTP will wait 1 Sec before executing new
step.
Also, Execution Marker will be displayed while
execution.
2. Fast: QTP will not wait and will continue to execute
with out any delay. Performance can be improved by
selecting this option. Execution Cursor will not be
displayed here.

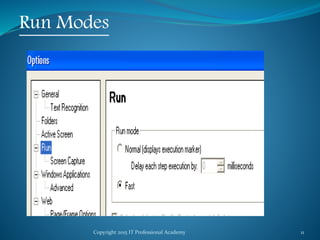

11. Copyright 2015 IT Professional Academy 11
Run Modes

12. Copyright 2015 IT Professional Academy 12
Synchronization
Synchronization is a collection of techniques to sync Scripts
based on AUT response; i.e. QTP should wait for Application
to respond before doing the next step in the script.
It is the most important thing which makes a FW robust.
There are multiple ways to insert synchronization points:
a. Browser.Page.Sync
b. Browser.Sync
c. Browser.Page.WebElement.Exist(5)
d. Browser.Page.WebElement.WaitProperty()
e. Wait(5)
f. Object Synchronization Time Out. Test->Settings->Run
g. Browser Navigation Time Out. Test->Setting->Web

13. Copyright 2015 IT Professional Academy 13

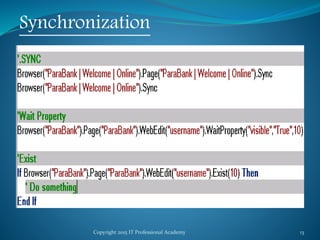

Synchronization

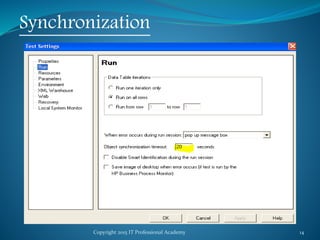

14. Copyright 2015 IT Professional Academy 14
Synchronization

15. Copyright 2015 IT Professional Academy 15

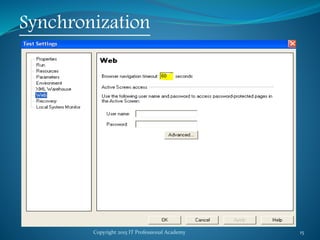

Synchronization

16. Copyright 2015 IT Professional Academy 16
Reporter
Reporter is a QTP Utility methods which is used for sending
information to the test results.
The following examples use the ReportEvent method to report a failed
step.
Reporter.ReportEvent 1, "Custom Step", "The user-defined step failed."
or
Reporter.ReportEvent micFail, "Custom Step", "The user-defined step
failed."
The following example uses the ReportEvent method to include a
captured bitmap in the test results.
Browser("Browser").Page("WebPage").Image("MyLogo").CaptureBitmap
("MyLogo.bmp")
Reporter.ReportEvent micDone, "Display Logo", "This is my logo",
"MyLogo.bmp"

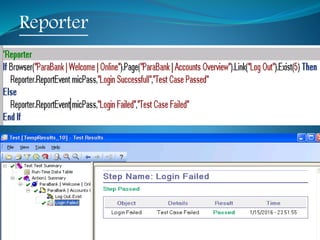

17. Copyright 2015 IT Professional Academy 17
Reporter

18. Copyright 2015 IT Professional Academy 18
Thank You
