Automation mumbai 2013 fieldbus update

1
Automation 2013 Mumbai
© 2013 Fieldbus Foundation

2

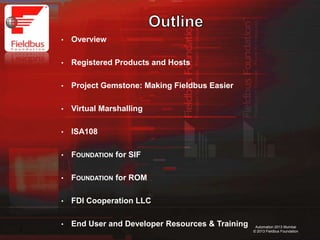

• Overview
• Registered Products and Hosts
• Project Gemstone: Making Fieldbus Easier
• Virtual Marshalling
• ISA108
• FOUNDATION for SIF
• FOUNDATION for ROM
• FDI Cooperation LLC
• End User and Developer Resources & Training

3

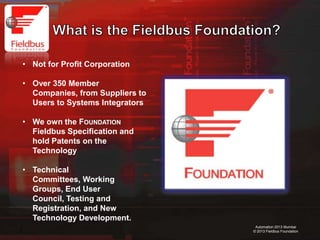

• Not for Profit Corporation
• Over 350 Member
Companies, from Suppliers to
Users to Systems Integrators
• We own the FOUNDATION
Fieldbus Specification and
hold Patents on the
Technology
• Technical
Committees, Working
Groups, End User
Council, Testing and
Registration, and New
Technology Development.

4

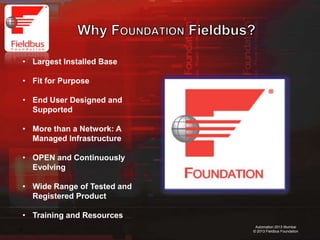

• Largest Installed Base
• Fit for Purpose
• End User Designed and
Supported
• More than a Network: A
Managed Infrastructure
• OPEN and Continuously
Evolving
• Wide Range of Tested and
Registered Product
• Training and Resources

5

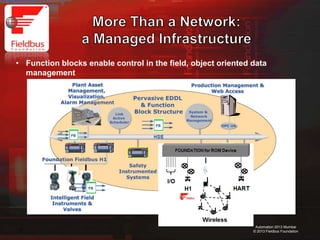

• Function blocks enable control in the field, object oriented data
management

6

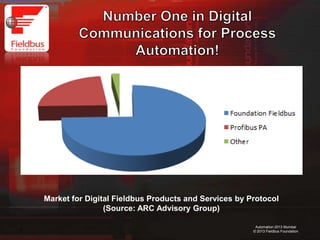

Market for Digital Fieldbus Products and Services by Protocol
(Source: ARC Advisory Group)

7

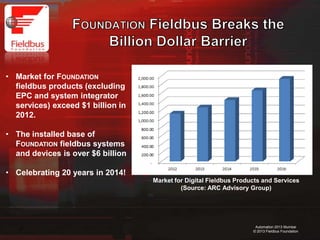

• Market for FOUNDATION
fieldbus products (excluding
EPC and system integrator
services) exceed $1 billion in
2012.
• The installed base of
FOUNDATION fieldbus systems
and devices is over $6 billion
• Celebrating 20 years in 2014!
Market for Digital Fieldbus Products and Services
(Source: ARC Advisory Group)

8

9

10

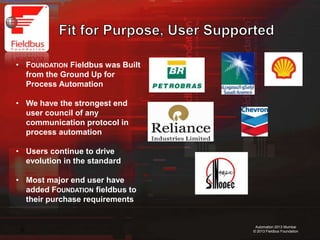

• FOUNDATION Fieldbus was Built
from the Ground Up for
Process Automation
• We have the strongest end
user council of any
communication protocol in
process automation
• Users continue to drive
evolution in the standard
• Most major end user have
added FOUNDATION fieldbus to
their purchase requirements

11

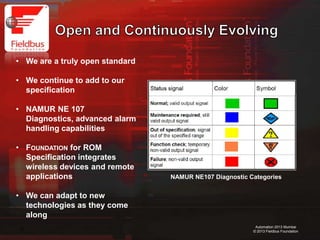

• We are a truly open standard
• We continue to add to our
specification
• NAMUR NE 107
Diagnostics, advanced alarm
handling capabilities
• FOUNDATION for ROM
Specification integrates
wireless devices and remote
applications
• We can adapt to new
technologies as they come
along
NAMUR NE107 Diagnostic Categories

12

13

14

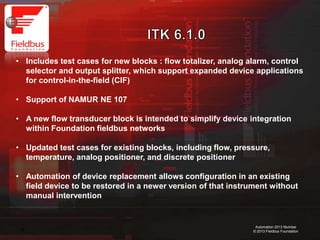

• Includes test cases for new blocks : flow totalizer, analog alarm, control
selector and output splitter, which support expanded device applications
for control-in-the-field (CIF)
• Support of NAMUR NE 107
• A new flow transducer block is intended to simplify device integration
within Foundation fieldbus networks
• Updated test cases for existing blocks, including
flow, pressure, temperature, analog positioner, and discrete positioner
• Automation of device replacement allows configuration in an existing
field device to be restored in a newer version of that instrument without
manual intervention

15

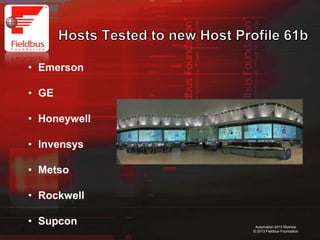

• Emerson
• GE
• Honeywell
• Invensys
• Metso
• Rockwell
• Supcon

16

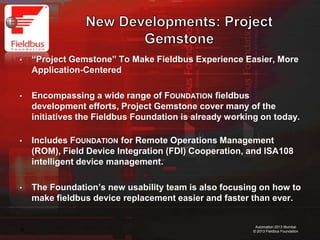

• “Project Gemstone” To Make Fieldbus Experience Easier, More
Application-Centered
• Encompassing a wide range of FOUNDATION fieldbus
development efforts, Project Gemstone cover many of the
initiatives the Fieldbus Foundation is already working on today.
• Includes FOUNDATION for Remote Operations Management
(ROM), Field Device Integration (FDI) Cooperation, and ISA108
intelligent device management.
• The Foundation’s new usability team is also focusing on how to
make fieldbus device replacement easier and faster than ever.

17

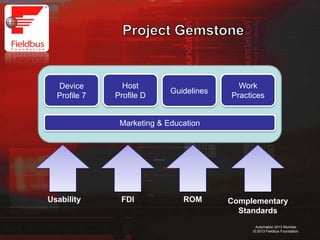

Device
Profile 7
Host
Profile D
FDI
Work
Practices
Guidelines
Marketing & Education
Usability ROM Complementary
Standards

18

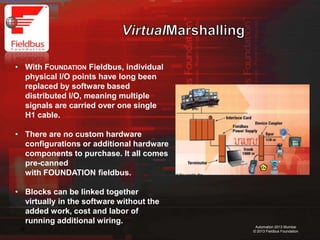

• With FOUNDATION Fieldbus, individual
physical I/O points have long been
replaced by software based
distributed I/O, meaning multiple
signals are carried over one single
H1 cable.
• There are no custom hardware
configurations or additional hardware
components to purchase. It all comes
pre-canned
with FOUNDATION fieldbus.
• Blocks can be linked together
virtually in the software without the
added work, cost and labor of
running additional wiring.

19

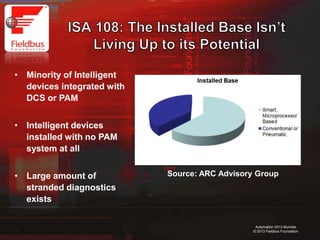

Source: ARC Advisory Group
• Minority of Intelligent
devices integrated with
DCS or PAM
• Intelligent devices
installed with no PAM
system at all
• Large amount of
stranded diagnostics
exists

20

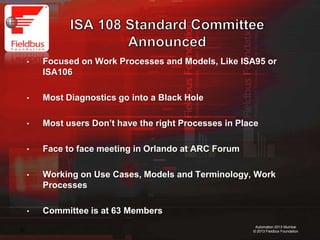

• Focused on Work Processes and Models, Like ISA95 or
ISA106
• Most Diagnostics go into a Black Hole
• Most users Don’t have the right Processes in Place
• Face to face meeting in Orlando at ARC Forum
• Working on Use Cases, Models and Terminology, Work
Processes
• Committee is at 63 Members

21

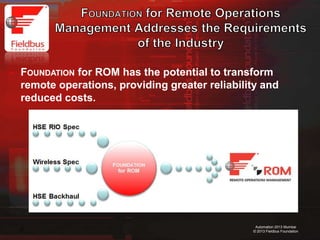

• FOUNDATION for ROM has the potential to transform
remote operations, providing greater reliability and
reduced costs.

22
• H1 Communication (Black Channel) is unchanged.
• SIF protocol detects network faults and appropriate action is
taken.
• New SIF Function Blocks (AI, DO, DI, Write Lock).
• Function Block diagnostics detect application faults and
appropriate action is taken.

23

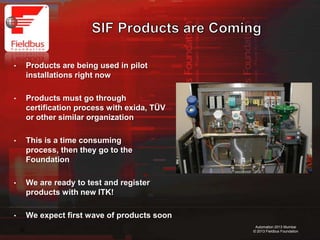

• Products are being used in pilot
installations right now
• Products must go through
certification process with exida, TÜV
or other similar organization
• This is a time consuming process,
then they go to the Foundation
• We are ready to test and register
products with new ITK!
• We expect first wave of products soon

24

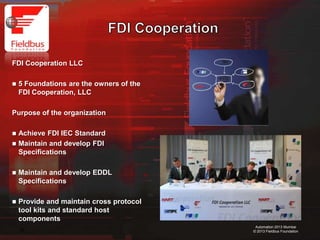

FDI Cooperation LLC
 5 Foundations are the owners of the
FDI Cooperation, LLC
Purpose of the organization
 Achieve FDI IEC Standard
 Maintain and develop FDI
Specifications
 Maintain and develop EDDL
Specifications
 Provide and maintain cross protocol
tool kits and standard host
components

25

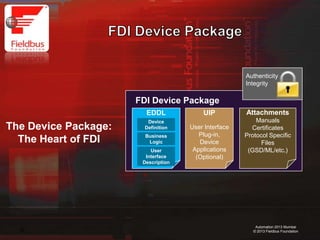

The Device Package:
The Heart of FDI
EDDL
Device
Definition
Business
Logic
User
Interface
Description
UIP
User Interface
Plug-in,
Device
Applications
(Optional)
Attachments
Manuals
Certificates
Protocol Specific
Files
(GSD/ML/etc.)
FDI Device Package
Authenticity
Integrity

26

27

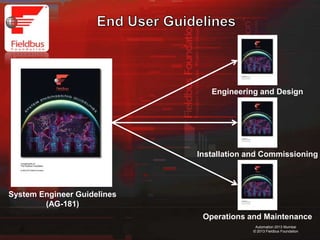

System Engineer Guidelines
(AG-181)
Engineering and Design
Installation and Commissioning
Operations and Maintenance

28

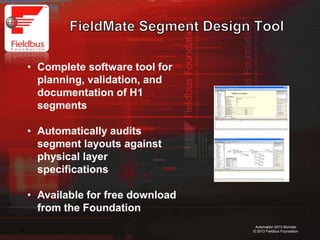

• Complete software tool for
planning, validation, and
documentation of H1
segments
• Automatically audits
segment layouts against
physical layer
specifications
• Available for free download
from the Foundation

29
Regions Areas Covered
Americas
americas_euc@fieldbus.org
South America
United States
Western Canada
Europe/Middle East/Africa
emea_euc@fieldbus.org
Europe
Middle East
Africa
Asia/Pacific
asia_euc@fieldbus.org China
Japan
Singapore
India
Oceania
oceania_euc@fieldbus.org
Australia
New Zealand

30

31

32

33

34

35

36

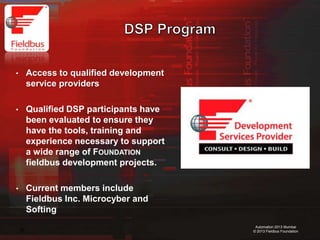

• Access to qualified development
service providers
• Qualified DSP participants have
been evaluated to ensure they
have the tools, training and
experience necessary to support
a wide range of FOUNDATION
fieldbus development projects.
• Current members include
Fieldbus Inc. Microcyber and
Softing

37

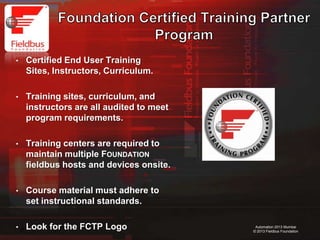

• Certified End User Training
Sites, Instructors, Curriculum.
• Training sites, curriculum, and
instructors are all audited to meet
program requirements.
• Training centers are required to
maintain multiple FOUNDATION
fieldbus hosts and devices onsite.
• Course material must adhere to
set instructional standards.
• Look for the FCTP Logo

38

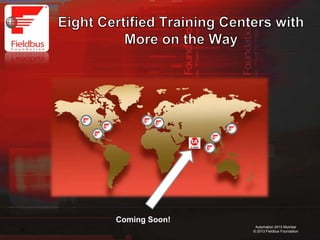

Coming Soon!

39
