- 1. 1 Março 2012 © 1994– 2011 Fieldbus Foundation Interoperable ROM DCS Integration Libanio de Souza (Smar DCS Integration Leader)
- 2. 2 Março 2012 © 1994– 2011 Fieldbus Foundation Start Point DCS system with H1 and Profibus Equipment integrated with Smar DFI302 controllers and Smar I/O cards.
- 3. 3 Março 2012 © 1994– 2011 Fieldbus Foundation Final Solution : Interoperable ROM DCS Integration DCS system with H1 and Profibus Equipment integrated with Smar DFI302 controllers and Smar I/O cards + Wireless Hart; ISA - SP100 Devices; H1 devices; conventional devices; ROM devices from diferrent manufactures.

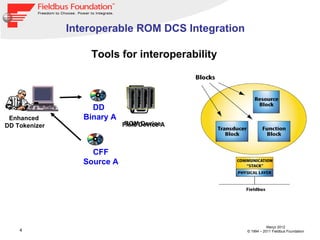

- 4. 4 Março 2012 © 1994– 2011 Fieldbus Foundation Tools for interoperability Field Device A Enhanced DD Tokenizer DD Binary A CFF Source A Interoperable ROM DCS Integration ROM Device

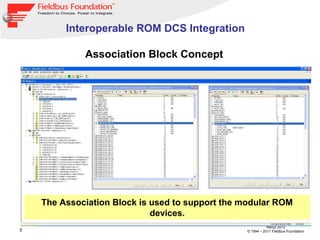

- 5. 5 Março 2012 © 1994– 2011 Fieldbus Foundation Association Block Concept The Association Block is used to support the modular ROM devices. Interoperable ROM DCS Integration
- 6. 6 Março 2012 © 1994– 2011 Fieldbus Foundation Association Block Concept Standardization Without loosing flexibility to describe different hardwares Smar DF302 ROM device Rack/ Slot Interoperable ROM DCS Integration

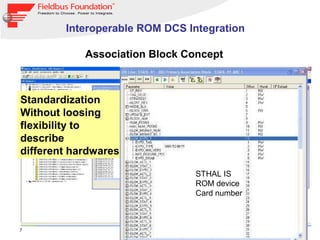

- 7. 7 Março 2012 © 1994– 2011 Fieldbus Foundation Association Block Concept Standardization Without loosing flexibility to describe different hardwares STHAL IS ROM device Card number Interoperable ROM DCS Integration

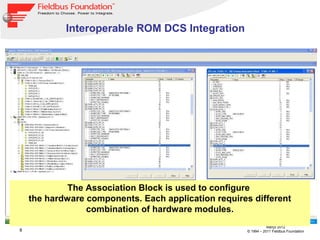

- 8. 8 Março 2012 © 1994– 2011 Fieldbus Foundation The Association Block is used to configure the hardware components. Each application requires different combination of hardware modules. Interoperable ROM DCS Integration
- 9. 9 Março 2012 © 1994– 2011 Fieldbus Foundation The Association Block is also used to monitoring the actual installed hardware components. Expected/Actual/Status per hardware component. Interoperable ROM DCS Integration

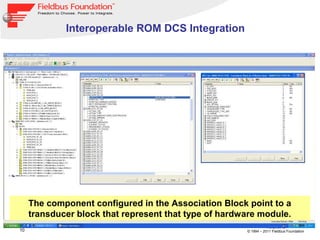

- 10. 10 Março 2012 © 1994– 2011 Fieldbus Foundation The component configured in the Association Block point to a transducer block that represent that type of hardware module. Interoperable ROM DCS Integration

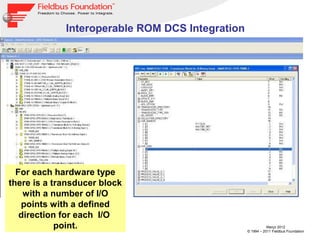

- 11. 11 Março 2012 © 1994– 2011 Fieldbus Foundation For each hardware type there is a transducer block with a number of I/O points with a defined direction for each I/O point. Interoperable ROM DCS Integration

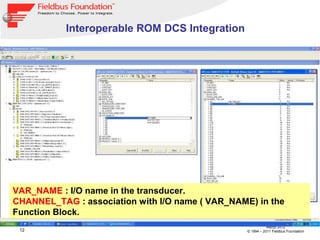

- 12. 12 Março 2012 © 1994– 2011 Fieldbus Foundation VAR_NAME : I/O name in the transducer. CHANNEL_TAG : association with I/O name ( VAR_NAME) in the Function Block. Interoperable ROM DCS Integration

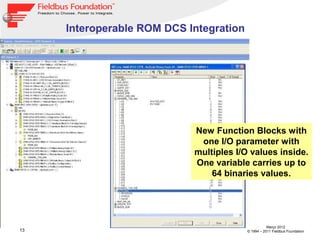

- 13. 13 Março 2012 © 1994– 2011 Fieldbus Foundation New Function Blocks with one I/O parameter with multiples I/O values inside. One variable carries up to 64 binaries values. Interoperable ROM DCS Integration
- 14. 14 Março 2012 © 1994– 2011 Fieldbus Foundation MAI_16 and MAO_16 for multiples analog values Interoperable ROM DCS Integration

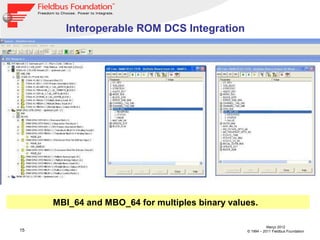

- 15. 15 Março 2012 © 1994– 2011 Fieldbus Foundation Interoperable ROM DCS Integration MBI_64 and MBO_64 for multiples binary values.

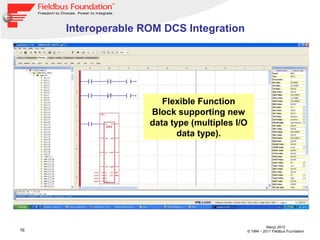

- 16. 16 Março 2012 © 1994– 2011 Fieldbus Foundation Interoperable ROM DCS Integration Flexible Function Block supporting new data type (multiples I/O data type).

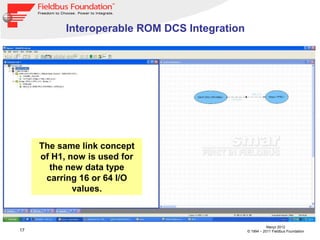

- 17. 17 Março 2012 © 1994– 2011 Fieldbus Foundation Interoperable ROM DCS Integration The same link concept of H1, now is used for the new data type carring 16 or 64 I/O values.
