1. Property of Schneider Electric |
Magelis Basic HMI Briefing
Simply reliable. Simply available.
December 2017

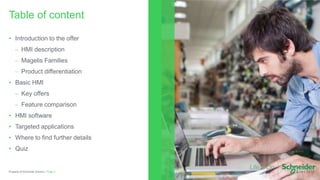

2. • Introduction to the offer
 HMI description
 Magelis Families
 Product differentiation
• Basic HMI
 Key offers
 Feature comparison
• HMI software
• Targeted applications
• Where to find further details
• Quiz
Table of content
Page 2Property of Schneider Electric |

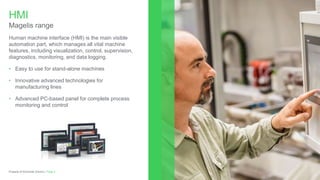

3. Human machine interface (HMI) is the main visible
automation part, which manages all vital machine
features, including visualization, control, supervision,
diagnostics, monitoring, and data logging.
• Easy to use for stand-alone machines
• Innovative advanced technologies for
manufacturing lines
• Advanced PC-based panel for complete process
monitoring and control
HMI
Magelis range
Page 3Property of Schneider Electric |

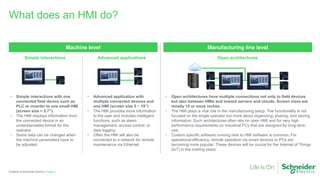

4. • Open architectures have multiple connections not only to field devices
but also between HMIs and toward servers and clouds. Screen sizes are
mostly 10 or more inches.
• The HMI plays a vital role in the manufacturing setup. The functionality is not
focused on the single operator but more about organizing, sharing, and storing
information. Such architectures often rely on open HMI and for very high
performance requirements on industrial PCs that are designed for long-term
use.
• Custom specific software running next to HMI software is common. For
operational efficiency, remote operation via smart devices or PCs are
becoming more popular. These devices will be crucial for the Internet of Things
(IoT) in the coming years.
• Simple interactions with one
connected field device such as
PLC or inverter to one small HMI
(screen size < 5.7”).
• The HMI displays information from
the connected device in an
understandable format for the
operator.
• Some data can be changed when
the machine parameters have to
be adjusted.
What does an HMI do?
Page 4Property of Schneider Electric |
Manufacturing line levelMachine level
Simple interactions Open architectures
• Advanced application with
multiple connected devices and
one HMI (screen size 5 ~ 19”)
• The HMI provides more information
to the user and includes intelligent
functions, such as alarm
management, access control, or
data logging.
• Often the HMI will also be
connected to a network for remote
maintenance via Ethernet.
Advanced applications

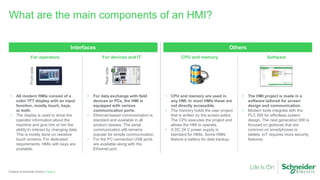

5. What are the main components of an HMI?
Page 5Property of Schneider Electric |
OthersInterfaces
• All modern HMIs consist of a
color TFT display with an input
function, mostly touch, keys,
or both.
• The display is used to show the
operator information about the
machine and give him or her the
ability to interact by changing data.
This is mostly done on resistive
touch screens. For dedicated
requirements, HMIs with keys are
available.
For operators
• For data exchange with field
devices or PCs, the HMI is
equipped with various
communication ports.
• Ethernet-based communication is
standard and available in all
product classes. The serial
communication still remains
popular for simple communication.
• For the PC connection USB ports
are available along with the
Ethernet port.
For devices and IT
• CPU and memory are used in
any HMI. In most HMIs these are
not directly accessible.
• The memory holds the user project
that is written by the screen editor.
The CPU executes the project and
allows the HMI to operate.
• A DC 24 V power supply is
standard for HMIs. Some HMIs
feature a battery for data backup.
CPU and memory
• The HMI project is made in a
software tailored for screen
design and communication.
• Modern tools integrate with the
PLC SW for effortless system
design. The next generation SW is
focused on gestures that are
common on smartphones or
tablets. IoT requires more security
features.
Software
Frontside
Rearside

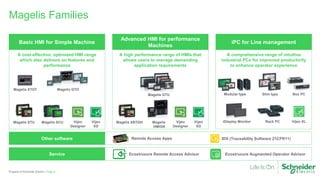

6. Magelis Families
Page 6Property of Schneider Electric |
Basic HMI for Simple Machine
Other software
Service
Advanced HMI for performance
Machines
iPC for Line management
A cost-effective, optimized HMI range
which also delivers on features and
performance
A high performance range of HMIs that
allows users to manage demanding
application requirements
A comprehensive range of intuitive
industrial PCs for improved productivity
to enhance operator experience
Remote Access Apps IDS (Traceability Software 21CFR11)
Ecostruxure Remote Access Advisor Ecostruxure Augmented Operator Advisor
Magelis GTOMagelis STO7
Magelis STU Magelis SCU Vijeo
Designer
Vijeo
XD
Magelis GTU
Magelis XBTGH Magelis
HMIGK
Modular type Slim type Box PC
iDisplay Monitor Rack PC Vijeo XLVijeo
Designer
Vijeo
XD

7. • Graphic Operator Panel + Control
• Ø 22mm mounting system
• Space saving
• Modular type
• Ø 22mm mounting system
• Space saving
• Selectable interface makes cost
efficacy
• Compact but High resolution
• Easy upgrade from 3” mono
• All models employ 65,536-color TFT LCDs
• Ethernet standard equipment
• Stainless Steel models
• Analog touch Screen
Product Differentiation
Property of Schneider Electric |
Simple
Machines
Standard HMI
Magelis GTO
Compact color HMI
Magelis STO7
Cut-out free HMI Cut-out free HMI controller
Magelis STU Magelis SCU
Basic
HMI
Screen size 3.5”, 5.7”Screen size 3.5”, 5.7”Screen size W4.3”Screen size 3.5”, 5.7”, W7”, 10”,12”
• Hand-held Panel
• Mobility
• Safety with emergency stop button
• Display with keyboard
• Fine control inputs even in severe
environment
• Visualization efficiency: Industrial multitouch screens, extra high quality images, new wide format and
big sizes.
• Flexibility for all architecture: Free combination of Box and Display modules, high communication level,
wireless Display
• Easy maintenance: Removable storage units, front USB ports, robust panel IP67Performance
Machines
The high performance modular HMI
Magelis GTU
Keyboard HMI Hand-held panel
Magelis HMIGK XBT GH
Advanced
HMI
Screen size 5.7”Screen size 5.7”, 10.4”Screen size W7”, 10”,W10, 12”, W12”, 15”, W15”, W19”
• Industrial Monitors• For control room• For repetitive machines requiring
the Windows
Line
management
S-Box PC Rack PC iDisplayIPC
• Simple all-in-one
design
S-panel PC
• Universal and
Performance Box,
Display and Panel PC
Modular PC
HMIPSO/HMIPSP/HMIPEP
AtomCore i3
HMIBMU/HMIBMP
AtomCeleron
Core i7
<Temperature>
operation: 0...60 °C
Storage: -40...85 °C
<vibration resistance>
1.75 mm (f = 2...9 Hz)
0.5 gn (f = 9...200 Hz)
HMIBSO/HMIBSU
Atom
<Temperature>
operation: 0...40 °C
Storage: -20...60 °C
<vibration resistance>
0.002 g²/Hz (f = 5...500 Hz)
2 gn (f = 5...500 Hz)
HMIR●O/HMIRSU/HMIRSP
Core G850 Core i3 Xeon
<Temperature>
operation: 0...60 °C
Storage: -20...60 °C
<vibration resistance>
3.5 mm constant amplitude (f = 5...9 Hz)
9.8 m/s² (f = 9...150 Hz)
Screen size 12”, 15”HMIDID
Page 7

8. Basic HMI
Page 8Property of Schneider Electric |

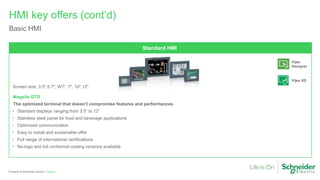

9. Magelis GTO
The optimized terminal that doesn’t compromise features and performances
• Standard displays ranging from 3.5” to 12”
• Stainless steel panel for food and beverage applications
• Optimized communication
• Easy to install and sustainable offer
• Full range of international certifications
• No-logo and full conformal coating versions available
HMI key offers (cont’d)
Basic HMI
Page 9Property of Schneider Electric |
Standard HMI
Screen size: 3.5",5.7", W7“, 7", 10",12"
Vijeo XD
Vijeo
Designer

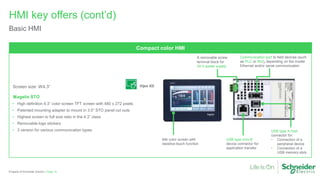

10. Magelis STO
• High definition 4.3” color screen TFT screen with 480 x 272 pixels
• Patented mounting adapter to mount in 3.5” STO panel cut outs
• Highest screen to full size ratio in the 4.3” class
• Removable logo stickers
• 3 version for various communication types
HMI key offers (cont’d)
Basic HMI
Page 10Property of Schneider Electric |
Vijeo XDScreen size: W4.3”
64k color screen with
resistive touch function
USB type A host
connector for:
• Connection of a
peripheral device
• Connection of a
USB memory stick
USB type mini-B
device connector for
application transfer
Communication port to field devices (such
as PLC or INV), depending on the model:
Ethernet and/or serial communication
A removable screw
terminal block for
24 V power supply
Compact color HMI

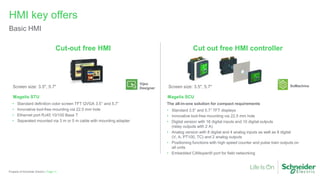

11. HMI key offers
Basic HMI
Page 11Property of Schneider Electric |
Cut out free HMI controllerCut-out free HMI
Vijeo
DesignerScreen size: 3.5", 5.7" Screen size: 3.5", 5.7" SoMachine
Magelis STU
• Standard definition color screen TFT QVGA 3.5’’ and 5.7”
• Innovative tool-free mounting via 22.5 mm hole
• Ethernet port RJ45 10/100 Base T
• Separated mounted via 3 m or 5 m cable with mounting adapter
Magelis SCU
The all-in-one solution for compact requirements
• Standard 3.5” and 5.7” TFT displays
• Innovative tool-free mounting via 22.5 mm hole
• Digital version with 16 digital inputs and 10 digital outputs
(relay outputs with 2 A)
• Analog version with 8 digital and 4 analog inputs as well as 8 digital
(V, A, PT100, TC) and 2 analog outputs
• Positioning functions with high speed counter and pulse train outputs on
all units
• Embedded CANopen® port for field networking

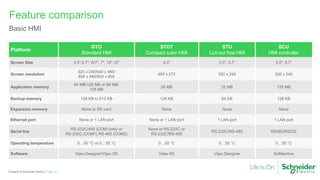

12. Feature comparison
Basic HMI
Page 12Property of Schneider Electric |
Platform
GTO
Standard HMI
STO7
Compact color HMI
STU
Cut-out free HMI
SCU
HMI controller
Screen Size 3.5",5.7", W7", 7", 10",12" 4.3” 3.5", 5.7” 3.5", 5.7”
Screen resolution
320 x 240/640 x 480/
800 x 480/800 x 600
480 x 272 320 x 240 320 x 240
Application memory
64 MB/128 MB or 96 MB/
128 MB
26 MB 32 MB 128 MB
Backup memory 128 KB to 512 KB 128 KB 64 KB 128 KB
Expansion memory None or SD card None None None
Ethernet port None or 1 LAN port None or 1 LAN port 1 LAN port 1 LAN port
Serial line
RS-232C/485 (COM1)only or
RS-232C (COM1) RS-485 (COM2)
None or RS-232C or
RS-232C/RS-485
RS-232C/RS-485 RS485/RS232
Operating temperature 0…50 °C or 0…55 °C 0…50 °C 0…50 °C 0…50 °C
Software Vijeo Designer/Vijeo XD Vijeo XD Vijeo Designer SoMachine

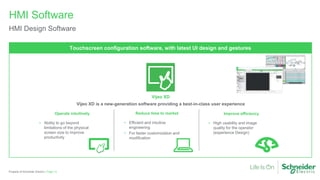

13. Vijeo XD
Vijeo XD is a new-generation software providing a best-in-class user experience
HMI Software
HMI Design Software
Page 13Property of Schneider Electric |
• Ability to go beyond
limitations of the physical
screen size to improve
productivity
Operate intuitively
• Efficient and intuitive
engineering
• For faster customization and
modification
Reduce time to market
• High usability and image
quality for the operator
(experience Design)
Improve efficiency
Touchscreen configuration software, with latest UI design and gestures

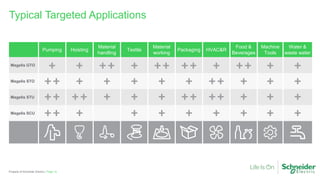

14. Typical Targeted Applications
Page 14Property of Schneider Electric |
Pumping Hoisting
Material
handling
Textile
Material
working
Packaging HVAC&R
Food &
Beverages
Machine
Tools
Water &
waste water
Magelis GTO
Magelis STO
Magelis STU
Magelis SCU

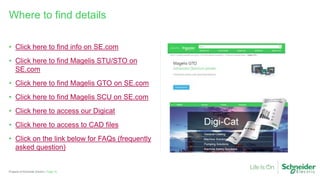

15. • Click here to find info on SE.com
• Click here to find Magelis STU/STO on
SE.com
• Click here to find Magelis GTO on SE.com
• Click here to find Magelis SCU on SE.com
• Click here to access our Digicat
• Click here to access to CAD files
• Click on the link below for FAQs (frequently
asked question)
Where to find details
Page 15Property of Schneider Electric |

16. Property of Schneider Electric |
Quiz
Based on what
you’ve learned so
far, try to answer to
this quiz
?
Page 16
Which product can you select communication interface and it becomes cost efficacy?
Q1
Which HMI offer provide cut-out free installation with innovative mounting of 22.5mm diameter hole?
Q2
Which HMI offer combines in all-in-one solution HMI and PLC features in only one product?
Q3
Stainless steel frame solution, dedicated to Food & Beverage environments, is available in which HMI offer?
Q4
Which Magelis HMI hardware offers are configured with Vijeo XD software?
Q5

17. Property of Schneider Electric |

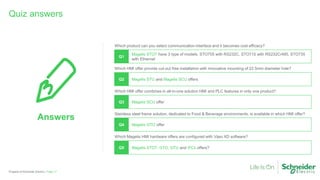

Quiz answers
Page 17
Which product can you select communication interface and it becomes cost efficacy?
Q1
Magelis STO7 have 3 type of models. STO705 with RS232C, STO715 with RS232C/485, STO735
with Ethernet
Which HMI offer provide cut-out free installation with innovative mounting of 22.5mm diameter hole?
Q2 Magelis STU and Magelis SCU offers
Which HMI offer combines in all-in-one solution HMI and PLC features in only one product?
Q3 Magelis SCU offer
Stainless steel frame solution, dedicated to Food & Beverage environments, is available in which HMI offer?
Q4 Magelis GTO offer
Which Magelis HMI hardware offers are configured with Vijeo XD software?
Q5 Magelis STO7, GTO, GTU and iPCs offers?
Answers

18. Page 18Property of Schneider Electric |
Thank you
