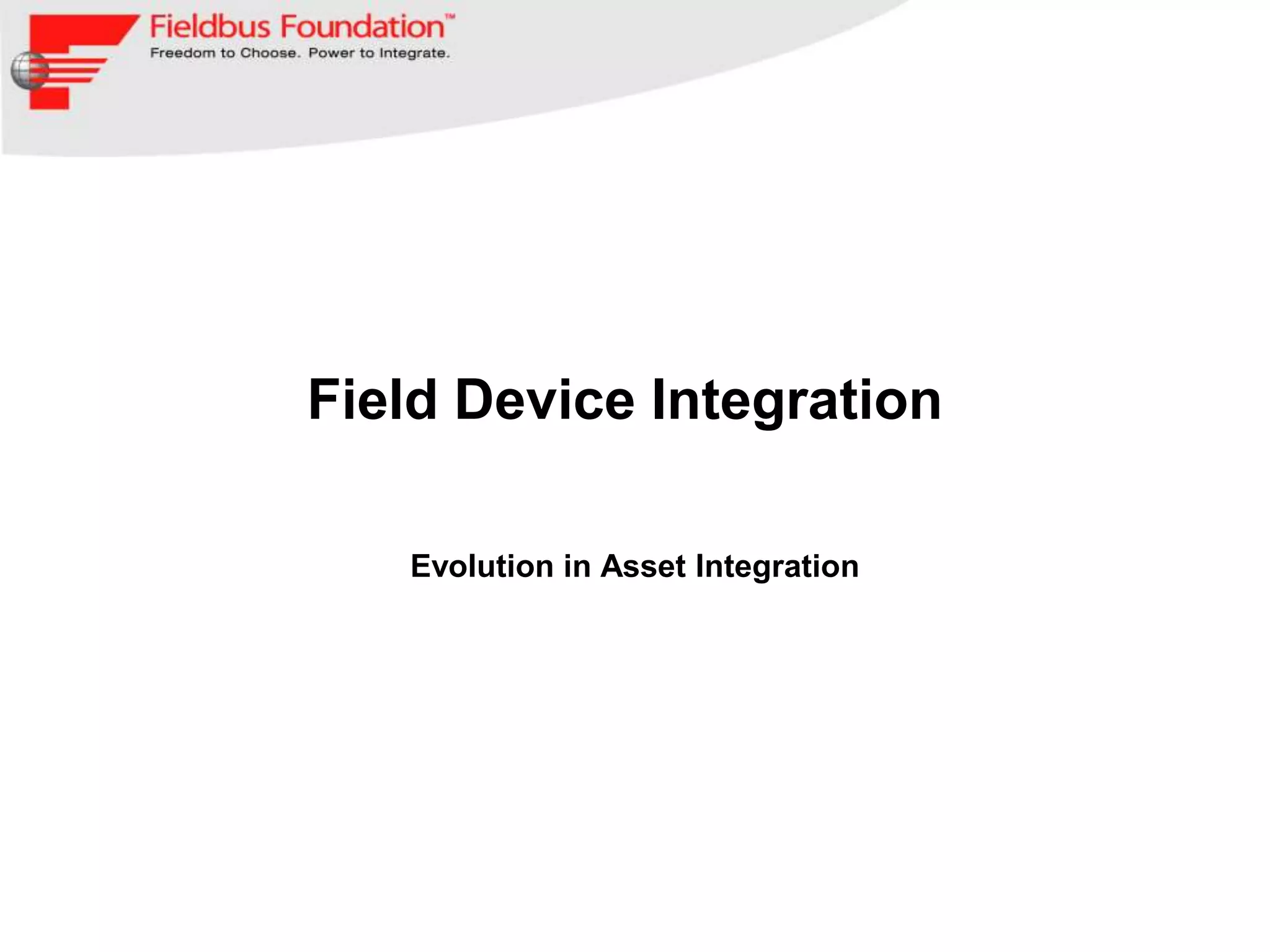

Field Device Integration

   Evolution in Asset Integration

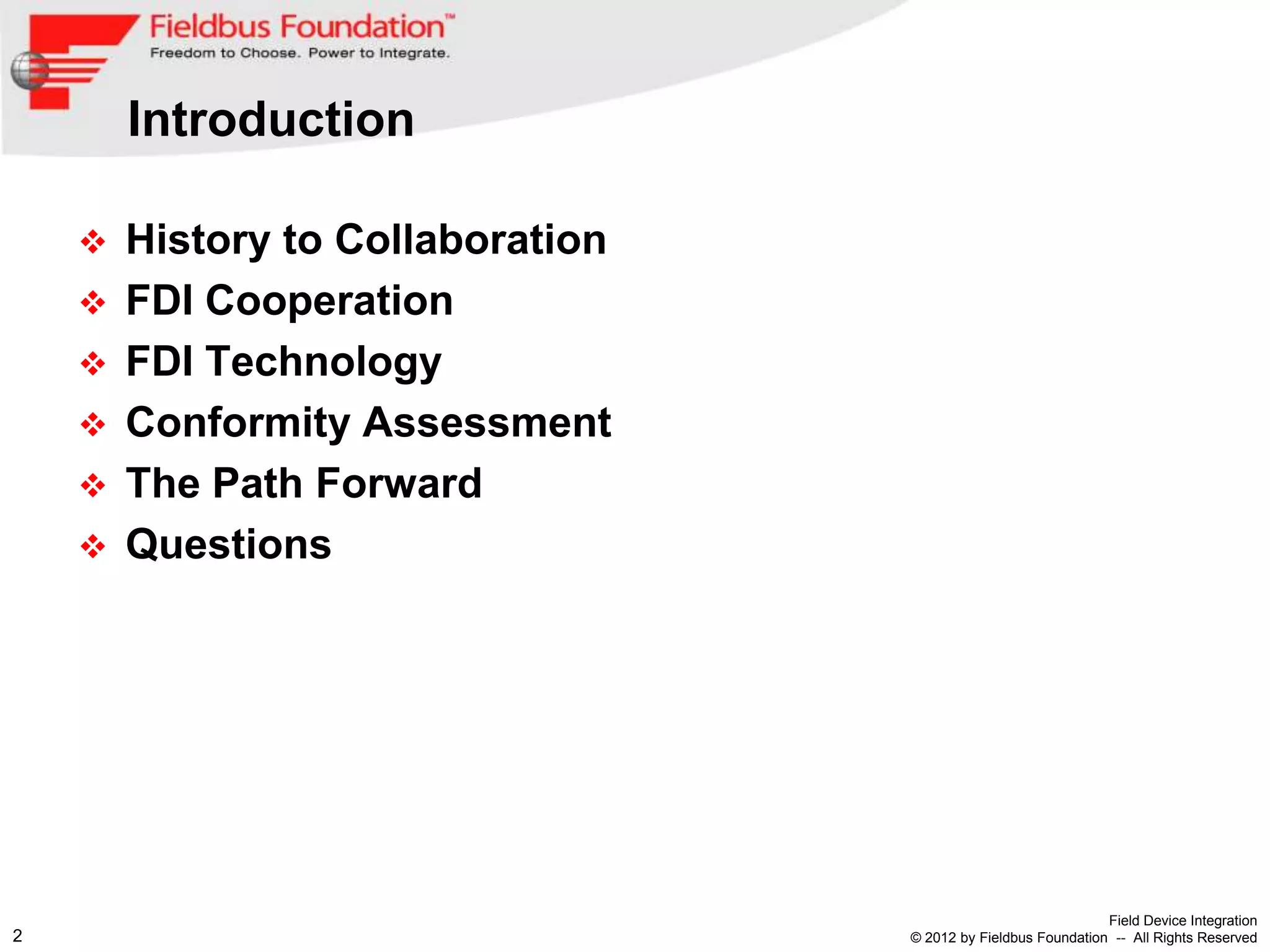

Introduction

       History to Collaboration
       FDI Cooperation
       FDI Technology
       Conformity Assessment
       The Path Forward
       Questions




                                                                Field Device Integration
2                                  © 2012 by Fieldbus Foundation -- All Rights Reserved
HISTORY TO
    COLLABORATION

                                                 Field Device Integration
3                   © 2012 by Fieldbus Foundation -- All Rights Reserved
The Fieldbus Wars




                Mid 80’s until 1999
                                                                   Field Device Integration
4                                     © 2012 by Fieldbus Foundation -- All Rights Reserved

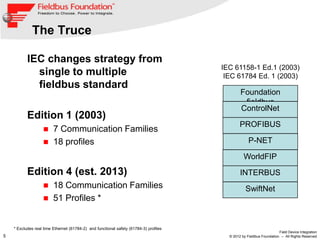

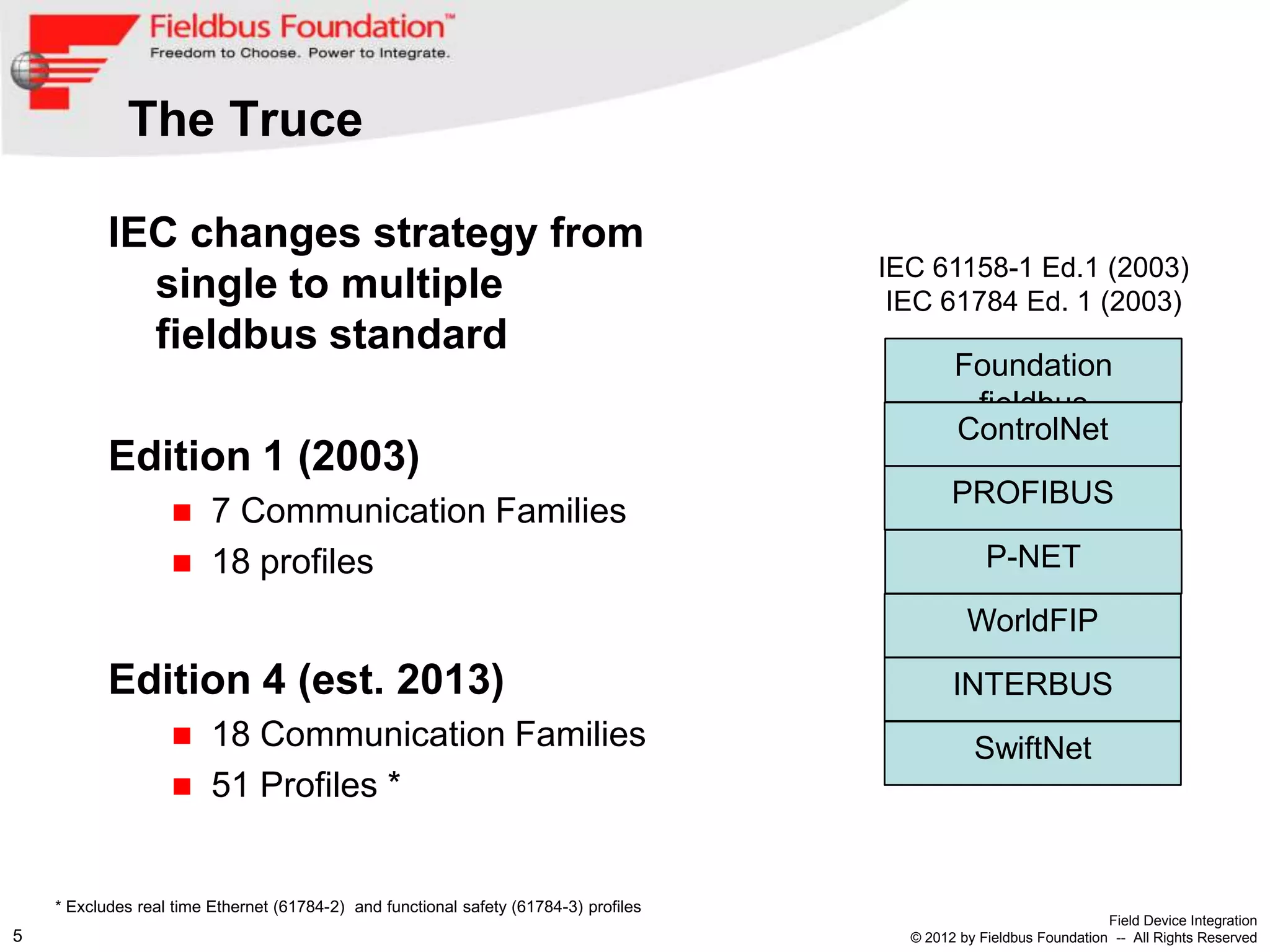

The Truce

           IEC changes strategy from
                                                                                       IEC 61158-1 Ed.1 (2003)
             single to multiple                                                         IEC 61784 Ed. 1 (2003)
             fieldbus standard
                                                                                               Foundation
                                                                                                fieldbus
                                                                                               ControlNet
           Edition 1 (2003)
                                                                                               PROFIBUS
                        7 Communication Families
                        18 profiles                                                                P-NET

                                                                                                 WorldFIP
           Edition 4 (est. 2013)                                                               INTERBUS
                        18 Communication Families                                                SwiftNet
                        51 Profiles *


    * Excludes real time Ethernet (61784-2) and functional safety (61784-3) profiles
                                                                                                                      Field Device Integration
5                                                                                        © 2012 by Fieldbus Foundation -- All Rights Reserved
Standards




              The wonderful thing about
            standards is that there are so
            many of them to choose from.

                                                                              - Grace Hopper *




    * Typically attributed, but there is some dispute on the actual author.
                                                                                                                Field Device Integration
6                                                                                  © 2012 by Fieldbus Foundation -- All Rights Reserved
Device Integration Technology




       Electronic Device
                              Field Device Tool
     Description Language
                                    (FDT)
            (EDDL)
                                                                  Field Device Integration
7                                    © 2012 by Fieldbus Foundation -- All Rights Reserved

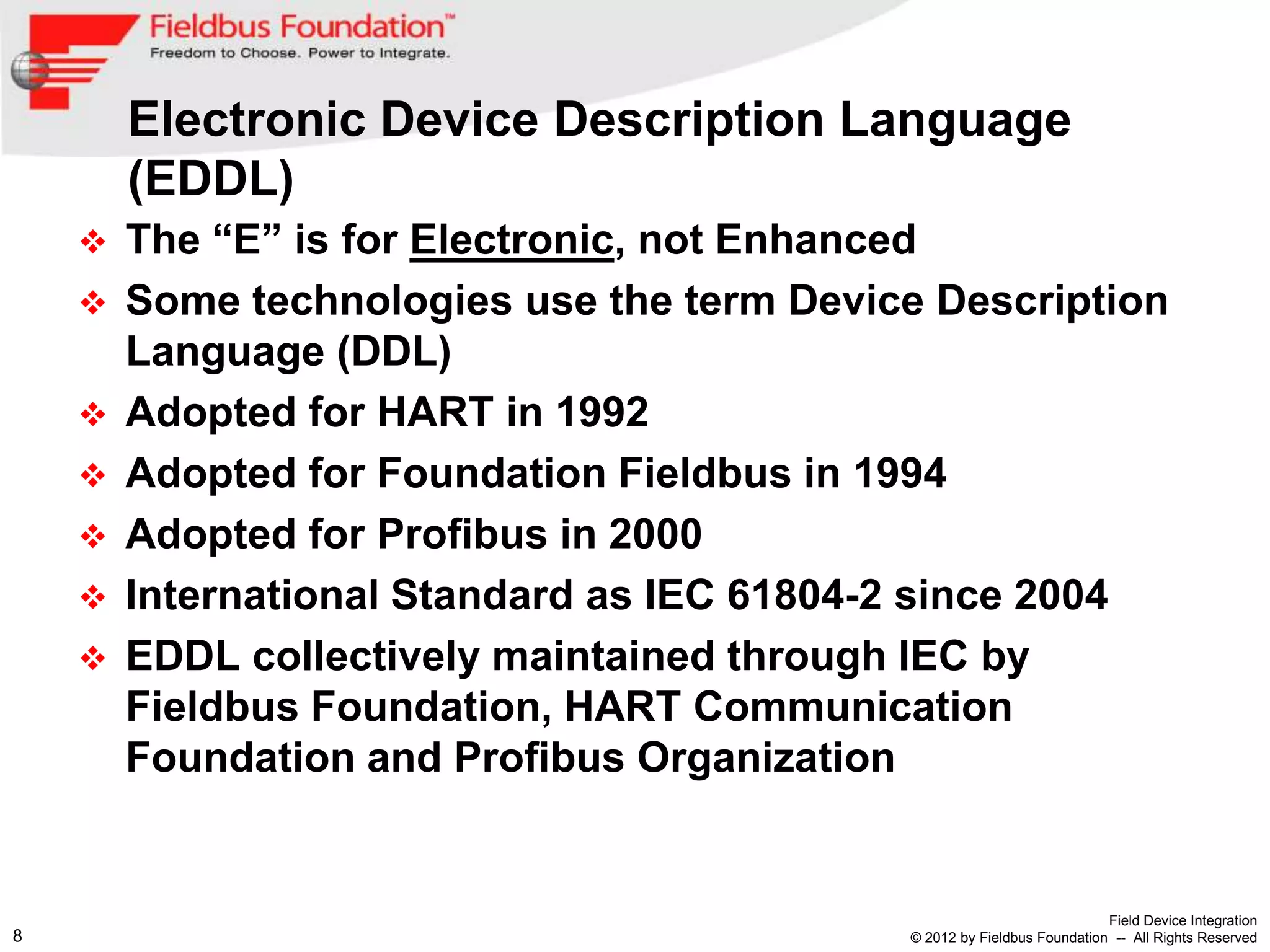

Electronic Device Description Language
        (EDDL)
     The “E” is for Electronic, not Enhanced
     Some technologies use the term Device Description
      Language (DDL)
     Adopted for HART in 1992
     Adopted for Foundation Fieldbus in 1994
     Adopted for Profibus in 2000
     International Standard as IEC 61804-2 since 2004
     EDDL collectively maintained through IEC by
      Fieldbus Foundation, HART Communication
      Foundation and Profibus Organization


                                                                       Field Device Integration
8                                         © 2012 by Fieldbus Foundation -- All Rights Reserved

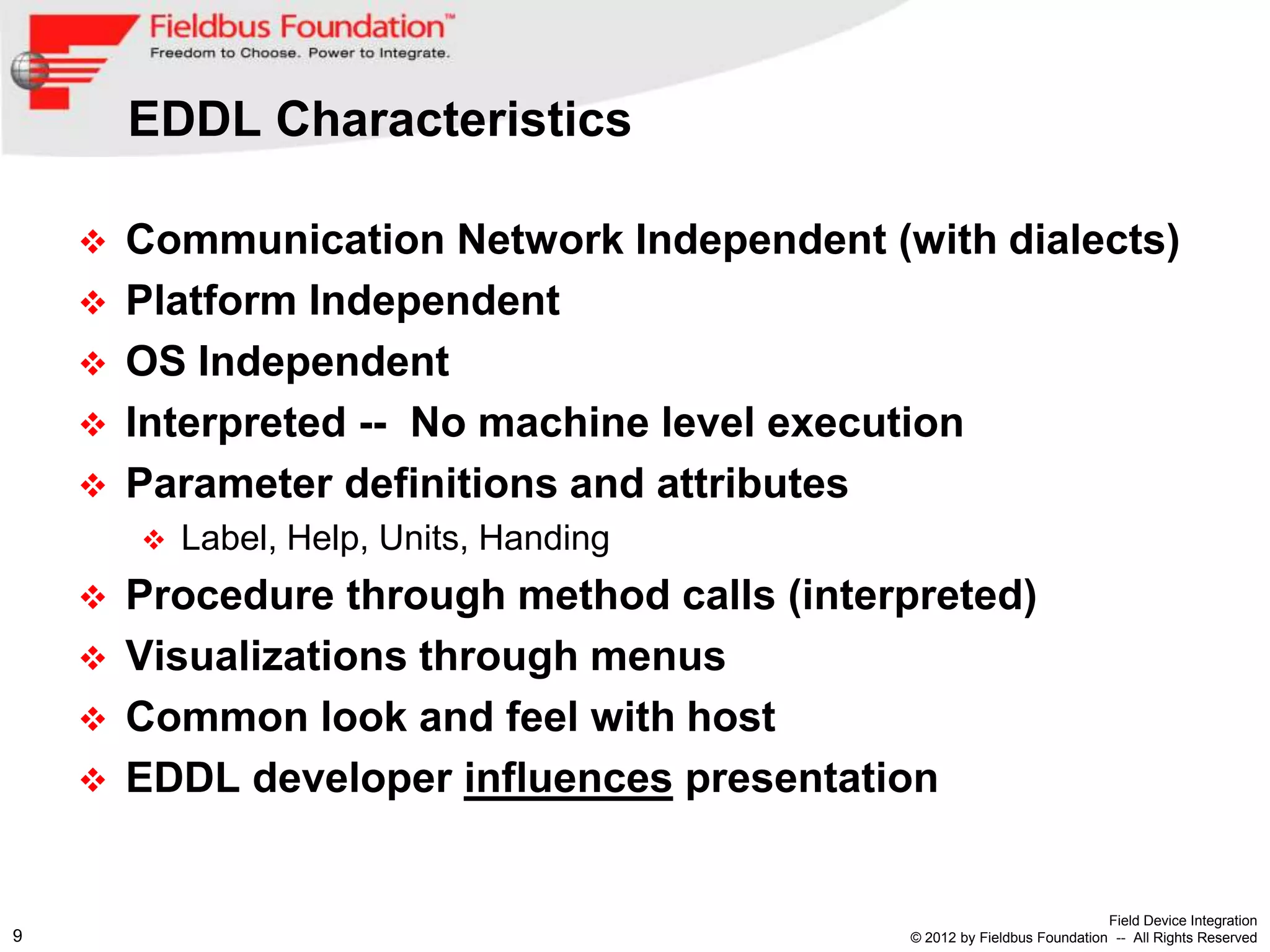

EDDL Characteristics

       Communication Network Independent (with dialects)
       Platform Independent
       OS Independent
       Interpreted -- No machine level execution
       Parameter definitions and attributes
           Label, Help, Units, Handing
       Procedure through method calls (interpreted)
       Visualizations through menus
       Common look and feel with host
       EDDL developer influences presentation


                                                                          Field Device Integration
9                                            © 2012 by Fieldbus Foundation -- All Rights Reserved

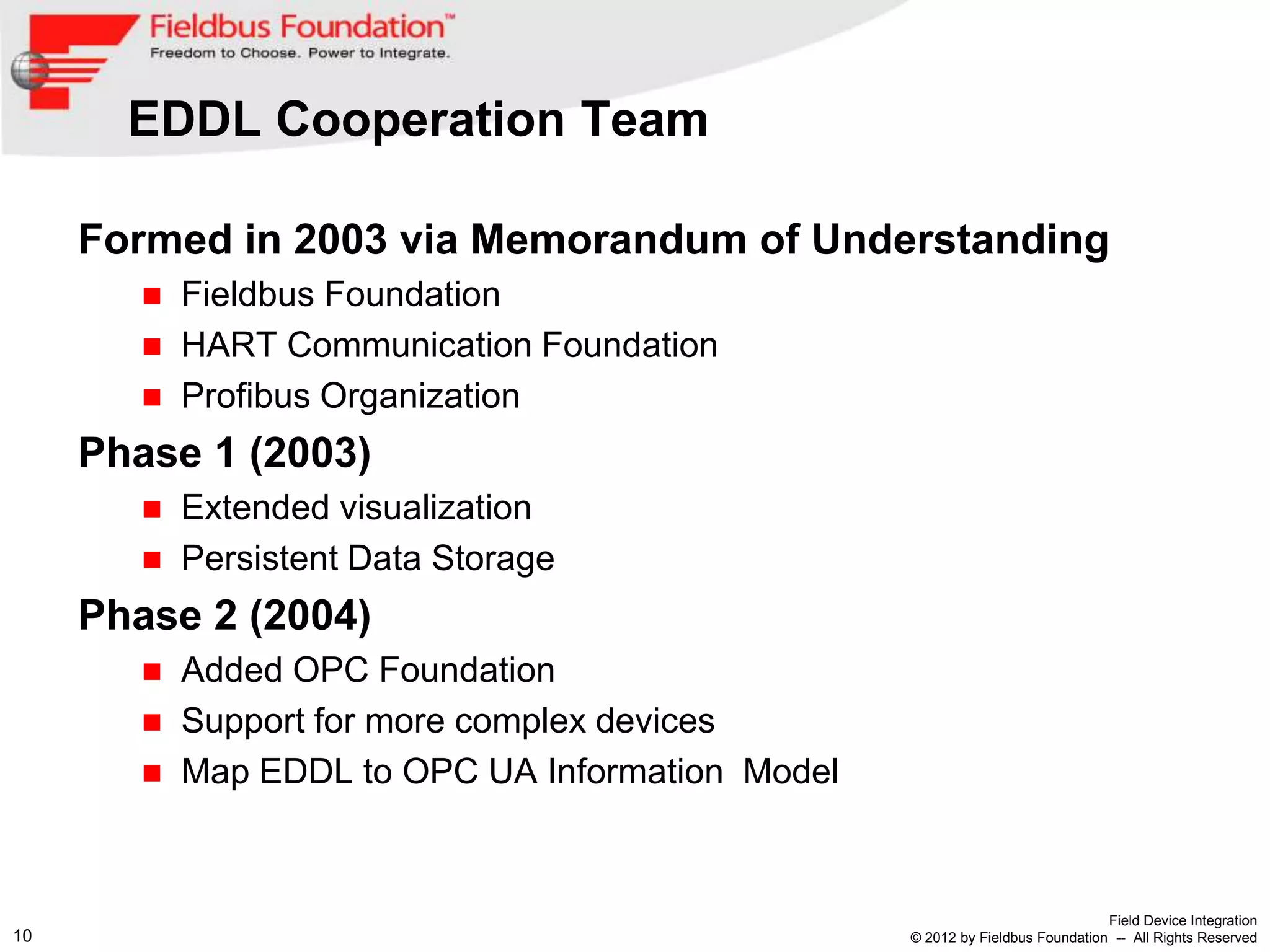

EDDL Cooperation Team

     Formed in 2003 via Memorandum of Understanding
           Fieldbus Foundation
           HART Communication Foundation
           Profibus Organization
     Phase 1 (2003)
           Extended visualization
           Persistent Data Storage
     Phase 2 (2004)
           Added OPC Foundation
           Support for more complex devices
           Map EDDL to OPC UA Information Model



                                                                                Field Device Integration
10                                                 © 2012 by Fieldbus Foundation -- All Rights Reserved

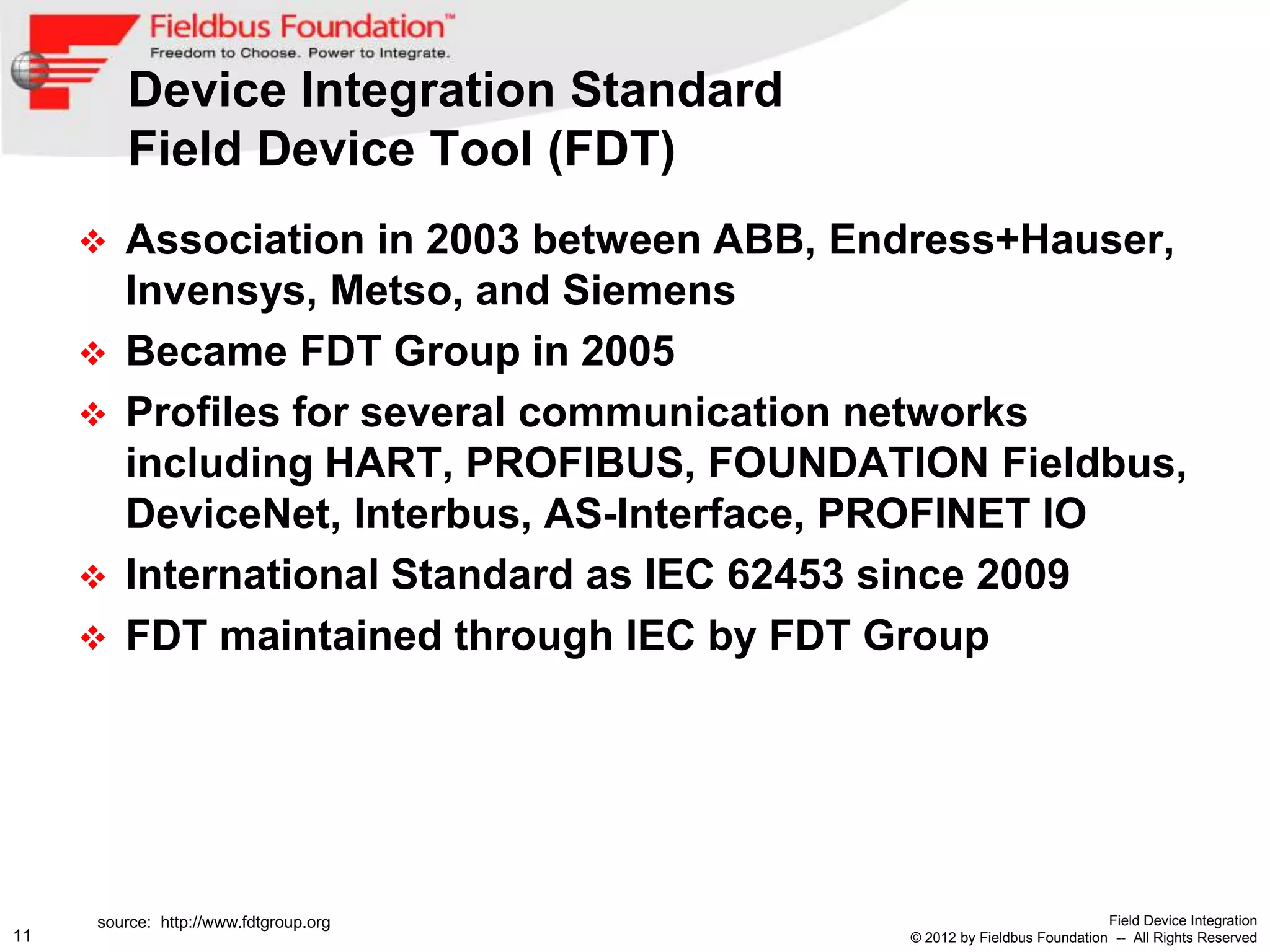

Device Integration Standard
         Field Device Tool (FDT)
        Association in 2003 between ABB, Endress+Hauser,
         Invensys, Metso, and Siemens
        Became FDT Group in 2005
        Profiles for several communication networks
         including HART, PROFIBUS, FOUNDATION Fieldbus,
         DeviceNet, Interbus, AS-Interface, PROFINET IO
        International Standard as IEC 62453 since 2009
        FDT maintained through IEC by FDT Group




     source: http://www.fdtgroup.org                                     Field Device Integration
11                                          © 2012 by Fieldbus Foundation -- All Rights Reserved

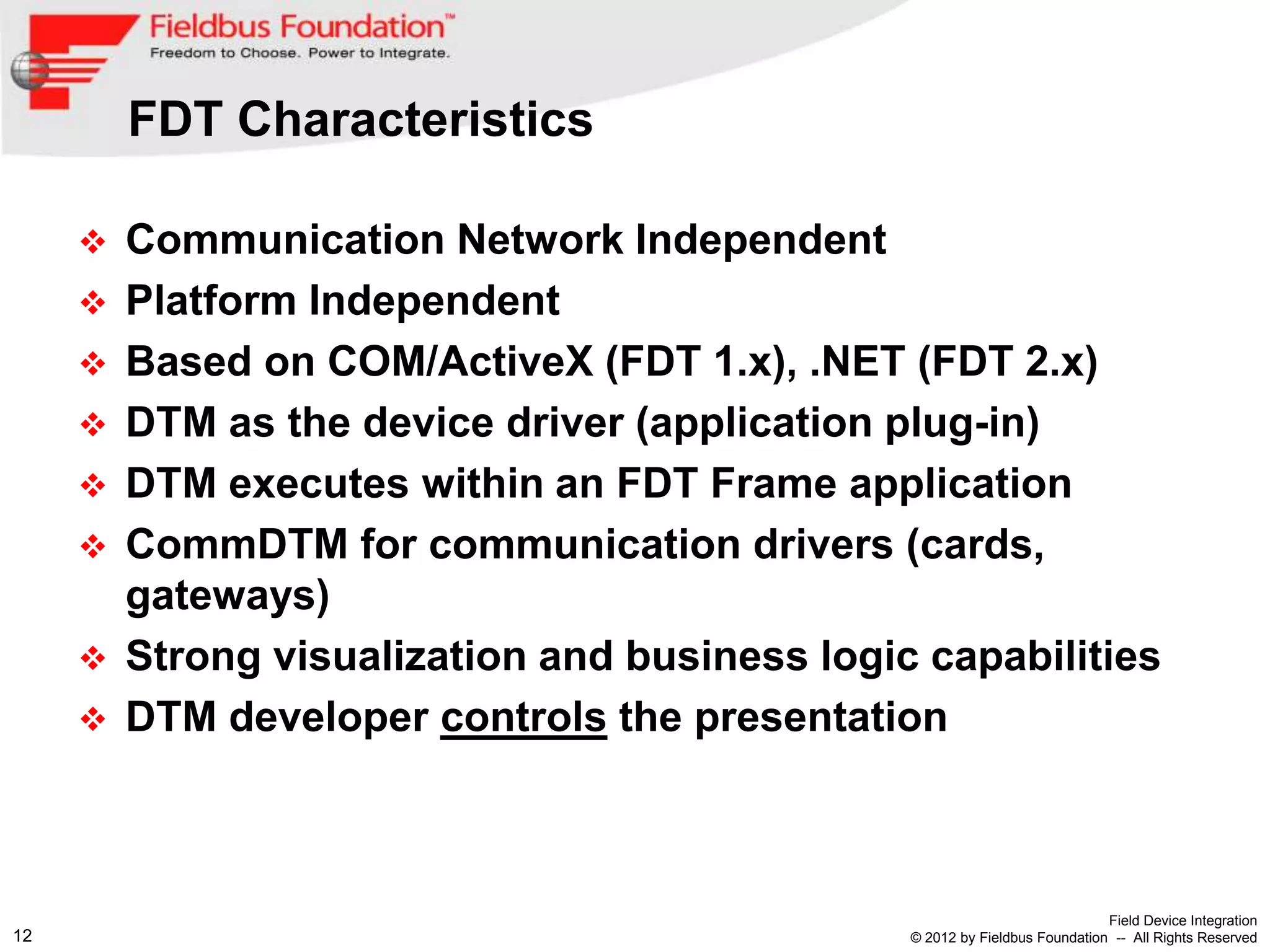

FDT Characteristics

        Communication Network Independent
        Platform Independent
        Based on COM/ActiveX (FDT 1.x), .NET (FDT 2.x)
        DTM as the device driver (application plug-in)
        DTM executes within an FDT Frame application
        CommDTM for communication drivers (cards,
         gateways)
        Strong visualization and business logic capabilities
        DTM developer controls the presentation



                                                                             Field Device Integration
12                                              © 2012 by Fieldbus Foundation -- All Rights Reserved
Device Integration War?




                                                            Field Device Integration
13                             © 2012 by Fieldbus Foundation -- All Rights Reserved

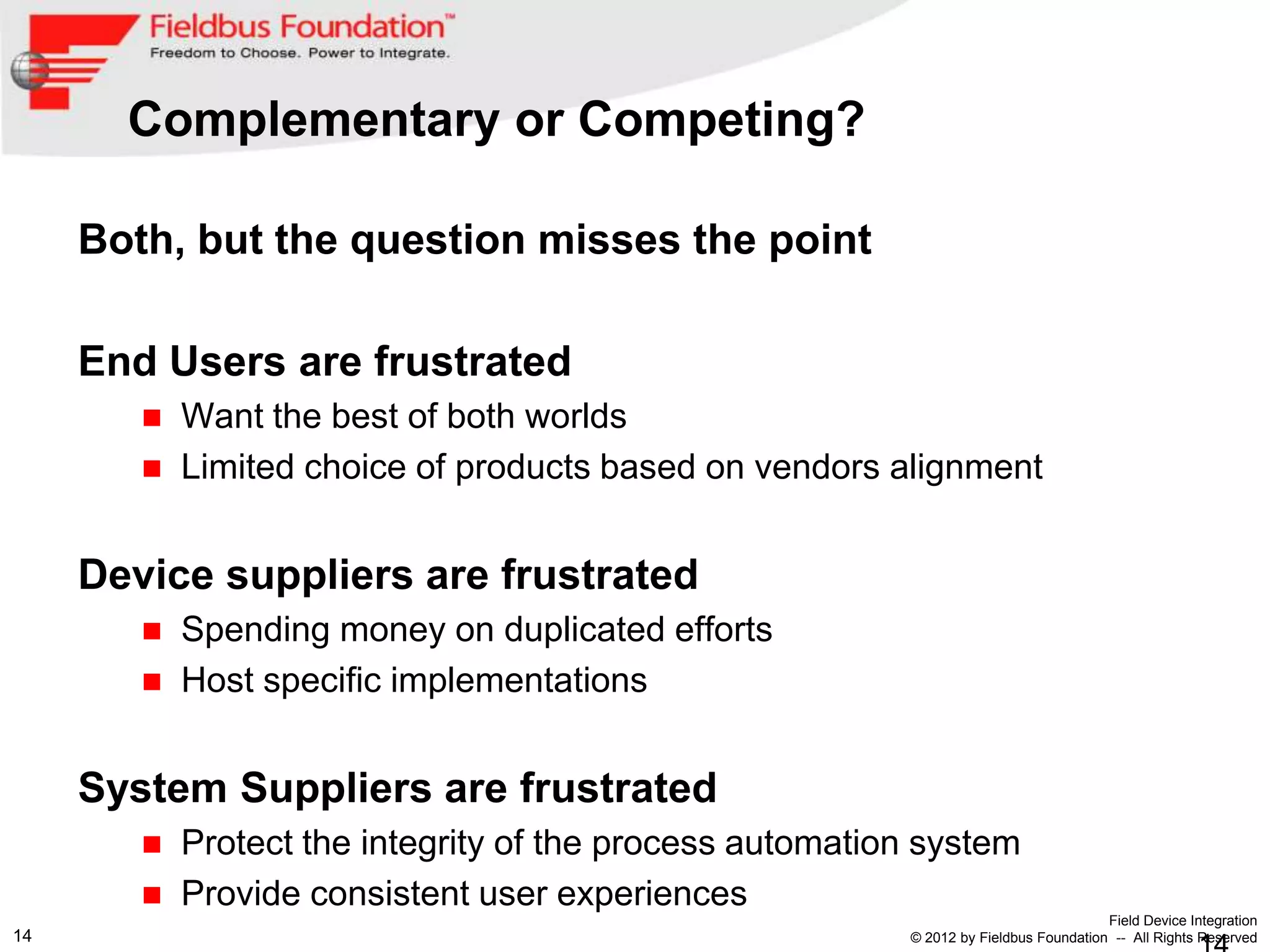

Complementary or Competing?

     Both, but the question misses the point

     End Users are frustrated
           Want the best of both worlds
           Limited choice of products based on vendors alignment


     Device suppliers are frustrated
           Spending money on duplicated efforts
           Host specific implementations


     System Suppliers are frustrated
           Protect the integrity of the process automation system
           Provide consistent user experiences
                                                                                       Field Device Integration
14                                                        © 2012 by Fieldbus Foundation -- All Rights Reserved

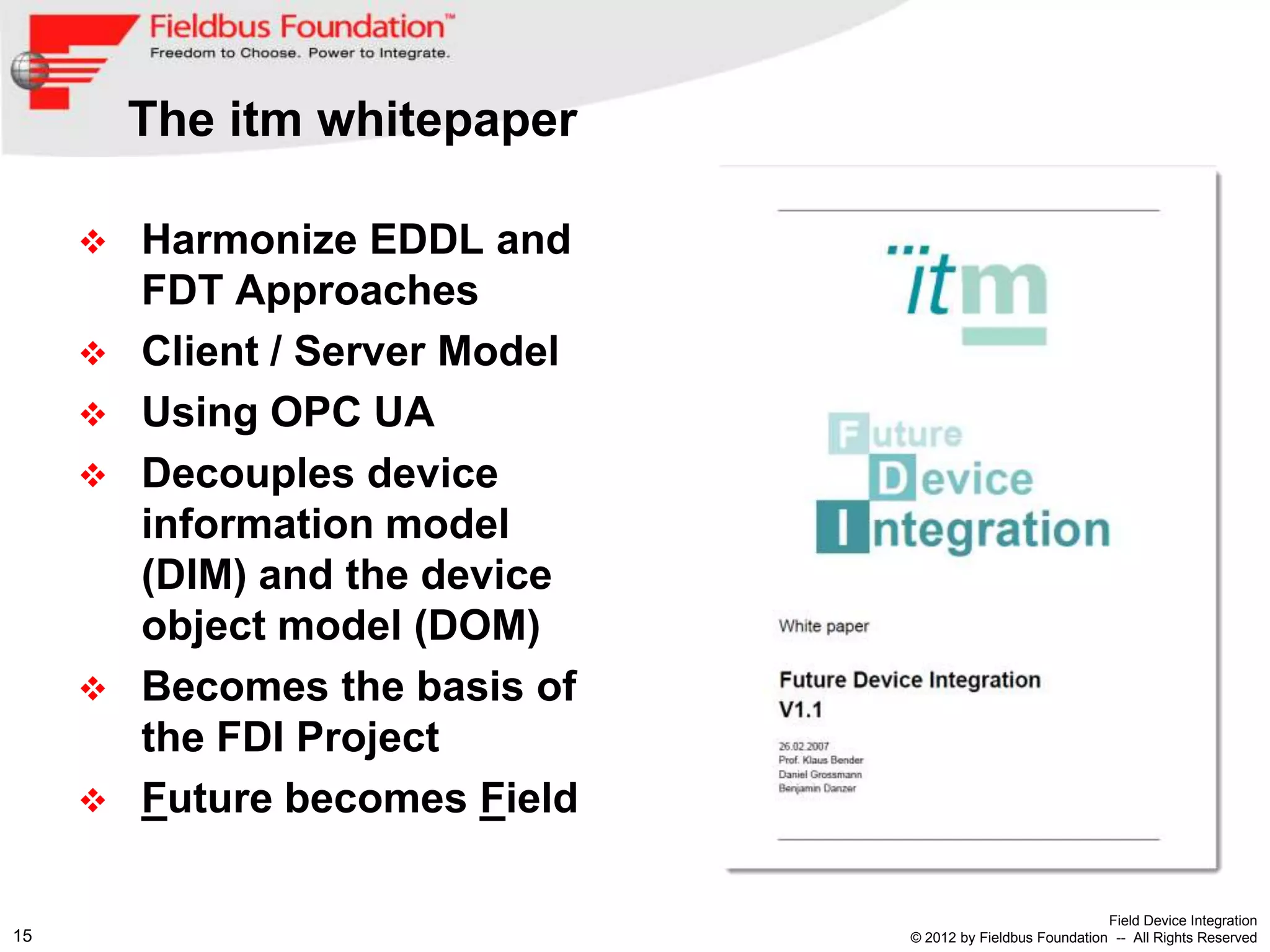

The itm whitepaper

        Harmonize EDDL and
         FDT Approaches
        Client / Server Model
        Using OPC UA
        Decouples device
         information model
         (DIM) and the device
         object model (DOM)
        Becomes the basis of
         the FDI Project
        Future becomes Field

                                                              Field Device Integration
15                               © 2012 by Fieldbus Foundation -- All Rights Reserved

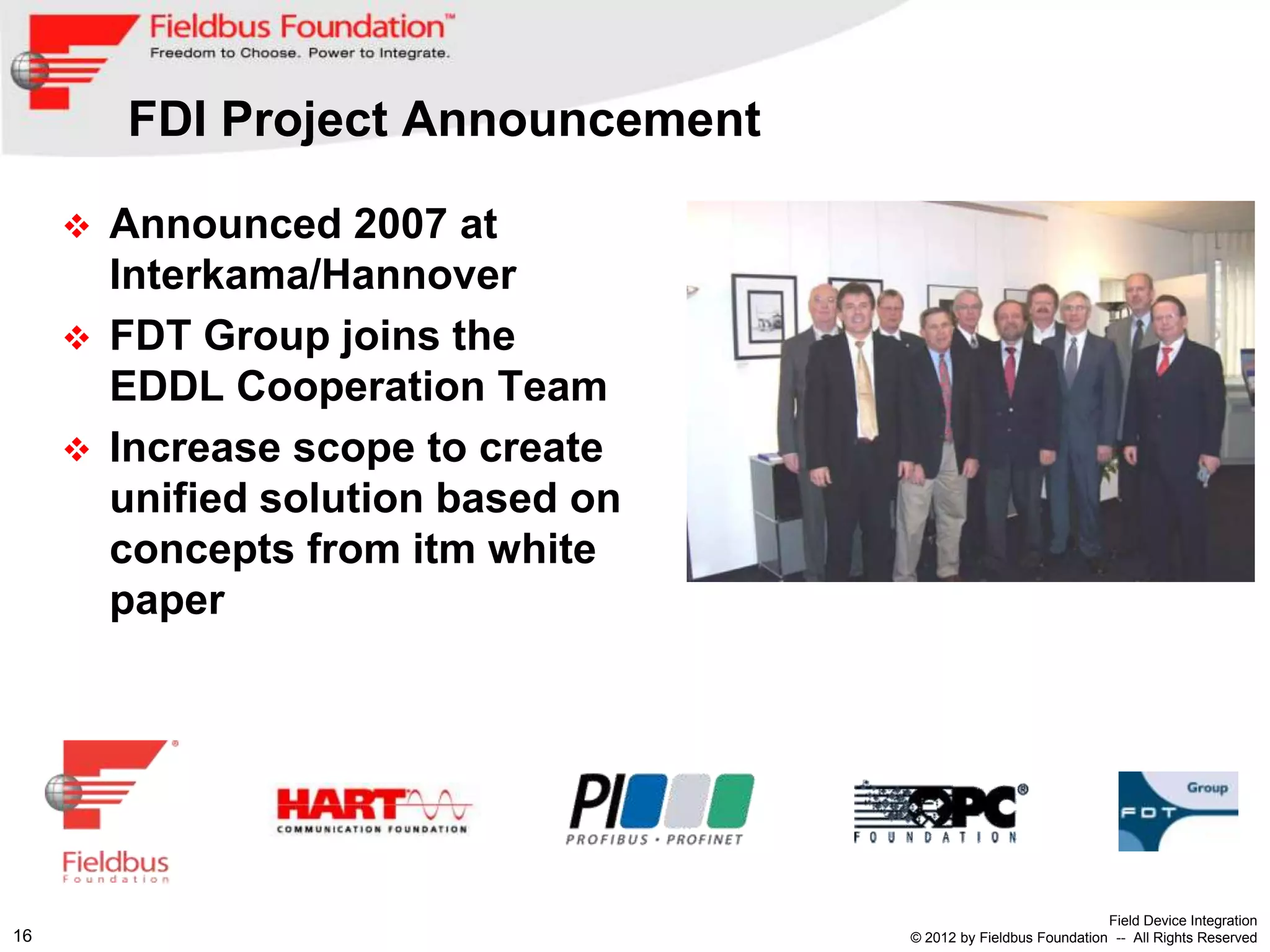

FDI Project Announcement

      Announced 2007 at
       Interkama/Hannover
      FDT Group joins the
       EDDL Cooperation Team
      Increase scope to create
       unified solution based on
       concepts from itm white
       paper




                                                                 Field Device Integration
16                                  © 2012 by Fieldbus Foundation -- All Rights Reserved

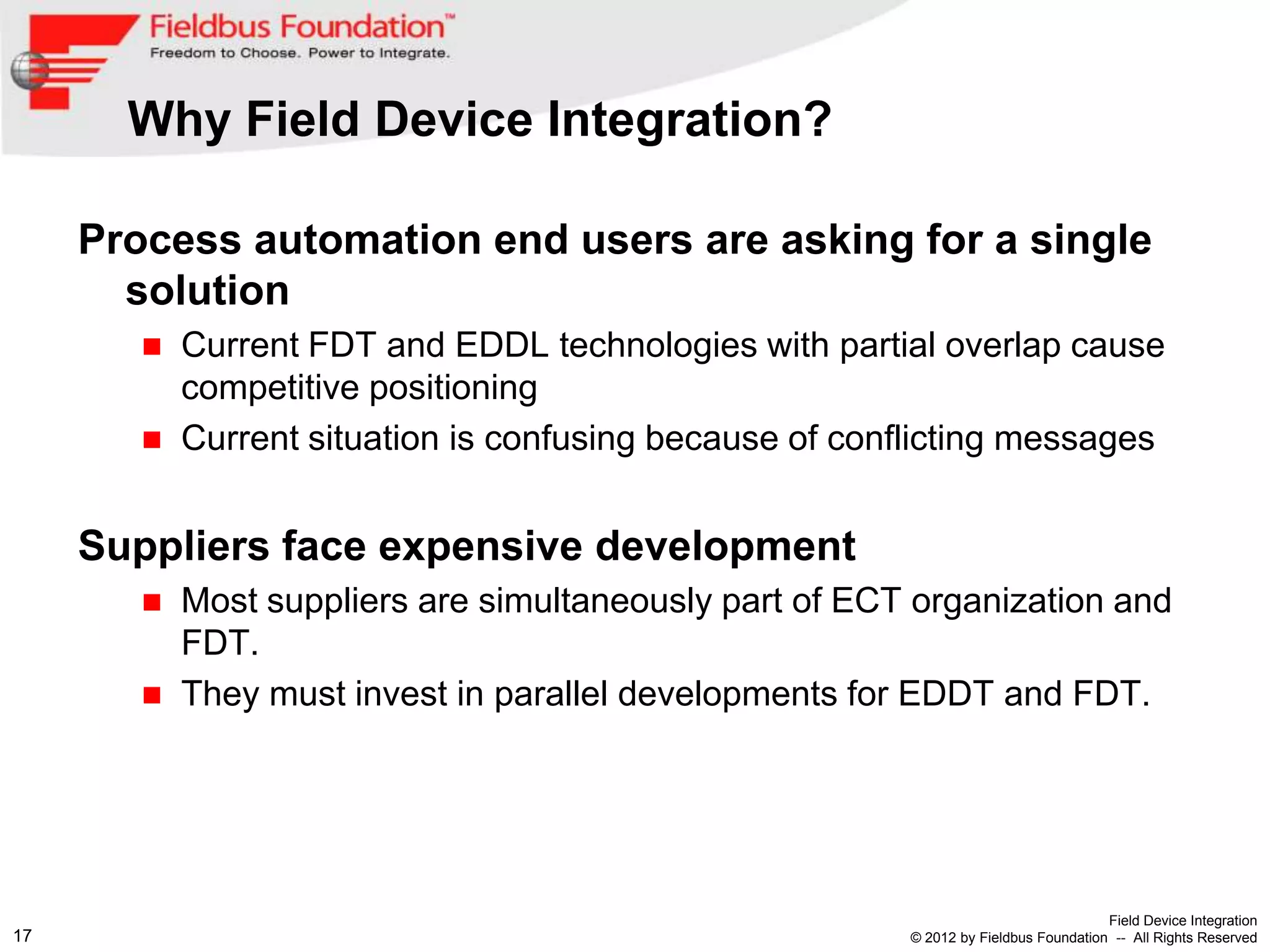

Why Field Device Integration?

     Process automation end users are asking for a single
       solution
           Current FDT and EDDL technologies with partial overlap cause
            competitive positioning
           Current situation is confusing because of conflicting messages


     Suppliers face expensive development
           Most suppliers are simultaneously part of ECT organization and
            FDT.
           They must invest in parallel developments for EDDT and FDT.




                                                                                      Field Device Integration
17                                                       © 2012 by Fieldbus Foundation -- All Rights Reserved

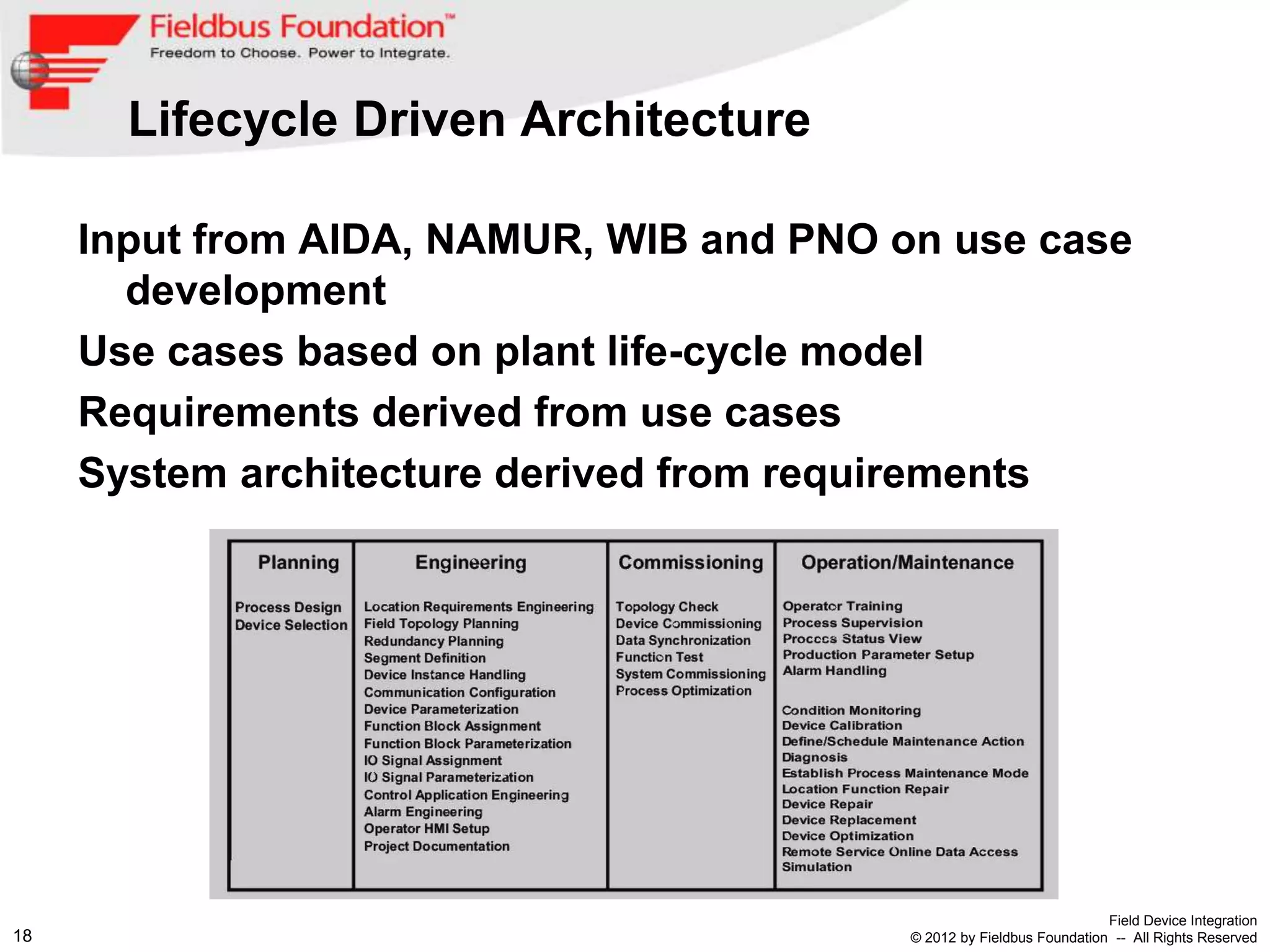

Lifecycle Driven Architecture

     Input from AIDA, NAMUR, WIB and PNO on use case
       development
     Use cases based on plant life-cycle model
     Requirements derived from use cases
     System architecture derived from requirements




                                                                       Field Device Integration
18                                        © 2012 by Fieldbus Foundation -- All Rights Reserved

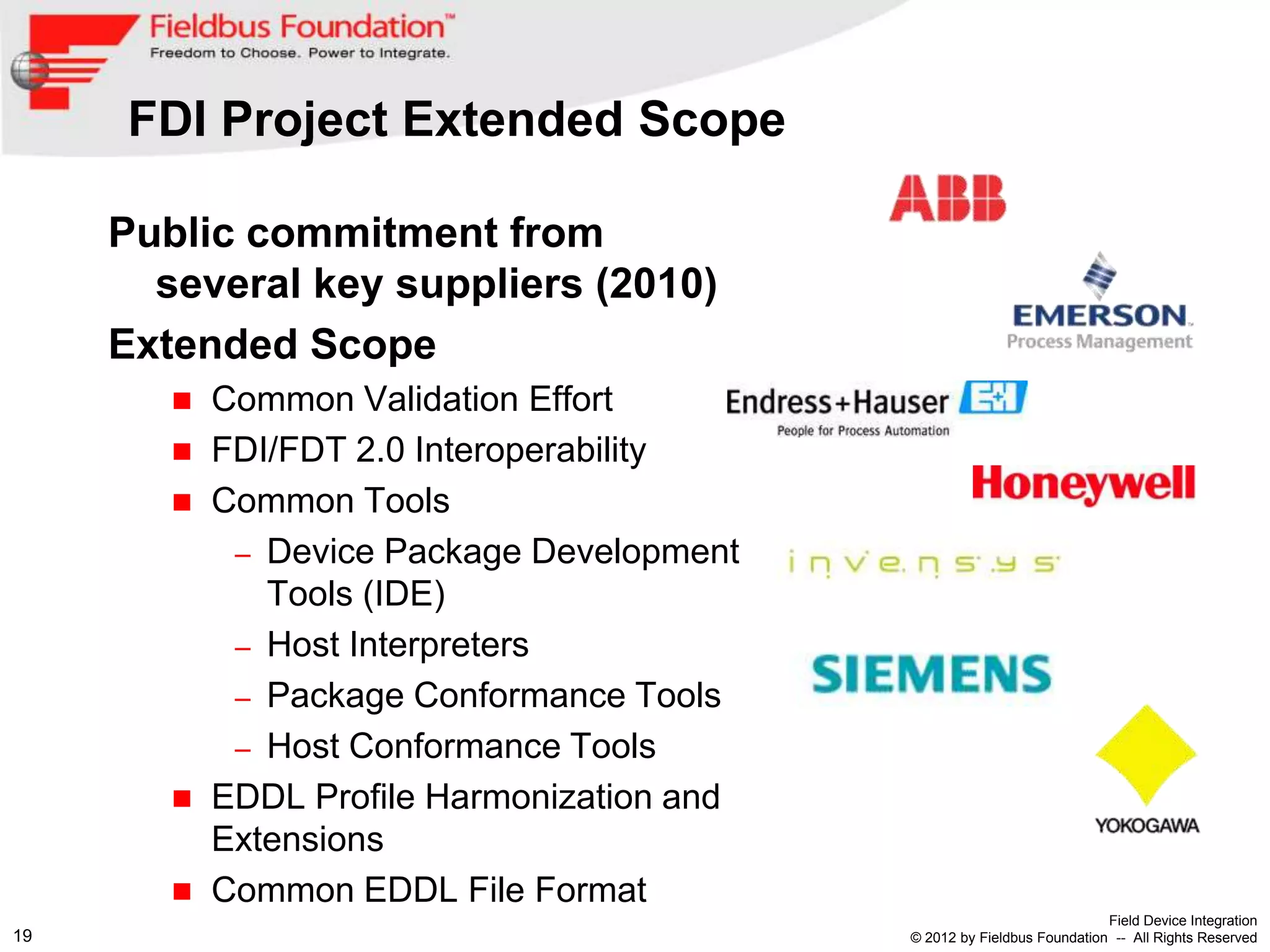

FDI Project Extended Scope

     Public commitment from
       several key suppliers (2010)
     Extended Scope
           Common Validation Effort
           FDI/FDT 2.0 Interoperability
           Common Tools
             – Device Package Development
               Tools (IDE)
             – Host Interpreters
             – Package Conformance Tools
             – Host Conformance Tools
           EDDL Profile Harmonization and
            Extensions
           Common EDDL File Format
                                                                          Field Device Integration
19                                           © 2012 by Fieldbus Foundation -- All Rights Reserved

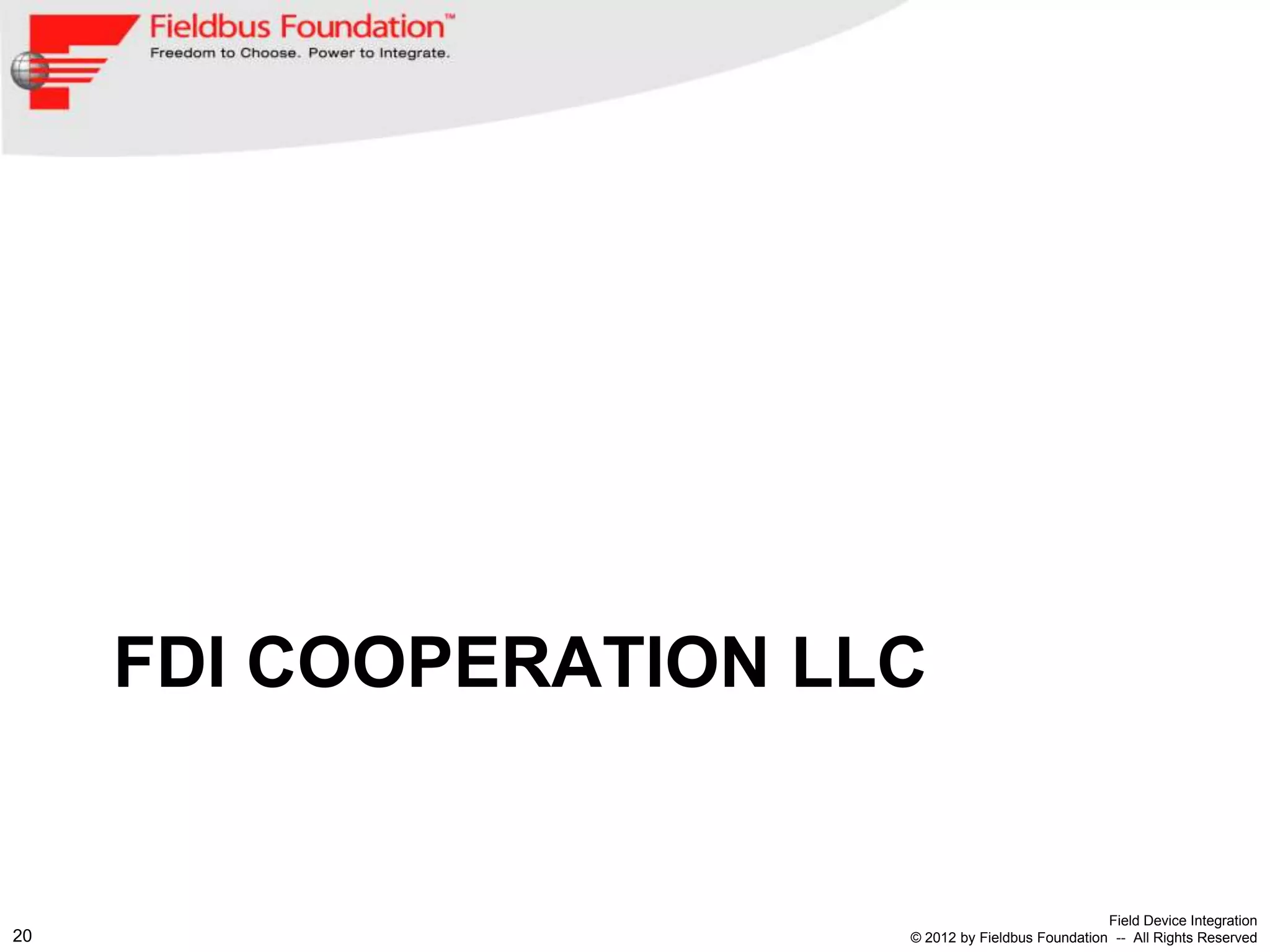

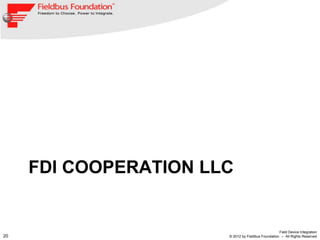

FDI COOPERATION LLC


                                                    Field Device Integration
20                     © 2012 by Fieldbus Foundation -- All Rights Reserved

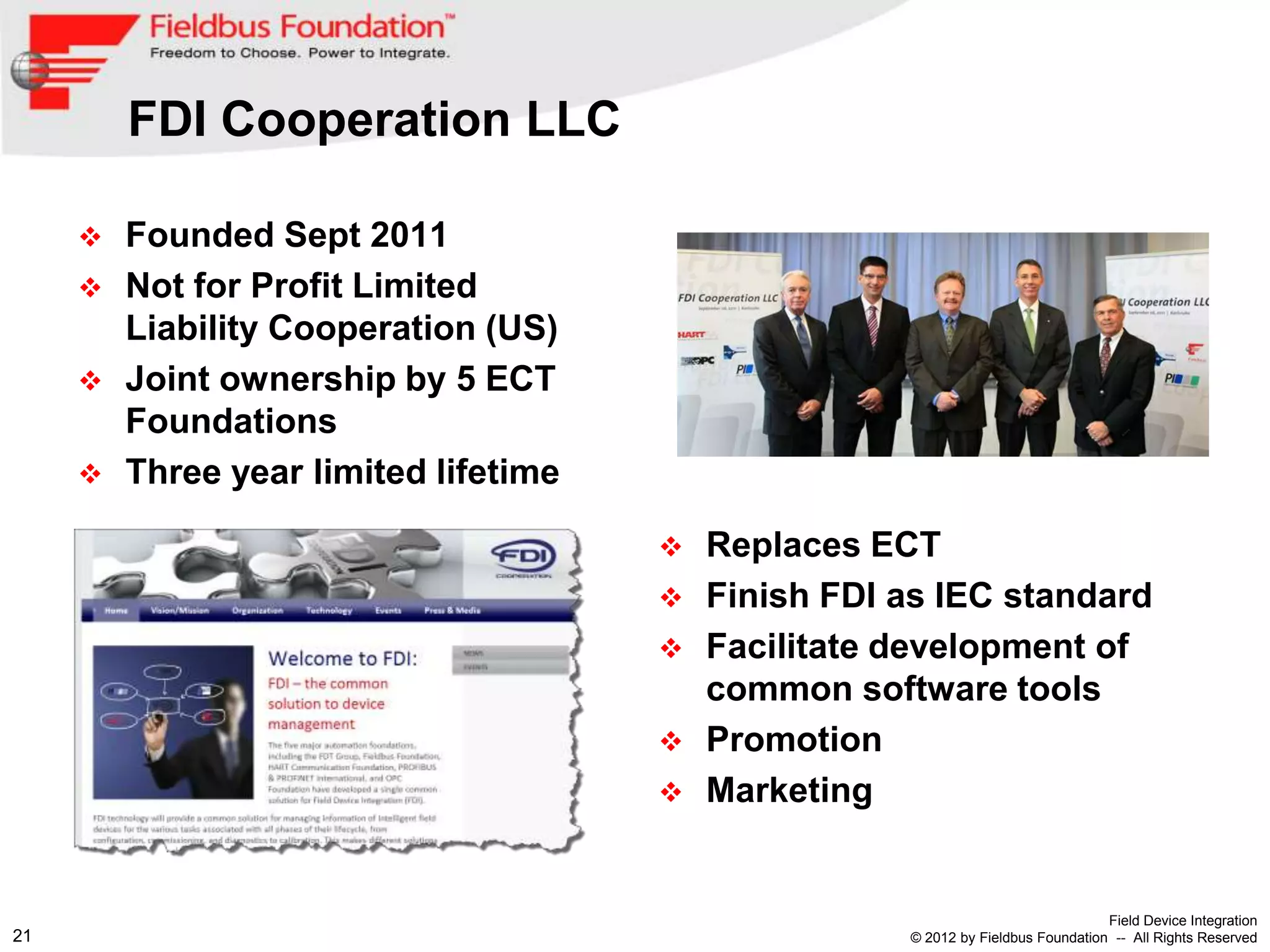

FDI Cooperation LLC

        Founded Sept 2011
        Not for Profit Limited
         Liability Cooperation (US)
        Joint ownership by 5 ECT
         Foundations
        Three year limited lifetime

                                          Replaces ECT
                                          Finish FDI as IEC standard
                                          Facilitate development of
                                           common software tools
                                          Promotion
                                          Marketing


                                                                                   Field Device Integration
21                                                    © 2012 by Fieldbus Foundation -- All Rights Reserved

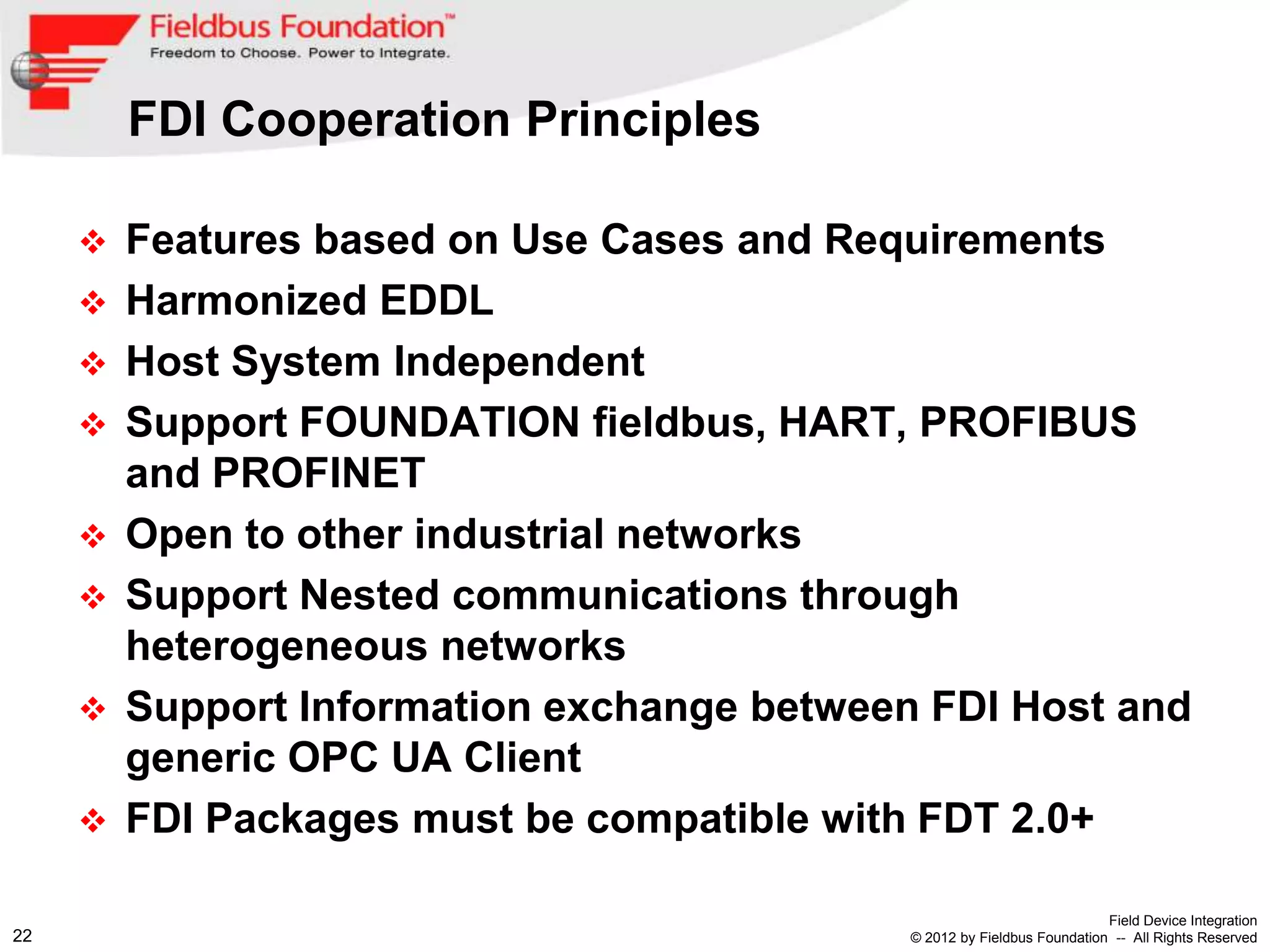

FDI Cooperation Principles

      Features based on Use Cases and Requirements
      Harmonized EDDL
      Host System Independent
      Support FOUNDATION fieldbus, HART, PROFIBUS
       and PROFINET
      Open to other industrial networks
      Support Nested communications through
       heterogeneous networks
      Support Information exchange between FDI Host and
       generic OPC UA Client
      FDI Packages must be compatible with FDT 2.0+

                                                                        Field Device Integration
22                                         © 2012 by Fieldbus Foundation -- All Rights Reserved

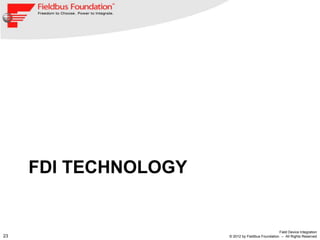

FDI TECHNOLOGY


                                                   Field Device Integration
23                    © 2012 by Fieldbus Foundation -- All Rights Reserved

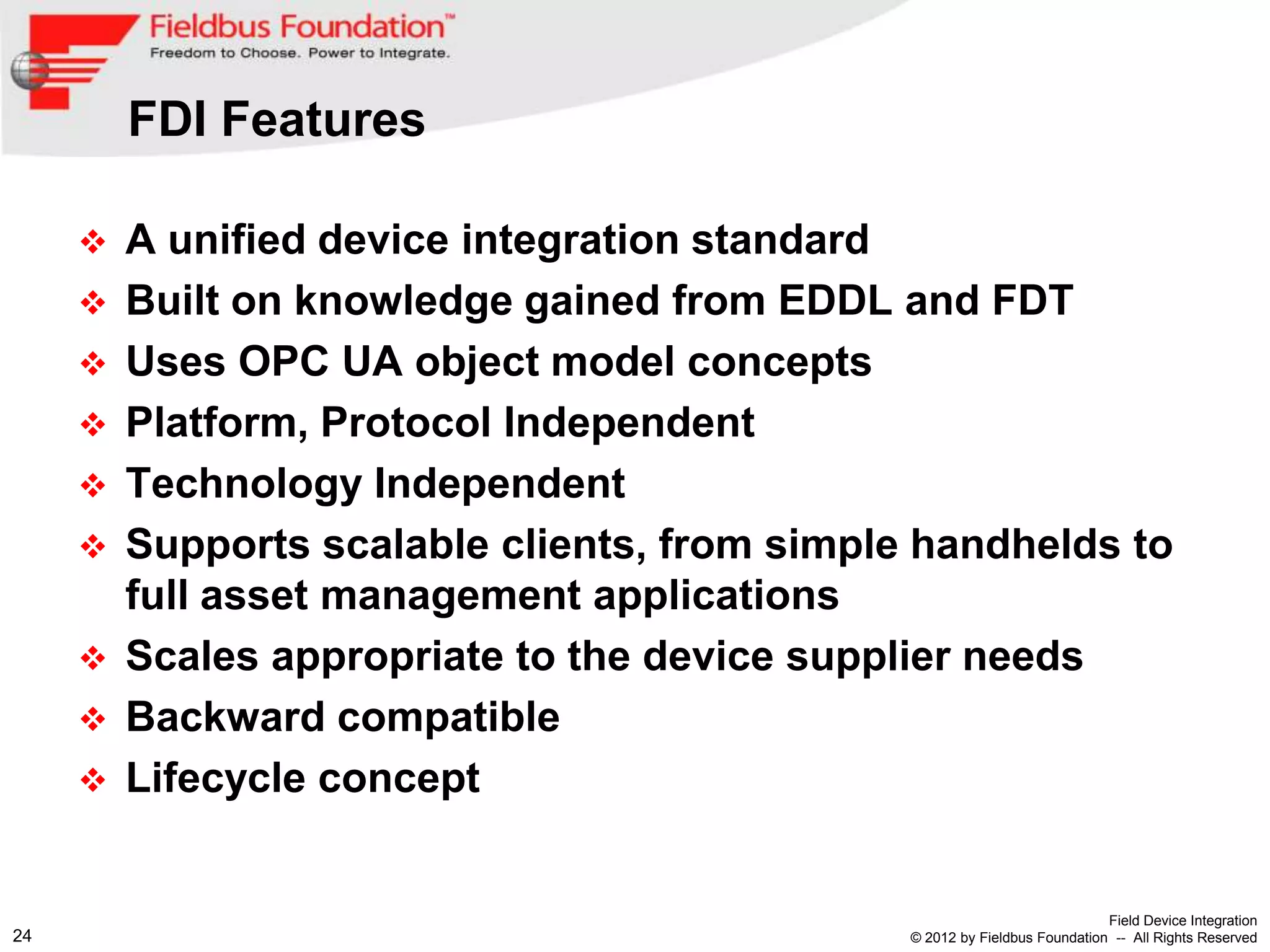

FDI Features

        A unified device integration standard
        Built on knowledge gained from EDDL and FDT
        Uses OPC UA object model concepts
        Platform, Protocol Independent
        Technology Independent
        Supports scalable clients, from simple handhelds to
         full asset management applications
        Scales appropriate to the device supplier needs
        Backward compatible
        Lifecycle concept


                                                                            Field Device Integration
24                                             © 2012 by Fieldbus Foundation -- All Rights Reserved

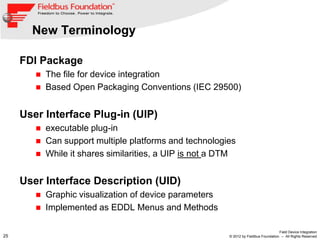

New Terminology

     FDI Package
           The file for device integration
           Based Open Packaging Conventions (IEC 29500)


     User Interface Plug-in (UIP)
           executable plug-in
           Can support multiple platforms and technologies
           While it shares similarities, a UIP is not a DTM


     User Interface Description (UID)
           Graphic visualization of device parameters
           Implemented as EDDL Menus and Methods

                                                                                       Field Device Integration
25                                                        © 2012 by Fieldbus Foundation -- All Rights Reserved

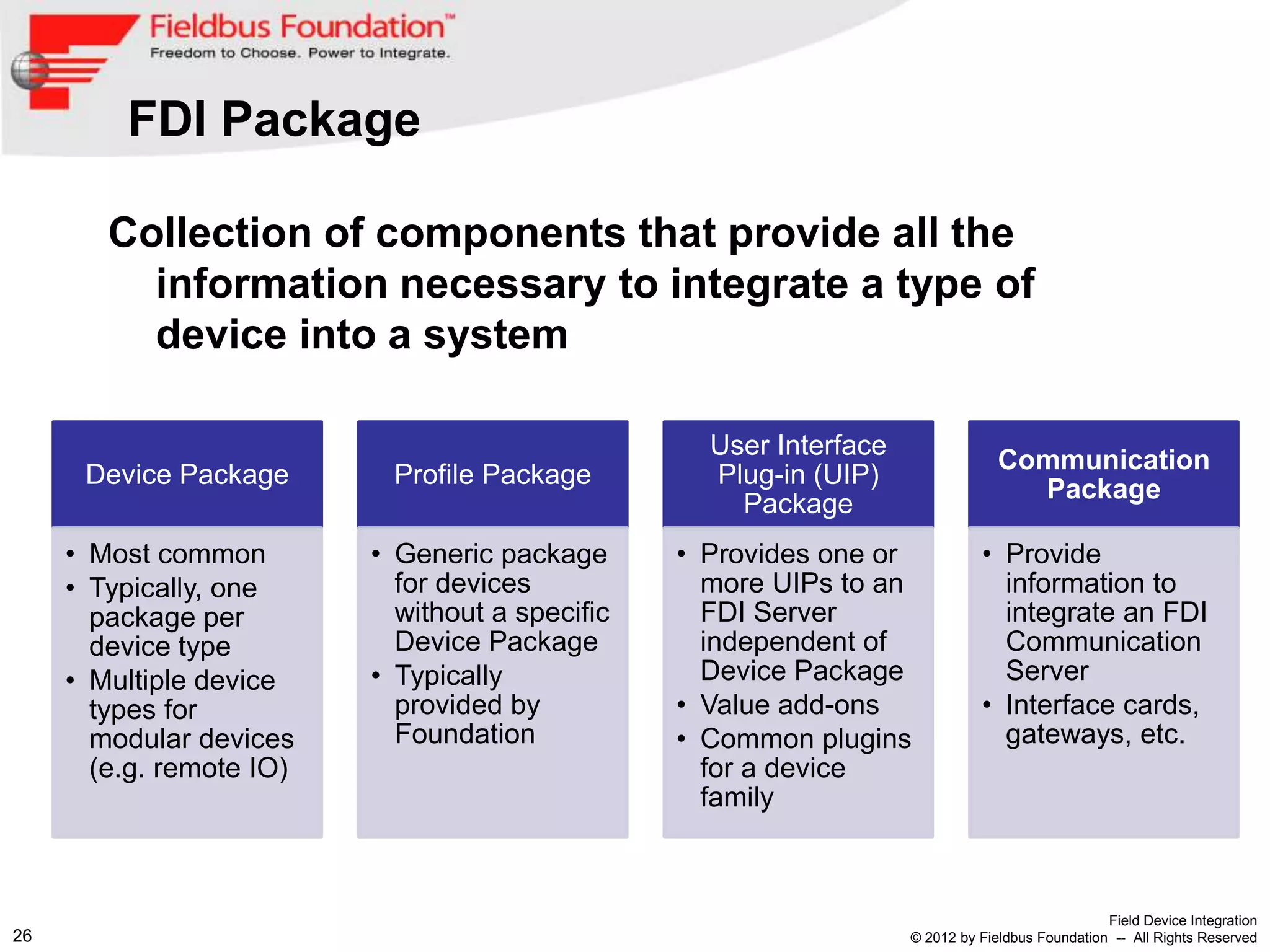

FDI Package

        Collection of components that provide all the
          information necessary to integrate a type of
          device into a system

                                                   User Interface
                                                                                 Communication
      Device Package       Profile Package         Plug-in (UIP)
                                                                                   Package
                                                     Package
     • Most common        • Generic package      • Provides one or            • Provide
     • Typically, one       for devices            more UIPs to an              information to
       package per          without a specific     FDI Server                   integrate an FDI
       device type          Device Package         independent of               Communication
     • Multiple device    • Typically              Device Package               Server
       types for            provided by          • Value add-ons              • Interface cards,
       modular devices      Foundation           • Common plugins               gateways, etc.
       (e.g. remote IO)                            for a device
                                                   family



                                                                                                 Field Device Integration
26                                                                  © 2012 by Fieldbus Foundation -- All Rights Reserved

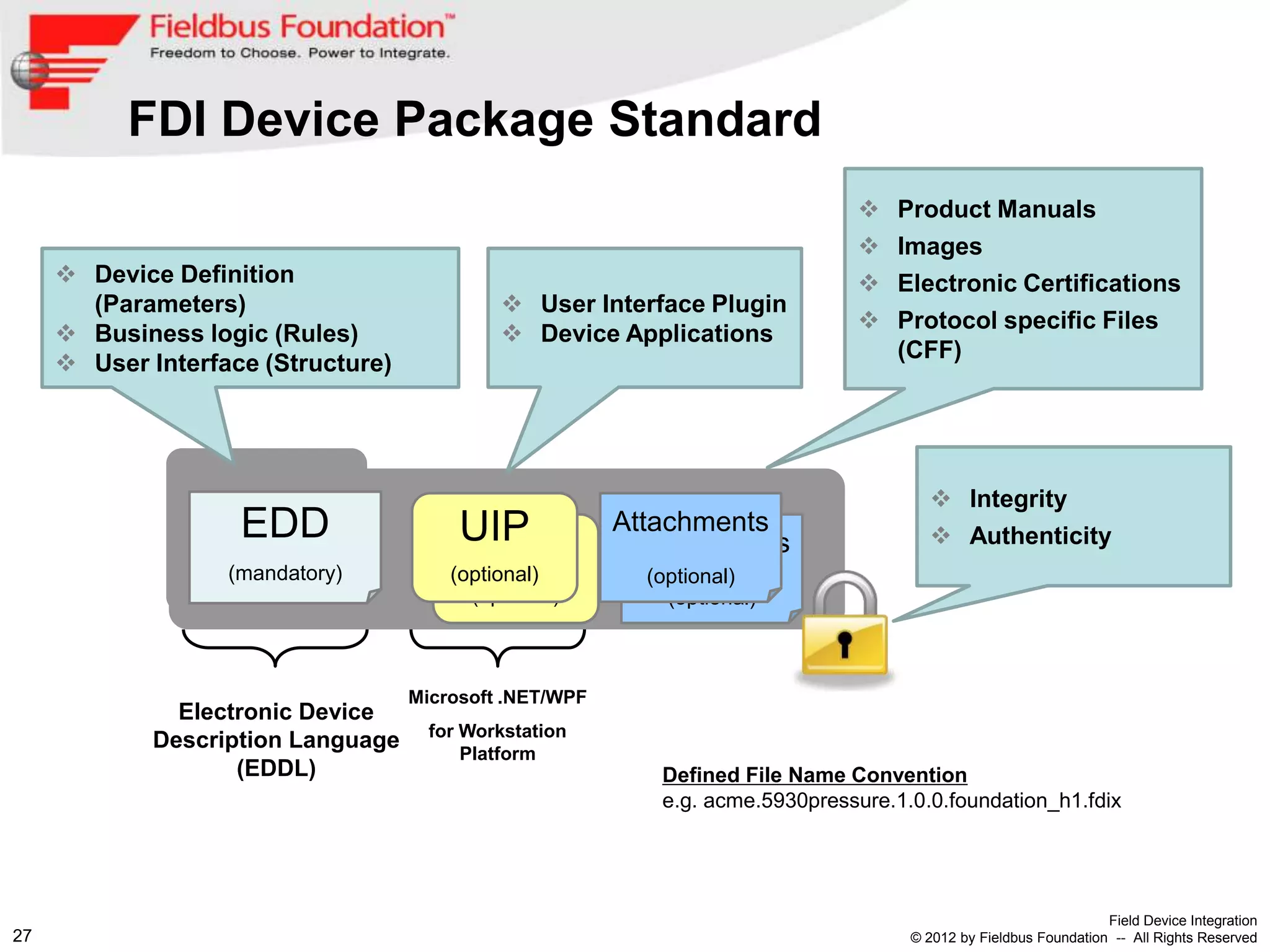

FDI Device Package Standard
                                                                                   Product Manuals
                                                                                   Images
      Device Definition                                                           Electronic Certifications
       (Parameters)                           User Interface Plugin
                                                                                   Protocol specific Files
      Business logic (Rules)                 Device Applications
                                                                                    (CFF)
      User Interface (Structure)




                                                                                        Integrity
                    EDD                  UIP             Attachments                    Authenticity
                   (mandatory)
                                           UIP
                                        (optional)
                                                          Attachments
                                                           (optional)
                                          (optional)         (optional)



                                    Microsoft .NET/WPF
               Electronic Device
                                      for Workstation
             Description Language
                                          Platform
                    (EDDL)                                  Defined File Name Convention
                                                            e.g. acme.5930pressure.1.0.0.foundation_h1.fdix




                                                                                                                  Field Device Integration
27                                                                                   © 2012 by Fieldbus Foundation -- All Rights Reserved

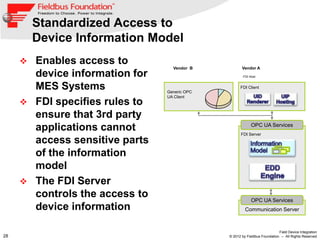

Standardized Access to
         Device Information Model
        Enables access to
                                    Vendor B           Vendor A
         device information for                         FDI Host


         MES Systems              Generic OPC
                                                      FDI Client

                                  UA Client
        FDI specifies rules to
         ensure that 3rd party
         applications cannot                                 OPC UA Services
                                                      FDI Server
         access sensitive parts
         of the information
         model
        The FDI Server
         controls the access to                              OPC UA Services
         device information                              Communication Server



                                                                             Field Device Integration
28                                              © 2012 by Fieldbus Foundation -- All Rights Reserved

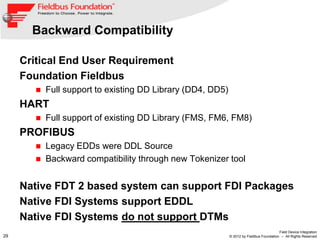

Backward Compatibility

     Critical End User Requirement
     Foundation Fieldbus
           Full support to existing DD Library (DD4, DD5)
     HART
           Full support of existing DD Library (FMS, FM6, FM8)
     PROFIBUS
           Legacy EDDs were DDL Source
           Backward compatibility through new Tokenizer tool


     Native FDT 2 based system can support FDI Packages
     Native FDI Systems support EDDL
     Native FDI Systems do not support DTMs
                                                                                          Field Device Integration
29                                                           © 2012 by Fieldbus Foundation -- All Rights Reserved

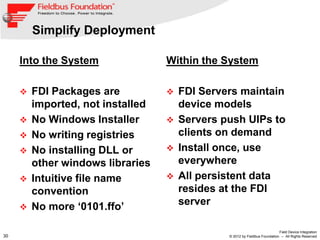

Simplify Deployment

     Into the System             Within the System

      FDI Packages are             FDI Servers maintain
       imported, not installed       device models
      No Windows Installer         Servers push UIPs to
      No writing registries         clients on demand
      No installing DLL or         Install once, use
       other windows libraries       everywhere
      Intuitive file name          All persistent data
       convention                    resides at the FDI
      No more „0101.ffo‟
                                     server

                                                                           Field Device Integration
30                                            © 2012 by Fieldbus Foundation -- All Rights Reserved

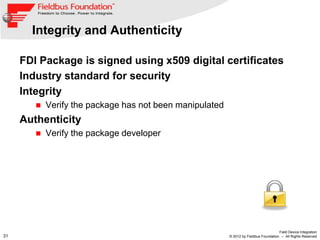

Integrity and Authenticity

     FDI Package is signed using x509 digital certificates
     Industry standard for security
     Integrity
           Verify the package has not been manipulated
     Authenticity
           Verify the package developer




                                                                                       Field Device Integration
31                                                        © 2012 by Fieldbus Foundation -- All Rights Reserved

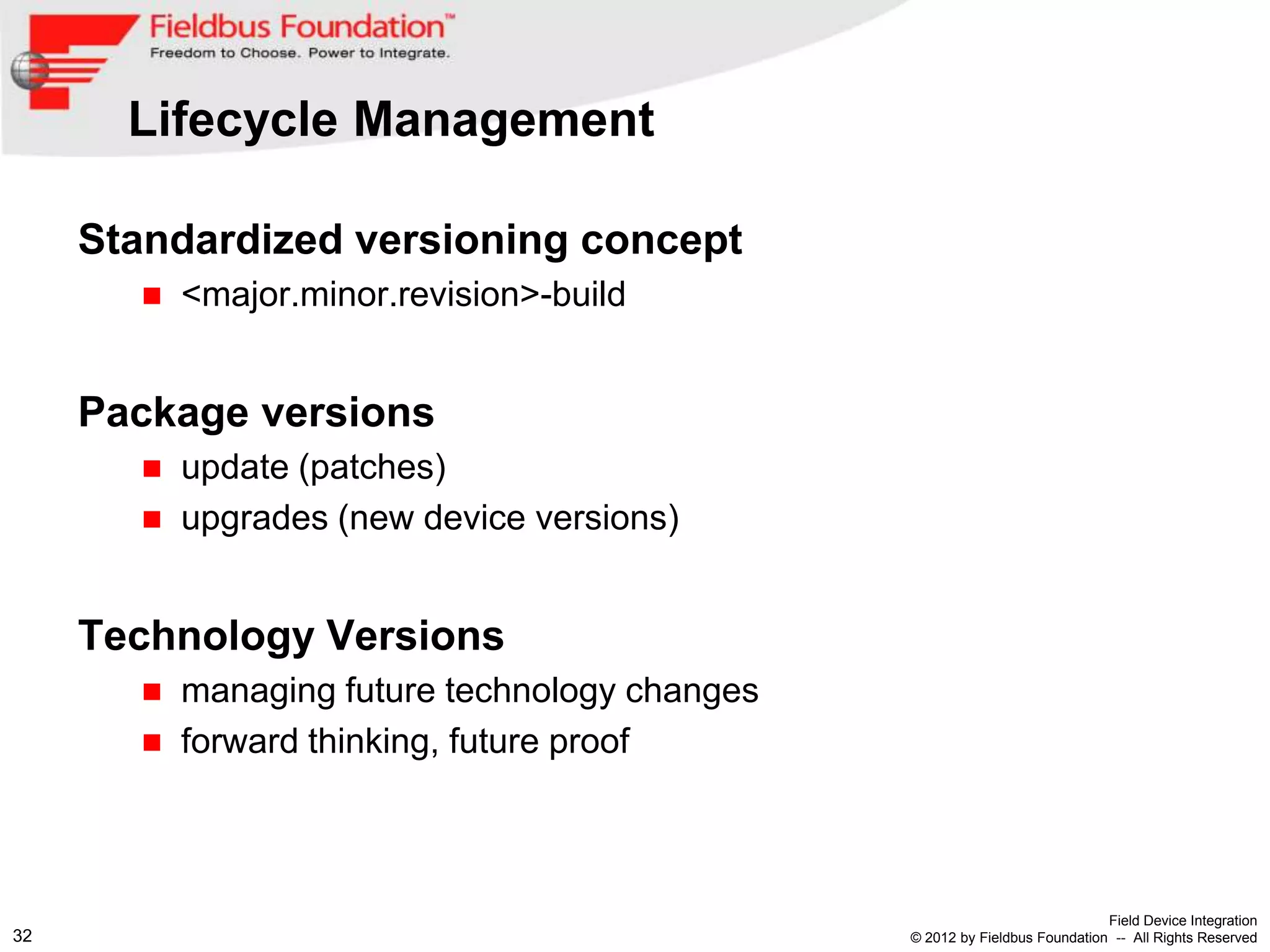

Lifecycle Management

     Standardized versioning concept
          <major.minor.revision>-build


     Package versions
          update (patches)
          upgrades (new device versions)


     Technology Versions
          managing future technology changes
          forward thinking, future proof



                                                                             Field Device Integration
32                                              © 2012 by Fieldbus Foundation -- All Rights Reserved

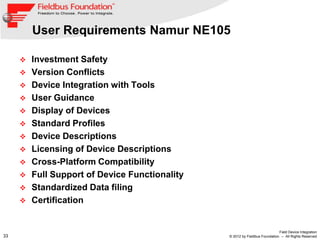

User Requirements Namur NE105

        Investment Safety
        Version Conflicts
        Device Integration with Tools
        User Guidance
        Display of Devices
        Standard Profiles
        Device Descriptions
        Licensing of Device Descriptions
        Cross-Platform Compatibility
        Full Support of Device Functionality
        Standardized Data filing
        Certification


                                                                             Field Device Integration
33                                              © 2012 by Fieldbus Foundation -- All Rights Reserved
FDI CONFORMITY
     ASSESSMENT

                                                   Field Device Integration
34                    © 2012 by Fieldbus Foundation -- All Rights Reserved

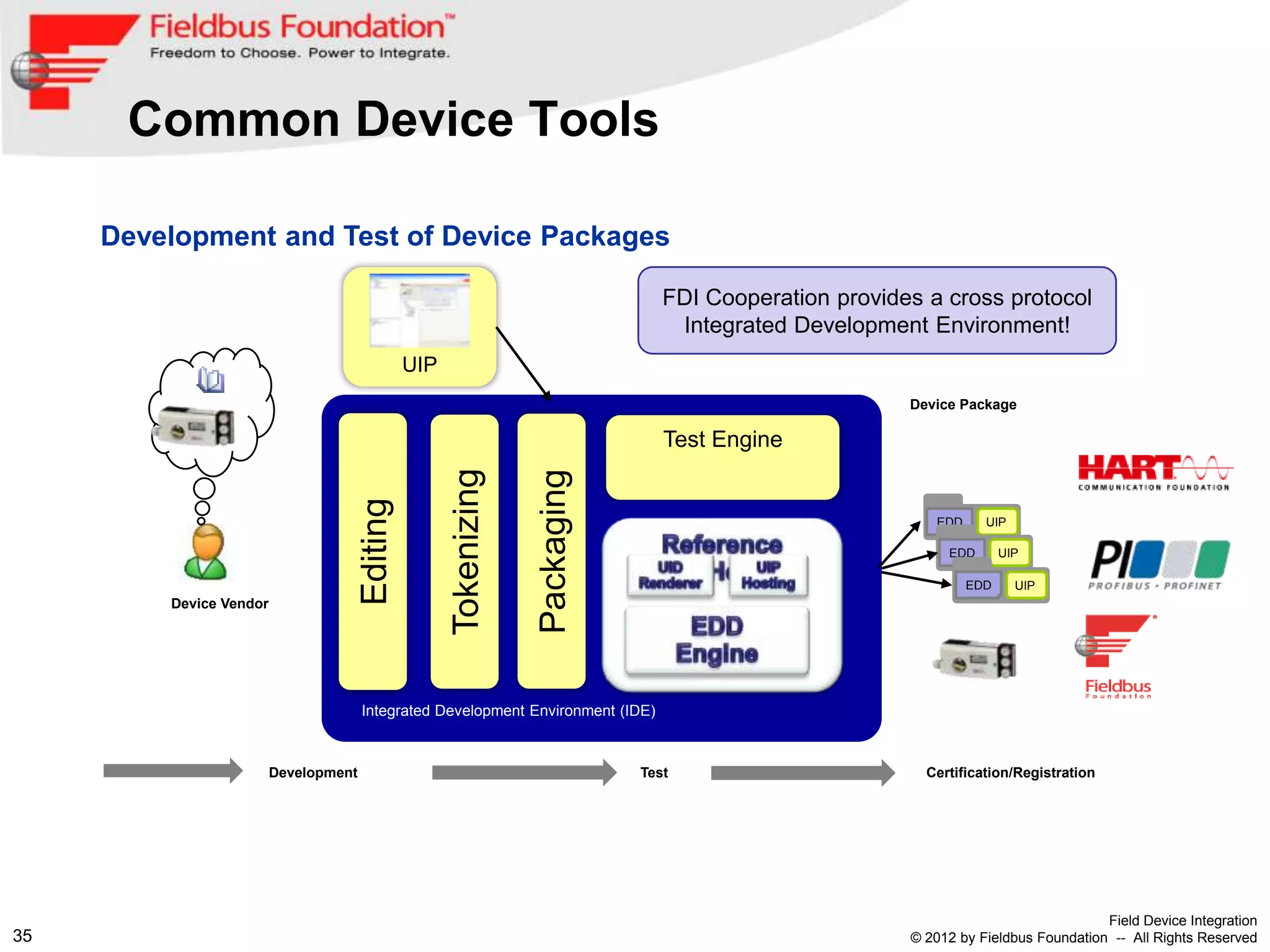

Common Device Tools

     Development and Test of Device Packages

                                                                                   FDI Cooperation provides a cross protocol
                                                                                    Integrated Development Environment!
                                                 UIP
                                                                                                          Device Package

                                                                                   Test Engine
                                                       Tokenizing

                                                                    Packaging
                                       Editing


                                                                                                             EDD     UIP

                                                                                                               EDD       UIP

                                                                                                                   EDD     UIP
         Device Vendor




                                       Integrated Development Environment (IDE)



                         Development                                            Test                        Certification/Registration




                                                                                                                                       Field Device Integration
35                                                                                                        © 2012 by Fieldbus Foundation -- All Rights Reserved

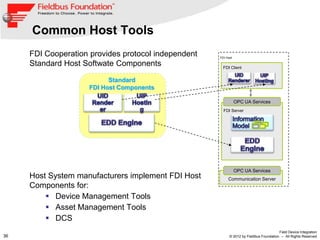

Common Host Tools
     FDI Cooperation provides protocol independent   FDI Host

     Standard Host Softwate Components                 FDI Client


                           Standard
                     FDI Host Components

                                                                OPC UA Services
                                                       FDI Server




                                                                OPC UA Services
     Host System manufacturers implement FDI Host         Communication Server
     Components for:
          Device Management Tools
          Asset Management Tools
          DCS
                                                                                        Field Device Integration
36                                                         © 2012 by Fieldbus Foundation -- All Rights Reserved

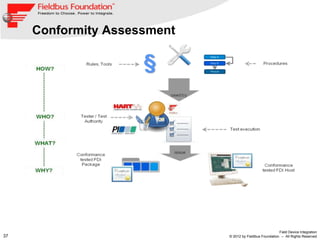

Conformity Assessment




                                                          Field Device Integration
37                           © 2012 by Fieldbus Foundation -- All Rights Reserved

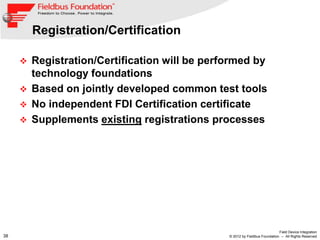

Registration/Certification

        Registration/Certification will be performed by
         technology foundations
        Based on jointly developed common test tools
        No independent FDI Certification certificate
        Supplements existing registrations processes




                                                                             Field Device Integration
38                                              © 2012 by Fieldbus Foundation -- All Rights Reserved
THE PATH FORWARD


                                                     Field Device Integration
39                      © 2012 by Fieldbus Foundation -- All Rights Reserved

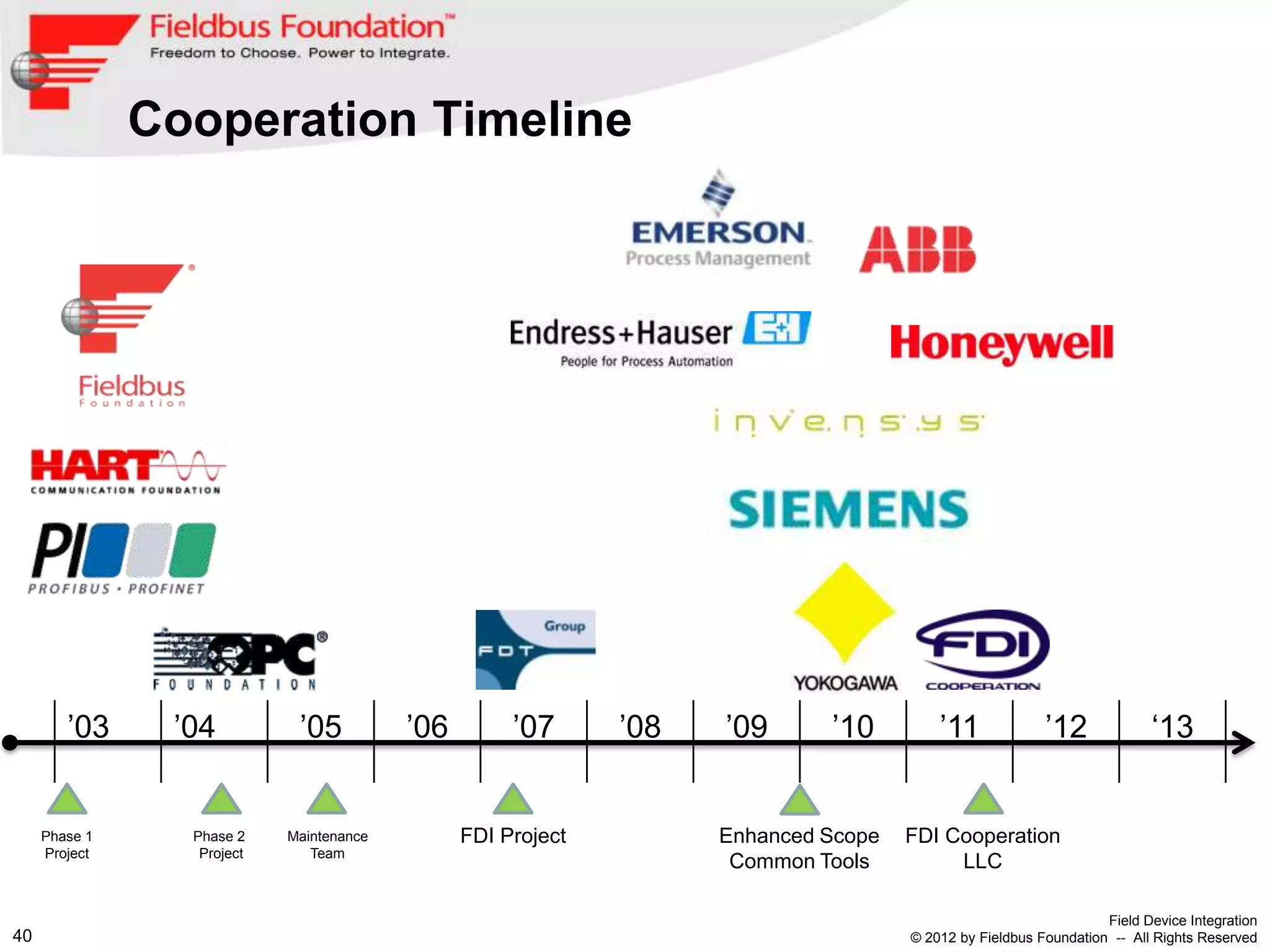

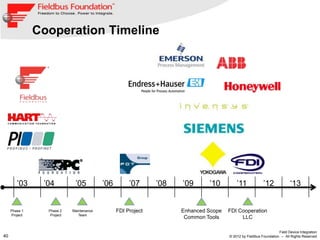

Cooperation Timeline




        ’03     ’04          ’05          ’06        ’07      ’08   ’09      ’10         ’11             ’12             ‘13


     Phase 1     Phase 2    Maintenance         FDI Project         Enhanced Scope   FDI Cooperation
     Project      Project      Team
                                                                     Common Tools         LLC

                                                                                                                  Field Device Integration
40                                                                                   © 2012 by Fieldbus Foundation -- All Rights Reserved

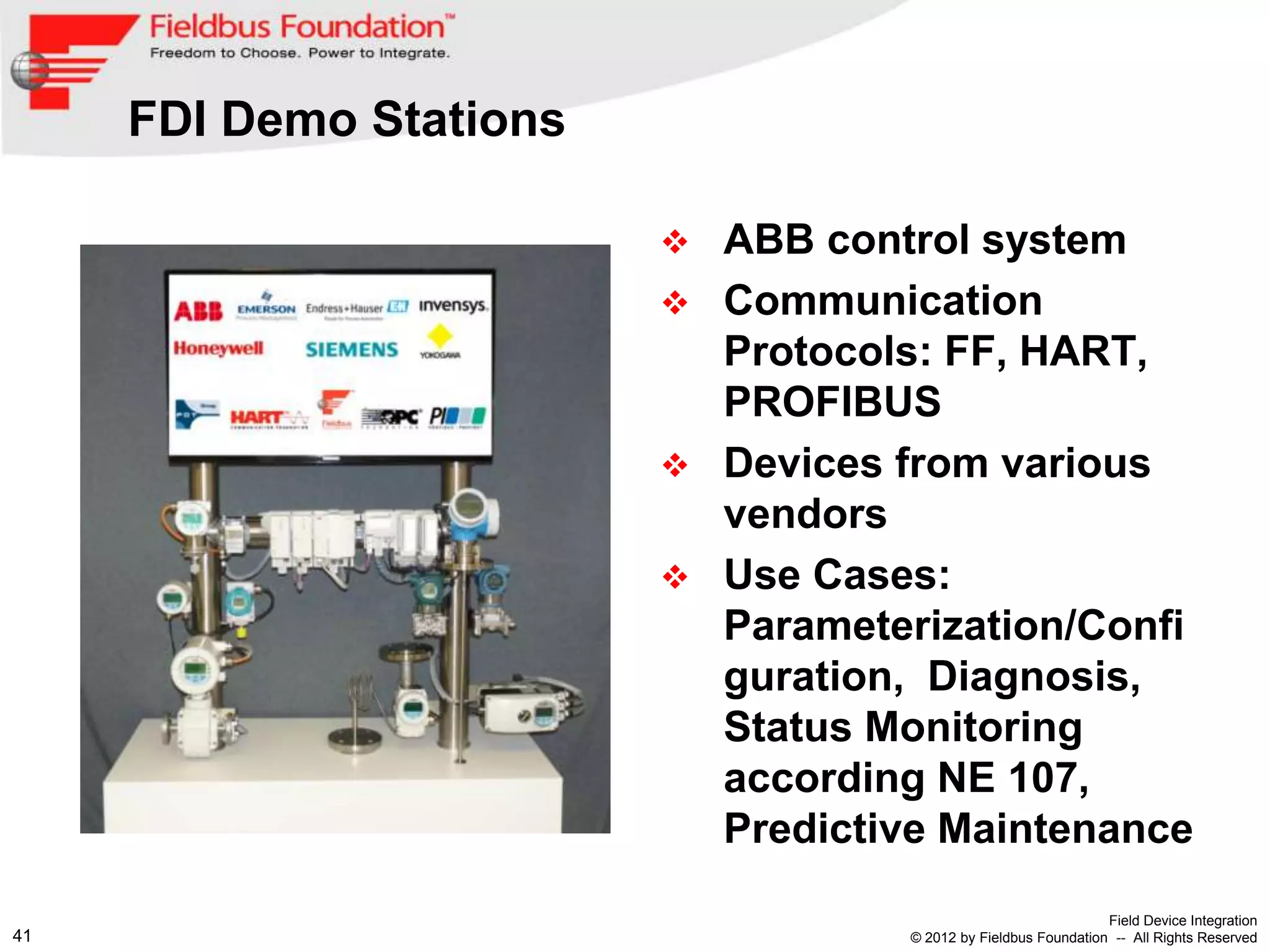

FDI Demo Stations

                            ABB control system
                            Communication
                             Protocols: FF, HART,
                             PROFIBUS
                            Devices from various
                             vendors
                            Use Cases:
                             Parameterization/Confi
                             guration, Diagnosis,
                             Status Monitoring
                             according NE 107,
                             Predictive Maintenance
                                                                  Field Device Integration
41                                   © 2012 by Fieldbus Foundation -- All Rights Reserved

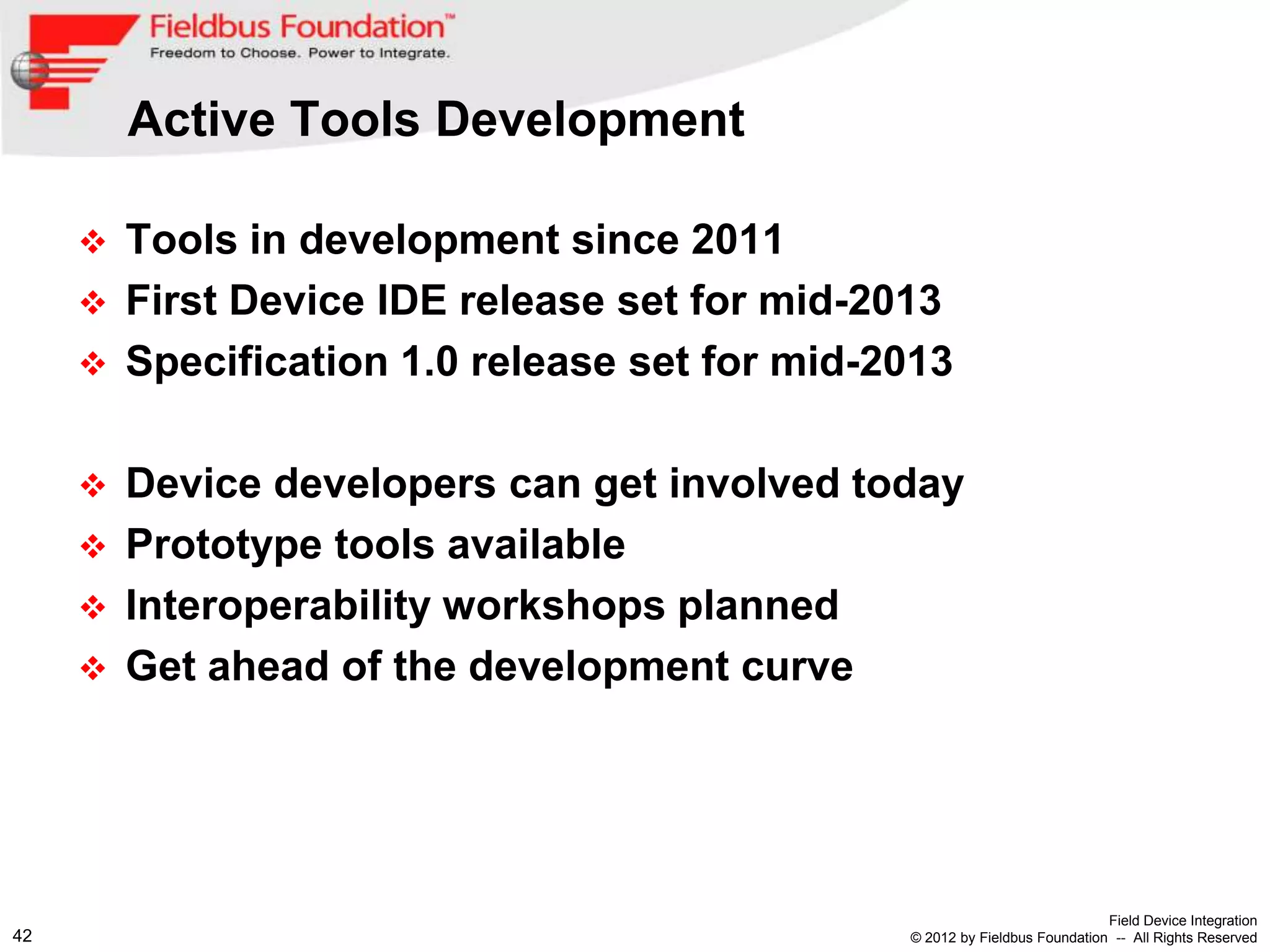

Active Tools Development

        Tools in development since 2011
        First Device IDE release set for mid-2013
        Specification 1.0 release set for mid-2013

      Device developers can get involved today
      Prototype tools available
      Interoperability workshops planned
      Get ahead of the development curve




                                                                             Field Device Integration
42                                              © 2012 by Fieldbus Foundation -- All Rights Reserved

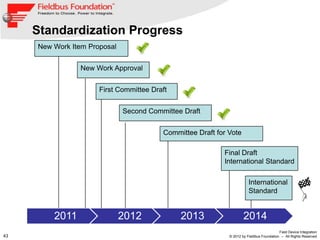

Standardization Progress
     New Work Item Proposal


                New Work Approval


                      First Committee Draft


                              Second Committee Draft


                                         Committee Draft for Vote

                                                           Final Draft
                                                           International Standard

                                                                        International
                                                                        Standard


         2011                 2012            2013                   2014
                                                                                          Field Device Integration
43                                                           © 2012 by Fieldbus Foundation -- All Rights Reserved
Summary

        A real, unified device integration standard
        “Foundations” cooperate in FDI Cooperation to
         complete and promote FDI Technology
        Process automation vendors engaged in FDI
         development
        IEC Standardization has been initiated
        Interoperability is built into the specification
        Established lifecycle concept
        FDI fulfills NAMUR NE105 requirements



                                                                             Field Device Integration
44                                              © 2012 by Fieldbus Foundation -- All Rights Reserved

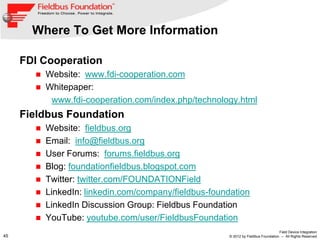

Where To Get More Information

     FDI Cooperation
          Website: www.fdi-cooperation.com
          Whitepaper:
            www.fdi-cooperation.com/index.php/technology.html
     Fieldbus Foundation
          Website: fieldbus.org
          Email: info@fieldbus.org
          User Forums: forums.fieldbus.org
          Blog: foundationfieldbus.blogspot.com
          Twitter: twitter.com/FOUNDATIONField
          LinkedIn: linkedin.com/company/fieldbus-foundation
          LinkedIn Discussion Group: Fieldbus Foundation
          YouTube: youtube.com/user/FieldbusFoundation
                                                                                     Field Device Integration
45                                                      © 2012 by Fieldbus Foundation -- All Rights Reserved

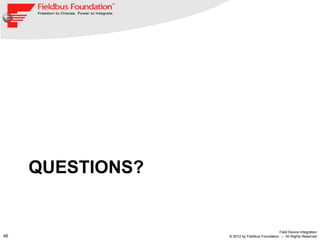

QUESTIONS?


                                               Field Device Integration
46                © 2012 by Fieldbus Foundation -- All Rights Reserved

More Related Content

What's hot

F 35 Production
F 35 ProductionF 35 Production
F 35 Production
andycosterton

OIF CEI-112G at OFC 2020 Presentation
OIF CEI-112G at OFC 2020 PresentationOIF CEI-112G at OFC 2020 Presentation
OIF CEI-112G at OFC 2020 Presentation
Leah Wilkinson

Link 16 Advanced Training - Network Enabled Weapons Bootcamp
Link 16 Advanced Training - Network Enabled Weapons BootcampLink 16 Advanced Training - Network Enabled Weapons Bootcamp
Link 16 Advanced Training - Network Enabled Weapons Bootcamp
Tonex

3d 프린팅 기술과 건축적 활용
3d 프린팅 기술과 건축적 활용3d 프린팅 기술과 건축적 활용
3d 프린팅 기술과 건축적 활용
메가트렌드랩 megatrendlab

The F-35 Cockpit
The F-35 CockpitThe F-35 Cockpit
The F-35 Cockpit
ICSA, LLC

FPD-Link III Serializers & Deserializers
FPD-Link III Serializers & DeserializersFPD-Link III Serializers & Deserializers
FPD-Link III Serializers & Deserializers
Premier Farnell

Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...
Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...
Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...
Ike Alisson

Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...
Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...
Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...
KTN

Combat Systems Fusion Engine for the F-35
Combat Systems Fusion Engine for the F-35Combat Systems Fusion Engine for the F-35
Combat Systems Fusion Engine for the F-35
ICSA, LLC

CNC Plotter Machine
CNC Plotter Machine CNC Plotter Machine
CNC Plotter Machine
Vaibhav Malviya

F22 analysis
F22 analysisF22 analysis
F22 analysis
Picard578

F-35, Stealth and Designing a 21st Century Fighter from the Ground Up
F-35, Stealth and Designing a 21st Century Fighter from the Ground UpF-35, Stealth and Designing a 21st Century Fighter from the Ground Up
F-35, Stealth and Designing a 21st Century Fighter from the Ground Up
ICSA, LLC

F-35 Multi-Role
F-35 Multi-RoleF-35 Multi-Role
F-35 Multi-Role
Stephen Trimble

Como funciona a tecnologia ADSL
Como funciona a tecnologia ADSLComo funciona a tecnologia ADSL
Como funciona a tecnologia ADSL
Jhonnatta124

Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways
Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU GatewaysIntroduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways
Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways
ICP DAS USA, Inc.

Intelligent transportation systems
Intelligent transportation systemsIntelligent transportation systems
Intelligent transportation systems
Engin Karabulut

PCI Express switch over Ethernet or Distributed IO Systems for Ubiquitous Co...
PCI Express switch over Ethernet or Distributed IO  Systems for Ubiquitous Co...PCI Express switch over Ethernet or Distributed IO  Systems for Ubiquitous Co...
PCI Express switch over Ethernet or Distributed IO Systems for Ubiquitous Co...
Ganesan Narayanasamy

Cellular V2X
Cellular V2XCellular V2X
Cellular V2X
Qualcomm Research

Siae datasheet
Siae datasheetSiae datasheet
Siae datasheet
Raafat younis

Cfd analysis of scaffold
Cfd analysis of scaffoldCfd analysis of scaffold
Cfd analysis of scaffold
Surya Pratap Singh


What's hot (20)

F 35 Production
F 35 ProductionF 35 Production
F 35 Production

OIF CEI-112G at OFC 2020 Presentation
OIF CEI-112G at OFC 2020 PresentationOIF CEI-112G at OFC 2020 Presentation
OIF CEI-112G at OFC 2020 Presentation

Link 16 Advanced Training - Network Enabled Weapons Bootcamp
Link 16 Advanced Training - Network Enabled Weapons BootcampLink 16 Advanced Training - Network Enabled Weapons Bootcamp
Link 16 Advanced Training - Network Enabled Weapons Bootcamp

3d 프린팅 기술과 건축적 활용
3d 프린팅 기술과 건축적 활용3d 프린팅 기술과 건축적 활용
3d 프린팅 기술과 건축적 활용

The F-35 Cockpit
The F-35 CockpitThe F-35 Cockpit
The F-35 Cockpit

FPD-Link III Serializers & Deserializers
FPD-Link III Serializers & DeserializersFPD-Link III Serializers & Deserializers
FPD-Link III Serializers & Deserializers

Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...
Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...
Ike A 5G Private Networks PNI-NPN/SNPN LF Edge Akraino Technical Meeting Spri...

Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...
Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...
Fast, Scalable Quantized Neural Network Inference on FPGAs with FINN and Logi...

Combat Systems Fusion Engine for the F-35
Combat Systems Fusion Engine for the F-35Combat Systems Fusion Engine for the F-35
Combat Systems Fusion Engine for the F-35

CNC Plotter Machine
CNC Plotter Machine CNC Plotter Machine
CNC Plotter Machine

F22 analysis
F22 analysisF22 analysis
F22 analysis

F-35, Stealth and Designing a 21st Century Fighter from the Ground Up
F-35, Stealth and Designing a 21st Century Fighter from the Ground UpF-35, Stealth and Designing a 21st Century Fighter from the Ground Up
F-35, Stealth and Designing a 21st Century Fighter from the Ground Up

F-35 Multi-Role
F-35 Multi-RoleF-35 Multi-Role
F-35 Multi-Role

Como funciona a tecnologia ADSL
Como funciona a tecnologia ADSLComo funciona a tecnologia ADSL
Como funciona a tecnologia ADSL

Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways
Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU GatewaysIntroduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways
Introduction to Modbus to Ethernet Device Servers and Modbus TCP to RTU Gateways

Intelligent transportation systems
Intelligent transportation systemsIntelligent transportation systems
Intelligent transportation systems

PCI Express switch over Ethernet or Distributed IO Systems for Ubiquitous Co...
PCI Express switch over Ethernet or Distributed IO  Systems for Ubiquitous Co...PCI Express switch over Ethernet or Distributed IO  Systems for Ubiquitous Co...
PCI Express switch over Ethernet or Distributed IO Systems for Ubiquitous Co...

Cellular V2X
Cellular V2XCellular V2X
Cellular V2X

Siae datasheet
Siae datasheetSiae datasheet
Siae datasheet

Cfd analysis of scaffold
Cfd analysis of scaffoldCfd analysis of scaffold
Cfd analysis of scaffold


Similar to Field device integration evolution in asset integration

OMG DDS and its Relation to Unmanned Vehicle Interoperability
OMG DDS and its Relation to Unmanned Vehicle InteroperabilityOMG DDS and its Relation to Unmanned Vehicle Interoperability
OMG DDS and its Relation to Unmanned Vehicle Interoperability
Gerardo Pardo-Castellote

Profibus and Profinet device configuration - Phil Waterworth
Profibus and Profinet device configuration - Phil WaterworthProfibus and Profinet device configuration - Phil Waterworth
Profibus and Profinet device configuration - Phil Waterworth
PROFIBUS and PROFINET InternationaI - PI UK

PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration
PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device ConfigurationPI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration
PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration
PROFIBUS and PROFINET InternationaI - PI UK

8. profibus and profinet device configuration phil waterworth
8. profibus and profinet device configuration   phil waterworth8. profibus and profinet device configuration   phil waterworth
8. profibus and profinet device configuration phil waterworth
PROFIBUS and PROFINET InternationaI - PI UK

9. PROFIBUS and PROFINET device configuration - Phil Waterworth
9. PROFIBUS and PROFINET device configuration - Phil Waterworth9. PROFIBUS and PROFINET device configuration - Phil Waterworth
9. PROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET InternationaI - PI UK

Foundation for rom general assembly
Foundation for rom general assemblyFoundation for rom general assembly
Foundation for rom general assembly
FieldComm Group

Interoperable ROM DCS Integration
Interoperable ROM DCS IntegrationInteroperable ROM DCS Integration
Interoperable ROM DCS Integration
FieldComm Group

RTI Data-Distribution Service (DDS) Master Class - 2010
RTI Data-Distribution Service (DDS) Master Class - 2010RTI Data-Distribution Service (DDS) Master Class - 2010
RTI Data-Distribution Service (DDS) Master Class - 2010
Gerardo Pardo-Castellote

Profibus and Profinet device configuration v2 - Phil Waterworth
Profibus and Profinet device configuration v2 - Phil WaterworthProfibus and Profinet device configuration v2 - Phil Waterworth
Profibus and Profinet device configuration v2 - Phil Waterworth
PROFIBUS and PROFINET InternationaI - PI UK

Profibus and Profinet device configuration - e+h june 2018 phil waterworth
Profibus and Profinet device configuration - e+h june 2018   phil waterworthProfibus and Profinet device configuration - e+h june 2018   phil waterworth
Profibus and Profinet device configuration - e+h june 2018 phil waterworth
PROFIBUS and PROFINET InternationaI - PI UK

Overview and Status of HDF in NPOESS & NPP
Overview and Status of HDF in NPOESS & NPPOverview and Status of HDF in NPOESS & NPP
Overview and Status of HDF in NPOESS & NPP
The HDF-EOS Tools and Information Center

Brocade: Storage Networking For the Virtual Enterprise
Brocade: Storage Networking For the Virtual Enterprise Brocade: Storage Networking For the Virtual Enterprise
Brocade: Storage Networking For the Virtual Enterprise
EMC

Component Technologies for Fractionated Satellites
Component Technologies for Fractionated SatellitesComponent Technologies for Fractionated Satellites
Component Technologies for Fractionated Satellites
Remedy IT

ELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity
ELCE 2012 - Dive into Android Networking: Adding Ethernet ConnectivityELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity
ELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity
Benjamin Zores

Intel® Network Builders - Network Edge Ecosystem Program
Intel® Network Builders - Network Edge Ecosystem ProgramIntel® Network Builders - Network Edge Ecosystem Program
Intel® Network Builders - Network Edge Ecosystem Program
Michelle Holley

PROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET device configuration - Phil WaterworthPROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET InternationaI - PI UK

2012-2013 IEEE PROJECT TITLES
2012-2013 IEEE PROJECT TITLES2012-2013 IEEE PROJECT TITLES
2012-2013 IEEE PROJECT TITLES
JPINFOTECH JAYAPRAKASH

2012 - 2013 bulk ieee projects for sale
2012 - 2013 bulk ieee projects for sale2012 - 2013 bulk ieee projects for sale
2012 - 2013 bulk ieee projects for sale
JPINFOTECH JAYAPRAKASH

The ROT Project and i4D by Niclas Gustavsson
The ROT Project and i4D by Niclas GustavssonThe ROT Project and i4D by Niclas Gustavsson
The ROT Project and i4D by Niclas Gustavsson
ALIAS Network

Cloud Models, Considerations, & Adoption Techniques
Cloud Models, Considerations, & Adoption TechniquesCloud Models, Considerations, & Adoption Techniques
Cloud Models, Considerations, & Adoption Techniques
EMC


Similar to Field device integration evolution in asset integration (20)

OMG DDS and its Relation to Unmanned Vehicle Interoperability
OMG DDS and its Relation to Unmanned Vehicle InteroperabilityOMG DDS and its Relation to Unmanned Vehicle Interoperability
OMG DDS and its Relation to Unmanned Vehicle Interoperability

Profibus and Profinet device configuration - Phil Waterworth
Profibus and Profinet device configuration - Phil WaterworthProfibus and Profinet device configuration - Phil Waterworth
Profibus and Profinet device configuration - Phil Waterworth

PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration
PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device ConfigurationPI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration
PI UK Seminar (Nov 2021) - PROFIBUS and PROFINET Device Configuration

8. profibus and profinet device configuration phil waterworth
8. profibus and profinet device configuration   phil waterworth8. profibus and profinet device configuration   phil waterworth
8. profibus and profinet device configuration phil waterworth

9. PROFIBUS and PROFINET device configuration - Phil Waterworth
9. PROFIBUS and PROFINET device configuration - Phil Waterworth9. PROFIBUS and PROFINET device configuration - Phil Waterworth
9. PROFIBUS and PROFINET device configuration - Phil Waterworth

Foundation for rom general assembly
Foundation for rom general assemblyFoundation for rom general assembly
Foundation for rom general assembly

Interoperable ROM DCS Integration
Interoperable ROM DCS IntegrationInteroperable ROM DCS Integration
Interoperable ROM DCS Integration

RTI Data-Distribution Service (DDS) Master Class - 2010
RTI Data-Distribution Service (DDS) Master Class - 2010RTI Data-Distribution Service (DDS) Master Class - 2010
RTI Data-Distribution Service (DDS) Master Class - 2010

Profibus and Profinet device configuration v2 - Phil Waterworth
Profibus and Profinet device configuration v2 - Phil WaterworthProfibus and Profinet device configuration v2 - Phil Waterworth
Profibus and Profinet device configuration v2 - Phil Waterworth

Profibus and Profinet device configuration - e+h june 2018 phil waterworth
Profibus and Profinet device configuration - e+h june 2018   phil waterworthProfibus and Profinet device configuration - e+h june 2018   phil waterworth
Profibus and Profinet device configuration - e+h june 2018 phil waterworth

Overview and Status of HDF in NPOESS & NPP
Overview and Status of HDF in NPOESS & NPPOverview and Status of HDF in NPOESS & NPP
Overview and Status of HDF in NPOESS & NPP

Brocade: Storage Networking For the Virtual Enterprise
Brocade: Storage Networking For the Virtual Enterprise Brocade: Storage Networking For the Virtual Enterprise
Brocade: Storage Networking For the Virtual Enterprise

Component Technologies for Fractionated Satellites
Component Technologies for Fractionated SatellitesComponent Technologies for Fractionated Satellites
Component Technologies for Fractionated Satellites

ELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity
ELCE 2012 - Dive into Android Networking: Adding Ethernet ConnectivityELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity
ELCE 2012 - Dive into Android Networking: Adding Ethernet Connectivity

Intel® Network Builders - Network Edge Ecosystem Program
Intel® Network Builders - Network Edge Ecosystem ProgramIntel® Network Builders - Network Edge Ecosystem Program
Intel® Network Builders - Network Edge Ecosystem Program

PROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET device configuration - Phil WaterworthPROFIBUS and PROFINET device configuration - Phil Waterworth
PROFIBUS and PROFINET device configuration - Phil Waterworth

2012-2013 IEEE PROJECT TITLES
2012-2013 IEEE PROJECT TITLES2012-2013 IEEE PROJECT TITLES
2012-2013 IEEE PROJECT TITLES

2012 - 2013 bulk ieee projects for sale
2012 - 2013 bulk ieee projects for sale2012 - 2013 bulk ieee projects for sale
2012 - 2013 bulk ieee projects for sale

The ROT Project and i4D by Niclas Gustavsson
The ROT Project and i4D by Niclas GustavssonThe ROT Project and i4D by Niclas Gustavsson
The ROT Project and i4D by Niclas Gustavsson

Cloud Models, Considerations, & Adoption Techniques
Cloud Models, Considerations, & Adoption TechniquesCloud Models, Considerations, & Adoption Techniques
Cloud Models, Considerations, & Adoption Techniques


More from FieldComm Group

Fieldbus Foundation Celebrates 20 Years!
Fieldbus Foundation Celebrates 20 Years!Fieldbus Foundation Celebrates 20 Years!
Fieldbus Foundation Celebrates 20 Years!
FieldComm Group

Foundation for rom 2013 14 presentation
Foundation for rom 2013 14 presentationFoundation for rom 2013 14 presentation
Foundation for rom 2013 14 presentation
FieldComm Group

Automation mumbai 2013 fieldbus update
Automation mumbai 2013 fieldbus updateAutomation mumbai 2013 fieldbus update
Automation mumbai 2013 fieldbus update
FieldComm Group

Realizing the Potential of Intelligent Device Management
Realizing the Potential of Intelligent Device ManagementRealizing the Potential of Intelligent Device Management
Realizing the Potential of Intelligent Device Management
FieldComm Group

Benefits of foundation in the operational phase
Benefits of foundation in the operational phaseBenefits of foundation in the operational phase
Benefits of foundation in the operational phase
FieldComm Group

2013 Fieldbus Update
2013 Fieldbus Update2013 Fieldbus Update
2013 Fieldbus Update
FieldComm Group

The Fieldbus Diagnostics Difference
The Fieldbus Diagnostics DifferenceThe Fieldbus Diagnostics Difference
The Fieldbus Diagnostics Difference
FieldComm Group

Training and Education Presentation
Training and Education PresentationTraining and Education Presentation
Training and Education Presentation
FieldComm Group

Andreas Agostin Installation Solutions
Andreas Agostin Installation SolutionsAndreas Agostin Installation Solutions
Andreas Agostin Installation Solutions
FieldComm Group

Jonas Berge Advances in Fieldbus Technology
Jonas Berge Advances in Fieldbus TechnologyJonas Berge Advances in Fieldbus Technology
Jonas Berge Advances in Fieldbus Technology
FieldComm Group

FOUNDATION Fieldbus Moving Forward
FOUNDATION Fieldbus Moving ForwardFOUNDATION Fieldbus Moving Forward
FOUNDATION Fieldbus Moving Forward
FieldComm Group

Arasu Thanigai Commissioning Solutions
Arasu Thanigai Commissioning SolutionsArasu Thanigai Commissioning Solutions
Arasu Thanigai Commissioning Solutions
FieldComm Group

Sf taga3 a
Sf taga3 aSf taga3 a
Sf taga3 a
FieldComm Group

Cenpes ff rom demo overview renato ogeda - petrobras
Cenpes ff rom demo overview   renato ogeda - petrobrasCenpes ff rom demo overview   renato ogeda - petrobras
Cenpes ff rom demo overview renato ogeda - petrobras
FieldComm Group

Cenpes ff rom demo wireless backhaul edgar hofmann - petrobras
Cenpes ff rom demo wireless backhaul   edgar hofmann - petrobrasCenpes ff rom demo wireless backhaul   edgar hofmann - petrobras
Cenpes ff rom demo wireless backhaul edgar hofmann - petrobras
FieldComm Group

Petrobras rom demonstration miguel borges - petrobras
Petrobras rom demonstration   miguel borges - petrobrasPetrobras rom demonstration   miguel borges - petrobras
Petrobras rom demonstration miguel borges - petrobras
FieldComm Group

FOUNDATION for ROM - Petrobras Event
FOUNDATION for ROM - Petrobras EventFOUNDATION for ROM - Petrobras Event
FOUNDATION for ROM - Petrobras Event
FieldComm Group

FOUNDATION for ROM End User Perspective
FOUNDATION for ROM End User PerspectiveFOUNDATION for ROM End User Perspective
FOUNDATION for ROM End User Perspective
FieldComm Group

1 Ling Rong - Keynote Presentation Chinese
1 Ling Rong - Keynote Presentation Chinese1 Ling Rong - Keynote Presentation Chinese
1 Ling Rong - Keynote Presentation Chinese
FieldComm Group

1 Ling Rong - Keynote Presentation English
1 Ling Rong - Keynote Presentation English1 Ling Rong - Keynote Presentation English
1 Ling Rong - Keynote Presentation English
FieldComm Group


More from FieldComm Group (20)

Fieldbus Foundation Celebrates 20 Years!
Fieldbus Foundation Celebrates 20 Years!Fieldbus Foundation Celebrates 20 Years!
Fieldbus Foundation Celebrates 20 Years!

Foundation for rom 2013 14 presentation
Foundation for rom 2013 14 presentationFoundation for rom 2013 14 presentation
Foundation for rom 2013 14 presentation

Automation mumbai 2013 fieldbus update
Automation mumbai 2013 fieldbus updateAutomation mumbai 2013 fieldbus update
Automation mumbai 2013 fieldbus update

Realizing the Potential of Intelligent Device Management
Realizing the Potential of Intelligent Device ManagementRealizing the Potential of Intelligent Device Management
Realizing the Potential of Intelligent Device Management

Benefits of foundation in the operational phase
Benefits of foundation in the operational phaseBenefits of foundation in the operational phase
Benefits of foundation in the operational phase

2013 Fieldbus Update
2013 Fieldbus Update2013 Fieldbus Update
2013 Fieldbus Update

The Fieldbus Diagnostics Difference
The Fieldbus Diagnostics DifferenceThe Fieldbus Diagnostics Difference
The Fieldbus Diagnostics Difference

Training and Education Presentation
Training and Education PresentationTraining and Education Presentation
Training and Education Presentation

Andreas Agostin Installation Solutions
Andreas Agostin Installation SolutionsAndreas Agostin Installation Solutions
Andreas Agostin Installation Solutions

Jonas Berge Advances in Fieldbus Technology
Jonas Berge Advances in Fieldbus TechnologyJonas Berge Advances in Fieldbus Technology
Jonas Berge Advances in Fieldbus Technology

FOUNDATION Fieldbus Moving Forward
FOUNDATION Fieldbus Moving ForwardFOUNDATION Fieldbus Moving Forward
FOUNDATION Fieldbus Moving Forward

Arasu Thanigai Commissioning Solutions
Arasu Thanigai Commissioning SolutionsArasu Thanigai Commissioning Solutions
Arasu Thanigai Commissioning Solutions

Sf taga3 a
Sf taga3 aSf taga3 a
Sf taga3 a

Cenpes ff rom demo overview renato ogeda - petrobras
Cenpes ff rom demo overview   renato ogeda - petrobrasCenpes ff rom demo overview   renato ogeda - petrobras
Cenpes ff rom demo overview renato ogeda - petrobras

Cenpes ff rom demo wireless backhaul edgar hofmann - petrobras
Cenpes ff rom demo wireless backhaul   edgar hofmann - petrobrasCenpes ff rom demo wireless backhaul   edgar hofmann - petrobras
Cenpes ff rom demo wireless backhaul edgar hofmann - petrobras

Petrobras rom demonstration miguel borges - petrobras
Petrobras rom demonstration   miguel borges - petrobrasPetrobras rom demonstration   miguel borges - petrobras
Petrobras rom demonstration miguel borges - petrobras

FOUNDATION for ROM - Petrobras Event
FOUNDATION for ROM - Petrobras EventFOUNDATION for ROM - Petrobras Event
FOUNDATION for ROM - Petrobras Event

FOUNDATION for ROM End User Perspective
FOUNDATION for ROM End User PerspectiveFOUNDATION for ROM End User Perspective
FOUNDATION for ROM End User Perspective

1 Ling Rong - Keynote Presentation Chinese
1 Ling Rong - Keynote Presentation Chinese1 Ling Rong - Keynote Presentation Chinese
1 Ling Rong - Keynote Presentation Chinese

1 Ling Rong - Keynote Presentation English
1 Ling Rong - Keynote Presentation English1 Ling Rong - Keynote Presentation English
1 Ling Rong - Keynote Presentation English


Recently uploaded

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
shanihomely

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries
Brian Pichman

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
Priyanka Aash

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase
shyamraj55

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl

How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...
DianaGray10

Sonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdfSonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdf
SubhamMandal40

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx
ssuser1915fe1

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx
BrainSell Technologies

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
aslasdfmkhan4750

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
SynapseIndia

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
DianaGray10

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch
softsuave

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
Priyanka Aash

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
janagijoythi


Recently uploaded (20)

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...
Premium Girls Call Mumbai 9920725232 Unlimited Short Providing Girls Service ...

Uncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in LibrariesUncharted Together- Navigating AI's New Frontiers in Libraries
Uncharted Together- Navigating AI's New Frontiers in Libraries

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf
(CISOPlatform Summit & SACON 2024) Regulation & Response In Banks.pdf

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology

How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...How UiPath Discovery Suite supports identification of Agentic Process Automat...
How UiPath Discovery Suite supports identification of Agentic Process Automat...

Sonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdfSonkoloniya documentation - ONEprojukti.pdf
Sonkoloniya documentation - ONEprojukti.pdf

Feature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptxFeature sql server terbaru performance.pptx
Feature sql server terbaru performance.pptx

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

Acumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptxAcumatica vs. Sage Intacct _Construction_July (1).pptx
Acumatica vs. Sage Intacct _Construction_July (1).pptx

High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...
High Profile Girls Call ServiCe Hyderabad 0000000000 Tanisha Best High Class ...

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Use Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptxUse Cases & Benefits of RPA in Manufacturing in 2024.pptx
Use Cases & Benefits of RPA in Manufacturing in 2024.pptx

Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision MakingConnector Corner: Leveraging Snowflake Integration for Smarter Decision Making
Connector Corner: Leveraging Snowflake Integration for Smarter Decision Making

Step-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From ScratchStep-By-Step Process to Develop a Mobile App From Scratch
Step-By-Step Process to Develop a Mobile App From Scratch

(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...
(CISOPlatform Summit & SACON 2024) Workshop _ Most Dangerous Attack Technique...

MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptxMAKE MONEY ONLINE Unlock Your Income Potential Today.pptx
MAKE MONEY ONLINE Unlock Your Income Potential Today.pptx


Field device integration evolution in asset integration

  • 1. Field Device Integration Evolution in Asset Integration
  • 2. Introduction  History to Collaboration  FDI Cooperation  FDI Technology  Conformity Assessment  The Path Forward  Questions Field Device Integration 2 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 3. HISTORY TO COLLABORATION Field Device Integration 3 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 4. The Fieldbus Wars Mid 80’s until 1999 Field Device Integration 4 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 5. The Truce IEC changes strategy from IEC 61158-1 Ed.1 (2003) single to multiple IEC 61784 Ed. 1 (2003) fieldbus standard Foundation fieldbus ControlNet Edition 1 (2003) PROFIBUS  7 Communication Families  18 profiles P-NET WorldFIP Edition 4 (est. 2013) INTERBUS  18 Communication Families SwiftNet  51 Profiles * * Excludes real time Ethernet (61784-2) and functional safety (61784-3) profiles Field Device Integration 5 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 6. Standards The wonderful thing about standards is that there are so many of them to choose from. - Grace Hopper * * Typically attributed, but there is some dispute on the actual author. Field Device Integration 6 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 7. Device Integration Technology Electronic Device Field Device Tool Description Language (FDT) (EDDL) Field Device Integration 7 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 8. Electronic Device Description Language (EDDL)  The “E” is for Electronic, not Enhanced  Some technologies use the term Device Description Language (DDL)  Adopted for HART in 1992  Adopted for Foundation Fieldbus in 1994  Adopted for Profibus in 2000  International Standard as IEC 61804-2 since 2004  EDDL collectively maintained through IEC by Fieldbus Foundation, HART Communication Foundation and Profibus Organization Field Device Integration 8 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 9. EDDL Characteristics  Communication Network Independent (with dialects)  Platform Independent  OS Independent  Interpreted -- No machine level execution  Parameter definitions and attributes  Label, Help, Units, Handing  Procedure through method calls (interpreted)  Visualizations through menus  Common look and feel with host  EDDL developer influences presentation Field Device Integration 9 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 10. EDDL Cooperation Team Formed in 2003 via Memorandum of Understanding  Fieldbus Foundation  HART Communication Foundation  Profibus Organization Phase 1 (2003)  Extended visualization  Persistent Data Storage Phase 2 (2004)  Added OPC Foundation  Support for more complex devices  Map EDDL to OPC UA Information Model Field Device Integration 10 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 11. Device Integration Standard Field Device Tool (FDT)  Association in 2003 between ABB, Endress+Hauser, Invensys, Metso, and Siemens  Became FDT Group in 2005  Profiles for several communication networks including HART, PROFIBUS, FOUNDATION Fieldbus, DeviceNet, Interbus, AS-Interface, PROFINET IO  International Standard as IEC 62453 since 2009  FDT maintained through IEC by FDT Group source: http://www.fdtgroup.org Field Device Integration 11 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 12. FDT Characteristics  Communication Network Independent  Platform Independent  Based on COM/ActiveX (FDT 1.x), .NET (FDT 2.x)  DTM as the device driver (application plug-in)  DTM executes within an FDT Frame application  CommDTM for communication drivers (cards, gateways)  Strong visualization and business logic capabilities  DTM developer controls the presentation Field Device Integration 12 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 13. Device Integration War? Field Device Integration 13 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 14. Complementary or Competing? Both, but the question misses the point End Users are frustrated  Want the best of both worlds  Limited choice of products based on vendors alignment Device suppliers are frustrated  Spending money on duplicated efforts  Host specific implementations System Suppliers are frustrated  Protect the integrity of the process automation system  Provide consistent user experiences Field Device Integration 14 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 15. The itm whitepaper  Harmonize EDDL and FDT Approaches  Client / Server Model  Using OPC UA  Decouples device information model (DIM) and the device object model (DOM)  Becomes the basis of the FDI Project  Future becomes Field Field Device Integration 15 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 16. FDI Project Announcement  Announced 2007 at Interkama/Hannover  FDT Group joins the EDDL Cooperation Team  Increase scope to create unified solution based on concepts from itm white paper Field Device Integration 16 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 17. Why Field Device Integration? Process automation end users are asking for a single solution  Current FDT and EDDL technologies with partial overlap cause competitive positioning  Current situation is confusing because of conflicting messages Suppliers face expensive development  Most suppliers are simultaneously part of ECT organization and FDT.  They must invest in parallel developments for EDDT and FDT. Field Device Integration 17 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 18. Lifecycle Driven Architecture Input from AIDA, NAMUR, WIB and PNO on use case development Use cases based on plant life-cycle model Requirements derived from use cases System architecture derived from requirements Field Device Integration 18 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 19. FDI Project Extended Scope Public commitment from several key suppliers (2010) Extended Scope  Common Validation Effort  FDI/FDT 2.0 Interoperability  Common Tools – Device Package Development Tools (IDE) – Host Interpreters – Package Conformance Tools – Host Conformance Tools  EDDL Profile Harmonization and Extensions  Common EDDL File Format Field Device Integration 19 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 20. FDI COOPERATION LLC Field Device Integration 20 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 21. FDI Cooperation LLC  Founded Sept 2011  Not for Profit Limited Liability Cooperation (US)  Joint ownership by 5 ECT Foundations  Three year limited lifetime  Replaces ECT  Finish FDI as IEC standard  Facilitate development of common software tools  Promotion  Marketing Field Device Integration 21 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 22. FDI Cooperation Principles  Features based on Use Cases and Requirements  Harmonized EDDL  Host System Independent  Support FOUNDATION fieldbus, HART, PROFIBUS and PROFINET  Open to other industrial networks  Support Nested communications through heterogeneous networks  Support Information exchange between FDI Host and generic OPC UA Client  FDI Packages must be compatible with FDT 2.0+ Field Device Integration 22 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 23. FDI TECHNOLOGY Field Device Integration 23 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 24. FDI Features  A unified device integration standard  Built on knowledge gained from EDDL and FDT  Uses OPC UA object model concepts  Platform, Protocol Independent  Technology Independent  Supports scalable clients, from simple handhelds to full asset management applications  Scales appropriate to the device supplier needs  Backward compatible  Lifecycle concept Field Device Integration 24 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 25. New Terminology FDI Package  The file for device integration  Based Open Packaging Conventions (IEC 29500) User Interface Plug-in (UIP)  executable plug-in  Can support multiple platforms and technologies  While it shares similarities, a UIP is not a DTM User Interface Description (UID)  Graphic visualization of device parameters  Implemented as EDDL Menus and Methods Field Device Integration 25 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 26. FDI Package Collection of components that provide all the information necessary to integrate a type of device into a system User Interface Communication Device Package Profile Package Plug-in (UIP) Package Package • Most common • Generic package • Provides one or • Provide • Typically, one for devices more UIPs to an information to package per without a specific FDI Server integrate an FDI device type Device Package independent of Communication • Multiple device • Typically Device Package Server types for provided by • Value add-ons • Interface cards, modular devices Foundation • Common plugins gateways, etc. (e.g. remote IO) for a device family Field Device Integration 26 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 27. FDI Device Package Standard  Product Manuals  Images  Device Definition  Electronic Certifications (Parameters)  User Interface Plugin  Protocol specific Files  Business logic (Rules)  Device Applications (CFF)  User Interface (Structure)  Integrity EDD UIP Attachments  Authenticity (mandatory) UIP (optional) Attachments (optional) (optional) (optional) Microsoft .NET/WPF Electronic Device for Workstation Description Language Platform (EDDL) Defined File Name Convention e.g. acme.5930pressure.1.0.0.foundation_h1.fdix Field Device Integration 27 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 28. Standardized Access to Device Information Model  Enables access to Vendor B Vendor A device information for FDI Host MES Systems Generic OPC FDI Client UA Client  FDI specifies rules to ensure that 3rd party applications cannot OPC UA Services FDI Server access sensitive parts of the information model  The FDI Server controls the access to OPC UA Services device information Communication Server Field Device Integration 28 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 29. Backward Compatibility Critical End User Requirement Foundation Fieldbus  Full support to existing DD Library (DD4, DD5) HART  Full support of existing DD Library (FMS, FM6, FM8) PROFIBUS  Legacy EDDs were DDL Source  Backward compatibility through new Tokenizer tool Native FDT 2 based system can support FDI Packages Native FDI Systems support EDDL Native FDI Systems do not support DTMs Field Device Integration 29 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 30. Simplify Deployment Into the System Within the System  FDI Packages are  FDI Servers maintain imported, not installed device models  No Windows Installer  Servers push UIPs to  No writing registries clients on demand  No installing DLL or  Install once, use other windows libraries everywhere  Intuitive file name  All persistent data convention resides at the FDI  No more „0101.ffo‟ server Field Device Integration 30 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 31. Integrity and Authenticity FDI Package is signed using x509 digital certificates Industry standard for security Integrity  Verify the package has not been manipulated Authenticity  Verify the package developer Field Device Integration 31 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 32. Lifecycle Management Standardized versioning concept  <major.minor.revision>-build Package versions  update (patches)  upgrades (new device versions) Technology Versions  managing future technology changes  forward thinking, future proof Field Device Integration 32 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 33. User Requirements Namur NE105  Investment Safety  Version Conflicts  Device Integration with Tools  User Guidance  Display of Devices  Standard Profiles  Device Descriptions  Licensing of Device Descriptions  Cross-Platform Compatibility  Full Support of Device Functionality  Standardized Data filing  Certification Field Device Integration 33 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 34. FDI CONFORMITY ASSESSMENT Field Device Integration 34 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 35. Common Device Tools Development and Test of Device Packages FDI Cooperation provides a cross protocol Integrated Development Environment! UIP Device Package Test Engine Tokenizing Packaging Editing EDD UIP EDD UIP EDD UIP Device Vendor Integrated Development Environment (IDE) Development Test Certification/Registration Field Device Integration 35 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 36. Common Host Tools FDI Cooperation provides protocol independent FDI Host Standard Host Softwate Components FDI Client Standard FDI Host Components OPC UA Services FDI Server OPC UA Services Host System manufacturers implement FDI Host Communication Server Components for:  Device Management Tools  Asset Management Tools  DCS Field Device Integration 36 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 37. Conformity Assessment Field Device Integration 37 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 38. Registration/Certification  Registration/Certification will be performed by technology foundations  Based on jointly developed common test tools  No independent FDI Certification certificate  Supplements existing registrations processes Field Device Integration 38 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 39. THE PATH FORWARD Field Device Integration 39 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 40. Cooperation Timeline ’03 ’04 ’05 ’06 ’07 ’08 ’09 ’10 ’11 ’12 ‘13 Phase 1 Phase 2 Maintenance FDI Project Enhanced Scope FDI Cooperation Project Project Team Common Tools LLC Field Device Integration 40 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 41. FDI Demo Stations  ABB control system  Communication Protocols: FF, HART, PROFIBUS  Devices from various vendors  Use Cases: Parameterization/Confi guration, Diagnosis, Status Monitoring according NE 107, Predictive Maintenance Field Device Integration 41 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 42. Active Tools Development  Tools in development since 2011  First Device IDE release set for mid-2013  Specification 1.0 release set for mid-2013  Device developers can get involved today  Prototype tools available  Interoperability workshops planned  Get ahead of the development curve Field Device Integration 42 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 43. Standardization Progress New Work Item Proposal New Work Approval First Committee Draft Second Committee Draft Committee Draft for Vote Final Draft International Standard International Standard 2011 2012 2013 2014 Field Device Integration 43 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 44. Summary  A real, unified device integration standard  “Foundations” cooperate in FDI Cooperation to complete and promote FDI Technology  Process automation vendors engaged in FDI development  IEC Standardization has been initiated  Interoperability is built into the specification  Established lifecycle concept  FDI fulfills NAMUR NE105 requirements Field Device Integration 44 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 45. Where To Get More Information FDI Cooperation  Website: www.fdi-cooperation.com  Whitepaper: www.fdi-cooperation.com/index.php/technology.html Fieldbus Foundation  Website: fieldbus.org  Email: info@fieldbus.org  User Forums: forums.fieldbus.org  Blog: foundationfieldbus.blogspot.com  Twitter: twitter.com/FOUNDATIONField  LinkedIn: linkedin.com/company/fieldbus-foundation  LinkedIn Discussion Group: Fieldbus Foundation  YouTube: youtube.com/user/FieldbusFoundation Field Device Integration 45 © 2012 by Fieldbus Foundation -- All Rights Reserved
  • 46. QUESTIONS? Field Device Integration 46 © 2012 by Fieldbus Foundation -- All Rights Reserved
