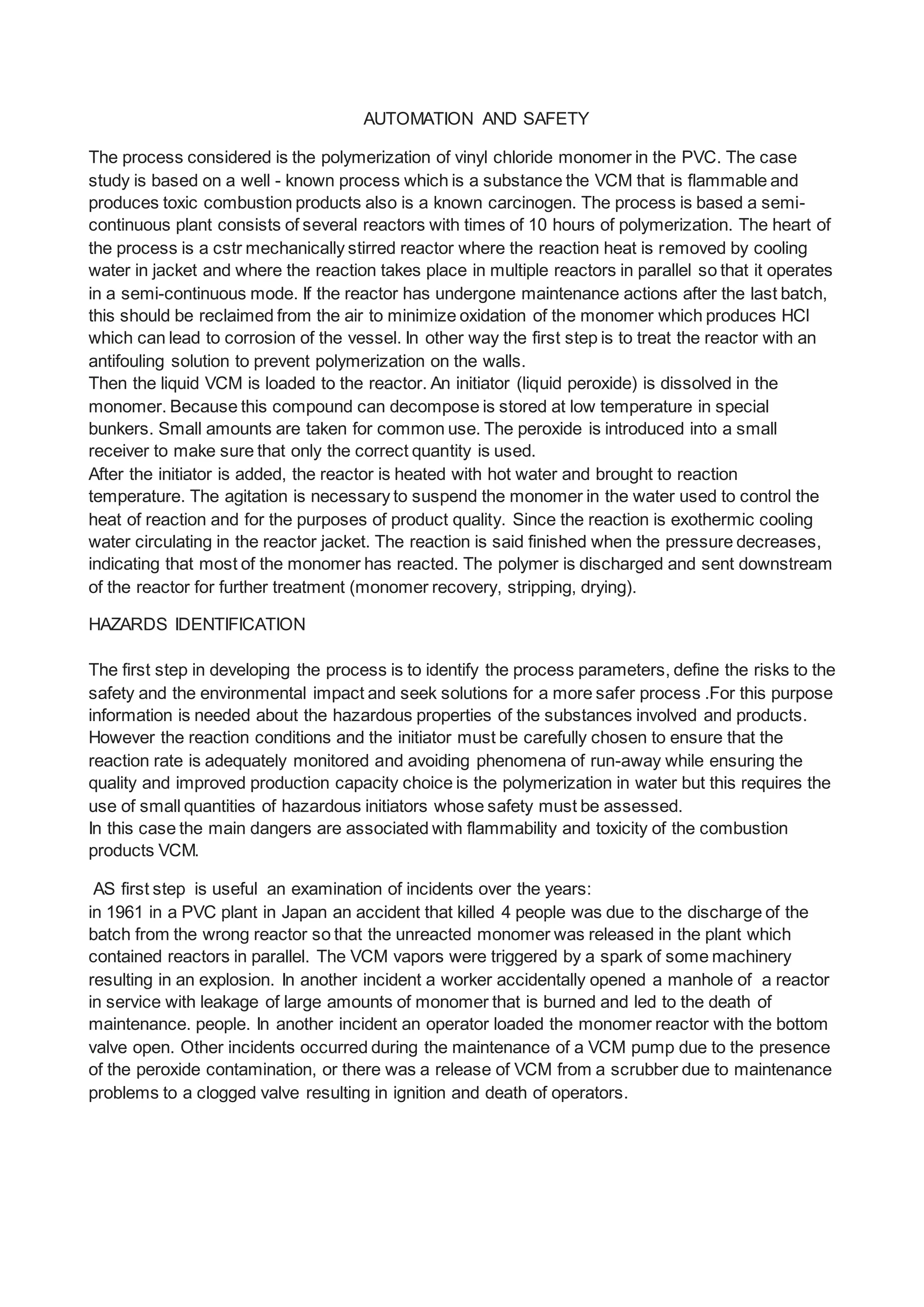

AUTOMATION AND SAFETY
The process considered is the polymerization of vinyl chloride monomer in the PVC. The case
study is based on a well - known process which is a substance the VCM that is flammable and
produces toxic combustion products also is a known carcinogen. The process is based a semi-
continuous plant consists of several reactors with times of 10 hours of polymerization. The heart of
the process is a cstr mechanically stirred reactor where the reaction heat is removed by cooling
water in jacket and where the reaction takes place in multiple reactors in parallel so that it operates
in a semi-continuous mode. If the reactor has undergone maintenance actions after the last batch,
this should be reclaimed from the air to minimize oxidation of the monomer which produces HCl
which can lead to corrosion of the vessel. In other way the first step is to treat the reactor with an
antifouling solution to prevent polymerization on the walls.
Then the liquid VCM is loaded to the reactor. An initiator (liquid peroxide) is dissolved in the
monomer. Because this compound can decompose is stored at low temperature in special
bunkers. Small amounts are taken for common use. The peroxide is introduced into a small
receiver to make sure that only the correct quantity is used.
After the initiator is added, the reactor is heated with hot water and brought to reaction
temperature. The agitation is necessary to suspend the monomer in the water used to control the
heat of reaction and for the purposes of product quality. Since the reaction is exothermic cooling
water circulating in the reactor jacket. The reaction is said finished when the pressure decreases,
indicating that most of the monomer has reacted. The polymer is discharged and sent downstream
of the reactor for further treatment (monomer recovery, stripping, drying).
HAZARDS IDENTIFICATION
The first step in developing the process is to identify the process parameters, define the risks to the
safety and the environmental impact and seek solutions for a more safer process .For this purpose
information is needed about the hazardous properties of the substances involved and products.
However the reaction conditions and the initiator must be carefully chosen to ensure that the
reaction rate is adequately monitored and avoiding phenomena of run-away while ensuring the
quality and improved production capacity choice is the polymerization in water but this requires the
use of small quantities of hazardous initiators whose safety must be assessed.
In this case the main dangers are associated with flammability and toxicity of the combustion
products VCM.
AS first step is useful an examination of incidents over the years:
in 1961 in a PVC plant in Japan an accident that killed 4 people was due to the discharge of the
batch from the wrong reactor so that the unreacted monomer was released in the plant which
contained reactors in parallel. The VCM vapors were triggered by a spark of some machinery
resulting in an explosion. In another incident a worker accidentally opened a manhole of a reactor
in service with leakage of large amounts of monomer that is burned and led to the death of
maintenance. people. In another incident an operator loaded the monomer reactor with the bottom
valve open. Other incidents occurred during the maintenance of a VCM pump due to the presence
of the peroxide contamination, or there was a release of VCM from a scrubber due to maintenance
problems to a clogged valve resulting in ignition and death of operators.

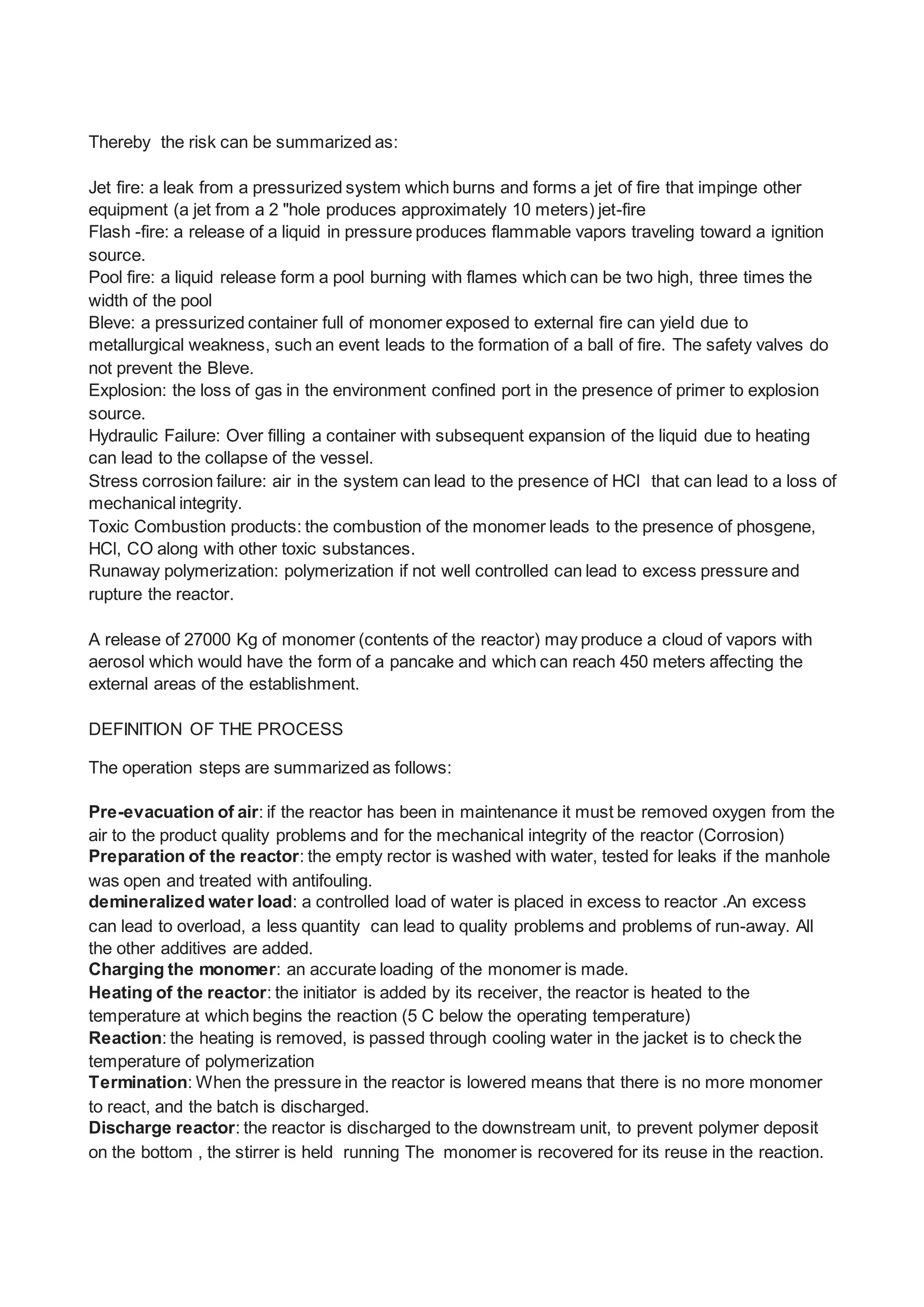

Thereby the risk can be summarized as:
Jet fire: a leak from a pressurized system which burns and forms a jet of fire that impinge other
equipment (a jet from a 2 "hole produces approximately 10 meters) jet-fire
Flash -fire: a release of a liquid in pressure produces flammable vapors traveling toward a ignition
source.
Pool fire: a liquid release form a pool burning with flames which can be two high, three times the
width of the pool
Bleve: a pressurized container full of monomer exposed to external fire can yield due to
metallurgical weakness, such an event leads to the formation of a ball of fire. The safety valves do
not prevent the Bleve.
Explosion: the loss of gas in the environment confined port in the presence of primer to explosion
source.
Hydraulic Failure: Over filling a container with subsequent expansion of the liquid due to heating
can lead to the collapse of the vessel.
Stress corrosion failure: air in the system can lead to the presence of HCl that can lead to a loss of
mechanical integrity.
Toxic Combustion products: the combustion of the monomer leads to the presence of phosgene,
HCl, CO along with other toxic substances.
Runaway polymerization: polymerization if not well controlled can lead to excess pressure and
rupture the reactor.
A release of 27000 Kg of monomer (contents of the reactor) may produce a cloud of vapors with
aerosol which would have the form of a pancake and which can reach 450 meters affecting the
external areas of the establishment.
DEFINITION OF THE PROCESS
The operation steps are summarized as follows:
Pre-evacuation of air: if the reactor has been in maintenance it must be removed oxygen from the
air to the product quality problems and for the mechanical integrity of the reactor (Corrosion)
Preparation of the reactor: the empty rector is washed with water, tested for leaks if the manhole
was open and treated with antifouling.
demineralized water load: a controlled load of water is placed in excess to reactor .An excess
can lead to overload, a less quantity can lead to quality problems and problems of run-away. All
the other additives are added.
Charging the monomer: an accurate loading of the monomer is made.
Heating of the reactor: the initiator is added by its receiver, the reactor is heated to the
temperature at which begins the reaction (5 C below the operating temperature)
Reaction: the heating is removed, is passed through cooling water in the jacket is to check the
temperature of polymerization
Termination: When the pressure in the reactor is lowered means that there is no more monomer
to react, and the batch is discharged.
Discharge reactor: the reactor is discharged to the downstream unit, to prevent polymer deposit
on the bottom , the stirrer is held running The monomer is recovered for its reuse in the reaction.

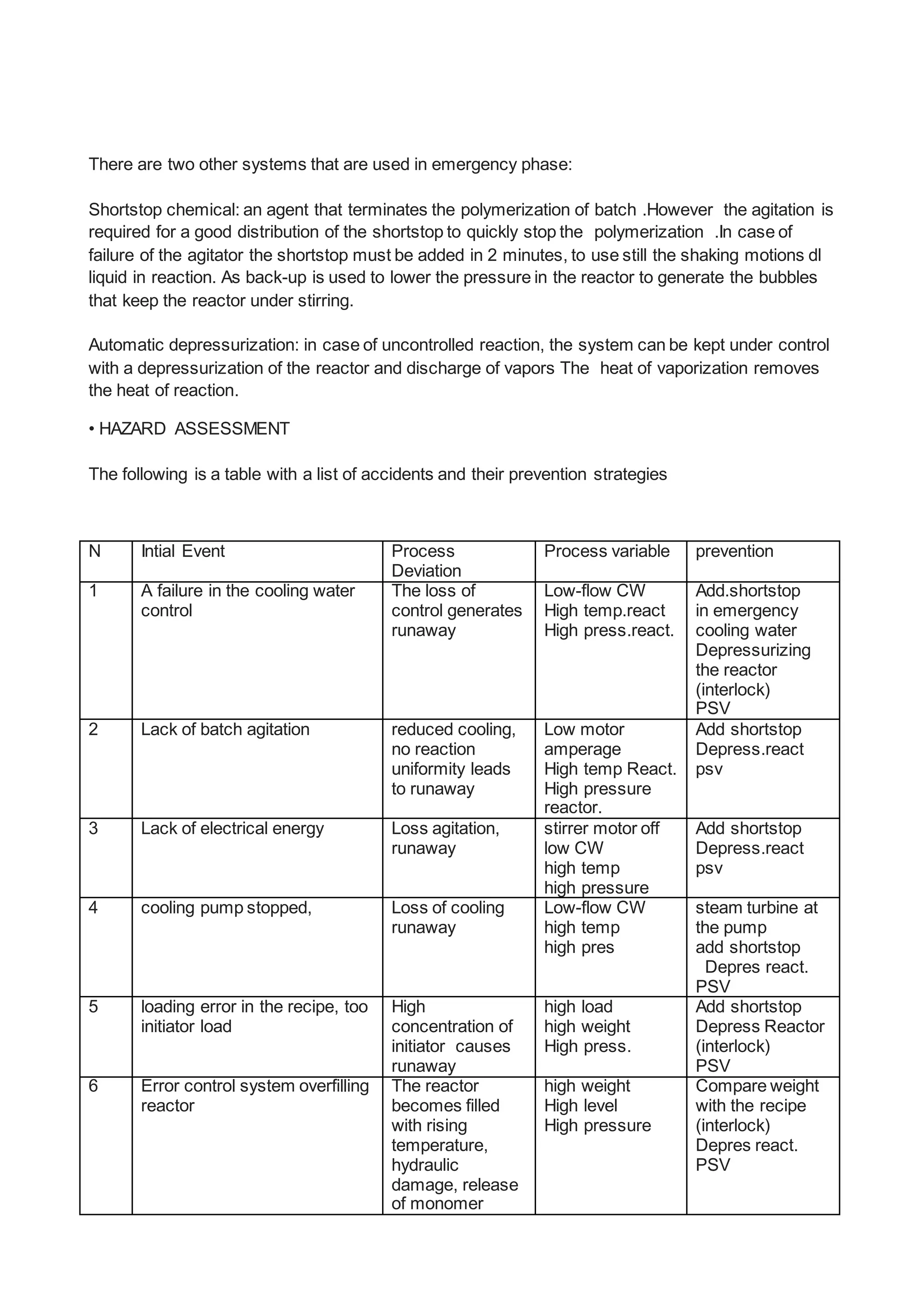

There are two other systems that are used in emergency phase:
Shortstop chemical: an agent that terminates the polymerization of batch .However the agitation is
required for a good distribution of the shortstop to quickly stop the polymerization .In case of
failure of the agitator the shortstop must be added in 2 minutes, to use still the shaking motions dl
liquid in reaction. As back-up is used to lower the pressure in the reactor to generate the bubbles
that keep the reactor under stirring.
Automatic depressurization: in case of uncontrolled reaction, the system can be kept under control
with a depressurization of the reactor and discharge of vapors The heat of vaporization removes
the heat of reaction.
• HAZARD ASSESSMENT
The following is a table with a list of accidents and their prevention strategies
N Intial Event Process
Deviation
Process variable prevention
1 A failure in the cooling water
control
The loss of
control generates
runaway
Low-flow CW
High temp.react
High press.react.
Add.shortstop
in emergency
cooling water
Depressurizing
the reactor
(interlock)
PSV
2 Lack of batch agitation reduced cooling,
no reaction
uniformity leads
to runaway
Low motor
amperage
High temp React.
High pressure
reactor.
Add shortstop
Depress.react
psv
3 Lack of electrical energy Loss agitation,
runaway
stirrer motor off
low CW
high temp
high pressure
Add shortstop
Depress.react
psv
4 cooling pump stopped, Loss of cooling
runaway
Low-flow CW
high temp
high pres
steam turbine at
the pump
add shortstop
Depres react.
PSV
5 loading error in the recipe, too
initiator load
High
concentration of
initiator causes
runaway
high load
high weight
High press.
Add shortstop
Depress Reactor
(interlock)
PSV
6 Error control system overfilling
reactor
The reactor
becomes filled
with rising
temperature,
hydraulic
damage, release
of monomer
high weight
High level
High pressure
Compare weight
with the recipe
(interlock)
Depres react.
PSV
outside

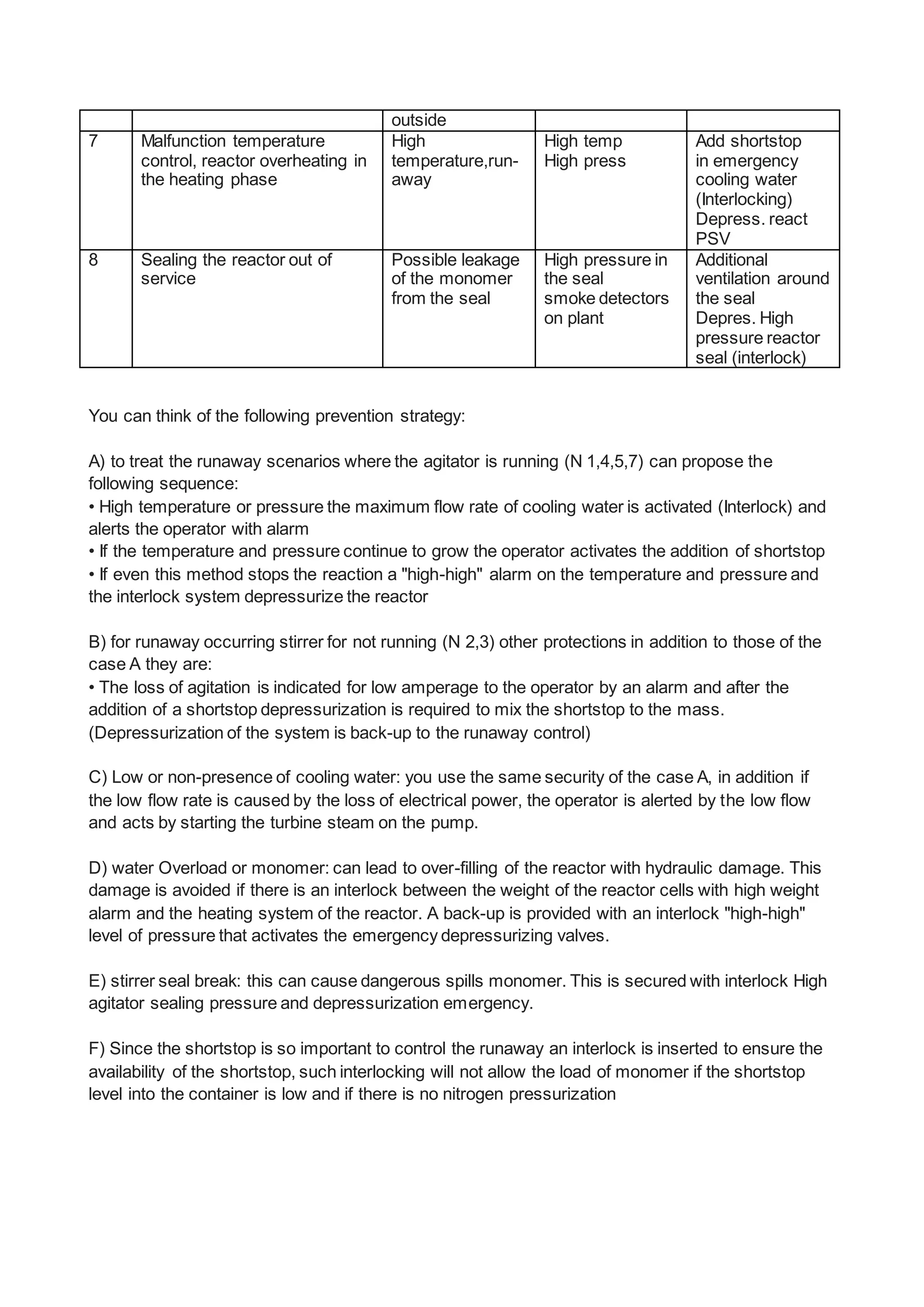

7 Malfunction temperature
control, reactor overheating in
the heating phase
High
temperature,run-
away
High temp
High press
Add shortstop
in emergency
cooling water
(Interlocking)
Depress. react
PSV
8 Sealing the reactor out of
service
Possible leakage
of the monomer
from the seal
High pressure in
the seal
smoke detectors
on plant
Additional
ventilation around
the seal
Depres. High
pressure reactor
seal (interlock)
You can think of the following prevention strategy:
A) to treat the runaway scenarios where the agitator is running (N 1,4,5,7) can propose the
following sequence:
• High temperature or pressure the maximum flow rate of cooling water is activated (Interlock) and
alerts the operator with alarm
• If the temperature and pressure continue to grow the operator activates the addition of shortstop
• If even this method stops the reaction a "high-high" alarm on the temperature and pressure and
the interlock system depressurize the reactor
B) for runaway occurring stirrer for not running (N 2,3) other protections in addition to those of the
case A they are:
• The loss of agitation is indicated for low amperage to the operator by an alarm and after the
addition of a shortstop depressurization is required to mix the shortstop to the mass.
(Depressurization of the system is back-up to the runaway control)
C) Low or non-presence of cooling water: you use the same security of the case A, in addition if
the low flow rate is caused by the loss of electrical power, the operator is alerted by the low flow
and acts by starting the turbine steam on the pump.
D) water Overload or monomer: can lead to over-filling of the reactor with hydraulic damage. This
damage is avoided if there is an interlock between the weight of the reactor cells with high weight
alarm and the heating system of the reactor. A back-up is provided with an interlock "high-high"
level of pressure that activates the emergency depressurizing valves.
E) stirrer seal break: this can cause dangerous spills monomer. This is secured with interlock High
agitator sealing pressure and depressurization emergency.
F) Since the shortstop is so important to control the runaway an interlock is inserted to ensure the
availability of the shortstop, such interlocking will not allow the load of monomer if the shortstop
level into the container is low and if there is no nitrogen pressurization

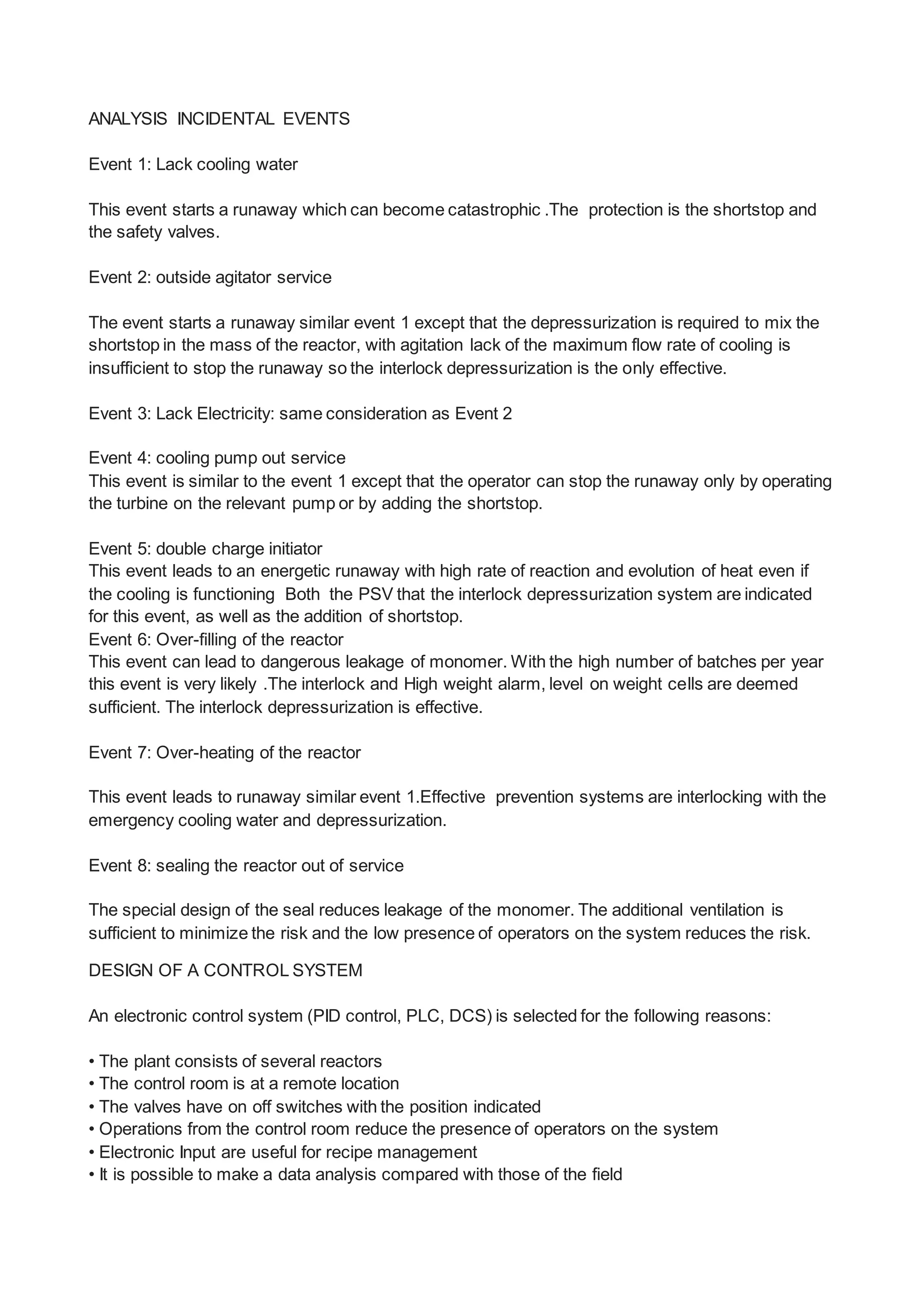

ANALYSIS INCIDENTAL EVENTS
Event 1: Lack cooling water
This event starts a runaway which can become catastrophic .The protection is the shortstop and
the safety valves.
Event 2: outside agitator service
The event starts a runaway similar event 1 except that the depressurization is required to mix the
shortstop in the mass of the reactor, with agitation lack of the maximum flow rate of cooling is
insufficient to stop the runaway so the interlock depressurization is the only effective.
Event 3: Lack Electricity: same consideration as Event 2
Event 4: cooling pump out service
This event is similar to the event 1 except that the operator can stop the runaway only by operating
the turbine on the relevant pump or by adding the shortstop.
Event 5: double charge initiator
This event leads to an energetic runaway with high rate of reaction and evolution of heat even if
the cooling is functioning Both the PSV that the interlock depressurization system are indicated
for this event, as well as the addition of shortstop.
Event 6: Over-filling of the reactor
This event can lead to dangerous leakage of monomer. With the high number of batches per year
this event is very likely .The interlock and High weight alarm, level on weight cells are deemed
sufficient. The interlock depressurization is effective.
Event 7: Over-heating of the reactor
This event leads to runaway similar event 1.Effective prevention systems are interlocking with the
emergency cooling water and depressurization.
Event 8: sealing the reactor out of service
The special design of the seal reduces leakage of the monomer. The additional ventilation is
sufficient to minimize the risk and the low presence of operators on the system reduces the risk.
DESIGN OF A CONTROL SYSTEM
An electronic control system (PID control, PLC, DCS) is selected for the following reasons:
• The plant consists of several reactors
• The control room is at a remote location
• The valves have on off switches with the position indicated
• Operations from the control room reduce the presence of operators on the system
• Electronic Input are useful for recipe management
• It is possible to make a data analysis compared with those of the field

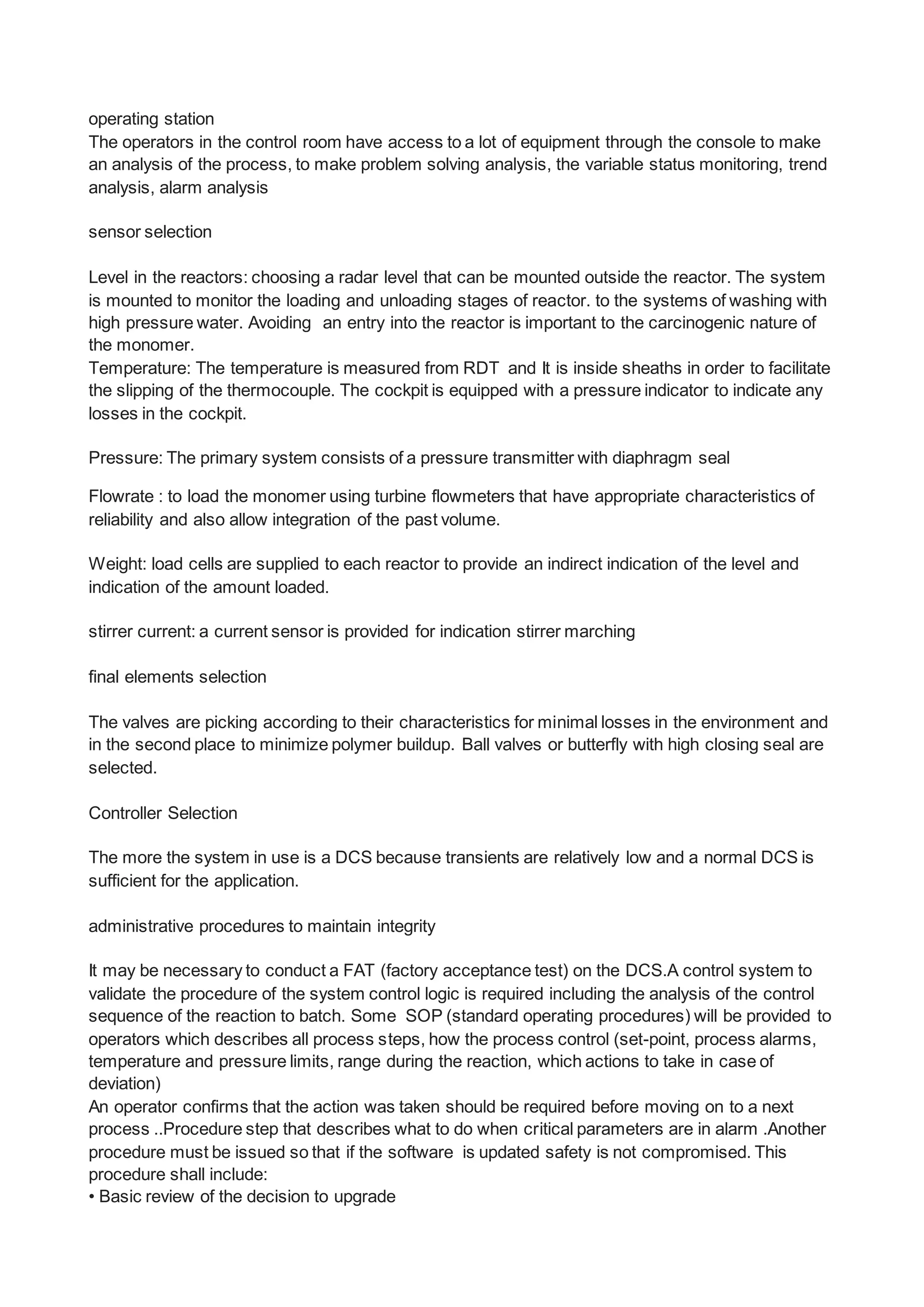

operating station
The operators in the control room have access to a lot of equipment through the console to make
an analysis of the process, to make problem solving analysis, the variable status monitoring, trend
analysis, alarm analysis
sensor selection
Level in the reactors: choosing a radar level that can be mounted outside the reactor. The system
is mounted to monitor the loading and unloading stages of reactor. to the systems of washing with
high pressure water. Avoiding an entry into the reactor is important to the carcinogenic nature of
the monomer.
Temperature: The temperature is measured from RDT and It is inside sheaths in order to facilitate
the slipping of the thermocouple. The cockpit is equipped with a pressure indicator to indicate any
losses in the cockpit.
Pressure: The primary system consists of a pressure transmitter with diaphragm seal
Flowrate : to load the monomer using turbine flowmeters that have appropriate characteristics of
reliability and also allow integration of the past volume.
Weight: load cells are supplied to each reactor to provide an indirect indication of the level and
indication of the amount loaded.
stirrer current: a current sensor is provided for indication stirrer marching
final elements selection
The valves are picking according to their characteristics for minimal losses in the environment and
in the second place to minimize polymer buildup. Ball valves or butterfly with high closing seal are
selected.
Controller Selection
The more the system in use is a DCS because transients are relatively low and a normal DCS is
sufficient for the application.
administrative procedures to maintain integrity
It may be necessary to conduct a FAT (factory acceptance test) on the DCS.A control system to
validate the procedure of the system control logic is required including the analysis of the control
sequence of the reaction to batch. Some SOP (standard operating procedures) will be provided to
operators which describes all process steps, how the process control (set-point, process alarms,
temperature and pressure limits, range during the reaction, which actions to take in case of
deviation)
An operator confirms that the action was taken should be required before moving on to a next
process ..Procedure step that describes what to do when critical parameters are in alarm .Another
procedure must be issued so that if the software is updated safety is not compromised. This
procedure shall include:
• Basic review of the decision to upgrade

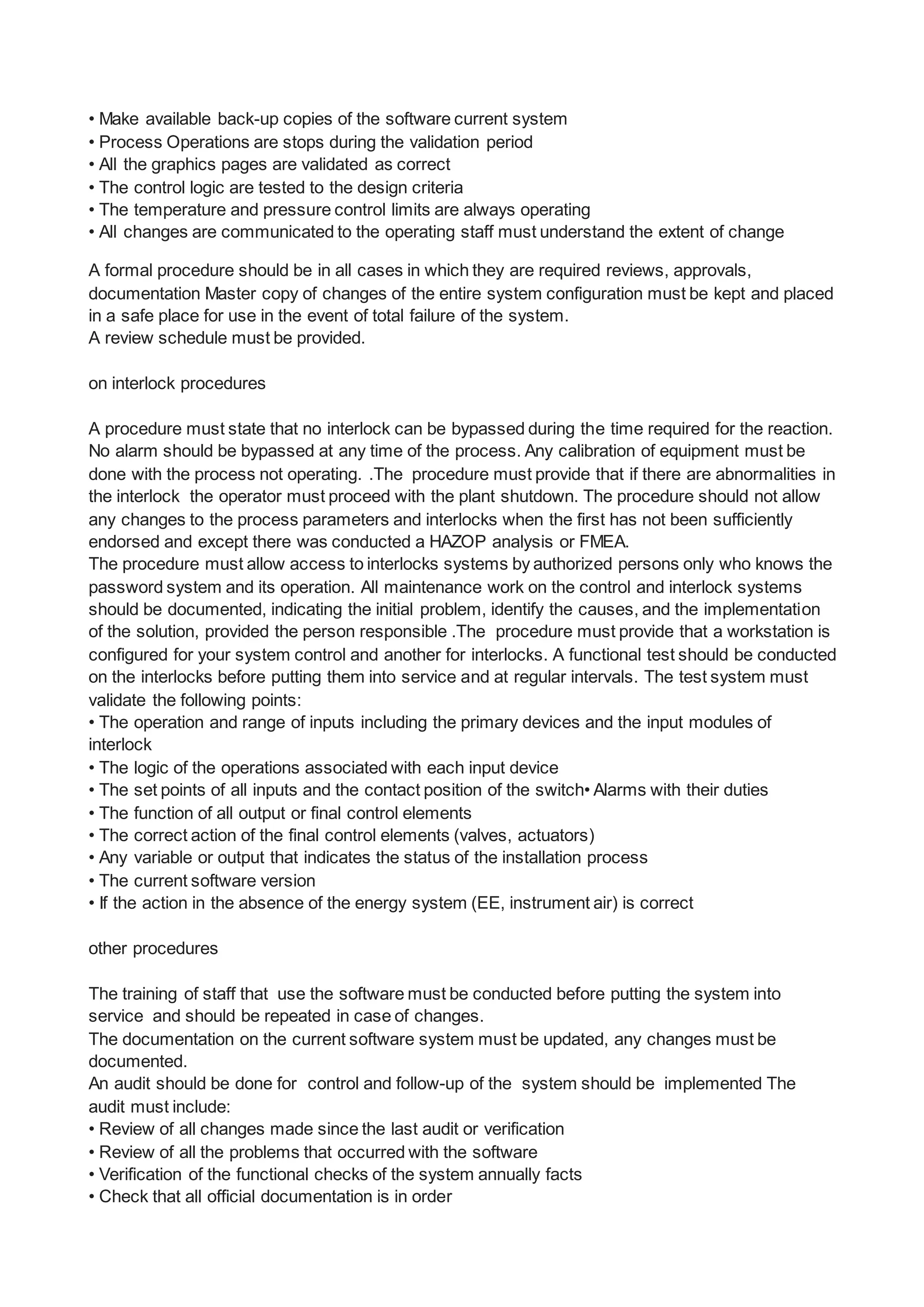

• Make available back-up copies of the software current system
• Process Operations are stops during the validation period
• All the graphics pages are validated as correct
• The control logic are tested to the design criteria
• The temperature and pressure control limits are always operating
• All changes are communicated to the operating staff must understand the extent of change
A formal procedure should be in all cases in which they are required reviews, approvals,
documentation Master copy of changes of the entire system configuration must be kept and placed
in a safe place for use in the event of total failure of the system.
A review schedule must be provided.
on interlock procedures
A procedure must state that no interlock can be bypassed during the time required for the reaction.
No alarm should be bypassed at any time of the process. Any calibration of equipment must be
done with the process not operating. .The procedure must provide that if there are abnormalities in
the interlock the operator must proceed with the plant shutdown. The procedure should not allow
any changes to the process parameters and interlocks when the first has not been sufficiently
endorsed and except there was conducted a HAZOP analysis or FMEA.
The procedure must allow access to interlocks systems by authorized persons only who knows the
password system and its operation. All maintenance work on the control and interlock systems
should be documented, indicating the initial problem, identify the causes, and the implementation
of the solution, provided the person responsible .The procedure must provide that a workstation is
configured for your system control and another for interlocks. A functional test should be conducted
on the interlocks before putting them into service and at regular intervals. The test system must
validate the following points:
• The operation and range of inputs including the primary devices and the input modules of
interlock
• The logic of the operations associated with each input device
• The set points of all inputs and the contact position of the switch• Alarms with their duties
• The function of all output or final control elements
• The correct action of the final control elements (valves, actuators)
• Any variable or output that indicates the status of the installation process
• The current software version
• If the action in the absence of the energy system (EE, instrument air) is correct
other procedures
The training of staff that use the software must be conducted before putting the system into
service and should be repeated in case of changes.
The documentation on the current software system must be updated, any changes must be
documented.
An audit should be done for control and follow-up of the system should be implemented The
audit must include:
• Review of all changes made since the last audit or verification
• Review of all the problems that occurred with the software
• Verification of the functional checks of the system annually facts
• Check that all official documentation is in order

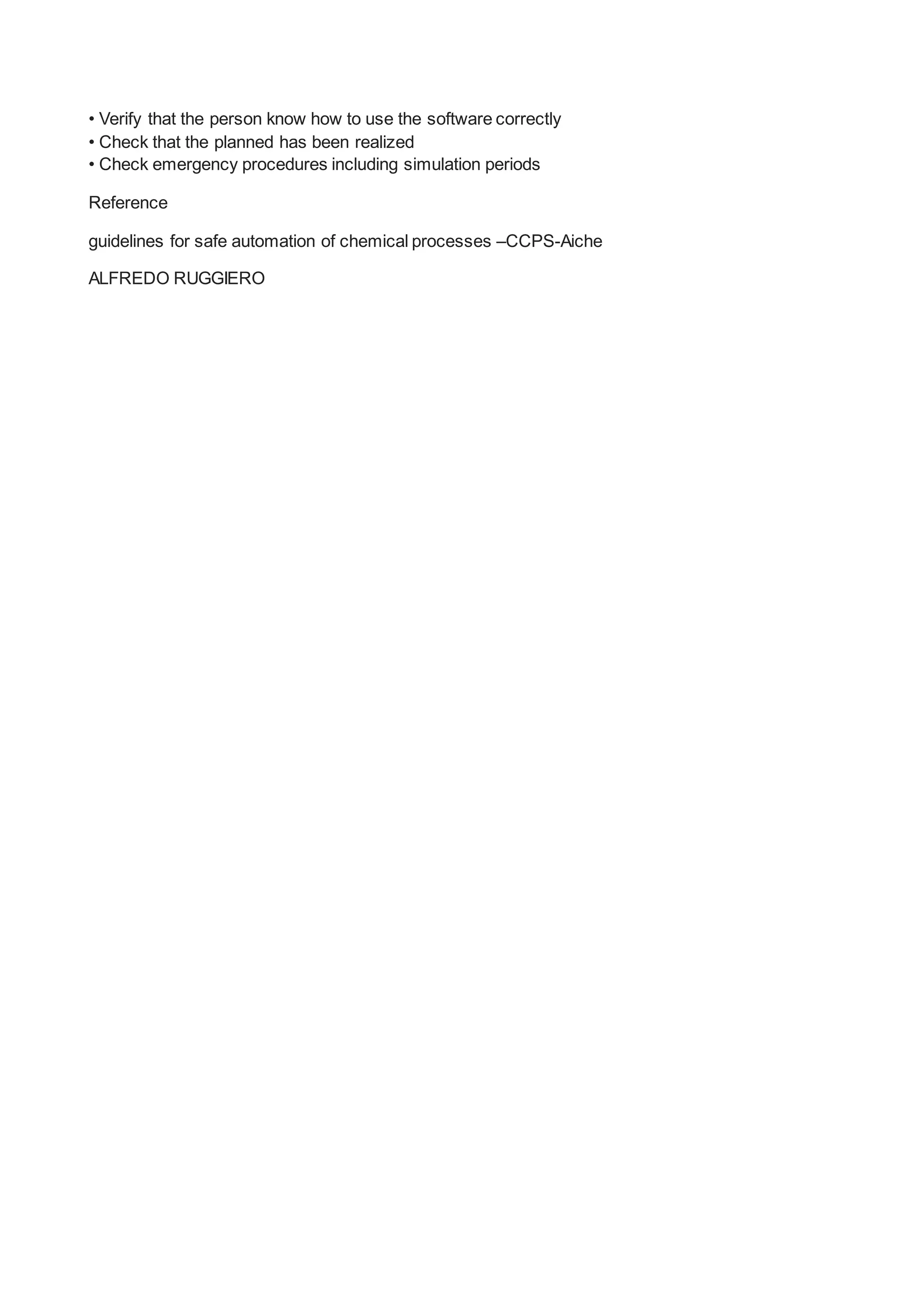

• Verify that the person know how to use the software correctly
• Check that the planned has been realized
• Check emergency procedures including simulation periods
Reference
guidelines for safe automation of chemical processes –CCPS-Aiche
ALFREDO RUGGIERO

More Related Content

What's hot

Autoclave validatin
Autoclave validatinAutoclave validatin
Autoclave validatin
Sagar Savale

Water
WaterWater
Power plant chemistry external water treatment
Power plant chemistry external water treatmentPower plant chemistry external water treatment
Power plant chemistry external water treatment
umar farooq

Water-Gas-Shift Reactor Loading & Unloading Considerations
Water-Gas-Shift Reactor Loading & Unloading ConsiderationsWater-Gas-Shift Reactor Loading & Unloading Considerations
Water-Gas-Shift Reactor Loading & Unloading Considerations
Gerard B. Hawkins

POWER PLANT CHEMISTRY
POWER PLANT CHEMISTRYPOWER PLANT CHEMISTRY
POWER PLANT CHEMISTRY
Dilip Kumar

Feed Water Treatment Power Plant Engineering
Feed Water Treatment Power Plant EngineeringFeed Water Treatment Power Plant Engineering
Feed Water Treatment Power Plant Engineering
Ajaypalsinh Barad

SULFONATION OF BY SO3
SULFONATION OF BY SO3SULFONATION OF BY SO3
SULFONATION OF BY SO3
IJARIIE JOURNAL

GCES White Paper - Vapor-Tolerant and Aqueous RTOs
GCES White Paper - Vapor-Tolerant and Aqueous RTOsGCES White Paper - Vapor-Tolerant and Aqueous RTOs
GCES White Paper - Vapor-Tolerant and Aqueous RTOs
Dan Robles

Industrial Ammonia Refrigeration Systems
Industrial Ammonia Refrigeration SystemsIndustrial Ammonia Refrigeration Systems
Industrial Ammonia Refrigeration Systems
The Brewer-Garrett Company

DEGASSED CATION CONDUCTIVITY
DEGASSED CATION CONDUCTIVITYDEGASSED CATION CONDUCTIVITY
DEGASSED CATION CONDUCTIVITY
Manuel David Lopez Exposito

POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)
POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)
POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)
Dilip Kumar

Feed water treatment
Feed water treatmentFeed water treatment
Feed water treatment
Nilraj Vasandia

Evaporation
EvaporationEvaporation
Steam water analysis system
Steam water analysis systemSteam water analysis system
Steam water analysis system
priyank.modi

Essentials for a sound boiler water treatment program
Essentials for a sound boiler water treatment programEssentials for a sound boiler water treatment program
Essentials for a sound boiler water treatment program
lorenzo Monasca

Distillation
DistillationDistillation
Distillation
Passant Aboud

Chemical cleaning businessplan
Chemical cleaning businessplanChemical cleaning businessplan
Chemical cleaning businessplan
ady water

Boiler Water Treatment -
Boiler Water Treatment - Boiler Water Treatment -
Urea reactor liner leakage(a case study)
Urea reactor liner leakage(a case study)Urea reactor liner leakage(a case study)
Urea reactor liner leakage(a case study)
Prem Baboo

Correct Venting from a Boiler Feedwater Deaerator
Correct Venting from a Boiler Feedwater DeaeratorCorrect Venting from a Boiler Feedwater Deaerator
Correct Venting from a Boiler Feedwater Deaerator
Bob Jewell


What's hot (20)

Autoclave validatin
Autoclave validatinAutoclave validatin
Autoclave validatin

Water
WaterWater
Water

Power plant chemistry external water treatment
Power plant chemistry external water treatmentPower plant chemistry external water treatment
Power plant chemistry external water treatment

Water-Gas-Shift Reactor Loading & Unloading Considerations
Water-Gas-Shift Reactor Loading & Unloading ConsiderationsWater-Gas-Shift Reactor Loading & Unloading Considerations
Water-Gas-Shift Reactor Loading & Unloading Considerations

POWER PLANT CHEMISTRY
POWER PLANT CHEMISTRYPOWER PLANT CHEMISTRY
POWER PLANT CHEMISTRY

Feed Water Treatment Power Plant Engineering
Feed Water Treatment Power Plant EngineeringFeed Water Treatment Power Plant Engineering
Feed Water Treatment Power Plant Engineering

SULFONATION OF BY SO3
SULFONATION OF BY SO3SULFONATION OF BY SO3
SULFONATION OF BY SO3

GCES White Paper - Vapor-Tolerant and Aqueous RTOs
GCES White Paper - Vapor-Tolerant and Aqueous RTOsGCES White Paper - Vapor-Tolerant and Aqueous RTOs
GCES White Paper - Vapor-Tolerant and Aqueous RTOs

Industrial Ammonia Refrigeration Systems
Industrial Ammonia Refrigeration SystemsIndustrial Ammonia Refrigeration Systems
Industrial Ammonia Refrigeration Systems

DEGASSED CATION CONDUCTIVITY
DEGASSED CATION CONDUCTIVITYDEGASSED CATION CONDUCTIVITY
DEGASSED CATION CONDUCTIVITY

POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)
POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)
POWER PLANT CHEMISTRY( WATER TREATMENT FOR BOILERS)

Feed water treatment
Feed water treatmentFeed water treatment
Feed water treatment

Evaporation
EvaporationEvaporation
Evaporation

Steam water analysis system
Steam water analysis systemSteam water analysis system
Steam water analysis system

Essentials for a sound boiler water treatment program
Essentials for a sound boiler water treatment programEssentials for a sound boiler water treatment program
Essentials for a sound boiler water treatment program

Distillation
DistillationDistillation
Distillation

Chemical cleaning businessplan
Chemical cleaning businessplanChemical cleaning businessplan
Chemical cleaning businessplan

Boiler Water Treatment -
Boiler Water Treatment - Boiler Water Treatment -
Boiler Water Treatment -

Urea reactor liner leakage(a case study)
Urea reactor liner leakage(a case study)Urea reactor liner leakage(a case study)
Urea reactor liner leakage(a case study)

Correct Venting from a Boiler Feedwater Deaerator
Correct Venting from a Boiler Feedwater DeaeratorCorrect Venting from a Boiler Feedwater Deaerator
Correct Venting from a Boiler Feedwater Deaerator


Viewers also liked

4.4 Final PPP Slide Show
4.4 Final PPP Slide Show4.4 Final PPP Slide Show
4.4 Final PPP Slide Show
Tosha Potter

PCFGA enewsletter template
PCFGA enewsletter templatePCFGA enewsletter template
PCFGA enewsletter template
CJ Design & Consulting

Documento ultimo
Documento ultimoDocumento ultimo
설악산팬션 일본민박싼곳
설악산팬션 일본민박싼곳설악산팬션 일본민박싼곳
설악산팬션 일본민박싼곳
jerywe

Portafolio de servicios catedra
Portafolio de servicios catedraPortafolio de servicios catedra
Portafolio de servicios catedra
Elvira Olga Torregroza Cabarcas

La protección jurídica del software y el derecho de p.i. en argentina y e.e....
La protección jurídica del software y el derecho de p.i. en  argentina y e.e....La protección jurídica del software y el derecho de p.i. en  argentina y e.e....
La protección jurídica del software y el derecho de p.i. en argentina y e.e....
Milu_uz

Suganya A - Resume 2015
Suganya A - Resume 2015Suganya A - Resume 2015
Suganya A - Resume 2015
Arumainathan Suganya

El valor de la amistad
El valor de la amistadEl valor de la amistad
El valor de la amistad
brenda abigail de dios gomez

Life Cycle Assessment of An Air Freshener
Life Cycle Assessment of An Air FreshenerLife Cycle Assessment of An Air Freshener
Life Cycle Assessment of An Air Freshener
Luke Martin

Présentation ppt mercredi 19 - après-midi
Présentation ppt   mercredi 19 - après-midiPrésentation ppt   mercredi 19 - après-midi
Présentation ppt mercredi 19 - après-midi
Saint-Tropez Tourisme

the one to look at
the one to look atthe one to look at
the one to look at
dom smith

Presentacion de Arte Centro Claudina 2007
Presentacion de Arte Centro Claudina 2007Presentacion de Arte Centro Claudina 2007
Presentacion de Arte Centro Claudina 2007
Victoria Lopez Lazzari

Macro proceso d
Macro proceso  d Macro proceso  d
Macro proceso d
milena1016


Viewers also liked (14)

4.4 Final PPP Slide Show
4.4 Final PPP Slide Show4.4 Final PPP Slide Show
4.4 Final PPP Slide Show

PCFGA enewsletter template
PCFGA enewsletter templatePCFGA enewsletter template
PCFGA enewsletter template

Documento ultimo
Documento ultimoDocumento ultimo
Documento ultimo

설악산팬션 일본민박싼곳
설악산팬션 일본민박싼곳설악산팬션 일본민박싼곳
설악산팬션 일본민박싼곳

La mente
La menteLa mente
La mente

Portafolio de servicios catedra
Portafolio de servicios catedraPortafolio de servicios catedra
Portafolio de servicios catedra

La protección jurídica del software y el derecho de p.i. en argentina y e.e....
La protección jurídica del software y el derecho de p.i. en  argentina y e.e....La protección jurídica del software y el derecho de p.i. en  argentina y e.e....
La protección jurídica del software y el derecho de p.i. en argentina y e.e....

Suganya A - Resume 2015
Suganya A - Resume 2015Suganya A - Resume 2015
Suganya A - Resume 2015

El valor de la amistad
El valor de la amistadEl valor de la amistad
El valor de la amistad

Life Cycle Assessment of An Air Freshener
Life Cycle Assessment of An Air FreshenerLife Cycle Assessment of An Air Freshener
Life Cycle Assessment of An Air Freshener

Présentation ppt mercredi 19 - après-midi
Présentation ppt   mercredi 19 - après-midiPrésentation ppt   mercredi 19 - après-midi
Présentation ppt mercredi 19 - après-midi

the one to look at
the one to look atthe one to look at
the one to look at

Presentacion de Arte Centro Claudina 2007
Presentacion de Arte Centro Claudina 2007Presentacion de Arte Centro Claudina 2007
Presentacion de Arte Centro Claudina 2007

Macro proceso d
Macro proceso  d Macro proceso  d
Macro proceso d


Similar to automation

Application of Hydrodynamic cavitation as advanced oxidation process to treat...
Application of Hydrodynamic cavitation as advanced oxidation process to treat...Application of Hydrodynamic cavitation as advanced oxidation process to treat...
Application of Hydrodynamic cavitation as advanced oxidation process to treat...
Sivakumar Kale

MEC4427 Assignment 1
MEC4427 Assignment 1MEC4427 Assignment 1
MEC4427 Assignment 1
Hansen Salim Lim

hummudity test machine.pptx
hummudity test machine.pptxhummudity test machine.pptx
hummudity test machine.pptx
TewodrosAtirsaw

Slurry reactor
Slurry reactor Slurry reactor
Slurry reactor
Asma Naeem

Basics Overview of Vapour Absorption Machine.pptx
Basics Overview of Vapour Absorption Machine.pptxBasics Overview of Vapour Absorption Machine.pptx
Basics Overview of Vapour Absorption Machine.pptx
Amiya Kumar Samal

Avoid syn gas catalyst mal operation
Avoid syn gas catalyst mal operationAvoid syn gas catalyst mal operation
Avoid syn gas catalyst mal operation
Gerard B. Hawkins

Fouling effects on boiler
Fouling effects on boilerFouling effects on boiler
Fouling effects on boiler
Maharshi Soni

Sajid rashid Presentation homework.pptx
Sajid rashid Presentation homework.pptxSajid rashid Presentation homework.pptx
Sajid rashid Presentation homework.pptx
Hamidllahqureshi

Maintenance of distillation column asmita
Maintenance of distillation column asmitaMaintenance of distillation column asmita
Maintenance of distillation column asmita
Asmita Mishra

Hazard operability study - in Industires and plant
Hazard operability study - in Industires and plantHazard operability study - in Industires and plant
Hazard operability study - in Industires and plant
JayaKarthic1

HAZOP.ppt
HAZOP.pptHAZOP.ppt
HAZOP.ppt
JayaKarthic1

IWC 16-49
IWC 16-49IWC 16-49
IWC 16-49
Gerard Van Gils

Example: simulation of the Chlorotoluene chloration with BatchReactor software
Example: simulation of the Chlorotoluene chloration with BatchReactor softwareExample: simulation of the Chlorotoluene chloration with BatchReactor software
Example: simulation of the Chlorotoluene chloration with BatchReactor software
Isabelle Girard

chemical reactor runaway case study
chemical reactor runaway case studychemical reactor runaway case study
chemical reactor runaway case study
alfredo ruggiero

FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT
FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPTFIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT
FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT
MEP ENGINEER'S SERVICES

Pedal powered refrigerator
Pedal powered refrigeratorPedal powered refrigerator
Pedal powered refrigerator
Nishant Prakash

Cash Study of Three Mile Island of Nuclear Melt Down
Cash Study of Three Mile Island of Nuclear Melt DownCash Study of Three Mile Island of Nuclear Melt Down
Cash Study of Three Mile Island of Nuclear Melt Down
Ashish Kavaiya

Lessons learned solving pilot valve instability issues on LNG storage tanks
Lessons learned solving pilot valve instability issues on LNG storage tanksLessons learned solving pilot valve instability issues on LNG storage tanks
Lessons learned solving pilot valve instability issues on LNG storage tanks
PROTEGO® | Braunschweiger Flammenfilter GmbH

HIL Report on Refrigeration unit & Boilers
HIL Report on Refrigeration unit & BoilersHIL Report on Refrigeration unit & Boilers
HIL Report on Refrigeration unit & Boilers
Akansha Jha

Relief Systems.pdf
Relief Systems.pdfRelief Systems.pdf
Relief Systems.pdf
KAhmedRehman


Similar to automation (20)

Application of Hydrodynamic cavitation as advanced oxidation process to treat...
Application of Hydrodynamic cavitation as advanced oxidation process to treat...Application of Hydrodynamic cavitation as advanced oxidation process to treat...
Application of Hydrodynamic cavitation as advanced oxidation process to treat...

MEC4427 Assignment 1
MEC4427 Assignment 1MEC4427 Assignment 1
MEC4427 Assignment 1

hummudity test machine.pptx
hummudity test machine.pptxhummudity test machine.pptx
hummudity test machine.pptx

Slurry reactor
Slurry reactor Slurry reactor
Slurry reactor

Basics Overview of Vapour Absorption Machine.pptx
Basics Overview of Vapour Absorption Machine.pptxBasics Overview of Vapour Absorption Machine.pptx
Basics Overview of Vapour Absorption Machine.pptx

Avoid syn gas catalyst mal operation
Avoid syn gas catalyst mal operationAvoid syn gas catalyst mal operation
Avoid syn gas catalyst mal operation

Fouling effects on boiler
Fouling effects on boilerFouling effects on boiler
Fouling effects on boiler

Sajid rashid Presentation homework.pptx
Sajid rashid Presentation homework.pptxSajid rashid Presentation homework.pptx
Sajid rashid Presentation homework.pptx

Maintenance of distillation column asmita
Maintenance of distillation column asmitaMaintenance of distillation column asmita
Maintenance of distillation column asmita

Hazard operability study - in Industires and plant
Hazard operability study - in Industires and plantHazard operability study - in Industires and plant
Hazard operability study - in Industires and plant

HAZOP.ppt
HAZOP.pptHAZOP.ppt
HAZOP.ppt

IWC 16-49
IWC 16-49IWC 16-49
IWC 16-49

Example: simulation of the Chlorotoluene chloration with BatchReactor software
Example: simulation of the Chlorotoluene chloration with BatchReactor softwareExample: simulation of the Chlorotoluene chloration with BatchReactor software
Example: simulation of the Chlorotoluene chloration with BatchReactor software

chemical reactor runaway case study
chemical reactor runaway case studychemical reactor runaway case study
chemical reactor runaway case study

FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT
FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPTFIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT
FIRE FIGHTING NOTES PART 02 BY ER. EZAZUL HAQUE SIDDIQUE .PPT

Pedal powered refrigerator
Pedal powered refrigeratorPedal powered refrigerator
Pedal powered refrigerator

Cash Study of Three Mile Island of Nuclear Melt Down
Cash Study of Three Mile Island of Nuclear Melt DownCash Study of Three Mile Island of Nuclear Melt Down
Cash Study of Three Mile Island of Nuclear Melt Down

Lessons learned solving pilot valve instability issues on LNG storage tanks
Lessons learned solving pilot valve instability issues on LNG storage tanksLessons learned solving pilot valve instability issues on LNG storage tanks
Lessons learned solving pilot valve instability issues on LNG storage tanks

HIL Report on Refrigeration unit & Boilers
HIL Report on Refrigeration unit & BoilersHIL Report on Refrigeration unit & Boilers
HIL Report on Refrigeration unit & Boilers

Relief Systems.pdf
Relief Systems.pdfRelief Systems.pdf
Relief Systems.pdf


More from alfredo ruggiero

Annual_report_2014
Annual_report_2014Annual_report_2014
Annual_report_2014
alfredo ruggiero

2.5 valutazione rischio esplosione impianto frigo
2.5 valutazione rischio esplosione impianto frigo2.5 valutazione rischio esplosione impianto frigo
2.5 valutazione rischio esplosione impianto frigoalfredo ruggiero

6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO
6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO
6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICOalfredo ruggiero

SHUTDOWN
SHUTDOWNSHUTDOWN
THE ROLE OF HUMAN ERROR IN ACCIDENTS
THE ROLE OF HUMAN ERROR IN ACCIDENTSTHE ROLE OF HUMAN ERROR IN ACCIDENTS
THE ROLE OF HUMAN ERROR IN ACCIDENTS
alfredo ruggiero

WASTE MINIMIZATION
WASTE MINIMIZATIONWASTE MINIMIZATION
WASTE MINIMIZATION
alfredo ruggiero

HAZOP
HAZOPHAZOP
production and maintenance
production and maintenanceproduction and maintenance
production and maintenance
alfredo ruggiero

alfredo ruggiero engtech ticheme
alfredo ruggiero engtech tichemealfredo ruggiero engtech ticheme
alfredo ruggiero engtech tichemealfredo ruggiero

4.4 MANUTENZIONE E PROCEDURE
4.4 MANUTENZIONE E PROCEDURE4.4 MANUTENZIONE E PROCEDURE
4.4 MANUTENZIONE E PROCEDUREalfredo ruggiero

Chemtura_Sustainabilty_2016_FINAL_low_27May2016
Chemtura_Sustainabilty_2016_FINAL_low_27May2016Chemtura_Sustainabilty_2016_FINAL_low_27May2016
Chemtura_Sustainabilty_2016_FINAL_low_27May2016
alfredo ruggiero

PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTORE
PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTOREPROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTORE
PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTOREalfredo ruggiero

1.2Il ruolo della Produzione e della Manutenzione
1.2Il ruolo della Produzione e della Manutenzione1.2Il ruolo della Produzione e della Manutenzione
1.2Il ruolo della Produzione e della Manutenzionealfredo ruggiero

4.2 GESTIONE DELLE MODICHE
4.2 GESTIONE DELLE MODICHE4.2 GESTIONE DELLE MODICHE
4.2 GESTIONE DELLE MODICHEalfredo ruggiero

7.1 SIX SIGMA E PROCESSI CHIMICI
7.1  SIX SIGMA E PROCESSI CHIMICI7.1  SIX SIGMA E PROCESSI CHIMICI
7.1 SIX SIGMA E PROCESSI CHIMICIalfredo ruggiero

8.1 MINIMIZZAZIONE DEI RIFIUTI
8.1 MINIMIZZAZIONE DEI RIFIUTI8.1 MINIMIZZAZIONE DEI RIFIUTI
8.1 MINIMIZZAZIONE DEI RIFIUTIalfredo ruggiero


More from alfredo ruggiero (20)

foto
fotofoto
foto

Annual_report_2014
Annual_report_2014Annual_report_2014
Annual_report_2014

2.5 valutazione rischio esplosione impianto frigo
2.5 valutazione rischio esplosione impianto frigo2.5 valutazione rischio esplosione impianto frigo
2.5 valutazione rischio esplosione impianto frigo

6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO
6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO
6.1 AUTOMAZIONE SICURA DI PROCESSO CHIMICO

SHUTDOWN
SHUTDOWNSHUTDOWN
SHUTDOWN

THE ROLE OF HUMAN ERROR IN ACCIDENTS
THE ROLE OF HUMAN ERROR IN ACCIDENTSTHE ROLE OF HUMAN ERROR IN ACCIDENTS
THE ROLE OF HUMAN ERROR IN ACCIDENTS

WASTE MINIMIZATION
WASTE MINIMIZATIONWASTE MINIMIZATION
WASTE MINIMIZATION

green chemistry
green chemistrygreen chemistry
green chemistry

HAZOP
HAZOPHAZOP
HAZOP

production and maintenance
production and maintenanceproduction and maintenance
production and maintenance

alfredo ruggiero engtech ticheme
alfredo ruggiero engtech tichemealfredo ruggiero engtech ticheme
alfredo ruggiero engtech ticheme

4.4 MANUTENZIONE E PROCEDURE
4.4 MANUTENZIONE E PROCEDURE4.4 MANUTENZIONE E PROCEDURE
4.4 MANUTENZIONE E PROCEDURE

Chemtura_Sustainabilty_2016_FINAL_low_27May2016
Chemtura_Sustainabilty_2016_FINAL_low_27May2016Chemtura_Sustainabilty_2016_FINAL_low_27May2016
Chemtura_Sustainabilty_2016_FINAL_low_27May2016

PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTORE
PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTOREPROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTORE
PROGETTAZIONE DI UN PROCESSO CHIMICO IN UN REATTORE

1.2Il ruolo della Produzione e della Manutenzione
1.2Il ruolo della Produzione e della Manutenzione1.2Il ruolo della Produzione e della Manutenzione
1.2Il ruolo della Produzione e della Manutenzione

4.2 GESTIONE DELLE MODICHE
4.2 GESTIONE DELLE MODICHE4.2 GESTIONE DELLE MODICHE
4.2 GESTIONE DELLE MODICHE

2.2 HAZOP
2.2 HAZOP2.2 HAZOP
2.2 HAZOP

3.1 PRODUZIONE
3.1 PRODUZIONE3.1 PRODUZIONE
3.1 PRODUZIONE

7.1 SIX SIGMA E PROCESSI CHIMICI
7.1  SIX SIGMA E PROCESSI CHIMICI7.1  SIX SIGMA E PROCESSI CHIMICI
7.1 SIX SIGMA E PROCESSI CHIMICI

8.1 MINIMIZZAZIONE DEI RIFIUTI
8.1 MINIMIZZAZIONE DEI RIFIUTI8.1 MINIMIZZAZIONE DEI RIFIUTI
8.1 MINIMIZZAZIONE DEI RIFIUTI


automation

  • 1. AUTOMATION AND SAFETY The process considered is the polymerization of vinyl chloride monomer in the PVC. The case study is based on a well - known process which is a substance the VCM that is flammable and produces toxic combustion products also is a known carcinogen. The process is based a semi- continuous plant consists of several reactors with times of 10 hours of polymerization. The heart of the process is a cstr mechanically stirred reactor where the reaction heat is removed by cooling water in jacket and where the reaction takes place in multiple reactors in parallel so that it operates in a semi-continuous mode. If the reactor has undergone maintenance actions after the last batch, this should be reclaimed from the air to minimize oxidation of the monomer which produces HCl which can lead to corrosion of the vessel. In other way the first step is to treat the reactor with an antifouling solution to prevent polymerization on the walls. Then the liquid VCM is loaded to the reactor. An initiator (liquid peroxide) is dissolved in the monomer. Because this compound can decompose is stored at low temperature in special bunkers. Small amounts are taken for common use. The peroxide is introduced into a small receiver to make sure that only the correct quantity is used. After the initiator is added, the reactor is heated with hot water and brought to reaction temperature. The agitation is necessary to suspend the monomer in the water used to control the heat of reaction and for the purposes of product quality. Since the reaction is exothermic cooling water circulating in the reactor jacket. The reaction is said finished when the pressure decreases, indicating that most of the monomer has reacted. The polymer is discharged and sent downstream of the reactor for further treatment (monomer recovery, stripping, drying). HAZARDS IDENTIFICATION The first step in developing the process is to identify the process parameters, define the risks to the safety and the environmental impact and seek solutions for a more safer process .For this purpose information is needed about the hazardous properties of the substances involved and products. However the reaction conditions and the initiator must be carefully chosen to ensure that the reaction rate is adequately monitored and avoiding phenomena of run-away while ensuring the quality and improved production capacity choice is the polymerization in water but this requires the use of small quantities of hazardous initiators whose safety must be assessed. In this case the main dangers are associated with flammability and toxicity of the combustion products VCM. AS first step is useful an examination of incidents over the years: in 1961 in a PVC plant in Japan an accident that killed 4 people was due to the discharge of the batch from the wrong reactor so that the unreacted monomer was released in the plant which contained reactors in parallel. The VCM vapors were triggered by a spark of some machinery resulting in an explosion. In another incident a worker accidentally opened a manhole of a reactor in service with leakage of large amounts of monomer that is burned and led to the death of maintenance. people. In another incident an operator loaded the monomer reactor with the bottom valve open. Other incidents occurred during the maintenance of a VCM pump due to the presence of the peroxide contamination, or there was a release of VCM from a scrubber due to maintenance problems to a clogged valve resulting in ignition and death of operators.
  • 2. Thereby the risk can be summarized as: Jet fire: a leak from a pressurized system which burns and forms a jet of fire that impinge other equipment (a jet from a 2 "hole produces approximately 10 meters) jet-fire Flash -fire: a release of a liquid in pressure produces flammable vapors traveling toward a ignition source. Pool fire: a liquid release form a pool burning with flames which can be two high, three times the width of the pool Bleve: a pressurized container full of monomer exposed to external fire can yield due to metallurgical weakness, such an event leads to the formation of a ball of fire. The safety valves do not prevent the Bleve. Explosion: the loss of gas in the environment confined port in the presence of primer to explosion source. Hydraulic Failure: Over filling a container with subsequent expansion of the liquid due to heating can lead to the collapse of the vessel. Stress corrosion failure: air in the system can lead to the presence of HCl that can lead to a loss of mechanical integrity. Toxic Combustion products: the combustion of the monomer leads to the presence of phosgene, HCl, CO along with other toxic substances. Runaway polymerization: polymerization if not well controlled can lead to excess pressure and rupture the reactor. A release of 27000 Kg of monomer (contents of the reactor) may produce a cloud of vapors with aerosol which would have the form of a pancake and which can reach 450 meters affecting the external areas of the establishment. DEFINITION OF THE PROCESS The operation steps are summarized as follows: Pre-evacuation of air: if the reactor has been in maintenance it must be removed oxygen from the air to the product quality problems and for the mechanical integrity of the reactor (Corrosion) Preparation of the reactor: the empty rector is washed with water, tested for leaks if the manhole was open and treated with antifouling. demineralized water load: a controlled load of water is placed in excess to reactor .An excess can lead to overload, a less quantity can lead to quality problems and problems of run-away. All the other additives are added. Charging the monomer: an accurate loading of the monomer is made. Heating of the reactor: the initiator is added by its receiver, the reactor is heated to the temperature at which begins the reaction (5 C below the operating temperature) Reaction: the heating is removed, is passed through cooling water in the jacket is to check the temperature of polymerization Termination: When the pressure in the reactor is lowered means that there is no more monomer to react, and the batch is discharged. Discharge reactor: the reactor is discharged to the downstream unit, to prevent polymer deposit on the bottom , the stirrer is held running The monomer is recovered for its reuse in the reaction.
  • 3. There are two other systems that are used in emergency phase: Shortstop chemical: an agent that terminates the polymerization of batch .However the agitation is required for a good distribution of the shortstop to quickly stop the polymerization .In case of failure of the agitator the shortstop must be added in 2 minutes, to use still the shaking motions dl liquid in reaction. As back-up is used to lower the pressure in the reactor to generate the bubbles that keep the reactor under stirring. Automatic depressurization: in case of uncontrolled reaction, the system can be kept under control with a depressurization of the reactor and discharge of vapors The heat of vaporization removes the heat of reaction. • HAZARD ASSESSMENT The following is a table with a list of accidents and their prevention strategies N Intial Event Process Deviation Process variable prevention 1 A failure in the cooling water control The loss of control generates runaway Low-flow CW High temp.react High press.react. Add.shortstop in emergency cooling water Depressurizing the reactor (interlock) PSV 2 Lack of batch agitation reduced cooling, no reaction uniformity leads to runaway Low motor amperage High temp React. High pressure reactor. Add shortstop Depress.react psv 3 Lack of electrical energy Loss agitation, runaway stirrer motor off low CW high temp high pressure Add shortstop Depress.react psv 4 cooling pump stopped, Loss of cooling runaway Low-flow CW high temp high pres steam turbine at the pump add shortstop Depres react. PSV 5 loading error in the recipe, too initiator load High concentration of initiator causes runaway high load high weight High press. Add shortstop Depress Reactor (interlock) PSV 6 Error control system overfilling reactor The reactor becomes filled with rising temperature, hydraulic damage, release of monomer high weight High level High pressure Compare weight with the recipe (interlock) Depres react. PSV
  • 4. outside 7 Malfunction temperature control, reactor overheating in the heating phase High temperature,run- away High temp High press Add shortstop in emergency cooling water (Interlocking) Depress. react PSV 8 Sealing the reactor out of service Possible leakage of the monomer from the seal High pressure in the seal smoke detectors on plant Additional ventilation around the seal Depres. High pressure reactor seal (interlock) You can think of the following prevention strategy: A) to treat the runaway scenarios where the agitator is running (N 1,4,5,7) can propose the following sequence: • High temperature or pressure the maximum flow rate of cooling water is activated (Interlock) and alerts the operator with alarm • If the temperature and pressure continue to grow the operator activates the addition of shortstop • If even this method stops the reaction a "high-high" alarm on the temperature and pressure and the interlock system depressurize the reactor B) for runaway occurring stirrer for not running (N 2,3) other protections in addition to those of the case A they are: • The loss of agitation is indicated for low amperage to the operator by an alarm and after the addition of a shortstop depressurization is required to mix the shortstop to the mass. (Depressurization of the system is back-up to the runaway control) C) Low or non-presence of cooling water: you use the same security of the case A, in addition if the low flow rate is caused by the loss of electrical power, the operator is alerted by the low flow and acts by starting the turbine steam on the pump. D) water Overload or monomer: can lead to over-filling of the reactor with hydraulic damage. This damage is avoided if there is an interlock between the weight of the reactor cells with high weight alarm and the heating system of the reactor. A back-up is provided with an interlock "high-high" level of pressure that activates the emergency depressurizing valves. E) stirrer seal break: this can cause dangerous spills monomer. This is secured with interlock High agitator sealing pressure and depressurization emergency. F) Since the shortstop is so important to control the runaway an interlock is inserted to ensure the availability of the shortstop, such interlocking will not allow the load of monomer if the shortstop level into the container is low and if there is no nitrogen pressurization
  • 5. ANALYSIS INCIDENTAL EVENTS Event 1: Lack cooling water This event starts a runaway which can become catastrophic .The protection is the shortstop and the safety valves. Event 2: outside agitator service The event starts a runaway similar event 1 except that the depressurization is required to mix the shortstop in the mass of the reactor, with agitation lack of the maximum flow rate of cooling is insufficient to stop the runaway so the interlock depressurization is the only effective. Event 3: Lack Electricity: same consideration as Event 2 Event 4: cooling pump out service This event is similar to the event 1 except that the operator can stop the runaway only by operating the turbine on the relevant pump or by adding the shortstop. Event 5: double charge initiator This event leads to an energetic runaway with high rate of reaction and evolution of heat even if the cooling is functioning Both the PSV that the interlock depressurization system are indicated for this event, as well as the addition of shortstop. Event 6: Over-filling of the reactor This event can lead to dangerous leakage of monomer. With the high number of batches per year this event is very likely .The interlock and High weight alarm, level on weight cells are deemed sufficient. The interlock depressurization is effective. Event 7: Over-heating of the reactor This event leads to runaway similar event 1.Effective prevention systems are interlocking with the emergency cooling water and depressurization. Event 8: sealing the reactor out of service The special design of the seal reduces leakage of the monomer. The additional ventilation is sufficient to minimize the risk and the low presence of operators on the system reduces the risk. DESIGN OF A CONTROL SYSTEM An electronic control system (PID control, PLC, DCS) is selected for the following reasons: • The plant consists of several reactors • The control room is at a remote location • The valves have on off switches with the position indicated • Operations from the control room reduce the presence of operators on the system • Electronic Input are useful for recipe management • It is possible to make a data analysis compared with those of the field
  • 6. operating station The operators in the control room have access to a lot of equipment through the console to make an analysis of the process, to make problem solving analysis, the variable status monitoring, trend analysis, alarm analysis sensor selection Level in the reactors: choosing a radar level that can be mounted outside the reactor. The system is mounted to monitor the loading and unloading stages of reactor. to the systems of washing with high pressure water. Avoiding an entry into the reactor is important to the carcinogenic nature of the monomer. Temperature: The temperature is measured from RDT and It is inside sheaths in order to facilitate the slipping of the thermocouple. The cockpit is equipped with a pressure indicator to indicate any losses in the cockpit. Pressure: The primary system consists of a pressure transmitter with diaphragm seal Flowrate : to load the monomer using turbine flowmeters that have appropriate characteristics of reliability and also allow integration of the past volume. Weight: load cells are supplied to each reactor to provide an indirect indication of the level and indication of the amount loaded. stirrer current: a current sensor is provided for indication stirrer marching final elements selection The valves are picking according to their characteristics for minimal losses in the environment and in the second place to minimize polymer buildup. Ball valves or butterfly with high closing seal are selected. Controller Selection The more the system in use is a DCS because transients are relatively low and a normal DCS is sufficient for the application. administrative procedures to maintain integrity It may be necessary to conduct a FAT (factory acceptance test) on the DCS.A control system to validate the procedure of the system control logic is required including the analysis of the control sequence of the reaction to batch. Some SOP (standard operating procedures) will be provided to operators which describes all process steps, how the process control (set-point, process alarms, temperature and pressure limits, range during the reaction, which actions to take in case of deviation) An operator confirms that the action was taken should be required before moving on to a next process ..Procedure step that describes what to do when critical parameters are in alarm .Another procedure must be issued so that if the software is updated safety is not compromised. This procedure shall include: • Basic review of the decision to upgrade
  • 7. • Make available back-up copies of the software current system • Process Operations are stops during the validation period • All the graphics pages are validated as correct • The control logic are tested to the design criteria • The temperature and pressure control limits are always operating • All changes are communicated to the operating staff must understand the extent of change A formal procedure should be in all cases in which they are required reviews, approvals, documentation Master copy of changes of the entire system configuration must be kept and placed in a safe place for use in the event of total failure of the system. A review schedule must be provided. on interlock procedures A procedure must state that no interlock can be bypassed during the time required for the reaction. No alarm should be bypassed at any time of the process. Any calibration of equipment must be done with the process not operating. .The procedure must provide that if there are abnormalities in the interlock the operator must proceed with the plant shutdown. The procedure should not allow any changes to the process parameters and interlocks when the first has not been sufficiently endorsed and except there was conducted a HAZOP analysis or FMEA. The procedure must allow access to interlocks systems by authorized persons only who knows the password system and its operation. All maintenance work on the control and interlock systems should be documented, indicating the initial problem, identify the causes, and the implementation of the solution, provided the person responsible .The procedure must provide that a workstation is configured for your system control and another for interlocks. A functional test should be conducted on the interlocks before putting them into service and at regular intervals. The test system must validate the following points: • The operation and range of inputs including the primary devices and the input modules of interlock • The logic of the operations associated with each input device • The set points of all inputs and the contact position of the switch• Alarms with their duties • The function of all output or final control elements • The correct action of the final control elements (valves, actuators) • Any variable or output that indicates the status of the installation process • The current software version • If the action in the absence of the energy system (EE, instrument air) is correct other procedures The training of staff that use the software must be conducted before putting the system into service and should be repeated in case of changes. The documentation on the current software system must be updated, any changes must be documented. An audit should be done for control and follow-up of the system should be implemented The audit must include: • Review of all changes made since the last audit or verification • Review of all the problems that occurred with the software • Verification of the functional checks of the system annually facts • Check that all official documentation is in order
  • 8. • Verify that the person know how to use the software correctly • Check that the planned has been realized • Check emergency procedures including simulation periods Reference guidelines for safe automation of chemical processes –CCPS-Aiche ALFREDO RUGGIERO
