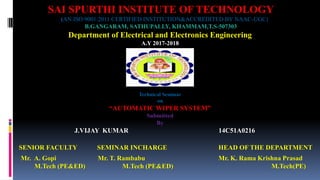

1. SAI SPURTHI INSTITUTE OF TECHNOLOGY
(AN ISO 9001:2011 CERTIFIED INSTITUTION&ACCREDITED BY NAAC-UGC)
B.GANGARAM, SATHUPALLY, KHAMMAM,T.S-507303
Department of Electrical and Electronics Engineering
A.Y 2017-2018
SENIOR FACULTY SEMINAR INCHARGE HEAD OF THE DEPARTMENT
Mr. A. Gopi Mr. T. Rambabu Mr. K. Rama Krishna Prasad
M.Tech (PE&ED) M.Tech (PE&ED) M.Tech(PE)
Technical Seminar
on
“AUTOMATIC WIPER SYSTEM”
Submitted
By
J.VIJAY KUMAR 14C51A0216

2. CONTENTS
 Introduction
 Automation
 Need for automation
 Reasons for automation
 Required components
 Block diagram
 Working
 Advantages
 Dis advantages
 Applications
 Future scope
 Conclusion

3. INTRODUCTION
 The Rain Tracker automotive rain sensor, senses rain or snow hitting the
windshield, and automatically runs the wipers at the right speed.
 we don't have to take our hands off the wheel, or constantly adjust the speed of
the wipers as road conditions change
 A rain sensor or rain switch is a switching device activated by rainfall.
 In this the sensor projects infrared light into the windshield at a 45-degree
angle.
 If the glass is dry, than most of this light is reflected back into the sensor by the
front of the windshield.
 If water droplets are on the glass, than it reflect the light in different
direction…the wetter the glass, the less light makes it back into the sensor.

4.  The electronics and software in the sensor turn on the wipers when the
amount of light reflected onto the sensor.
 software sets the speed of the wipers based on how fast the moisture
builds up between wipes. It can operate the wipers at any speed.

5. AUTOMATION
 The Automatic rain operated wiper system is a fully automation project.
This is an area of automation where it is broadly defined as replacement
of manual effort by mechanical power in all degrees of automation.
 The operation remains an essential part of the system although with
changing demands on physical input as the degree of mechanization is
increased.
 Degrees of automation are of two types:
 Full automation.
 Semi automation.
 In semi automation a combination of manual effort and mechanical
power is required whereas in full automation human participation is
very negligible.

6. NEED FORAUTOMATION
 Automation can be achieved through the computers, hydraulics, pneumatics
and robotics etc. of these sources, pneumatics form an attractive medium for
low cost automation.
 Pneumatics is a branch of engineering that makes use of gas or pressurized air.
Pneumatic systems used in industry are commonly powered by compressed
air or compressed inert gases
 Automation plays an important role in automobile.

7. REASON FORAUTOMATION
 To achieve high safety .
 To reduce man power.
 To increase the efficiency of the vehicle .
 To reduce the work load.
 To reduce the vehicle accident .
 To reduce the fatigue of workers.
 To high responsibility .
 Less Maintenance cost.

8. COMPONENTS
 Water Sensor.
 Battery.
 Wiper Motor.
 Relay.
 Class frame.
 NE555IC

9. NE555IC

10. BLOCK DIAGRAM

11. CIRCUIT DIAGRAM

12. WORKING
The battery supplies the power to the sensor as well as rain operated motor.
 Wiper motor is automatically ON during the time of rainfall.
The senor is fixed in the vehicle glass.
The conductive (Touch) sensor is used in this project.
It senses the rainfall and giving control signal to the control unit.
 The control unit activates the wiper motor automatically.
This operation is called “Automatic rain operated wiper”.

14. ADVANTAGES
 Low cost automation project.
 Free from wear adjustment.
 Less power consumption .
 Operating Principle is very easy.
 Installation is simplified very much.
 To avoid other burnable interactions viz.… (Diaphragm) is not used.
 It is possible to operate Manually/automatically by proving ON/OFF switch.
 Sensor cost is very low due to conductive sensor.

15. DISADVANTAGES
In order to avoid false detection of rain, it requires rain sensors to take decision
after few minutes.
 The rain sensor based system functions when water falls on the sensor directly.
The cost of overall system increases as additional components are needed along
with rain sensors.

16. APPLICATIONS
 It is used in four wheeler .
 It is used in aircraft.
 It is used in train .
 It is used in six wheeler.
 In marine applications.
