From Model to Event Data Analysis Marco Montali Free University of Bozen-Bolzano
 ATAED 2016 Marrying Data and Processes

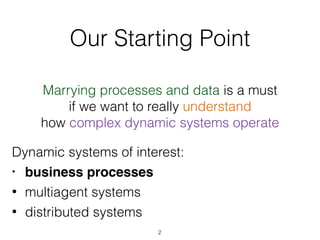

Our Starting Point Marrying processes and data is a must
 if we want to really understand
 how complex dynamic systems operate Dynamic systems of interest: • business processes • multiagent systems • distributed systems 2
Our Thesis Knowledge representation and
 computational logics

 is a swiss-army knife to

 understand data-aware dynamic systems, and
 provide automated reasoning and verification capabilities along their entire lifecycle 3
Business Process Lifecycle 4 picture by Wil van der Aalst
Formal Verification Automated analysis of a formal model of the system against a property of interest, considering all possible system behaviors 5 picture by Wil van der Aalst

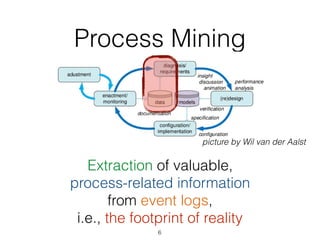

Process Mining Extraction of valuable, process-related information
 from event logs, i.e., the footprint of reality 6 picture by Wil van der Aalst
7
Loneliness

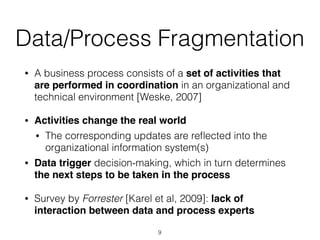

Data/Process Fragmentation • A business process consists of a set of activities that are performed in coordination in an organizational and technical environment [Weske, 2007] • Activities change the real world • The corresponding updates are reflected into the organizational information system(s) • Data trigger decision-making, which in turn determines the next steps to be taken in the process • Survey by Forrester [Karel et al, 2009]: lack of interaction between data and process experts 9

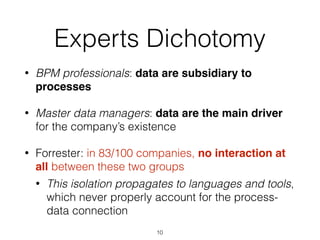

Experts Dichotomy • BPM professionals: data are subsidiary to processes • Master data managers: data are the main driver for the company’s existence • Forrester: in 83/100 companies, no interaction at all between these two groups • This isolation propagates to languages and tools, which never properly account for the process- data connection 10

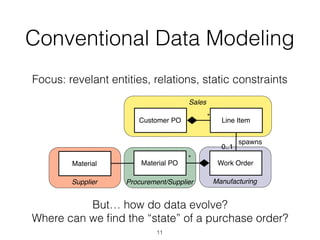

Conventional Data Modeling Focus: revelant entities, relations, static constraints Supplier ManufacturingProcurement/Supplier Sales Customer PO Line Item Work OrderMaterial PO * * spawns 0..1 Material But… how do data evolve? Where can we find the “state” of a purchase order? 11

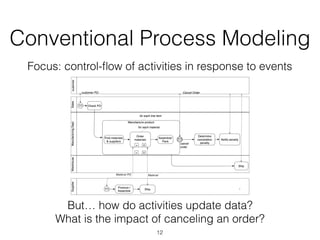

Conventional Process Modeling Focus: control-flow of activities in response to events But… how do activities update data? What is the impact of canceling an order? 12

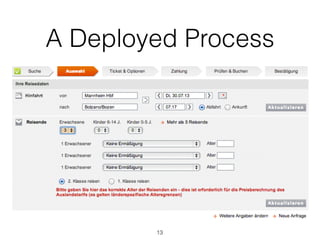

A Deployed Process 13

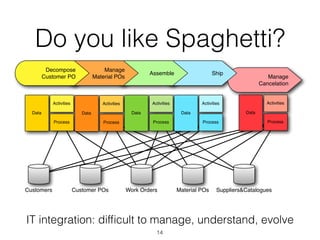

Do you like Spaghetti? Manage Cancelation ShipAssemble Manage Material POs Decompose Customer PO Activities Process Data Activities Process Data Activities Process Data Activities Process Data Activities Process Data Customers Suppliers&CataloguesCustomer POs Work Orders Material POs IT integration: difficult to manage, understand, evolve 14

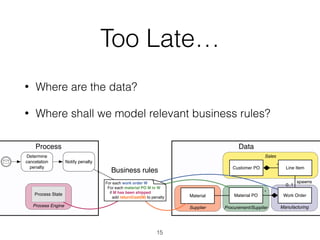

Too Late… • Where are the data? • Where shall we model relevant business rules? 15 o late to reconstruct the missing pieces Where is our data? part is in the DBs, part is hidden in the process execution engine. Where are the relevant business rules, and how are they modeled? At the DB level? Which DB? How to import the process data? (Also) in the business model? How to import data from the DBs? DataProcess Supplier ManufacturingProcurement/Supplier Sales Customer PO Line Item Work OrderMaterial PO * * spawns 0..1 Determine cancelation penalty Notify penalty Material Process Engine Process State Business rules For each work order W For each material PO M in W if M has been shipped add returnCost(M) to penalty

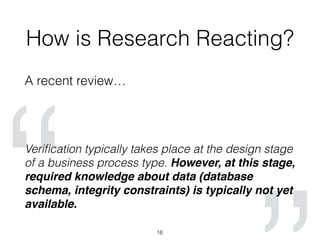

How is Research Reacting? A recent review… Verification typically takes place at the design stage of a business process type. However, at this stage, required knowledge about data (database schema, integrity constraints) is typically not yet available. 16

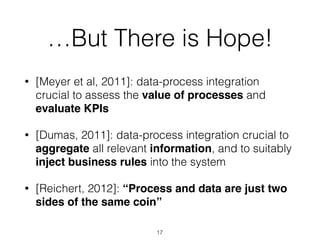

…But There is Hope! • [Meyer et al, 2011]: data-process integration crucial to assess the value of processes and evaluate KPIs • [Dumas, 2011]: data-process integration crucial to aggregate all relevant information, and to suitably inject business rules into the system • [Reichert, 2012]: “Process and data are just two sides of the same coin” 17

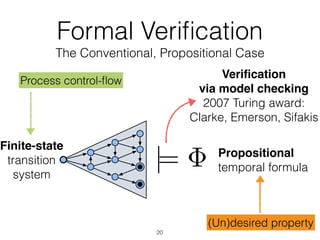

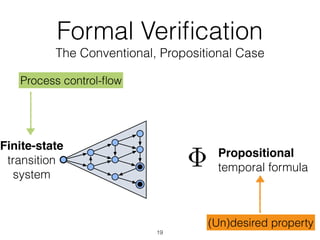

Formal Verification The Conventional, Propositional Case Process control-flow (Un)desired property 18
(Un)desired property Finite-state transition system Propositional temporal formula|= Formal Verification The Conventional, Propositional Case Process control-flow 19
(Un)desired property Finite-state transition system Propositional temporal formula|= Verification via model checking 2007 Turing award: Clarke, Emerson, Sifakis Formal Verification The Conventional, Propositional Case Process control-flow 20
Marriage

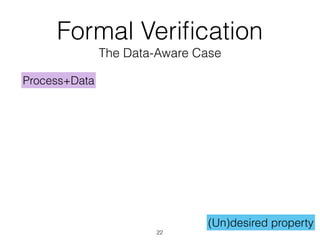

(Un)desired property Formal Verification The Data-Aware Case 22 Process+Data
(Un)desired property First-order temporal formula|= Process+Data Formal Verification The Data-Aware Case Infinite-state, relational transition system [Vardi 2005] 23

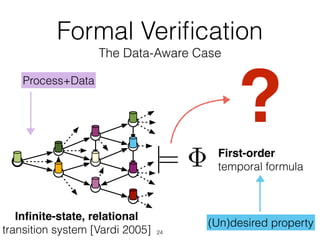

(Un)desired property First-order temporal formula|= ? Formal Verification The Data-Aware Case 24 Process+Data Infinite-state, relational transition system [Vardi 2005]

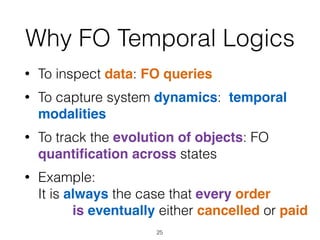

Why FO Temporal Logics • To inspect data: FO queries • To capture system dynamics: temporal modalities • To track the evolution of objects: FO quantification across states • Example:
 It is always the case that every order
 is eventually either cancelled or paid 25

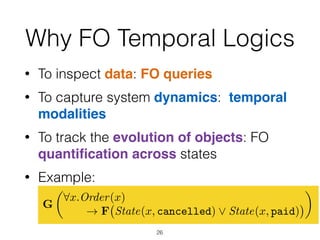

Why FO Temporal Logics • To inspect data: FO queries • To capture system dynamics: temporal modalities • To track the evolution of objects: FO quantification across states • Example:
 It is always the case that every order
 is eventually either cancelled or paid 26 G ✓ 8x.Order(x) ! F State(x, cancelled) _ State(x, paid) ◆
Problem Dimensions Data component Relational DB Description logic KB OBDA system Inconsistency tolerant KB … Process component condition- action rules BPMN Golog program Petri nets … Task modeling Conditional effects Add/delete assertions Programs User forms … External inputs None External services Input DB Fixed input … Network topology Single orchestrator Full mesh Connected, fixed graph Ring … Interaction mechanism None Synchronous Asynchronous and ordered Asynchronous lossy … 27

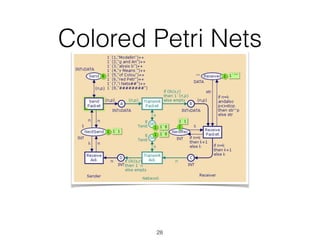

Colored Petri Nets 28

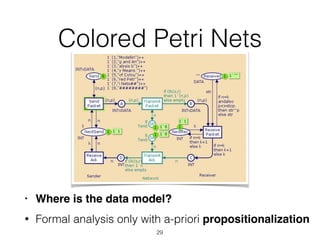

Colored Petri Nets • Where is the data model? • Formal analysis only with a-priori propositionalization 29

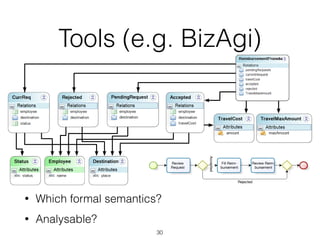

Tools (e.g. BizAgi) 30 Review Request Fill Reim- bursement Review Reim- bursement Rejected Accepted • Which formal semantics? • Analysable?

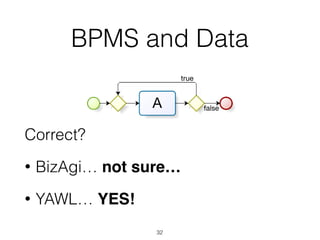

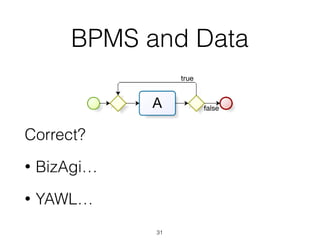

A true false BPMS and Data Correct? • BizAgi… • YAWL… 31
A true false BPMS and Data Correct? • BizAgi… not sure… • YAWL… YES! 32

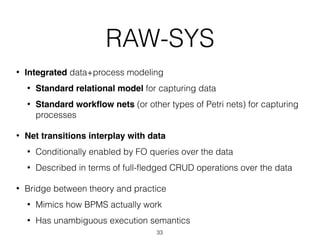

RAW-SYS • Integrated data+process modeling • Standard relational model for capturing data • Standard workflow nets (or other types of Petri nets) for capturing processes • Net transitions interplay with data • Conditionally enabled by FO queries over the data • Described in terms of full-fledged CRUD operations over the data • Bridge between theory and practice • Mimics how BPMS actually work • Has unambiguous execution semantics 33
RAW-SYS 34 Task local Task local Task Case new case close case archive shared local archive

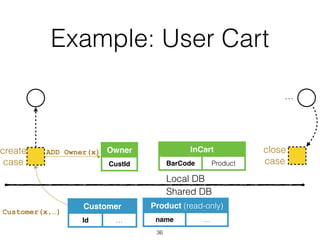

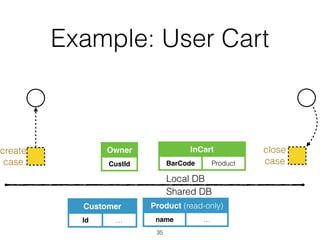

Example: User Cart 35 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB create case close case
Example: User Cart 36 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB Customer(x,…) ADD Owner(x) … create case close case

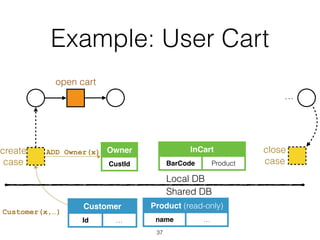

Example: User Cart 37 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB Customer(x,…) ADD Owner(x) open cart … create case close case

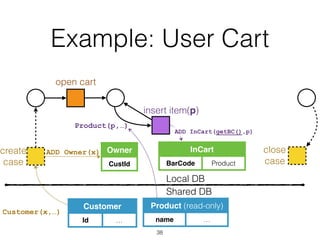

Example: User Cart 38 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB Customer(x,…) ADD Owner(x) open cart insert item(p) create case Product(p,…) ADD InCart(getBC(),p) close case

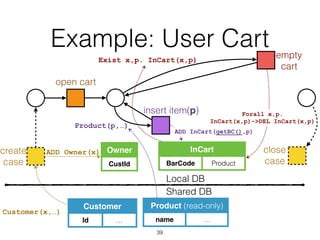

Example: User Cart 39 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB Customer(x,…) ADD Owner(x) open cart empty cart insert item(p) create case Exist x,p. InCart(x,p) Product(p,…) Forall x,p.
 InCart(x,p)->DEL InCart(x,p) ADD InCart(getBC(),p) close case

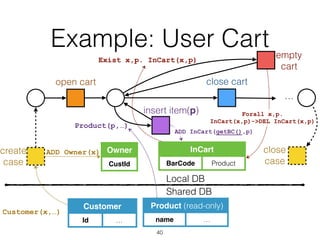

Example: User Cart 40 Customer Id … Product (read-only) name … InCart BarCode Product Owner CustId Shared DB Local DB Customer(x,…) ADD Owner(x) open cart … close cart empty cart insert item(p) create case Exist x,p. InCart(x,p) Product(p,…) Forall x,p.
 InCart(x,p)->DEL InCart(x,p) ADD InCart(getBC(),p) close case

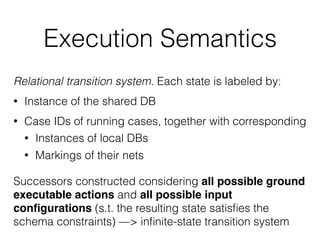

Execution Semantics Relational transition system. Each state is labeled by: • Instance of the shared DB • Case IDs of running cases, together with corresponding • Instances of local DBs • Markings of their nets Successors constructed considering all possible ground executable actions and all possible input configurations (s.t. the resulting state satisfies the schema constraints) —> infinite-state transition system

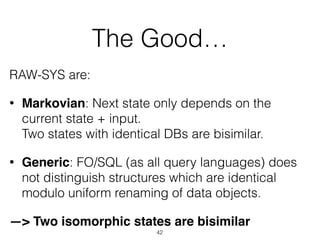

The Good… RAW-SYS are: • Markovian: Next state only depends on the current state + input.
 Two states with identical DBs are bisimilar. • Generic: FO/SQL (as all query languages) does not distinguish structures which are identical modulo uniform renaming of data objects. —> Two isomorphic states are bisimilar 42

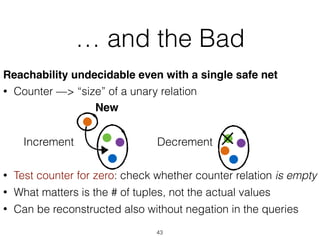

… and the Bad Reachability undecidable even with a single safe net • Counter —> “size” of a unary relation • Test counter for zero: check whether counter relation is empty • What matters is the # of tuples, not the actual values • Can be reconstructed also without negation in the queries 43 New Increment Decrement
State-Boundedness [PODS 2013] Put a pre-defined bound on the DB size
 (not the size of the data domain!) • Resulting transition system: still infinite-state • But: infinitely-many encountered values along a run cannot be “accumulated” in a single state 44

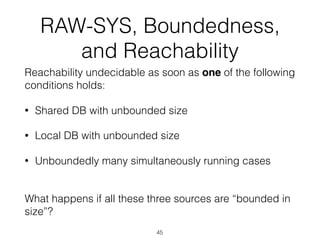

RAW-SYS, Boundedness, and Reachability Reachability undecidable as soon as one of the following conditions holds: • Shared DB with unbounded size • Local DB with unbounded size • Unboundedly many simultaneously running cases
 What happens if all these three sources are “bounded in size”? 45

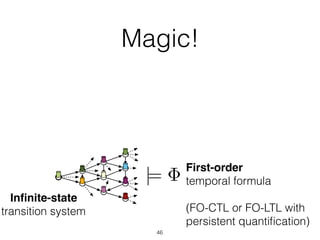

Magic! 46 First-order temporal formula (FO-CTL or FO-LTL with
 persistent quantification) |= Infinite-state transition system

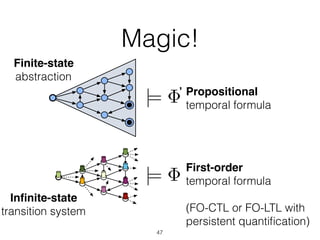

Magic! 47 First-order temporal formula (FO-CTL or FO-LTL with
 persistent quantification) |= Infinite-state transition system |= Propositional temporal formula ‘ Finite-state abstraction

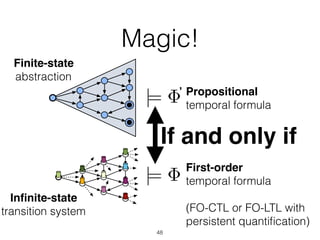

Magic! 48 First-order temporal formula (FO-CTL or FO-LTL with
 persistent quantification) |= Infinite-state transition system |= Propositional temporal formula ‘ If and only if Finite-state abstraction

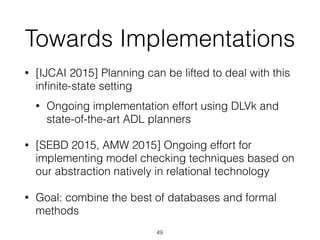

Towards Implementations • [IJCAI 2015] Planning can be lifted to deal with this infinite-state setting • Ongoing implementation effort using DLVk and state-of-the-art ADL planners • [SEBD 2015, AMW 2015] Ongoing effort for implementing model checking techniques based on our abstraction natively in relational technology • Goal: combine the best of databases and formal methods 49

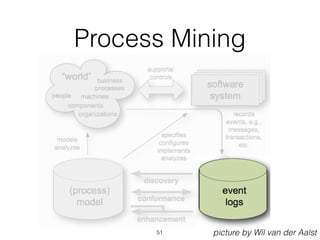

Process Mining 50 picture by Wil van der Aalst
Process Mining 51 picture by Wil van der Aalst

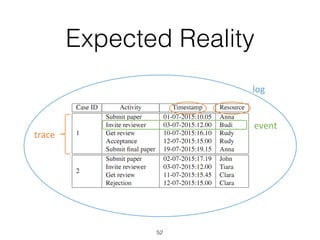

Expected Reality 52 log trace event
Expected Reality XES standard for event logs 53 <log xes.version="1.0" xes.features="nested-attributes"> <trace> <string key=“concept:name” value=“1” /> <event> <string key=“concept:name” value=“register request” /> <date key=“time:timestamp” value=“2010-12-30T11:02:00.000+01:00” /> </event> </trace>

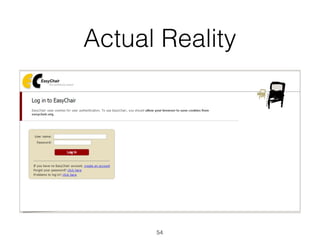

Actual Reality 54

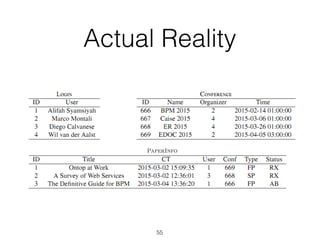

Actual Reality 55 PaperInfo
Understanding Reality… 56 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime upload accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 *

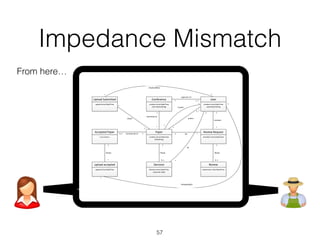

From here… Impedance Mismatch 57 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime upload accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 *

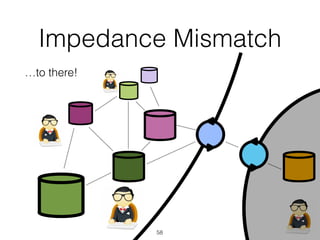

…to there! Impedance Mismatch 58

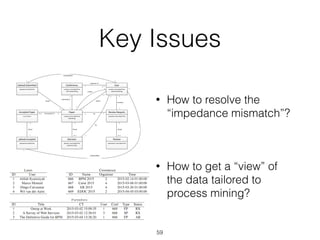

Key Issues • How to resolve the “impedance mismatch”? • How to get a “view” of the data tailored to process mining? 59 PaperInfo 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime upload accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 *
Impedance Mismatch is Really an Issue Crompton (2008): domain experts loose too much time to big into data and turn them into knowledge • Engineers in the oil/gas industry: 30-70% of their working time spent for data searching and data quality 60
Optique Scalable, End-User Access to Big Data • http://optique-project.eu • Goal: engineering techniques for enabling end- users accessing data through domain ontologies • Case studies: Statoil, Siemens 61

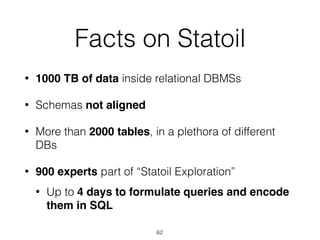

Facts on Statoil • 1000 TB of data inside relational DBMSs • Schemas not aligned • More than 2000 tables, in a plethora of different DBs • 900 experts part of “Statoil Exploration” • Up to 4 days to formulate queries and encode them in SQL 62

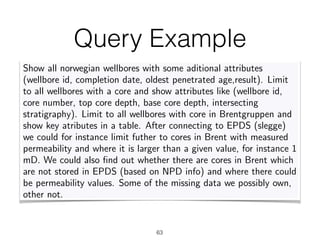

Query Example 63 OBDI framework Query answering Ontology languages Mappings Identity Conclusions How much time/money is spent searching for data? A user query at Statoil Show all norwegian wellbores with some aditional attributes (wellbore id, completion date, oldest penetrated age,result). Limit to all wellbores with a core and show attributes like (wellbore id, core number, top core depth, base core depth, intersecting stratigraphy). Limit to all wellbores with core in Brentgruppen and show key atributes in a table. After connecting to EPDS (slegge) we could for instance limit futher to cores in Brent with measured permeability and where it is larger than a given value, for instance 1 mD. We could also find out whether there are cores in Brent which are not stored in EPDS (based on NPD info) and where there could be permeability values. Some of the missing data we possibly own, other not. Diego Calvanese (FUB) Ontologies for Data Integration FOfAI 2015, Buenos Aires – 27/7/2015 (5/52)
64 er query at Statoil w all norwegian wellbores with some aditional attributes bore id, completion date, oldest penetrated age,result). Lim wellbores with a core and show attributes like (wellbore id number, top core depth, base core depth, intersecting graphy). Limit to all wellbores with core in Brentgruppen key atributes in a table. After connecting to EPDS (slegg ould for instance limit futher to cores in Brent with measu eability and where it is larger than a given value, for insta We could also find out whether there are cores in Brent w ot stored in EPDS (based on NPD info) and where there ermeability values. Some of the missing data we possibly o not. SELECT [...] FROM db_name.table1 table1, db_name.table2 table2a, db_name.table2 table2b, db_name.table3 table3a, db_name.table3 table3b, db_name.table3 table3c, db_name.table3 table3d, db_name.table4 table4a, db_name.table4 table4b, db_name.table4 table4c, db_name.table4 table4d, db_name.table4 table4e, db_name.table4 table4f, db_name.table5 table5a, db_name.table5 table5b, db_name.table6 table6a, db_name.table6 table6b, db_name.table7 table7a, db_name.table7 table7b, db_name.table8 table8, db_name.table9 table9, db_name.table10 table10a, db_name.table10 table10b, db_name.table10 table10c, db_name.table11 table11, db_name.table12 table12, db_name.table13 table13, db_name.table14 table14, db_name.table15 table15, db_name.table16 table16 WHERE [...] table2a.attr1=‘keyword’ AND table3a.attr2=table10c.attr1 AND table3a.attr6=table6a.attr3 AND table3a.attr9=‘keyword’ AND table4a.attr10 IN (‘keyword’) AND table4a.attr1 IN (‘keyword’) AND table5a.kinds=table4a.attr13 AND table5b.kinds=table4c.attr74 AND table5b.name=‘keyword’ AND (table6a.attr19=table10c.attr17 OR (table6a.attr2 IS NULL AND table10c.attr4 IS NULL)) AND table6a.attr14=table5b.attr14 AND table6a.attr2=‘keyword’ AND (table6b.attr14=table10c.attr8 OR (table6b.attr4 IS NULL AND table10c.attr7 IS NULL)) AND table6b.attr19=table5a.attr55 AND table6b.attr2=‘keyword’ AND table7a.attr19=table2b.attr19 AND table7a.attr17=table15.attr19 AND table4b.attr11=‘keyword’ AND table8.attr19=table7a.attr80 AND table8.attr19=table13.attr20 AND table8.attr4=‘keyword’ AND table9.attr10=table16.attr11 AND table3b.attr19=table10c.attr18 AND table3b.attr22=table12.attr63 AND table3b.attr66=‘keyword’ AND table10a.attr54=table7a.attr8 AND table10a.attr70=table10c.attr10 AND table10a.attr16=table4d.attr11 AND table4c.attr99=‘keyword’ AND table4c.attr1=‘keyword’ AND table11.attr10=table5a.attr10 AND table11.attr40=‘keyword’ AND table11.attr50=‘keyword’ AND table2b.attr1=table1.attr8 AND table2b.attr9 IN (‘keyword’) AND table2b.attr2 LIKE ‘keyword’% AND table12.attr9 IN (‘keyword’) AND table7b.attr1=table2a.attr10 AND table3c.attr13=table10c.attr1 AND table3c.attr10=table6b.attr20 AND table3c.attr13=‘keyword’ AND table10b.attr16=table10a.attr7 AND table10b.attr11=table7b.attr8 AND table10b.attr13=table4b.attr89 AND table13.attr1=table2b.attr10 AND table13.attr20=’‘keyword’’ AND table13.attr15=‘keyword’ AND table3d.attr49=table12.attr18 AND table3d.attr18=table10c.attr11 AND table3d.attr14=‘keyword’ AND table4d.attr17 IN (‘keyword’) AND table4d.attr19 IN (‘keyword’) AND table16.attr28=table11.attr56 AND table16.attr16=table10b.attr78 AND table16.attr5=table14.attr56 AND table4e.attr34 IN (‘keyword’) AND table4e.attr48 IN (‘keyword’) AND table4f.attr89=table5b.attr7 AND table4f.attr45 IN (‘keyword’) AND table4f.attr1=‘keyword’ AND table10c.attr2=table4e.attr19 AND (table10c.attr78=table12.attr56 OR (table10c.attr55 IS NULL AND table12.attr17 IS NULL))
65 er query at Statoil w all norwegian wellbores with some aditional attributes bore id, completion date, oldest penetrated age,result). Lim wellbores with a core and show attributes like (wellbore id number, top core depth, base core depth, intersecting graphy). Limit to all wellbores with core in Brentgruppen key atributes in a table. After connecting to EPDS (slegg ould for instance limit futher to cores in Brent with measu eability and where it is larger than a given value, for insta We could also find out whether there are cores in Brent w ot stored in EPDS (based on NPD info) and where there ermeability values. Some of the missing data we possibly o not. SELECT [...] FROM db_name.table1 table1, db_name.table2 table2a, db_name.table2 table2b, db_name.table3 table3a, db_name.table3 table3b, db_name.table3 table3c, db_name.table3 table3d, db_name.table4 table4a, db_name.table4 table4b, db_name.table4 table4c, db_name.table4 table4d, db_name.table4 table4e, db_name.table4 table4f, db_name.table5 table5a, db_name.table5 table5b, db_name.table6 table6a, db_name.table6 table6b, db_name.table7 table7a, db_name.table7 table7b, db_name.table8 table8, db_name.table9 table9, db_name.table10 table10a, db_name.table10 table10b, db_name.table10 table10c, db_name.table11 table11, db_name.table12 table12, db_name.table13 table13, db_name.table14 table14, db_name.table15 table15, db_name.table16 table16 WHERE [...] table2a.attr1=‘keyword’ AND table3a.attr2=table10c.attr1 AND table3a.attr6=table6a.attr3 AND table3a.attr9=‘keyword’ AND table4a.attr10 IN (‘keyword’) AND table4a.attr1 IN (‘keyword’) AND table5a.kinds=table4a.attr13 AND table5b.kinds=table4c.attr74 AND table5b.name=‘keyword’ AND (table6a.attr19=table10c.attr17 OR (table6a.attr2 IS NULL AND table10c.attr4 IS NULL)) AND table6a.attr14=table5b.attr14 AND table6a.attr2=‘keyword’ AND (table6b.attr14=table10c.attr8 OR (table6b.attr4 IS NULL AND table10c.attr7 IS NULL)) AND table6b.attr19=table5a.attr55 AND table6b.attr2=‘keyword’ AND table7a.attr19=table2b.attr19 AND table7a.attr17=table15.attr19 AND table4b.attr11=‘keyword’ AND table8.attr19=table7a.attr80 AND table8.attr19=table13.attr20 AND table8.attr4=‘keyword’ AND table9.attr10=table16.attr11 AND table3b.attr19=table10c.attr18 AND table3b.attr22=table12.attr63 AND table3b.attr66=‘keyword’ AND table10a.attr54=table7a.attr8 AND table10a.attr70=table10c.attr10 AND table10a.attr16=table4d.attr11 AND table4c.attr99=‘keyword’ AND table4c.attr1=‘keyword’ AND table11.attr10=table5a.attr10 AND table11.attr40=‘keyword’ AND table11.attr50=‘keyword’ AND table2b.attr1=table1.attr8 AND table2b.attr9 IN (‘keyword’) AND table2b.attr2 LIKE ‘keyword’% AND table12.attr9 IN (‘keyword’) AND table7b.attr1=table2a.attr10 AND table3c.attr13=table10c.attr1 AND table3c.attr10=table6b.attr20 AND table3c.attr13=‘keyword’ AND table10b.attr16=table10a.attr7 AND table10b.attr11=table7b.attr8 AND table10b.attr13=table4b.attr89 AND table13.attr1=table2b.attr10 AND table13.attr20=’‘keyword’’ AND table13.attr15=‘keyword’ AND table3d.attr49=table12.attr18 AND table3d.attr18=table10c.attr11 AND table3d.attr14=‘keyword’ AND table4d.attr17 IN (‘keyword’) AND table4d.attr19 IN (‘keyword’) AND table16.attr28=table11.attr56 AND table16.attr16=table10b.attr78 AND table16.attr5=table14.attr56 AND table4e.attr34 IN (‘keyword’) AND table4e.attr48 IN (‘keyword’) AND table4f.attr89=table5b.attr7 AND table4f.attr45 IN (‘keyword’) AND table4f.attr1=‘keyword’ AND table10c.attr2=table4e.attr19 AND (table10c.attr78=table12.attr56 OR (table10c.attr55 IS NULL AND table12.attr17 IS NULL)) 50.000.000 €/year

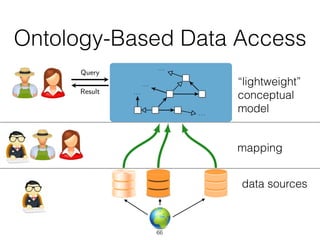

Ontology-Based Data Access 66 OBDI framework Query answering Ontology languages Mappings Identity Conclusions Ontology-based data integration framework . . . . . . . . . . . . Query Result Ontology provides global vocabulary and conceptual view Mappings semantically link sources and ontology Data Sources external and heterogeneous We achieve logical transparency in accessing data: does not know where and how the data is stored. can only see a conceptual view of the data. data sources “lightweight” conceptual model mapping

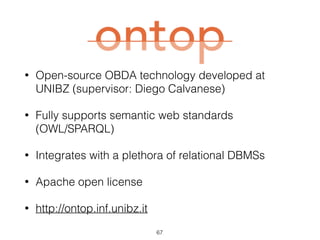

Ontop • Open-source OBDA technology developed at UNIBZ (supervisor: Diego Calvanese) • Fully supports semantic web standards
 (OWL/SPARQL) • Integrates with a plethora of relational DBMSs • Apache open license • http://ontop.inf.unibz.it 67

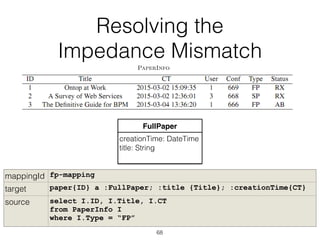

Resolving the Impedance Mismatch 68 PaperInfo FullPaper creationTime: DateTime title: String mappingId fp-mapping target paper{ID} a :FullPaper; :title {Title}; :creationTime{CT} source select I.ID, I.Title, I.CT
 from PaperInfo I where I.Type = “FP”

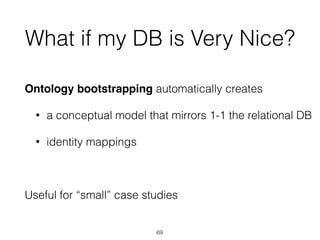

What if my DB is Very Nice? Ontology bootstrapping automatically creates • a conceptual model that mirrors 1-1 the relational DB • identity mappings Useful for “small” case studies 69

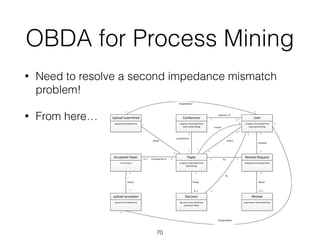

OBDA for Process Mining • Need to resolve a second impedance mismatch problem! • From here… 70 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime upload accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 *

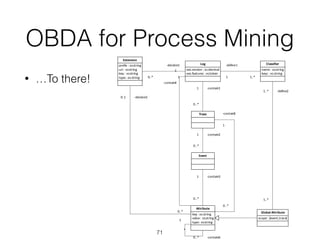

OBDA for Process Mining • …To there! 71 -xes.version : xs:decimal -xes.features : xs:token Log -name : xs:string -keys : xs:string Classifier-prefix : xs:string -uri : xs:string -key : xs:string -type : xs:string Extension Trace Event -key : xs:string -value : xs:string -type : xs:string Attribute -scope : {event,trace} Global Attribute 0..* -declare1 1 -define1 1 1..* -contain11 0..* -contain21 0..* -contain31 0..* -contain5 1 0..* -define21..* 1..* -declare20..1 1 -contain4 1 0..* -contain60..* *

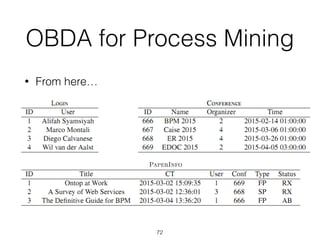

OBDA for Process Mining • From here… 72 PaperInfo
OBDA for Process Mining • …To there! 73 log trace event

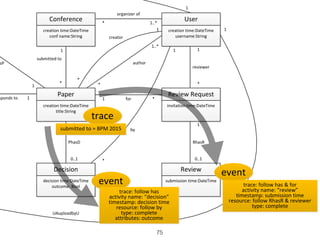

Log Annotations 74 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime Upload Accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 * trace event event eventevent trace: follow has activity name: “decision” timestamp: decision time resource: follow by type: complete attributes: outcome trace: follow has & for activity name: “review” timestamp: submission time resource: follow RhasR & reviewer type: complete trace: follow has activity name: “upload submitted” timestamp: upload time resource: follow USuploadbyU type: complete trace: follow has & corr. to activity name: “upload accepted” timestamp: upload time resource: follow UAuploadbyU type: complete submitted to = BPM 2015
75 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool submitted to 1 * organizer of * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 1sponds to sP 1 *1 for author 1..* * by 1 * creator 1 * 1 UAuploadbyU 1 trace event event trace: follow has activity name: “decision” timestamp: decision time resource: follow by type: complete attributes: outcome trace: follow has & for activity name: “review” timestamp: submission time resource: follow RhasR & reviewer type: complete submitted to = BPM 2015
Multiple Log Views 76 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool Upload Submitted upload time:DateTime Upload Accepted upload time:DateTime submitted to 1 * organizer of Accepted Paper <<no time>> * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 * AhasU 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1* UAuploadbyU 1 * trace event trace: follow has author activity name: “decision author” timestamp: decision time resource: follow PhasD type: complete event trace: follow by activity name: “decision chair” timestamp: decision time resource: follow PhasD type: complete attributes: outcome event trace: follow has & reviewer activity name: “review” timestamp: submission time resource: follow RhasR & for type: complete event trace: follow upload by activity name: “upload submitted” timestamp: upload time resource: follow UhasP type: complete

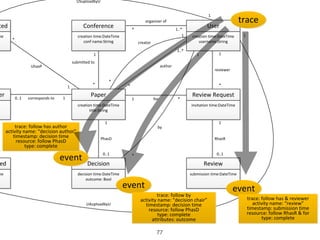

77 1..* * Conference creation time:DateTime conf name:String User creation time:DateTime username:String Paper creation time:DateTime title:String Review Request invitation time:DateTime Review submission time:DateTime Decision decision time:DateTime outcome: Bool ted me ed me submitted to 1 * organizer of er * reviewer 1 0..1 PhasD 1 0..1 RhasR 1 10..1 corresponds to * UhasP 1 *1 for author 1..* * by 1 * USuploadbyU creator 1 * 1 UAuploadbyU 1 trace event trace: follow has author activity name: “decision author” timestamp: decision time resource: follow PhasD type: complete event trace: follow by activity name: “decision chair” timestamp: decision time resource: follow PhasD type: complete attributes: outcome event trace: follow has & reviewer activity name: “review” timestamp: submission time resource: follow RhasR & for type: complete

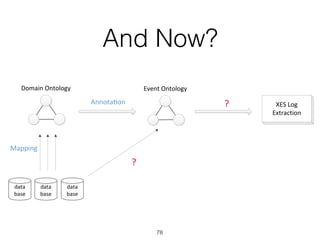

And Now? 78 data base data base data base Domain Ontology Event Ontology XES Log Extraction Mapping Annota+on ? ?

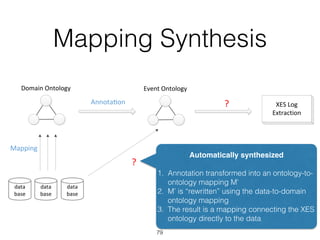

Mapping Synthesis 79 data base data base data base Domain Ontology Event Ontology XES Log Extraction Mapping Annota+on ? ? Automatically synthesized 1. Annotation transformed into an ontology-to- ontology mapping M’ 2. M’ is “rewritten” using the data-to-domain ontology mapping 3. The result is a mapping connecting the XES ontology directly to the data

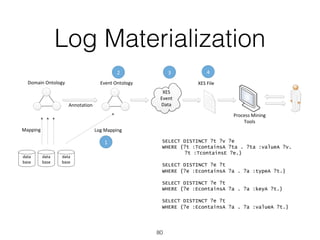

Log Materialization 80 data base data base data base Domain Ontology Event Ontology Mapping Annotation Log Mapping XES Event Data XES File Process Mining Tools 1 2 3 4 SELECT DISTINCT ?t ?v ?e WHERE {?t :TcontainsA ?ta . ?ta :valueA ?v. ?t :TcontainsE ?e.} SELECT DISTINCT ?e ?t WHERE {?e :EcontainsA ?a . ?a :typeA ?t.} SELECT DISTINCT ?e ?t WHERE {?e :EcontainsA ?a . ?a :keyA ?t.} SELECT DISTINCT ?e ?t WHERE {?e :EcontainsA ?a . ?a :valueA ?t.}

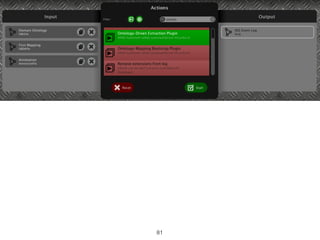

81

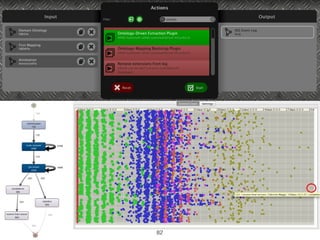

82

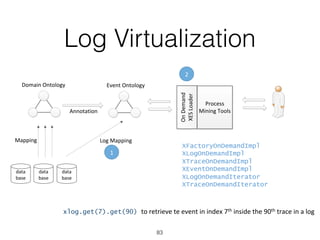

Log Virtualization 83 data base data base data base Domain Ontology Event Ontology Mapping Annotation Process Mining Tools On Demand XES Loader Log Mapping 1 2 XFactoryOnDemandImpl XLogOnDemandImpl XTraceOnDemandImpl XEventOnDemandImpl XLogOnDemandIterator XTraceOnDemandIterator xlog.get(7).get(90) to retrieve te event in index 7th inside the 90th trace in a log

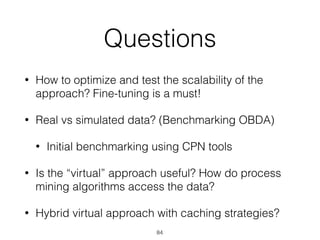

Questions • How to optimize and test the scalability of the approach? Fine-tuning is a must! • Real vs simulated data? (Benchmarking OBDA) • Initial benchmarking using CPN tools • Is the “virtual” approach useful? How do process mining algorithms access the data? • Hybrid virtual approach with caching strategies? 84

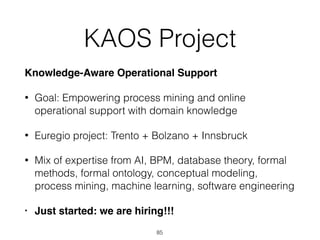

KAOS Project Knowledge-Aware Operational Support • Goal: Empowering process mining and online operational support with domain knowledge • Euregio project: Trento + Bolzano + Innsbruck • Mix of expertise from AI, BPM, database theory, formal methods, formal ontology, conceptual modeling, process mining, machine learning, software engineering • Just started: we are hiring!!! 85
86 Conclusion
Acknowledgments All coauthors of this research,
 in particular

 Diego Calvanese (UNIBZ)
 Giuseppe De Giacomo (UNIROMA)
 Riccardo De Masellis (FBK-Trento)
 Alin Deutsch (UCSD)
 Chiara Difrancescomarino (FBK-Trento)
 Chiara Ghidini (FBK-Trento)
 Fabio Patrizi (UNIBZ)
 Sergio Tessaris (UNIBZ)
 Alifah Syamsiyah (TU/e)
 Wil van der Aalst (TU/e) 87
