At Your Service: Using Jenkins in Operations

At Your Service
Using Jenkins in Operations
mandi walls
Velocity NYC
14 OCT 13

Monday, October 14, 13

whoami
•
•
•


Mandi Walls
Technical Practice Manager at Opscode
@lnxchk

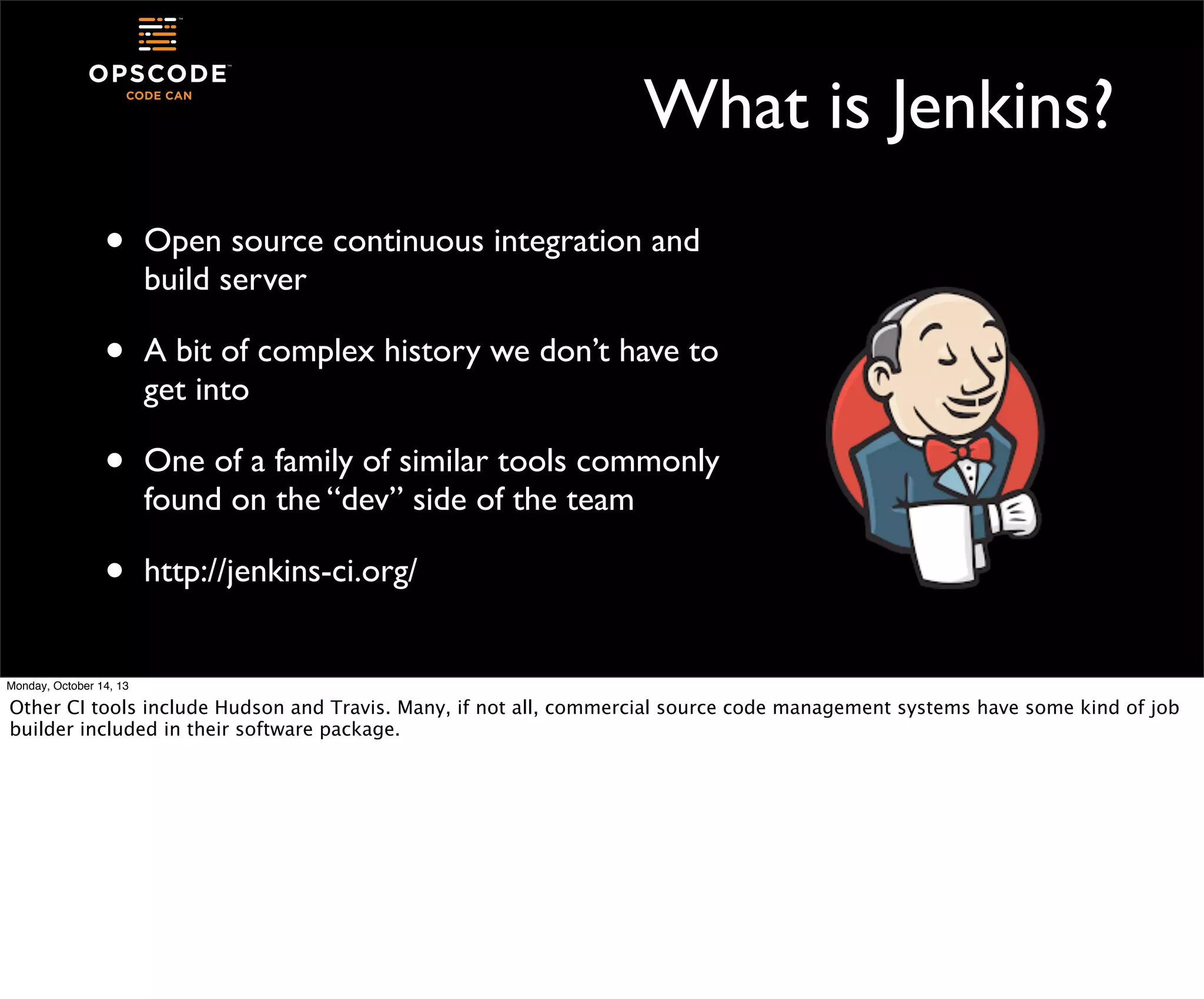

What is Jenkins?
•

Open source continuous integration and
build server

•

A bit of complex history we don’t have to
get into

•

One of a family of similar tools commonly
found on the “dev” side of the team

•

http://jenkins-ci.org/


Other CI tools include Hudson and Travis. Many, if not all, commercial source code management systems have some kind of job
builder included in their software package.

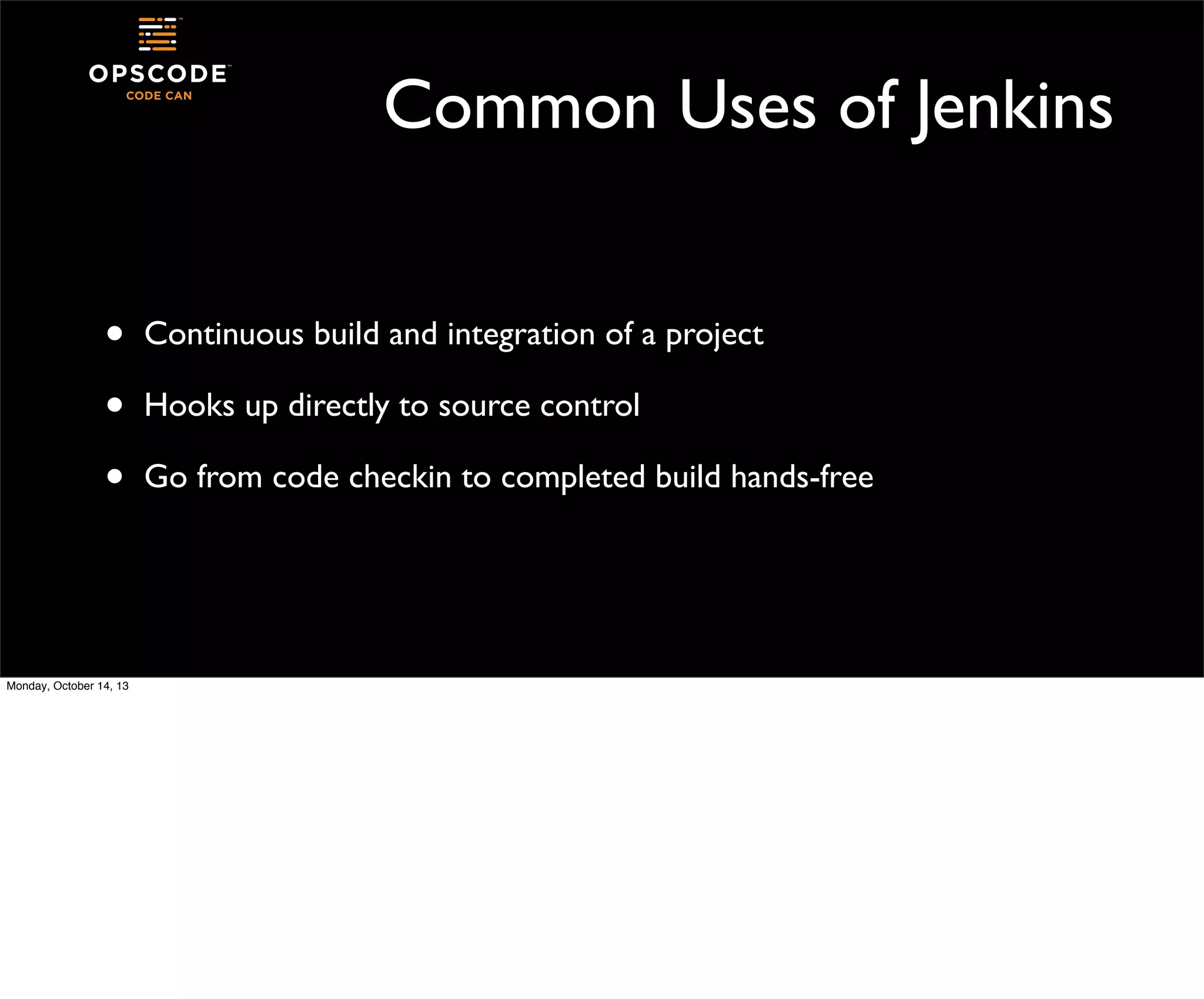

Common Uses of Jenkins
•
•
•


Continuous build and integration of a project
Hooks up directly to source control
Go from code checkin to completed build hands-free

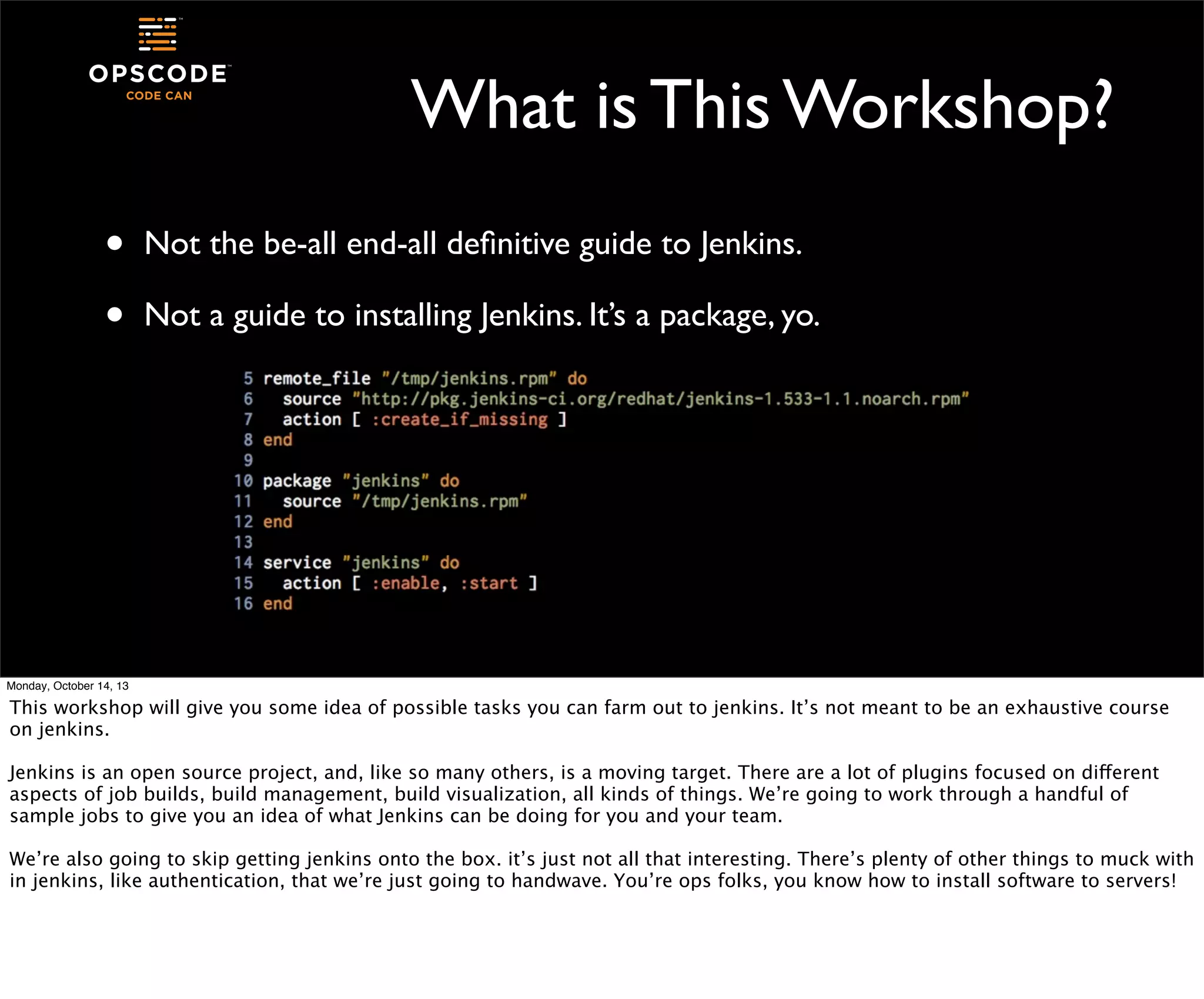

What is This Workshop?
•
•

Not the be-all end-all deﬁnitive guide to Jenkins.
Not a guide to installing Jenkins. It’s a package, yo.


This workshop will give you some idea of possible tasks you can farm out to jenkins. It’s not meant to be an exhaustive course
on jenkins.
Jenkins is an open source project, and, like so many others, is a moving target. There are a lot of plugins focused on different
aspects of job builds, build management, build visualization, all kinds of things. We’re going to work through a handful of
sample jobs to give you an idea of what Jenkins can be doing for you and your team.
We’re also going to skip getting jenkins onto the box. it’s just not all that interesting. There’s plenty of other things to muck with
in jenkins, like authentication, that we’re just going to handwave. You’re ops folks, you know how to install software to servers!

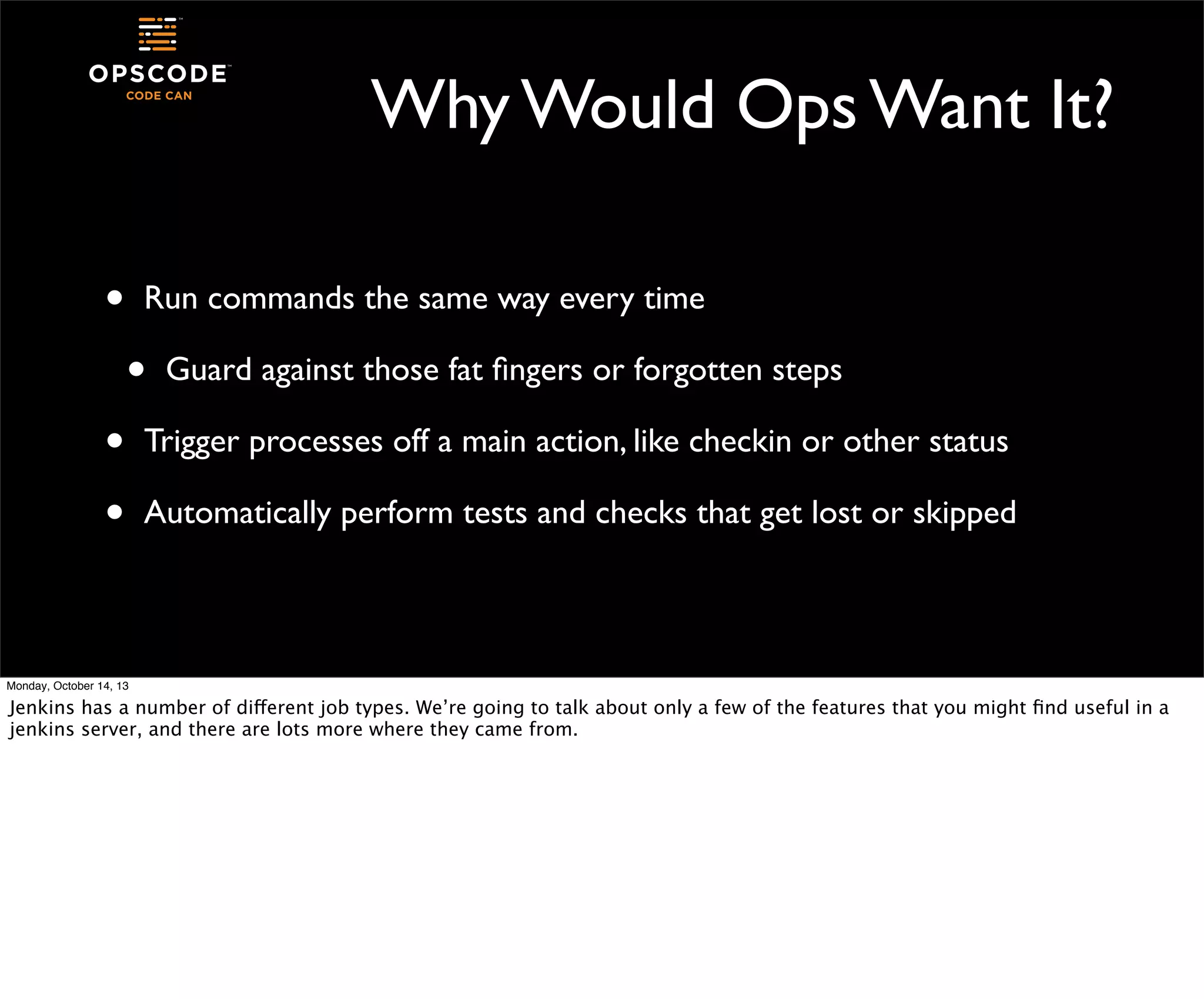

Why Would Ops Want It?
•

Run commands the same way every time

•
•
•

Guard against those fat ﬁngers or forgotten steps

Trigger processes off a main action, like checkin or other status
Automatically perform tests and checks that get lost or skipped


Jenkins has a number of different job types. We’re going to talk about only a few of the features that you might ﬁnd useful in a
jenkins server, and there are lots more where they came from.

Choose Your Yaks Wisely

Could you slap something together to do what Jenkins does? sure, some kind of cron-launched polling thing, with bits of
whatever else you deemed cool or necessary. And then you have to support it. Why? Why not get right to the building of stuff and
running of tests and doing of awesome?

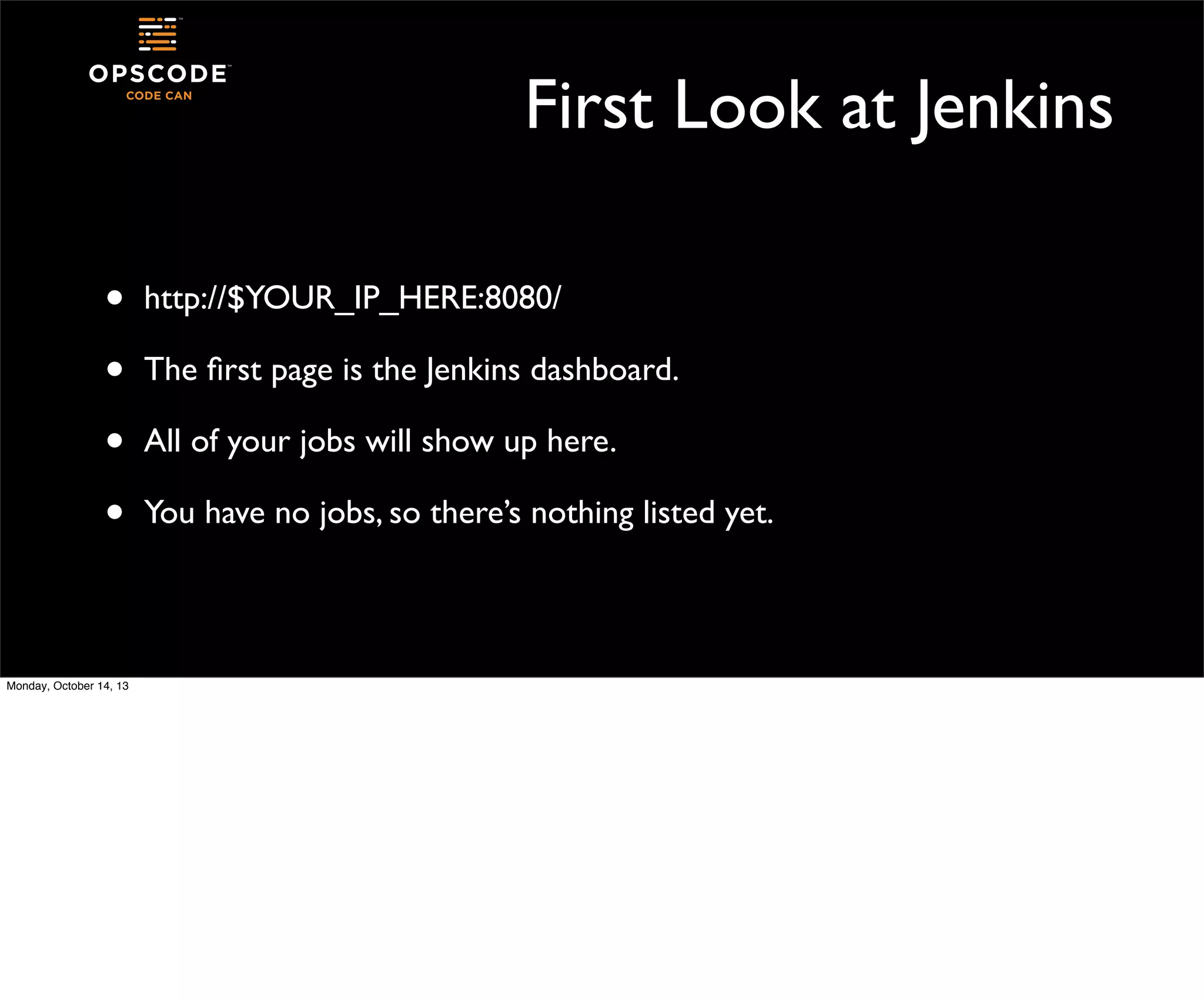

First Look at Jenkins
•
•
•
•

http://$YOUR_IP_HERE:8080/
The ﬁrst page is the Jenkins dashboard.
All of your jobs will show up here.
You have no jobs, so there’s nothing listed yet.

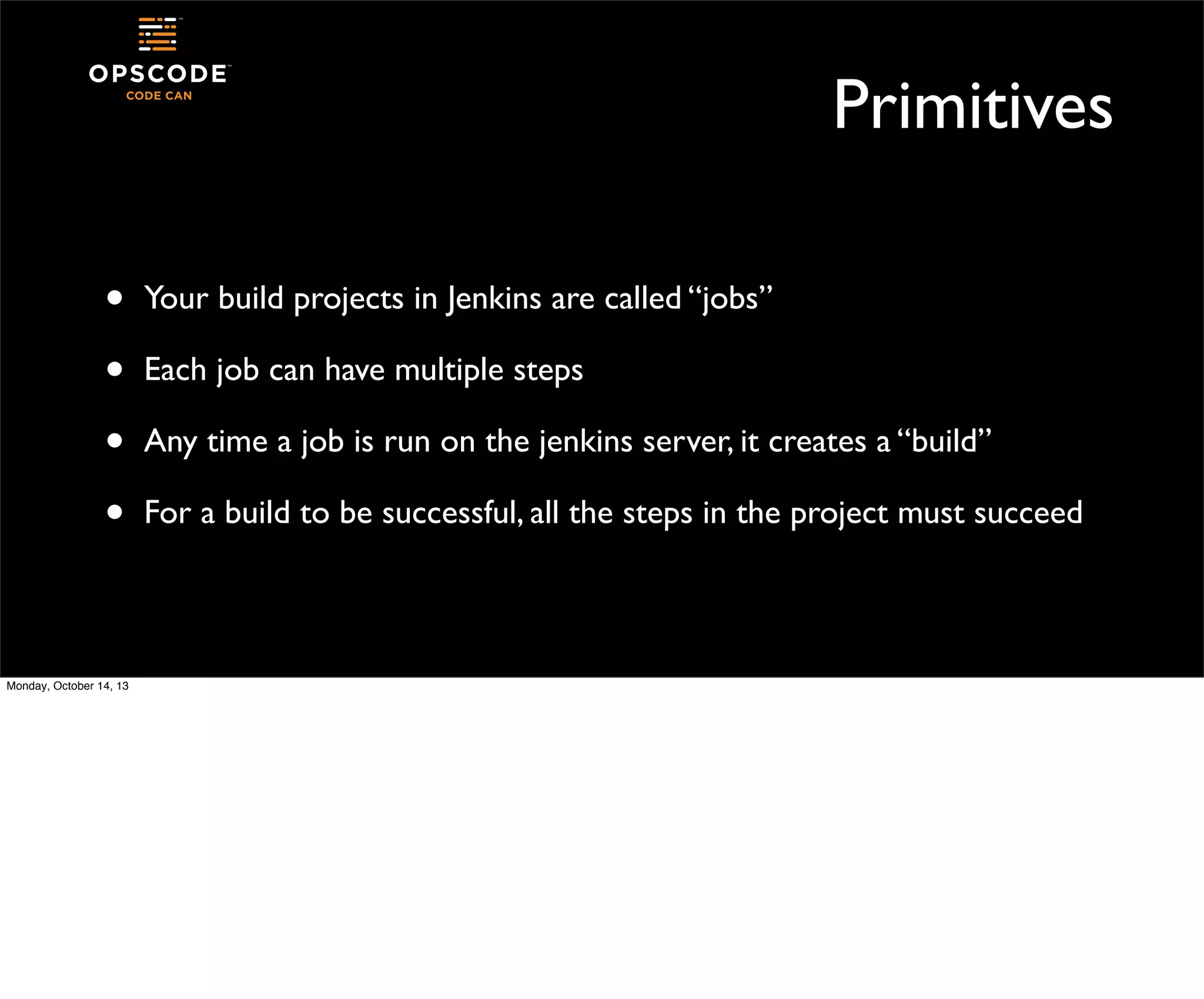

Primitives
•
•
•
•

Your build projects in Jenkins are called “jobs”
Each job can have multiple steps
Any time a job is run on the jenkins server, it creates a “build”
For a build to be successful, all the steps in the project must succeed

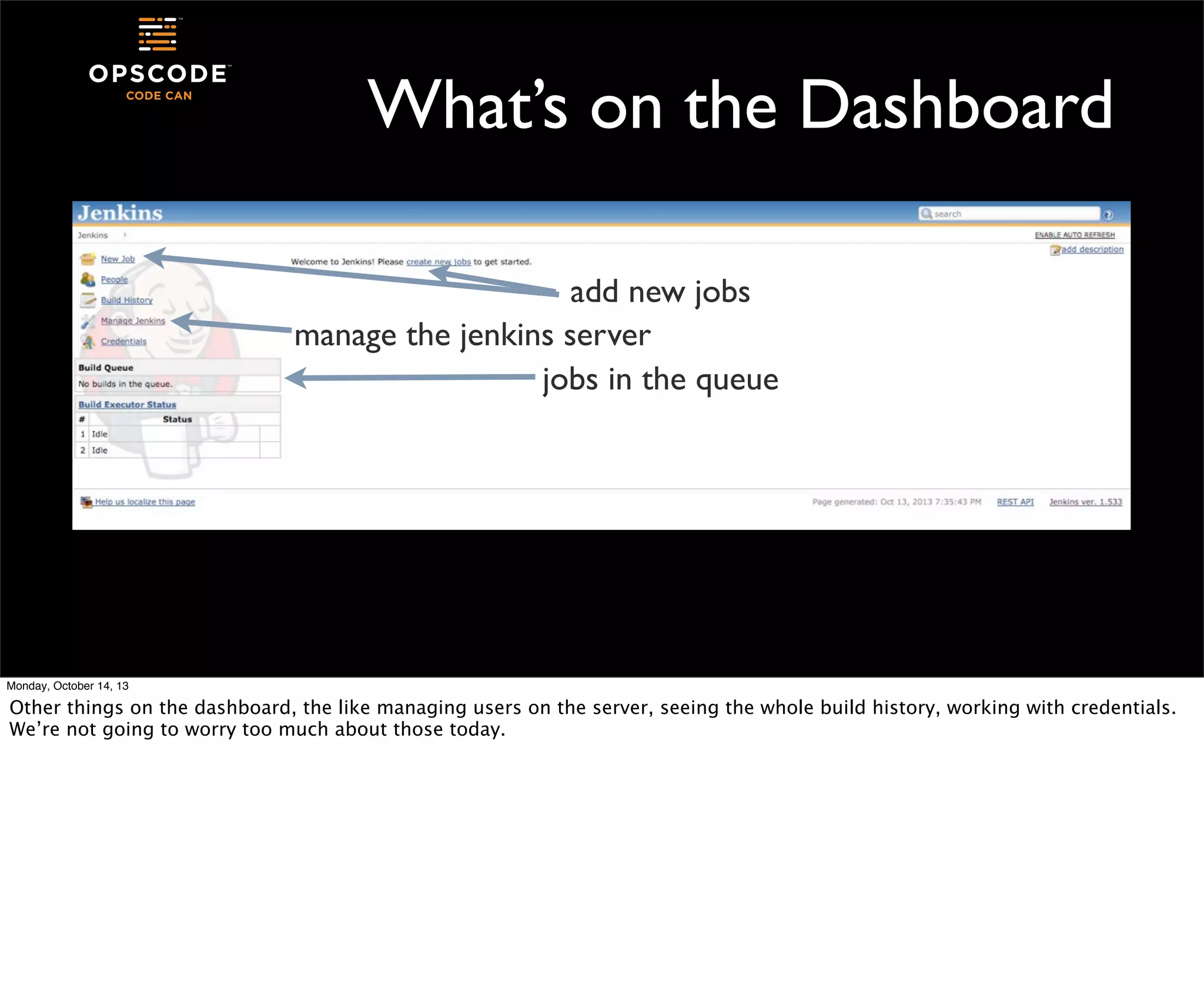

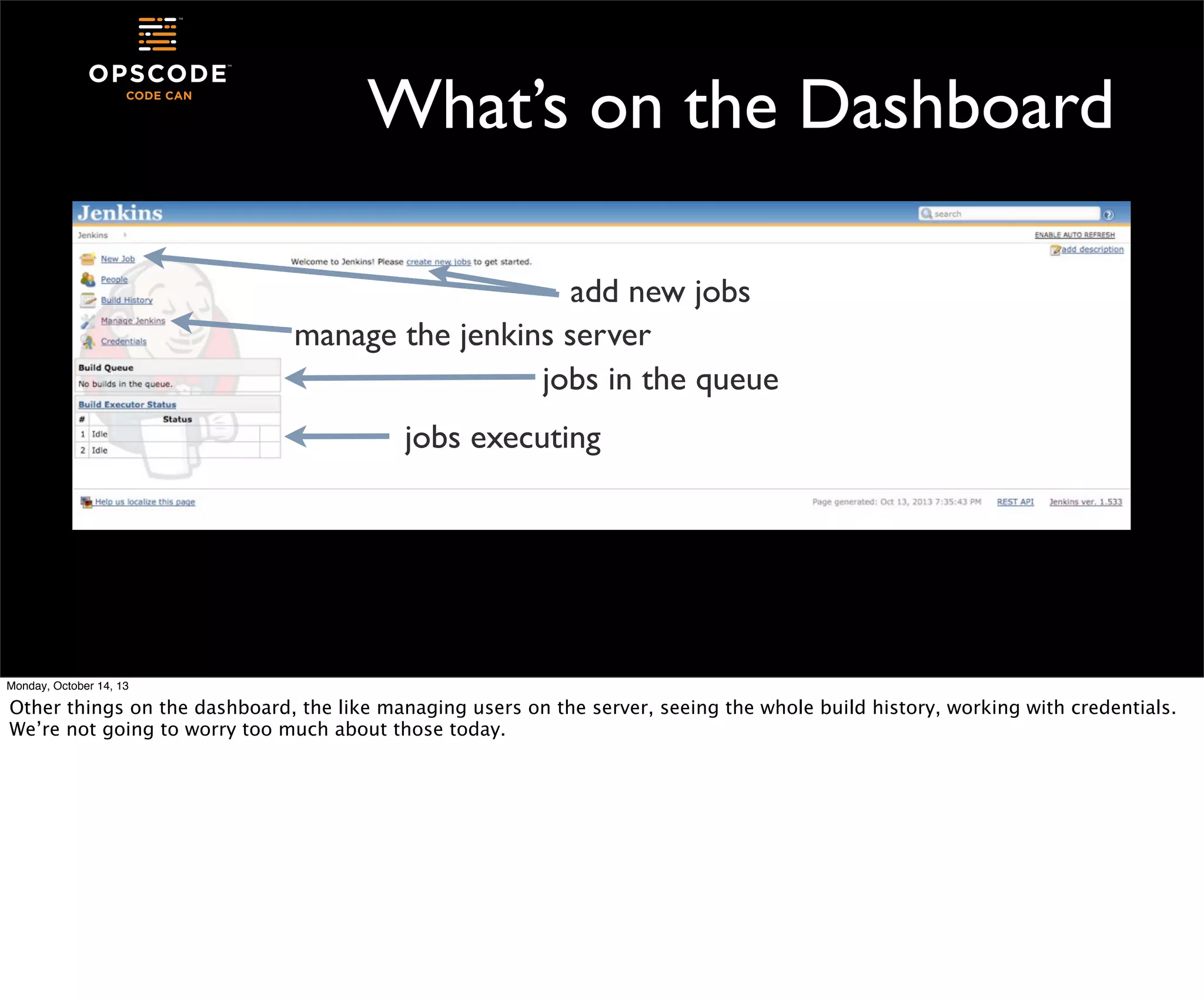

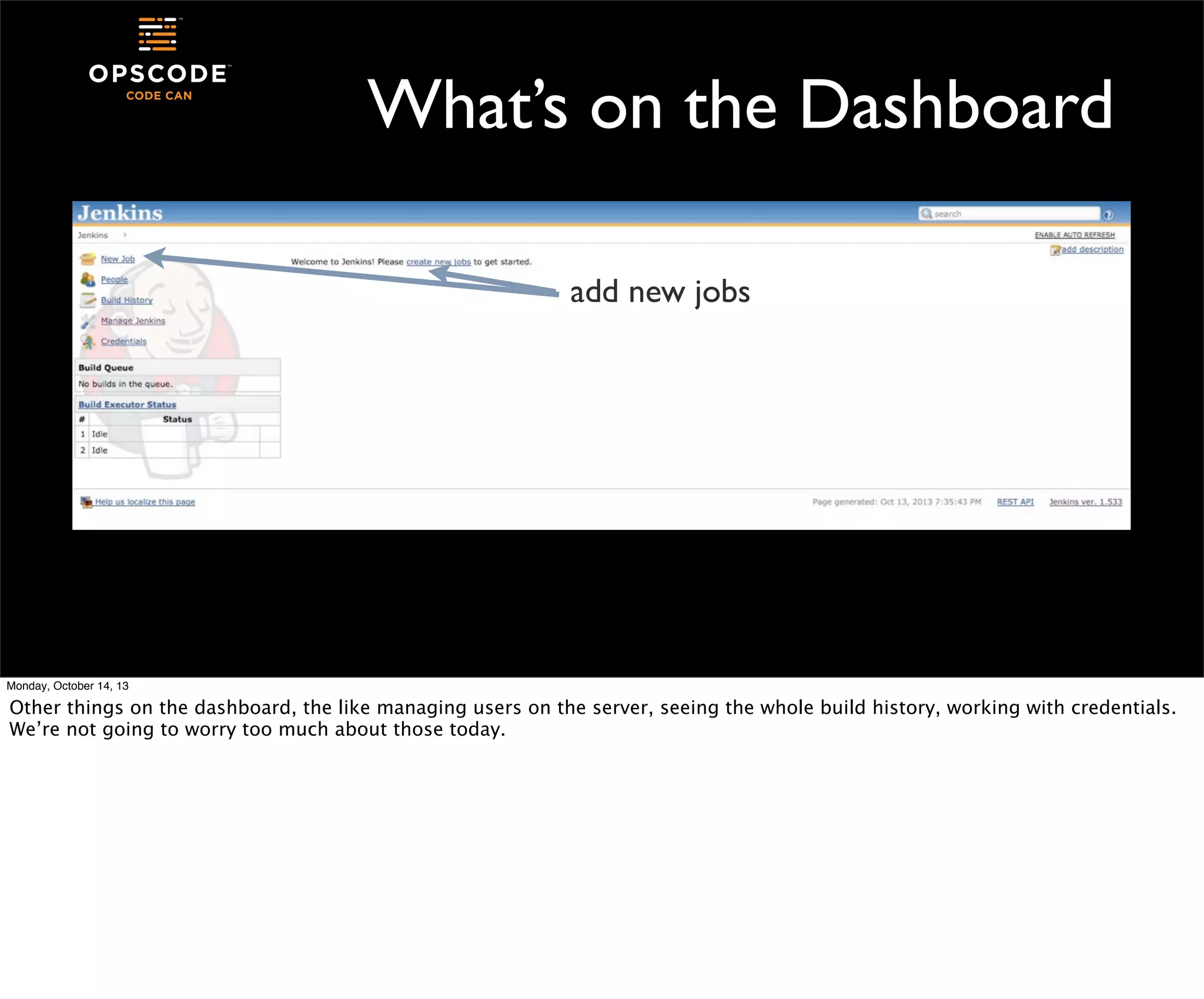

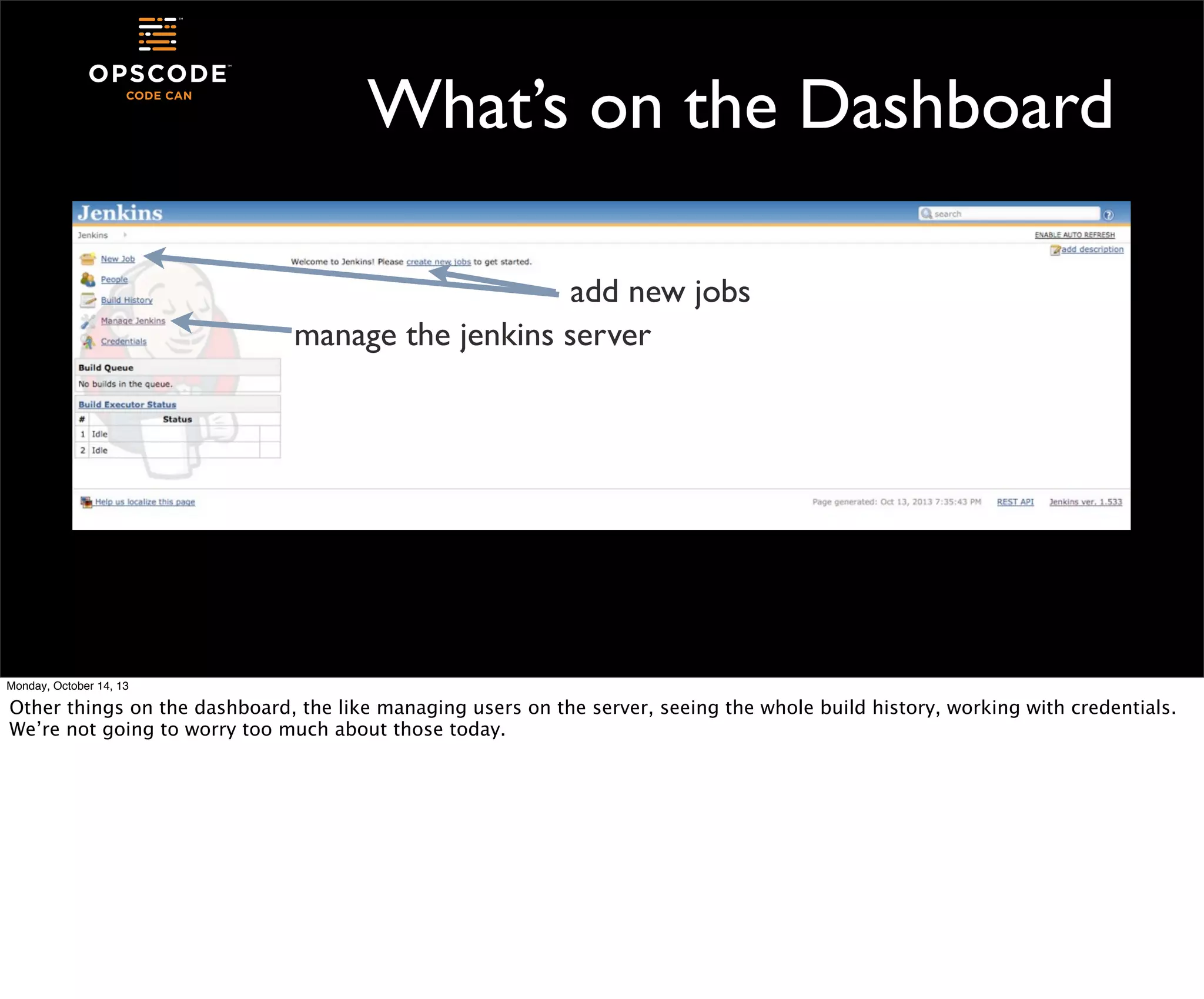

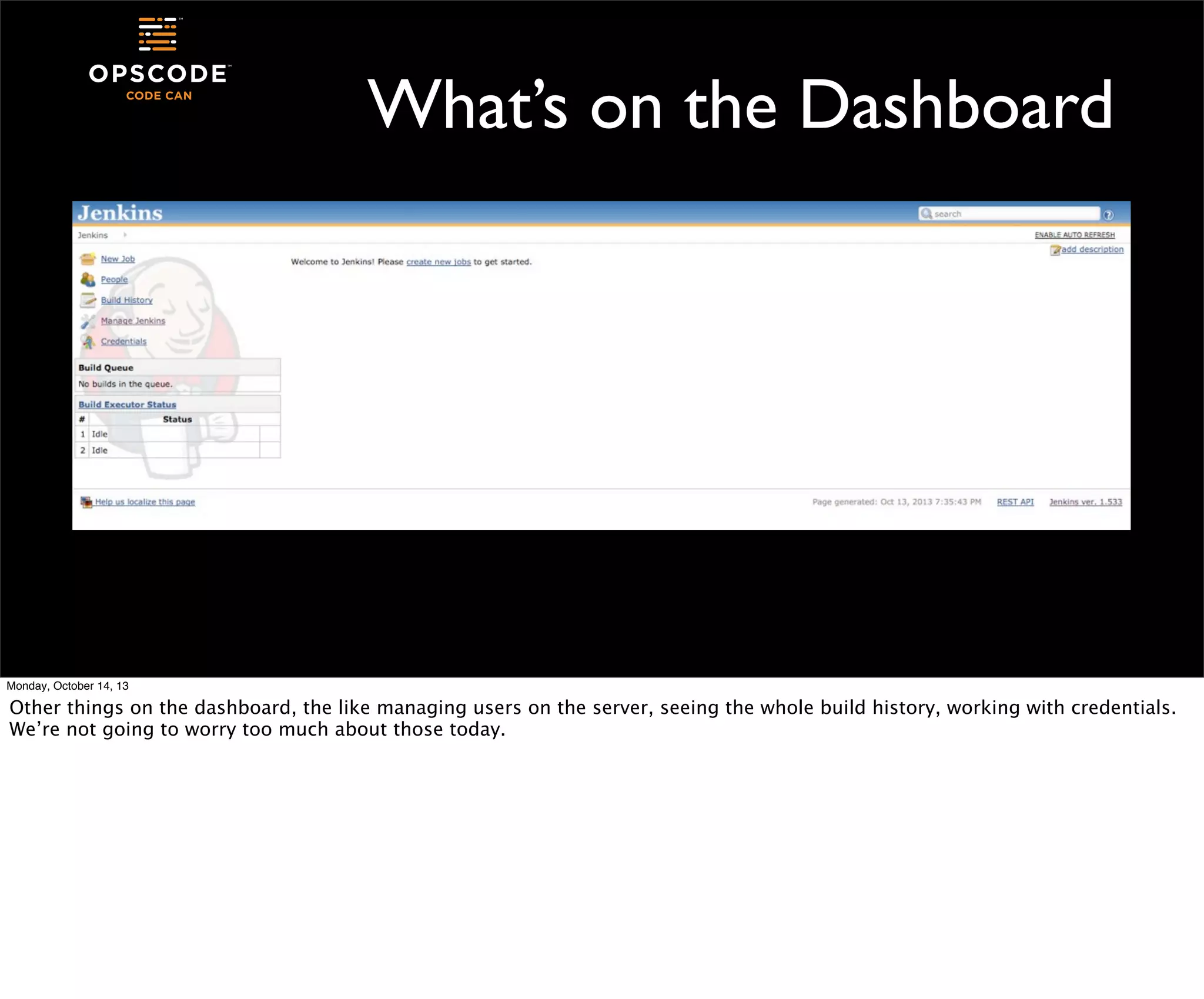

What’s on the Dashboard


Other things on the dashboard, the like managing users on the server, seeing the whole build history, working with credentials.
We’re not going to worry too much about those today.

add new jobs



add new jobs
manage the jenkins server



add new jobs
jobs in the queue



add new jobs
jobs in the queue
jobs executing



Managing Jenkins


Click on “manage jenkins” on the left. this screen should show up

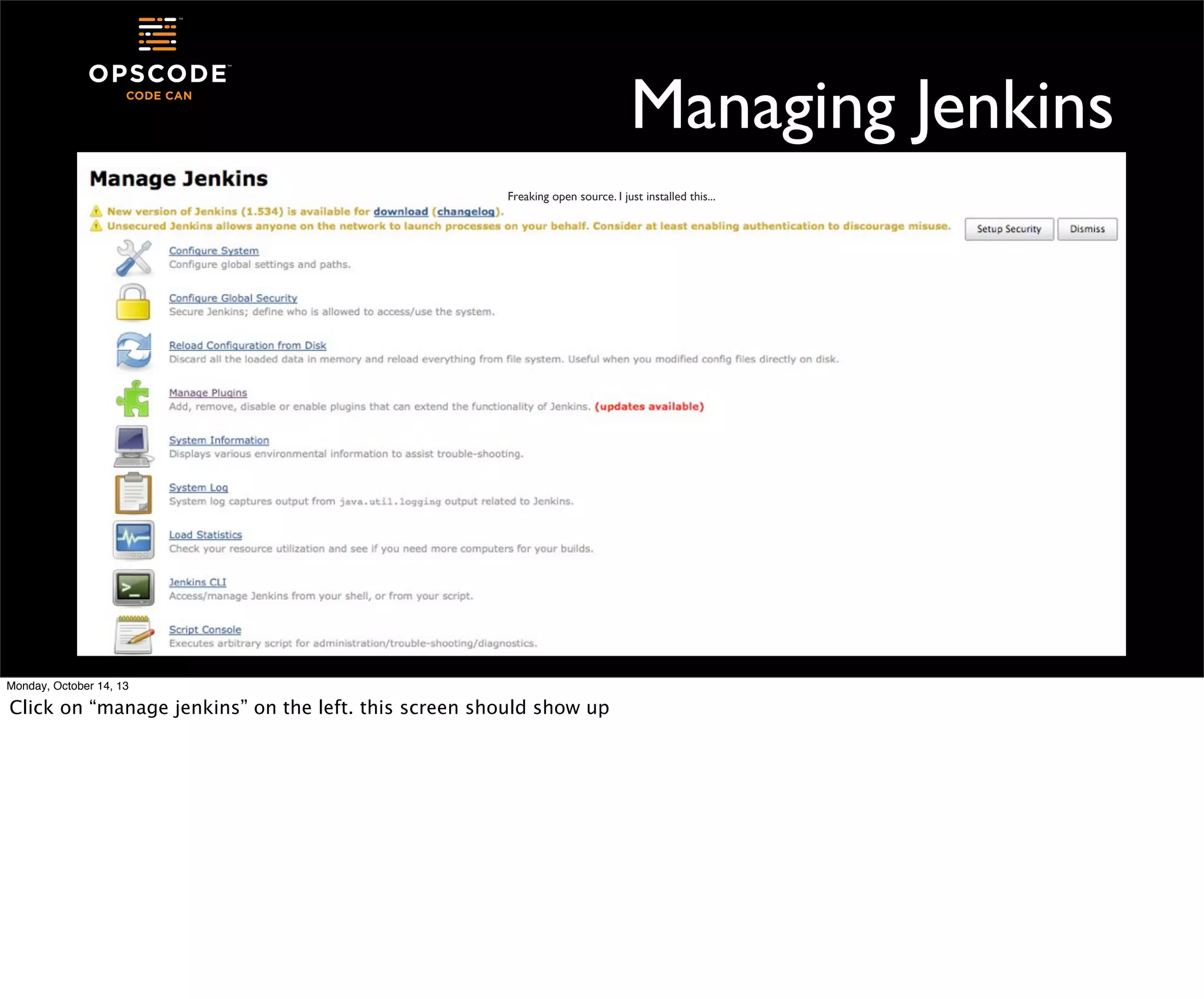

Managing Jenkins
Freaking open source. I just installed this...


Click on “manage jenkins” on the left. this screen should show up

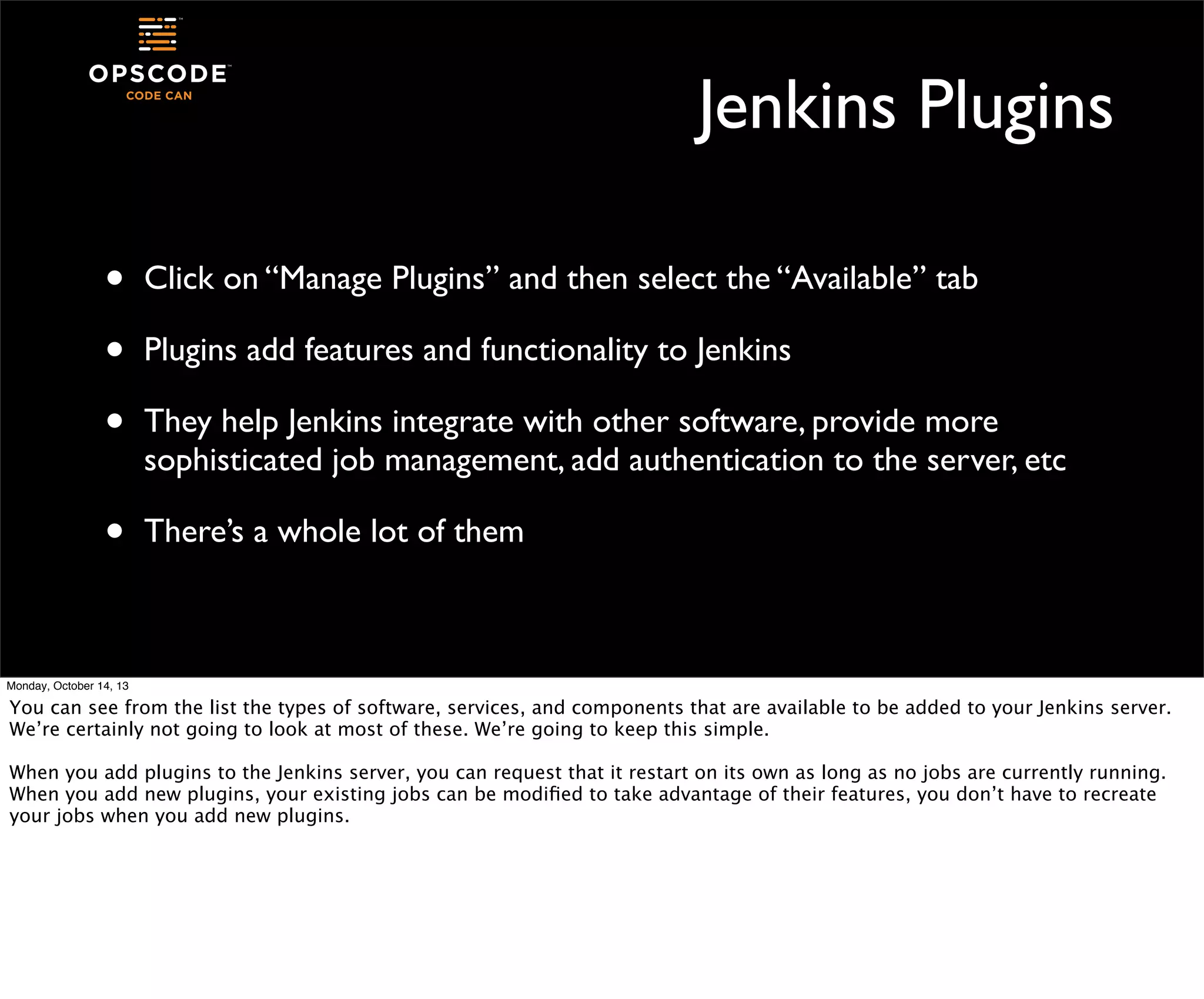

Jenkins Plugins
•
•
•

Click on “Manage Plugins” and then select the “Available” tab

•

There’s a whole lot of them

Plugins add features and functionality to Jenkins
They help Jenkins integrate with other software, provide more
sophisticated job management, add authentication to the server, etc


You can see from the list the types of software, services, and components that are available to be added to your Jenkins server.
We’re certainly not going to look at most of these. We’re going to keep this simple.
When you add plugins to the Jenkins server, you can request that it restart on its own as long as no jobs are currently running.
When you add new plugins, your existing jobs can be modiﬁed to take advantage of their features, you don’t have to recreate
your jobs when you add new plugins.

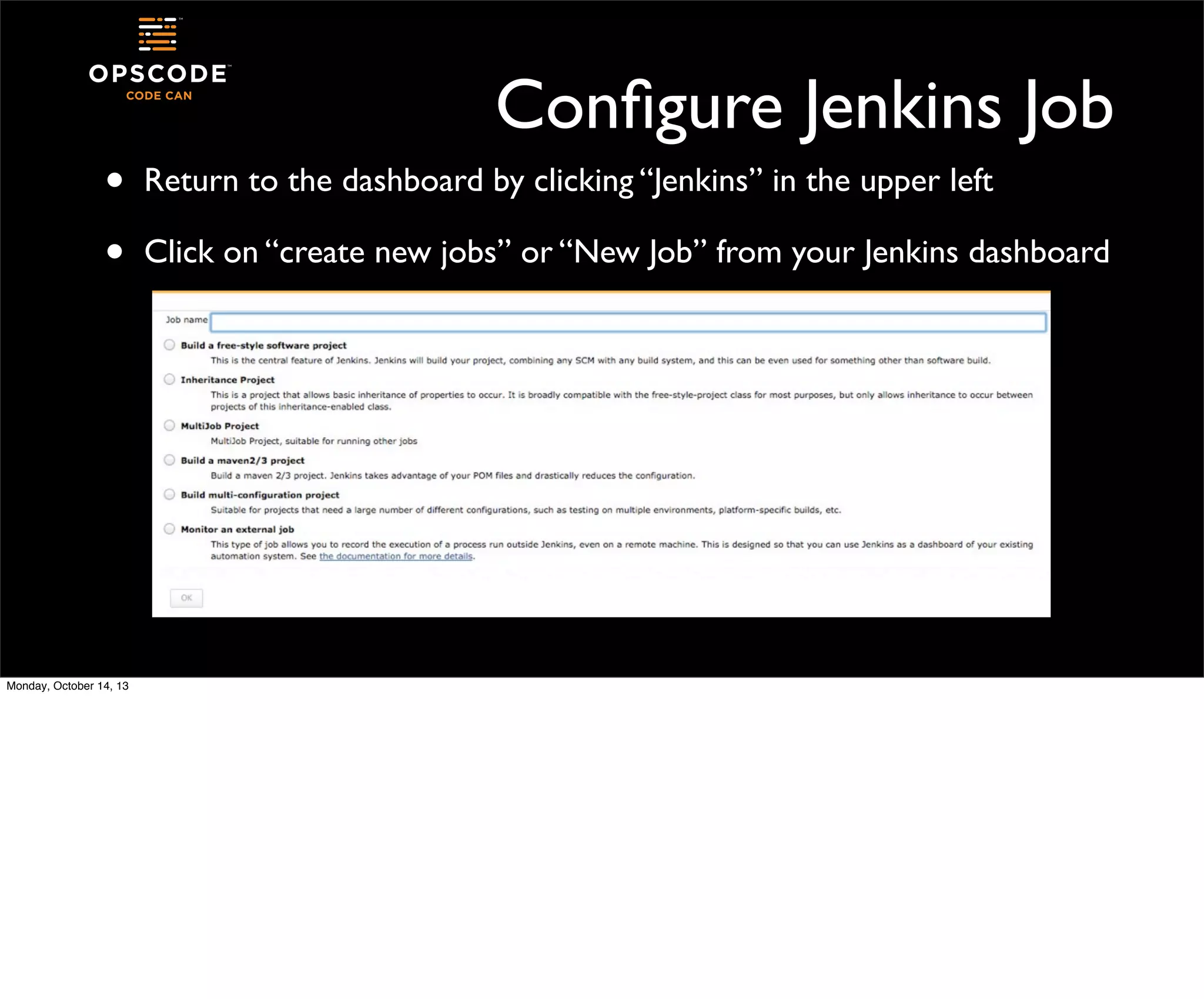

Conﬁgure Jenkins Job
•
•


Return to the dashboard by clicking “Jenkins” in the upper left
Click on “create new jobs” or “New Job” from your Jenkins dashboard

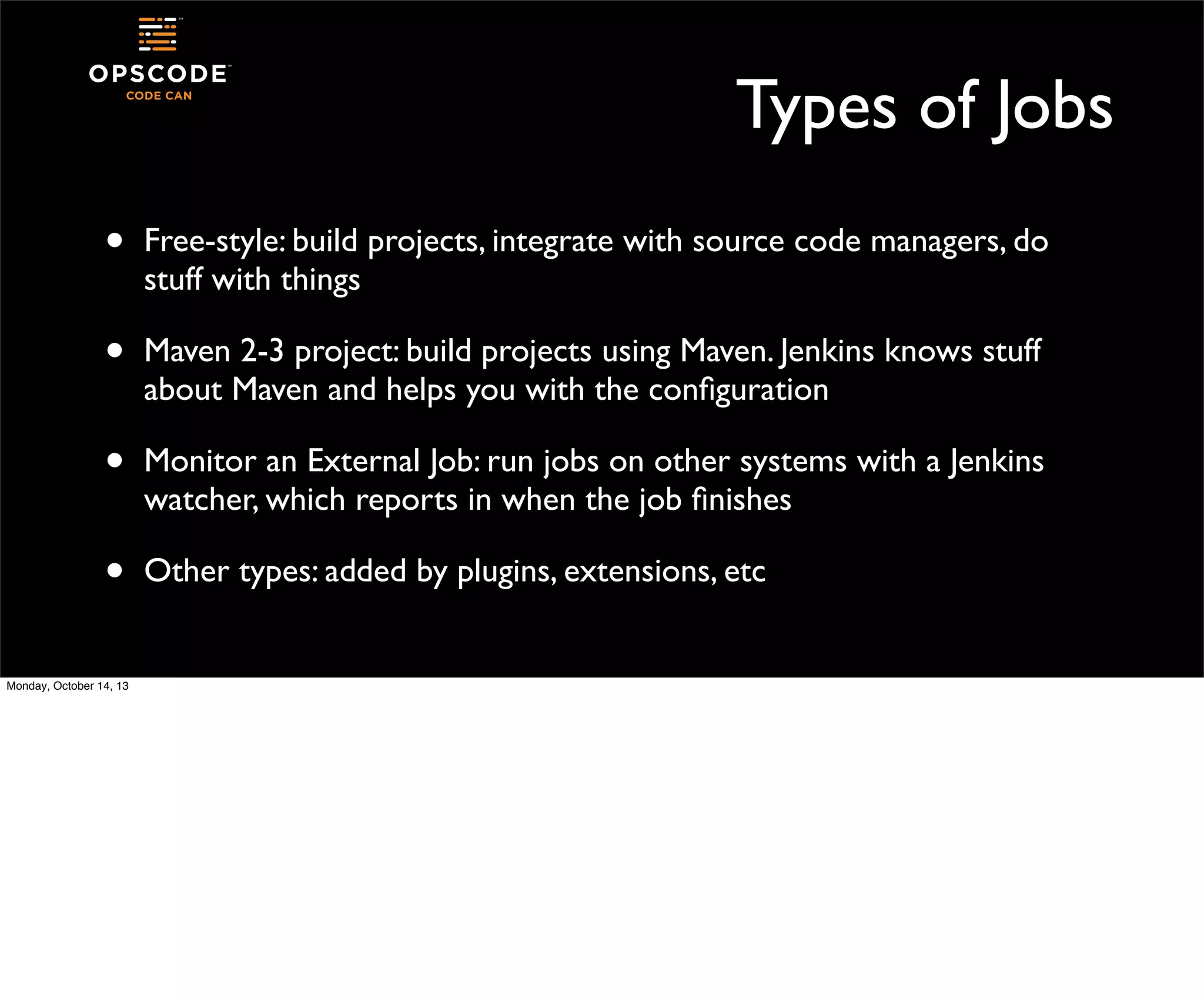

Types of Jobs
•

Free-style: build projects, integrate with source code managers, do
stuff with things

•

Maven 2-3 project: build projects using Maven. Jenkins knows stuff
about Maven and helps you with the conﬁguration

•

Monitor an External Job: run jobs on other systems with a Jenkins
watcher, which reports in when the job ﬁnishes

•

Other types: added by plugins, extensions, etc


Our ﬁrst project will be free-style


Example Job 1: bind
1. Zonefiles are in a git repo on the host called “bindfiles”
2. Jenkins will check them out, build them into an rpm
3. The rpm will be added to a repository and the metadata updated
4. We’ll also load the files into the bind server
This builds on part of my tutorial from Velocity Santa Clara in June

I know people love to hate on my bind example. but it meets a couple of criteria: the server component is lightweight, so it’s fine
to run on a loaded lab box; the syntax of the db files is well known, so i’m not teaching someone crazy syntax; and finally, there
are already good-enough tools to borrow from the rest of the world for dealing with it.
Would you put your zonefiles in an rpm? maybe not. is the world going to fall apart because you *can*? no.

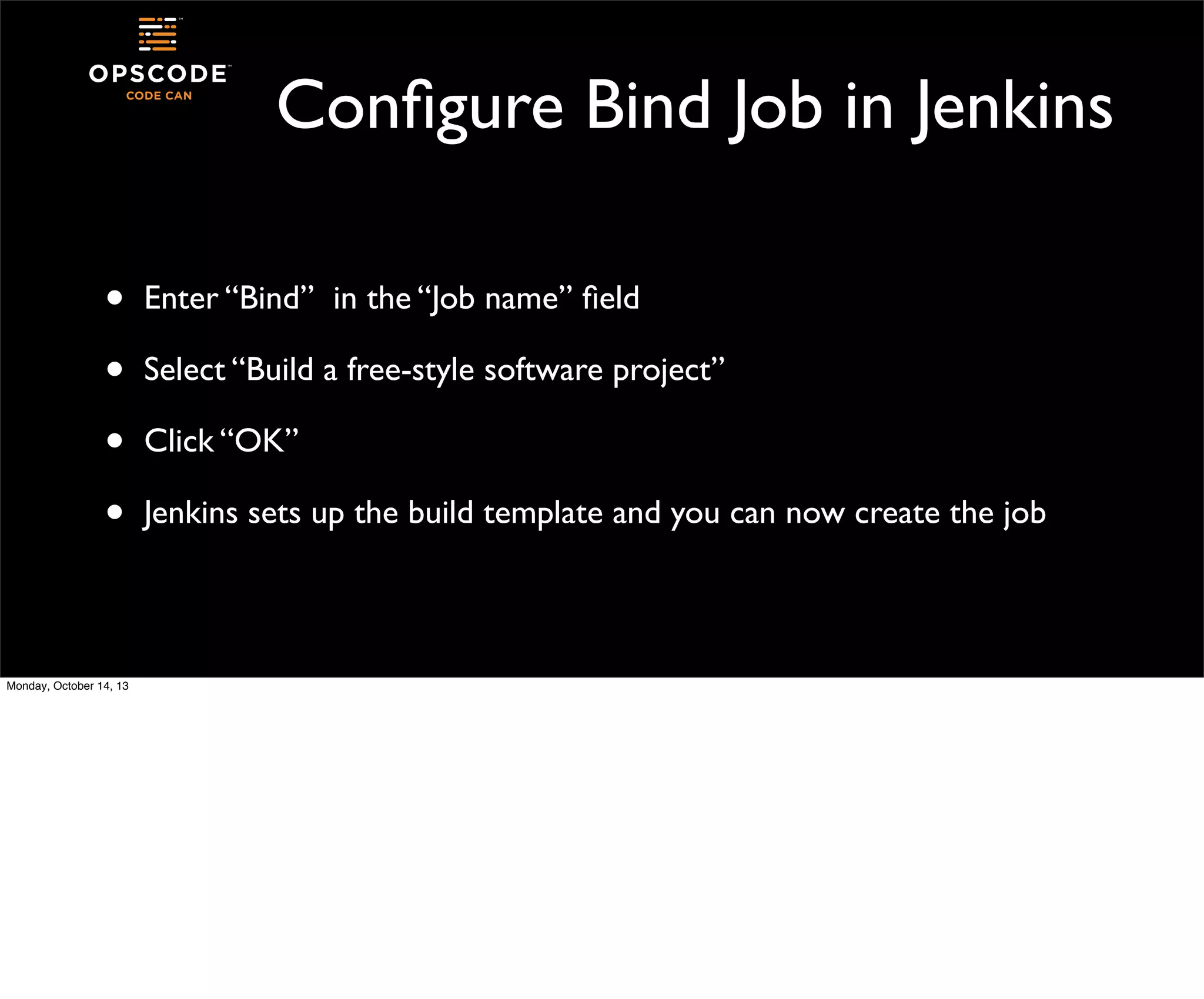

Conﬁgure Bind Job in Jenkins
•
•
•
•

Enter “Bind” in the “Job name” ﬁeld
Select “Build a free-style software project”
Click “OK”
Jenkins sets up the build template and you can now create the job

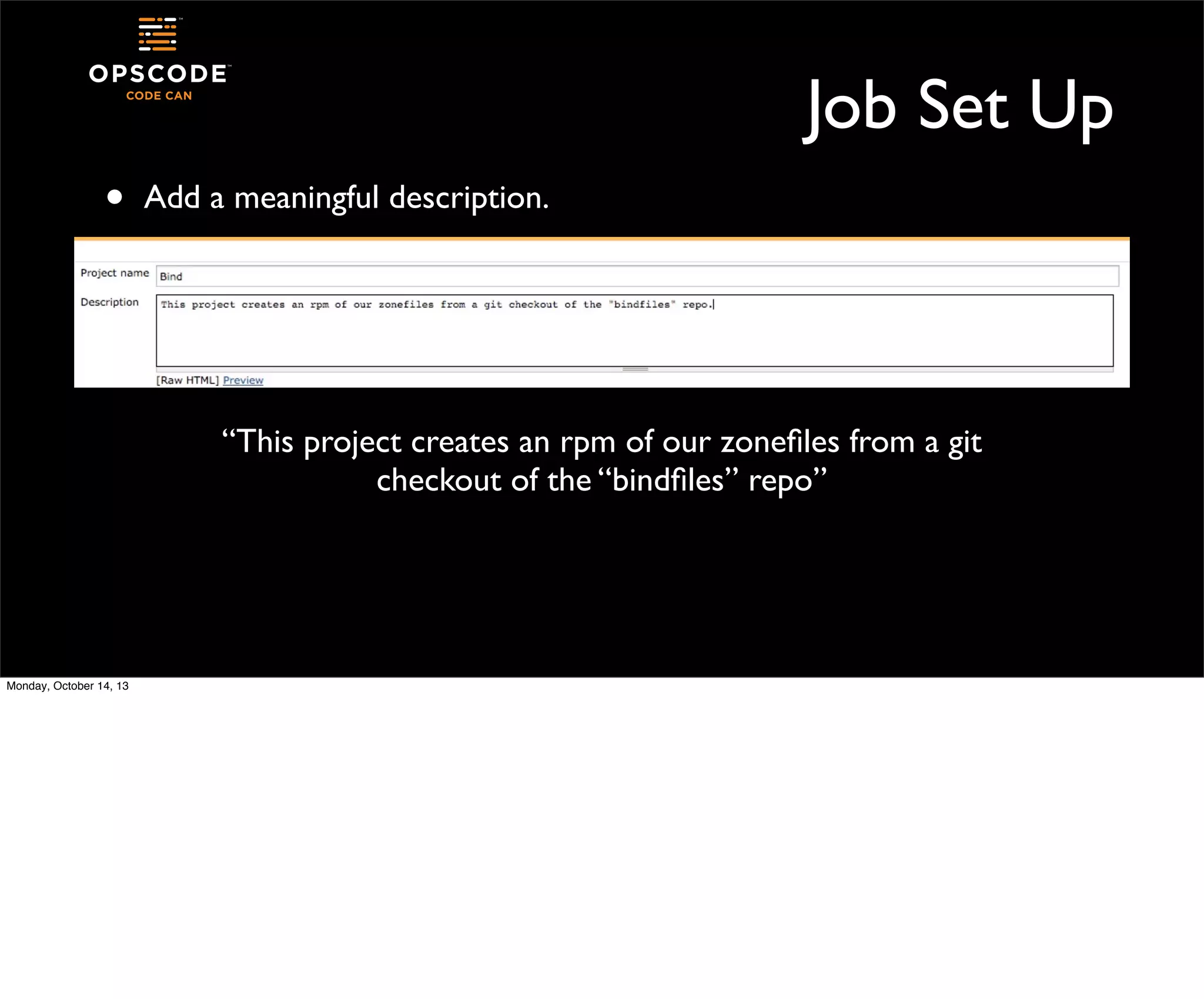

Job Set Up
•

Add a meaningful description.

“This project creates an rpm of our zoneﬁles from a git
checkout of the “bindﬁles” repo”

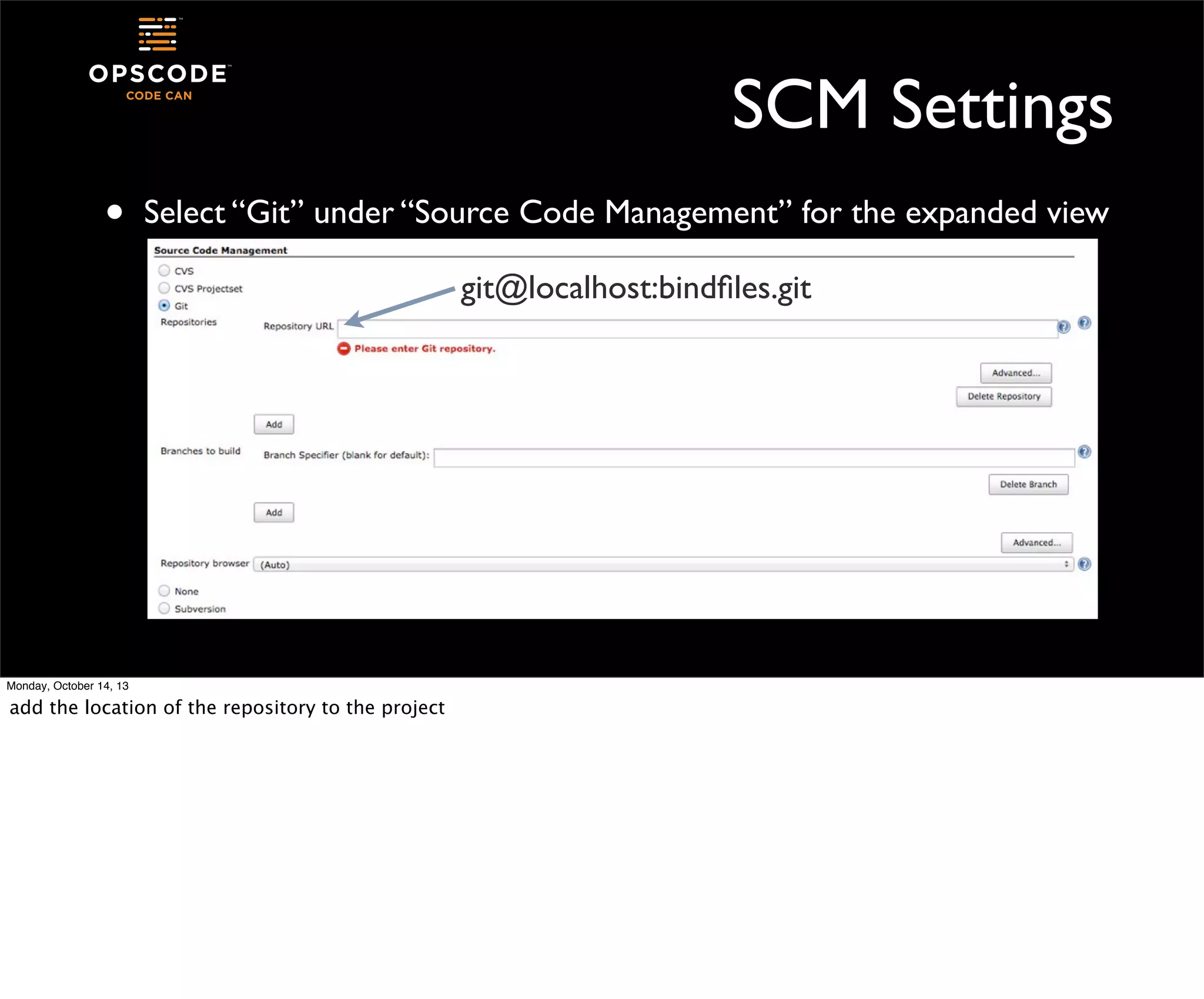

SCM Settings
•

Select “Git” under “Source Code Management” for the expanded view
git@localhost:bindﬁles.git


add the location of the repository to the project

•

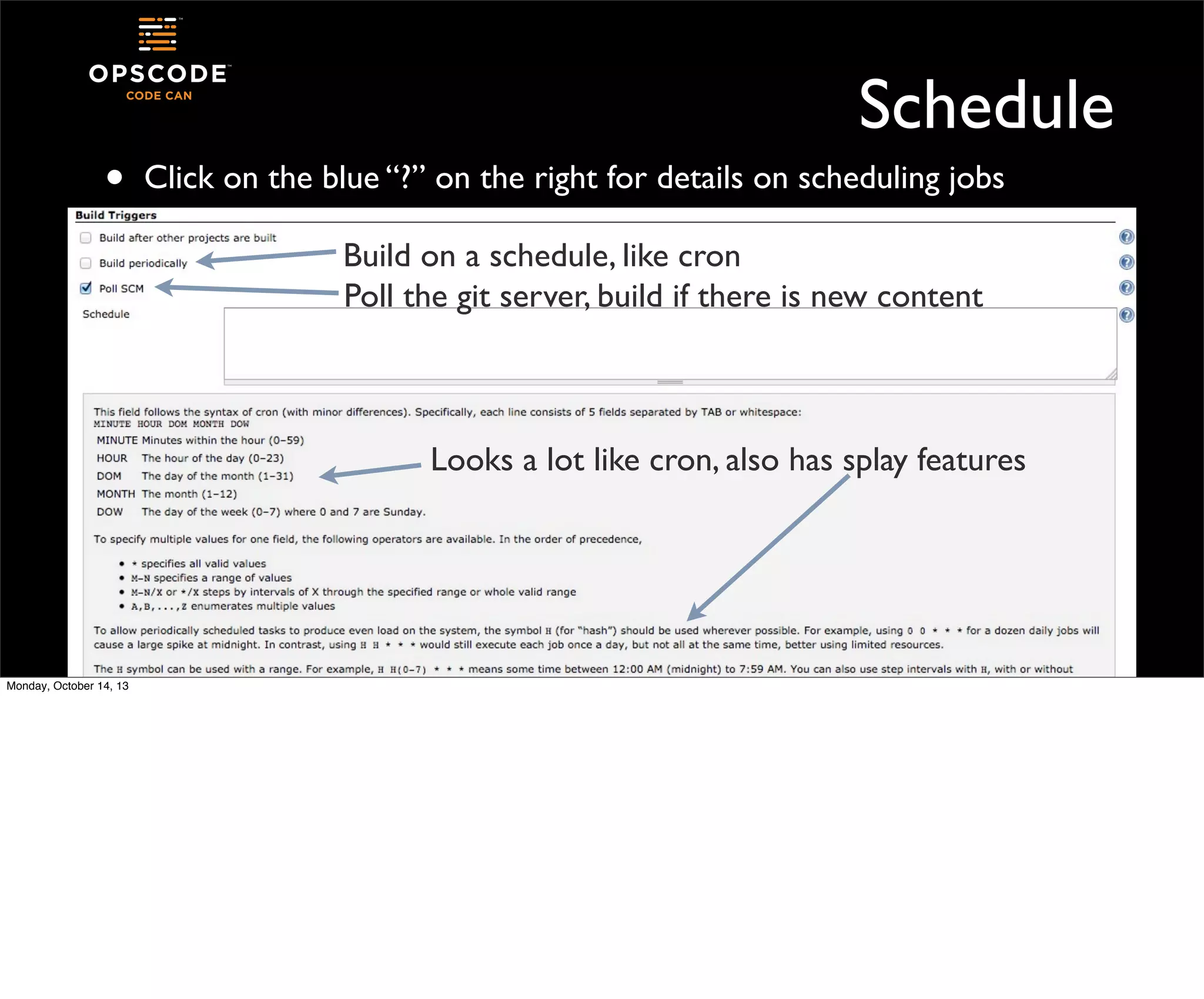

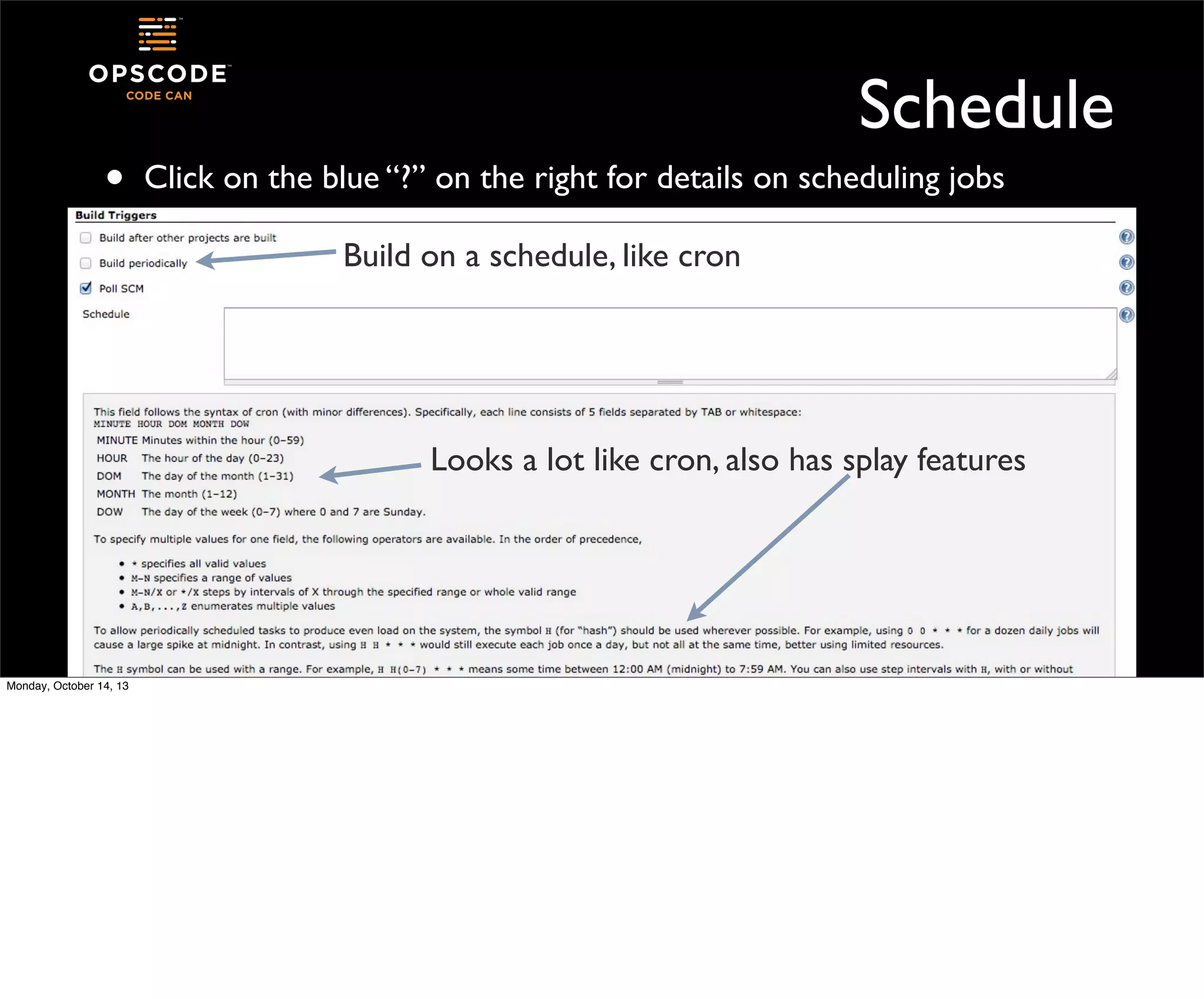

Schedule
Click on the blue “?” on the right for details on scheduling jobs

Looks a lot like cron, also has splay features


•

Schedule
Build on a schedule, like cron



•

Schedule
Build on a schedule, like cron
Poll the git server, build if there is new content

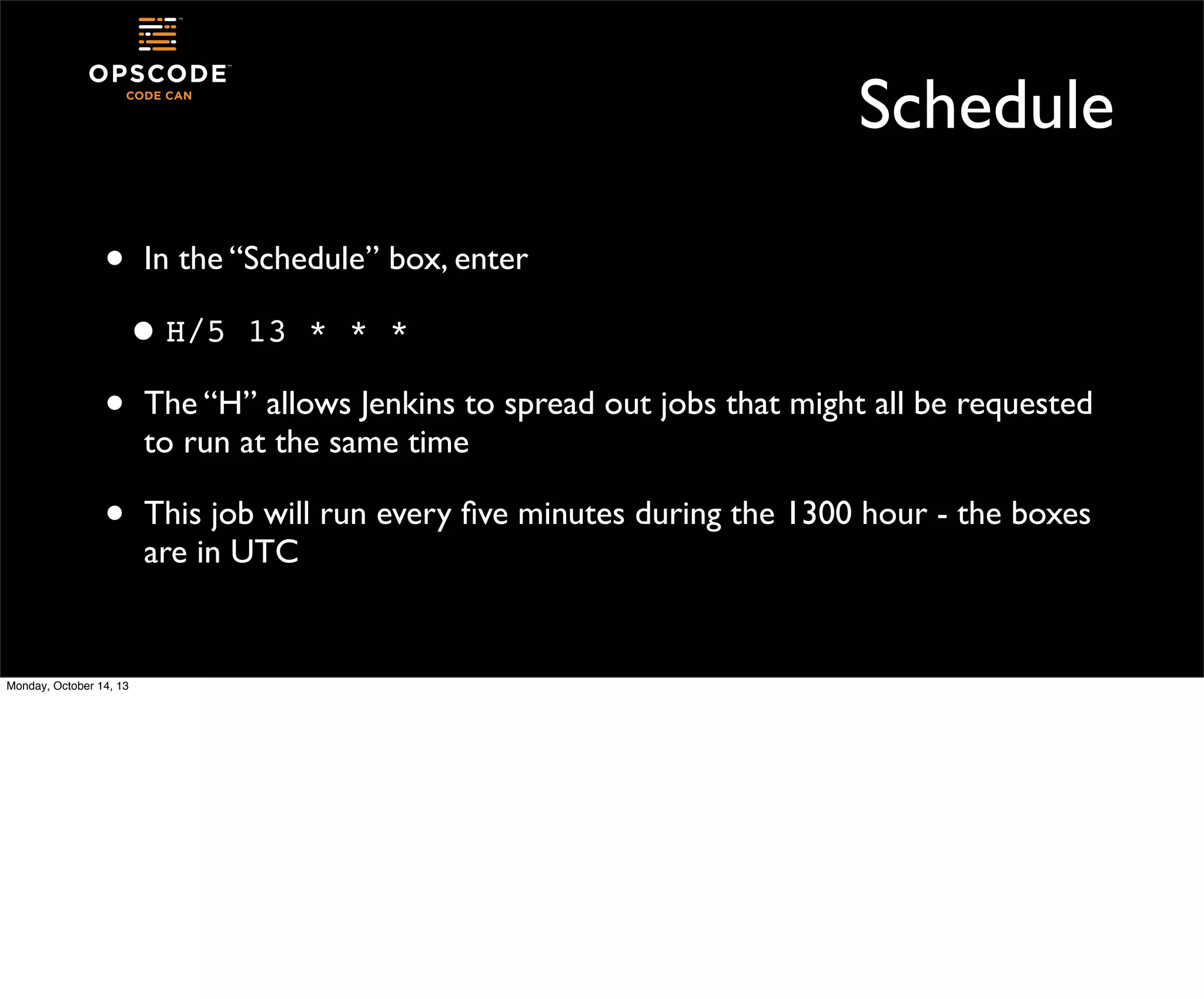

Schedule
•

In the “Schedule” box, enter

• H/5

13 * * *

•

The “H” allows Jenkins to spread out jobs that might all be requested
to run at the same time

•

This job will run every ﬁve minutes during the 1300 hour - the boxes
are in UTC

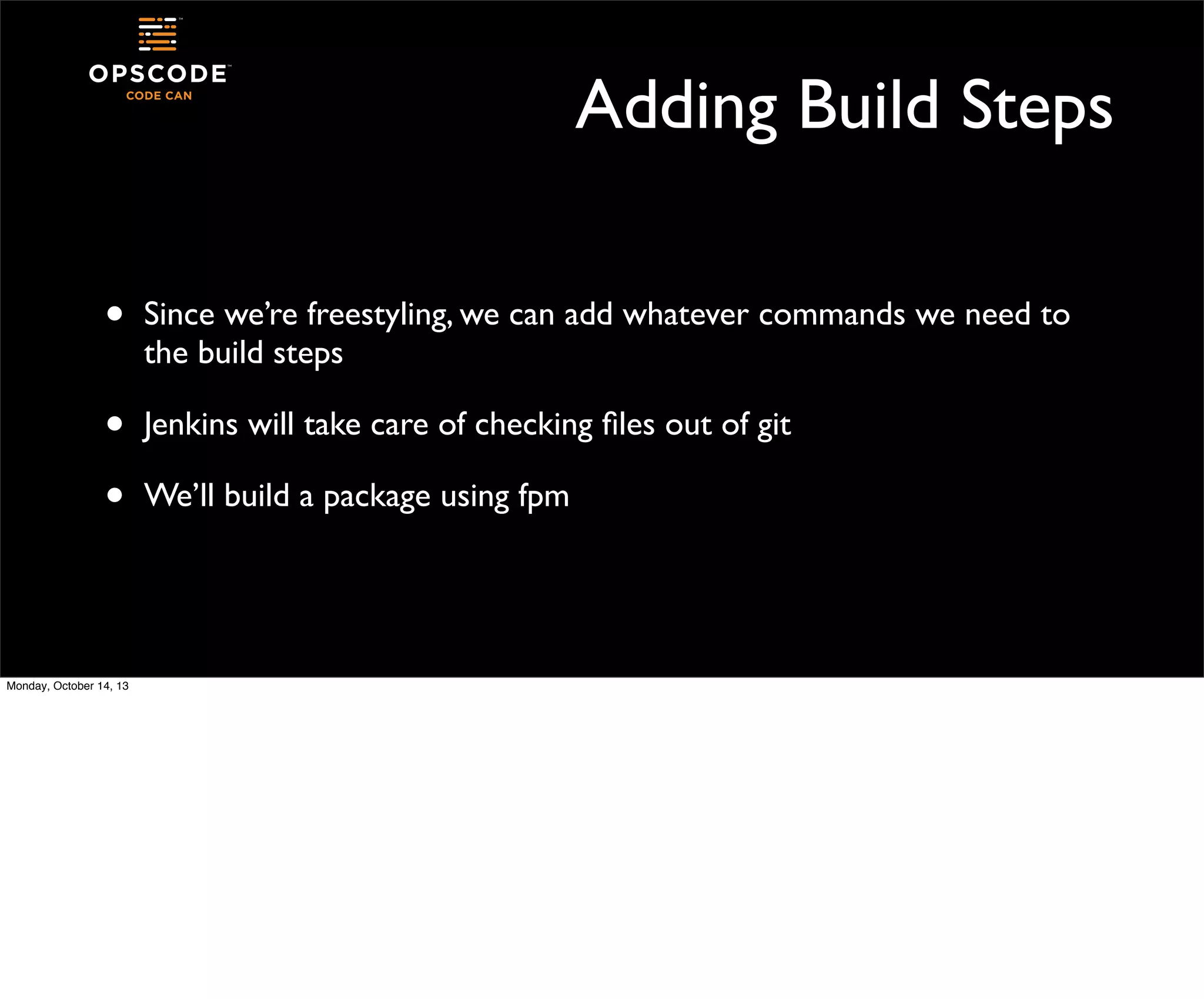

Adding Build Steps
•

Since we’re freestyling, we can add whatever commands we need to
the build steps

•
•

Jenkins will take care of checking ﬁles out of git


We’ll build a package using fpm

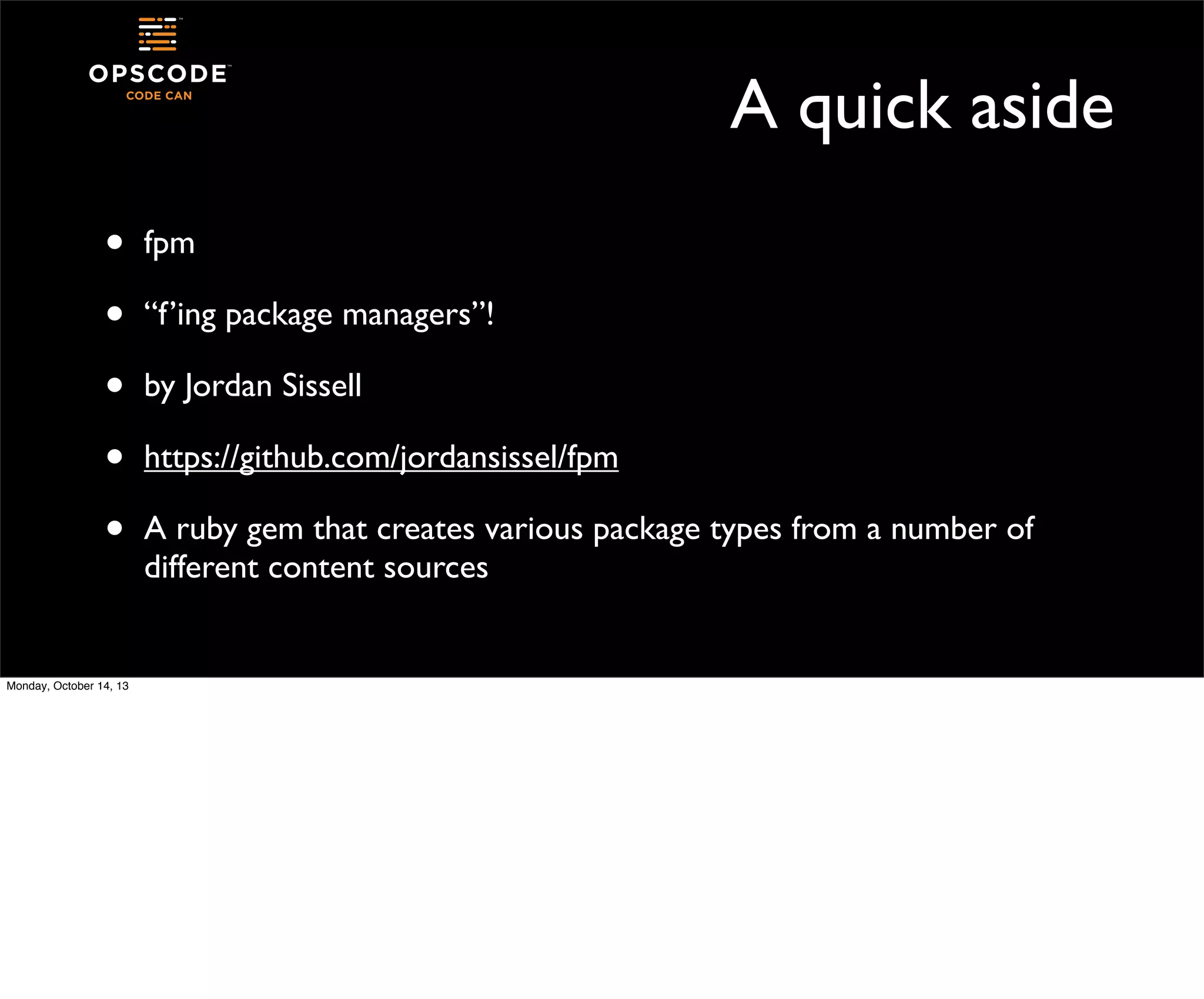

A quick aside
•
•
•
•
•

fpm
“f’ing package managers”!
by Jordan Sissell
https://github.com/jordansissel/fpm
A ruby gem that creates various package types from a number of
different content sources

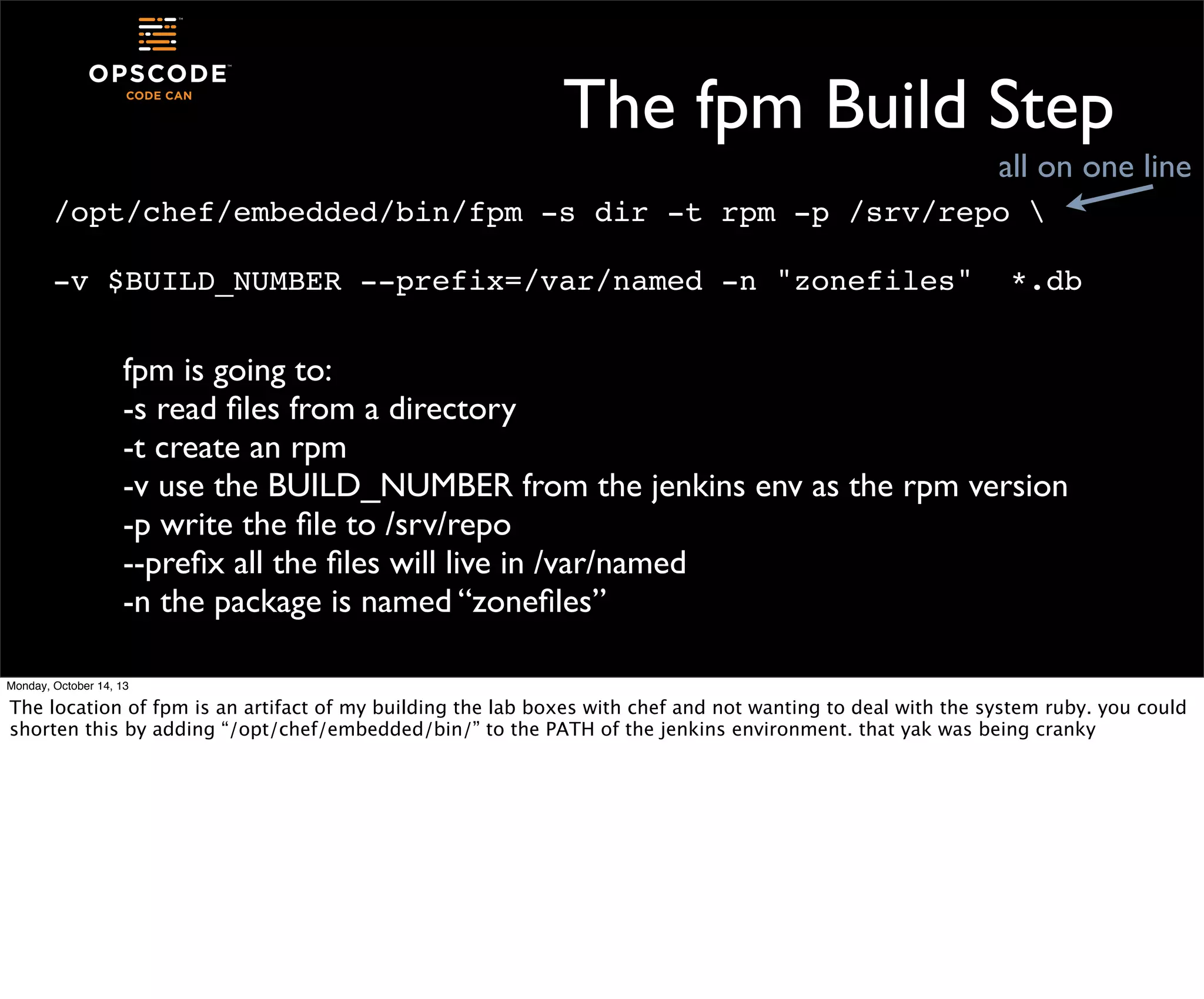

The fpm Build Step
all on one line
/opt/chef/embedded/bin/fpm -s dir -t rpm -p /srv/repo
-v $BUILD_NUMBER --prefix=/var/named -n "zonefiles"

*.db

fpm is going to:
-s read files from a directory
-t create an rpm
-v use the BUILD_NUMBER from the jenkins env as the rpm version
-p write the file to /srv/repo
--prefix all the files will live in /var/named
-n the package is named “zonefiles”

The location of fpm is an artifact of my building the lab boxes with chef and not wanting to deal with the system ruby. you could
shorten this by adding “/opt/chef/embedded/bin/” to the PATH of the jenkins environment. that yak was being cranky

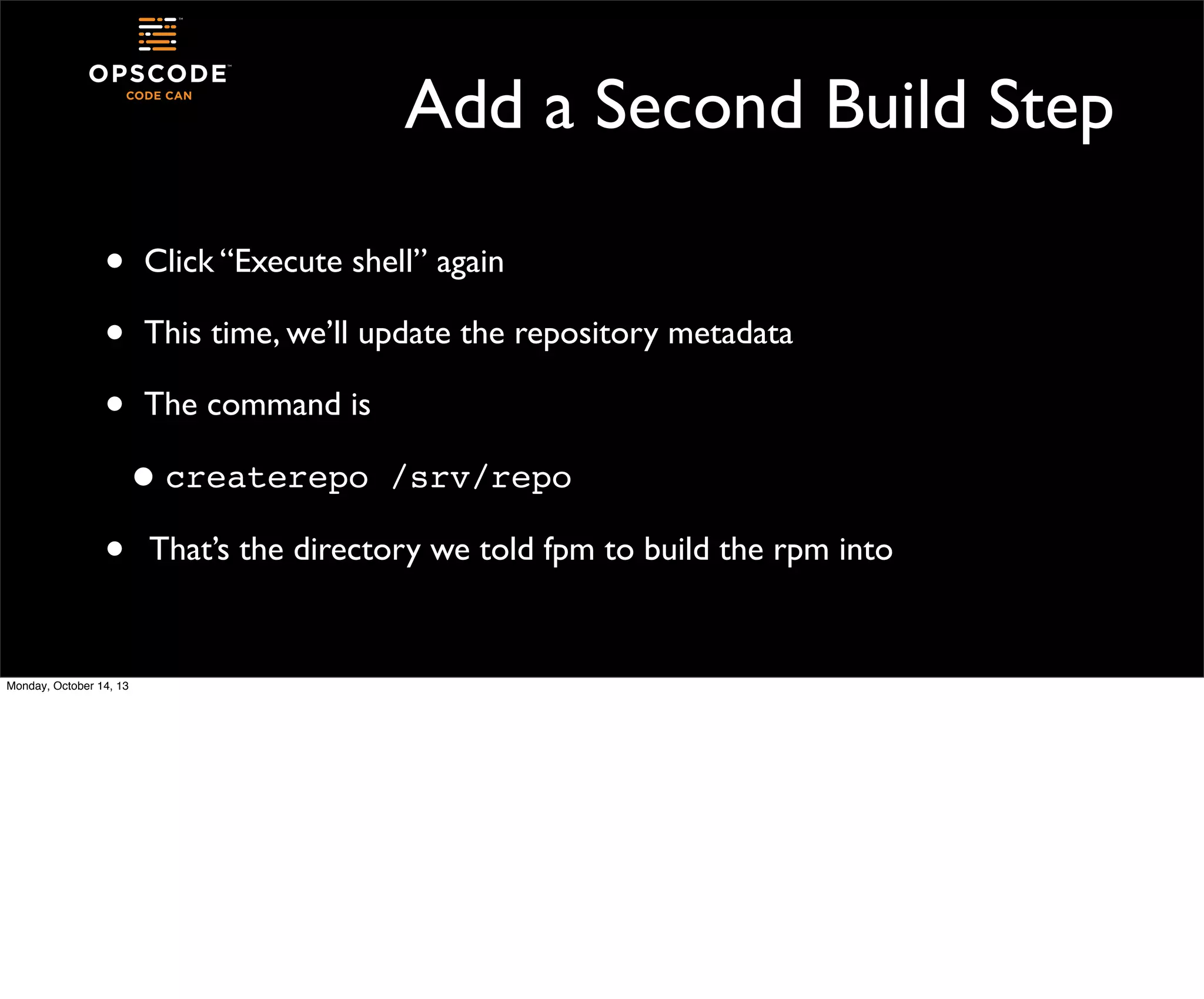

Add a Second Build Step
•
•
•

Click “Execute shell” again
This time, we’ll update the repository metadata
The command is

• createrepo
•

/srv/repo

That’s the directory we told fpm to build the rpm into

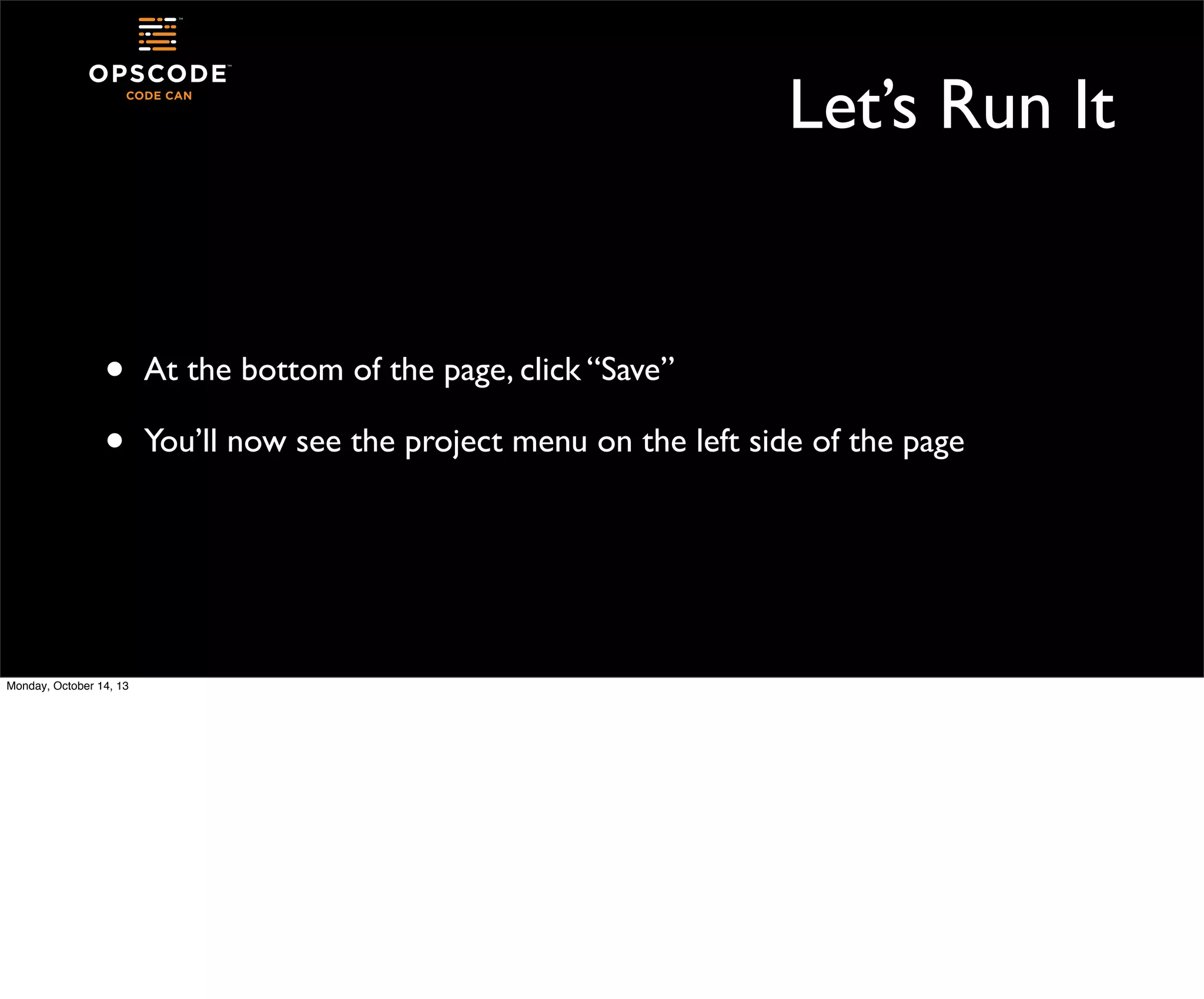

Let’s Run It

•
•


At the bottom of the page, click “Save”
You’ll now see the project menu on the left side of the page

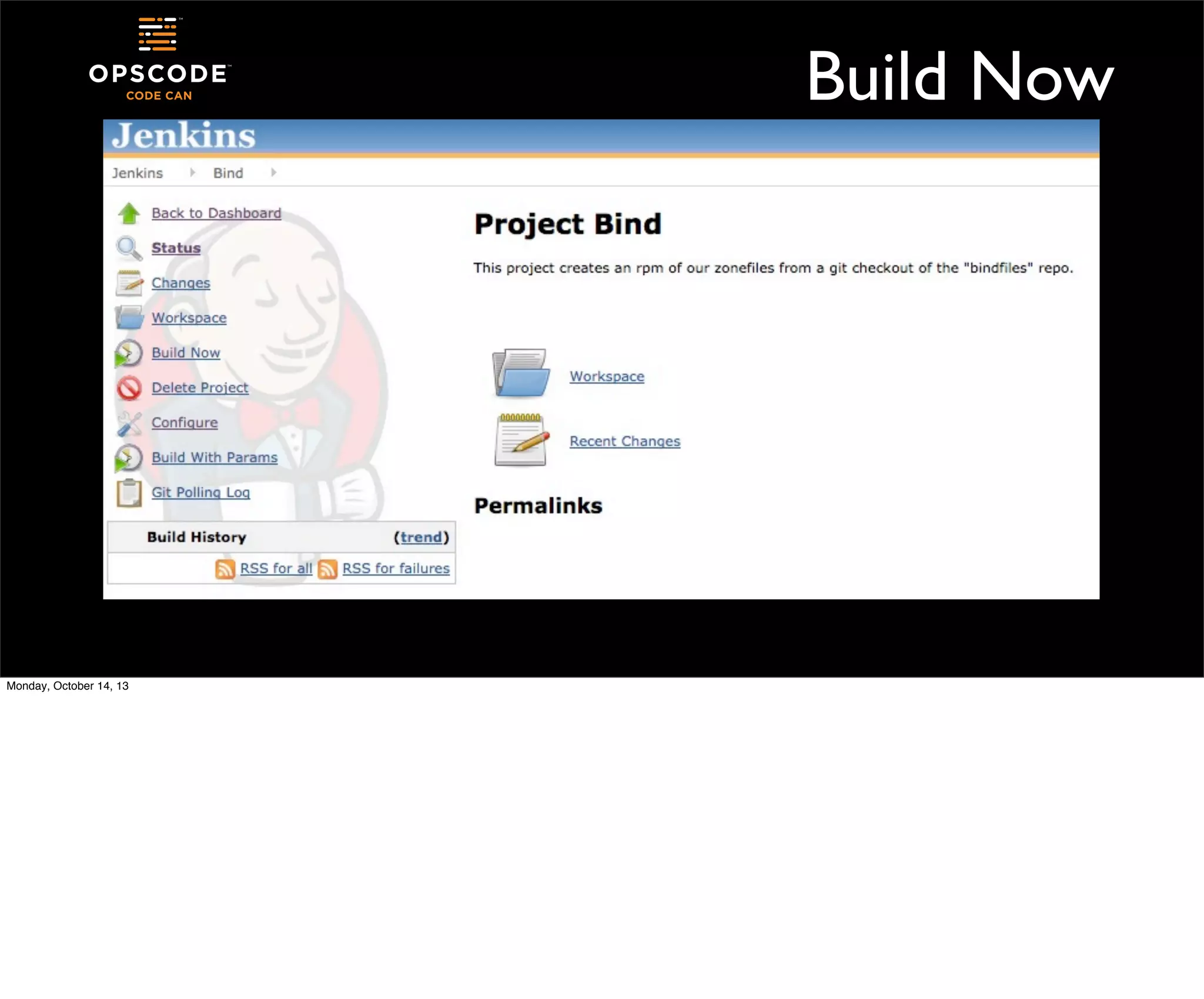

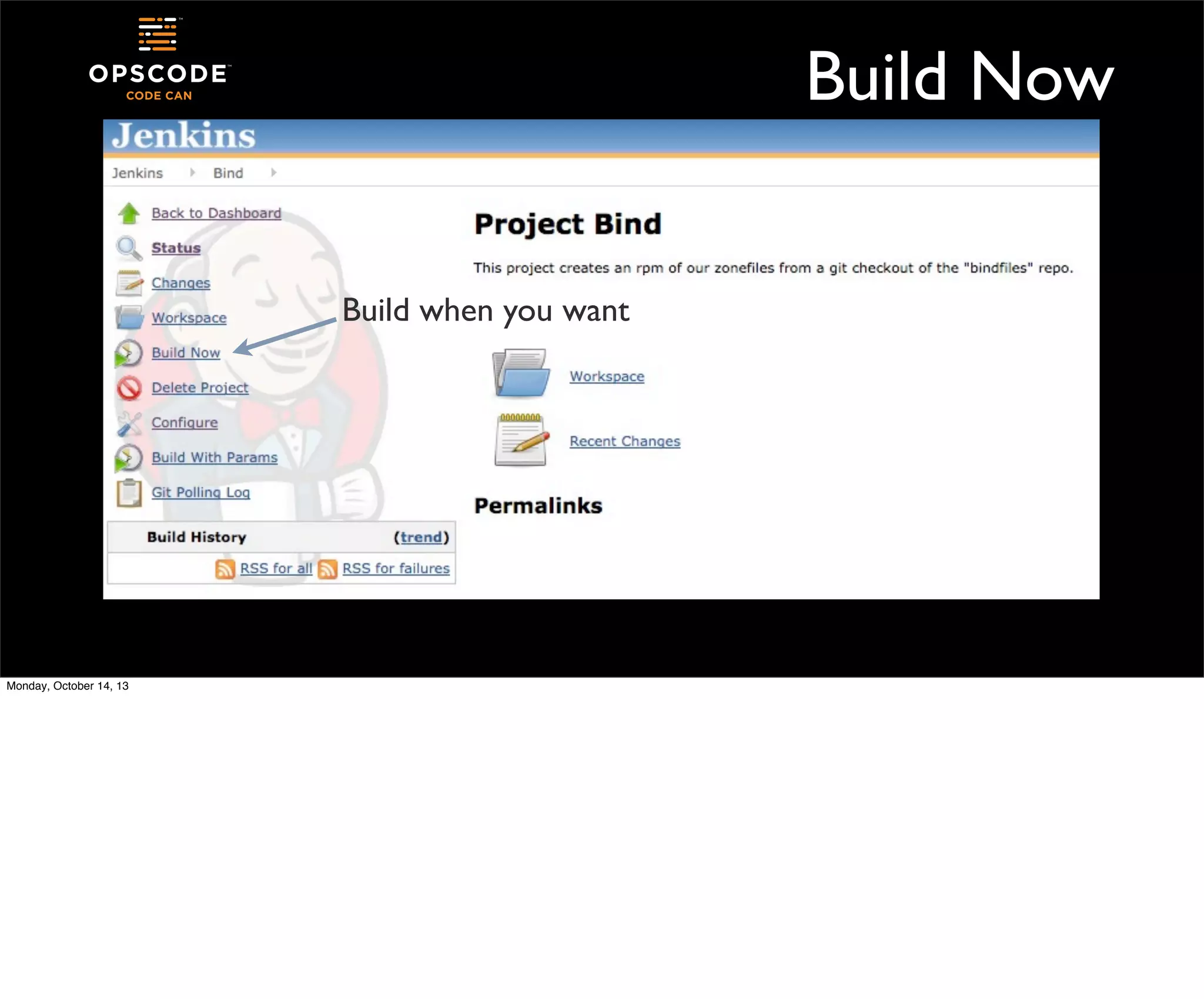

Build Now


Build Now
Build when you want

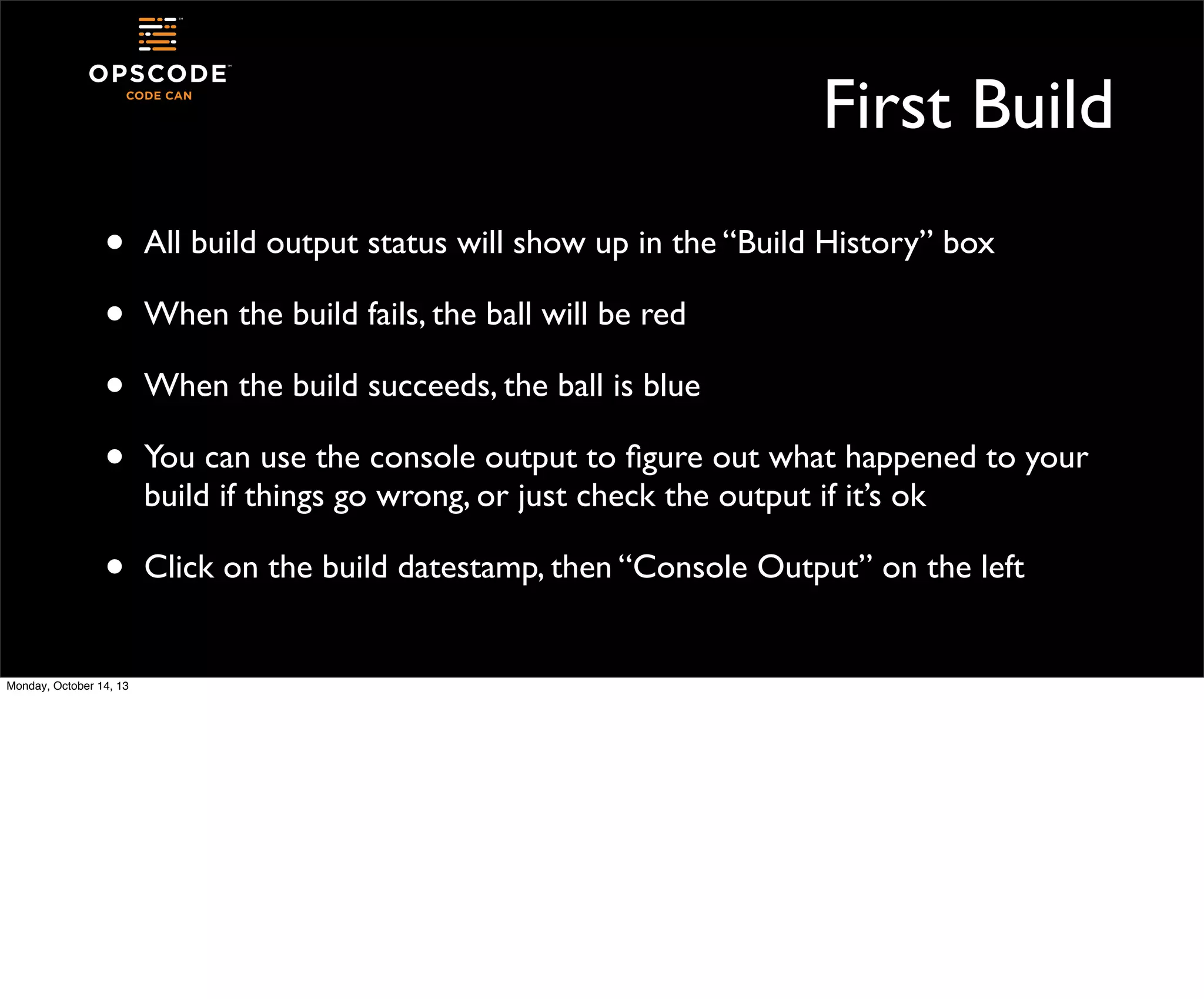

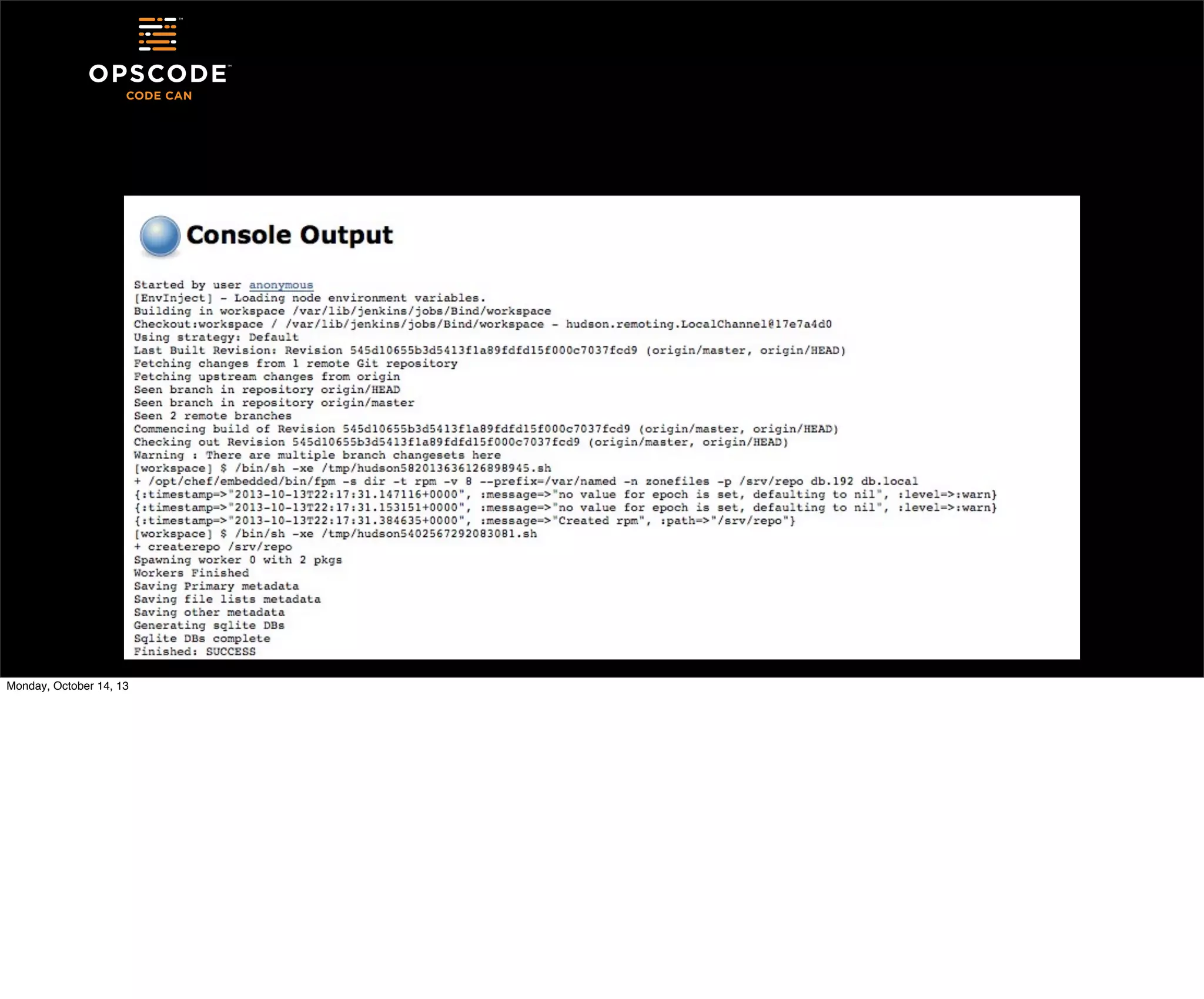

First Build
•
•
•
•

All build output status will show up in the “Build History” box

•

Click on the build datestamp, then “Console Output” on the left


When the build fails, the ball will be red
When the build succeeds, the ball is blue
You can use the console output to ﬁgure out what happened to your
build if things go wrong, or just check the output if it’s ok

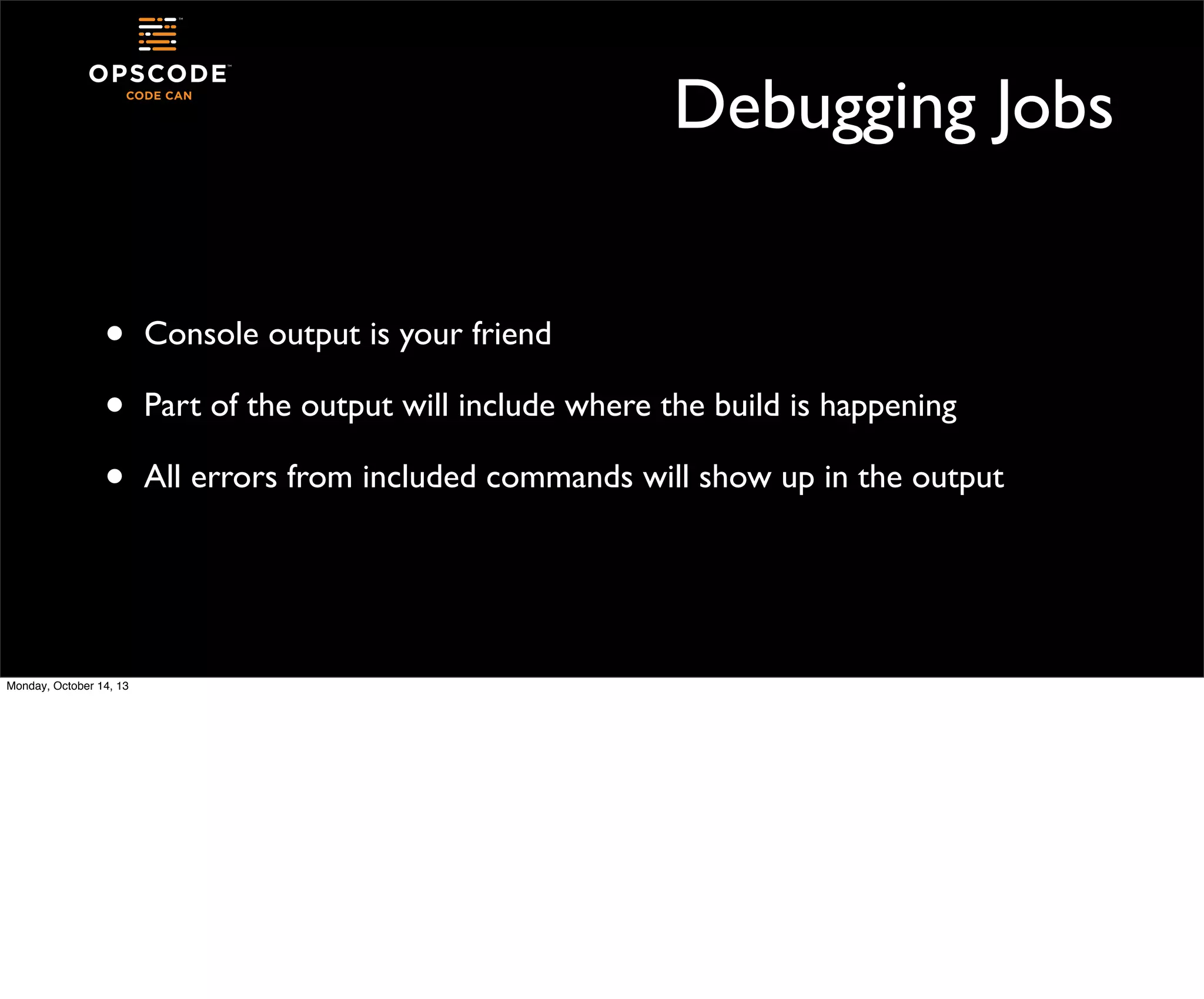

Debugging Jobs
•
•
•


Console output is your friend
Part of the output will include where the build is happening
All errors from included commands will show up in the output

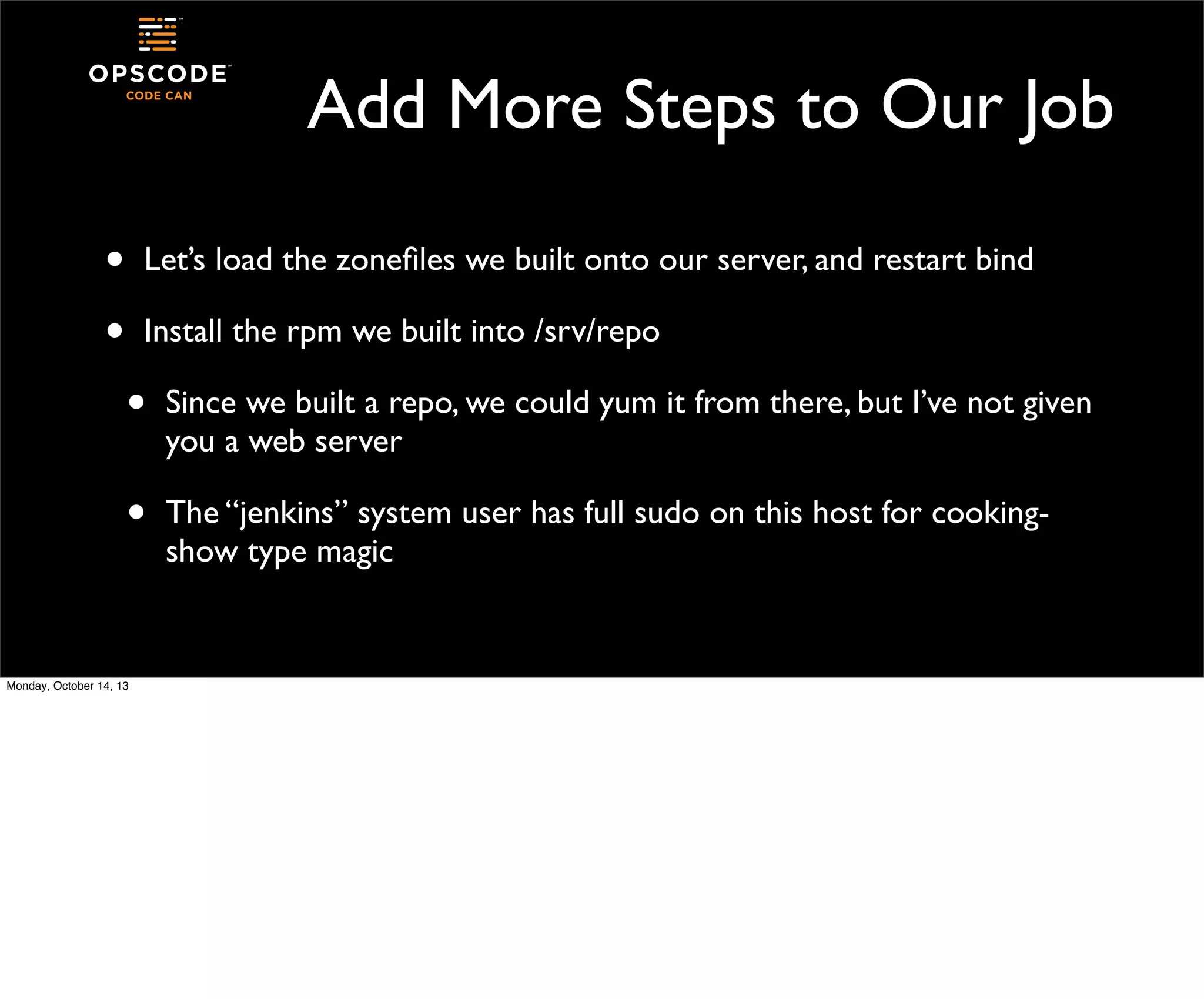

Add More Steps to Our Job
•
•

Let’s load the zoneﬁles we built onto our server, and restart bind
Install the rpm we built into /srv/repo

•

Since we built a repo, we could yum it from there, but I’ve not given
you a web server

•

The “jenkins” system user has full sudo on this host for cookingshow type magic

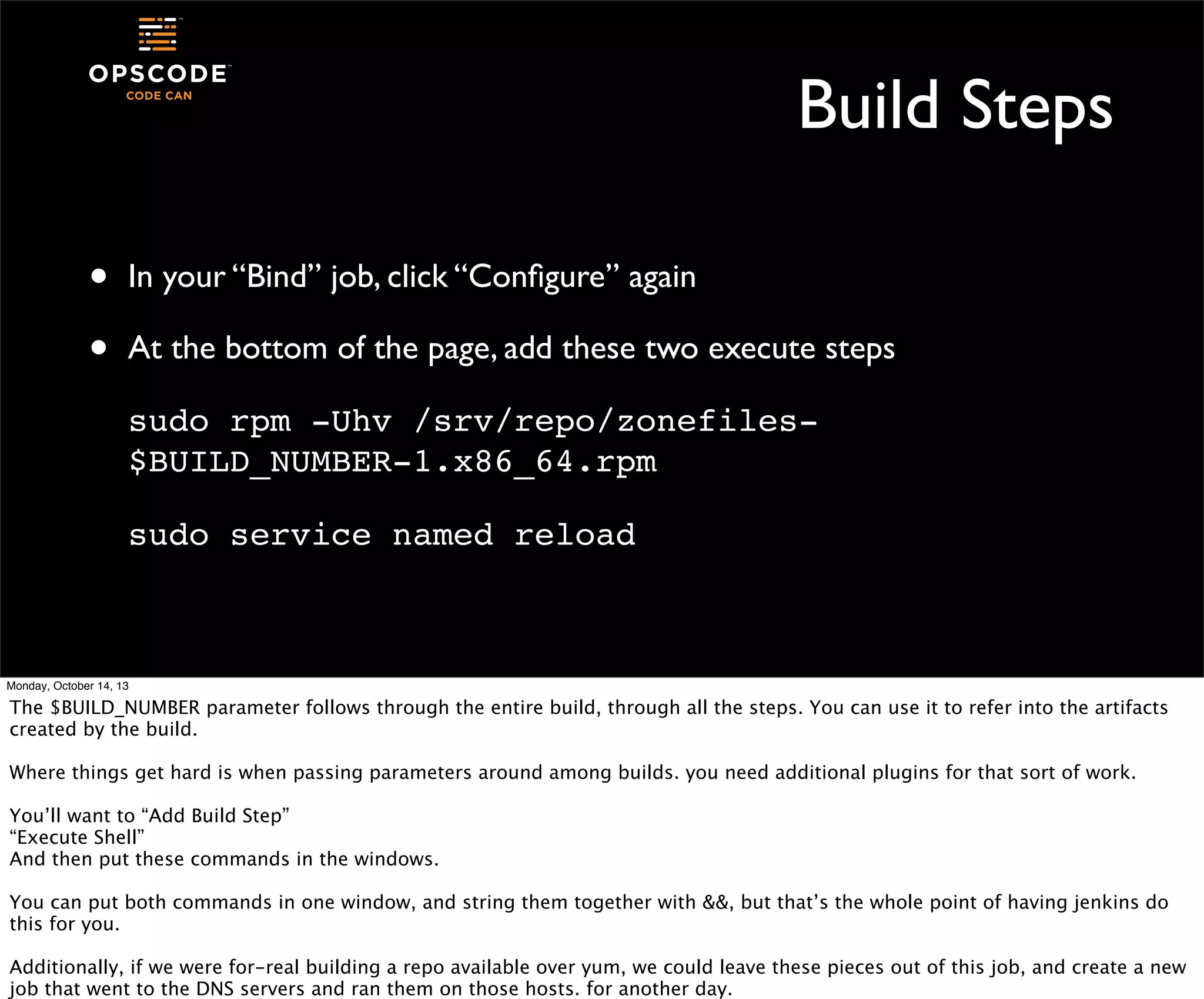

Build Steps
•
•

In your “Bind” job, click “Conﬁgure” again
At the bottom of the page, add these two execute steps
sudo rpm -Uhv /srv/repo/zonefiles$BUILD_NUMBER-1.x86_64.rpm
sudo service named reload


The $BUILD_NUMBER parameter follows through the entire build, through all the steps. You can use it to refer into the artifacts
created by the build.
Where things get hard is when passing parameters around among builds. you need additional plugins for that sort of work.
You’ll want to “Add Build Step”
“Execute Shell”
And then put these commands in the windows.
You can put both commands in one window, and string them together with &&, but that’s the whole point of having jenkins do
this for you.
Additionally, if we were for-real building a repo available over yum, we could leave these pieces out of this job, and create a new
job that went to the DNS servers and ran them on those hosts. for another day.

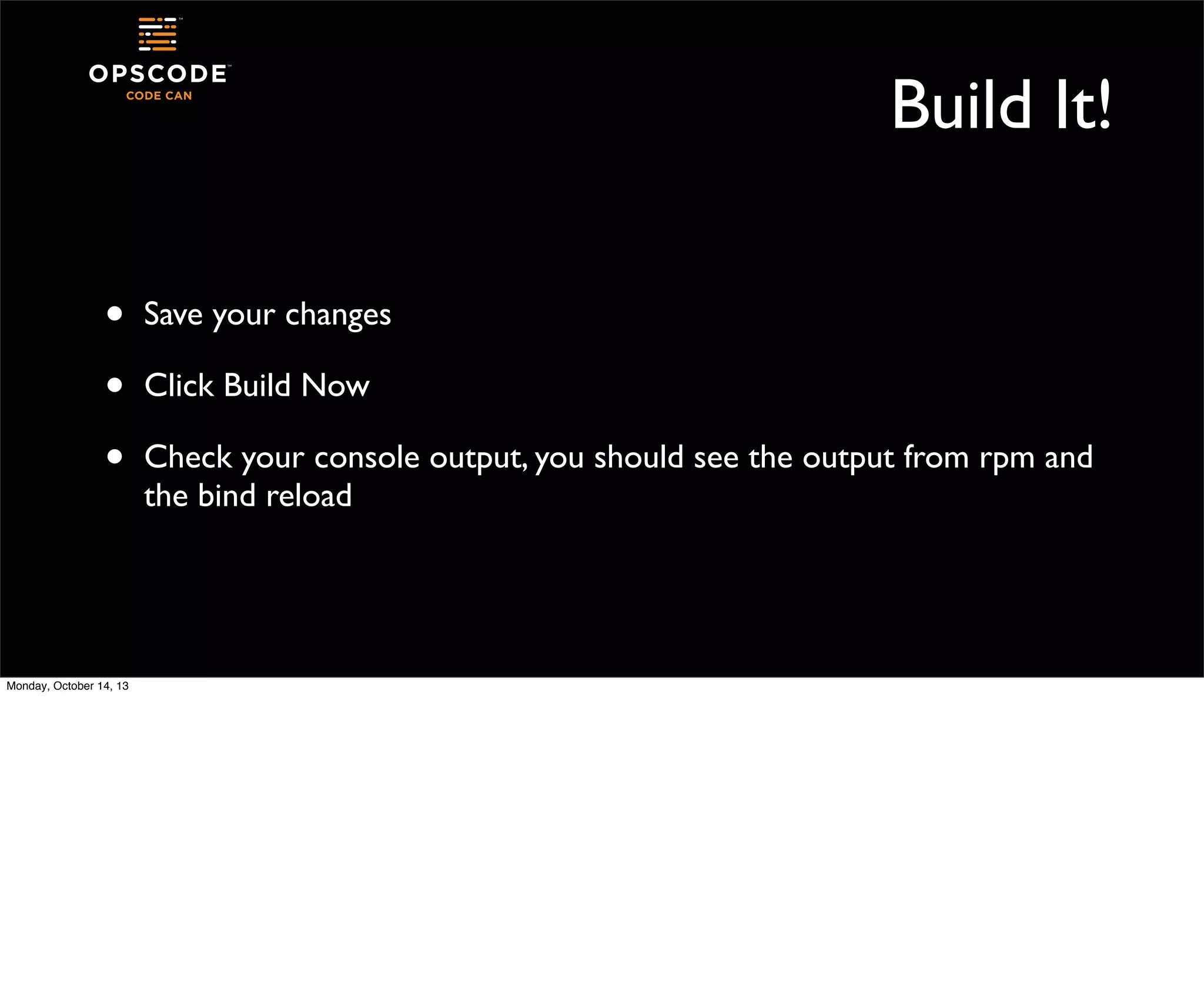

Build It!
•
•
•


Save your changes
Click Build Now
Check your console output, you should see the output from rpm and
the bind reload

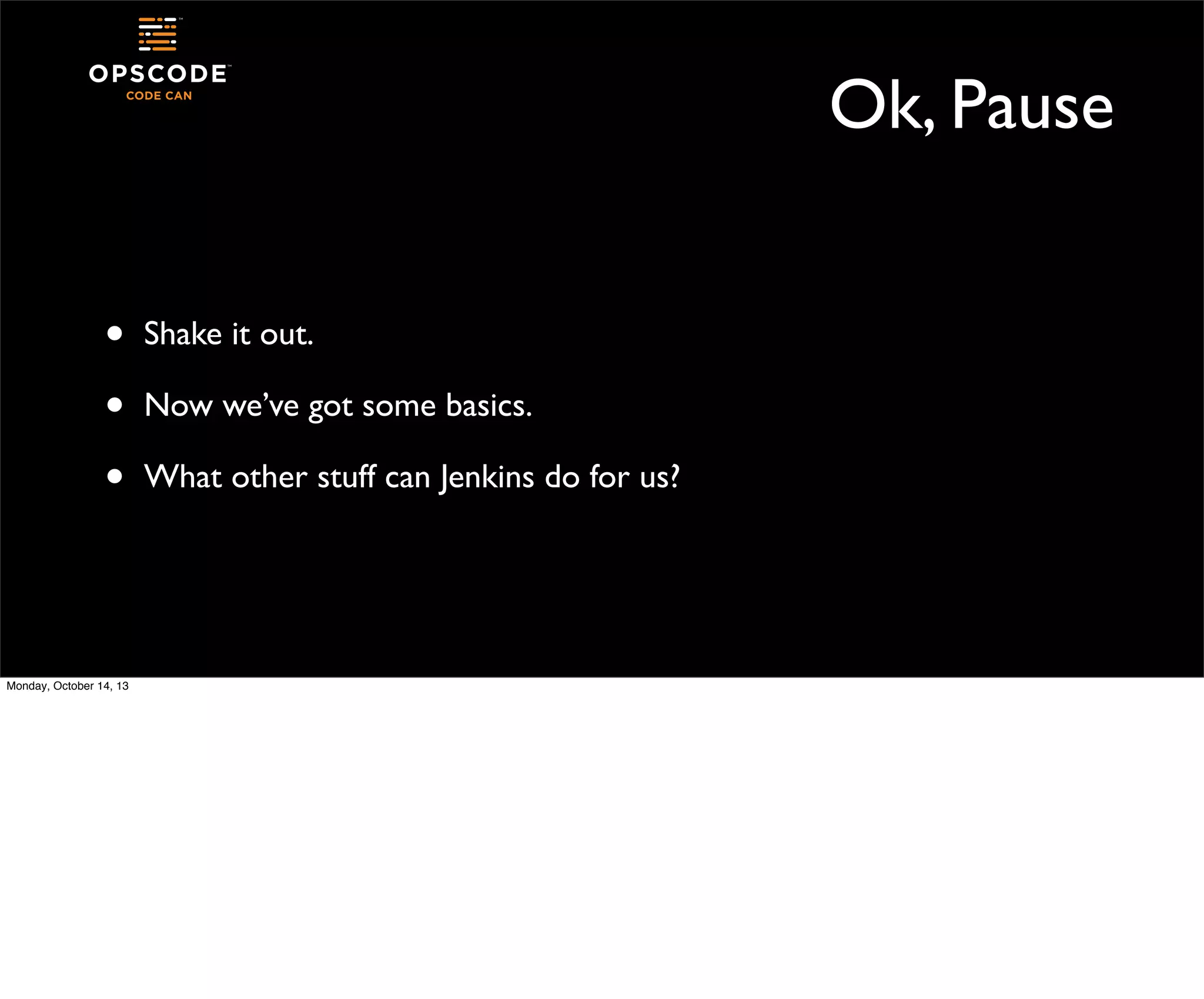

Ok, Pause
•
•
•


Shake it out.
Now we’ve got some basics.
What other stuff can Jenkins do for us?

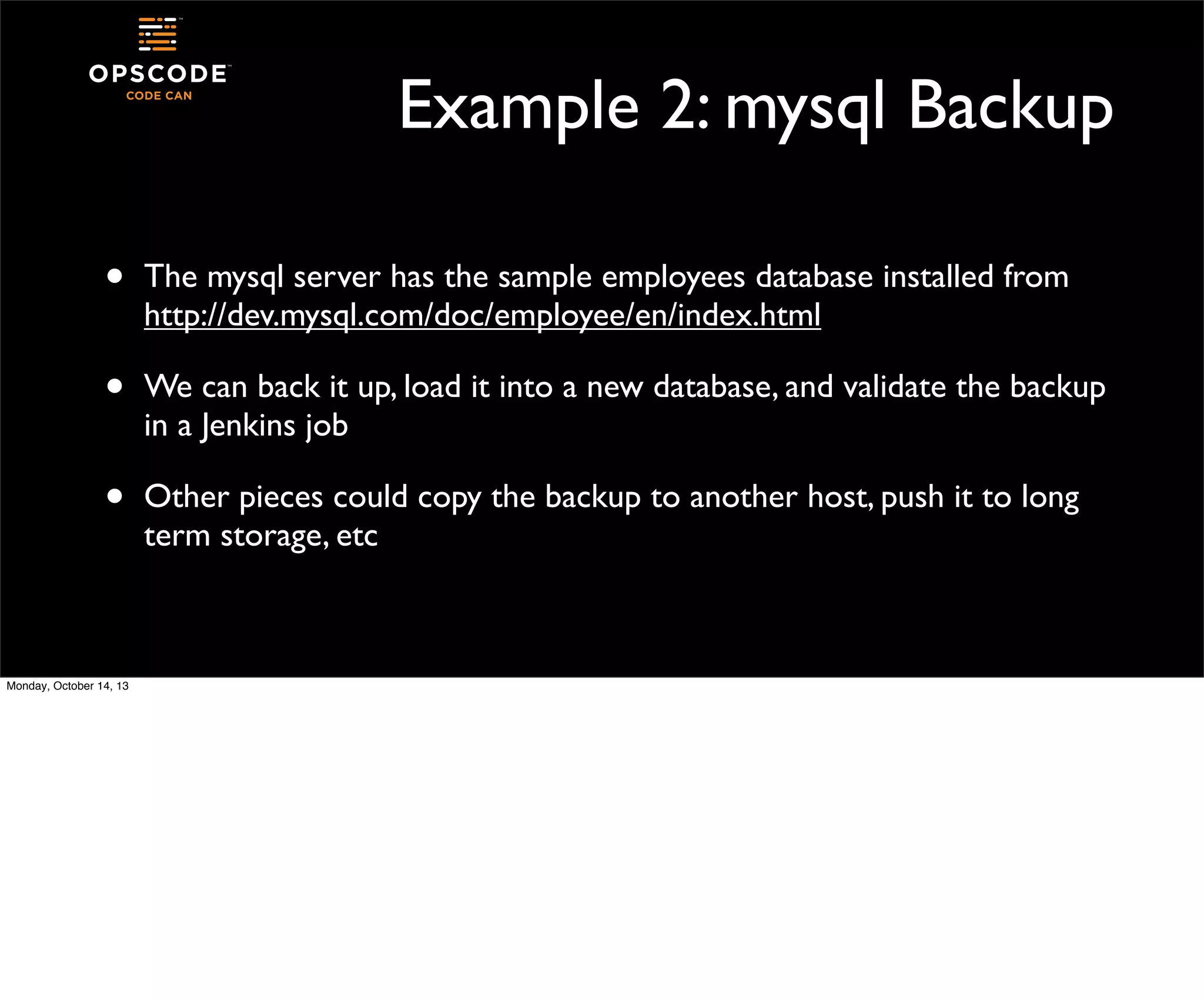

Example 2: mysql Backup
•

The mysql server has the sample employees database installed from
http://dev.mysql.com/doc/employee/en/index.html

•

We can back it up, load it into a new database, and validate the backup
in a Jenkins job

•

Other pieces could copy the backup to another host, push it to long
term storage, etc

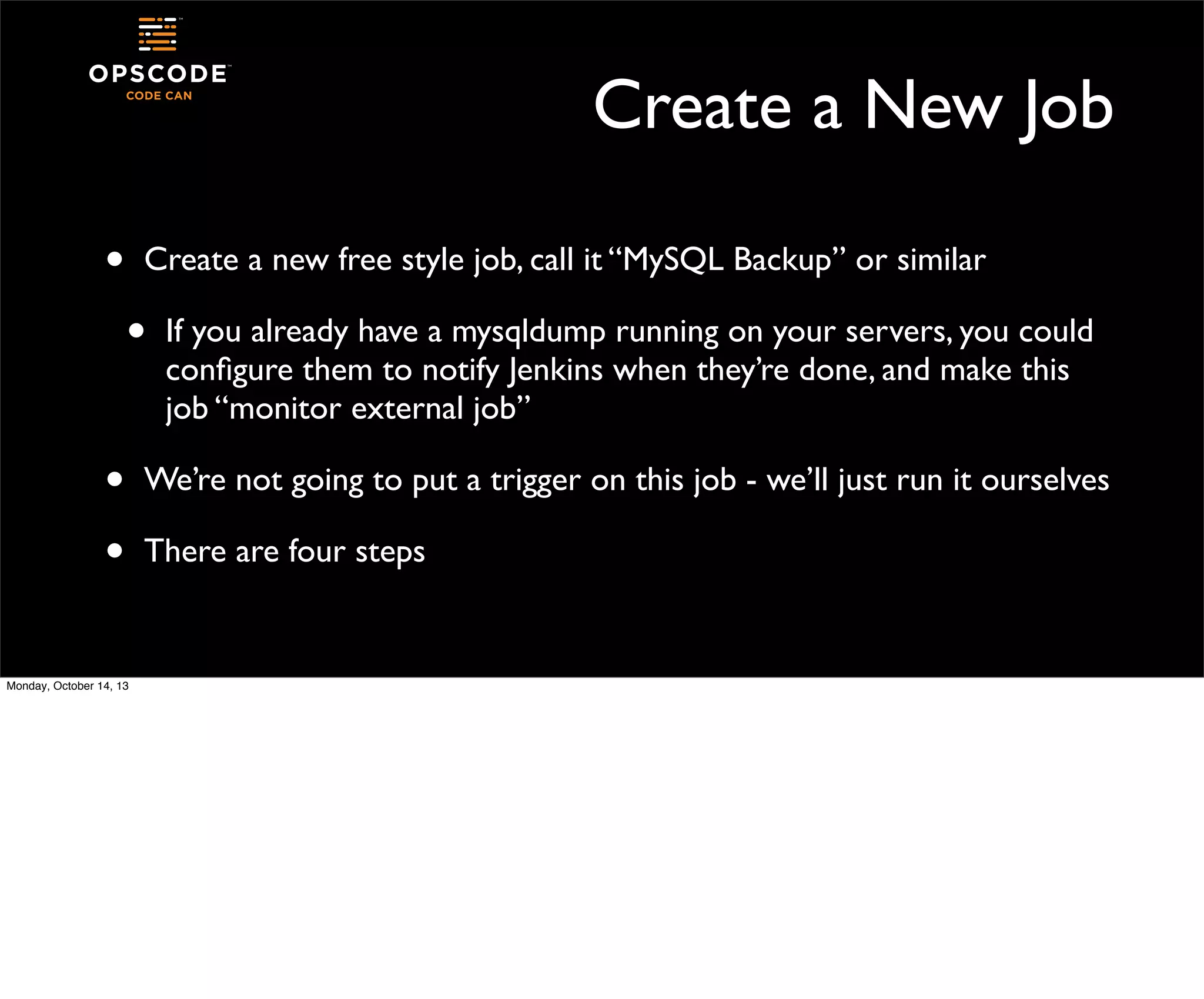

Create a New Job
•

Create a new free style job, call it “MySQL Backup” or similar

•
•
•

If you already have a mysqldump running on your servers, you could
conﬁgure them to notify Jenkins when they’re done, and make this
job “monitor external job”

We’re not going to put a trigger on this job - we’ll just run it ourselves
There are four steps

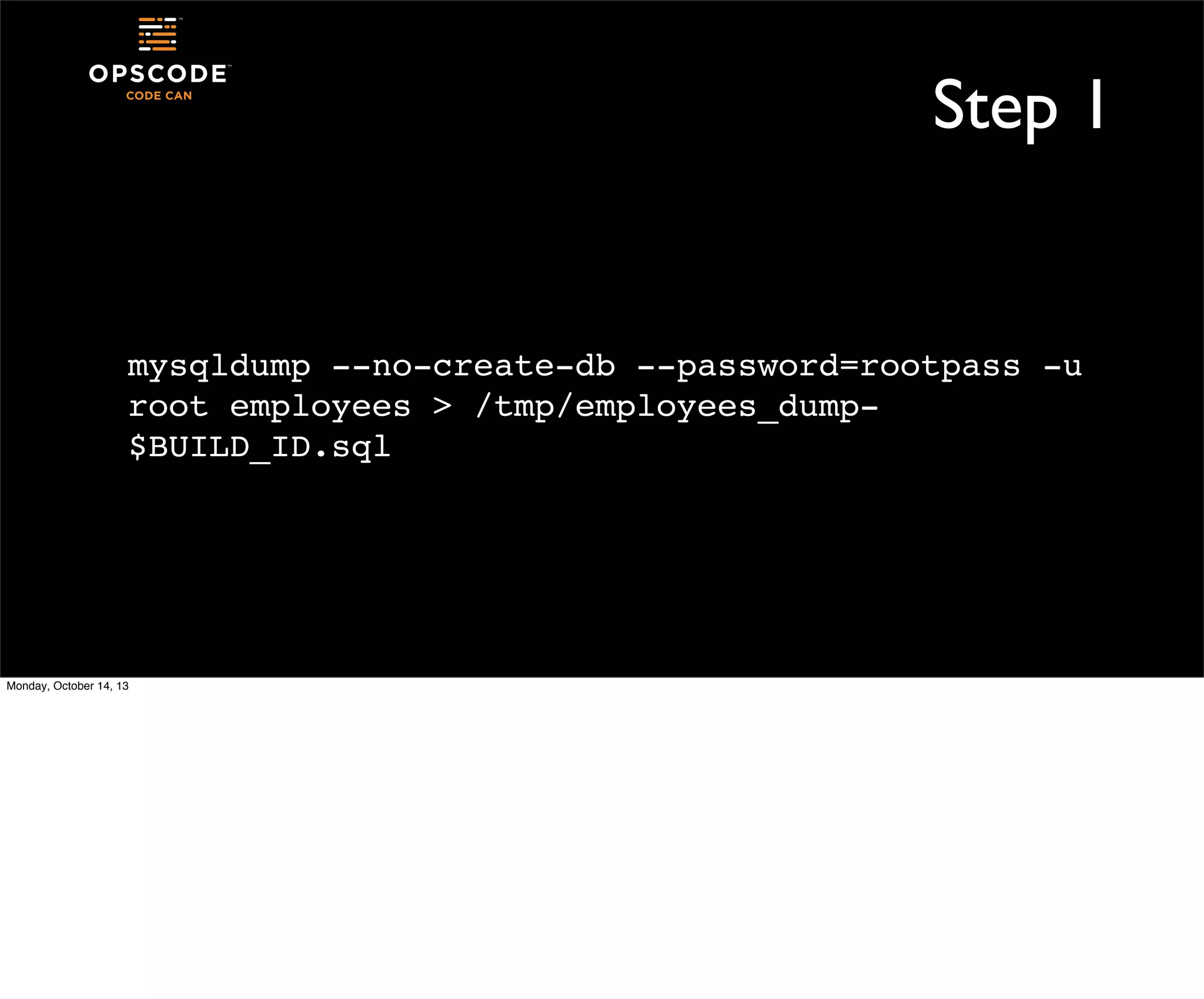

Step 1

mysqldump --no-create-db --password=rootpass -u
root employees > /tmp/employees_dump$BUILD_ID.sql

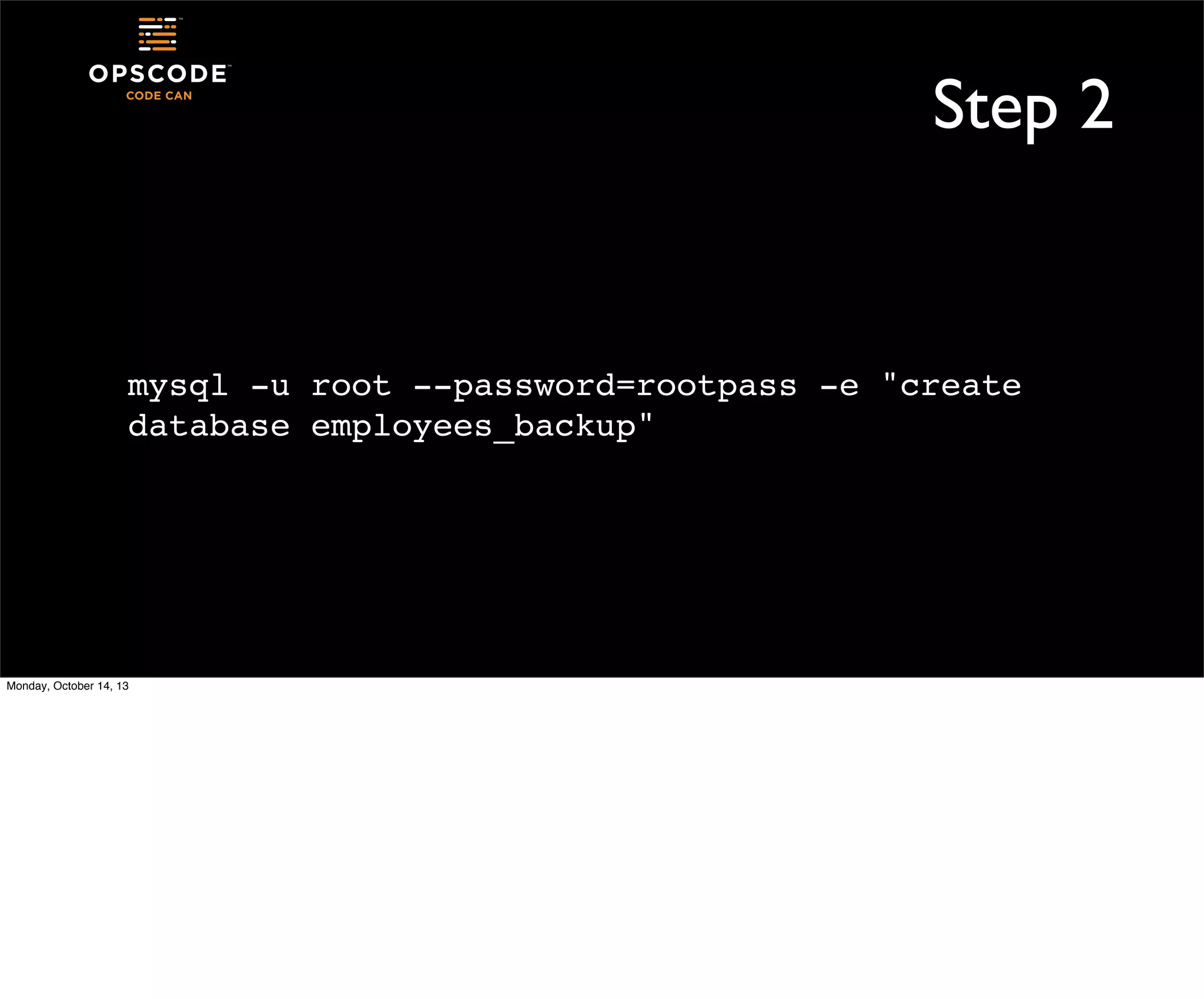

Step 2

mysql -u root --password=rootpass -e "create
database employees_backup"

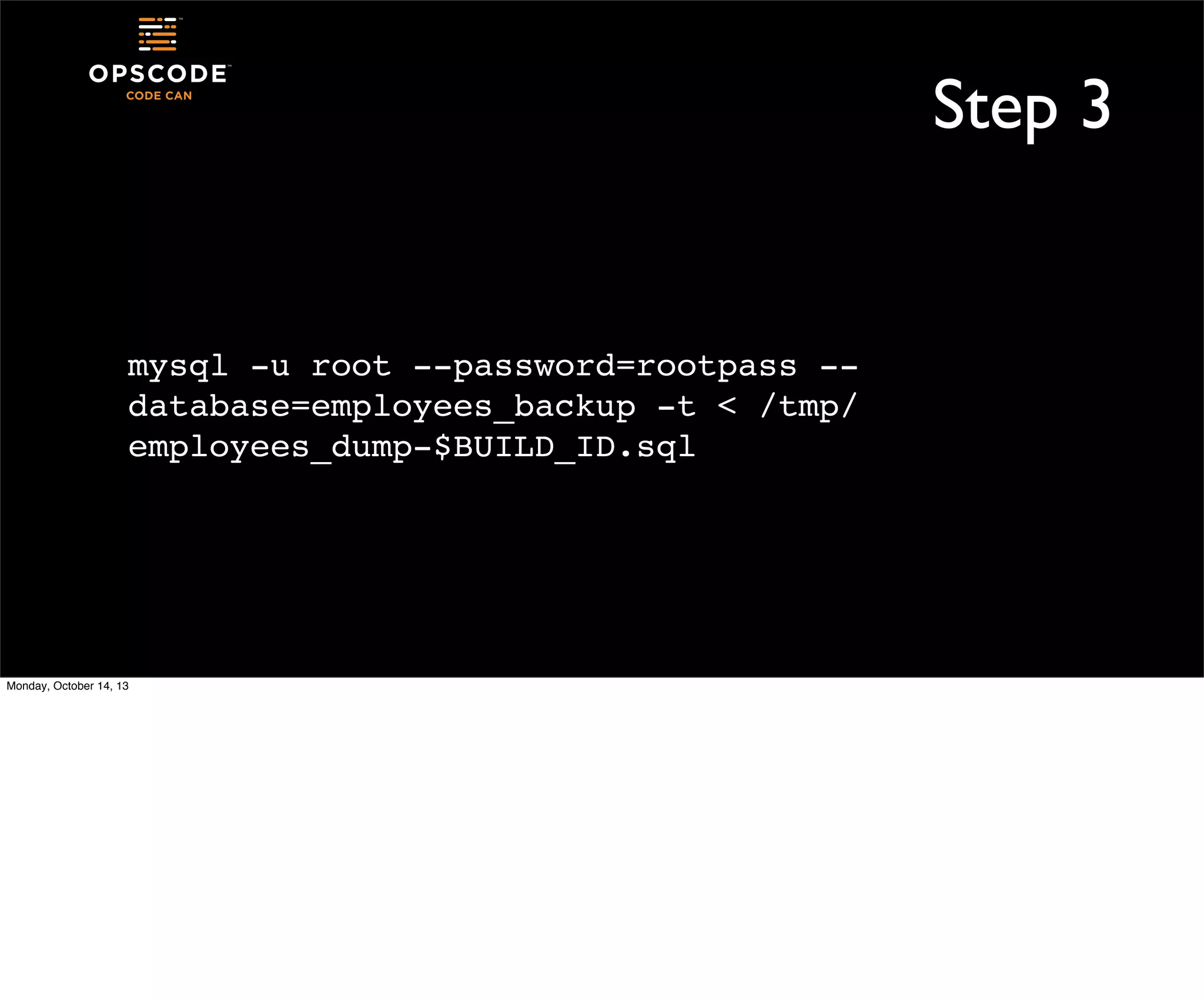

Step 3

mysql -u root --password=rootpass -database=employees_backup -t < /tmp/
employees_dump-$BUILD_ID.sql

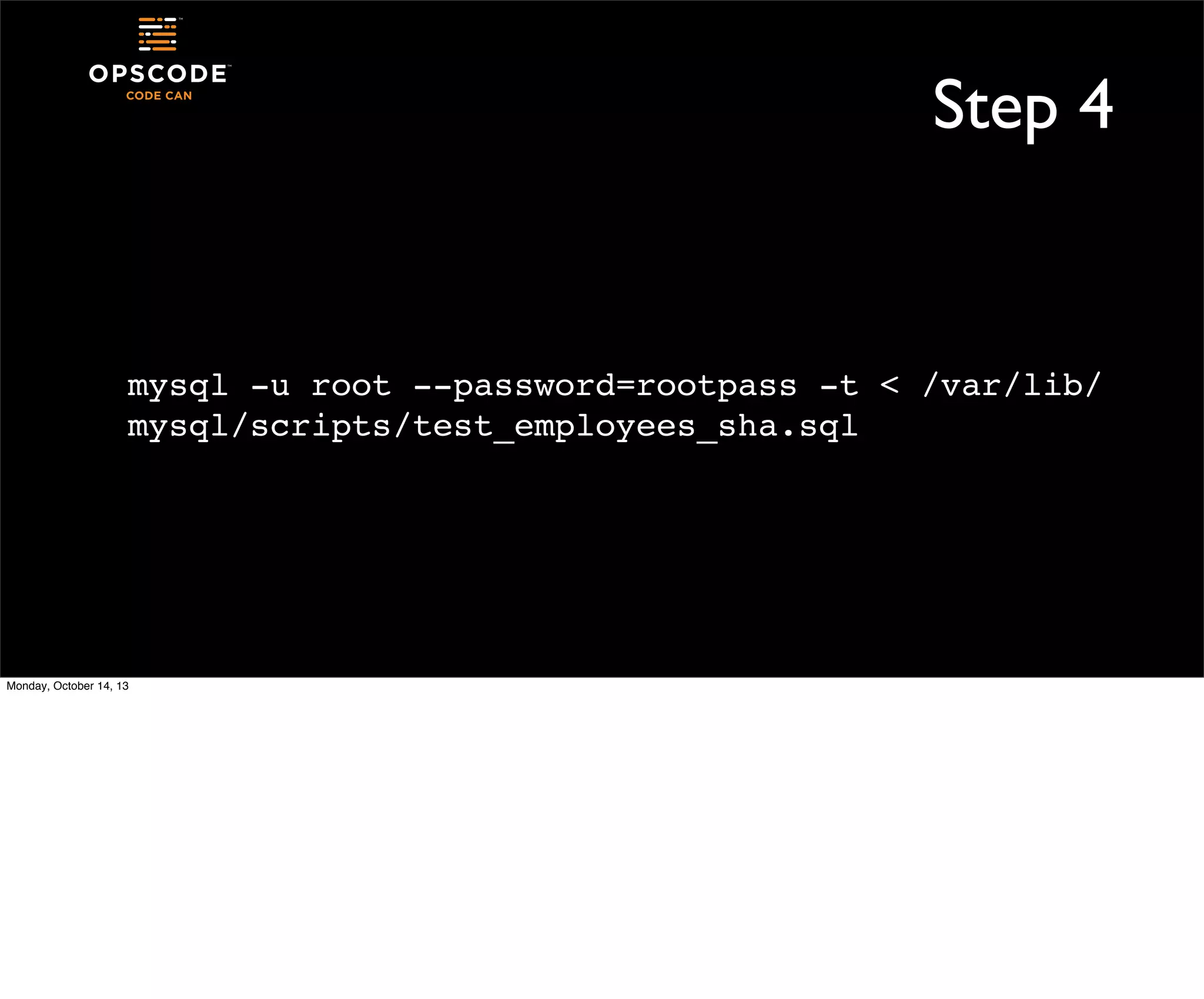

Step 4

mysql -u root --password=rootpass -t < /var/lib/
mysql/scripts/test_employees_sha.sql

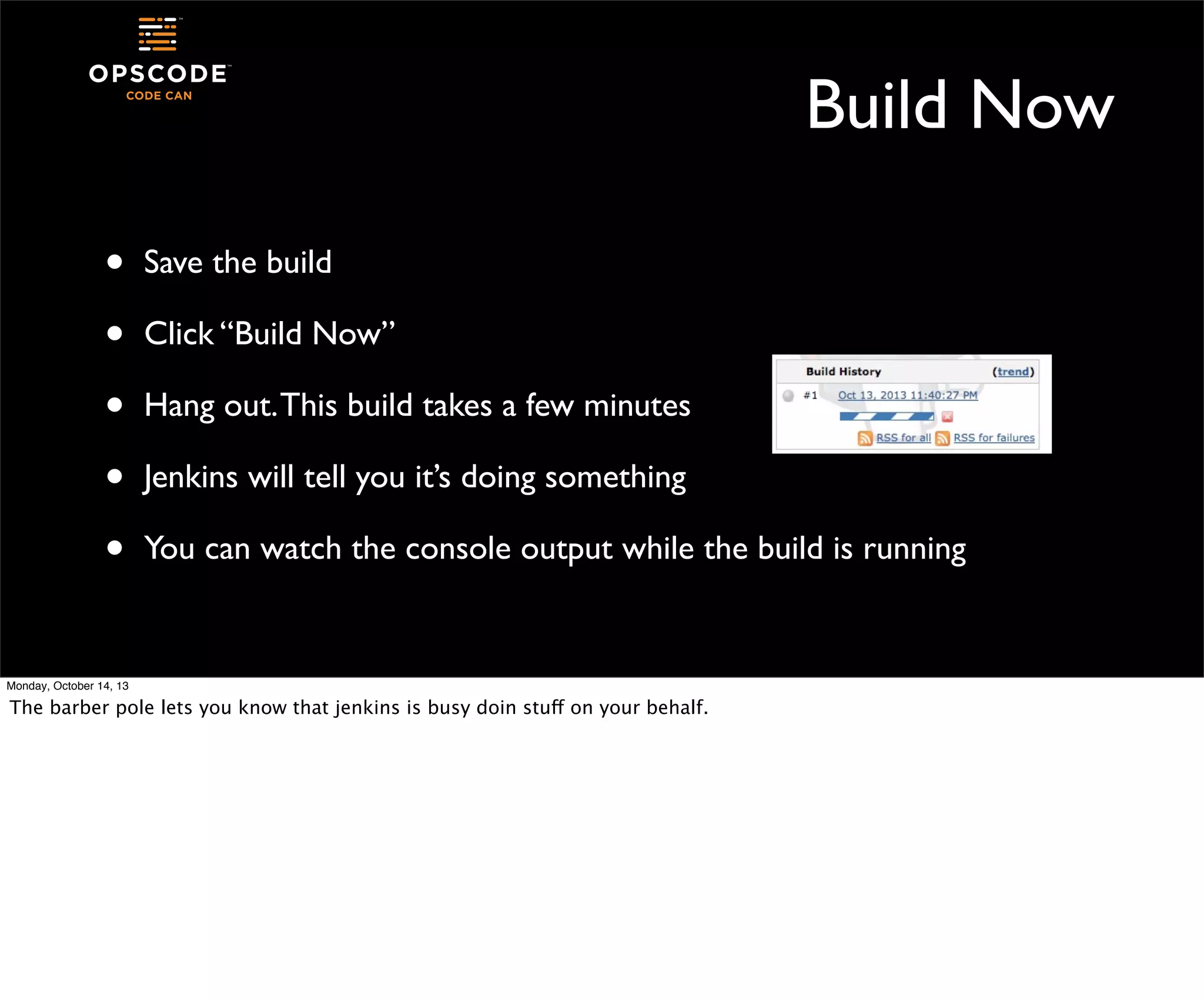

Build Now
•
•
•
•
•

Save the build
Click “Build Now”
Hang out. This build takes a few minutes
Jenkins will tell you it’s doing something
You can watch the console output while the build is running


The barber pole lets you know that jenkins is busy doin stuff on your behalf.

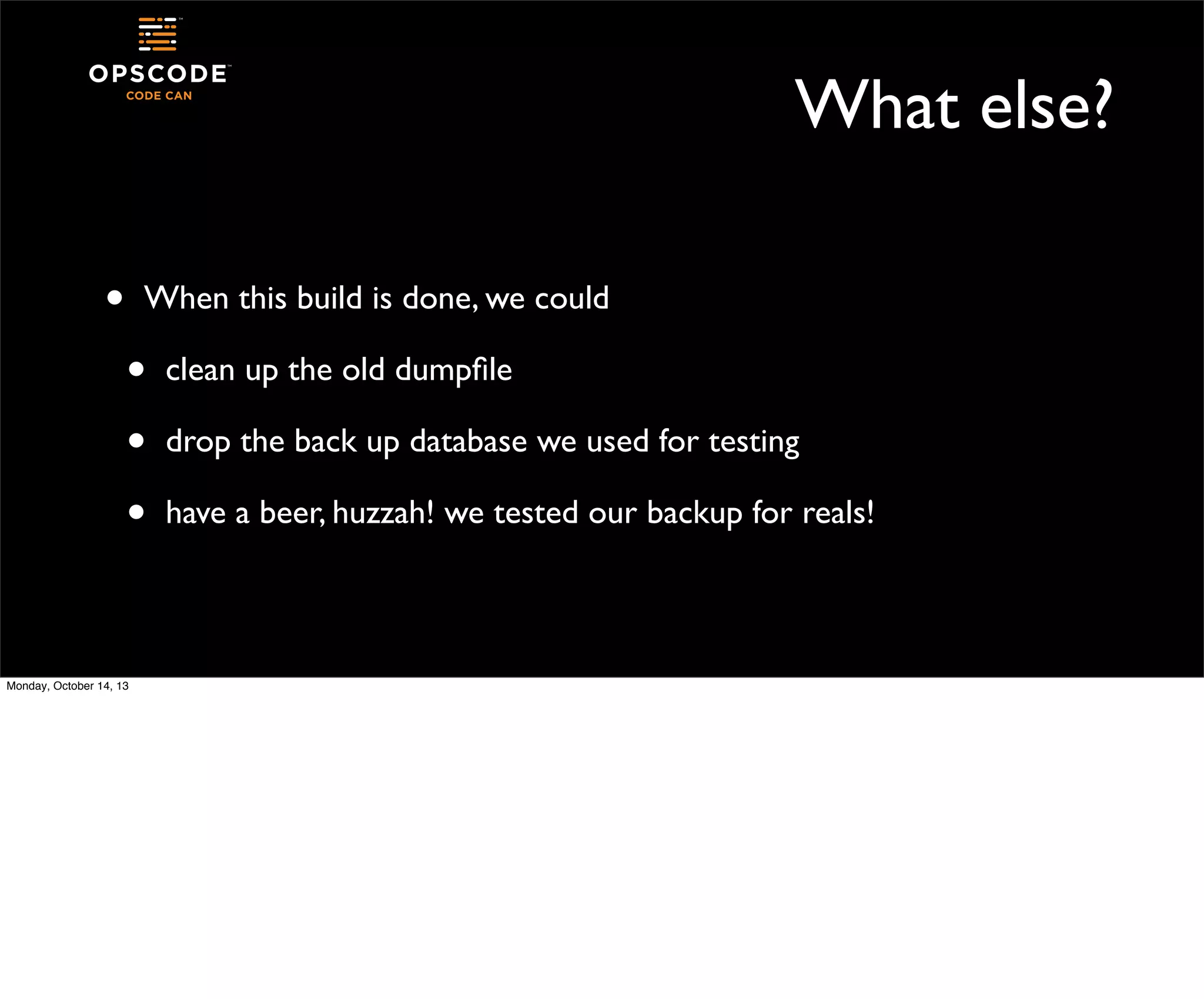

What else?
•

When this build is done, we could

•
•
•

clean up the old dumpﬁle
drop the back up database we used for testing
have a beer, huzzah! we tested our backup for reals!

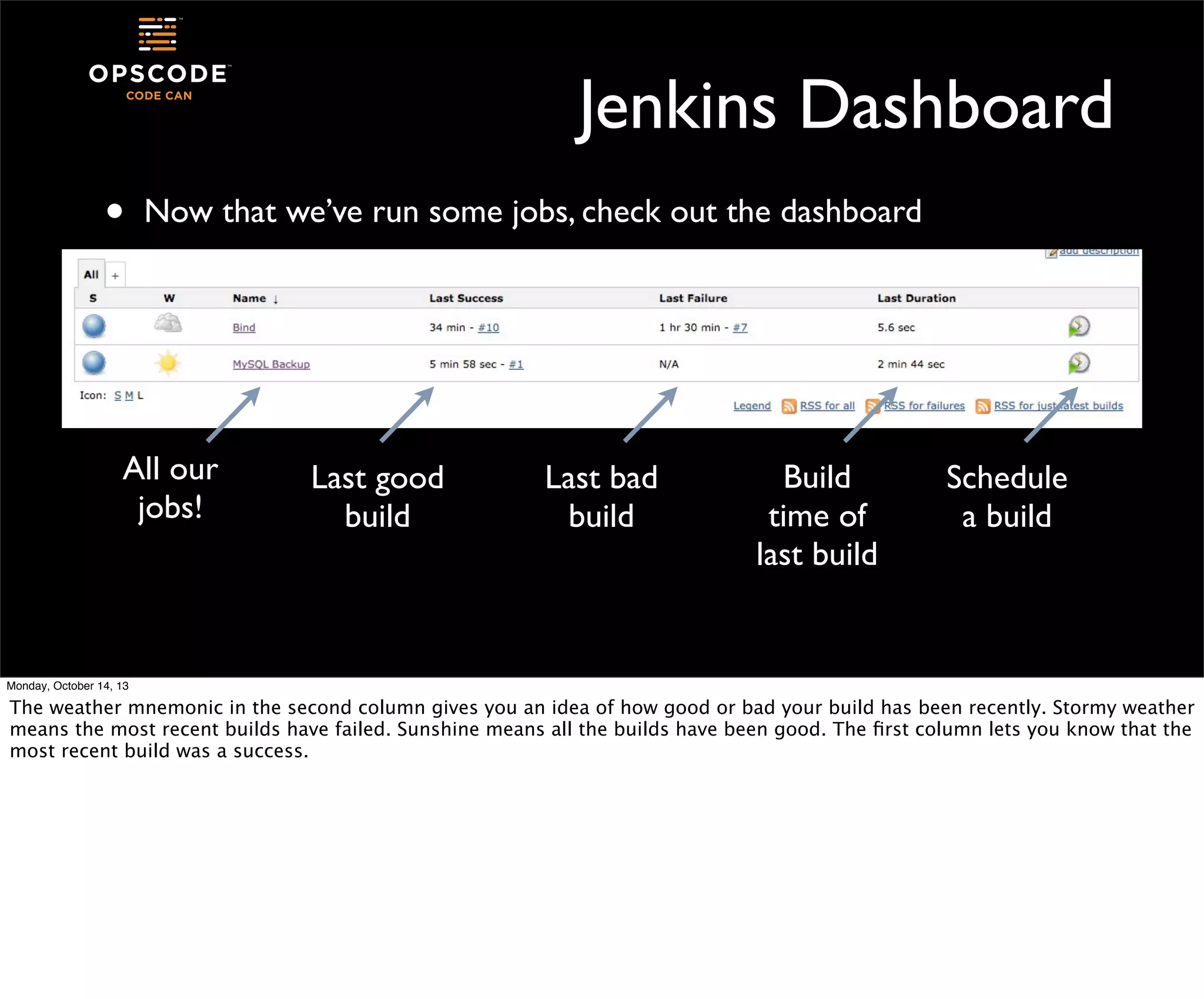

Jenkins Dashboard
•

Now that we’ve run some jobs, check out the dashboard

All our
jobs!

Last good
build

Last bad
build

Build
time of
last build

Schedule
a build


The weather mnemonic in the second column gives you an idea of how good or bad your build has been recently. Stormy weather
means the most recent builds have failed. Sunshine means all the builds have been good. The ﬁrst column lets you know that the
most recent build was a success.

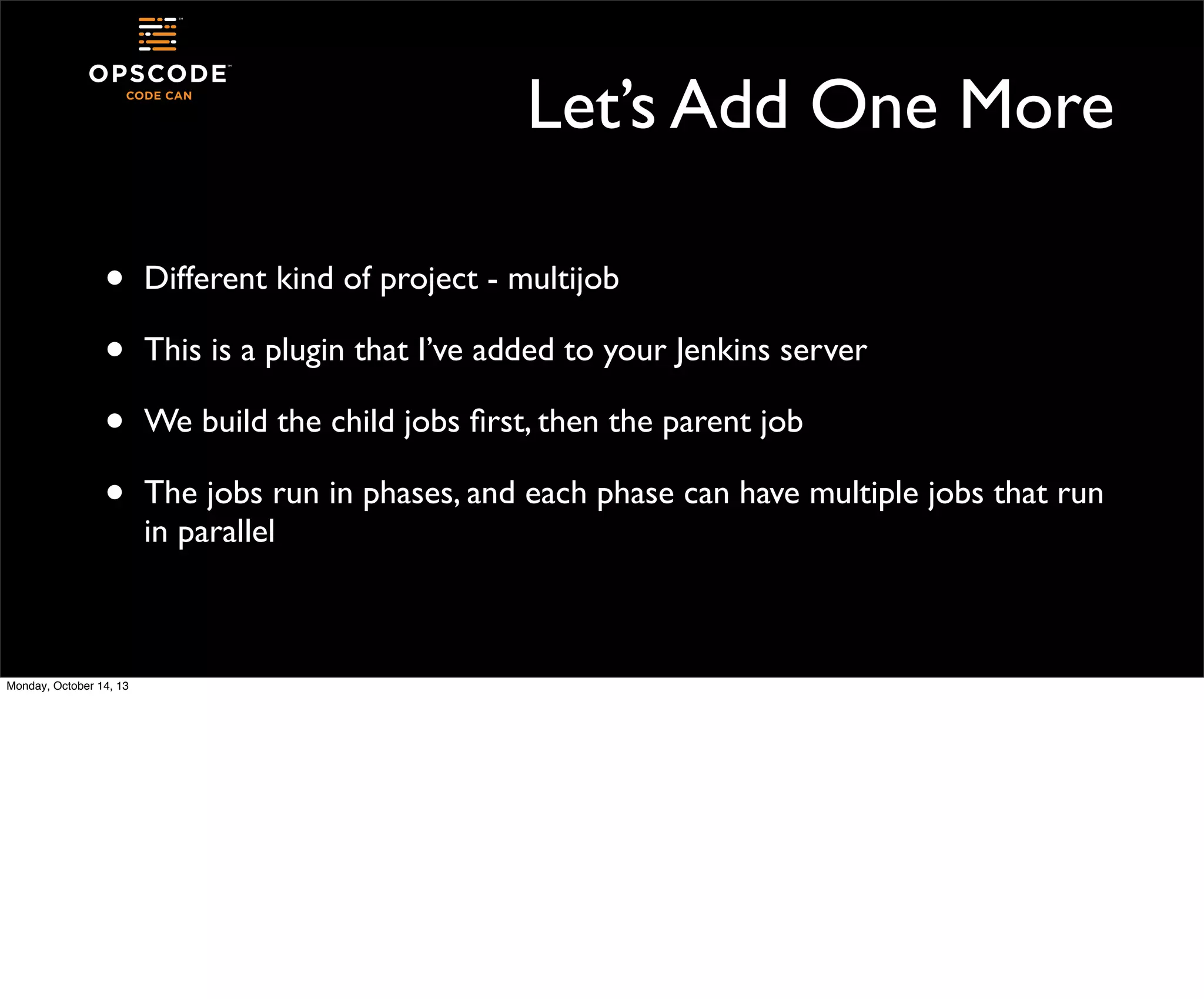

Let’s Add One More
•
•
•
•


Different kind of project - multijob
This is a plugin that I’ve added to your Jenkins server
We build the child jobs ﬁrst, then the parent job

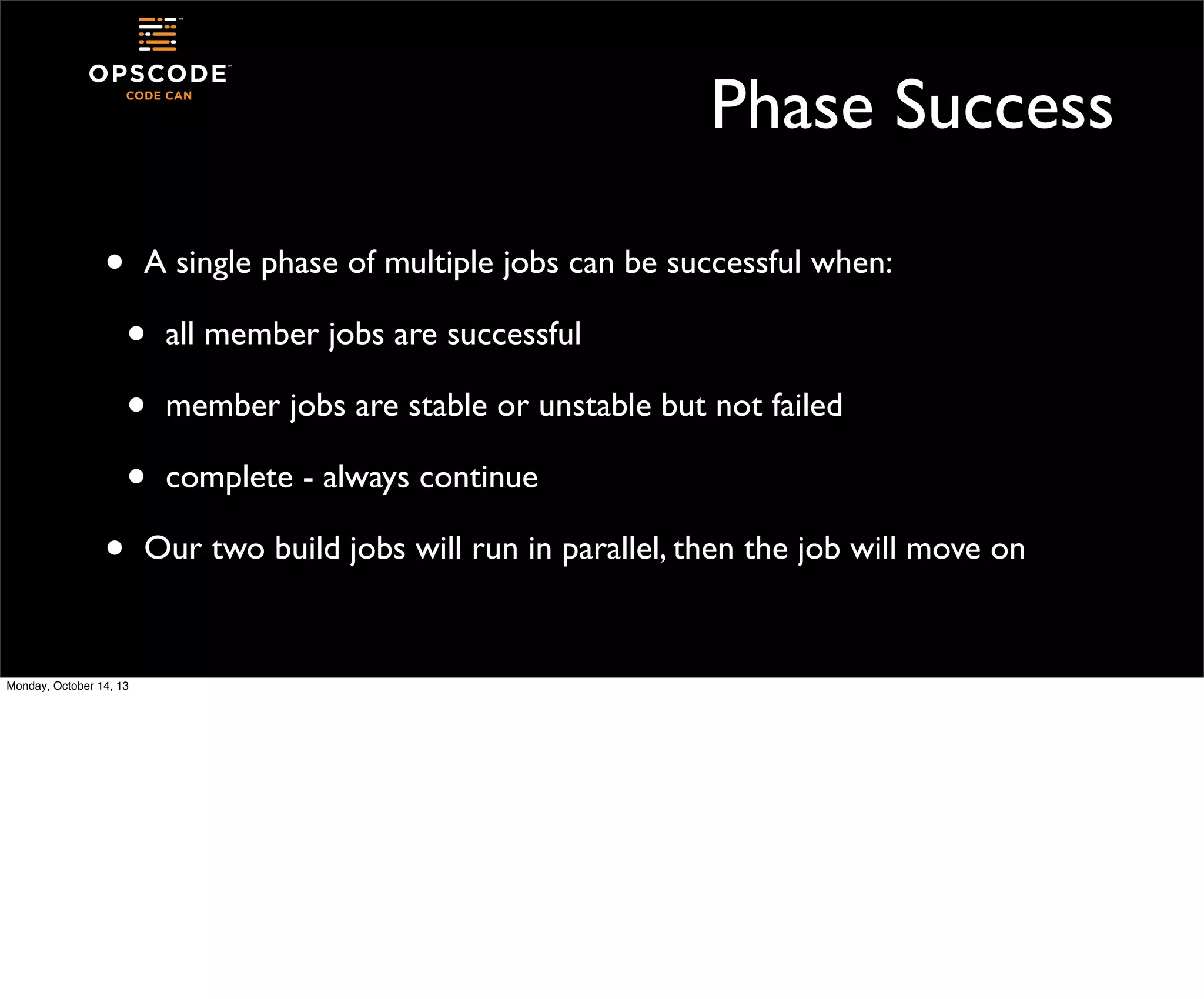

The jobs run in phases, and each phase can have multiple jobs that run
in parallel

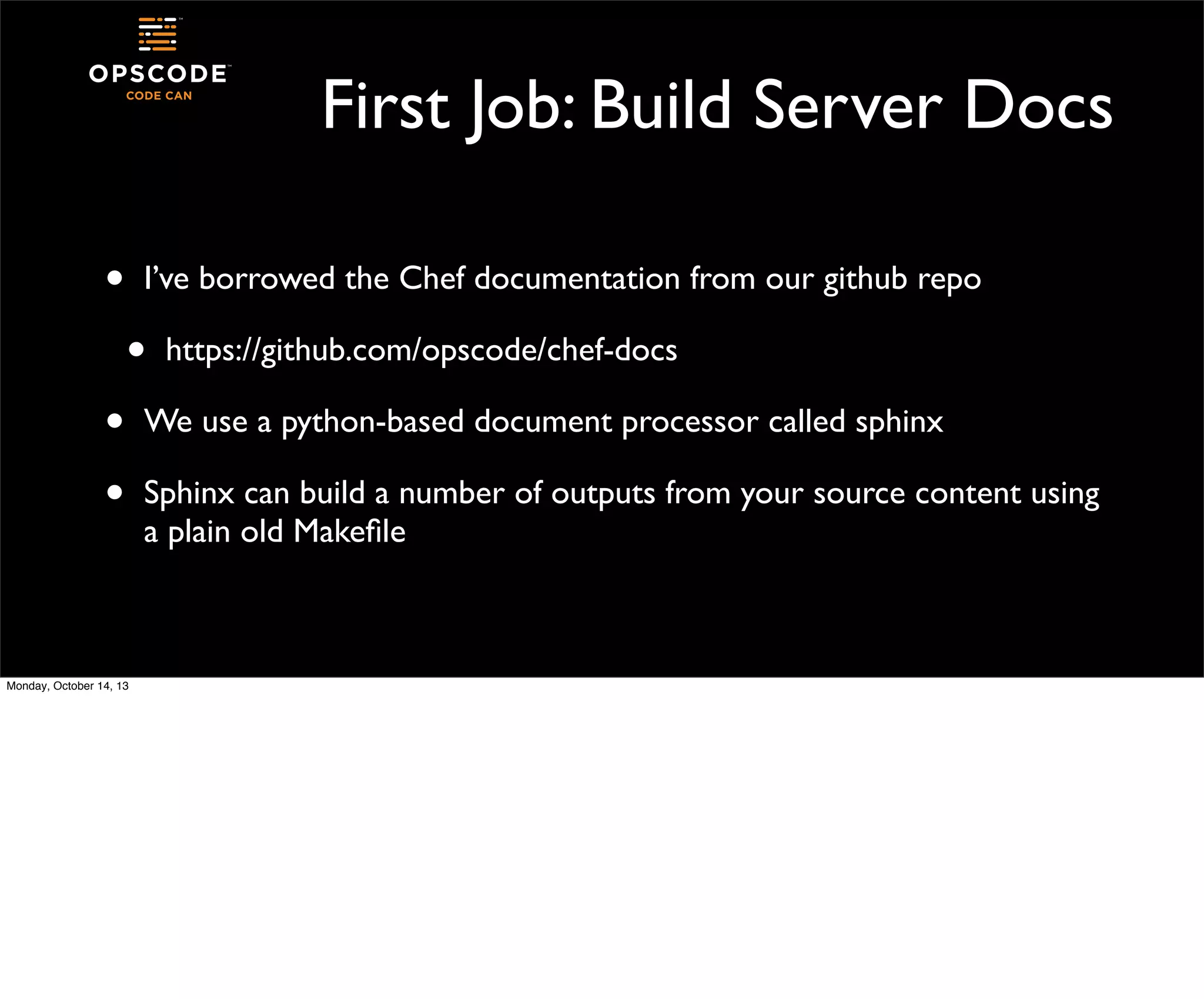

First Job: Build Server Docs
•

I’ve borrowed the Chef documentation from our github repo

•
•
•


https://github.com/opscode/chef-docs

We use a python-based document processor called sphinx
Sphinx can build a number of outputs from your source content using
a plain old Makeﬁle

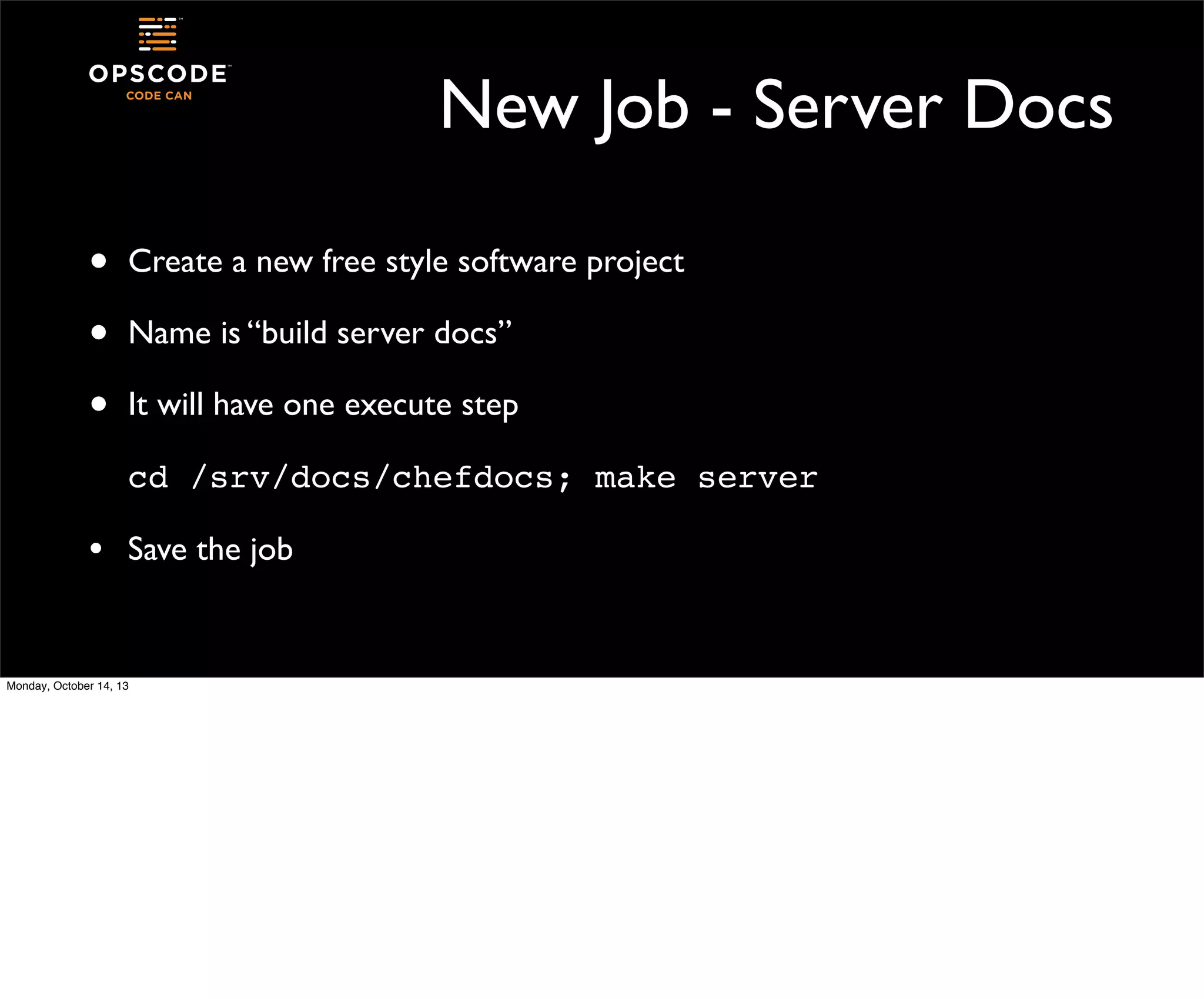

New Job - Server Docs
•
•
•

Create a new free style software project
Name is “build server docs”
It will have one execute step
cd /srv/docs/chefdocs; make server

•

Save the job

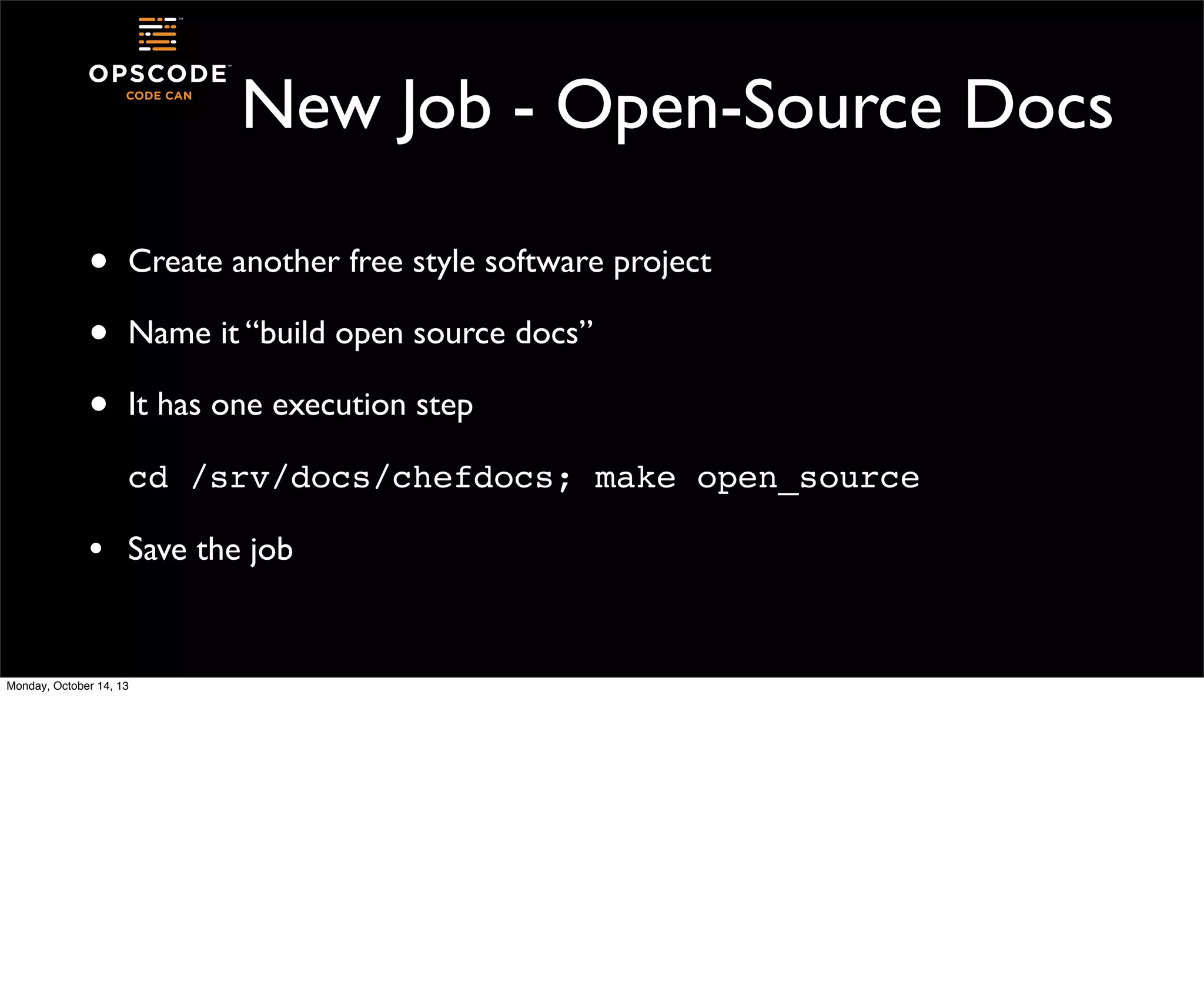

New Job - Open-Source Docs
•
•
•

Create another free style software project
Name it “build open source docs”
It has one execution step
cd /srv/docs/chefdocs; make open_source

•

Save the job

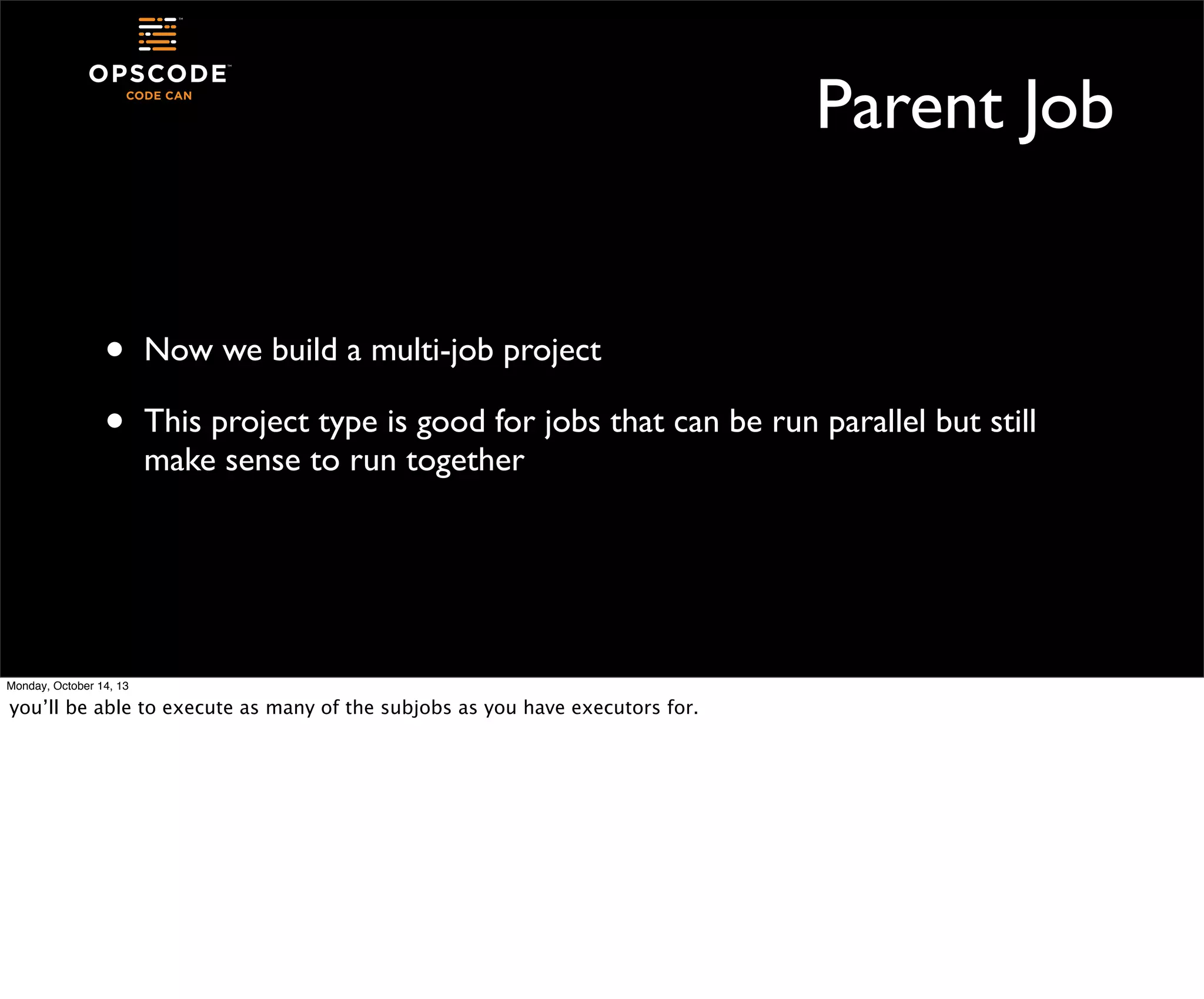

Parent Job
•
•

Now we build a multi-job project
This project type is good for jobs that can be run parallel but still
make sense to run together


you’ll be able to execute as many of the subjobs as you have executors for.

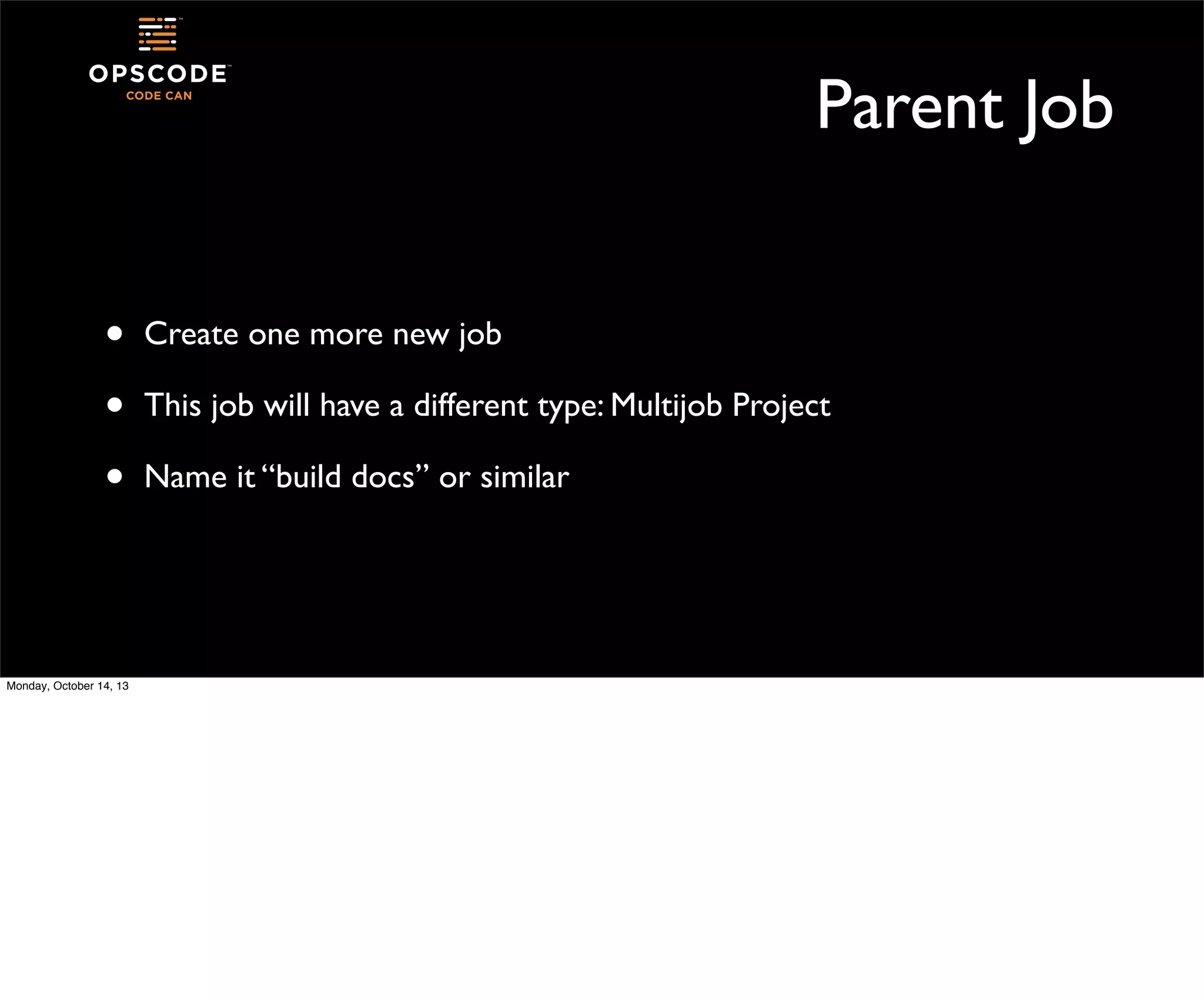

Parent Job
•
•
•


Create one more new job
This job will have a different type: Multijob Project
Name it “build docs” or similar

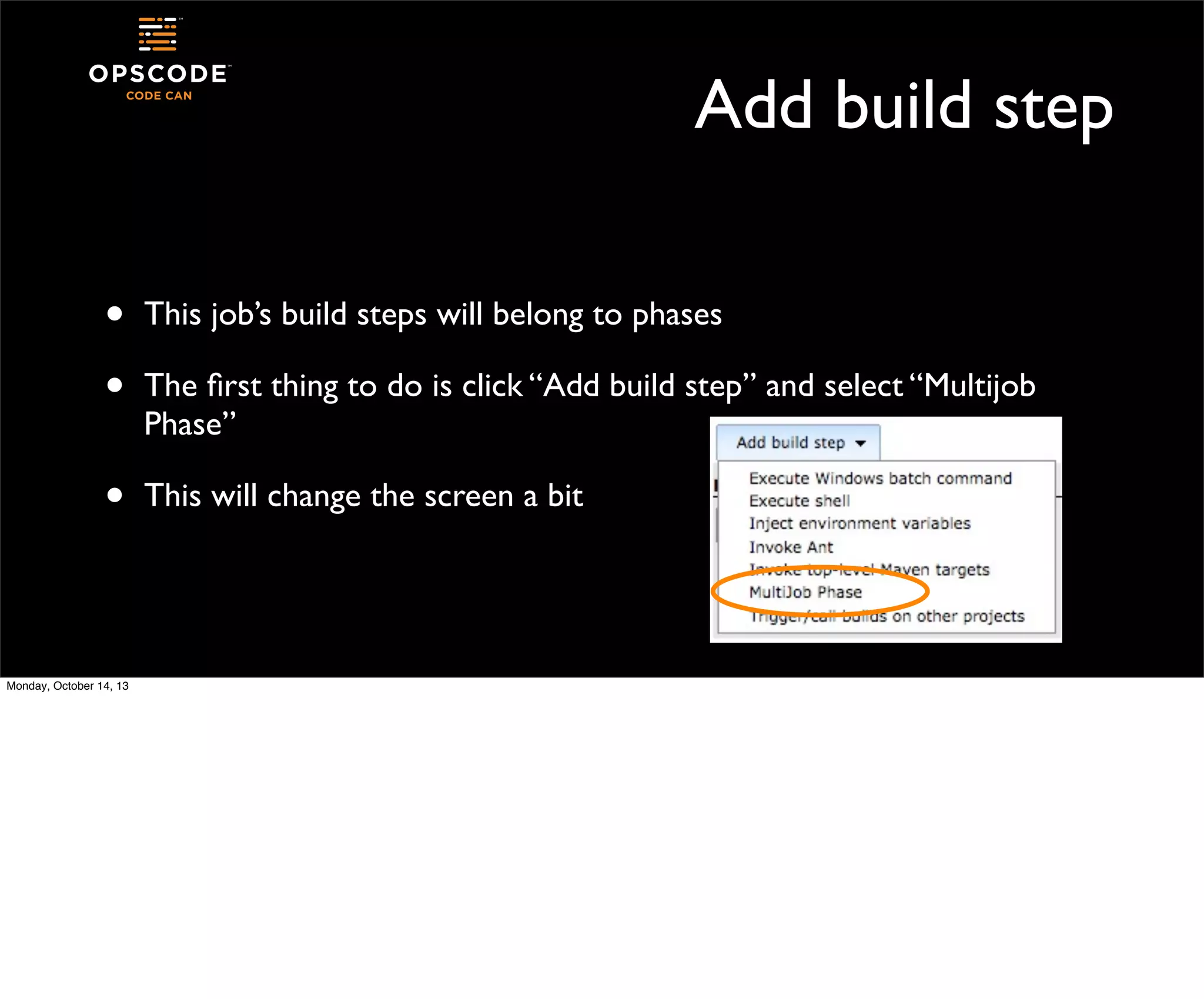

Add build step
•
•

This job’s build steps will belong to phases

•

This will change the screen a bit


The ﬁrst thing to do is click “Add build step” and select “Multijob
Phase”

Phases
These are the jenkins job names


name the phase, and then include the names of the other jobs we’ve created

Phase Success
•

A single phase of multiple jobs can be successful when:

•
•
•
•

all member jobs are successful
member jobs are stable or unstable but not failed
complete - always continue

Our two build jobs will run in parallel, then the job will move on

•
•

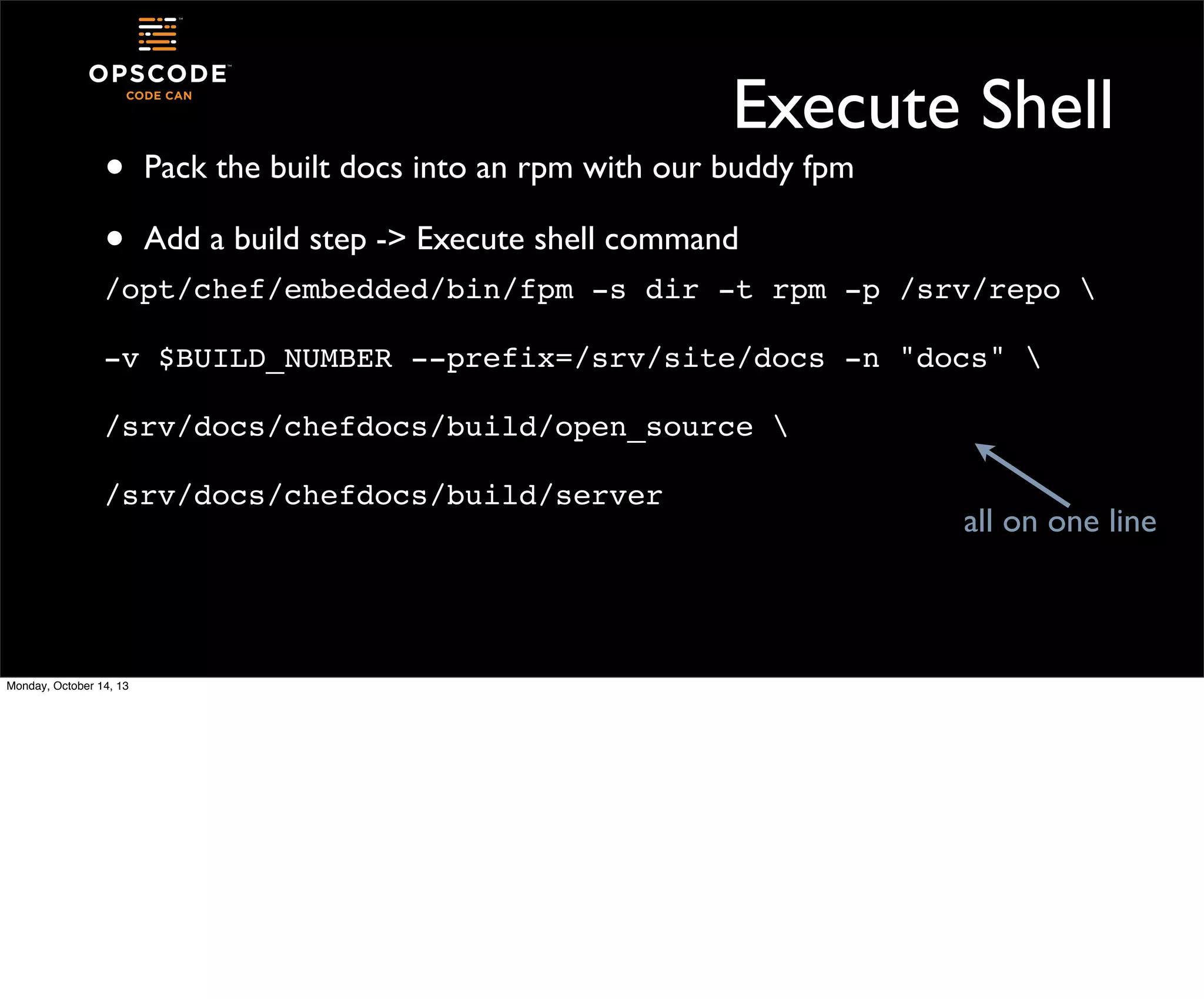

Execute Shell
Pack the built docs into an rpm with our buddy fpm
Add a build step -> Execute shell command

/opt/chef/embedded/bin/fpm -s dir -t rpm -p /srv/repo
-v $BUILD_NUMBER --prefix=/srv/site/docs -n "docs"
/srv/docs/chefdocs/build/open_source
/srv/docs/chefdocs/build/server


all on one line

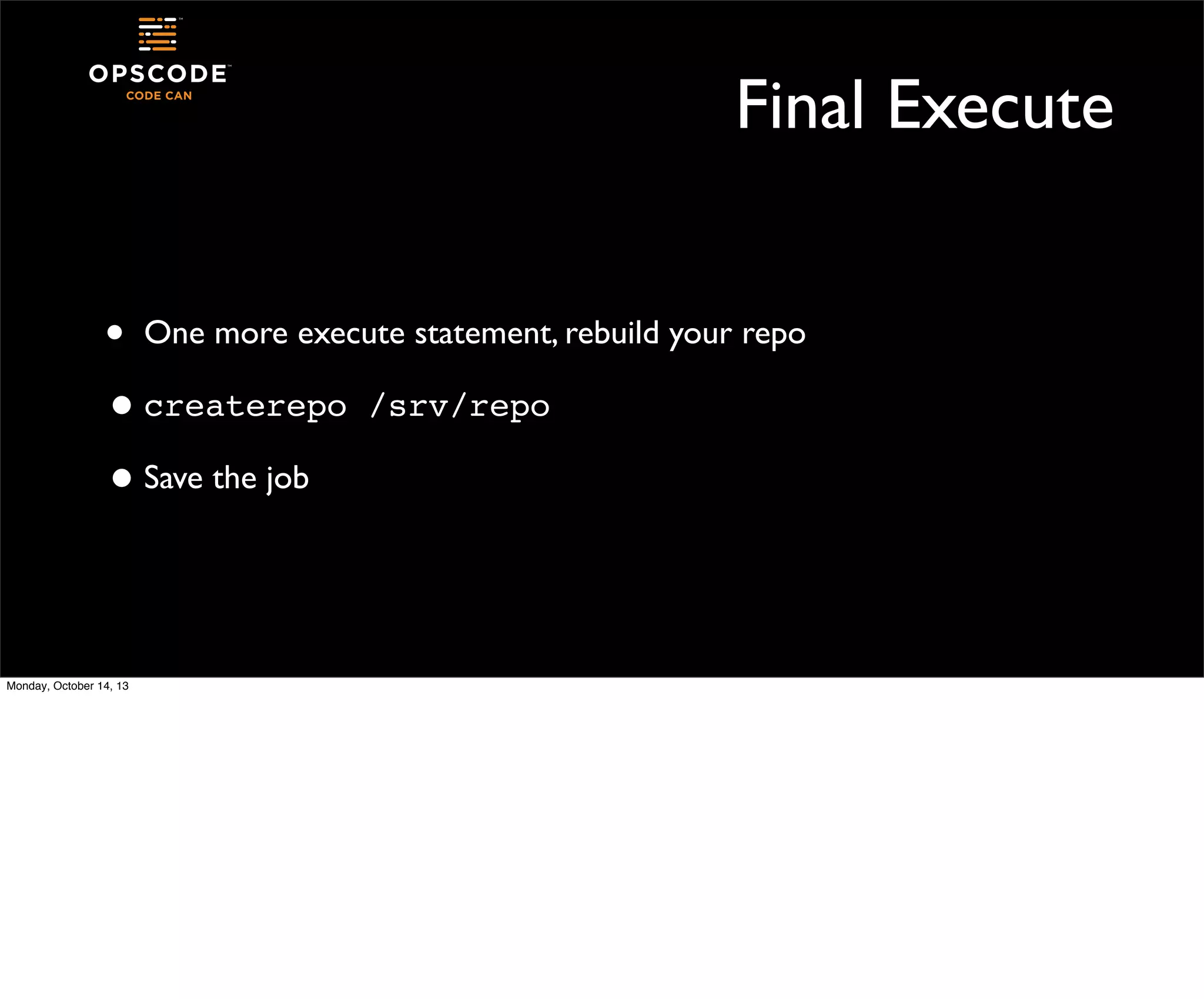

Final Execute
• One more execute statement, rebuild your repo
• createrepo /srv/repo
• Save the job

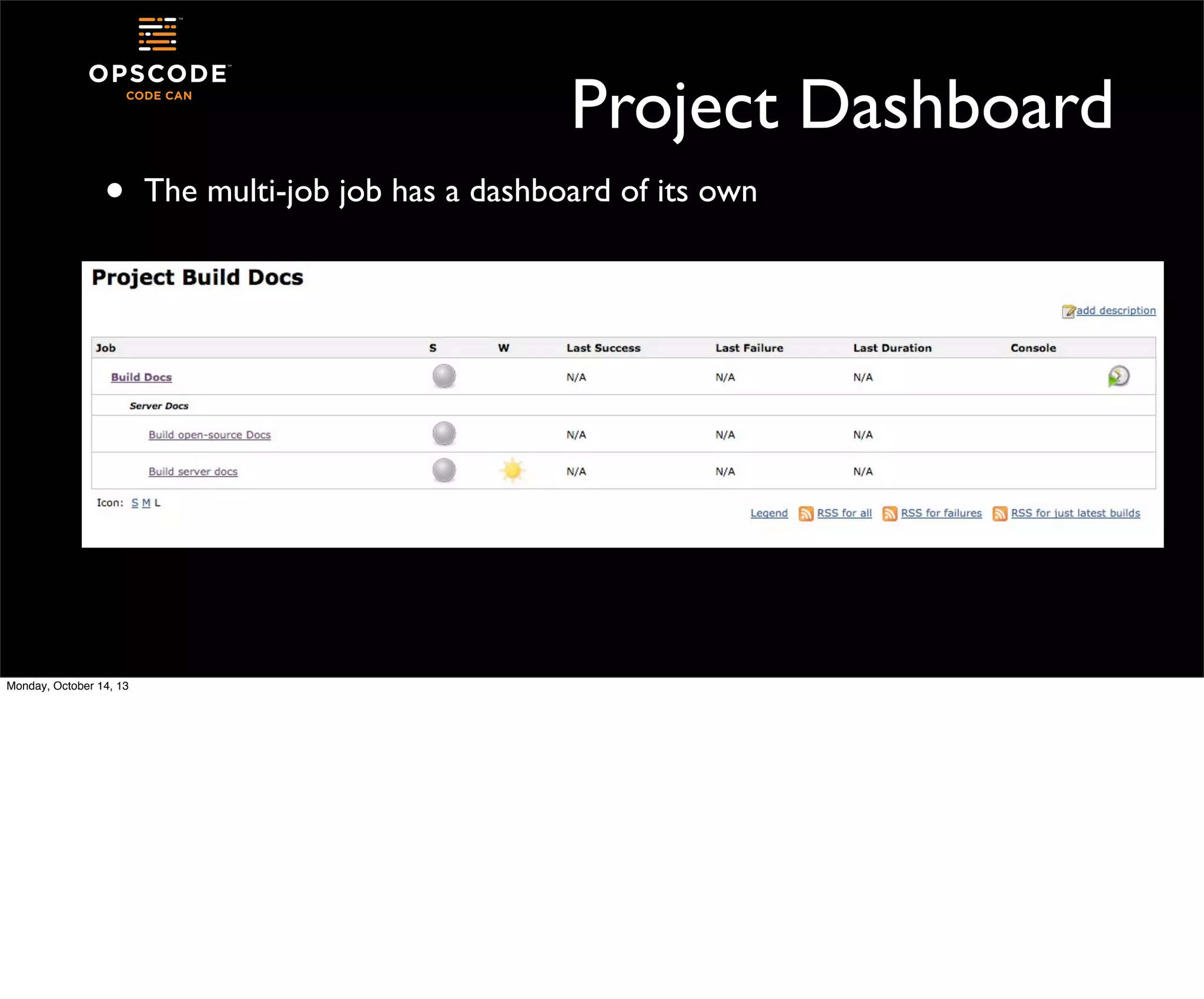

Project Dashboard
•


The multi-job job has a dashboard of its own

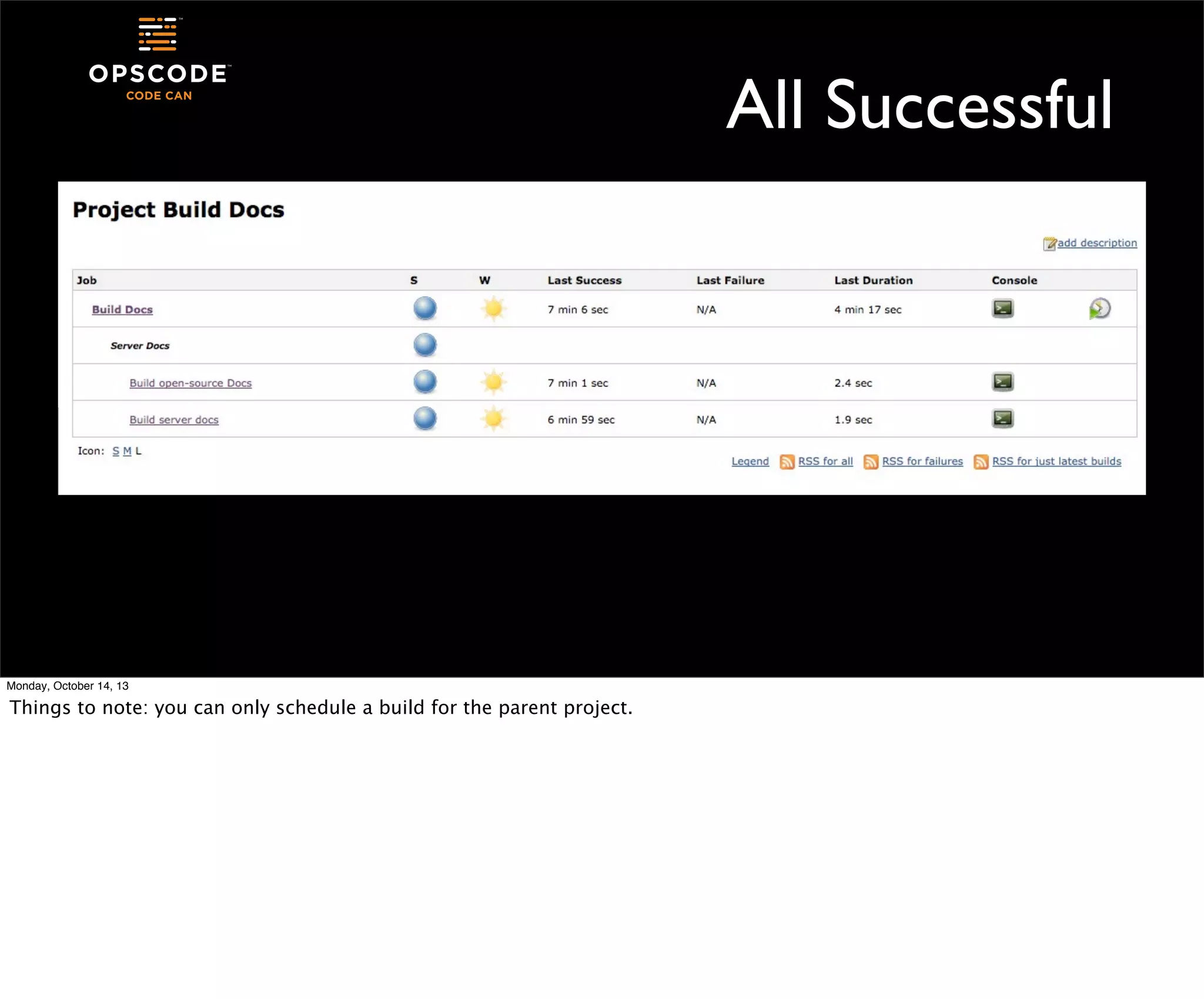

All Successful


Things to note: you can only schedule a build for the parent project.

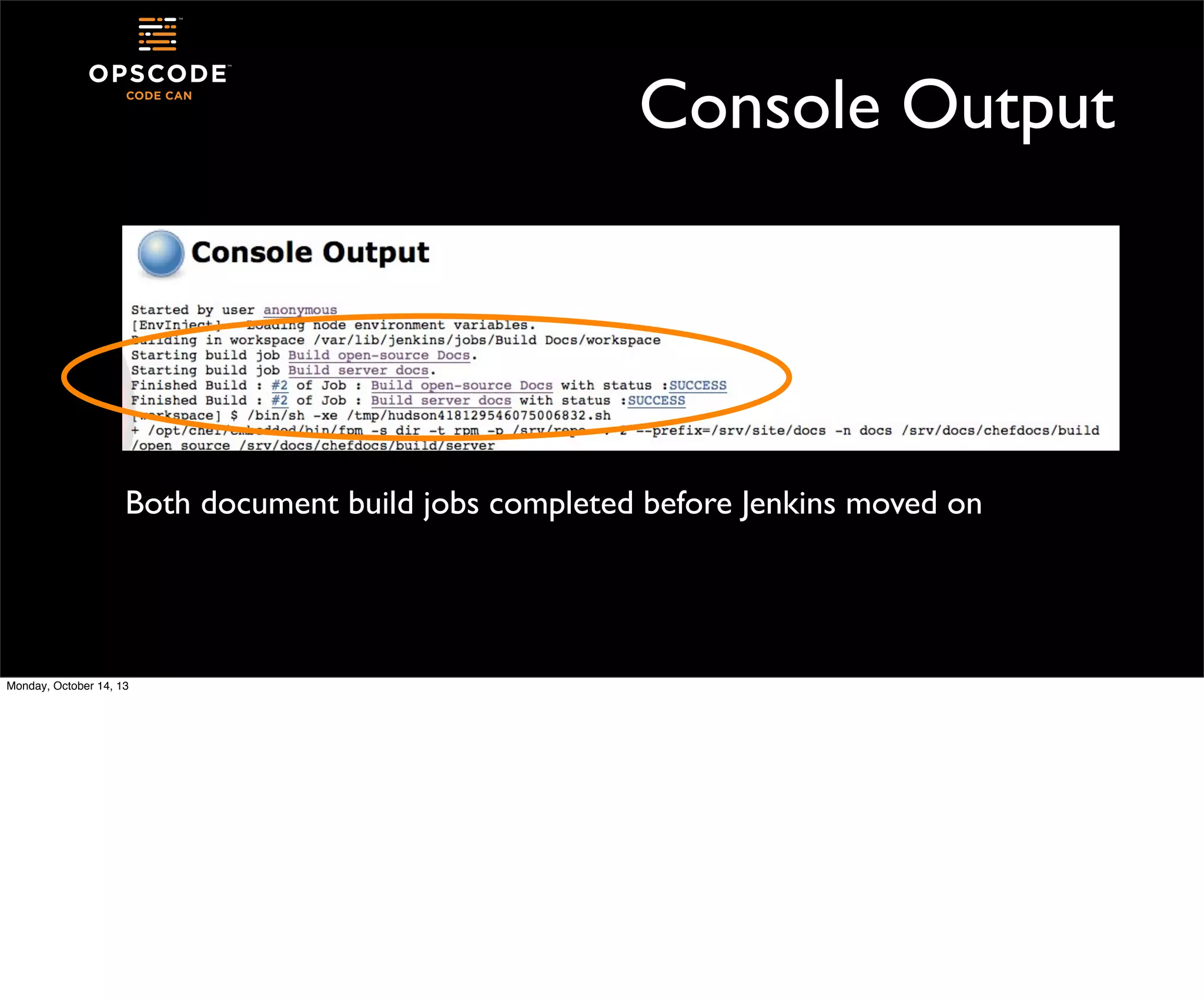

Console Output

Both document build jobs completed before Jenkins moved on

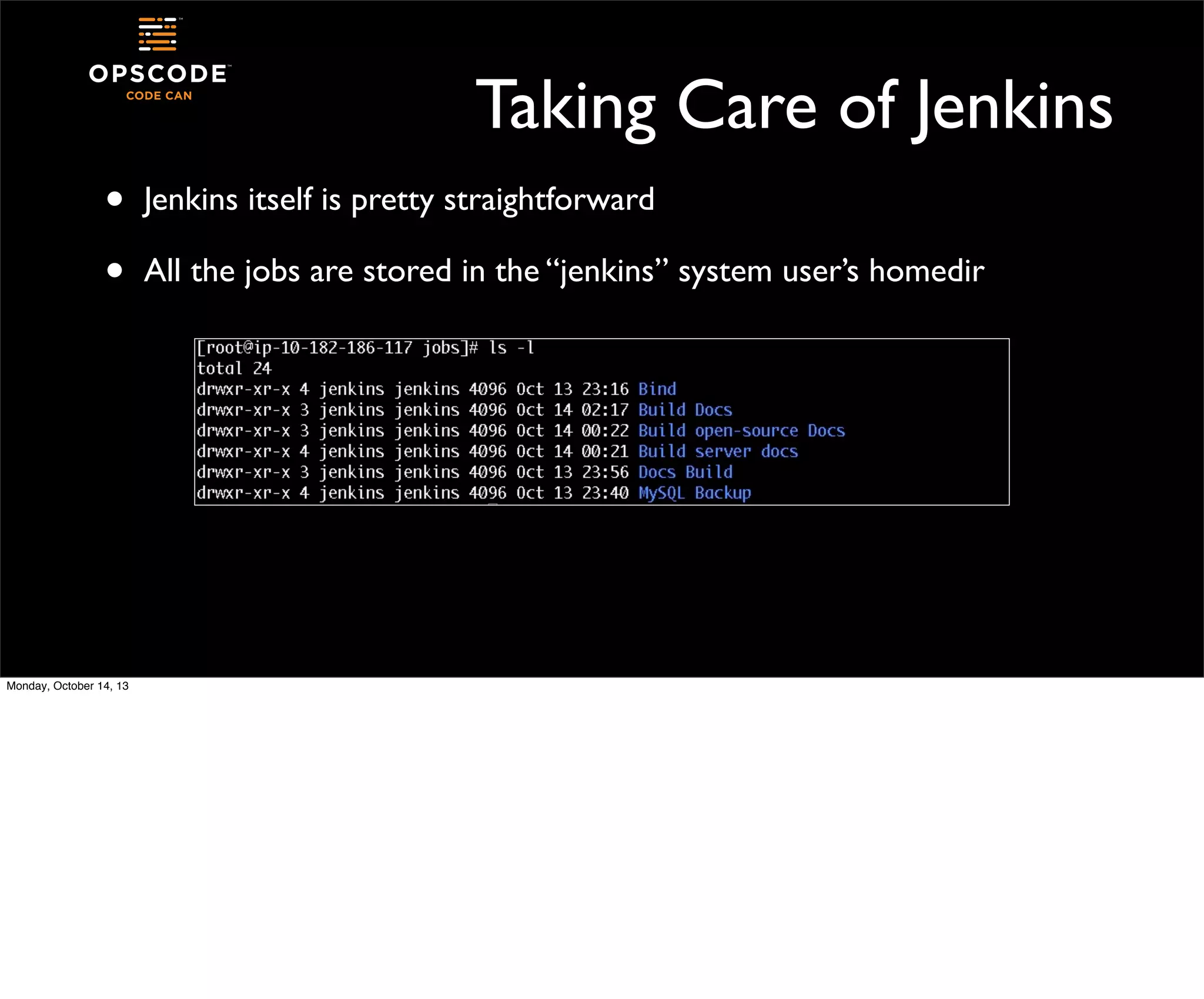

Taking Care of Jenkins
•
•


Jenkins itself is pretty straightforward
All the jobs are stored in the “jenkins” system user’s homedir

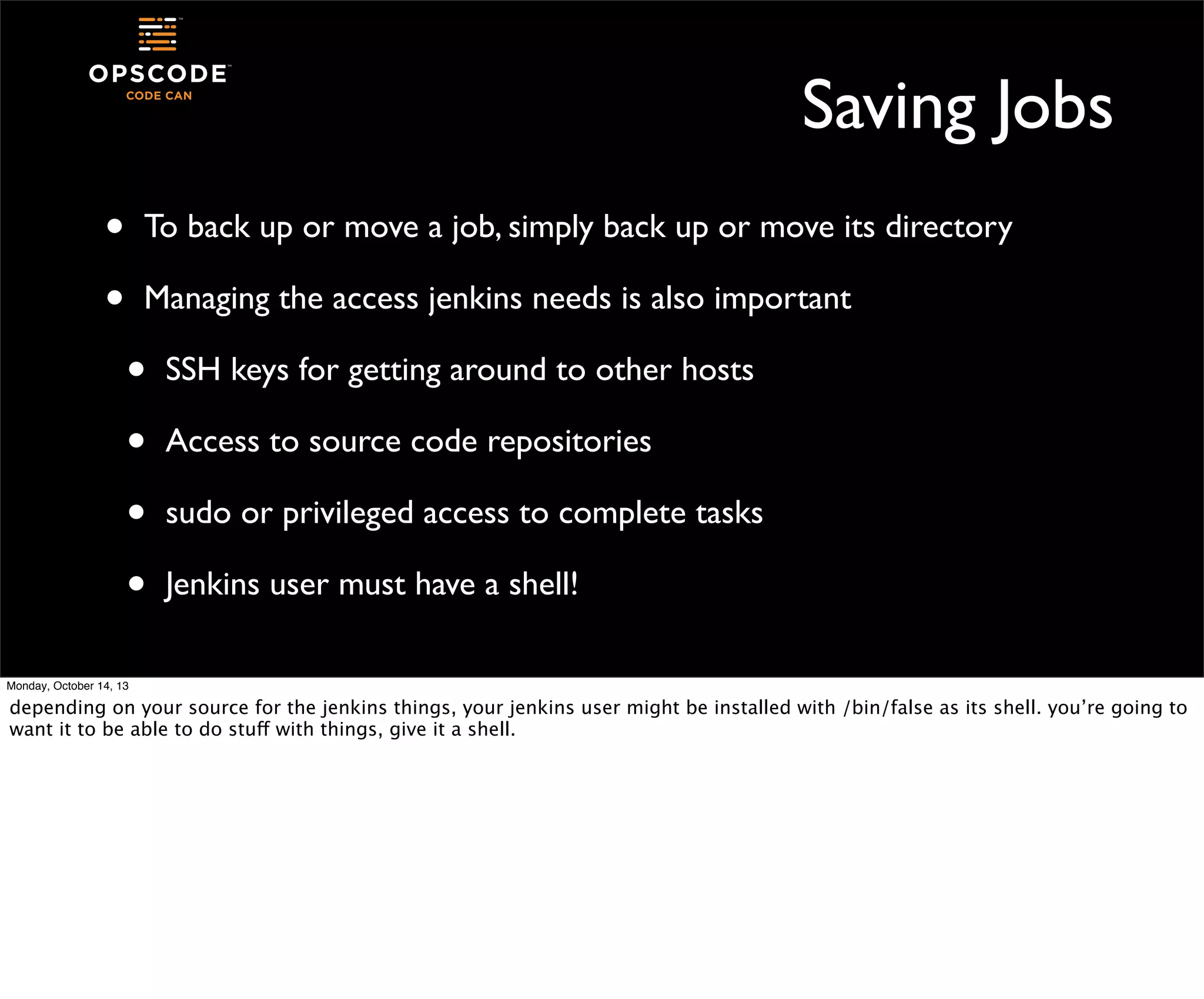

Saving Jobs
•
•

To back up or move a job, simply back up or move its directory
Managing the access jenkins needs is also important

•
•
•
•

SSH keys for getting around to other hosts
Access to source code repositories
sudo or privileged access to complete tasks
Jenkins user must have a shell!


depending on your source for the jenkins things, your jenkins user might be installed with /bin/false as its shell. you’re going to
want it to be able to do stuff with things, give it a shell.

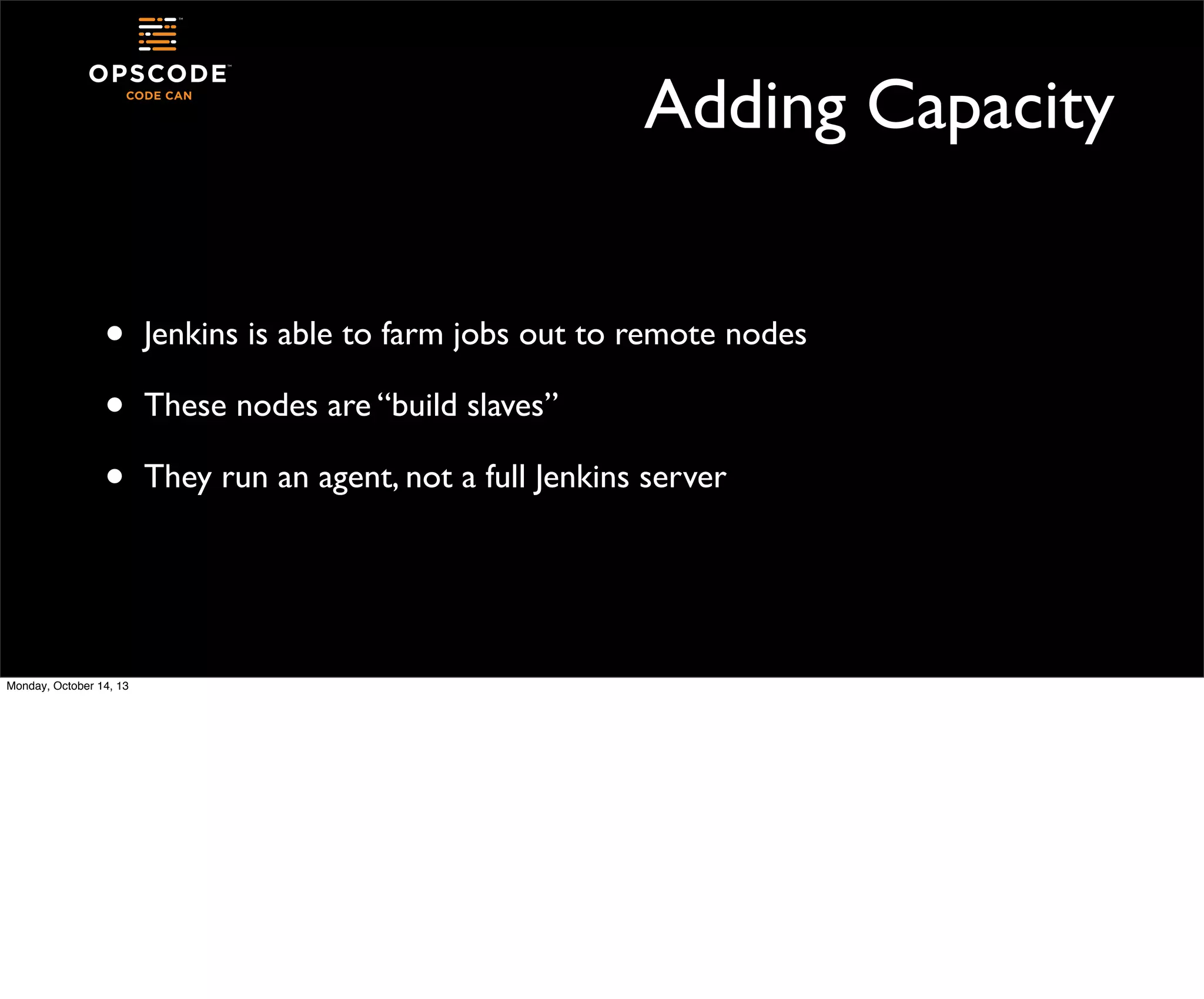

Adding Capacity
•
•
•


Jenkins is able to farm jobs out to remote nodes
These nodes are “build slaves”
They run an agent, not a full Jenkins server

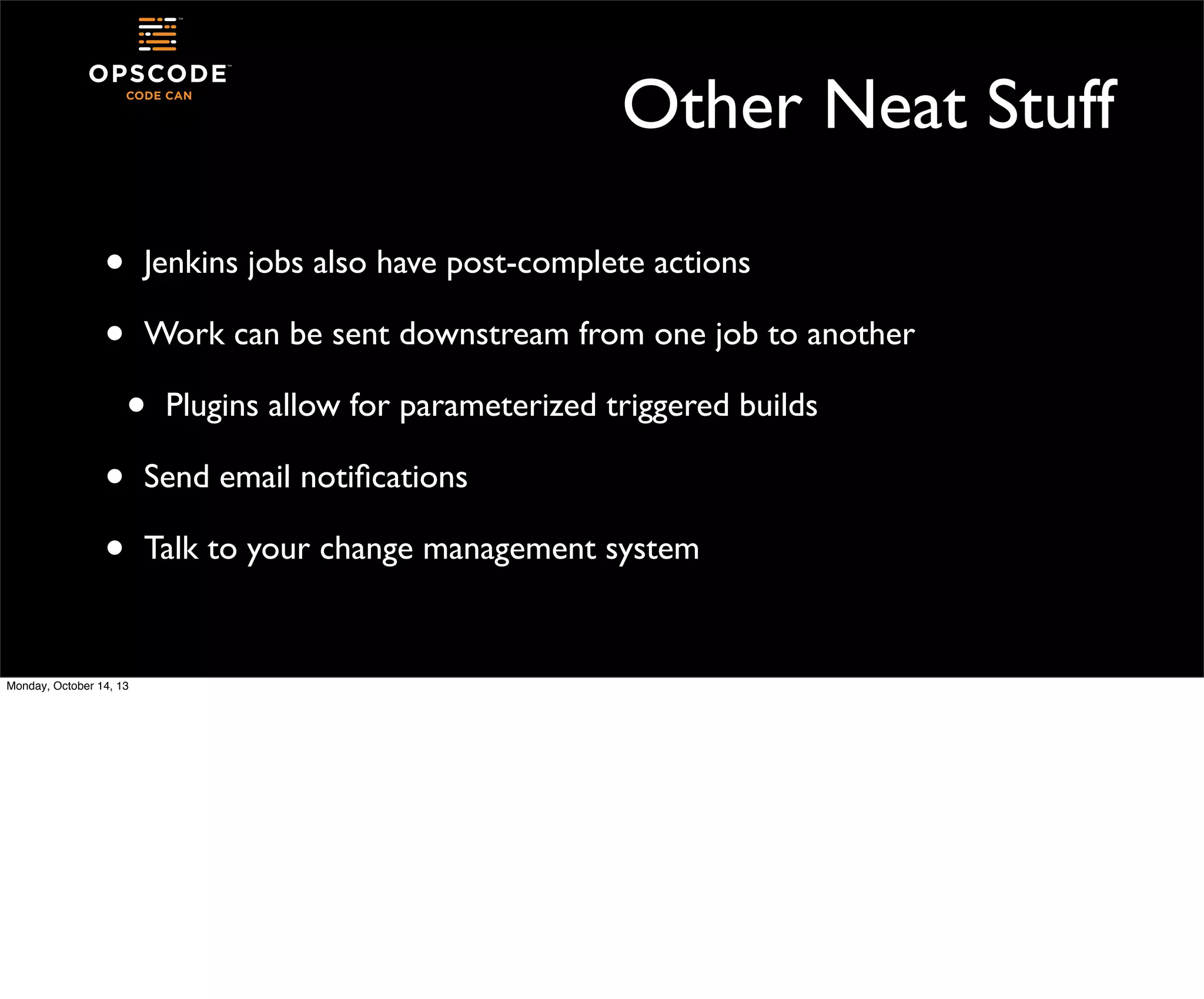

Other Neat Stuff
•
•

Jenkins jobs also have post-complete actions
Work can be sent downstream from one job to another

•
•
•

Plugins allow for parameterized triggered builds

Send email notiﬁcations
Talk to your change management system

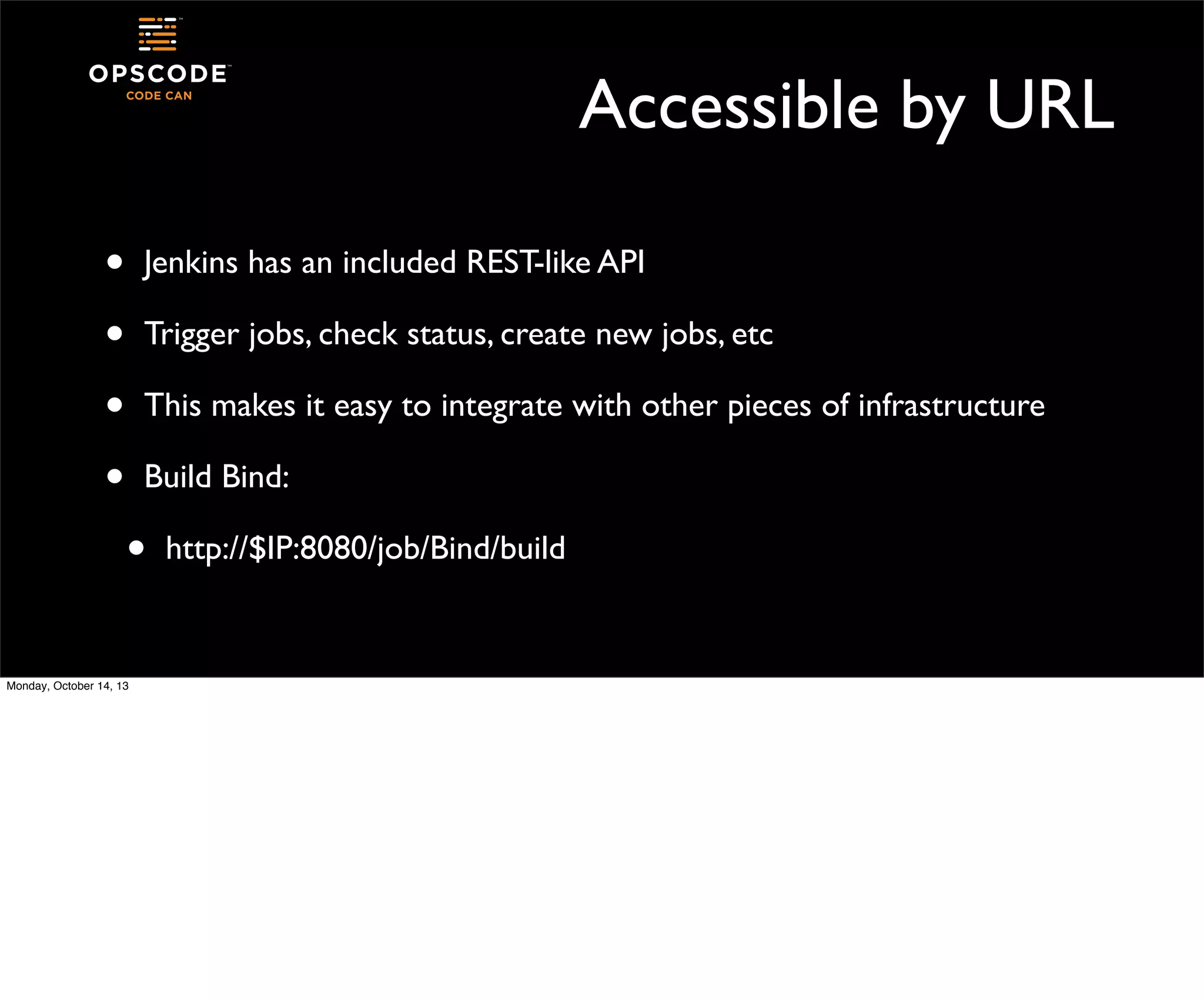

Accessible by URL
•
•
•
•

Jenkins has an included REST-like API
Trigger jobs, check status, create new jobs, etc
This makes it easy to integrate with other pieces of infrastructure
Build Bind:

•

http://$IP:8080/job/Bind/build

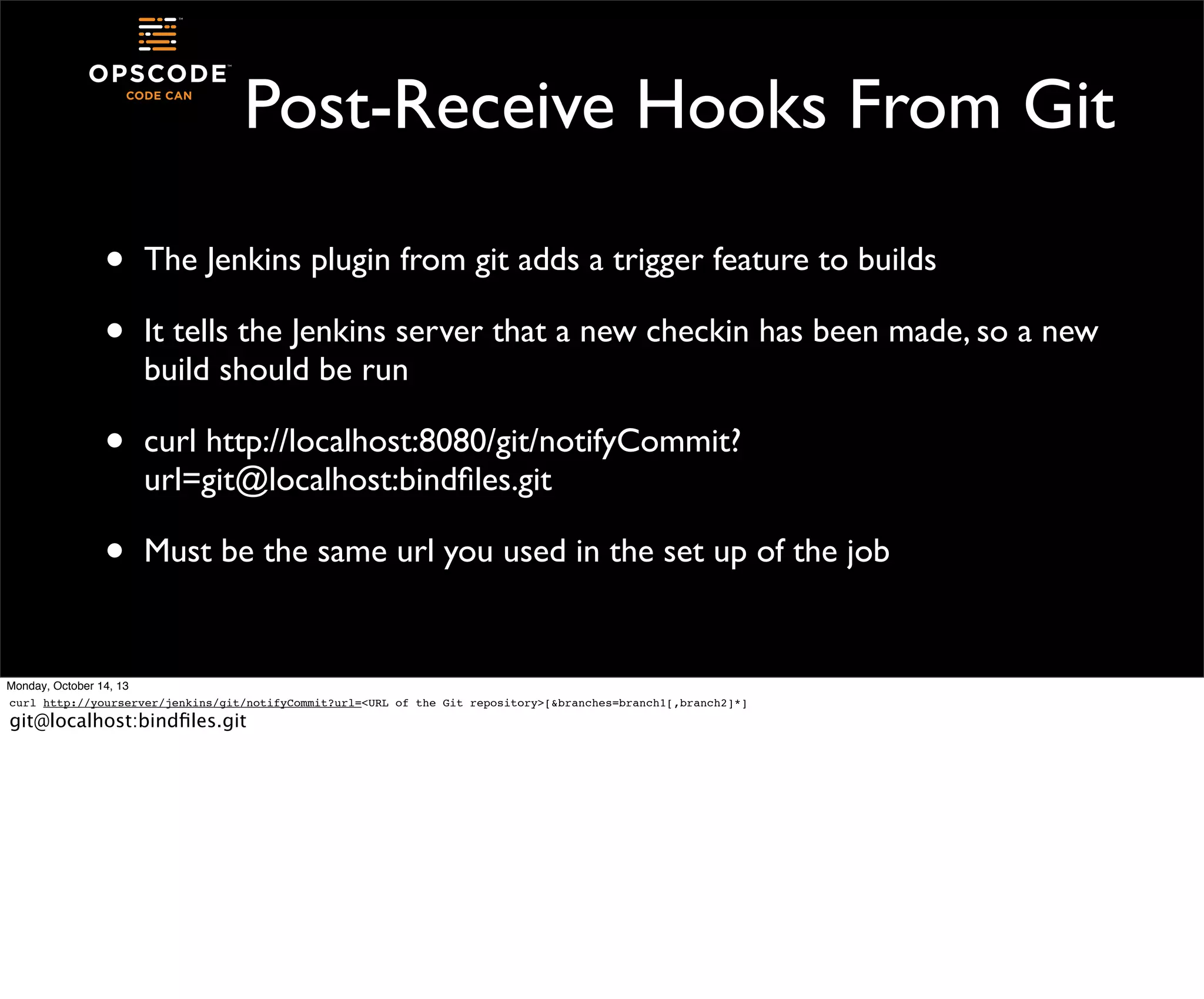

Post-Receive Hooks From Git
•
•

The Jenkins plugin from git adds a trigger feature to builds

•

curl http://localhost:8080/git/notifyCommit?
url=git@localhost:bindﬁles.git

•

Must be the same url you used in the set up of the job

It tells the Jenkins server that a new checkin has been made, so a new
build should be run

curl http://yourserver/jenkins/git/notifyCommit?url=<URL of the Git repository>[&branches=branch1[,branch2]*]

git@localhost:bindﬁles.git

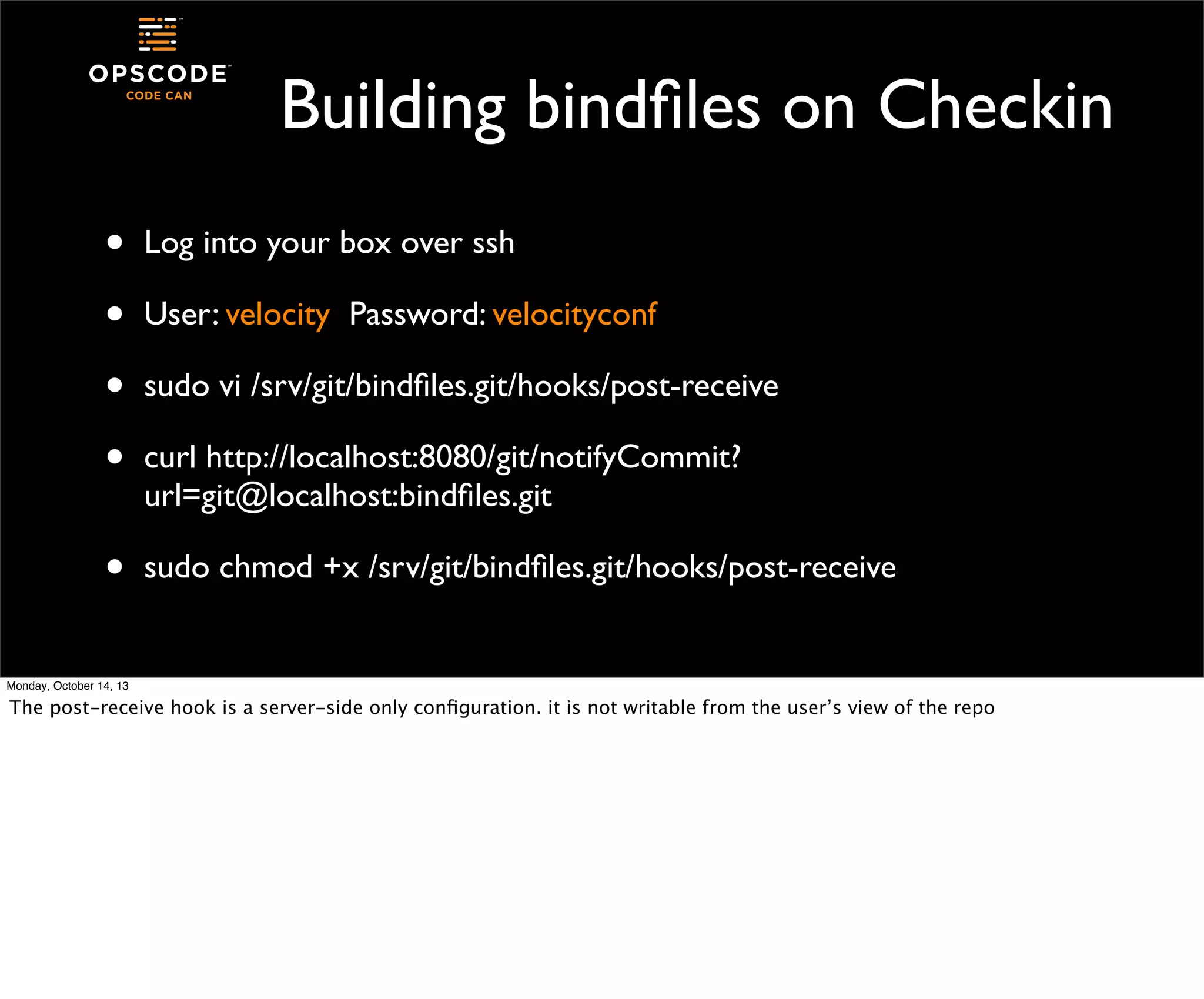

Building bindfiles on Checkin
•
•
•
•

Log into your box over ssh

•

sudo chmod +x /srv/git/bindfiles.git/hooks/post-receive

User: velocity Password: velocityconf
sudo vi /srv/git/bindfiles.git/hooks/post-receive
curl http://localhost:8080/git/notifyCommit?
url=git@localhost:bindfiles.git


The post-receive hook is a server-side only configuration. it is not writable from the user’s view of the repo

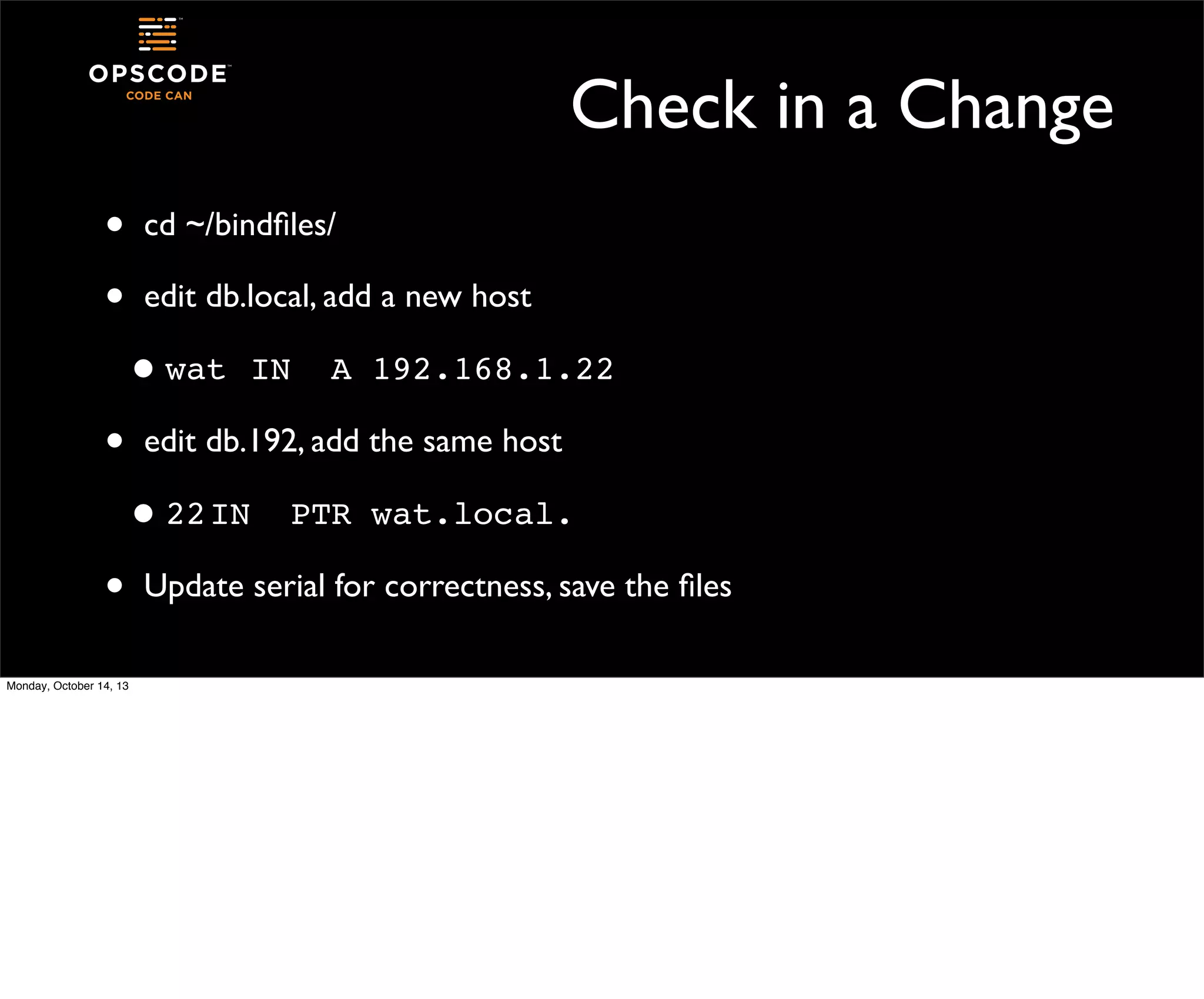

Check in a Change
•
•

cd ~/bindﬁles/
edit db.local, add a new host

• wat!IN!
•

A!192.168.1.22

edit db.192, add the same host
I
• 22! N!

•

PTR!wat.local.

Update serial for correctness, save the ﬁles

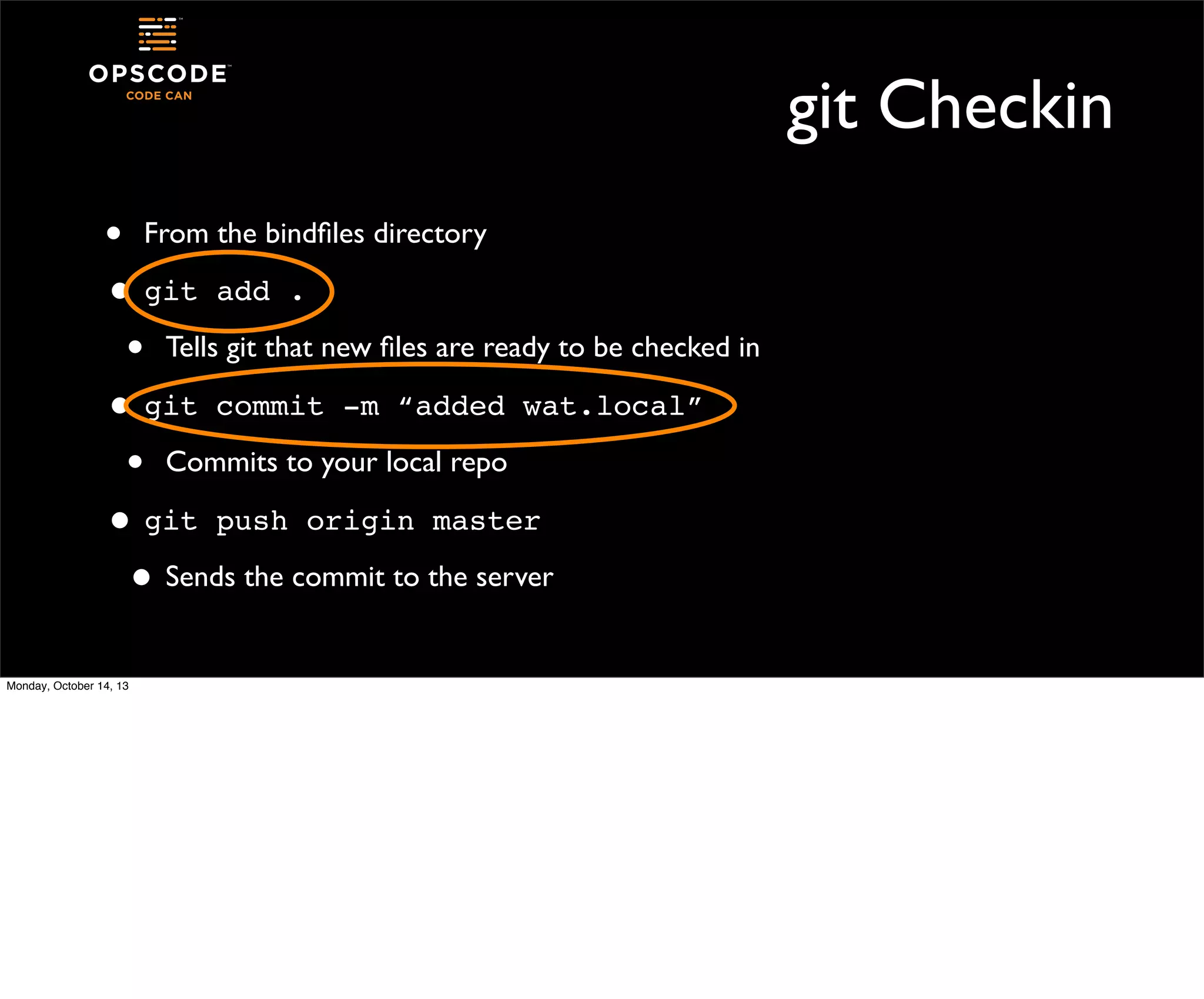

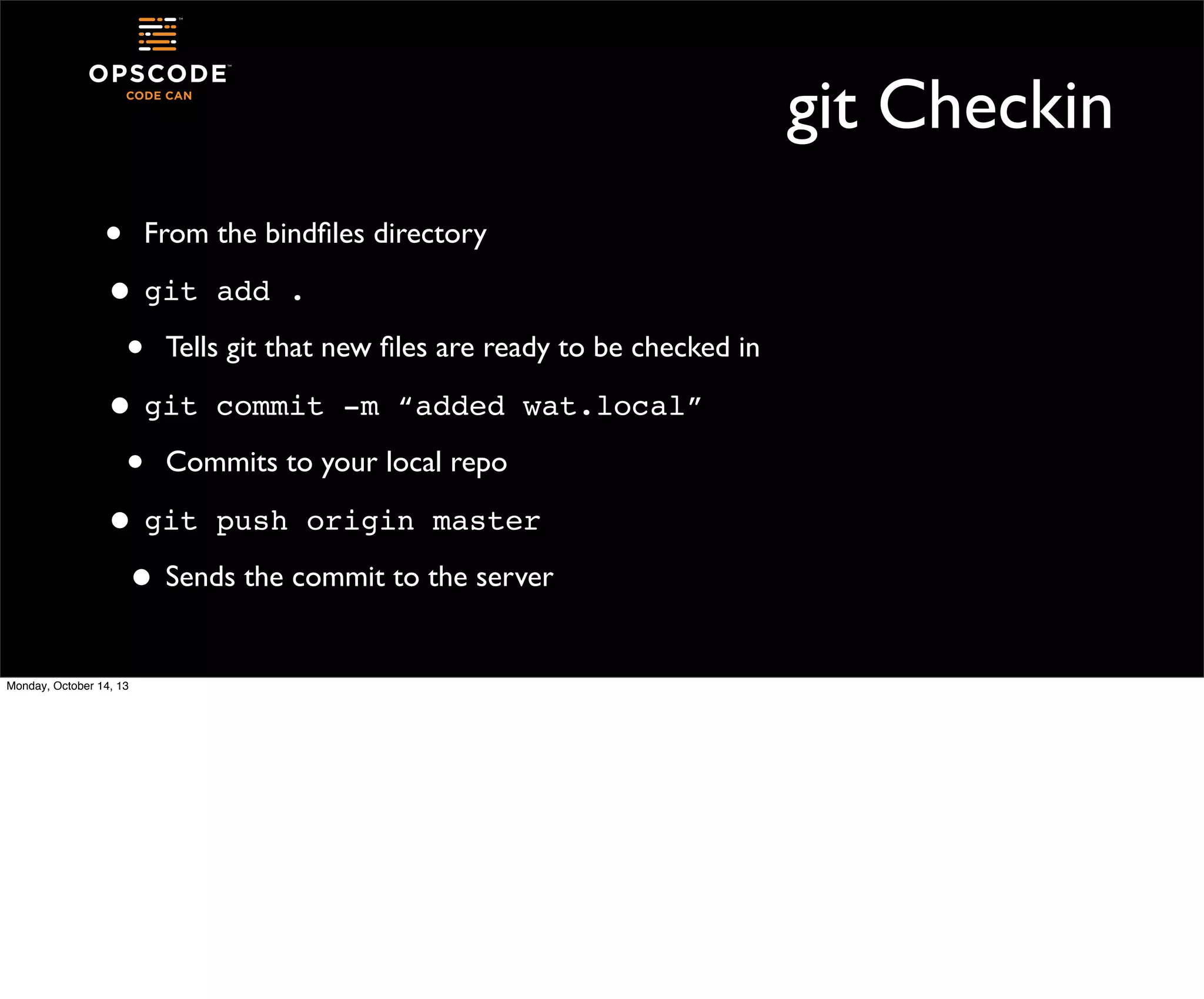

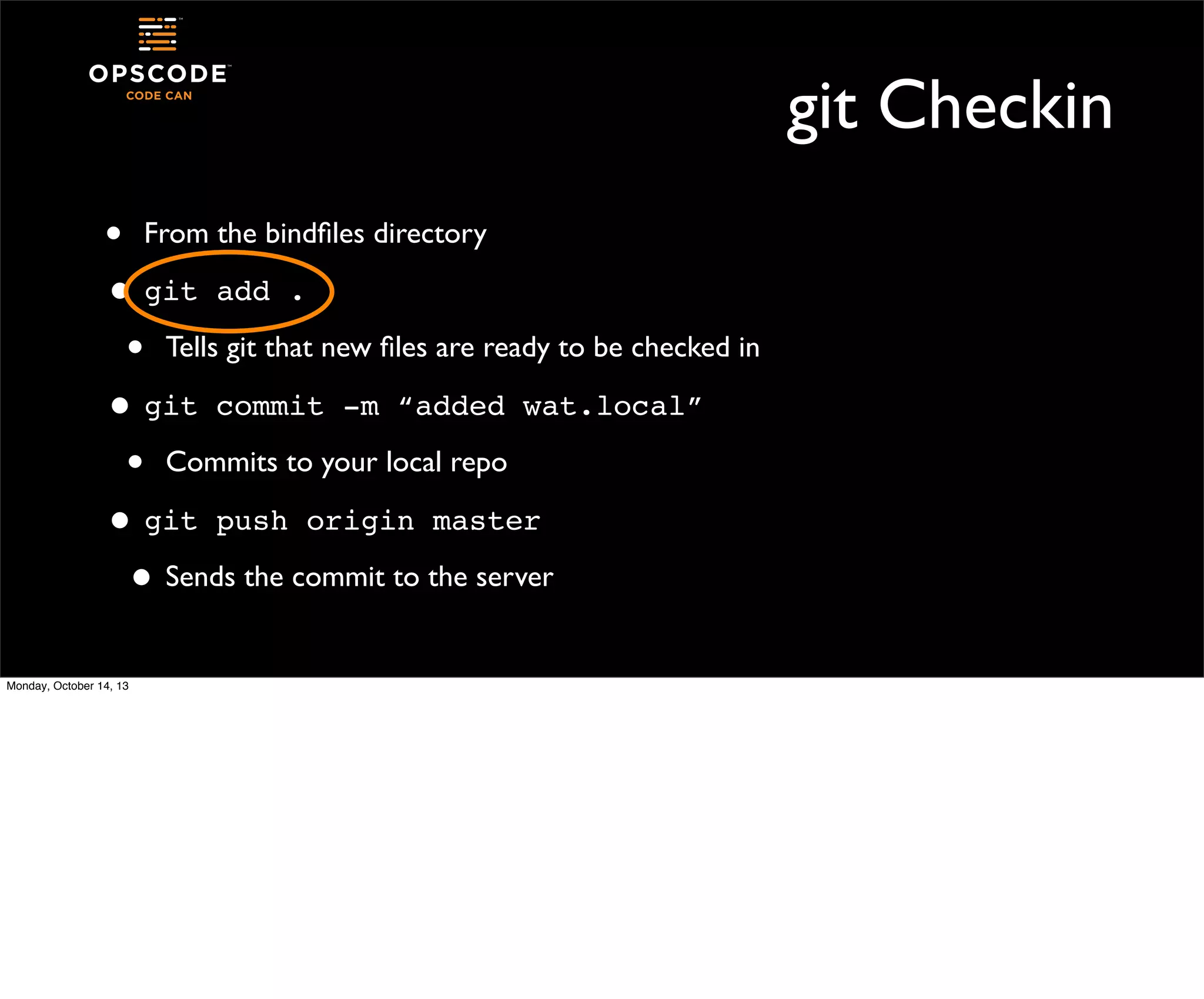

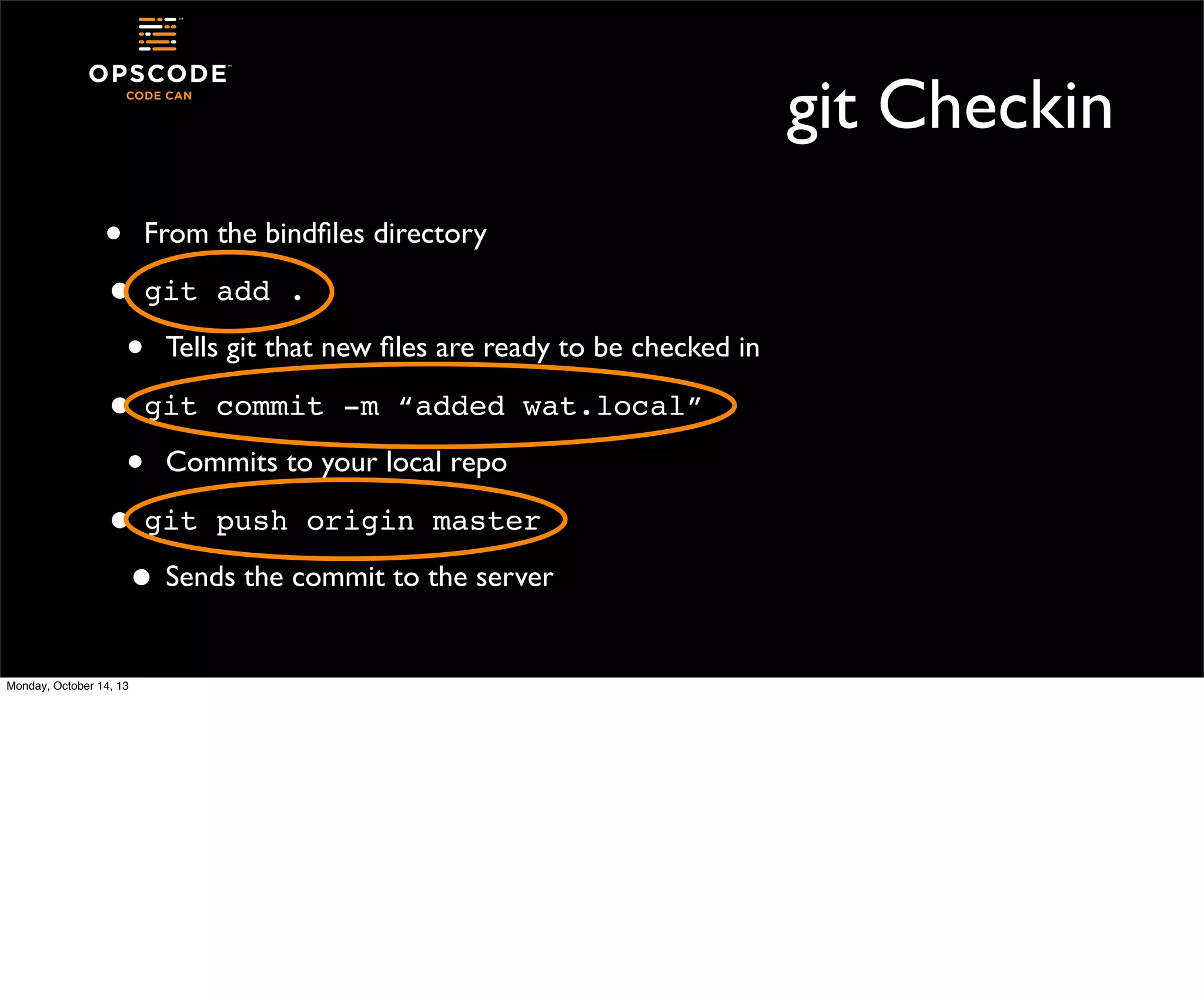

git Checkin
• From the bindﬁles directory
• git add .
• Tells git that new ﬁles are ready to be checked in
• git commit -m “added wat.local”
• Commits to your local repo
• git push origin master
• Sends the commit to the server

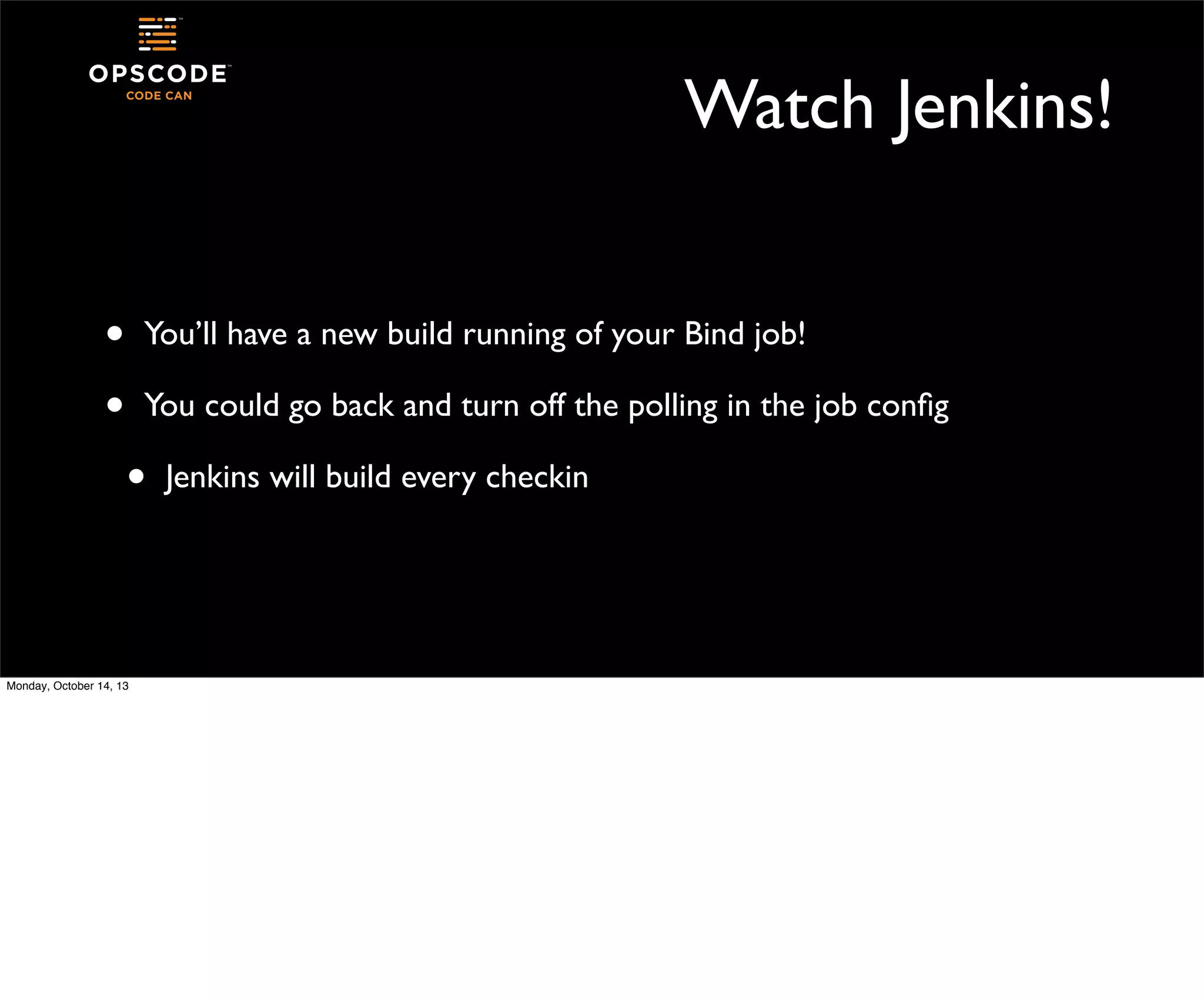

Watch Jenkins!
•
•

You’ll have a new build running of your Bind job!
You could go back and turn off the polling in the job conﬁg

•


Jenkins will build every checkin

Dude.

We are so totally continuously deploying all the things.

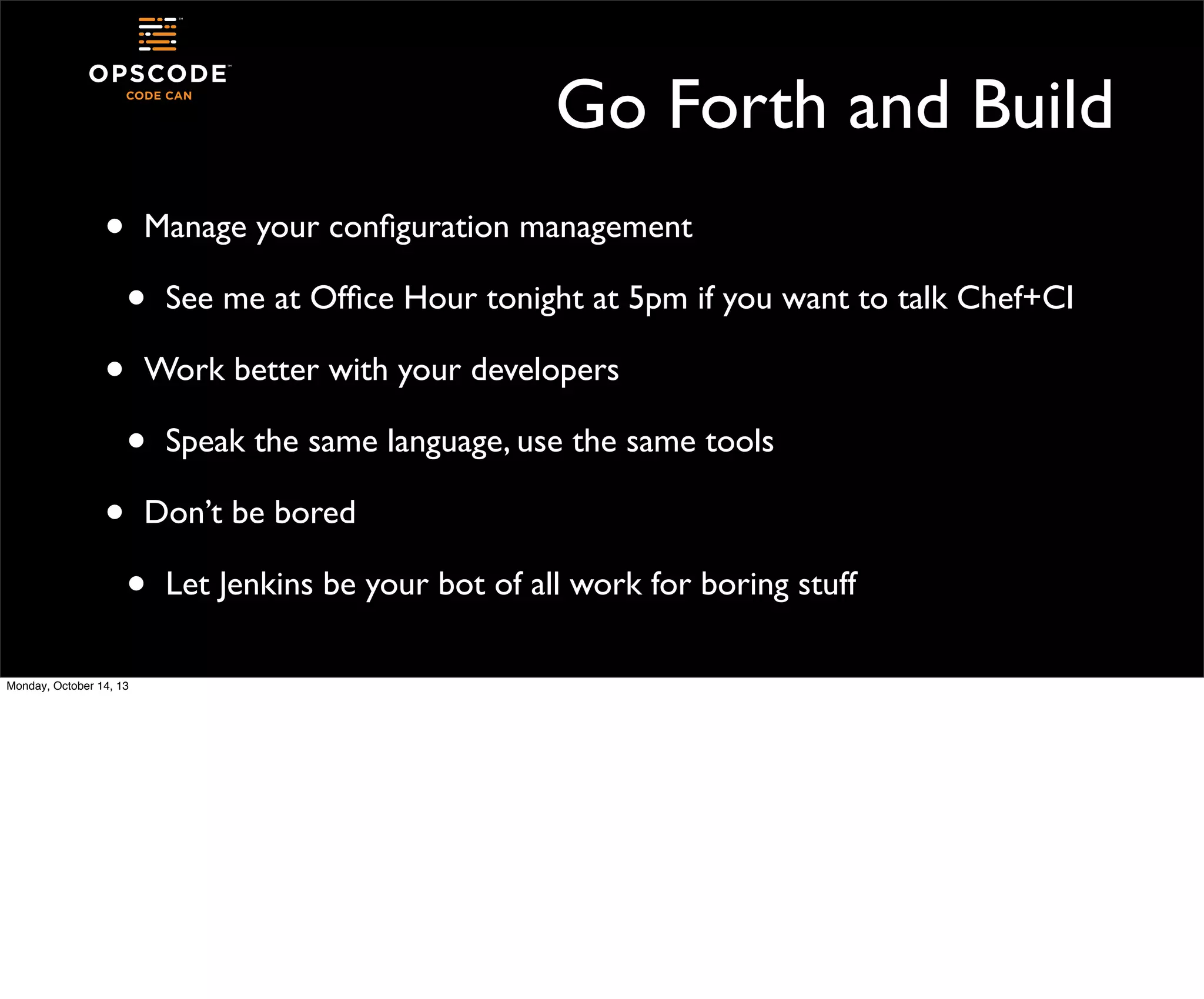

Go Forth and Build
•

Manage your conﬁguration management

•
•

See me at Ofﬁce Hour tonight at 5pm if you want to talk Chef+CI

Work better with your developers

•
•

Speak the same language, use the same tools

Don’t be bored

•

Let Jenkins be your bot of all work for boring stuff

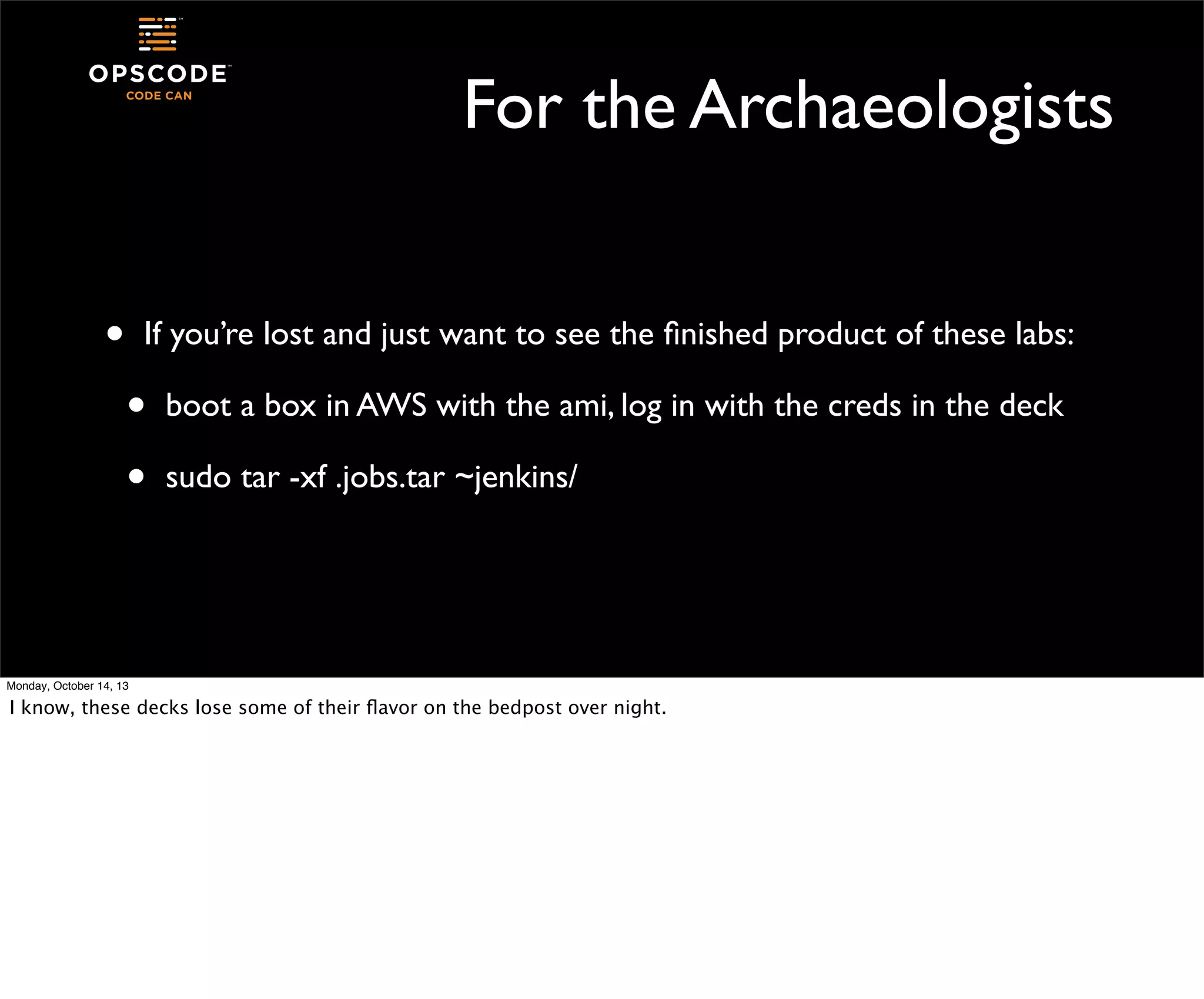

For the Archaeologists
•

If you’re lost and just want to see the ﬁnished product of these labs:

•
•

boot a box in AWS with the ami, log in with the creds in the deck
sudo tar -xf .jobs.tar ~jenkins/


I know, these decks lose some of their ﬂavor on the bedpost over night.

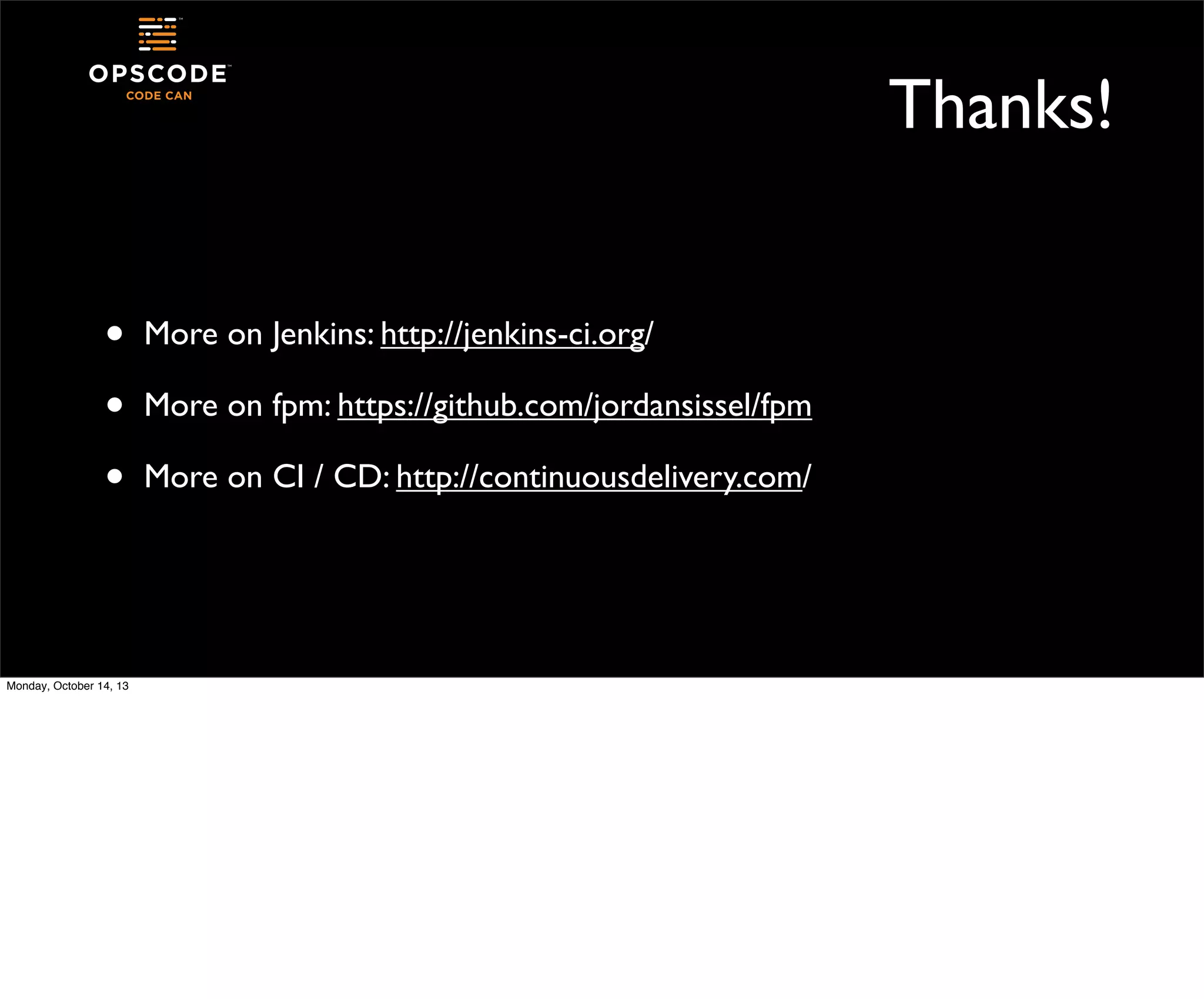

Thanks!
•
•
•


More on Jenkins: http://jenkins-ci.org/
More on fpm: https://github.com/jordansissel/fpm
More on CI / CD: http://continuousdelivery.com/

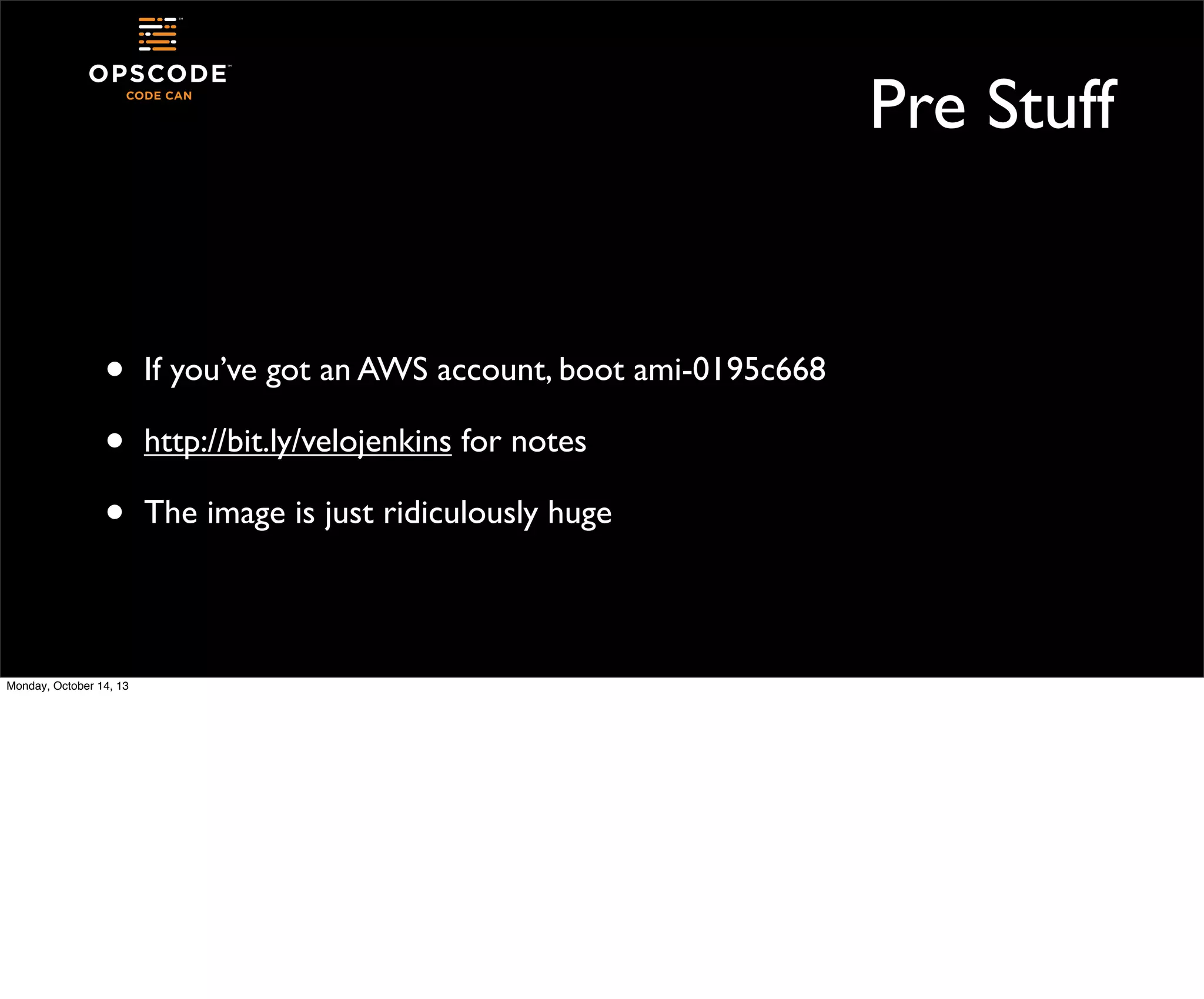

Pre Stuff

•
•
•

If you’ve got an AWS account, boot ami-0195c668
http://bit.ly/velojenkins for notes
The image is just ridiculously huge

At Your Service: Using Jenkins in Operations

More Related Content

What's hot

Viewers also liked

Similar to At Your Service: Using Jenkins in Operations

More from Mandi Walls

Recently uploaded

At Your Service: Using Jenkins in Operations
