1. by Anton Egorov
July 2016
Deliver Python Apps
with Docker

2. Who am I?
• Software Engineer, 10 years in web development
• Scripting mostly with Python
• 2 years using Docker, dockerized about 50
apps, 80% of them were Python apps
• Ex Lead Developer at ostrovok.ru
• CTO and Founder at sabaka.io

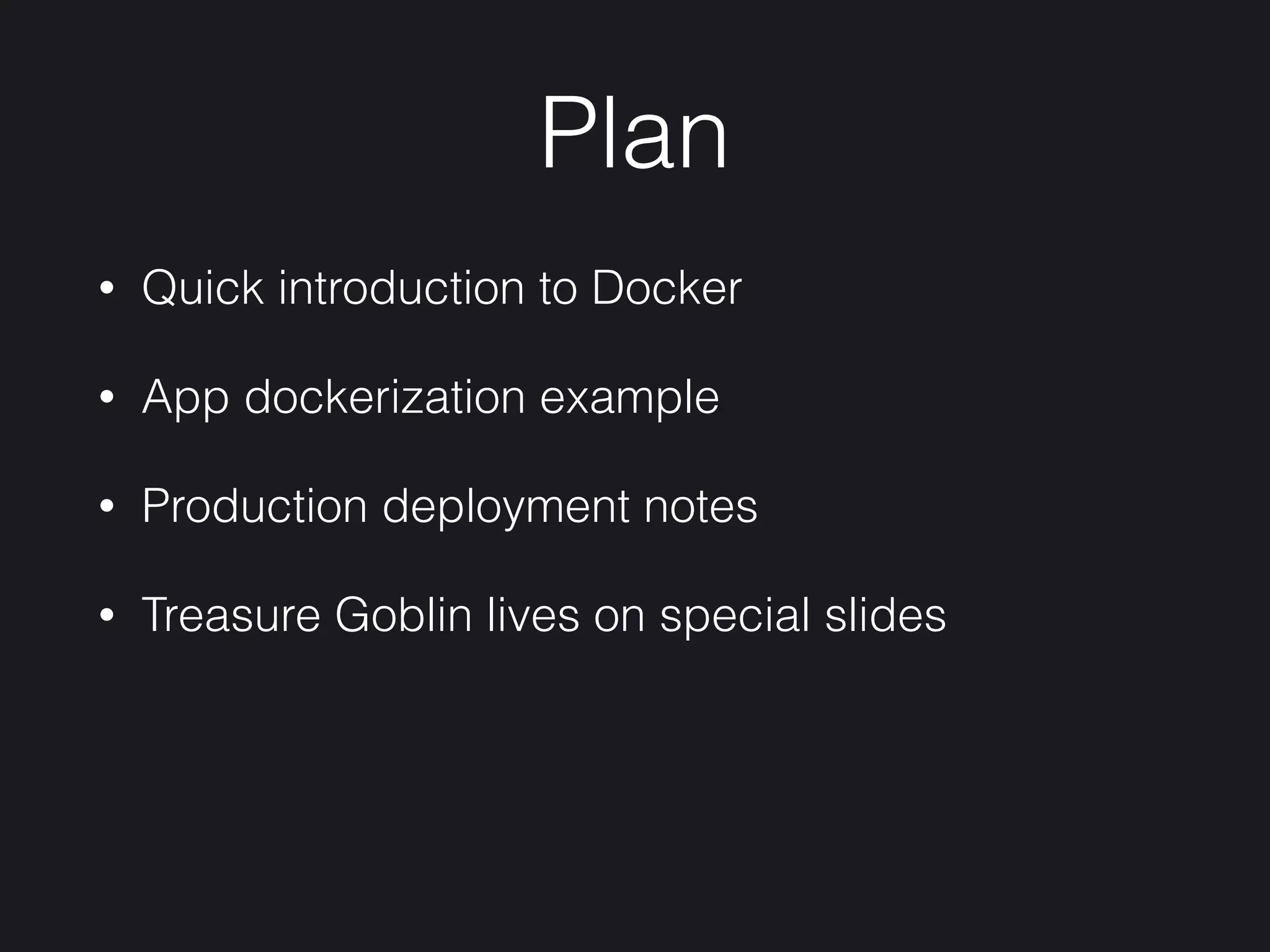

3. Plan
• Quick introduction to Docker
• App dockerization example
• Production deployment notes
• Treasure Goblin lives on special slides

4. Docker in a few slides

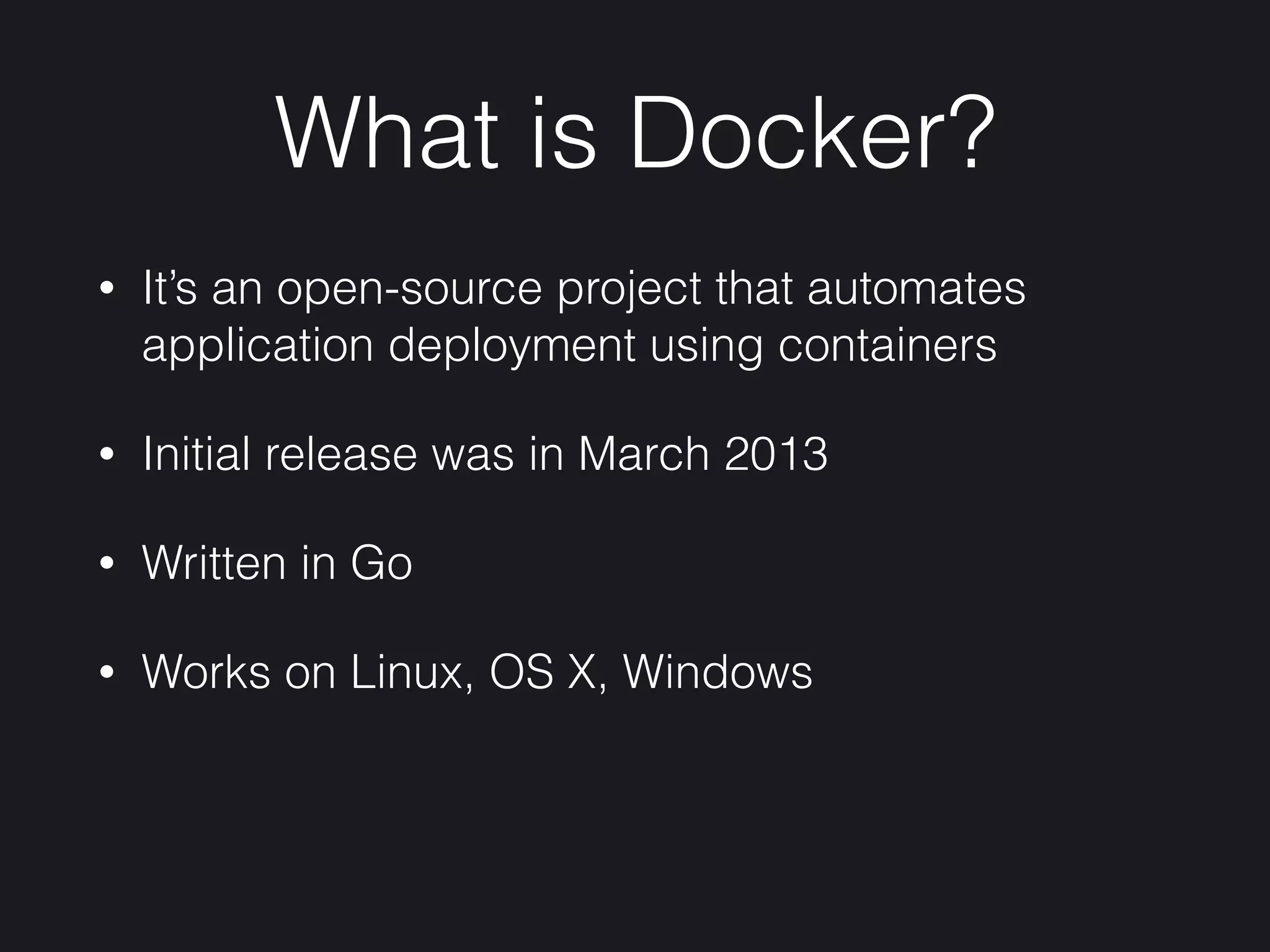

5. What is Docker?
• It’s an open-source project that automates
application deployment using containers
• Initial release was in March 2013
• Written in Go
• Works on Linux, OS X, Windows

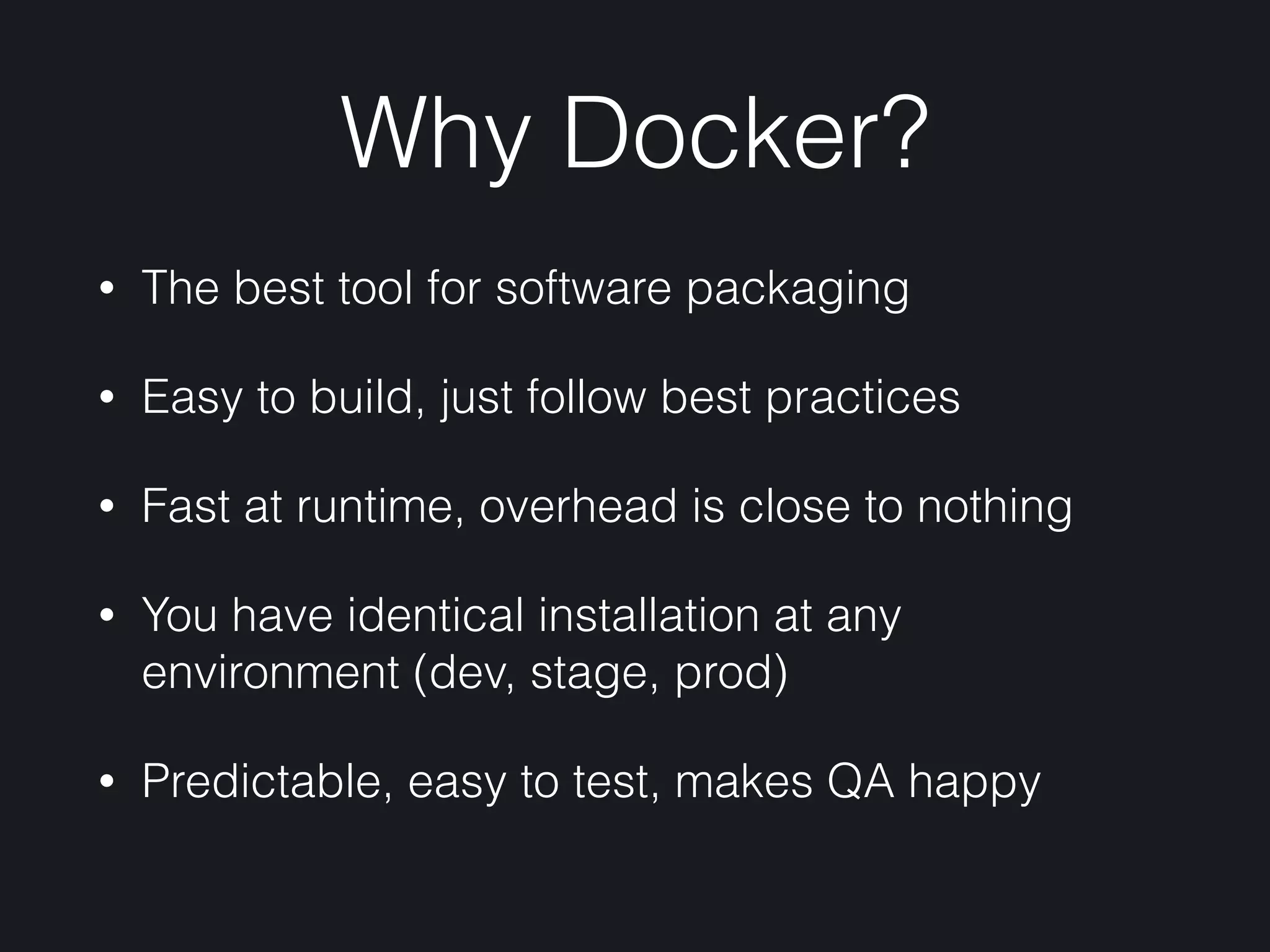

6. Why Docker?
• The best tool for software packaging
• Easy to build, just follow best practices
• Fast at runtime, overhead is close to nothing
• You have identical installation at any
environment (dev, stage, prod)
• Predictable, easy to test, makes QA happy

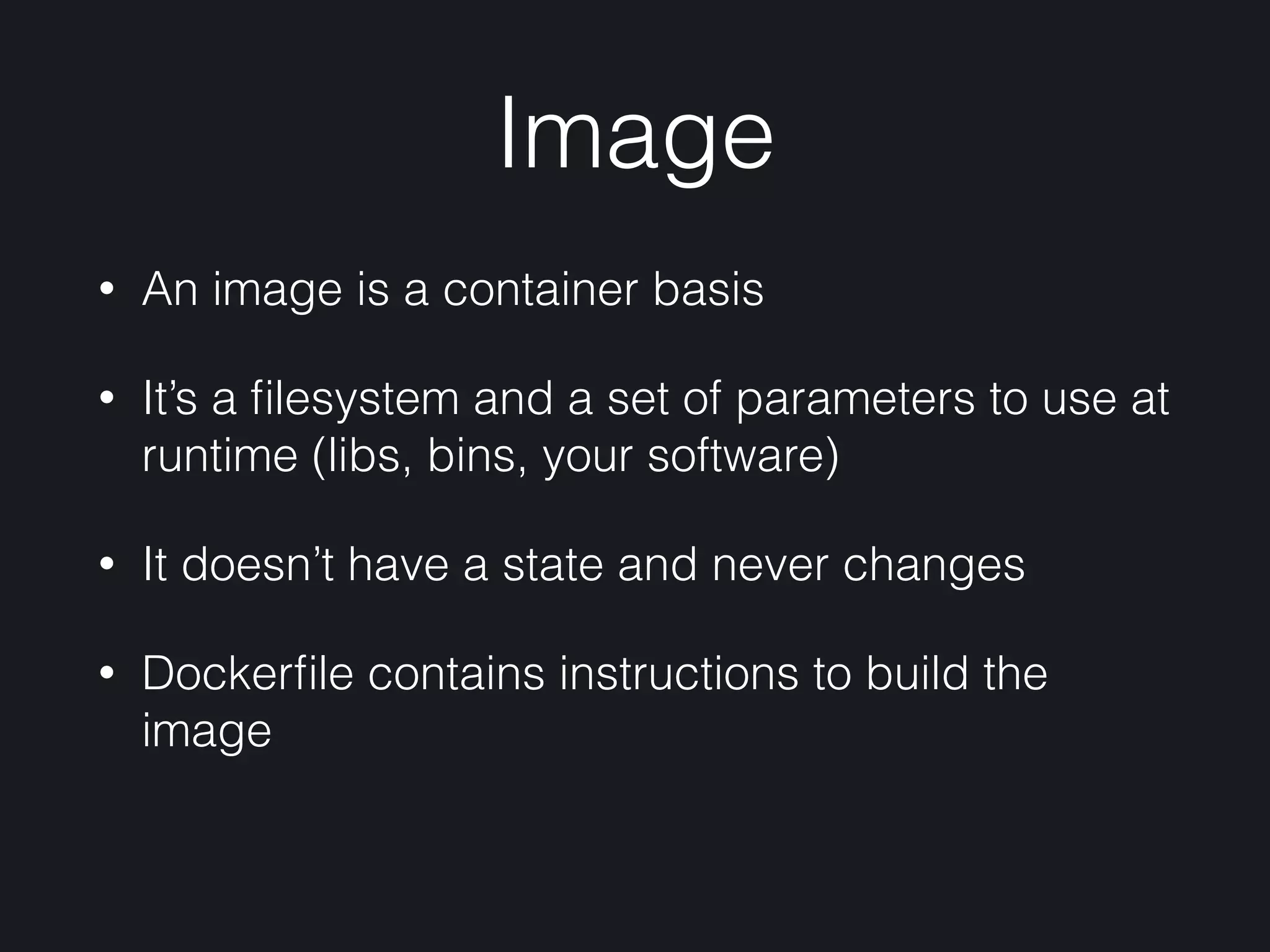

7. Image
• An image is a container basis
• It’s a filesystem and a set of parameters to use at
runtime (libs, bins, your software)
• It doesn’t have a state and never changes
• Dockerfile contains instructions to build the

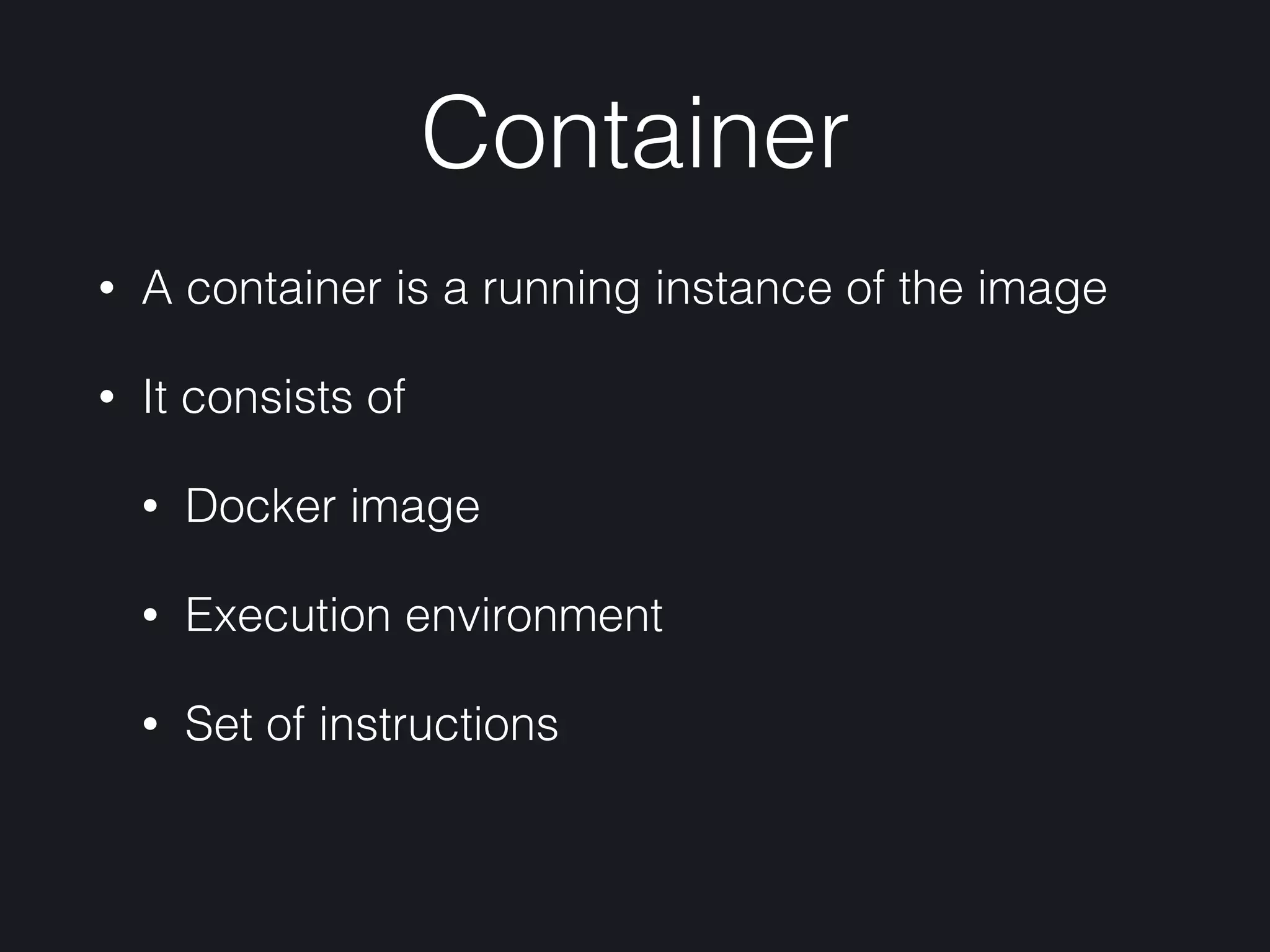

8. Container
• A container is a running instance of the image
• It consists of
• Docker image
• Execution environment
• Set of instructions

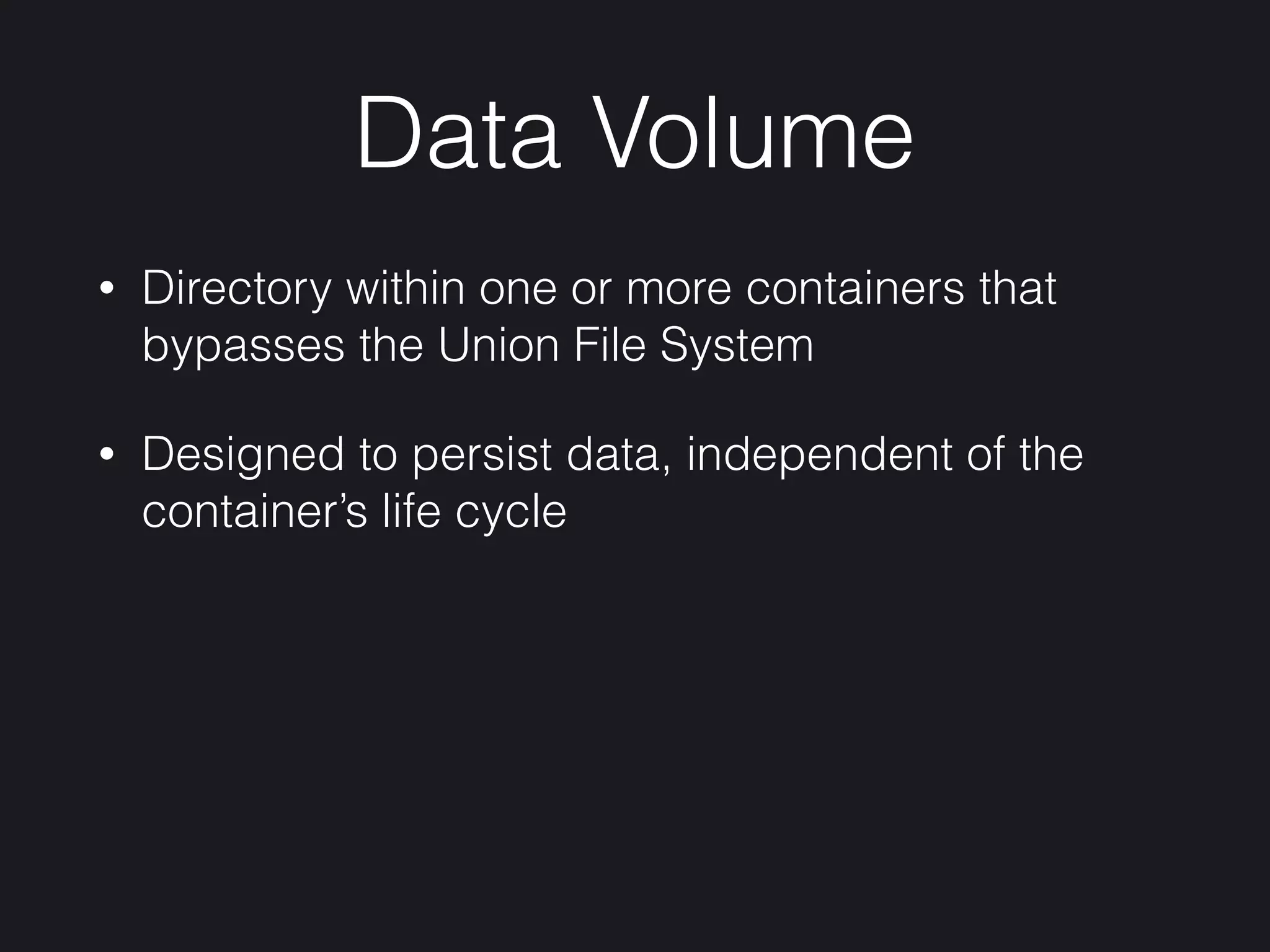

9. Data Volume
• Directory within one or more containers that
bypasses the Union File System
• Designed to persist data, independent of the
container’s life cycle

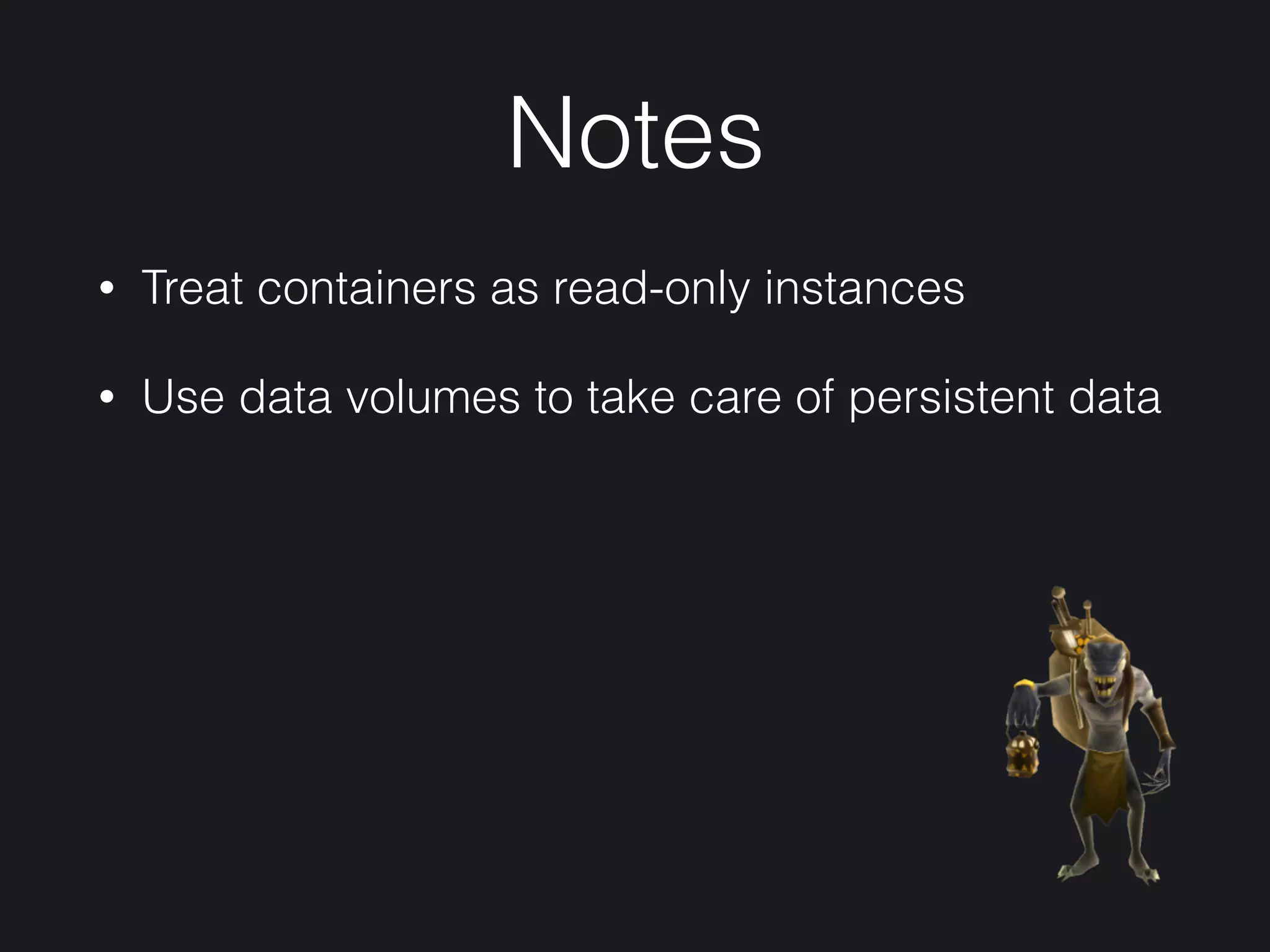

10. Notes
• Treat containers as read-only instances
• Use data volumes to take care of persistent data

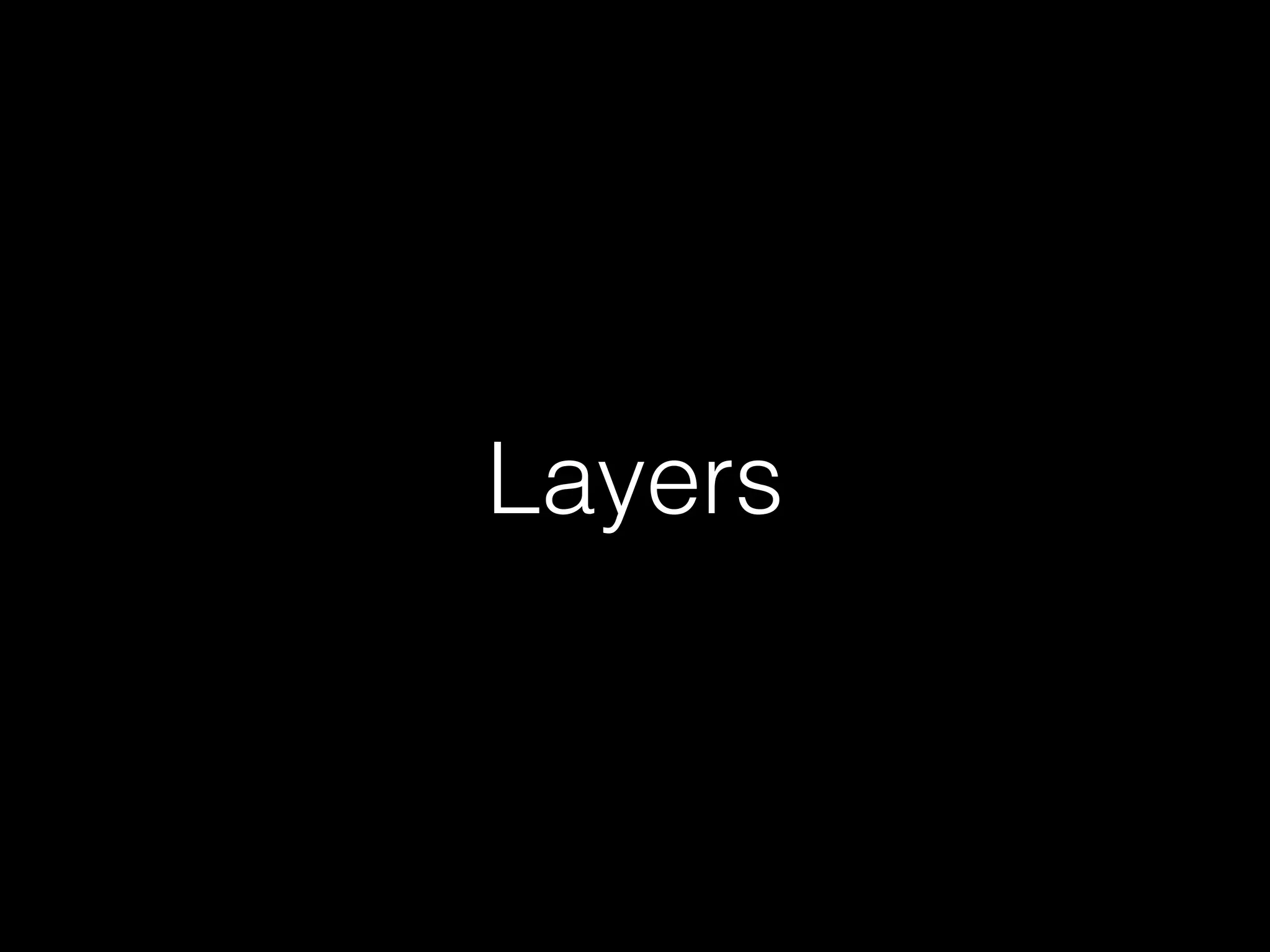

11. Layers

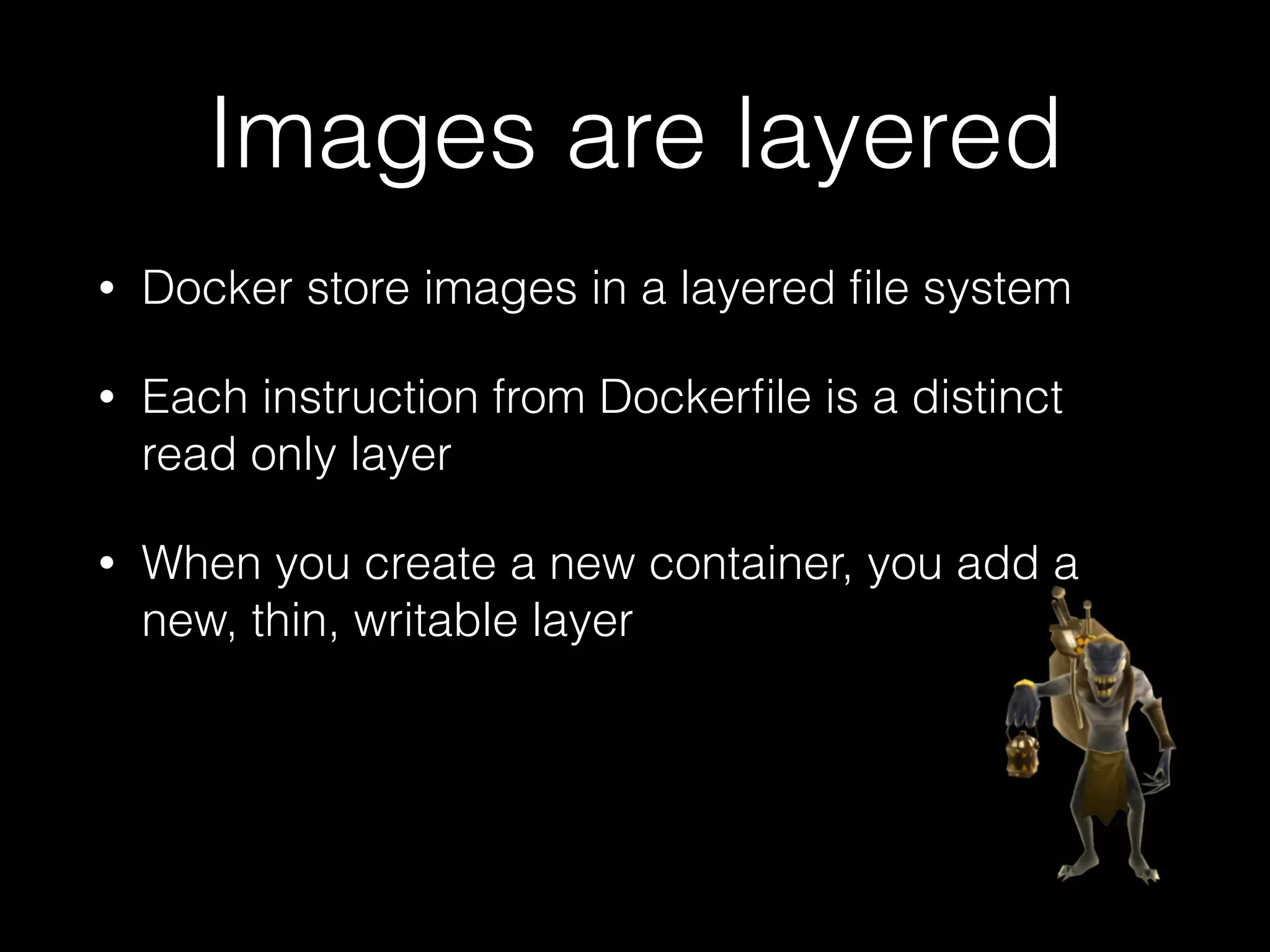

12. Images are layered
• Docker store images in a layered file system
• Each instruction from Dockerfile is a distinct
read only layer
• When you create a new container, you add a
new, thin, writable layer

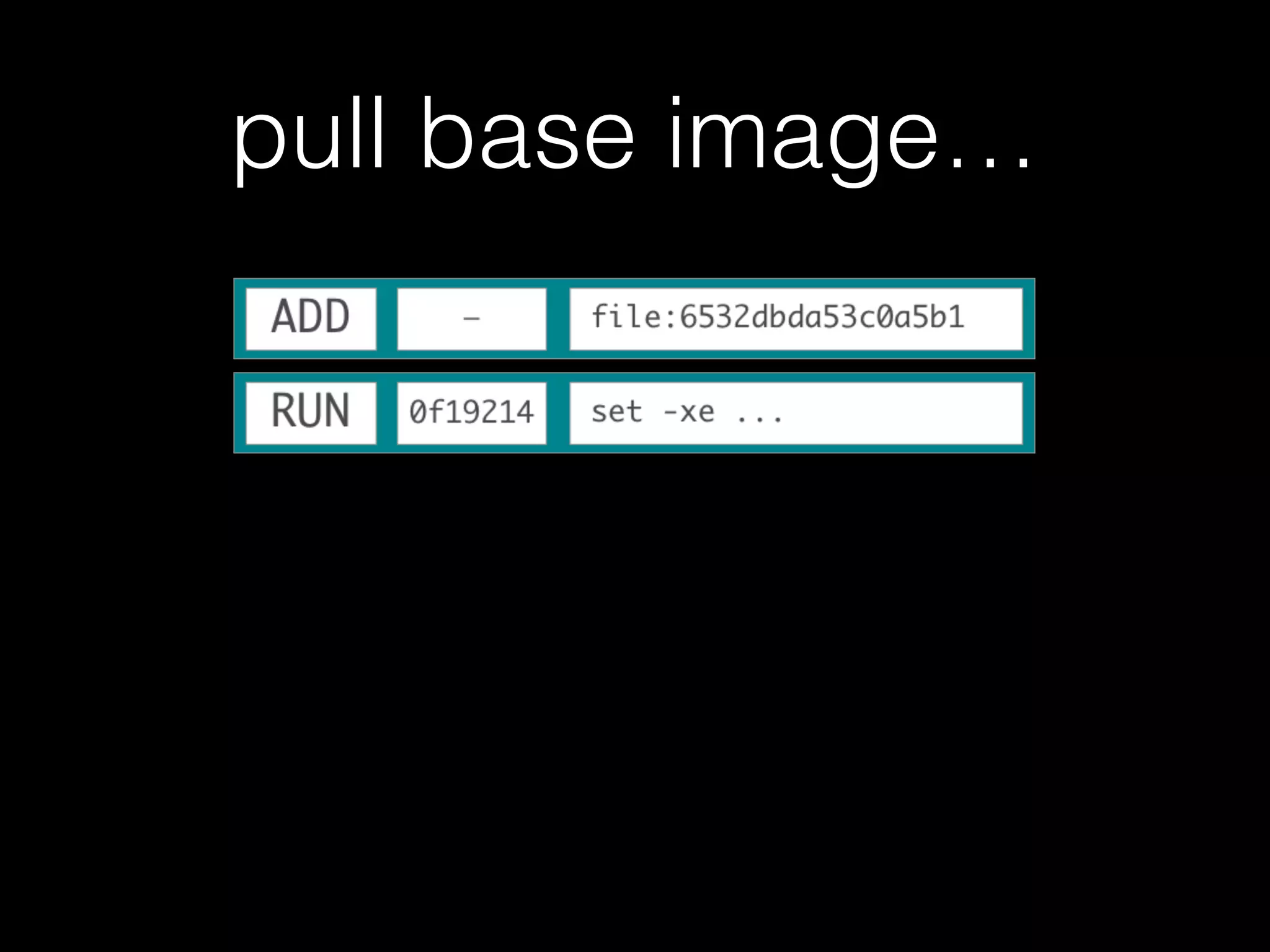

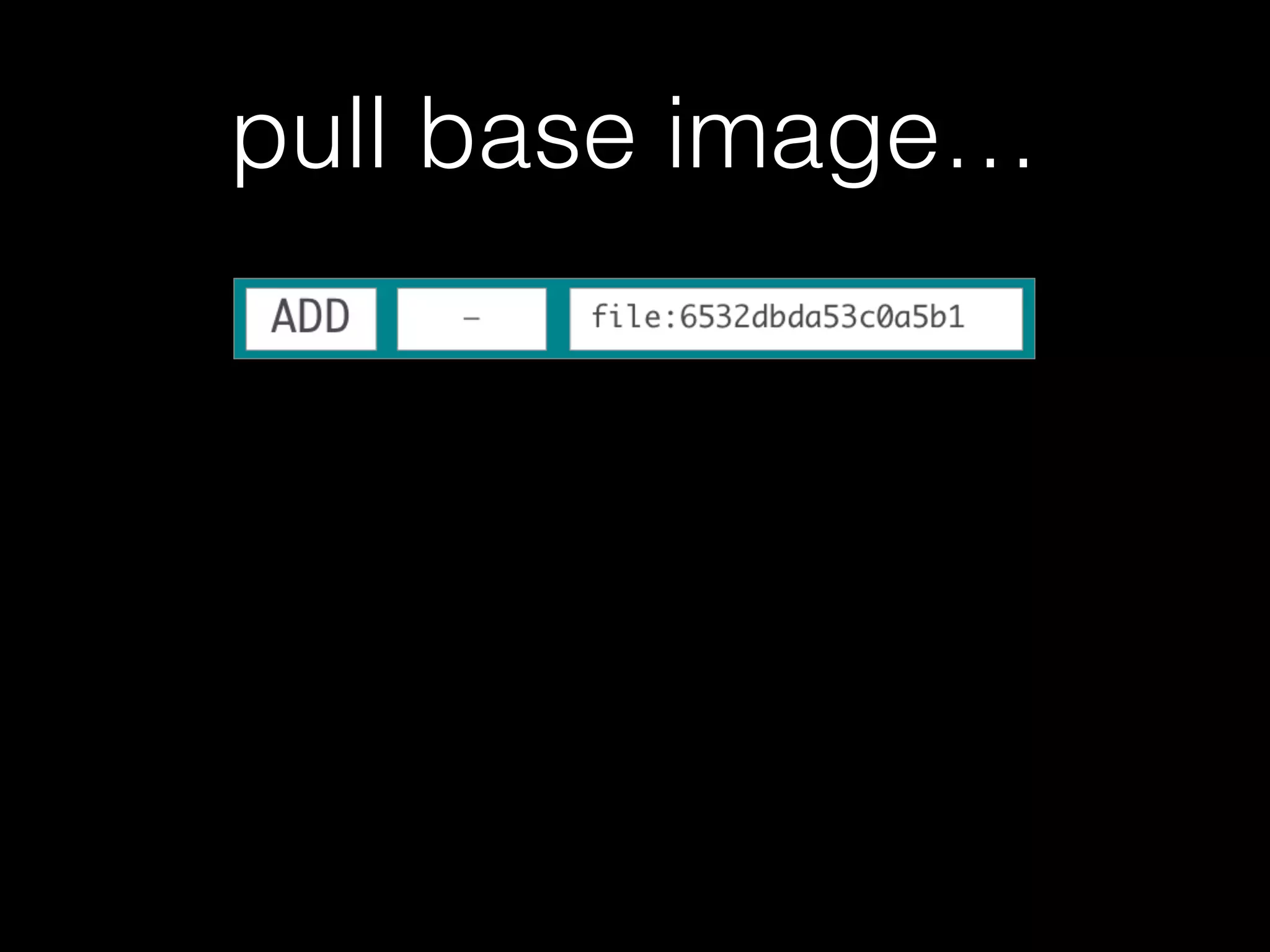

13. pull base image…

14. pull base image…

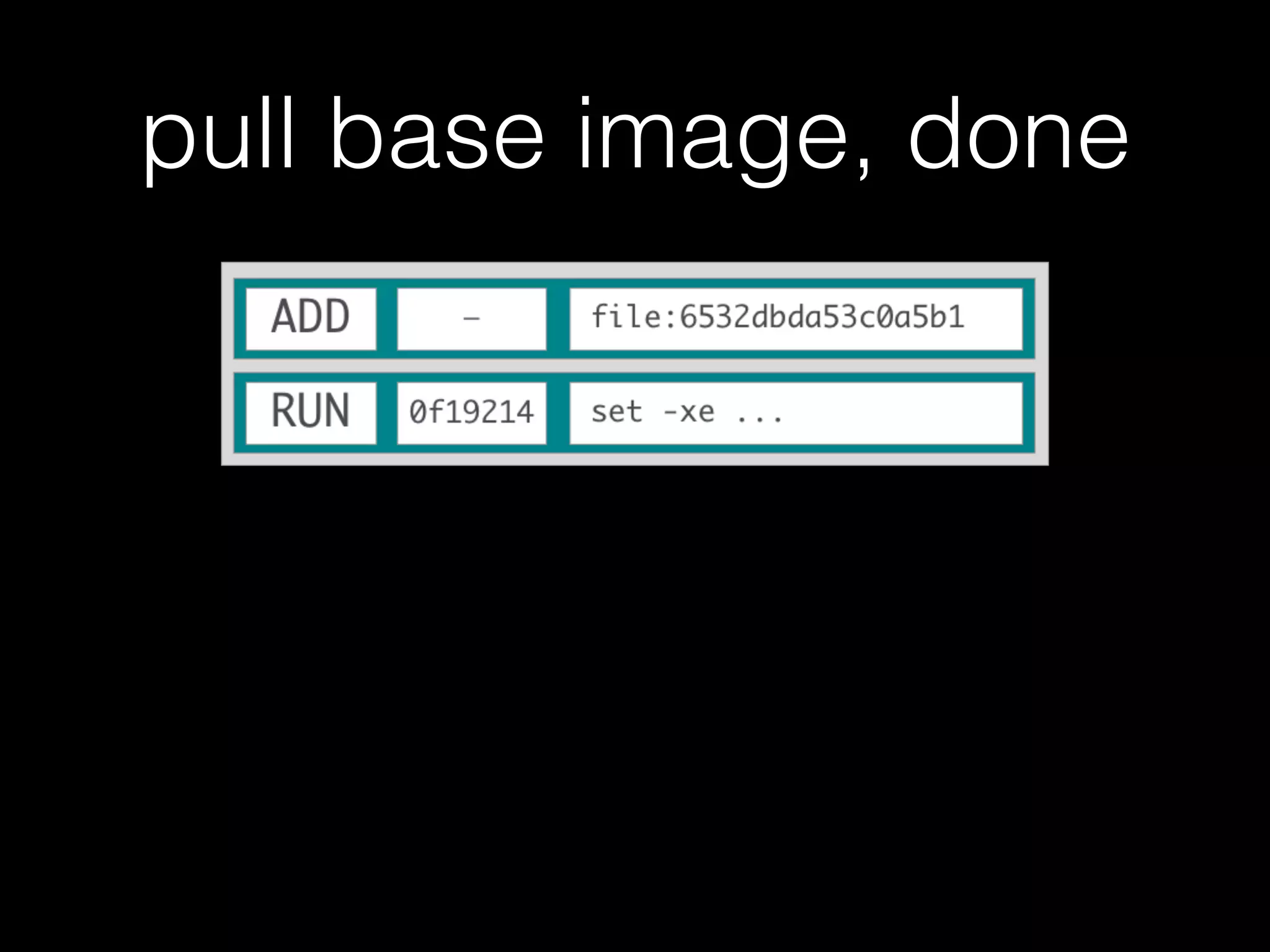

15. pull base image, done

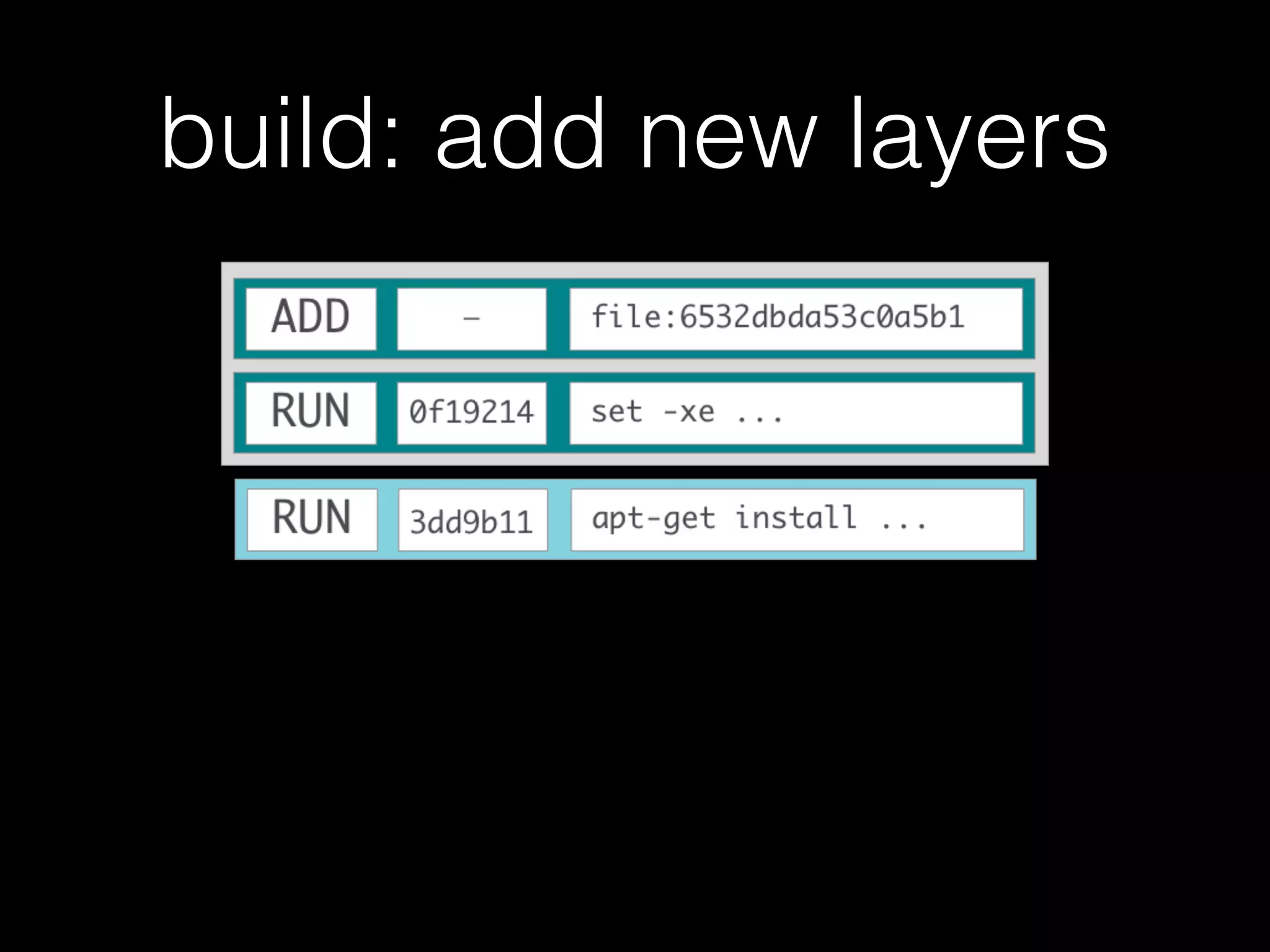

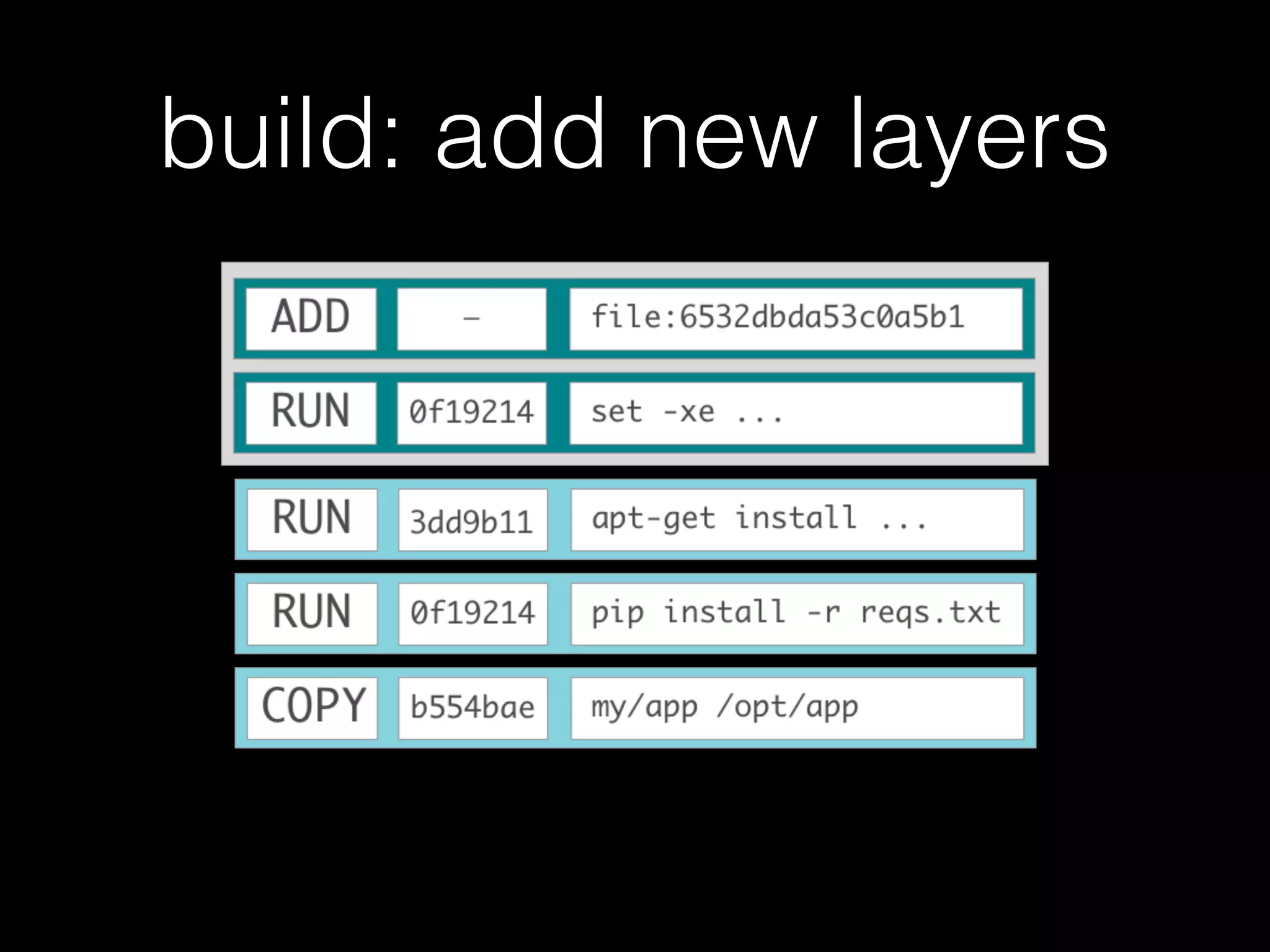

16. build: add new layers

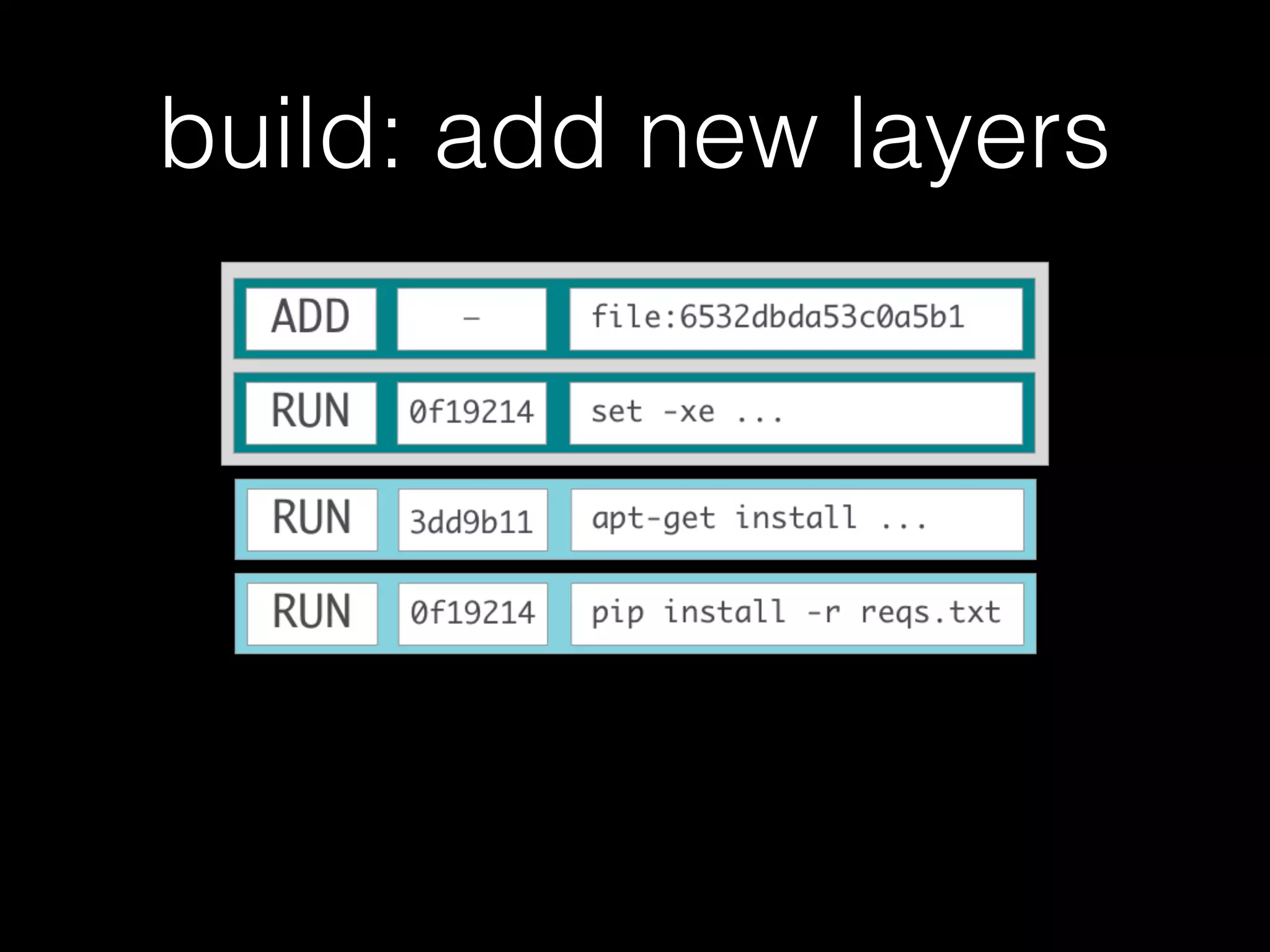

17. build: add new layers

18. build: add new layers

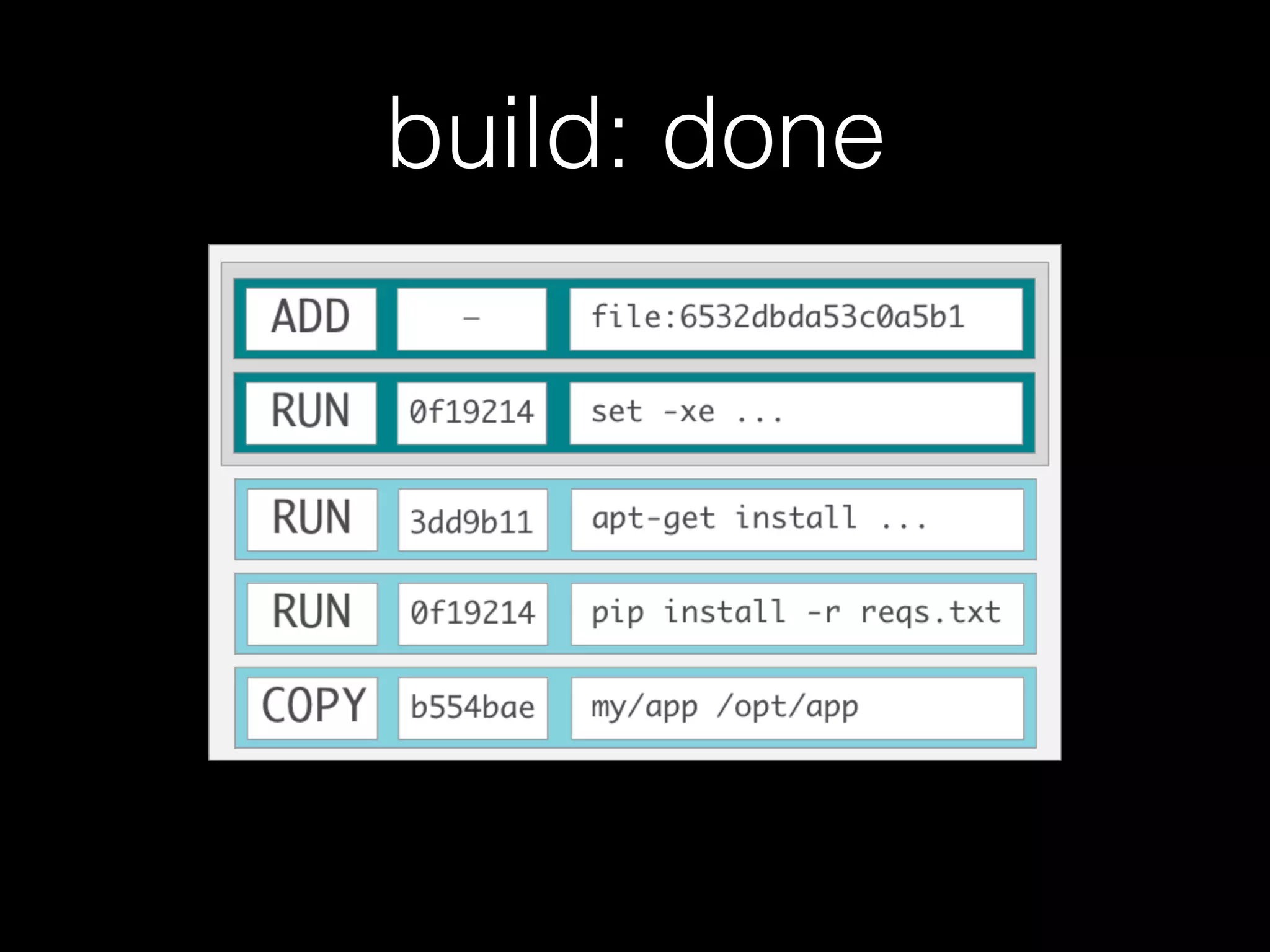

19. build: done

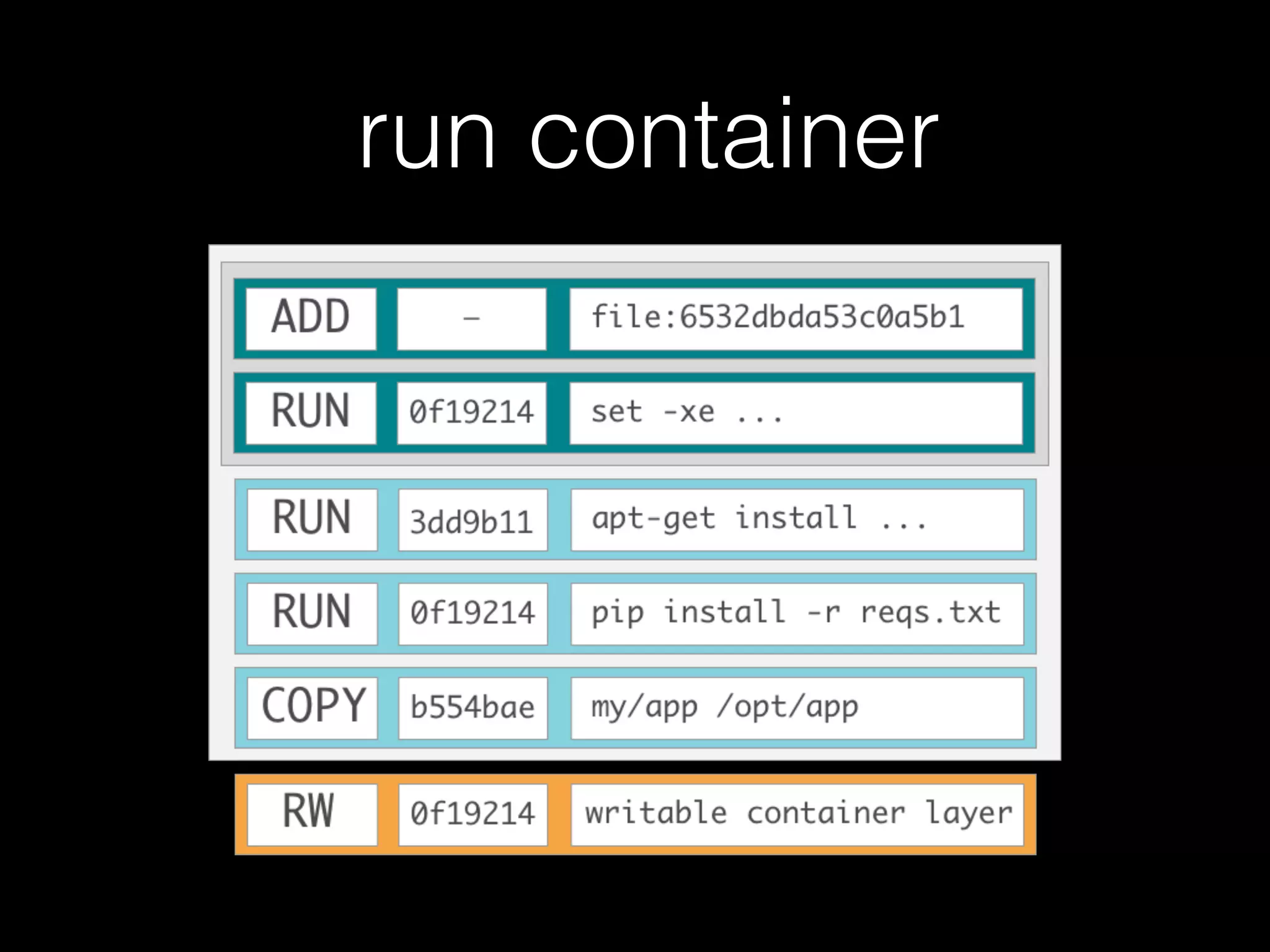

20. run container

21. Practice

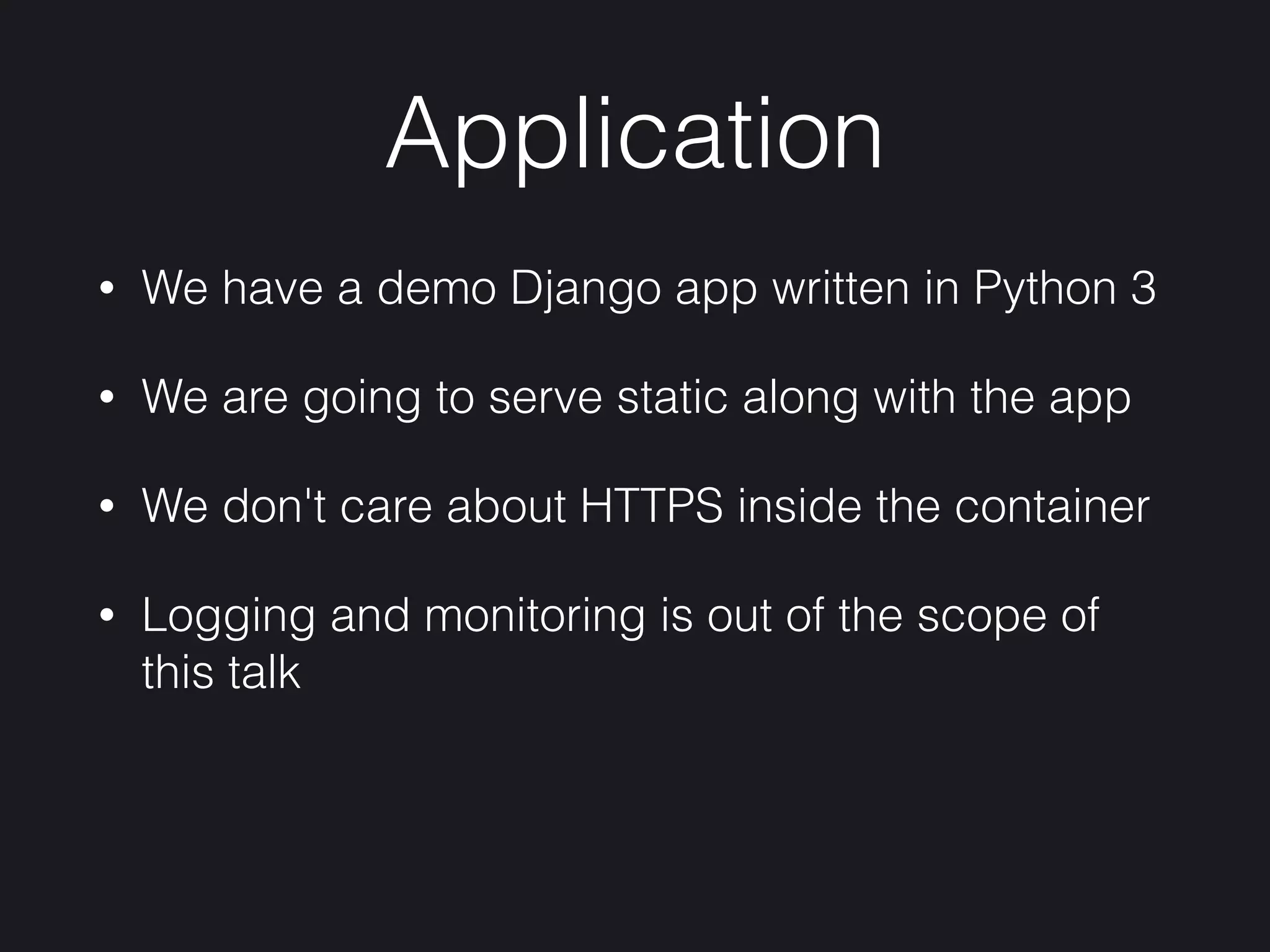

22. Application
• We have a demo Django app written in Python 3
• We are going to serve static along with the app
• We don't care about HTTPS inside the container
• Logging and monitoring is out of the scope of
this talk

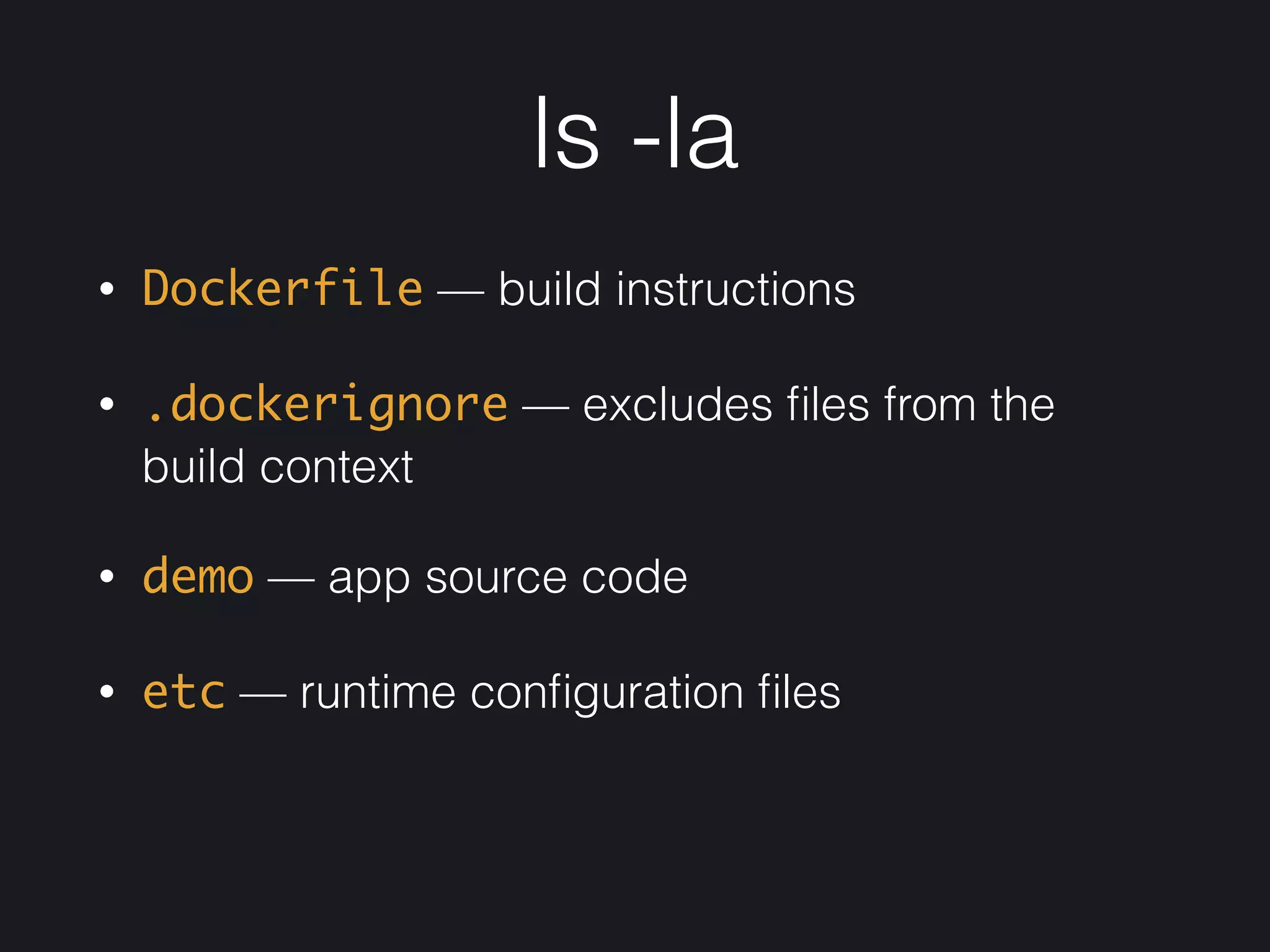

23. ls -la
• Dockerfile — build instructions
• .dockerignore — excludes files from the
build context
• demo — app source code
• etc — runtime configuration files

24. Dockerfile

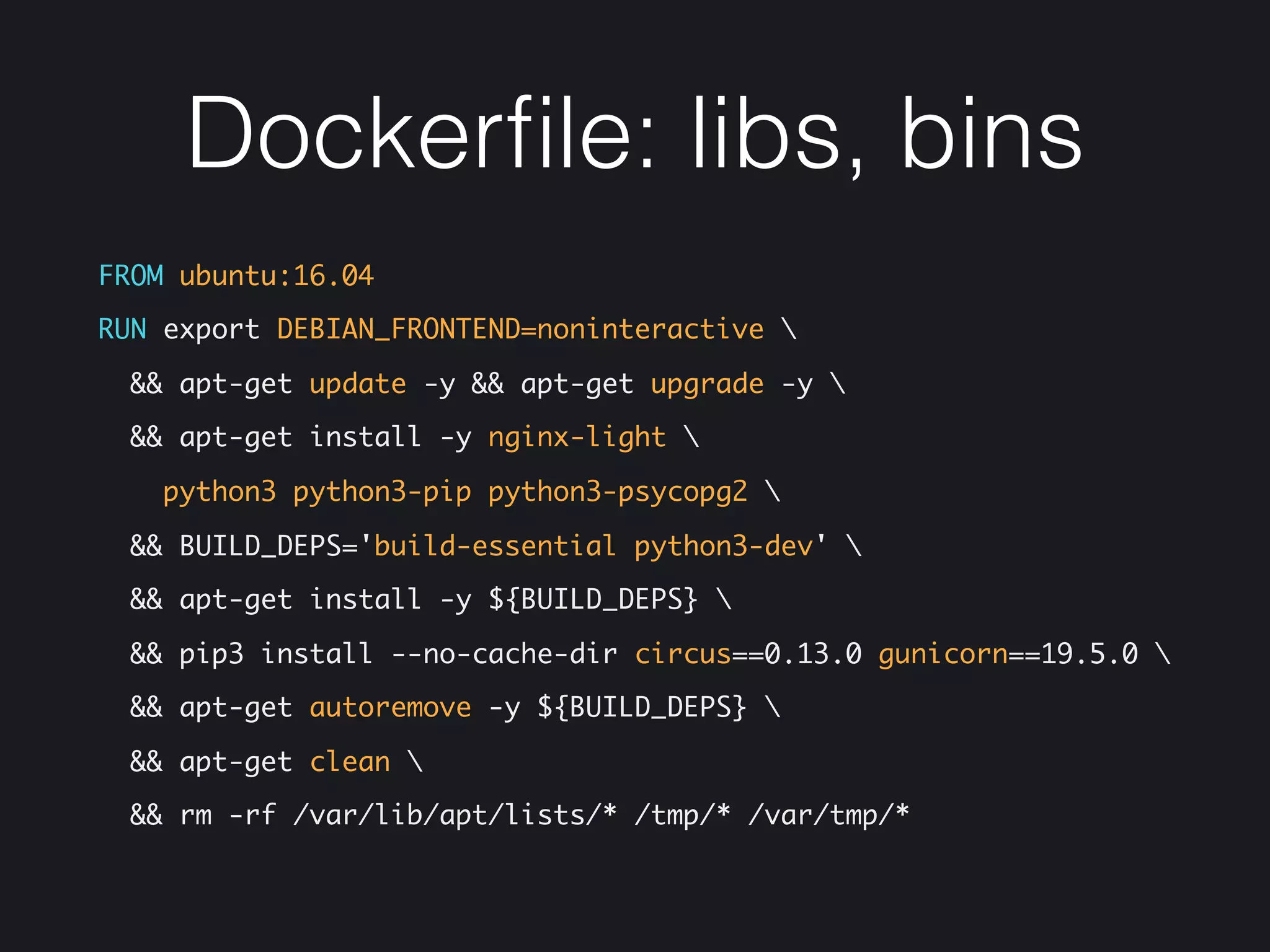

25. Dockerfile: libs, bins
FROM ubuntu:16.04
RUN export DEBIAN_FRONTEND=noninteractive
&& apt-get update -y && apt-get upgrade -y
&& apt-get install -y nginx-light
python3 python3-pip python3-psycopg2
&& BUILD_DEPS='build-essential python3-dev'
&& apt-get install -y ${BUILD_DEPS}
&& pip3 install --no-cache-dir circus==0.13.0 gunicorn==19.5.0
&& apt-get autoremove -y ${BUILD_DEPS}
&& apt-get clean
&& rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/*

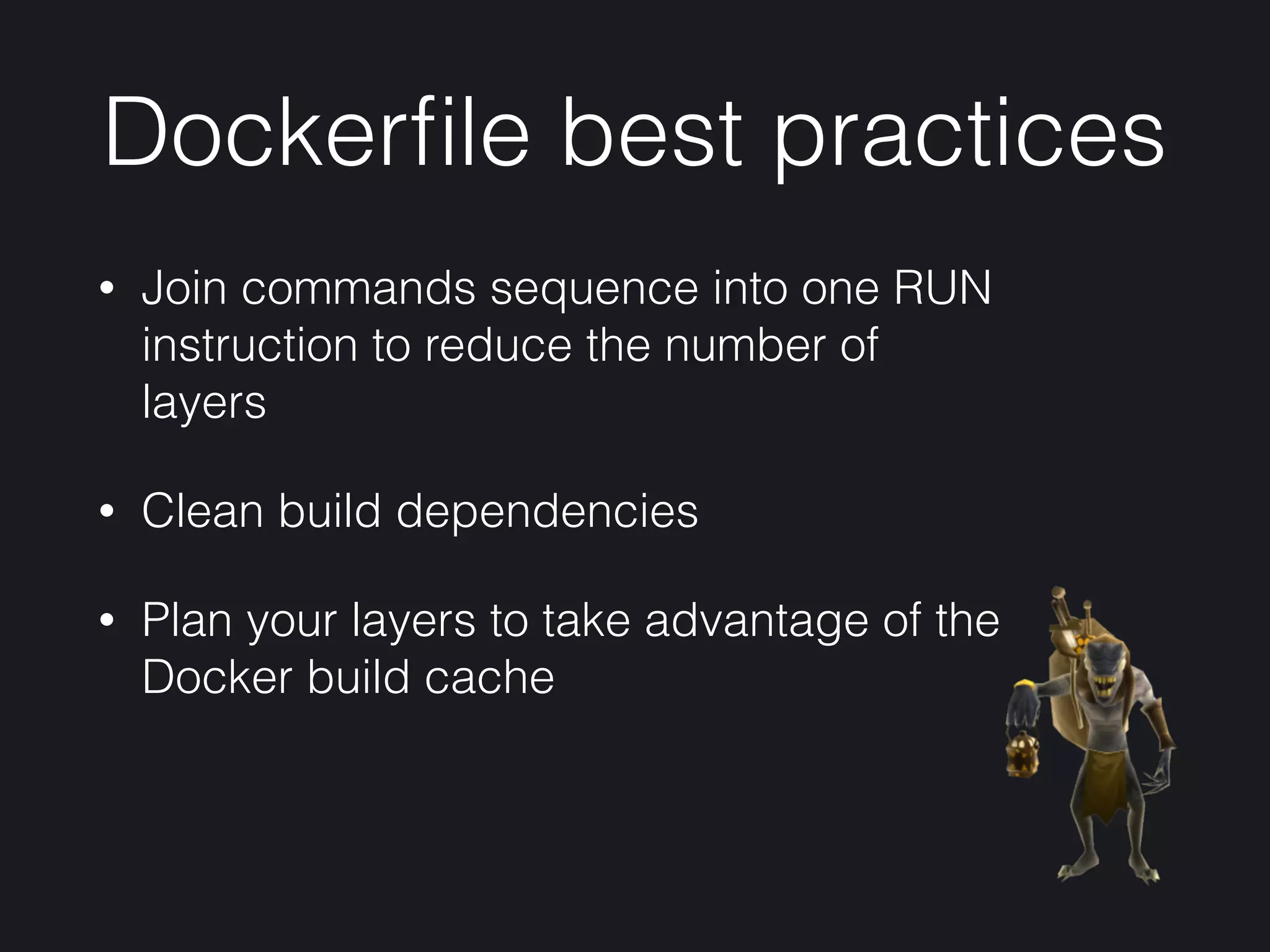

26. Dockerfile best practices
• Join commands sequence into one RUN
instruction to reduce the number of
layers
• Clean build dependencies
• Plan your layers to take advantage of the
Docker build cache

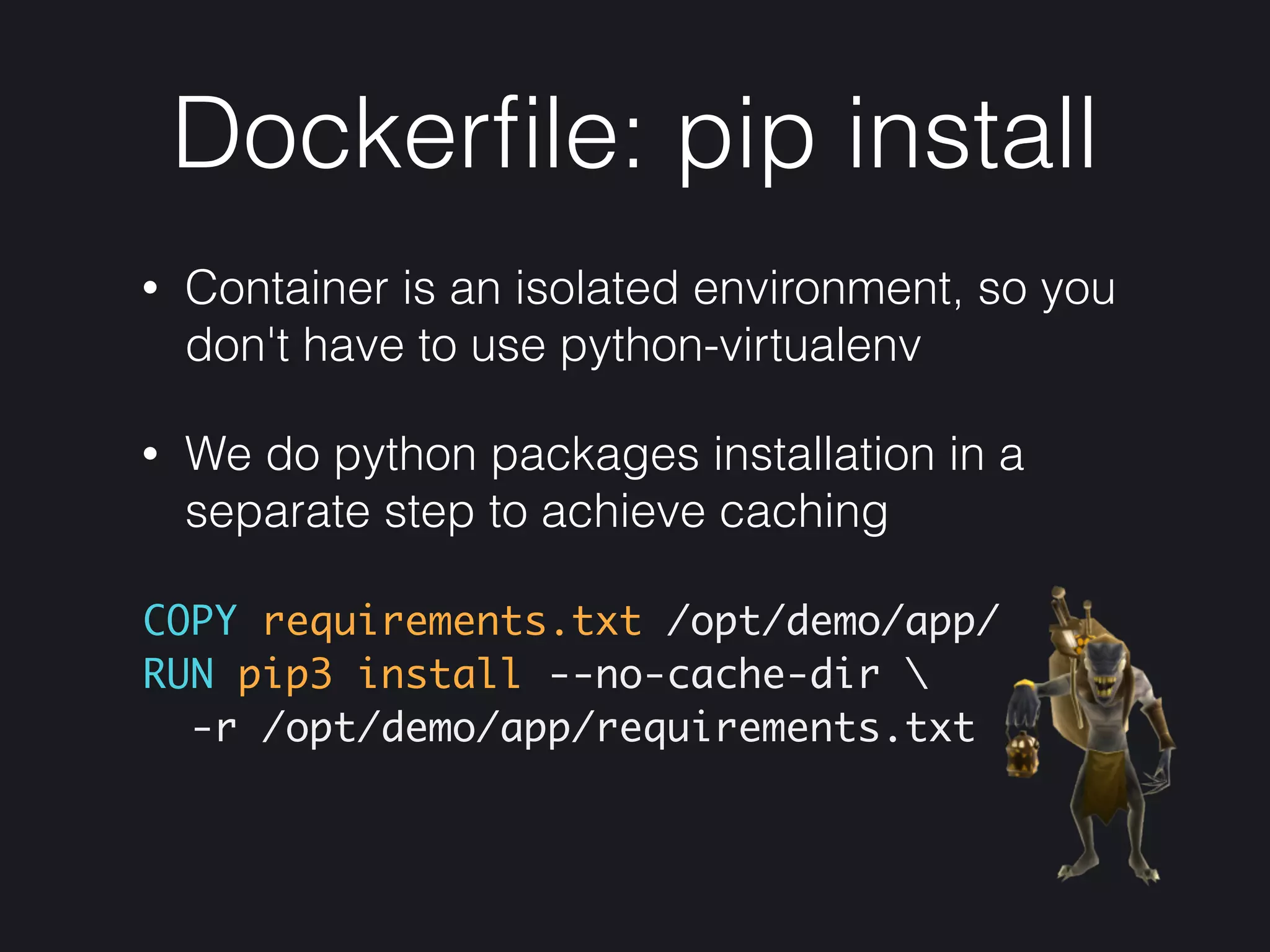

27. Dockerfile: pip install
• Container is an isolated environment, so you
don't have to use python-virtualenv
• We do python packages installation in a
separate step to achieve caching
COPY requirements.txt /opt/demo/app/
RUN pip3 install --no-cache-dir
-r /opt/demo/app/requirements.txt

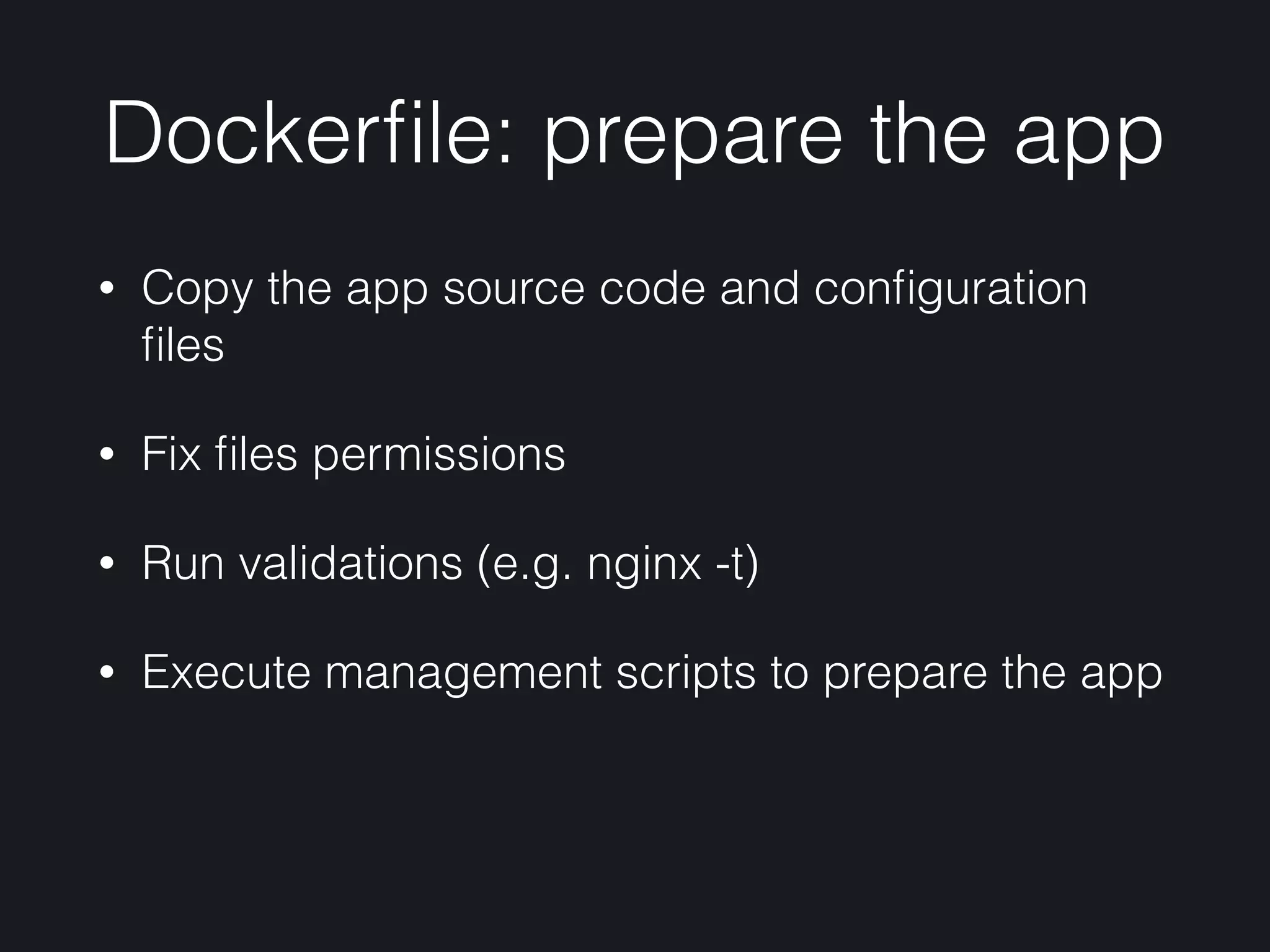

28. Dockerfile: prepare the app
• Copy the app source code and configuration
files
• Fix files permissions
• Run validations (e.g. nginx -t)
• Execute management scripts to prepare the app

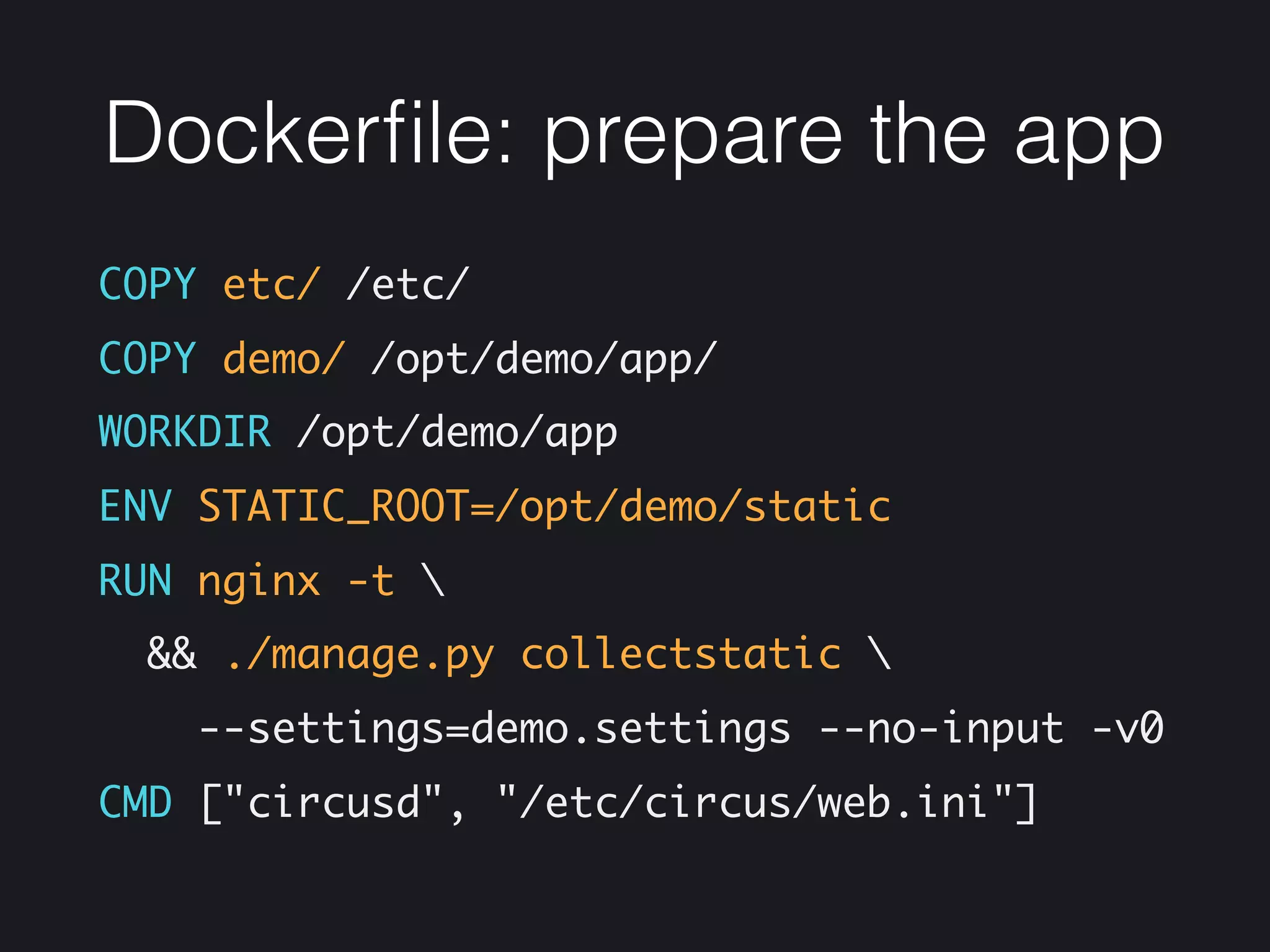

29. Dockerfile: prepare the app
COPY etc/ /etc/
COPY demo/ /opt/demo/app/
WORKDIR /opt/demo/app
ENV STATIC_ROOT=/opt/demo/static
RUN nginx -t
&& ./manage.py collectstatic
--settings=demo.settings --no-input -v0
CMD ["circusd", "/etc/circus/web.ini"]

30. etc

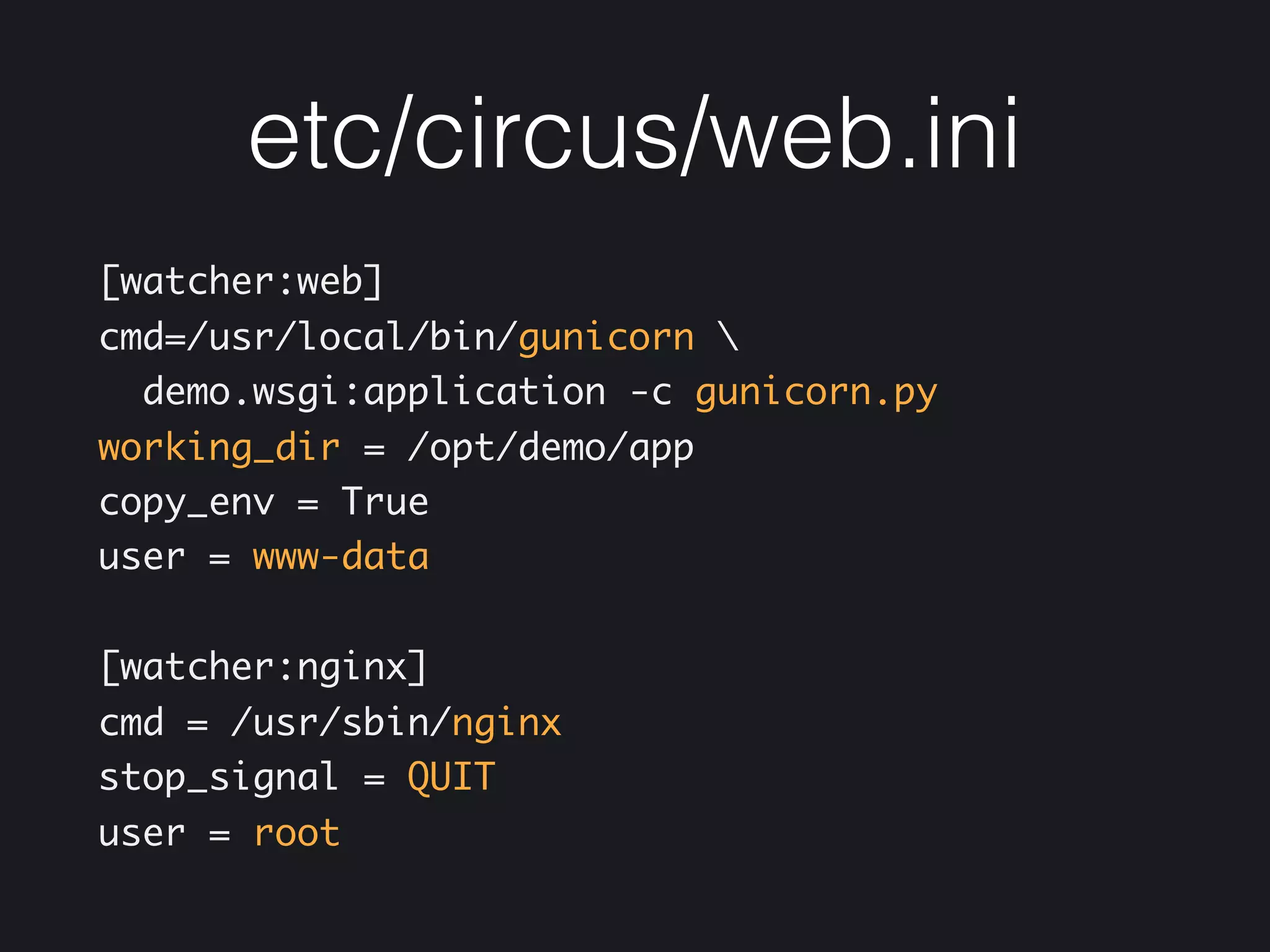

31. etc/circus/web.ini
[watcher:web]
cmd=/usr/local/bin/gunicorn
demo.wsgi:application -c gunicorn.py
working_dir = /opt/demo/app
copy_env = True
user = www-data
[watcher:nginx]
cmd = /usr/sbin/nginx
stop_signal = QUIT
user = root

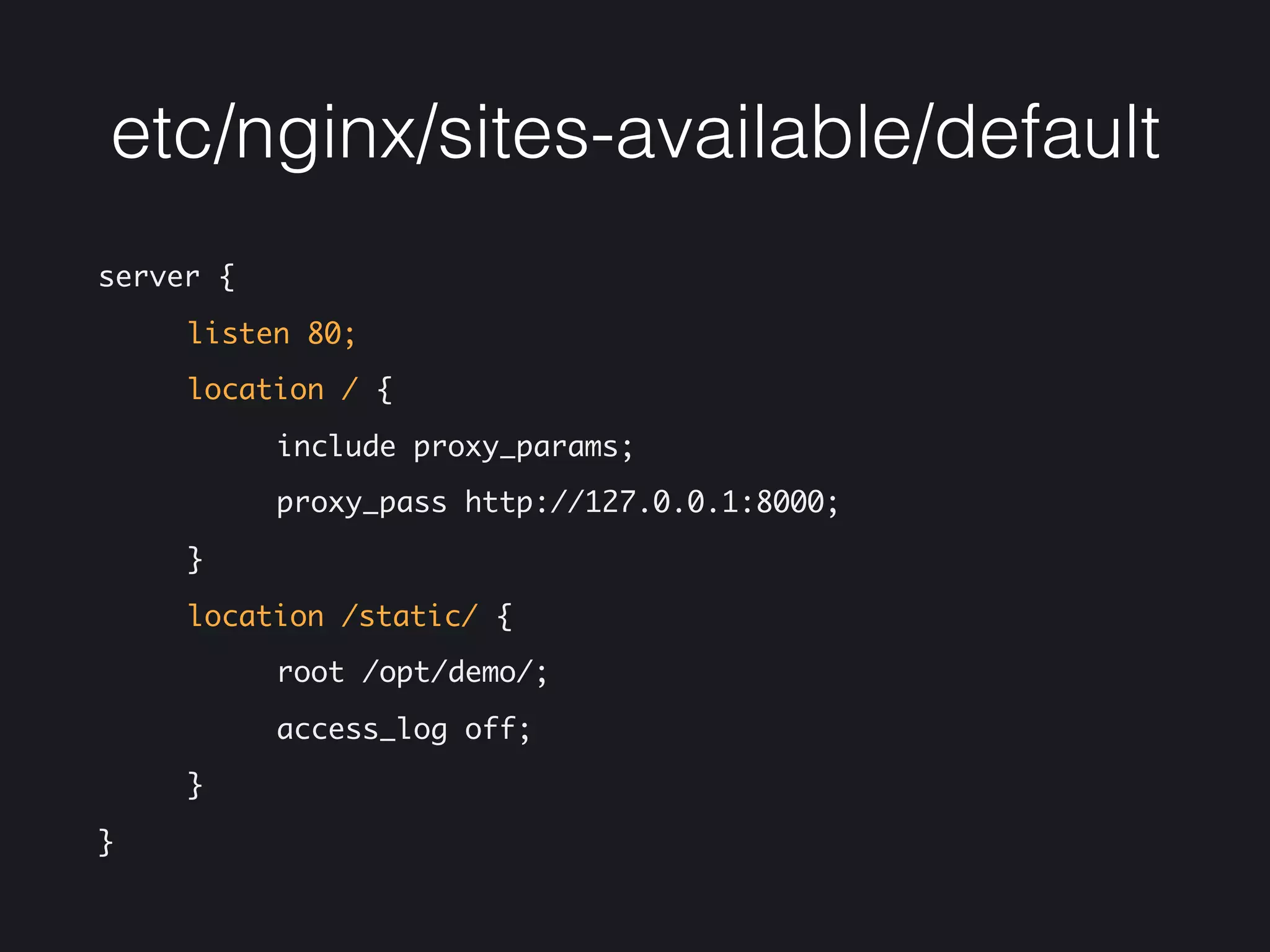

32. etc/nginx/sites-available/default
server {
listen 80;
location / {
include proxy_params;
proxy_pass http://127.0.0.1:8000;
}
location /static/ {
root /opt/demo/;
access_log off;
}
}

33. /etc/gunicorn.py
import multiprocessing
import os
bind = '127.0.0.1:8000'
default_workers = multiprocessing.cpu_count() * 2 + 1
workers = os.environ.get(
'WEB_CONCURRENCY', default_workers)
worker_class = 'sync'
max_requests = 300
max_requests_jitter = 300
errorlog = '-'

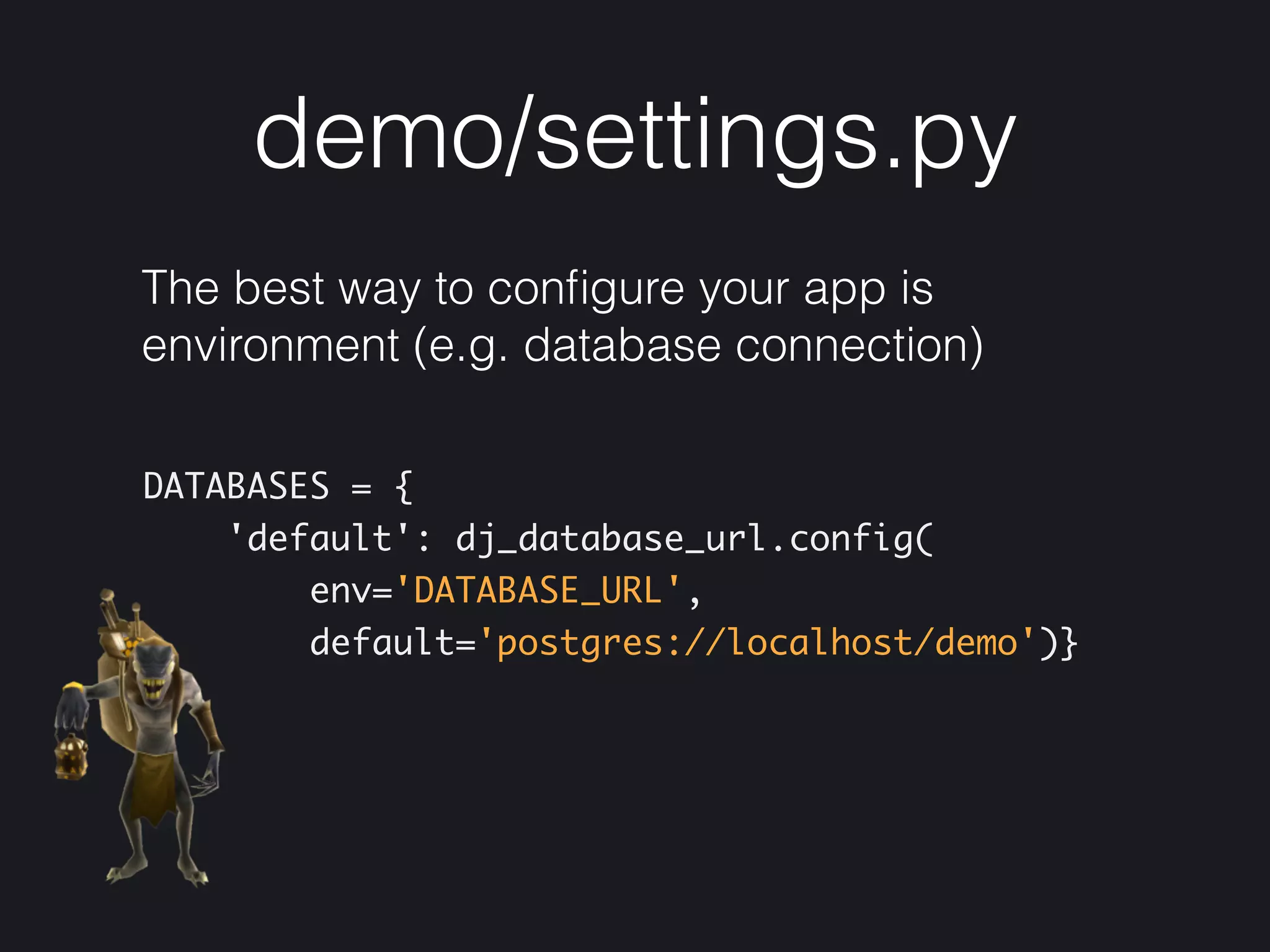

34. demo/settings.py
The best way to configure your app is
environment (e.g. database connection)
DATABASES = {
'default': dj_database_url.config(
env='DATABASE_URL',
default='postgres://localhost/demo')}

35. Demo

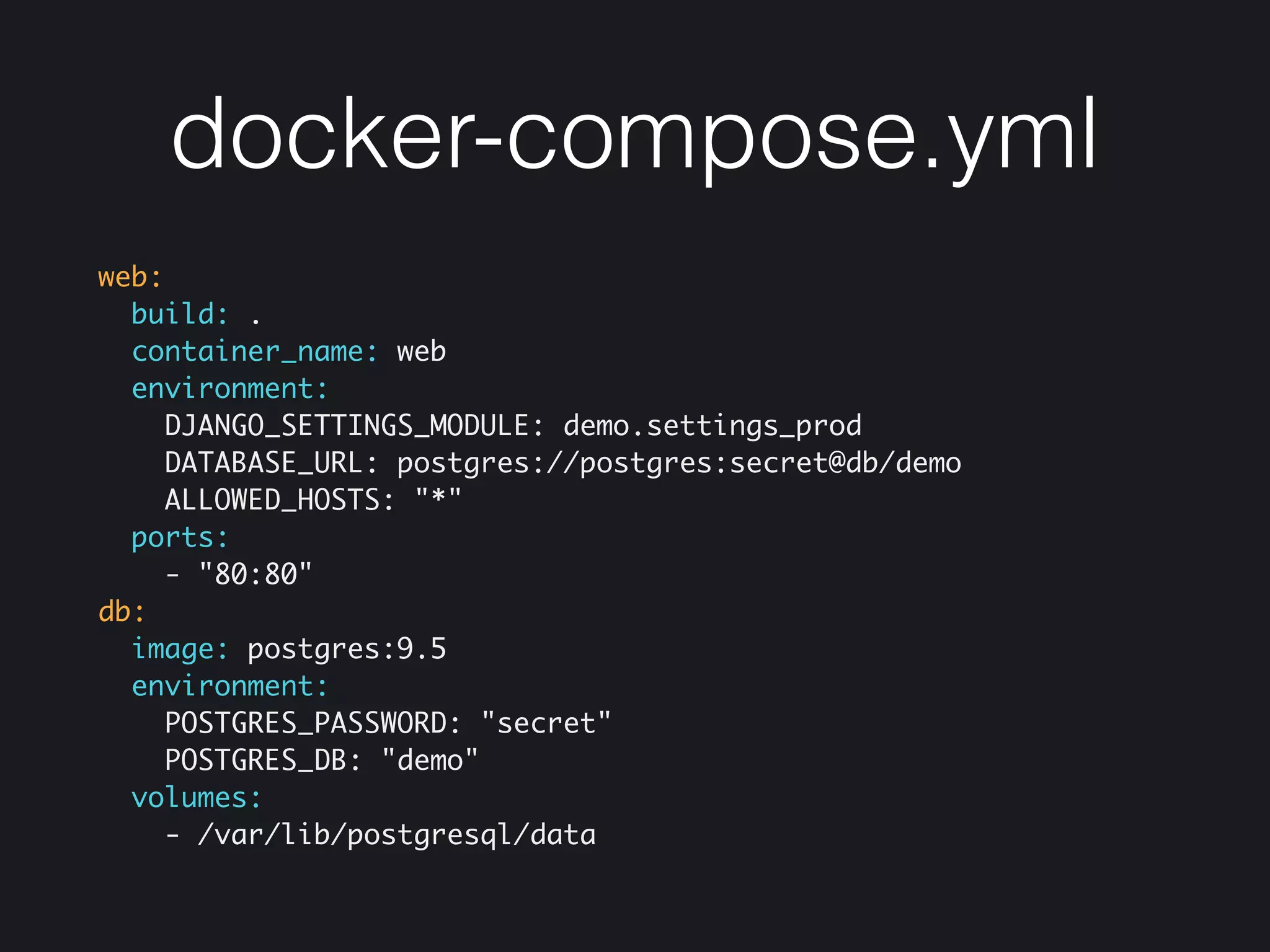

36. docker-compose.yml
web:
build: .
container_name: web
environment:
DJANGO_SETTINGS_MODULE: demo.settings_prod
DATABASE_URL: postgres://postgres:secret@db/demo
ALLOWED_HOSTS: "*"
ports:
- "80:80"
db:
image: postgres:9.5
environment:
POSTGRES_PASSWORD: "secret"
POSTGRES_DB: "demo"
volumes:
- /var/lib/postgresql/data

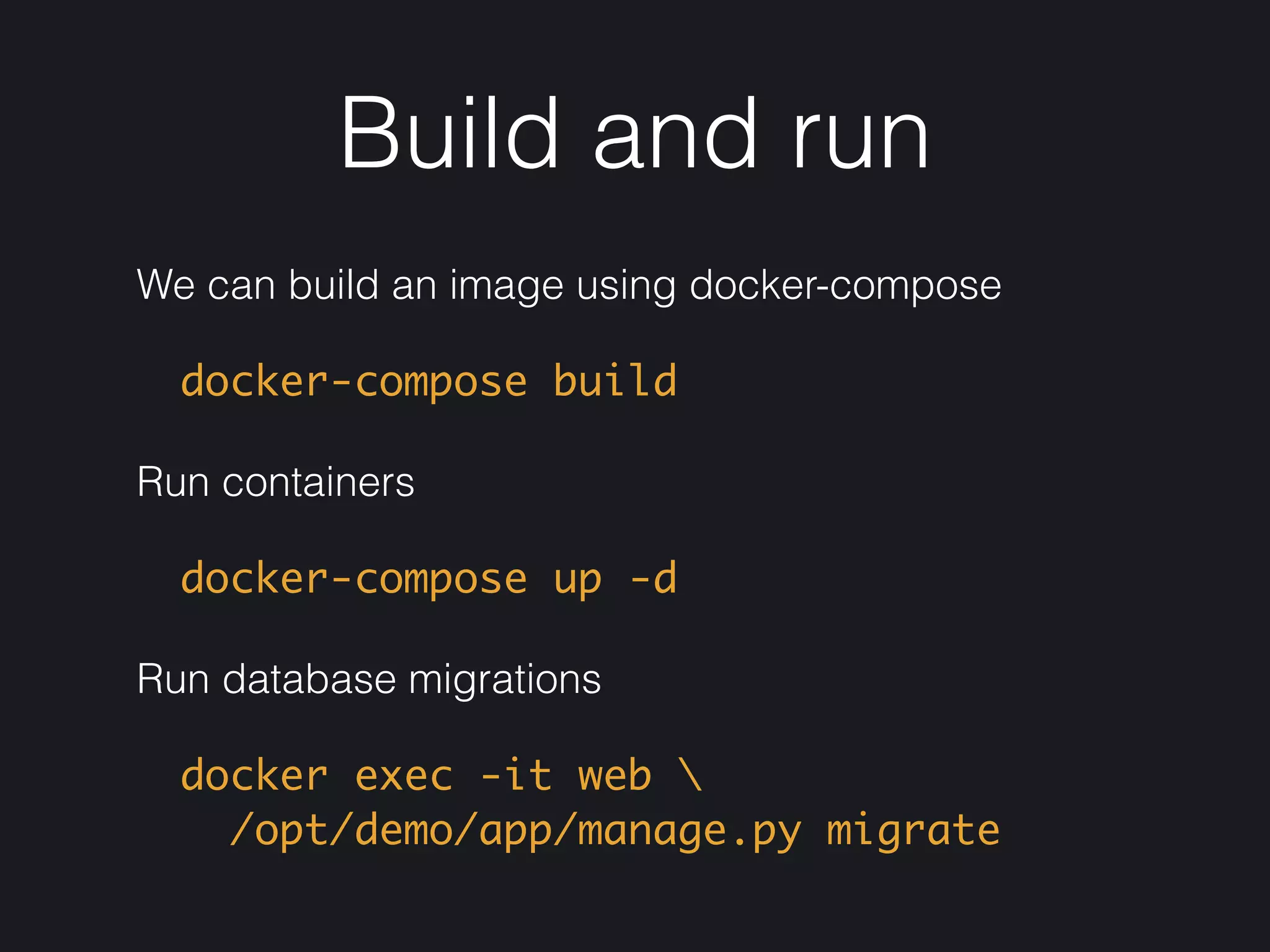

37. Build and run
We can build an image using docker-compose
docker-compose build
Run containers
docker-compose up -d
Run database migrations
docker exec -it web
/opt/demo/app/manage.py migrate

38. Production

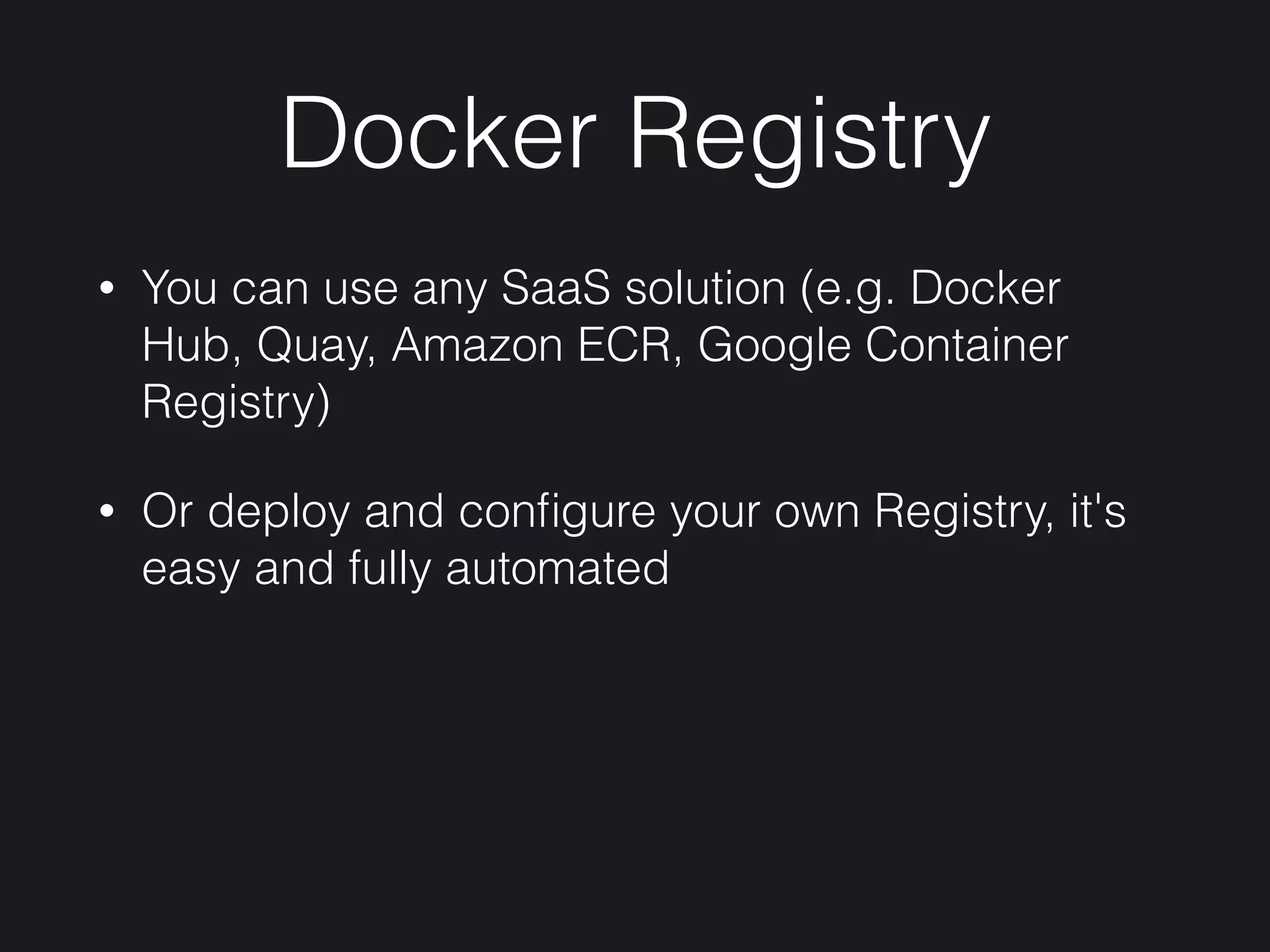

39. Docker Registry
• You can use any SaaS solution (e.g. Docker
Hub, Quay, Amazon ECR, Google Container
Registry)
• Or deploy and configure your own Registry, it's
easy and fully automated

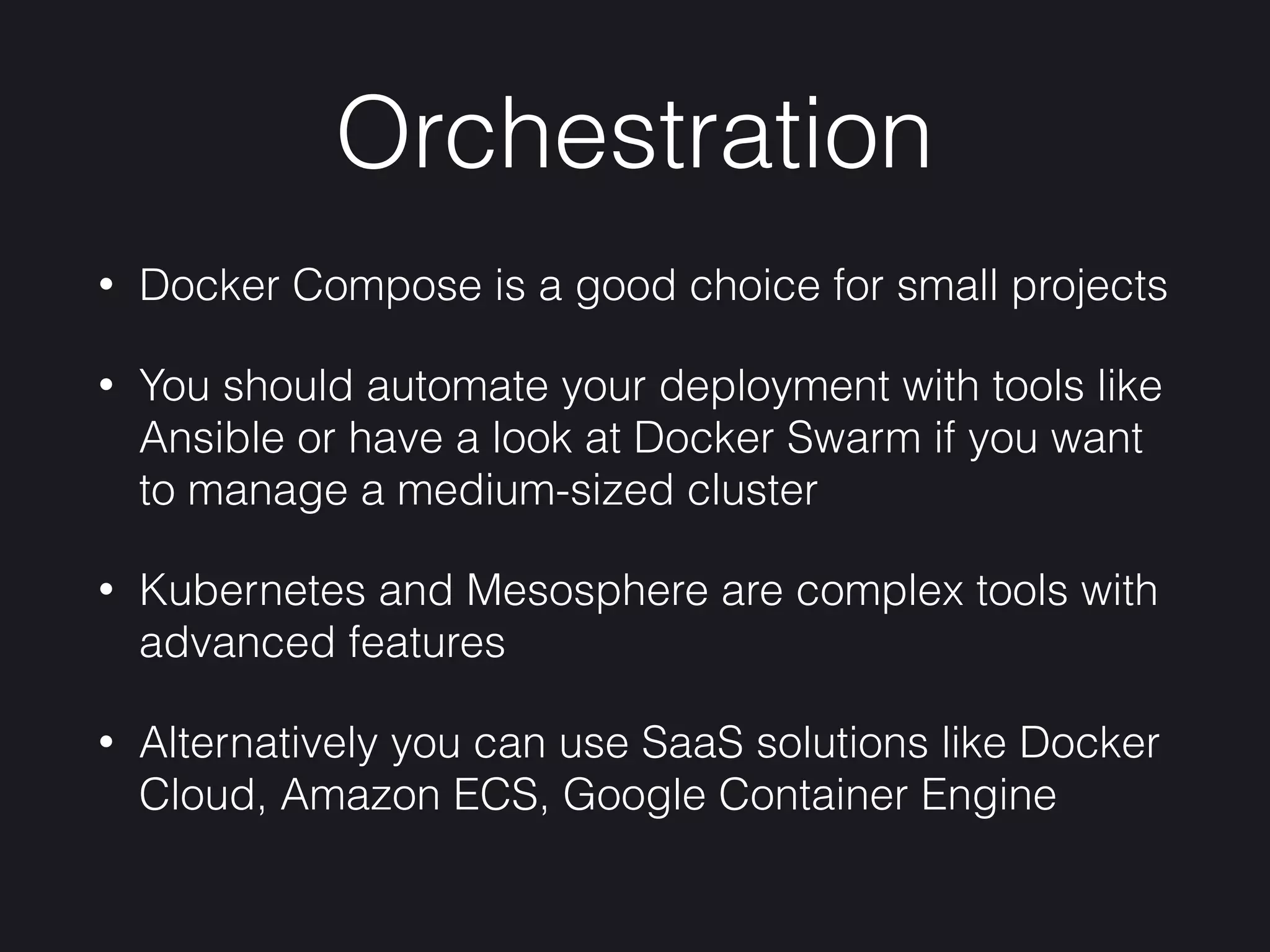

40. Orchestration
• Docker Compose is a good choice for small projects
• You should automate your deployment with tools like
Ansible or have a look at Docker Swarm if you want
to manage a medium-sized cluster
• Kubernetes and Mesosphere are complex tools with
advanced features
• Alternatively you can use SaaS solutions like Docker
Cloud, Amazon ECS, Google Container Engine

41. Good luck!

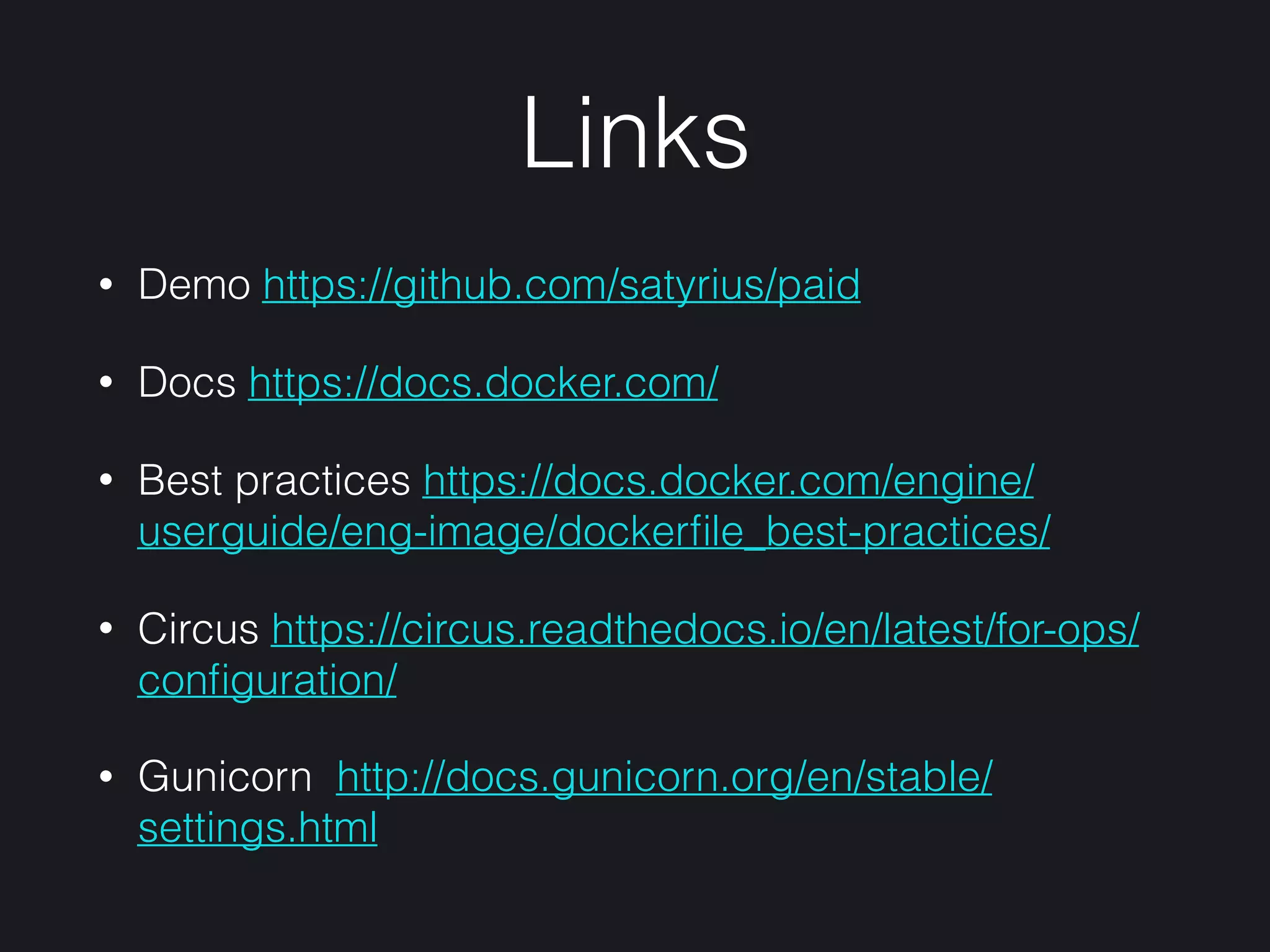

42. Links
• Demo https://github.com/satyrius/paid
• Docs https://docs.docker.com/
• Best practices https://docs.docker.com/engine/
userguide/eng-image/dockerfile_best-practices/
• Circus https://circus.readthedocs.io/en/latest/for-ops/
configuration/
• Gunicorn http://docs.gunicorn.org/en/stable/
settings.html

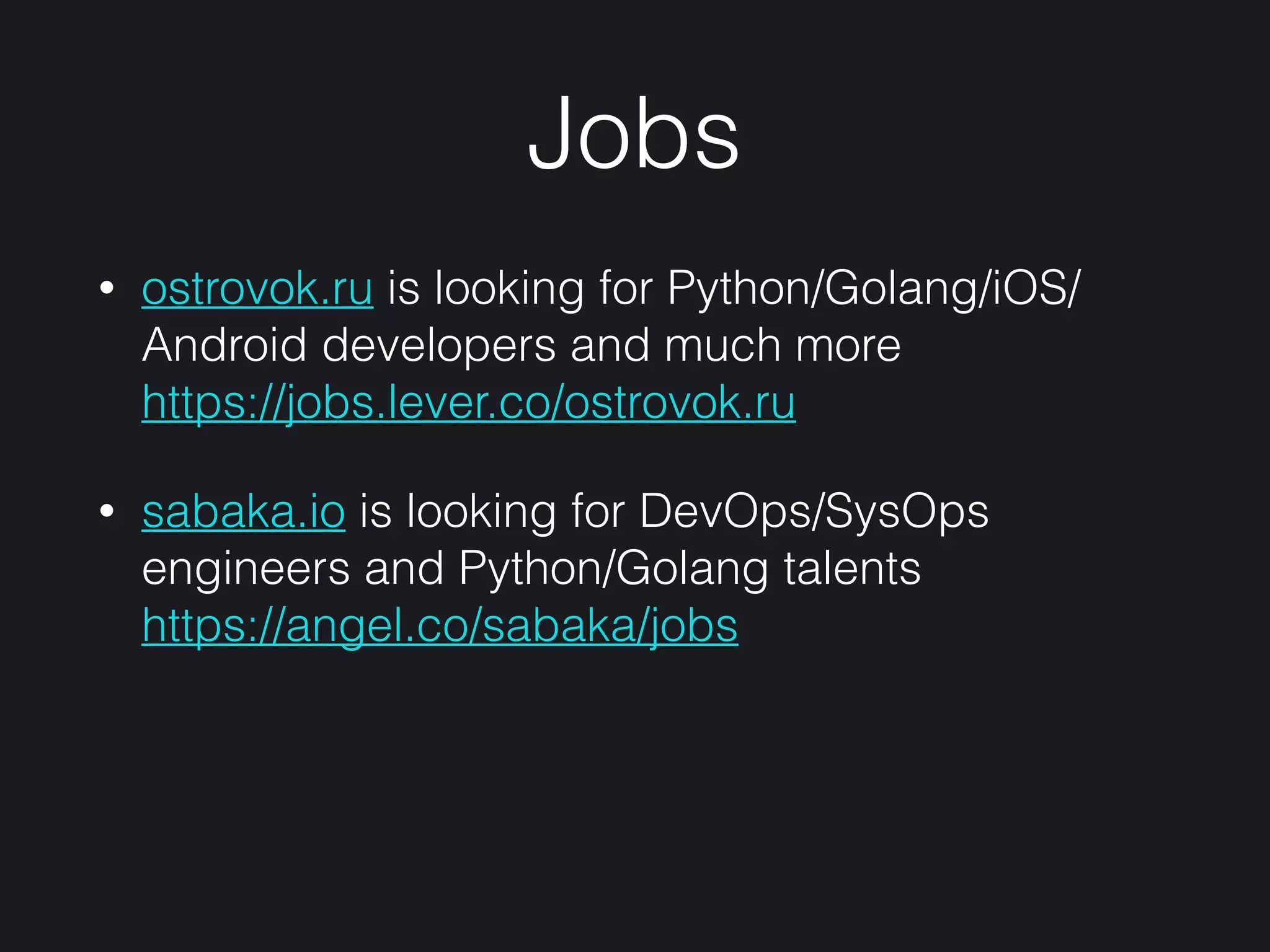

43. Jobs
• ostrovok.ru is looking for Python/Golang/iOS/
Android developers and much more
https://jobs.lever.co/ostrovok.ru
• sabaka.io is looking for DevOps/SysOps
engineers and Python/Golang talents
https://angel.co/sabaka/jobs

44. Questions?
