2. DevOpShift
Implementing Devops with Python
Presented at the 24th Oracle Week By Yaniv Cohen

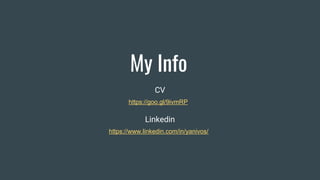

4. My Info
CV
https://goo.gl/9ivmRP
https://www.linkedin.com/in/yanivos/
Linkedin

5. Q&A SESSION AT:
goo.gl/slides/gk46pp

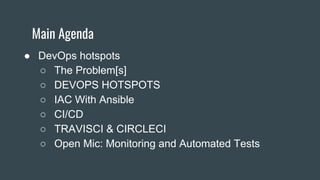

6. Main Agenda
● DevOps hotspots
○ The Problem[s]
○ DEVOPS HOTSPOTS
○ IAC With Ansible
○ CI/CD
○ TRAVISCI & CIRCLECI
○ Open Mic: Monitoring and Automated Tests

7. The Problem[s]
● Everything is software BUT it still runs on Servers to operate...
● Delivering a service is painfully slow
● Errors and faulty functionality
● Internal frictions between Product / R&D / IT creates the problem
● Delay in Delivery = Money
● The company culture is usually the bottleneck in the transition to “the DevOps
concept”

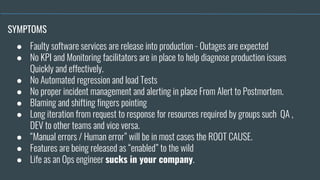

8. ● Faulty software services are release into production - Outages are expected
● No KPI and Monitoring facilitators are in place to help diagnose production issues
Quickly and effectively.
● No Automated regression and load Tests
● No proper incident management and alerting in place From Alert to Postmortem.
● Blaming and shifting fingers pointing
● Long iteration from request to response for resources required by groups such QA ,
DEV to other teams and vice versa.
● “Manual errors / Human error” will be in most cases the ROOT CAUSE.
● Features are being released as “enabled” to the wild
● Life as an Ops engineer sucks in your company.
SYMPTOMS

9. The Problem
Wall of
confusion
IT OPeratorDEVeloper
DrivesforSTABILITY
DrivesforCHANGE
They Write
shitty code!
They
Understand
Nothing!
Developers and IT Operations has a very
different objective

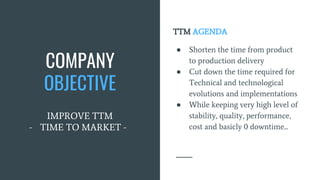

10. TTM AGENDA
● Shorten the time from product
to production delivery
● Cut down the time required for
Technical and technological
evolutions and implementations
● While keeping very high level of
stability, quality, performance,
cost and basicly 0 downtime...
COMPANY
OBJECTIVE
IMPROVE TTM
- TIME TO MARKET -

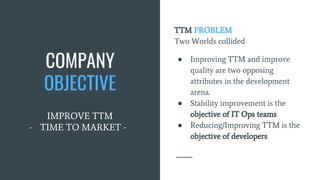

11. COMPANY
OBJECTIVE
IMPROVE TTM
- TIME TO MARKET -
TTM PROBLEM
Two Worlds collided
● Improving TTM and improve
quality are two opposing
attributes in the development
arena.
● Stability improvement is the
objective of IT Ops teams
● Reducing/Improving TTM is the
objective of developers

12. How do we
solve it

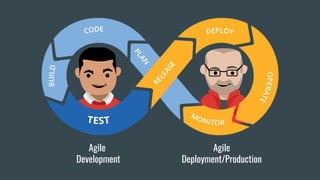

13. Agile
Development
Agile
Deployment/Production

14. DevOps was conceived from the idea of
extending the Agile development practice.
Meaning:
Extending the software streamlining
movement of Build , Validate and Deploy
stages and tie it up with cross-functional
teams from Design, Operating , Quality and
Build automation, Delivery , Monitoring and
thru production support.
DevOps
DevOps (a clipped compound of "development" and "operations") is a software engineering practice that
aims at unifying software development (Dev) and software operation (Ops).
*** source: WikipediA

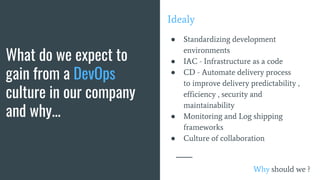

15. What do we expect to
gain from a DevOps
culture in our company
and why...
Idealy
● Standardizing development
environments
● IAC - Infrastructure as a code
● CD - Automate delivery process
to improve delivery predictability ,
efficiency , security and
maintainability
● Monitoring and Log shipping
frameworks
● Culture of collaboration
Why should we ?

16. Provide Developers with more control of the
production environment and a better
understanding of the production
infrastructure

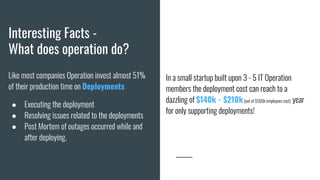

17. Interesting Facts -
What does operation do?
Like most companies Operation invest almost 51%
of their production time on Deployments
● Executing the deployment
● Resolving issues related to the deployments
● Post Mortem of outages occurred while and
after deploying.
In a small startup built upon 3 - 5 IT Operation
members the deployment cost can reach to a
dazzling of $140k - $210k(out of $560k employees cost) year
for only supporting deployments!

18. 40% - 51% is for deployment & incident management

19. Time to move forward
DEVOPS HOTSPOTS

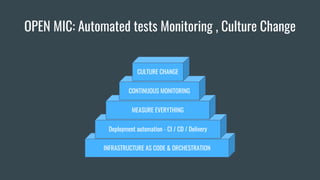

20. IMPLEMENTING
DEVOPS FOUNDATIONS
INFRASTRUCTURE AS CODE & ORCHESTRATION
Deployment automation - CI / CD / Delivery
MEASURE EVERYTHING
CONTINUOUS MONITORING
CULTURE CHANGE

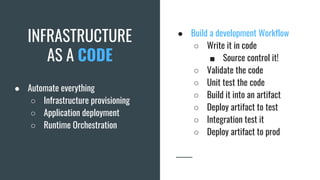

21. INFRASTRUCTURE
AS A CODE
● Automate everything
○ Infrastructure provisioning
○ Application deployment
○ Runtime Orchestration
● Build a development Workflow
○ Write it in code
■ Source control it!
○ Validate the code
○ Unit test the code
○ Build it into an artifact
○ Deploy artifact to test
○ Integration test it
○ Deploy artifact to prod

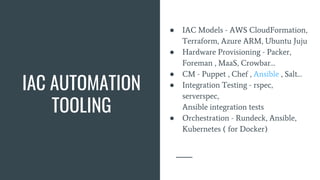

22. IAC AUTOMATION
TOOLING
● IAC Models - AWS CloudFormation,
Terraform, Azure ARM, Ubuntu Juju
● Hardware Provisioning - Packer,
Foreman , MaaS, Crowbar…
● CM - Puppet , Chef , Ansible , Salt…
● Integration Testing - rspec,
serverspec,
Ansible integration tests
● Orchestration - Rundeck, Ansible,
Kubernetes ( for Docker)

23. IAC ORCHESTRATION & AUTOMATION
WITH ANSIBLE

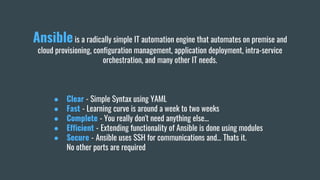

24. Ansibleis a radically simple IT automation engine that automates on premise and
cloud provisioning, configuration management, application deployment, intra-service
orchestration, and many other IT needs.
● Clear - Simple Syntax using YAML
● Fast - Learning curve is around a week to two weeks
● Complete - You really don't need anything else...
● Efficient - Extending functionality of Ansible is done using modules
● Secure - Ansible uses SSH for communications and… Thats it.
No other ports are required

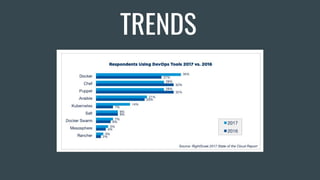

25. TRENDS

27. Dive into Ansible

28. Ansible - An Agentless Architecture

29. AnsibleChef
Agent and Agentless architecture (Chef / Ansible)
(1)
Push
Changes
Chef
WorkStation
(2)
Pull
specifications
(3)
Pool
changes
AGENT
Managed
Nodes
Chef
repo
(1)
Web servers
Database servers
(2)
SSH
SSH

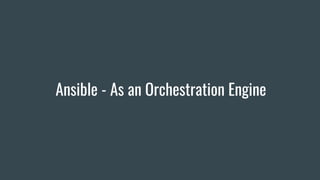

30. Ansible - As an Orchestration Engine

31. Ansible is also an Orchestration engine as it can
help us run complex , long and tiresome
automated procedures in a proper order that we
require for accomplishing our TASK.
Starting from Network to Data layer changes.
Orchestration tasks:
Scenario: Deploying new code (Rolling deployment)
● Removing server from load balancers
○ NGINX(PLUS) , F5 , ELB ETC...
● Disabling monitoring or altering it
○ SENSU/NGINX or any other
● Stopping the web application
● Running configuration changes
● Perform deployment of your code by pulling an
artifact and pushing it to the target server.
● Restart Web application and run Smoke test
● Adding the server back to the LB
● Enabling monitoring
Ansible - As an Orchestration Engine

32. Ansible Core Concepts

33. Inventories

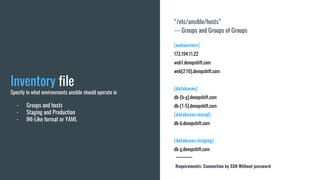

34. “/etc/ansible/hosts”
--- Groups and Groups of Groups
[webservers]
173.194.11.22
web1.devopshift.com
web[2:10].devopshift.com
[databases]
db-[b-g].devopshift.com
db-[1-5].devopshift.com
[databases:mysql]
db-b.devopshift.com
[databases:staging]
db-g.devopshift.com
Inventory file
Specify in what environments ansible should operate in
- Groups and hosts
- Staging and Production
- INI-Like format or YAML
Requirements: Connection by SSH Without password

35. Ad-hoc commands
Demo of how we use the inventory and ad-hoc

36. Ad-hoc commands
Orchestra conductor
- Use it to test things
- Use it for one time command
- Use it in an outage or in critical scenarios where you
need to run a command on multiple hosts
Ad-Hoc examples:
Execute remote Shell commands
ansible appservers -m shell -a 'echo $TERM'
ansible all -a "free -m" / ansible appservers -a "df -h"
Copy Files:
ansible all -m copy -a "src=/etc/hosts dest=/tmp/hosts"
Run long tasks in the background asynchronously with time out
ansible all -B 3600 -P 0 -a "/usr/bin/long_running_operation --do-stuff"
Poll Task status using module “async_status” on a specific host
ansible web1 -m async_status -a "jid=488359678239.2844
Enable auto polling of information every 60 seconds
ansible all -B 1800 -P 60 -a "/usr/bin/long_running_operation --do-stuff"
Gathering facts on host[s]
ansible all -m setup

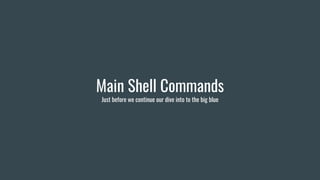

37. Main Shell Commands
Just before we continue our dive into to the big blue

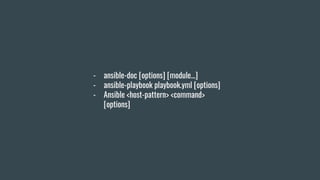

38. - ansible-doc [options] [module...]
- ansible-playbook playbook.yml [options]
- Ansible <host-pattern> <command>
[options]

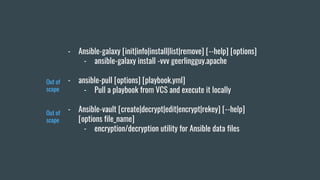

39. - Ansible-galaxy [init|info|install|list|remove] [--help] [options]
- ansible-galaxy install -vvv geerlingguy.apache
- ansible-pull [options] [playbook.yml]
- Pull a playbook from VCS and execute it locally
- Ansible-vault [create|decrypt|edit|encrypt|rekey] [--help]
[options file_name]
- encryption/decryption utility for Ansible data files
Out of
scope
Out of
scope

40. Modules
Power of life (for Ansible...)

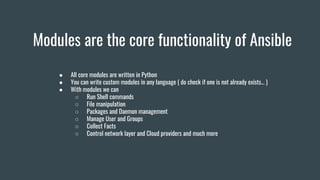

41. Modules are the core functionality of Ansible
● All core modules are written in Python
● You can write custom modules in any language ( do check if one is not already exists… )
● With modules we can
○ Run Shell commands
○ File manipulation
○ Packages and Daemon management
○ Manage User and Groups
○ Collect Facts
○ Control network layer and Cloud providers and much more

42. Modules Index
from Ansiblehttp://docs.ansible.com/ansible/latest/modules_by_category.html

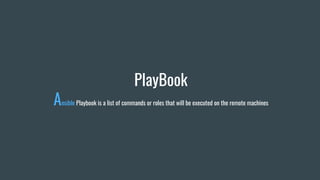

43. PlayBook
Ansible Playbook is a list of commands or roles that will be executed on the remote machines

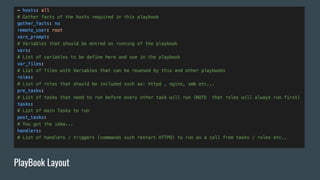

44. PlayBook Layout

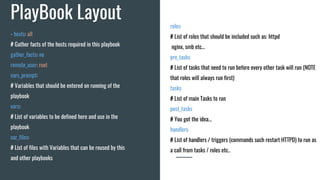

45. PlayBook Layout roles:
# List of roles that should be included such as: httpd
nginx, smb etc...
pre_tasks:
# List of tasks that need to run before every other task will run (NOTE
that roles will always run first)
tasks:
# List of main Tasks to run
post_tasks:
# You got the idea...
handlers:
# List of handlers / triggers (commands such restart HTTPD) to run as
a call from tasks / roles etc..
- hosts: all
# Gather facts of the hosts required in this playbook
gather_facts: no
remote_user: root
vars_prompt:
# Variables that should be entered on running of the
playbook
vars:
# List of variables to be defined here and use in the
playbook
var_files:
# List of files with Variables that can be reused by this
and other playbooks

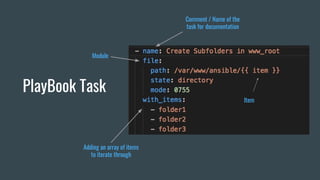

46. PlayBook Task
Module
Adding an array of items
to iterate through
Comment / Name of the
task for documentation
Item

47. PlayBook Templates - Jinja2
Template engine for the Python programming - Awesome thing… not going to talk about it in this lecture :-)

48. PlayBook Roles
Ansible power to get things organized and simple

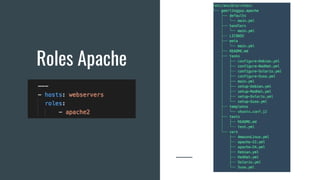

49. Roles Apache

50. So how do we start?
Start Small - Migrate Shell scripts and run them in ansible

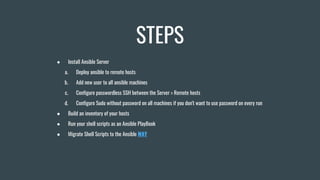

51. STEPS
● Install Ansible Server
a. Deploy ansible to remote hosts
b. Add new user to all ansible machines
c. Configure passwordless SSH between the Server > Remote hosts
d. Configure Sudo without password on all machines if you don't want to use password on every run
● Build an inventory of your hosts
● Run your shell scripts as an Ansible PlayBook
● Migrate Shell Scripts to the Ansible WAY

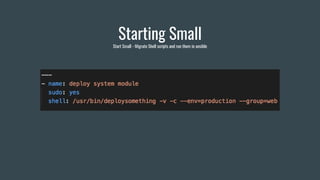

52. Starting Small
Start Small - Migrate Shell scripts and run them in ansible

53. PLAYBOOK
Than go large!

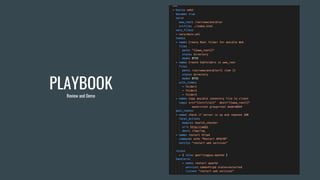

54. PLAYBOOK
Review and Demo

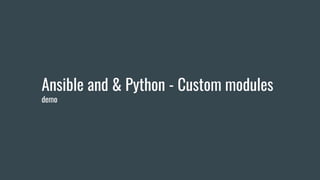

55. Ansible and & Python - Custom modules
demo

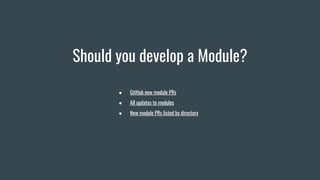

56. Should you develop a Module?
● GitHub new module PRs
● All updates to modules
● New module PRs listed by directory

57. AGENDA
● Forking and checkout Ansible repo
● Install pip requirements
● Module layout
● Writing a Module
a. Testing it
● Writing PlayBook for our module
a. Demo

58. Part 1
The Layout
Filename: templateCustomModule.py

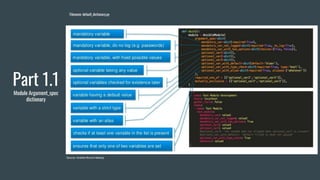

59. Part 1.1
Module Argument_spec
dictionary
Filename: default_dictionary.py
Source: Ansible Munich Meetup

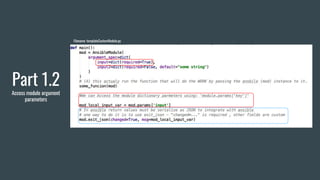

60. Part 1.2
Access module argument
parameters
Filename: templateCustomModule.py

61. Part 1.3
Exiting the module
● Exiting the module is done using ‘module.exit_json’ for successful returns
or ‘fail_json’ for failed
● Exit the module with the changed flag set to true or false (if no changes
took place in the current play)

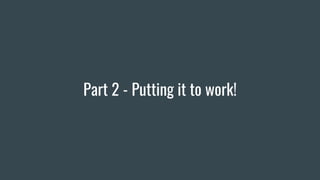

62. Part 2 - Putting it to work!

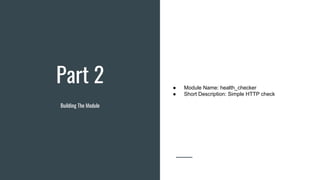

63. Part 2
Building The Module
● Module Name: health_checker
● Short Description: Simple HTTP check

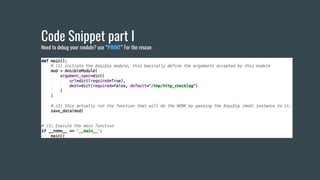

64. Code Snippet part I
Need to debug your module? use “PRINT” For the rescue

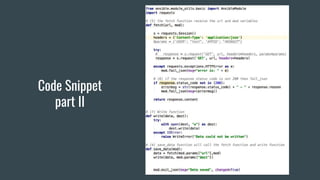

65. Code Snippet
part II

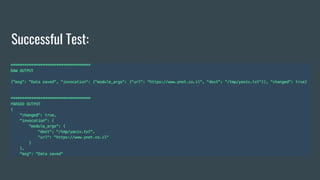

66. Successful Test:

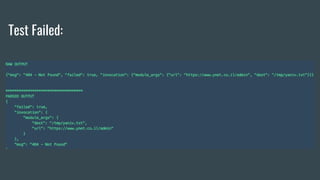

67. Test Failed:

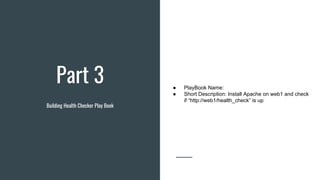

68. Part 3
Building Health Checker Play Book
● PlayBook Name:
● Short Description: Install Apache on web1 and check
if “http://web1/health_check” is up

69. PLAYBOOK
Review and Demo

70. What Other Infrastructures
ANSIBLE Supports ?

71. QUESTIONS

72. IMPLEMENTING
DEVOPS FOUNDATIONS
INFRASTRUCTURE AS CODE & ORCHESTRATION
Deployment automation - CI / CD / Delivery
MEASURE EVERYTHING
CONTINUOUS MONITORING
CULTURE CHANGE

73. INTRO

74. CI - Continuous Integration
Continuous Integration (CI) is a software development practice that is based on a frequent integration of the
code into a shared repository. Each check-in is then verified by an automated build.
main goal of continuous integration is to identify the problems that may occur during the development process
earlier and more easily. If you integrate regularly — there is much less to check while looking for errors. That
results in less time spent for debugging and more time for adding features.

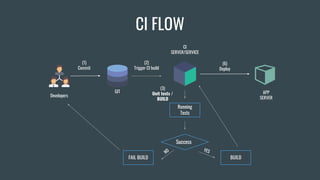

75. (1)
Commit
GIT
(2)
Trigger CI build
(3)
Unit tests /
BUILD
CI
SERVER/SERVICE
Developers
(6)
Deploy
Running
Tests
Success
YES
BUILD
NO
FAIL BUILD
CI FLOW
APP
SERVER

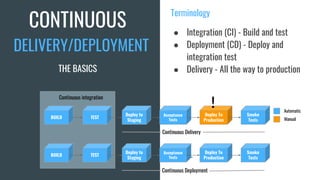

76. CONTINUOUS
Terminology
● Integration (CI) - Build and test
● Deployment (CD) - Deploy and
integration test
● Delivery - All the way to production
BUILD TEST
Deploy to
Staging
Acceptance
Tests
Deploy To
Production
Smoke
Tests
BUILD TEST
Deploy to
Staging
Acceptance
Tests
Deploy To
Production
Smoke
Tests
Continuous integration
Continuous Delivery
!
DELIVERY/DEPLOYMENT
THE BASICS
Automatic
Manual
Continuous Deployment

77. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
VCS
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy

78. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
VCS
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy

79. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
VCS
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy

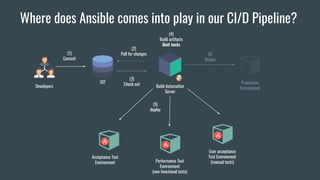

80. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
GIT
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy

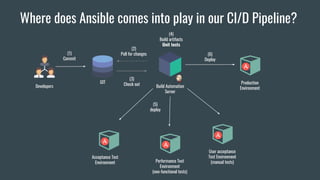

81. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
GIT
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy

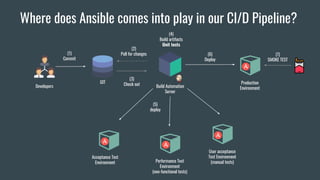

82. Where does Ansible comes into play in our CI/D Pipeline?
(1)
Commit
GIT
(2)
Poll for changes
(3)
Check out
(4)
Build artifacts
Unit tests
Build Automation
Server
(5)
deploy
Acceptance Test
Environment Performance Test
Environment
(non-functional tests)
User acceptance
Test Environment
(manual tests)
Developers
Production
Environment
(6)
Deploy
(7)
SMOKE TEST

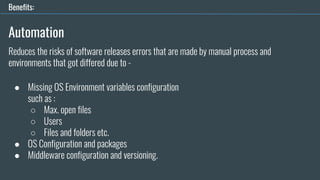

83. Automation
● Missing OS Environment variables configuration
such as :
○ Max. open files
○ Users
○ Files and folders etc.
● OS Configuration and packages
● Middleware configuration and versioning.
Benefits:
Reduces the risks of software releases errors that are made by manual process and
environments that got differed due to -

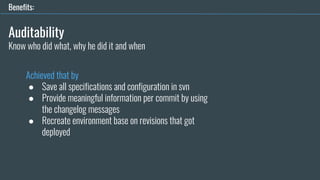

84. Auditability
Achieved that by
● Save all specifications and configuration in svn
● Provide meaningful information per commit by using
the changelog messages
● Recreate environment base on revisions that got
deployed
Benefits:
Know who did what, why he did it and when

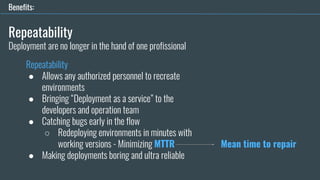

85. Repeatability
Repeatability
● Allows any authorized personnel to recreate
environments
● Bringing “Deployment as a service” to the
developers and operation team
● Catching bugs early in the flow
○ Redeploying environments in minutes with
working versions - Minimizing MTTR
● Making deployments boring and ultra reliable
Benefits:
Deployment are no longer in the hand of one profissional
Mean time to repair

86. Automate deployments with Ansible to achieve
● Operating system updates / packages
● Middleware & databases installation
● Artifact deployment & Dependencies
management
● Data propagation
● Auditability
} + Configuration
Benefits Summary:

87. TRAVIS CI / CIRCLE CI / Jenkins
Integration made easy

88. Features
● CircleCI is a cloud-based system — no dedicated server required, and you do not need to
administrate it. However, it also offers an on-prem solution that allows you to run it in
your private cloud or data center.
● Free plan available - Limits the number of concurrent builds
● SSH to the container that ran the build is possible for debug and investigation
● No configuration and long tiresome process is required to operate and start doing some
CI
● Compatible with almost every language including .NET …
● Build environment AWS, AZURE , Heroku, Docker, dedicated servers and more
Source: Hackernoon

89. Pros
● Fast start
● CircleCI has a free plan for enterprise projects
● It’s easy and fast to start
● Supports Pipelines and matrix builds (if this than that…)
● Lightweight, easily readable YAML config
● You do not need any dedicated server to run CircleCI
Source: Hackernoon

90. Cons
● CircleCI supports only 2 versions of Ubuntu for free (12.04 , 14.04) and MacOS
as a paid part
● Despite the fact CircleCI do work with and run on all languages tt supports
only the following programming languages “out of the box”: Go (Golang),
Haskell, Java, PHP, Python, Ruby/Rails, Scala. Meaning that some 3rd party
software will be required
Source: Hackernoon

91. Features
Travis CI is one of the more common names in the CI/CD ecosystem, created for open source projects and
then expanded to closed source projects over the years. It’s focused on the CI level, improving the
performance of the build process with automated testing and an alert system.
Source: Hackernoon

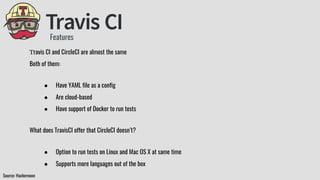

92. Features
Source: Hackernoon
Travis CI and CircleCI are almost the same
Both of them:
● Have YAML file as a config
● Are cloud-based
● Have support of Docker to run tests
What does TravisCI offer that CircleCI doesn’t?
● Option to run tests on Linux and Mac OS X at same time
● Supports more languages out of the box

93. Pros
Same as CircleCI
Source: Hackernoon

94. Cons
● Price is higher compared to CircleCI, no free enterprise plan
● Customization (for some stuff you’ll need 3rd parties)
● Only cloud solution. No on premise installation option
Blocker for some companies
Source: Hackernoon

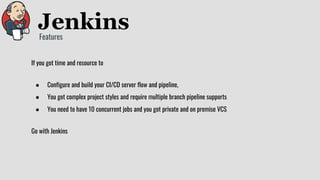

96. If you got time and resource to
● Configure and build your CI/CD server flow and pipeline,
● You got complex project styles and require multiple branch pipeline supports
● You need to have 10 concurrent jobs and you got private and on premise VCS
Go with Jenkins
Features

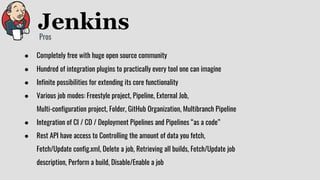

97. Pros
● Completely free with huge open source community
● Hundred of integration plugins to practically every tool one can imagine
● Infinite possibilities for extending its core functionality
● Various job modes: Freestyle project, Pipeline, External Job,
Multi-configuration project, Folder, GitHub Organization, Multibranch Pipeline
● Integration of CI / CD / Deployment Pipelines and Pipelines “as a code”
● Rest API have access to Controlling the amount of data you fetch,
Fetch/Update config.xml, Delete a job, Retrieving all builds, Fetch/Update job
description, Perform a build, Disable/Enable a job

98. ● Time and learning curve
● Dedicated personnel to handle it
● No cloud hosting solution (SaaS)
● Time to configure / customize / maintain
Cons

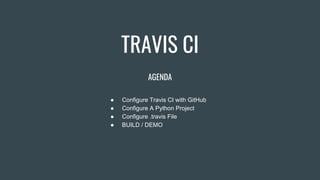

99. TRAVIS CI
AGENDA
● Configure Travis CI with GitHub
● Configure A Python Project
● Configure .travis File
● BUILD / DEMO

100. Configure
STEP I
● Use GitHub.
○ BitBucket ? CircleCI or Jenkins for you
● Link your github repo with Travis CI

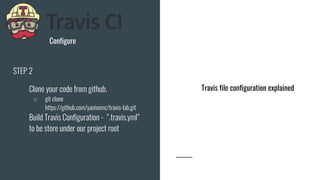

101. Configure
STEP 2
● Clone your code from github.
○ git clone
https://github.com/yanivomc/travis-lab.git
● Build Travis Configuration - “.travis.yml”
to be store under our project root
Travis file configuration explained

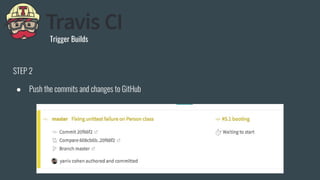

103. Trigger Builds
STEP 2
● Push the commits and changes to GitHub

104. Trigger Builds

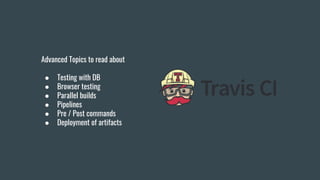

105. Advanced Topics to read about
● Testing with DB
● Browser testing
● Parallel builds
● Pipelines
● Pre / Post commands
● Deployment of artifacts

106. Controlling CircleCI with Python
Method: TravisPY

107. CircleCI (cloud)
AGENDA
● Configure Circle CI with GitHub
● Configure A Python Project
● Configure .circle.yml File
● BUILD / DEMO

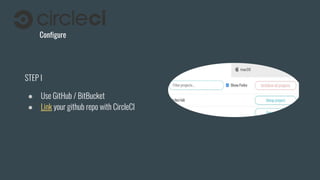

108. Configure
STEP I
● Use GitHub / BitBucket
● Link your github repo with CircleCI

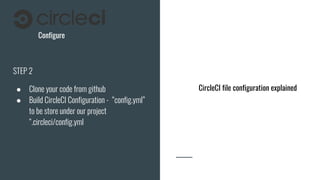

109. Configure
STEP 2
● Clone your code from github
● Build CircleCI Configuration - “config.yml”
to be store under our project
“.circleci/config.yml

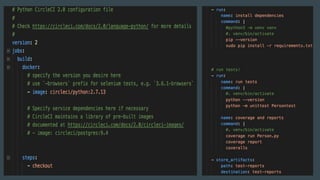

CircleCI file configuration explained

111. STEP 2
● Push the commits and changes to GitHub
Trigger build

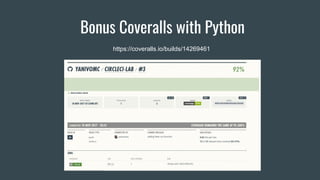

113. Bonus Coveralls with Python
https://coveralls.io/builds/14269461

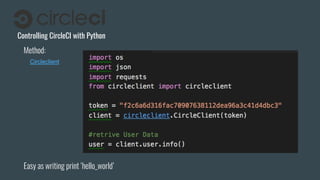

114. Easy as writing print ‘hello_world’
Controlling CircleCI with Python
Circleclient
Method:

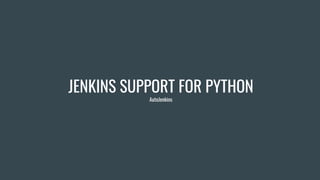

115. JENKINS SUPPORT FOR PYTHON
AutoJenkins

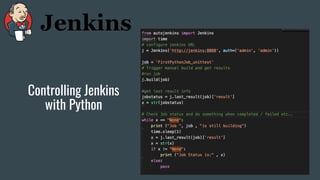

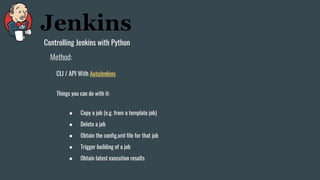

116. Controlling Jenkins with Python
CLI / API With AutoJenkins
Method:
Things you can do with it:
● Copy a job (e.g. from a template job)
● Delete a job
● Obtain the config.xml file for that job
● Trigger building of a job
● Obtain latest execution results

117. Controlling Jenkins
with Python

118. OPEN MIC: Automated tests Monitoring , Culture Change
INFRASTRUCTURE AS CODE & ORCHESTRATION
Deployment automation - CI / CD / Delivery
MEASURE EVERYTHING
CONTINUOUS MONITORING
CULTURE CHANGE

119. MONITORING
MEASURE, MONITOR, MEASURE… ACTIVE CHECKS

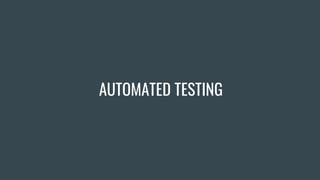

120. AUTOMATED TESTING

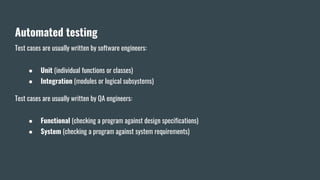

121. Automated testing
Test cases are usually written by software engineers:
● Unit (individual functions or classes)
● Integration (modules or logical subsystems)
Test cases are usually written by QA engineers:
● Functional (checking a program against design specifications)
● System (checking a program against system requirements)

122. END!
