CI is dead, long live CI
This document discusses different types of continuous integration (CI) pipelines. It begins by describing staging CI, where jobs are triggered on new commits, and issues can arise if the build breaks. It then covers gating CI, used by OpenStack, where code is reviewed and tested before being merged without broken builds. Finally, it discusses doing CI yourself using open source tools like Gerrit, Zuul and Jenkins, alone or via the pre-built Software Factory project. The conclusion is that gating CI prevents broken masters and these techniques can be reused for one's own projects.
More Related Content
![TechStory_CLASA_A4_eng_[1]](https://cdn.slidesharecdn.com/ss_thumbnails/3a971c91-92b7-4df4-a19e-d57059561f23-160201213344-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to CI is dead, long live CI
![[Perforce] Git Fusion](https://cdn.slidesharecdn.com/ss_thumbnails/git-fusion-slides-130523175821-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
CI is dead, long live CI
- 1. CI is dead,long live CI! Frédéric Lepied Senior Engineering Manager Member of Technical Staff Nov 2015

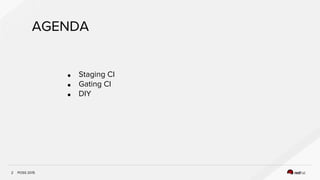

- 2. POSS 20152 AGENDA ● StagingCI ● Gating CI ● DIY
- 3.

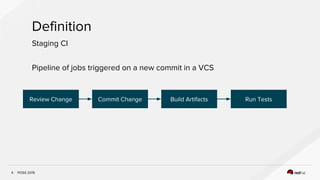

- 4. POSS 2015 Definition 4 Staging CI Pipelineof jobs triggered on a new commit in a VCS Review Change Commit Change Build Artifacts Run Tests

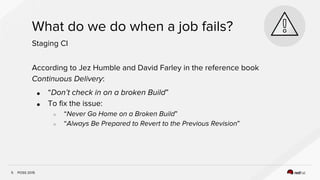

- 5. POSS 2015 What dowe do when a job fails? 5 Staging CI According to Jez Humble and David Farley in the reference book Continuous Delivery: ● “Don’t check in on a broken Build” ● To fix the issue: ○ “Never Go Home on a Broken Build” ○ “Always Be Prepared to Revert to the Previous Revision”

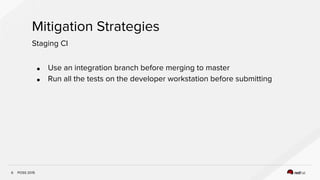

- 6. POSS 2015 Mitigation Strategies 6 StagingCI ● Use an integration branch before merging to master ● Run all the tests on the developer workstation before submitting

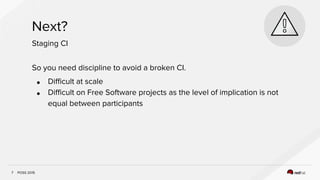

- 7. POSS 2015 Next? 7 Staging CI Soyou need discipline to avoid a broken CI. ● Difficult at scale ● Difficult on Free Software projects as the level of implication is not equal between participants
- 8.

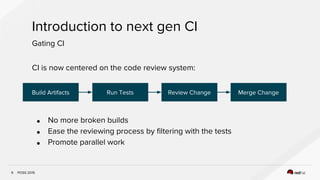

- 9. POSS 2015 Introduction tonext gen CI 9 Gating CI CI is now centered on the code review system: Review Change Merge ChangeBuild Artifacts Run Tests ● No more broken builds ● Ease the reviewing process by filtering with the tests ● Promote parallel work

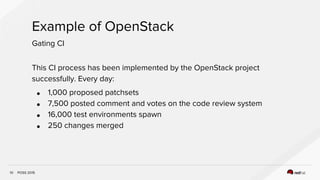

- 10. POSS 2015 Example ofOpenStack 10 Gating CI This CI process has been implemented by the OpenStack project successfully. Every day: ● 1,000 proposed patchsets ● 7,500 posted comment and votes on the code review system ● 16,000 test environments spawn ● 250 changes merged

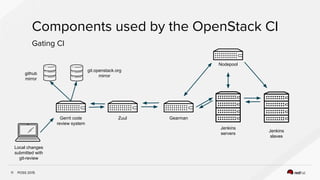

- 11. POSS 2015 Components usedby the OpenStack CI 11 Gating CI Local changes submitted with git-review Gerrit code review system git.openstack.org mirror github mirror Zuul Gearman Jenkins servers Nodepool Jenkins slaves

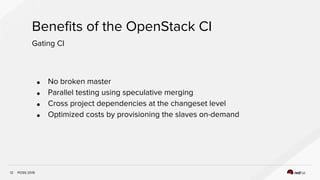

- 12. POSS 2015 Benefits ofthe OpenStack CI 12 Gating CI ● No broken master ● Parallel testing using speculative merging ● Cross project dependencies at the changeset level ● Optimized costs by provisioning the slaves on-demand
- 13.

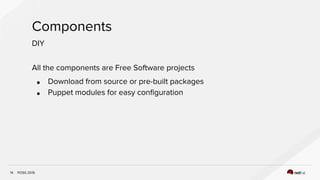

- 14. POSS 2015 Components 14 DIY All thecomponents are Free Software projects ● Download from source or pre-built packages ● Puppet modules for easy configuration
- 15. POSS 2015 Software Factory 15 DIY Alternatively,you can use the pre-built integration from softwarefactory-project.io ● ready to use VM with the OpenStack CI components: Gerrit, Zuul, Jenkins and Nodepool ● Extras: ○ prebuilt integration and delivery pipelines in Zuul ○ SSO ○ web menu and dashboard ○ configuration API and CLI ○ bug tracking system (Redmine) ○ collaboration tools: paste and etherpad
- 16.

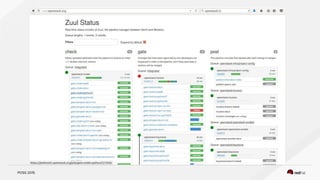

- 17.
- 18. POSS 2015 Conclusion 18 DIY No morebroken master! ● re-use OpenStack CI components for your own needs ● help us improve Software Factory
- 19.
- 20.
- 21.
