architectural case study
Asian games village designed by ar. raj rewal
B.Arch 4th-year sem 7
detailed zoning
analysis and survey
concept execution
referral links
https://www.scribd.com/document/415212492/Asian-Games-Village-Final
https://portfolio.cept.ac.in/fp/from-utopias-to-heterotopias-migrant-housing-values-of-time-density-culture-and-energy-ur2005-monsoon-2019/building-blocks-of-migrant-housing-monsoon-2019-ug180076
https://www.slideshare.net/WaseemNoor3/raj-rewal-asian-games-village
https://www.archdaily.com/903782/asian-games-village-residence-iii-viueller-architects
https://rajrewal.in/portfolio/asian-games-village-1980-1982/
https://qdoc.tips/asiad-villagegrp-6-pdf-free.html
https://s3.us-east-1.amazonaws.com/media.archnet.org/system/publications/contents/2850/original/DPT0402.pdf?1384768113
https://prezi.com/zj7br3xisvu8/asiad-village/
study of famous housing projects by architect Charles Correa.
1. BELAPUR Housing
2. Kanchanjunga Apartments
3. Tarapur housing
Authors- Richa, Parveen n Aarti
This modular housing based in Belapur, New Mumbai, is designed by Ar. Charles Correa. This project, which was constructed in the 1980s, stands as a perfect example of affordable and high density housing, which is the need of the hour.
Designed as per the climatology of Bangalore.
Designed by renowned architect bv doshi.
Inspired by the architecture of Fatehpur Sikri of Akbar and beautiful gardens of Bangalore.
study of famous housing projects by architect Charles Correa.
1. BELAPUR Housing
2. Kanchanjunga Apartments
3. Tarapur housing
Authors- Richa, Parveen n Aarti
This modular housing based in Belapur, New Mumbai, is designed by Ar. Charles Correa. This project, which was constructed in the 1980s, stands as a perfect example of affordable and high density housing, which is the need of the hour.
Designed as per the climatology of Bangalore.
Designed by renowned architect bv doshi.
Inspired by the architecture of Fatehpur Sikri of Akbar and beautiful gardens of Bangalore.
Auroville, City of dawn is located in state of Tamil Nadu, India, near Pondicherry in South India. .Auroville was founded as a project on experimental basis of the ‘Sri Arbindo Society’ on Wednesday 28 February 1968. The basic idea originated from Mirra Alfassa ‘The Mother ‘who was spiritually related to India.
Ma envisaged Auroville as an international township for 50,000 residents on the shape of a flower. Architect Roger Anger refined the planning and designed it in shape of Universe.He placed Matrimandir at the center of this city.
Mary Alfassa in her first message regarding the town stated that, "Auroville is meant to be a universal town where men and women of al countries are able to live in peace and progressive harmony, above all creeds, all politics and all nationalities”
.
GROUP HOUSING : A DOMESTIC ARCHITECTURE ACCOMODATES THE GROUP RATHER THAN THE UNIT AND ITS THEREFORE PUBLIC AS WELL AS PRIVATE. IT IS FIMILIAR THROUGH THE WIDWSPREAD DEVELOPMENT OF MASS HOUSING IN THE WORLD IN WHICH INDIVIDUALS OR FAMILIES FIND LIVING SPACE EITHER IN M ULTIPLE DWELLINGS OR SINGLE LINITS PRODUCED IN QUALITY . GROUP HOUSING IS PRODUSED BY MANY KINDS OF CULTURES BY COMMUNAL STATES TO EQALIZE LIVING STANDDARDS BY TYRANTS TO ASSURE A DOCILE LABOUR FORCE, AND BY FEDUAL OR CASTE SYSTEM TO BRINGS TOGETHER MEMBERS OF A CLASS.
2. CLUSTER HOUSING
A SUBDIVISION TECHNIQUES WHERE KNOWN
AS ZERO –LOT –LINE HOUSING OR HIGH DENSITY
HOUSING DWELLING ARE GROUPED TOGHTHER
WITH COMMON AREA LEFT FOR RECREATION .
RAW HOUSING
ONE OF A SERIES OF HOUSES , OFTEN AS SIMILAR
OR IDENTICAL DESIGN, SITUATED SIDE BY SIDE
AND JOINED COMMON WALLS
3. PRADHAN MANTRI AWAS YOJANA
2 MILLION NON-SLUM URBAN POOR HOUSEHOLD
ARE PROPOSED TO BE COVERDED UNDER THE MISSION.
RAJIV AWAS YOJANA
IT UNCOURAGE “SLUM FREE INDIA” IN CITIES
IN WHICH EVERY CITIZEN HAS ACEES TO BASIC AMENITIES.
PRADHAN MANTRI GRAMIN AWAS YOZANA
PROVIDING FINANCIAL ASSISTANCE TO RURAL
POOR FOR CONSTRUCTING THEIR HOUSES THEMSELVES.
HOUSING FOR ALL BY 2022
MISSSION APPROVED A SUBSTANCIAL INCREAS IN INTEREST
RELIFE ON LOAN FOR THE URBAN POOR
TO PROMOTE AFFORDEBLE HOMES.
INTEREST SUBSIDY SCHEMES FOR HOUSING URBAN
THE SCHEMES ENVISAGES THE PROVISION OF
INTEREST TO EWS AND LIG SEGMENTS TO
ENABLES THEM TO BUY OR CONSTRUCT HOUSES.
4.Lower Income Group
Economic Weaker Section (EWS) means households with monthly household income upto Rs. 5000/- per month or as revised by the Ministry of Housing and Urban Poverty Alleviation, Government of India from time to time. Lower Income Group (LIG) means households with monthly household income between Rs. 5001/- to Rs.
5.Development of Group Housing will be under provision
of master plan, Enclave development plan and layout plan.
Minimum area of plot will be 2000sq.m
Land proposed for group housing will be located at 12m
wide exiting road, But the distance of the plot from 18m
(or above) wide road will not be more than 100m.
Slilt floor will be permitted for the purpose of parking in
group housing buildings, height of which of which be
2.1m up to the beam.
if slilt floor is used for purpose other than parking then
it will be counted in F.A.R.
Park and open area will be provided at the rate of
1.0sq.m. per person or 15% of the whole area,
whichever is more, in the plot of area 3000sq.m (or above).
This is an Architectural case study on the Centre for Environment Planning & Technology (CEPT) building. Situated in Ahmedabad, Gujarat. This is done by an architecture student in semester 5.
Introduction
Types
Building Rules & Regulations
Orientation
External Circulation
External Elements
Grouping
Internal Circulation
Space Analysis
Building Services
School Of Architecture And Planning vijayawada , Case study sheets and Liter...UdayGotetiStudios
School Of Architecture And Planning vijayawada , Case study sheets and Literature .
Presentation made by vaishnavi school of architecture and planning 3 year 5th sem students as a design project .
Execution and presentation by UDAY GOTETI
THANK YOU
UGS
buildings rated by GRIHA and LEED, sustainable buildings around the wold, gre...DhvaniR2
nearly 10 building of India which are rated for green buildings in India by GRIHA and LEED India,
there is 10-10 buildings which are rated by GRIHA and LEED
there is detailed information of each buildings
inforamtion are in form of:
location,
master plans,
sustainavle factors,
unit plans, sections
construction diagrams
sustainable and green factors diagram which effect the building as a elements
Center of environmental science & engineering building IIT, Kanpur
Indian institute of management, Kozhikode
VVIP Circuit house, Pune
IIT, Kanpur
Titan new corporation building, Bangalore
Indira paryavaran bhavan
Teri building, Bangalore
this all are griha rated buildings
Infinity benchmark, Kolkata
CII, Hyderabad
DPR construction phoenix regional office, Arizona
Infosys limited, Mysore
this are the buildings of leed
THE INTERLACE, SINGAPORE
HOUSING COMPLEX
GROUP HOUSING..
THE INTERLACE IS LOCATED ON AN ELEVATED EIGHT-HECTARE SITE, BOUNDED BY ALEXANDRA ROAD AND THE AYER RAJAH EXPRESSWAY, AMIDST THE VERDANT SOUTHERN RIDGES OF SINGAPORE. WITH ABOUT 170,000M2 OF GROSS FLOOR AREA, THE DEVELOPMENT WILL PROVIDE 1,040 APARTMENT UNITS OF VARYING SIZES WITH EXTENSIVE OUTDOOR SPACES AND LANDSCAPING. THE SITE COMPLETES A GREEN BELT THAT STRETCHES BETWEEN KENT RIDGE, TELOK BLANGAH HILL, AND MOUNT FABER PARKS.
Auroville, City of dawn is located in state of Tamil Nadu, India, near Pondicherry in South India. .Auroville was founded as a project on experimental basis of the ‘Sri Arbindo Society’ on Wednesday 28 February 1968. The basic idea originated from Mirra Alfassa ‘The Mother ‘who was spiritually related to India.
Ma envisaged Auroville as an international township for 50,000 residents on the shape of a flower. Architect Roger Anger refined the planning and designed it in shape of Universe.He placed Matrimandir at the center of this city.
Mary Alfassa in her first message regarding the town stated that, "Auroville is meant to be a universal town where men and women of al countries are able to live in peace and progressive harmony, above all creeds, all politics and all nationalities”
.
GROUP HOUSING : A DOMESTIC ARCHITECTURE ACCOMODATES THE GROUP RATHER THAN THE UNIT AND ITS THEREFORE PUBLIC AS WELL AS PRIVATE. IT IS FIMILIAR THROUGH THE WIDWSPREAD DEVELOPMENT OF MASS HOUSING IN THE WORLD IN WHICH INDIVIDUALS OR FAMILIES FIND LIVING SPACE EITHER IN M ULTIPLE DWELLINGS OR SINGLE LINITS PRODUCED IN QUALITY . GROUP HOUSING IS PRODUSED BY MANY KINDS OF CULTURES BY COMMUNAL STATES TO EQALIZE LIVING STANDDARDS BY TYRANTS TO ASSURE A DOCILE LABOUR FORCE, AND BY FEDUAL OR CASTE SYSTEM TO BRINGS TOGETHER MEMBERS OF A CLASS.
2. CLUSTER HOUSING
A SUBDIVISION TECHNIQUES WHERE KNOWN
AS ZERO –LOT –LINE HOUSING OR HIGH DENSITY
HOUSING DWELLING ARE GROUPED TOGHTHER
WITH COMMON AREA LEFT FOR RECREATION .
RAW HOUSING
ONE OF A SERIES OF HOUSES , OFTEN AS SIMILAR
OR IDENTICAL DESIGN, SITUATED SIDE BY SIDE
AND JOINED COMMON WALLS
3. PRADHAN MANTRI AWAS YOJANA
2 MILLION NON-SLUM URBAN POOR HOUSEHOLD
ARE PROPOSED TO BE COVERDED UNDER THE MISSION.
RAJIV AWAS YOJANA
IT UNCOURAGE “SLUM FREE INDIA” IN CITIES
IN WHICH EVERY CITIZEN HAS ACEES TO BASIC AMENITIES.
PRADHAN MANTRI GRAMIN AWAS YOZANA
PROVIDING FINANCIAL ASSISTANCE TO RURAL
POOR FOR CONSTRUCTING THEIR HOUSES THEMSELVES.
HOUSING FOR ALL BY 2022
MISSSION APPROVED A SUBSTANCIAL INCREAS IN INTEREST
RELIFE ON LOAN FOR THE URBAN POOR
TO PROMOTE AFFORDEBLE HOMES.
INTEREST SUBSIDY SCHEMES FOR HOUSING URBAN
THE SCHEMES ENVISAGES THE PROVISION OF
INTEREST TO EWS AND LIG SEGMENTS TO
ENABLES THEM TO BUY OR CONSTRUCT HOUSES.
4.Lower Income Group
Economic Weaker Section (EWS) means households with monthly household income upto Rs. 5000/- per month or as revised by the Ministry of Housing and Urban Poverty Alleviation, Government of India from time to time. Lower Income Group (LIG) means households with monthly household income between Rs. 5001/- to Rs.
5.Development of Group Housing will be under provision
of master plan, Enclave development plan and layout plan.
Minimum area of plot will be 2000sq.m
Land proposed for group housing will be located at 12m
wide exiting road, But the distance of the plot from 18m
(or above) wide road will not be more than 100m.
Slilt floor will be permitted for the purpose of parking in
group housing buildings, height of which of which be
2.1m up to the beam.
if slilt floor is used for purpose other than parking then
it will be counted in F.A.R.
Park and open area will be provided at the rate of
1.0sq.m. per person or 15% of the whole area,
whichever is more, in the plot of area 3000sq.m (or above).
This is an Architectural case study on the Centre for Environment Planning & Technology (CEPT) building. Situated in Ahmedabad, Gujarat. This is done by an architecture student in semester 5.
Introduction
Types
Building Rules & Regulations
Orientation
External Circulation
External Elements
Grouping
Internal Circulation
Space Analysis
Building Services
School Of Architecture And Planning vijayawada , Case study sheets and Liter...UdayGotetiStudios
School Of Architecture And Planning vijayawada , Case study sheets and Literature .
Presentation made by vaishnavi school of architecture and planning 3 year 5th sem students as a design project .
Execution and presentation by UDAY GOTETI
THANK YOU
UGS
buildings rated by GRIHA and LEED, sustainable buildings around the wold, gre...DhvaniR2
nearly 10 building of India which are rated for green buildings in India by GRIHA and LEED India,
there is 10-10 buildings which are rated by GRIHA and LEED
there is detailed information of each buildings
inforamtion are in form of:
location,
master plans,
sustainavle factors,
unit plans, sections
construction diagrams
sustainable and green factors diagram which effect the building as a elements
Center of environmental science & engineering building IIT, Kanpur
Indian institute of management, Kozhikode
VVIP Circuit house, Pune
IIT, Kanpur
Titan new corporation building, Bangalore
Indira paryavaran bhavan
Teri building, Bangalore
this all are griha rated buildings
Infinity benchmark, Kolkata
CII, Hyderabad
DPR construction phoenix regional office, Arizona
Infosys limited, Mysore
this are the buildings of leed
THE INTERLACE, SINGAPORE
HOUSING COMPLEX
GROUP HOUSING..
THE INTERLACE IS LOCATED ON AN ELEVATED EIGHT-HECTARE SITE, BOUNDED BY ALEXANDRA ROAD AND THE AYER RAJAH EXPRESSWAY, AMIDST THE VERDANT SOUTHERN RIDGES OF SINGAPORE. WITH ABOUT 170,000M2 OF GROSS FLOOR AREA, THE DEVELOPMENT WILL PROVIDE 1,040 APARTMENT UNITS OF VARYING SIZES WITH EXTENSIVE OUTDOOR SPACES AND LANDSCAPING. THE SITE COMPLETES A GREEN BELT THAT STRETCHES BETWEEN KENT RIDGE, TELOK BLANGAH HILL, AND MOUNT FABER PARKS.
Over the years Doshi has created architecture that relies on a sensitive adoption and refinement of modern architecture within an Indian context.
Check for more presentations at - www.archistudent.net
Rahul Mehrotra - an overview of the architectural projects of this apparently regionalist and post modernist architect.The scale of projects undertaken by him are varied and extensive.
One of the India's best-known architects, Raj Rewal is recognized internationally for buildings that respond sensitivity to the complex demands of rapid urbanization, climate and culture. In a country that is both developing and industrialized, whose architectural inheritance is ancient and recent and whose society is conservative and pluralist, Rewal's work combines sophisticated technology and a sense of history and context, imparted not only by design but by local material such as ochre and rose sandstone, evoking the great Mogul monuments.
Use of Architectural Elements in Evolution of Traditional StyleSHUBHAM SHARMA
The research paper prepared by me gives a brief idea about traditional and architectural components of rajasthan. This features can be used as a basic components in modern and contemporary architecture to achieve extents of sustainability.
NEHRU SCIENCE CENTER MUMBAI and Dr. Kallam anji reddy memorialHarshit Jain
NEHRU SCIENCE CENTER MUMBAI and Dr. Kallam anji reddy memorial
architectural case study
India's largest Science Centre designed by Achyut prakash Kanvinde.
Architect Raj Rewal Projects : Solving Modern Issues with Ancient Heritage.pdfAbir Pothi
Raj Rewal is a renowned architect known for blending traditional principles with modern design. Educated in Delhi and London, he taught at the School of Planning and Architecture Delhi. Notable works include the Hall of Nations and CIDCO Housing. He founded Raj Rewal Associates in 1962. Read full article to know more.
Synthetic Fiber Construction in lab .pptxPavel ( NSTU)
Synthetic fiber production is a fascinating and complex field that blends chemistry, engineering, and environmental science. By understanding these aspects, students can gain a comprehensive view of synthetic fiber production, its impact on society and the environment, and the potential for future innovations. Synthetic fibers play a crucial role in modern society, impacting various aspects of daily life, industry, and the environment. ynthetic fibers are integral to modern life, offering a range of benefits from cost-effectiveness and versatility to innovative applications and performance characteristics. While they pose environmental challenges, ongoing research and development aim to create more sustainable and eco-friendly alternatives. Understanding the importance of synthetic fibers helps in appreciating their role in the economy, industry, and daily life, while also emphasizing the need for sustainable practices and innovation.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
Ethnobotany and Ethnopharmacology:
Ethnobotany in herbal drug evaluation,
Impact of Ethnobotany in traditional medicine,
New development in herbals,
Bio-prospecting tools for drug discovery,
Role of Ethnopharmacology in drug evaluation,
Reverse Pharmacology.
The Indian economy is classified into different sectors to simplify the analysis and understanding of economic activities. For Class 10, it's essential to grasp the sectors of the Indian economy, understand their characteristics, and recognize their importance. This guide will provide detailed notes on the Sectors of the Indian Economy Class 10, using specific long-tail keywords to enhance comprehension.
For more information, visit-www.vavaclasses.com
Model Attribute Check Company Auto PropertyCeline George
In Odoo, the multi-company feature allows you to manage multiple companies within a single Odoo database instance. Each company can have its own configurations while still sharing common resources such as products, customers, and suppliers.
2. PROJECT
A BACKGROUND
Raj Rewal's housing for the Asian Games held in Delhi in November 1982 has been designed in
the tradition if such works, but attempts to create a village to instil a sense of community and
participation in the best spirit if an Olympiad.

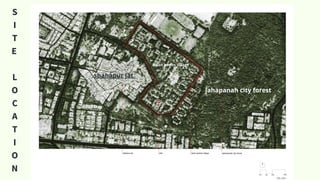

Located near the medieval ruins if Sid fort in South Delhi, 35 acres were allotted by the Delhi
Development Authority (DDA) for some 700 housing units.
The project took just under two years to build.
Initially, the complex, had 700 housing units out of which 200 were individual houses and 500
were apartments which varied from two to four storey structures.
AD case study sem 7
3. PROJECT
OVERVIEW Architect - Raj Rewal
Location - New Delhi, India
Date - 1980-1982
Building Type - Multi family housing
Construction System - Concrete
Context - Urban
Style - Modern
site area - 35acres (141640 sq m)
landscape architect - Mohammad Shaheer

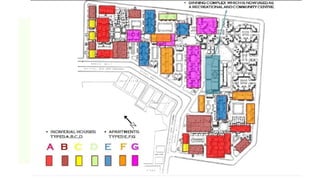

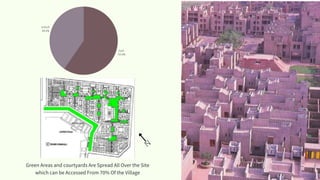

TOTAL BUILDING UNITS
TOTAL BUILDING UNITS: INITIALLY, CONSISTS OF 700 UNITS. (200 INDIVIDUAL HOUSES & 500
APARTMENTS).
NOW, IT HAS 853 FLATS.(793 HOUSE TOP OFFICIALS OF PSUS, BUREAUCRATS, PUBLIC. SERVANTS
AND EVEN UNION MINISTERS).
Density is 28 units per hectare.
5. CLIMATE
Delhi comes under the Composite Climate Zone.
Composite climate displays the characteristics of
hot & dry, warm & humid as well as cold climates.
Design here are guided by longer prevailing
climatic conditions .
New Delhi's climate is a difficult climate to design
for, being composite in nature , it experiences a
dry-hot summer with temperatures up to 45°C
and winters with temperatures down to 3°C and
an in-between hot-humid season.
Cool shadows and air currents are built into the
grain of the city of Jaisalmer and are excellent
demonstration of the achievement of low
rise,high density development.
Thus in this project same technique is used to
manage the climatic barriers
N

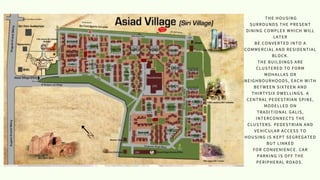

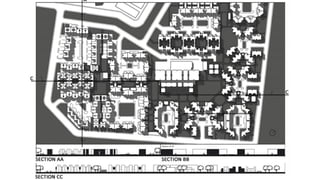

6. THE HOUSING
SURROUNDS THE PRESENT
DINING COMPLEX WHICH WILL
LATER
BE CONVERTED INTO A
COMMERCIAL AND RESIDENTIAL
BLOCK.
THE BUILDINGS ARE
CLUSTERED TO FORM
MOHALLAS OR
NEIGHBOURHOODS, EACH WITH
BETWEEN SIXTEEN AND
THIRTYSIX DWELLINGS. A
CENTRAL PEDESTRIAN SPINE,
MODELLED ON
TRADITIONAL GALIS,
INTERCONNECTS THE
CLUSTERS. PEDESTRIAN AND
VEHICULAR ACCESS TO
HOUSING IS KEPT SEGREGATED
BUT LINKED
FOR CONVENIENCE. CAR
PARKING IS OFF THE
PERIPHERAL ROADS.
N

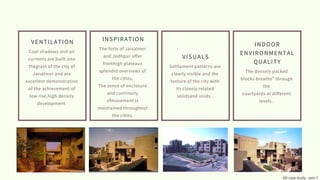

9. VENTILATION
Cool shadows and air
currents are built into
thegrain of the city of
Jaisalmer and are
excellent demonstration
of the achievement of
low rise,high density
development.
INSPIRATION
The forts of Jaisalmer
and Jodhpur offer
fromhigh plateaux
splendid overviews of
the cities.
The sense of enclosure
and continuity
ofmovement is
maintained throughout
the cities.
VISUALS
Settlement patterns are
clearly visible and the
texture of the city with
its closely related
solidsand voids .
INDOOR
ENVIRONMENTAL
QUALITY
The densely packed
blocks breathe‟ through
the
courtyards at different
levels .
AD case study sem 7

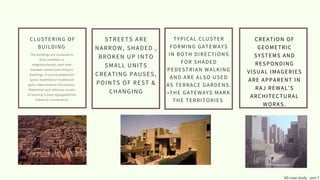

10. CLUSTERING OF
BUILDING
The buildings are clustered to
form mohallas or
neighbourhoods, each with
between sixteen and thirtysix
dwellings. A central pedestrian
spine, modelled on traditional
galis, interconnects the clusters.
Pedestrian and vehicular access
to housing is kept segregated but
linked for convenience
STREETS ARE
NARROW, SHADED ,
BROKEN UP INTO
SMALL UNITS
CREATING PAUSES,
POINTS OF REST &
CHANGING
AD case study sem 7
TYPICAL CLUSTER
FORMING GATEWAYS
IN BOTH DIRECTIONS
FOR SHADED
PEDESTRIAN WALKING
AND ARE ALSO USED
AS TERRACE GARDENS.
•THE GATEWAYS MARK
THE TERRITORIES
CREATION OF
GEOMETRIC
SYSTEMS AND
RESPONDING
VISUAL IMAGERIES
ARE APPARENT IN
RAJ REWAL’S
ARCHITECTURAL
WORKS.

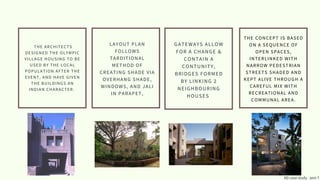

11. AD case study sem 7
THE ARCHITECTS
DESIGNED THE OLYMPIC
VILLAGE HOUSING TO BE
USED BY THE LOCAL
POPULATION AFTER THE
EVENT, AND HAVE GIVEN
THE BUILDINGS AN
INDIAN CHARACTER.
GATEWAYS ALLOW
FOR A CHANGE &
CONTAIN A
CONTUNITY,
BRIDGES FORMED
BY LINKING 2
NEIGHBOURING
HOUSES
LAYOUT PLAN
FOLLOWS
TARDITIONAL
METHOD OF
CREATING SHADE VIA
OVERHANG SHADE,
WINDOWS, AND JALI
IN PARAPET,
THE CONCEPT IS BASED
ON A SEQUENCE OF
OPEN SPACES,
INTERLINKED WITH
NARROW PEDESTRIAN
STREETS SHADED AND
KEPT ALIVE THROUGH A
CAREFUL MIX WITH
RECREATIONAL AND
COMMUNAL AREA.
13. Specific Building Typology
TYPE A UNIT
120 SQ M
THESE HAVE LARGEST FLOOR
AREA WITH CAR PORCHES AND
LARGE TARRACES
13.5 OF TOTAL HEIGHT AND
3M EACH UNIT OF HEIGHT IS
PROVIDED
1
TYPE B UNIT
200 SQ M
LOCATED ON THE PERIPHERY
OF THE PARKING SQUARES,
THE LARGEST SINGLE UNITS
HAVE AGROUNDAREA OF
APPROXIMATELY 200 METERS
AND HAVE ATTACHED CAR
PORCHES AND SERVANT
QUATER
2
TYPE C UNIT
60 SQ M
ITS DESIGNED SO THAT IT CAN
FORM CLUSTER WITH EITHER
FOUR OR SIX UNITS TO
CREATE A VARIETY OF INNER
SPCAES
3
TYPE D UNIT
80 SQM
A TYPICAL BLOCK DESIGNED
IN A WAY THAT IT CAN BE
LINKED AT ALL ENDS,
INCLUDING THE FRONTAND
CAN COMBINE AS DIFFERENT
PERMUTATIONS THAT MIX
AND MERGE TO SHAPE
NEWELEMENTS, EACH ADDING
A DIFFERENT EXPERIENCE.
4
14. The flats vary in size, from 90 square
metres to a maximum of200 square
metres. Each unit has its own private
open-to-sky space, in the form of a
courtyard or a terrace, in addition to
sharing a larger less private
communal garden area. The house
clusters, with their connecting
walkways and terraces overlooking
the intemal pedestrian streets or gal
is, help give the people of the mohalla
a sense of participation in communal
activities.
N
15.
16.

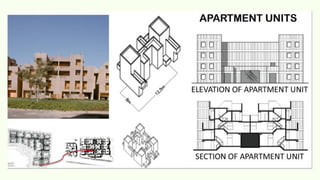

17. APARTMENT BLOCK
The isometric drawing of a typical cluster shows how the
houses are designed as interlocking units, usually in a block
of four to six flats. Each cluster has its own integrity, being
diftned by large darwazas or doorways, which have been a
feature of old city quarters in northern India. In the long
term, it is hoped that each cluster will develop its own
identity. The houses and roof terraces often overlook the
streets (galis) and the communal courtyards, creating a
sense of participation among residents, in what the architect
calls "the theatre of the street."

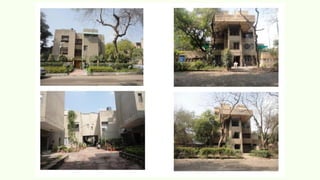

26. There has been a careful selection of materials and
colours for the housing. The building external walls are
finished with a stone aggregate applied in situ while
the courtyard walls are of Delhi quartzite stone.
Pedestrian pathways are paved with white or red
sandstone. The doors and windows to the houses are of
metal and are painted in bright colours which also give
a sense of identity to the different units.
SURACE COATING PEBBLES OF SANDSTONE,FINISHING
RAW, NATURAL COLOR STONE.
FRAMES METAL COLOR ORANGE GREEN WHITE
PAVING BLOCKS OF LOCAL STONE
The careful selection of materials and colors for the
complex is reflected in the use of Delhi quartzite stone
for the courtyard walls, white or red sandstone for
pathways and stone aggregate finish for the external
walls.
STRUCTURE OF BEAMS AND REIFORCED CONCRETE
PILLARS ARE COATED WITH PEBBLES OF SANDSTONE.
MATERIAL
CONSTRUCTION
27. INSPIRATIONAL WORDS
AMBER VALLETTA
Design shouldn't have to take a
backseat to sustainability and making
things responsibly.

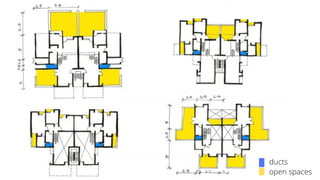

Every unit has open or semi-open spaces on
its all sides which allow wind to enter from all
sides and facilitate cross ventilation.
SEMI OPEN SPACES THAT ARE CLOSE TO EACH
OTHER IN ADJONING UNITS HAVE HIGH
PARAPET WALLS FOR PRIVACY.
EACH UNITS FACING THE
COMMUNITY AREA.
OPEN AND SEMI OPEN SPACES FACING
EACH OTHER OFFER FOR VISUAL
CONNECTION AND SAFETY.
A
N
A
L
Y
S
I
S
28.
29. RAJ REWAL IS INSPIRED BY THE VERNACULAR ARCHITECTURE OF JODHPUR AND
JAISALMER WHICH VERY MUCH REFLECT IN HIS DESIGN CONCEPT OF ASIAD VILLAGE
•Spacious terraces are the dominant feature
•The creation of the traditional narrow street ,linking all the housing units, provides
for intimate encounters between people and gives a sense of belonging to the
neighborhood square.
•The human scale has been kept in mind while designing the spaces.
•The narrow pedestrian street provides shade to vernacular urban form.
•The streets are consciously broken up into small units ,so there are pauses,
resting points and changing vistas.
•The complex is based on an internal street pattern with interconnecting inner
squares /chowks culminating in a central court that acts as a heart for the whole
scheme.
According to interview of
“Mr. Jogindar Singh” He possesses a 3 BHK apartment, and is a resident of Asiad
Village from 3 years.
• I feel that the clusters are not inter-connected for vehicular movement and have
zig zag paths. • There are no servants quarter and garages provided. There are
wide roads with ample of green spaces. There are backyards provided and the
structure is very sound.
A
N
A
L
Y
S
I
S
