This document provides information about a proposed gated community development in Maraimalai Nagar, Chennai. Some key details include: - The development will be located on 15.07 acres near the Trichy-Chennai highway, within 10 minutes of the Maraimalai Nagar railway station. - It aims to provide affordable housing for 2000 people at a maximum density of 115 people per acre. - In addition to residential buildings, the community will include commercial centers, recreational facilities, a library, gymnasium, meditation center, and other amenities. - Sustainable design principles like energy efficiency and use of natural light/ventilation will be incorporated. The layout will also promote walking and cycling.

1. GATED COMMUNITY AT MARAIMALAI NAGAR
- Geeva Chandana.B | 311211251011

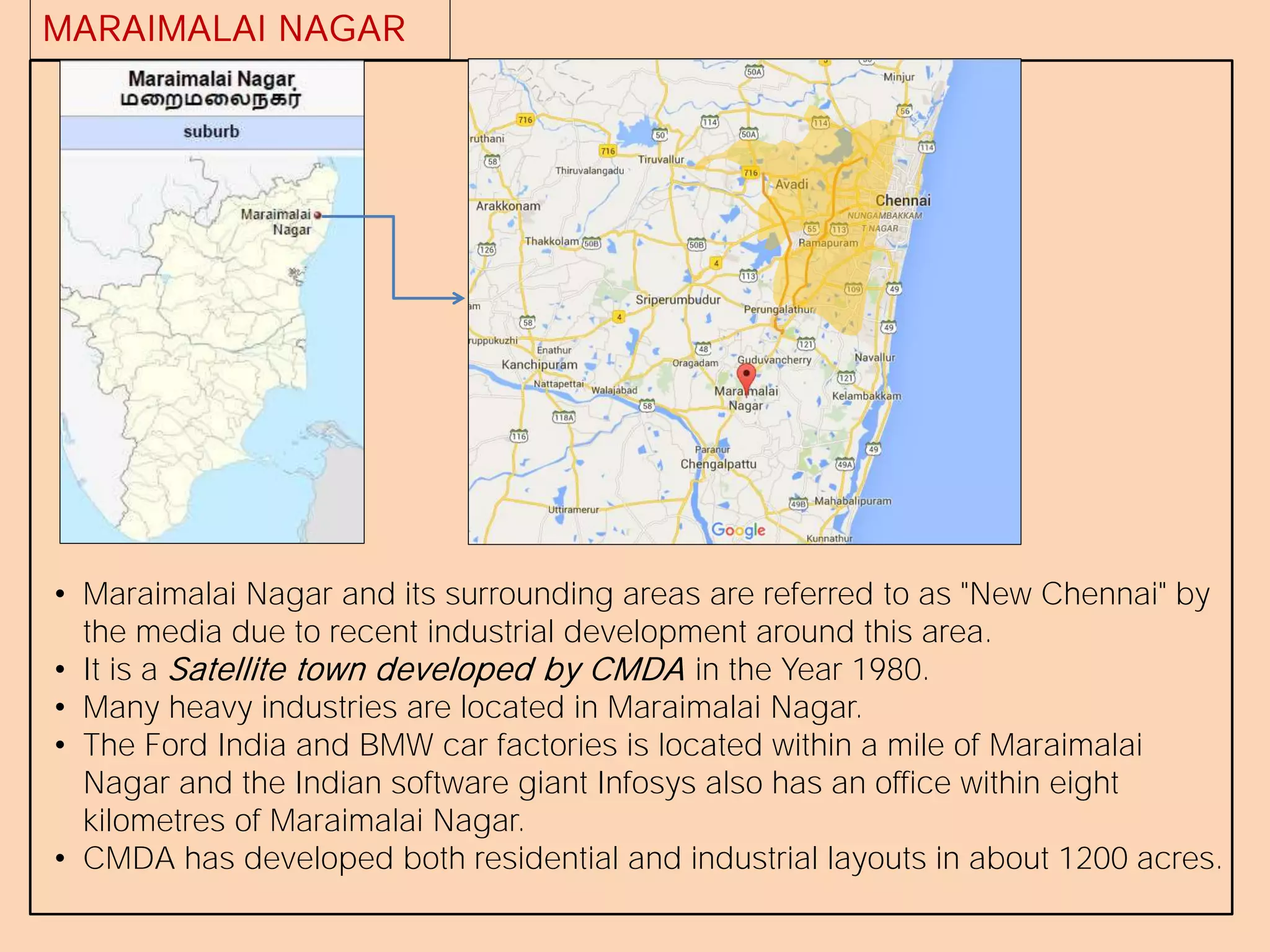

2. MARAIMALAI NAGAR
• Maraimalai Nagar and its surrounding areas are referred to as "New Chennai" by
the media due to recent industrial development around this area.
• It is a Satellite town developed by CMDA in the Year 1980.
• Many heavy industries are located in Maraimalai Nagar.
• The Ford India and BMW car factories is located within a mile of Maraimalai
Nagar and the Indian software giant Infosys also has an office within eight
kilometres of Maraimalai Nagar.
• CMDA has developed both residential and industrial layouts in about 1200 acres.

3. MARAIMALAI NAGAR

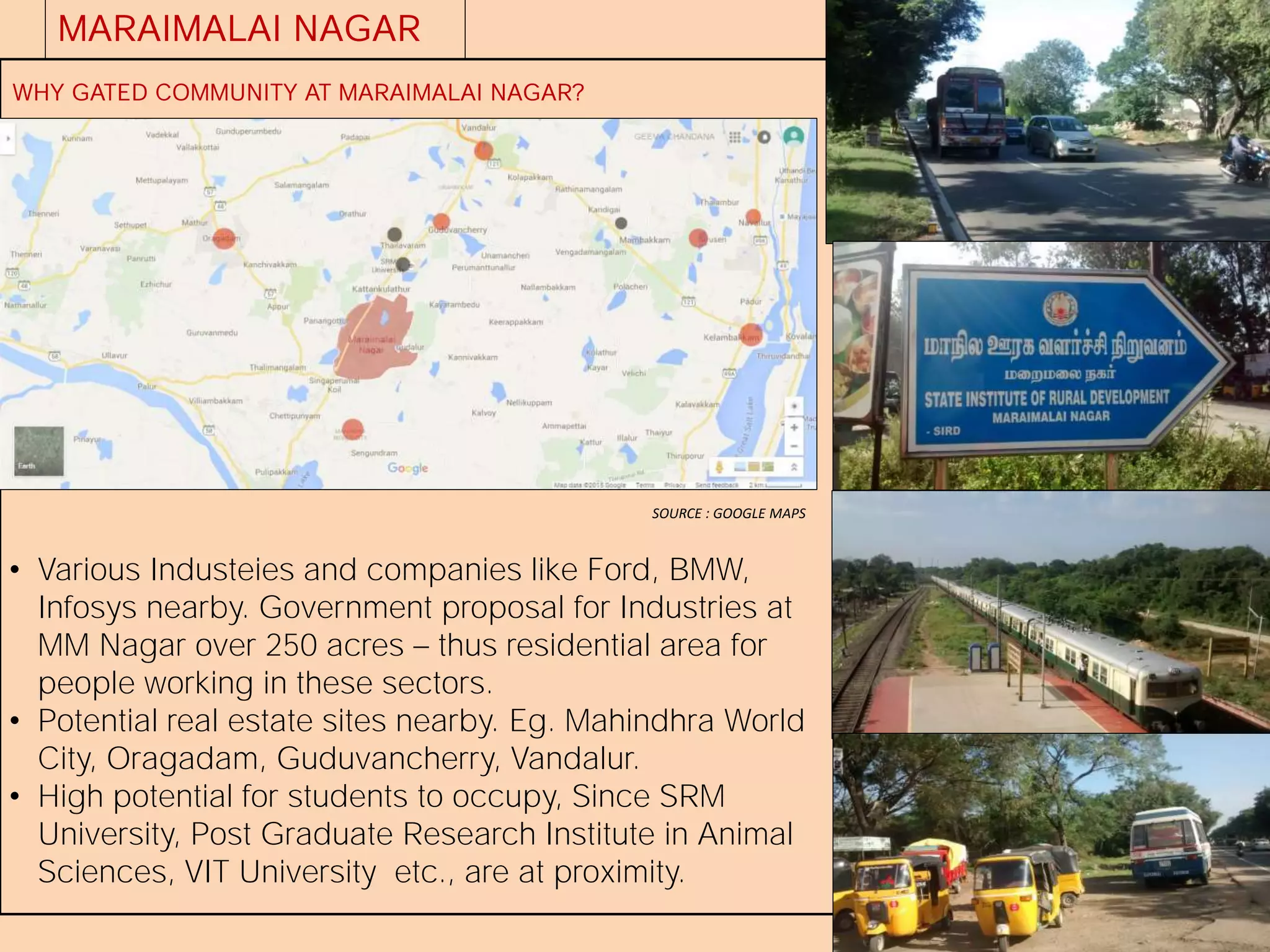

WHY GATED COMMUNITY AT MARAIMALAI NAGAR?
• Various Industeies and companies like Ford, BMW,
Infosys nearby. Government proposal for Industries at
MM Nagar over 250 acres thus residential area for
people working in these sectors.
• Potential real estate sites nearby. Eg. Mahindhra World
City, Oragadam, Guduvancherry, Vandalur.
• High potential for students to occupy, Since SRM
University, Post Graduate Research Institute in Animal
Sciences, VIT University etc., are at proximity.
SOURCE : GOOGLE MAPS

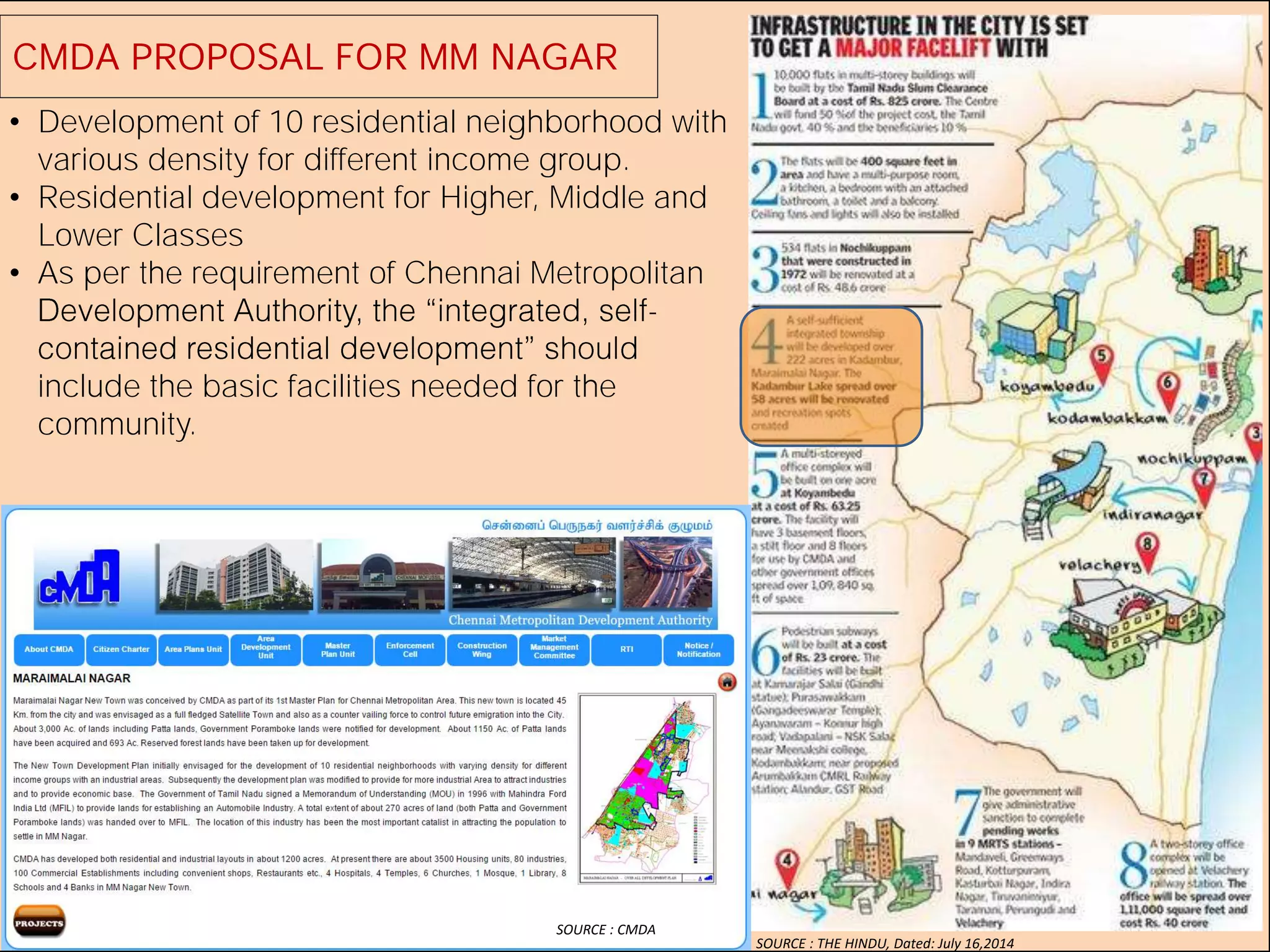

4. CMDA PROPOSAL FOR MM NAGAR
SOURCE : CMDA
SOURCE : THE HINDU, Dated: July 16,2014
• Development of 10 residential neighborhood with
various density for different income group.
• Residential development for Higher, Middle and
Lower Classes
• As per the requirement of Chennai Metropolitan
-
include the basic facilities needed for the
community.

5. AIM & OBJECTIVE:
• To create an affordable residences for all income group.
• Designing a Pedestrian and cycle friendly, barrier free design.
• Using energy efficient principles in design and make it less maintenance needed.
• Improve standard of living by providing amenities like, Swimming Pools, Gyms,
Play Areas, Parks, Community spaces, Meditation Centers, Club House etc.,
• Providing variety of houses like 2BHK, 3HK, 4BHK, Service apartments and
Independent Villas to serve different income group.
• To design place close to harmony and nature.

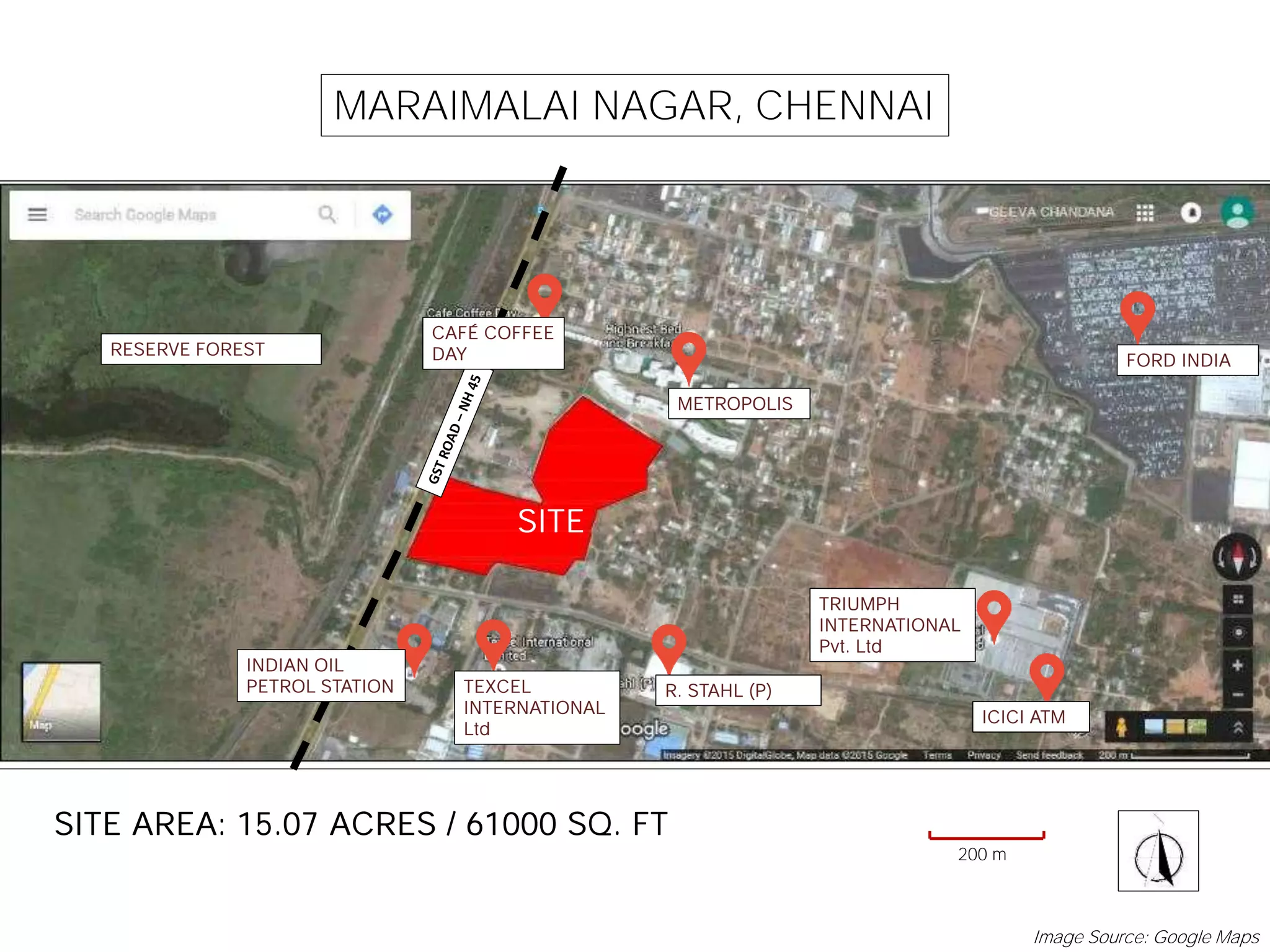

LOCATION:
AREA:
TARGETED POPULATION:
TARGETED DENSITY:
On The Trichy Chennai Highway, At 10 min
distance from Maraimalai Nagar Rly station.
15.07 Acres
2000 people (max)
115 people per acre
SITE

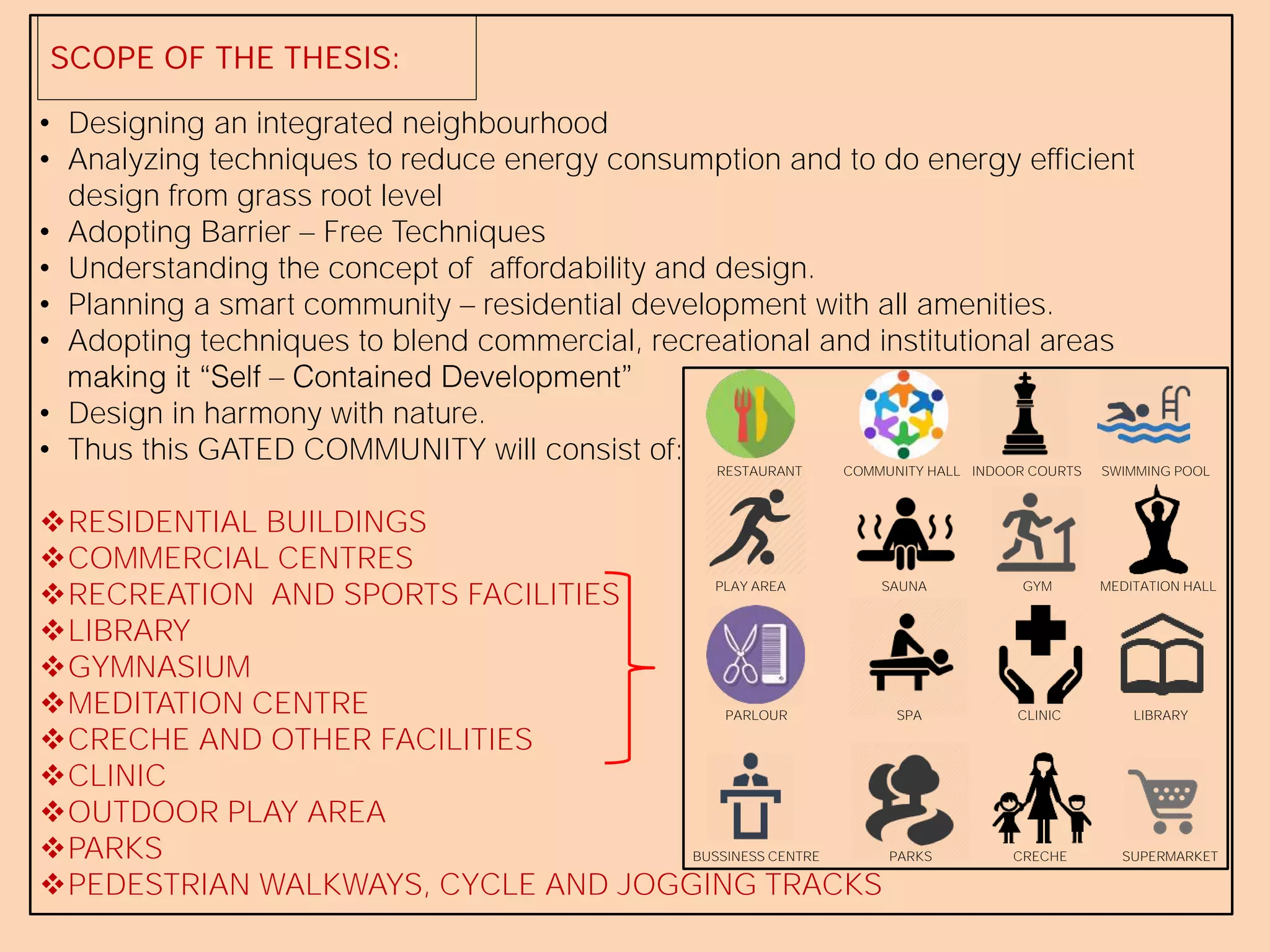

6. SCOPE OF THE THESIS:
• Designing an integrated neighbourhood
• Analyzing techniques to reduce energy consumption and to do energy efficient
design from grass root level
• Adopting Barrier Free Techniques
• Understanding the concept of affordability and design.
• Planning a smart community residential development with all amenities.
• Adopting techniques to blend commercial, recreational and institutional areas
• Design in harmony with nature.
• Thus this GATED COMMUNITY will consist of:
RESIDENTIAL BUILDINGS
COMMERCIAL CENTRES
RECREATION AND SPORTS FACILITIES
LIBRARY
GYMNASIUM
MEDITATION CENTRE
CRECHE AND OTHER FACILITIES
CLINIC
OUTDOOR PLAY AREA
PARKS
PEDESTRIAN WALKWAYS, CYCLE AND JOGGING TRACKS
RESTAURANT COMMUNITY HALL INDOOR COURTS SWIMMING POOL
PLAY AREA SAUNA GYM MEDITATION HALL
PARLOUR SPA CLINIC LIBRARY
BUSSINESS CENTRE PARKS CRECHE SUPERMARKET

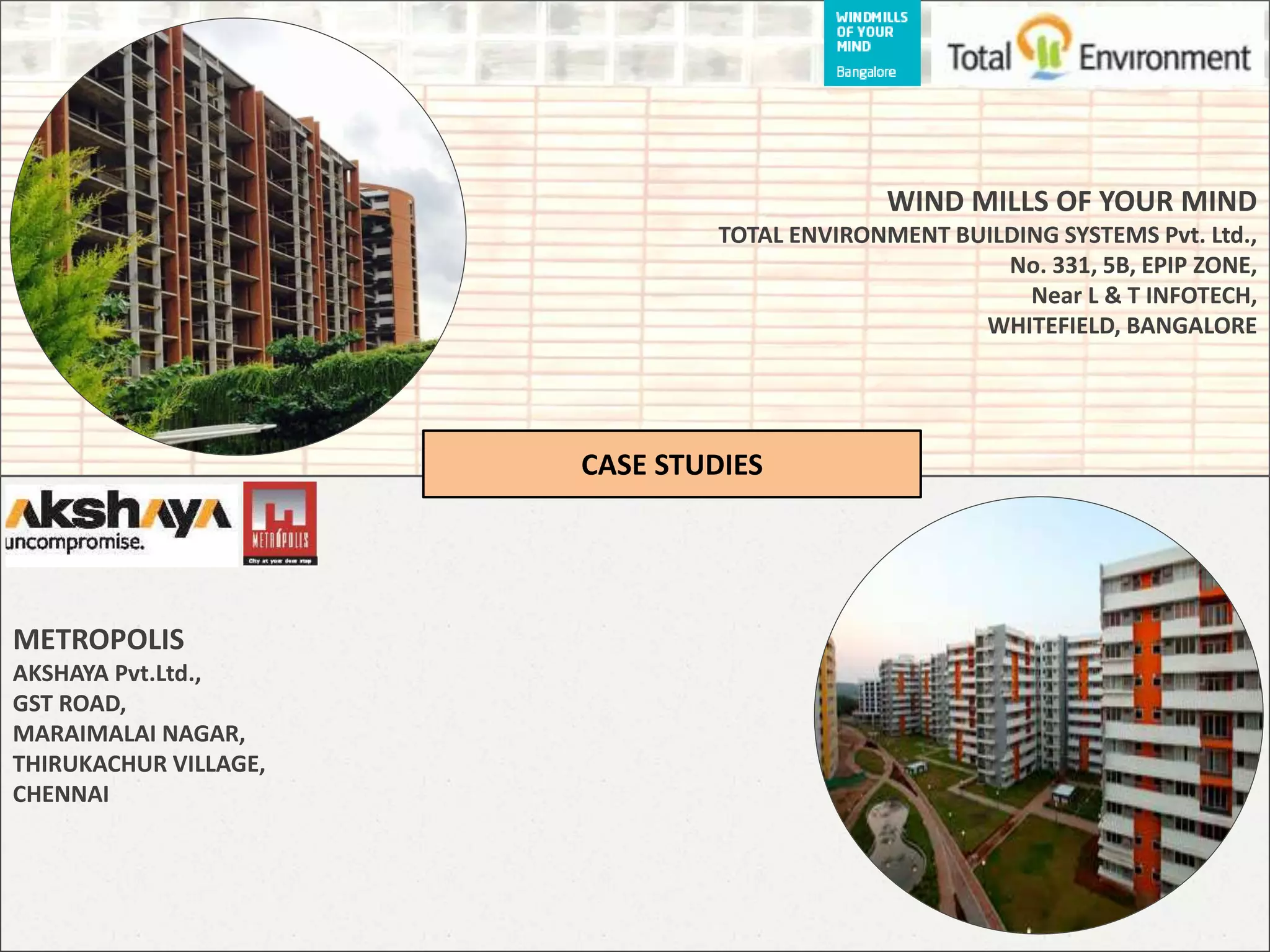

7. METROPOLIS
AKSHAYA Pvt.Ltd.,
GST ROAD,
MARAIMALAI NAGAR,
THIRUKACHUR VILLAGE,
CHENNAI
WIND MILLS OF YOUR MIND
TOTAL ENVIRONMENT BUILDING SYSTEMS Pvt. Ltd.,
No. 331, 5B, EPIP ZONE,
Near L & T INFOTECH,
WHITEFIELD, BANGALORE
CASE STUDIES

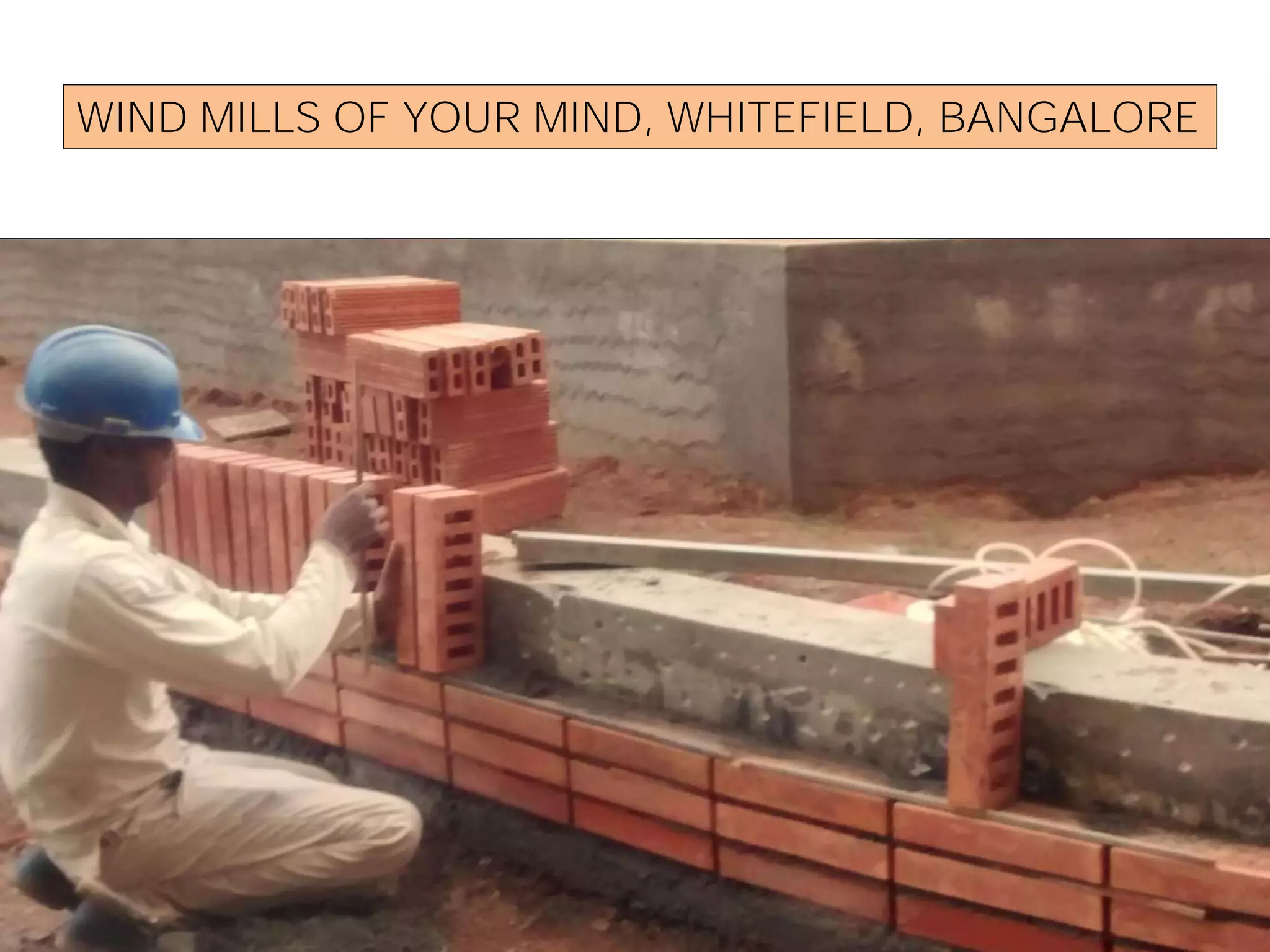

8. WIND MILLS OF YOUR MIND, WHITEFIELD, BANGALORE

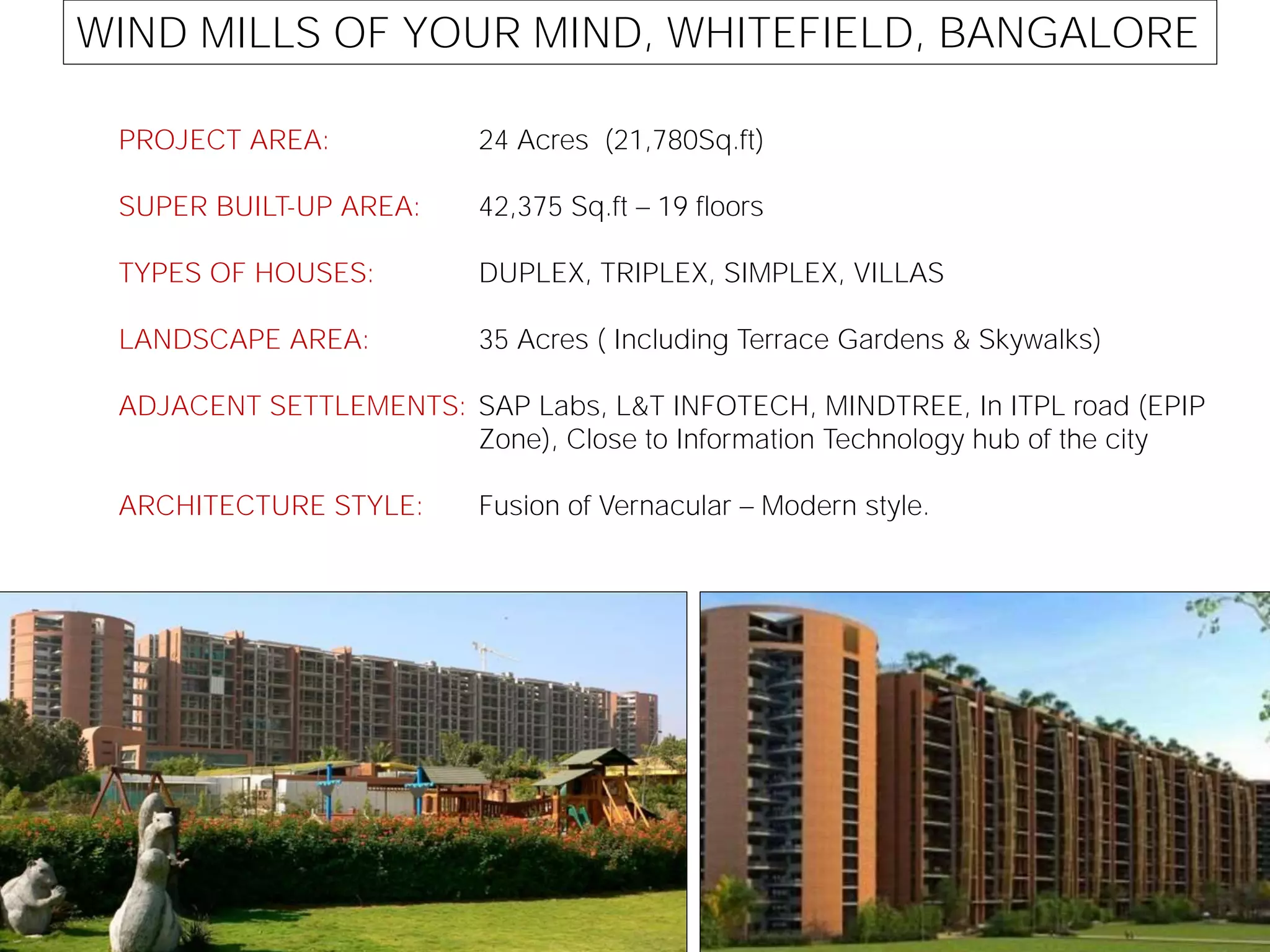

9. WIND MILLS OF YOUR MIND, WHITEFIELD, BANGALORE
PROJECT AREA:
SUPER BUILT-UP AREA:
TYPES OF HOUSES:
LANDSCAPE AREA:
ADJACENT SETTLEMENTS:
ARCHITECTURE STYLE:
24 Acres (21,780Sq.ft)
42,375 Sq.ft 19 floors
DUPLEX, TRIPLEX, SIMPLEX, VILLAS
35 Acres ( Including Terrace Gardens & Skywalks)
SAP Labs, L&T INFOTECH, MINDTREE, In ITPL road (EPIP
Zone), Close to Information Technology hub of the city
Fusion of Vernacular Modern style.

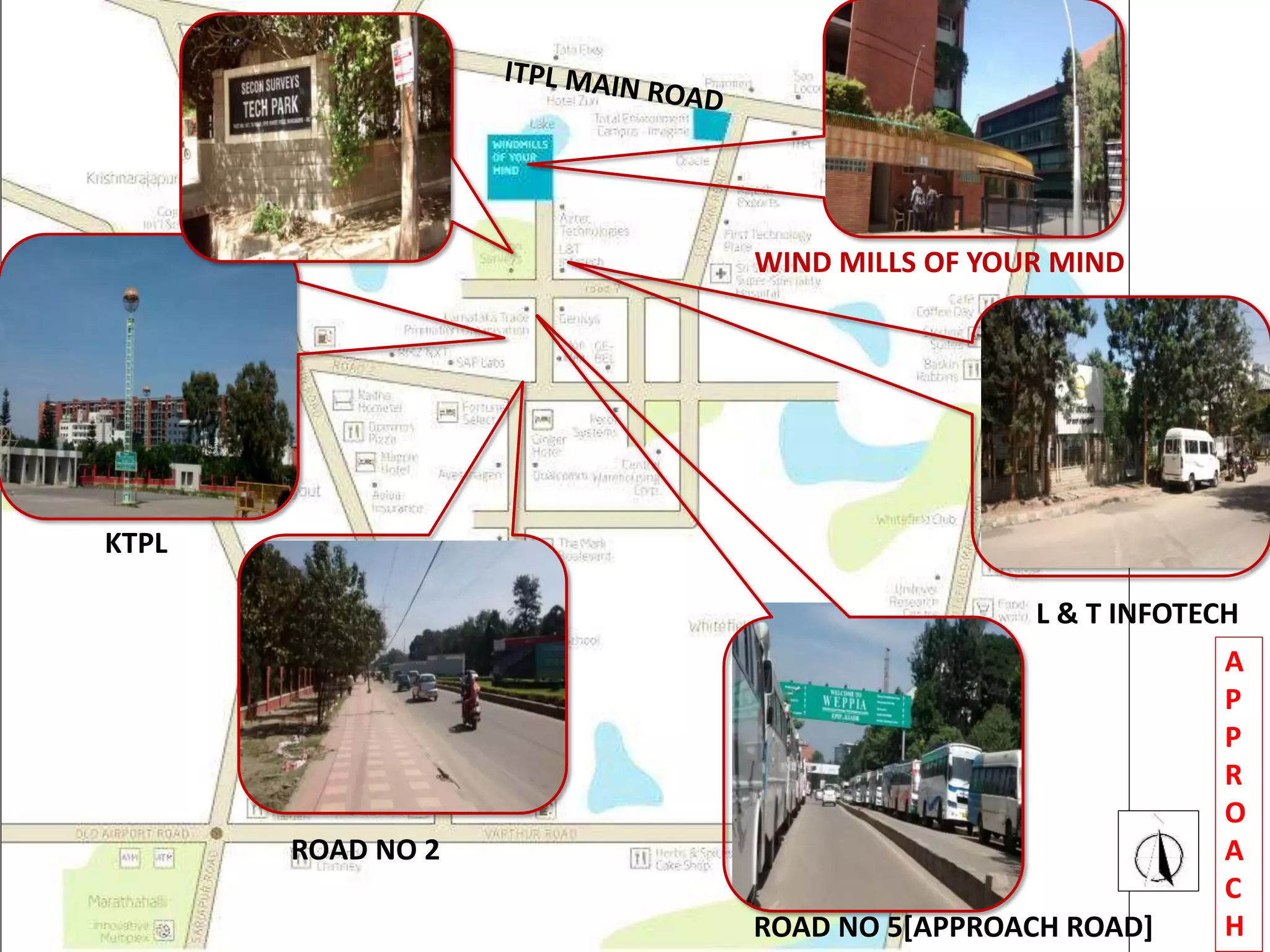

10. WIND MILLS OF YOUR MIND
L & T INFOTECH
ROAD NO 5[APPROACH ROAD]
ROAD NO 2
KTPL
A
P
P
R
O
A
C
H

11. S
K
Y
W
A
L
K

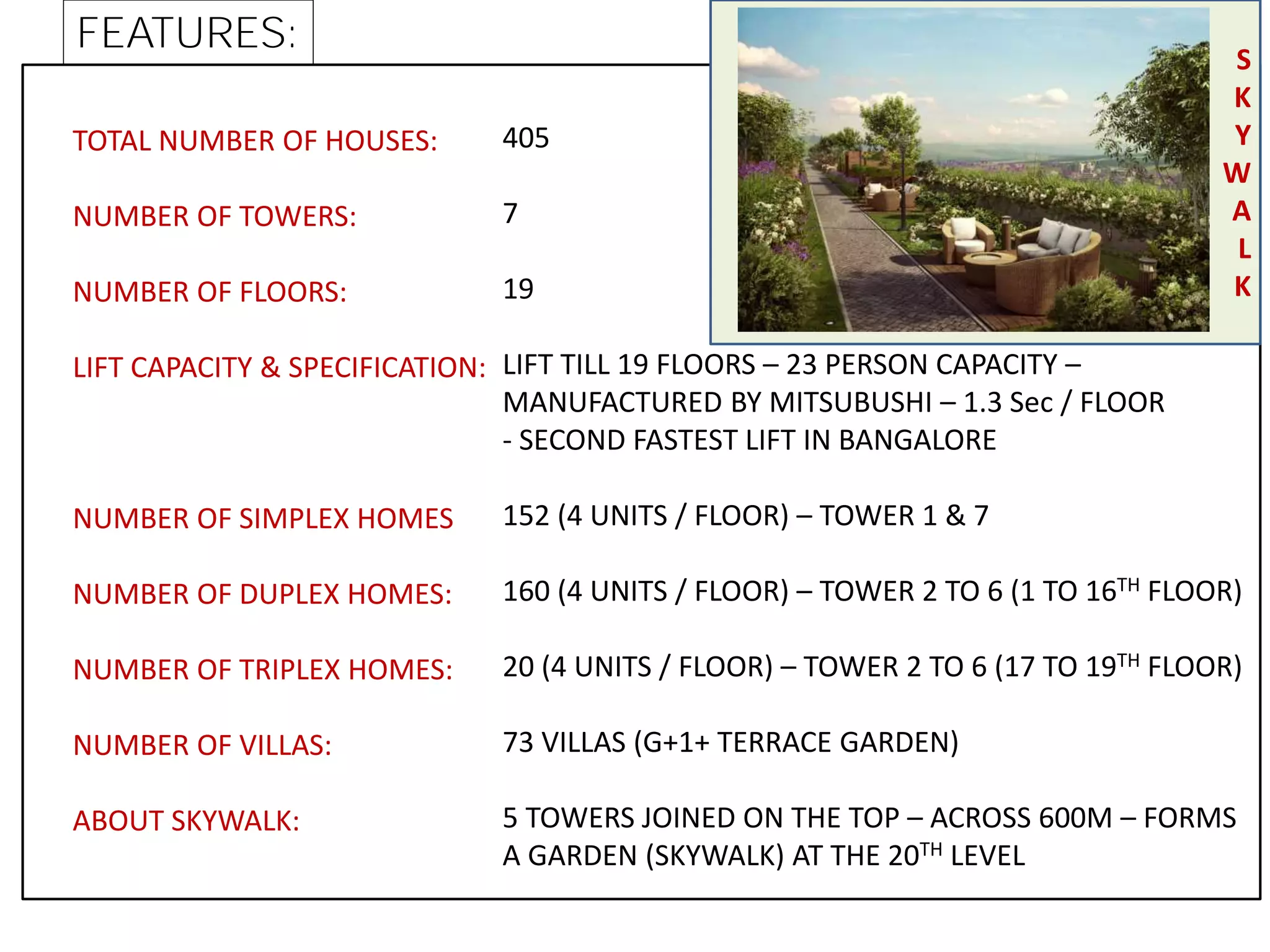

FEATURES:
TOTAL NUMBER OF HOUSES:
NUMBER OF TOWERS:
NUMBER OF FLOORS:
LIFT CAPACITY & SPECIFICATION:
NUMBER OF SIMPLEX HOMES
NUMBER OF DUPLEX HOMES:
NUMBER OF TRIPLEX HOMES:
NUMBER OF VILLAS:
ABOUT SKYWALK:
405
7
19
LIFT TILL 19 FLOORS – 23 PERSON CAPACITY –
MANUFACTURED BY MITSUBUSHI – 1.3 Sec / FLOOR
- SECOND FASTEST LIFT IN BANGALORE
152 (4 UNITS / FLOOR) – TOWER 1 & 7
160 (4 UNITS / FLOOR) – TOWER 2 TO 6 (1 TO 16TH FLOOR)
20 (4 UNITS / FLOOR) – TOWER 2 TO 6 (17 TO 19TH FLOOR)
73 VILLAS (G+1+ TERRACE GARDEN)
5 TOWERS JOINED ON THE TOP – ACROSS 600M – FORMS
A GARDEN (SKYWALK) AT THE 20TH LEVEL

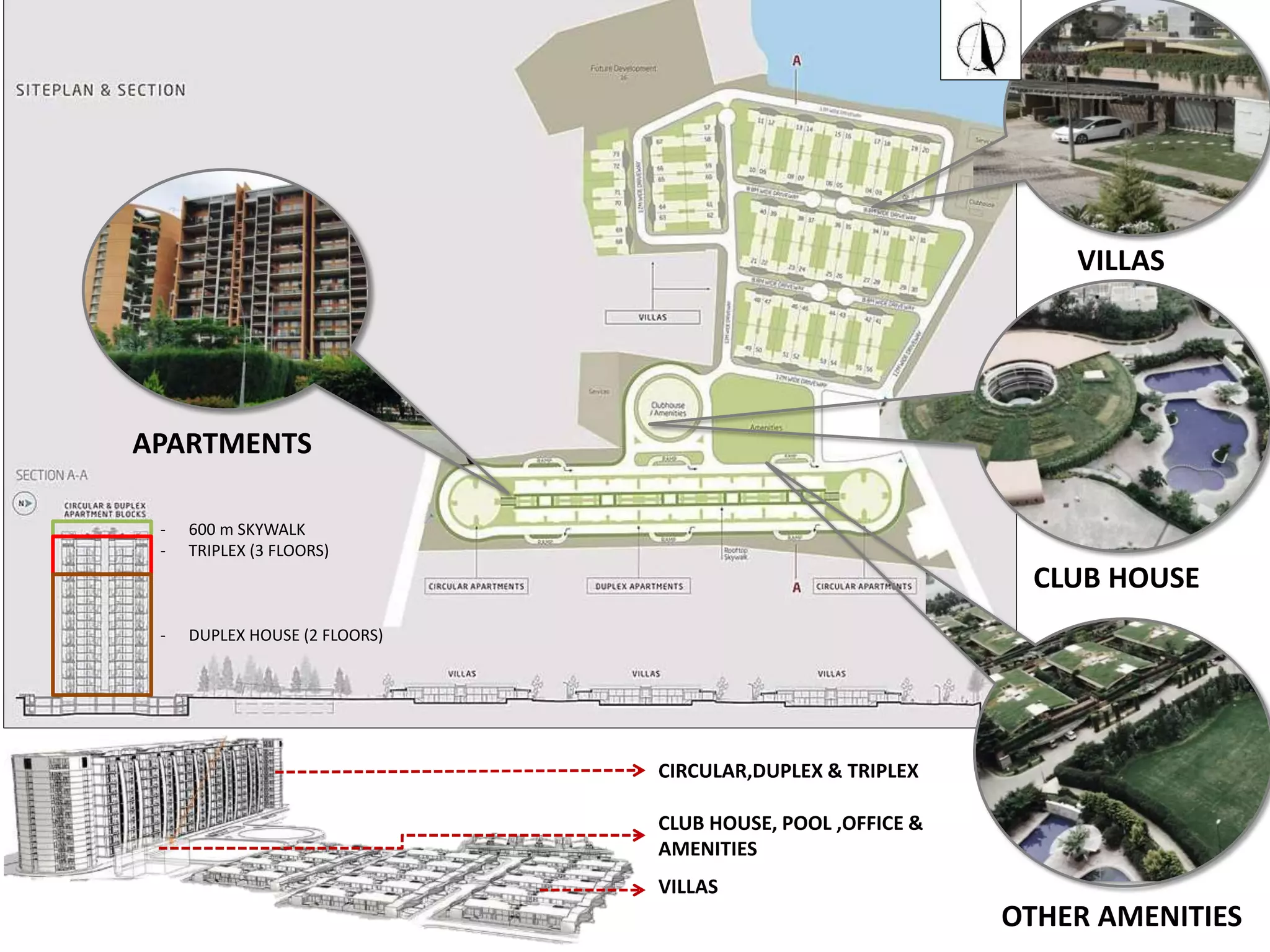

12. VILLAS
CLUB HOUSE
OTHER AMENITIESAPARTMENTS
APARTMENTS
CIRCULAR,DUPLEX & TRIPLEX
CLUB HOUSE, POOL ,OFFICE &
AMENITIES
VILLAS
- 600 m SKYWALK
- TRIPLEX (3 FLOORS)
- DUPLEX HOUSE (2 FLOORS)

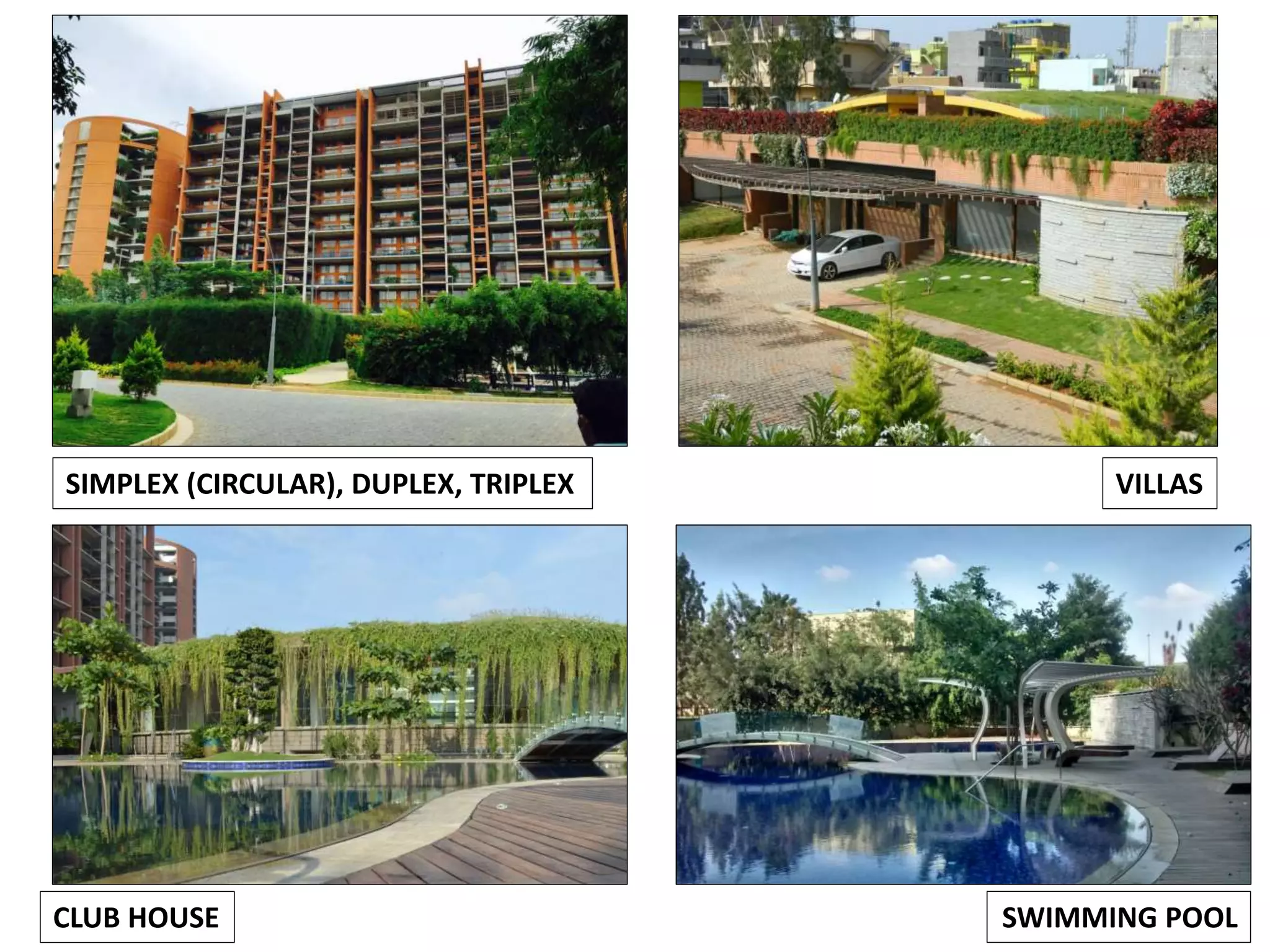

13. SWIMMING POOL
VILLASSIMPLEX (CIRCULAR), DUPLEX, TRIPLEX
CLUB HOUSE

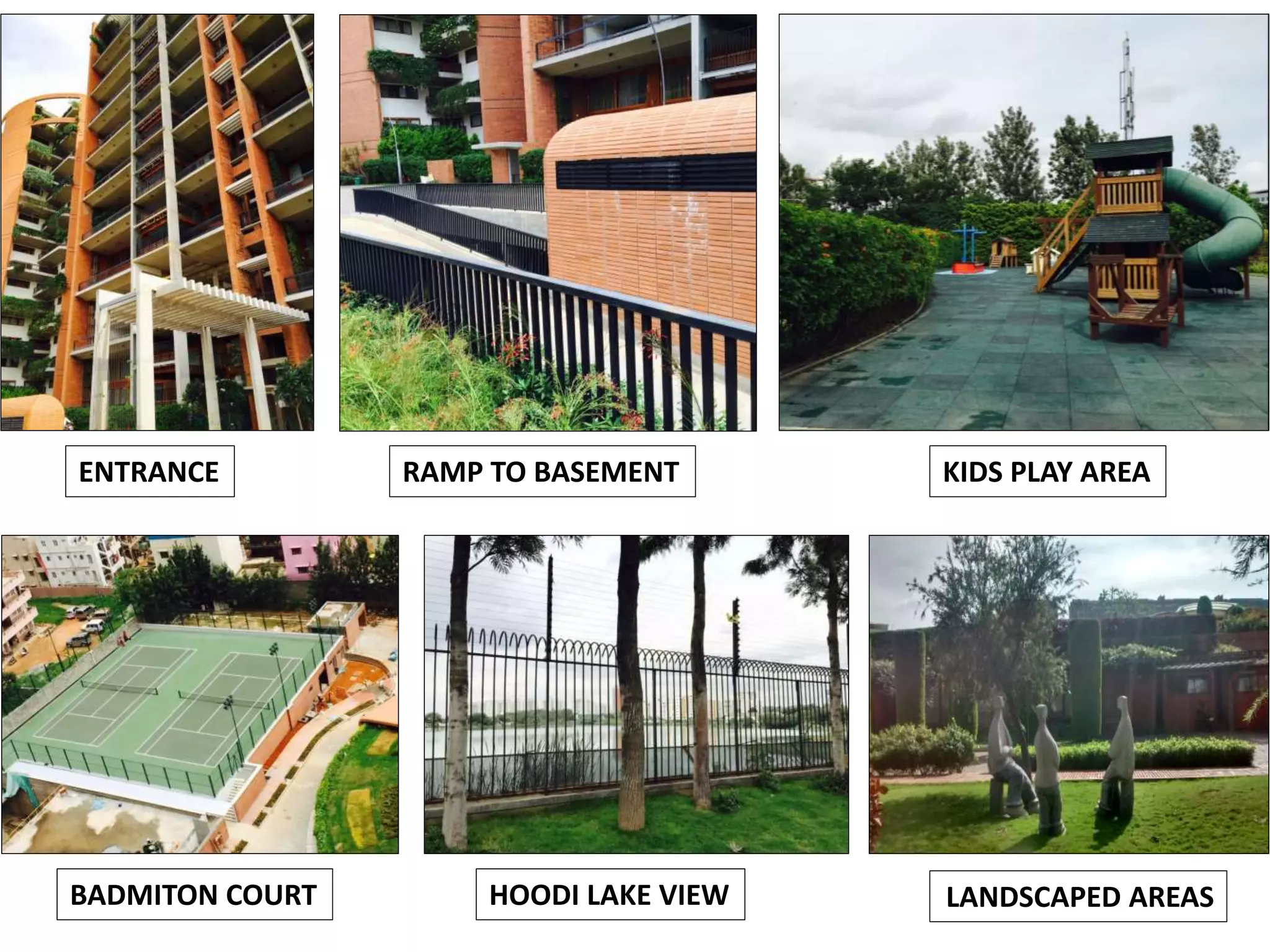

14. LANDSCAPED AREAS
KIDS PLAY AREAENTRANCE
BADMITON COURT HOODI LAKE VIEW
RAMP TO BASEMENT

15. LANDSCAPED AREAS AND WALKWAYS

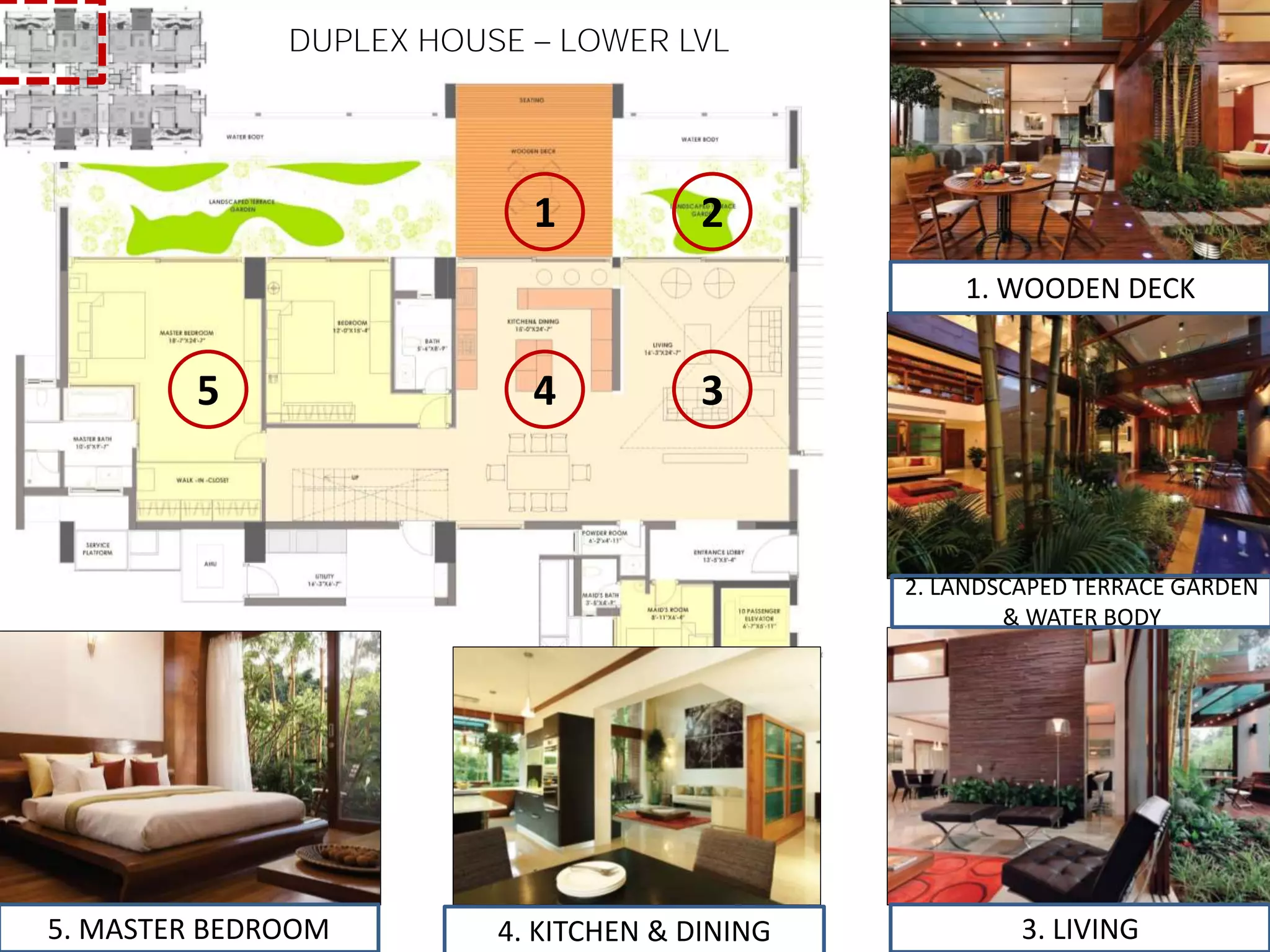

16. DUPLEX HOUSE LOWER LVL
1 2
345
1. WOODEN DECK
2. LANDSCAPED TERRACE GARDEN
& WATER BODY
3. LIVING5. MASTER BEDROOM 4. KITCHEN & DINING

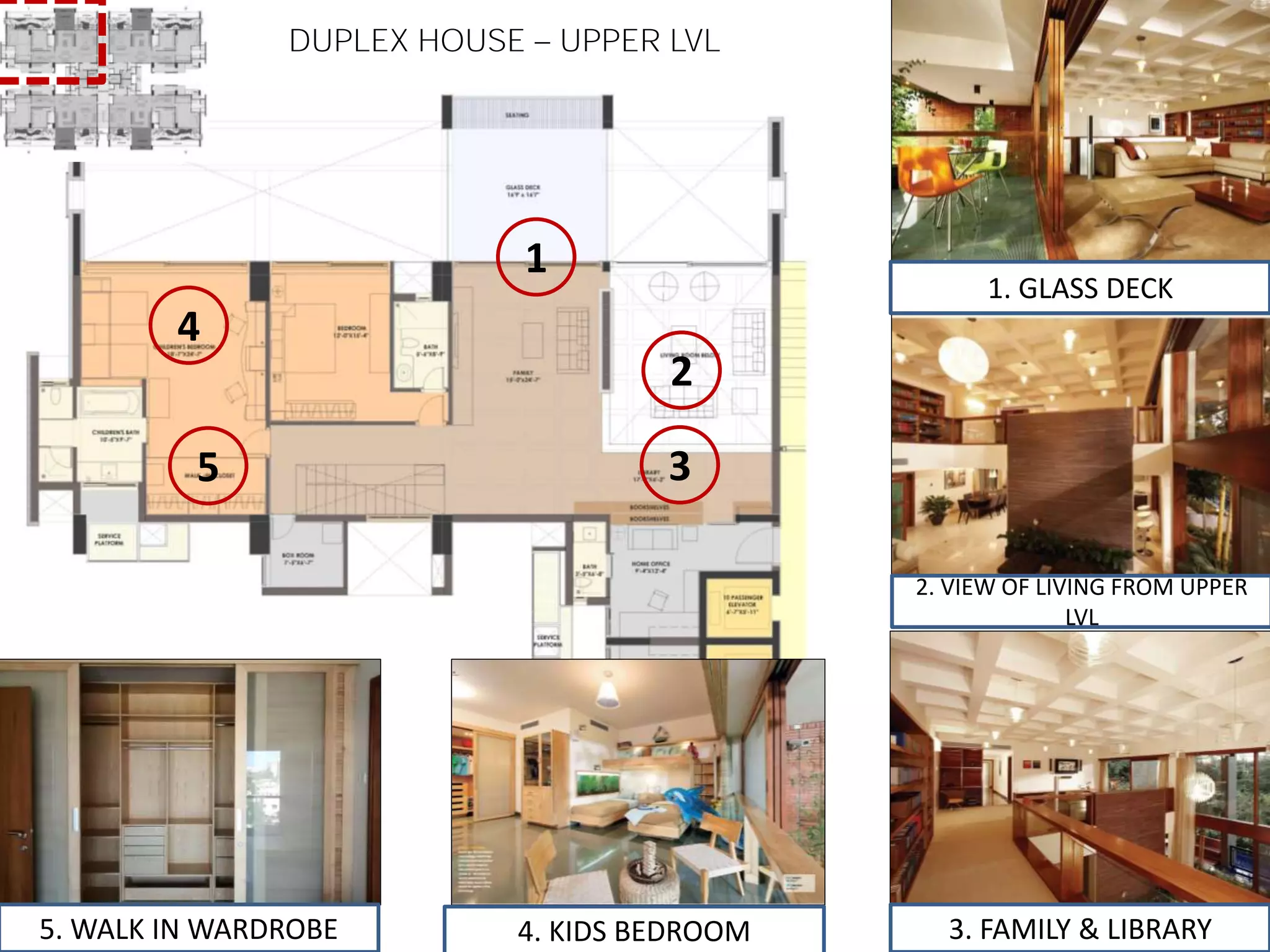

17. DUPLEX HOUSE UPPER LVL
1
2
3
4
5
1. GLASS DECK
2. VIEW OF LIVING FROM UPPER
LVL
3. FAMILY & LIBRARY5. WALK IN WARDROBE 4. KIDS BEDROOM

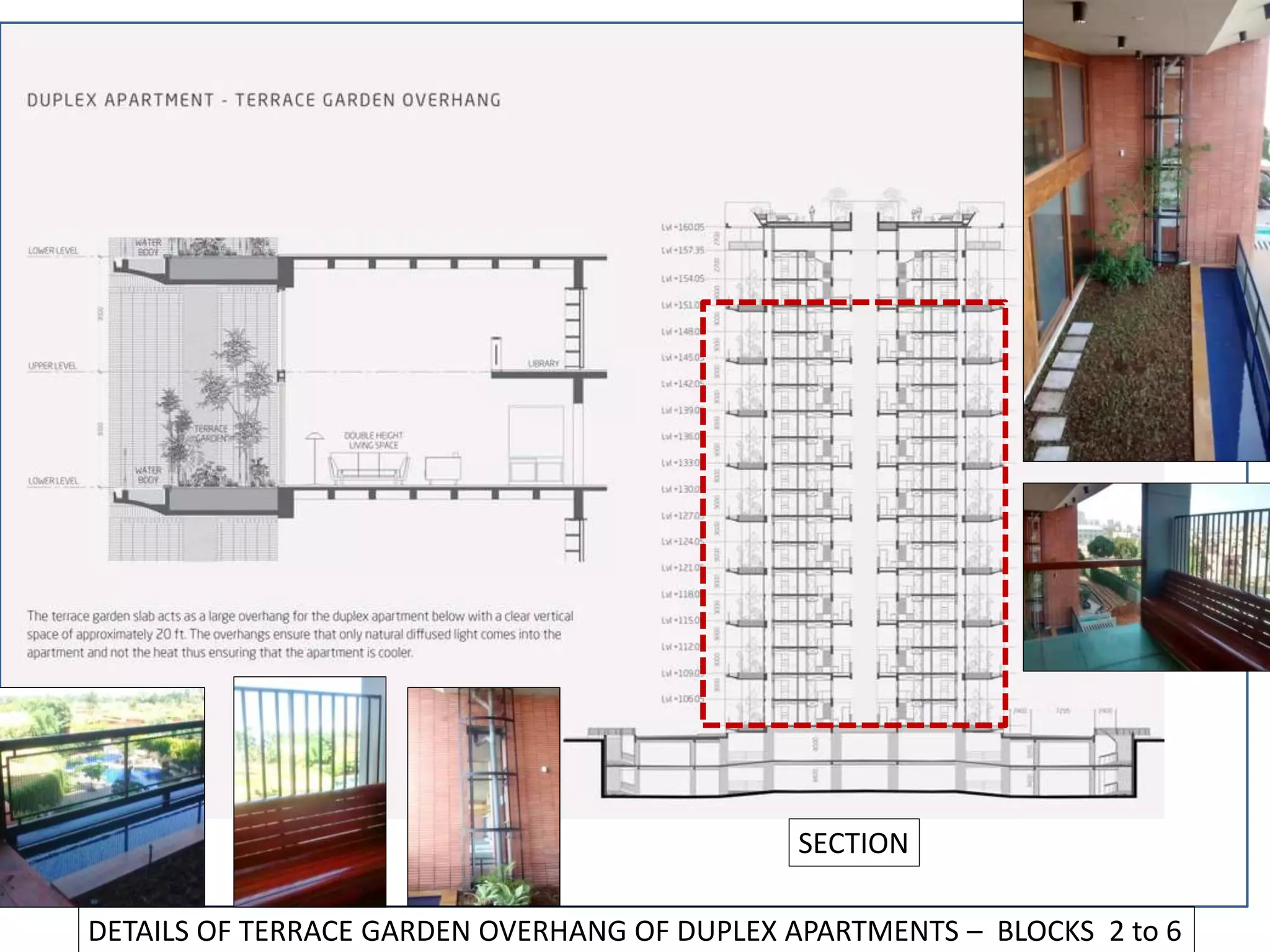

18. DETAILS OF TERRACE GARDEN OVERHANG OF DUPLEX APARTMENTS – BLOCKS 2 to 6
SECTION

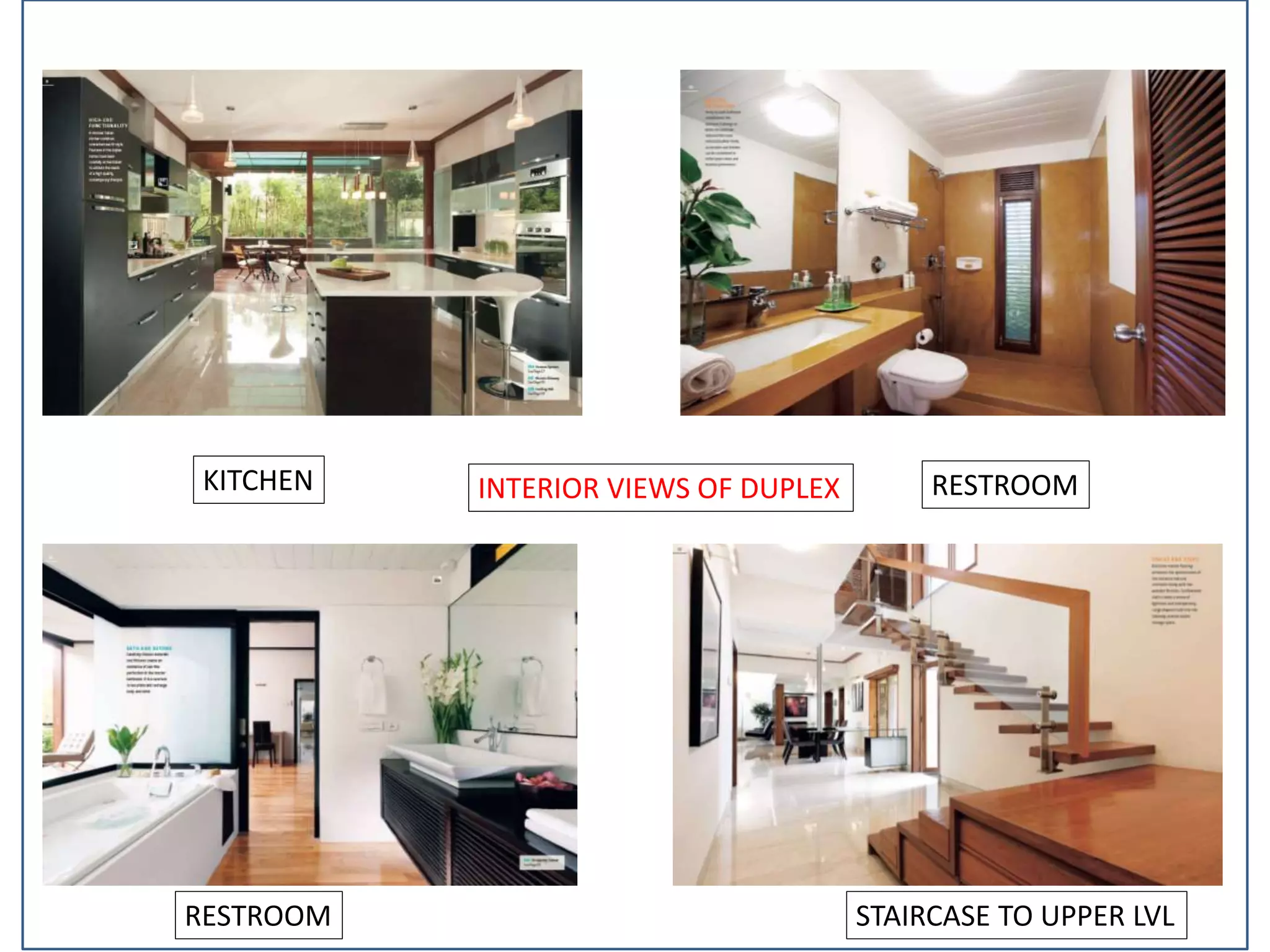

19. INTERIOR VIEWS OF DUPLEXKITCHEN RESTROOM
RESTROOM STAIRCASE TO UPPER LVL

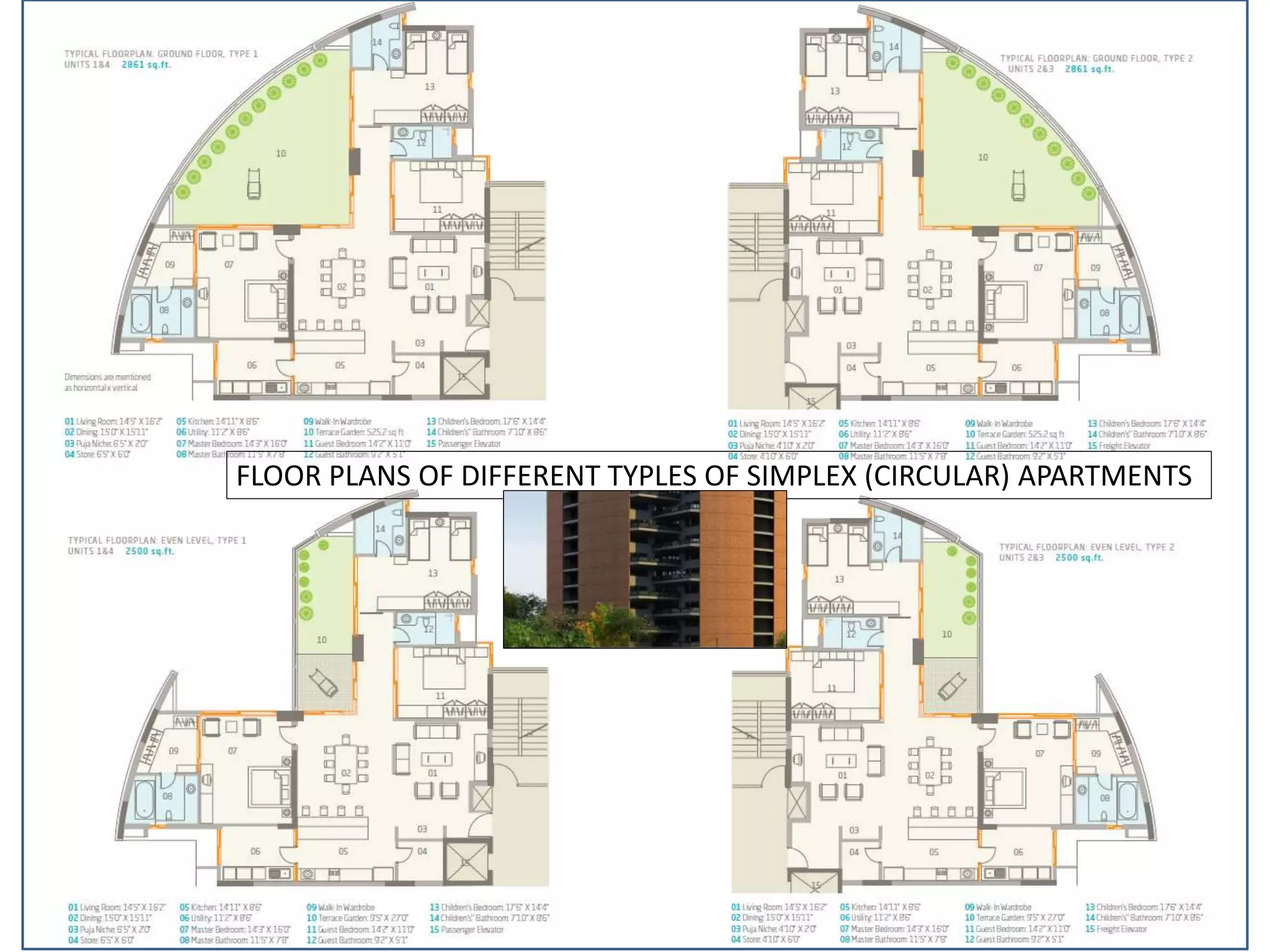

20. FLOOR PLANS OF DIFFERENT TYPLES OF SIMPLEX (CIRCULAR) APARTMENTS

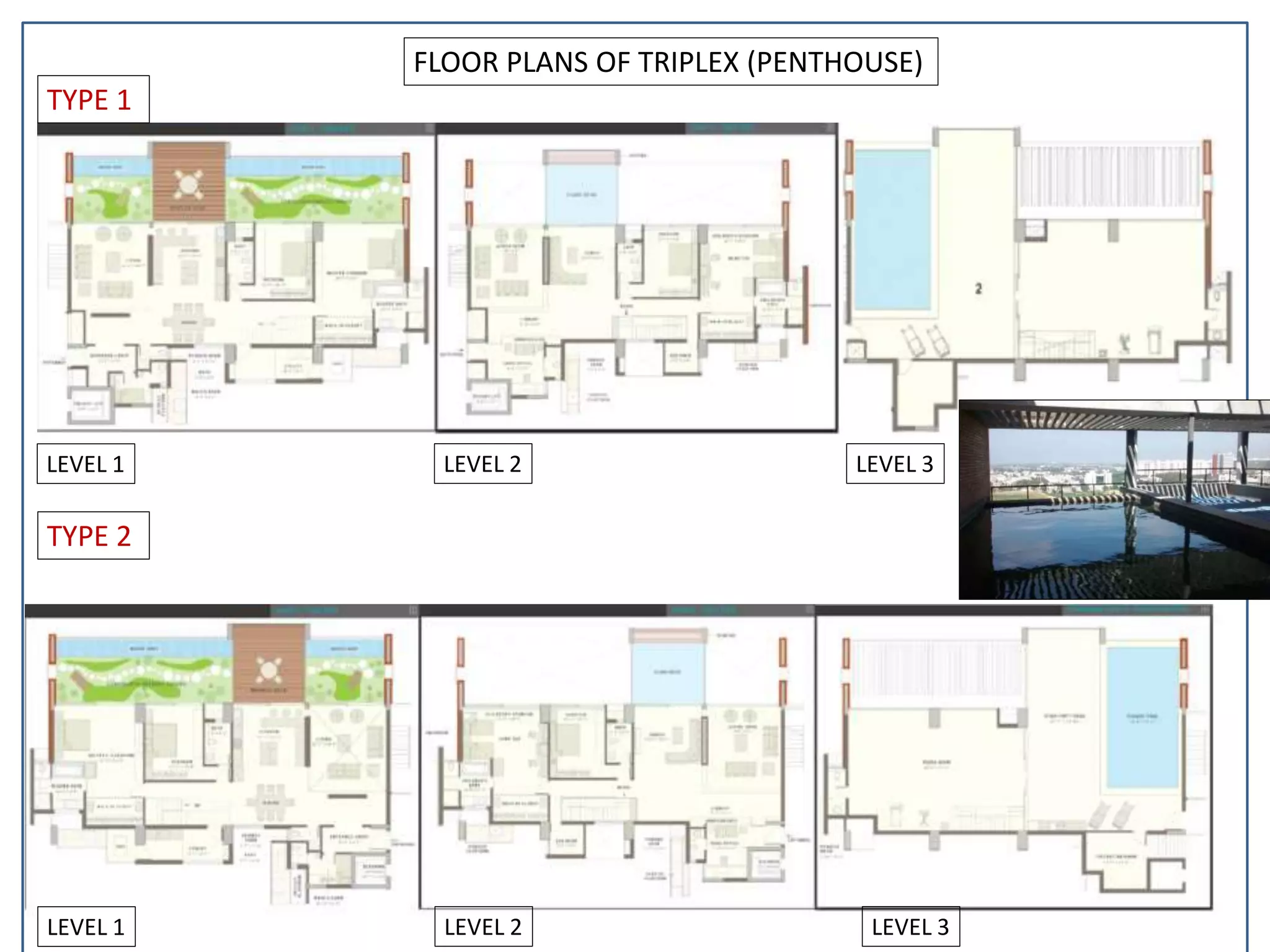

21. FLOOR PLANS OF TRIPLEX (PENTHOUSE)
LEVEL 1 LEVEL 2 LEVEL 3
LEVEL 1 LEVEL 2 LEVEL 3
TYPE 1
TYPE 2

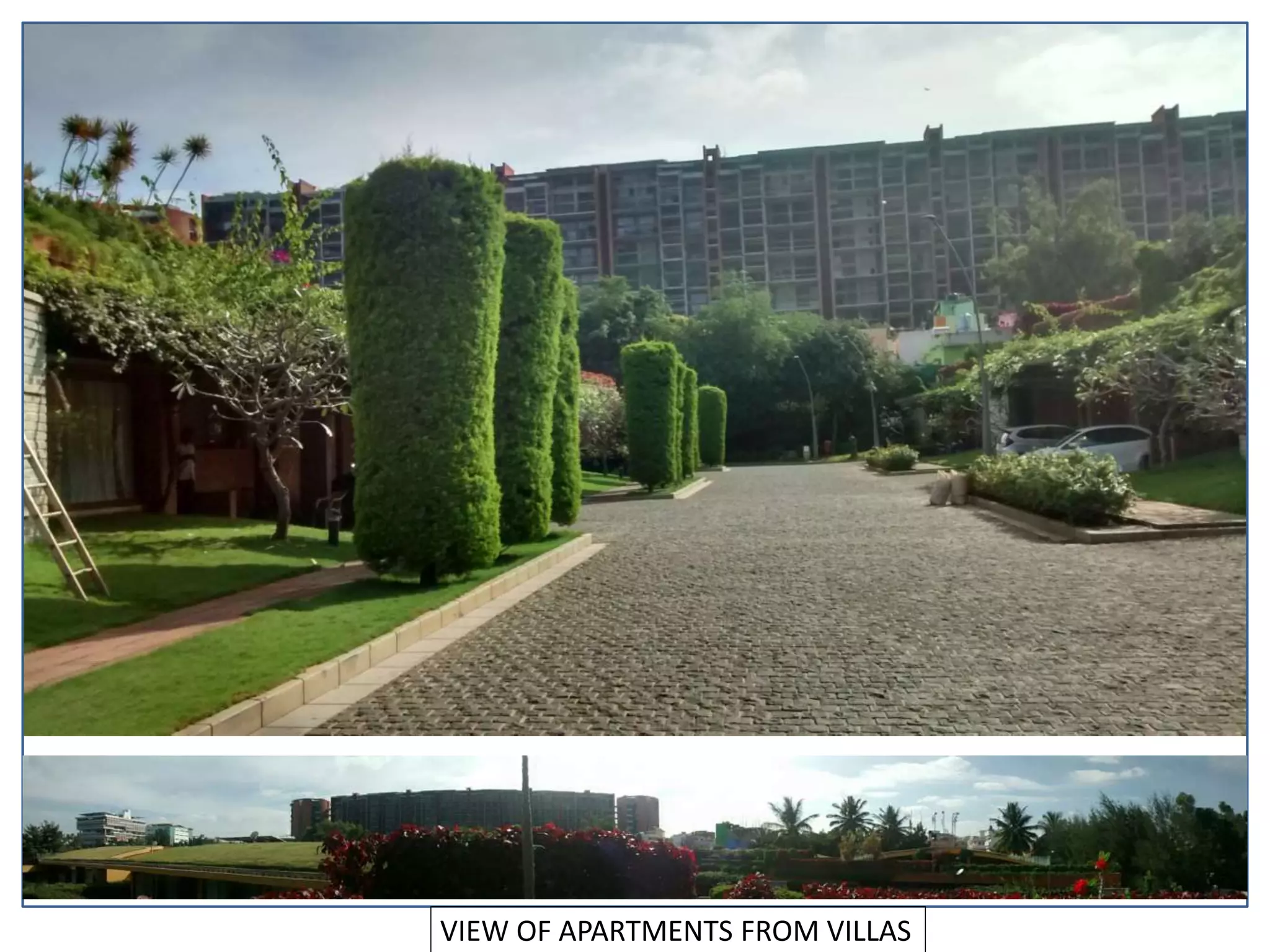

22. VIEW OF APARTMENTS FROM VILLAS

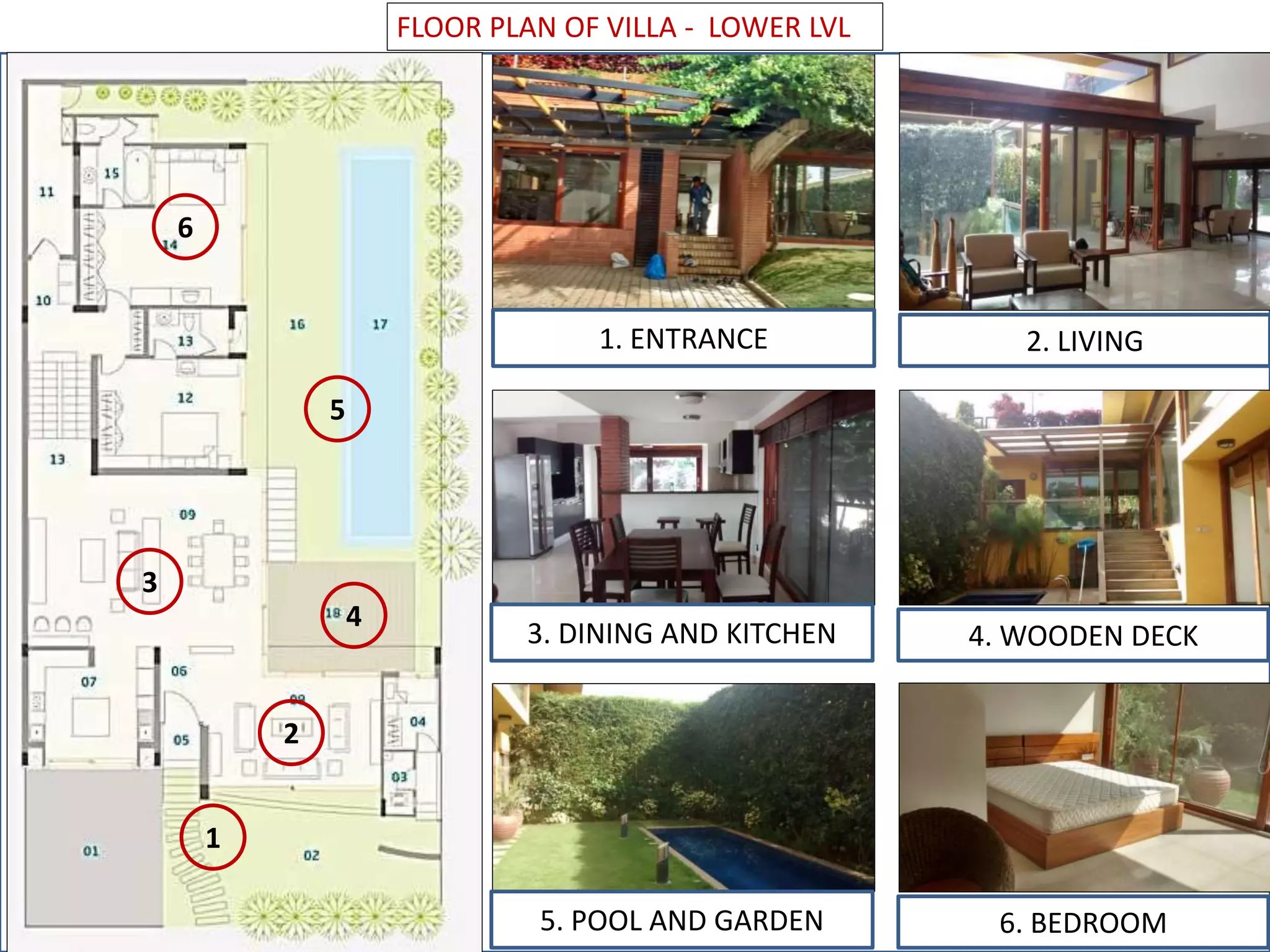

23. FLOOR PLAN OF VILLA - LOWER LVL
1
2
3
4
5
6
2. LIVING1. ENTRANCE
4. WOODEN DECK3. DINING AND KITCHEN
6. BEDROOM5. POOL AND GARDEN

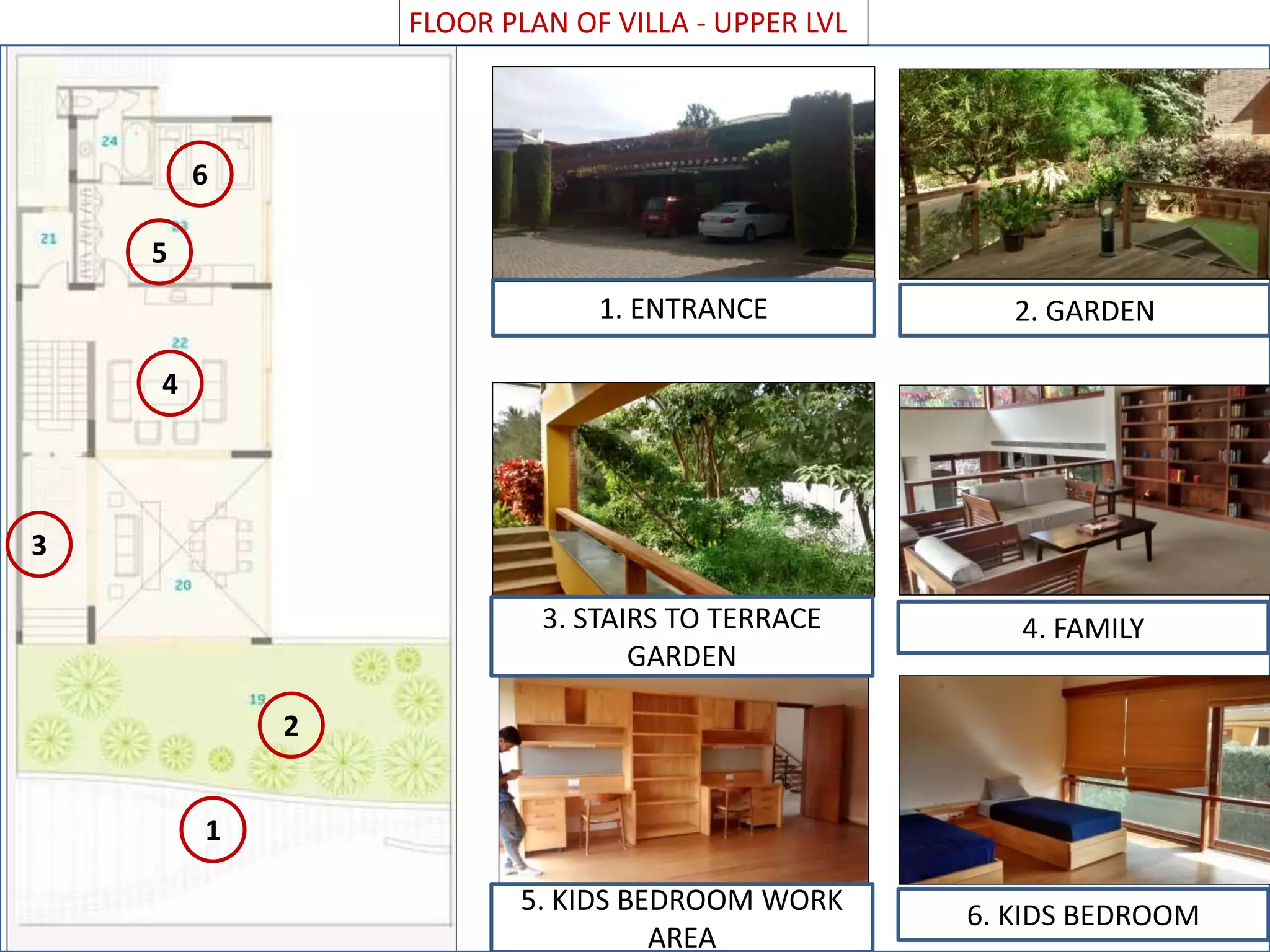

24. 1
2
3
4
5
6
2. GARDEN1. ENTRANCE
4. FAMILY3. STAIRS TO TERRACE
GARDEN
6. KIDS BEDROOM5. KIDS BEDROOM WORK
AREA
FLOOR PLAN OF VILLA - UPPER LVL

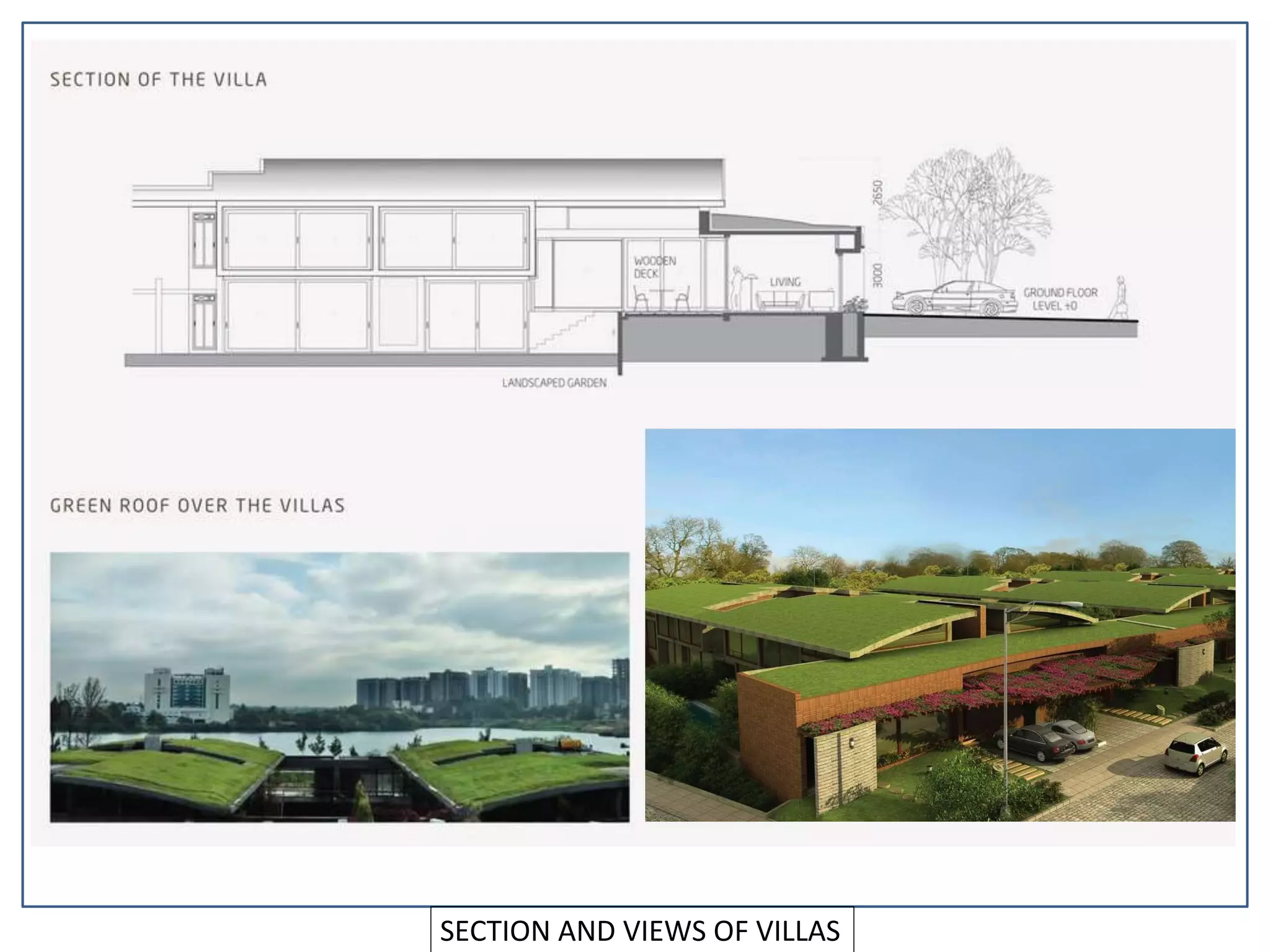

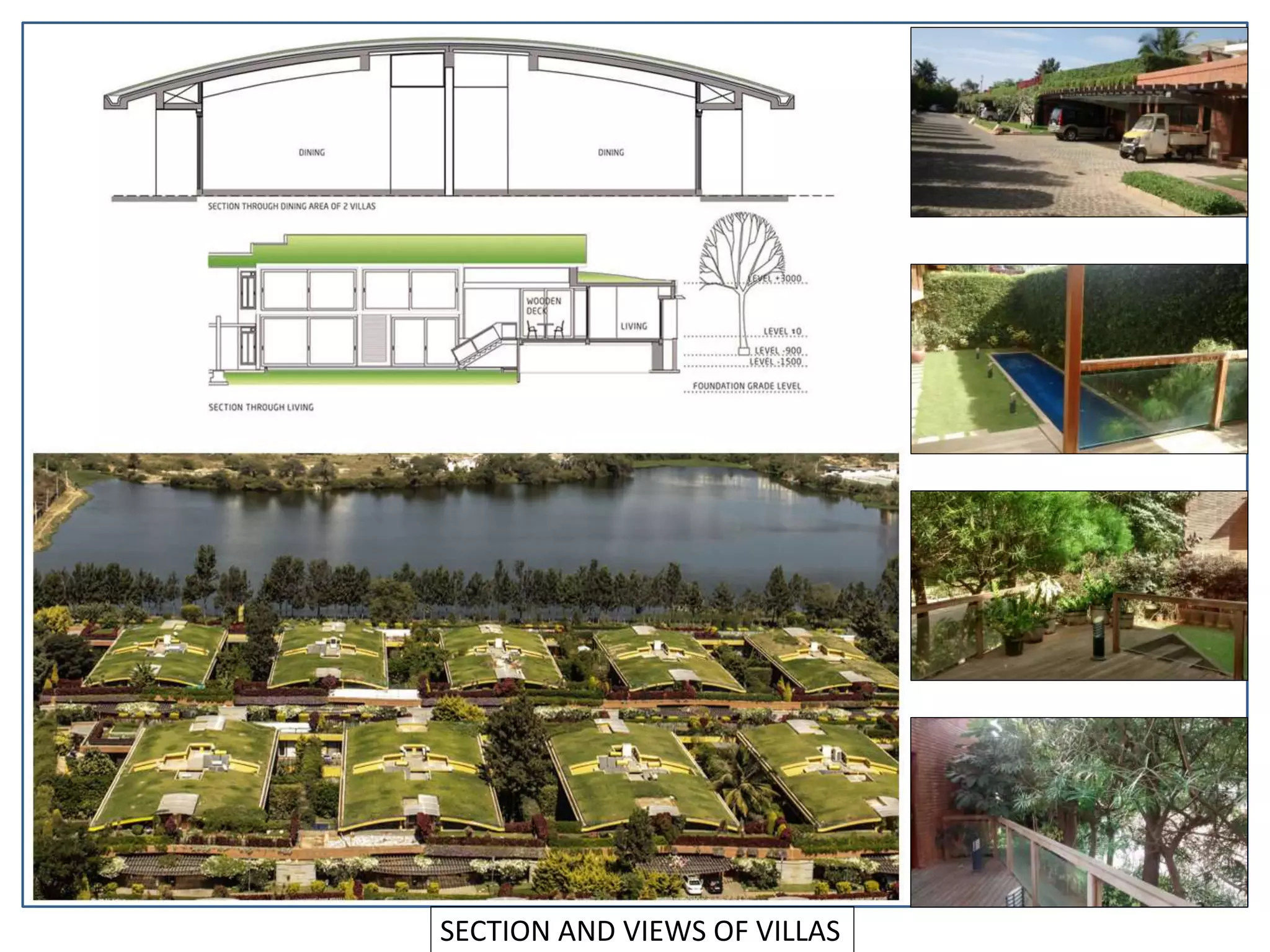

25. SECTION AND VIEWS OF VILLAS

26. SECTION AND VIEWS OF VILLAS

27. VIEW OF VILLAS

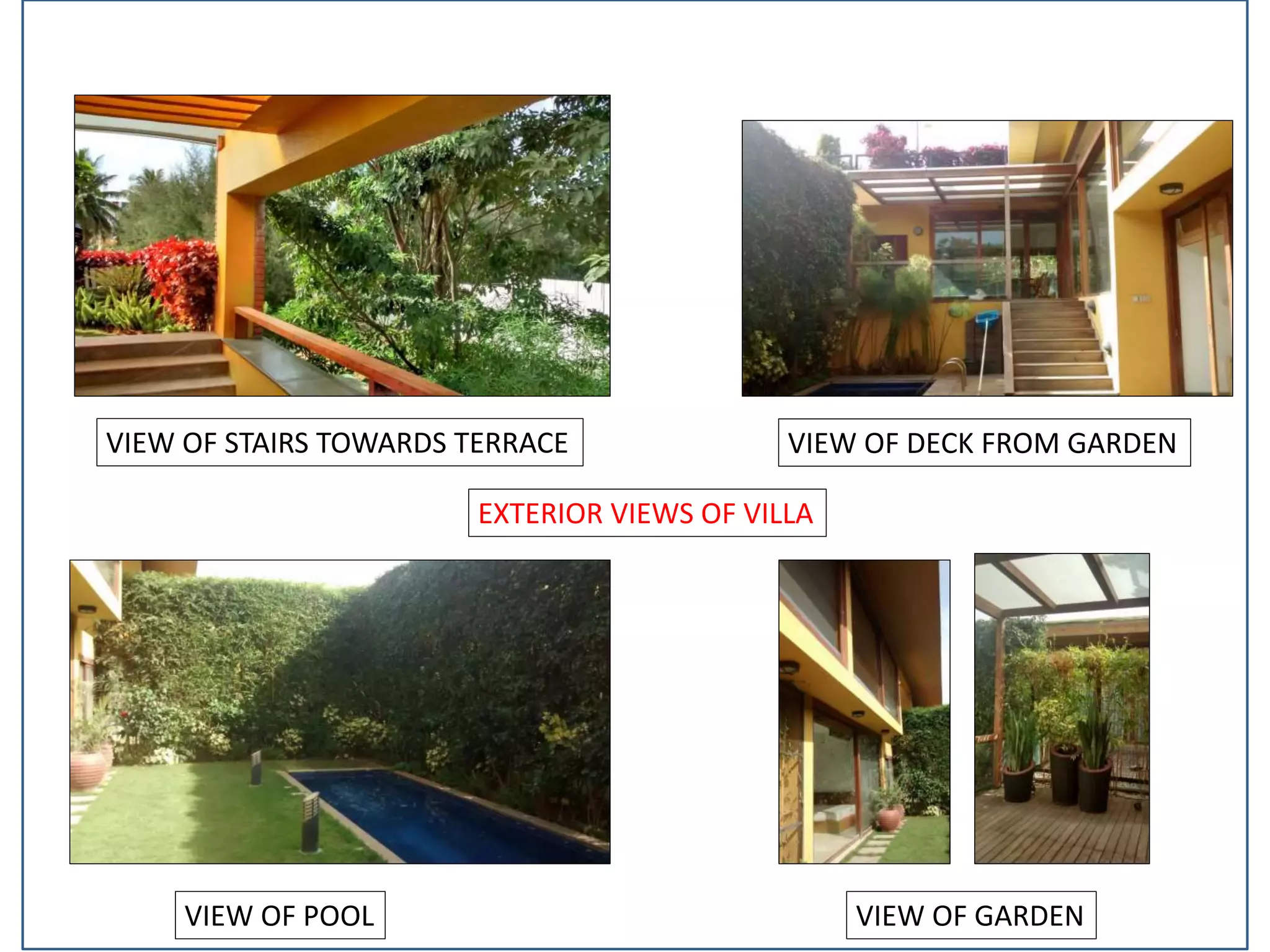

28. EXTERIOR VIEWS OF VILLA
VIEW OF STAIRS TOWARDS TERRACE VIEW OF DECK FROM GARDEN
VIEW OF POOL VIEW OF GARDEN

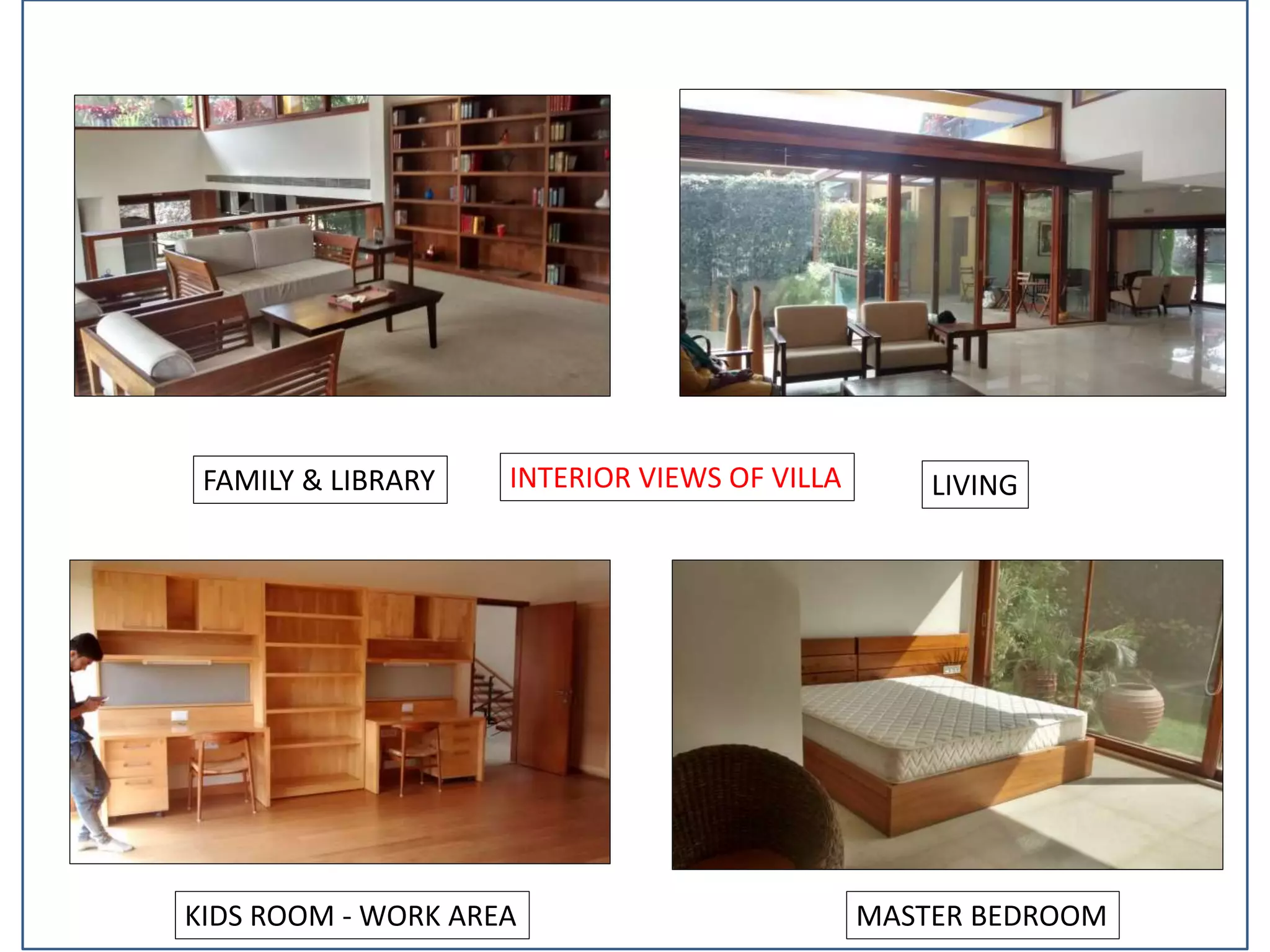

29. INTERIOR VIEWS OF VILLAFAMILY & LIBRARY LIVING
KIDS ROOM - WORK AREA MASTER BEDROOM

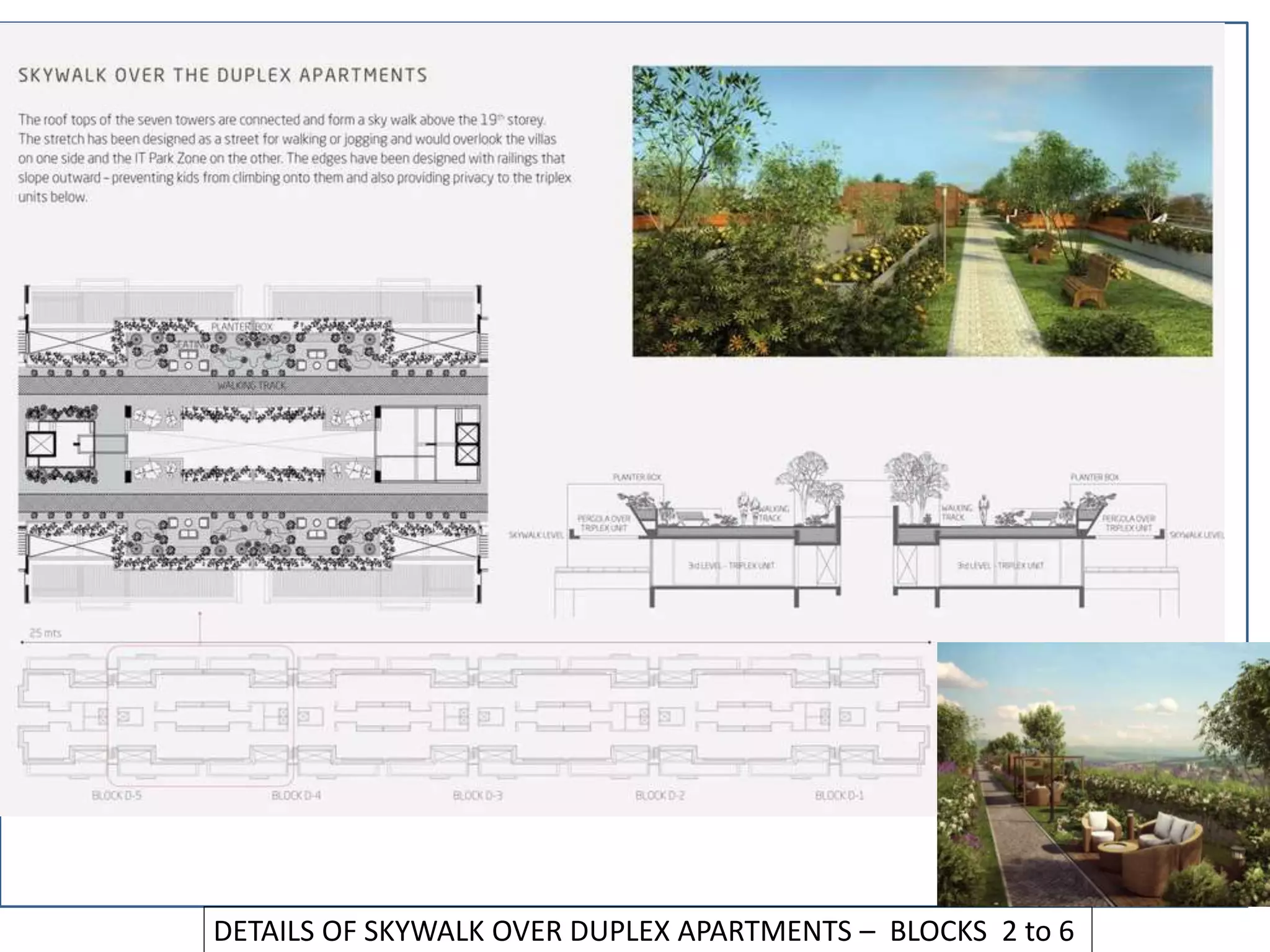

30. DETAILS OF SKYWALK OVER DUPLEX APARTMENTS – BLOCKS 2 to 6

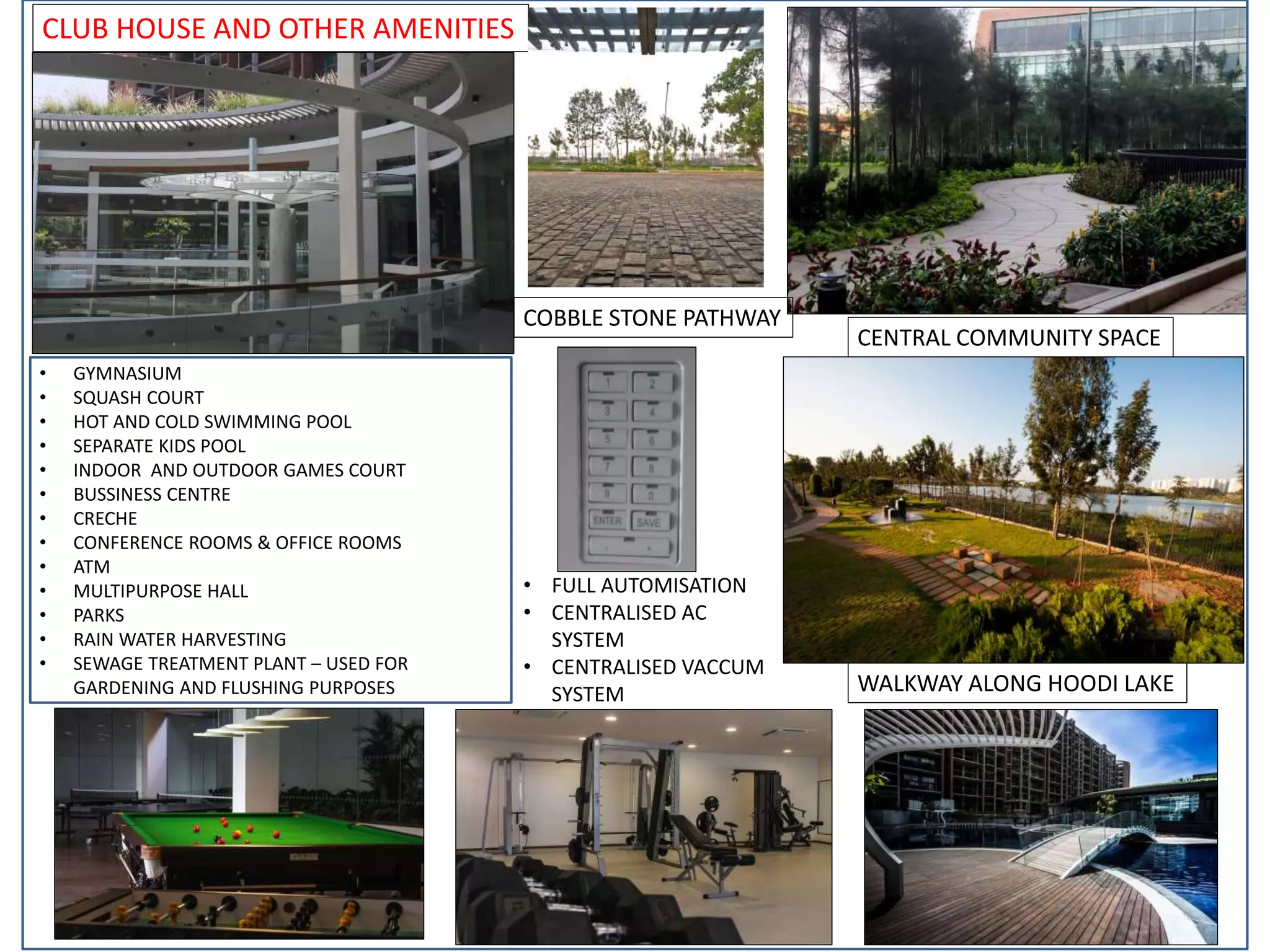

31. CLUB HOUSE AND OTHER AMENITIES
CENTRAL COMMUNITY SPACE
WALKWAY ALONG HOODI LAKE
• GYMNASIUM
• SQUASH COURT
• HOT AND COLD SWIMMING POOL
• SEPARATE KIDS POOL
• INDOOR AND OUTDOOR GAMES COURT
• BUSSINESS CENTRE
• CRECHE
• CONFERENCE ROOMS & OFFICE ROOMS
• ATM
• MULTIPURPOSE HALL
• PARKS
• RAIN WATER HARVESTING
• SEWAGE TREATMENT PLANT – USED FOR
GARDENING AND FLUSHING PURPOSES
COBBLE STONE PATHWAY
• FULL AUTOMISATION
• CENTRALISED AC
SYSTEM
• CENTRALISED VACCUM
SYSTEM

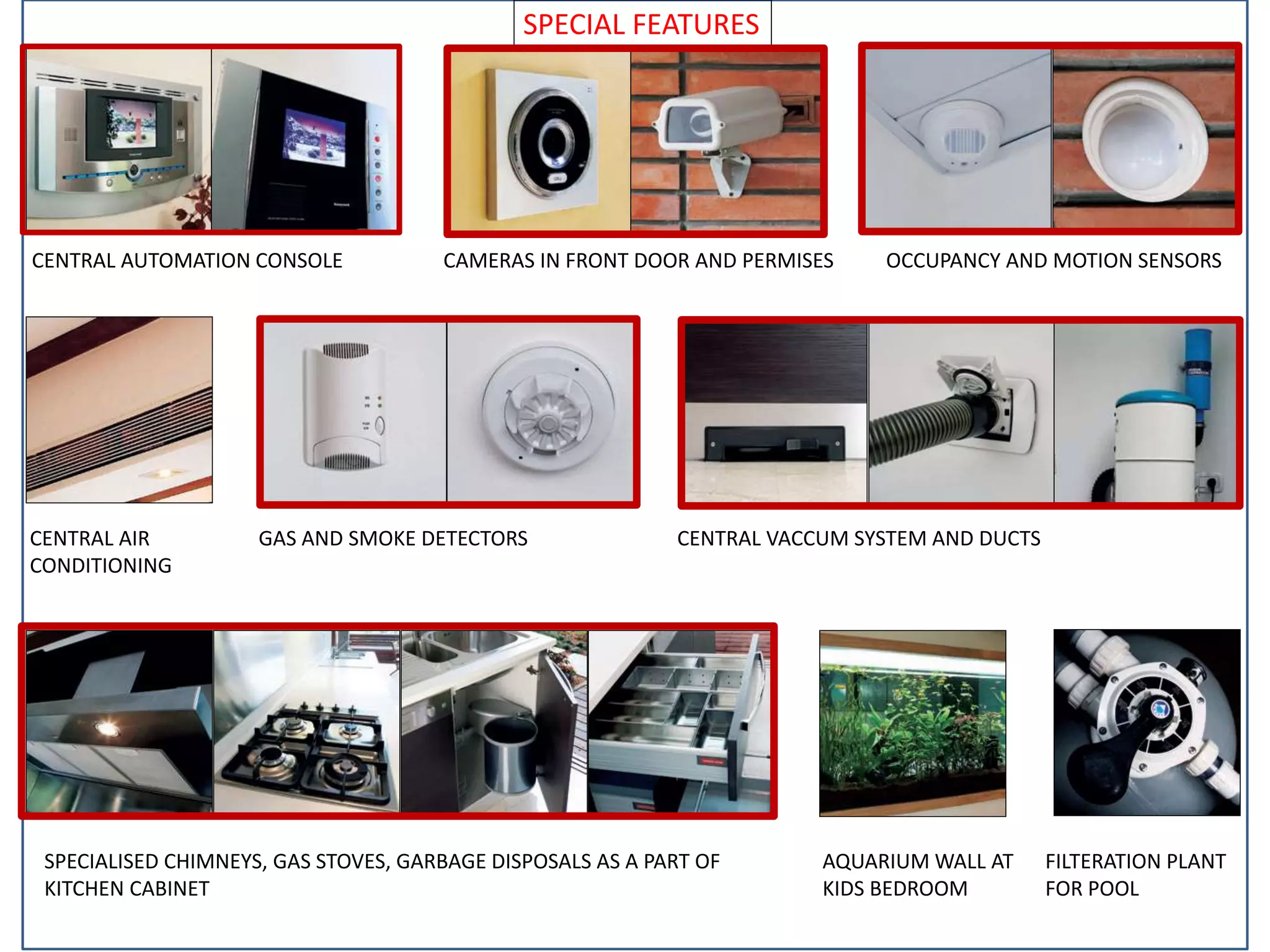

32. SPECIAL FEATURES
CENTRAL AUTOMATION CONSOLE CAMERAS IN FRONT DOOR AND PERMISES OCCUPANCY AND MOTION SENSORS
CENTRAL AIR
CONDITIONING
GAS AND SMOKE DETECTORS CENTRAL VACCUM SYSTEM AND DUCTS
SPECIALISED CHIMNEYS, GAS STOVES, GARBAGE DISPOSALS AS A PART OF
KITCHEN CABINET
AQUARIUM WALL AT
KIDS BEDROOM
FILTERATION PLANT
FOR POOL

33. AWARDS
CNBC ASIA PACIFIC RESIDENTIAL
PROPERTY AWARDS – NEST
LUXURY RESIDENTIAL PROJECT
SOUTH
CREDAI AWARD FOR BEST
INNOVATIVE DESIGN 2013
(BENGALURU ZONE)
CNBC ASIA PACIFIC RESIDENTIAL
PROPERTY AWARDS 2009 – BEST
ARCHITECTURE
DURIAN SOCIETY INTERIORS
DESIGN AWARDS 2010 –
SUSTAINABLE ARCHITECTURE
ZEE BUSINESS RICS REAL ESTATE
AWARDS – BEST LUXURY
RESIDENTIAL PROJECT
CNBC ASIA PACIFIC RESIDENTIAL
PROPERTY AWARDS – BEST ASIA
– PACIFIC ARCHITECTURE 2009

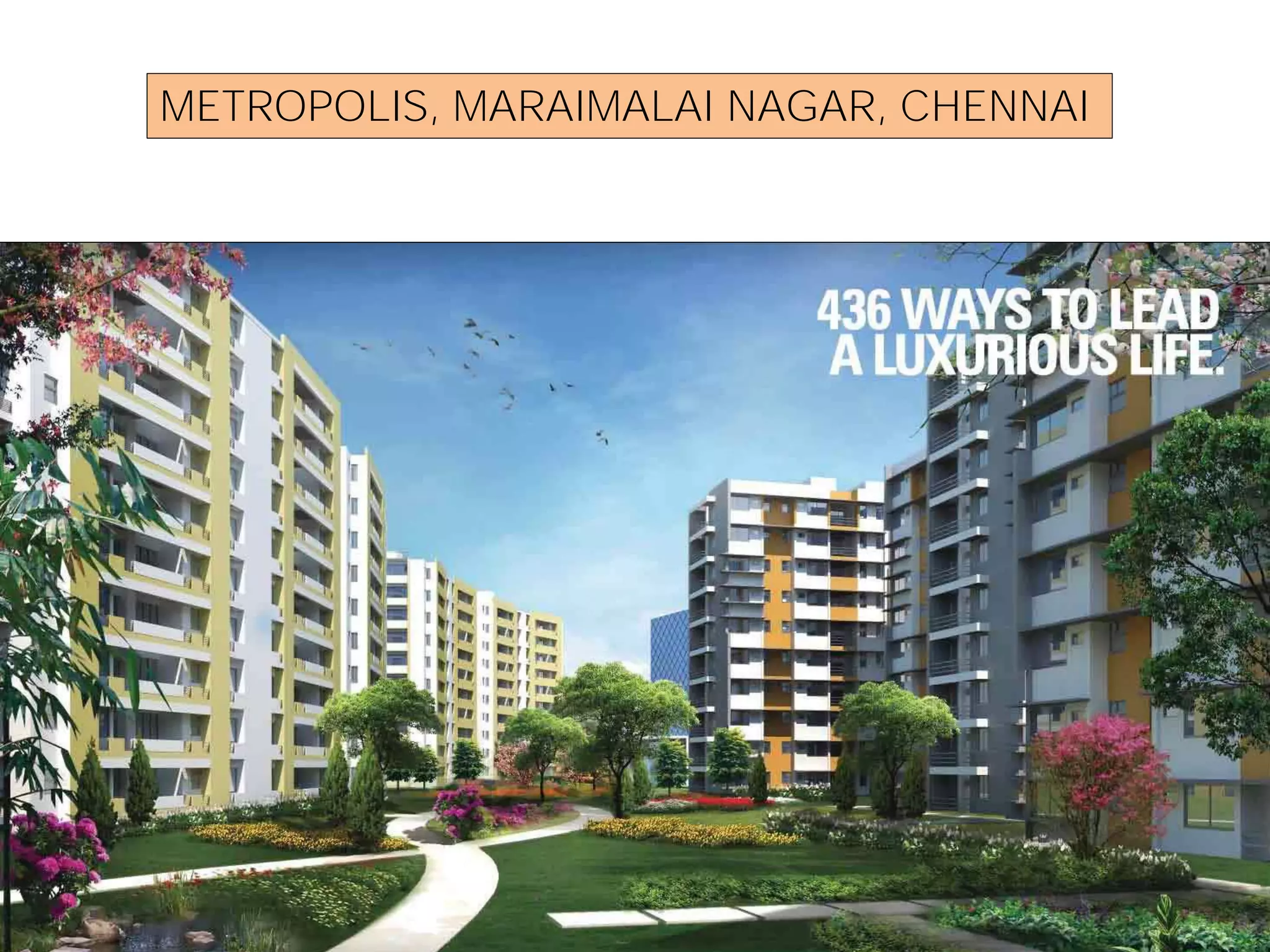

34. METROPOLIS, MARAIMALAI NAGAR, CHENNAI

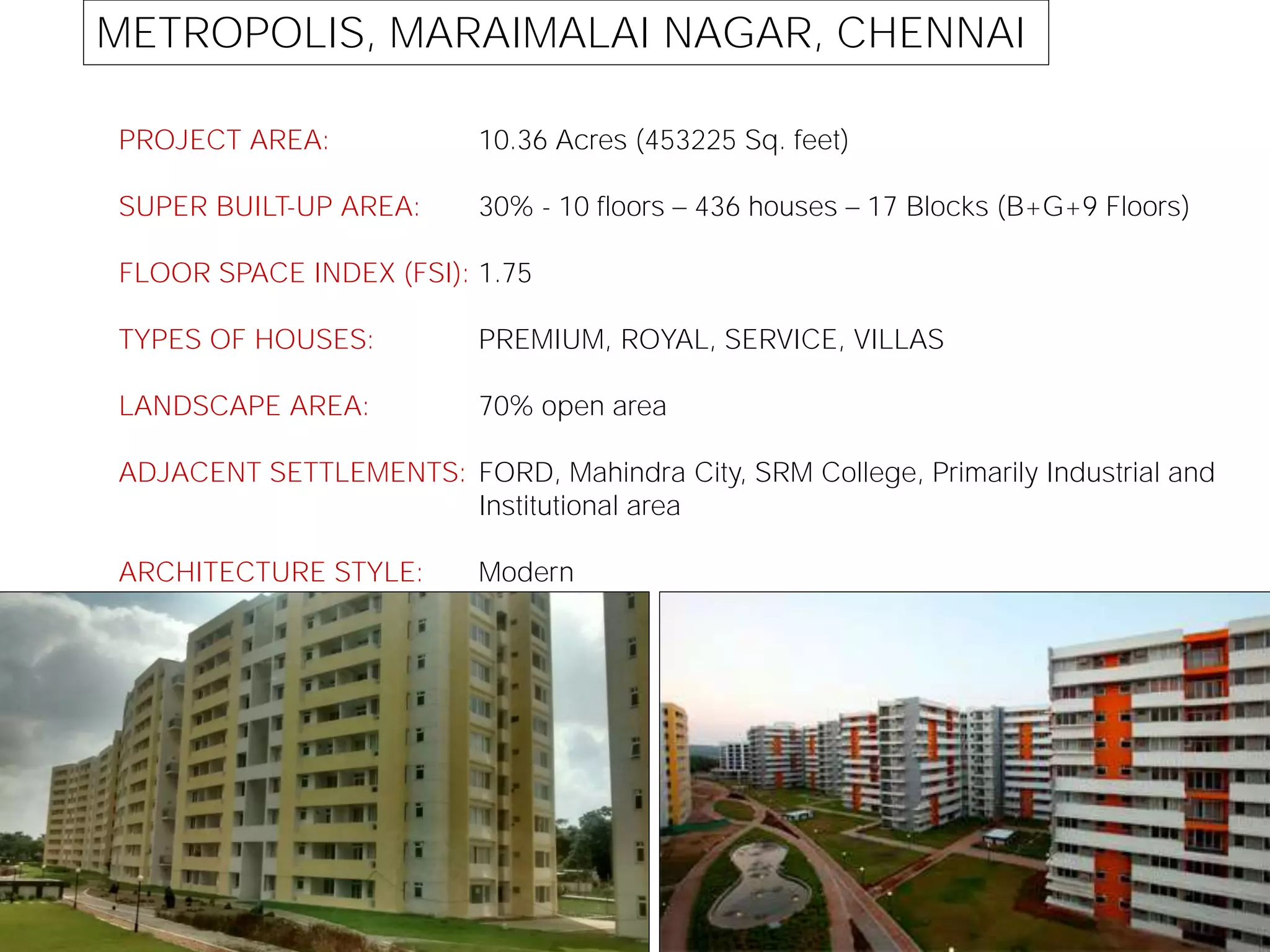

35. METROPOLIS, MARAIMALAI NAGAR, CHENNAI
PROJECT AREA:
SUPER BUILT-UP AREA:
FLOOR SPACE INDEX (FSI):
TYPES OF HOUSES:
LANDSCAPE AREA:
ADJACENT SETTLEMENTS:
ARCHITECTURE STYLE:
10.36 Acres (453225 Sq. feet)
30% - 10 floors 436 houses 17 Blocks (B+G+9 Floors)
1.75
PREMIUM, ROYAL, SERVICE, VILLAS
70% open area
FORD, Mahindra City, SRM College, Primarily Industrial and
Institutional area
Modern

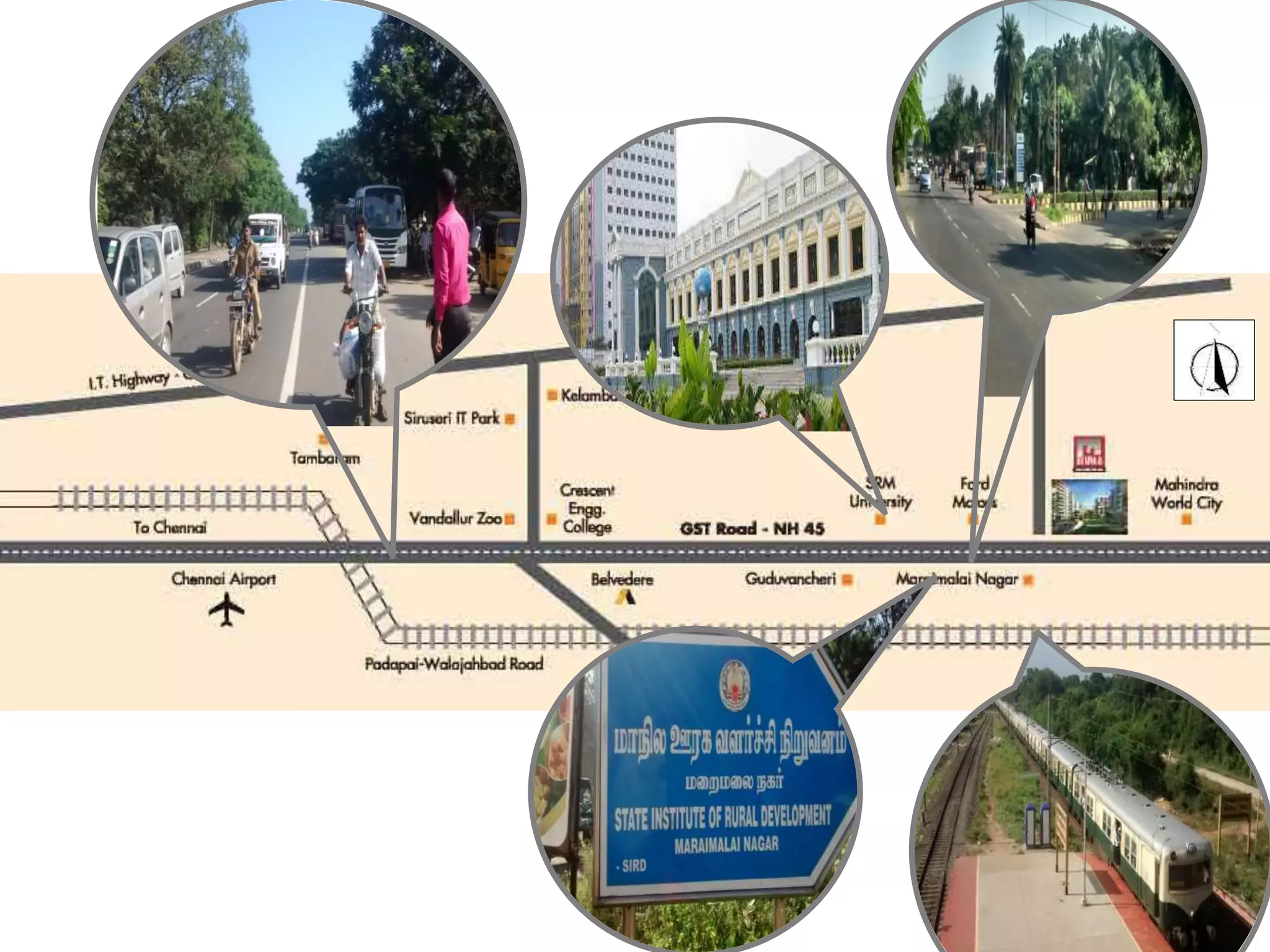

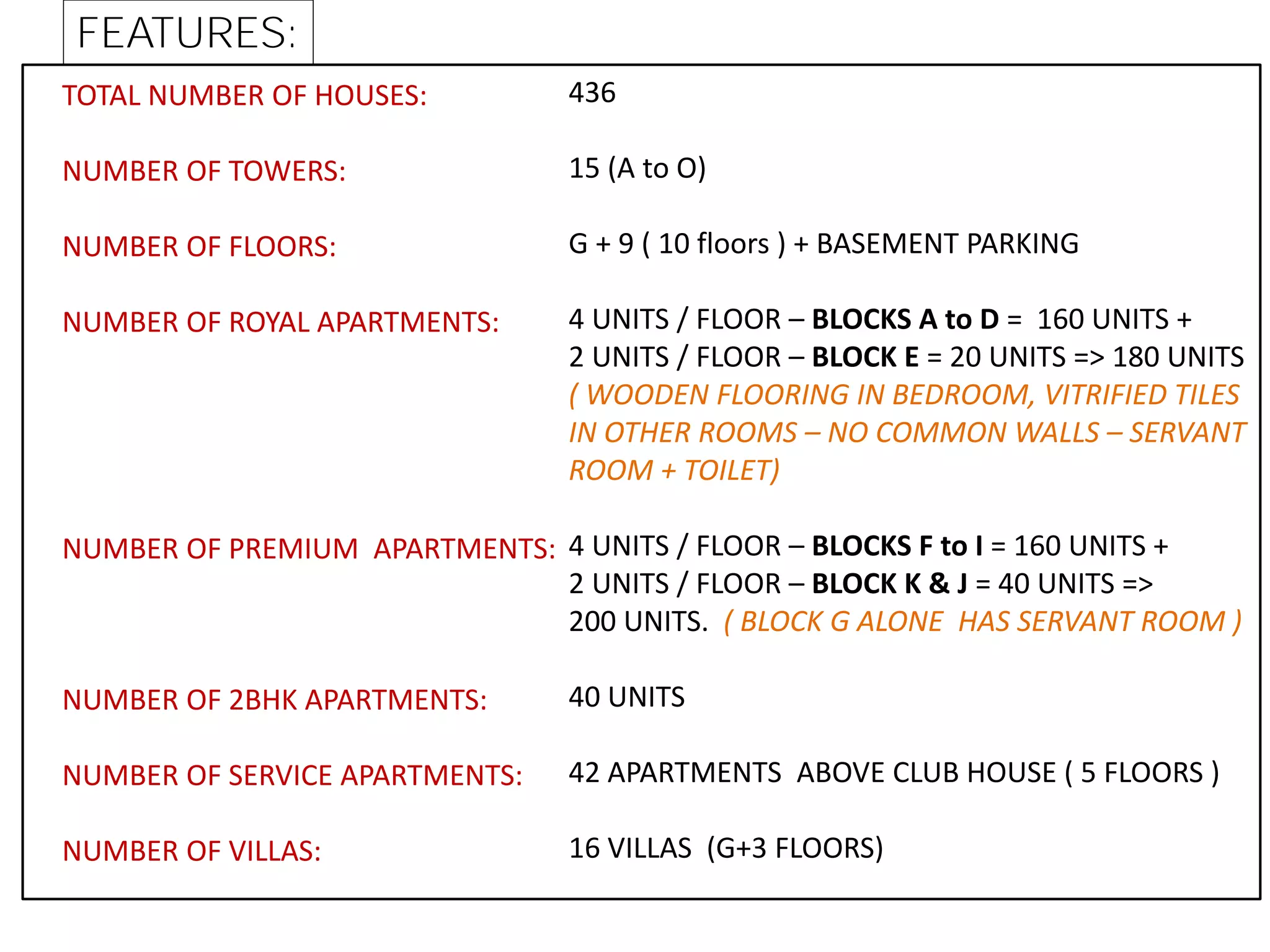

37. FEATURES:
TOTAL NUMBER OF HOUSES:
NUMBER OF TOWERS:
NUMBER OF FLOORS:
NUMBER OF ROYAL APARTMENTS:
NUMBER OF PREMIUM APARTMENTS:
NUMBER OF 2BHK APARTMENTS:
NUMBER OF SERVICE APARTMENTS:
NUMBER OF VILLAS:
436
15 (A to O)
G + 9 ( 10 floors ) + BASEMENT PARKING
4 UNITS / FLOOR – BLOCKS A to D = 160 UNITS +
2 UNITS / FLOOR – BLOCK E = 20 UNITS => 180 UNITS
( WOODEN FLOORING IN BEDROOM, VITRIFIED TILES
IN OTHER ROOMS – NO COMMON WALLS – SERVANT
ROOM + TOILET)
4 UNITS / FLOOR – BLOCKS F to I = 160 UNITS +
2 UNITS / FLOOR – BLOCK K & J = 40 UNITS =>
200 UNITS. ( BLOCK G ALONE HAS SERVANT ROOM )
40 UNITS
42 APARTMENTS ABOVE CLUB HOUSE ( 5 FLOORS )
16 VILLAS (G+3 FLOORS)

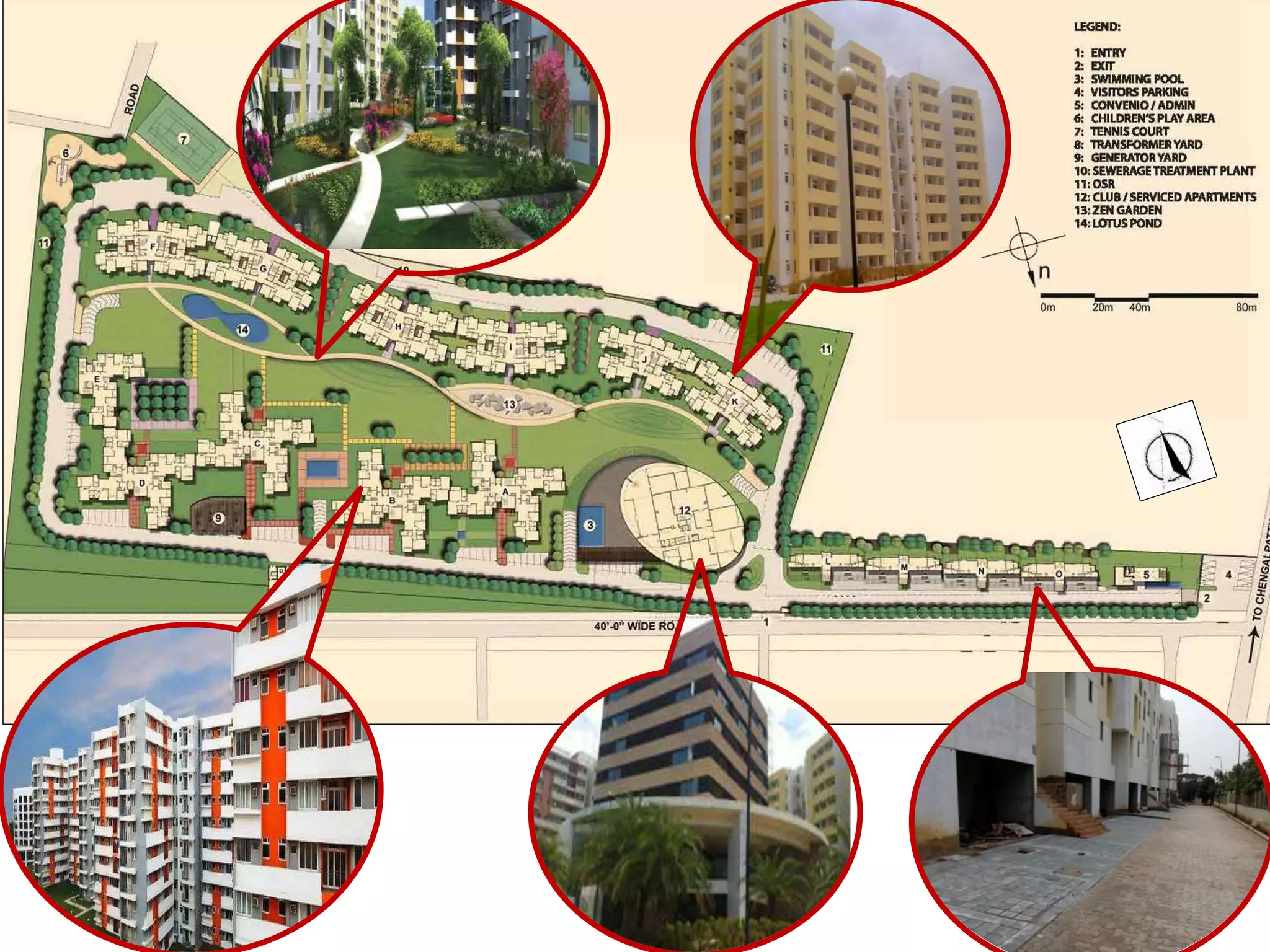

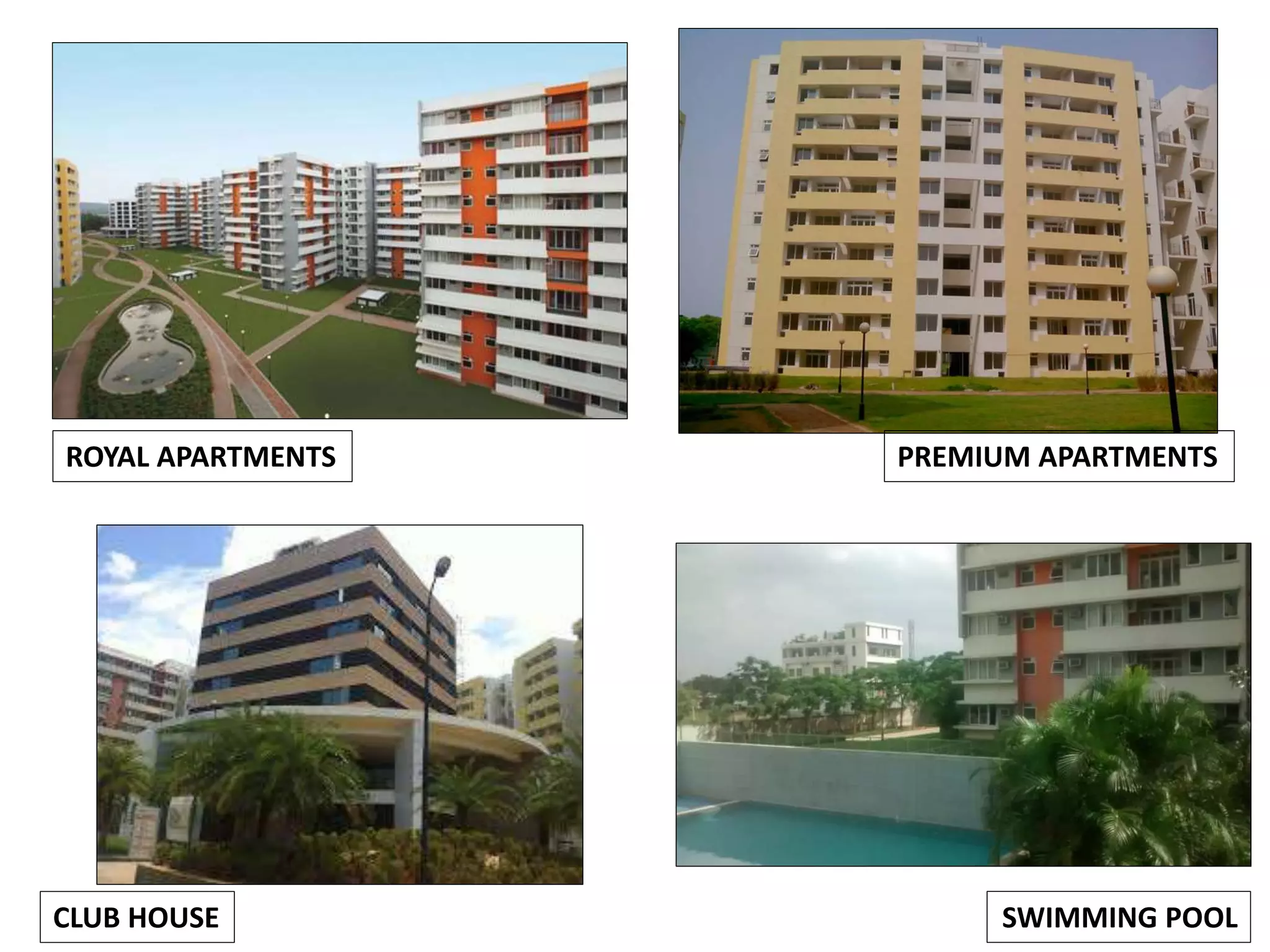

39. SWIMMING POOL
PREMIUM APARTMENTSROYAL APARTMENTS
CLUB HOUSE

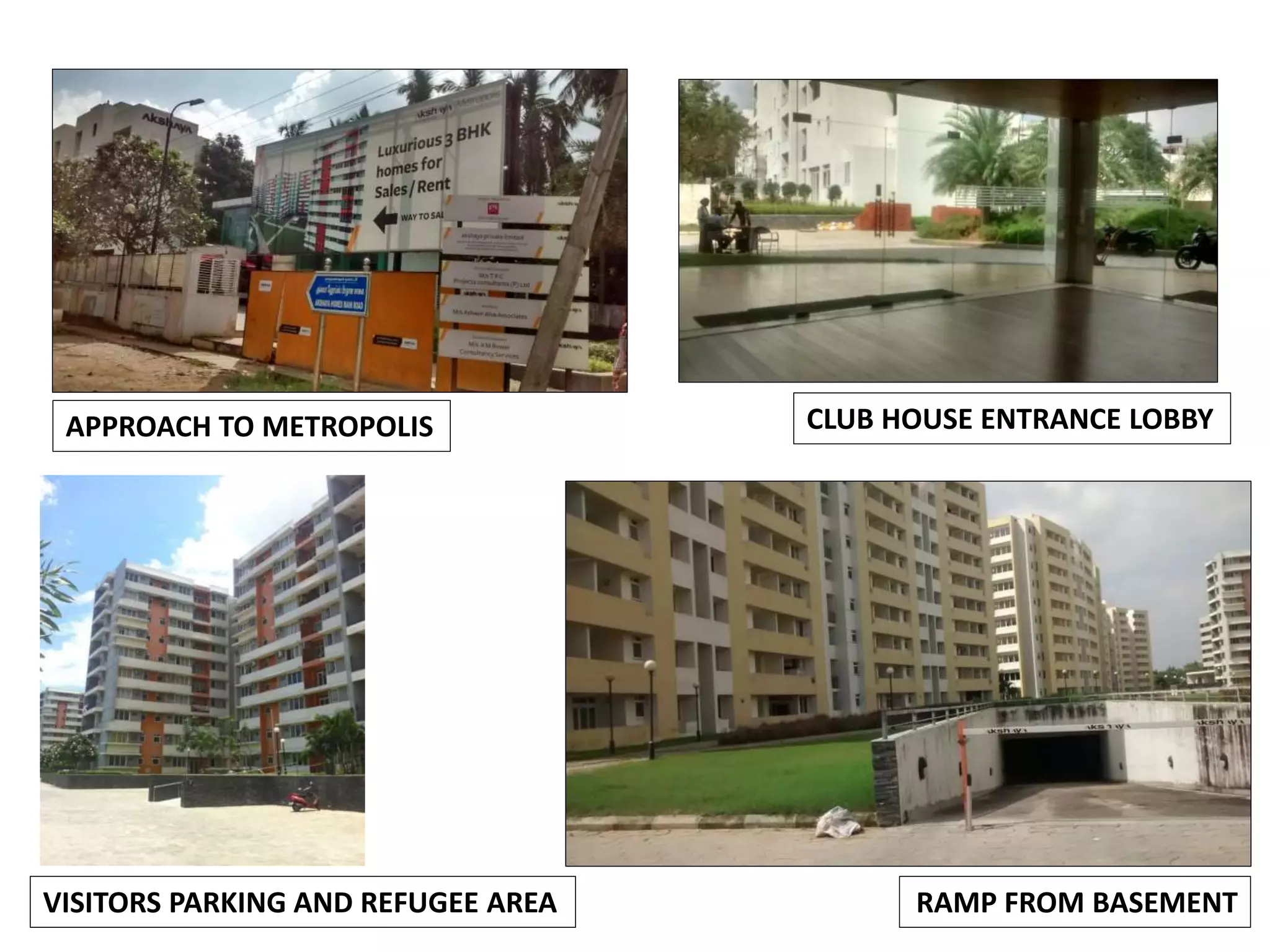

40. RAMP FROM BASEMENT
CLUB HOUSE ENTRANCE LOBBYAPPROACH TO METROPOLIS
VISITORS PARKING AND REFUGEE AREA

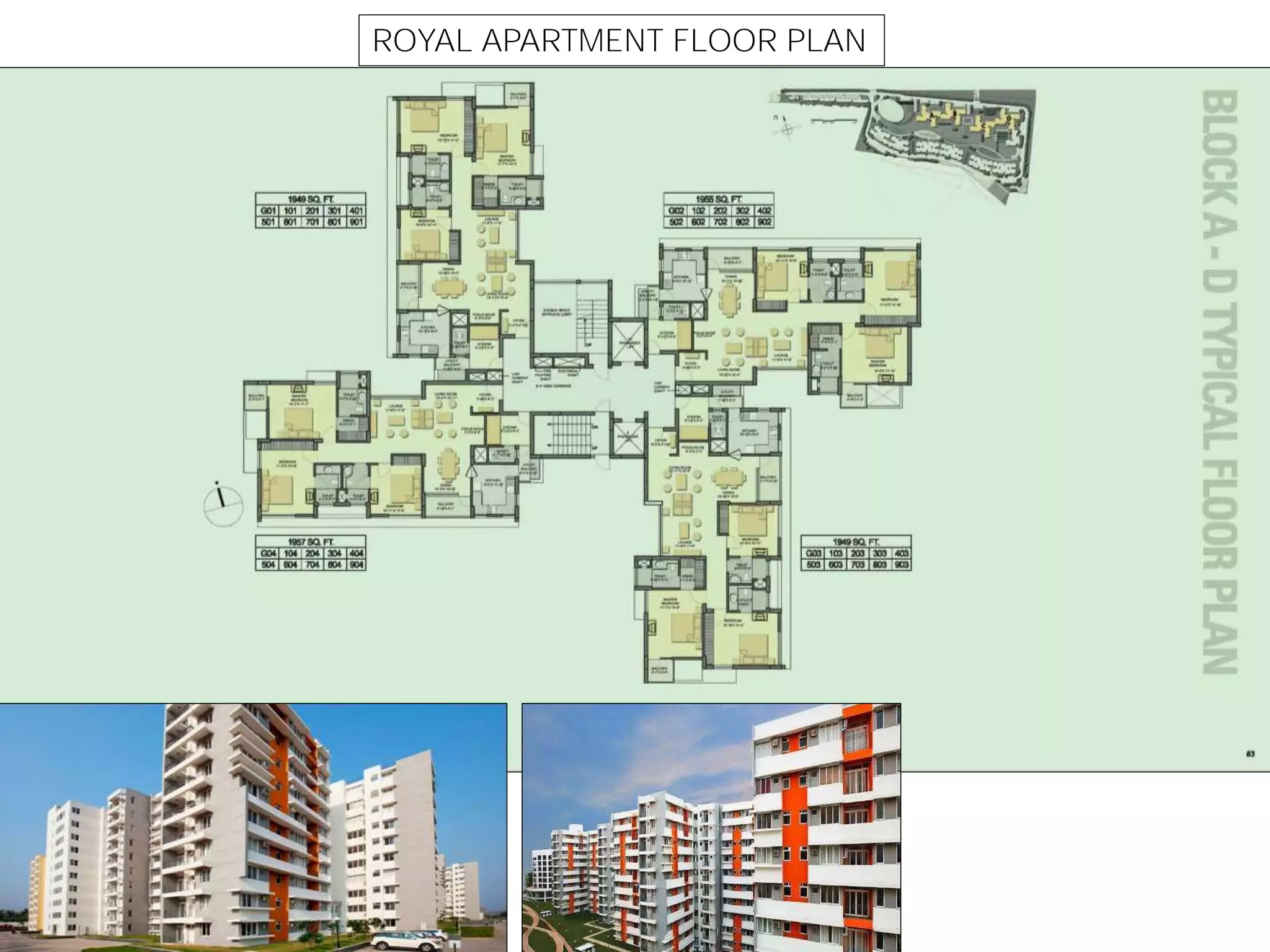

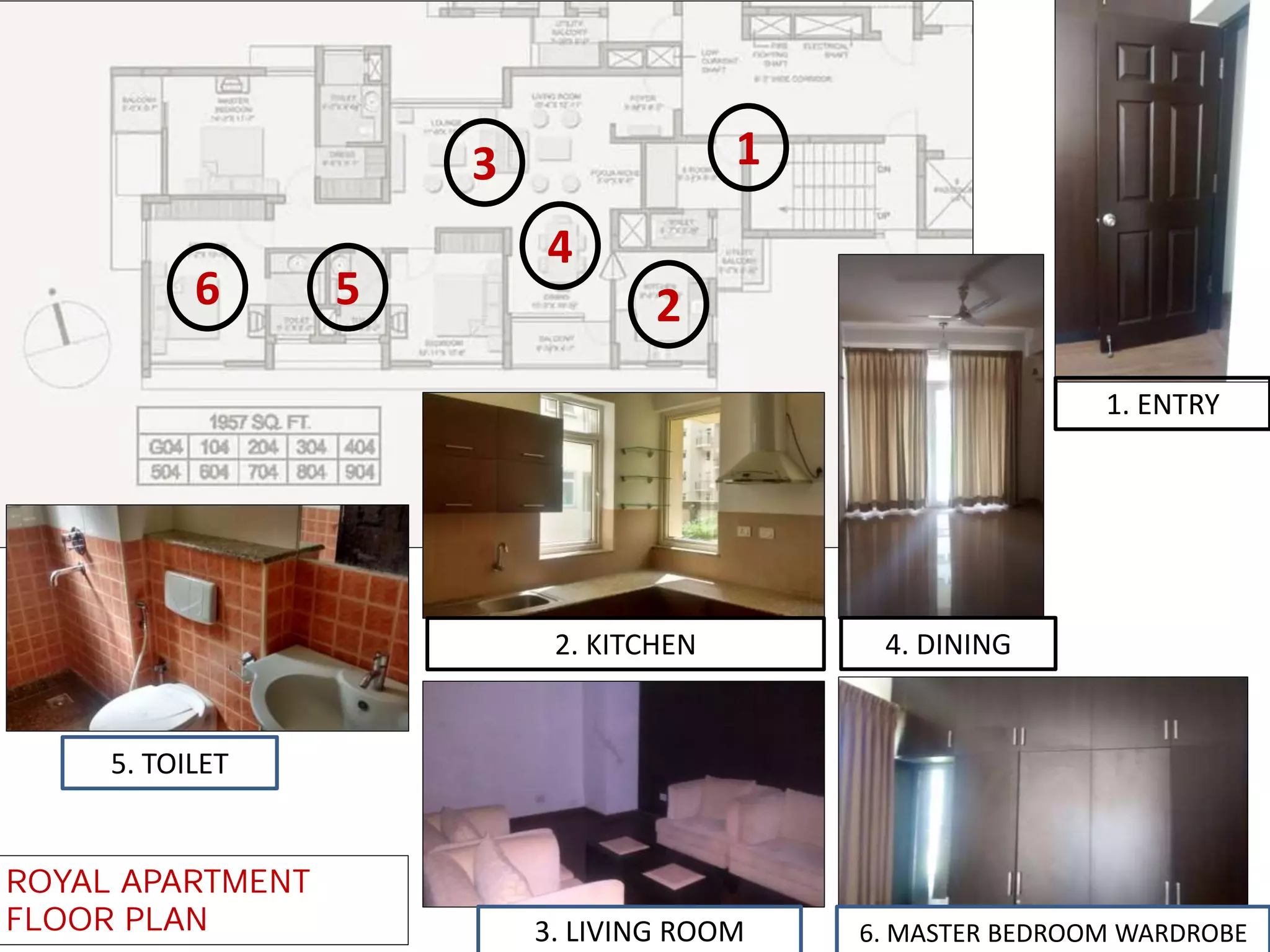

41. ROYAL APARTMENT FLOOR PLAN

42. 1
2
3
4
6 5
1. ENTRY
2. KITCHEN 4. DINING
6. MASTER BEDROOM WARDROBE
5. TOILET
3. LIVING ROOM
ROYAL APARTMENT
FLOOR PLAN

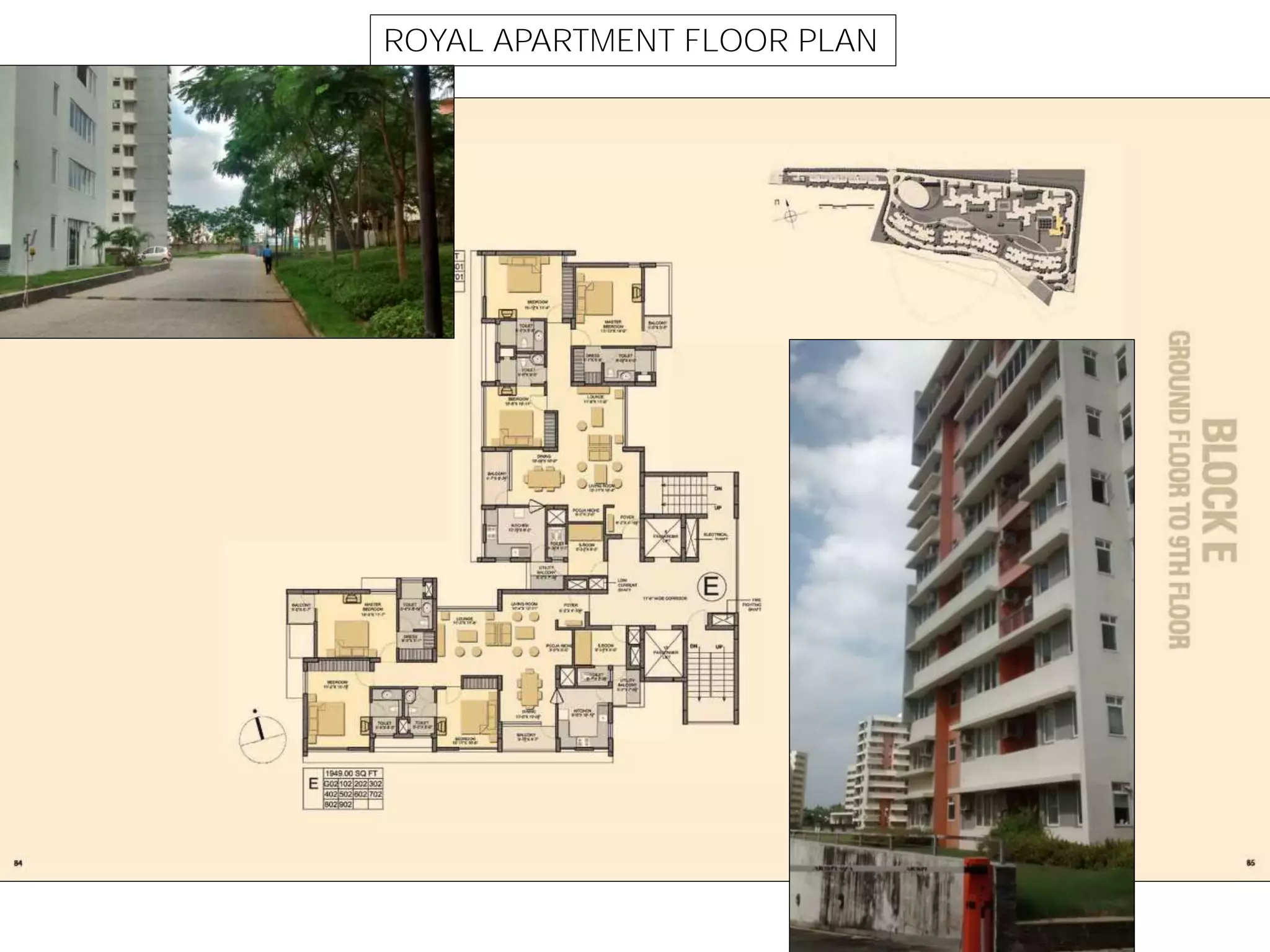

43. ROYAL APARTMENT FLOOR PLAN

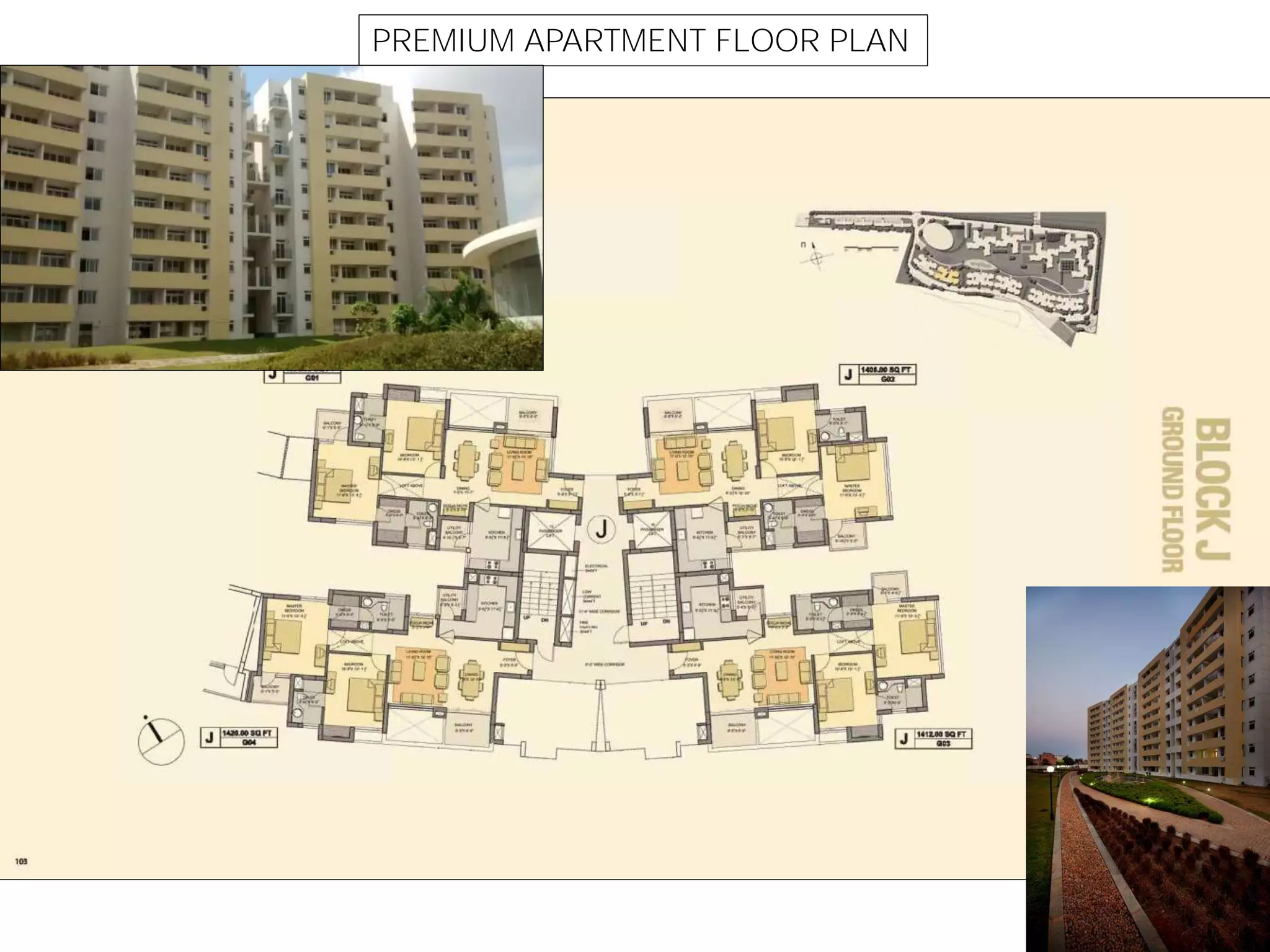

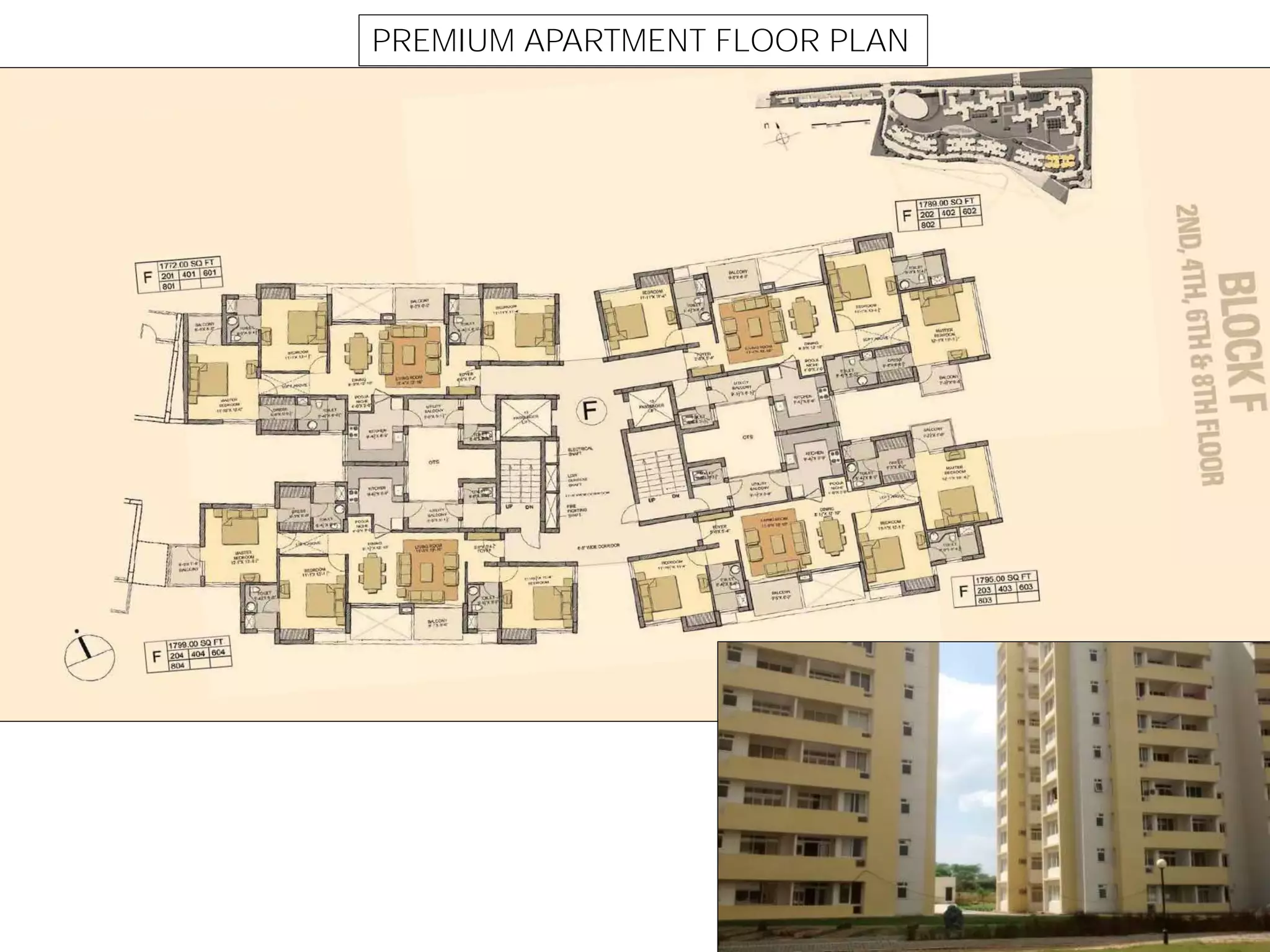

44. PREMIUM APARTMENT FLOOR PLAN

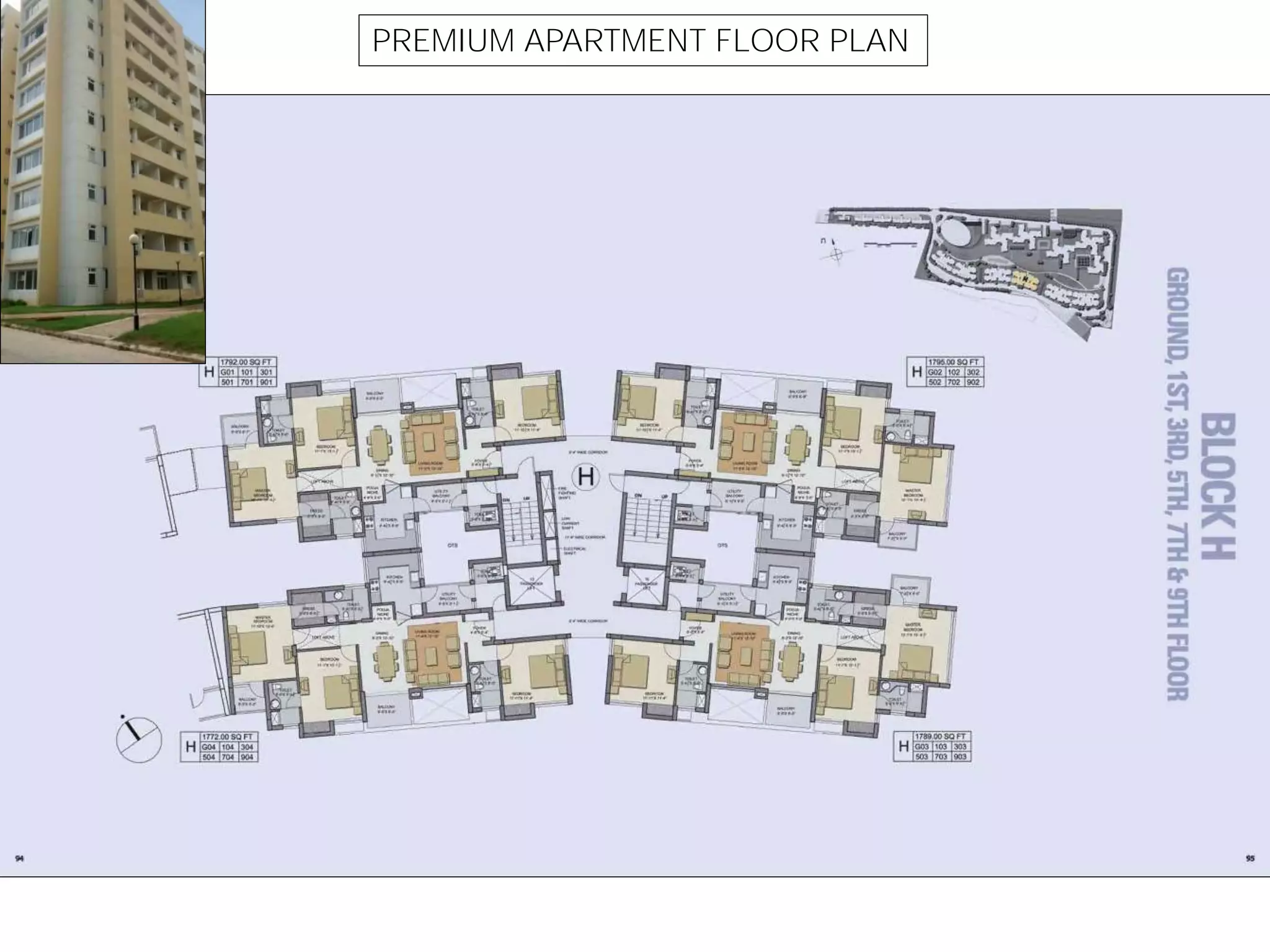

45. PREMIUM APARTMENT FLOOR PLAN

46. PREMIUM APARTMENT FLOOR PLAN

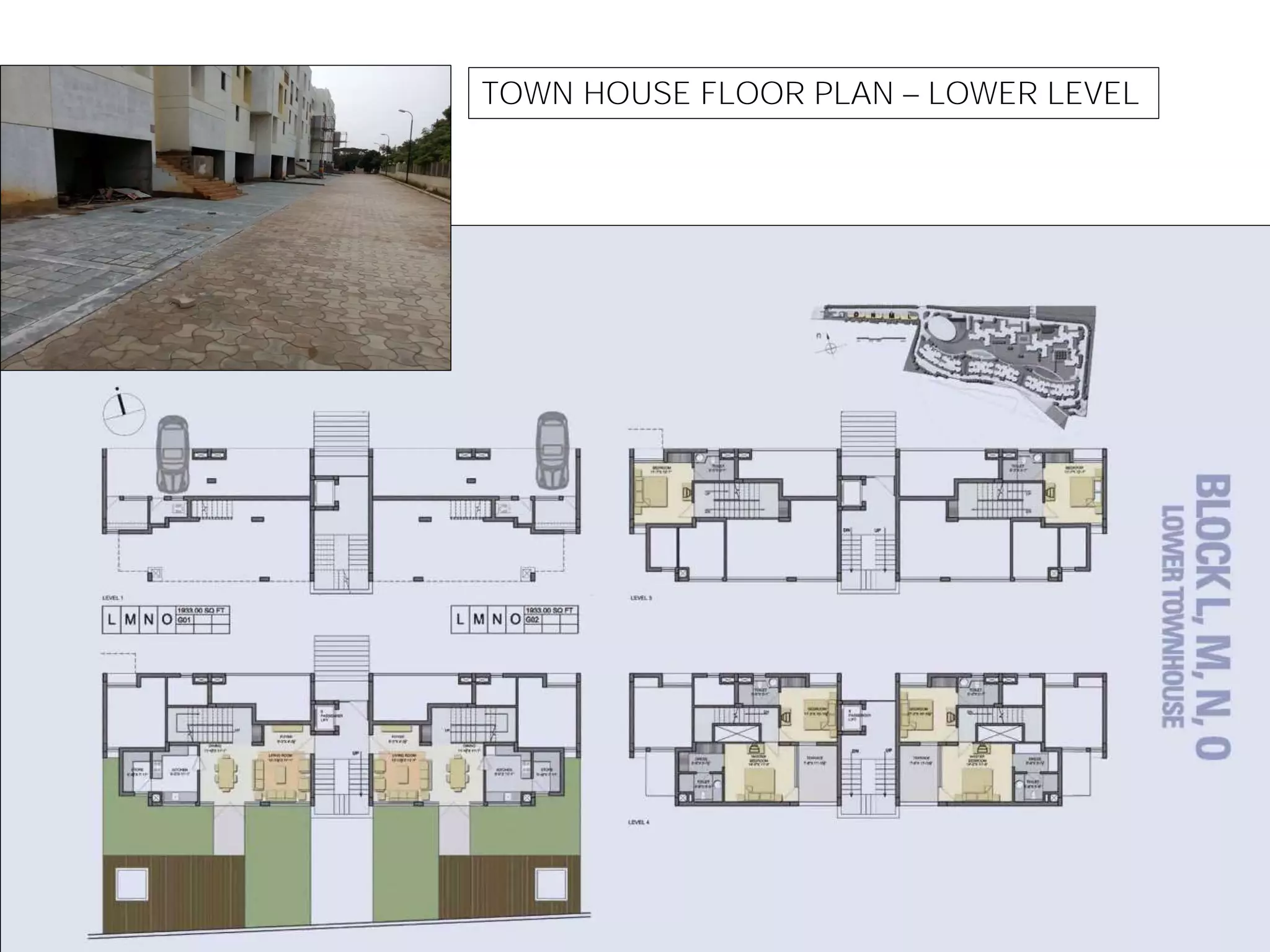

47. TOWN HOUSE FLOOR PLAN LOWER LEVEL

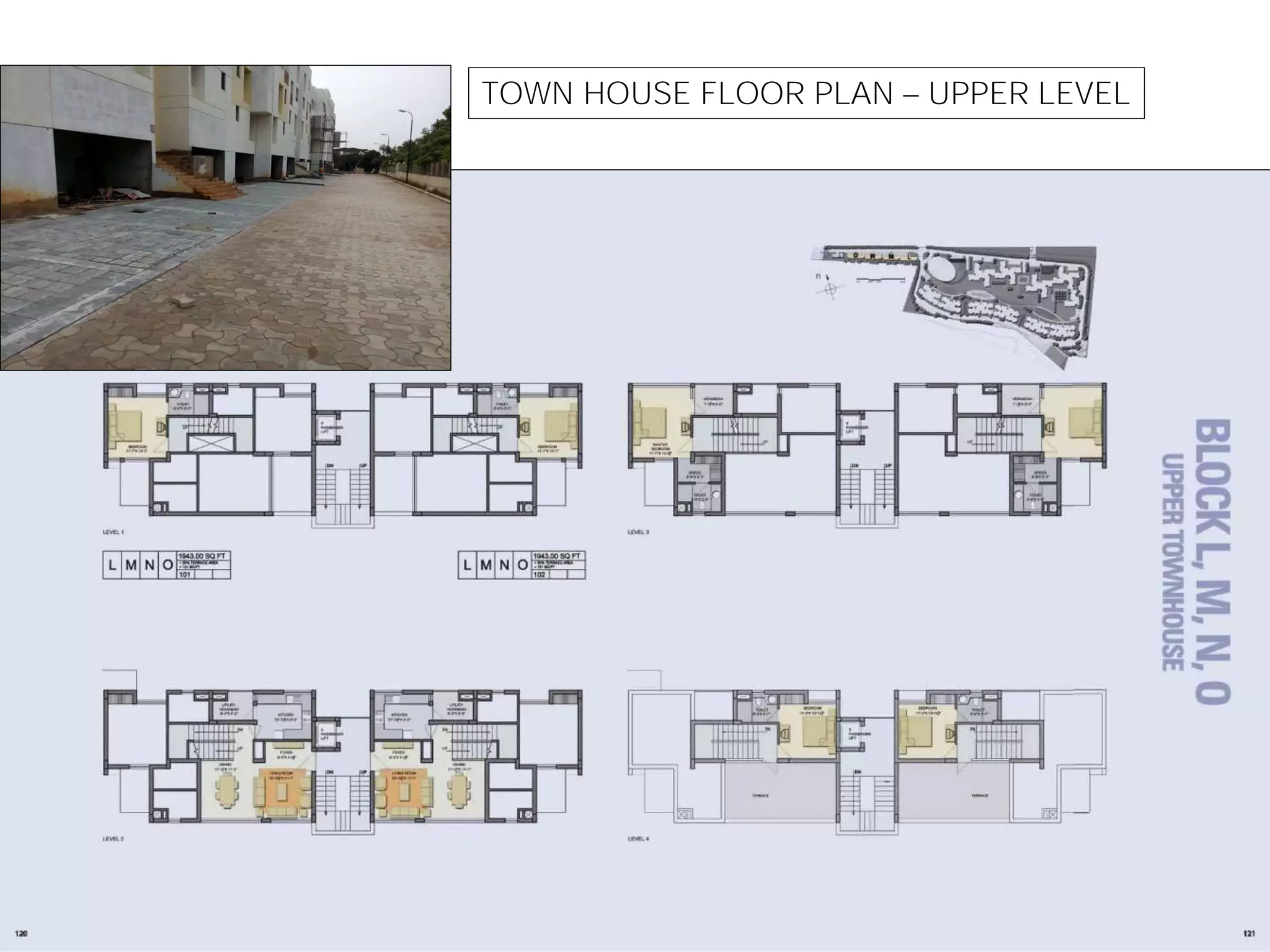

48. TOWN HOUSE FLOOR PLAN UPPER LEVEL

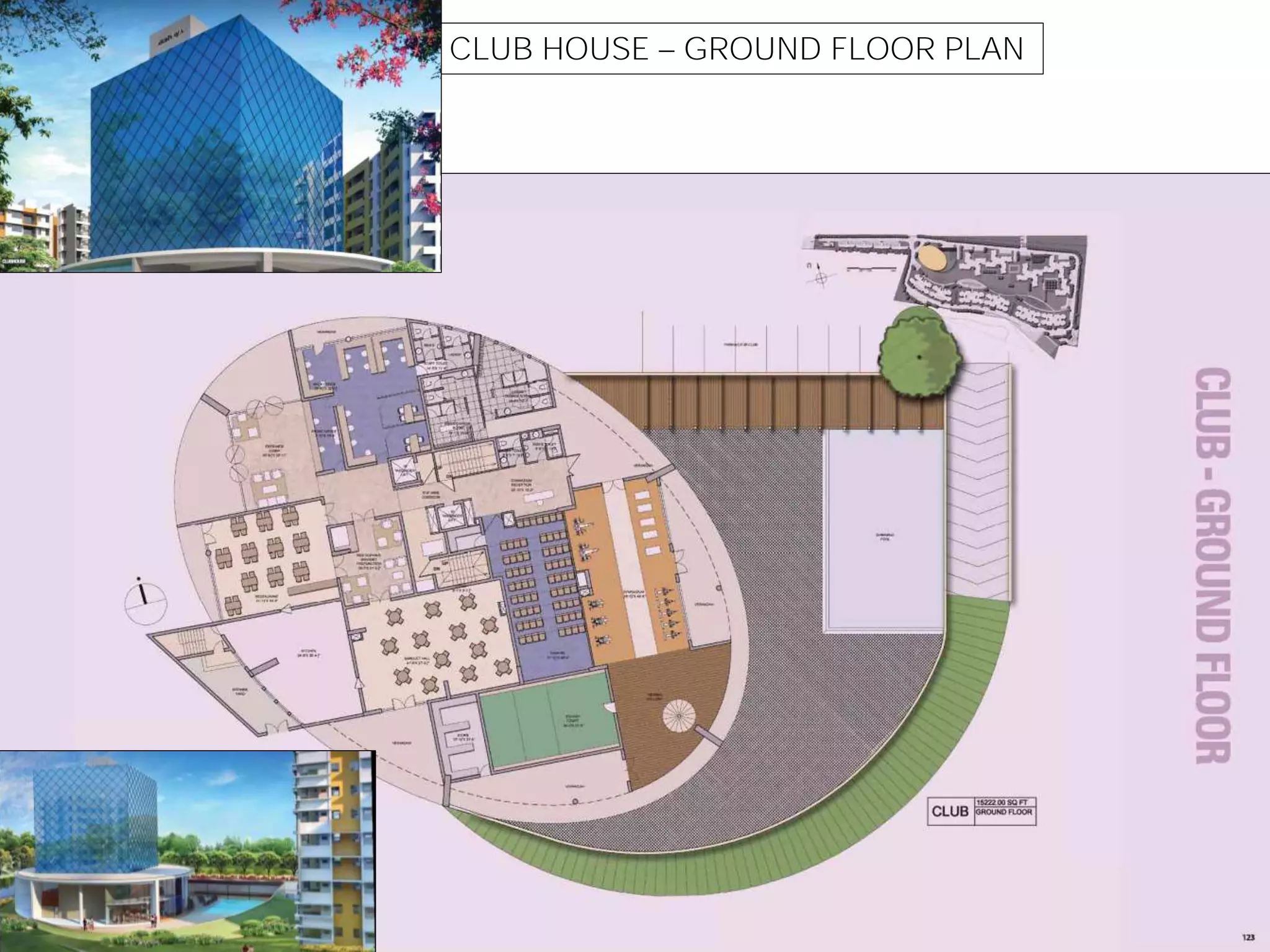

49. CLUB HOUSE GROUND FLOOR PLAN

50. CLUB HOUSE FIRST FLOOR PLAN

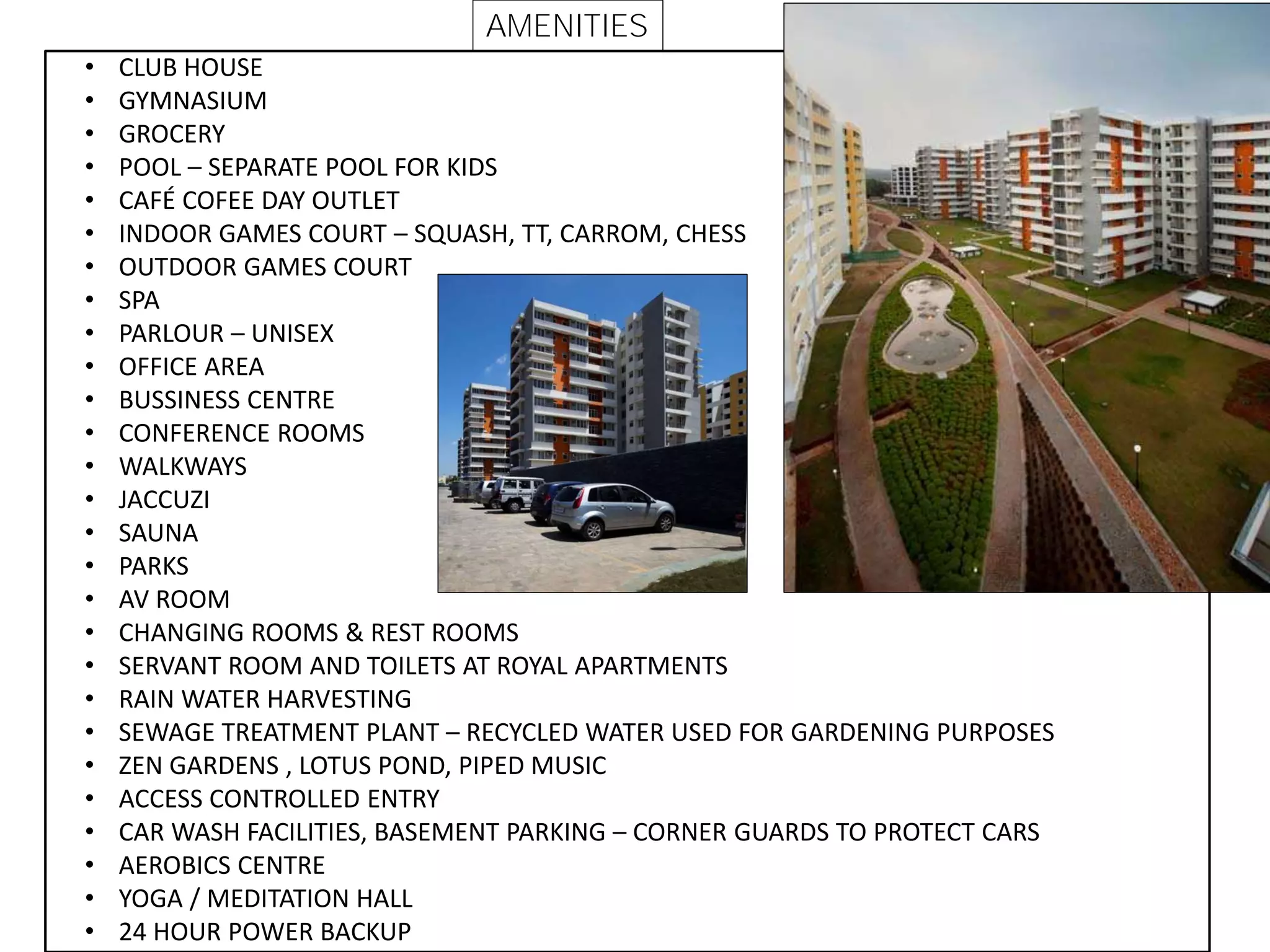

51. • CLUB HOUSE
• GYMNASIUM
• GROCERY
• POOL – SEPARATE POOL FOR KIDS
• CAFÉ COFEE DAY OUTLET
• INDOOR GAMES COURT – SQUASH, TT, CARROM, CHESS
• OUTDOOR GAMES COURT
• SPA
• PARLOUR – UNISEX
• OFFICE AREA
• BUSSINESS CENTRE
• CONFERENCE ROOMS
• WALKWAYS
• JACCUZI
• SAUNA
• PARKS
• AV ROOM
• CHANGING ROOMS & REST ROOMS
• SERVANT ROOM AND TOILETS AT ROYAL APARTMENTS
• RAIN WATER HARVESTING
• SEWAGE TREATMENT PLANT – RECYCLED WATER USED FOR GARDENING PURPOSES
• ZEN GARDENS , LOTUS POND, PIPED MUSIC
• ACCESS CONTROLLED ENTRY
• CAR WASH FACILITIES, BASEMENT PARKING – CORNER GUARDS TO PROTECT CARS
• AEROBICS CENTRE
• YOGA / MEDITATION HALL
• 24 HOUR POWER BACKUP
AMENITIES

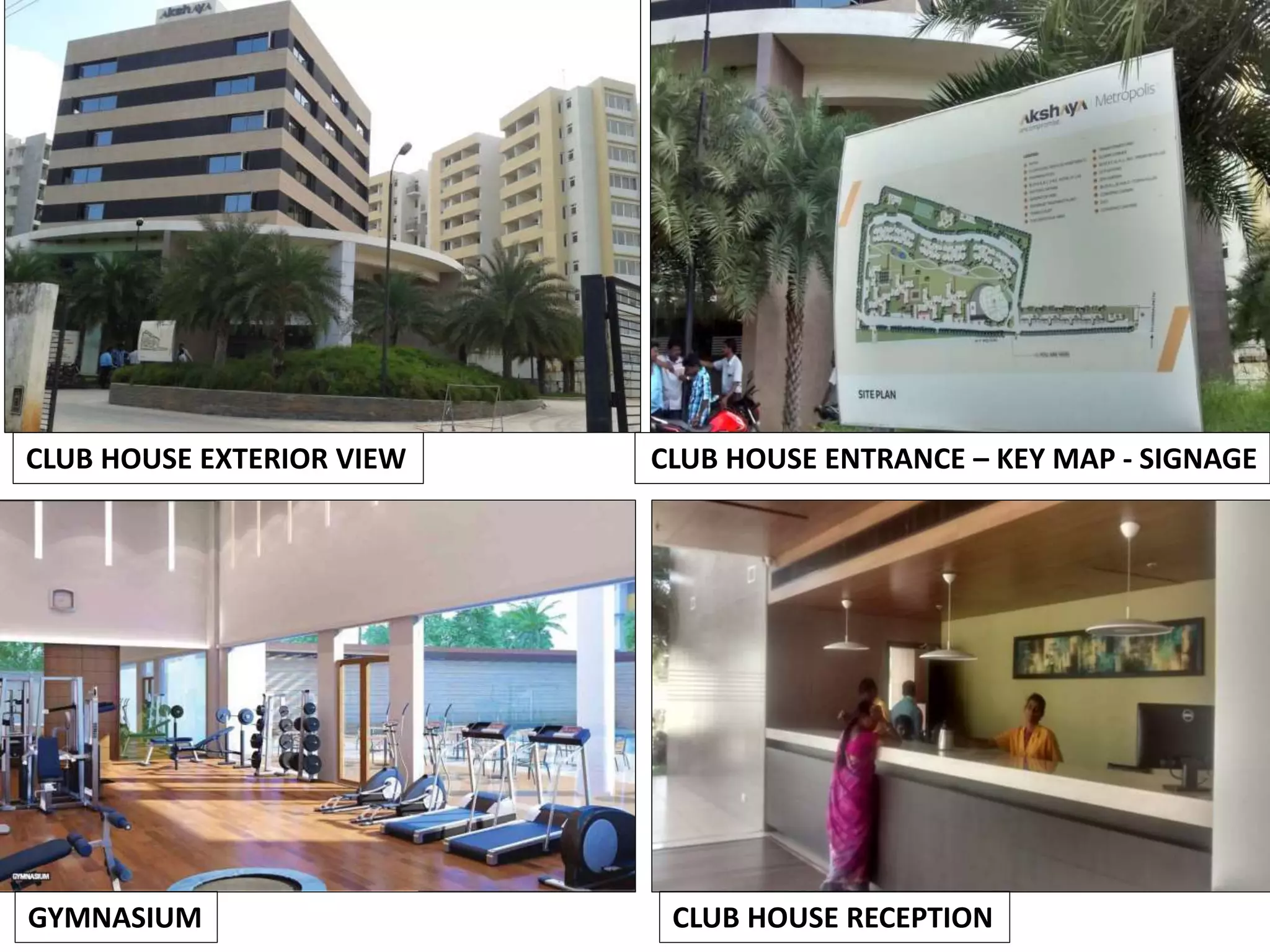

52. CLUB HOUSE EXTERIOR VIEW CLUB HOUSE ENTRANCE – KEY MAP - SIGNAGE
GYMNASIUM CLUB HOUSE RECEPTION

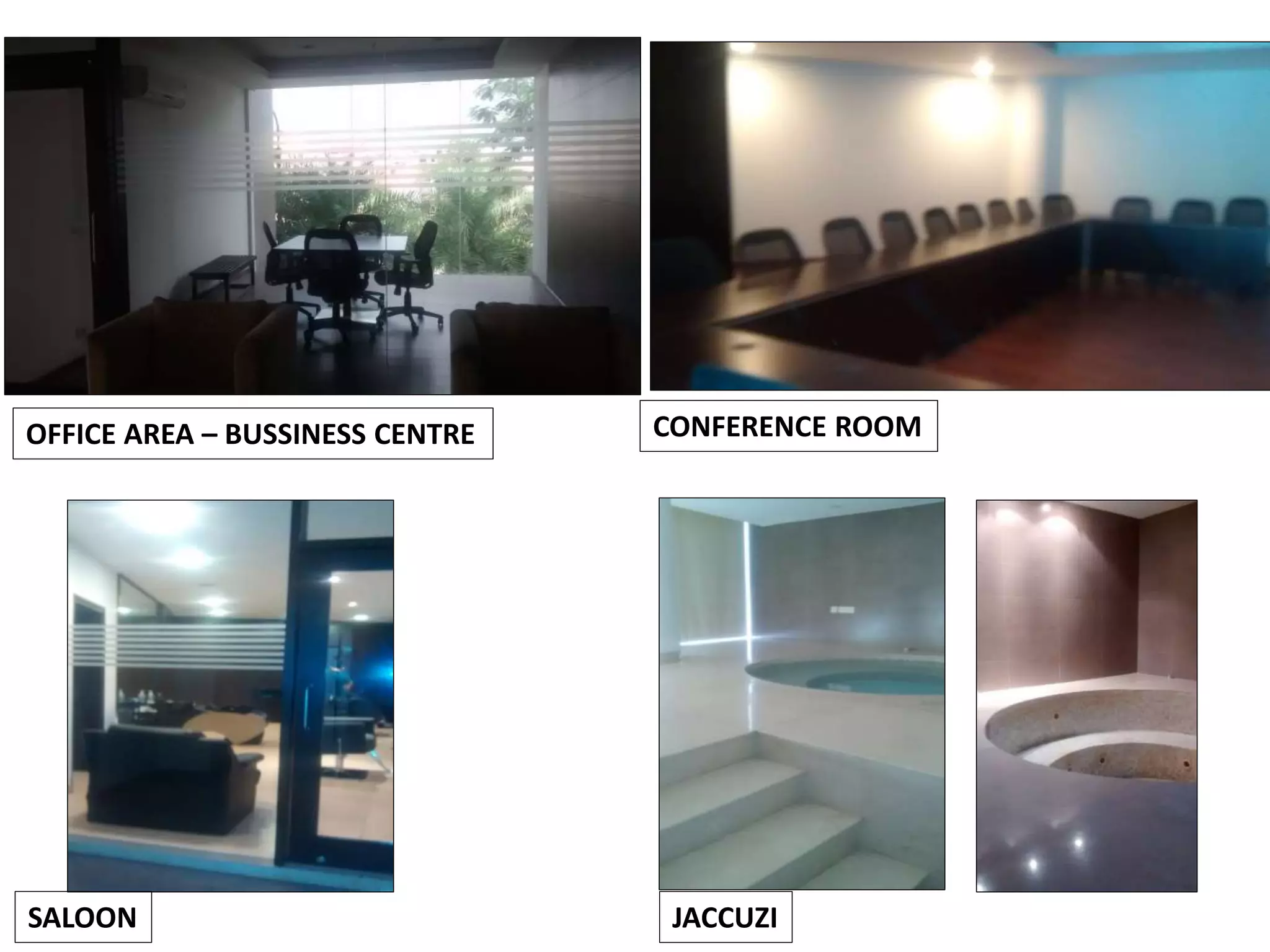

53. OFFICE AREA – BUSSINESS CENTRE CONFERENCE ROOM
SALOON JACCUZI

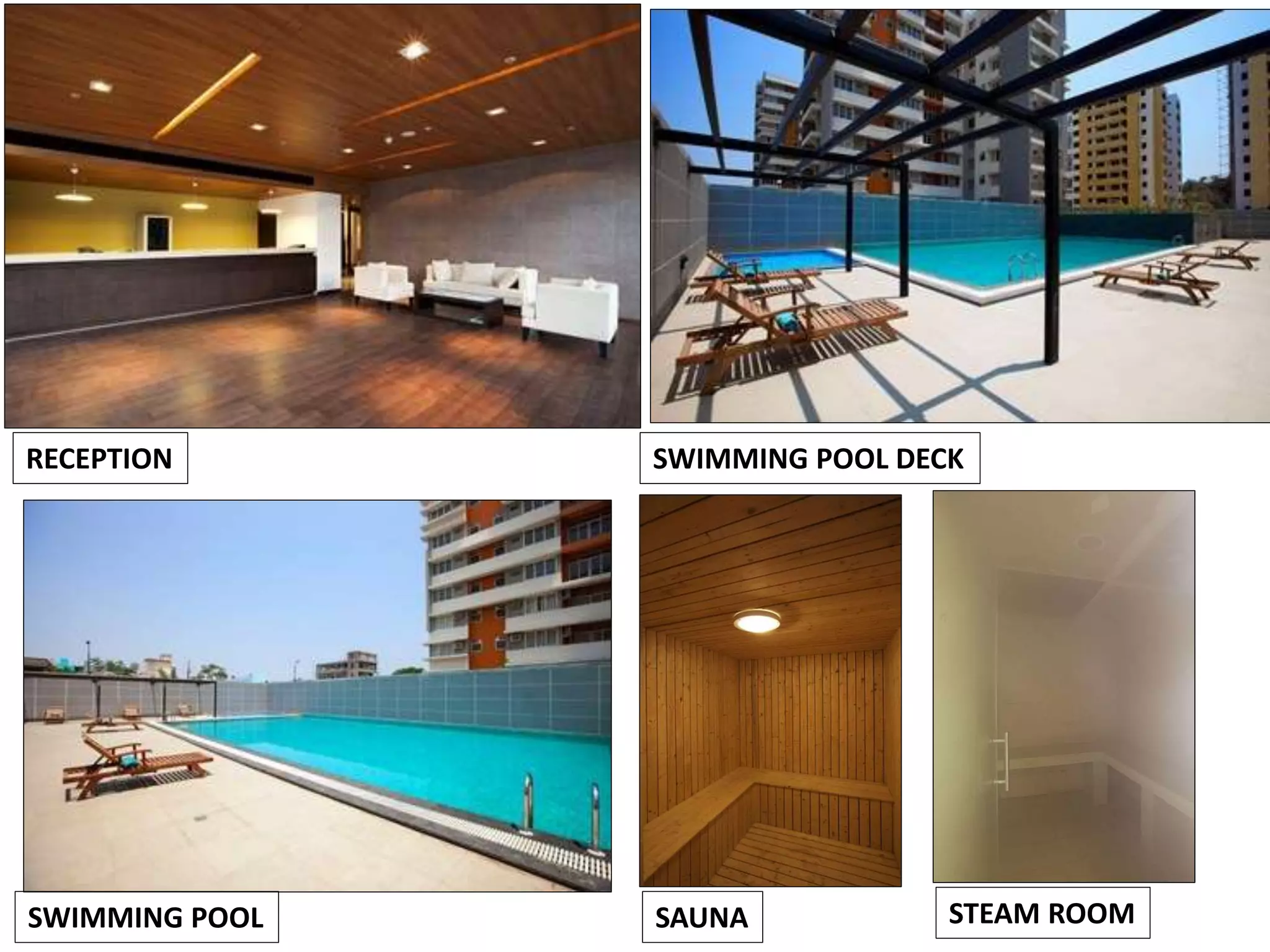

54. RECEPTION SWIMMING POOL DECK
SWIMMING POOL SAUNA STEAM ROOM

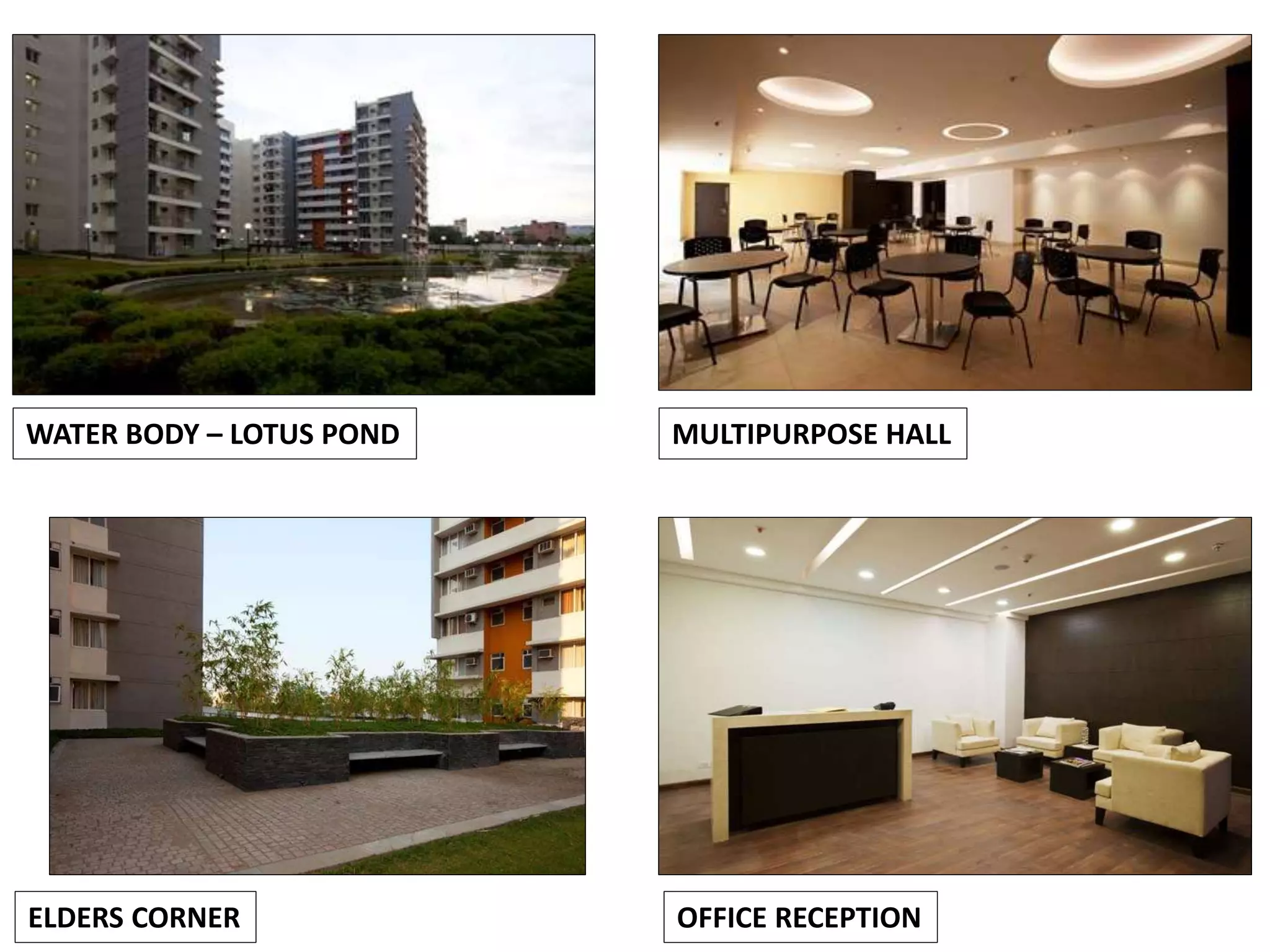

55. WATER BODY – LOTUS POND MULTIPURPOSE HALL
ELDERS CORNER OFFICE RECEPTION

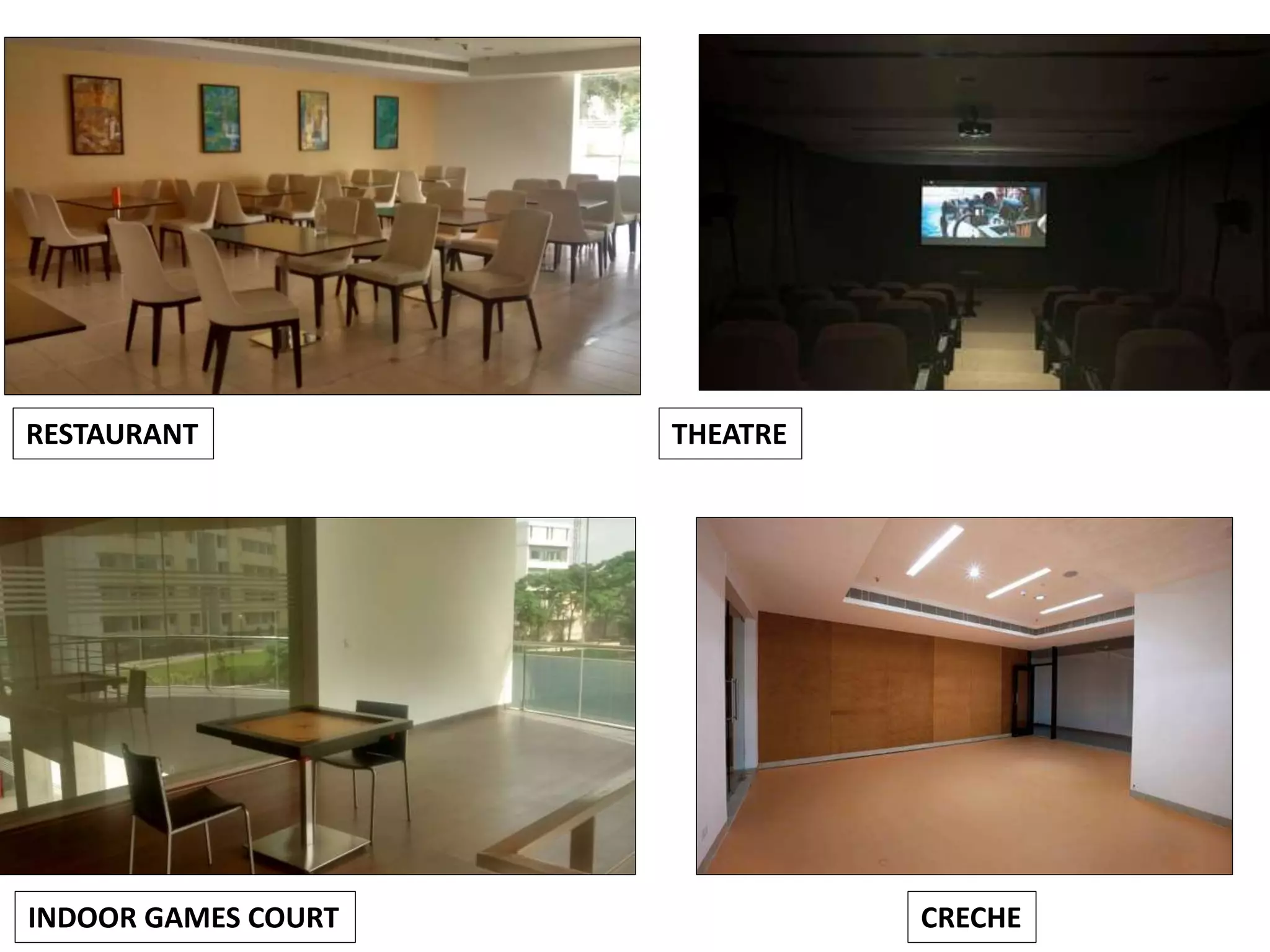

56. RESTAURANT THEATRE
INDOOR GAMES COURT CRECHE

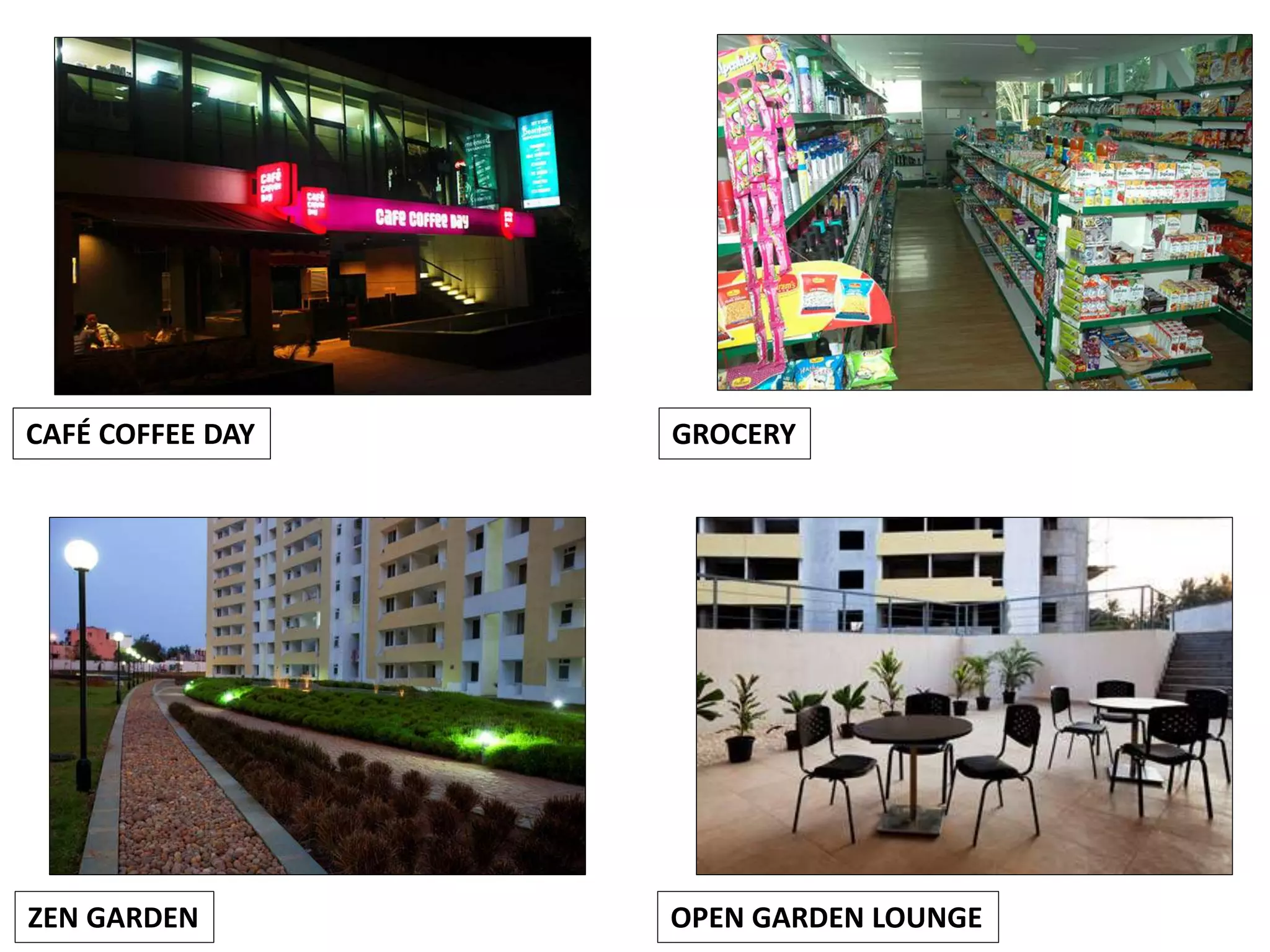

57. CAFÉ COFFEE DAY GROCERY
ZEN GARDEN OPEN GARDEN LOUNGE

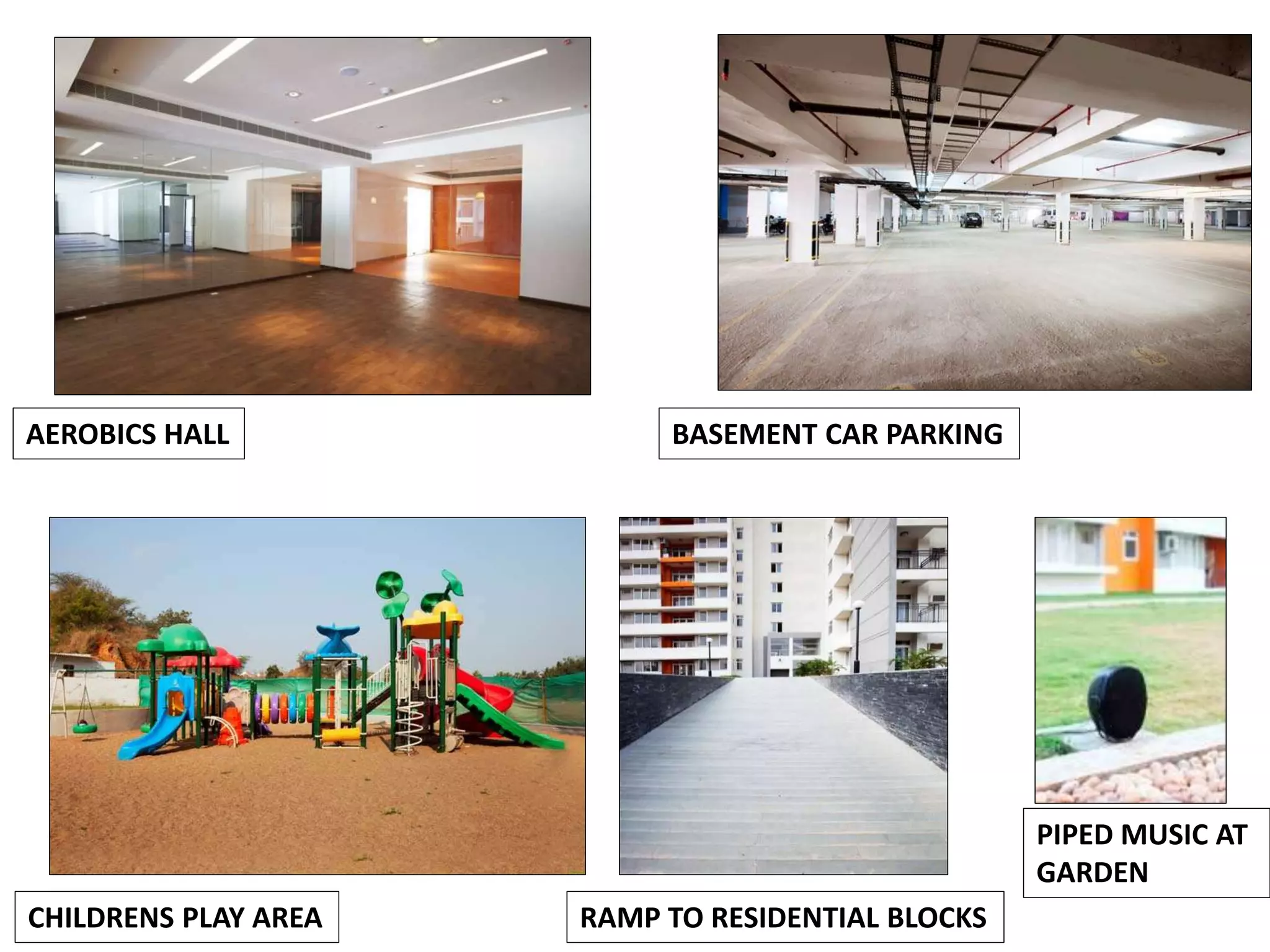

58. AEROBICS HALL BASEMENT CAR PARKING
CHILDRENS PLAY AREA RAMP TO RESIDENTIAL BLOCKS
PIPED MUSIC AT
GARDEN

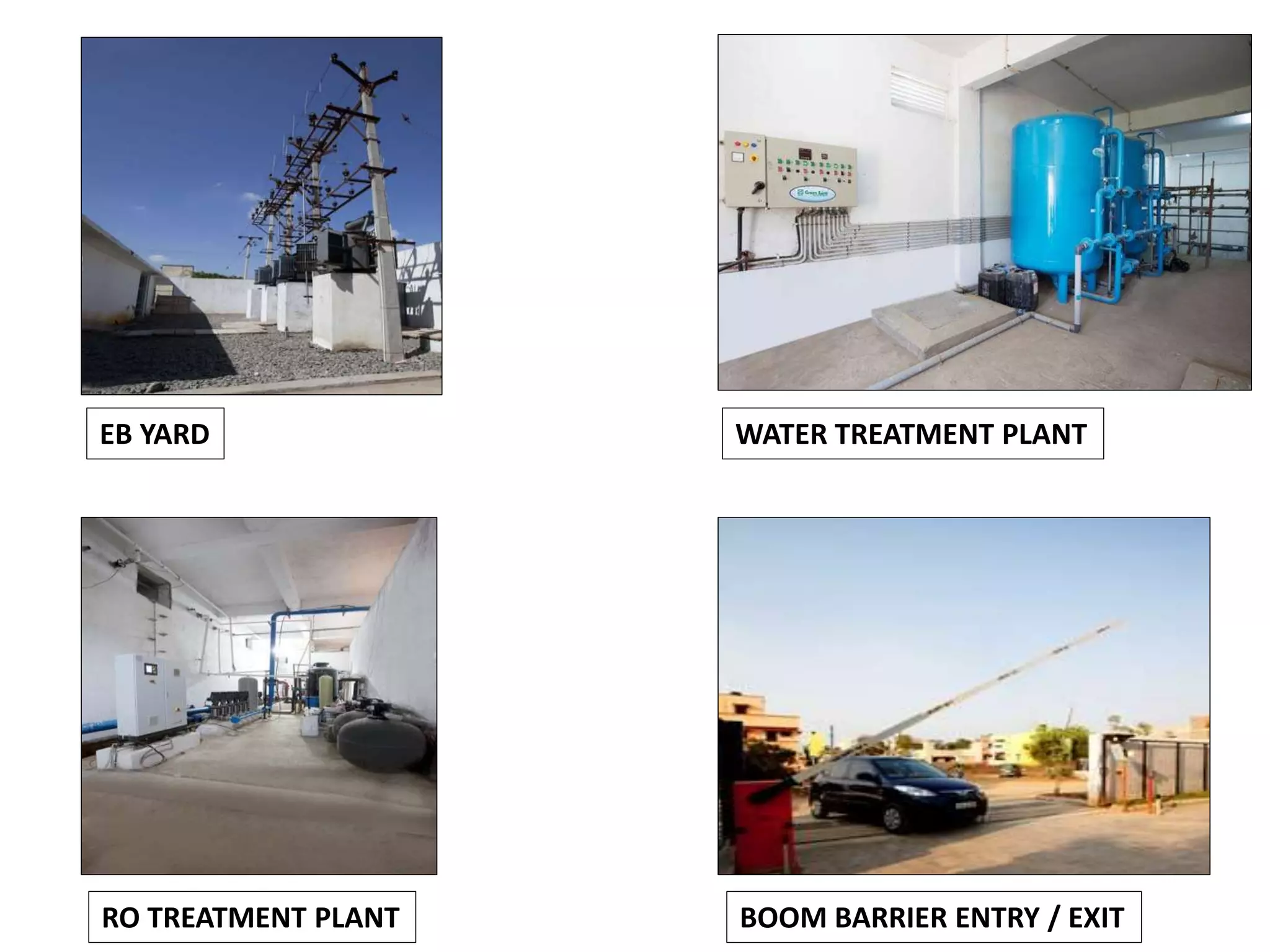

59. EB YARD WATER TREATMENT PLANT
RO TREATMENT PLANT BOOM BARRIER ENTRY / EXIT

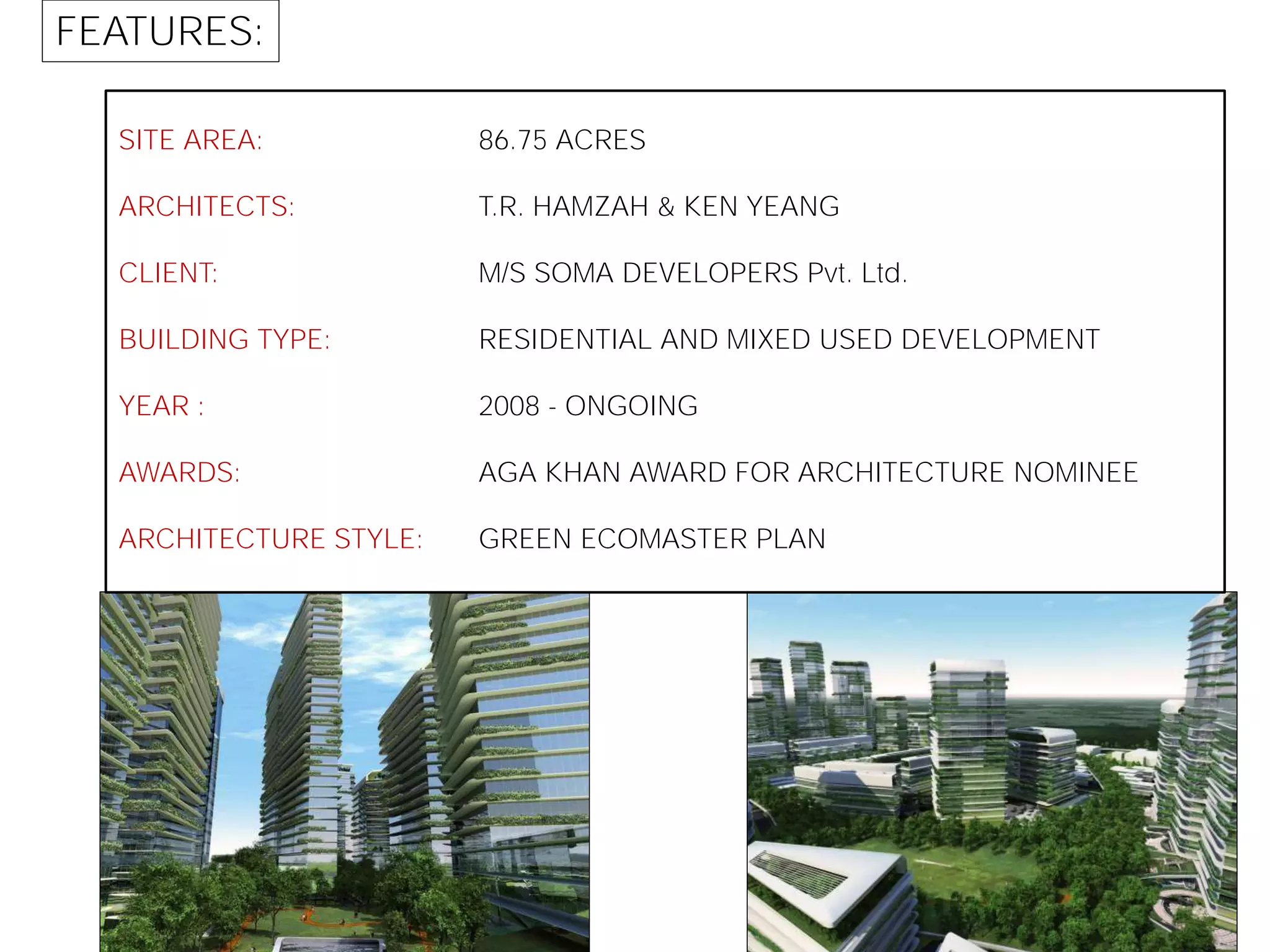

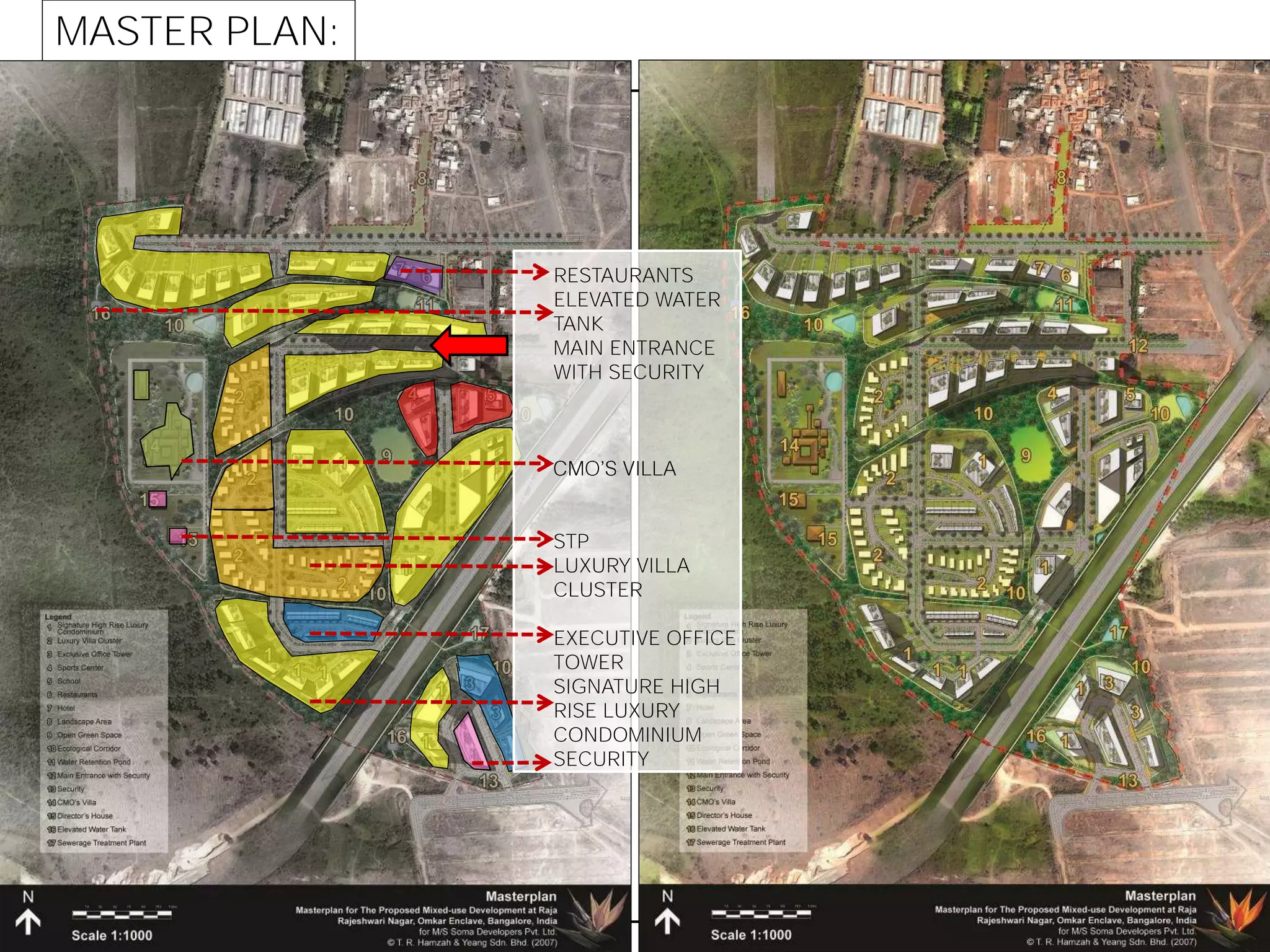

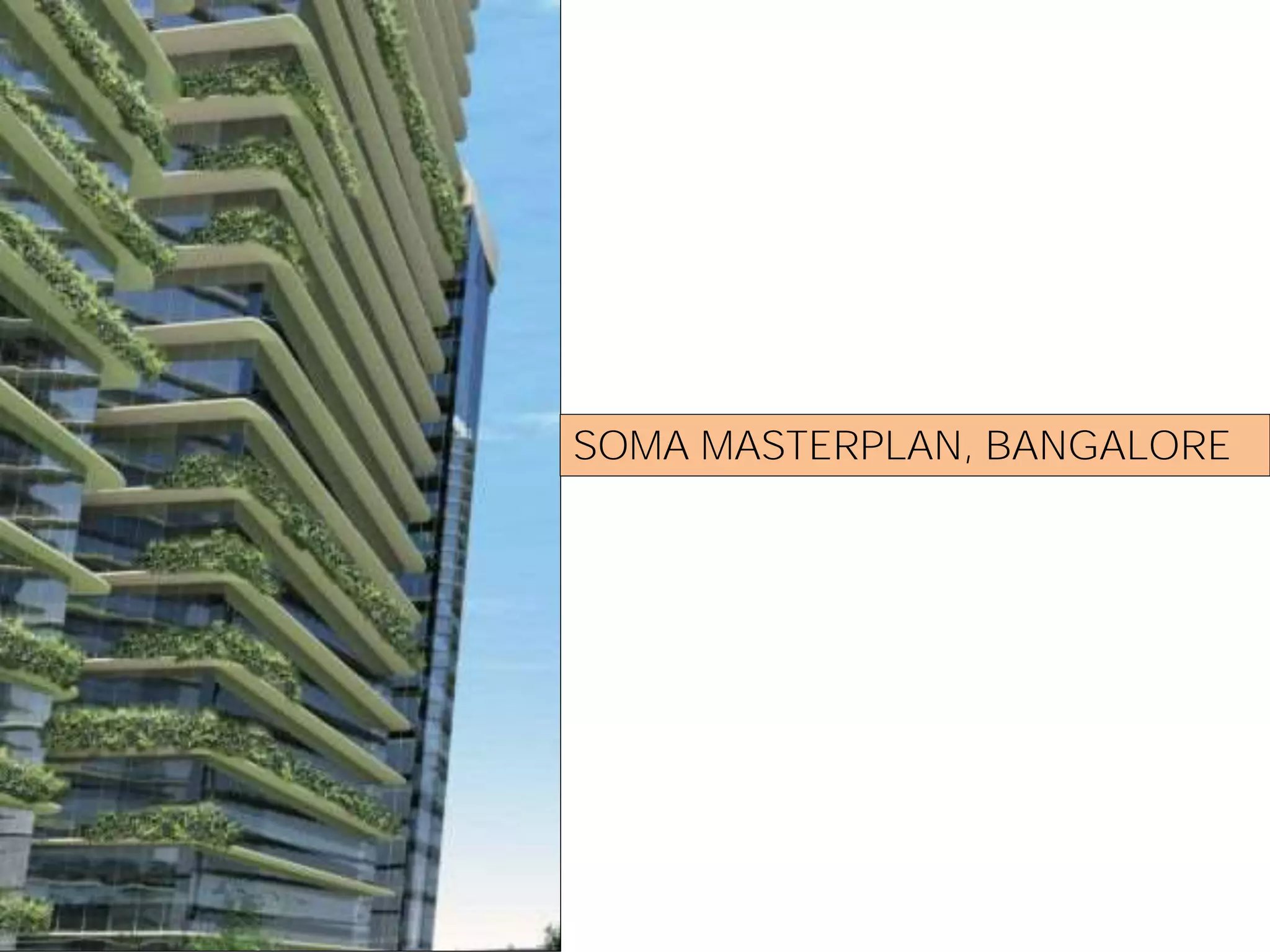

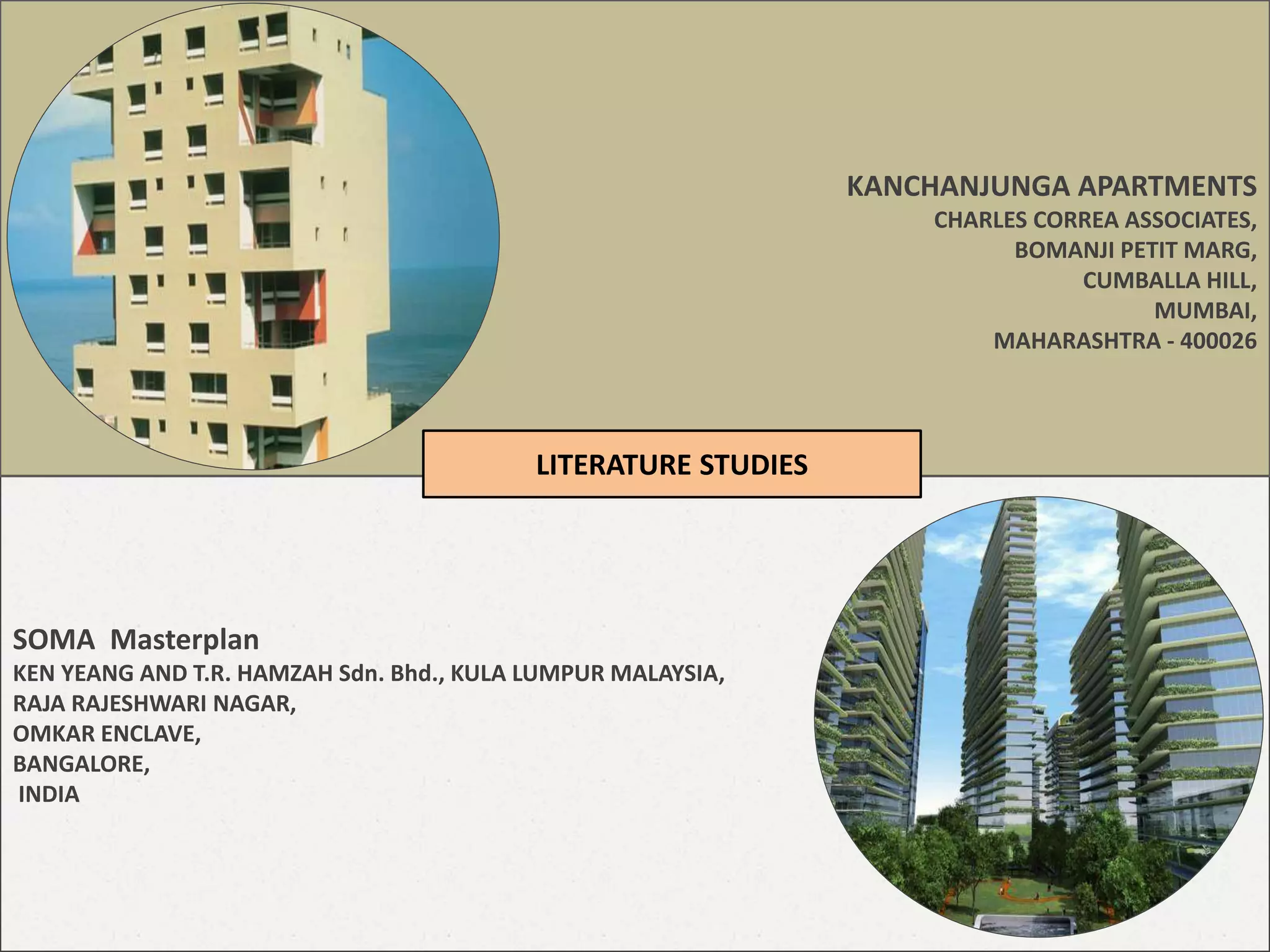

60. SOMA Masterplan
KEN YEANG AND T.R. HAMZAH Sdn. Bhd., KULA LUMPUR MALAYSIA,
RAJA RAJESHWARI NAGAR,
OMKAR ENCLAVE,
BANGALORE,
INDIA
KANCHANJUNGA APARTMENTS
CHARLES CORREA ASSOCIATES,
BOMANJI PETIT MARG,
CUMBALLA HILL,
MUMBAI,
MAHARASHTRA - 400026
LITERATURE STUDIES

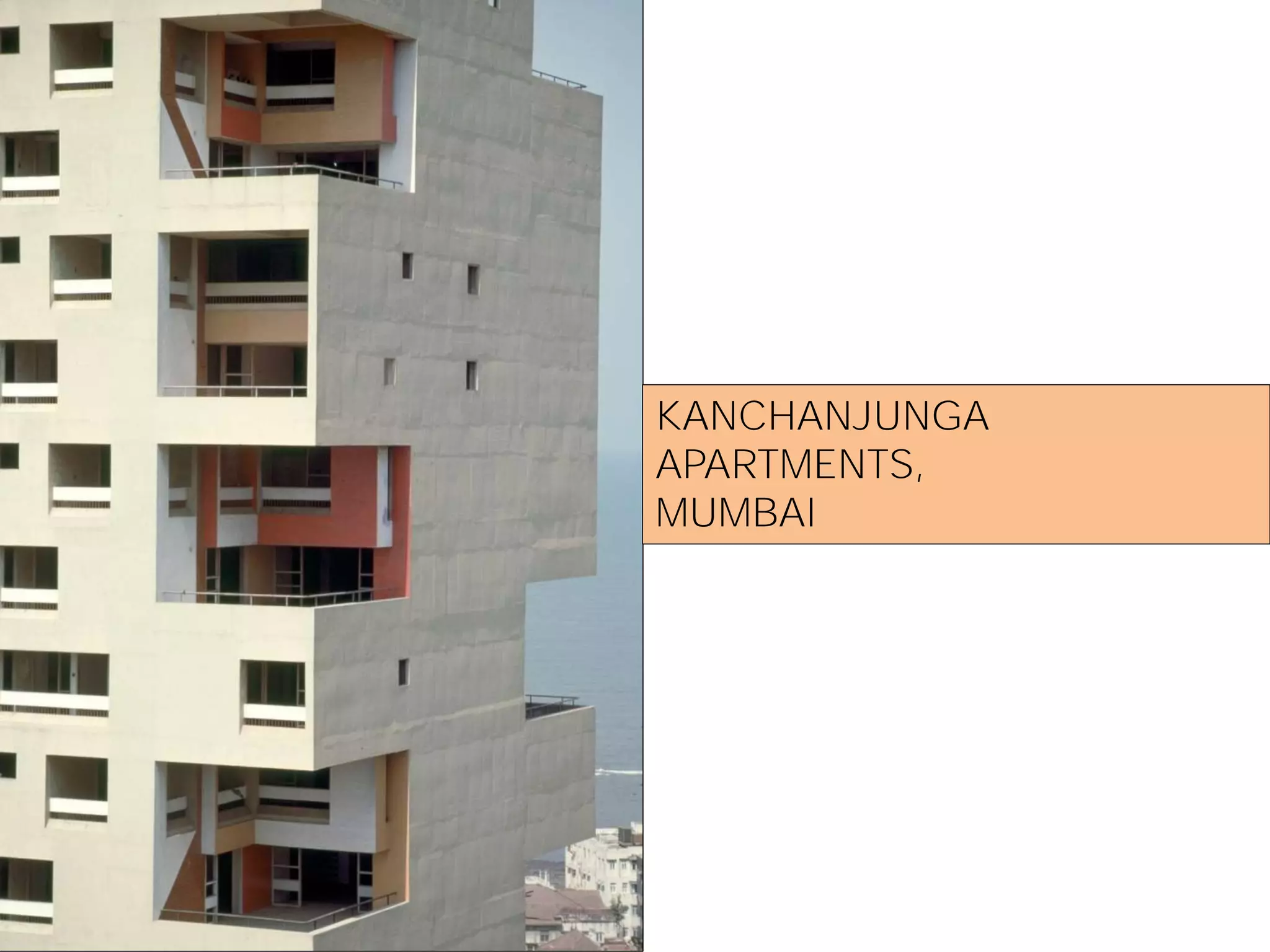

61. KANCHANJUNGA
APARTMENTS,
MUMBAI

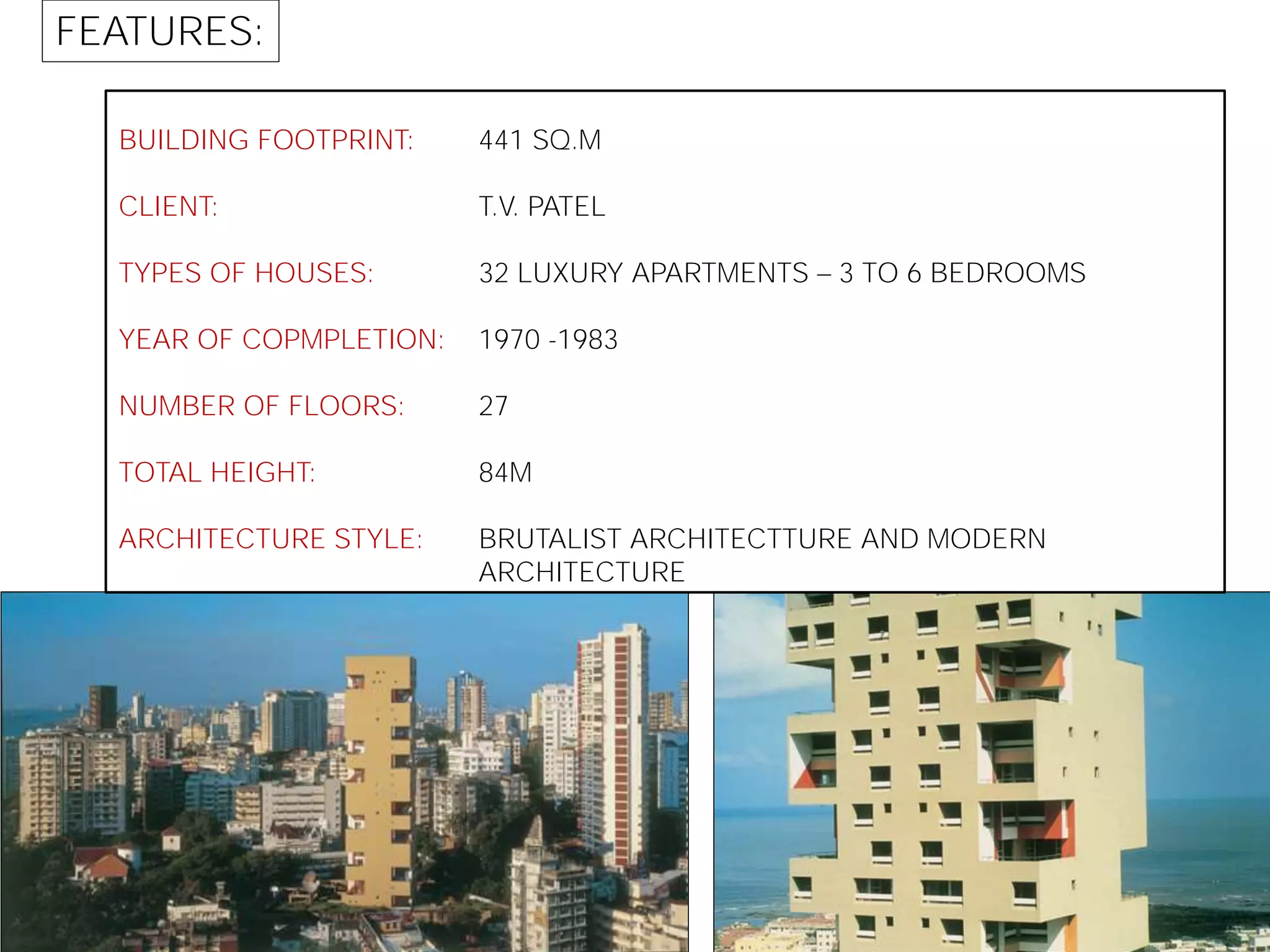

62. BUILDING FOOTPRINT:
CLIENT:
TYPES OF HOUSES:
YEAR OF COPMPLETION:
NUMBER OF FLOORS:
TOTAL HEIGHT:
ARCHITECTURE STYLE:
441 SQ.M
T.V. PATEL
32 LUXURY APARTMENTS 3 TO 6 BEDROOMS
1970 -1983
27
84M
BRUTALIST ARCHITECTTURE AND MODERN
ARCHITECTURE
FEATURES:

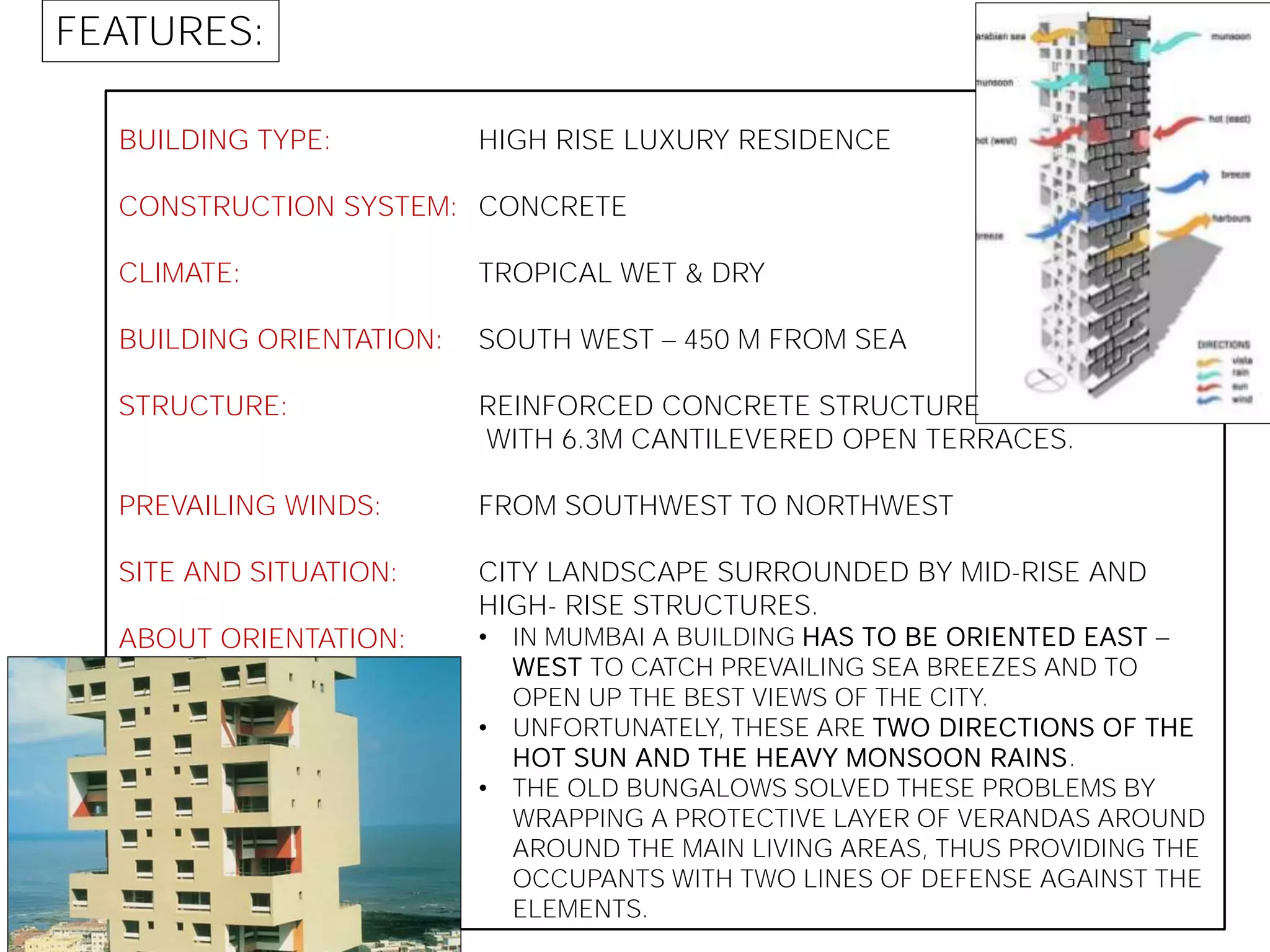

63. FEATURES:
BUILDING TYPE:
CONSTRUCTION SYSTEM:
CLIMATE:
BUILDING ORIENTATION:
STRUCTURE:
PREVAILING WINDS:
SITE AND SITUATION:
ABOUT ORIENTATION:
HIGH RISE LUXURY RESIDENCE
CONCRETE
TROPICAL WET & DRY
SOUTH WEST 450 M FROM SEA
REINFORCED CONCRETE STRUCTURE
WITH 6.3M CANTILEVERED OPEN TERRACES.
FROM SOUTHWEST TO NORTHWEST
CITY LANDSCAPE SURROUNDED BY MID-RISE AND
HIGH- RISE STRUCTURES.
• IN MUMBAI A BUILDING HAS TO BE ORIENTED EAST
WEST TO CATCH PREVAILING SEA BREEZES AND TO
OPEN UP THE BEST VIEWS OF THE CITY.
• UNFORTUNATELY, THESE ARE TWO DIRECTIONS OF THE
HOT SUN AND THE HEAVY MONSOON RAINS.
• THE OLD BUNGALOWS SOLVED THESE PROBLEMS BY
WRAPPING A PROTECTIVE LAYER OF VERANDAS AROUND
AROUND THE MAIN LIVING AREAS, THUS PROVIDING THE
OCCUPANTS WITH TWO LINES OF DEFENSE AGAINST THE
ELEMENTS.

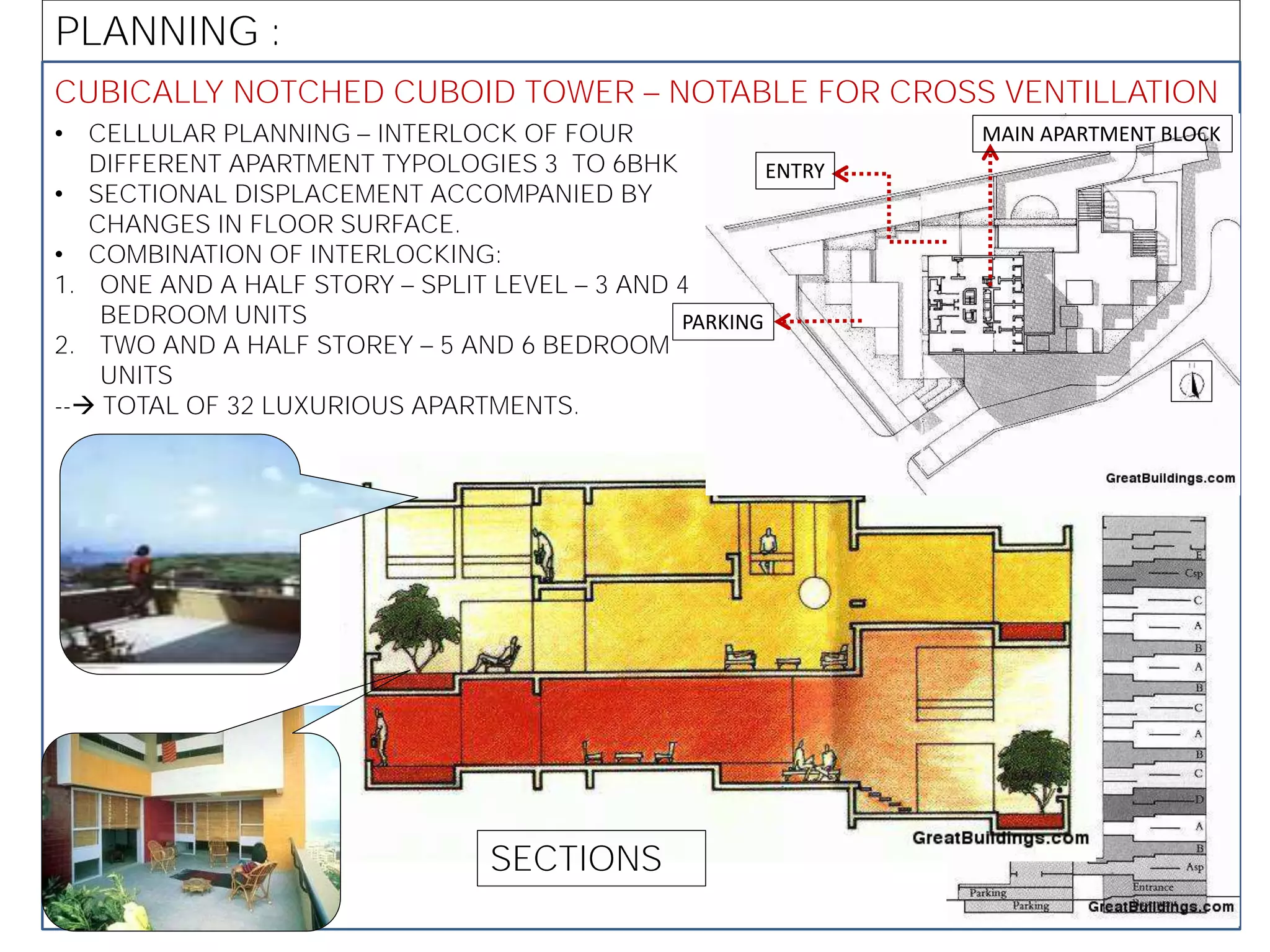

64. PLANNING :
CUBICALLY NOTCHED CUBOID TOWER NOTABLE FOR CROSS VENTILLATION
• CELLULAR PLANNING INTERLOCK OF FOUR
DIFFERENT APARTMENT TYPOLOGIES 3 TO 6BHK
• SECTIONAL DISPLACEMENT ACCOMPANIED BY
CHANGES IN FLOOR SURFACE.
• COMBINATION OF INTERLOCKING:
1. ONE AND A HALF STORY SPLIT LEVEL 3 AND 4
BEDROOM UNITS
2. TWO AND A HALF STOREY 5 AND 6 BEDROOM
UNITS
-- TOTAL OF 32 LUXURIOUS APARTMENTS.
MAIN APARTMENT BLOCK
ENTRY
PARKING
SECTIONS

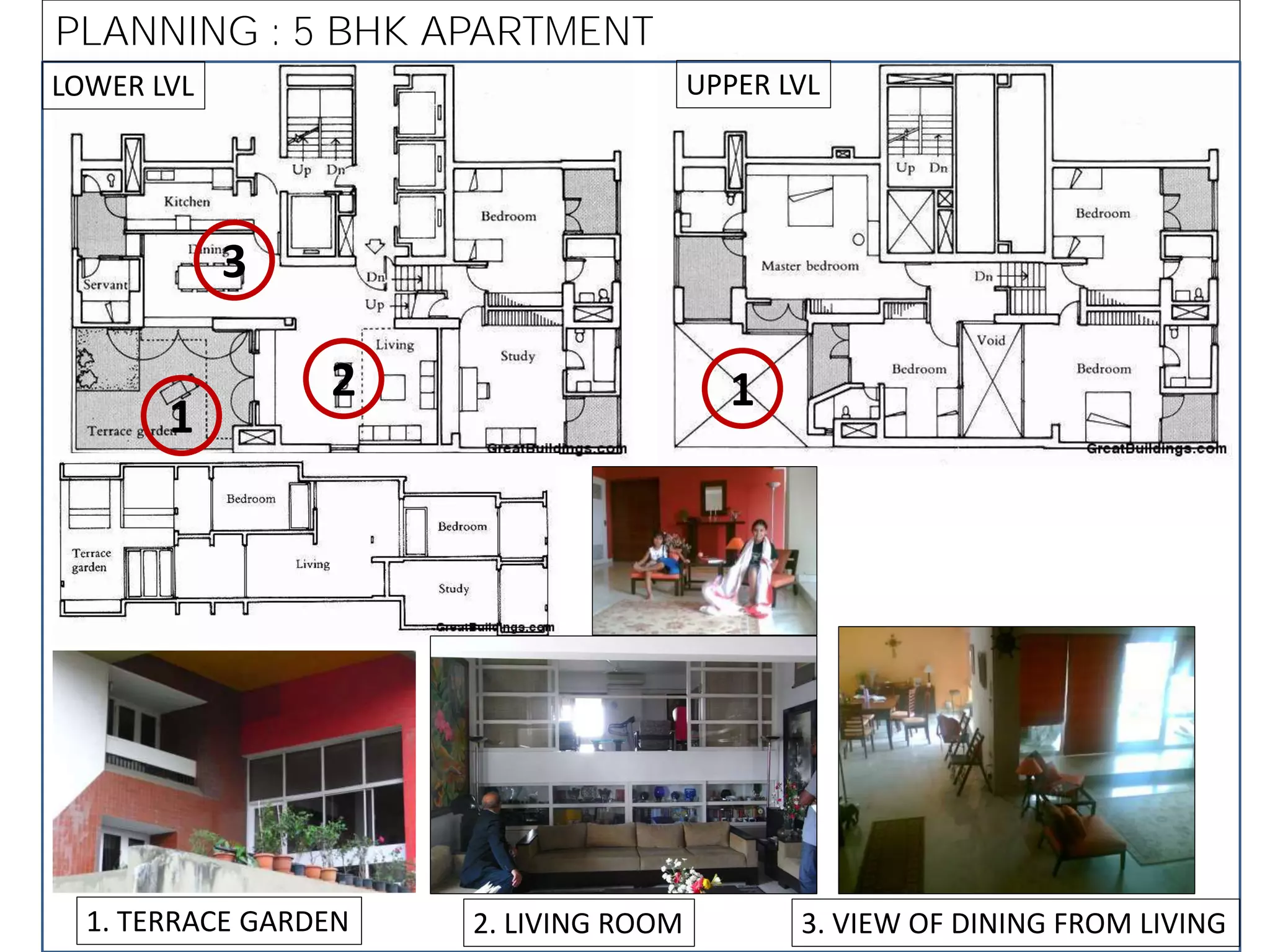

65. PLANNING : 5 BHK APARTMENT
1
2
3
1. TERRACE GARDEN 2. LIVING ROOM 3. VIEW OF DINING FROM LIVING
LOWER LVL UPPER LVL
1

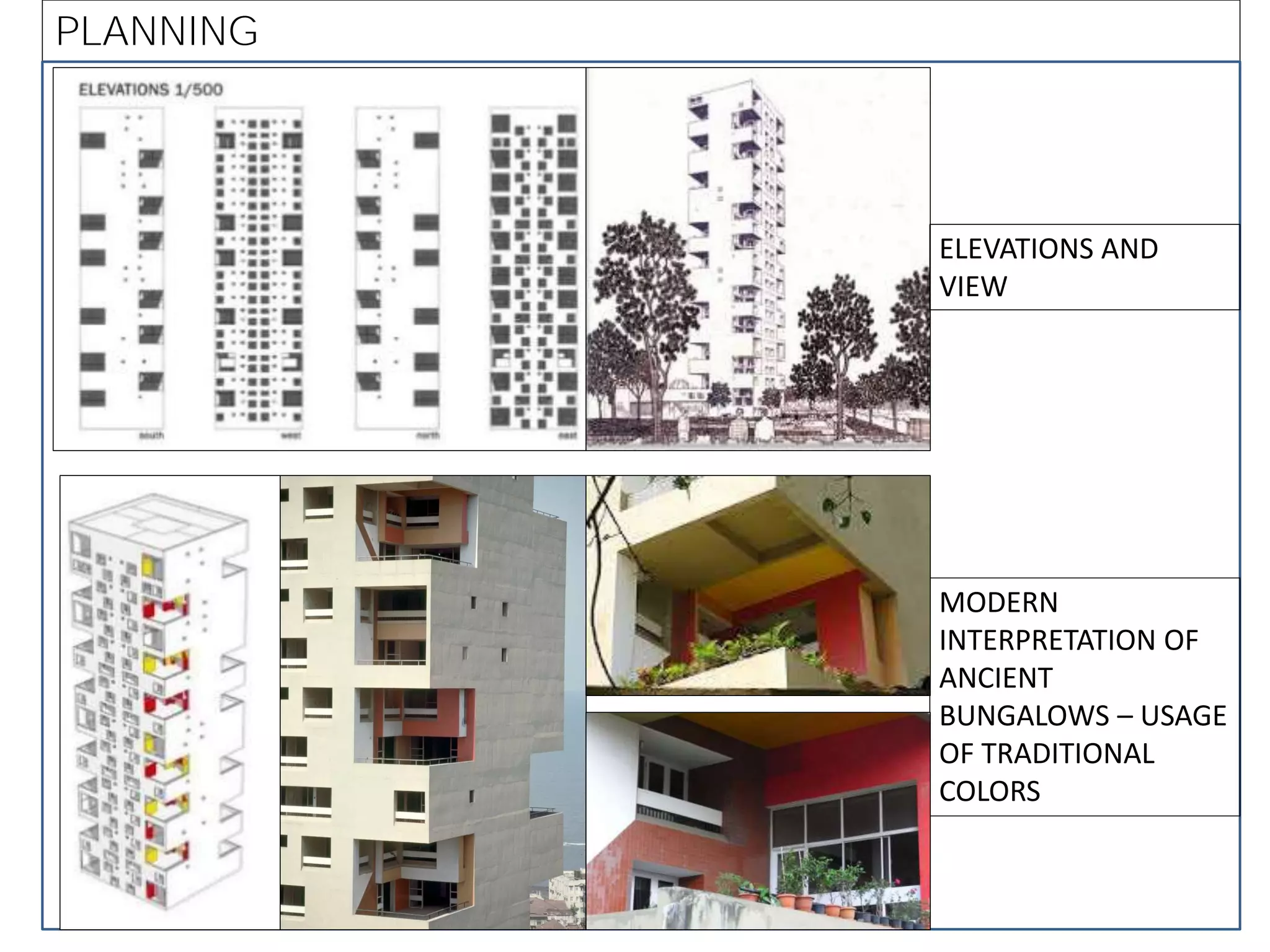

66. PLANNING
MODERN
INTERPRETATION OF
ANCIENT
BUNGALOWS – USAGE
OF TRADITIONAL
COLORS
ELEVATIONS AND
VIEW

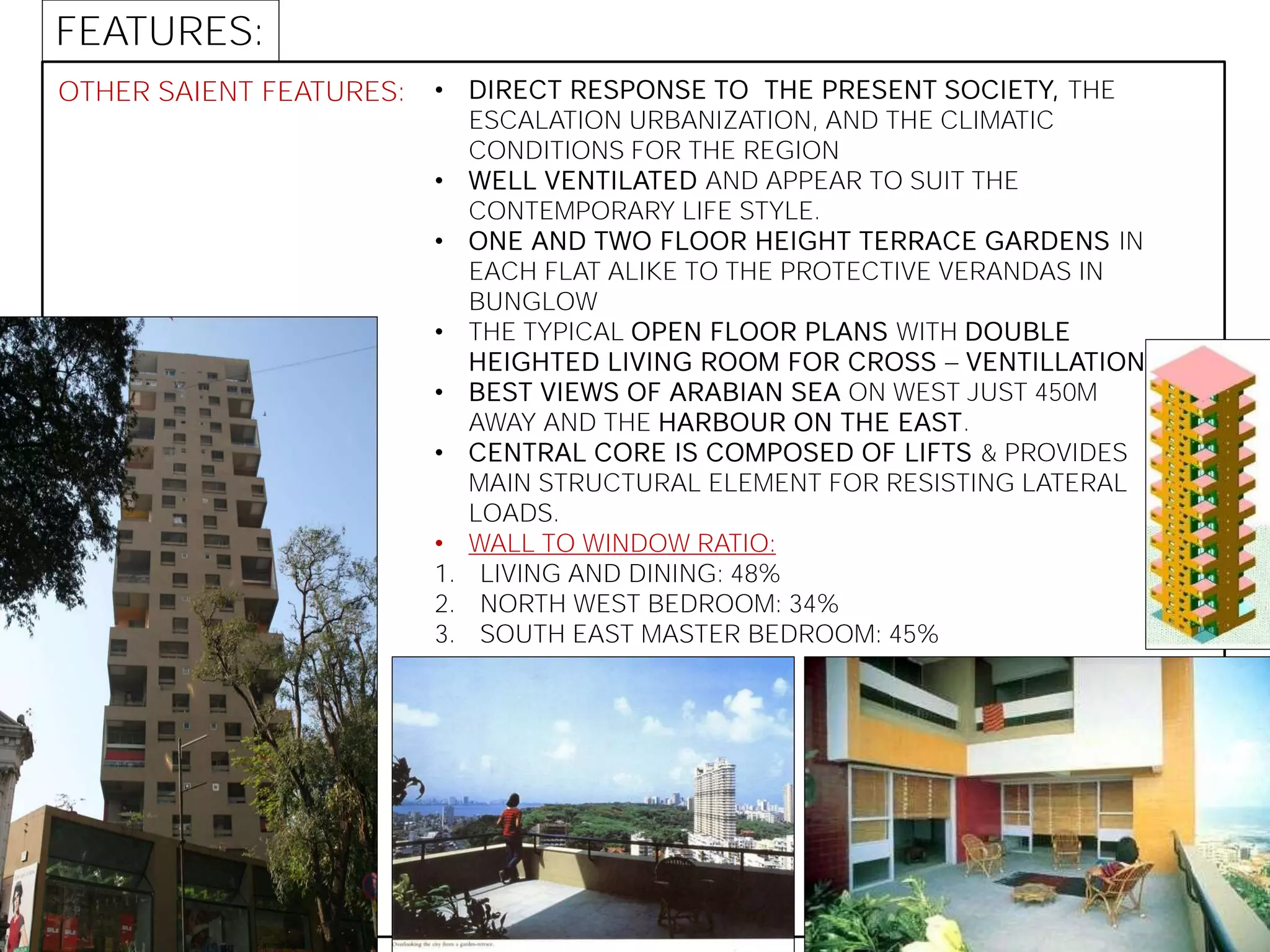

67. OTHER SAIENT FEATURES: • DIRECT RESPONSE TO THE PRESENT SOCIETY, THE
ESCALATION URBANIZATION, AND THE CLIMATIC
CONDITIONS FOR THE REGION
• WELL VENTILATED AND APPEAR TO SUIT THE
CONTEMPORARY LIFE STYLE.
• ONE AND TWO FLOOR HEIGHT TERRACE GARDENS IN
EACH FLAT ALIKE TO THE PROTECTIVE VERANDAS IN
BUNGLOW
• THE TYPICAL OPEN FLOOR PLANS WITH DOUBLE
HEIGHTED LIVING ROOM FOR CROSS VENTILLATION
• BEST VIEWS OF ARABIAN SEA ON WEST JUST 450M
AWAY AND THE HARBOUR ON THE EAST.
• CENTRAL CORE IS COMPOSED OF LIFTS & PROVIDES
MAIN STRUCTURAL ELEMENT FOR RESISTING LATERAL
LOADS.
• WALL TO WINDOW RATIO:
1. LIVING AND DINING: 48%
2. NORTH WEST BEDROOM: 34%
3. SOUTH EAST MASTER BEDROOM: 45%
FEATURES:

68. SOMA MASTERPLAN, BANGALORE

69. SITE AREA:
ARCHITECTS:
CLIENT:
BUILDING TYPE:
YEAR :
AWARDS:
ARCHITECTURE STYLE:
86.75 ACRES
T.R. HAMZAH & KEN YEANG
M/S SOMA DEVELOPERS Pvt. Ltd.
RESIDENTIAL AND MIXED USED DEVELOPMENT
2008 - ONGOING
AGA KHAN AWARD FOR ARCHITECTURE NOMINEE
GREEN ECOMASTER PLAN
FEATURES:

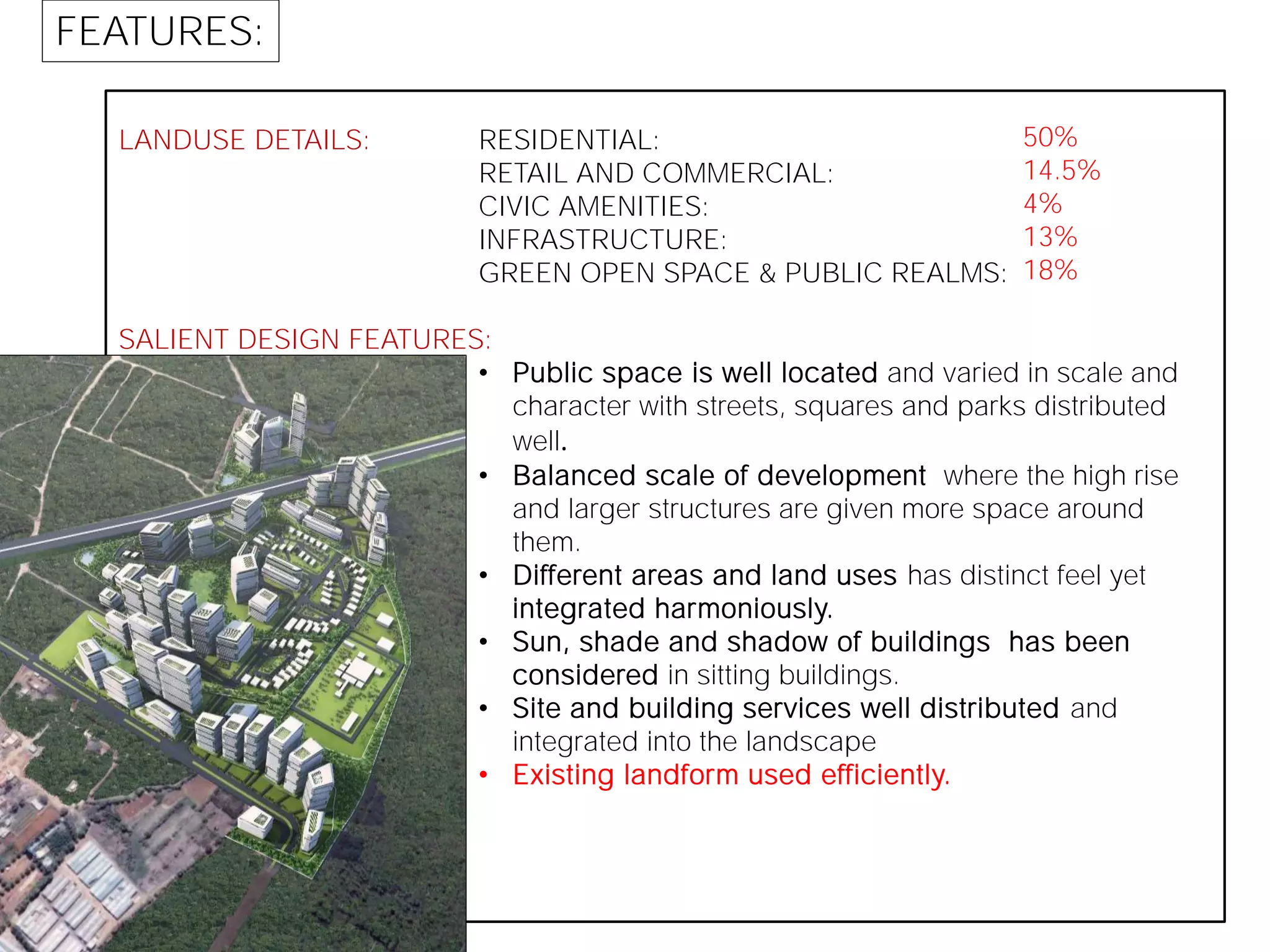

70. LANDUSE DETAILS:
SALIENT DESIGN FEATURES:
RESIDENTIAL:
RETAIL AND COMMERCIAL:
CIVIC AMENITIES:
INFRASTRUCTURE:
GREEN OPEN SPACE & PUBLIC REALMS:
• Public space is well located and varied in scale and
character with streets, squares and parks distributed
well.
• Balanced scale of development where the high rise
and larger structures are given more space around
them.
• Different areas and land uses has distinct feel yet
integrated harmoniously.
• Sun, shade and shadow of buildings has been
considered in sitting buildings.
• Site and building services well distributed and
integrated into the landscape
• Existing landform used efficiently.
FEATURES:
50%
14.5%
4%
13%
18%

71. MASTER PLAN:
RESTAURANTS
ELEVATED WATER
TANK
MAIN ENTRANCE
WITH SECURITY
STP
LUXURY VILLA
CLUSTER
EXECUTIVE OFFICE
TOWER
SIGNATURE HIGH
RISE LUXURY
CONDOMINIUM
SECURITY

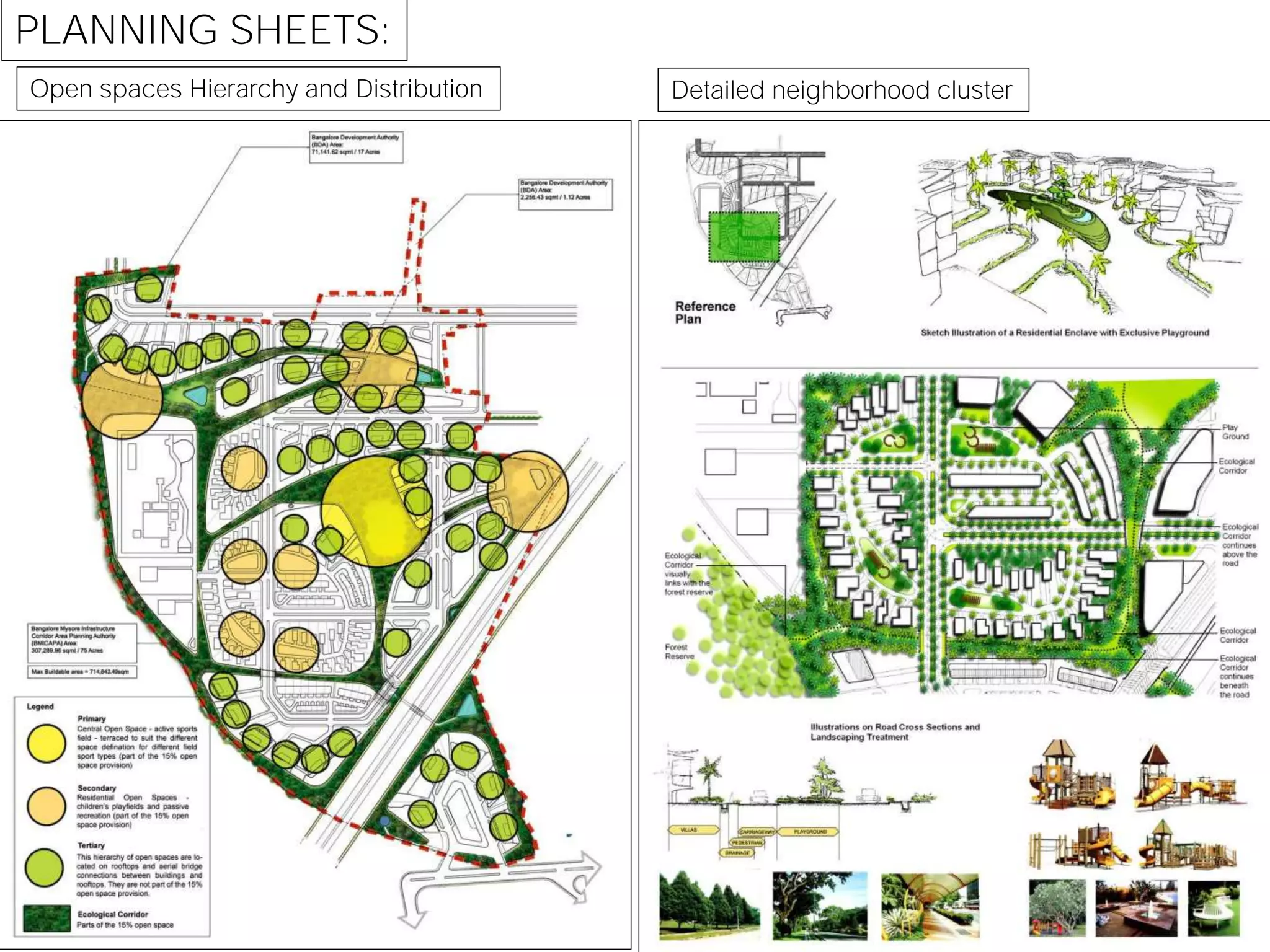

72. PLANNING SHEETS:
Open spaces Hierarchy and Distribution Detailed neighborhood cluster

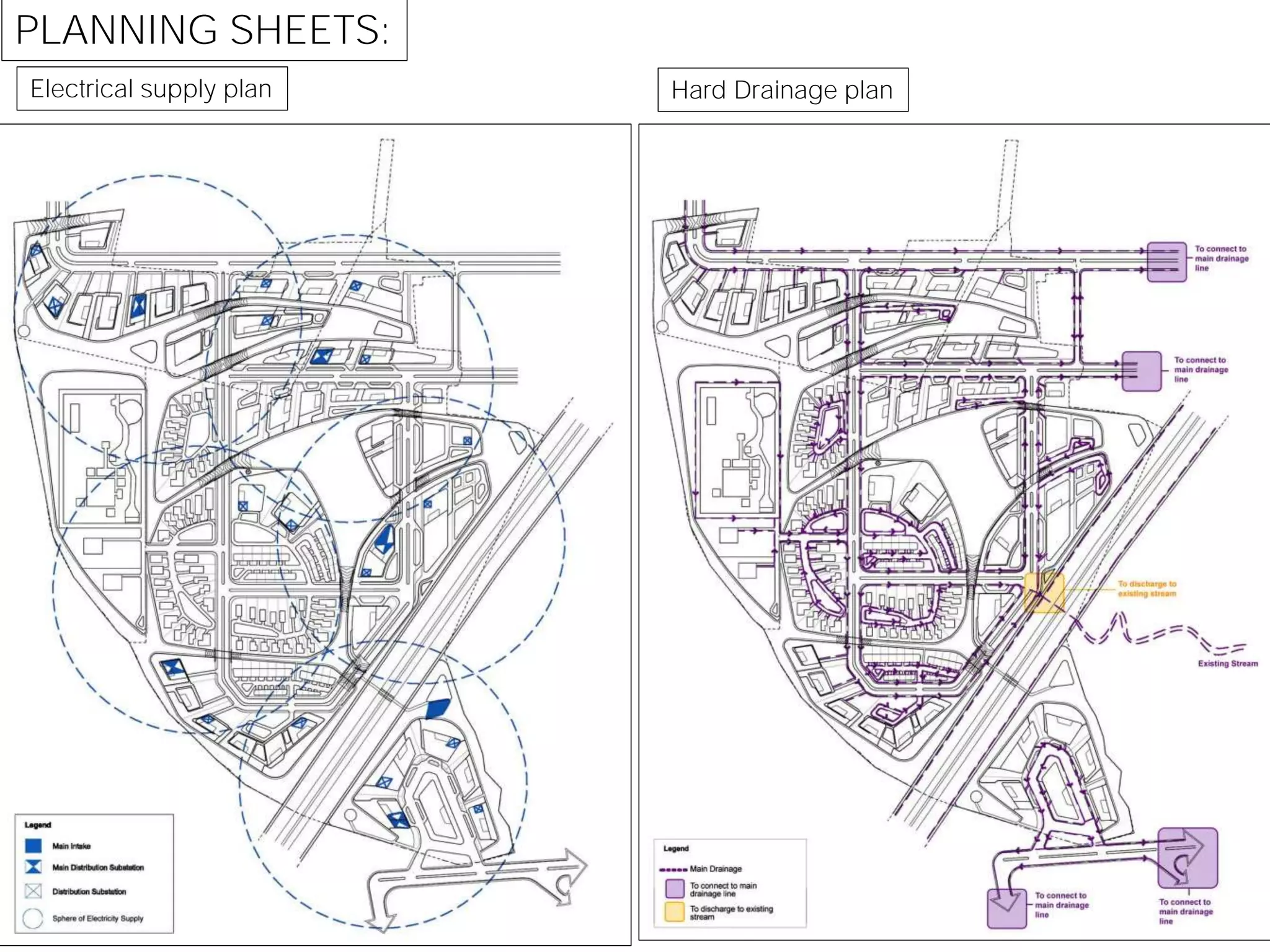

73. Electrical supply plan Hard Drainage plan
PLANNING SHEETS:

74. Landscape form, structure, and colours as reflected
in the Vashtu Shahtra
Roads and Platform Levels
PLANNING SHEETS:

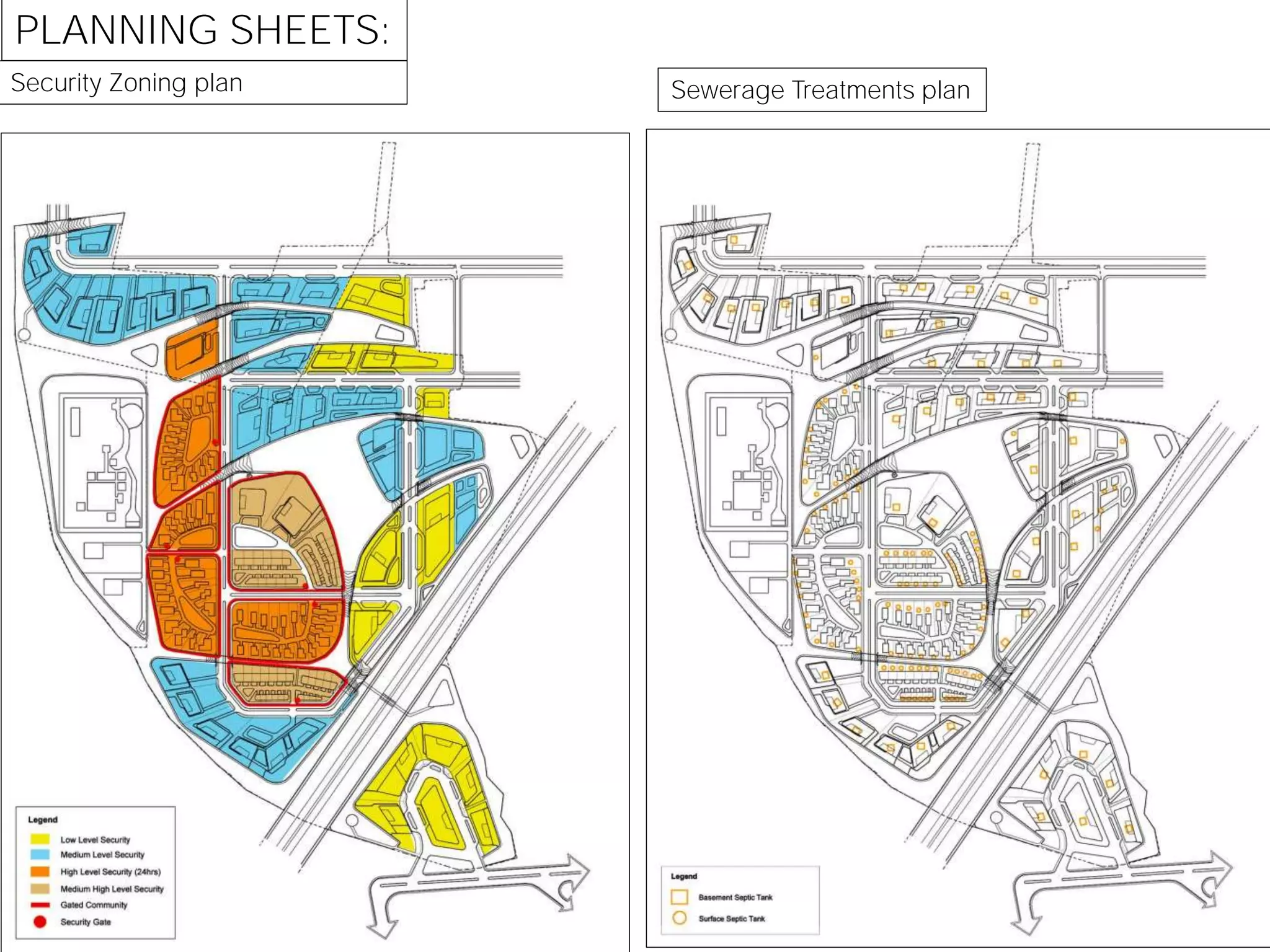

75. Security Zoning plan Sewerage Treatments plan
PLANNING SHEETS:

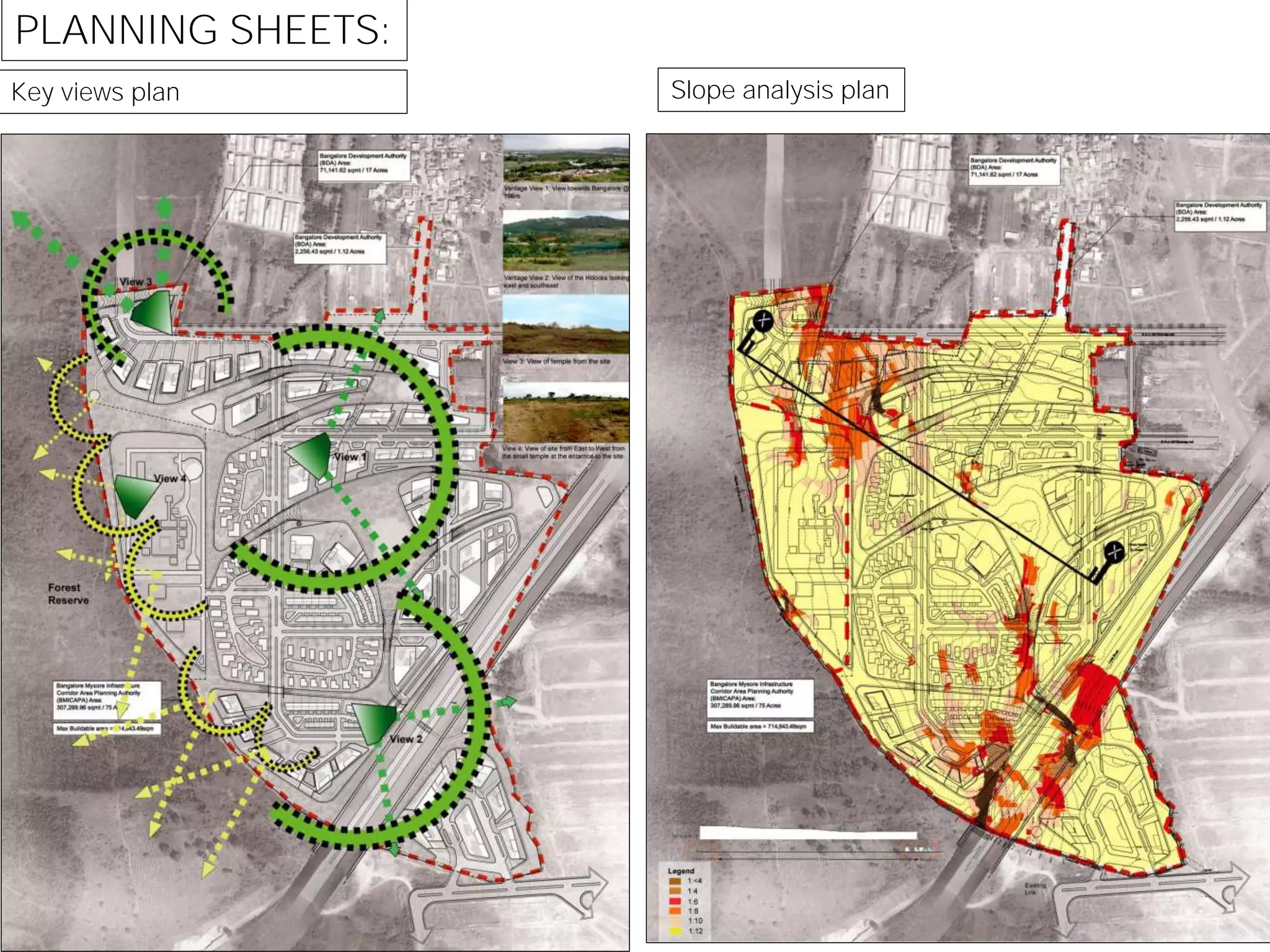

76. Key views plan Slope analysis plan
PLANNING SHEETS:

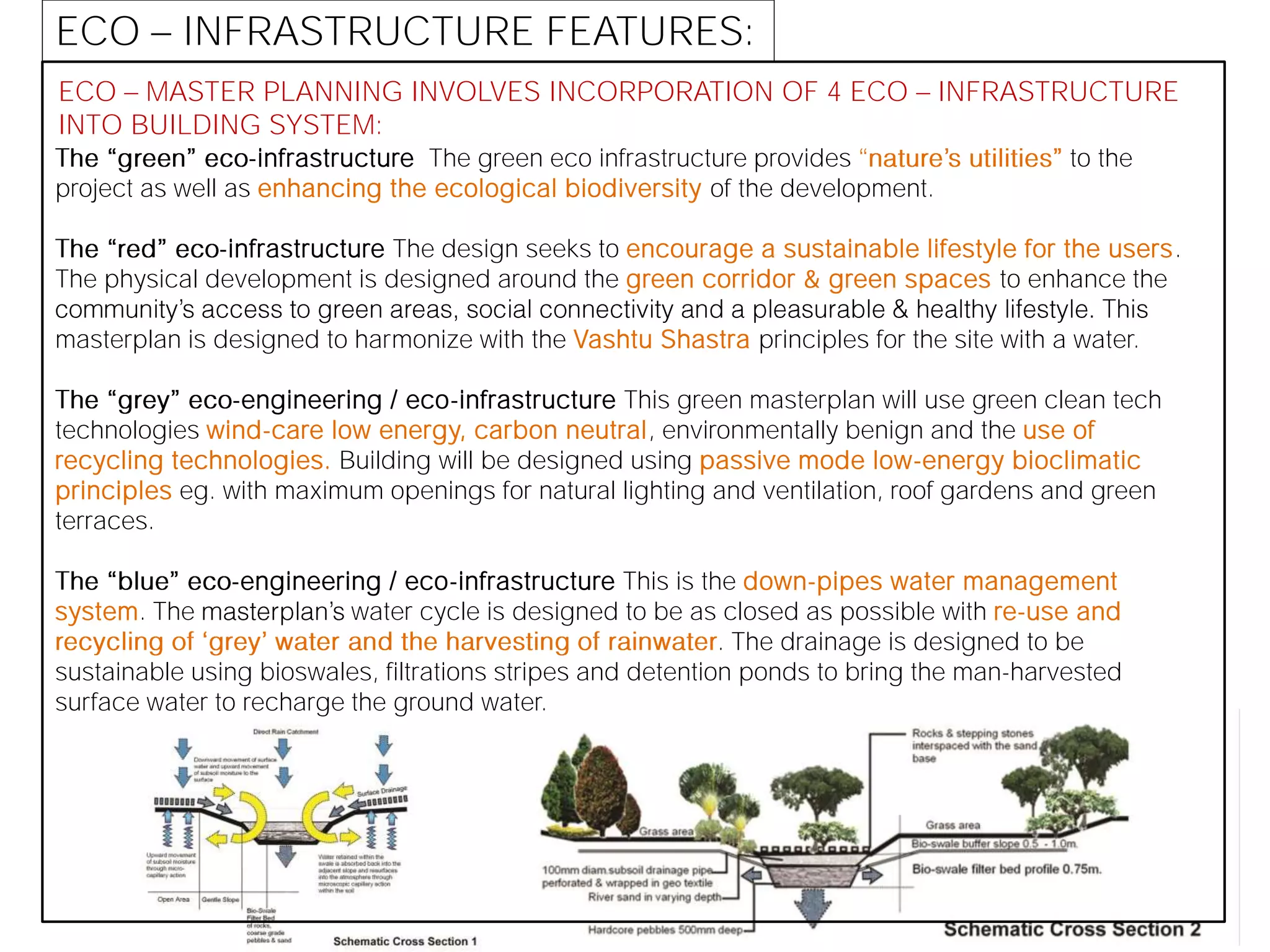

77. ECO MASTER PLANNING INVOLVES INCORPORATION OF 4 ECO INFRASTRUCTURE
INTO BUILDING SYSTEM:
-infrastructure The green eco infrastructure provides to the
project as well as enhancing the ecological biodiversity of the development.
-infrastructure The design seeks to encourage a sustainable lifestyle for the users.
The physical development is designed around the green corridor & green spaces to enhance the
masterplan is designed to harmonize with the Vashtu Shastra principles for the site with a water.
-engineering / eco-infrastructure This green masterplan will use green clean tech
technologies wind-care low energy, carbon neutral, environmentally benign and the use of
recycling technologies. Building will be designed using passive mode low-energy bioclimatic
principles eg. with maximum openings for natural lighting and ventilation, roof gardens and green
terraces.
-engineering / eco-infrastructure This is the down-pipes water management
system. The water cycle is designed to be as closed as possible with re-use and
. The drainage is designed to be
sustainable using bioswales, filtrations stripes and detention ponds to bring the man-harvested
surface water to recharge the ground water.
ECO INFRASTRUCTURE FEATURES:

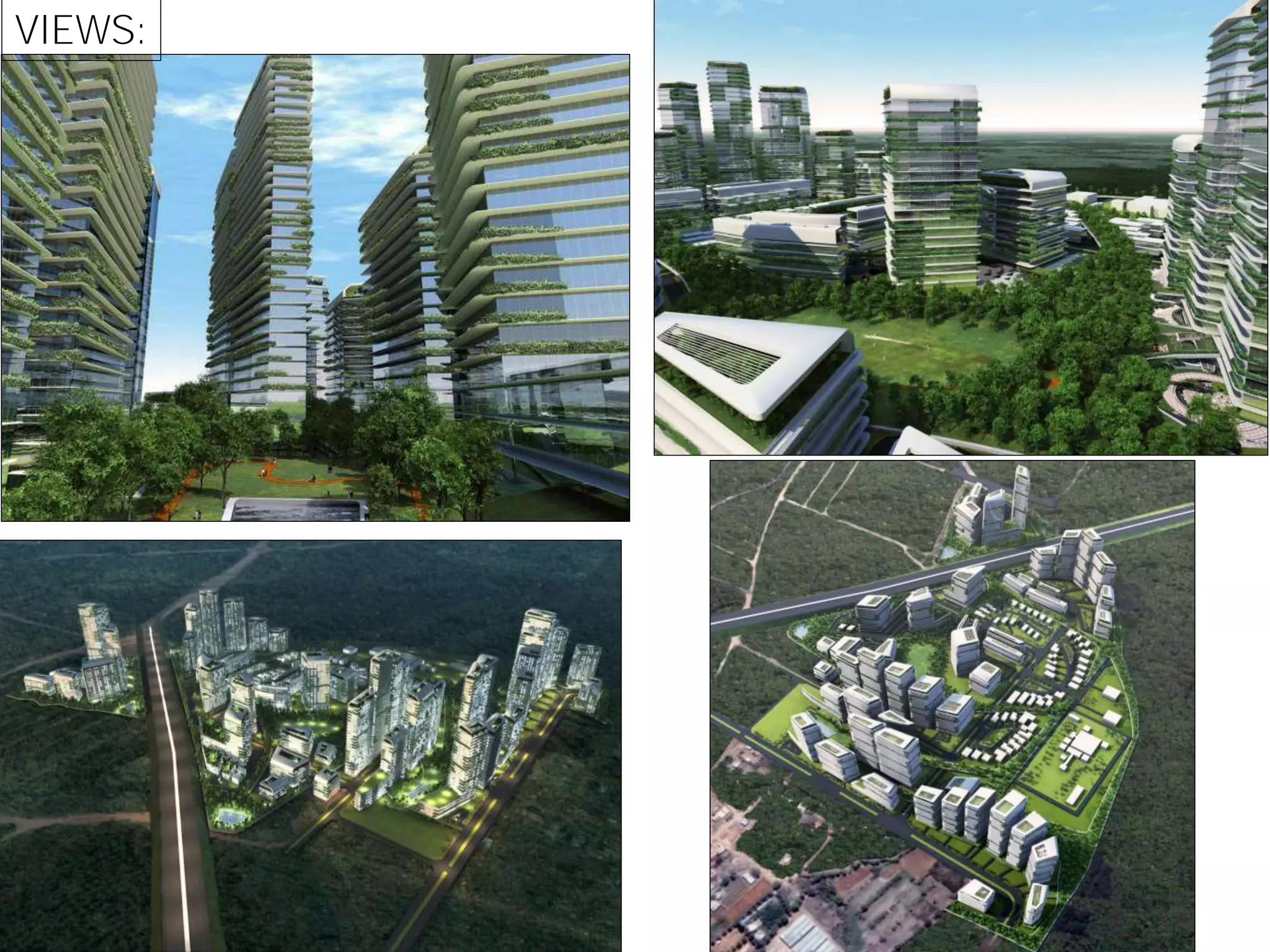

78. VIEWS:

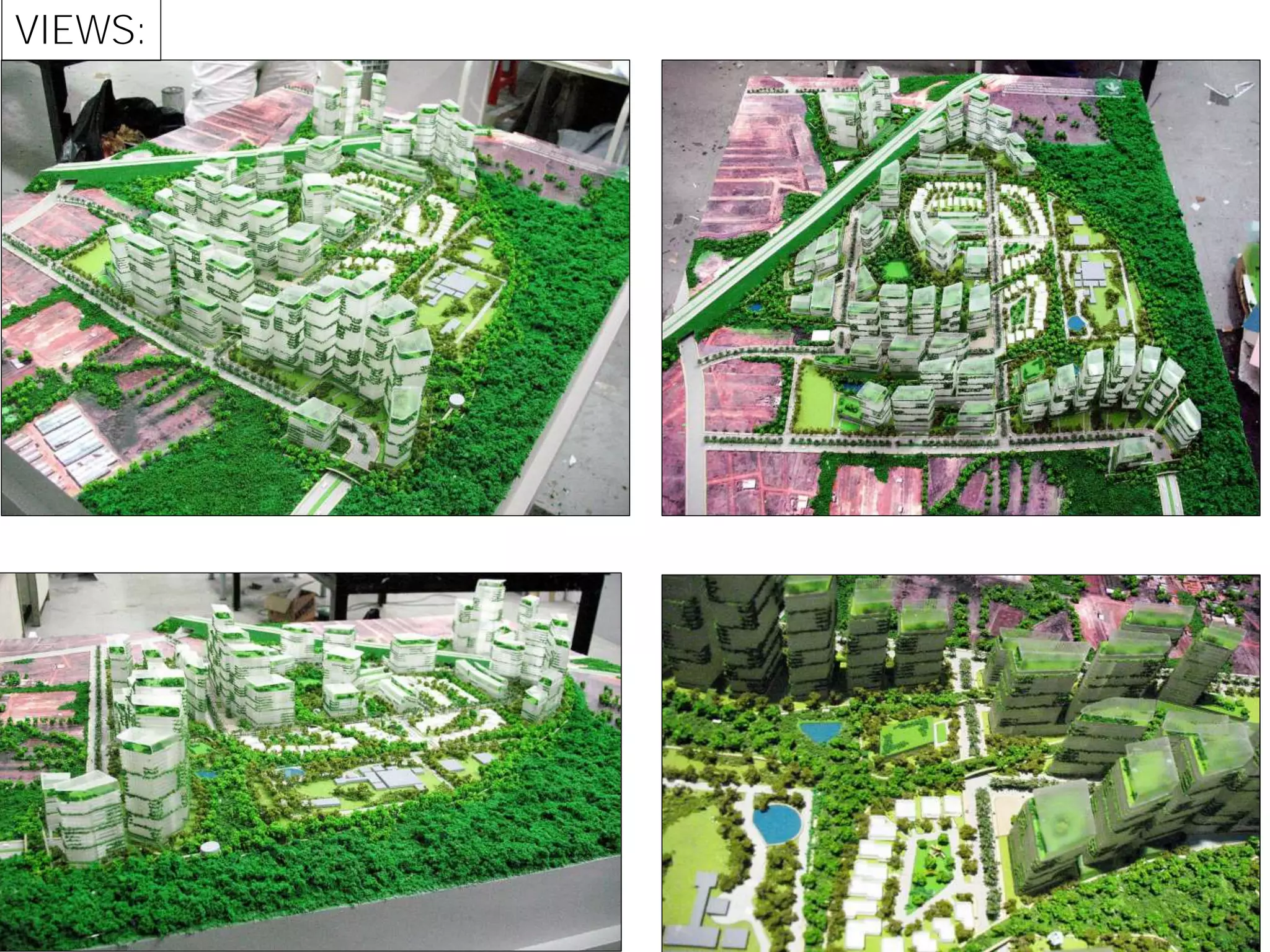

79. VIEWS:

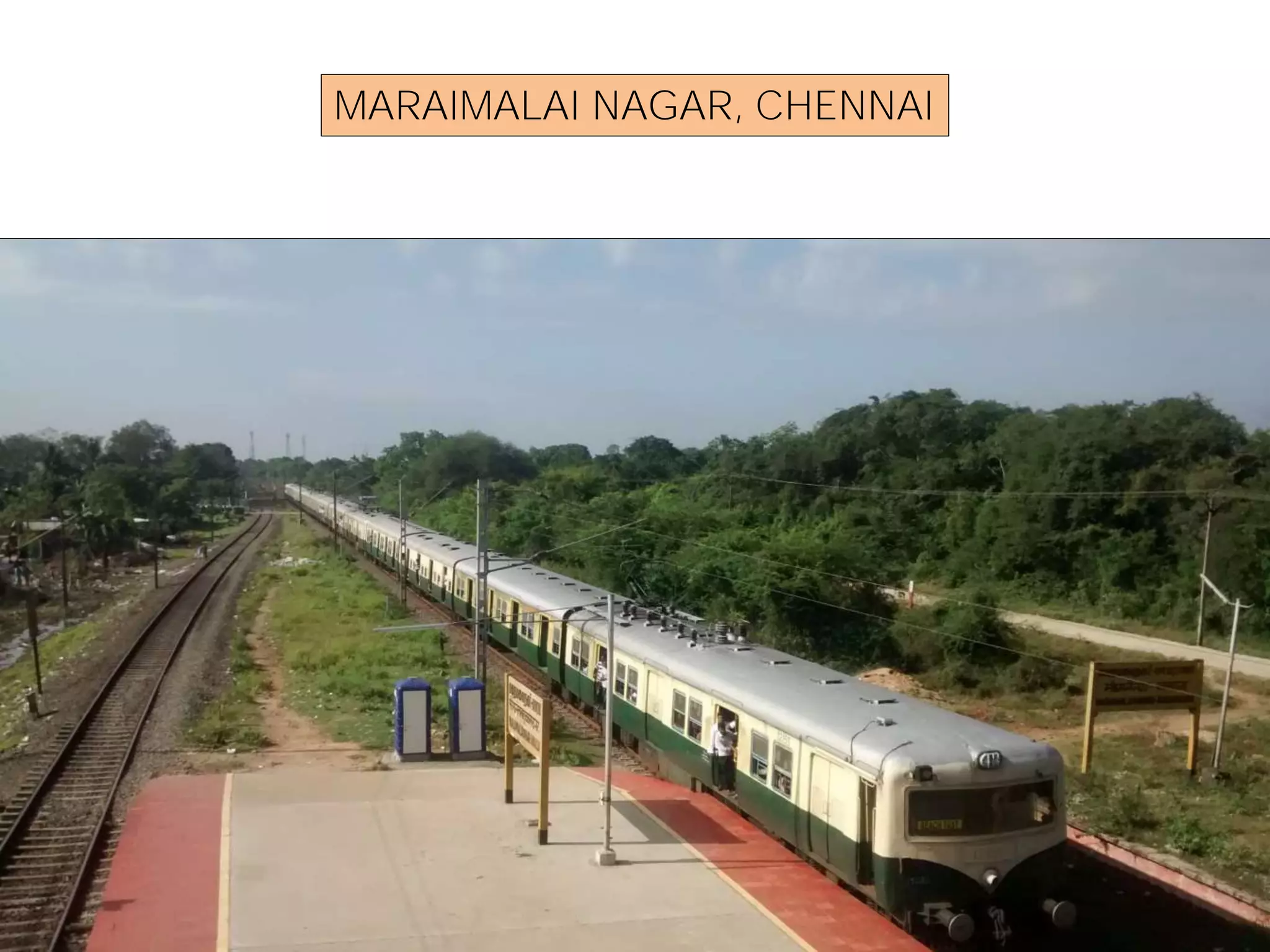

80. MARAIMALAI NAGAR, CHENNAI

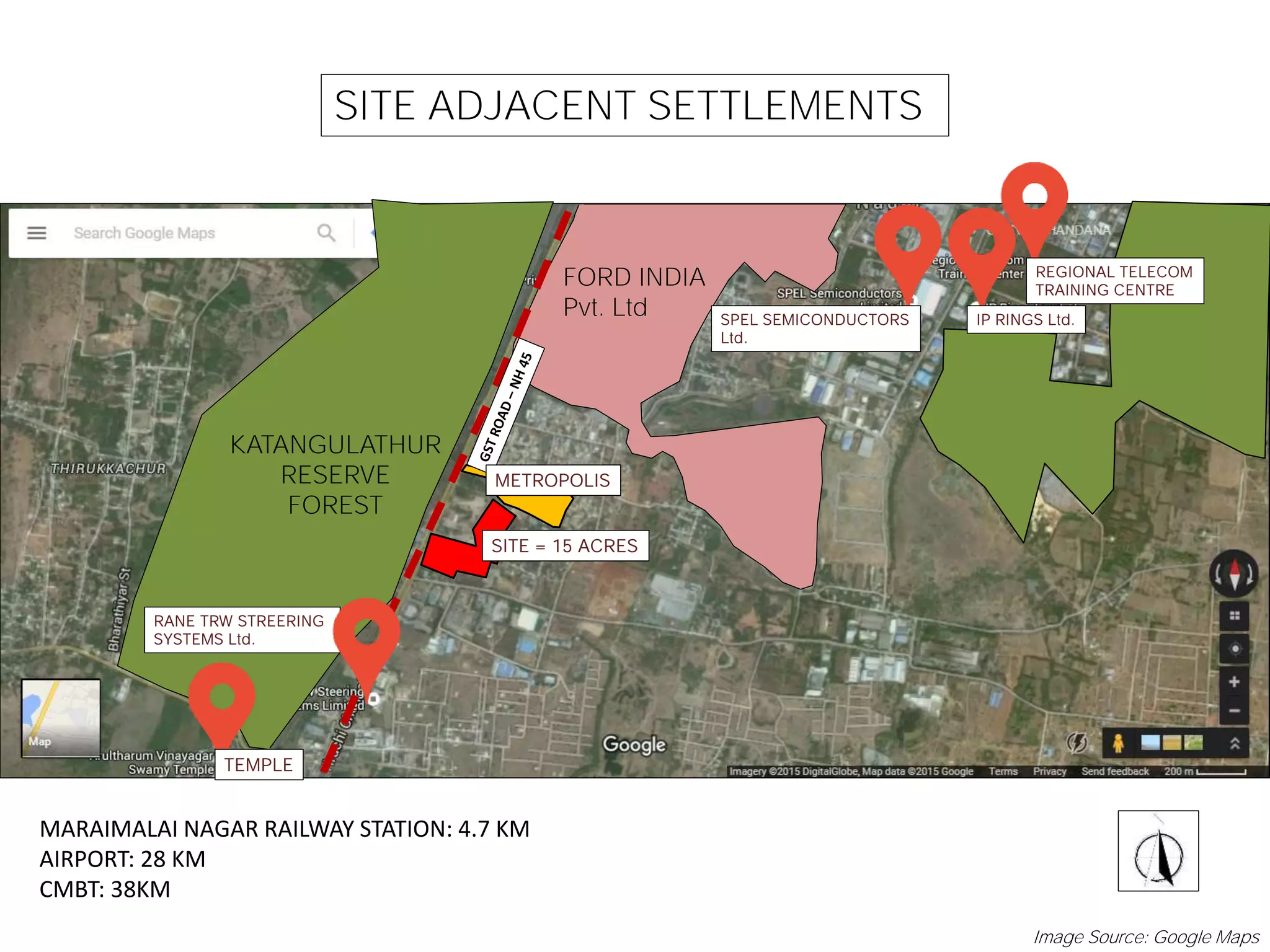

81. SITE ADJACENT SETTLEMENTS
KATANGULATHUR
RESERVE
FOREST
FORD INDIA
Pvt. Ltd
RANE TRW STREERING
SYSTEMS Ltd.
METROPOLIS
TEMPLE
SPEL SEMICONDUCTORS
Ltd.
IP RINGS Ltd.
REGIONAL TELECOM
TRAINING CENTRE
MARAIMALAI NAGAR RAILWAY STATION: 4.7 KM
AIRPORT: 28 KM
CMBT: 38KM
SITE = 15 ACRES
Image Source: Google Maps

82. MARAIMALAI NAGAR, CHENNAI
SITE
SITE AREA: 15.07 ACRES / 61000 SQ. FT
INDIAN OIL
PETROL STATION TEXCEL
INTERNATIONAL
Ltd
R. STAHL (P)
TRIUMPH
INTERNATIONAL
Pvt. Ltd
ICICI ATM
METROPOLIS
CAFÉ COFFEE
DAY FORD INDIA
RESERVE FOREST
200 m
Image Source: Google Maps

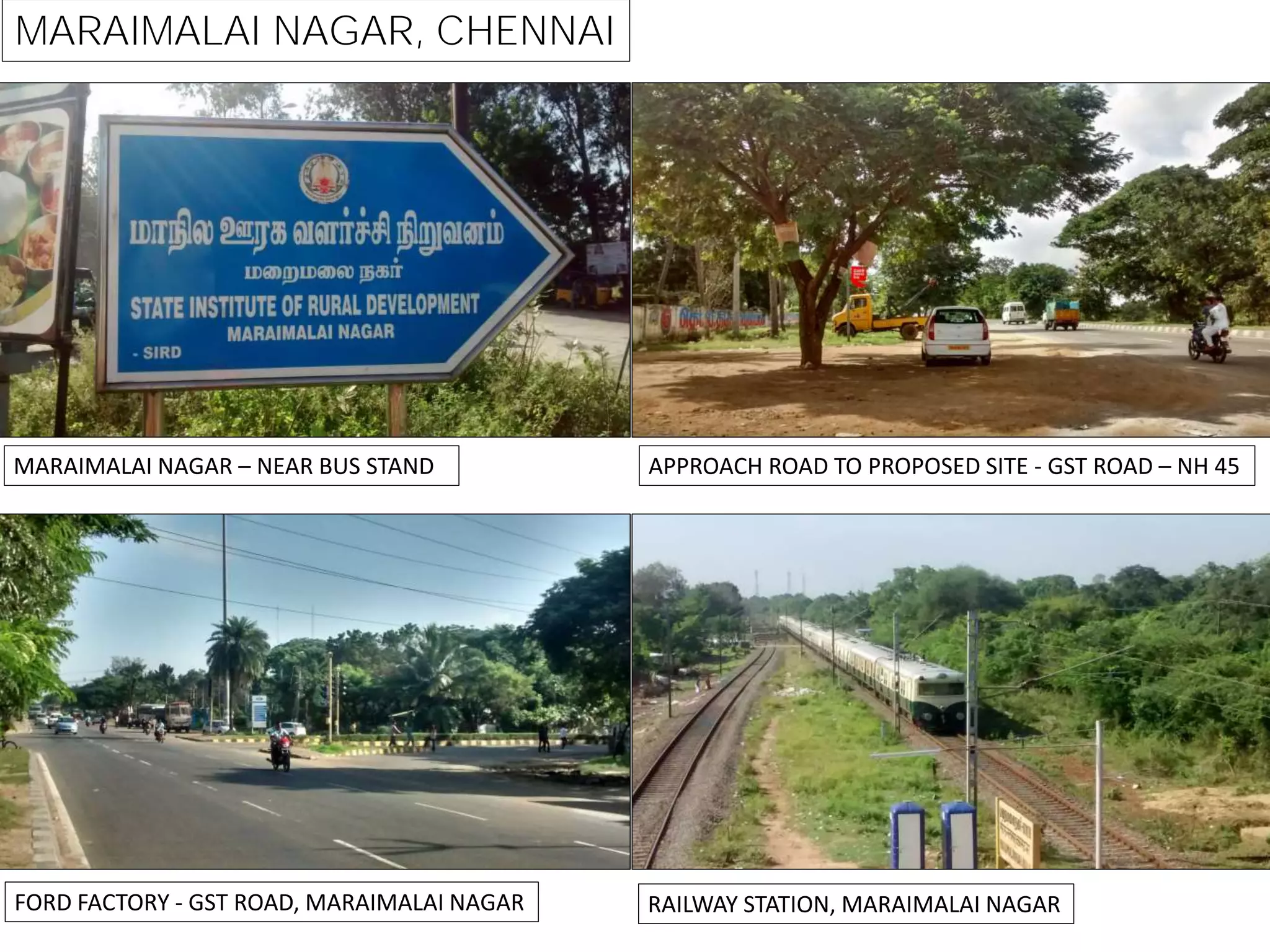

83. MARAIMALAI NAGAR, CHENNAI
APPROACH ROAD TO PROPOSED SITE - GST ROAD – NH 45MARAIMALAI NAGAR – NEAR BUS STAND
FORD FACTORY - GST ROAD, MARAIMALAI NAGAR RAILWAY STATION, MARAIMALAI NAGAR

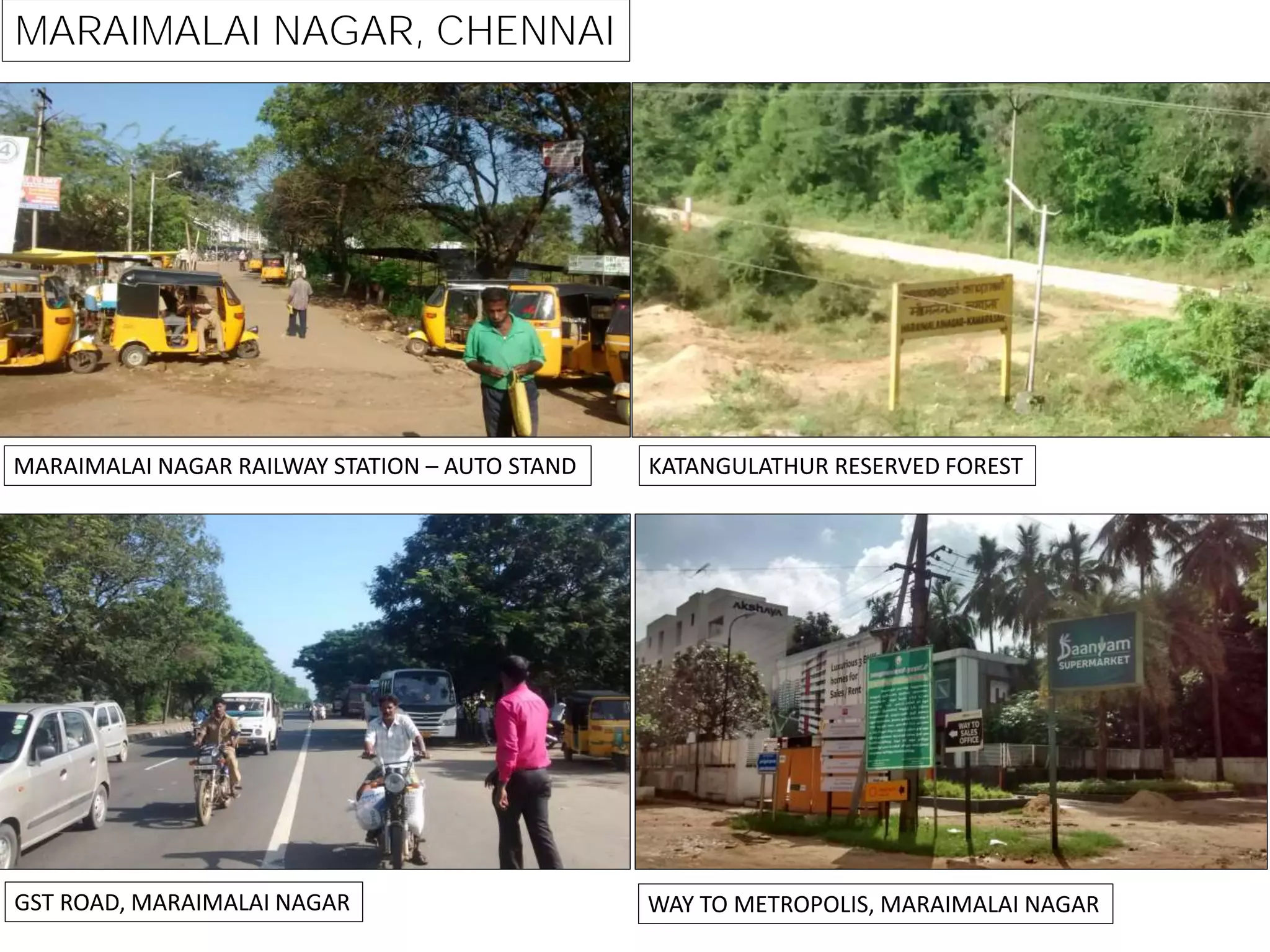

84. MARAIMALAI NAGAR, CHENNAI
KATANGULATHUR RESERVED FORESTMARAIMALAI NAGAR RAILWAY STATION – AUTO STAND
GST ROAD, MARAIMALAI NAGAR WAY TO METROPOLIS, MARAIMALAI NAGAR

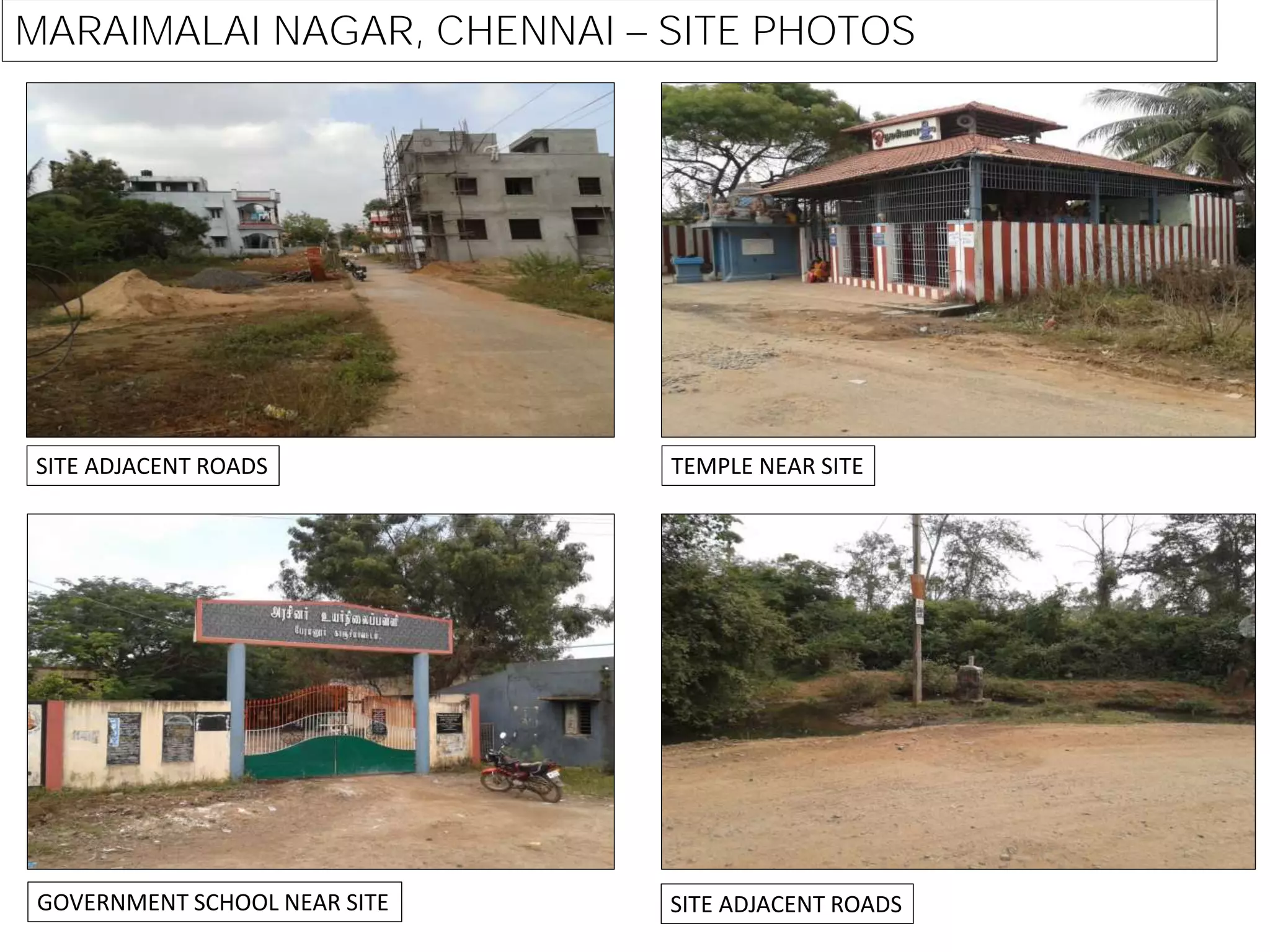

85. MARAIMALAI NAGAR, CHENNAI SITE PHOTOS
TEMPLE NEAR SITESITE ADJACENT ROADS
GOVERNMENT SCHOOL NEAR SITE SITE ADJACENT ROADS

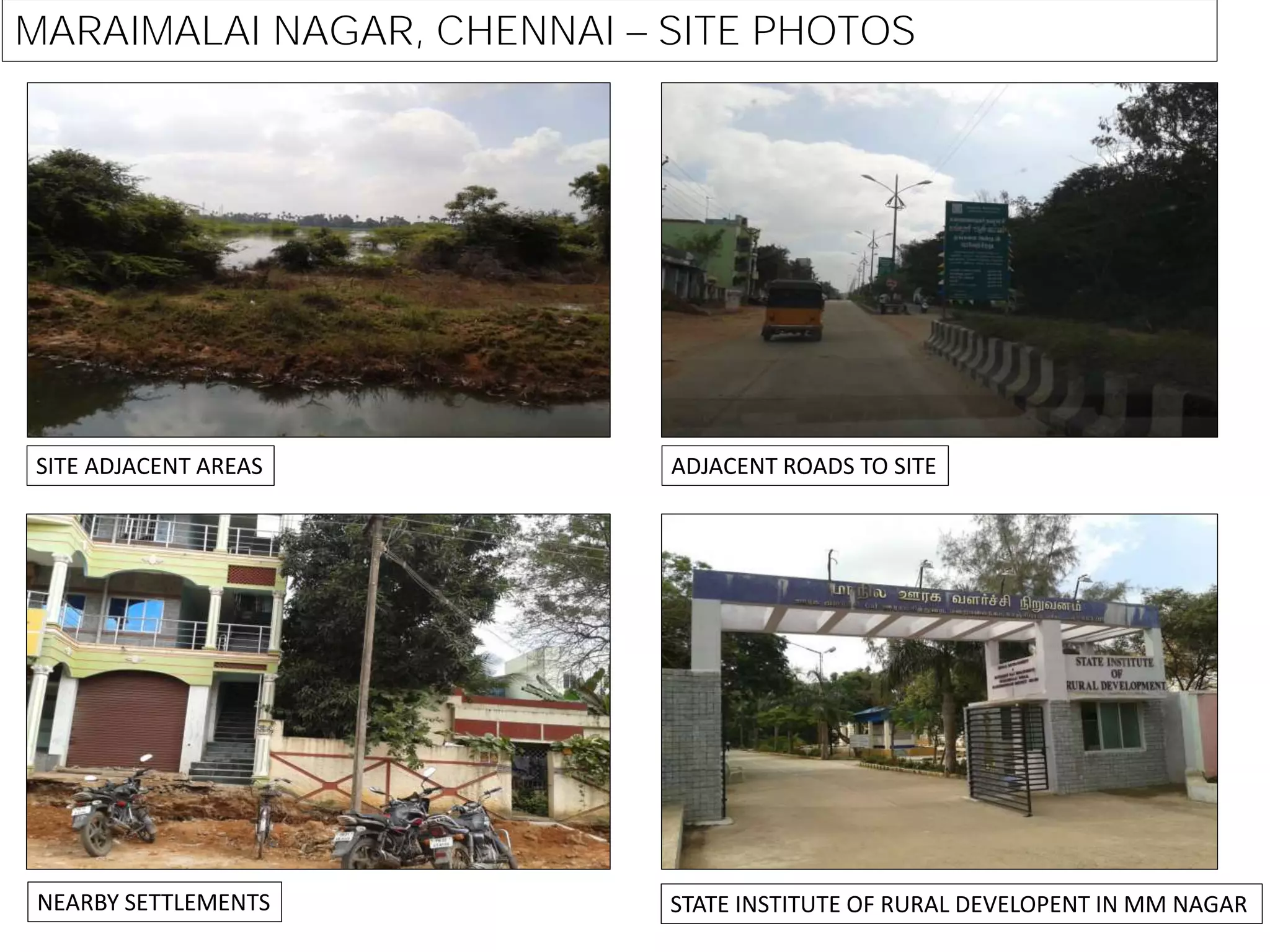

86. MARAIMALAI NAGAR, CHENNAI SITE PHOTOS
ADJACENT ROADS TO SITESITE ADJACENT AREAS
NEARBY SETTLEMENTS STATE INSTITUTE OF RURAL DEVELOPENT IN MM NAGAR

87. SPATIAL PROGRAM

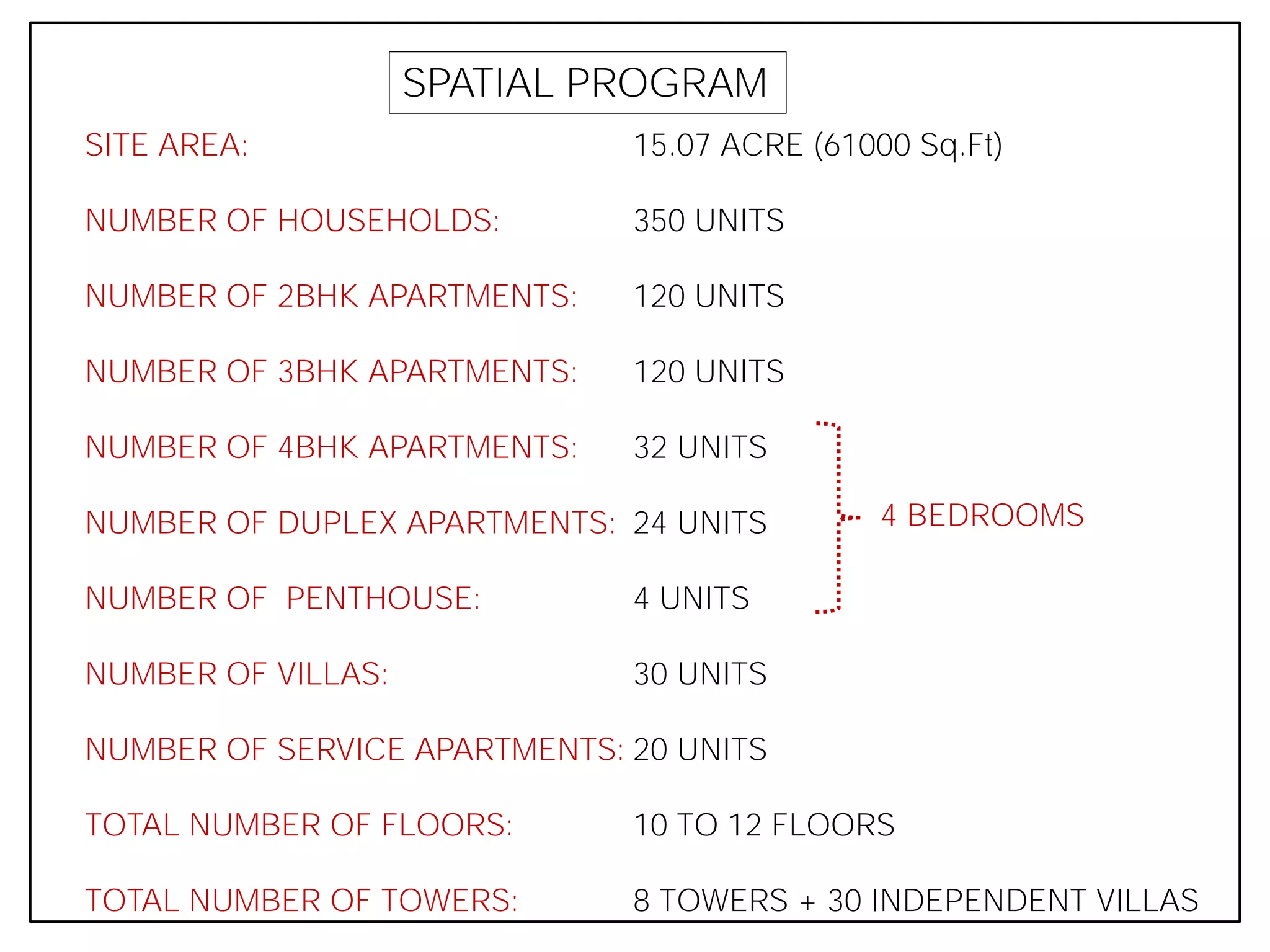

88. SPATIAL PROGRAM
SITE AREA:
NUMBER OF HOUSEHOLDS:
NUMBER OF 2BHK APARTMENTS:
NUMBER OF 3BHK APARTMENTS:
NUMBER OF 4BHK APARTMENTS:
NUMBER OF DUPLEX APARTMENTS:
NUMBER OF PENTHOUSE:
NUMBER OF VILLAS:
NUMBER OF SERVICE APARTMENTS:
TOTAL NUMBER OF FLOORS:
TOTAL NUMBER OF TOWERS:
15.07 ACRE (61000 Sq.Ft)
350 UNITS
120 UNITS
120 UNITS
32 UNITS
24 UNITS
4 UNITS
30 UNITS
20 UNITS
10 TO 12 FLOORS
8 TOWERS + 30 INDEPENDENT VILLAS
4 BEDROOMS

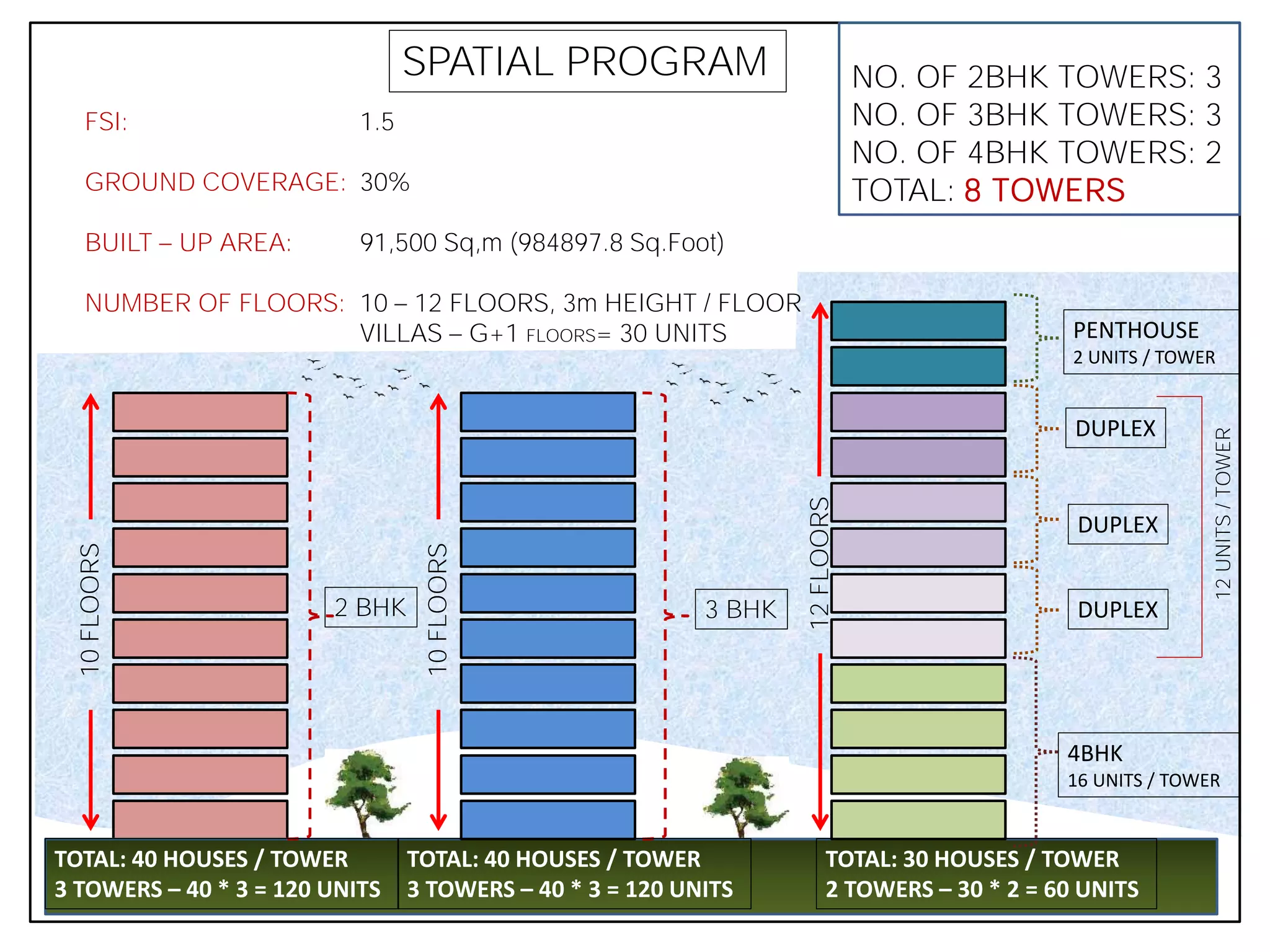

89. SPATIAL PROGRAM
FSI:
GROUND COVERAGE:
BUILT UP AREA:
NUMBER OF FLOORS:
1.5
30%
91,500 Sq,m (984897.8 Sq.Foot)
10 12 FLOORS, 3m HEIGHT / FLOOR
VILLAS G+1 FLOORS= 30 UNITS
2 BHK 3 BHK
PENTHOUSE
2 UNITS / TOWER
DUPLEX
DUPLEX
DUPLEX
4BHK
16 UNITS / TOWER
10FLOORS
10FLOORS
12FLOORS
NO. OF 2BHK TOWERS: 3
NO. OF 3BHK TOWERS: 3
NO. OF 4BHK TOWERS: 2
TOTAL: 8 TOWERS
TOTAL: 40 HOUSES / TOWER
3 TOWERS – 40 * 3 = 120 UNITS
TOTAL: 40 HOUSES / TOWER
3 TOWERS – 40 * 3 = 120 UNITS
TOTAL: 30 HOUSES / TOWER
2 TOWERS – 30 * 2 = 60 UNITS
12UNITS/TOWER

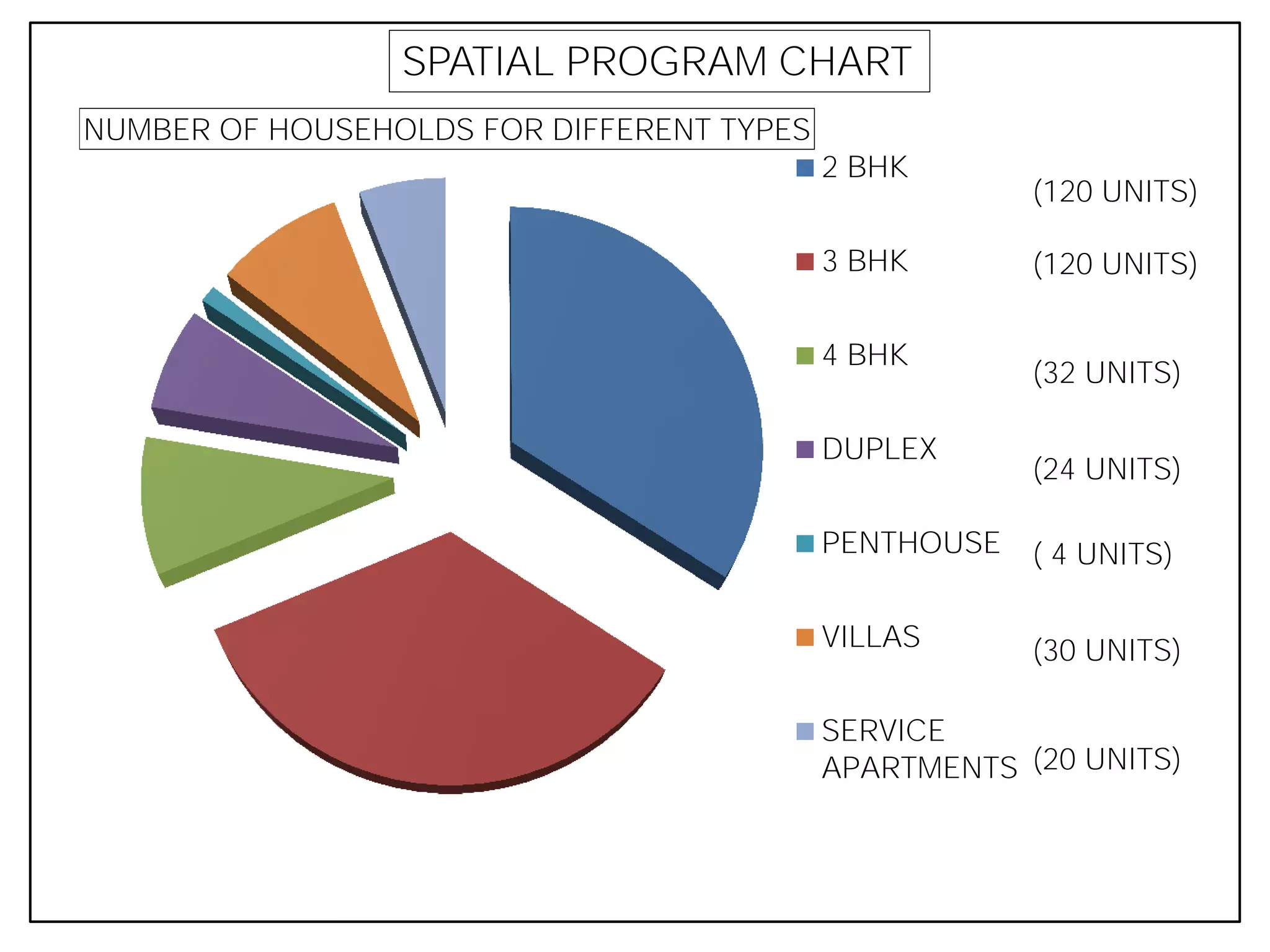

90. NUMBER OF HOUSEHOLDS FOR DIFFERENT TYPES
2 BHK
3 BHK
4 BHK
DUPLEX
PENTHOUSE
VILLAS
SERVICE
APARTMENTS
SPATIAL PROGRAM CHART
(120 UNITS)
(120 UNITS)
(32 UNITS)
( 4 UNITS)
(24 UNITS)
(30 UNITS)
(20 UNITS)

91. THANK YOU
Ar. VASANTH
Ar. SATHYA
Ar. SARAVANAN
Ar. GURU PRASAD
SPECIAL THANKS TO Ar. JOYTHIRAM
Er. JAFFAR
Ar. SIVA SHAKTHIVEL
Ar. MEENAKSHI
Mr. SUNDAR
Mrs. SUJA
Er. SAKTHIVEL
MY FACULTIES, FAMILY
AND FRIENDS
C 2015 GATED COMMUNITY AT MARAIMALAI NAGAR. All Rights Reserved. Presentation By Geeva Chandana.B
