1. CAPSTONE DESIGN PROJECT
ARCTIC HYDROGRAPHIC RESEARCH VESSEL

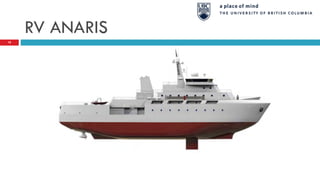

RV ANARIS
UBC NAVAL ARCHITECTURE AND MARINE
ENGINEERING
TEAM MEMBERS:
KEVIN RAHARDJO
LUIS ACHURRA
YASIN HRIDOY
ZE WANG
1

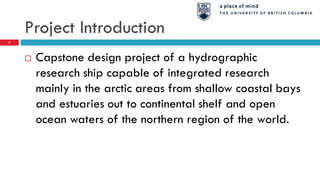

2. Project Introduction
Capstone design project of a hydrographic
research ship capable of integrated research
mainly in the arctic areas from shallow coastal bays
and estuaries out to continental shelf and open
ocean waters of the northern region of the world.
2

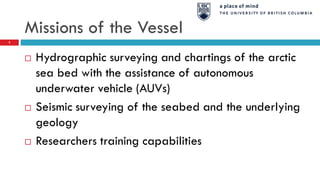

3. Missions of the Vessel
Hydrographic surveying and chartings of the arctic
sea bed with the assistance of autonomous
underwater vehicle (AUVs)
Seismic surveying of the seabed and the underlying
geology
Researchers training capabilities
3

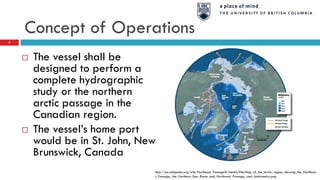

4. Concept of Operations
The vessel shall be
designed to perform a
complete hydrographic
study or the northern
arctic passage in the
Canadian region.
The vessel’s home port
would be in St. John, New
Brunswick, Canada
http://en.wikipedia.org/wiki/Northeast_Passage#/media/File:Map_of_the_Arctic_region_showing_the_Northeas
4

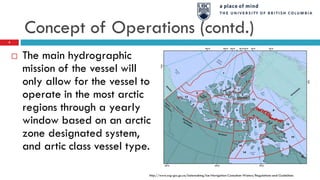

5. Concept of Operations (contd.)
The main hydrographic
mission of the vessel will
only allow for the vessel to
operate in the most arctic
regions through a yearly
window based on an arctic
zone designated system,
and artic class vessel type.
http://www.ccg-gcc.gc.ca/Icebreaking/Ice-Navigation-Canadian-Waters/Regulations-and-Guidelines
5

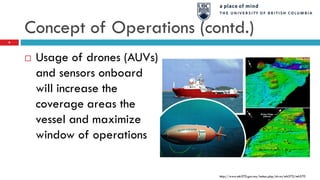

6. Concept of Operations (contd.)
Usage of drones (AUVs)
and sensors onboard
will increase the
coverage areas the
vessel and maximize
window of operations
http://www.mh370.gov.my/index.php/zh-cn/mh370/mh370
6

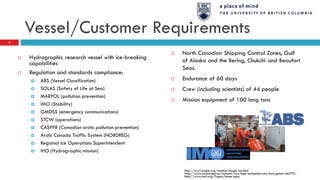

8. Vessel/Customer Requirements
Hydrographic research vessel with ice-breaking
capabilities
Regulation and standards compliance:
ABS (Vessel Classification)
SOLAS (Safety of Life at Sea)
MARPOL (pollution prevention)
IMO (Stability)
GMDSS (emergency communications)
STCW (operations)
CASPPR (Canadian arctic pollution prevention)
Arctic Canada Traffic System (NORDREG)
Regional Ice Operations Superintendent
IHO (Hydrographic mission)
North Canadian Shipping Control Zones, Gulf
of Alaska and the Bering, Chukchi and Beaufort
Seas.
Endurance of 60 days
Crew (including scientists) of 44 people
Mission equipment of 100 long tons
http://www.expressen.se/nyheter/nya-high-techjakten-ska-losa-gatan-mh370/
http://www.imo.org/Pages/home.aspx
http://ww2.eagle.org/content/eagle/en.html
8

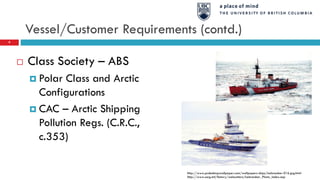

9. Vessel/Customer Requirements (contd.)
Class Society – ABS
Polar Class and Arctic
Configurations
CAC – Arctic Shipping
Pollution Regs. (C.R.C.,
c.353)
http://www.uscg.mil/history/webcutters/Icebreaker_Photo_Index.asp
http://www.pcdesktopwallpaper.com/wallpapers-ships/Icebreaker-016.jpg.html
9

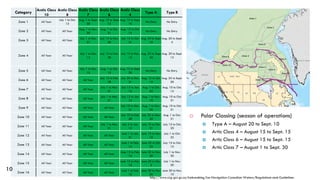

10. Category
Arctic Class
10
Arctic Class
8
Arctic Class
7
Arctic Class
6
Arctic Class
4
Type A Type B
Zone 1 All Year
July 1 to Oct.
15
Aug. 1 to Sept.
30
Aug. 15 to Sept.
15
Aug. 15 to Sept.
15
No Entry No Entry
Zone 2 All Year All Year
Aug. 1 to Nov.
30
Aug. 1 to Oct.
31
Aug. 15 to Oct.
15
No Entry No Entry
Zone 3 All Year All Year
July 1 to Dec.
31
July 15 to Nov.
30
July 15 to Oct.
31
Aug. 20 to Sept.
10
Aug. 20 to Sept.
5
Zone 4 All Year All Year
July 1 to Dec.
15
July 15 to Nov.
30
July 15 to Nov.
15
Aug. 20 to Sept.
20
Aug. 20 to Sept.
15
Zone 5 All Year All Year
July 1 to Dec.
15
Aug. 1 to Oct.
15
Aug. 15 to Sept.
30
No Entry No Entry
Zone 6 All Year All Year All Year
July 15 to Feb.
28
July 20 to Dec.
31
Aug. 15 to Oct.
15
Aug. 25 to Sept.
30
Zone 7 All Year All Year All Year
July 1 to Mar.
31
July 15 to Jan.
15
Aug. 1 to Oct.
25
Aug. 10 to Oct.
15
Zone 8 All Year All Year All Year
July 1 to Mar.
31
July 15 to Jan.
15
Aug. 1 to Nov.
10
Aug. 10 to Oct.
31
Zone 9 All Year All Year All Year All Year
July 10 to Mar.
31
Aug. 1 to Nov.
20
Aug. 10 to Oct.
31
Zone 10 All Year All Year All Year All Year
July 10 to Feb.
28
July 25 to Nov.
20
Aug. 1 to Oct.
31
Zone 11 All Year All Year All Year
July 1 to Mar.
31
July 5 to Jan.
15
July 10 to Oct.
31
July 15 to Oct.
20
Zone 12 All Year All Year All Year All Year
June 1 to Jan.
31
June 15 to Nov.
10
July 1 to Oct.
25
Zone 13 All Year All Year All Year All Year
June 1 to Feb.
15
June 25 to Oct.
22
July 15 to Oct.
15
Zone 14 All Year All Year All Year All Year
June 15 to Feb.
15
June 25 to Nov.
30
July 1 to Nov.
30
Zone 15 All Year All Year All Year All Year
June 15 to Mar.
15
June 25 to Dec.
5
July 1 to Nov.
30
Zone 16 All Year All Year All Year All Year
June 1 to Feb.
15
June 20 to Nov.
20
June 20 to Nov.
10
Polar Classing (season of operations)
Type A – August 20 to Sept. 10
Artic Class 4 – August 15 to Sept. 15
Artic Class 6 – August 15 to Sept. 15
Artic Class 7 – August 1 to Sept. 30
http://www.ccg-gcc.gc.ca/Icebreaking/Ice-Navigation-Canadian-Waters/Regulations-and-Guidelines
10

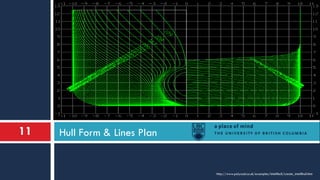

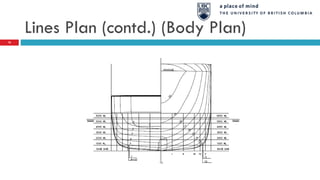

11. Hull Form & Lines Plan11
http://www.polycad.co.uk/examples/intellihull/create_intellihull.htm

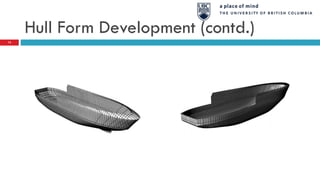

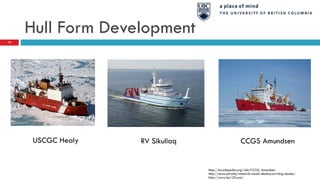

12. Hull Form Development
USCGC Healy RV Sikuliaq CCGS Amundsen
http://www.lsp123.com/
http://news.uaf.edu/research-vessel-sikuliaq-arriving-alaska/
http://en.wikipedia.org/wiki/CCGS_Amundsen
12

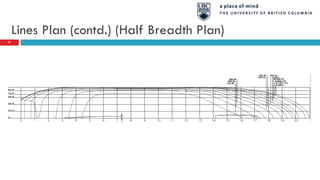

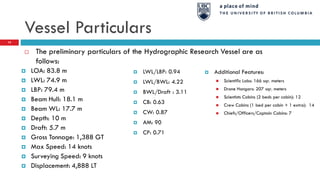

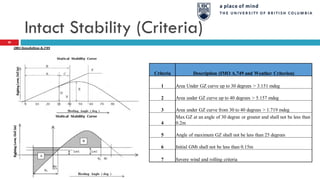

20. Intact Stability (Criteria)
Criteria Description (IMO A.749 and Weather Criterion)
1 Area Under GZ curve up to 30 degrees > 3.151 mdeg
2 Area under GZ curve up to 40 degrees > 5.157 mdeg
3 Area under GZ curve from 30 to 40 degrees > 1.719 mdeg
4
Max GZ at an angle of 30 degree or greater and shall not be less than
0.2m
5 Angle of maximum GZ shall not be less than 25 degrees
6 Initial GMt shall not be less than 0.15m
7 Severe wind and rolling criteria
20

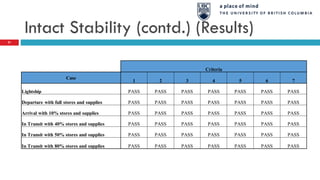

21. Intact Stability (contd.) (Results)
Criteria
Case
1 2 3 4 5 6 7
Lightship PASS PASS PASS PASS PASS PASS PASS
Departure with full stores and supplies PASS PASS PASS PASS PASS PASS PASS
Arrival with 10% stores and supplies PASS PASS PASS PASS PASS PASS PASS
In Transit with 40% stores and supplies PASS PASS PASS PASS PASS PASS PASS
In Transit with 50% stores and supplies PASS PASS PASS PASS PASS PASS PASS
In Transit with 80% stores and supplies PASS PASS PASS PASS PASS PASS PASS
21

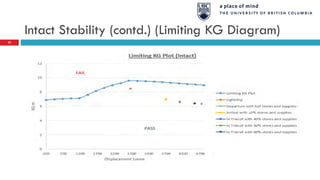

23. Damaged Stability (Criteria)
Criteria Decription (IMO A534)
1 Value of GZ at spec. shall be greater than 0.1m
2 Angle of equillibrium should be less than 7 deg
3 Range of positive stability shall be greater than 20 deg
# Damage Assumptions
1 Longitudinal extent: 1/3L^(2/3) or 14.5m, whichever is less - 4.873m
2 Transverse extent: B/5 or 11.5m, whichever is less - 3.5484m
3 Vertical extent: Without limit
Type Permeability Assumptions
Stores 0.60
Acc. 0.95
Mach. 0.85
Voids 0.95
23
24. Damaged Stability (contd.) (Bulkheads Placements)
Transverse watertight bulkheads are denoted by the
red lines:
24
View from the 02-platform

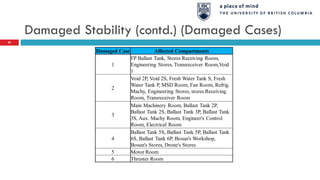

25. Damaged Stability (contd.) (Damaged Cases)
25
Damaged Case Affected Compartments
1
FP Ballast Tank, Stores Receiving Room,
Engineering Stores, Transreceiver Room,Void
1
2
Void 2P, Void 2S, Fresh Water Tank S, Fresh
Water Tank P, MSD Room, Fan Room, Refrig.
Machy, Engineering Stores, stores Receiving
Room, Transreceiver Room
3
Main Machinery Room, Ballast Tank 2P,
Ballast Tank 2S, Ballast Tank 3P, Ballast Tank
3S, Aux. Machy Room, Engineer's Control
Room, Electrical Room
4
Ballast Tank 5S, Ballast Tank 5P, Ballast Tank
6S, Ballast Tank 6P, Bosun's Workshop,
Bosun's Stores, Drone's Stores
5 Motor Room
6 Thruster Room

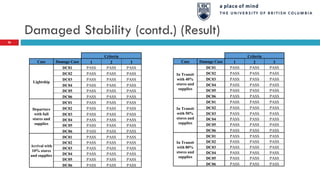

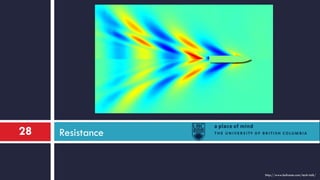

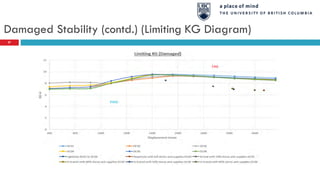

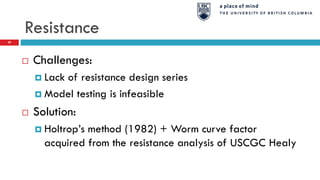

29. Resistance
Challenges:
Lack of resistance design series
Model testing is infeasible
Solution:

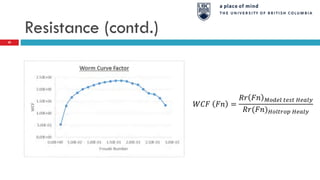

Holtrop’s method (1982) + Worm curve factor
acquired from the resistance analysis of USCGC Healy
29

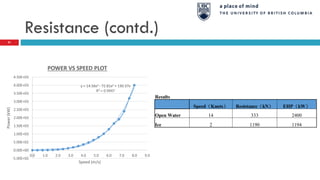

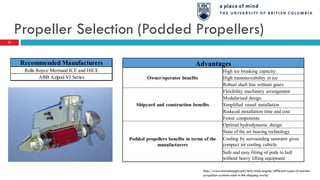

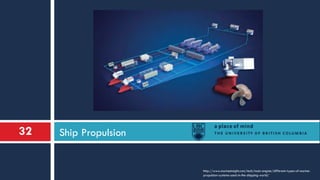

33. Propeller Selection (Podded Propellers)
Advantages
Owner/operator benefits
High ice breaking capacity
High manoeuvrability in ice
Robust shaft line without gears
Shipyard and construction benefits
Flexibility machinery arrangement
Modularised design
Simplified vessel installation
Reduced installation time and cost
Fewer components
Podded propellers benefits in terms of the
manufacturers
Optimal hydrodynamic design
State of the art bearing technology
Cooling by surrounding seawater gives
compact air cooling cubicle
Safe and easy fitting of pods to hull
without heavy lifting equipment
http://www.marineinsight.com/tech/main-engine/different-types-of-marine-
propulsion-systems-used-in-the-shipping-world/
33
Recommended Manufacturers
Rolls Royce Mermaid ICE and HICE
ABB Azipod VI Series

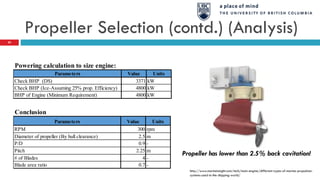

34. Propeller Selection (contd.) (Analysis)
Propeller has lower than 2.5% back cavitation!
http://www.marineinsight.com/tech/main-engine/different-types-of-marine-propulsion-
systems-used-in-the-shipping-world/
34
Powering calculation to size engine:
Parameters Value Units
Check BHP (DS) 3371 kW
Check BHP (Ice-Assuming 25% prop. Efficiency) 4800 kW
BHP of Engine (Minimum Requirement) 4800 kW
Conclusion
Parameters Value Units
RPM 300 rpm
Diameter of propeller (By hull clearance) 2.5 m
P/D 0.9 -
Pitch 2.25 m
# of Blades 4 -
Blade area ratio 0.7 -

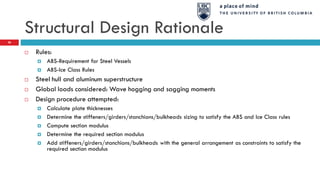

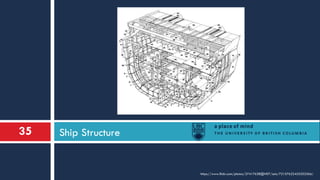

36. Structural Design Rationale
Rules:
ABS-Requirement for Steel Vessels
ABS-Ice Class Rules
Steel hull and aluminum superstructure
Global loads considered: Wave hogging and sagging moments
Design procedure attempted:
Calculate plate thicknesses
Determine the stiffeners/girders/stanchions/bulkheads sizing to satisfy the ABS and Ice Class rules
Compute section modulus
Determine the required section modulus
Add stiffeners/girders/stanchions/bulkheads with the general arrangement as constraints to satisfy the
required section modulus
36

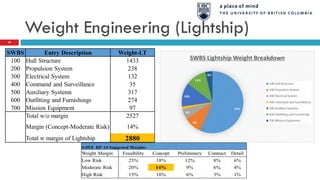

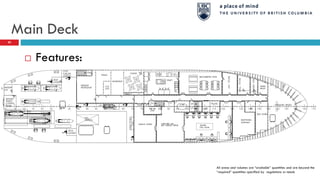

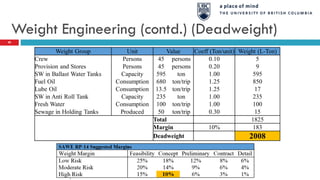

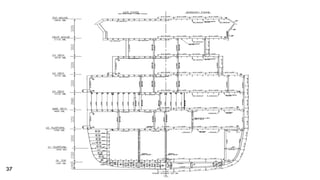

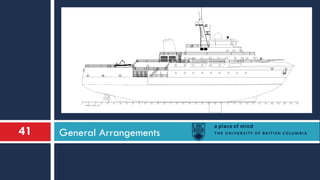

42. Main Deck
42
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

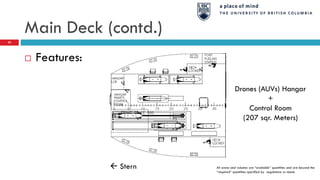

43. Main Deck (contd.)
43
Features:
Drones (AUVs) Hangar
+
Control Room
(207 sqr. Meters)
Stern All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

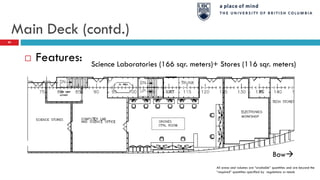

44. Main Deck (contd.)
44
Features: Science Laboratories (166 sqr. meters)+ Stores (116 sqr. meters)
Bow
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

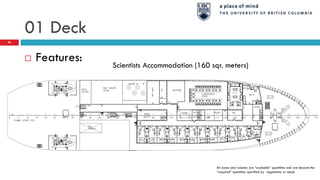

45. 01 Deck
45
Features:
Scientists Accommodation (160 sqr. meters)
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

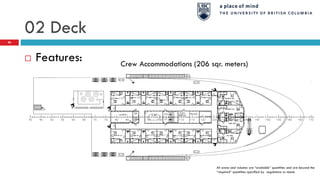

46. 02 Deck
46
Features: Crew Accommodations (206 sqr. meters)
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

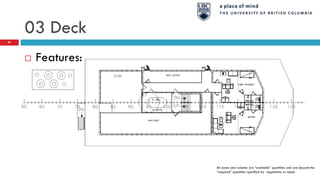

47. 03 Deck
47
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

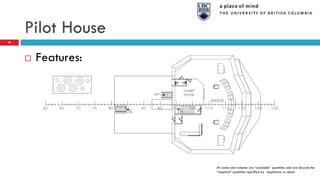

48. Pilot House
48
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

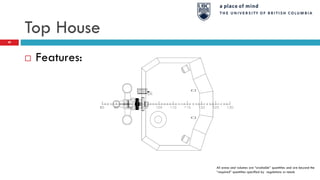

49. Top House
49
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

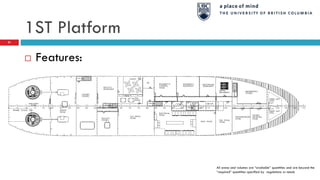

51. 1ST Platform
51
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

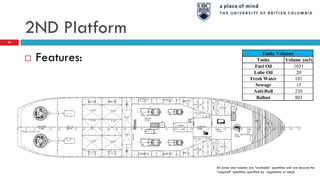

52. 2ND Platform
52
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs
Tanks Volumes
Tanks Volume (m3)
Fuel Oil 1031
Lube Oil 20
Fresh Water 101
Sewage 15
Anti-Roll 230
Ballast 803

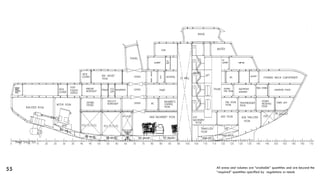

53. Tank Top
53
Features:
All areas and volumes are “available” quantities and are beyond the
“required” quantities specified by regulations or needs

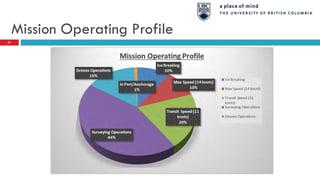

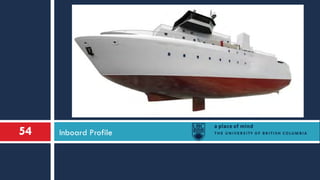

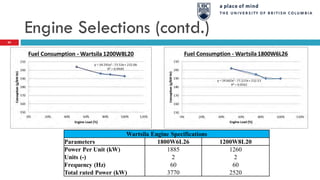

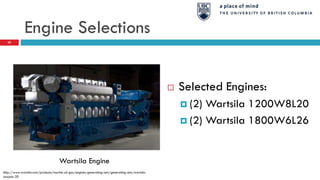

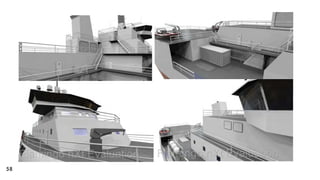

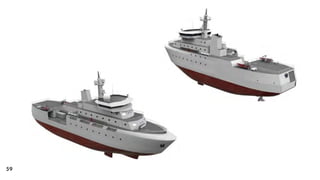

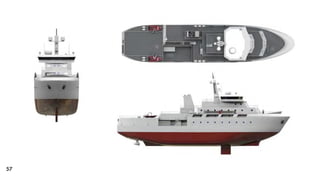

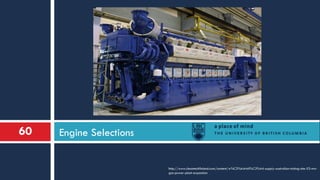

63. Engine Selections (contd.)
63
Wartsila Engine Specifications
Parameters 1800W6L26 1200W8L20
Power Per Unit (kW) 1885 1260
Units (-) 2 2
Frequency (Hz) 60 60
Total rated Power (kW) 3770 2520

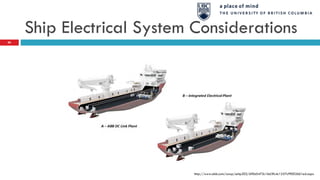

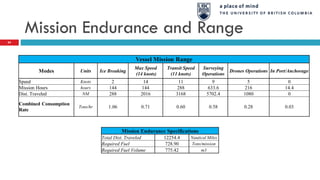

66. Ship Electrical System Considerations
66
http://www.abb.com/cawp/seitp202/6f0d5472c16d3fc4c1257cf9002661ed.aspx

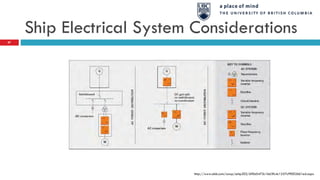

67. Ship Electrical System Considerations
67
http://www.abb.com/cawp/seitp202/6f0d5472c16d3fc4c1257cf9002661ed.aspx

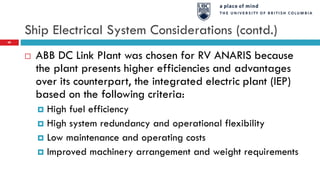

68. Ship Electrical System Considerations (contd.)
68
ABB DC Link Plant was chosen for RV ANARIS because
the plant presents higher efficiencies and advantages
over its counterpart, the integrated electric plant (IEP)
based on the following criteria:
High fuel efficiency
High system redundancy and operational flexibility
Low maintenance and operating costs
Improved machinery arrangement and weight requirements
69. Ship Engine and Electrical System Analysis69
http://cvgstrategy.com/wordpress/wp-content/uploads/2013/08/analysis.jpg

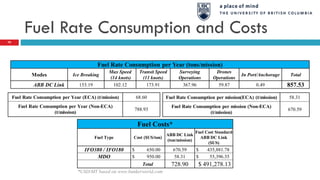

70. Fuel Rate Consumption and Costs
70
Fuel Rate Consumption per Year (tons/mission)
Modes Ice Breaking
Max Speed
(14 knots)
Transit Speed
(11 knots)
Surveying
Operations
Drones
Operations
In Port/Anchorage Total
ABB DC Link 153.19 102.12 173.91 367.96 59.87 0.49 857.53
Fuel Rate Consumption per Year (ECA) (t/mission) 68.60
Fuel Rate Consumption per Year (Non-ECA)
(t/mission)
788.93
Fuel Rate Consumption per mission(ECA) (t/mission) 58.31
Fuel Rate Consumption per mission (Non-ECA)
(t/mission)
670.59
Fuel Costs*
Fuel Type Cost ($US/ton)
ABB DC Link
(ton/mission)
Fuel Cost Standard
ABB DC Link
($US)
IFO380 / IFO180 $ 650.00 670.59 $ 435,881.78

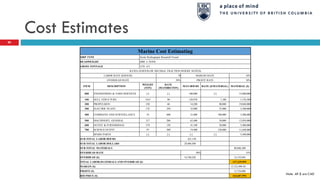

MDO $ 950.00 58.31 $ 55,396.35
Total 728.90 $ 491,278.13
*USD/MT based on www.bunkerworld.com

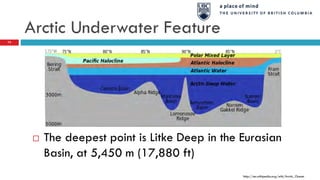

72. Arctic Underwater Feature
72
The deepest point is Litke Deep in the Eurasian
Basin, at 5,450 m (17,880 ft)
http://en.wikipedia.org/wiki/Arctic_Ocean

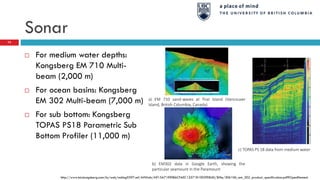

73. Sonar
73
For medium water depths:
Kongsberg EM 710 Multi-
beam (2,000 m)
For ocean basins: Kongsberg
EM 302 Multi-beam (7,000 m)
For sub bottom: Kongsberg
TOPAS PS18 Parametric Sub
Bottom Profiler (11,000 m)
a) EM 710 sand-waves at Trial Island (Vancouver
Island, British Columbia, Canada)
b) EM302 data in Google Earth, showing the
particular seamount in the Paramount
c) TOPAS PS 18 data from medium water
http://www.km.kongsberg.com/ks/web/nokbg0397.nsf/AllWeb/A915A71E90B6CFAEC12571B1003FE84D/$file/306106_em_302_product_specification.pdf?OpenElement

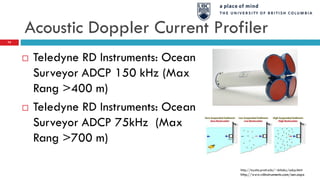

74. Acoustic Doppler Current Profiler
74
Teledyne RD Instruments: Ocean
Surveyor ADCP 150 kHz (Max
Rang >400 m)
Teledyne RD Instruments: Ocean
Surveyor ADCP 75kHz (Max
Rang >700 m)
http://www.rdinstruments.com/sen.aspx
http://mysite.pratt.edu/~dchaky/adcp.html

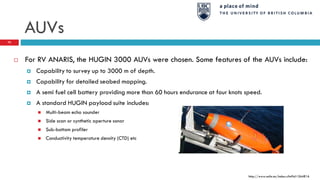

75. AUVs
For RV ANARIS, the HUGIN 3000 AUVs were chosen. Some features of the AUVs include:
Capability to survey up to 3000 m of depth.
Capability for detailed seabed mapping.
A semi fuel cell battery providing more than 60 hours endurance at four knots speed.
A standard HUGIN payload suite includes:
Multi-beam echo sounder
Side scan or synthetic aperture sonar
Sub-bottom profiler
Conductivity temperature density (CTD) etc
75
http://www.safe.no/index.cfm?id=264816

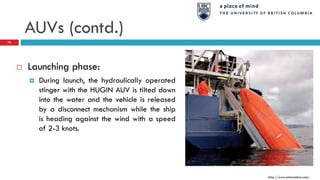

76. AUVs (contd.)
http://www.arkeotekno.com/
76
Launching phase:
During launch, the hydraulically operated
stinger with the HUGIN AUV is tilted down
into the water and the vehicle is released
by a disconnect mechanism while the ship
is heading against the wind with a speed
of 2-3 knots.

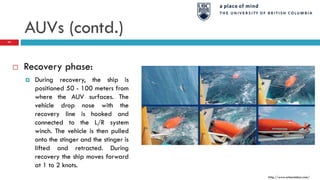

77. AUVs (contd.)
Recovery phase:
During recovery, the ship is
positioned 50 - 100 meters from
where the AUV surfaces. The
vehicle drop nose with the
recovery line is hooked and
connected to the L/R system
winch. The vehicle is then pulled
onto the stinger and the stinger is
lifted and retracted. During
recovery the ship moves forward
at 1 to 2 knots.
http://www.arkeotekno.com/
77

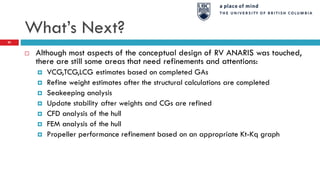

82. What’s Next?
Although most aspects of the conceptual design of RV ANARIS was touched,
there are still some areas that need refinements and attentions:
VCG,TCG,LCG estimates based on completed GAs
Refine weight estimates after the structural calculations are completed
Seakeeping analysis
Update stability after weights and CGs are refined
CFD analysis of the hull
FEM analysis of the hull
Propeller performance refinement based on an appropriate Kt-Kq graph
82
