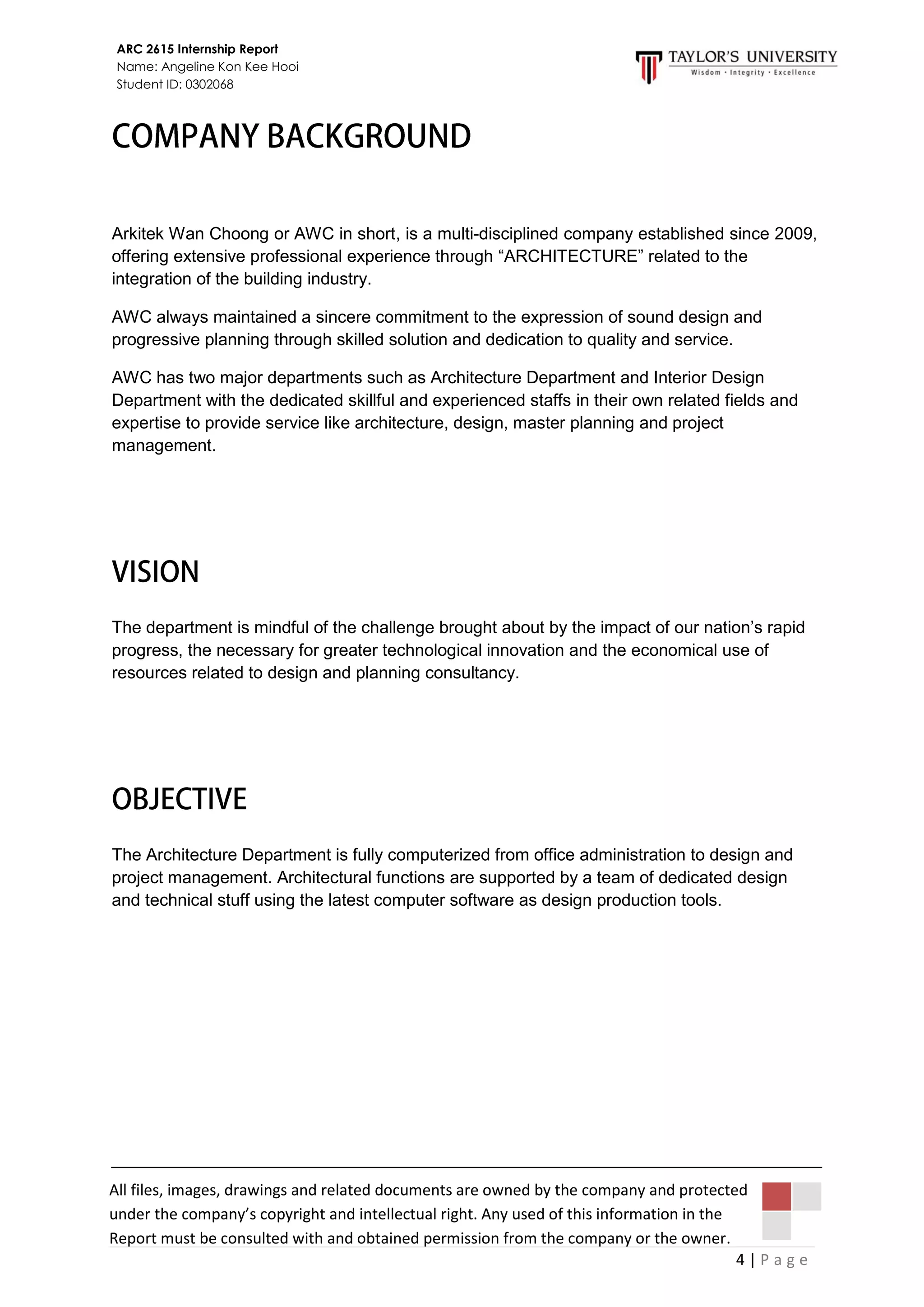

Arkitek Wan Choong or AWC in short, is a multi-disciplined company established since 2009,
offering extensive professional experience through “ARCHITECTURE” related to the
integration of the building industry.
AWC always maintained a sincere commitment to the expression of sound design and
progressive planning through skilled solution and dedication to quality and service.
AWC has two major departments such as Architecture Department and Interior Design
Department with the dedicated skillful and experienced staffs in their own related fields and
expertise to provide service like architecture, design, master planning and project
management.
The department is mindful of the challenge brought about by the impact of our nation’s rapid
progress, the necessary for greater technological innovation and the economical use of
resources related to design and planning consultancy.
The Architecture Department is fully computerized from office administration to design and
project management. Architectural functions are supported by a team of dedicated design
and technical stuff using the latest computer software as design production tools.

6. 6 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

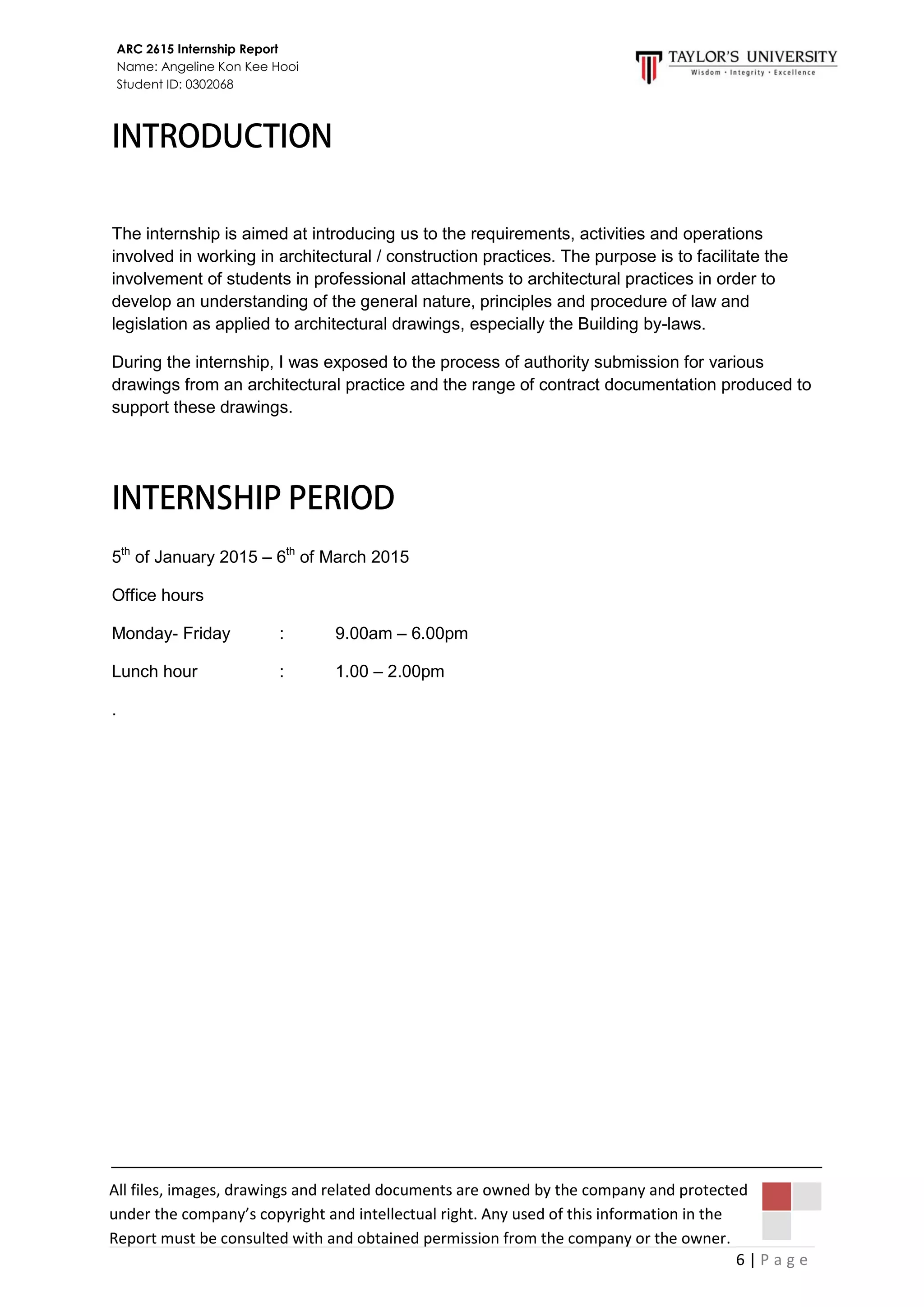

The internship is aimed at introducing us to the requirements, activities and operations
involved in working in architectural / construction practices. The purpose is to facilitate the
involvement of students in professional attachments to architectural practices in order to
develop an understanding of the general nature, principles and procedure of law and
legislation as applied to architectural drawings, especially the Building by-laws.
During the internship, I was exposed to the process of authority submission for various
drawings from an architectural practice and the range of contract documentation produced to
support these drawings.
5th
of January 2015 – 6th
of March 2015
Office hours
Monday- Friday : 9.00am – 6.00pm
Lunch hour : 1.00 – 2.00pm
.

7. 7 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

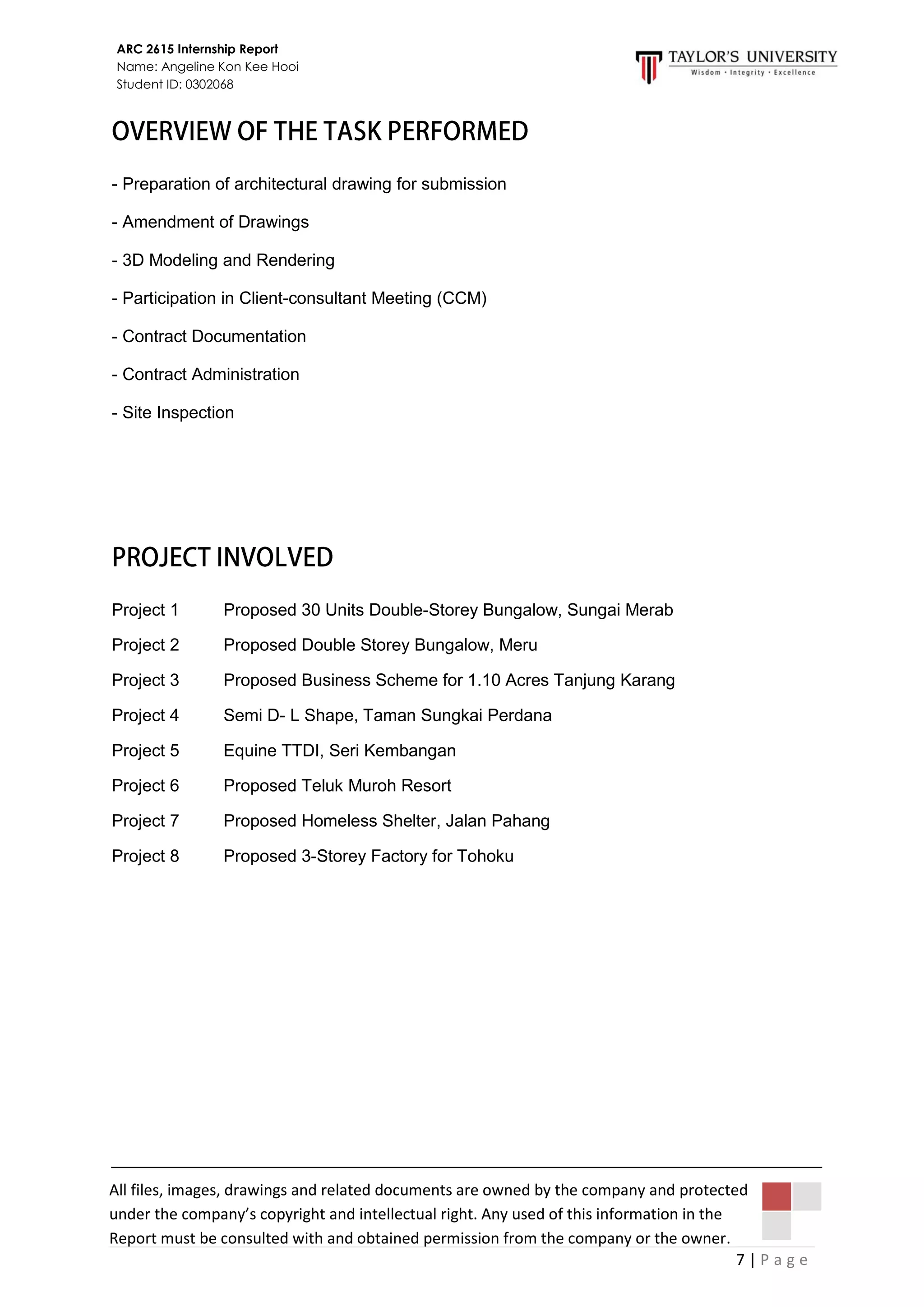

- Preparation of architectural drawing for submission
- Amendment of Drawings
- 3D Modeling and Rendering
- Participation in Client-consultant Meeting (CCM)
- Contract Documentation
- Contract Administration
- Site Inspection
Project 1 Proposed 30 Units Double-Storey Bungalow, Sungai Merab
Project 2 Proposed Double Storey Bungalow, Meru
Project 3 Proposed Business Scheme for 1.10 Acres Tanjung Karang
Project 4 Semi D- L Shape, Taman Sungkai Perdana
Project 5 Equine TTDI, Seri Kembangan
Project 6 Proposed Teluk Muroh Resort
Project 7 Proposed Homeless Shelter, Jalan Pahang
Project 8 Proposed 3-Storey Factory for Tohoku

8. 8 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

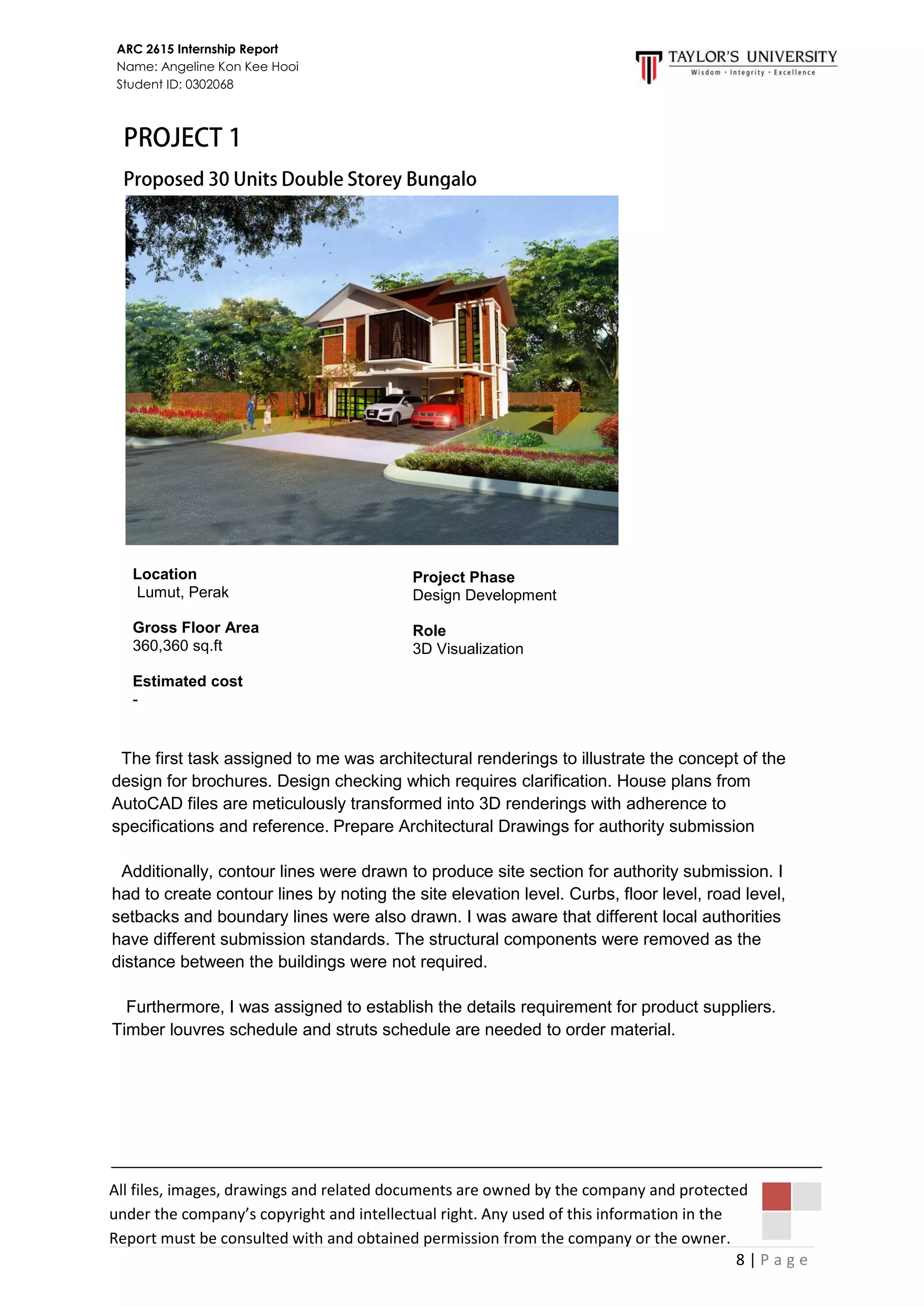

The first task assigned to me was architectural renderings to illustrate the concept of the
design for brochures. Design checking which requires clarification. House plans from
AutoCAD files are meticulously transformed into 3D renderings with adherence to
specifications and reference. Prepare Architectural Drawings for authority submission
Additionally, contour lines were drawn to produce site section for authority submission. I
had to create contour lines by noting the site elevation level. Curbs, floor level, road level,
setbacks and boundary lines were also drawn. I was aware that different local authorities
have different submission standards. The structural components were removed as the
distance between the buildings were not required.
Furthermore, I was assigned to establish the details requirement for product suppliers.
Timber louvres schedule and struts schedule are needed to order material.
Project Phase
Design Development
Role
3D Visualization
Location
Lumut, Perak
Gross Floor Area
360,360 sq.ft
Estimated cost
-

9. 9 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

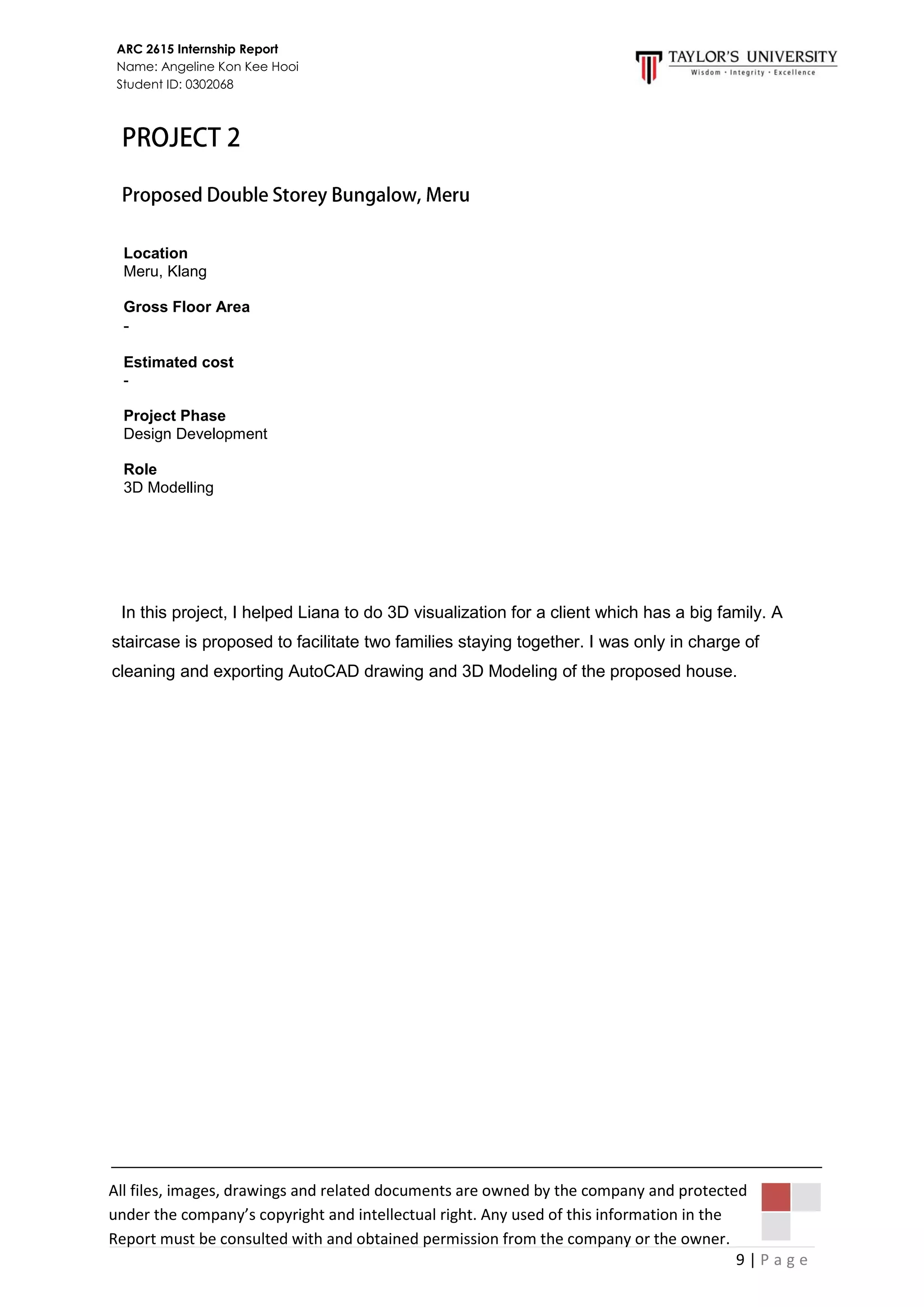

In this project, I helped Liana to do 3D visualization for a client which has a big family. A
staircase is proposed to facilitate two families staying together. I was only in charge of
cleaning and exporting AutoCAD drawing and 3D Modeling of the proposed house.
Location
Meru, Klang
Gross Floor Area
-
Estimated cost
-
Project Phase
Design Development
Role
3D Modelling

10. 10 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

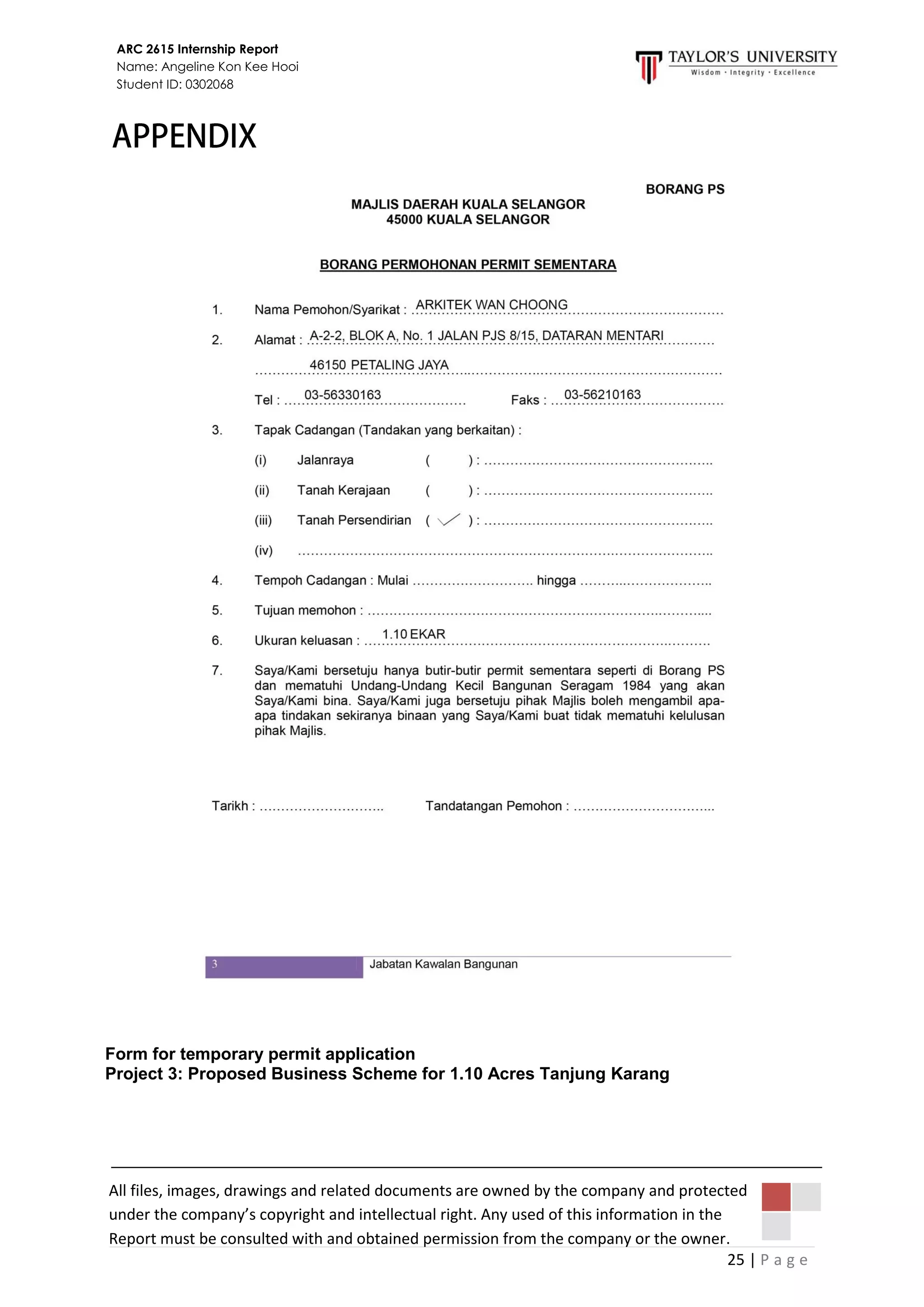

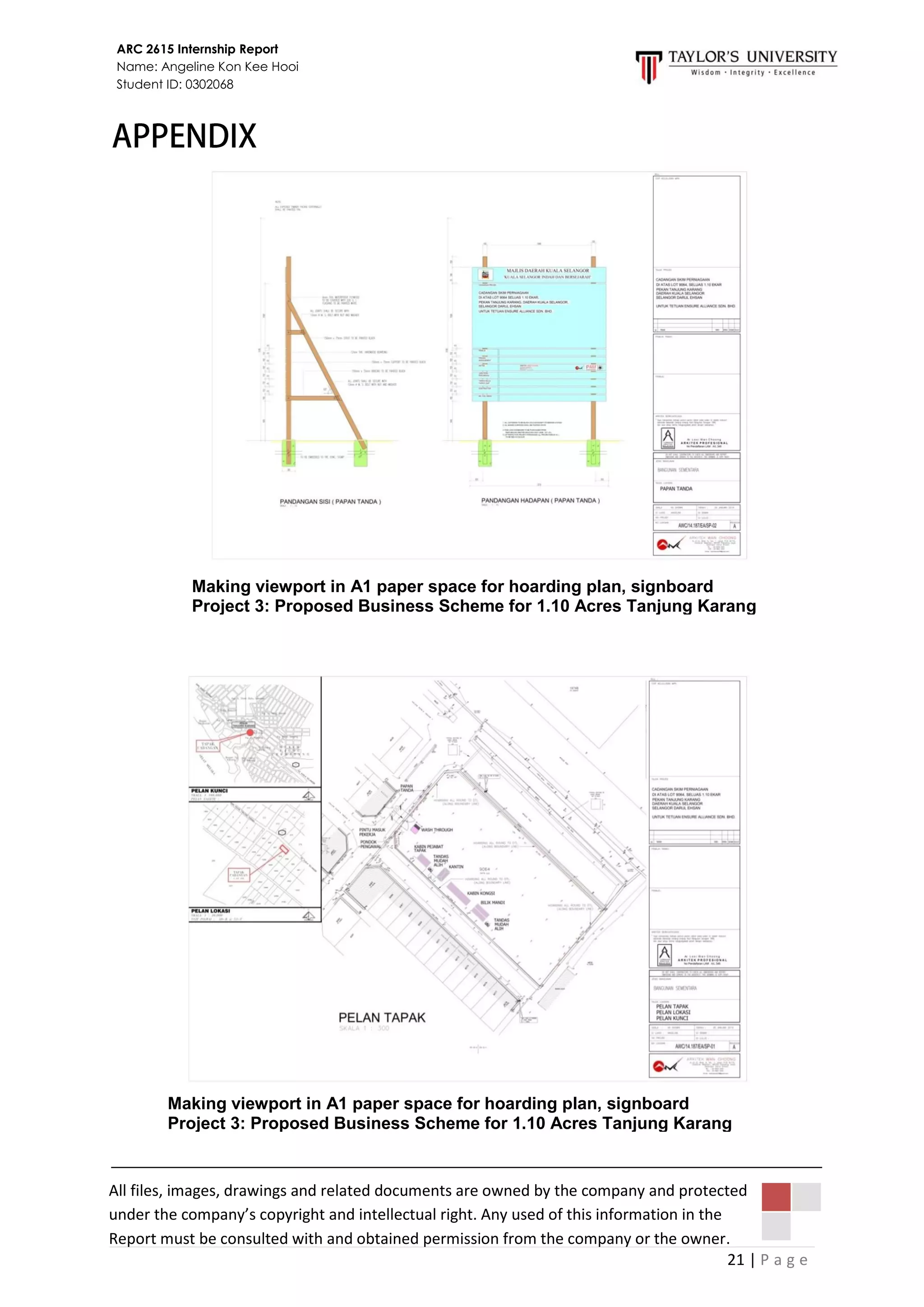

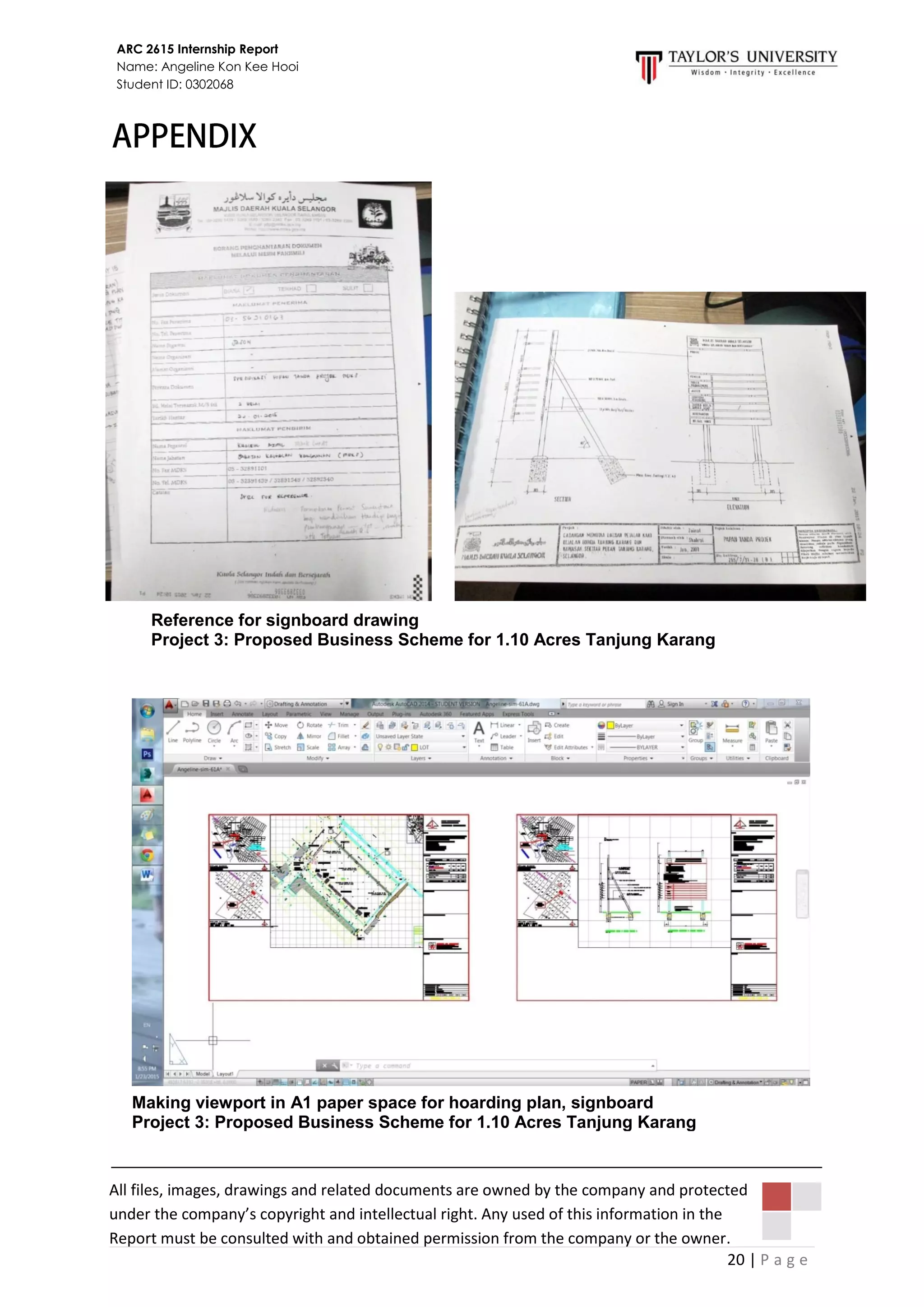

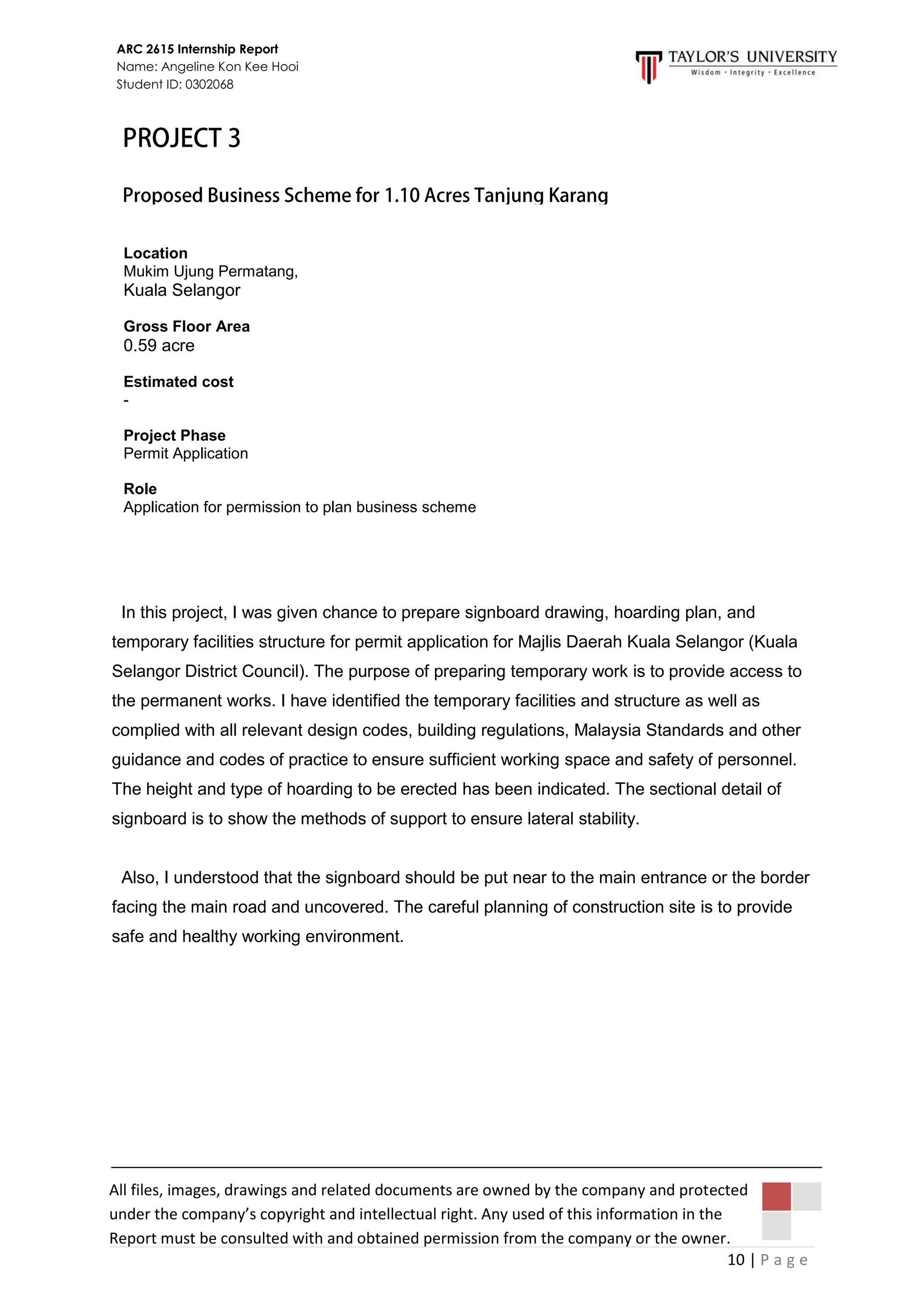

In this project, I was given chance to prepare signboard drawing, hoarding plan, and
temporary facilities structure for permit application for Majlis Daerah Kuala Selangor (Kuala
Selangor District Council). The purpose of preparing temporary work is to provide access to
the permanent works. I have identified the temporary facilities and structure as well as
complied with all relevant design codes, building regulations, Malaysia Standards and other
guidance and codes of practice to ensure sufficient working space and safety of personnel.
The height and type of hoarding to be erected has been indicated. The sectional detail of
signboard is to show the methods of support to ensure lateral stability.
Also, I understood that the signboard should be put near to the main entrance or the border
facing the main road and uncovered. The careful planning of construction site is to provide
safe and healthy working environment.
Location
Mukim Ujung Permatang,
Kuala Selangor
Gross Floor Area
0.59 acre
Estimated cost
-
Project Phase
Permit Application
Role
Application for permission to plan business scheme

11. 11 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

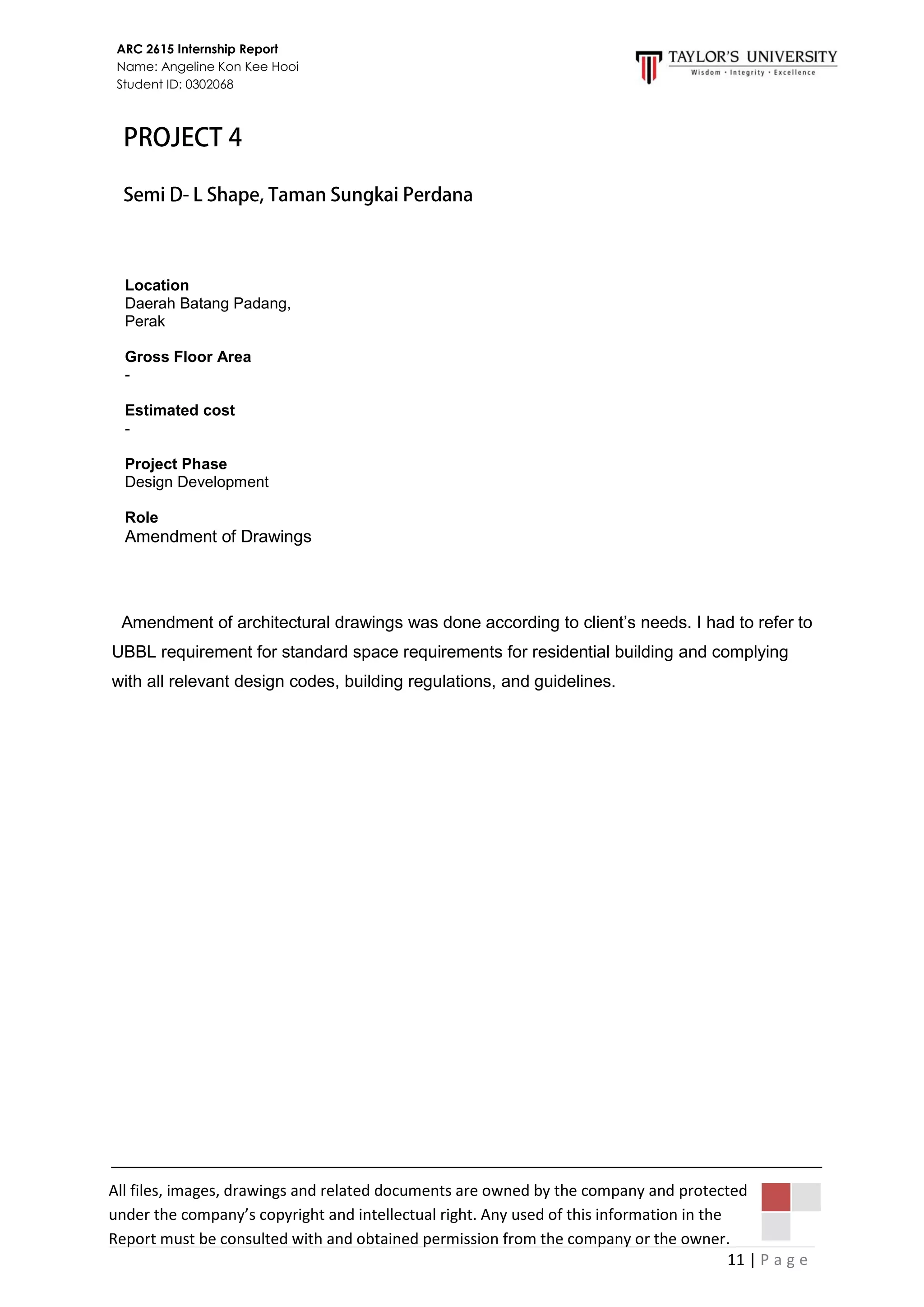

Amendment of architectural drawings was done according to client’s needs. I had to refer to
UBBL requirement for standard space requirements for residential building and complying
with all relevant design codes, building regulations, and guidelines.
Location
Daerah Batang Padang,
Perak
Gross Floor Area
-
Estimated cost
-
Project Phase
Design Development
Role
Amendment of Drawings

12. 12 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

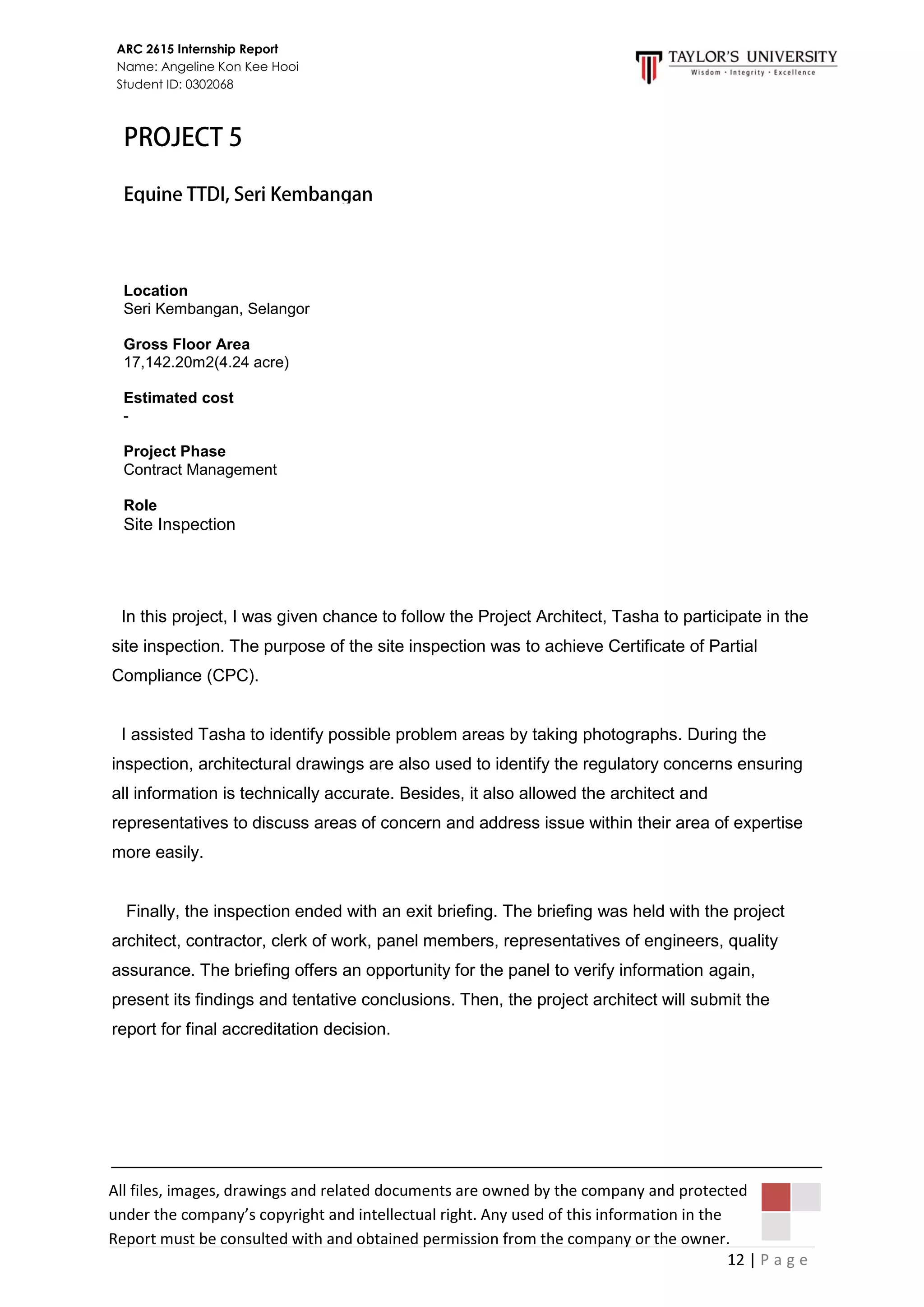

In this project, I was given chance to follow the Project Architect, Tasha to participate in the
site inspection. The purpose of the site inspection was to achieve Certificate of Partial
Compliance (CPC).
I assisted Tasha to identify possible problem areas by taking photographs. During the
inspection, architectural drawings are also used to identify the regulatory concerns ensuring
all information is technically accurate. Besides, it also allowed the architect and
representatives to discuss areas of concern and address issue within their area of expertise
more easily.
Finally, the inspection ended with an exit briefing. The briefing was held with the project
architect, contractor, clerk of work, panel members, representatives of engineers, quality
assurance. The briefing offers an opportunity for the panel to verify information again,
present its findings and tentative conclusions. Then, the project architect will submit the
report for final accreditation decision.
Location
Seri Kembangan, Selangor
Gross Floor Area
17,142.20m2(4.24 acre)
Estimated cost
-
Project Phase
Contract Management
Role
Site Inspection

13. 13 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

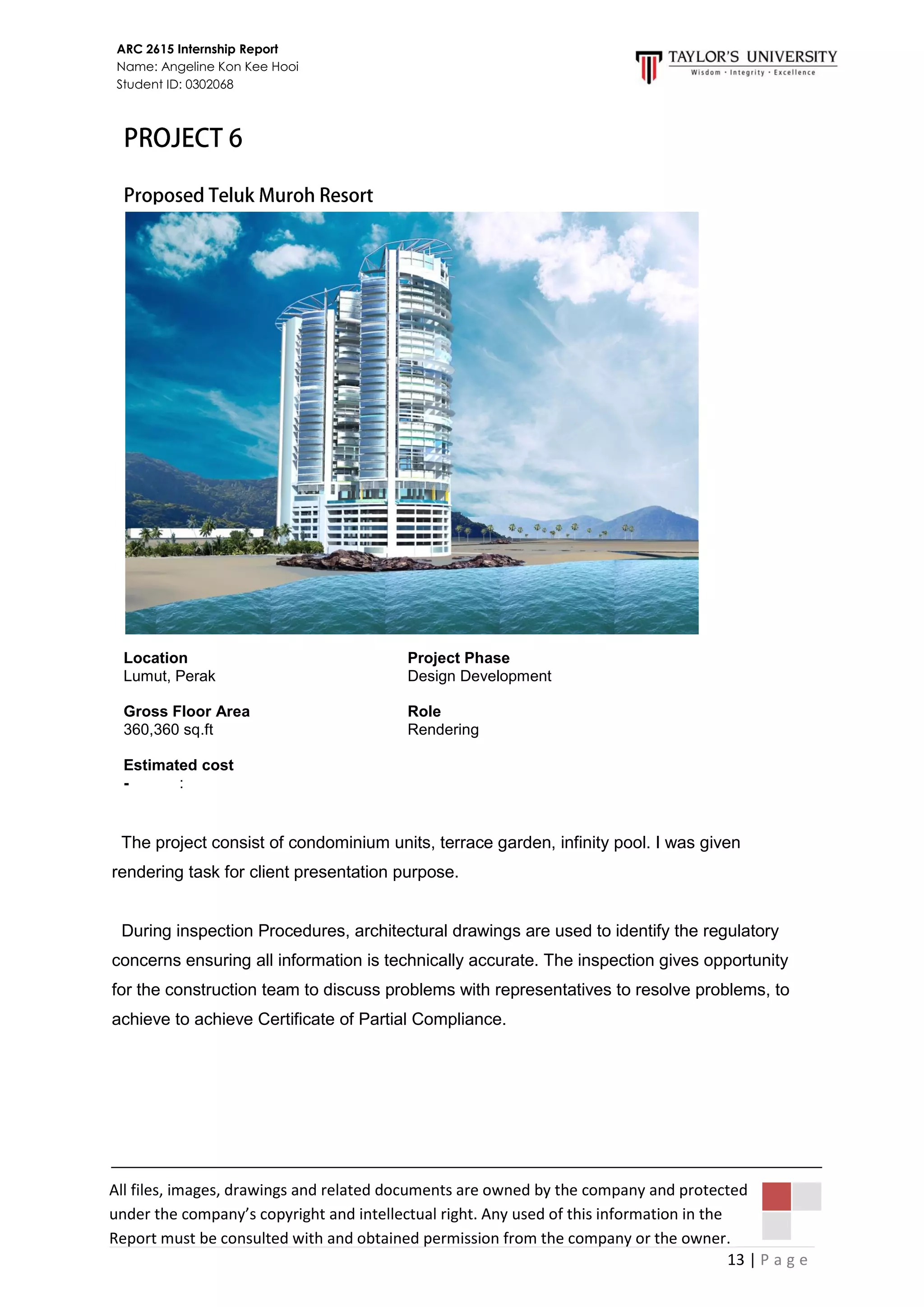

The project consist of condominium units, terrace garden, infinity pool. I was given
rendering task for client presentation purpose.
During inspection Procedures, architectural drawings are used to identify the regulatory
concerns ensuring all information is technically accurate. The inspection gives opportunity
for the construction team to discuss problems with representatives to resolve problems, to
achieve to achieve Certificate of Partial Compliance.
Location
Lumut, Perak
Gross Floor Area
360,360 sq.ft
Estimated cost
- :
Project Phase
Design Development
Role
Rendering

14. 14 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

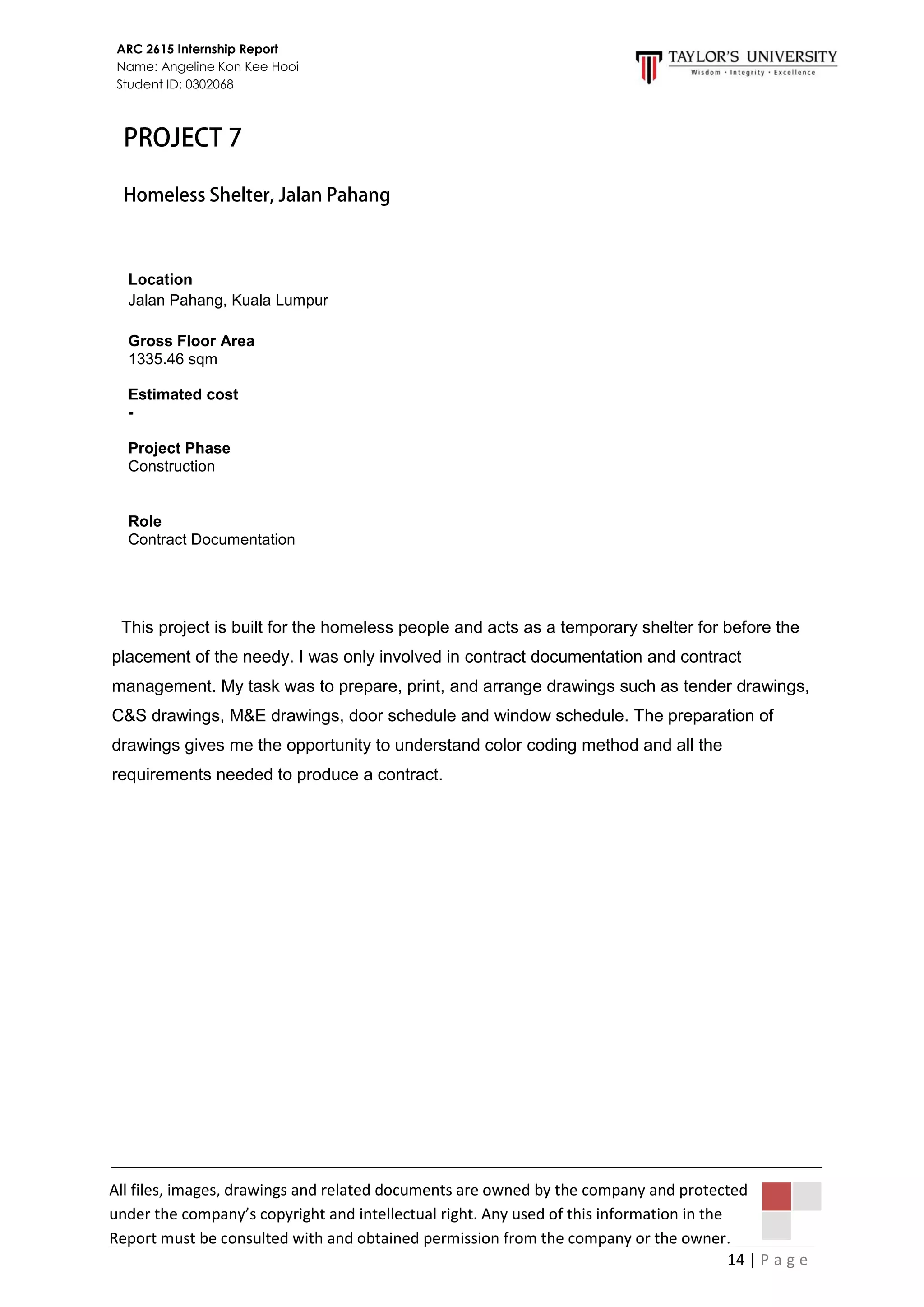

This project is built for the homeless people and acts as a temporary shelter for before the
placement of the needy. I was only involved in contract documentation and contract

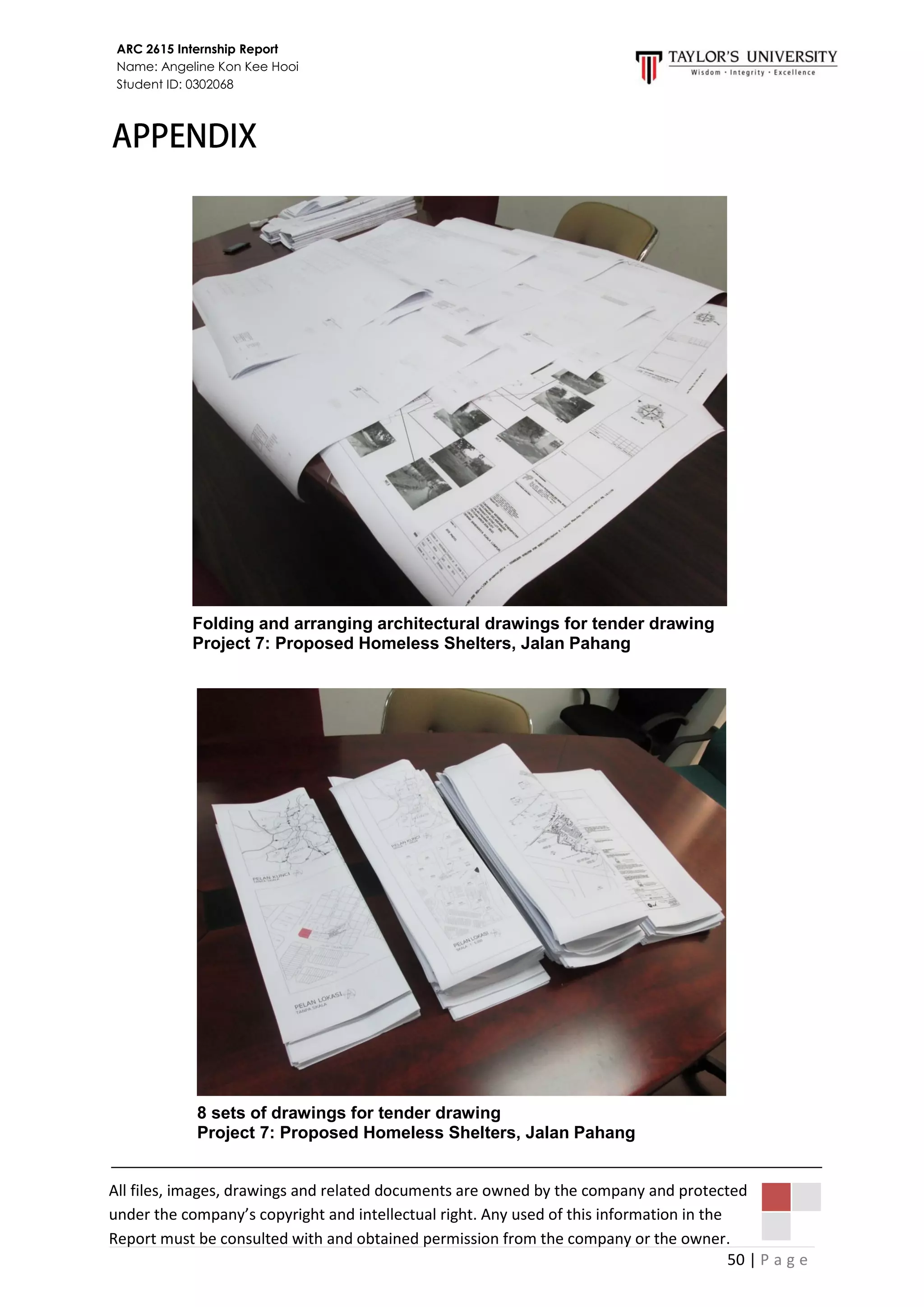

management. My task was to prepare, print, and arrange drawings such as tender drawings,
C&S drawings, M&E drawings, door schedule and window schedule. The preparation of
drawings gives me the opportunity to understand color coding method and all the
requirements needed to produce a contract.
Location
Jalan Pahang, Kuala Lumpur
Gross Floor Area
1335.46 sqm
Estimated cost
-
Project Phase
Construction
Role
Contract Documentation

15. 15 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

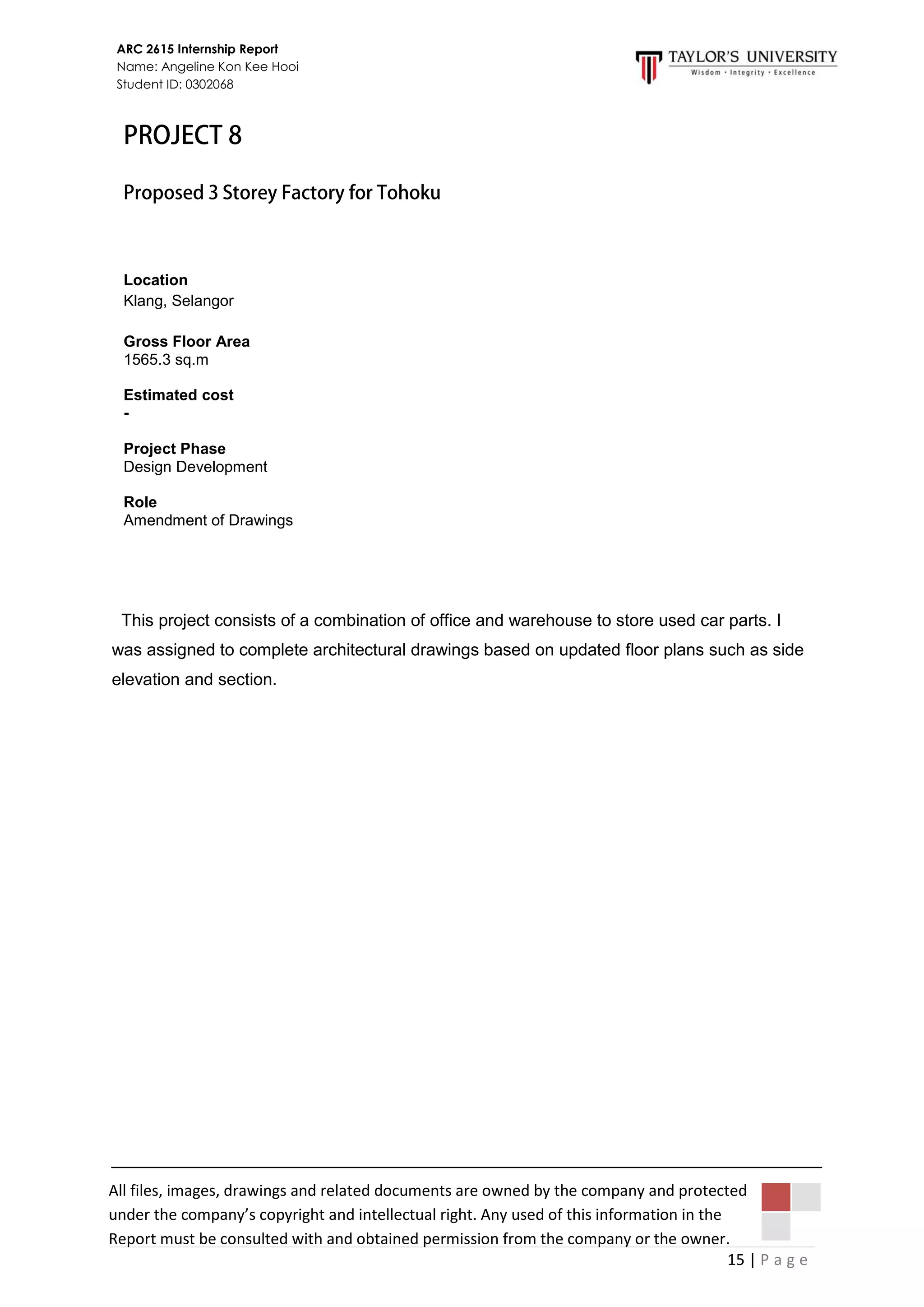

This project consists of a combination of office and warehouse to store used car parts. I
was assigned to complete architectural drawings based on updated floor plans such as side
elevation and section.
Location
Klang, Selangor
Gross Floor Area
1565.3 sq.m
Estimated cost
-
Project Phase
Design Development
Role
Amendment of Drawings

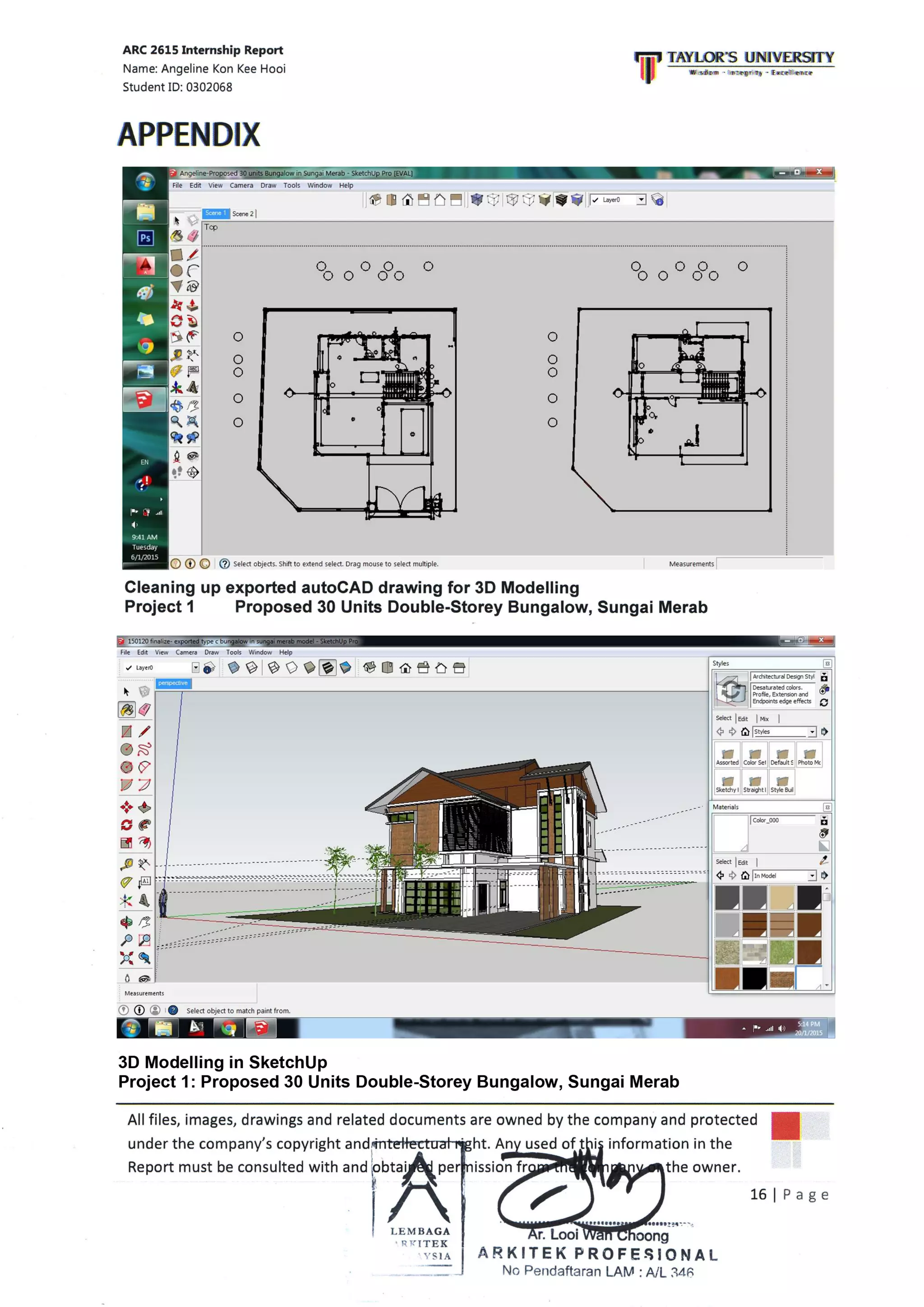

17. 17 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

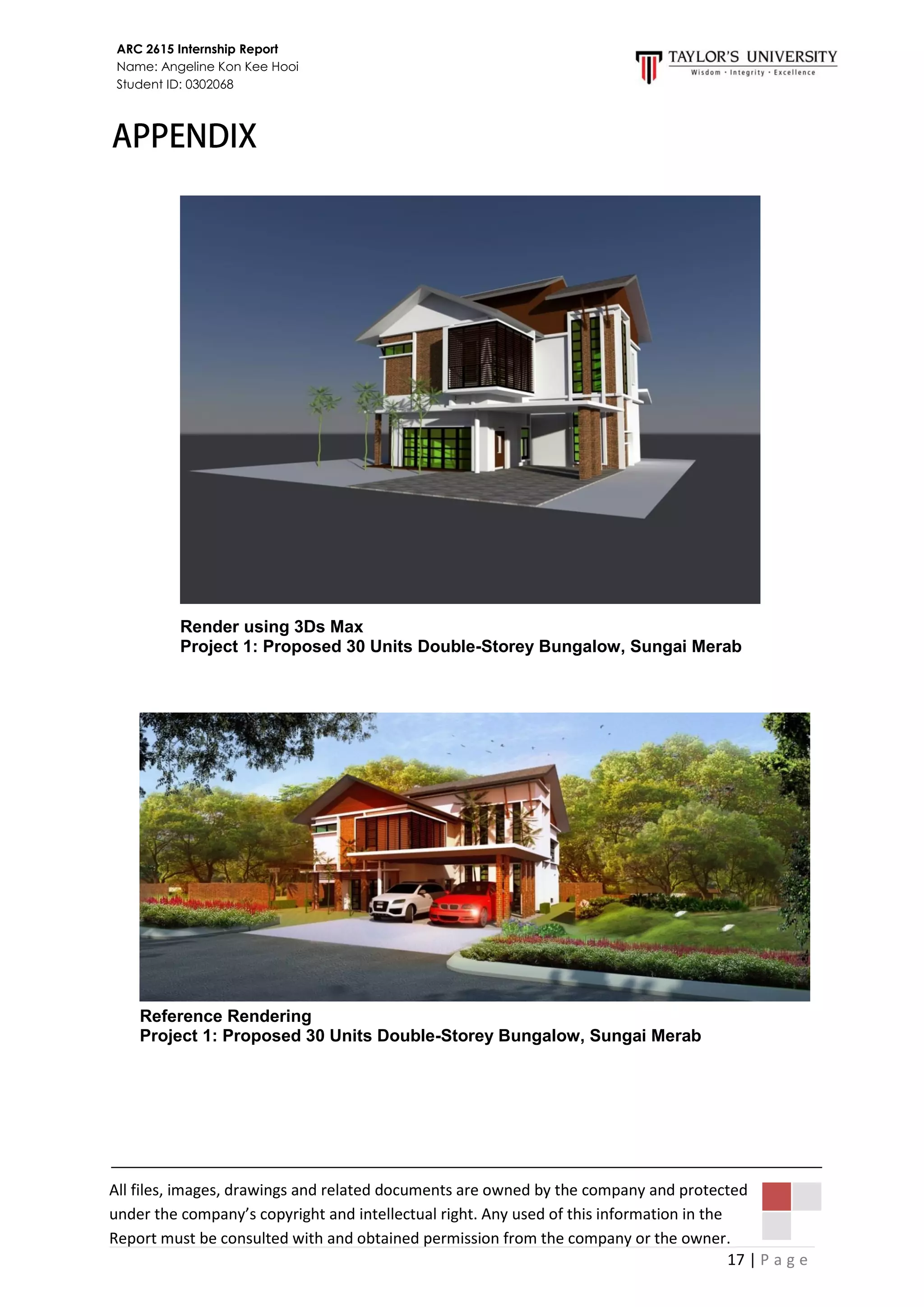

Render using 3Ds Max
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab
Reference Rendering
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

18. 18 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068

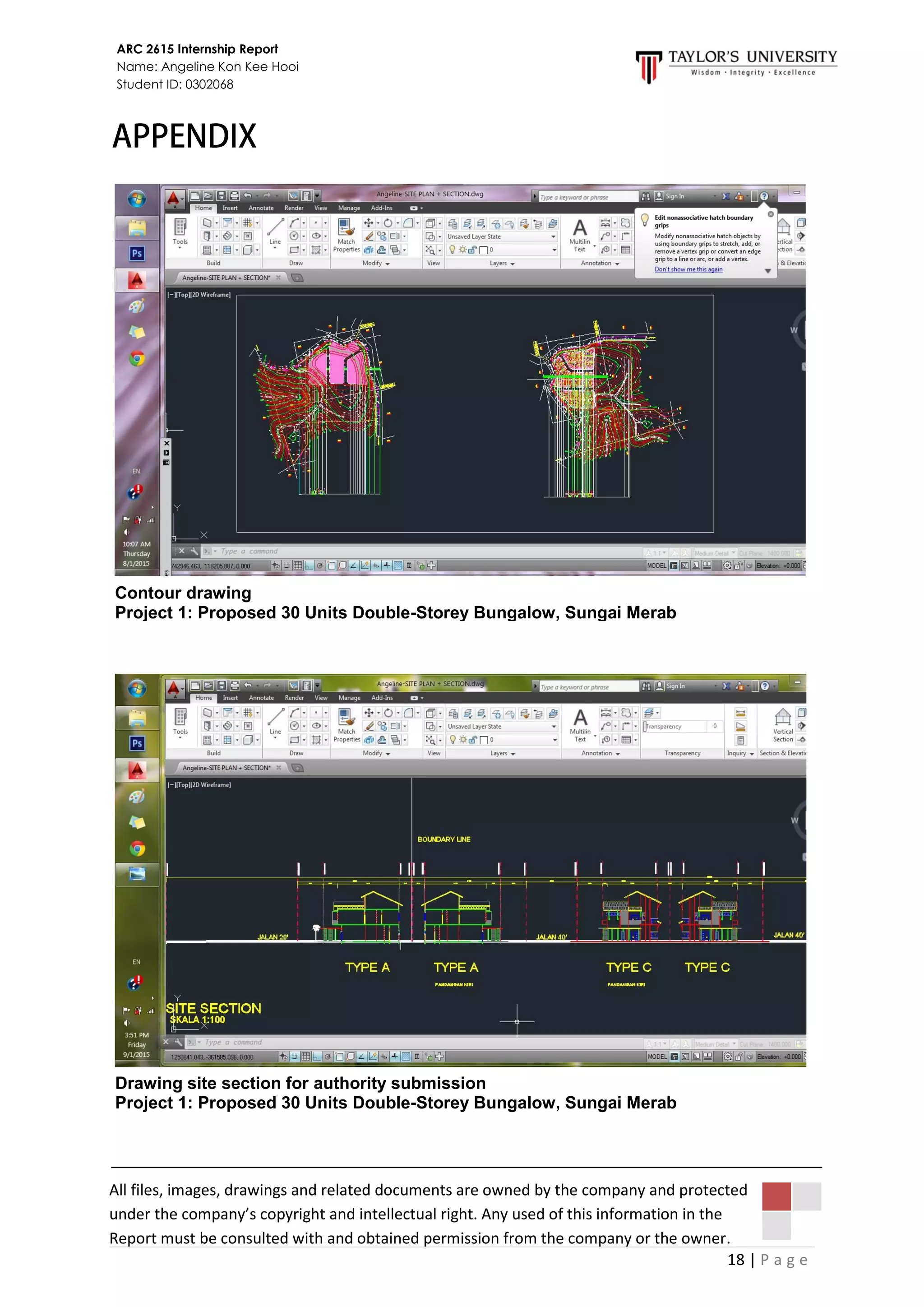

Contour drawing
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Drawing site section for authority submission
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

19. 19 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068

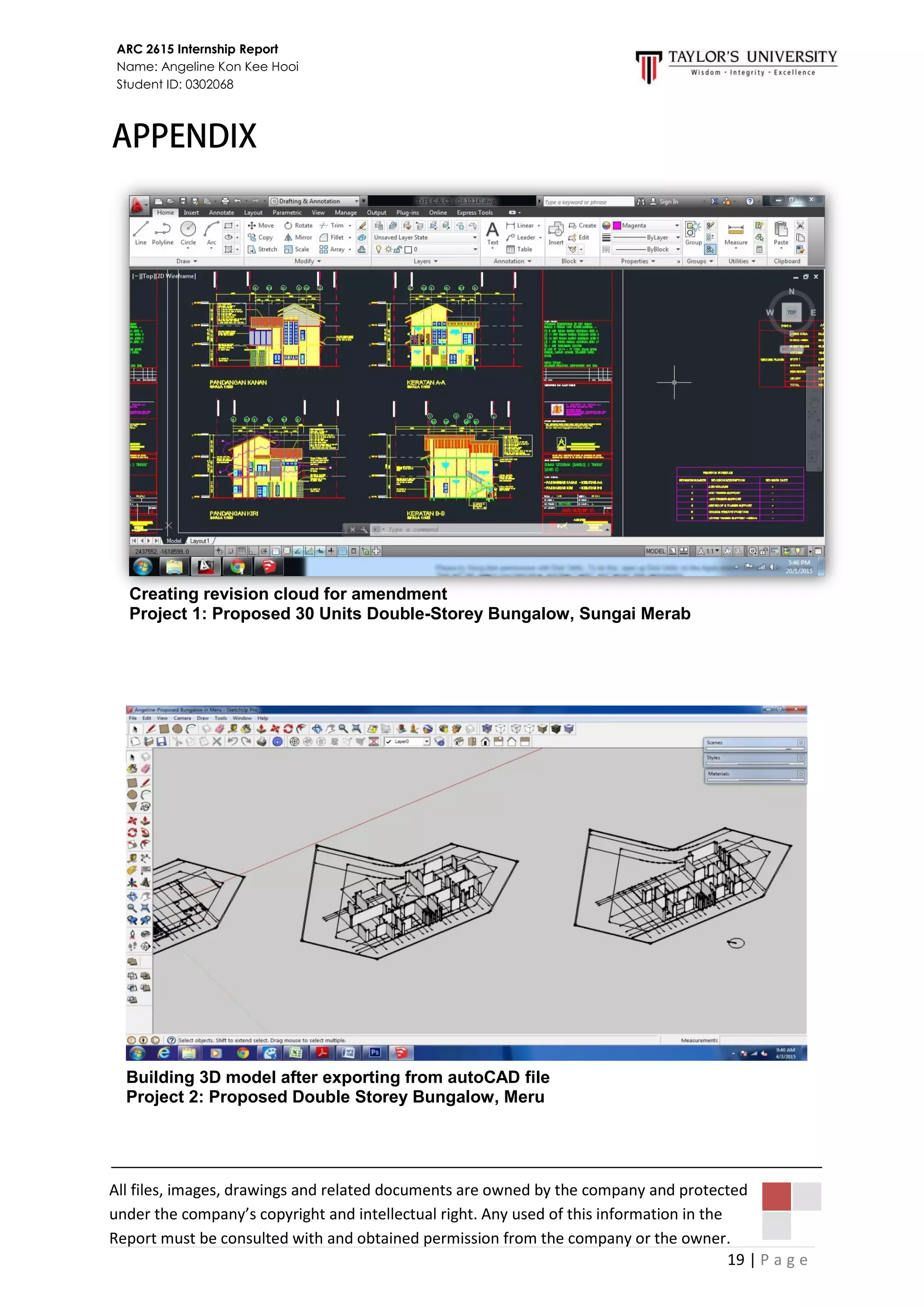

Creating revision cloud for amendment
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab
Building 3D model after exporting from autoCAD file
Project 2: Proposed Double Storey Bungalow, Meru
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

20. 20 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Reference for signboard drawing
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang
Making viewport in A1 paper space for hoarding plan, signboard
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

21. 21 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
Making viewport in A1 paper space for hoarding plan, signboard
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Making viewport in A1 paper space for hoarding plan, signboard
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

22. 22 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

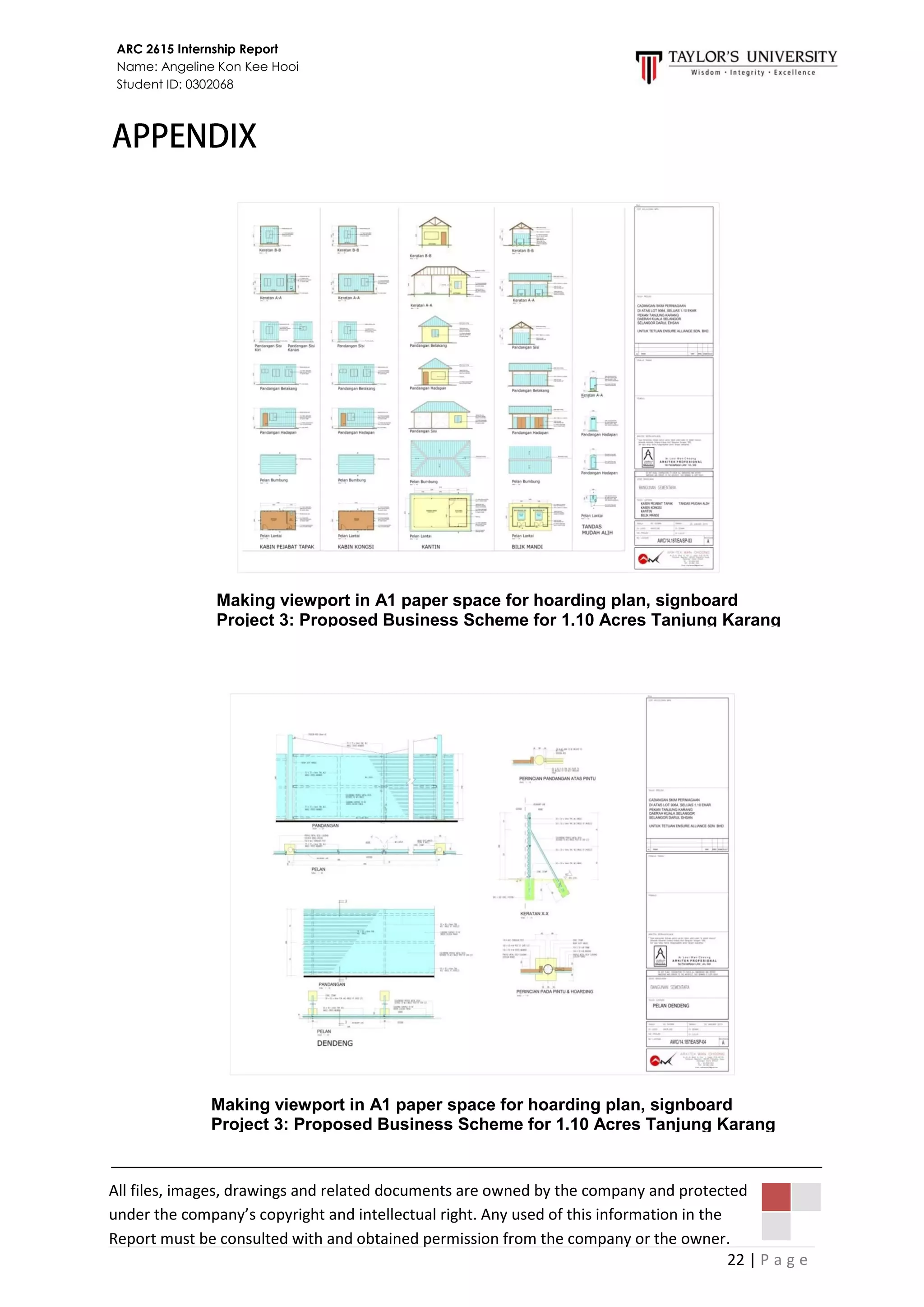

Making viewport in A1 paper space for hoarding plan, signboard
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang
Making viewport in A1 paper space for hoarding plan, signboard
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

23. 23 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

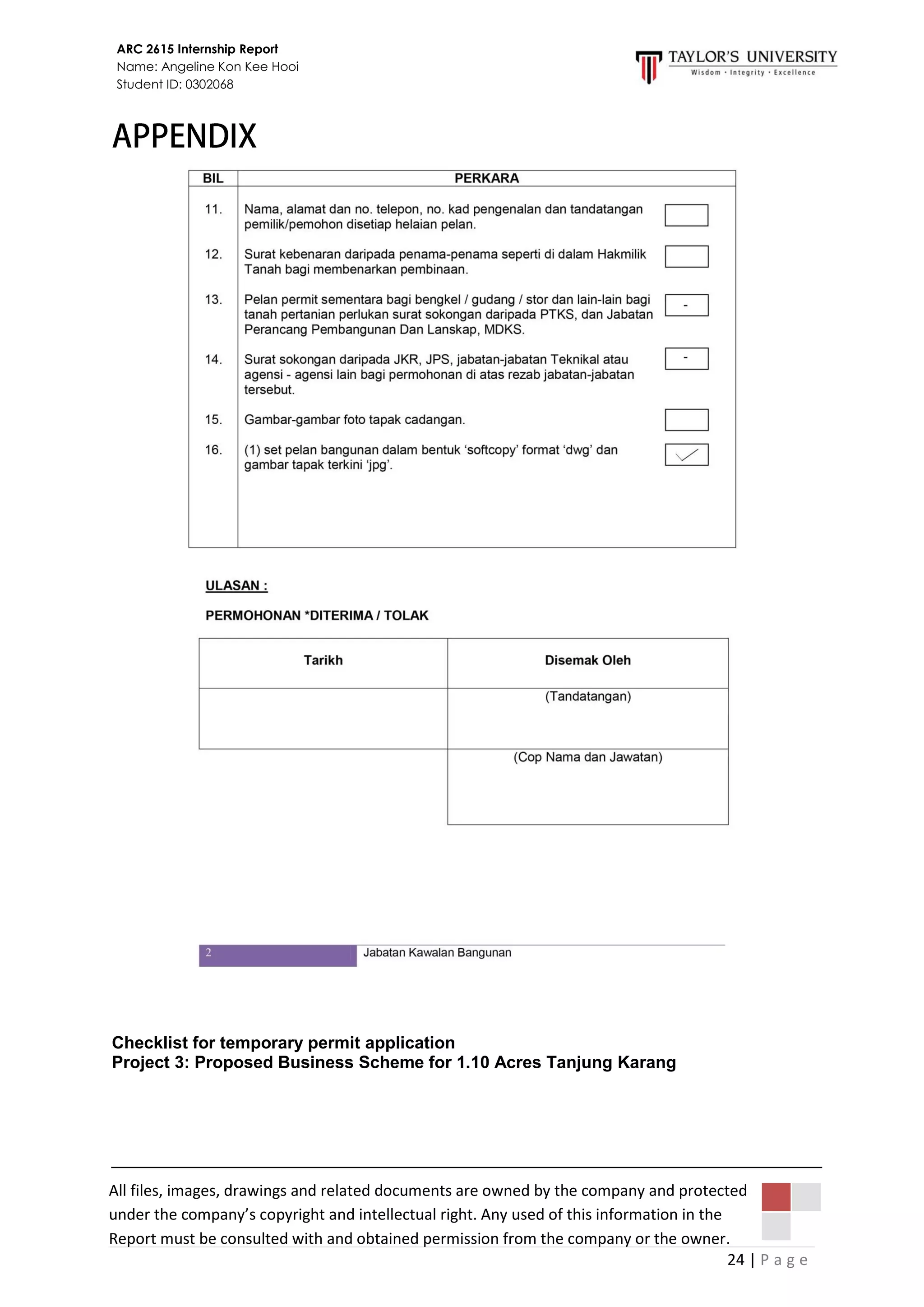

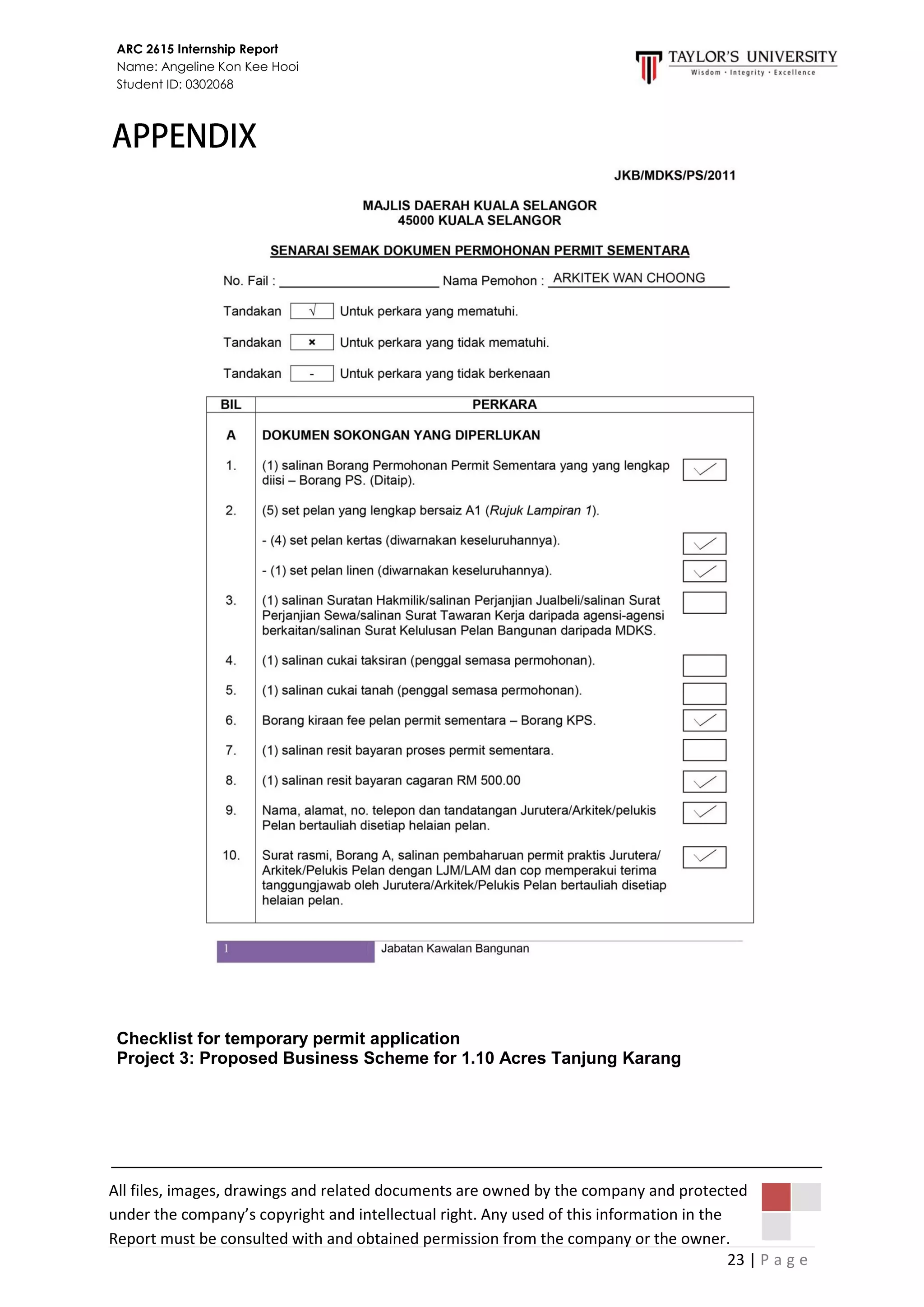

Checklist for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

24. 24 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

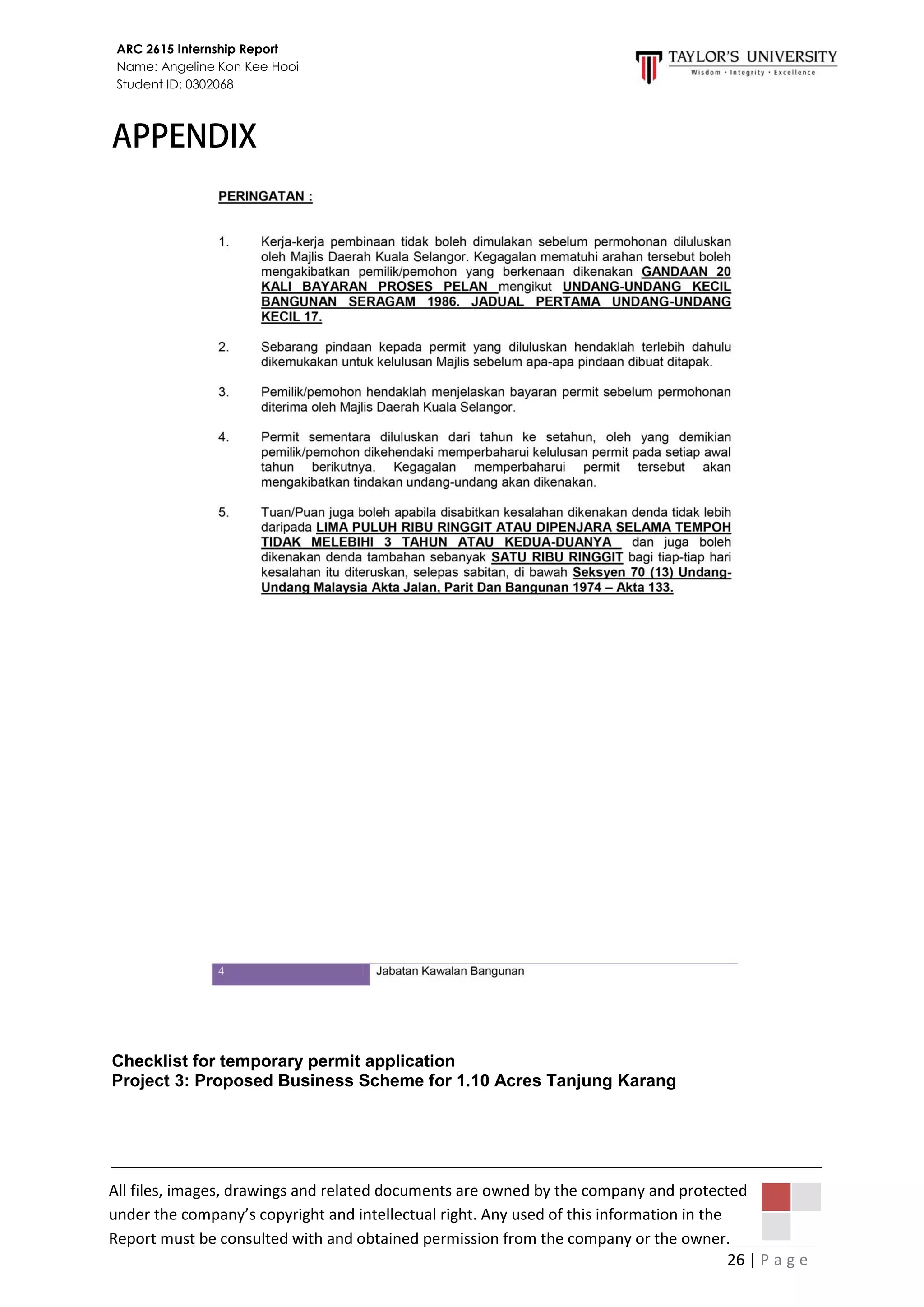

Checklist for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

25. 25 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Form for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

26. 26 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

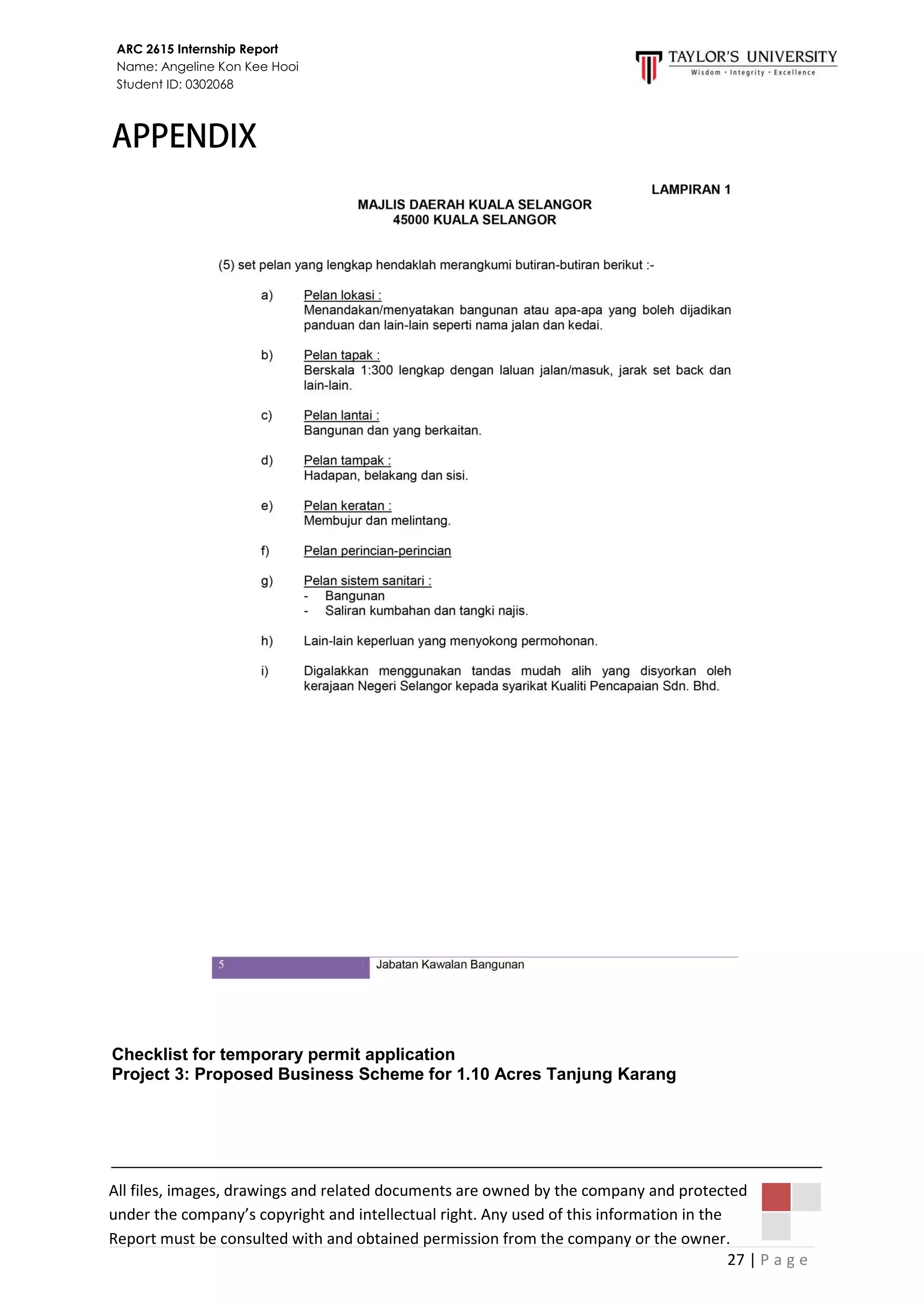

Checklist for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

27. 27 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Checklist for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

28. 28 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Money calculation for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

29. 29 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Form (A) for temporary permit application
Project 3: Proposed Business Scheme for 1.10 Acres Tanjung Karang

30. 30 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068

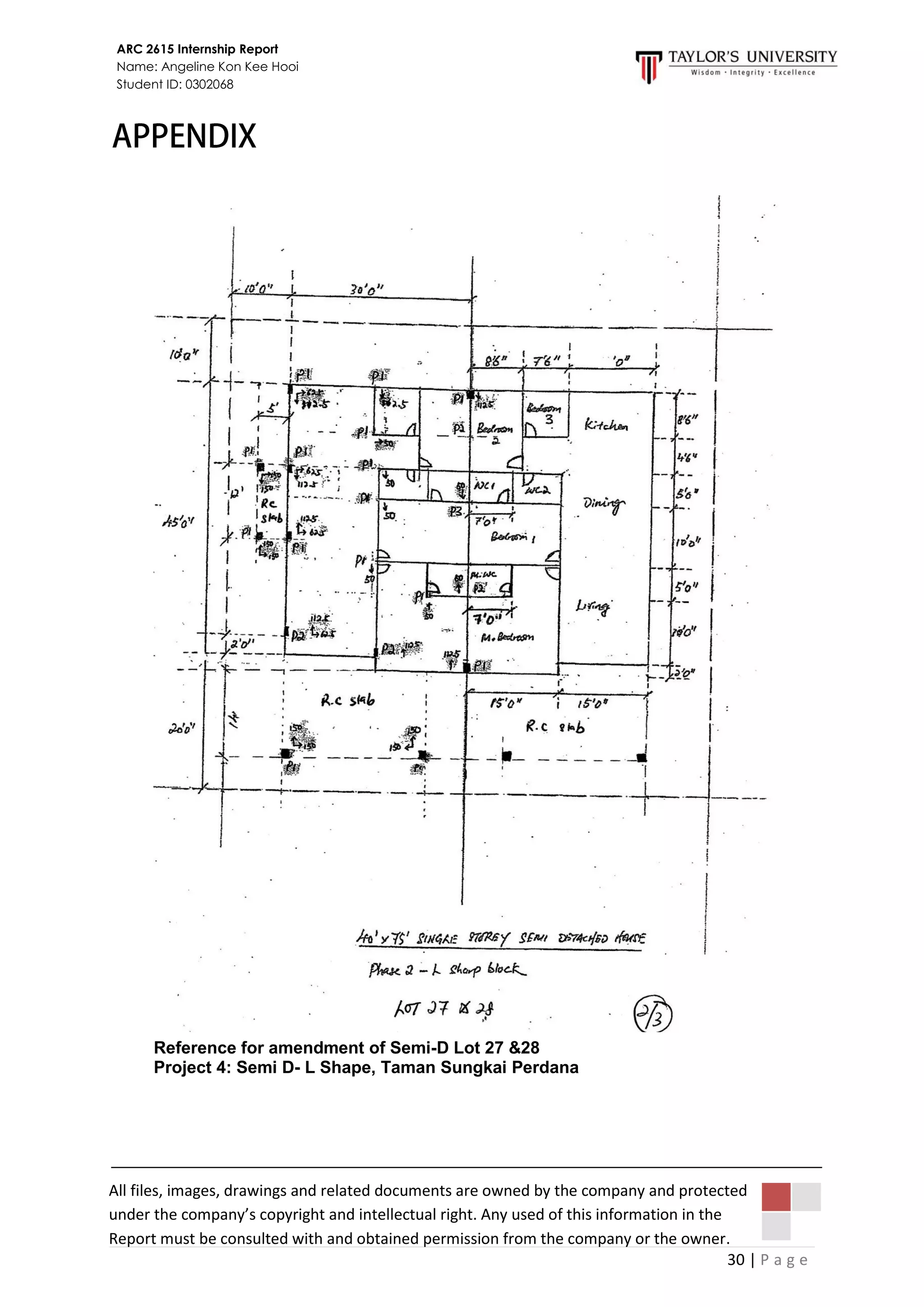

Reference for amendment of Semi-D Lot 27 &28
Project 4: Semi D- L Shape, Taman Sungkai Perdana
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

31. 31 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Reference for amendment of Semi-D Lot 29 &30
Project 4: Semi D- L Shape, Taman Sungkai Perdana

32. 32 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068

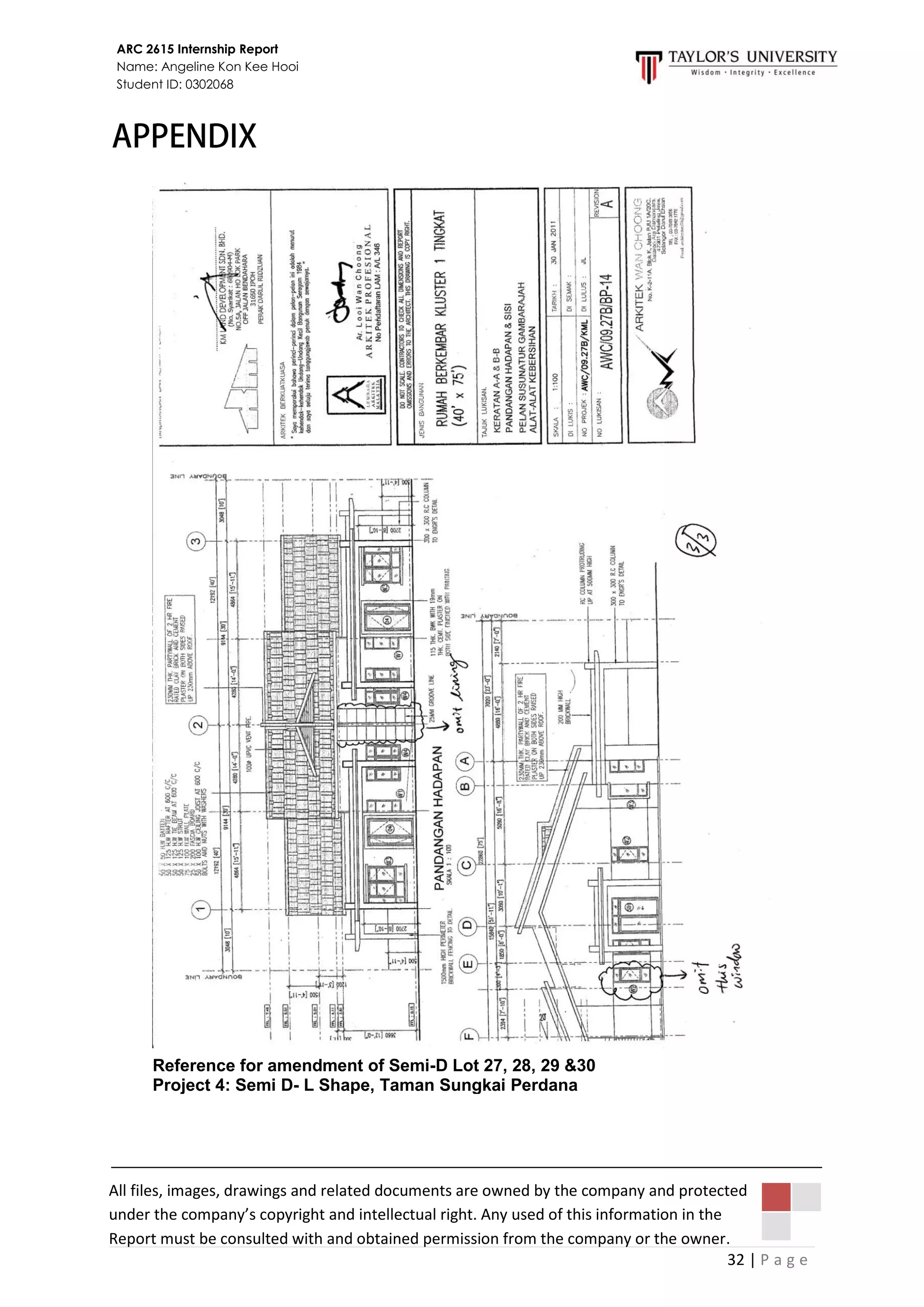

Reference for amendment of Semi-D Lot 27, 28, 29 &30
Project 4: Semi D- L Shape, Taman Sungkai Perdana
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

33. 33 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Prepare Drawing Transmittal for Tanjung Karang
Project 2: Proposed Business Scheme for 1.10 Acres Tanjung Karang
Plotting A1 Architectural Drawings for temporary structure permit application
Project 2: Proposed Business Scheme for 1.10 Acres Tanjung Karang

34. 34 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
Folding and Arranging Architectural Drawings for MBSA Building Plan Submission
Project 2: Proposed Business Scheme for 1.10 Acres Tanjung Karang
3-page folding method and 4-page folding method
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

35. 35 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068

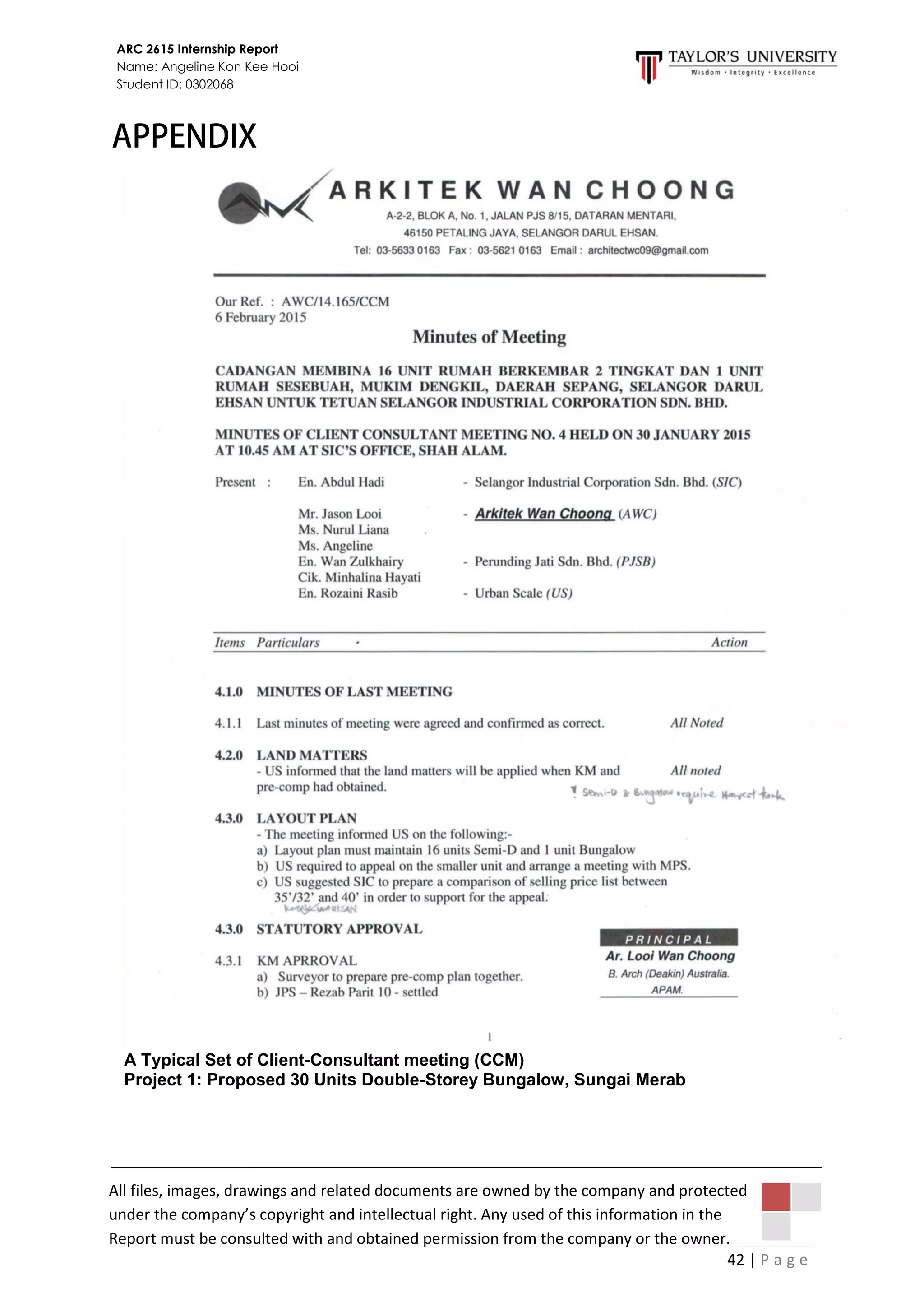

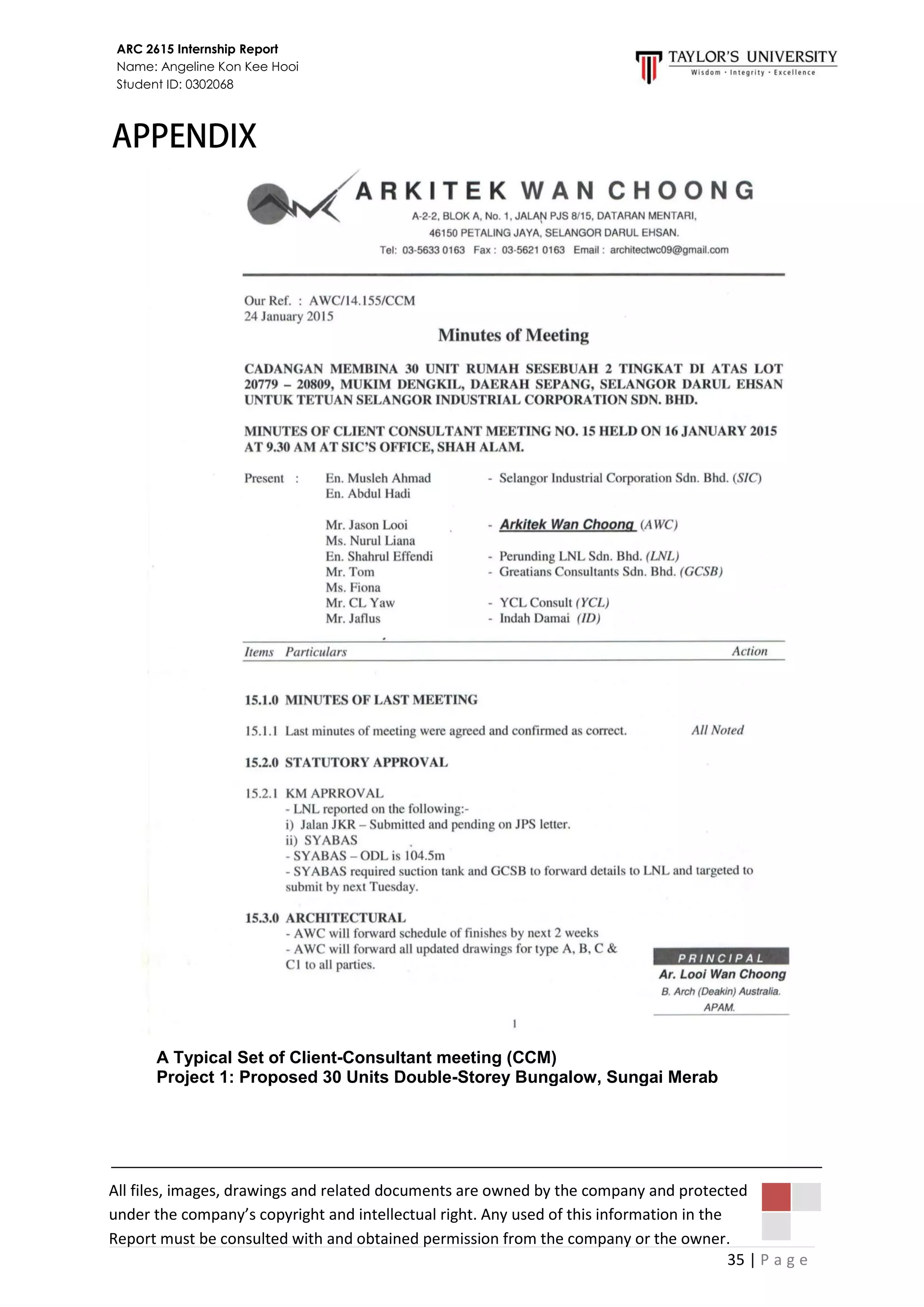

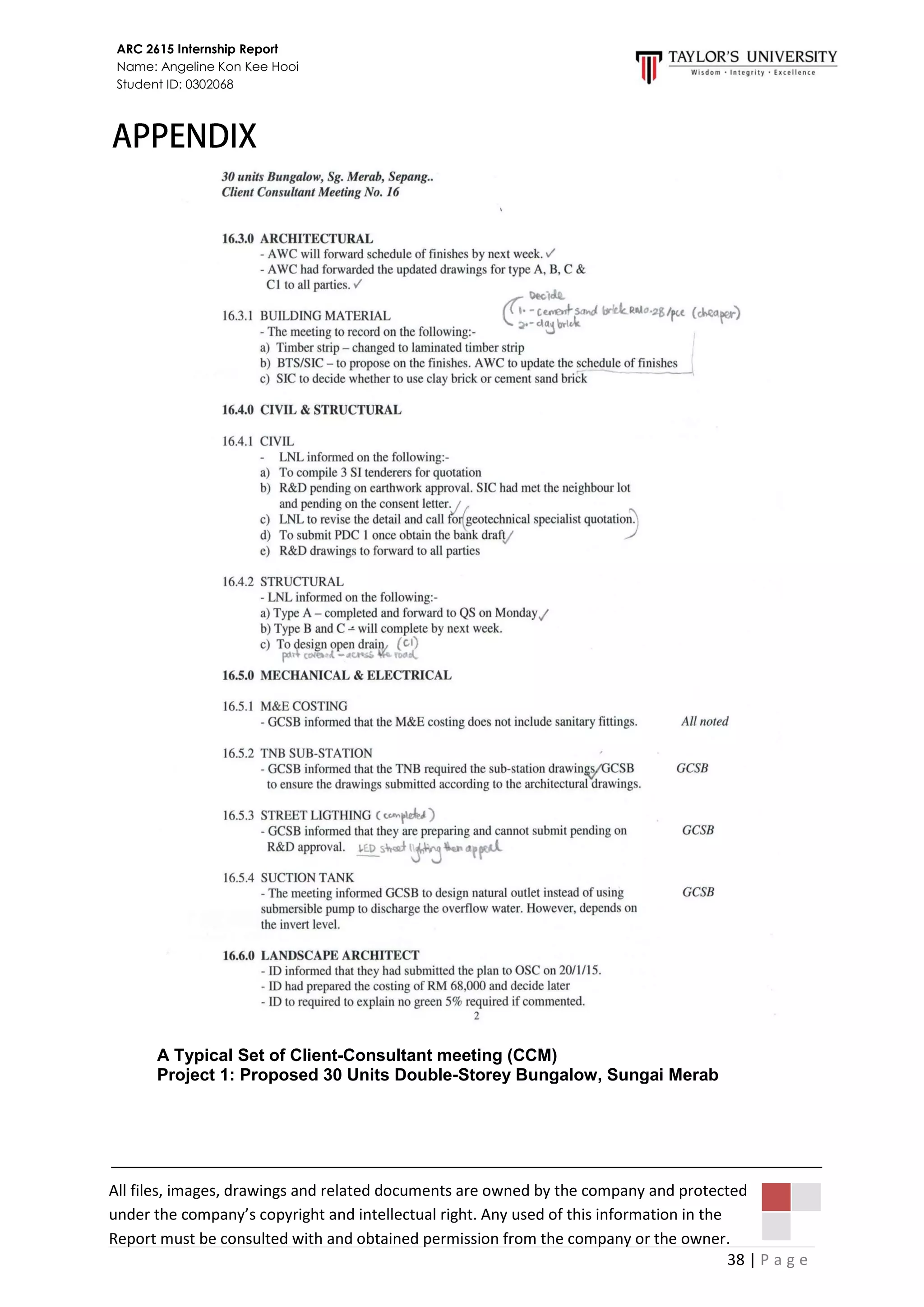

A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

36. 36 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

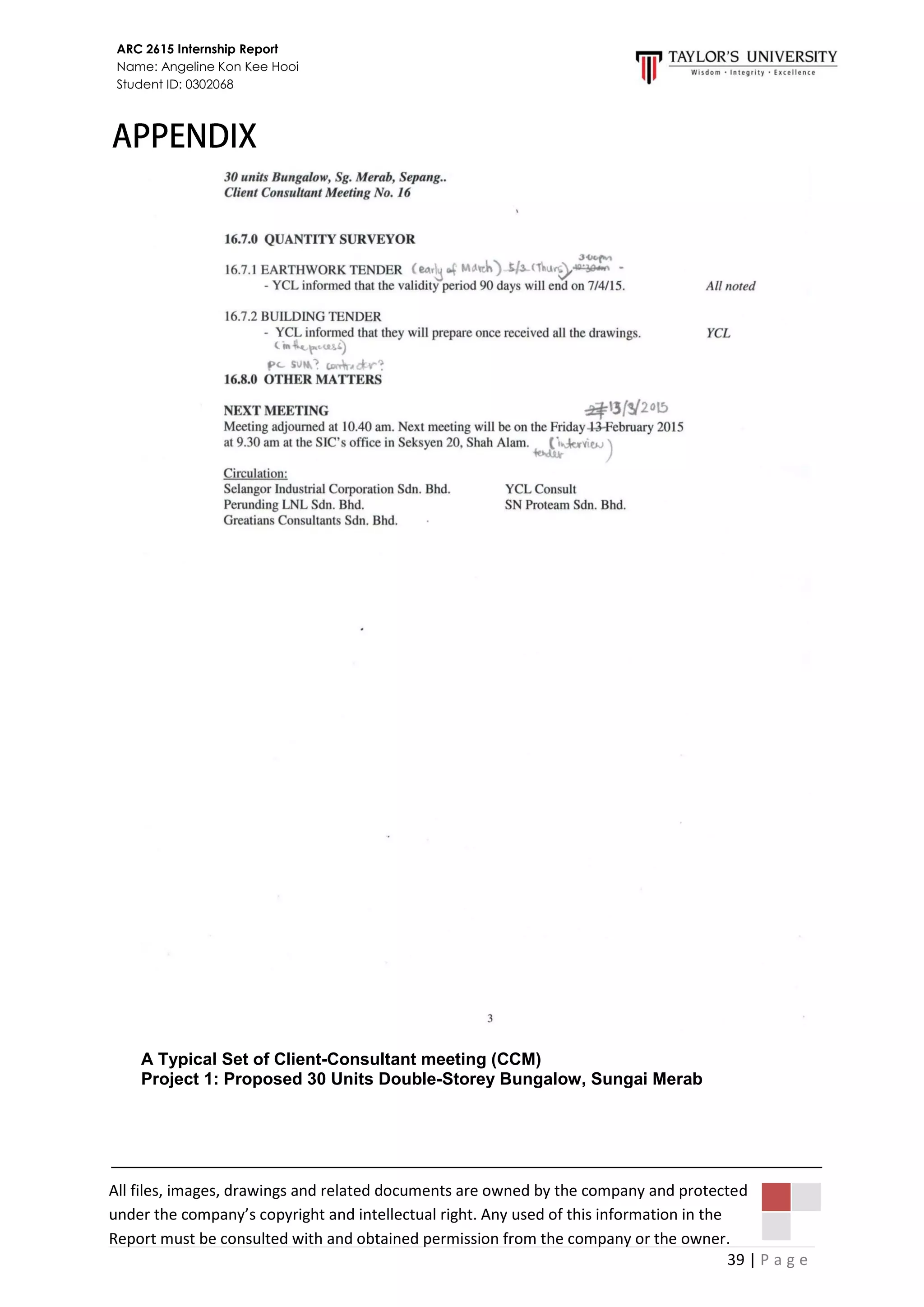

A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

37. 37 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

38. 38 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

39. 39 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

40. 40 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

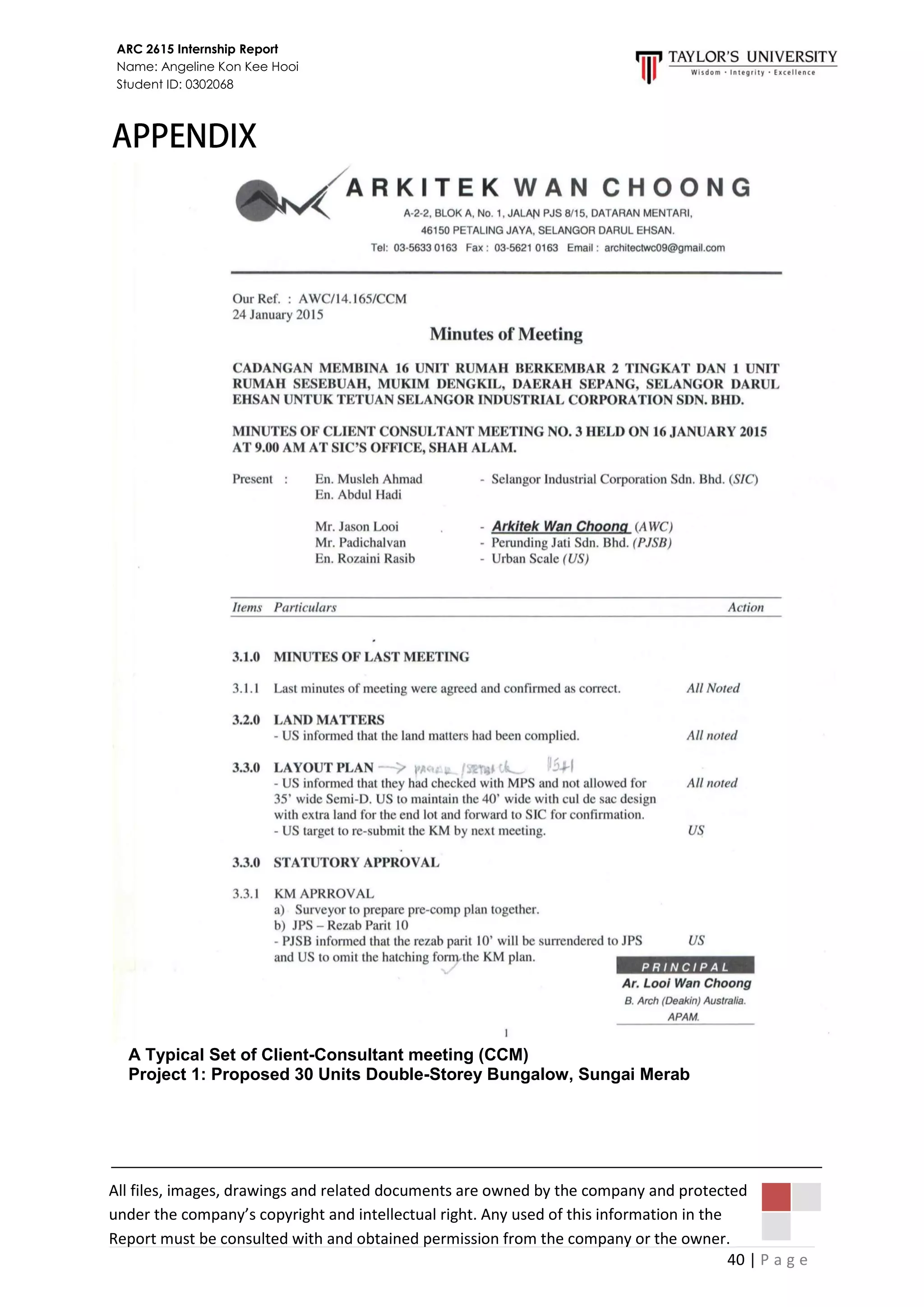

A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

41. 41 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
A Typical Set of Client-Consultant meeting (CCM)

42. 42 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

43. 43 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
A Typical Set of Client-Consultant meeting (CCM)
Project 1: Proposed 30 Units Double-Storey Bungalow, Sungai Merab

44. 44 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
Choices of building materials from suppliers
for building construction
Project 5: Equine TTDI, Seri Kembangan
Project team discussing site issues
Project 5: Equine TTDI, Seri Kembangan
View of the office lots
Project 5: Equine TTDI, Seri Kembangan
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

45. 45 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

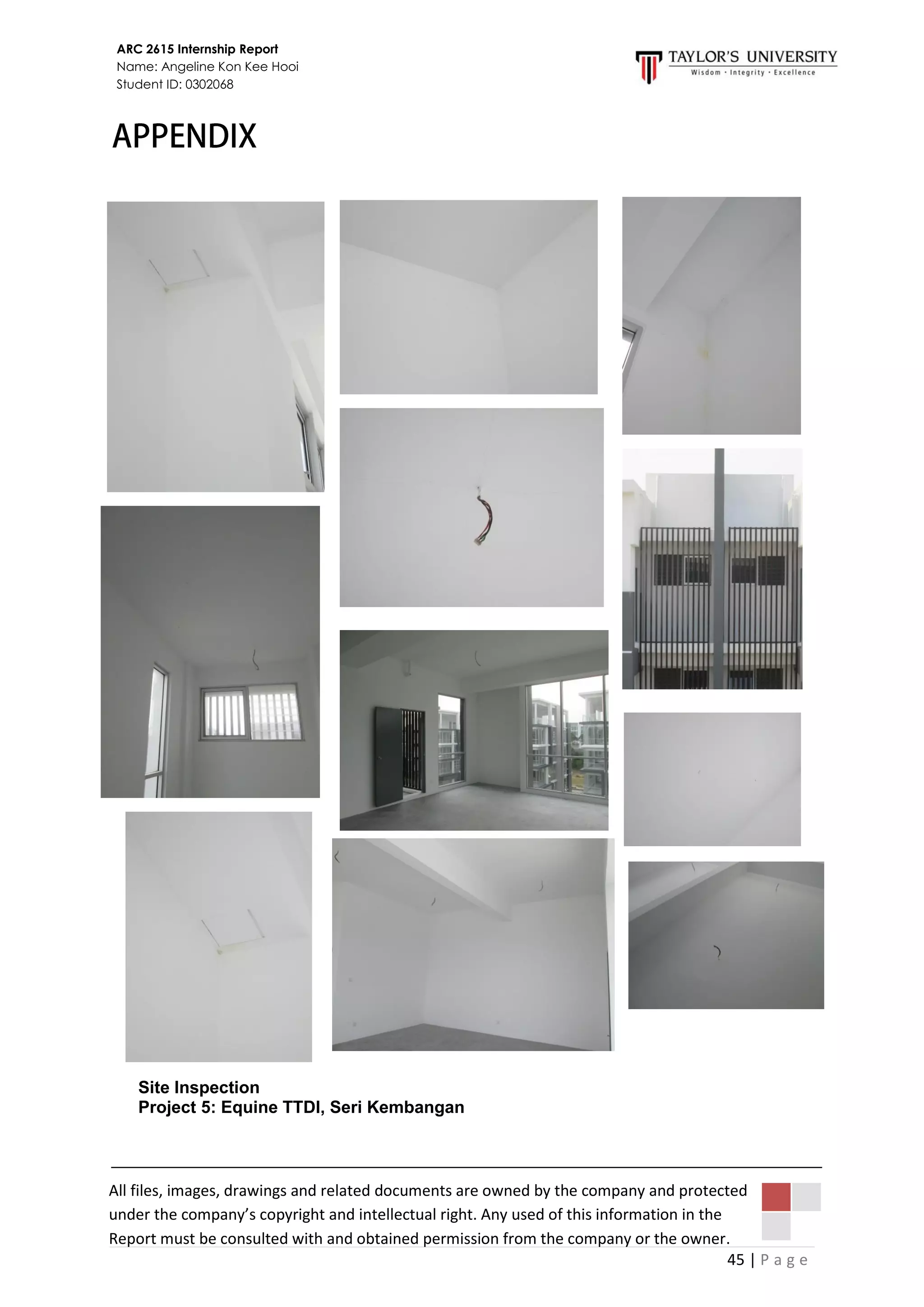

Site Inspection
Project 5: Equine TTDI, Seri Kembangan

46. 46 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Project team discussing site issues
Project 5: Equine TTDI, Seri Kembangan
One Stop Centre (OSC), DBKL
Project 7: Proposed Homeless Shelters, Jalan Pahang

47. 47 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

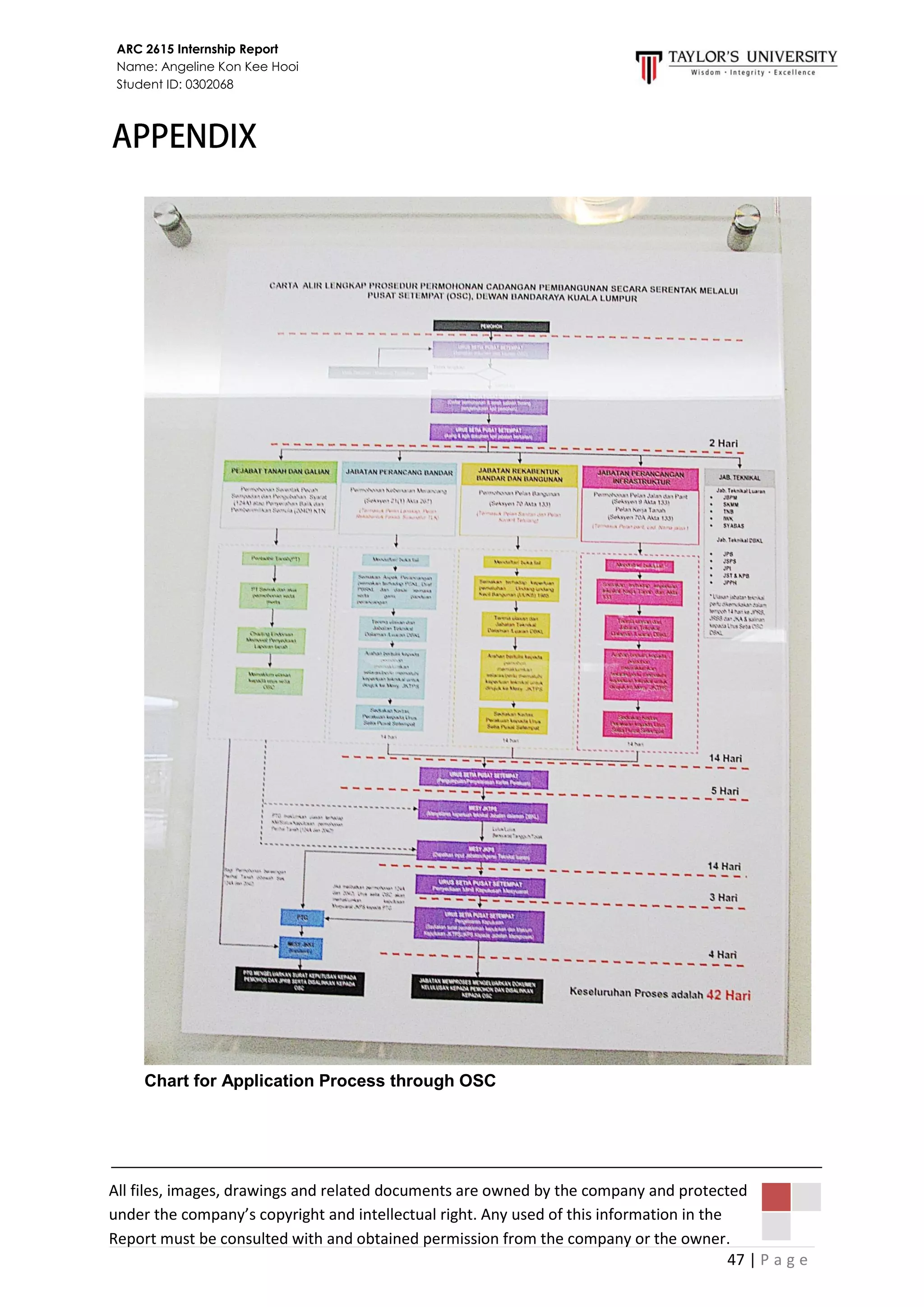

Chart for Application Process through OSC

48. 48 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

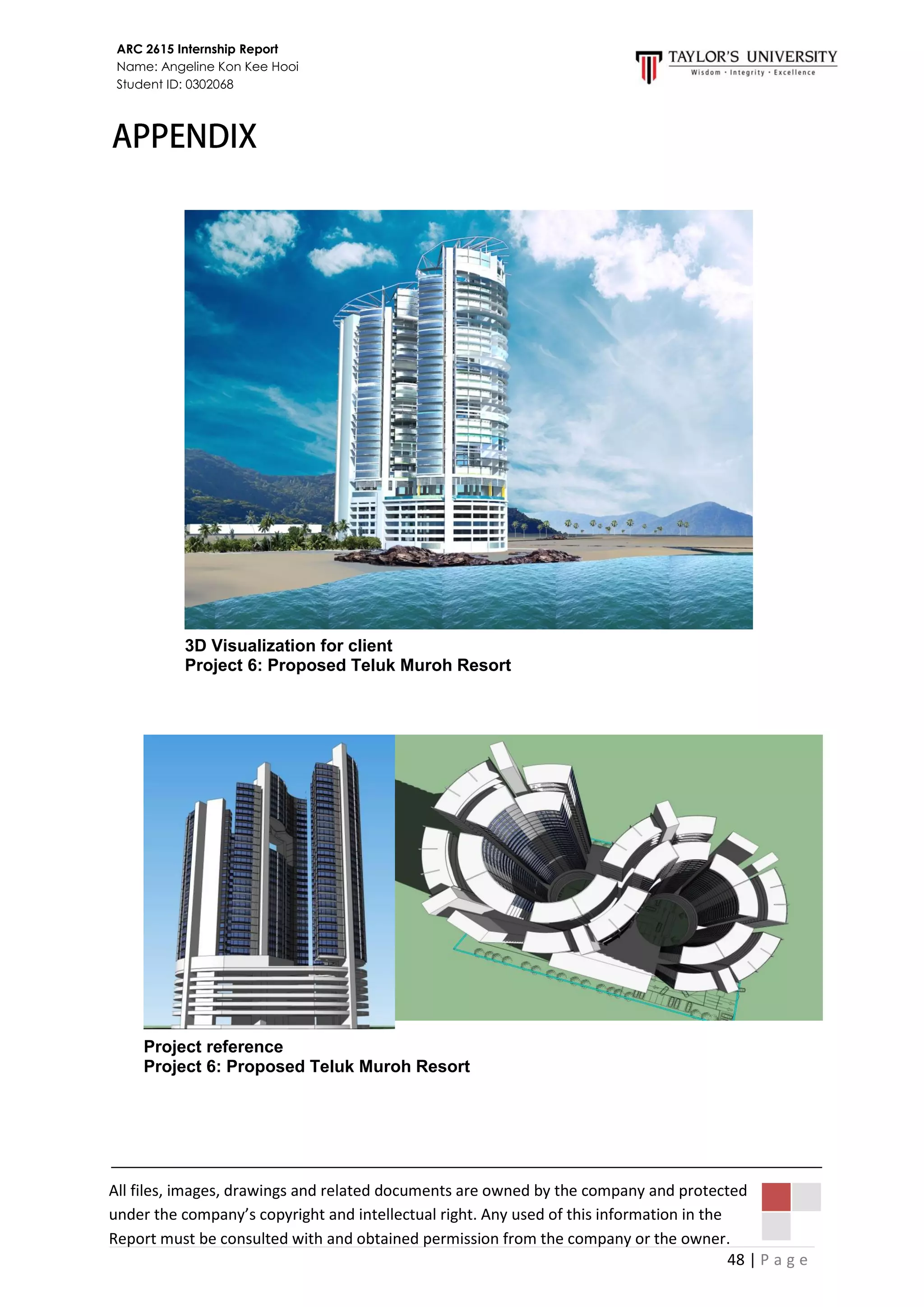

3D Visualization for client
Project 6: Proposed Teluk Muroh Resort
Project reference
Project 6: Proposed Teluk Muroh Resort

49. 49 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

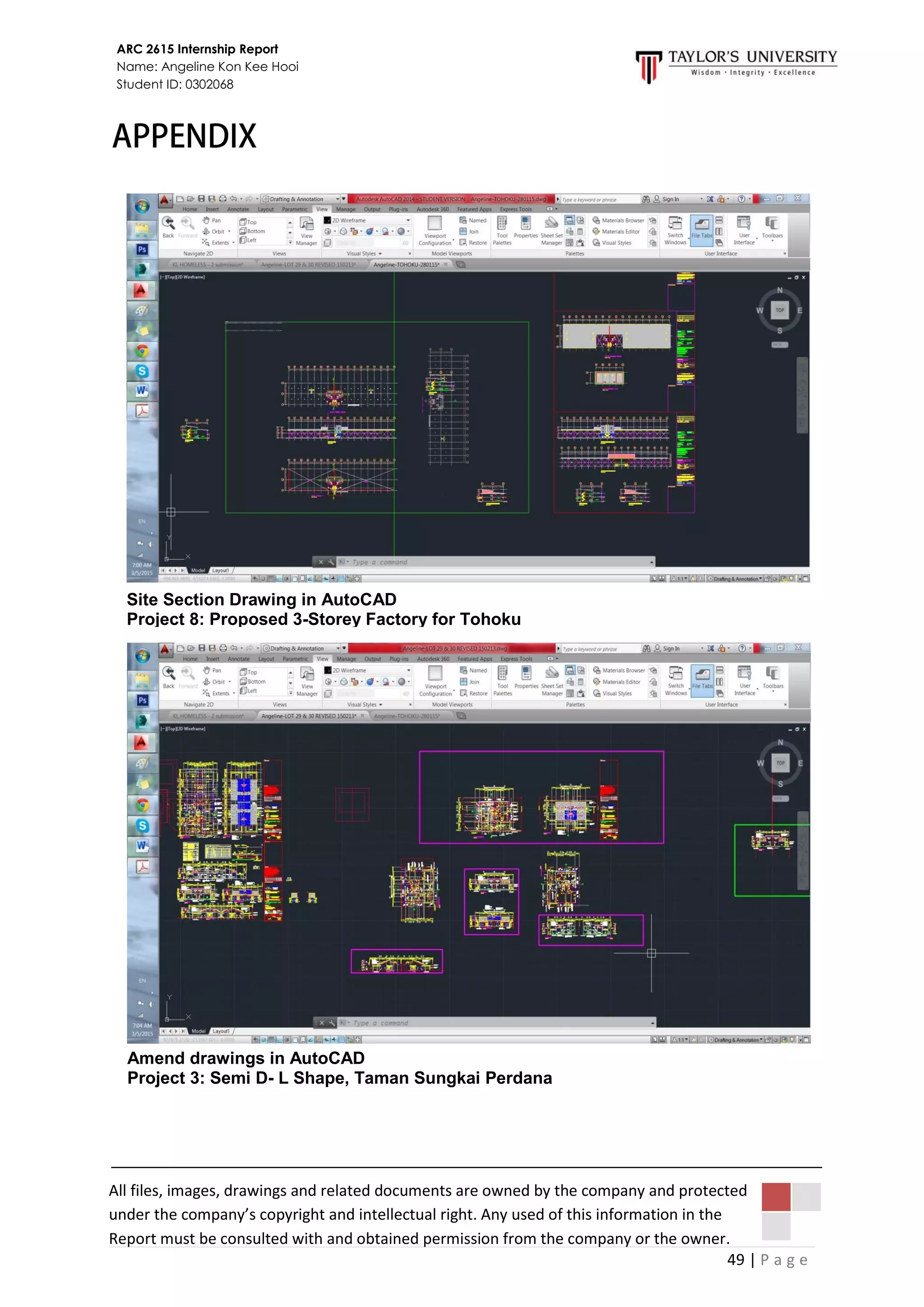

Site Section Drawing in AutoCAD
Project 8: Proposed 3-Storey Factory for Tohoku
Amend drawings in AutoCAD
Project 3: Semi D- L Shape, Taman Sungkai Perdana

50. 50 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
Folding and arranging architectural drawings for tender drawing
Project 7: Proposed Homeless Shelters, Jalan Pahang
8 sets of drawings for tender drawing
Project 7: Proposed Homeless Shelters, Jalan Pahang
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

51. 51 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
Chinese New Year Company’s Dinner
Farewell Lunch

53. 53 | P a g e
ARC 2615 Internship Report
Name: Angeline Kon Kee Hooi
Student ID: 0302068
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.

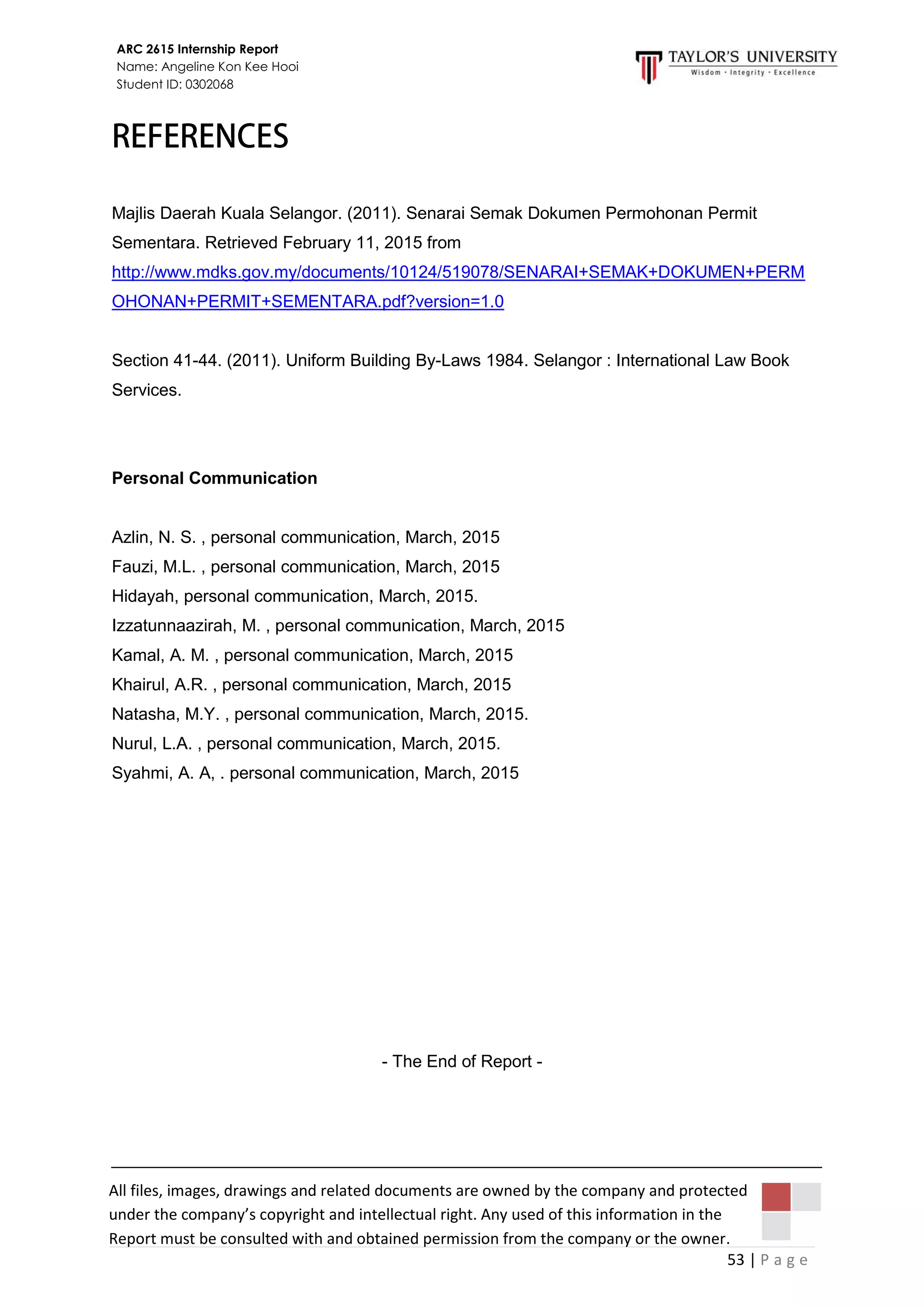

Majlis Daerah Kuala Selangor. (2011). Senarai Semak Dokumen Permohonan Permit
Sementara. Retrieved February 11, 2015 from
http://www.mdks.gov.my/documents/10124/519078/SENARAI+SEMAK+DOKUMEN+PERM
OHONAN+PERMIT+SEMENTARA.pdf?version=1.0
Section 41-44. (2011). Uniform Building By-Laws 1984. Selangor : International Law Book
Services.
Personal Communication
Azlin, N. S. , personal communication, March, 2015
Fauzi, M.L. , personal communication, March, 2015
Hidayah, personal communication, March, 2015.
Izzatunnaazirah, M. , personal communication, March, 2015
Kamal, A. M. , personal communication, March, 2015
Khairul, A.R. , personal communication, March, 2015
Natasha, M.Y. , personal communication, March, 2015.
Nurul, L.A. , personal communication, March, 2015.
Syahmi, A. A, . personal communication, March, 2015
- The End of Report -

54. 54 | P a g e
All files, images, drawings and related documents are owned by the company and protected
under the company’s copyright and intellectual right. Any used of this information in the
Report must be consulted with and obtained permission from the company or the owner.
