Approach To DysphagiaApproach To Dysphagia
Fuad Ridha MahabotFuad Ridha Mahabot
1

2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .IntroductionIntroduction
• is a general term used to describe the inability to move food from the
mouth to the stomach
• should be differentiated from disorders that prevent transfer of food to
the mouth or beyond the stomach but that are not characterized by
difficulty swallowing - e.g. feeding disorder/gastric outlet obstruction
• an average of 10 million Americans are evaluated for swallowing
disorders annually
2

3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DefinitionDefinition
• dysphagia - difficulty in swallowing
• odynophagia - swallowing causes pain
• usually patient comes with the complaint of
 throat discomfort
 FB sensation
 feel of hold up
 absolute difficulty in swallowing
3

4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Summary of Stages of DeglutitionSummary of Stages of Deglutition

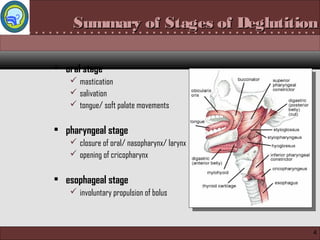

• oral stage
 mastication
 salivation
 tongue/ soft palate movements
• pharyngeal stage
 closure of oral/ nasopharynx/ larynx
 opening of cricopharynx
• esophageal stage
 involuntary propulsion of bolus
4

5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
stage Istage I stage IIstage II

6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
stage IIIstage III

7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .AetiologyAetiology
• can de divided into:
 pre-oesophageal (i.e. due to disturbance in the oral or pharyngeal phase of
deglutition)
 oesophageal (when disturbance is in oesophageal phase)
7

8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pre-oesophageal causes
• oral phase - normally, food must be masticated, lubricated with saliva,
converted into bolus by movement of tongue and then pushed into
pharynx by elevationof tongue against hard palate
• any disturbance in these events will cause dysphagia
• abnormalities are due to:
 cannot hold food in the mouth anteriorly due to reduced lip closure
 cannot form / hold a bolus or residue on the floor of the mouth due to reduced
range of tongue motion or coordination
8

9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 unable to align teeth due to reduced mandibular movement
 entry of food material into the anterior sulcus or the presence of residue in the
anterior sulcus due to reduced labial tension or tone
 entry of food material into the lateral sulcus or the presence of residue in the
lateral sulcus due to reduced buccal tension or tone
 abnormal hold position or material falls to the floor of the mouth due to tongue
thrust or reduced tongue control
 delayed oral onset of swallow due to apraxia of swallow or reduced oral
sensation
 searching motion or inability to organize tongue movements due to apraxia of
swallow
9

10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 forward tongue movement to start the swallow due to tongue thrust
 residue of food on the tongue due to reduced tongue range of movement or
strength
 disturbed lingual contraction (peristalsis) due to lingual discoordination
 incomplete tongue-to-palate contact due to reduced tongue elevation
 unable to mash material due to reduced tongue elevation
 adherence of food to hard palate due to reduced tongue elevation or reduced
lingual strength
10

11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aetiology of Oral Phase
congenital cleft palate, lingual thyroid
inflammatory stomatitis, glossitis, ulcer, sialadenitis, TMJ arthritis, ludwig’s angina, trismus,
dental
trauma # maxilla/ mandible, cheek/ tongue bite, corrosive poisoning
neurological palsy: palatal/ lingual/ facial;
spasm: trismus/ tetanus
neoplastic papilloma, salivary tumors, ranula, carcinoma, jaw tumors, etc.
miscellaneous xerostomia-nutritional/ radiotherapy
11

12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12
tongue ulcertongue ulcer
Ludwing’s AnginaLudwing’s Angina

13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13

14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• pharyngeal phase - normally, food should enter the pharynx and then
be directed towards oesophageal opening
• all unwanted communications into the nasopharynx, larynx, oral cavity
should be closed
• abnormalities are due to
 delayed pharyngeal swallow
 nasal penetration during swallow due to reduced velopharyngeal closure
 pseudoepiglottis (after total laryngectomy) - fold of mucosa at the base of the
tongue
14

15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 cervical osteophytes
 coating of pharyngeal walls after the swallow due to bilateral reduction
of pharyngeal contraction
 vallecular residue due to reduced posterior movement of the tongue base
 coating in a depression on the pharyngeal wall due to scar tissue or pharyngeal
pouch
 residue at top of airway due to reduced laryngeal elevation
 aspiration during swallow due to reduced laryngeal closure
 stasis of residue in pyriform sinuses due to reduced anterior laryngeal
pressure
 delayed pharyngeal transit time
15

16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aetiology of Pharyngeal Phase
congenital pharyngeal diverticulum (Zenker’s diverticulum)
inflammatory pharyngitis, tonsillitis, quinsy, retro/ parapharyngeal abscess, TB laryngitis,
acute epiglotitis, etc.
trauma FB, corrosive poisoning, iatrogenic trauma, road traffic accidents
neurological cricopharyngeal spasm, VC palsy (aspiration), tetanus, etc.
neoplastic benign: salivary tumors, papilloma, etc.,
malignant: ca. tonsil/ base tongue/ hypopharynx/ larynx, salivary tumors, etc.
miscellaneous Plummer-Wilson syndrome, globus hystericus
16

17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exudative TonsillitisExudative Tonsillitis Hypopharynx MalignancyHypopharynx Malignancy

18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18

19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• other causes of oropharyngeal dysphagia - neuromyogenic
 stroke
 head trauma
 Parkinson's disease and parkinsonism
 amyotrophic lateral sclerosis
 multiple sclerosis
 myasthenia gravis
 myopathies (inflammatory, metabolic)
19

20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oesopharyngeal causes - lesion may lie in the lumen, on the wall or
outside the wall of oesophagus
i. structural disorders
 inflammatory and/or fibrotic strictures
• peptic
• caustic
• pill-induced
• radiation-induced
20

21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 mucosal rings and webs
• Schatzki's ring
• multiringed esophagus (eosinophilic esophagitis)
ii. carcinoma
 primary (squamous, adenocarcinoma)
 secondary (e.g. breast, melanoma)
21

22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iii. disorders related to systemic diseases
 pemphigus and pemphigoid conditions
 Lichen planus
 scleroderma (multifactorial)
 intramural lesions
 leiomyoma
 granular cell tumor
22

23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iv. extramural lesions
 aberrant right subclavian artery (dysphagia lusoria)
 mediastinal masses
 bronchial carcinoma
v. anatomical abnormalities
 hiatal hernia
 esophageal diverticulum
23

24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
vi. motility disorders
 achalasia and achalasia-like disorders
 idiopathic (classic) achalasia
 atypical disorders of lower esophageal sphincter relaxation
 Chaga’s disease
 pseudoachalasia
24

25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ca OesophagusCa Oesophagus Gastro Oesophageal Reflux DiseaseGastro Oesophageal Reflux Disease

26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
foreign bodyforeign body
Achalasia CardiaAchalasia Cardia

27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .History Takings and EvaluationHistory Takings and Evaluation
• taking a careful history is vital for the evaluation of dysphagia.
• the history will yield the likely underlying
 pathophysiologic process
 anatomic site of the problem in most patients - 80%
 crucial for determining whether subsequently detected radiographic or
endoscopic 'anomalies' are relevant or incidental
27

28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Three fundamental aims should be met when taking a dysphagia
history
i. to establish whether or not dysphagia is actually present; that is, to distinguish
true dysphagia from
• globus sensation (in between meals)
• xerostomia - loose the lubrication properties and stimulus
• odynophagia - transient than dysphagia, and persists only during the 15–
30 secs that a bolus takes to traverse the esophagus
28

29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii. to determine whether the site of the problem is esophageal or pharyngeal
iii. to distinguish a structural abnormality from a motor disorder.
These avenues of enquiry are outlined below in an order that corresponds to that of a
highly effective diagnostic algorithm.
• history will also dictate whether the next diagnostic procedure should
be endoscopy, a barium swallow or esophageal manometry
• in some difficult cases, all three diagnostic techniques may need to be
performed to establish an accurate diagnosis
29

30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Where is the site of bolus hold-up?
• retrosternal bolus hold-up indicates that the disorder lies within the
esophagus.
• however, the patient's perception of an apparent bolus hold-up in the
neck has low diagnostic specificity, and cervical localization per se
does not help the clinician to distinguish pharyngeal from esophageal
causes of dysphagia.
30

31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• owing to viscerosomatic referral, in 30% of cases the perceived site of
hold-up is above the suprasternal notch when the actual hold-up is
within the esophageal
31

32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Does the patient report symptoms that are predictive of oropharyn-
geal dysfunction
• there are four symptoms that have high specificity for oropharyngeal
dysfunction:
 delayed or absent oropharyngeal swallow initiation
 deglutitive postnasal regurgitation or egress of fluid through the nose during
swallowing
 deglutitive cough indicative of aspiration
 the need to swallow repetitively to achieve satisfactory clearance of swallowed
material from the hypopharynx
32

33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• if one or more of these four symptoms are present then the cause of
dysphagia is probably oropharyngeal, either structural or
neuromyogenic
33

34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oropharyngeal vs. Oesophageal DysphagiaOropharyngeal vs. Oesophageal Dysphagia
34

35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oesophageal differentiation - mechanical vs. motility disorder
i. is the dysphagia for the solids or liquids?
 patients who have a motor disorder will describe dysphagia for liquids and
solids
 whereas patients who have structural disorders will describe dysphagia for
solids only
 once a solid bolus becomes impacted, the patient will report dysphagia for
liquids and solids
35

36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii. motility - features
 three cardinal features of dysmotility
• dysphagia (for solids and liquids)
• chest pain
• regurgitation
 regurgitation during meals, as well as spontaneous regurgitation between meals
or at night, is highly suggestive of dysmotility
 unlike regurgitation that is related to GERD, the regurgitated fluid in patients
with esophageal dysmotility is generally not noxious to taste
36

37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 in addition, spasm or achalasia typically cause chest pain. Although this chest
pain is frequently described as 'heavy' or 'crushing', it can be indistinguishable
from the typical 'heartburn' of reflux.
 the pain frequently occurs during meals, but it can be quite unpredictable and
sporadic or nocturnal.
 sipping antacids or even water can relieve the pain related to dysmotility, which
further confuses its distinction from reflux-related pain.
37

38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How long has dysphagia been present? Is it intermittent? Is it
progressive?
• slowly progressive, long-standing dysphagia, particularly against a
background of reflux, is suggestive of a peptic stricture.
• severity of heartburn correlates poorly with esophageal mucosal
damage. For example, patients who have severe mucosal changes,
including strictures and Barrett's mucosa, could have had minimal or
no heartburn in the immediate past.
38

39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
• a short history of dysphagia — particularly with rapid progression
(weeks or months) and associated weight loss — is highly suggestive of
esophageal cancer
• long-standing, intermittent, nonprogressive dysphagia purely for solids
is indicative of a fixed structural lesion such as distal esophageal ring
or proximal esophageal mucosal web
39

40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
40

41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Physical ExaminationPhysical Examination
Physical examination for dysphagia:
 patient's level of alertness and cognitive status, including vital signs
 examination of cranial nerves V and VII-XII
 complete examination of neck and chest including assessment of cervical lymph
nodes (if present)
 assessement of voice
 direct observation of lip closure, jaw closure, chewing and mastication, tongue
mobility and strength, palatal and laryngeal elevation, salivation, and oral
sensitivity
 inspection the oral cavity and pharynx
41

42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 examination of soft palate for position and symmetry during phonation and at
rest
 evaluation of pharyngeal elevation by placing 2 fingers on the larynx and
assessing movement during a volitional swallow
 examination of gag reflex by stroking the pharyngeal mucosa with a tongue
depressor
 direct observation of the act of swallowing. At a minimum, watch the patient
while he/she drinks a few ounces of water. If possible, assess the patient's
eating of various food textures. After the swallow, observe the patient for 1
minute or more to see if a delayed cough response is present
42

43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
 skin should be examined for features of connective tissue disorders,
particularly scleroderma and CREST (calcinosis, Raynaud's phenomenon,
esophageal dysmotility, sclerodactyly and telangiectasia) syndrome.
 muscle weakness or wasting might be evident if myositis is present, and
myositis can overlap with other connective tissue disorders that affect the
esophagus
 signs of malnutrition, weight loss and pulmonary complications from aspiration
should be looked for
43

44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .InvestigationsInvestigations
Blood Investigations – to screen for
 infectious or inflammatory conditions
 nutritional status
 fluid-electrolyte imbalance
 thyroid function - in detecting dysphagia associated with hypothyroidism or
hyperthyroidism
Radiography
i. chest x-ray - mediastinum, cardiac and pulmonary status, aspiration
pneumonia, also to rule out secondaries
44

45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii. lateral x-ray soft tissue neck - to detect any soft tissue lesions of post
cricoid or retropharyngeal space, prevertebral widening, osteophytes, foreign
bodies, etc.
iii. barium swallow
iv. CT scan - to evaluate mass lesions in the neck
v. MRI
• useful when neurologic disorders are suspected
• delineate mass lesions in the brain
• evaluate degenerative processes in the brain and spinal cord
45

46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Barium SwallowBarium Swallow
in Achalasiain Achalasia
CardiaCardia

47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Endoscopies
i. direct laryngoscopy
ii. flexible nasopharyngoscopy
iii. bronchosocpy
iv. oesophagoscopy
 give direct examination of pharyngeal as well as oesophageal mucosa
 permits biopsy
47

48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tests
i. Videofluoroscopic Swallowing Study (VFSS)
• a.k.a Modified Barium Swallow (MBS)
• definitive study for evaluation of the swallowing mechanism
• uses different barium consistencies and simulated foods
• assess pharyngeal anatomy and motility and may evaluates all phases of
swallowing
• superior to FEES for evaluating the oral phase and aspiration
48

49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii. Fiberoptic endoscopic evaluation of swallowing (FEES)
• using transnasal laryngoscope
• food colored with blue liquid dye viewed directly via scope
• advantages - for detection premature bolus loss, laryngeal penetration,
tracheal aspiration, and pharyngeal residue
• disadvantages - not demonstrate the motion of essential food pathway
structures
• FEES may be helpful when VFSS is not feasible (e.g. in critically ill patient,
patients in ICU who cannot be transferred to the fluoroscopy room)
49

50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iii. Oesophageal Manometry
• to assess motor function of the esophagus
• a catheter with several electronic pressure probes is passed into the
stomach to measure esophageal contractions and to define upper and
lower esophageal responses to swallowing
• advantages:
– senses the activity of the muscles
– identifies subtle failures of pressure generation or hyperfunctioning of the
sphincters
– helps accurately diagnose the site of dysfunction
50

51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iv. Oesophageal pH Monitoring
• standard criteria for diagnosing reflux disease
• a nasogastric probe is inserted into the patient's esophagus to record pH
levels
• these levels are compared with the patient's record of symptoms over 24
hours to determine whether acid reflux contributes to his/her symptoms
v. Swallowing and Laryngeal Electromyography
vi. Scintigraphy
51

52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Swallow Carefully!!!Swallow Carefully!!!
Thank YouThank You
52
