The document is an overview of Android programming focusing on web services, including SOAP, XML, and the ksoap2 library. It explains what web services are and their significance, detailing SOAP as a protocol for communication and various XML parsers, such as SAX, DOM, and Pull parsers. It also discusses the ksoap2 library for Android, which facilitates SOAP web service communication in constrained environments.

1. Android Programming
Lesson 10
Web services
NGUYEN The Linh

2. Android Programming
Contents
1 Overview
2 Working with SOAP services
3 Working with XML
4 Using KSoap2 Library
2

3. Android Programming
Web services
Overview
3

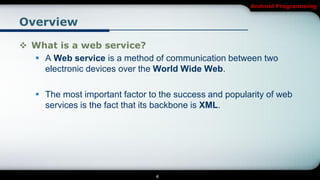

4. Android Programming
Overview
 What is a web service?
 A Web service is a method of communication between two
electronic devices over the World Wide Web.
 The most important factor to the success and popularity of web
services is the fact that its backbone is XML.
4

5. Android Programming
Overview
 What is a web service?(cont.)
5

6. Android Programming
Overview
 What is a web service?(cont.)
Request -> POST
XML
Web
services
Response
XML
6

7. Android Programming
Web services
Working with SOAP services
7

8. Android Programming
Working with SOAP services
 What is SOAP?
 SOAP stands for Simple Object Access Protocol
 SOAP is a communication protocol
 SOAP is for communication between applications
 SOAP is a format for sending messages
 SOAP communicates via Internet
8

9. Android Programming
Working with SOAP services
 What is SOAP? (cont.)
 SOAP is platform independent
 SOAP is language independent
 SOAP is based on XML
 SOAP is simple and extensible
 SOAP is a W3C recommendation
9

10. Android Programming
Working with SOAP services
 Why is SOAP Needed?
 It is important for application development to allow Internet
communication between programs.
 HTTP is supported by all Internet browsers and servers.
 SOAP provides a way to communicate between applications
running on different operating systems, with different technologies
and programming languages.
10

11. Android Programming
Working with SOAP services
 SOAP Building Blocks
11

12. Android Programming
Working with SOAP services
 SOAP Building Blocks (cont.)
 An Envelope element that identifies the XML document as a
SOAP message.
 A Header element that contains header information.
 A Body element that contains call and response information.
12

13. Android Programming
Working with SOAP services
13

14. Android Programming
Working with SOAP services
14

15. Android Programming
Web services
Working with XML
15

16. Android Programming
Working with XML
 What is XML?
 XML stands for EXtensible Markup Language
 XML is a markup language much like HTML
 XML was designed to carry data, not to display data
 XML tags are not predefined. You must define your own tags
 XML is designed to be self-descriptive
 XML is a W3C Recommendation
16

17. Android Programming
Working with XML
 What is XML Parser?
 A parser is a piece of program that takes a physical representation
of some data and converts it into an in-memory form for the
program as a whole to use.
 Parsers are used everywhere in software.
 An XML Parser is a parser that is designed to read XML and
create a way for programs to use XML.
17

18. Android Programming
Working with XML
 The main types of parsers?
 The main types of parsers are known by some names:
• SAX
• DOM
• Pull
18

19. Android Programming
Working with XML
 What is SAX parser?
 A SAX (Simple API for XML) parser does not create any internal
structure. Instead, it takes the occurrences of components of an
input document as events, and tells the client what it reads as it
reads through the input document.
 A SAX parser serves the client application always only with
pieces of the document at any given time.
19

20. Android Programming
Working with XML
 What is SAX parser? (cont.)
 A SAX parser, however, is much more space efficient in case of a
big input document (because it creates no internal structure).
What’s more, it runs faster and is easier to learn than DOM
parser because its API is really simple.
 But from the functionality point of view, it provides a fewer
functions, which means that the users themselves have to take
care of more, such as creating their own data structures.
20

21. Android Programming
Working with XML
21

22. Android Programming
Working with XML
22

23. Android Programming
Working with XML
 What is DOM parser?
 A DOM (Document Object Model) parser creates a tree structure
in memory from an input document and then waits for requests
from client.
 A DOM parser always serves the client application with the entire
document no matter how much is actually needed by the client.
23

24. Android Programming
Working with XML
 What is DOM parser? (cont.)
 A DOM parser is rich in functionality.
 It creates a DOM tree in memory and allows you to access any
part of the document repeatedly and allows you to modify the
DOM tree.
 But it is space inefficient when the document is huge, and it takes
a little bit longer to learn how to work with it.
24

25. Android Programming
Working with XML
25

26. Android Programming
Working with XML
 What is Pull parser?
 SAX is a push parser, since it pushes events out to the calling
application.
 Pull parsers, on the other hand, sit and wait for the application to
come calling. They ask for the next available event, and the
application basically loops until it runs out of XML.
26

27. Android Programming
Working with XML
 What is Pull parser? (cont.)
 Pull parsers are useful in streaming applications, which are areas
where either the data is too large to fit in memory.
 It is designed to be used with large data sources, and unlike SAX
which returns every event, the pull parser can choose to skip
events that it is not interested in.
27

28. Android Programming
Working with XML
28

29. Android Programming
Working with XML
 What is Pull parser? (cont.)
 The above example will generate the following output:
• Start document
• Start tag contact
• Text Nguyen Van A
• End tag contact
• End document
29

30. Android Programming
Working with XML
 Example 10.1
 GetLove App
 http://nikmesoft.com/apis/J4FServices/
index.php
30

31. Android Programming
Web services
Using KSoap2 Library
31

32. Android Programming
Using KSoap2 Library
 What is KSoap2?
 KSOAP is a SOAP web service client library for constrained
Java environments such as Applets or J2ME applications (CLDC /
CDC / MIDP).
 The ksoap2-android project provides a lightweight and efficient
SOAP client library for the Android platform.
 http://code.google.com/p/ksoap2-android/
32

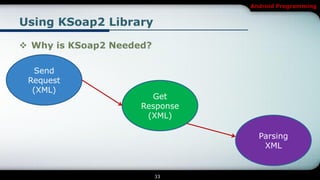

33. Android Programming
Using KSoap2 Library
 Why is KSoap2 Needed?
Send
Request
(XML)
Get
Response
(XML)
Parsing
XML
33

34. Android Programming
Using KSoap2 Library
 Why is KSoap2 Needed?
Send
Request
(XML)
Get
Response
(XML)
Parsing
XML
34

35. Android Programming
Using KSoap2 Library
 Why is KSoap2 Needed?
Parsing
Send XML
Request
KSOAP2
(XML)
Get
Response All In One
(XML)
35

36. Android Programming
Using KSoap2 Library
 Example 10.2
 Using KSoap2
36
