1. Understanding Intents 1.1 Notes 1.2 Available Intents in Android 1.3 Using Extra Information 1.4 Using Extra Information (cont.) 1.5 Using Components to Directly Invoke an Activity 1.6 Using Components to Directly Invoke an Activity (cont.) 2. Activity 2.1 Activity Lifecycle 2.2 Launching Activities and Sub-Activities(cont.) 3. Exercise 6

1. Android Programming
Lesson 6
Intent and Activity
NGUYEN The Linh

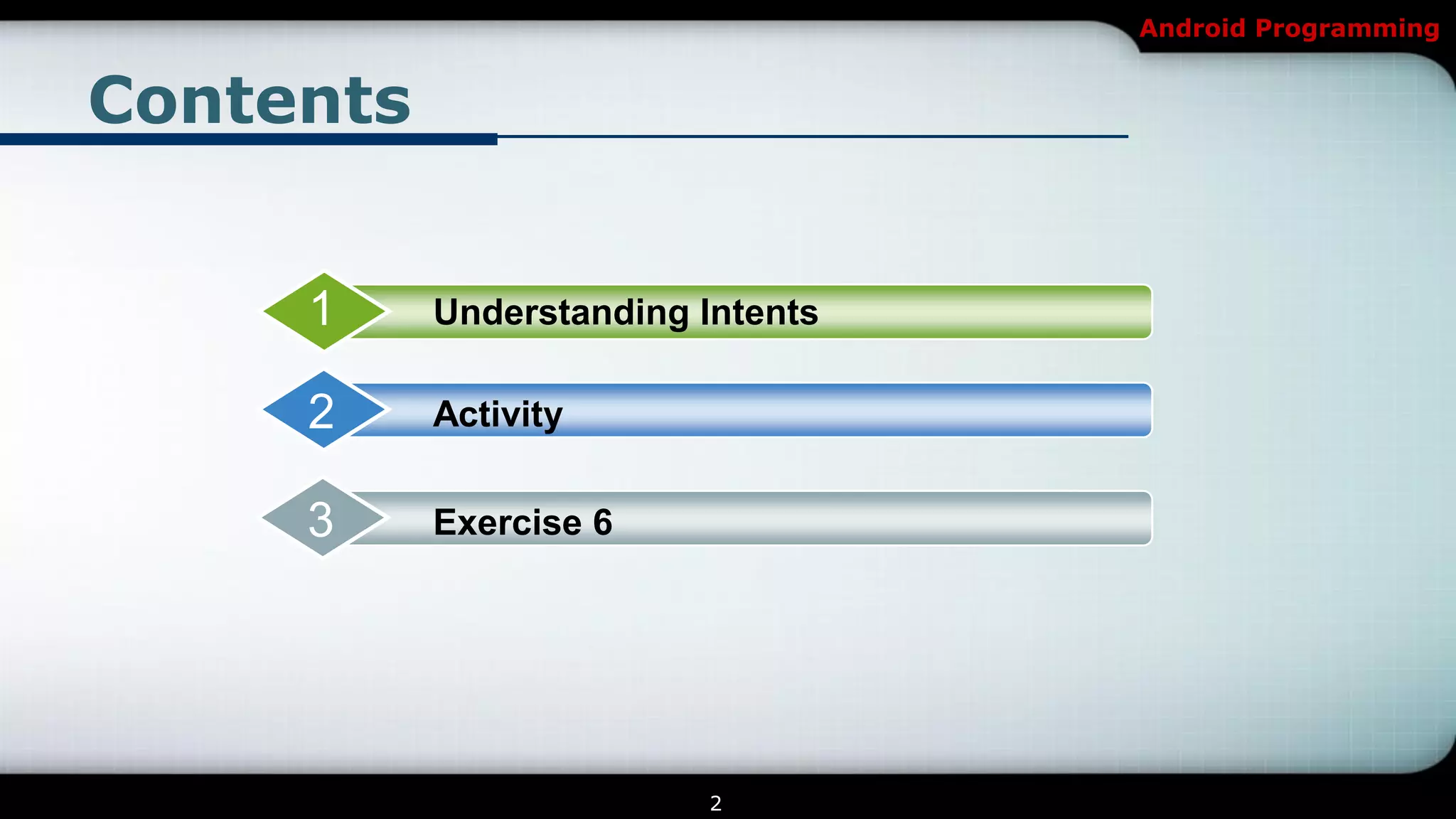

2. Android Programming
Contents
1 Understanding Intents
2 Activity
3 Exercise 6
2

3. Android Programming
Intent and Activity
Understanding Intents
3

4. Android Programming
Understanding Intents
http://blog.nikmesoft.com
Verbs URL
HTTP
4

5. Android Programming
Understanding Intents
 Just as a Web browser knows how to process a verb
+ URL pair, Android knows how to find activities or
other application logic that will handle a given intent.
 You can use intents to represent actions.
 At the simplest level, an intent is an action that you
can tell Android to invoke.
5

6. Android Programming
Understanding Intents
6

7. Android Programming
Understanding Intents
 Notes:
 android:exported: Whether or not the activity can be launched
by components of other applications — "true" if it can be, and
"false" if not.
 The general convention for an action name is <your-package-
name>.intent.action.YOUR_ACTION_NAME.
7

8. Android Programming
Understanding Intents
 Available Intents in Android
 http://developer.android.com/guide/appendix/g-app-intents.html
 A browser application to open a browser window
 An application to call a telephone number
 An application to present a phone dialer so the user can enter
the numbers and make the call through the UI
 A mapping application to show the map of the world at a given
latitude/longitude coordinate
 A detailed mapping application that can show Google stree
views
8

9. Android Programming
Event Listeners and Callback Methods
 Example 6.1 6.2
9

10. Android Programming
Understanding Intents
 Using Extra Information
 An extra can provide more information to the component that
receives the intent.
 This extra information is repre-sented by an Android class called
android.os.Bundle.
 The following two methods on an Intentclass provide access to
the extra Bundle:
10

11. Android Programming
Understanding Intents
 Using Extra Information (cont.)
11

12. Android Programming
Understanding Intents
 Using Extra Information (cont.)
12

13. Android Programming
Understanding Intents
 Using Components to Directly Invoke an Activity
 Android also provides a more direct way to start an activity: you
can specify the activity’s ComponentName, which is an
abstraction around an object’s package name and class name.
13

14. Android Programming
Understanding Intents
 Using Components to Directly Invoke an Activity
(cont.)
 ComponentName wraps a package name and a class name
together. For example, the follow-ing code invokes the
SubActivity:
14

15. Android Programming
Understanding Intents
 Using Components to Directly Invoke an Activity
(cont.)
 You can also use the class name directly without constructing a
ComponentName.
 You should register the activity in the AndroidManifest.xml file
like this:
• <activity android:name=".SubActivity">
15

16. Android Programming
Understanding Intents
 Using Components to Directly Invoke an Activity
(cont.)
 No intent-filters are necessary for invoking an activity directly
through its class name or component name.
16

17. Android Programming
Intent and Activity
Activity
17

18. Android Programming
Activity
 Activity Lifecycle
 Most management of the life cycle is done automatically by the
system via the activity stack.
 The activity class has the following method callbacks to help you
manage the app:
• onCreate()
• onStart()
• onResume()
• onPause()
• onStop()
• onRestart()
• onDestroy()
18

19. Android Programming
Activity
Activity
Lifecycle
19

20. Android Programming
Activity
Saving
activity
state
20

21. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
Activity A Activity B Activity C
21

22. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
Activity A Activity B
22

23. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
Activity A Activity B
finish();
23

24. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
24

25. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
 The Request Code: The request code that was used to launch
the returning sub-Activity
 A Result Code: The result code set by the sub-Activity to
indicate its result. It can be any inte-ger value, but typically will
be either Activity.RESULT_OK or
Activity.RESULT_CANCELLED.
25

26. Android Programming
Activity
 Launching Activities and Sub-Activities(cont.)
 If the sub-Activity closes abnormally or doesn’t specify a result
code before it closes, the result code is
Activity.RESULT_CANCELED.
 Data: An Intent used to bundle any returned data.
26

27. Android Programming
Exercise 6
27
