This document serves as a lesson on Android programming focused on basic widgets and containers, detailing the use of XML-based layouts. It covers various types of widgets like TextView, Button, EditText, CheckBox, and layout containers including LinearLayout, RelativeLayout, TableLayout, and GridLayout. Additionally, it provides insights into their properties and usage within the Android development environment.

1. Android Programming
Lesson 2
Basic Widgets and Containers
NGUYEN The Linh

2. Android Programming

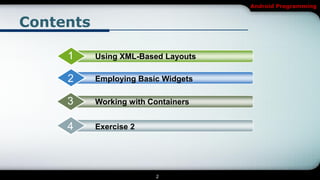

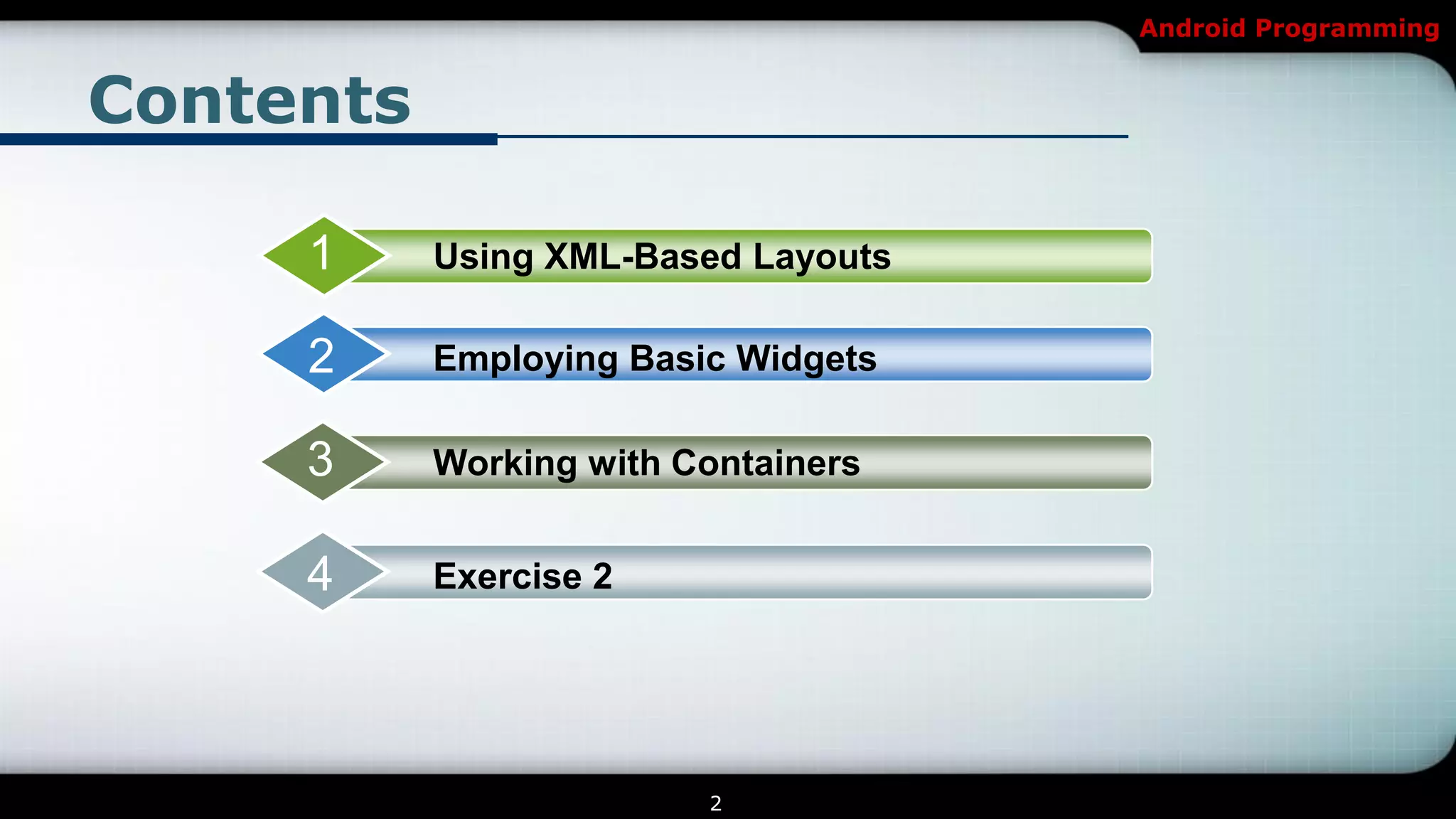

Contents
1 Using XML-Based Layouts
2 Employing Basic Widgets
3 Working with Containers

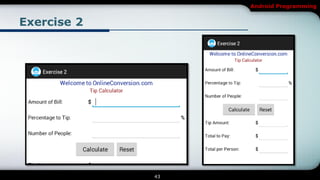

4 Exercise 2
2

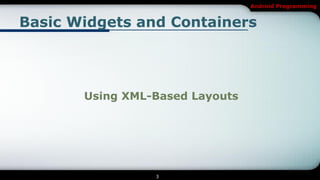

3. Android Programming
Basic Widgets and Containers
Using XML-Based Layouts
3

4. Android Programming

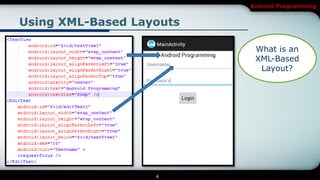

Using XML-Based Layouts
What is an
XML-Based
Layout?
4

5. Android Programming
Using XML-Based Layouts
 Why Use XML-Based Layouts?
 Most everything you do using XML layout files can be achieved
through Java code.
 To assist in the creation of tools for view definition, such as a GUI
builder in an IDE like Eclipse or a dedicated Android GUI designer
like DroidDraw.
 XML forms a nice middle ground between something that is easy
for tool-writers to use and easy for programmers to work with by
hand as needed.
 XML as a GUI definition format is becoming more commonplace.
5

6. Android Programming
Using XML-Based Layouts
What Does
it Look
Like?
6

7. Android Programming
Using XML-Based Layouts
 What Does It Look Like?
 The root element needs to declare the Android XML namespace:
• xmlns:android="http://schemas.android.com/apk/res/android"
 All other elements will be children of the root and will inherit that
namespace declaration.
 Because we want to reference this button from our Java code, we
need to give it an identifier via the android:id attribute.
 android:layout_width and android:layout_height tell Android to
have the button’s width and height fill the “parent”
7

8. Android Programming
Using XML-Based Layouts
 We Attach These to the Java . . . How?
 All you need is one statement in your activity’s onCreate()
callback to use that layout:
• setContentView(R.layout.main)
 All of the layouts are accessible under R.layout, keyed by the
base name of the layout file—main.xml results in
R.layout.main.
 To access our identified widgets, use findViewById().
 That numeric identifier was generated by Android in the R class
as R.id.something (where something is the specific widget you
are seeking).
8

9. Android Programming

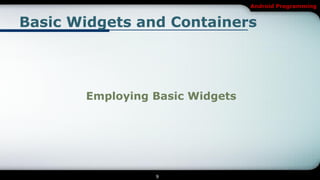

Basic Widgets and Containers
Employing Basic Widgets
9

10. Android Programming
Employing Basic Widgets
 TextView
 Text not editable directly by users. Typically, they are used to
identify adjacent widgets.
 Properties of relevance for TextView
• android:text to set the value of the label itself.
• android:typeface to set the typeface to use for the label (e.g., monospace)
• android:textStyle to indicate that the typeface should be made bold (bold),
italic (italic), or bold and italic (bold italic).
• android:textColor to set the color of the label’s text, in RGB hex format
(e.g., #FF0000 for red).
10

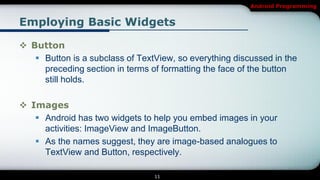

11. Android Programming
Employing Basic Widgets
 Button
 Button is a subclass of TextView, so everything discussed in the
preceding section in terms of formatting the face of the button
still holds.
 Images
 Android has two widgets to help you embed images in your
activities: ImageView and ImageButton.
 As the names suggest, they are image-based analogues to
TextView and Button, respectively.
11

12. Android Programming
Employing Basic Widgets

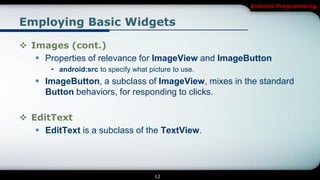

 Images (cont.)
 Properties of relevance for ImageView and ImageButton
• android:src to specify what picture to use.
 ImageButton, a subclass of ImageView, mixes in the standard
Button behaviors, for responding to clicks.
 EditText
 EditText is a subclass of the TextView.
12

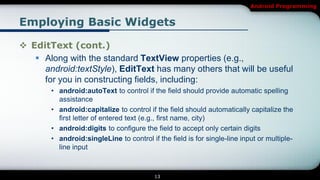

13. Android Programming
Employing Basic Widgets
 EditText (cont.)
 Along with the standard TextView properties (e.g.,
android:textStyle), EditText has many others that will be useful
for you in constructing fields, including:
• android:autoText to control if the field should provide automatic spelling
assistance
• android:capitalize to control if the field should automatically capitalize the
first letter of entered text (e.g., first name, city)
• android:digits to configure the field to accept only certain digits
• android:singleLine to control if the field is for single-line input or multiple-
line input
13

14. Android Programming
Employing Basic Widgets

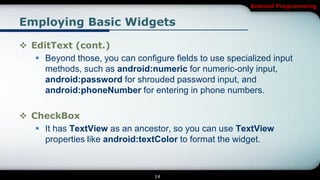

 EditText (cont.)
 Beyond those, you can configure fields to use specialized input
methods, such as android:numeric for numeric-only input,
android:password for shrouded password input, and
android:phoneNumber for entering in phone numbers.
 CheckBox
 It has TextView as an ancestor, so you can use TextView
properties like android:textColor to format the widget.
14

15. Android Programming
Employing Basic Widgets

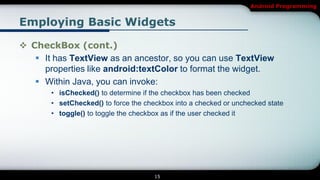

 CheckBox (cont.)
 It has TextView as an ancestor, so you can use TextView
properties like android:textColor to format the widget.
 Within Java, you can invoke:
• isChecked() to determine if the checkbox has been checked
• setChecked() to force the checkbox into a checked or unchecked state
• toggle() to toggle the checkbox as if the user checked it
15

16. Android Programming
Employing Basic Widgets

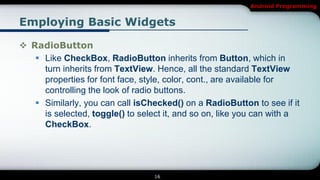

 RadioButton
 Like CheckBox, RadioButton inherits from Button, which in
turn inherits from TextView. Hence, all the standard TextView
properties for font face, style, color, cont., are available for
controlling the look of radio buttons.
 Similarly, you can call isChecked() on a RadioButton to see if it
is selected, toggle() to select it, and so on, like you can with a
CheckBox.
16

17. Android Programming
Employing Basic Widgets

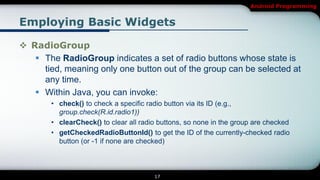

 RadioGroup
 The RadioGroup indicates a set of radio buttons whose state is
tied, meaning only one button out of the group can be selected at
any time.
 Within Java, you can invoke:
• check() to check a specific radio button via its ID (e.g.,
group.check(R.id.radio1))
• clearCheck() to clear all radio buttons, so none in the group are checked
• getCheckedRadioButtonId() to get the ID of the currently-checked radio
button (or -1 if none are checked)
17

18. Android Programming
Basic Widgets and Containers
Working with Containers
18

19. Android Programming
Working with Containers
 LinearLayout
 As noted already, LinearLayout is a box model—widgets or
child containers are lined up in a column or row, one after the
next.
 Concepts and Properties
• android:orientation to set the value to be horizontal for a row or vertical for
a column.
• android:layout_width: wrap_content or match_parrent
• android:layout_height: wrap_content or match_parrent
• android:layout_weight: ?
19

20. Android Programming

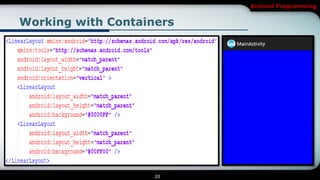

Working with Containers
20

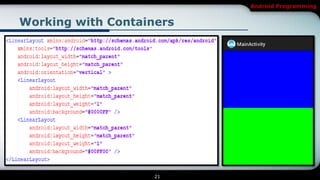

21. Android Programming
Working with Containers
21

22. Android Programming
Working with Containers
22

23. Android Programming

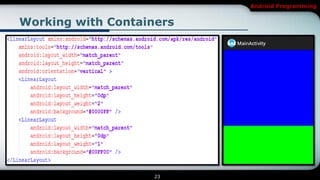

Working with Containers
23

24. Android Programming
Working with Containers
24

25. Android Programming
Working with Containers

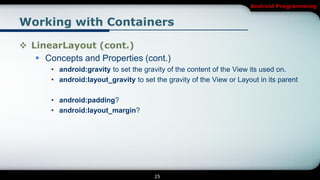

 LinearLayout (cont.)
 Concepts and Properties (cont.)
• android:gravity to set the gravity of the content of the View its used on.
• android:layout_gravity to set the gravity of the View or Layout in its parent
• android:padding?
• android:layout_margin?
25

26. Android Programming
Working with Containers

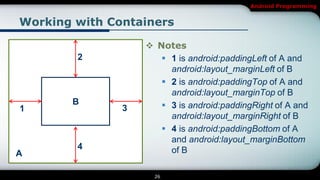

 Notes
2  1 is android:paddingLeft of A and
android:layout_marginLeft of B
 2 is android:paddingTop of A and
android:layout_marginTop of B
B  3 is android:paddingRight of A and
1 3
android:layout_marginRight of B
 4 is android:paddingBottom of A
and android:layout_marginBottom
4 of B
A
26

27. Android Programming
Working with Containers
 LinearLayout (cont.)
 Example 2.1
• Example 2.1.xml
27

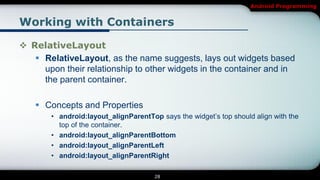

28. Android Programming
Working with Containers
 RelativeLayout
 RelativeLayout, as the name suggests, lays out widgets based
upon their relationship to other widgets in the container and in
the parent container.
 Concepts and Properties
• android:layout_alignParentTop says the widget’s top should align with the
top of the container.
• android:layout_alignParentBottom
• android:layout_alignParentLeft
• android:layout_alignParentRight
28

29. Android Programming
Working with Containers

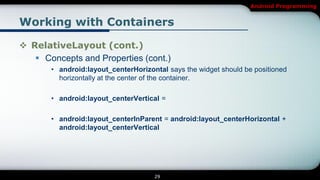

 RelativeLayout (cont.)
 Concepts and Properties (cont.)
• android:layout_centerHorizontal says the widget should be positioned
horizontally at the center of the container.
• android:layout_centerVertical =
• android:layout_centerInParent = android:layout_centerHorizontal +
android:layout_centerVertical
29

30. Android Programming
Working with Containers

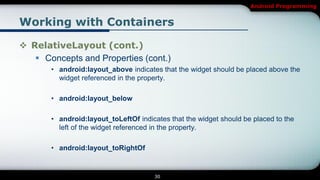

 RelativeLayout (cont.)
 Concepts and Properties (cont.)
• android:layout_above indicates that the widget should be placed above the
widget referenced in the property.
• android:layout_below
• android:layout_toLeftOf indicates that the widget should be placed to the
left of the widget referenced in the property.
• android:layout_toRightOf
30

31. Android Programming
Working with Containers
 RelativeLayout (cont.)
 Concepts and Properties (cont.)
• android:layout_alignTop indicates that the widget’s top should be aligned
with the top of the widget referenced in the property.
• android:layout_alignBottom
• android:layout_alignLeft
• android:layout_alignRight
• android:layout_alignBaseline indicates that the baselines of the two
widgets should be aligned.
31

32. Android Programming
Working with Containers

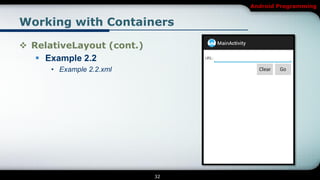

 RelativeLayout (cont.)
 Example 2.2
• Example 2.2.xml
32

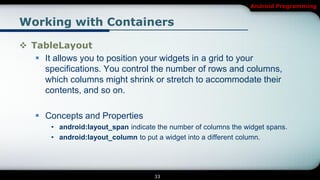

33. Android Programming
Working with Containers
 TableLayout
 It allows you to position your widgets in a grid to your
specifications. You control the number of rows and columns,
which columns might shrink or stretch to accommodate their
contents, and so on.
 Concepts and Properties
• android:layout_span indicate the number of columns the widget spans.
• android:layout_column to put a widget into a different column.
33

34. Android Programming
Working with Containers

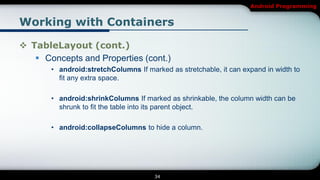

 TableLayout (cont.)
 Concepts and Properties (cont.)
• android:stretchColumns If marked as stretchable, it can expand in width to
fit any extra space.
• android:shrinkColumns If marked as shrinkable, the column width can be
shrunk to fit the table into its parent object.
• android:collapseColumns to hide a column.
34

35. Android Programming
Working with Containers

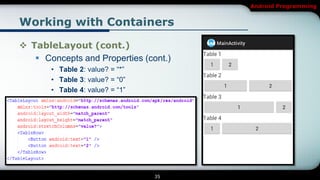

 TableLayout (cont.)
 Concepts and Properties (cont.)
• Table 2: value? = “*”
• Table 3: value? = “0”
• Table 4: value? = “1”
35

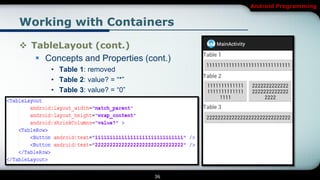

36. Android Programming
Working with Containers
 TableLayout (cont.)
 Concepts and Properties (cont.)
• Table 1: removed
• Table 2: value? = “*”
• Table 3: value? = “0”
36

37. Android Programming
Working with Containers
 TableLayout (cont.)

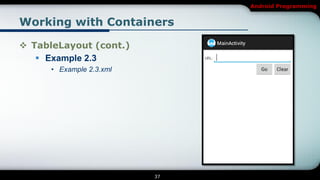

 Example 2.3
• Example 2.3.xml
37

38. Android Programming
Working with Containers
 GridLayout (Android 4.0 or higher)
 A layout that places its children in a rectangular grid.
 Concepts and Properties
• android:columnCount, android:rowCount: The maximum number of
columns/rows to create when automatically positioning children.
• android:orientation, android:layout_row, android:layout_column
• android:layout_gravity = center_horizontal, fill_horizontal, fill_vertical
• android:layout_rowSpan and android:layout_columnSpan
38

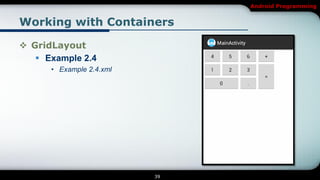

39. Android Programming
Working with Containers
 GridLayout
 Example 2.4
• Example 2.4.xml
39

40. Android Programming
Working with Containers
 FrameLayout
 http://developer.android.com/reference/android/widget/FrameLay
out.html
40

41. Android Programming
Working with Containers

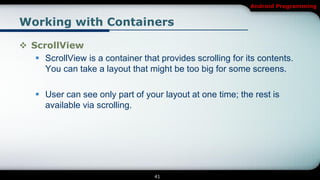

 ScrollView
 ScrollView is a container that provides scrolling for its contents.
You can take a layout that might be too big for some screens.
 User can see only part of your layout at one time; the rest is
available via scrolling.
41

42. Android Programming

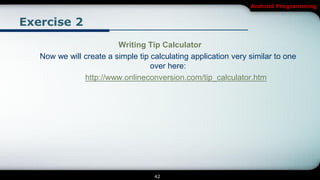

Exercise 2
Writing Tip Calculator
Now we will create a simple tip calculating application very similar to one
over here:
http://www.onlineconversion.com/tip_calculator.htm
42

43. Android Programming
Exercise 2
43

44. Android Programming
