1. Develop on Android
Android Lab Test
www.AndroidLabTest.com
Youku
By Bruno Delb
www.weibo.com/brunodelb
i.youku.com/brunodelb | www.weibo.com/brunodelb | blog.delb.cn
http://i.youku.com/brunoparis
Weibo
Officialsite
Lesson : Menu created dynamically

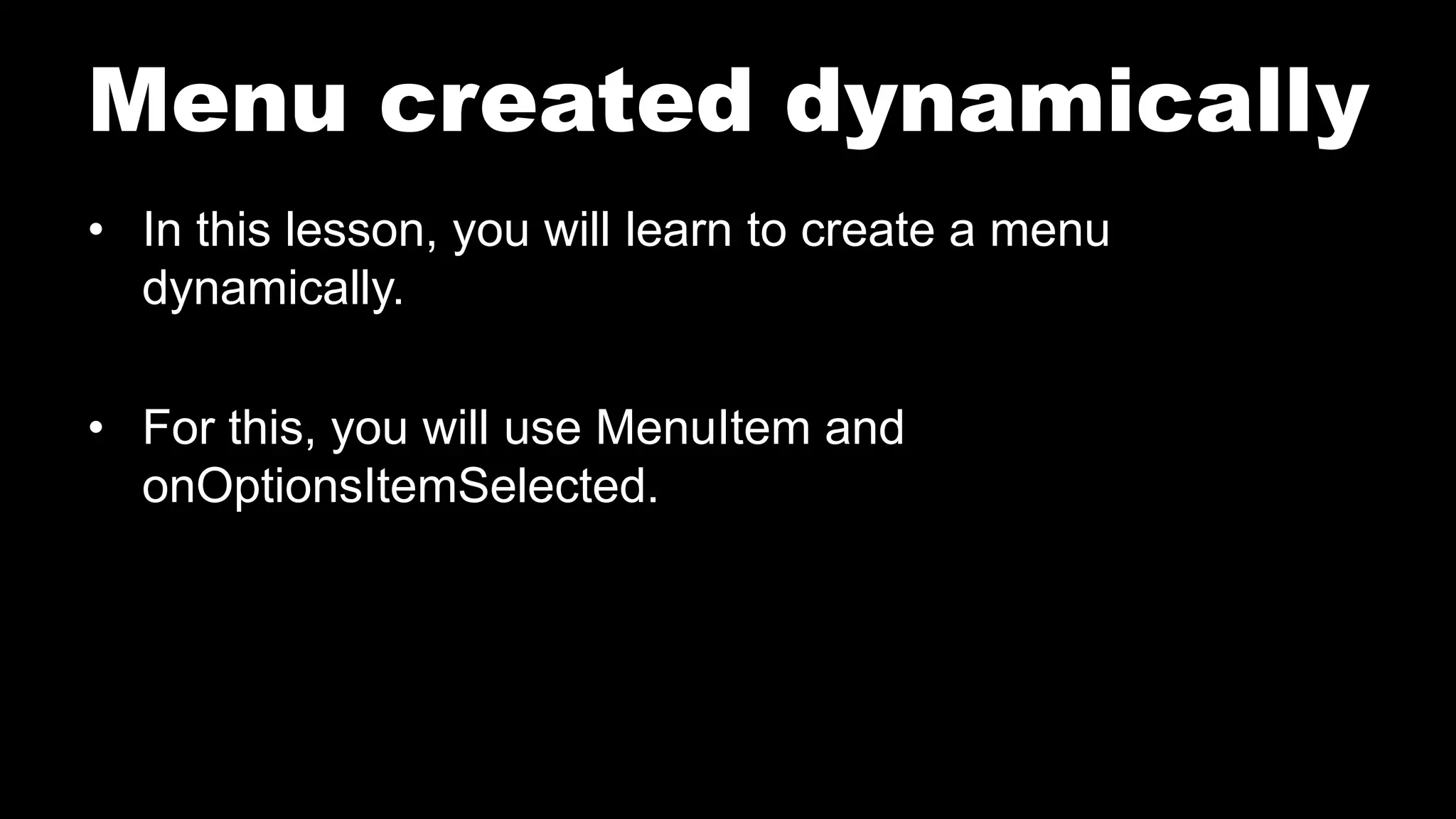

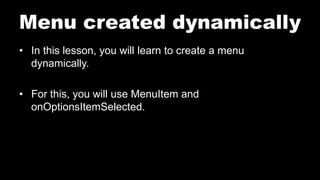

2. Menu created dynamically
• In this lesson, you will learn to create a menu
dynamically.
• For this, you will use MenuItem and
onOptionsItemSelected.

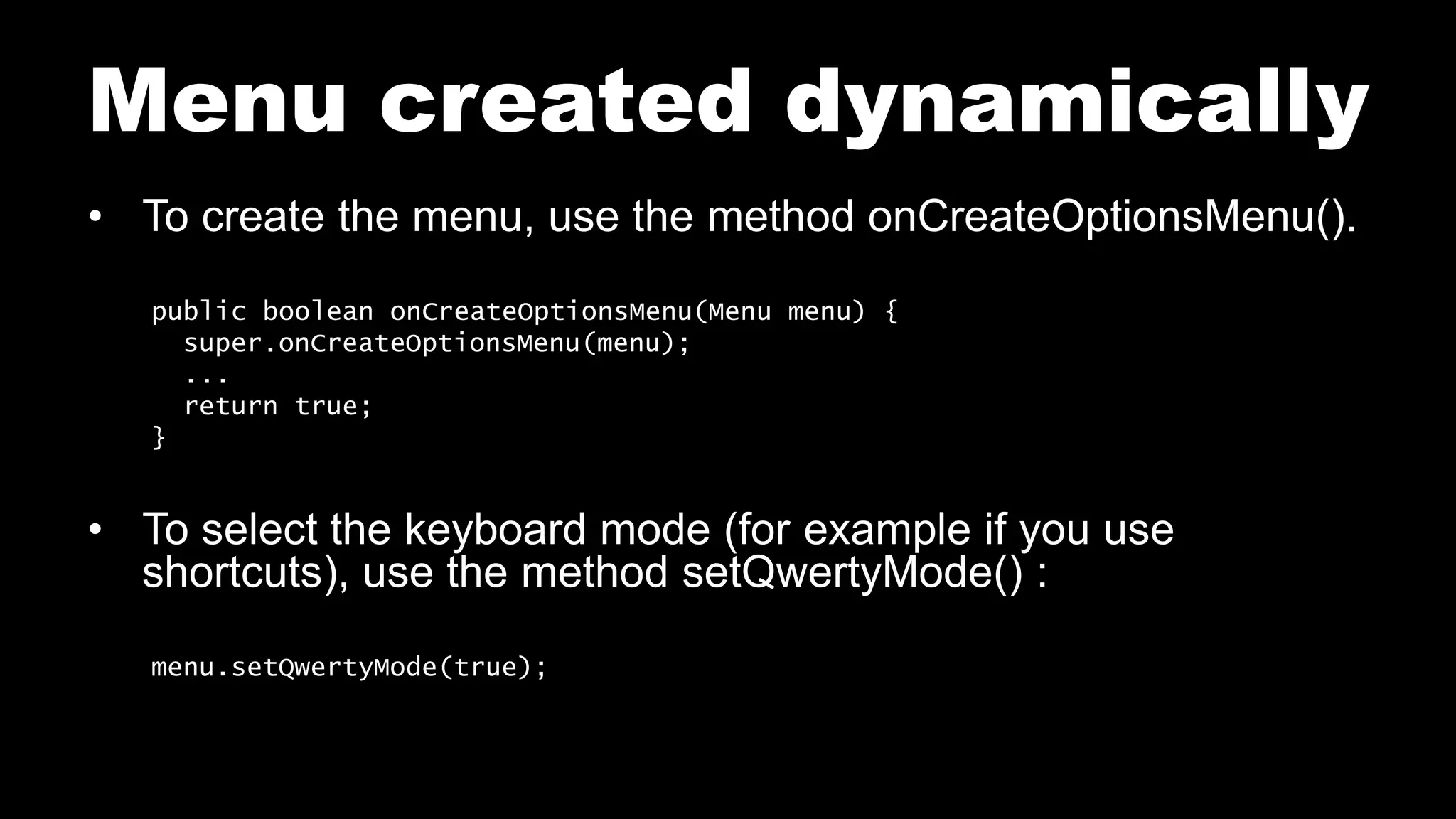

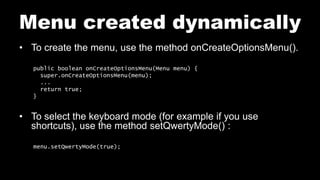

3. Menu created dynamically
• To create the menu, use the method onCreateOptionsMenu().
public boolean onCreateOptionsMenu(Menu menu) {
super.onCreateOptionsMenu(menu);
...
return true;
}
• To select the keyboard mode (for example if you use
shortcuts), use the method setQwertyMode() :
menu.setQwertyMode(true);

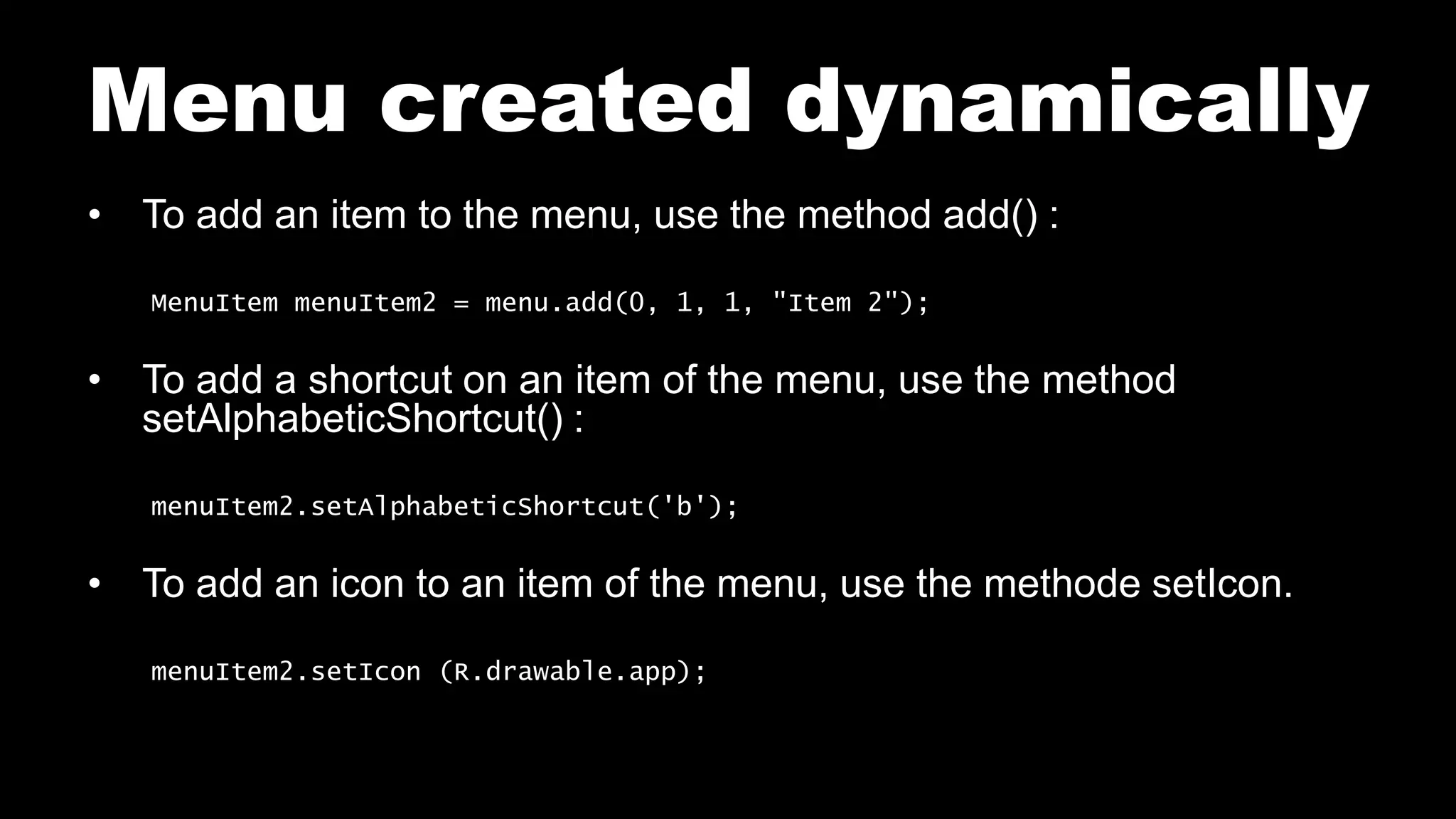

4. Menu created dynamically
• To add an item to the menu, use the method add() :
MenuItem menuItem2 = menu.add(0, 1, 1, "Item 2");
• To add a shortcut on an item of the menu, use the method
setAlphabeticShortcut() :
menuItem2.setAlphabeticShortcut('b');
• To add an icon to an item of the menu, use the methode setIcon.
menuItem2.setIcon (R.drawable.app);

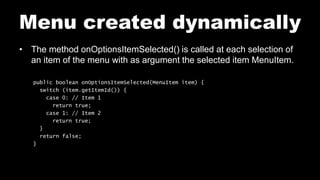

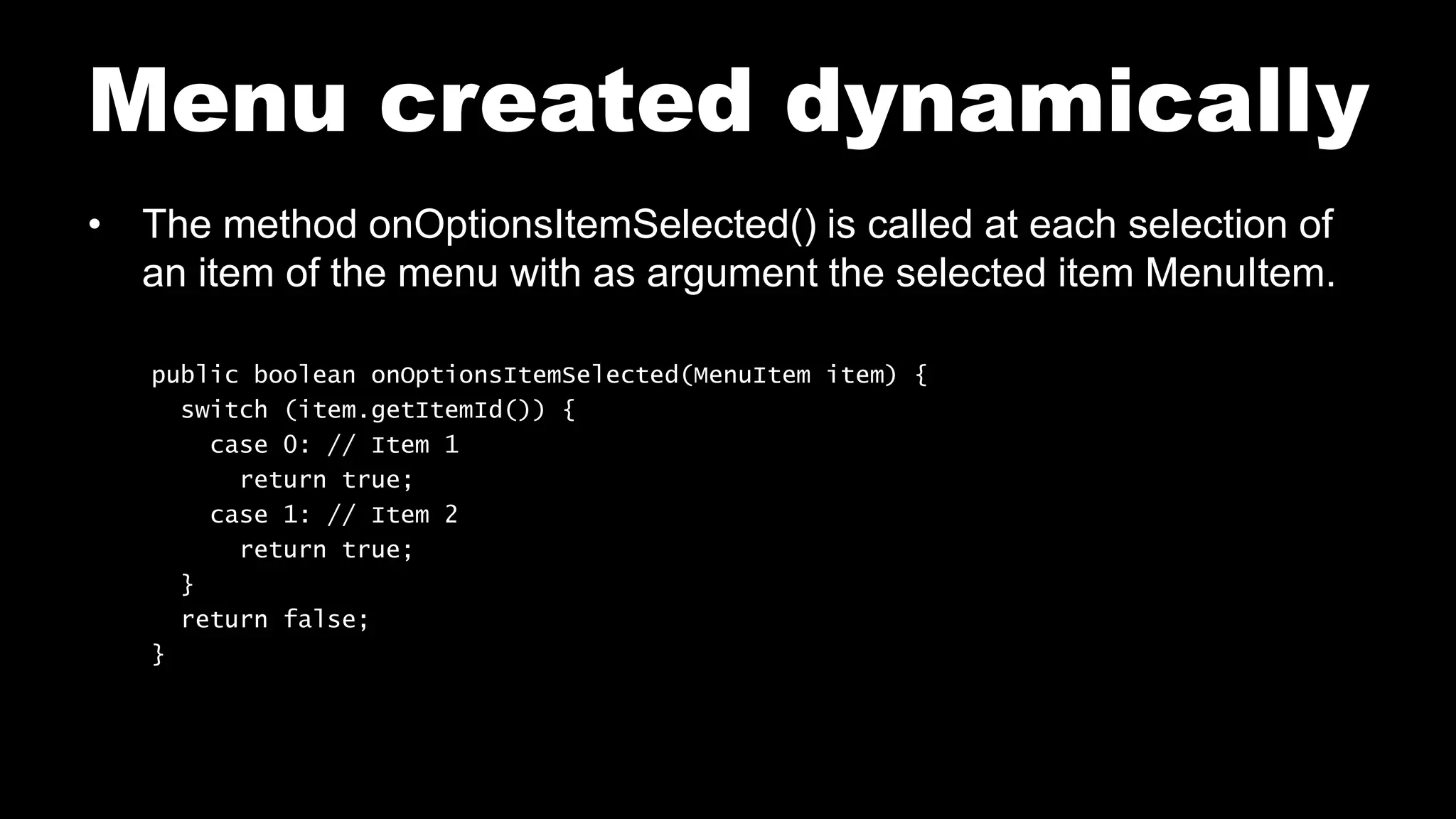

5. Menu created dynamically
• The method onOptionsItemSelected() is called at each selection of
an item of the menu with as argument the selected item MenuItem.
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case 0: // Item 1
return true;
case 1: // Item 2
return true;
}
return false;
}

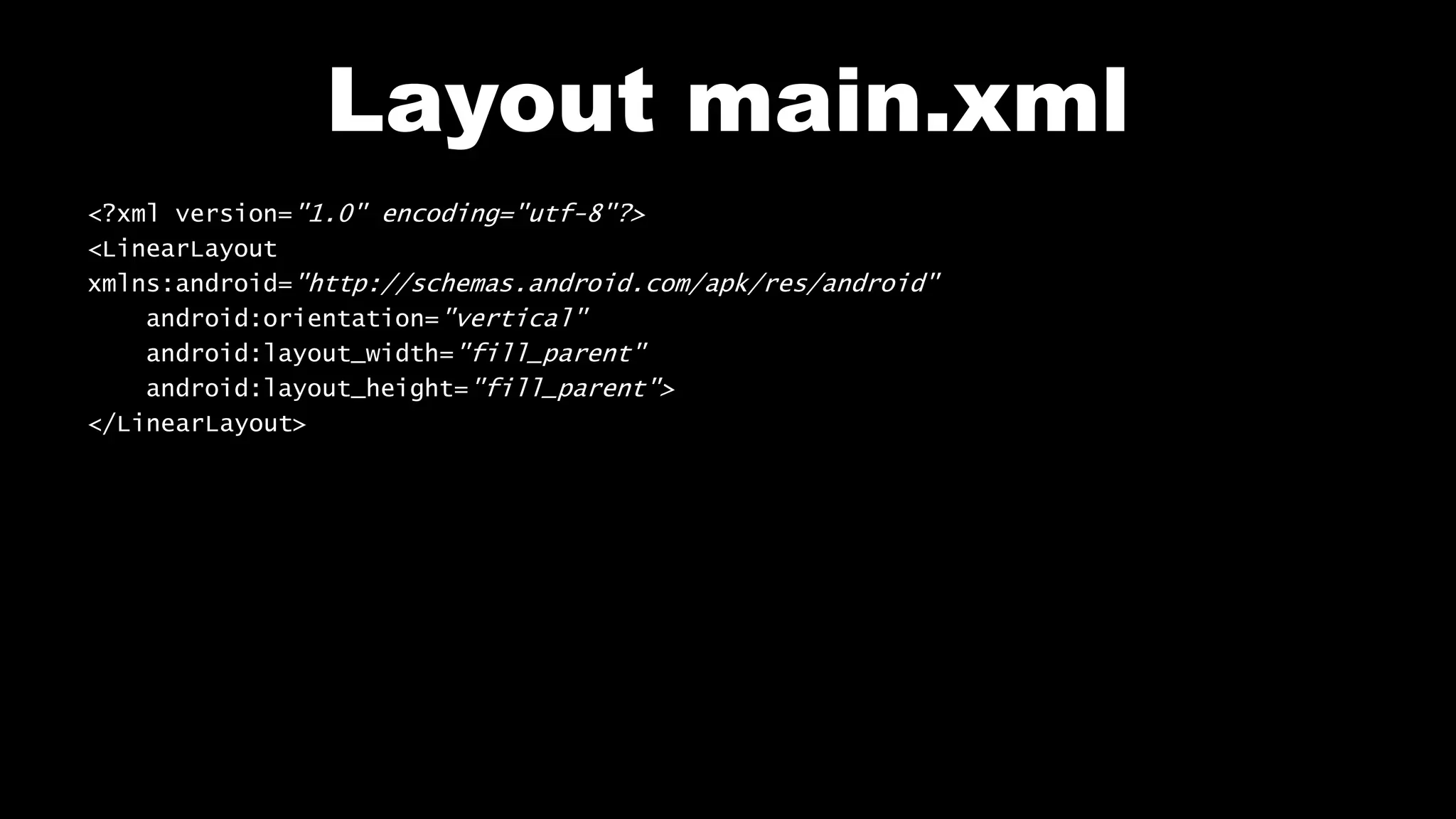

6. Layout main.xml
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
</LinearLayout>

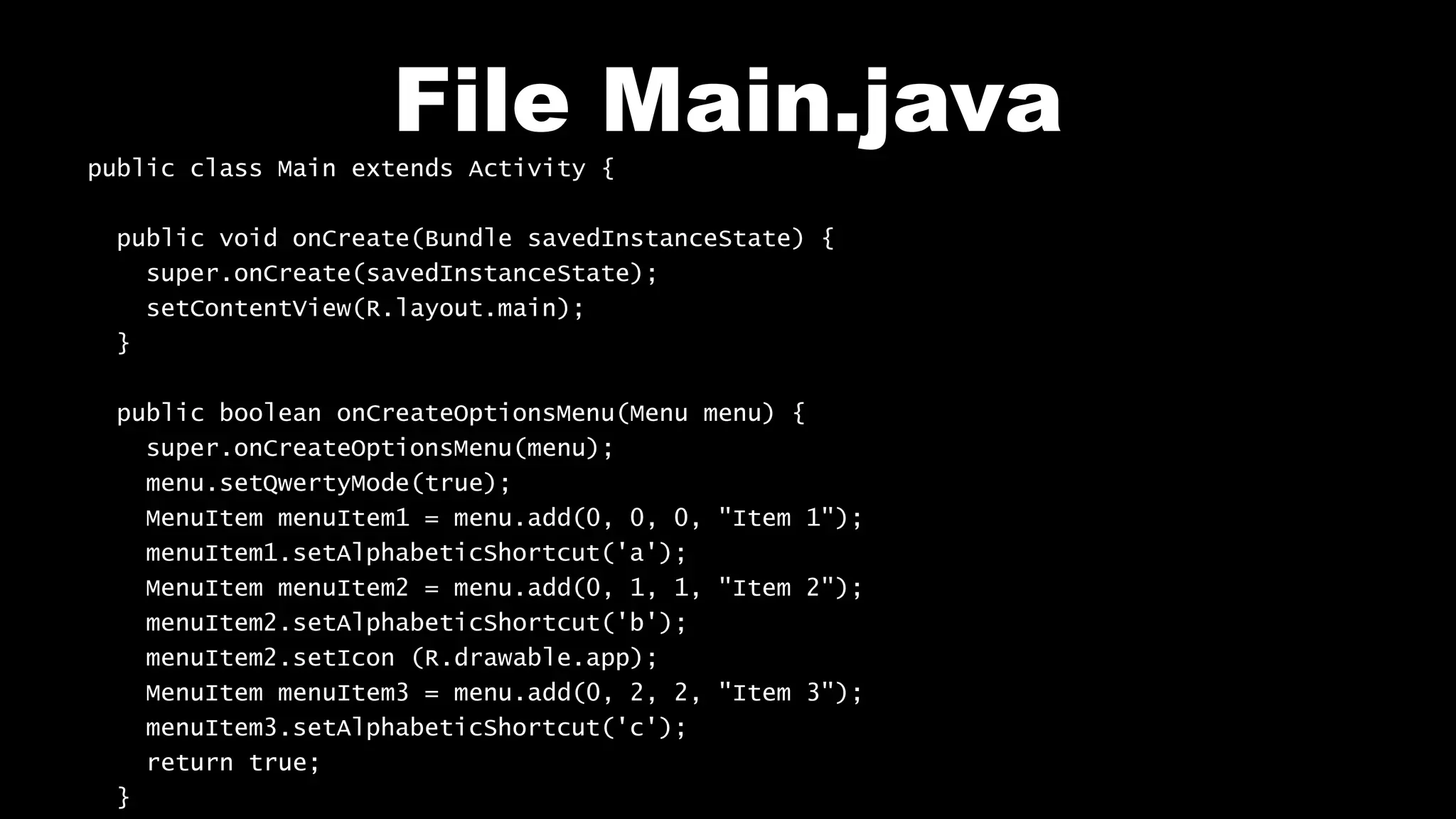

7. File Main.java
public class Main extends Activity {
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
}
public boolean onCreateOptionsMenu(Menu menu) {
super.onCreateOptionsMenu(menu);
menu.setQwertyMode(true);
MenuItem menuItem1 = menu.add(0, 0, 0, "Item 1");
menuItem1.setAlphabeticShortcut('a');
MenuItem menuItem2 = menu.add(0, 1, 1, "Item 2");
menuItem2.setAlphabeticShortcut('b');
menuItem2.setIcon (R.drawable.app);
MenuItem menuItem3 = menu.add(0, 2, 2, "Item 3");
menuItem3.setAlphabeticShortcut('c');
return true;
}

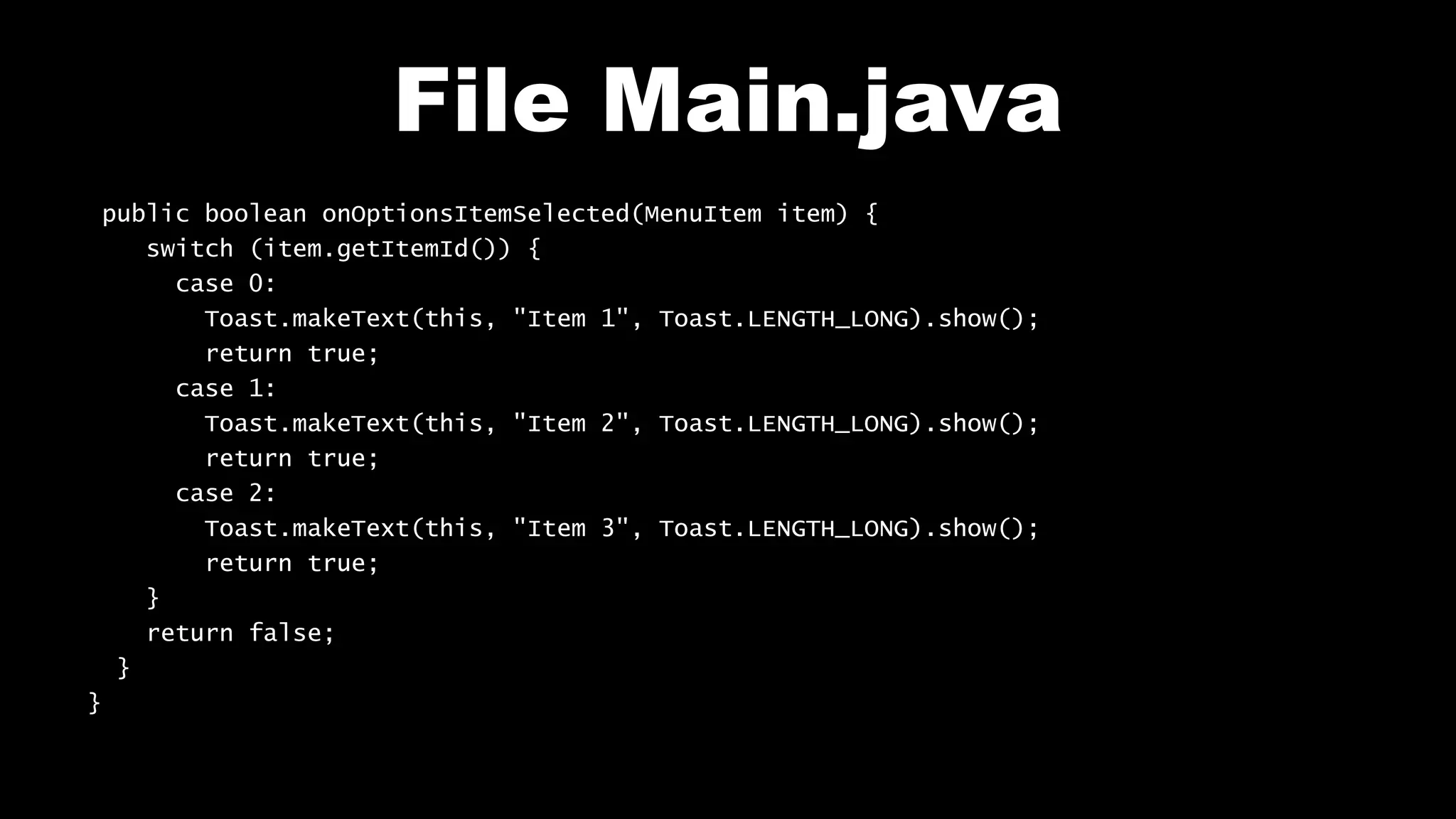

8. File Main.java
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case 0:
Toast.makeText(this, "Item 1", Toast.LENGTH_LONG).show();
return true;
case 1:
Toast.makeText(this, "Item 2", Toast.LENGTH_LONG).show();
return true;
case 2:
Toast.makeText(this, "Item 3", Toast.LENGTH_LONG).show();
return true;
}
return false;
}
}

9. Test on your mobile
View_Menu_Dynamic

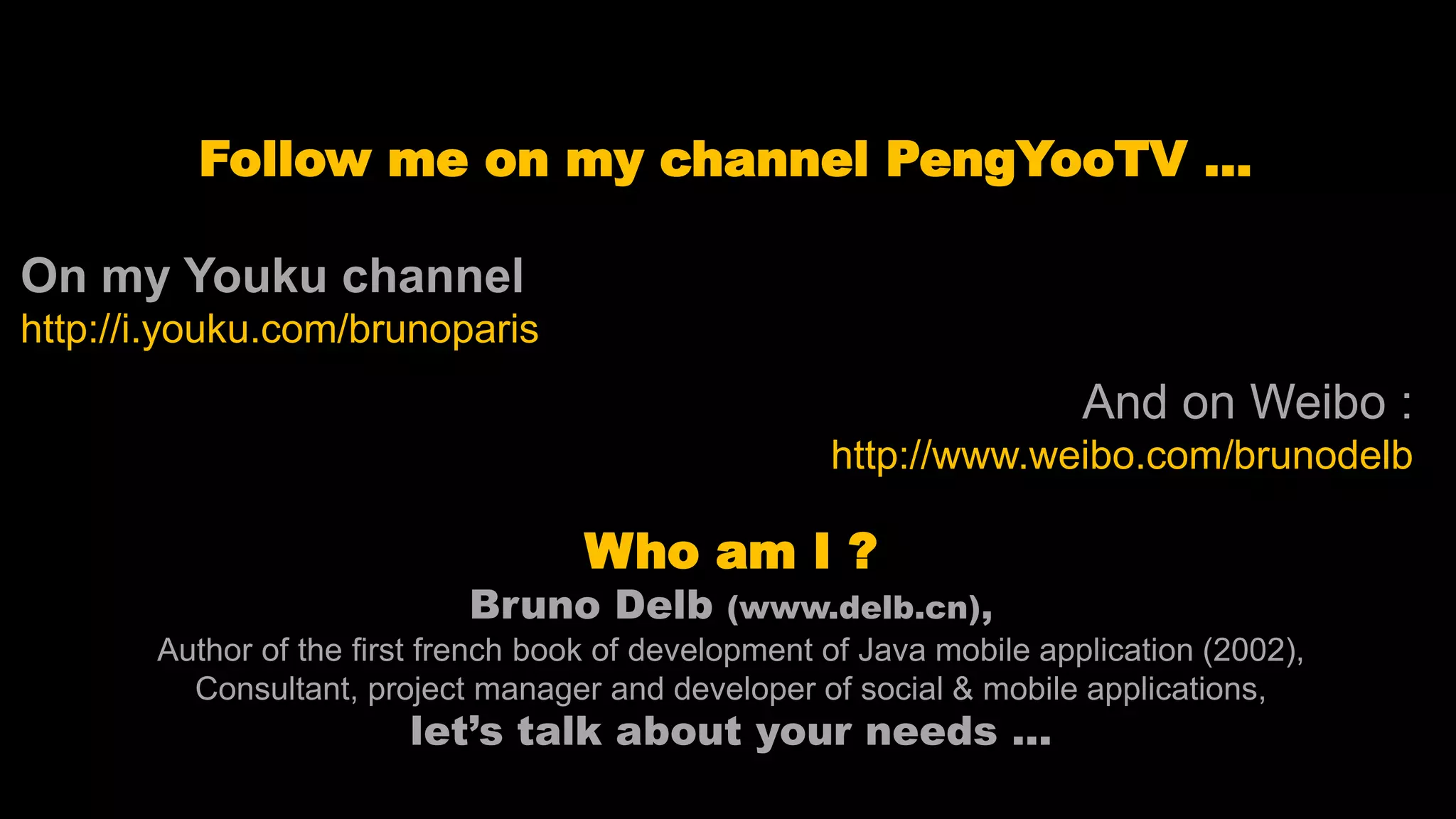

10. Follow me on my channel PengYooTV …
On my Youku channel
http://i.youku.com/brunoparis
Who am I ?
Bruno Delb (www.delb.cn),
Author of the first french book of development of Java mobile application (2002),
Consultant, project manager and developer of social & mobile applications,
let’s talk about your needs ...
And on Weibo :
http://www.weibo.com/brunodelb
