1. Displaying Images
How to manage images nicely
+RobertoOrgiu
@_tiwiz
+MatteoBonifazi
@mbonifazi

2. Pictures are faster than words
Consider using pictures to explain ideas. They get
people's attention and can be much more efficient than
words.

3. For media rich applications, BITMAPS are
everywhere.

4. Handling Bitmaps
Loading bitmaps in app is tricky
● Bitmaps can very easily exhaust an app's memory budget.
● Loading bitmaps on the UI thread can degrade your app's
performance
● If your app is loading multiple bitmaps into memory, you
need to skillfully manage memory and disk caching.

5. Loading Large Bitmaps Efficiently

6. Images come in all shapes and sizes. In many
cases they are larger than required for a
typical application user interface (UI).

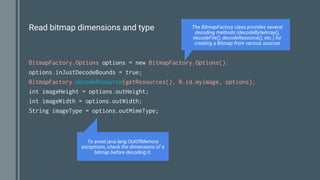

7. Read bitmap dimensions and type
BitmapFactory.Options options = new BitmapFactory.Options();
options.inJustDecodeBounds = true;
BitmapFactory.decodeResource(getResources(), R.id.myimage, options);
int imageHeight = options.outHeight;
int imageWidth = options.outWidth;
String imageType = options.outMimeType;
The BitmapFactory class provides several
decoding methods (decodeByteArray(),
decodeFile(), decodeResource(), etc.) for
creating a Bitmap from various sources
To avoid java.lang.OutOfMemory
exceptions, check the dimensions of a
bitmap before decoding it.

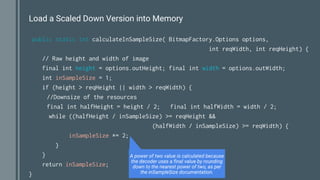

8. Load a Scaled Down Version into Memory
public static int calculateInSampleSize( BitmapFactory.Options options,
int reqWidth, int reqHeight) {
// Raw height and width of image
final int height = options.outHeight; final int width = options.outWidth;
int inSampleSize = 1;
if (height > reqHeight || width > reqWidth) {
//Downsize of the resources
final int halfHeight = height / 2; final int halfWidth = width / 2;
while ((halfHeight / inSampleSize) >= reqHeight &&
(halfWidth / inSampleSize) >= reqWidth) {
inSampleSize *= 2;
}
}
return inSampleSize;
}
A power of two value is calculated because
the decoder uses a final value by rounding
down to the nearest power of two, as per
the inSampleSize documentation.

9. Decode the images
public static Bitmap decodeSampledBitmapFromResource(Resources res, int resId,
int reqWidth, int reqHeight) {
// First decode with inJustDecodeBounds=true to check dimensions
final BitmapFactory.Options options = new BitmapFactory.Options();
options.inJustDecodeBounds = true;
BitmapFactory.decodeResource(res, resId, options);
// Calculate inSampleSize
options.inSampleSize = calculateInSampleSize(options, reqWidth, reqHeight);
// Decode bitmap with inSampleSize set
options.inJustDecodeBounds = false;
return BitmapFactory.decodeResource(res, resId, options);
}
If set to true, the decoder will return null (no
bitmap), but the out... fields will still be set,
allowing the caller to query the bitmap without
having to allocate the memory for its pixels.

10. Load the image into the ImageView
mImageView.setImageBitmap(
decodeSampledBitmapFromResource(getResources(), R.id.myimage, 100, 100));

11. Caching bitmaps

12. Load a new bitmap for your apps’ social media
stream, or whatever, but you're out of memory.

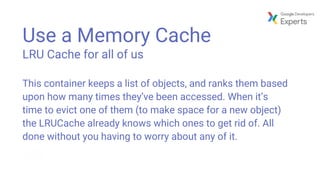

13. Use a Memory Cache
LRU Cache for all of us
This container keeps a list of objects, and ranks them based
upon how many times they’ve been accessed. When it’s
time to evict one of them (to make space for a new object)
the LRUCache already knows which ones to get rid of. All
done without you having to worry about any of it.

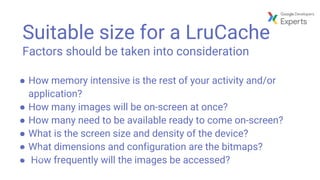

14. Suitable size for a LruCache
Factors should be taken into consideration
● How memory intensive is the rest of your activity and/or
application?
● How many images will be on-screen at once?
● How many need to be available ready to come on-screen?
● What is the screen size and density of the device?
● What dimensions and configuration are the bitmaps?
● How frequently will the images be accessed?

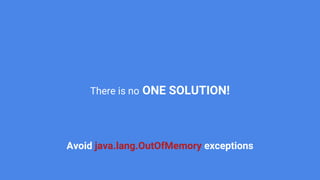

15. There is no ONE SOLUTION!
Avoid java.lang.OutOfMemory exceptions

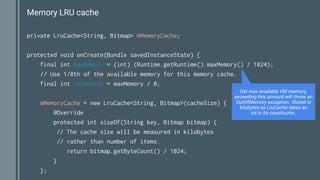

16. Memory LRU cache
private LruCache<String, Bitmap> mMemoryCache;
protected void onCreate(Bundle savedInstanceState) {
final int maxMemory = (int) (Runtime.getRuntime().maxMemory() / 1024);
// Use 1/8th of the available memory for this memory cache.
final int cacheSize = maxMemory / 8;
mMemoryCache = new LruCache<String, Bitmap>(cacheSize) {
@Override
protected int sizeOf(String key, Bitmap bitmap) {
// The cache size will be measured in kilobytes
// rather than number of items.
return bitmap.getByteCount() / 1024;
}
};
Get max available VM memory,
exceeding this amount will throw an
OutOfMemory exception. Stored in
kilobytes as LruCache takes an
int in its constructor.

17. Memory LRU cache
// Add bitmap to the cache
public void addBitmapToMemoryCache(String key, Bitmap bitmap) {
if (getBitmapFromMemCache(key) == null) {
mMemoryCache.put(key, bitmap);
}
}
//Retrieve the bitmap from the cache
public Bitmap getBitmapFromMemCache(String key) {
return mMemoryCache.get(key);
}

18. Disk LRU cache
private DiskLruCache mDiskLruCache;
private static final int DISK_CACHE_SIZE = 1024 * 1024 * 10; // 10MB
protected void onCreate(Bundle savedInstanceState) {
// Initialize disk cache on background thread
File cacheDir = getDiskCacheDir(this, "thumbnails");
new InitDiskCacheTask().execute(cacheDir);
}
class InitDiskCacheTask extends AsyncTask<File, Void, Void> {
protected Void doInBackground(File... params) {
synchronized (mDiskCacheLock) {
File cacheDir = params[0];
mDiskLruCache = DiskLruCache.open(cacheDir, DISK_CACHE_SIZE);
}
....

19. Disk LRU cache
public void addBitmapToCache(String key, Bitmap bitmap) {
if (getBitmapFromMemCache(key) == null) { // Add to memory cache as before
mMemoryCache.put(key, bitmap);
}
synchronized (mDiskCacheLock) { // Also add to disk cache
if (mDiskLruCache != null && mDiskLruCache.get(key) == null) {
mDiskLruCache.put(key, bitmap);
}
...
public Bitmap getBitmapFromDiskCache(String key) {
synchronized (mDiskCacheLock) {
while (mDiskCacheStarting) {// Wait while disk cache is started
try { mDiskCacheLock.wait(); } ….
if (mDiskLruCache != null) { return mDiskLruCache.get(key); }
....

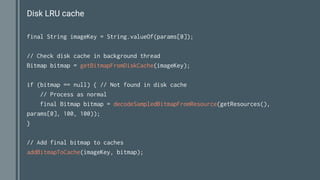

20. Disk LRU cache
final String imageKey = String.valueOf(params[0]);
// Check disk cache in background thread
Bitmap bitmap = getBitmapFromDiskCache(imageKey);
if (bitmap == null) { // Not found in disk cache
// Process as normal
final Bitmap bitmap = decodeSampledBitmapFromResource(getResources(),
params[0], 100, 100));
}
// Add final bitmap to caches
addBitmapToCache(imageKey, bitmap);

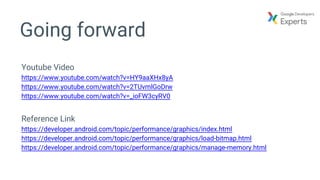

21. Going forward
Youtube Video
https://www.youtube.com/watch?v=HY9aaXHx8yA
https://www.youtube.com/watch?v=2TUvmlGoDrw
https://www.youtube.com/watch?v=_ioFW3cyRV0
Reference Link
https://developer.android.com/topic/performance/graphics/index.html
https://developer.android.com/topic/performance/graphics/load-bitmap.html
https://developer.android.com/topic/performance/graphics/manage-memory.html

22. Can we do it faster?

23. Yes
We can!
● Picasso
● Glide

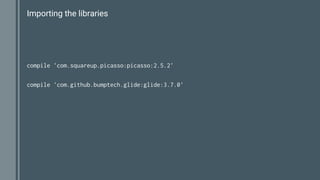

24. Importing the libraries
compile 'com.squareup.picasso:picasso:2.5.2'
compile 'com.github.bumptech.glide:glide:3.7.0'

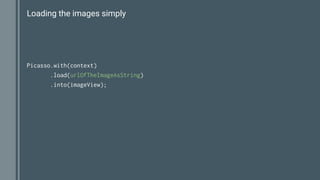

25. Loading the images simply
Picasso.with(context)
.load(urlOfTheImageAsString)
.into(imageView);

26. Loading the images simply
Picasso.with(context)
.load(R.drawable.ic_image)
.into(imageView);

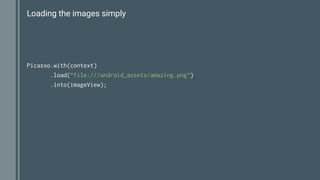

27. Loading the images simply
Picasso.with(context)
.load(“file:///android_assets/amazing.png”)
.into(imageView);

28. Loading the images simply
Picasso.with(context)
.load(new File(...))
.into(imageView);

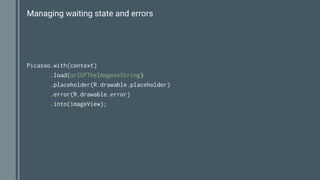

29. Managing waiting state and errors
Picasso.with(context)
.load(urlOfTheImageAsString)
.placeholder(R.drawable.placeholder)
.error(R.drawable.error)
.into(imageView);

30. Advanced features
Picasso.with(context)
.load(url)
.resize(50, 50)
.centerCrop()
.into(imageView)

31. +MatteoBonifazi
@mbonifazi
Thank You!
