1. Android UI Tips & Tricks
Shem Magnezi

2. Making your good app great
Know your app
Understand
what you need
No magic/ generic
solutions
You know how to
write a good app
Looks good Feel slick
Not gonna talk
about viral/
design/
downloads etc...

3. Agenda
● Working with images
● Bring your views into life with animations
● Upgrade your lists views

4. Working with images

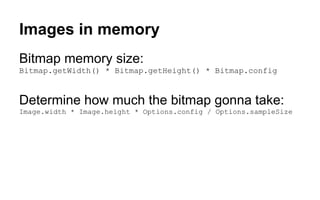

5. Images in memory
Bitmap memory size:
Bitmap.getWidth() * Bitmap.getHeight() * Bitmap.config
Determine how much the bitmap gonna take:
Image.width * Image.height * Options.config / Options.sampleSize

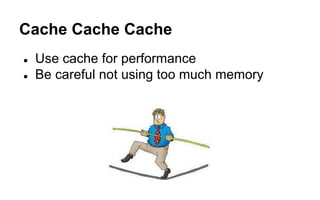

6. Cache Cache Cache
● Use cache for performance
● Be careful not using too much memory

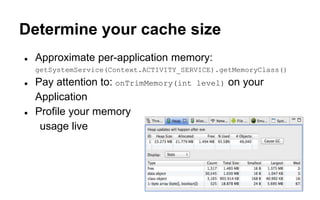

7. Determine your cache size
● Approximate per-application memory:
getSystemService(Context.ACTIVITY_SERVICE).getMemoryClass()
● Pay attention to: onTrimMemory(int level) on your
Application
● Profile your memory
usage live

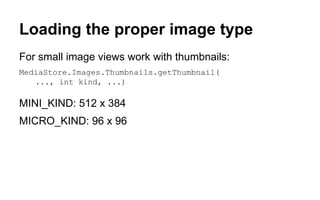

8. Loading the proper image type
For small image views work with thumbnails:
MediaStore.Images.Thumbnails.getThumbnail(
..., int kind, ...)
MINI_KIND: 512 x 384
MICRO_KIND: 96 x 96

9. Sample size
Original size is probably too big, so load smaller size.
Original
inSampleSize=2

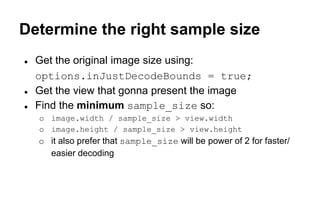

10. Determine the right sample size
● Get the original image size using:
options.inJustDecodeBounds = true;
● Get the view that gonna present the image
● Find the minimum sample_size so:
o image.width / sample_size > view.width
o image.height / sample_size > view.height
o it also prefer that sample_size will be power of 2 for faster/
easier decoding

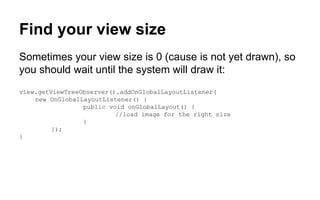

11. Find your view size
Sometimes your view size is 0 (cause is not yet drawn), so
you should wait until the system will draw it:
view.getViewTreeObserver().addOnGlobalLayoutListener(
new OnGlobalLayoutListener() {
public void onGlobalLayout() {
//load image for the right size
}
});
}

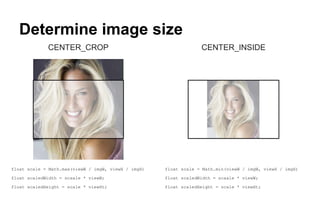

12. Determine image size
CENTER_CROP
float scale = Math.max(viewW / imgW, viewH / imgH)
float scaledWidth = scaale * viewW;
float scaledHeight = scale * viewHt;
CENTER_INSIDE
float scale = Math.min(viewW / imgW, viewH / imgH)
float scaledWidth = scaale * viewW;
float scaledHeight = scale * viewHt;

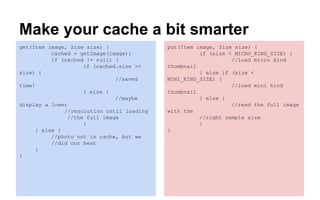

13. Make your cache a bit smarter
get(Item image, Size size) {
cached = getImage(image);
if (cached != null) {
if (cached.size >=
size) {
//saved
time!
} else {
//maybe
display a lower
//resolution until loading
//the full image
}
} else {
//photo not in cache, but we
//did our best
}
}
put(Item image, Size size) {
if (size < MICRO_KIND_SIZE) {
//load micro kind
thumbnail
} else if (size <
MINI_KIND_SIZE) {
//load mini kind
thumbnail
} else {
//read the full image
with the
//right sample size
}
}

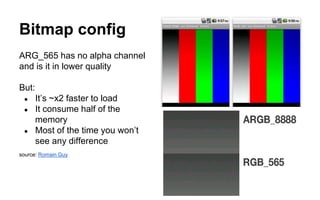

14. Bitmap config
ARG_565 has no alpha channel
and is it in lower quality
But:
● It’s ~x2 faster to load
● It consume half of the
memory
● Most of the time you won’t
see any difference
source: Romain Guy

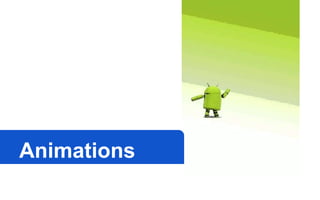

15. Animations

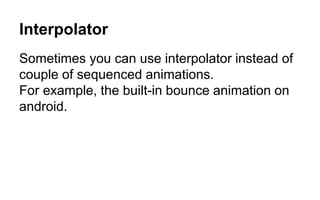

16. Interpolator
Sometimes you can use interpolator instead of
couple of sequenced animations.
For example, the built-in bounce animation on
android.

17. Between-activities animationsSet activity style:
<item name="android:windowBackground">@android:color/transparent</item>
When moving to this activity:
startActivity(intent);
overridePendingTransition(0, 0);
Do the animation:
ViewTreeObserver observer = animationImage.getViewTreeObserver();
observer.addOnPreDrawListener(new ViewTreeObserver.OnPreDrawListener() {
public boolean onPreDraw() {
animationImage.getViewTreeObserver().removeOnPreDrawListener(this);
runEnterAnimation(back, startBounds);
}
});

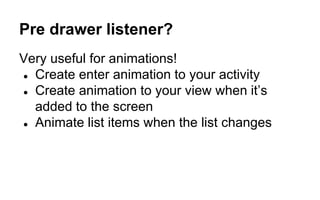

18. Pre drawer listener?
Very useful for animations!
● Create enter animation to your activity
● Create animation to your view when it’s
added to the screen
● Animate list items when the list changes

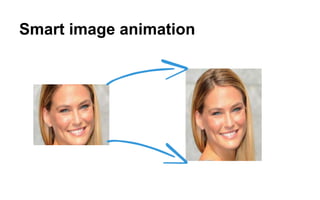

19. Smart image animation

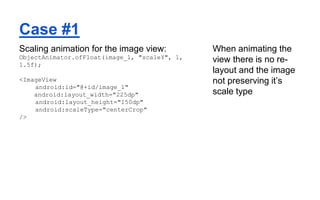

20. Case #1
Scaling animation for the image view:
ObjectAnimator.ofFloat(image_1, "scaleY", 1,
1.5f);
<ImageView
android:id="@+id/image_1"
android:layout_width="225dp"
android:layout_height="150dp"
android:scaleType="centerCrop"
/>
When animating the
view there is no re-
layout and the image
not preserving it’s
scale type

21. Case #2
Use a frame and do a reverse scaling to the inner
image:
<RelativeLayout android:id="@+id/image_2"
android:layout_width="225dp"
android:layout_height="150dp">
<ImageView android:id="@+id/inner_image"
android:layout_width="225dp"
android:layout_height="300dp"
android:layout_marginTop="-75dp"
android:layout_marginBottom="-75dp"/>
</RelativeLayout>
anim.playTogether(
ObjectAnimator.ofFloat(image_2, "scaleY", 1, 1.5f),
ObjectAnimator.ofFloat(inner, "scaleY", 1f,
0.6666f));
● Lots of
calculations
● The animation is
not linear
● Need an extra
view

22. Case #3
Use an extra image as the target view:
anim.playTogether(
ObjectAnimator.ofFloat(image_3, "scaleY", 0.6666f, 1f),
ObjectAnimator.ofFloat(image_3, "alpha", 0, 1));
<ImageView
android:id="@+id/image_3"
android:layout_width="225dp"
android:layout_height="225dp"
android:scaleType="centerCrop"
/>
● You are losing the
original view
● The animation
isn’t smooth

23. Case #4
Implement you own Animation:
public class ExpandAnimation extends Animation {
protected void applyTransformation(float inp ...) {
...
if (inp < 1.0f) {
lp.height =(int)(start + (end - start)* inp);
mAnimatedView.requestLayout();
}
}
<ImageView android:id="@+id/image_4"
android:layout_width="225dp"
android:layout_height="150dp"
android:scaleType="centerCrop" />

24. Working with Lists

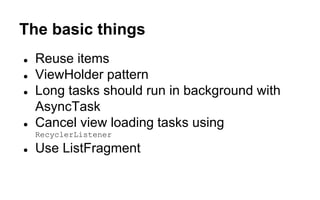

25. The basic things
● Reuse items
● ViewHolder pattern
● Long tasks should run in background with
AsyncTask
● Cancel view loading tasks using
RecyclerListener
● Use ListFragment

26. Profile your drawing
● Design your layout as flat as you can
● Avoid over drawing or nested weights
● Profile your list using GPU overdraw and
GPU Rendering in developer options

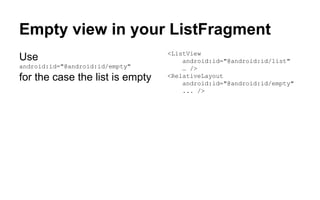

27. Empty view in your ListFragment
Use
android:id="@android:id/empty"
for the case the list is empty
<ListView
android:id="@android:id/list"
… />
<RelativeLayout
android:id="@android:id/empty"
... />

28. Save each item state
In your adapter:
Set<Integer> opened = HashSet<Integer>();
On widget opened:
opened.add(item.getId());
In getView():
view.setOpened(opened.contains(item.getId());

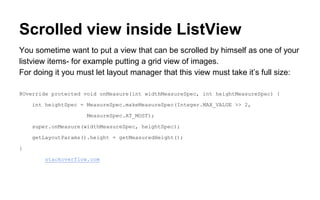

29. Scrolled view inside ListView
You sometime want to put a view that can be scrolled by himself as one of your
listview items- for example putting a grid view of images.
For doing it you must let layout manager that this view must take it’s full size:
@Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
int heightSpec = MeasureSpec.makeMeasureSpec(Integer.MAX_VALUE >> 2,
MeasureSpec.AT_MOST);
super.onMeasure(widthMeasureSpec, heightSpec);
getLayoutParams().height = getMeasuredHeight();
}
source: stackoverflow.com

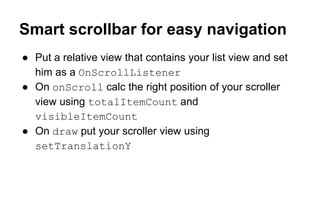

30. Smart scrollbar for easy navigation
● Put a relative view that contains your list view and set
him as a OnScrollListener
● On onScroll calc the right position of your scroller
view using totalItemCount and
visibleItemCount
● On draw put your scroller view using
setTranslationY

31. Smart scrollbar for easy navigation
You can even add a behavior for dragging the scroller
using onTouchEvent:
public boolean onTouchEvent(MotionEvent event) {
if (event.getAction() == MotionEvent.ACTION_DOWN) {
if (//event in scroll bar view)
mDragging = true;
} else if (me.getAction() == MotionEvent.ACTION_UP) {
if (mDragging)
mDragging = false;
} else if (me.getAction() == MotionEvent.ACTION_MOVE) {
if (mDragging)
mList.setSelectionFromTop(//calc the right item index, 0);
}
}

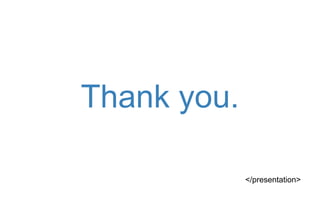

32. </presentation>
Thank you.
