The document summarizes the anatomy and development of the inner ear. It describes how the inner ear develops from the otic placode and otocyst in the early embryo. It then discusses the detailed structures within the inner ear, including the bony and membranous labyrinths, semicircular canals, cochlea, vestibule, and organ of Corti. The organ of Corti contains hair cells and supporting cells that detect sound vibrations and transmit signals to the auditory nerve.

1. Anatomy of the
Inner Ear
By
Dr. Aditya Tiwari

2. Brain

3.  Ectoderm = Membranous labyrinth
 Mesoderm = Bony labyrinth
 BY THE 3RD WEEK :-
a)Surface ectoderm  Otic Placode
b)Otic Placode Invaginates --> Otic pit
 BY THE 4TH WEEK :-
Otic Pit edges fuse to become otocyst.

4.  Otocyst has 2 portion : -
a)Dorsal Utricular portion
b)Ventral Saccular portion
 Utricular portion :-
3 diverticula for Semicircular Canals
 Saccular portion :-
a)Tubular diverticulum (cochlear duct)
grows in spiral fashion to become membranous
cochlea
b)The organ of Corti differentiates from
cells along the wall of the cochlear duct

5.  BY THE 6TH WEEK :-
Neuroectoderm --> Spinal and Vestibular
ganglia and corresponding sensory nerves
 Mesoderm around otocyst soon forms a
cartilaginous otic capsule.
 Ossifies by 25 weeks
Bony labyrinth ossifies from 14 ossification centres 
Starts at 16th week of intrauterine life & ends by 20-21
weeks
of gestation.

6.  Vacuoles containing the perilymph develop
within the Otic capsule.
 The vacuoles enlarge and unite to form the
perilymphatic space.
 Perilymphatic space divides into the scala
tympani and the scala vestibuli.
 The cartilaginous otic capsule ossifies to form
the bony labyrinth of the inner ear
(mesoderm).

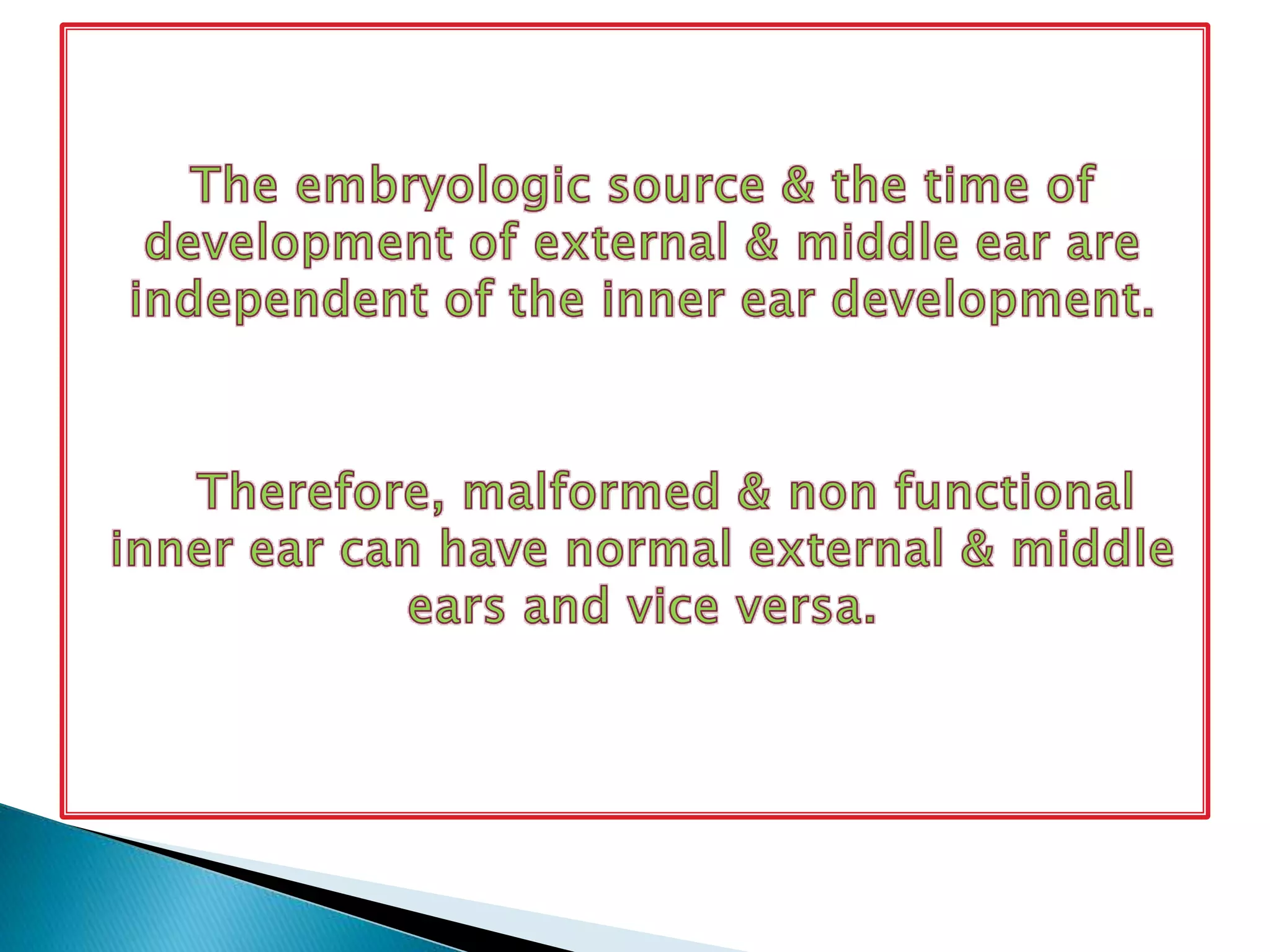

8.  Two compartments:-
а) Bony labyrinth and
b) Membraneous labyrinth.
 BONY LABYRINTH :-
Complex cavity in dense bone (Pars Petrosa)
 Parts of the bony labyrinth: -
a) Vestibulum.
b) Semicircular canals.
C) Cochlea.

10.  So, the inner ear consists of a “membranous”
labyrinth encased in an “osseous” labyrinth.
 The vestibule and semicircular canals are
concerned with vestibular function (balance).
 The cochlea is concerned with hearing. The
cochlea is a coiled tube.
 It should be noticed that the oval window and
round window open into the vestibule, at the
base of the cochlea.

11.  Two walls: External and internal.
 External wall has
a)Fenestra Vestibuli.
 Internal wall has:
a) Recessus Ellipticus
b) Recessus Sphericus
c) Recessus Cochlearis
d)Maculae cribrosae superior, medius,
inferior

12. EXTERNAL WALL INTERNAL WALL

13.  Lateral wall  oval windowclosed by stapes
footplate & surronded by annular ligament.
 Medial wall :-
a)Sperical recess ant. Situatedlodge
sacculeperforaton of macula cribrosa media
provides passage for fibres of inf vestibular
nerve.
b)Elliptical recesspost. Situatedlodge
utricle perforaton of macula cribrosa
superior(MIKE’S DOT) provides passage for
nerve fibres that supply to uticle & ampulla of
sup & lateral SSC

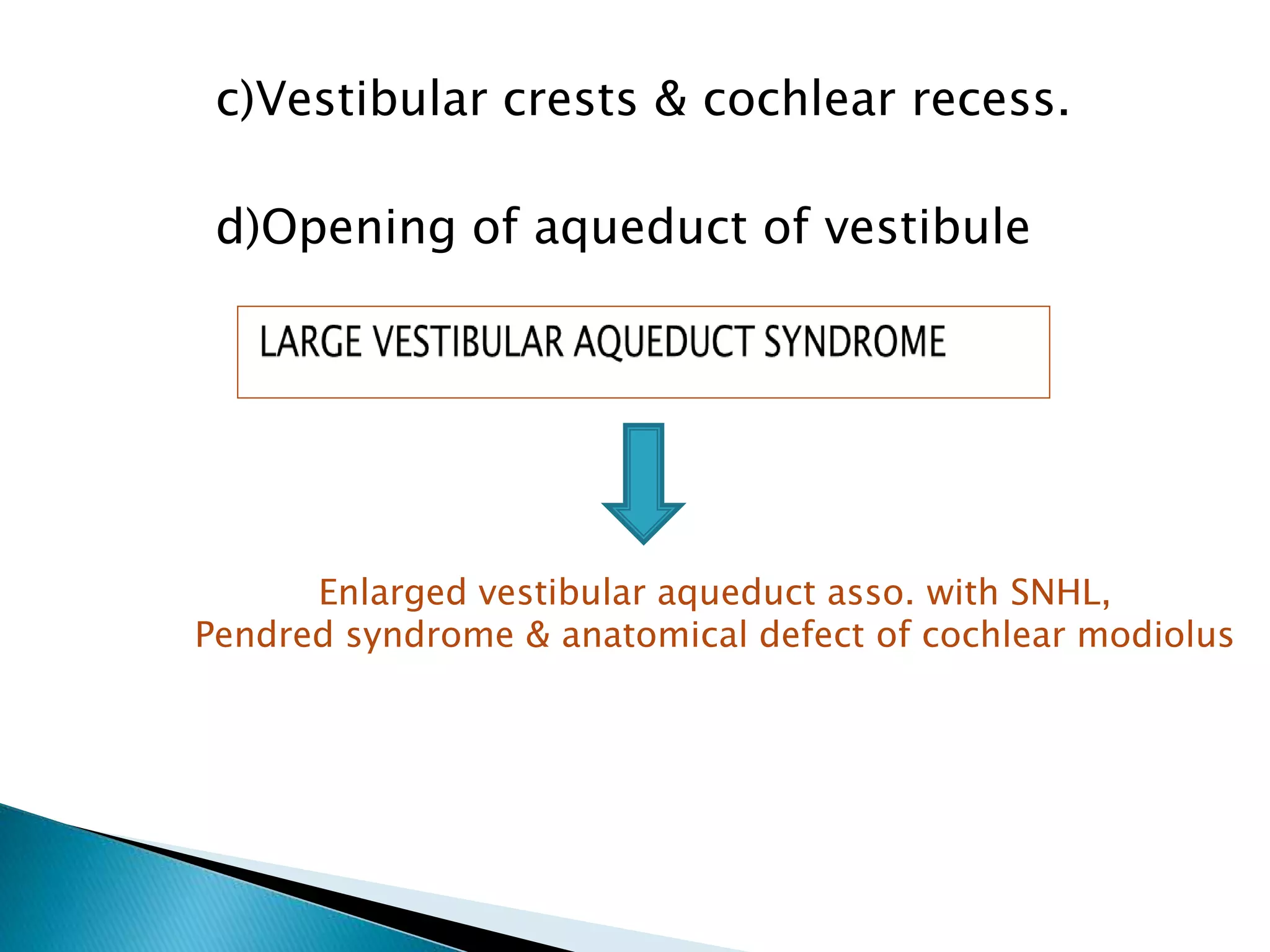

14. c)Vestibular crests & cochlear recess.
d)Opening of aqueduct of vestibule
Enlarged vestibular aqueduct asso. with SNHL,
Pendred syndrome & anatomical defect of cochlear modiolus

15. a) Fenestra vestibuli.
b) Fenestra cochleae.
c) Openings (5) of the semicircular canals
d) Aqueductus vestibuli

16.  They are 3 in numbers :-
a) Anterior,
b) Posterior and
c) Lateral.
 Have ampulla and crus.
A) Canalis Semicircularis Superior/Anterior –
Frontal.
- Eminentia arcuata on pars petrosa of os
temporale

17. B) Canalis Semicircularis Lateralis – Horizontal.
- Eminentia canalis semicircularis
lateralis on the medial wall of tymypanic cavity.
C) Canalis semicircularis posterior –Sagittal

18.  The cochlea is the auditory portion of the inner ear.
 The cochlea (plural is cochleae) is a spiralled,
hollow, conical chamber of bone in the bony
labyrinth
 The cochlea resembles a snail shell and spirals for
about 2 3/4 turns around a bony column
 It is coiled around the
modiolus.

19.  It forms a cone approximately 9 millimetres
(0.35 inch) in diameter at its base and 5
millimetres in height.
 When stretched out, the tube is
approximately 30 millimetres in length; it is
widest—2 millimetres—at the point where the
basal coil opens into the vestibule and tapers
until it ends blindly at the apex.

20. Area bounded by the Bony labyrinth anterioly,
Sigmoid sinus posteriorly & the dura or
superior petrosal sinus superiorly.

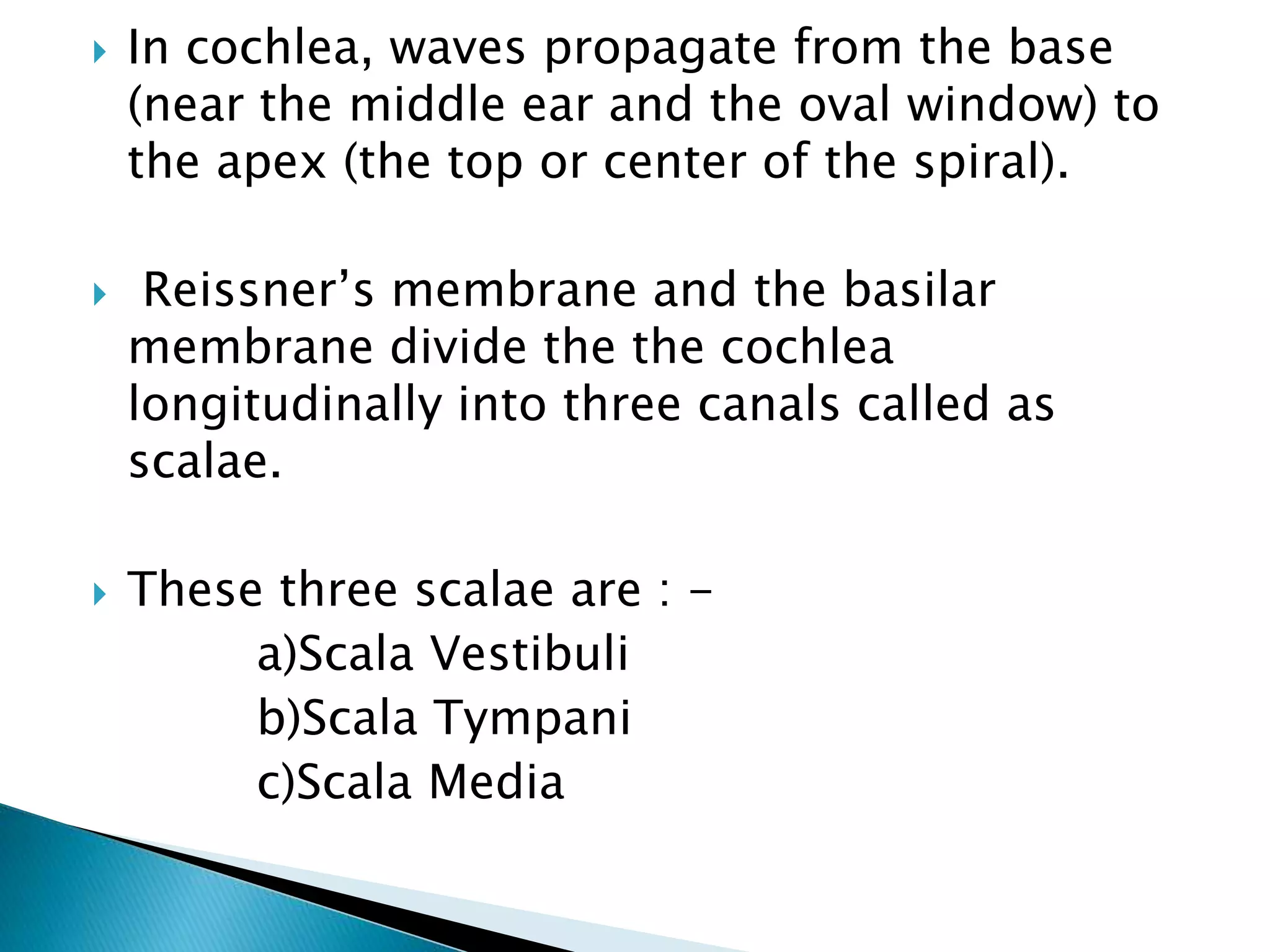

21.  In cochlea, waves propagate from the base
(near the middle ear and the oval window) to
the apex (the top or center of the spiral).
 Reissner’s membrane and the basilar
membrane divide the the cochlea
longitudinally into three canals called as
scalae.

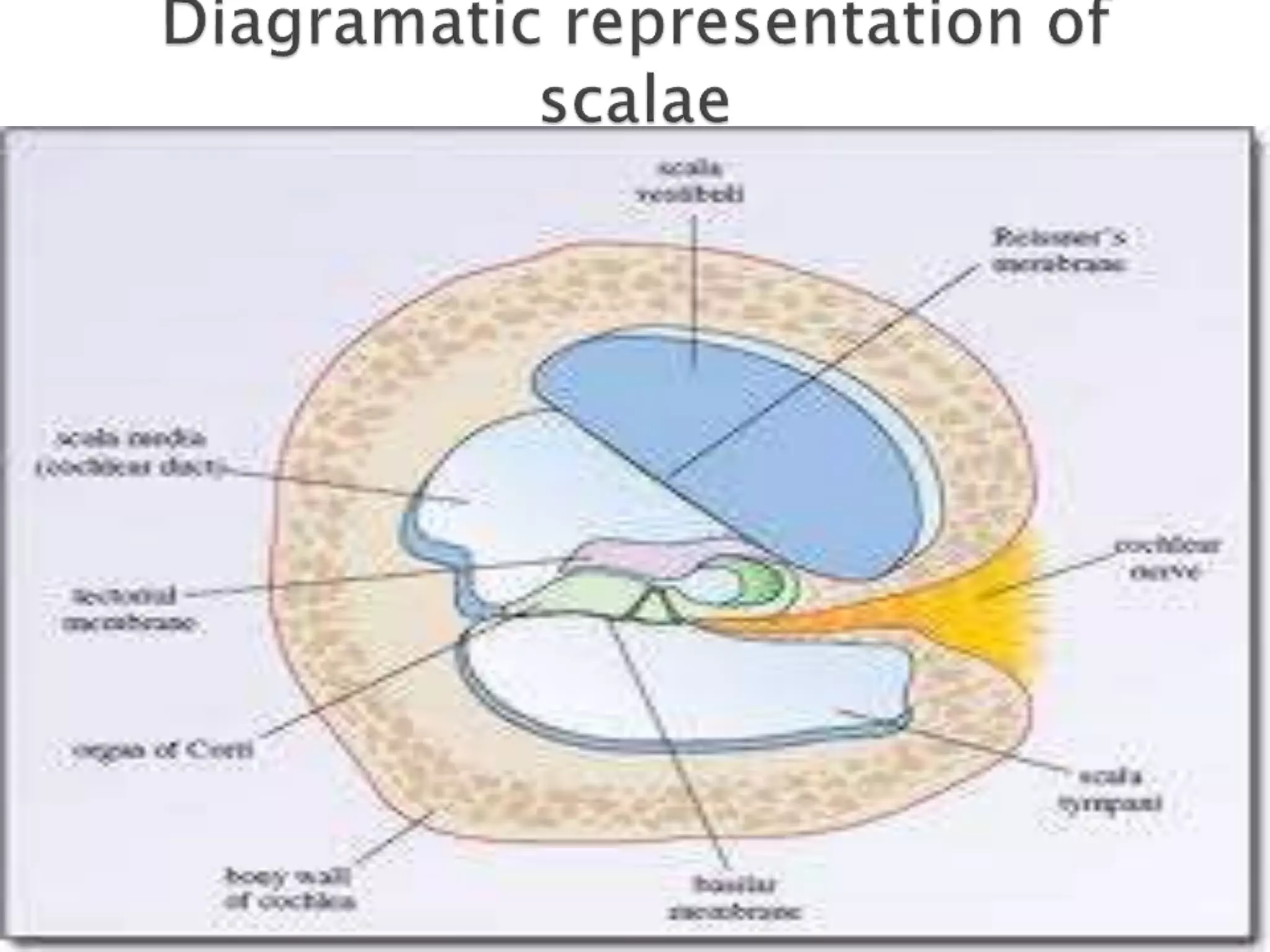

 These three scalae are : -
a)Scala Vestibuli
b)Scala Tympani
c)Scala Media

23.  Movement of the the basilar membrane by
pressure changes induced by stapes footplate
motion at the oval window is a critical step in
the transduction in the middle.
 The process of transduction occurs in the
structures within scala media, sitting on the
basilar membrane -- these structures
comprise the organ of Corti. The side of the
duct where the nerve fibers exit (left in this
picture) is the “inner” or “modiolar” side of
the duct. The opposite side is the “outer”
side.
.

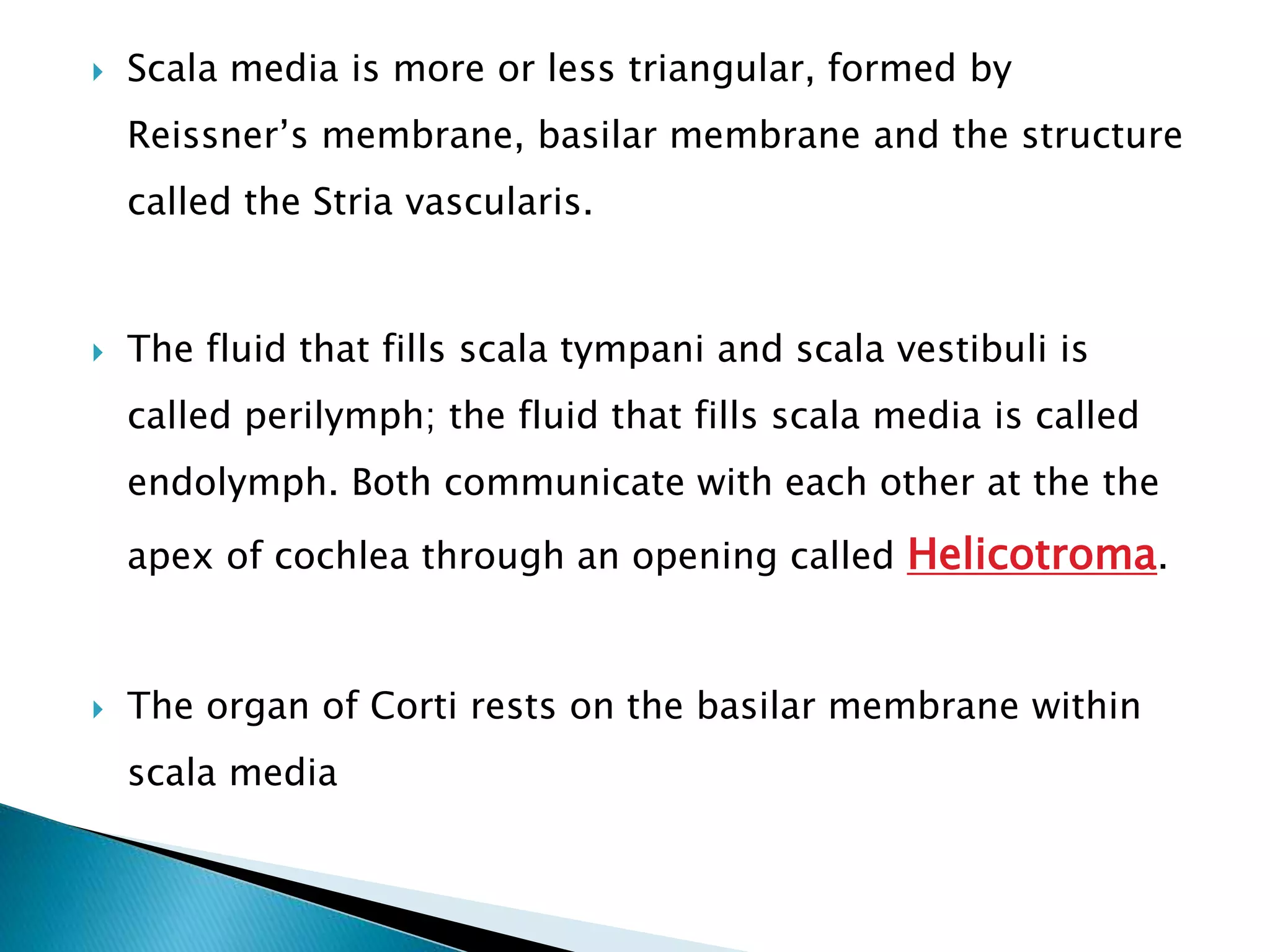

24.  Scala media is more or less triangular, formed by
Reissner’s membrane, basilar membrane and the structure
called the Stria vascularis.
 The fluid that fills scala tympani and scala vestibuli is
called perilymph; the fluid that fills scala media is called
endolymph. Both communicate with each other at the the
apex of cochlea through an opening called Helicotroma.
 The organ of Corti rests on the basilar membrane within
scala media

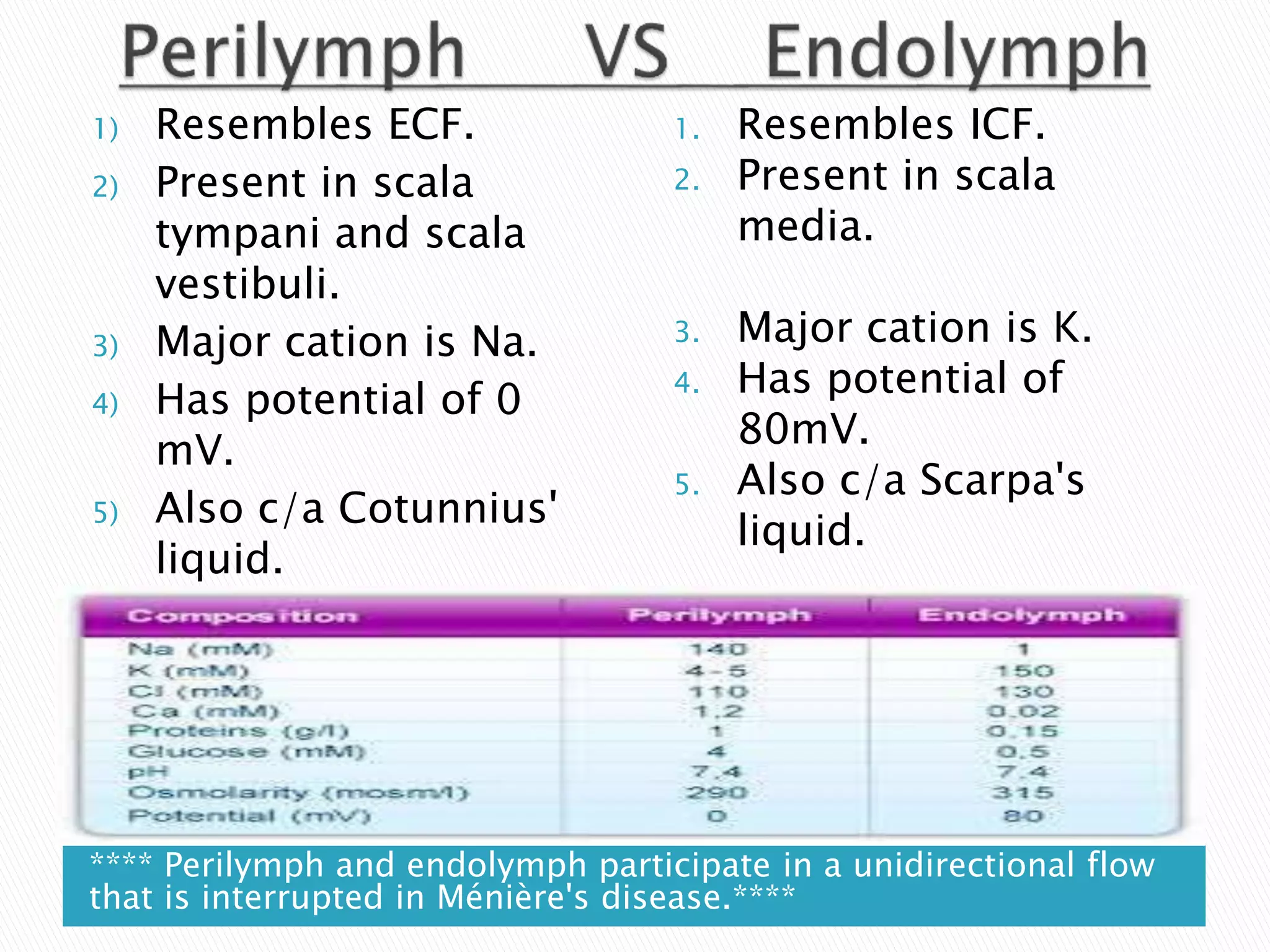

25. **** Perilymph and endolymph participate in a unidirectional flow
that is interrupted in Ménière's disease.****
1) Resembles ECF.
2) Present in scala
tympani and scala
vestibuli.
3) Major cation is Na.
4) Has potential of 0
mV.
5) Also c/a Cotunnius'
liquid.
1. Resembles ICF.
2. Present in scala
media.
3. Major cation is K.
4. Has potential of
80mV.
5. Also c/a Scarpa's
liquid.

26.  Organ of Corti also called as “End organ of hearing”.
 It is found only in mammals and provided with hair
cells or auditory sensory cells.
 It evolved from the basilar papilla found in all
tetrapods
 It is highly specialized structures that respond to
fluid-borne vibrations in the cochlea with a shearing
vector in the hairs of some cochlear hair cells.
 It contains between 15,000-20,000 auditory nerve
receptors.

27.  Each receptor has its own hair cell.
 The shear on the hairs opens non-selective
transduction ion channels that are permeable to K
and Ca , leading to hair cell plasma membrane
depolarization, activation of voltage-dependent Ca
channels at the synaptic basolateral pole of the
cells
 It triggers vesicle autopsy and liberation of
glutamate neurotransmitter to the synaptic cleft
and electrical signaling to the auditory cortex via
spiral ganglion neurons.

29.  Two types of cells in the organ of Corti are
a) Support cells and
b) Hair cells.
 The Hair cells are the “Receptor” cells cells
that transduce sound.
 Support cells such as the Deiter’s cells 
support hair cells

30.  Present only in the lower turn of
the cochlea Lie on the basilar membrane beneath
Claudius' cells Supporting cells for the auditory hair
cells in the organ of Corti.
 Located above Boettcher's cells 
Supporting cells for the auditory hair cells in the
organ of Corti Contain a variety of aquaporin water
channels involved in ion transport play a role in
sealing off endolymphatic spaces

31.  High columnar cells that are
directly adjacent to the third row of Deiters’ cells.
 Section of the tectorial
membrane above the inner hair cell.
 Fluid filled spaces between the
outer pillar cells and adjacent hair cells  Also
the spaces between the outer hair cells.
 Layer of the tectoria
closest to the reticular lamina and overlying the
outer hair cell region.

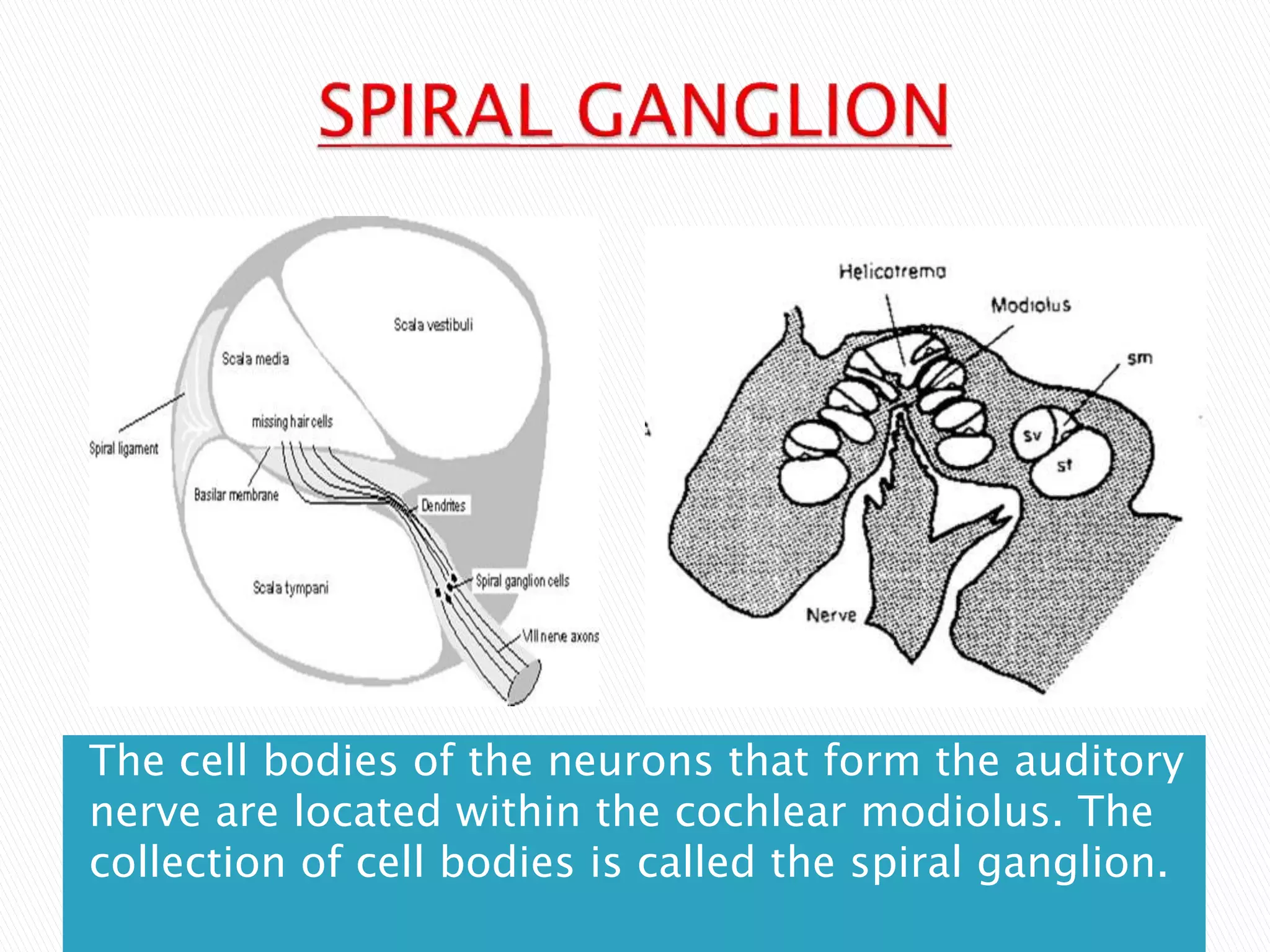

 Spiral ganglion are situated in
Rosenthal canal, which runs along osseous spiral
lamina

32.  There are two types of hair cells
a)Outer Hair Cells (OHC) from sound to
nerve signal
b)Inner Hair Cells (IHC)acoustical pre-
amplifiers

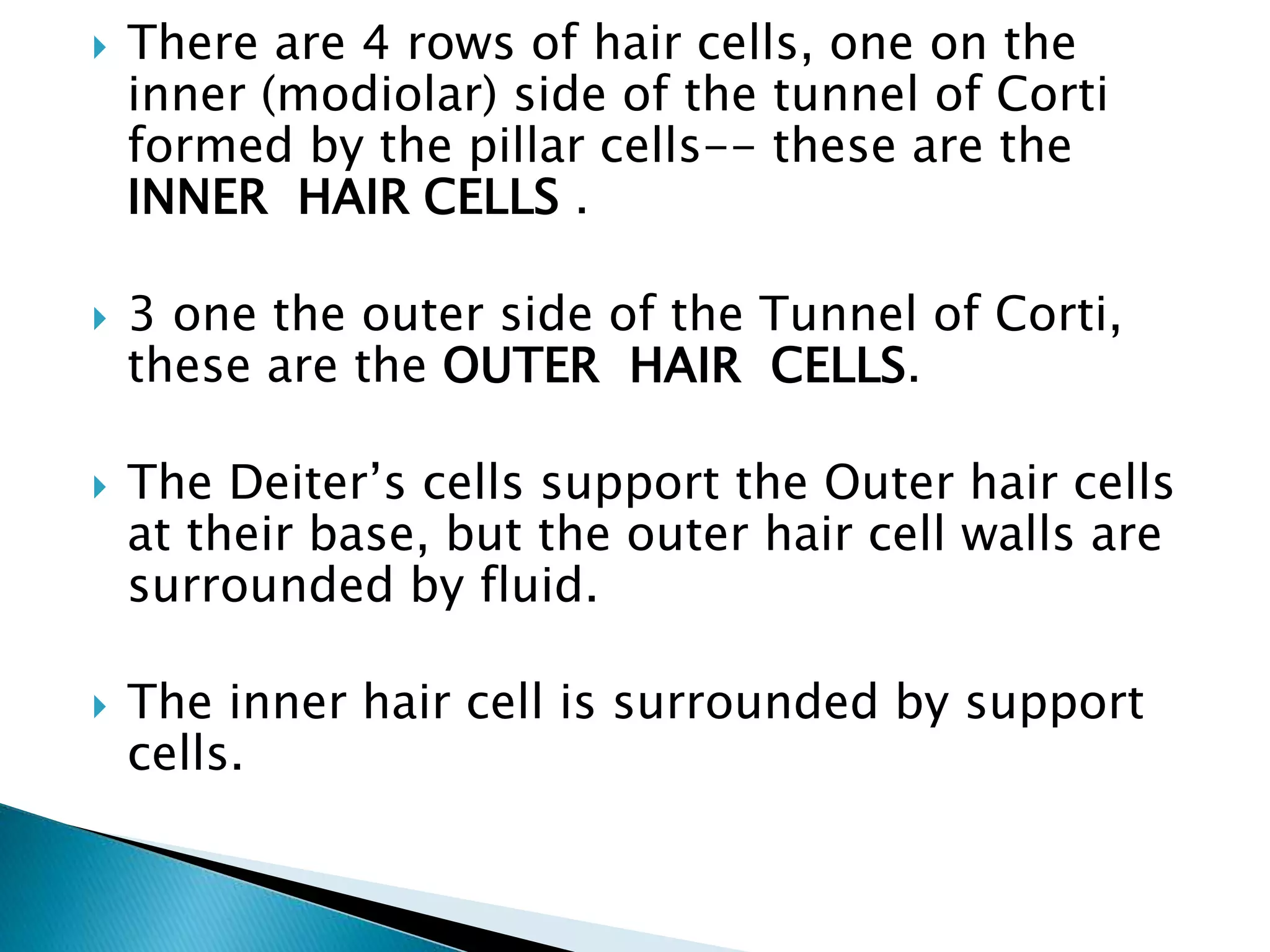

33.  There are 4 rows of hair cells, one on the
inner (modiolar) side of the tunnel of Corti
formed by the pillar cells-- these are the
INNER HAIR CELLS .
 3 one the outer side of the Tunnel of Corti,
these are the OUTER HAIR CELLS.
 The Deiter’s cells support the Outer hair cells
at their base, but the outer hair cell walls are
surrounded by fluid.
 The inner hair cell is surrounded by support
cells.

34.  The Outer hair cells mechanically amplify
low-level sound that enters the cochlea.
 The amplification may be powered by
movement of their hair bundles, or by an
electrically driven motility of their cell bodies.
 The Inner hair cells transform the sound
vibrations in the fluids of the cochlea into
electrical signals that are then relayed via the
auditory nerve to the auditory brainstem and
to the auditory cortex.

35. 1) Approx 3500 in no.
2) Lies in one row.
3) Flask shaped.
4) Mainly afferent nerve
fibres supply.
5) Early development.
6) Transmit auditory
stimuli.
7) More resistant to
ototoxic drugs.
8) More resistant to high
intensity noice.
9) No generation of
otoacoustic emissions.
1) Approx 12,000 in no.
2) Lies in 3-4 rows.
3) Cylindrical shaped.
4) Mainly efferent nerve
fibres supply.
5) Late development.
6) Modulate function of inner
hair cells.
7) More sensetive & easily
damaged by ototoxic
drugs.
8) More sensetive & easily
damaged by high intensity
noice.
9) Generates otoacoustic
emissions.

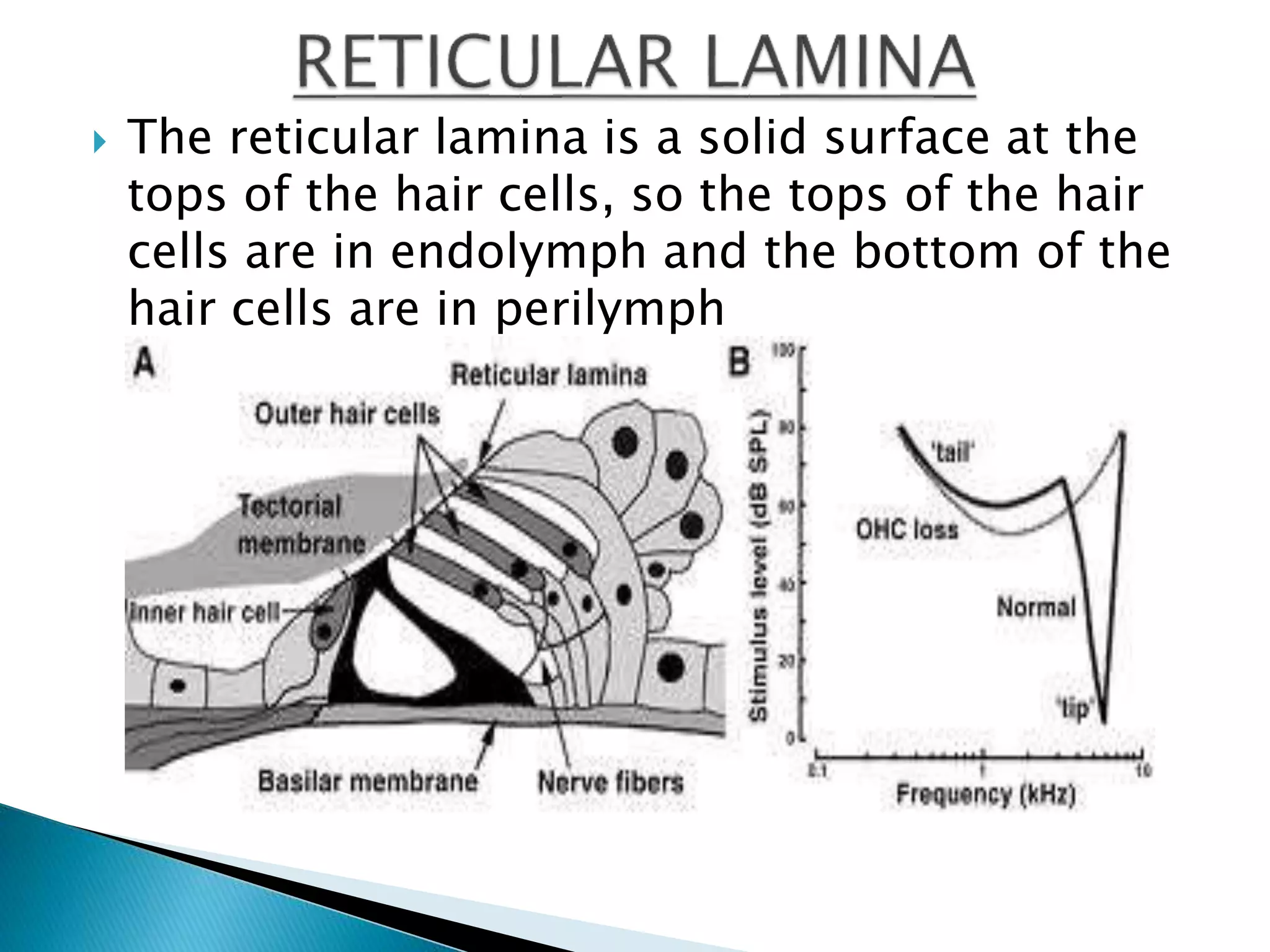

36.  The reticular lamina is a solid surface at the
tops of the hair cells, so the tops of the hair
cells are in endolymph and the bottom of the
hair cells are in perilymph

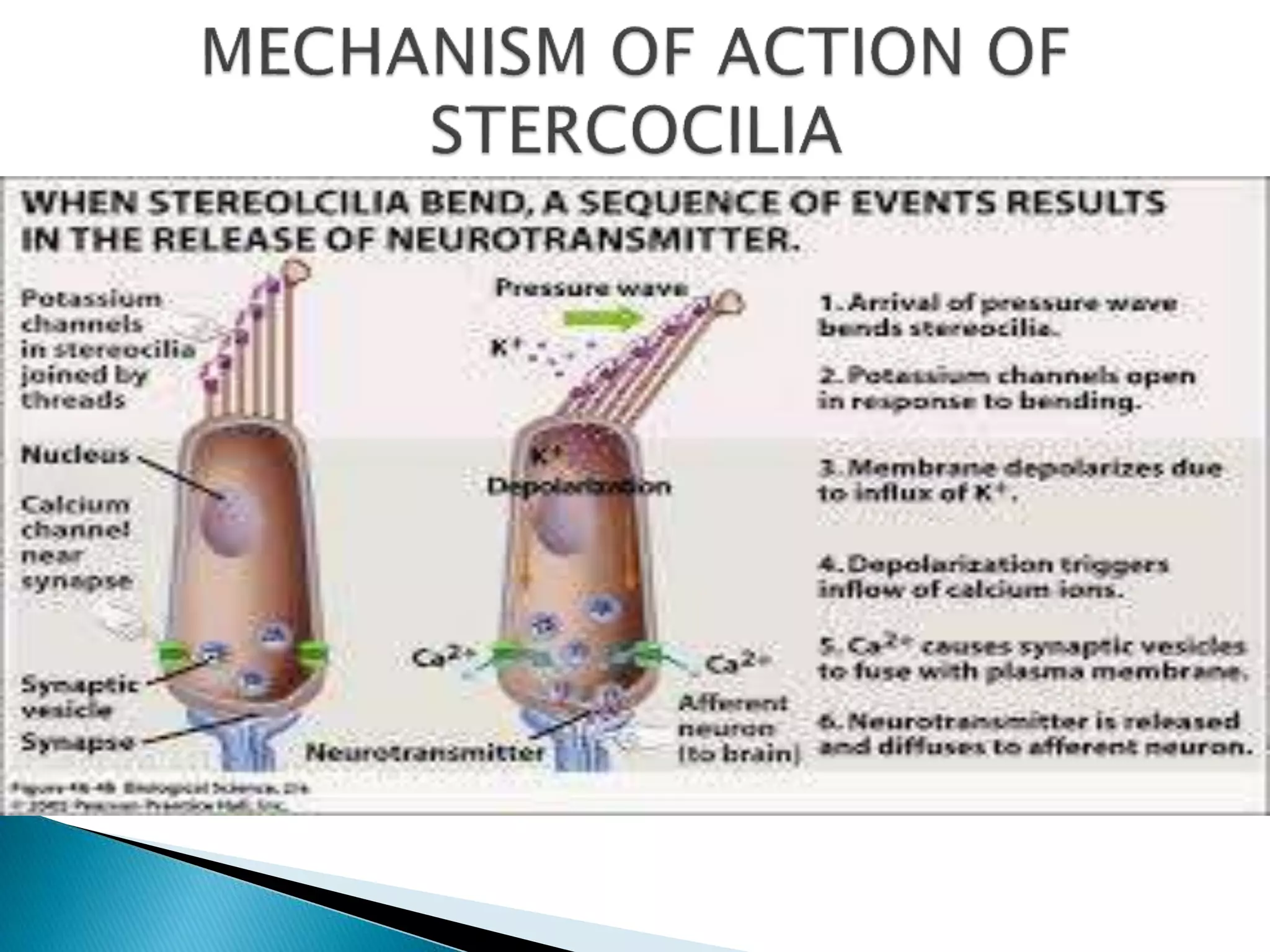

37.  Stereocilia are lined up in the Organ of Corti
within the cochlea of the inner ear.
 In hearing, stereocilia transform the
mechanical energy of sound waves into
electrical signals for the hair cells, which
ultimately leads to an excitation of the
auditory nerve.

38.  Stereocilia are composed of cytoplasm with
embedded bundles of cross-linked actin
filaments.
 The actin filaments anchor to the terminal
web and the top of the cell membrane and
are arranged in grade of height.
 When the stapes causes sound waves in the
endolymphatic fluid in the cochlea, the
stereocilia are deflected in a shearing motion,
which results in the mentioned electrical
signal for the hair cell

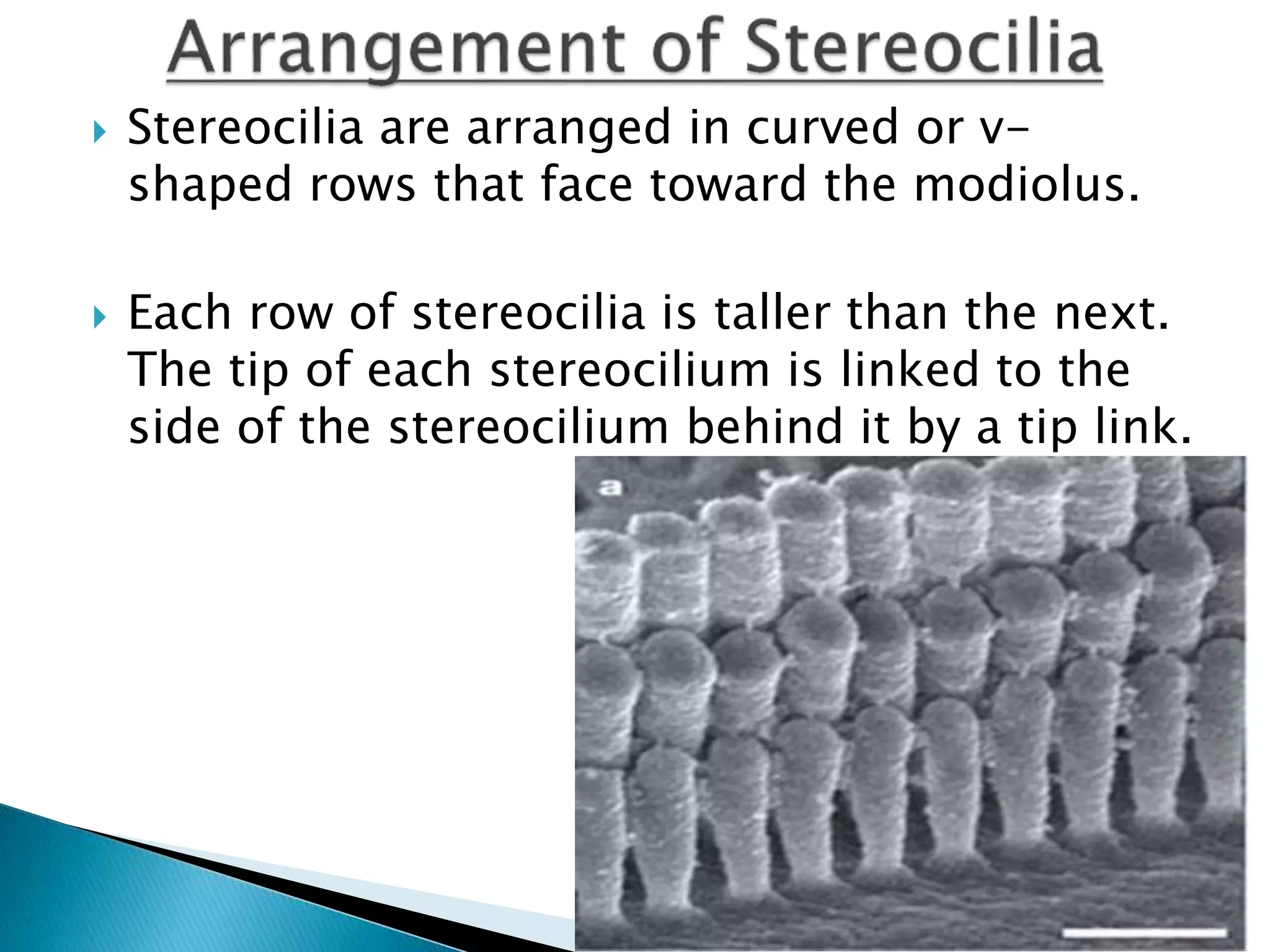

40.  Stereocilia are arranged in curved or v-
shaped rows that face toward the modiolus.
 Each row of stereocilia is taller than the next.
The tip of each stereocilium is linked to the
side of the stereocilium behind it by a tip link.

41.  Kinocilia are found on the apical surface of
hair cells and are involved in both the
morphogenesis of the hair bundle and
mechanotransduction, Vibrations (either by
movement or sound waves)  causes
displacement of the hair bundle, resulting in
depolarization or hyperpolarization of the
hair cells.

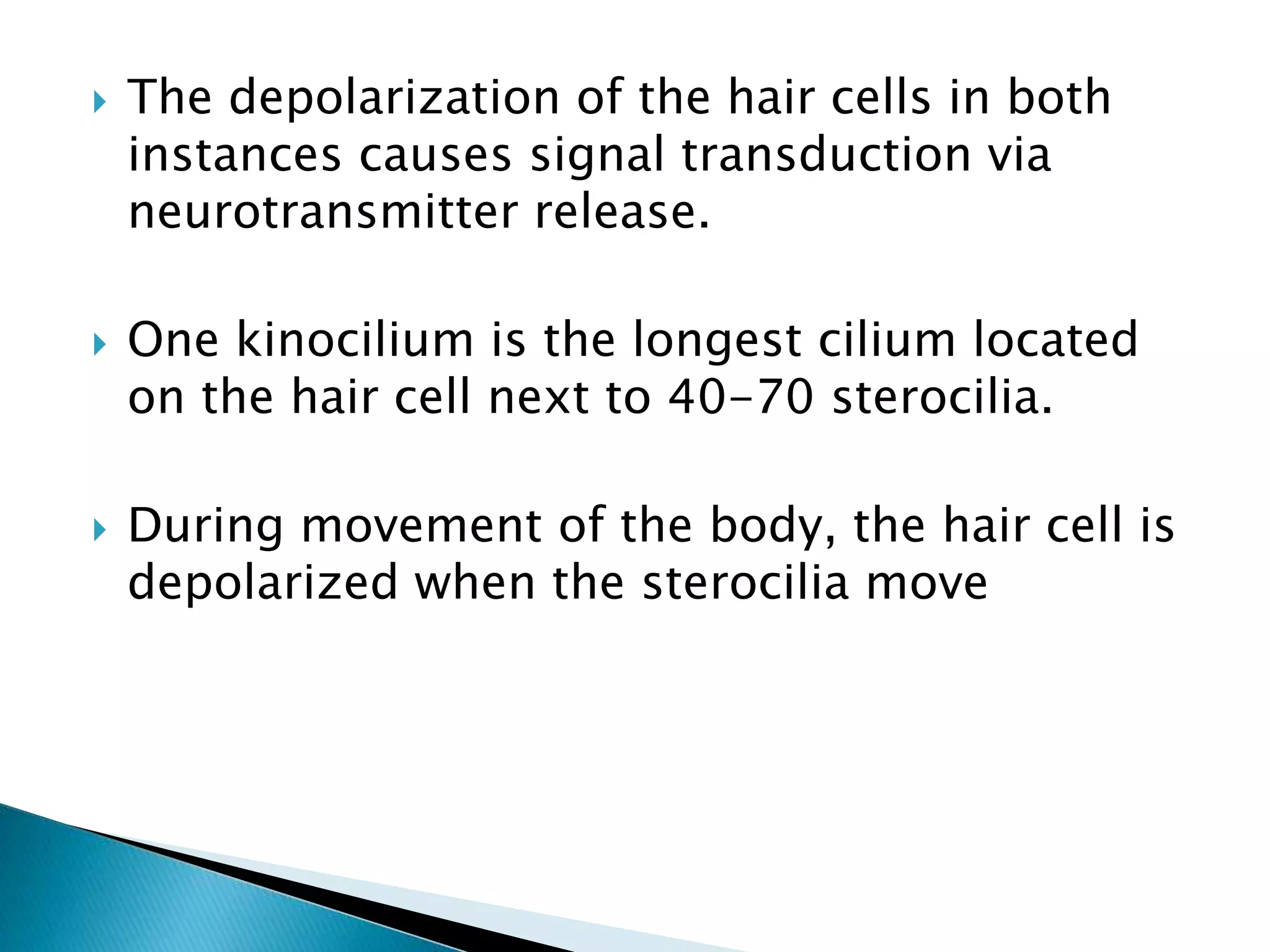

42.  The depolarization of the hair cells in both
instances causes signal transduction via
neurotransmitter release.
 One kinocilium is the longest cilium located
on the hair cell next to 40-70 sterocilia.
 During movement of the body, the hair cell is
depolarized when the sterocilia move

43.  Deiter’s cell processes “fill in the gaps” between
the tops of the outer hair cells to form the
reticular lamina.
 It holds the base of the hair cell in a cup-shaped
depression. From each Deiters’ cell a projection
extends upward to the stiff
membrane, the reticular lamina,
that covers the organ of
Corti.

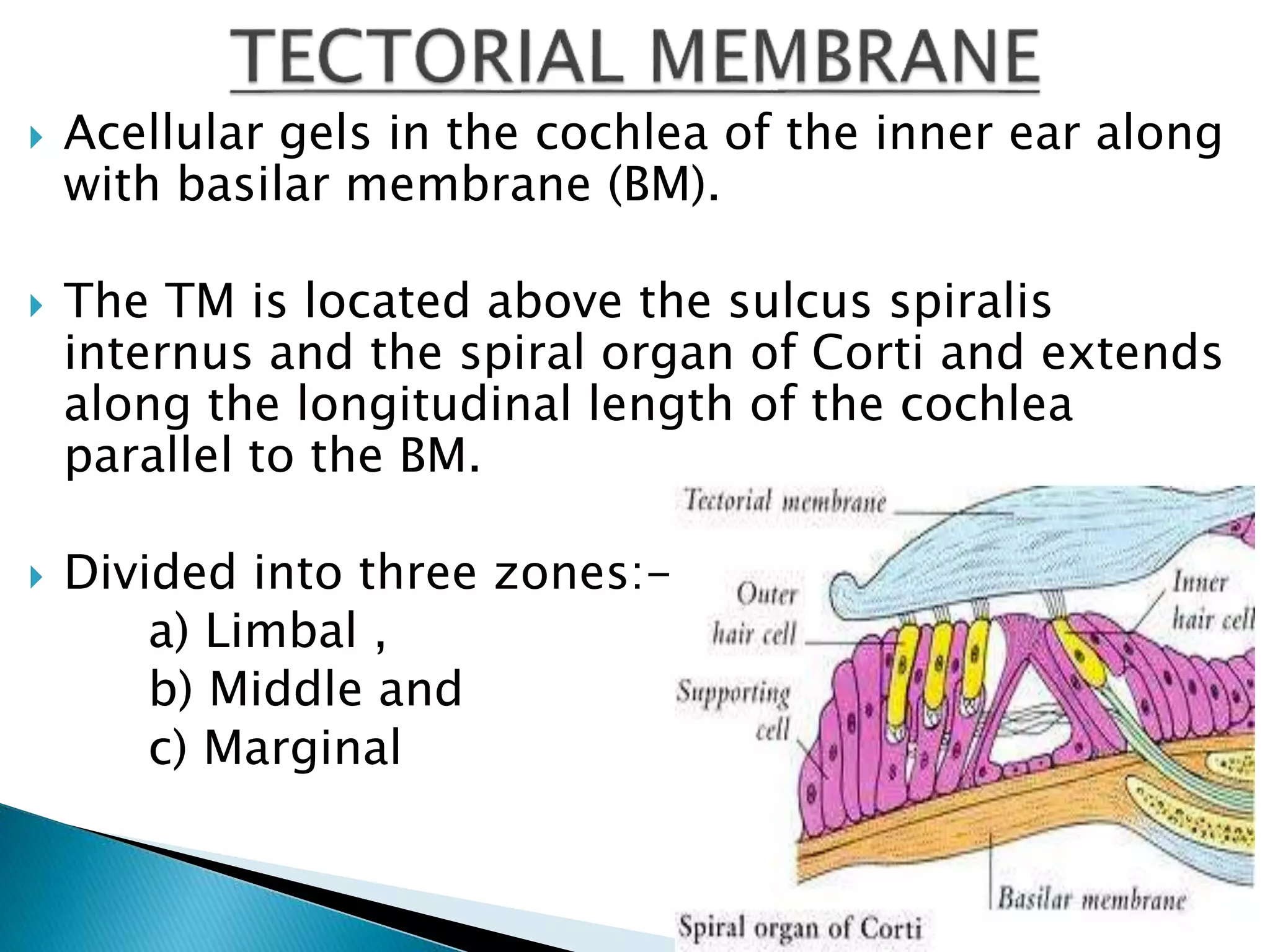

44.  Acellular gels in the cochlea of the inner ear along
with basilar membrane (BM).
 The TM is located above the sulcus spiralis
internus and the spiral organ of Corti and extends
along the longitudinal length of the cochlea
parallel to the BM.
 Divided into three zones:-
a) Limbal ,
b) Middle and
c) Marginal

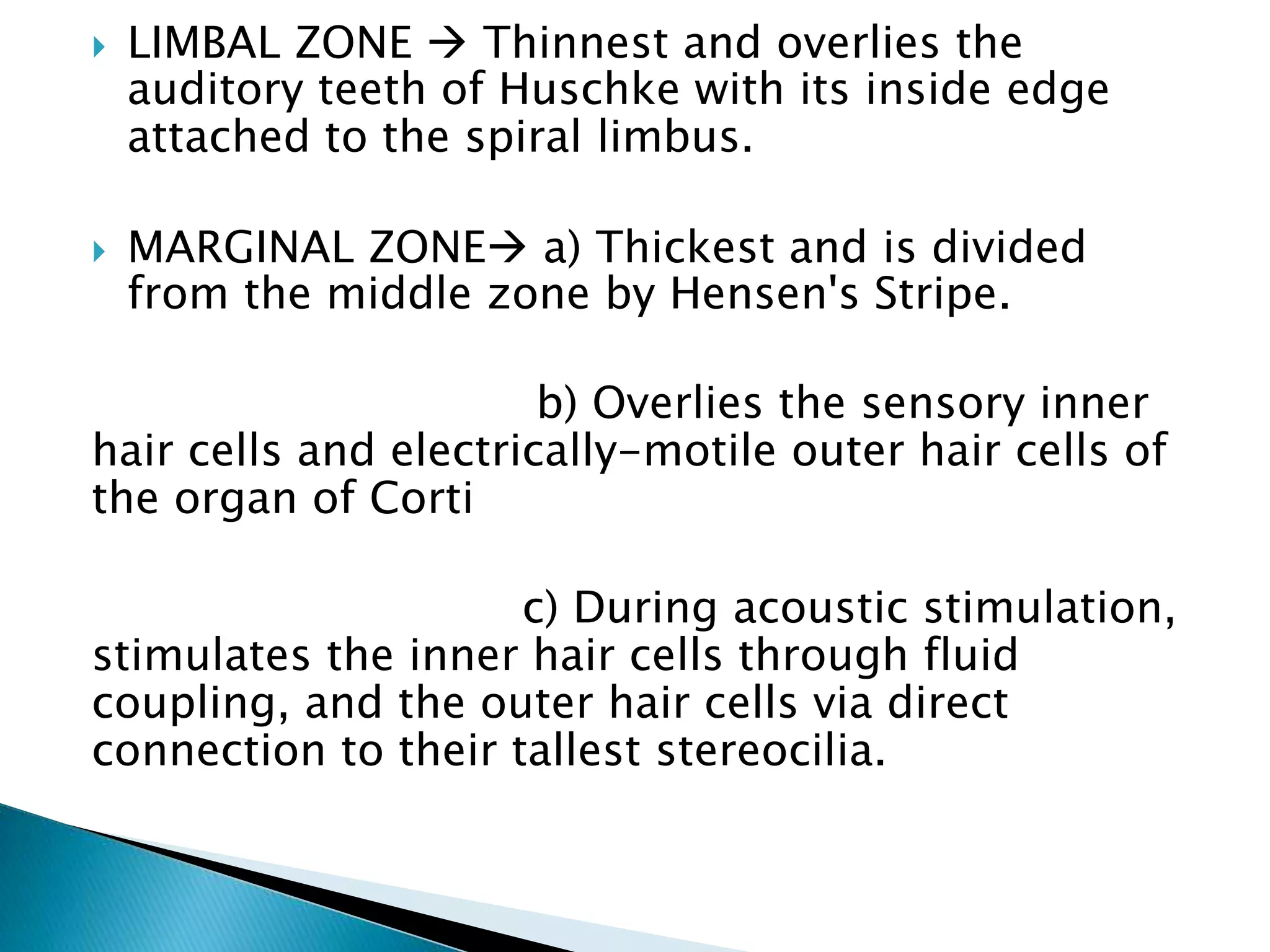

45.  LIMBAL ZONE  Thinnest and overlies the
auditory teeth of Huschke with its inside edge
attached to the spiral limbus.
 MARGINAL ZONE a) Thickest and is divided
from the middle zone by Hensen's Stripe.
b) Overlies the sensory inner
hair cells and electrically-motile outer hair cells of
the organ of Corti
c) During acoustic stimulation,
stimulates the inner hair cells through fluid
coupling, and the outer hair cells via direct
connection to their tallest stereocilia.

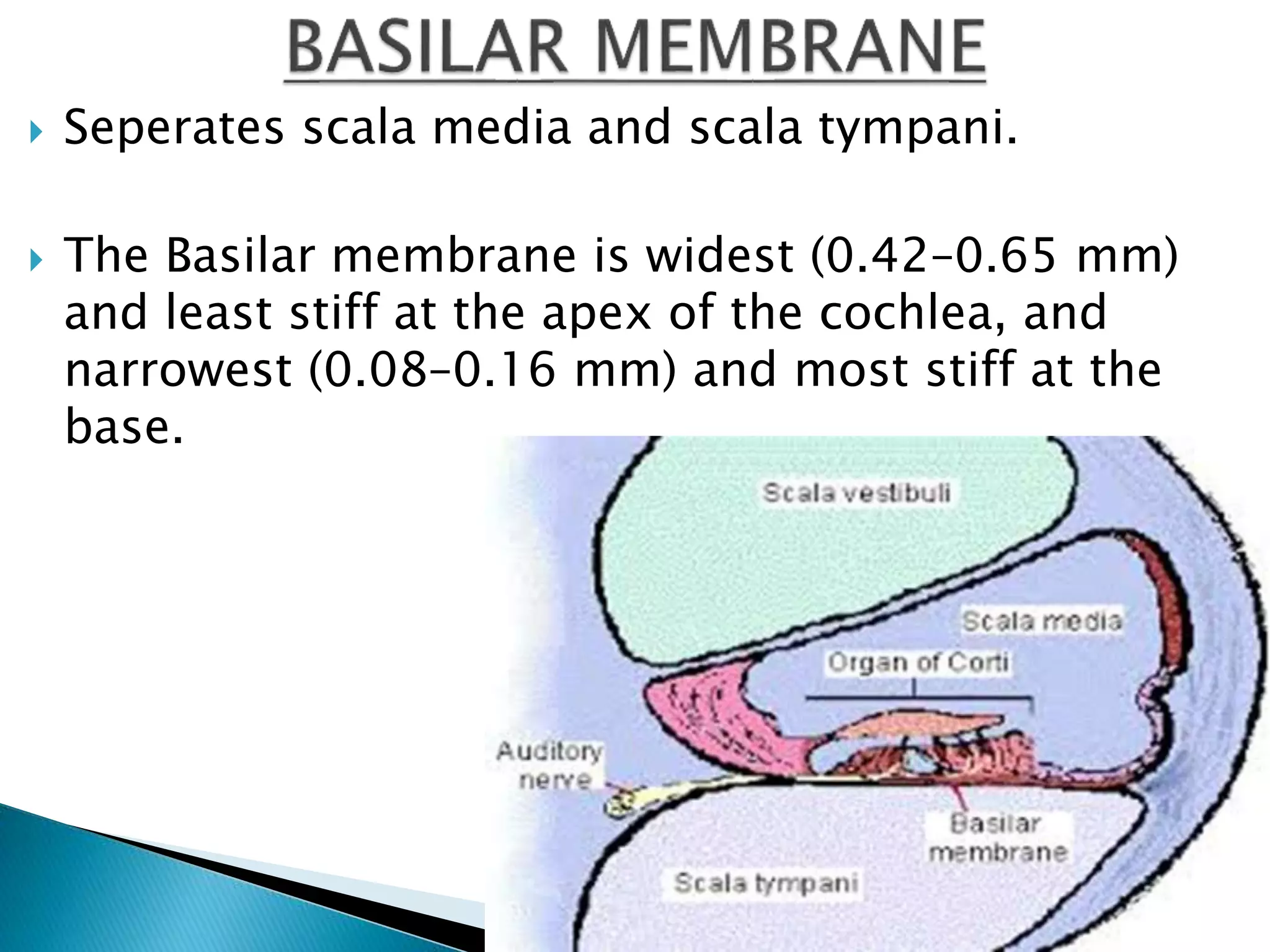

46.  Seperates scala media and scala tympani.
 The Basilar membrane is widest (0.42–0.65 mm)
and least stiff at the apex of the cochlea, and
narrowest (0.08–0.16 mm) and most stiff at the
base.

47.  FUNCTIONS OF BASILAR MEMBRANE :-
a) Perilymph/endolymph seperation.
b) Base of sensory cells
c) Frequency dispertion
 High-frequency sounds localize near the base of
the cochlea (near the round and oval windows),
while low-frequency sounds localize near the
apex.
 Zona arcuata inner
thin area
Zona pectinata
Outer thick area

48.  The membranous labyrinth contains fluid
called endolymph.
 The walls of the membranous labyrinth are
lined with distributions of the acoustic nerve,
also known as the vestibularcochlear nerve.
 It consists of :- a) Cochlear duct
b) Utricle
c) Saccule
d) 3 semicircular ducts
e)Endolymphatic duct & sac

49.  The cochlear duct (or scala media) is an
endolymph filled cavity inside the cochlea,
located in between the scala tympani and the
scala vestibuli, separated by the basilar
membrane and Reissner's membrane (the
vestibular membrane) respectively.
 Scala media houses the organ of Corti.

50.  Oblong, irregular, ant. Upward slope
approx at 30 degree.
 4.33mm2, recieves 5 opening of 3
semicircular canal, lies in posterior
part of bony vestibule.
 Connected with saccule via
utriculosaccular duct. Its sensory
epithelium c/a MACULE concerned
with linear acceleration and
dicceleration.
UTRICLE
FIRST PART
OF MEMB.
LABYRINTH
TO DEVP.
DURING
INTRA -
UTERINE LIFE.

51.  Consists of three
layers ;-
a) Bottom layer
sensory hair
cellsconsists of 40 to
70 steriocilia and a
kinocilium,
b) Top
layercalcium
carbonate crystals
called statoconia or
otolithsrelatively
heavy, providing
weight to the
membrane as well as
inertiagreater sense
of gravity and motion.
C)macula acustica
utriculereceives the
utricular filaments of
the acoustic nerve.

52.  Globularlies in the recessus sphæricus near
the opening of the scala vestibuli of the cochlea.
 The Anterior oval thickening, the macula
acustica sacculi saccular filaments of the
vestibular branch of the vestibulocochlear nerve.
 Posterior wall Ductus endolymphaticus.
 Lower part short tube, the CANALIS REUNIENS
OF HENSEN, passes downward and opens into the
ductus cochlearis near its vestibular extremity.

53.  Open in the utricle, corrosponds to three
semicircular canal.
 Ampulated end has thickened ridge of
neuroepithelium c/a CRISTAE AMPULARIS

54.  From the posterior wall of the saccule a canal,
the endolymphatic duct, is given off.
 This duct is joined by the ductus
utriculosaccularis, and then passes along the
aquaeductus vestibuli and ends in a blind
pouch (saccus endolymphaticus) on the
posterior surface of the petrous portion of
the temporal bone, where it is in contact with
the dura matER.

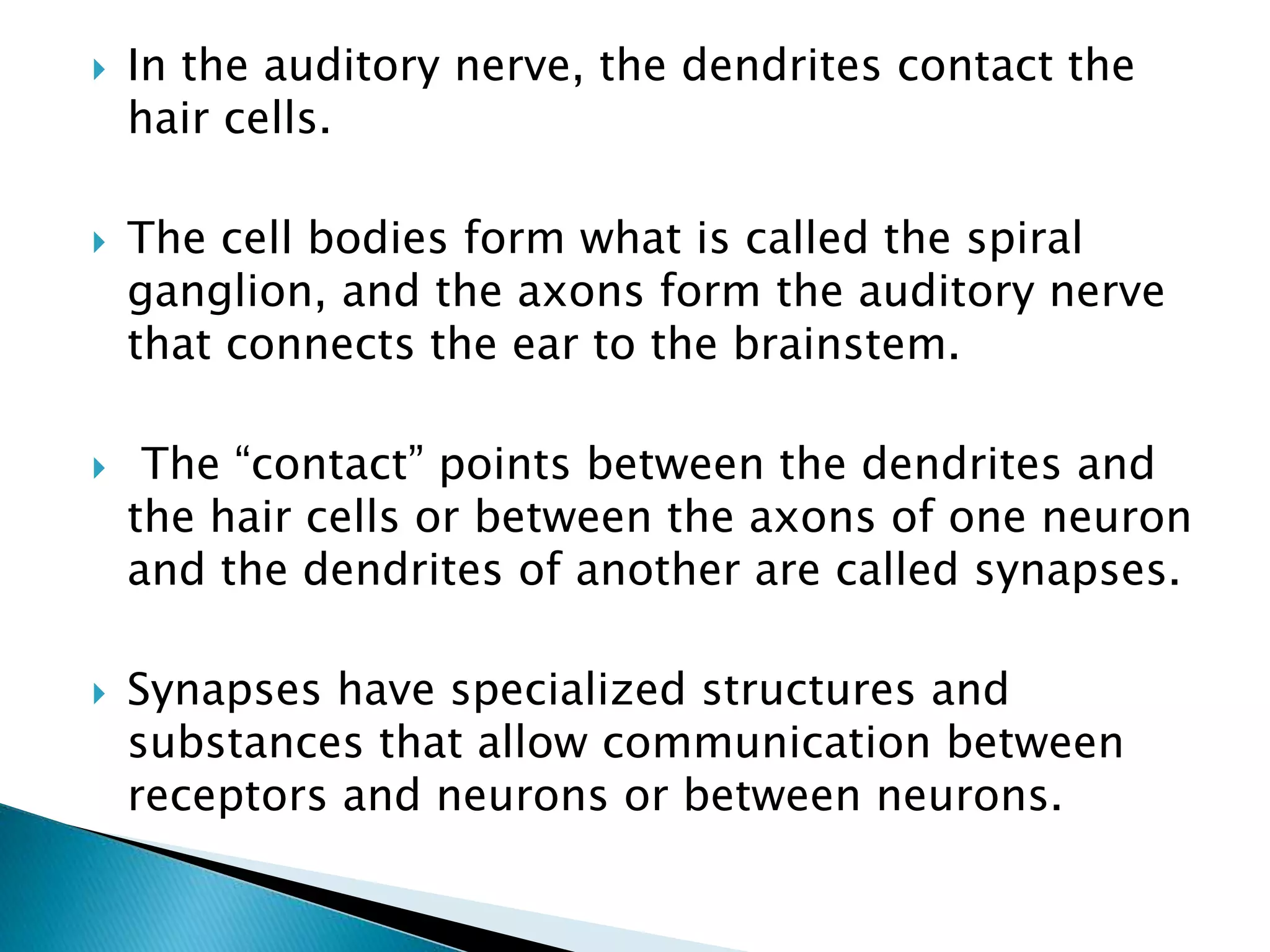

55.  In the auditory nerve, the dendrites contact the
hair cells.
 The cell bodies form what is called the spiral
ganglion, and the axons form the auditory nerve
that connects the ear to the brainstem.
 The “contact” points between the dendrites and
the hair cells or between the axons of one neuron
and the dendrites of another are called synapses.
 Synapses have specialized structures and
substances that allow communication between
receptors and neurons or between neurons.

56. .

57. This line is surgical landmark for endolymphatic
sac. It passes through horizantal SSC bisecting
posterior SSC. The endolymphatic sac that
appears as thickening of post cranial fossa dura
is situated inferior to Donaldson’s line.

58.  In the auditory nerve, the dendrites contact the
hair cells.
 The cell bodies form what is called the spiral
ganglion, and the axons form the auditory nerve
that connects the ear to the brainstem.
 The “contact” points between the dendrites and
the hair cells or between the axons of one neuron
and the dendrites of another are called synapses.
 Synapses have specialized structures and
substances that allow communication between
receptors and neurons or between neurons.

60.  When a neuron’s intracellular electrical
potential is changed enough by release of
neurotransmitter at a synapse(or in some
other way), an abrupt change in electrical
potential, an “action potential”, occurs.
 Action potentials are transmitted along the
axon to another synapse, where
neurotransmitter is released and an action
potential may be generated in the neuron on
the other side of the synapse (postsynaptic
neuron).

61. The cell bodies of the neurons that form the auditory
nerve are located within the cochlear modiolus. The
collection of cell bodies is called the spiral ganglion.

62.  Different types of nerve fibers innervate IHCs and OHCs.
Type I fibers innervate IHCs; Type II neurons innervate OHCs.

64.  Many nerve fibers that contact one inner hair
cells do not branch to other inner hair cells.
 Each IHC has its own “private” set of fibers.
 The Type II nerve fibers innervate many
OHCs.
 The OHCs they innervate are basal to the
point at which the nerve fiber enters the
cochlea. Thin fibers attach toward modiolar
side, thick fibers toward outer side of IHC.

65. Thin fibers attach toward modiolar side,
Thick fibers toward outer side of IHC.

66. They are of two types : - a) Type 1 cells
b) Type 2 cells.
TYPE 1 CELLS
1. Found only in birds & mammals
2. Flask shaped
3. Correspond to IHC of Organ of Corti
4. Has single large cup like nerve
terminal surrounding the base
TYPE 2 CELLS
1. Cylindrical shaped
2. Correspond to OHC of Organ of Corti
3. Has multiple nerve terminal at the
base.

67.  They are of two types :- a)Cristae b)Macule.
CRISTAE
 Lies in ampullated end of semicircular duct.
 Responds to angular acceleration.
 Cristae of lateral SSC
polarisation towards utricle
 Cristae of sup.& post. SSC
polarisation away from utricle

68.  The cupula is the gelatinous component of the
crista ampullaris that extends from the crista to
the roof of the ampullae.
 Providing the sense of spatial orientation.
 When the head rotates, the endolymph filling
the semicircular ducts initially lags behind due
to inertia. As a result, the cupula is deflected
opposite the direction of head movement.
 As fluid rushes by the cupula, the hair cells
stimulated transmit the corresponding signal
to the brain through the CN VIII.

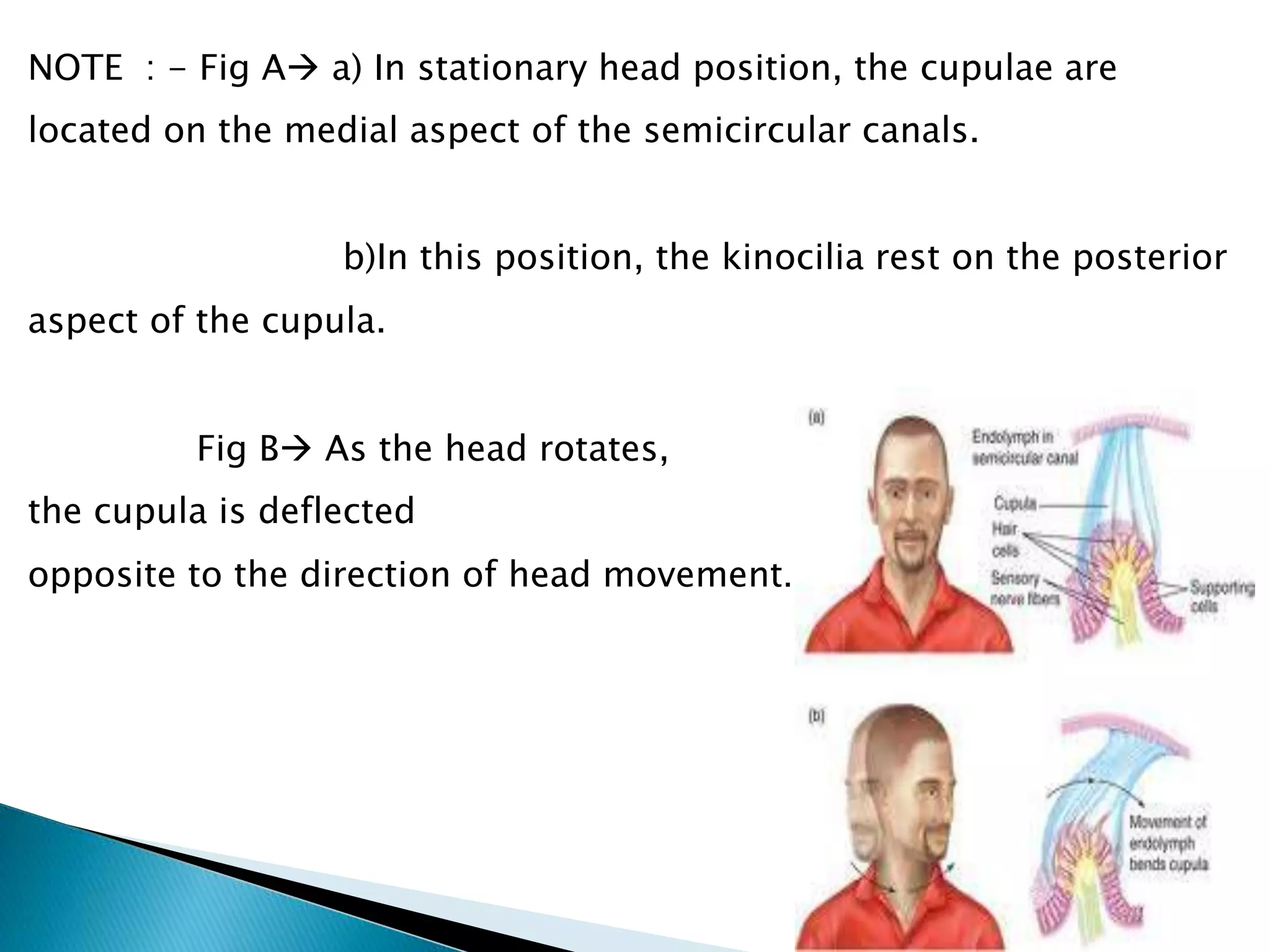

69. NOTE : - Fig A a) In stationary head position, the cupulae are
located on the medial aspect of the semicircular canals.
b)In this position, the kinocilia rest on the posterior
aspect of the cupula.
Fig B As the head rotates,
the cupula is deflected
opposite to the direction of head movement.

70.  They lie in otolith organs i.e. utricle and saccule.
 STRIOLA Narrow curved line in centre, dividing macula in 2
areas
 In Utricle  situated in floor in horizantal plane in dilated
sup. portion of utricle  Has approx 33,000 hair cells, large
in size
 In Saccule  situated in medial wall in verticle plane  Has
approx 18,000 hair cells
 In Utricle  Perceive
changes in
longitudinal acceleration
as well as
effects of gravity.

71.  A) Sensory neuroepithelium
 B) Otolith membrane
Sensory Neuroepithelium
 Made up of type 1 & type 2 cells, similar to cristae
hair cells
 Type 1 cells  Higher in conc. in striola region
 Kinocilia face striola in utricular macula & away from
striola in saccular macula.
 Offers CNS wide range of neural information.

72.  Every hair cell in sensory beds of this consist
of 40-70 stereocilia and a kinocilium.
 The sterocilia and kinocilium are embedded
in the otolithic membrane and are essential in
the function of the otolith organs.
 The hair cells are
deflected by
structures called
otoconia.

73.  Otoconia are crystals of Ca carbonate and
make the otolithic membrane heavier than the
structures and fluids surrounding it.
 The otoconia are composite crystallites that
overlie the macular sensory epithelium of the
gravity receptors and are required for optimal
stimulus input of linear acceleration and
gravity.
 Biomineralization of otoliths and otoconia
results mainly from the release of soluble Ca
ions, which is in turn precipitated as Ca
carbonate crystals.

74.  Horizantal SSC
 Sup. & post. SSC
 Otolith organs
(utricle & saccule)
Horizantal head
turning(angular
acceleration
Piching the front to back
& side to side
Linear head
movements(vertical &
horizantal),tilting &
gravity

75.  Basilar artery  Anterior inferior cerebellar artery  Internal
auditory artery  Labyrinthine artery.
 Labyrinthine  Comman cochlear artery
artery  Ant. Vestibular artery
(to utricle & lat. and sup. Canals)
 Comman
cochlear  Vestibulocochlear artery
artery  Main cochlear artery
(to cochlea 80%)
 Vestibulocochlear
artery  Cochlear artery ( 20% cochlea)
 Post. Vestibular artery
(to saccule & post. Canal)

76. Via internal auditory canal, vein of cochlear
aqueduct & vein of vestibular aqueduct
Inferior petrosal & sigmoid sinuses
drain into
Cochlea does not have any
collateral arterial circulation.

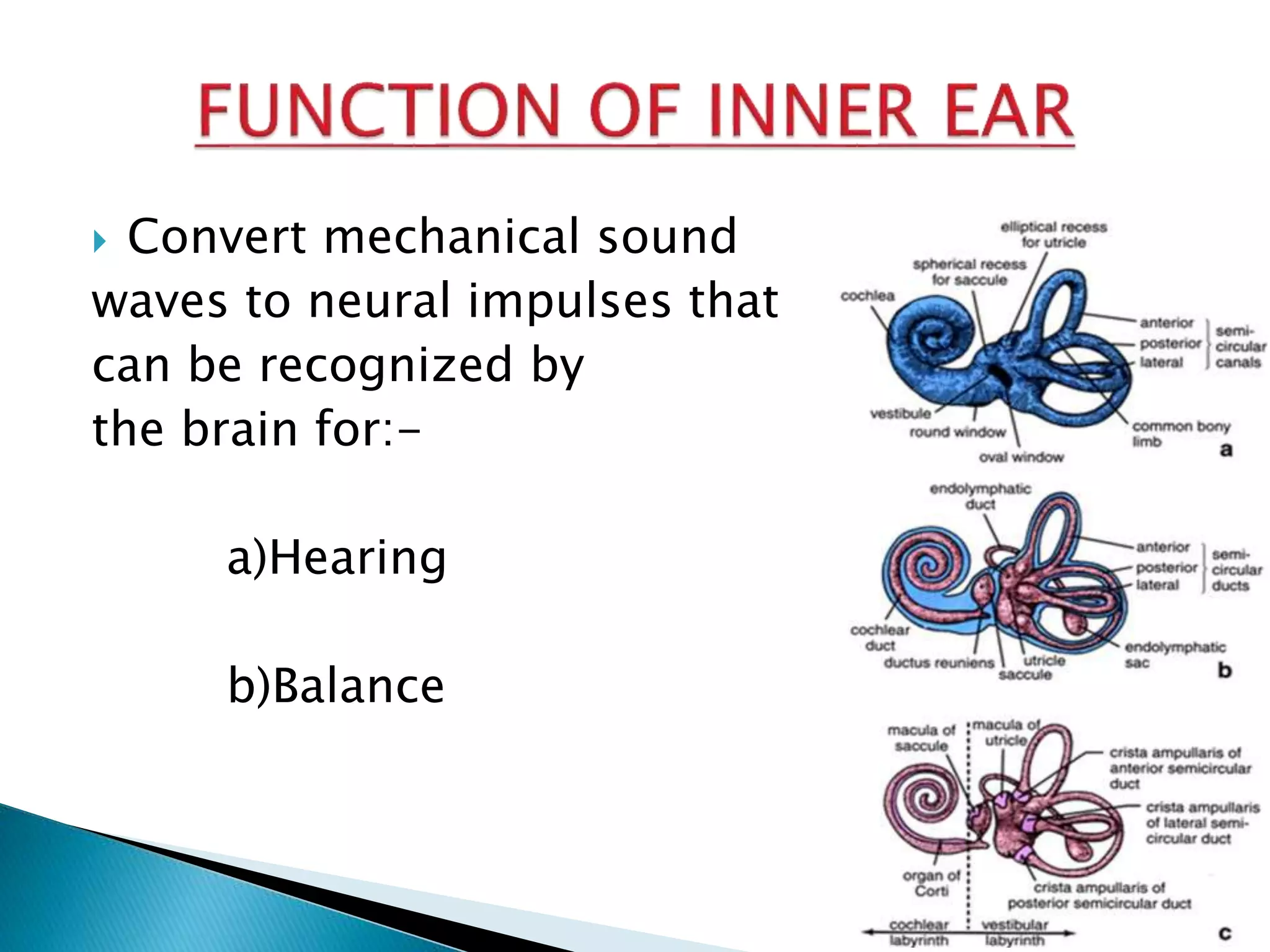

77.  Convert mechanical sound
waves to neural impulses that
can be recognized by
the brain for:-
a)Hearing
b)Balance

79. 1) STATIC BALANCE
2) DYNAMIC BALANCE

80. Maculae react to gravitational forces and
participate in maintaining the static balance.

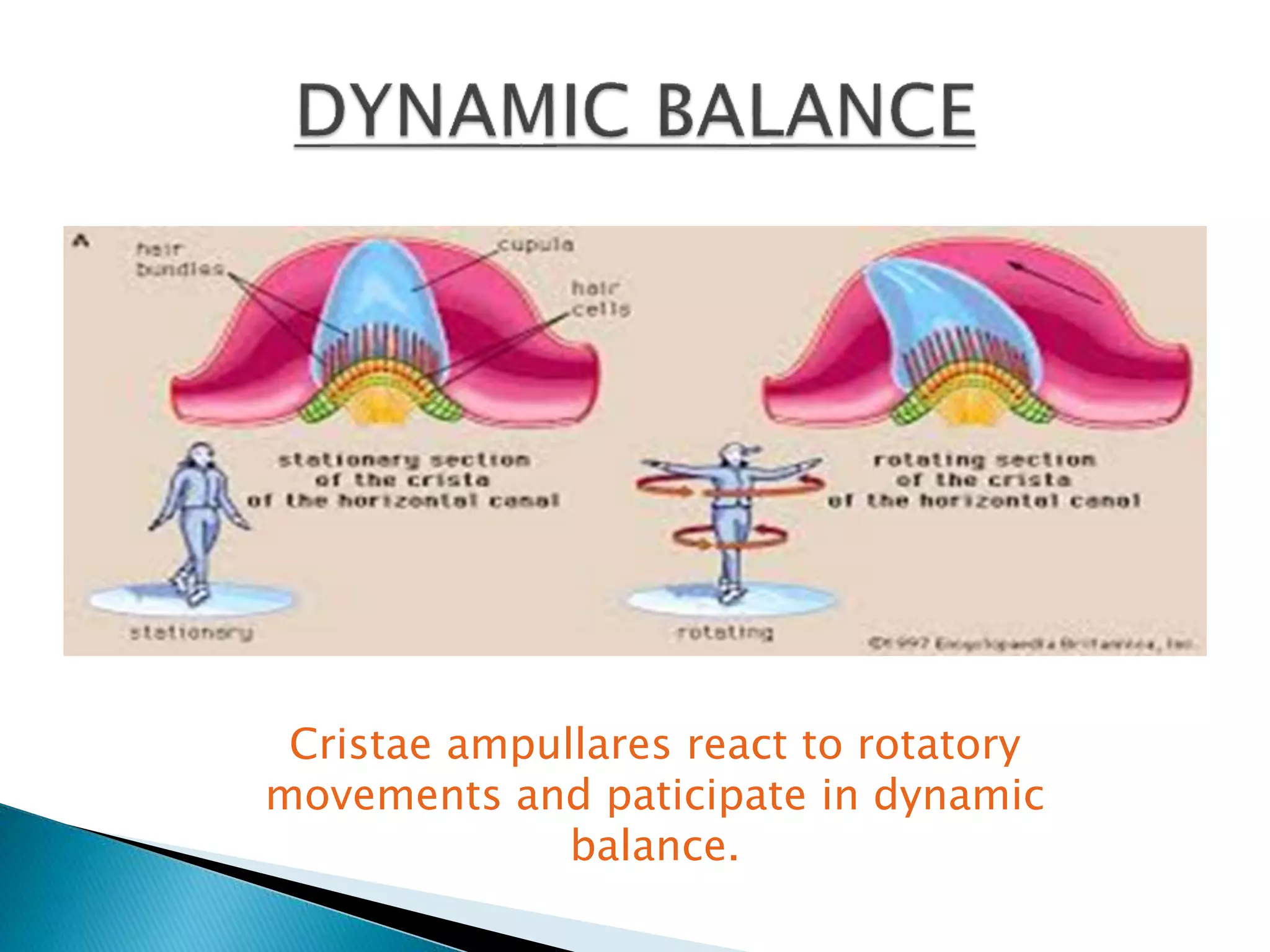

81. Cristae ampullares react to rotatory
movements and paticipate in dynamic
balance.

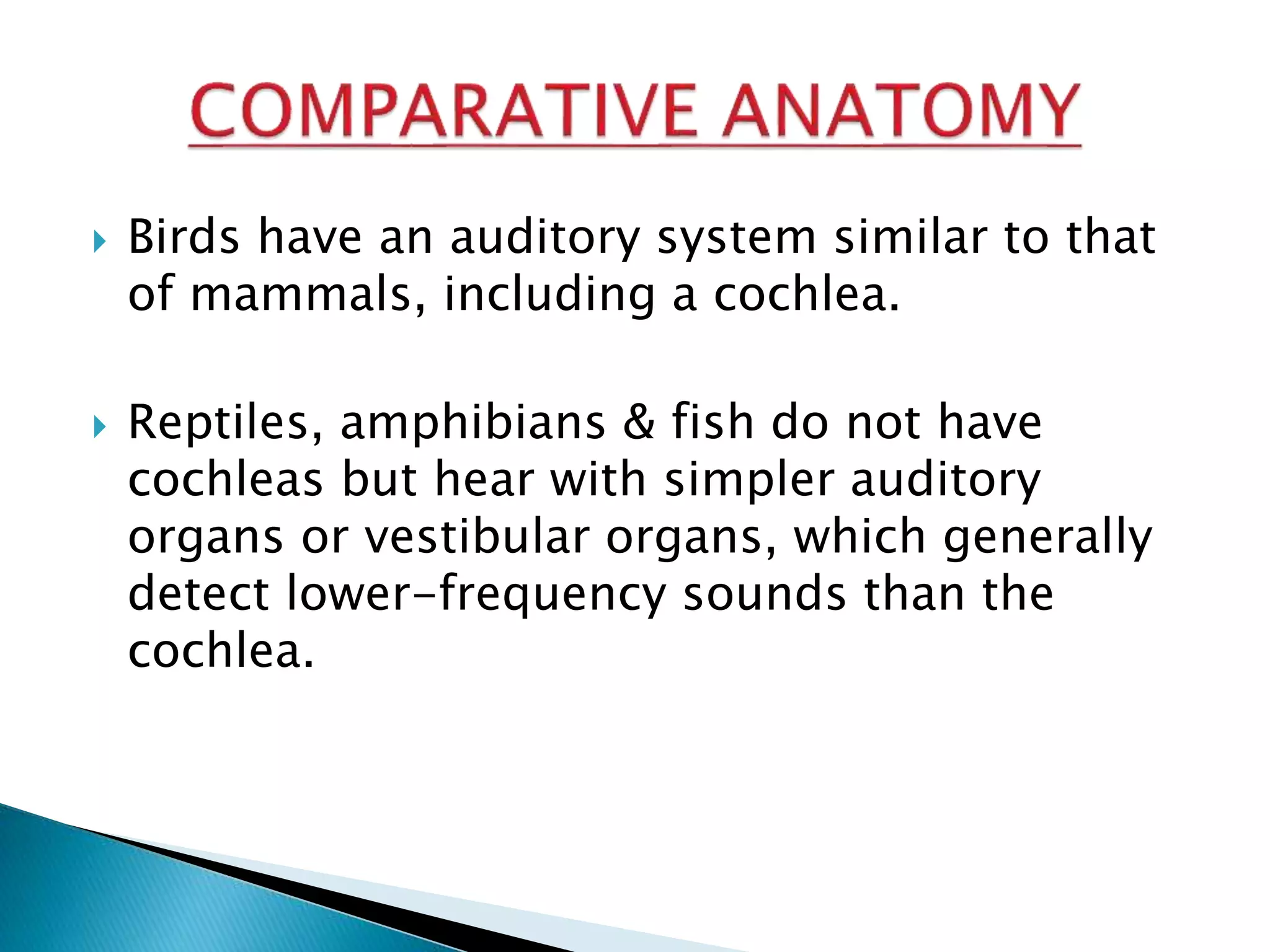

82.  Birds have an auditory system similar to that
of mammals, including a cochlea.
 Reptiles, amphibians & fish do not have
cochleas but hear with simpler auditory
organs or vestibular organs, which generally
detect lower-frequency sounds than the
cochlea.
