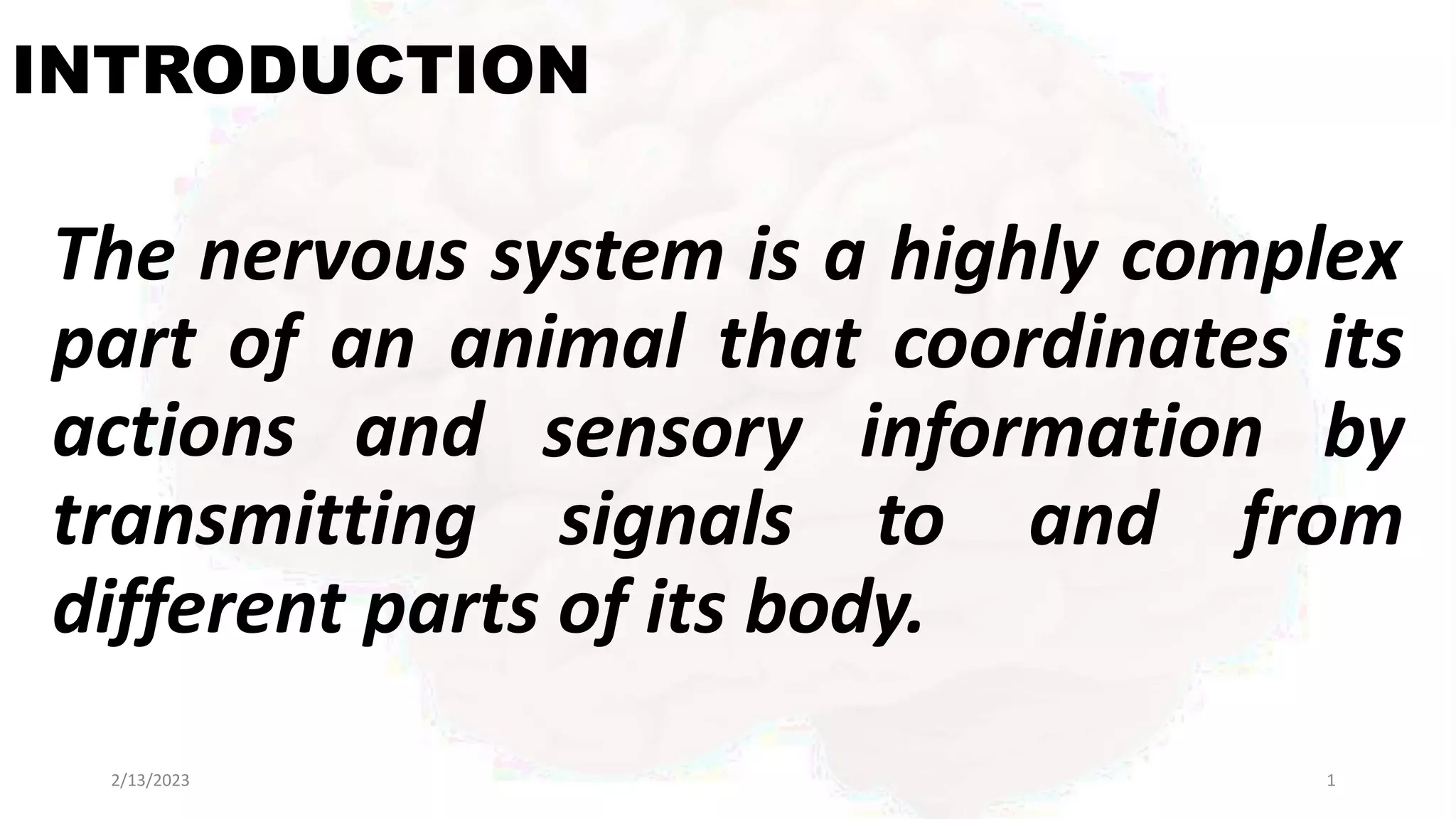

1. INTRODUCTION
2/13/2023 1
The nervous system is a highly complex
part of an animal that coordinates its
actions and
transmitting
sensory information by
signals to and from
different parts of its body.

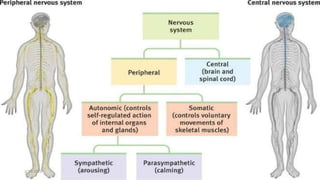

2. 2/13/2023 2

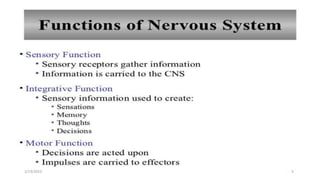

3. 2/13/2023 3

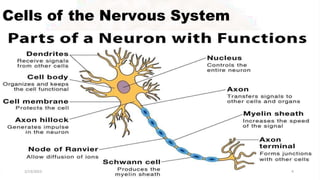

4. Cells of the Nervous System
2/13/2023 4

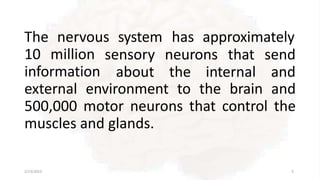

5. The nervous system has approximately
2/13/2023 5
10 million
information
sensory neurons that send
about the internal and
external environment to the brain and
500,000 motor neurons that control the
muscles and glands.

6. • Ganglia are oval-shaped structures containing cell bodies of
neurons and glial cells supported by connective tissue. Ganglia
function like relay stations - one nerve enters and an other exits.
2/13/2023 6

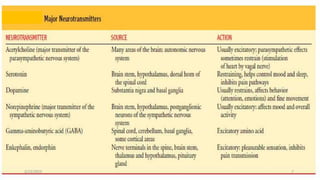

7. 2/13/2023 7

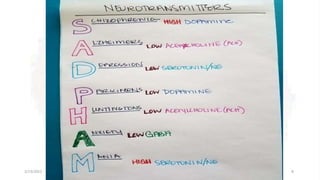

8. 2/13/2023 8

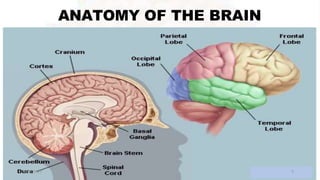

9. ANATOMY OF THE BRAIN
2/13/2023 9

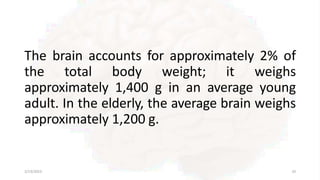

10. The brain accounts for approximately 2% of
the total body weight; it weighs
approximately 1,400 g in an average young
adult. In the elderly, the average brain weighs
approximately 1,200 g.
2/13/2023 10

11. 2/13/2023 11

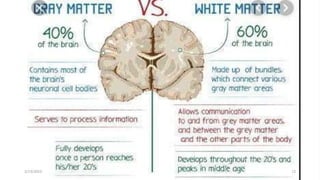

12. 2/13/2023 12

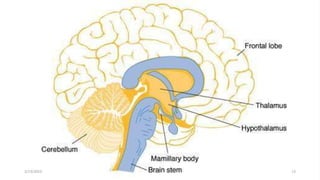

13. 2/13/2023 13

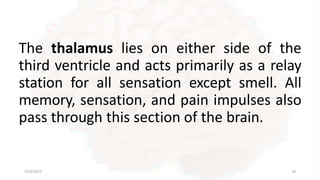

14. The thalamus lies on either side of the
third ventricle and acts primarily as a relay
station for all sensation except smell. All
memory, sensation, and pain impulses also
pass through this section of the brain.
2/13/2023 14

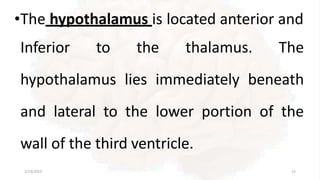

15. •The hypothalamus is located anterior and
Inferior to the thalamus. The
hypothalamus lies immediately beneath
and lateral to the lower portion of the
wall of the third ventricle.
2/13/2023 15

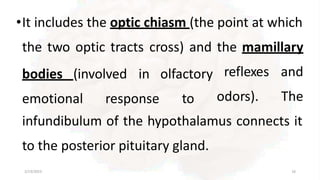

16. •It includes the optic chiasm (the point at which
the two optic tracts cross) and the mamillary
2/13/2023 16
emotional response
bodies (involved in olfactory
to
reflexes and
odors). The
infundibulum of the hypothalamus connects it
to the posterior pituitary gland.

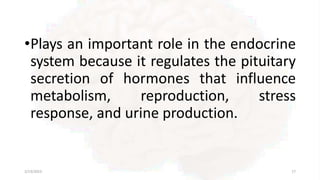

17. •Plays an important role in the endocrine
system because it regulates the pituitary
secretion of hormones that influence
metabolism, reproduction, stress
response, and urine production.
2/13/2023 17

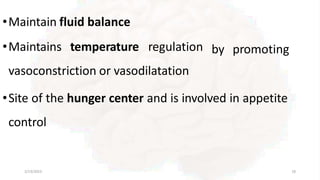

18. by promoting
2/13/2023 18
•Maintain fluid balance
•Maintains temperature regulation
vasoconstriction or vasodilatation
•Site of the hunger center and is involved in appetite
control

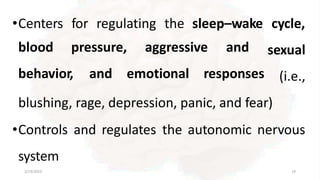

19. •Centers for regulating the sleep–wake cycle,
2/13/2023 19
blood pressure, aggressive and
behavior, and emotional responses
sexual
(i.e.,
blushing, rage, depression, panic, and fear)
•Controls and regulates the autonomic nervous
system

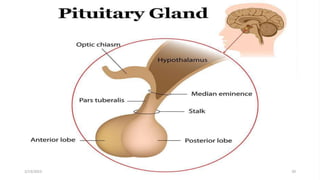

20. 2/13/2023 20

21. 2/13/2023 21

22. 2/13/2023 22

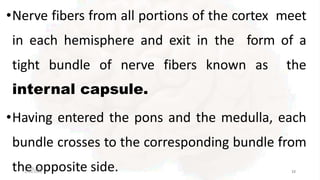

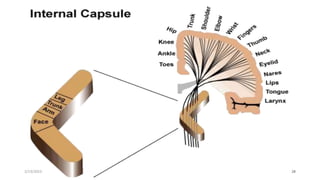

23. •Nerve fibers from all portions of the cortex meet
in each hemisphere and exit in the form of a
tight bundle of nerve fibers known as the
internal capsule.
•Having entered the pons and the medulla, each
bundle crosses to the corresponding bundle from
th0
e
1-09-2
o
020pposite side. 37
2/13/2023 23

24. 3
2/13/2023 8
24

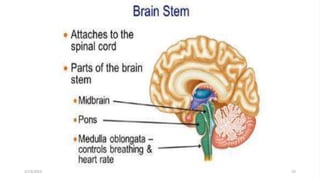

25. 2/13/2023 25

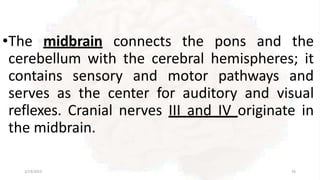

26. •The midbrain connects the pons and the
cerebellum with the cerebral hemispheres; it
contains sensory and motor pathways and
serves as the center for auditory and visual
reflexes. Cranial nerves III and IV originate in
the midbrain.
2/13/2023 26

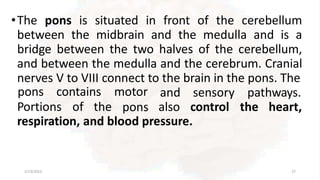

27. •The pons is situated in front of the cerebellum
between the midbrain and the medulla and is a
bridge between the two halves of the cerebellum,
and between the medulla and the cerebrum. Cranial
nerves V to VIII connect to the brain in the pons. The
2/13/2023 27
Portions of the
pons contains motor
pons
and sensory pathways.
also control the heart,
respiration, and blood pressure.

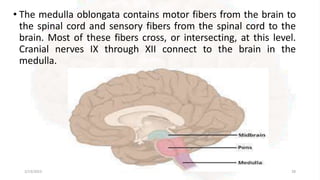

28. • The medulla oblongata contains motor fibers from the brain to
the spinal cord and sensory fibers from the spinal cord to the
brain. Most of these fibers cross, or intersecting, at this level.
Cranial nerves IX through XII connect to the brain in the
medulla.
2/13/2023 28

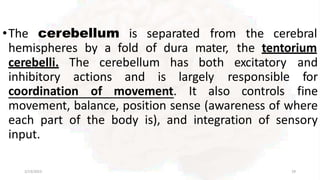

29. •The cerebellum is separated from the cerebral
hemispheres by a fold of dura mater, the tentorium
cerebelli. The cerebellum has both
inhibitory actions and is largely
coordination of movement. It also controls
2/13/2023 29
excitatory and
responsible for
fine
movement, balance, position sense (awareness of where
each part of the body is), and integration of sensory
input.

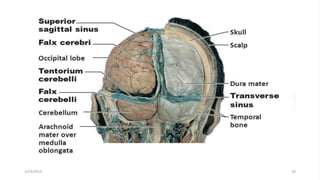

30. 2/13/2023 30

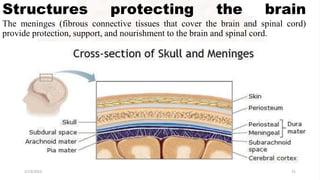

31. Structures protecting the brain
The meninges (fibrous connective tissues that cover the brain and spinal cord)
provide protection, support, and nourishment to the brain and spinal cord.
2/13/2023 31

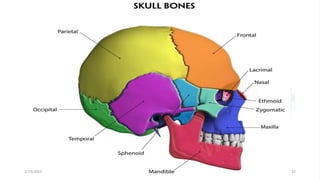

32. 2/13/2023 32

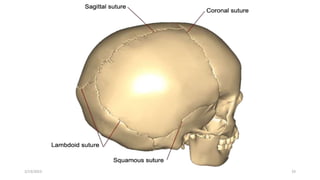

33. 2/13/2023 33

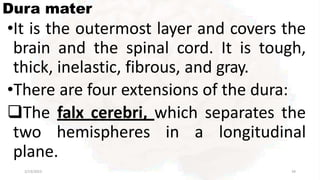

34. Dura mater
•It is the outermost layer and covers the
brain and the spinal cord. It is tough,
thick, inelastic, fibrous, and gray.
•There are four extensions of the dura:
The falx cerebri, which separates the
two hemispheres in a longitudinal
plane.
2/13/2023 34

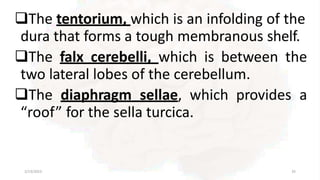

35. The tentorium, which is an infolding of the
dura that forms a tough membranous shelf.
The falx cerebelli, which is between the
two lateral lobes of the cerebellum.
The diaphragm sellae, which provides a
“roof” for the sella turcica.
2/13/2023 35

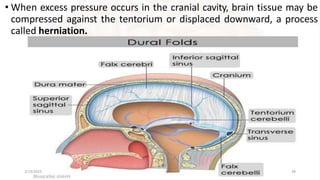

36. • When excess pressure occurs in the cranial cavity, brain tissue may be
compressed against the tentorium or displaced downward, a process
called herniation.
2/13/2023 36

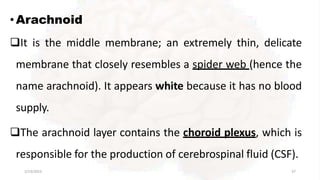

37. •Arachnoid
It is the middle membrane; an extremely thin, delicate
membrane that closely resembles a spider web (hence the
name arachnoid). It appears white because it has no blood
supply.
The arachnoid layer contains the choroid plexus, which is
responsible for the production of cerebrospinal fluid (CSF).
2/13/2023 37

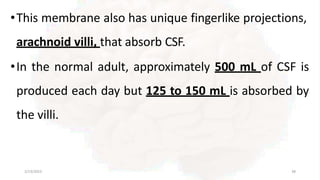

38. •This membrane also has unique fingerlike projections,
arachnoid villi, that absorb CSF.
•In the normal adult, approximately 500 mL of CSF is
produced each day but 125 to 150 mL is absorbed by
the villi.
2/13/2023 38

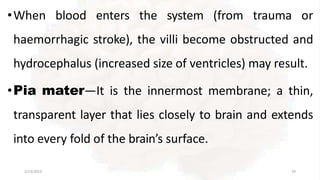

39. •When blood enters the system (from trauma or
haemorrhagic stroke), the villi become obstructed and
hydrocephalus (increased size of ventricles) may result.
•Pia mater—It is the innermost membrane; a thin,
transparent layer that lies closely to brain and extends
into every fold of the brain’s surface.
2/13/2023 39

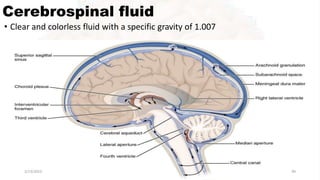

40. Cerebrospinal fluid
• Clear and colorless fluid with a specific gravity of 1.007
2/13/2023 40

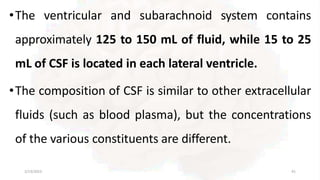

41. •The ventricular and subarachnoid system contains
approximately 125 to 150 mL of fluid, while 15 to 25
mL of CSF is located in each lateral ventricle.
•The composition of CSF is similar to other extracellular
fluids (such as blood plasma), but the concentrations
of the various constituents are different.
2/13/2023 41

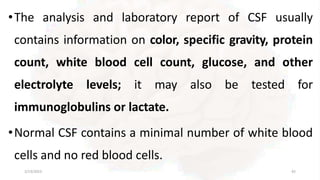

42. •The analysis and laboratory report of CSF usually
contains information on color, specific gravity, protein
count, white blood cell count, glucose, and other
electrolyte levels; it may also be tested for
immunoglobulins or lactate.
•Normal CSF contains a minimal number of white blood
cells and no red blood cells.
2/13/2023 42

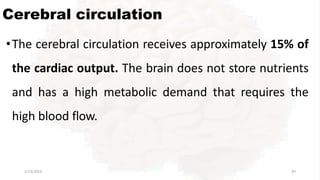

43. Cerebral circulation
2/13/2023 43
•The cerebral circulation receives approximately 15% of
the cardiac output. The brain does not store nutrients
and has a high metabolic demand that requires the
high blood flow.

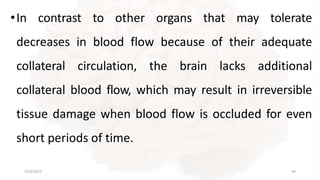

44. •In contrast to other organs that may tolerate
decreases in blood flow because of their adequate
collateral circulation, the brain lacks additional
collateral blood flow, which may result in irreversible
tissue damage when blood flow is occluded for even
short periods of time.
2/13/2023 44

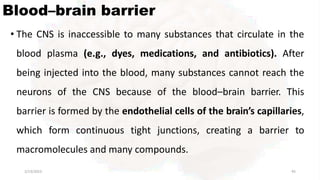

45. Blood–brain barrier
2/13/2023 45
• The CNS is inaccessible to many substances that circulate in the
blood plasma (e.g., dyes, medications, and antibiotics). After
being injected into the blood, many substances cannot reach the
neurons of the CNS because of the blood–brain barrier. This
barrier is formed by the endothelial cells of the brain’s capillaries,
which form continuous tight junctions, creating a barrier to
macromolecules and many compounds.

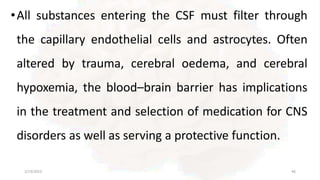

46. •All substances entering the CSF must filter through
the capillary endothelial cells and astrocytes. Often
altered by trauma, cerebral oedema, and cerebral
hypoxemia, the blood–brain barrier has implications
in the treatment and selection of medication for CNS
disorders as well as serving a protective function.
2/13/2023 46

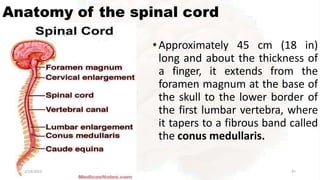

47. Anatomy of the spinal cord
•Approximately 45 cm (18 in)
long and about the thickness of
a finger, it extends from the
foramen magnum at the base of
the skull to the lower border of
the first lumbar vertebra, where
it tapers to a fibrous band called
the conus medullaris.
2/13/2023 47

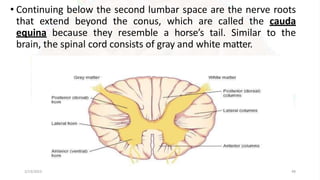

48. • Continuing below the second lumbar space are the nerve roots
that extend beyond the conus, which are called the cauda
equina because they resemble a horse’s tail. Similar to the
brain, the spinal cord consists of gray and white matter.
2/13/2023 48

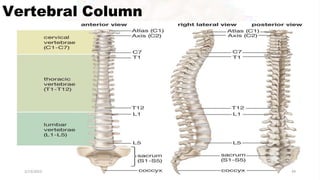

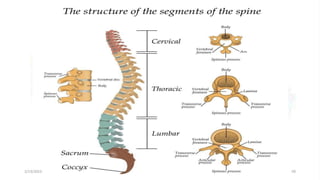

49. Vertebral Column
2/13/2023 49

50. 2/13/2023 50

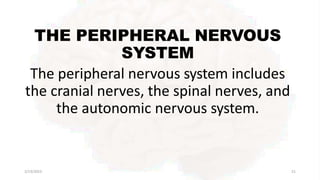

51. THE PERIPHERAL NERVOUS
SYSTEM
The peripheral nervous system includes
the cranial nerves, the spinal nerves, and
the autonomic nervous system.
2/13/2023 51

52. 2/13/2023 52

53. Three are
entirely sensory
(I, II, VIII), five
VI, XI,
and
mixed
are motor (III,
IV, and
XII), four
are (V,
VII, IX, and X) as
they have both
and
sensory
motor
functions.
2/13/2023 53

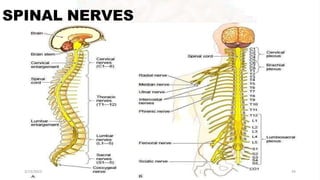

54. SPINAL NERVES
2/13/2023 54

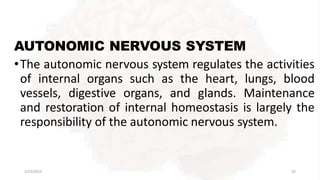

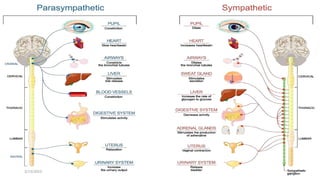

55. AUTONOMIC NERVOUS SYSTEM
•The autonomic nervous system regulates the activities
of internal organs such as the heart, lungs, blood
vessels, digestive organs, and glands. Maintenance
and restoration of internal homeostasis is largely the
responsibility of the autonomic nervous system.
2/13/2023 55

56. 2/13/2023 56

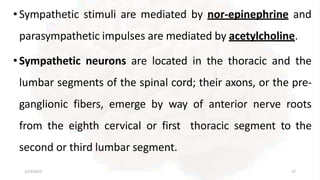

57. •Sympathetic stimuli are mediated by nor-epinephrine and
parasympathetic impulses are mediated by acetylcholine.
•Sympathetic neurons are located in the thoracic and the
lumbar segments of the spinal cord; their axons, or the pre-
ganglionic fibers, emerge by way of anterior nerve roots
from the eighth cervical or first thoracic segment to the
second or third lumbar segment.
2/13/2023 57

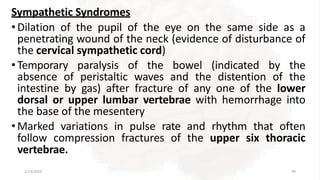

58. Sympathetic Syndromes
•Dilation of the pupil of the eye on the same side as a
penetrating wound of the neck (evidence of disturbance of
the cervical sympathetic cord)
•Temporary paralysis of the bowel (indicated by the
absence of peristaltic waves and the distention of the
intestine by gas) after fracture of any one of the lower
dorsal or upper lumbar vertebrae with hemorrhage into
the base of the mesentery
•Marked variations in pulse rate and rhythm that often
follow compression fractures of the upper six thoracic
vertebrae.
2/13/2023 58

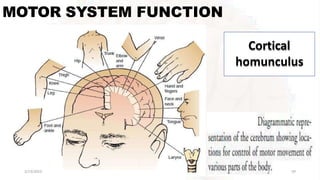

59. MOTOR SYSTEM FUNCTION
85
Cortical
homunculus
2/13/2023 59

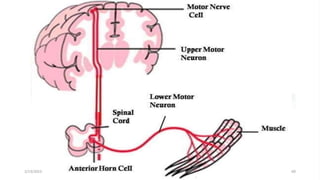

60. 2/13/2023 60

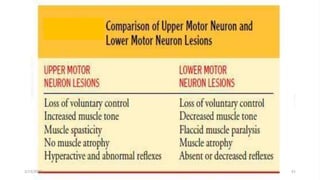

61. 2/13/2023 61

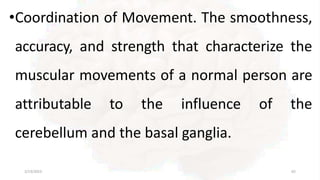

62. •Coordination of Movement. The smoothness,
accuracy, and strength that characterize the
muscular movements of a normal person are
attributable to the influence of the
cerebellum and the basal ganglia.
2/13/2023 62

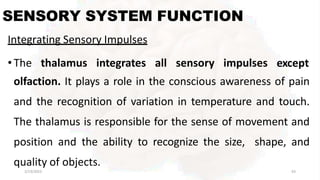

63. SENSORY SYSTEM FUNCTION
2/13/2023 63
Integrating Sensory Impulses
• The thalamus integrates all sensory impulses except
olfaction. It plays a role in the conscious awareness of pain
and the recognition of variation in temperature and touch.
The thalamus is responsible for the sense of movement and
position and the ability to recognize the size, shape, and
quality of objects.

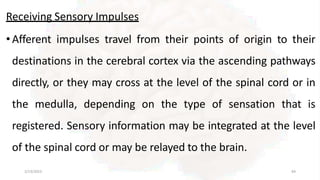

64. Receiving Sensory Impulses
• Afferent impulses travel from their points of origin to their
destinations in the cerebral cortex via the ascending pathways
directly, or they may cross at the level of the spinal cord or in
the medulla, depending on the type of sensation that is
registered. Sensory information may be integrated at the level
of the spinal cord or may be relayed to the brain.
2/13/2023 64

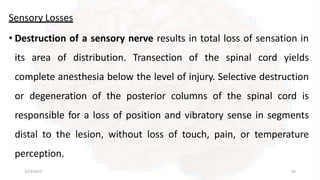

65. Sensory Losses
• Destruction of a sensory nerve results in total loss of sensation in
its area of distribution. Transection of the spinal cord yields
complete anesthesia below the level of injury. Selective destruction
or degeneration of the posterior columns of the spinal cord is
responsible for a loss of position and vibratory sense in segments
distal to the lesion, without loss of touch, pain, or temperature
perception.
2/13/2023 65

66. 2/13/2023 66

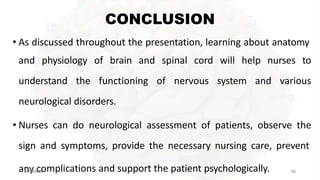

67. CONCLUSION
• As discussed throughout the presentation, learning about anatomy
and physiology of brain and spinal cord will help nurses to
understand the functioning of nervous system and various
neurological disorders.
• Nurses can do neurological assessment of patients, observe the
sign and symptoms, provide the necessary nursing care, prevent
mplications and support the patient psychologically.
an
01-y
09-2c
02o
0 93
2/13/2023 67

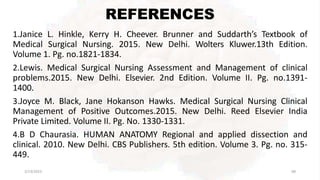

68. REFERENCES
2/13/2023 68
1.Janice L. Hinkle, Kerry H. Cheever. Brunner and Suddarth’s Textbook of
Medical Surgical Nursing. 2015. New Delhi. Wolters Kluwer.13th Edition.
Volume 1. Pg. no.1821-1834.
2.Lewis. Medical Surgical Nursing Assessment and Management of clinical
problems.2015. New Delhi. Elsevier. 2nd Edition. Volume II. Pg. no.1391-
1400.
3.Joyce M. Black, Jane Hokanson Hawks. Medical Surgical Nursing Clinical
Management of Positive Outcomes.2015. New Delhi. Reed Elsevier India
Private Limited. Volume II. Pg. No. 1330-1331.
4.B D Chaurasia. HUMAN ANATOMY Regional and applied dissection and
clinical. 2010. New Delhi. CBS Publishers. 5th edition. Volume 3. Pg. no. 315-
449.

69. 2/13/2023 69

70. 2/13/2023 70
