This document discusses algebraic data types and generic programming using origami patterns. It defines List and Binary Tree as algebraic data types in Haskell and Scala. It shows how operations like map, fold, and build can be defined generically for any algebraic data type using a Bifunctor abstraction and the Fix type. This allows defining common functions like folding, mapping, and building on different data types in a consistent way.

1. ORIGAMI
patterns with
Algebraic Data Types
@remeniuk

2. What is “algebra”?
1. A set of elements
2.Some operations that map
elements to elements

3. List
1. Elements: “list” and “list
element”
2.Operations: Nil and ::(cons)

4. In programming languages,
algebraic data types are defined
with the set of constructors that
wrap other types

5. Haskell offers a very expressive syntax for
defining Algebraic Data Types.
Here's how Boolean can be implemented:
data Boolean = True | False

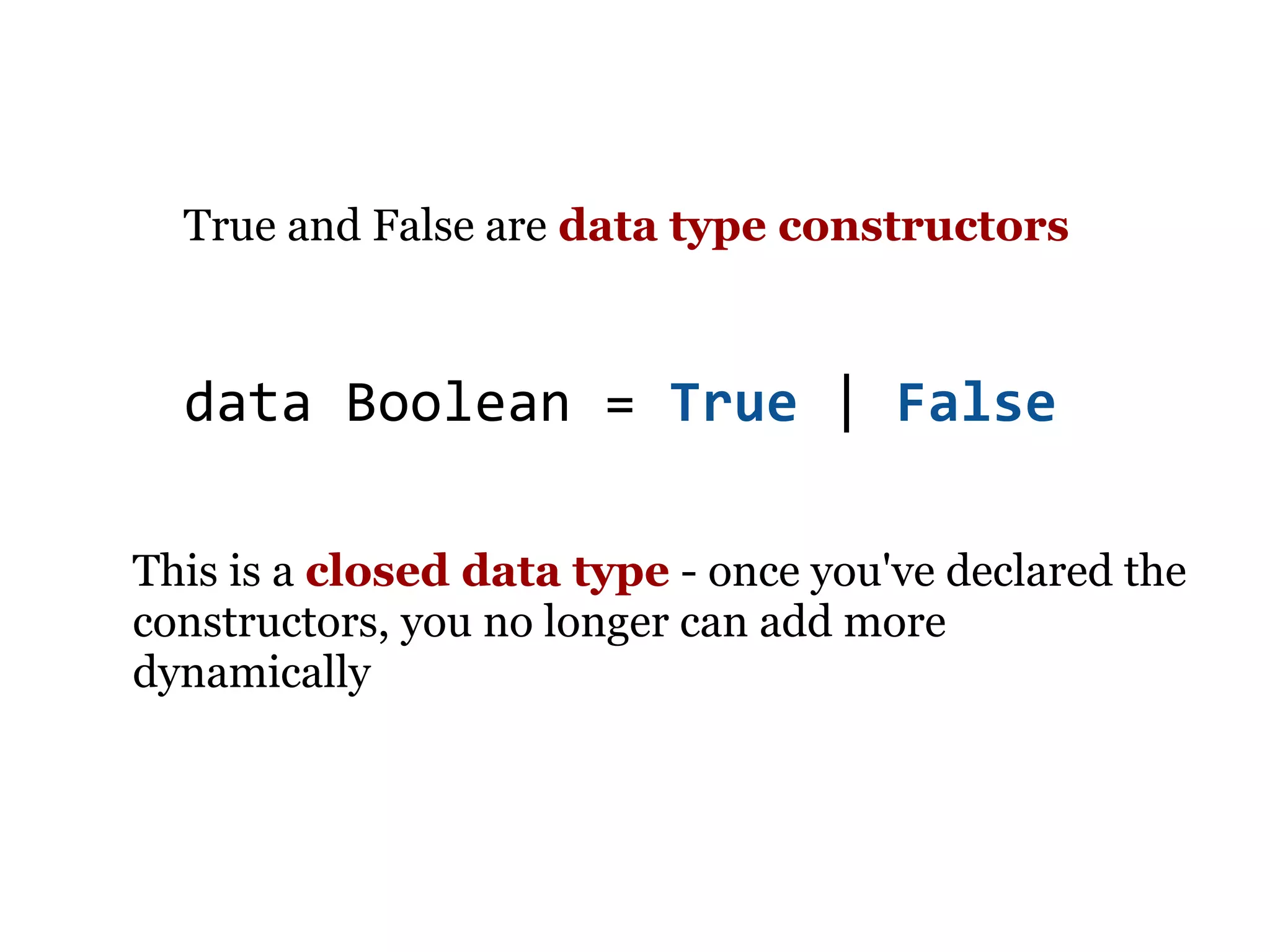

6. True and False are data type constructors
data Boolean = True | False
This is a closed data type - once you've declared the
constructors, you no longer can add more
dynamically

7. In Scala, algebraic data type
declaration
is a bit more verbose...

8. sealed trait Boolean
case object True extends Boolean
case object False extends Boolean
*sealed closes the data type!

9. Scala vs Haskell
Simple extensibility via
inheritence - open data > Syntactic clarity
types

10. Regular algebraic data types
• Unit type
• Sum type: data Boolean = True | False
• Singleton type : data X a = X a
Combination of sum and singleton :
Either a b = Left a | Right b
• Product type: data List a = Nil|a :: List a
(combination of unit, sum and product)
• Recursive type

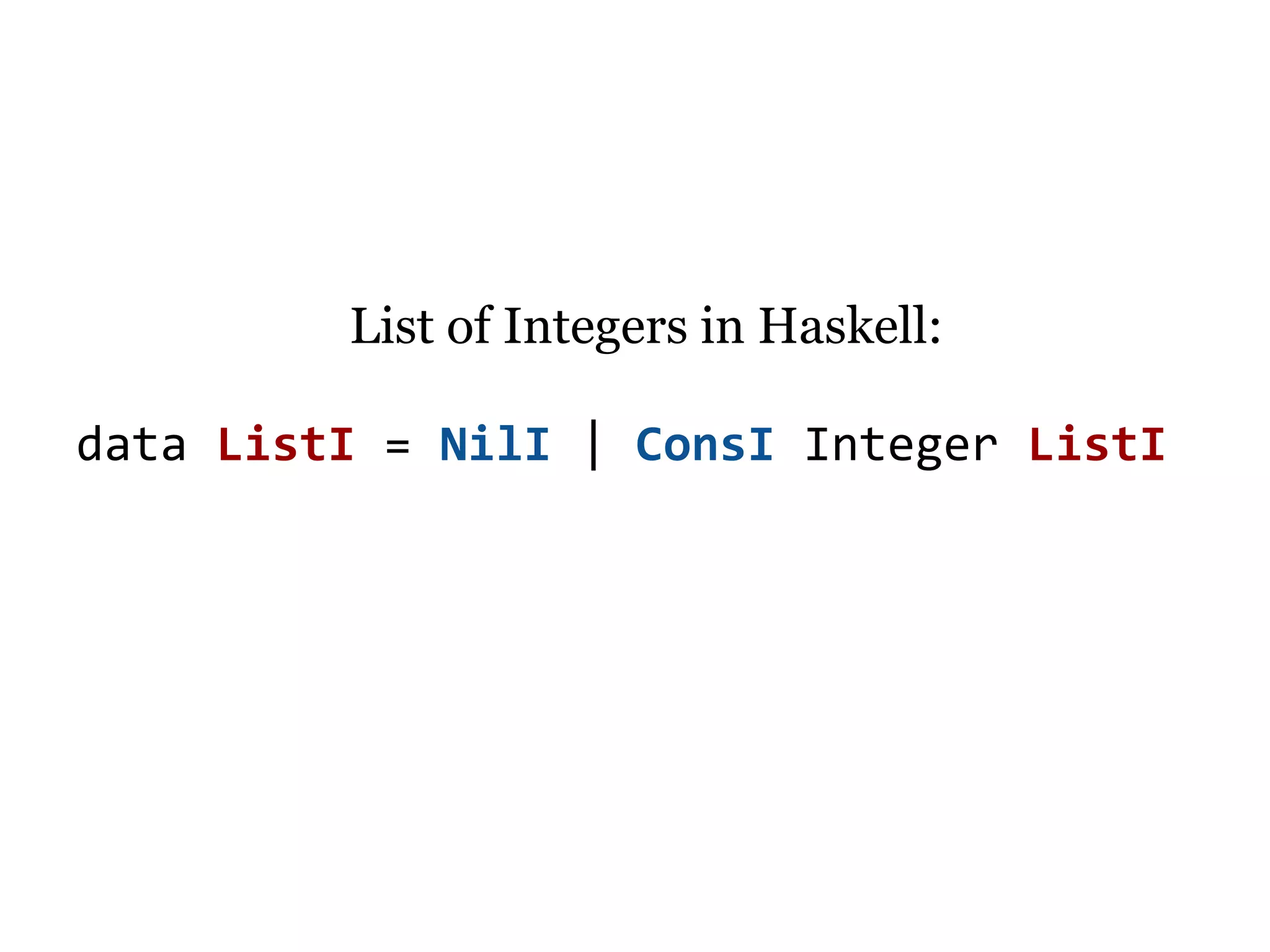

11. List of Integers in Haskell:
data ListI = NilI | ConsI Integer ListI

12. data ListI = NilI | ConsI Integer ListI
Usage:
let list = ConsI 3 (ConsI 2 (ConsI 1 NilI))

13. Not much more complex in Scala...
trait ListI
case object NilI extends ListI
case class ConsI(head: Int, tail: ListI)
extends ListI

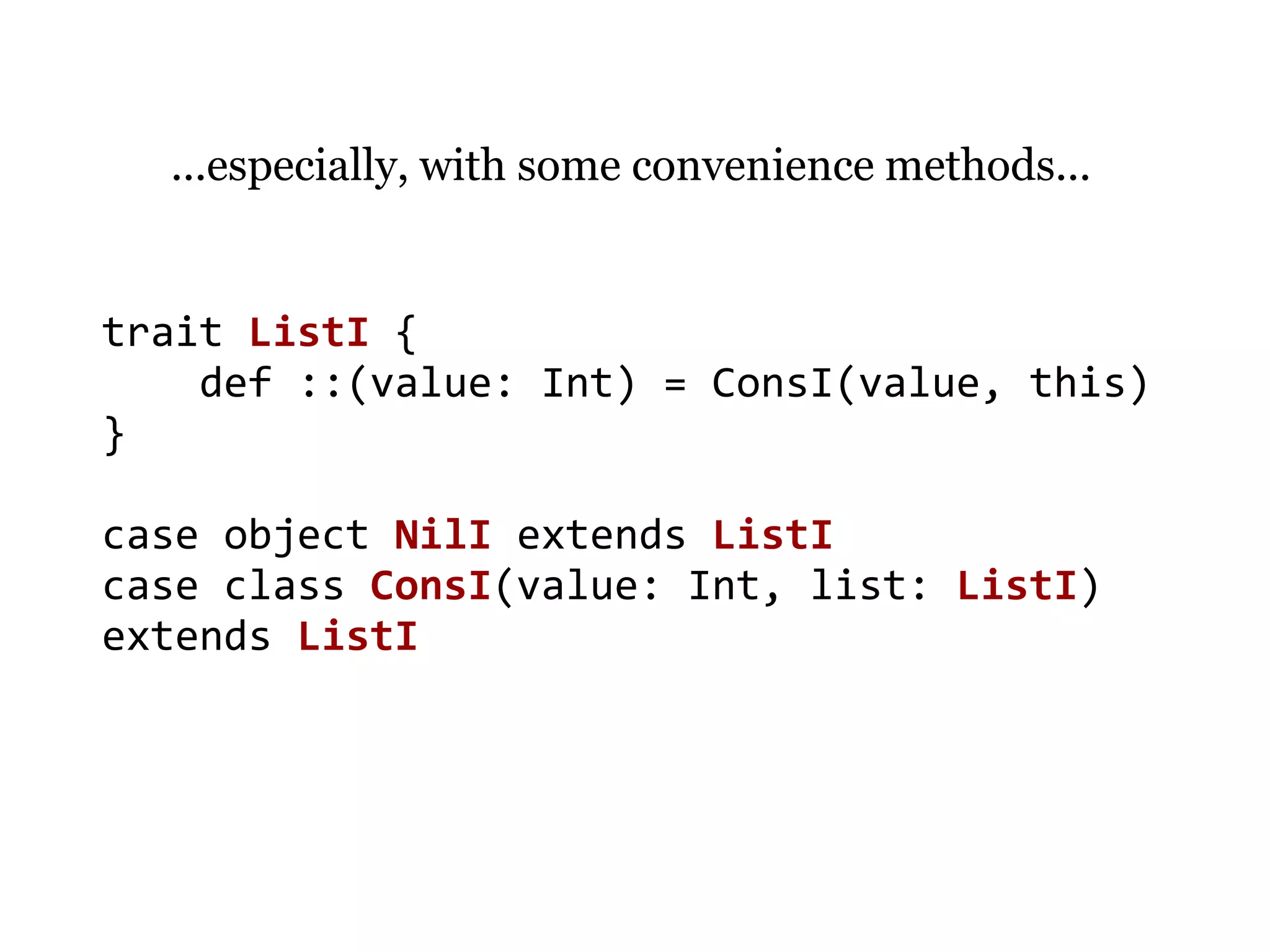

14. ...especially, with some convenience methods...
trait ListI {
def ::(value: Int) = ConsI(value, this)
}
case object NilI extends ListI
case class ConsI(value: Int, list: ListI)
extends ListI

15. ...and here we are:
val list = 3 :: 2 :: 1 :: NilI

16. Lets make our data types
more useful

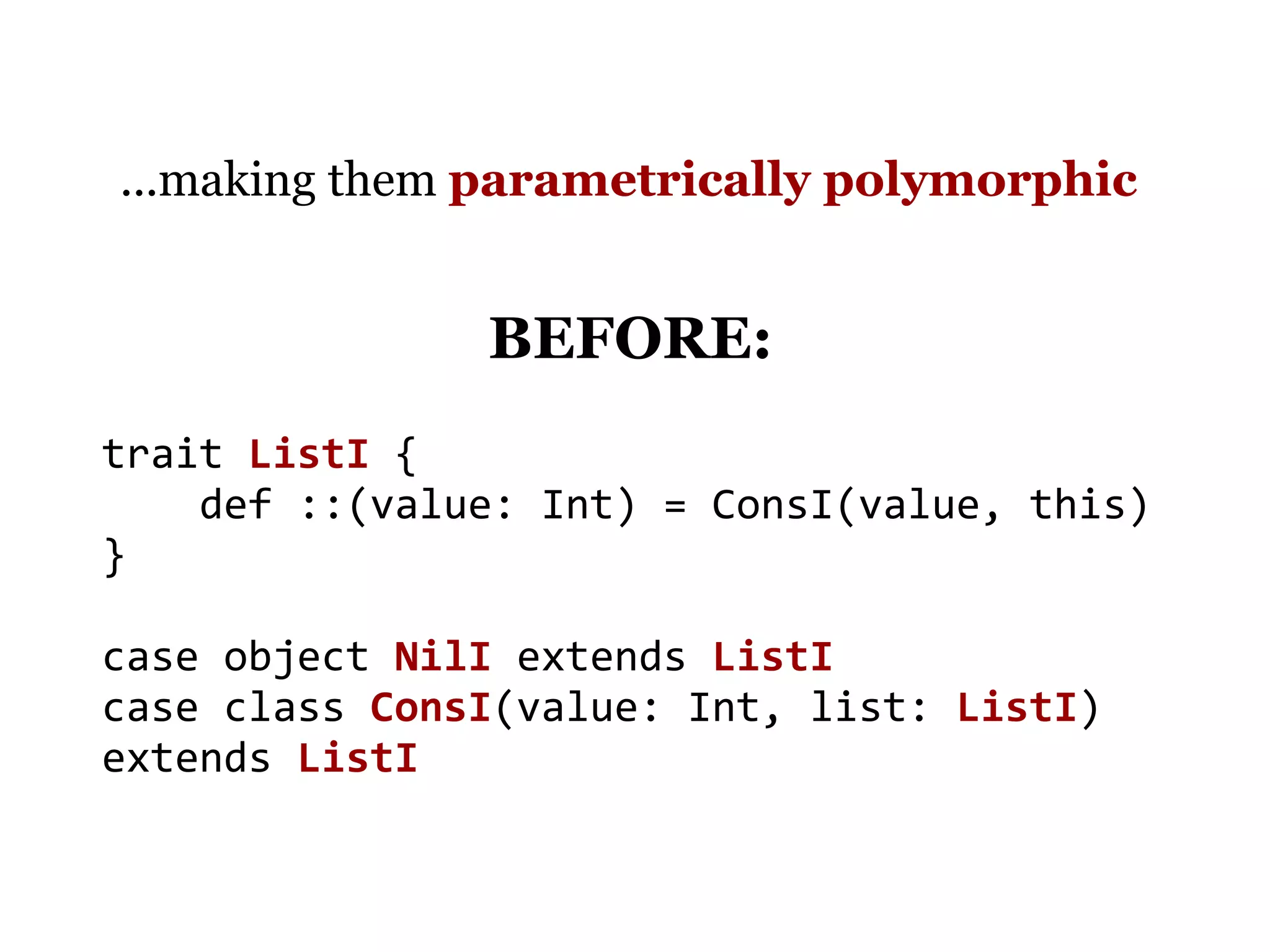

17. ...making them parametrically polymorphic
BEFORE:
trait ListI {
def ::(value: Int) = ConsI(value, this)
}
case object NilI extends ListI
case class ConsI(value: Int, list: ListI)
extends ListI

18. ...making them parametrically polymorphic
AFTER:
sealed trait ListG[+A] {
def ::[B >: A](value: B) = ConsG[B](value, this)
}
case object NilG extends ListG[Nothing]
case class ConsG[A](head: A, tail: ListG[A]) extends
ListG[A]

19. Defining a simple, product algebraic
type for binary tree is a no-brainer:
sealed trait BTreeG[+A]
case class Tip[A](value: A) extends
BTreeG[A]
case class Bin[A](left: BTreeG[A], right:
BTreeG[A]) extends BTreeG[A]

20. ListG and BTreeG are Generalized
Algebraic Data Types
And the programming approach
itself is called Generic
Programming

21. Let's say, we want to find a sum of all
the elements in the ListG and
BTreeG, now...

22. Let's say, we want to find a sum of all
the elements in the ListG and
BTreeG, now...
fold

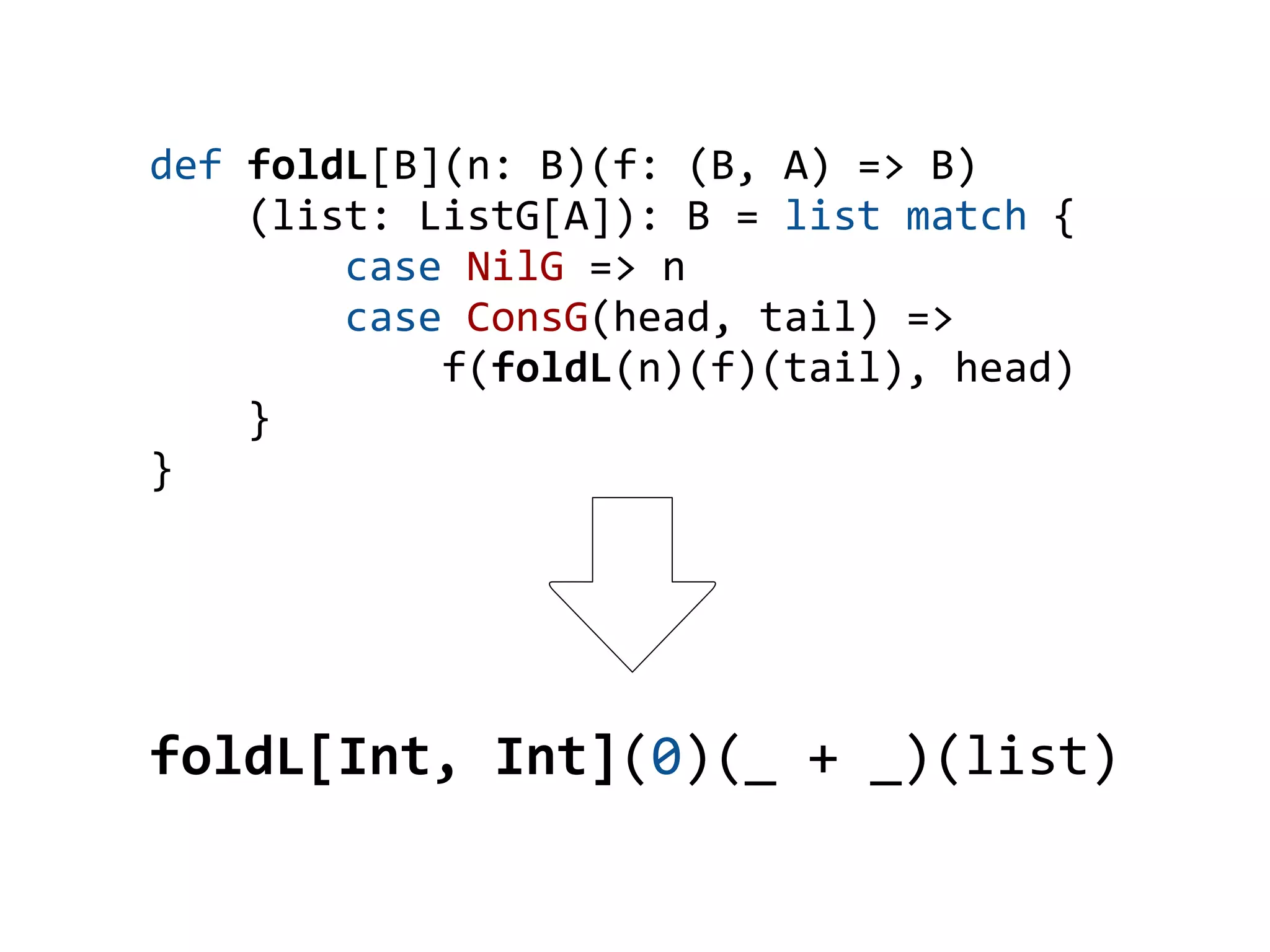

23. def foldL[B](n: B)(f: (B, A) => B)
(list: ListG[A]): B = list match {
case NilG => n
case ConsG(head, tail) =>
f(foldL(n)(f)(tail), head)
}
}
foldL[Int, Int](0)(_ + _)(list)

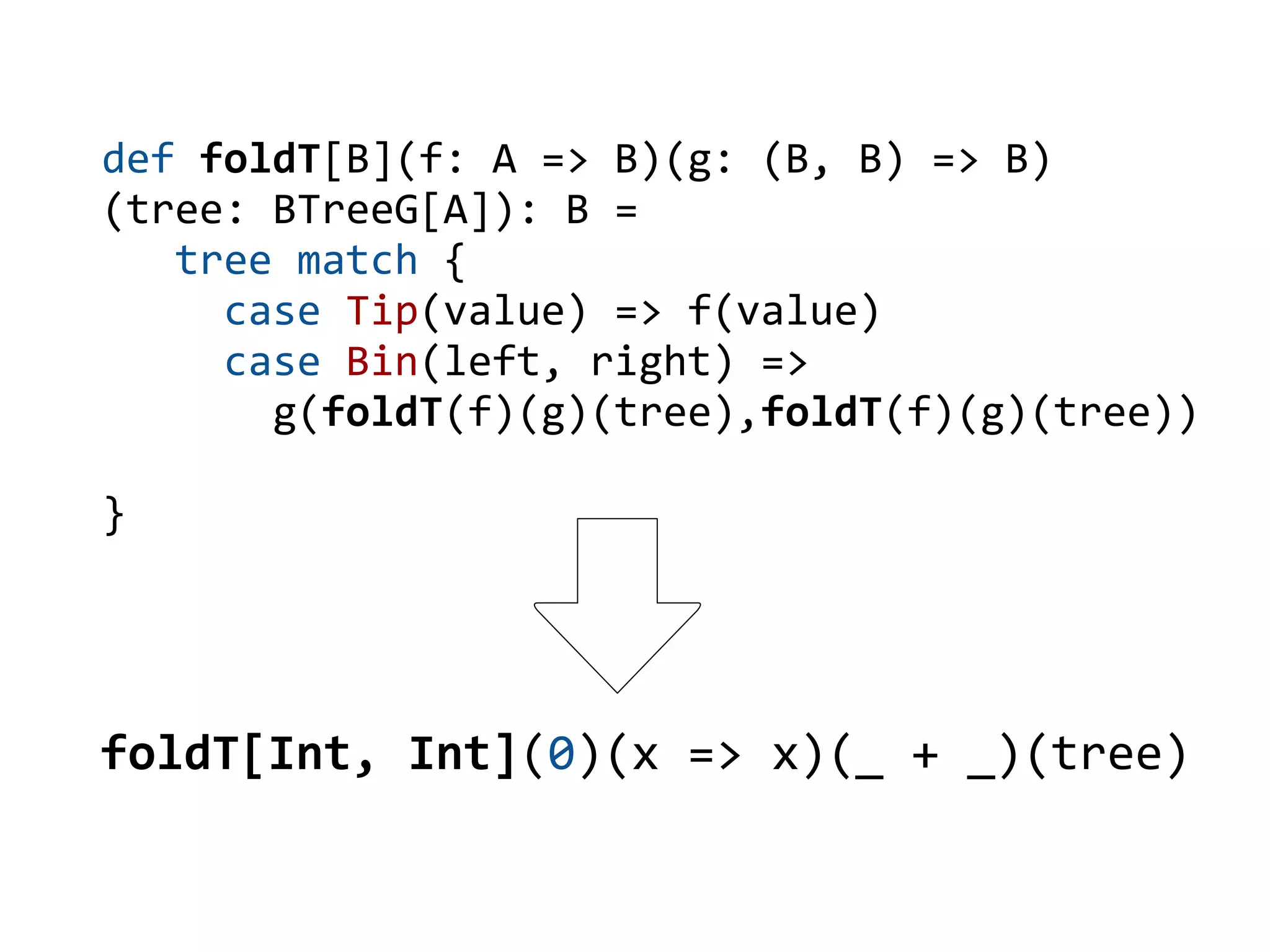

24. def foldT[B](f: A => B)(g: (B, B) => B)
(tree: BTreeG[A]): B =
tree match {
case Tip(value) => f(value)
case Bin(left, right) =>
g(foldT(f)(g)(tree),foldT(f)(g)(tree))
}
foldT[Int, Int](0)(x => x)(_ + _)(tree)

25. Obviously, foldL and foldT have
very much in common.

26. Obviously, foldL and foldT have
very much in common.
In fact, the biggest difference is in
the shape of the data

27. That would be great, if we could
abstract away from data type...

28. That would be great, if we could
abstract away from data type...
With Datatype Generic
programming we can!

29. Requirements:
• Fix data type (recursive data type)
• Datatype-specific instance of
Bifunctor

30. 1. Fix type
Fix [F [_, _], A]
Higher-kinded shape Type parameter of
(pair, list, tree,...) the shape

31. Let's create an instance of Fix for
List shape
trait ListF[+A, +B]
case object NilF extends ListF[Nothing, Nothing]
case class ConsF[A, B](head: A, tail: B) extends
ListF[A, B]
type List[A] = Fix[ListF, A]

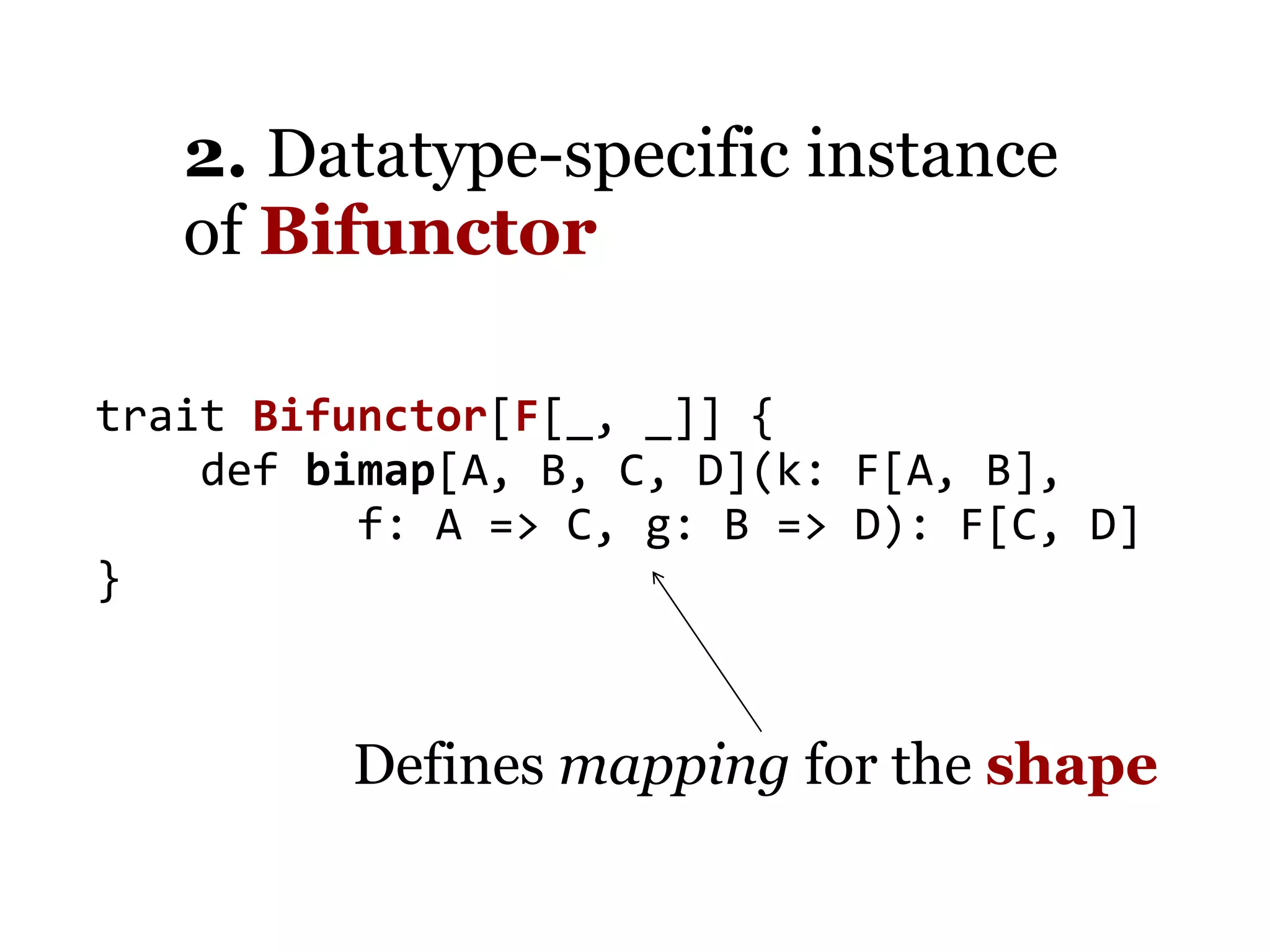

32. 2. Datatype-specific instance
of Bifunctor
trait Bifunctor[F[_, _]] {
def bimap[A, B, C, D](k: F[A, B],
f: A => C, g: B => D): F[C, D]
}
Defines mapping for the shape

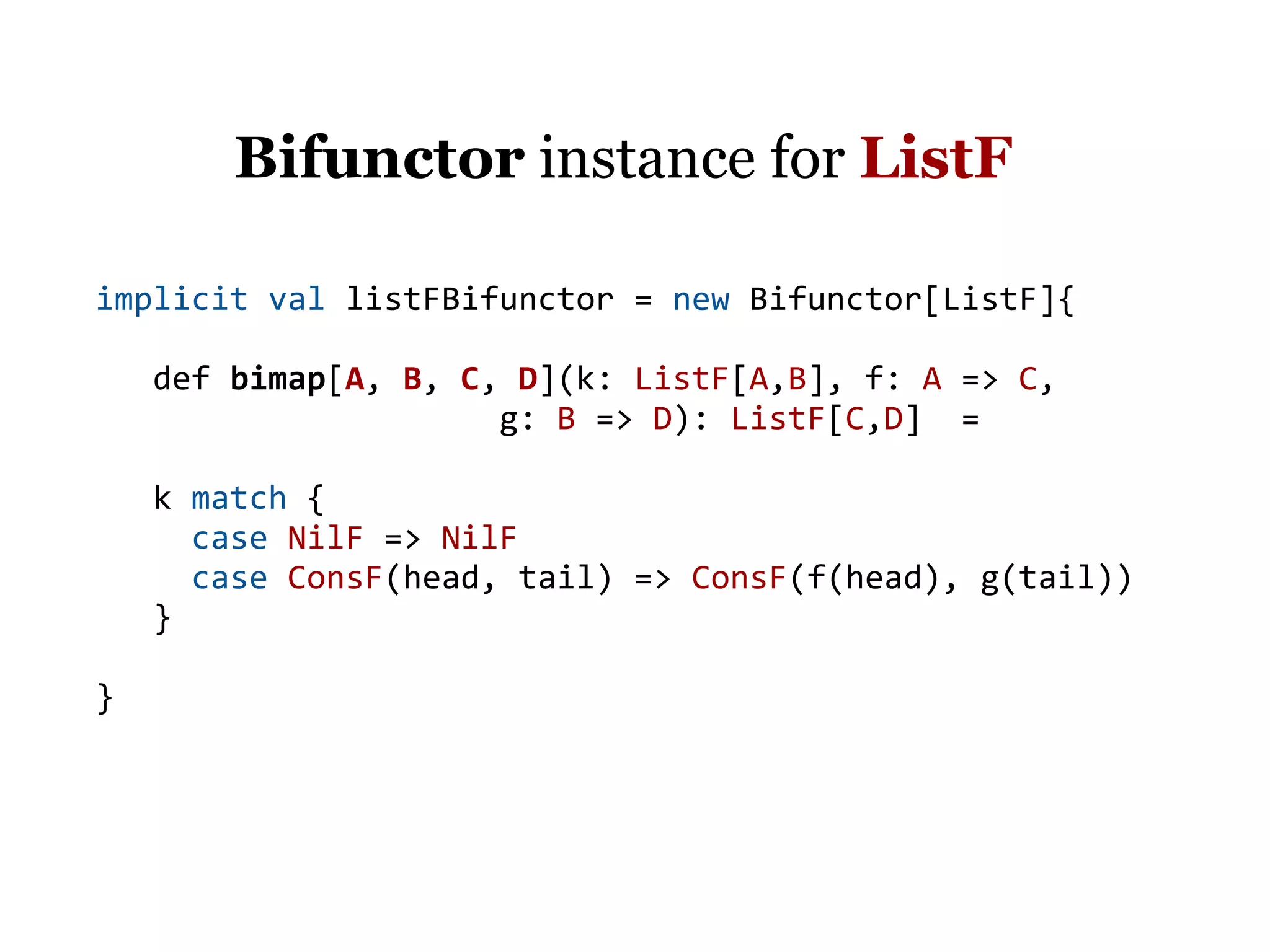

33. Bifunctor instance for ListF
implicit val listFBifunctor = new Bifunctor[ListF]{
def bimap[A, B, C, D](k: ListF[A,B], f: A => C,
g: B => D): ListF[C,D] =
k match {
case NilF => NilF
case ConsF(head, tail) => ConsF(f(head), g(tail))
}
}

34. It turns out, that a wide number of
other generic operations on data types
can be expressed via bimap!

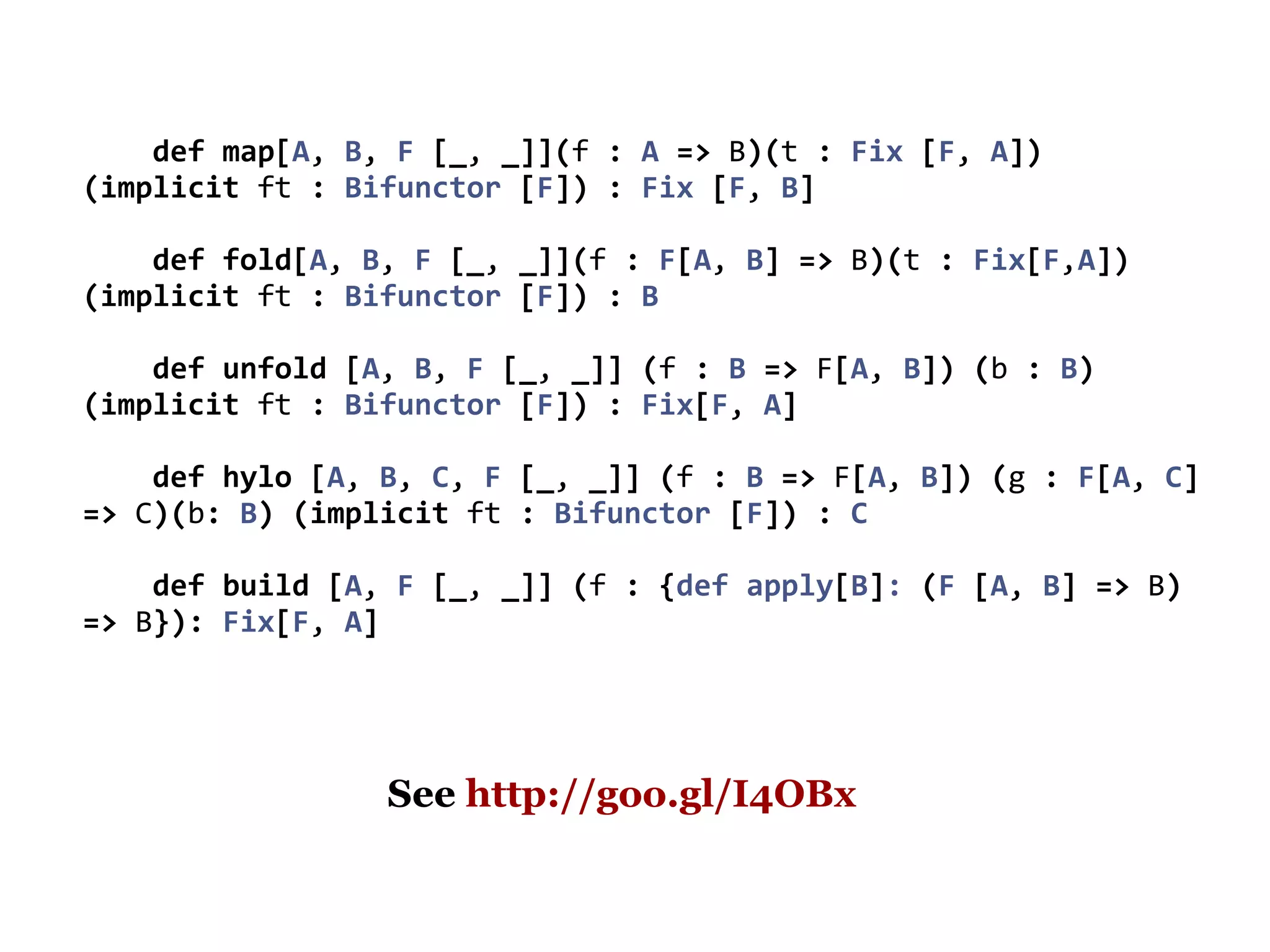

35. def map[A, B, F [_, _]](f : A => B)(t : Fix [F, A])
(implicit ft : Bifunctor [F]) : Fix [F, B]
def fold[A, B, F [_, _]](f : F[A, B] => B)(t : Fix[F,A])
(implicit ft : Bifunctor [F]) : B
def unfold [A, B, F [_, _]] (f : B => F[A, B]) (b : B)
(implicit ft : Bifunctor [F]) : Fix[F, A]
def hylo [A, B, C, F [_, _]] (f : B => F[A, B]) (g : F[A, C]
=> C)(b: B) (implicit ft : Bifunctor [F]) : C
def build [A, F [_, _]] (f : {def apply[B]: (F [A, B] => B)
=> B}): Fix[F, A]
See http://goo.gl/I4OBx

36. This approach is called
Origami patterns
• Origami patterns can be applied to generic
data types!
• Include the following GoF patterns
o Composite (algebraic data type itself)
o Iterator (map)
o Visitor (fold / hylo)
o Builder (build / unfold)

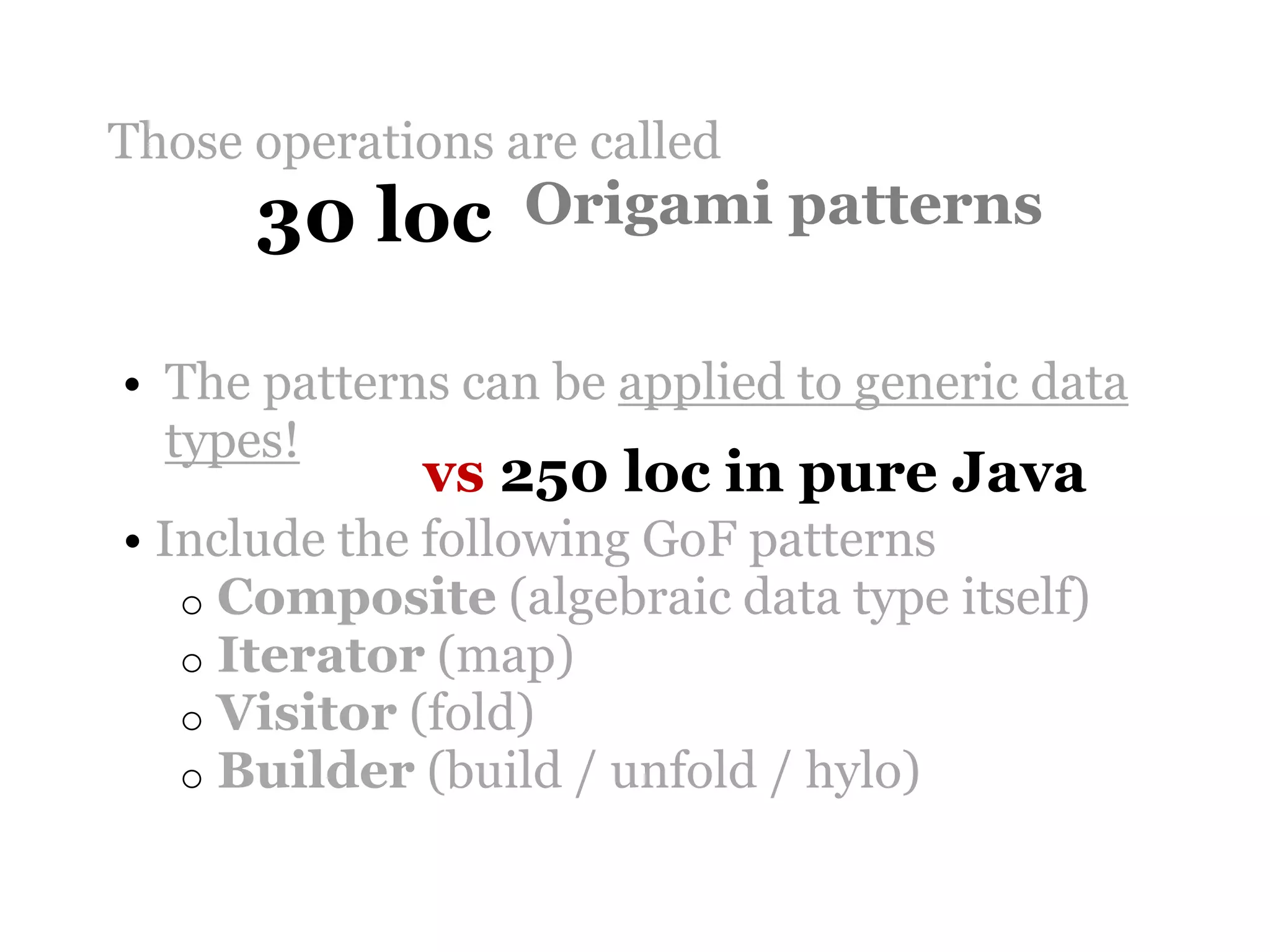

37. Those operations are called
30 loc Origami patterns
• The patterns can be applied to generic data
types!
vs 250 loc in pure Java
• Include the following GoF patterns
o Composite (algebraic data type itself)
o Iterator (map)
o Visitor (fold)
o Builder (build / unfold / hylo)

38. Live demo!
http://goo.gl/ysv5Y

39. Thanks for watching!
