The document summarizes the Makkah Royal Clock Tower in Makkah, Saudi Arabia. It is the third tallest building in the world at 1,972 feet tall. It took over 8 years to construct and faced two major fires during construction, though no injuries were reported. The clock faces are 151 feet in diameter and visible from 25 km away, illuminated by over 2 million LED lights in the colors of the Saudi flag. It is part of the King Abdul Aziz Endowment program and provides accommodation and facilities for pilgrims visiting the adjacent Masjid al-Haram mosque.

1. Rub-Nawaz Bhatti
REG # 2015-UET-CCET-CIVIL-02
CHENAB COLLEGE OF ENGINEERING &
TECHNOLOGY GUJRANWALA

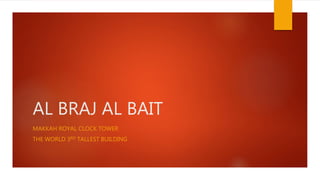

2. AL BRAJ AL BAIT
MAKKAH ROYAL CLOCK TOWER
THE WORLD 3RD TALLEST BUILDING

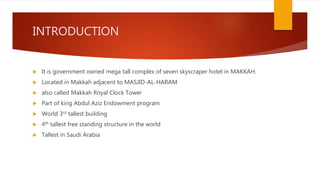

4. INTRODUCTION
 It is government owned mega tall complex of seven skyscraper hotel in MAKKAH.
 Located in Makkah adjacent to MASJID-AL-HARAM
 also called Makkah Royal Clock Tower
 Part of king Abdul Aziz Endowment program
 World 3rd tallest building
 4th tallest free standing structure in the world
 Tallest in Saudi Arabia

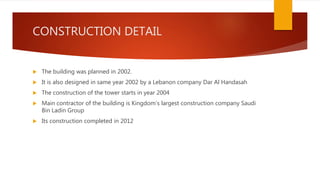

5. CONSTRUCTION DETAIL
 The building was planned in 2002.
 It is also designed in same year 2002 by a Lebanon company Dar Al Handasah
 The construction of the tower starts in year 2004
 Main contractor of the building is Kingdom’s largest construction company Saudi
Bin Ladin Group
 Its construction completed in 2012

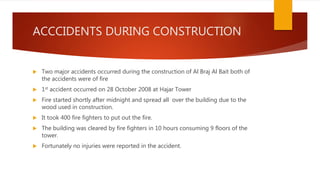

6. ACCCIDENTS DURING CONSTRUCTION
 Two major accidents occurred during the construction of Al Braj Al Bait both of
the accidents were of fire
 1st accident occurred on 28 October 2008 at Hajar Tower
 Fire started shortly after midnight and spread all over the building due to the
wood used in construction.
 It took 400 fire fighters to put out the fire.
 The building was cleared by fire fighters in 10 hours consuming 9 floors of the
tower.
 Fortunately no injuries were reported in the accident.

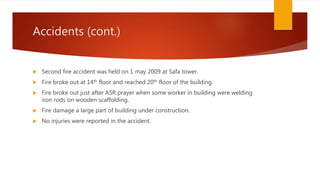

7. Accidents (cont.)
 Second fire accident was held on 1 may 2009 at Safa tower.
 Fire broke out at 14th floor and reached 20th floor of the building.
 Fire broke out just after ASR prayer when some worker in building were welding
iron rods on wooden scaffolding.
 Fire damage a large part of building under construction.
 No injuries were reported in the accident.

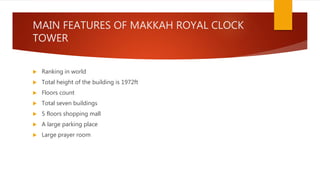

8. MAIN FEATURES OF MAKKAH ROYAL CLOCK
TOWER

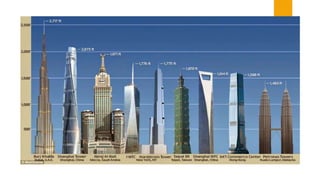

 Ranking in world
 Total height of the building is 1972ft
 Floors count
 Total seven buildings
 5 floors shopping mall
 A large parking place
 Large prayer room

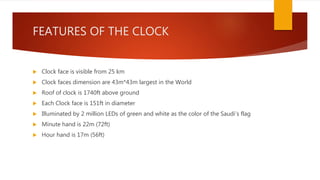

10. FEATURES OF THE CLOCK
 Clock face is visible from 25 km
 Clock faces dimension are 43m*43m largest in the World
 Roof of clock is 1740ft above ground
 Each Clock face is 151ft in diameter
 Illuminated by 2 million LEDs of green and white as the color of the Saudi’s flag
 Minute hand is 22m (72ft)
 Hour hand is 17m (56ft)

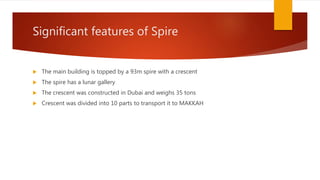

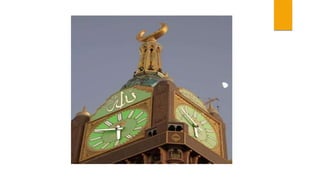

12. Significant features of Spire
 The main building is topped by a 93m spire with a crescent
 The spire has a lunar gallery
 The crescent was constructed in Dubai and weighs 35 tons
 Crescent was divided into 10 parts to transport it to MAKKAH

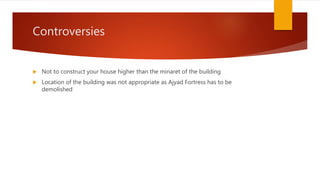

14. Controversies
 Not to construct your house higher than the minaret of the building
 Location of the building was not appropriate as Ajyad Fortress has to be
demolished

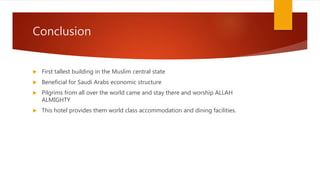

15. Conclusion
 First tallest building in the Muslim central state
 Beneficial for Saudi Arabs economic structure
 Pilgrims from all over the world came and stay there and worship ALLAH
ALMIGHTY
 This hotel provides them world class accommodation and dining facilities.
