The Burj Khalifa, located in Dubai, UAE, stands at 828 meters tall and has been the tallest building in the world since 2008. Constructed at a cost of $1.5 billion, it features innovative design inspired by the hymenocallis flower and employs advanced construction technologies, including high-pressure concrete pumping and specialized wind-resistant architecture. The building boasts numerous records, including the highest occupied floor and the world's highest elevator.

1. BURJ KHALIFA

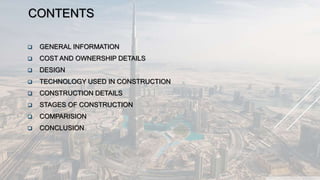

2. CONTENTS
 GENERAL INFORMATION
 COST AND OWNERSHIP DETAILS
 DESIGN
 TECHNOLOGY USED IN CONSTRUCTION
 CONSTRUCTION DETAILS
 STAGES OF CONSTRUCTION
 COMPARISION
 CONCLUSION

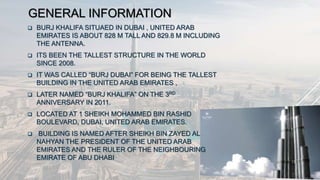

3. GENERAL INFORMATION
 BURJ KHALIFA SITUAED IN DUBAI , UNITED ARAB
EMIRATES IS ABOUT 828 M TALL AND 829.8 M INCLUDING
THE ANTENNA.
 ITS BEEN THE TALLEST STRUCTURE IN THE WORLD
SINCE 2008.
 IT WAS CALLED “BURJ DUBAI” FOR BEING THE TALLEST
BUILDING IN THE UNITED ARAB EMIRATES ,
 LATER NAMED “BURJ KHALIFA” ON THE 3RD
ANNIVERSARY IN 2011.
 LOCATED AT 1 SHEIKH MOHAMMED BIN RASHID
BOULEVARD, DUBAI, UNITED ARAB EMIRATES.
 BUILDING IS NAMED AFTER SHEIKH BIN ZAYED AL
NAHYAN THE PRESIDENT OF THE UNITED ARAB
EMIRATES AND THE RULER OF THE NEIGHBOURING
EMIRATE OF ABU DHABI

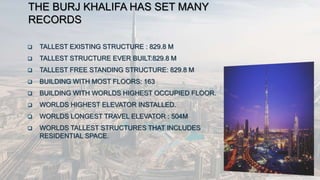

4. THE BURJ KHALIFA HAS SET MANY
RECORDS
 TALLEST EXISTING STRUCTURE : 829.8 M
 TALLEST STRUCTURE EVER BUILT:829.8 M
 TALLEST FREE STANDING STRUCTURE: 829.8 M
 BUILDING WITH MOST FLOORS: 163
 BUILDING WITH WORLDS HIGHEST OCCUPIED FLOOR.
 WORLDS HIGHEST ELEVATOR INSTALLED.
 WORLDS LONGEST TRAVEL ELEVATOR : 504M
 WORLDS TALLEST STRUCTURES THAT INCLUDES
RESIDENTIAL SPACE.

5. COST AND OWNERSHIP
 THE DISCLOSED COST OF THE ENTIRE PROJECT IS 1.5
BILLION USD.
 DESIGNED BY AR. ADRIAN SMITH AT SOM(SKIDMORE ,
OWINGS & MERRILL)
 DEVELOPER : EMAAR PROPERTIES
 STRUCTURAL ENGINEER : BILL BAKER AT SOM
 OWNED BY EMAAR PROPERTIES.

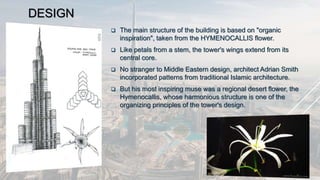

6. DESIGN
 The main structure of the building is based on "organic
inspiration", taken from the HYMENOCALLIS flower.
 Like petals from a stem, the tower's wings extend from its
central core.
 No stranger to Middle Eastern design, architect Adrian Smith
incorporated patterns from traditional Islamic architecture.
 But his most inspiring muse was a regional desert flower, the
Hymenocallis, whose harmonious structure is one of the
organizing principles of the tower's design.

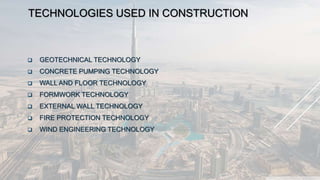

7. TECHNOLOGIES USED IN CONSTRUCTION
 GEOTECHNICAL TECHNOLOGY
 CONCRETE PUMPING TECHNOLOGY
 WALL AND FLOOR TECHNOLOGY
 FORMWORK TECHNOLOGY
 EXTERNAL WALL TECHNOLOGY
 FIRE PROTECTION TECHNOLOGY
 WIND ENGINEERING TECHNOLOGY

8. GEOTECHNICAL TECHNOLOGY
 Before the building could be constructed, two years of ground work had to
be laid, including 6 months of geotechnical investigation and testing, and
a year and a half of excavation and foundation construction.
 There were many challenges faced by the geotechnical team in the
construction of the tower.
 These included the unique architectural design of the building footprint
itself, the generally weak soil of the construction site and the overall size
of the structure, creating massive loads on the foundation.

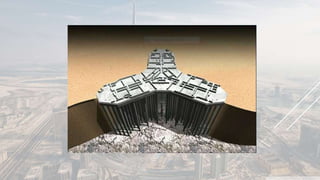

 Burj Khalifa uses a deep foundation design, consisting of both a 3.7
meter thick raft foundation and 192 bored piles.

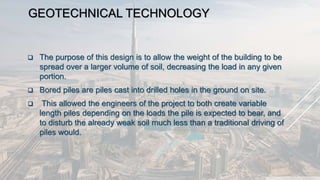

9. GEOTECHNICAL TECHNOLOGY
 The purpose of this design is to allow the weight of the building to be
spread over a larger volume of soil, decreasing the load in any given
portion.
 Bored piles are piles cast into drilled holes in the ground on site.
 This allowed the engineers of the project to both create variable
length piles depending on the loads the pile is expected to bear, and
to disturb the already weak soil much less than a traditional driving of
piles would.

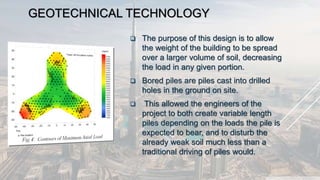

10. GEOTECHNICAL TECHNOLOGY
 The purpose of this design is to allow
the weight of the building to be spread
over a larger volume of soil, decreasing
the load in any given portion.
 Bored piles are piles cast into drilled
holes in the ground on site.
 This allowed the engineers of the
project to both create variable length
piles depending on the loads the pile is
expected to bear, and to disturb the
already weak soil much less than a
traditional driving of piles would.

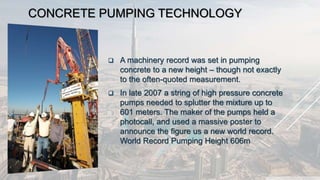

12. CONCRETE PUMPING TECHNOLOGY
 A machinery record was set in pumping
concrete to a new height – though not exactly
to the often-quoted measurement.
 In late 2007 a string of high pressure concrete
pumps needed to splutter the mixture up to
601 meters. The maker of the pumps held a
photocall, and used a massive poster to
announce the figure us a new world record.
World Record Pumping Height 606m

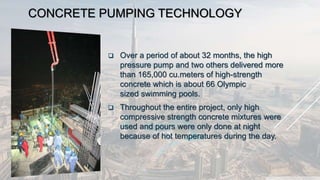

13. CONCRETE PUMPING TECHNOLOGY
 Over a period of about 32 months, the high
pressure pump and two others delivered more
than 165,000 cu.meters of high-strength
concrete which is about 66 Olympic
sized swimming pools.
 Throughout the entire project, only high
compressive strength concrete mixtures were
used and pours were only done at night
because of hot temperatures during the day.

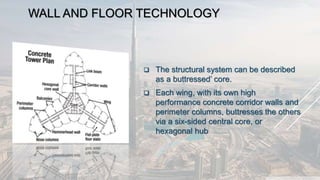

14. WALL AND FLOOR TECHNOLOGY
 The structural system can be described
as a buttressed’ core.
 Each wing, with its own high
performance concrete corridor walls and
perimeter columns, buttresses the others
via a six-sided central core, or
hexagonal hub

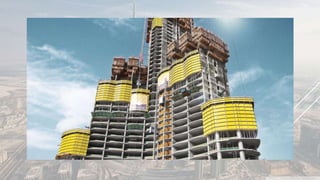

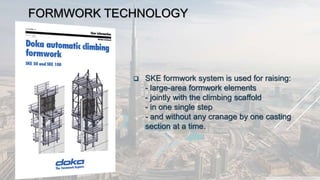

15. FORMWORK TECHNOLOGY
 SKE formwork system is used for raising:
- large-area formwork elements
- jointly with the climbing scaffold
- in one single step
- and without any cranage by one casting
section at a time.

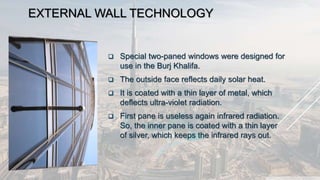

17. EXTERNAL WALL TECHNOLOGY
 Special two-paned windows were designed for
use in the Burj Khalifa.
 The outside face reflects daily solar heat.
 It is coated with a thin layer of metal, which
deflects ultra-violet radiation.
 First pane is useless again infrared radiation.
So, the inner pane is coated with a thin layer
of silver, which keeps the infrared rays out.

18. EXTERNAL WALL TECHNOLOGY

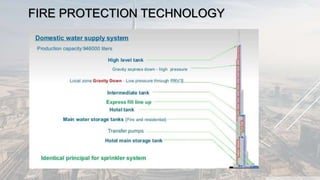

19. FIRE PROTECTION TECHNOLOGY

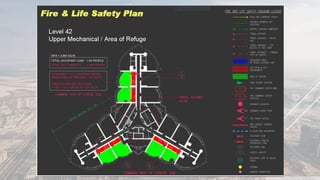

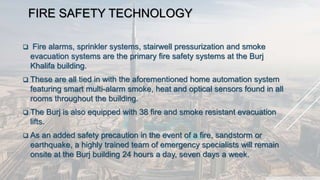

20. FIRE SAFETY TECHNOLOGY
 Fire alarms, sprinkler systems, stairwell pressurization and smoke
evacuation systems are the primary fire safety systems at the Burj
Khalifa building.
 These are all tied in with the aforementioned home automation system
featuring smart multi-alarm smoke, heat and optical sensors found in all
rooms throughout the building.
 The Burj is also equipped with 38 fire and smoke resistant evacuation
lifts.
 As an added safety precaution in the event of a fire, sandstorm or
earthquake, a highly trained team of emergency specialists will remain
onsite at the Burj building 24 hours a day, seven days a week.

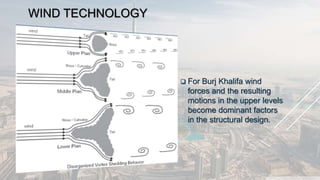

23. WIND TECHNOLOGY
 For Burj Khalifa wind
forces and the resulting
motions in the upper levels
become dominant factors
in the structural design.

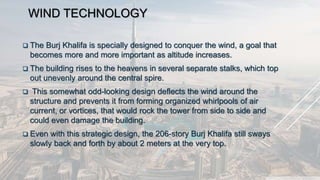

24. WIND TECHNOLOGY
 The Burj Khalifa is specially designed to conquer the wind, a goal that
becomes more and more important as altitude increases.
 The building rises to the heavens in several separate stalks, which top
out unevenly around the central spire.
 This somewhat odd-looking design deflects the wind around the
structure and prevents it from forming organized whirlpools of air
current, or vortices, that would rock the tower from side to side and
could even damage the building.
 Even with this strategic design, the 206-story Burj Khalifa still sways
slowly back and forth by about 2 meters at the very top.

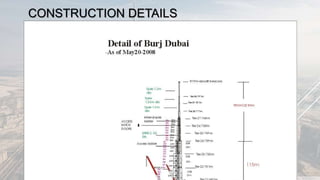

25. CONSTRUCTION DETAILS

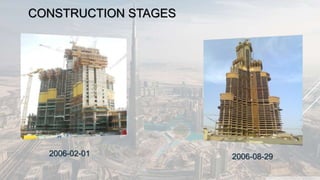

31. CONSTRUCTION STAGES
2006-02-01 2006-08-29

32. CONSTRUCTION STAGES
2006-11-11 2007-01-02

33. CONSTRUCTION STAGES
2007-08-09 2007-08-03

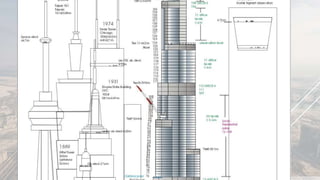

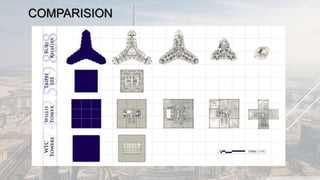

34. COMPARISION

35. COMPARISION

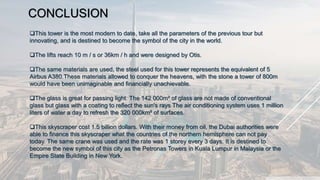

36. CONCLUSION
This tower is the most modern to date, take all the parameters of the previous tour but
innovating, and is destined to become the symbol of the city in the world.
The lifts reach 10 m / s or 36km / h and were designed by Otis.
The same materials are used, the steel used for this tower represents the equivalent of 5
Airbus A380.These materials allowed to conquer the heavens, with the stone a tower of 800m
would have been unimaginable and financially unachievable.
The glass is great for passing light. The 142 000m² of glass are not made of conventional
glass but glass with a coating to reflect the sun's rays The air conditioning system uses 1 million
liters of water a day to refresh the 320 000km² of surfaces.
This skyscraper cost 1.5 billion dollars. With their money from oil, the Dubai authorities were
able to finance this skyscraper what the countries of the northern hemisphere can not pay
today. The same crane was used and the rate was 1 storey every 3 days. It is destined to
become the new symbol of this city as the Petronas Towers in Kuala Lumpur in Malaysia or the
Empire State Building in New York.
